Details

Exterior Details

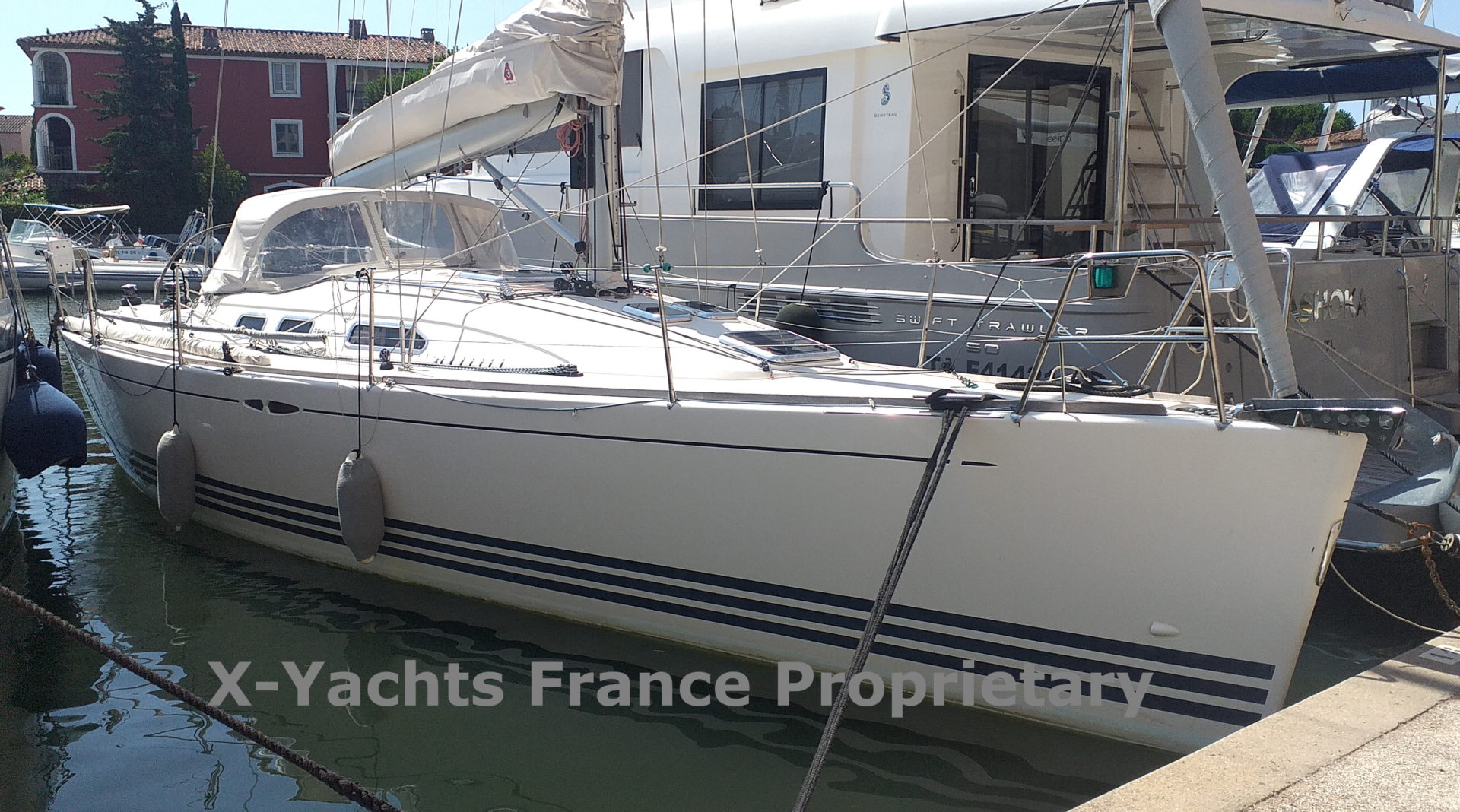

Hull

• Built in sandwich with polyester resin n construction with structural foam core,
• Bi-directional and uni directional E-glass
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Structural bulkhead in marine plywood varying of thickness from 9-22 mm.
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads
• from keel, mast and rigging
• • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue
• waterlines
• • Single point hoist for easy and safe lifting and launching of the yacht
• • Structural bulkheads laminated to hull
• • Hull recessed portlights - (2 pcs)
• • Sport keel 2.30m with heavy bulb draftmade of antimony hardened lead bulb
• bolted and glued to cast iron fin
• • Keel securely bolted to reinforced keel structure
• • Deck built in sandwich construction with structural foam and bi and unidirectional
• E – Glass cloth, white gelcoat
• • Rudder blade of sandwich construction laminated
• • Rudder stock constructed of solid, high aluminium with welded wings
• • Rudder stock mounted with needle and self aligning bearings
• • Steering system with from « JEFA » , with gear box directly mounted on the
• sector of helml

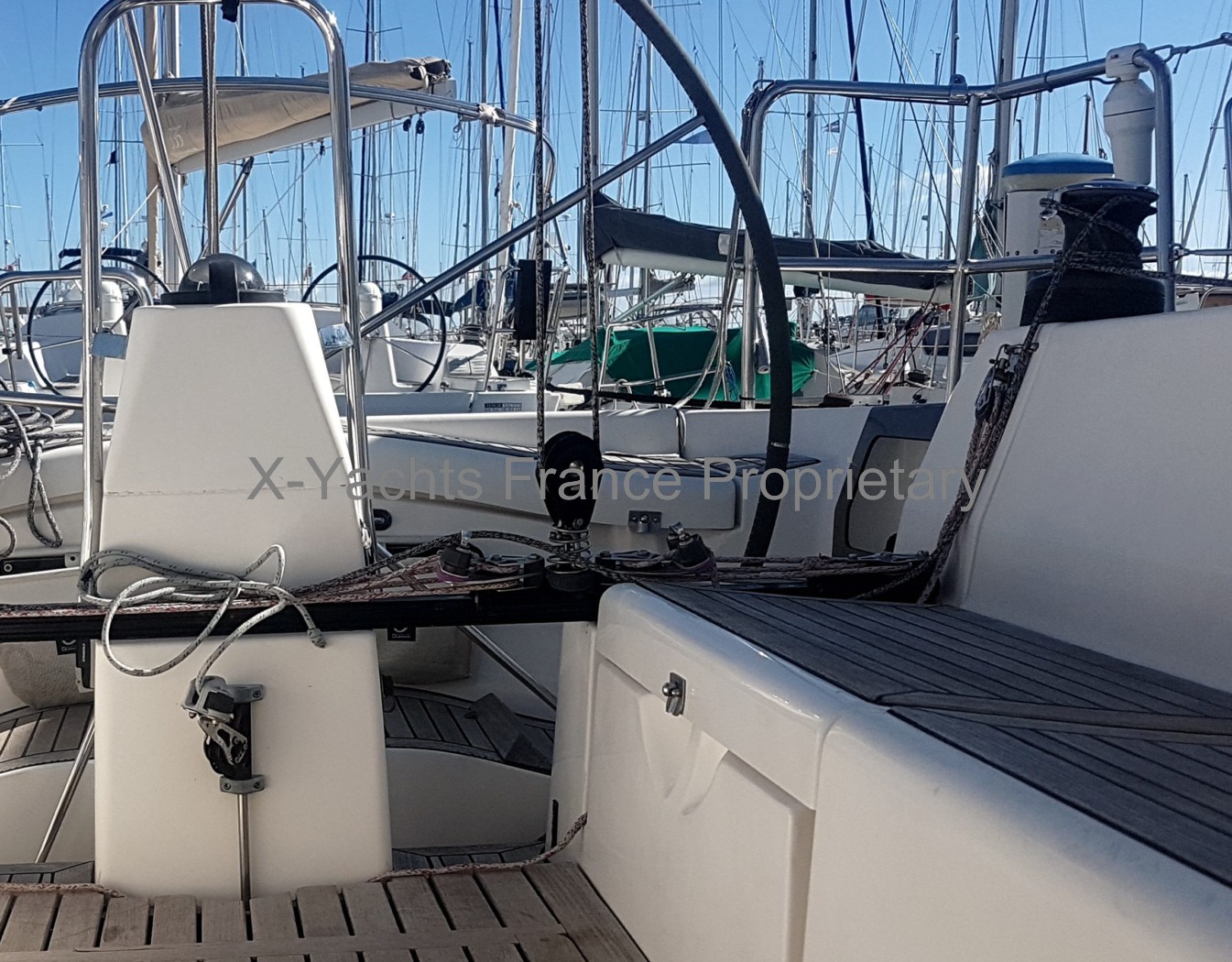

• • Stainless steel steering wheel 1,70 m diameter with leather sheathing .
• New antifoulling August 2021

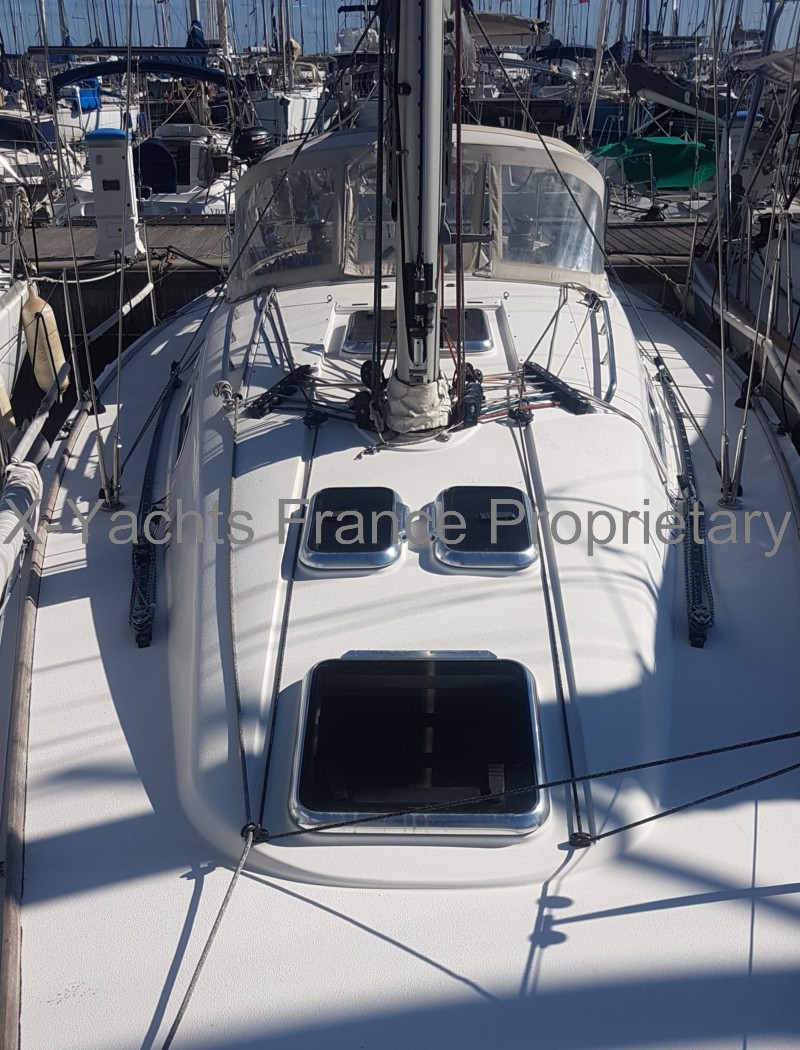

Deck

• Non skid White gelcoat on the deck
• Sprayhood with opening window
• Electric windlass LOFRANS with wireless remote control
• CASAMARE foldaway cockpit table

Sail Handling

• • HARKEN Performa 2x 48.2 primary winches
• • HARKEN Performa 2 x 40.2 for Geman Mainsheet system
• • HARKEN Performa 2 x 40.2 for halyards ,
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Code 0 fixed point

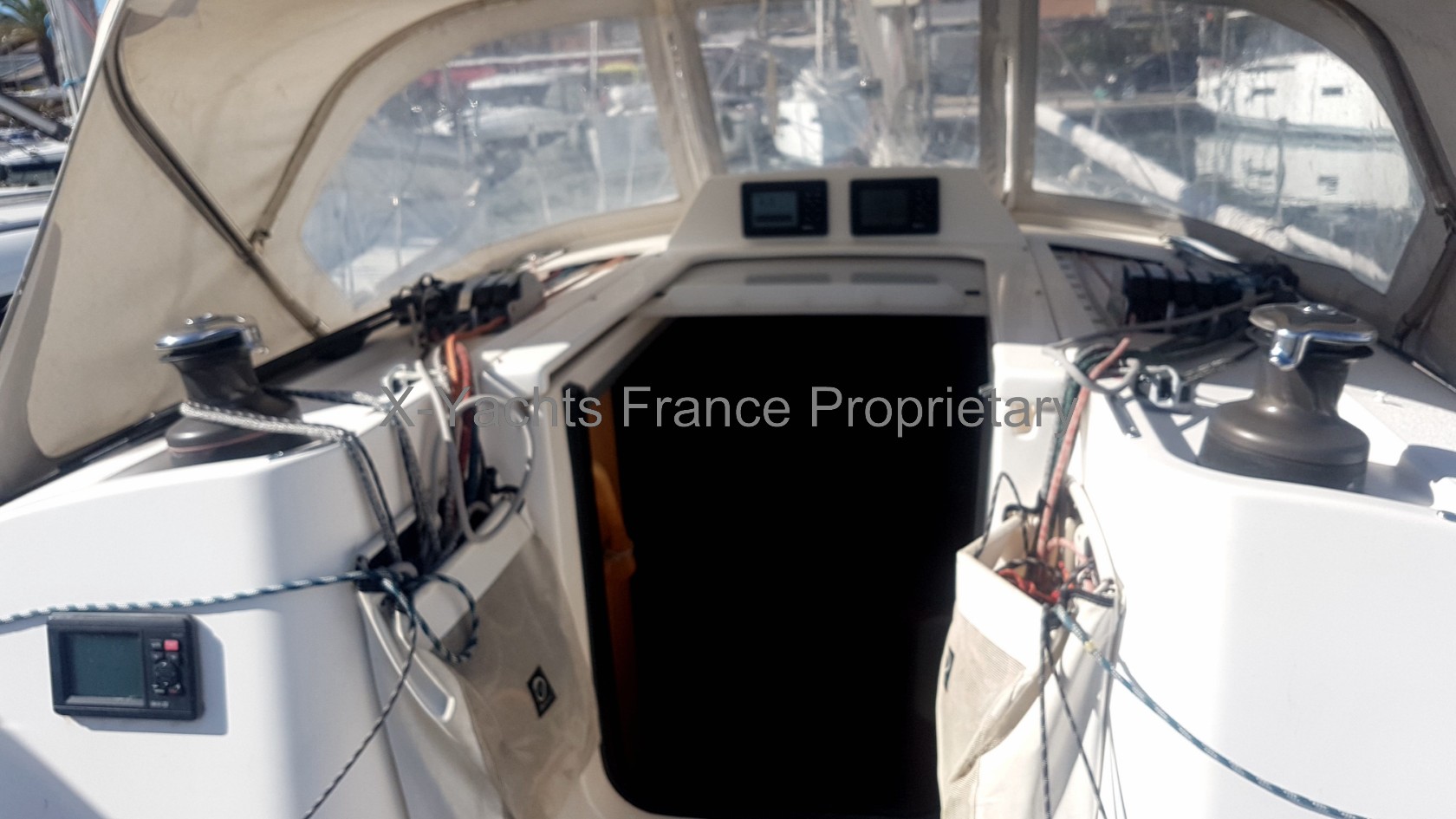

• • Sprayhood with opening window

Sails

• Main cruising PENTEX Taffetas gris 2 ris
• ◦ Genoa 130% cruising PENTEX Taffetas (like new)
• ◦ Strormjibe

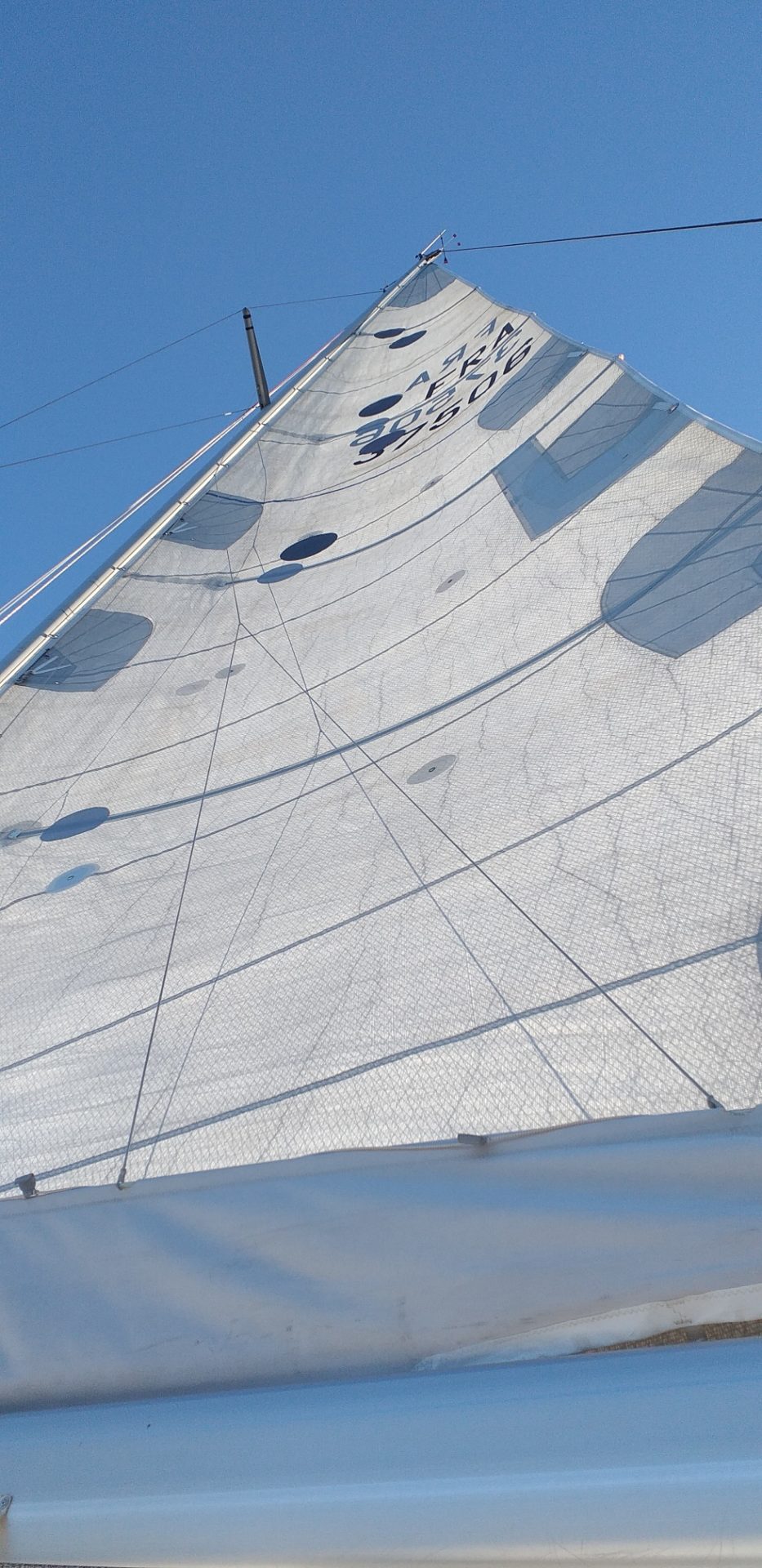

• ◦ Main racing membrane Mylar Carbone 2016
• ◦ J1 110 % membrane Mylar Carbone 2018 like new
• ◦ J2 110% membrane Mylar Carbone 2017 Good
• ◦ J3 1 ris membrane Mylar Carbone
• ◦ S1 0.5 2018 like new
• ◦ S2 0.90 2014 used
• ◦ C0 CZ with furler 2019 Good

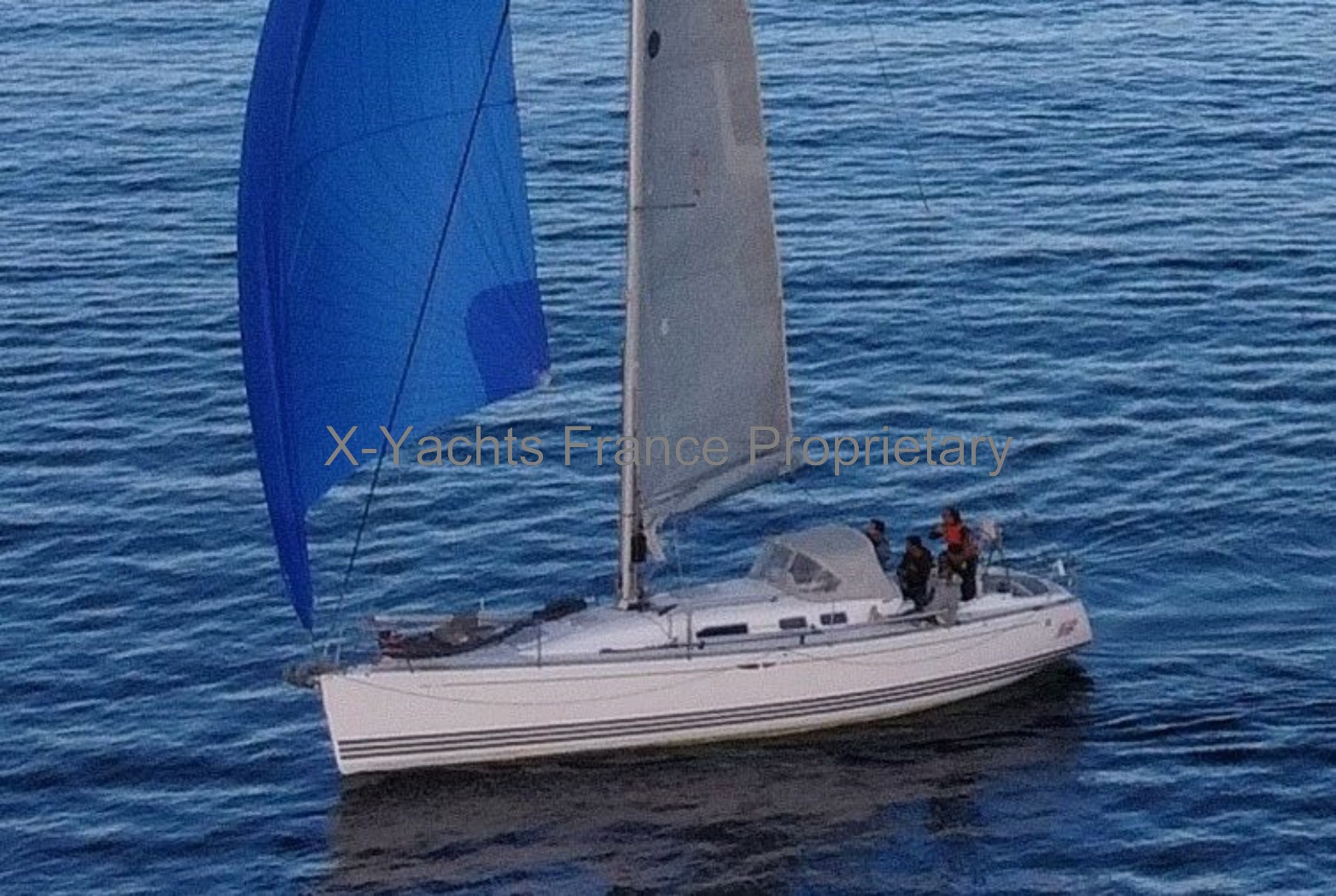

• ◦ Spinnaker medium 0.75 oz asymétrique

Mast & Rigging

• • Mast and boom aluminium JOHN MAST 2 speaders
• • Rod Rigging checked 2014
• • Dyform forestay 2017
• • Backstay with Magic weehl and control line in the cockpit
• • Symetric spinnaker hardware and rigging with carbon boom

Keel

• Sport keel 2.30 m with heavy bulb

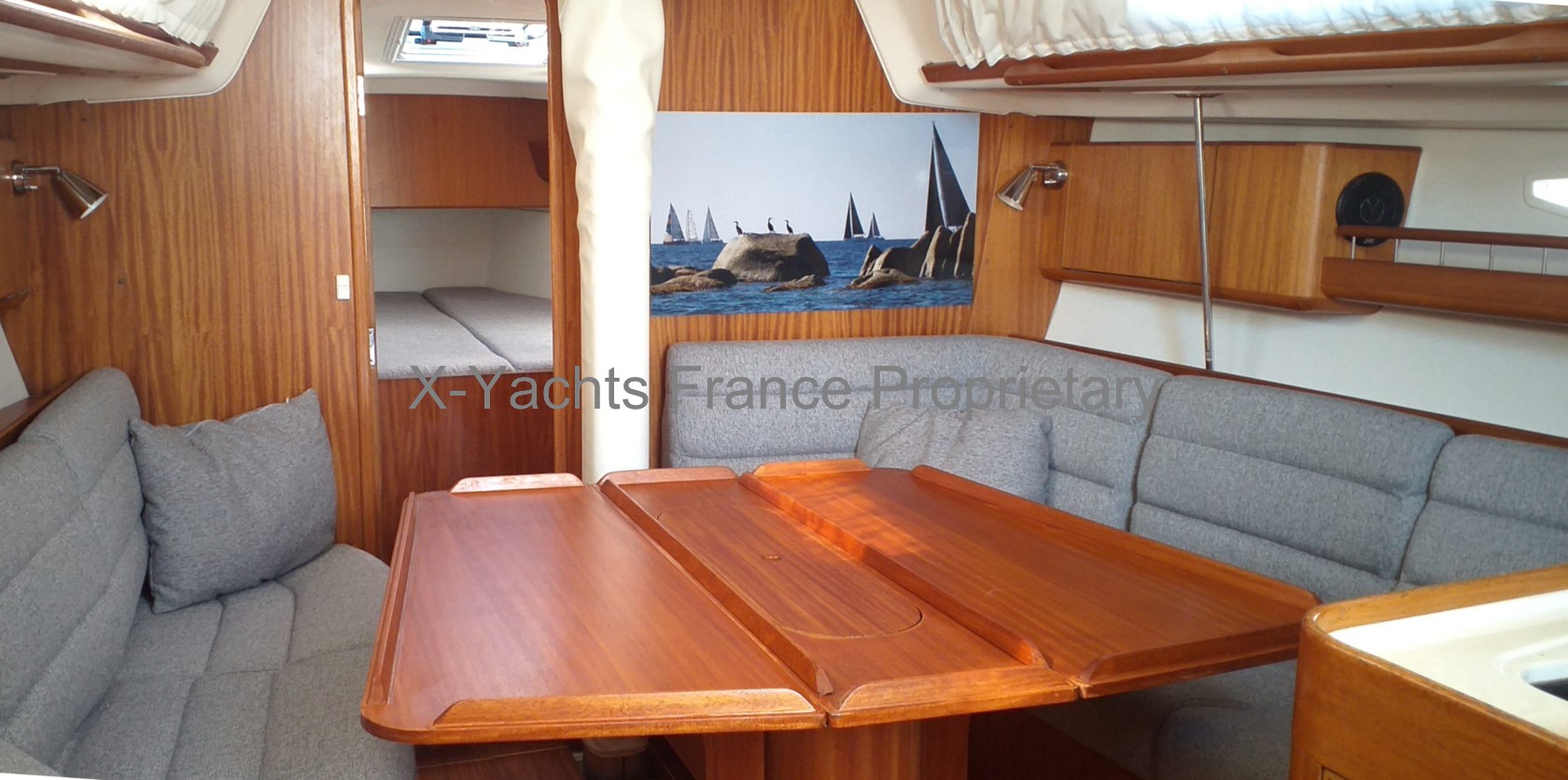

Accommodation

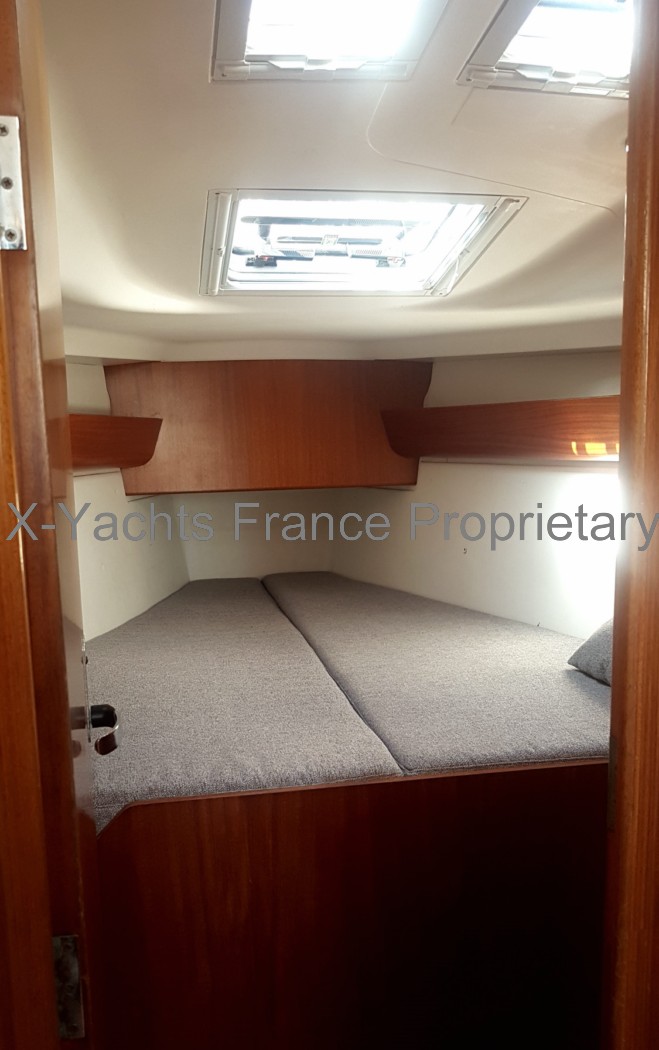

2 Cabins layout

• Mahogany wood inside. New upolstery 2020, and new matellass in owners cabin

Systems

Engine

• YANMAR 3 YM 30 with folding propeller 2 blades FLEXOFOLD 2018
• Saildtive rubber seal replaced 2020

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank (172 litre)
• • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or
• immersion heater connected to shore power
• • Holding tank, for botht toiletts and deck outlet
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Deck shower
• • Fridge top opened 105 l built in Isotherm SP, accumulator plate and compressor

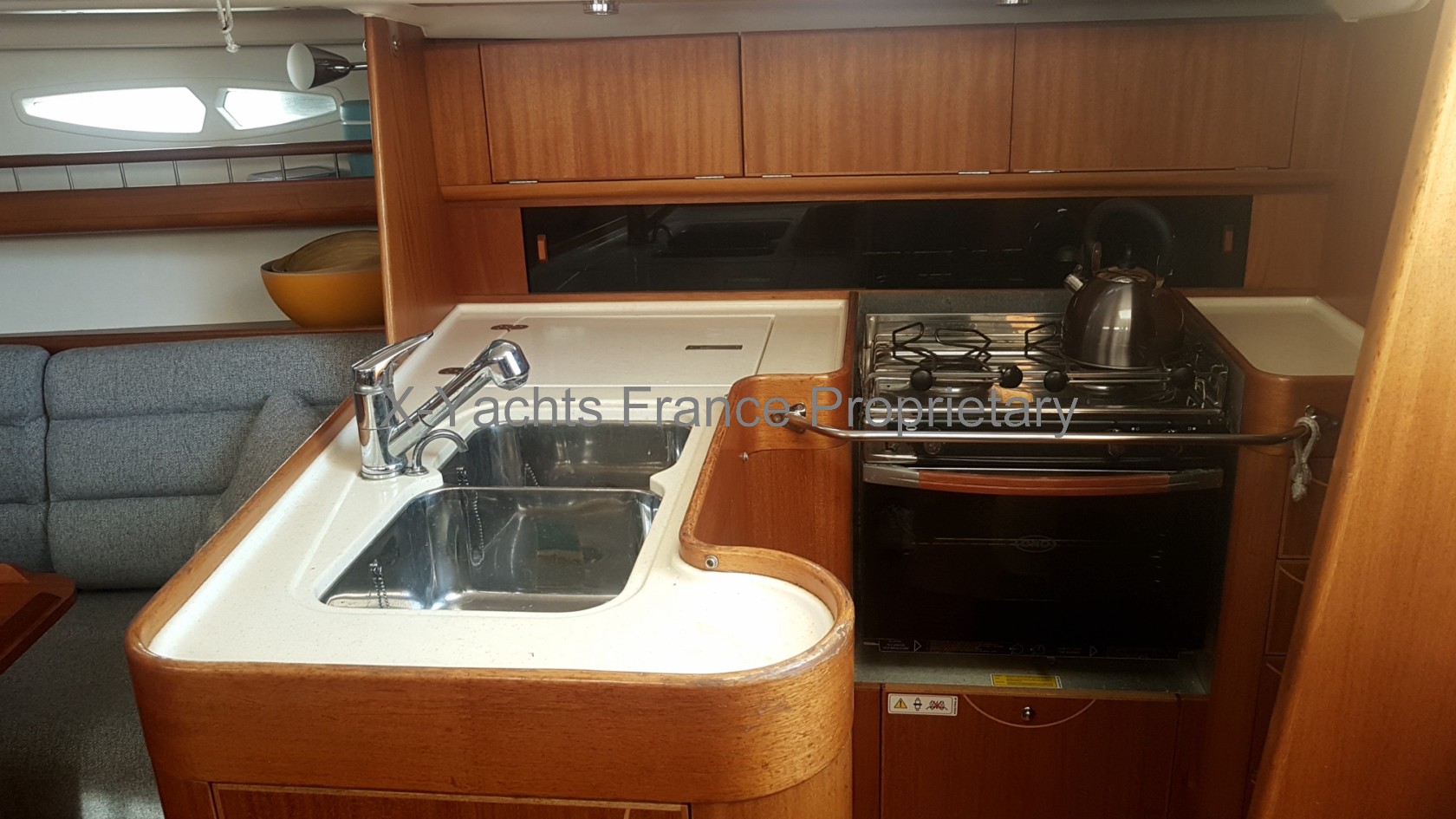

• • 2020 Gimballed Gas cooker - 2 burner Eno GASCOGNEcooker with oven

Electrical

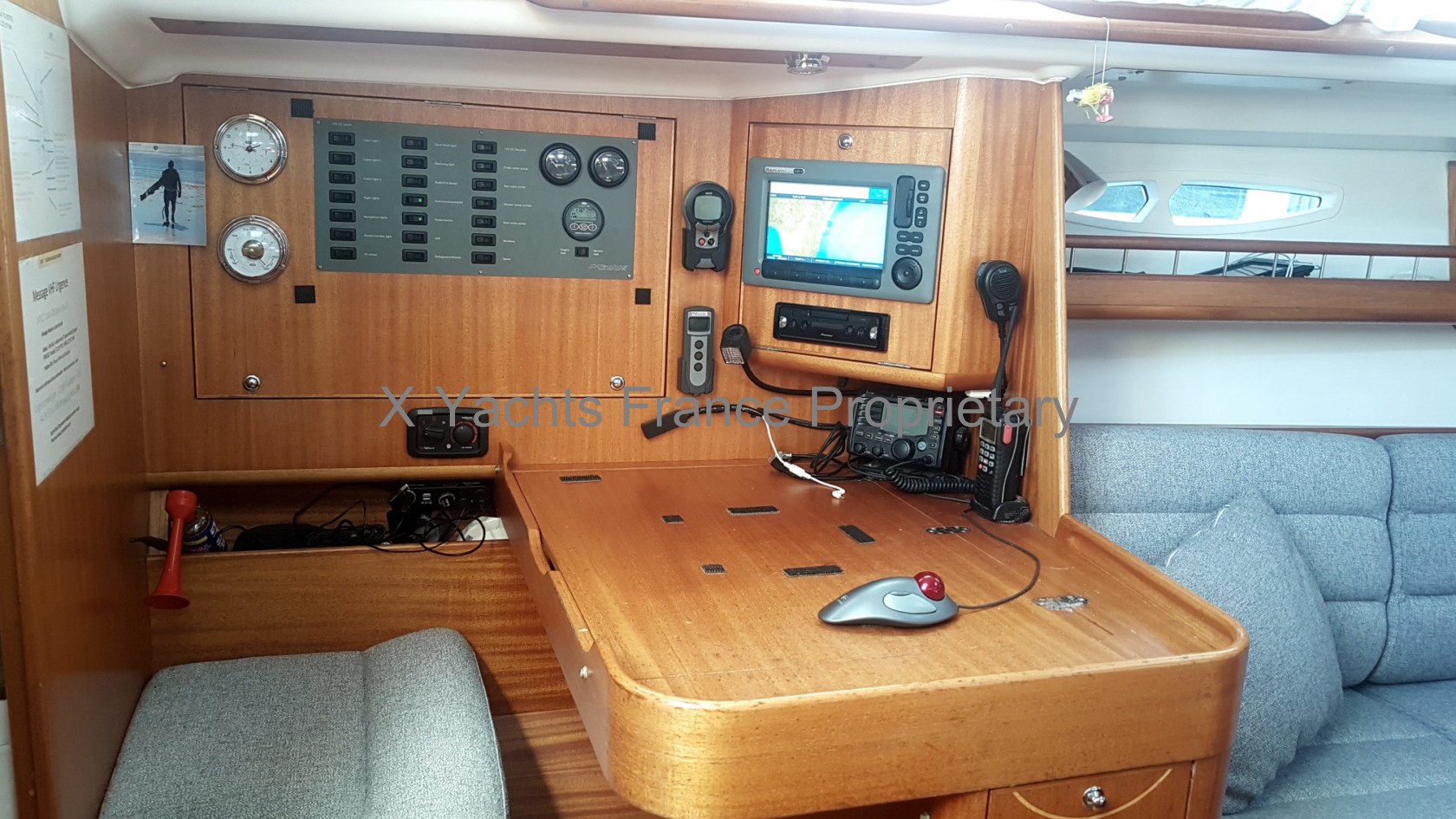

• • Main switch board with 20 automatic fuses and 3 analogue VDO meters for fuel,
• water and battery voltage
• • Gervices batteries 2 x 108 amp
• • 2020 Separate engine spiral-cell battery
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater and battery charger
• • MASTERVOLT automatic battery charger 12V/25 A
• • WEBASTO Heater 2017

Electronics

• ◦ B&G H3000 Electronic
• ◦ Auro pilot B&;G with JEFA (2020factory service) drive unit Halcyon Compass
• ◦ 2x Autopilot display in the cockpit
• ◦ 1 Auto pilot Remote control
• ◦ Log- Speed- Deepth - Wind sensors
• ◦ 3 x 20/20 on mast bracket
• ◦ 2 x GFD display on the coach roof
• ◦ Chart plotter RAYMARINE C90 W on the chart table
• ◦ Wifi Multilink for computer
• ◦ VHF ICOM
• ◦ Radio CD
• ◦ HP Bose 131 dans le cockpit
