X-46

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X-46
  • Build Number: 47
  • Build Year: 2006
  • Lying: Almere, Netherlands
  • Price: Sold
  • Dealer: X-Yachts Netherlands
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email: info@x-yachts.nl
X-46

Sold

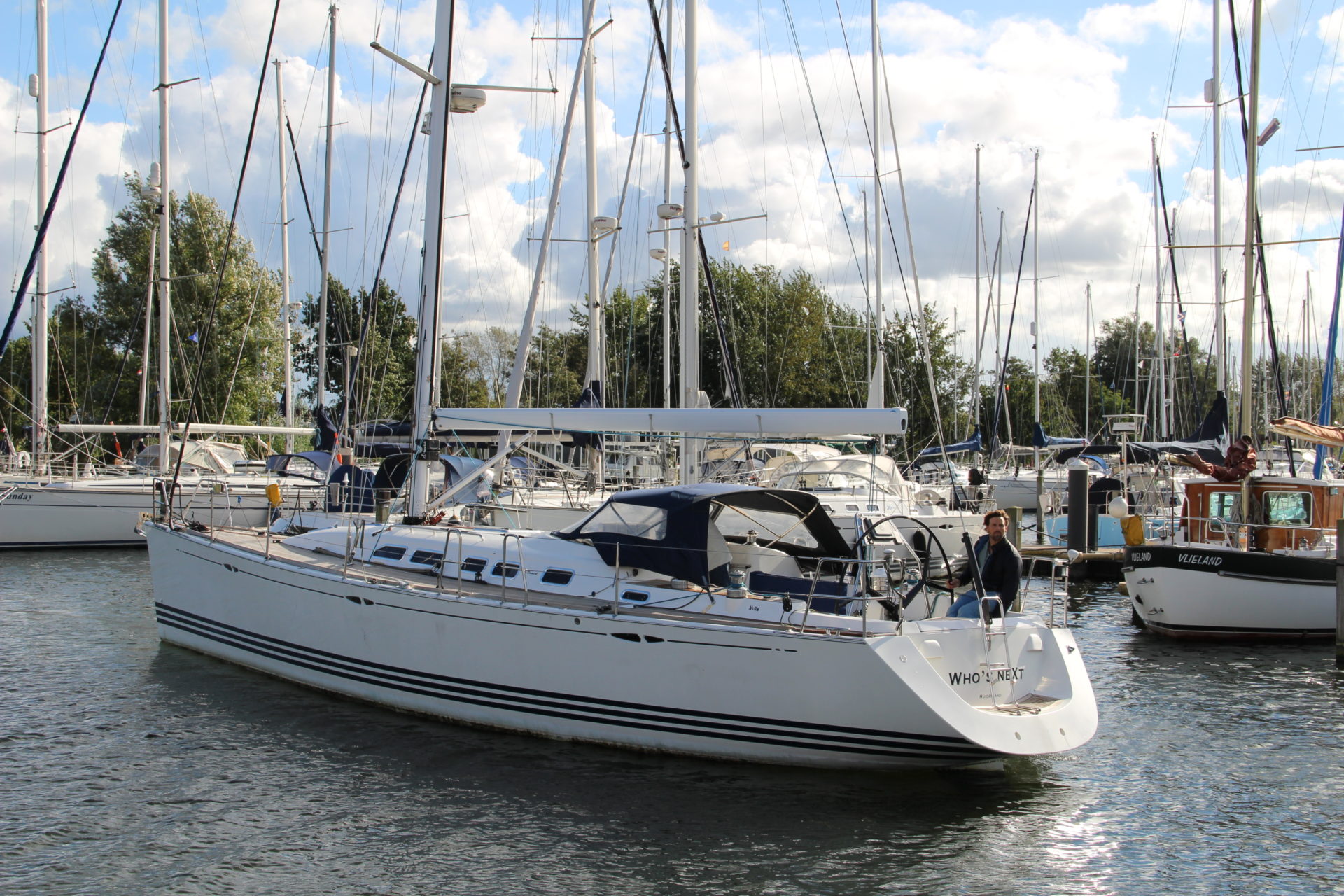

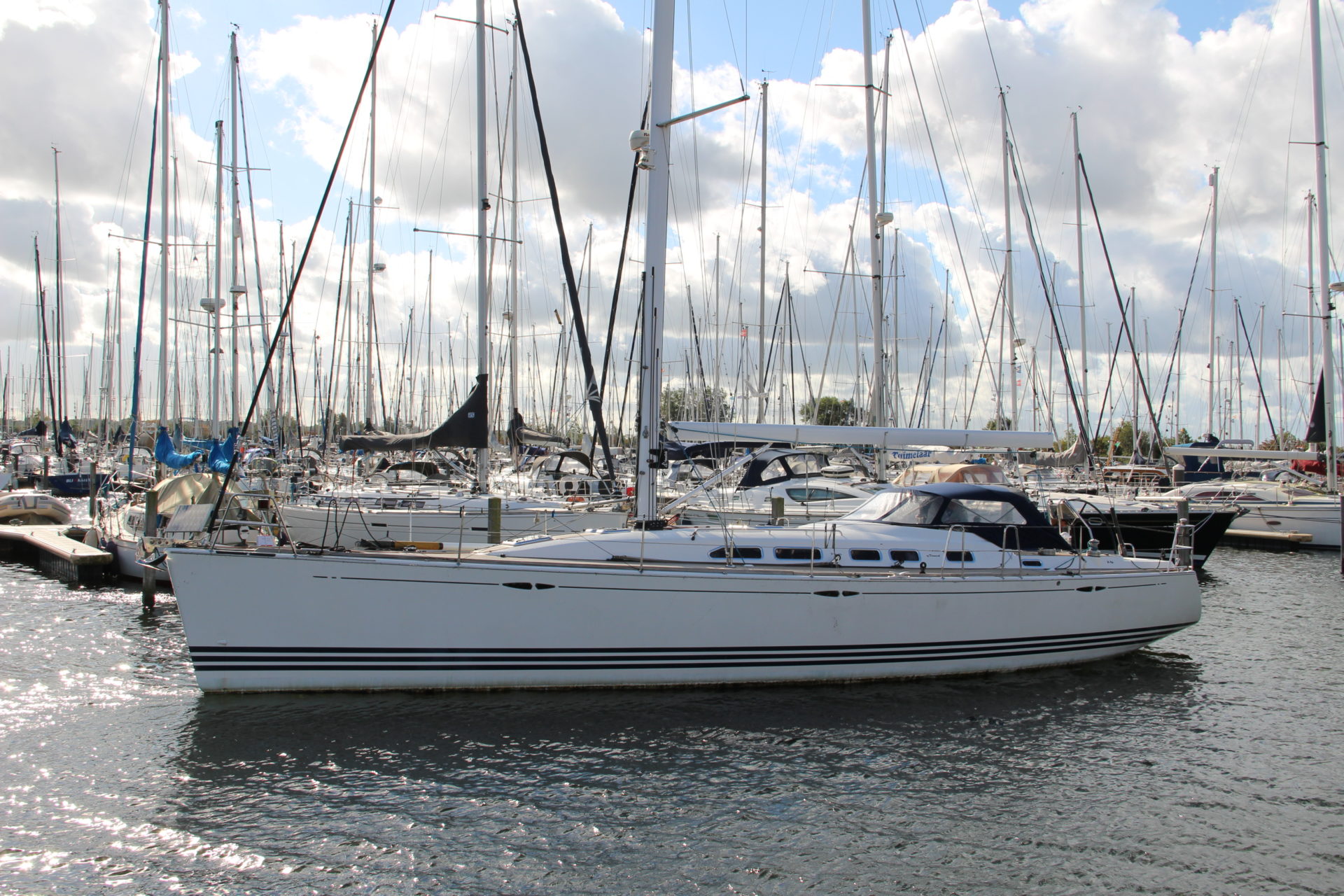

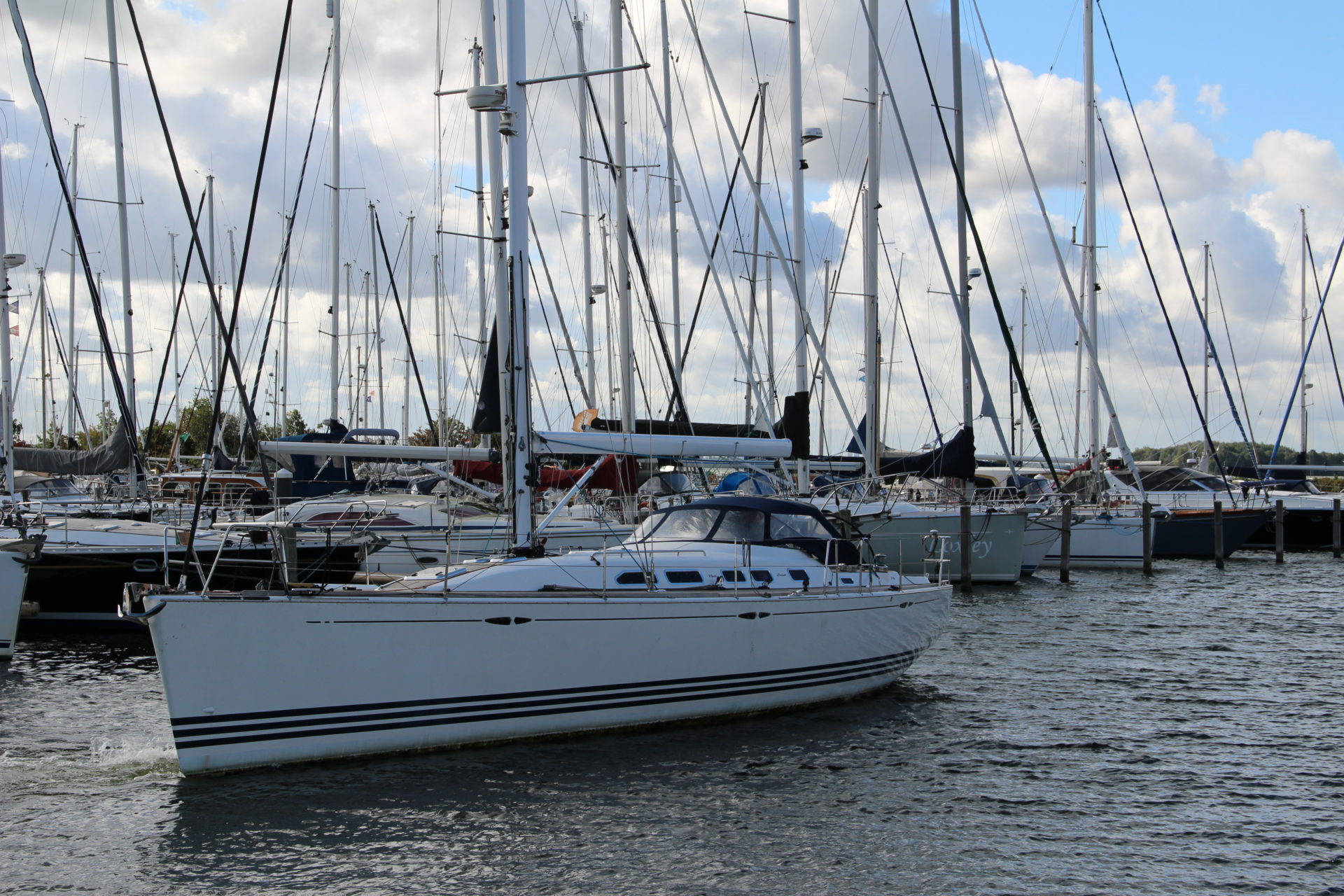

This X-46 is new on the market, and with teak decks and white painted mast she is a head-turner. Add to that an impressive sail wardrobe and multiple electric winches, she will certainly not disappoint the enthusiast sailor.

Owner's Comments

Besides yearly winter storage on shore including anitfouling maintenance and polishing of hull and topsides, some of the more major recent maintenance investments included:

2017:

Cleaning of diesel tank
Installation of filter with water separator
Rod rigging replaced

2019:

Mast, boom and spinnaker pole re-painted white
Non-skid on coachroof refurbished
Teak deck sanded
Interior floorboards sanded down and re-varnished
Service batteries replaced
Starter battery replaced

2021:

Cockpit table replaced, including cover
Bowthruster refurbished
Gas system checked and hoses replaced
Fire extinguishers replaced
New antifouling in October

Standard Specification

DesignerNiels Jeppesen
Hull Length14.01 m46'0"
Waterline Length12.03 m39'6"
Beam (max)4.15 m13'7"
Draft2.40 m7'10"
Ballast - Std4,500 kg9,921 lbs
Displacement - Light10,400 kg22,928 lbs
Engine Power41 kW56 hp

Standard X-46 brochure

Details

Exterior Details

Hull

  • Hull: White RAL 9010
  • Water lines: Blue RAL 5011
  • Retractable Bow thruster – Max Power VIP 150 (refurbished 2021)
  • Additional 358kg lead in keel

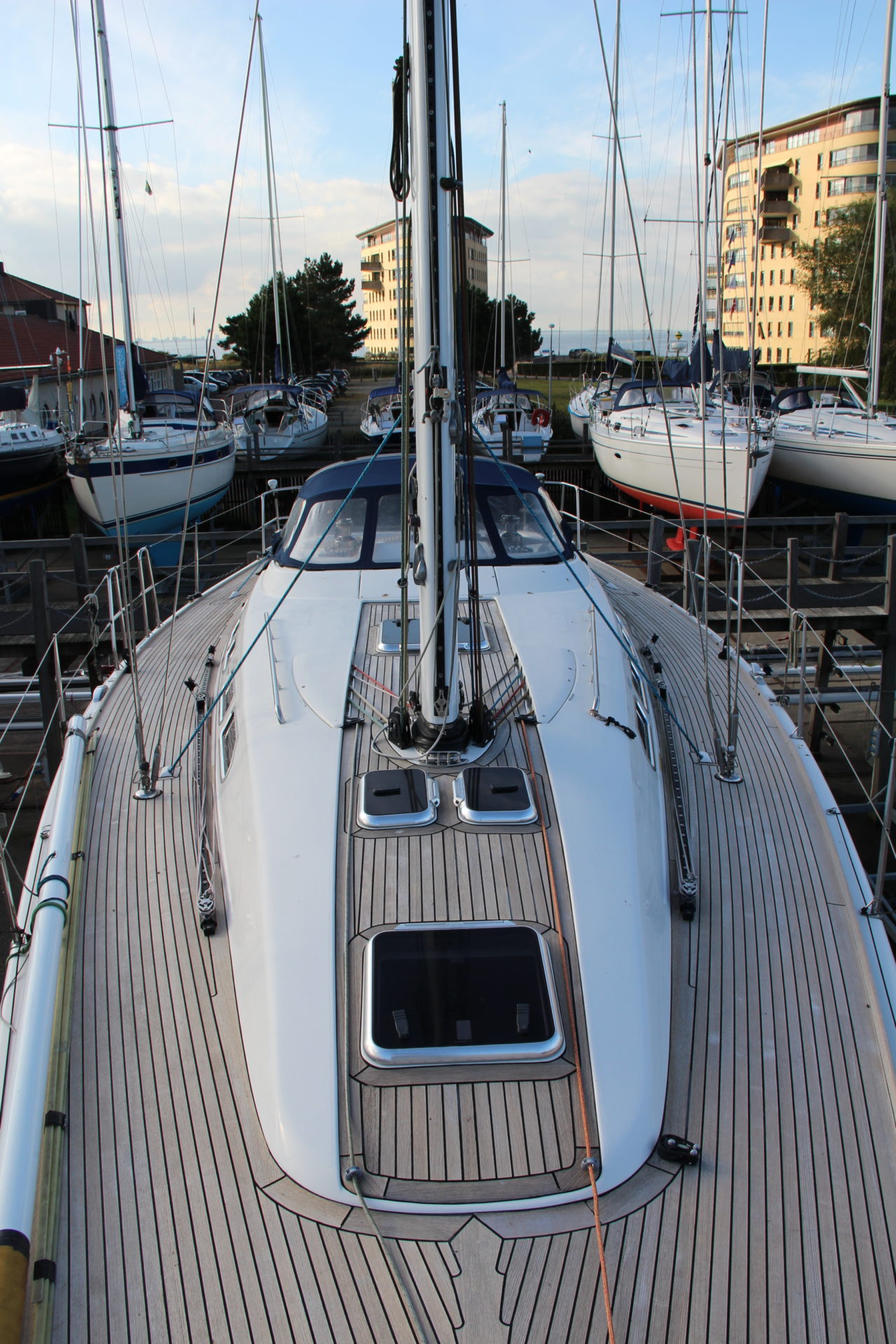

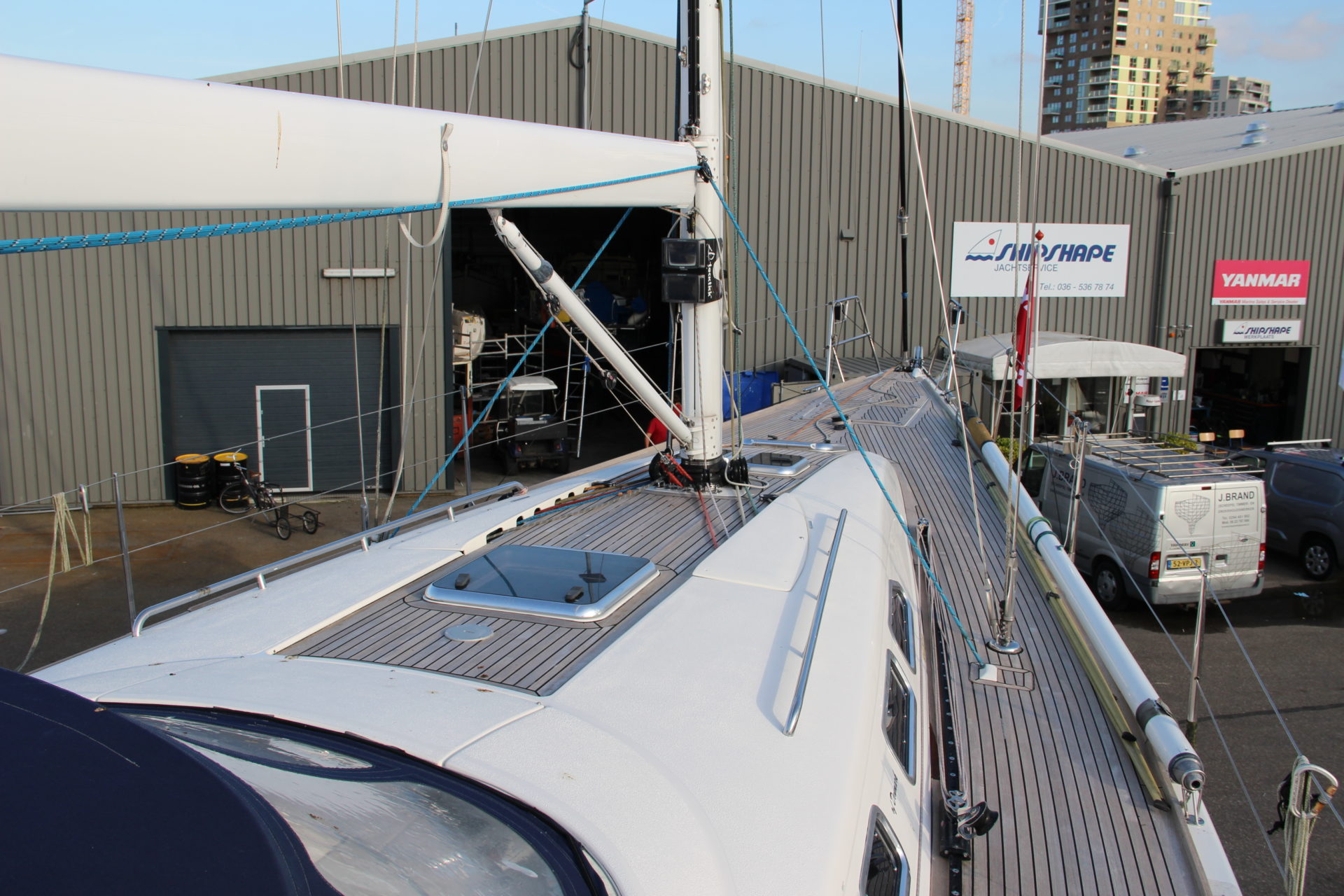

Deck

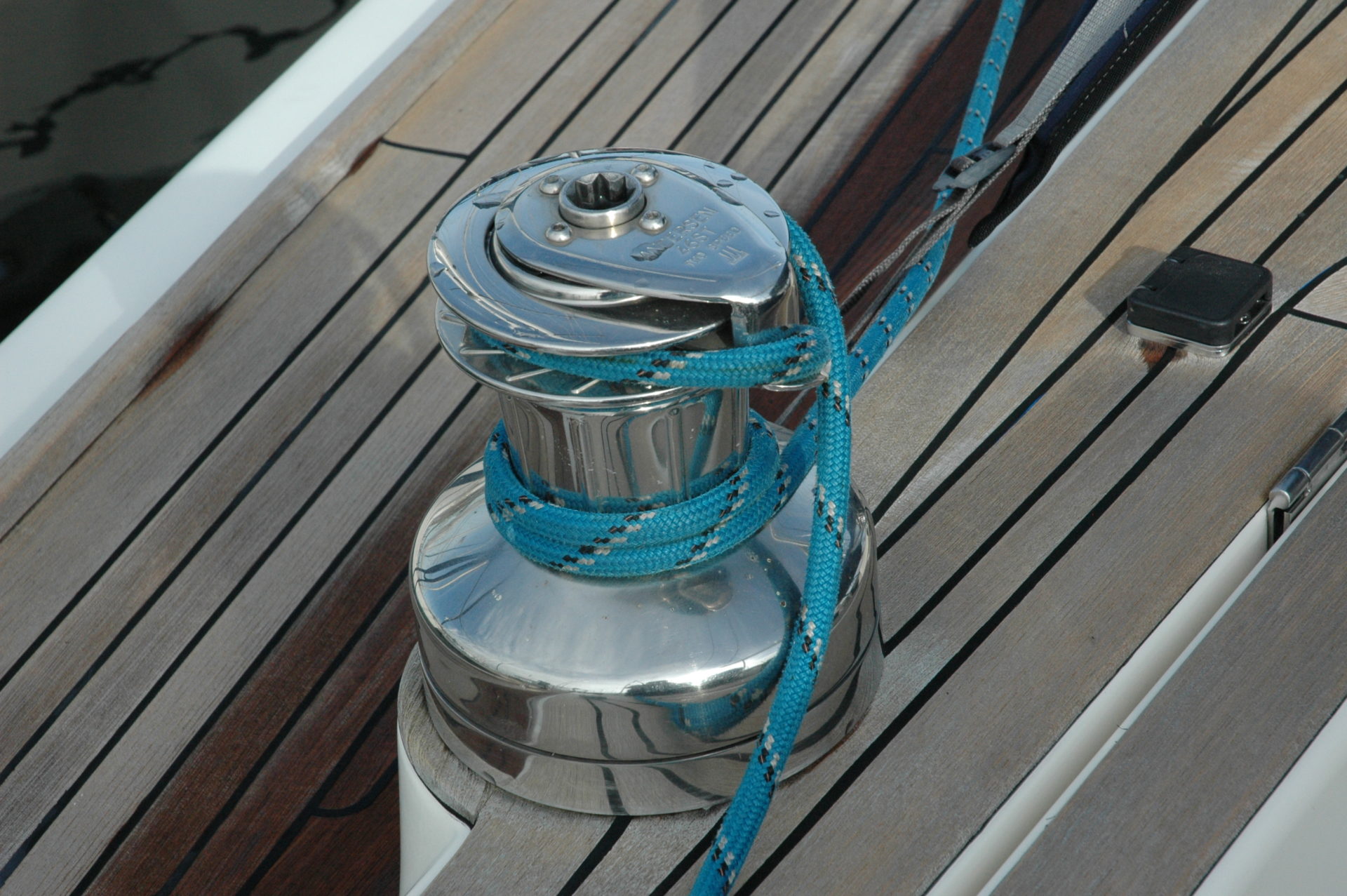

  • 2 x electrical Andersen 58 ST genoa winches
  • 2 x electrical Andersen 46 ST mainsheet winches
  • 1 x Andersen 46 ST halyard winch starboard side
  • 1 x electrical Andersen 46 ST halyard winch port side
  • Spinnaker deck gear

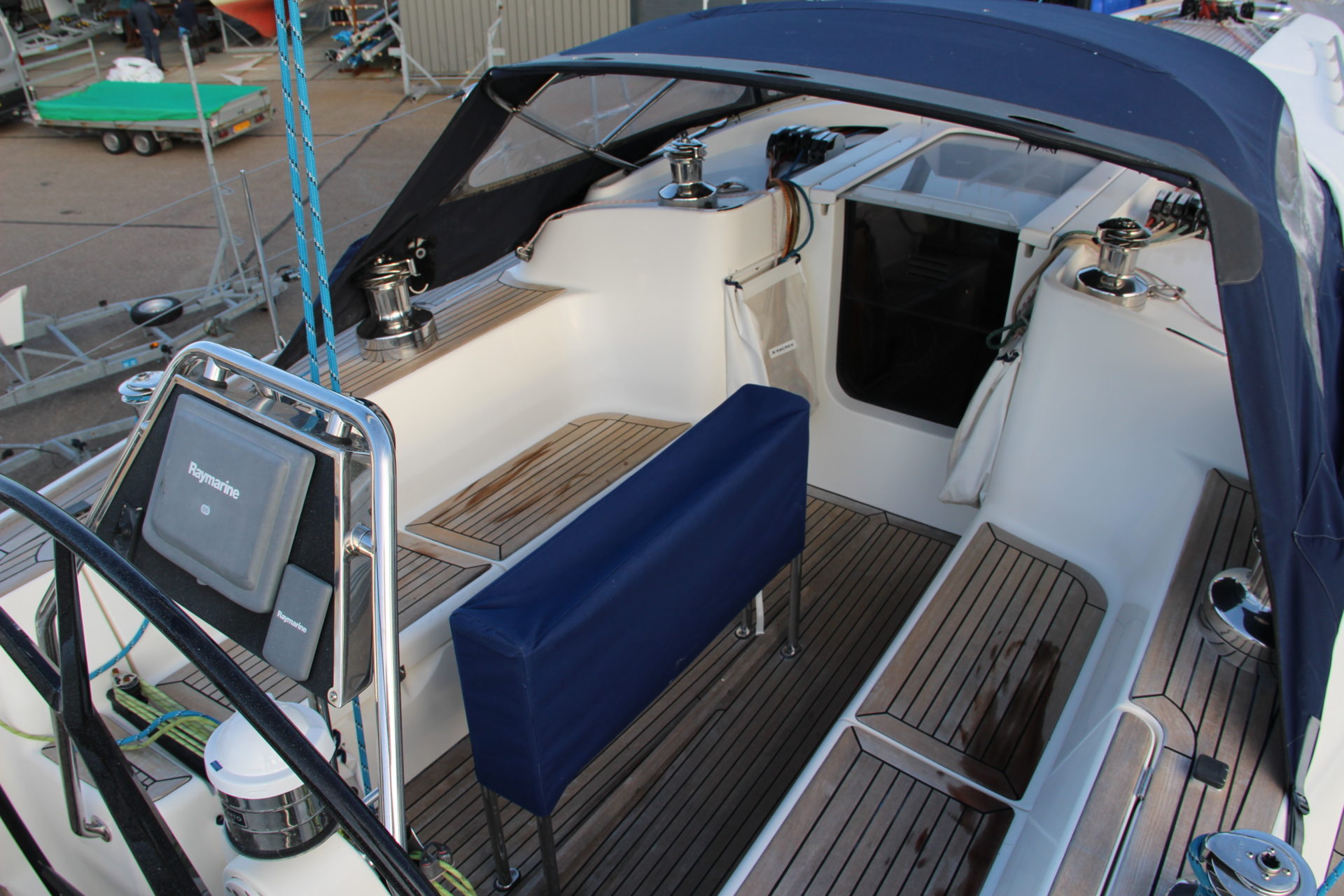

  • Cockpit table
  • Teak foot support on cockpit floor
  • Teak outboard engine bracket
  • Teak in cockpit

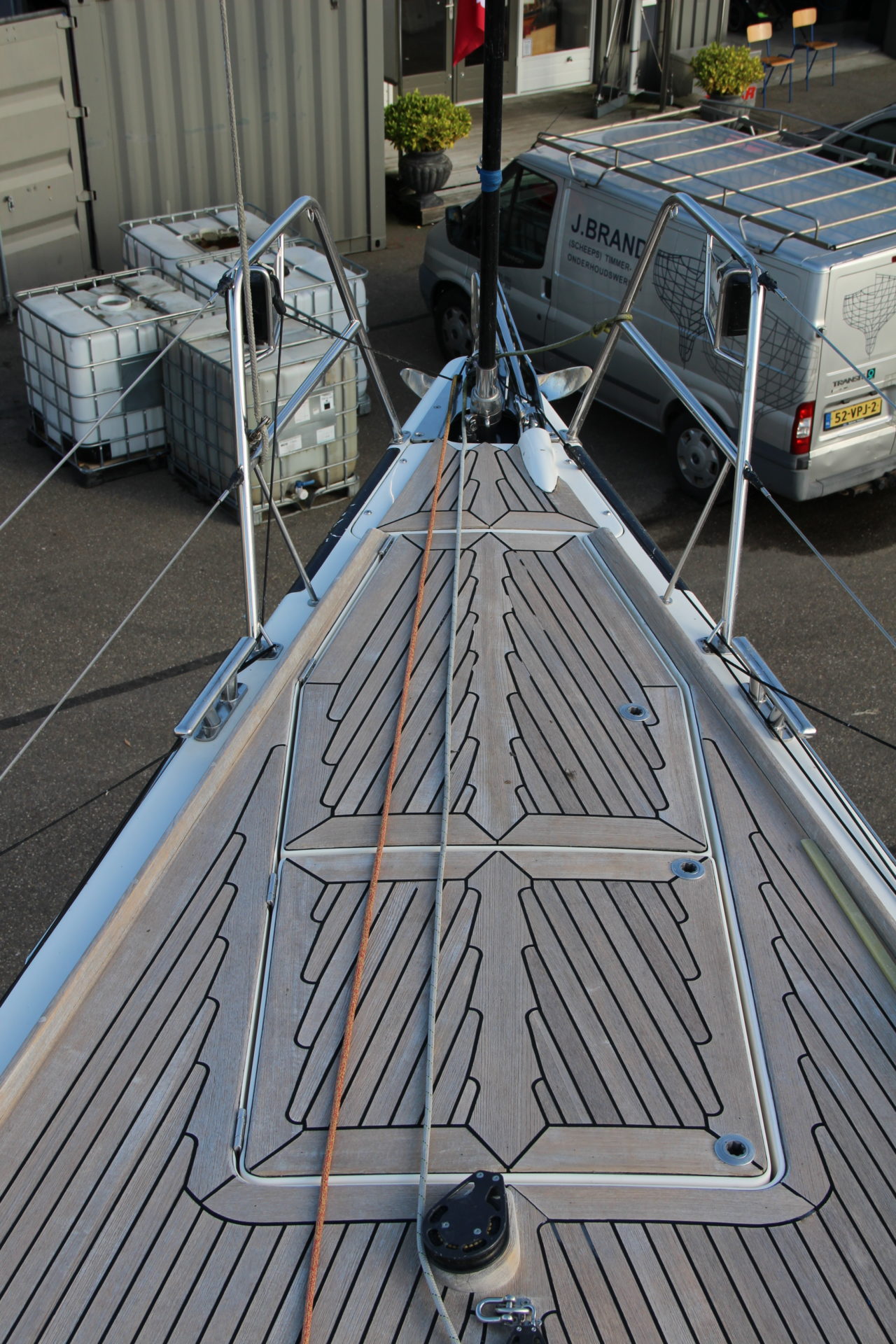

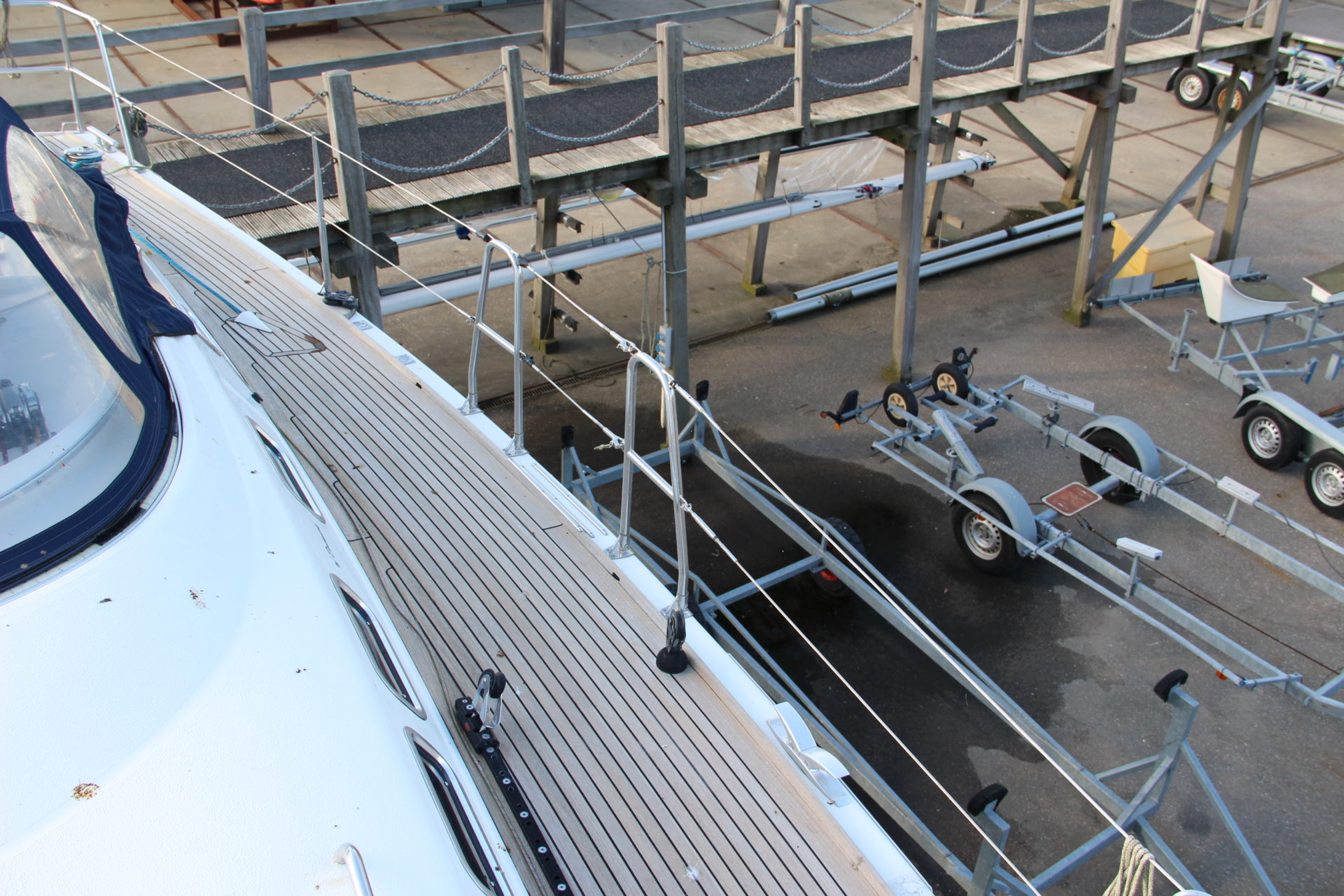

  • Teak on side decks (in need of further maintenance)
  • Teak on top of coachroof
  • Sprayhood
  • Additional midships mooring cleats (Nomen foldable)
  • Seats in pushpits
  • Carbonfiber steering wheel
  • Instrument console at steering wheel
  • Electrical anchor winch with stainless steel anchor
  • Additional control for anchor winch at steering wheel console
  • Self-tacking jib track (currently not mounted)

Sails

  • All North Sails:
  • Cruising mainsail in 3DL Marathon with full-batten and 2 reefs 2006 4 seasons used only
  • Ronstan ball bearing cars for mainsail 2006 4 seasons used only
  • Furling jib in 3DL Marathon (sized to work as selftacker) 2006 4 seasons used only
  • Gennaker A1 with snuffer 2006 4 seasons used only
  • 3DL kevlar/carbon mainsail with rope luff 2010
  • 3DL kevlar genoa 1 2008
  • 3DL kevlar/carbon genoa 2 2009
  • 3DL kevlar/carbon genoa 3 2013
  • 3x spinnaker (S1, S2, S3) 2009/2013/2009
  • Staysail (Doyle Sails) 2014
  • Cover for cruising mainsail 2006
  • Cover for racing mainsail 2010
  • Cover for furling jib 2006

Mast & Rigging

  • White painted mast and boom (re-painted 2019)
  • Carbonfiber spinnaker pole
  • Combined 3-colour/anchor light
  • Rod rigging replaced 2017
  • Lightweight PBO backstay
  • Second racing forestay with tuffluff profile
  • Lazy jacks system for mainsail

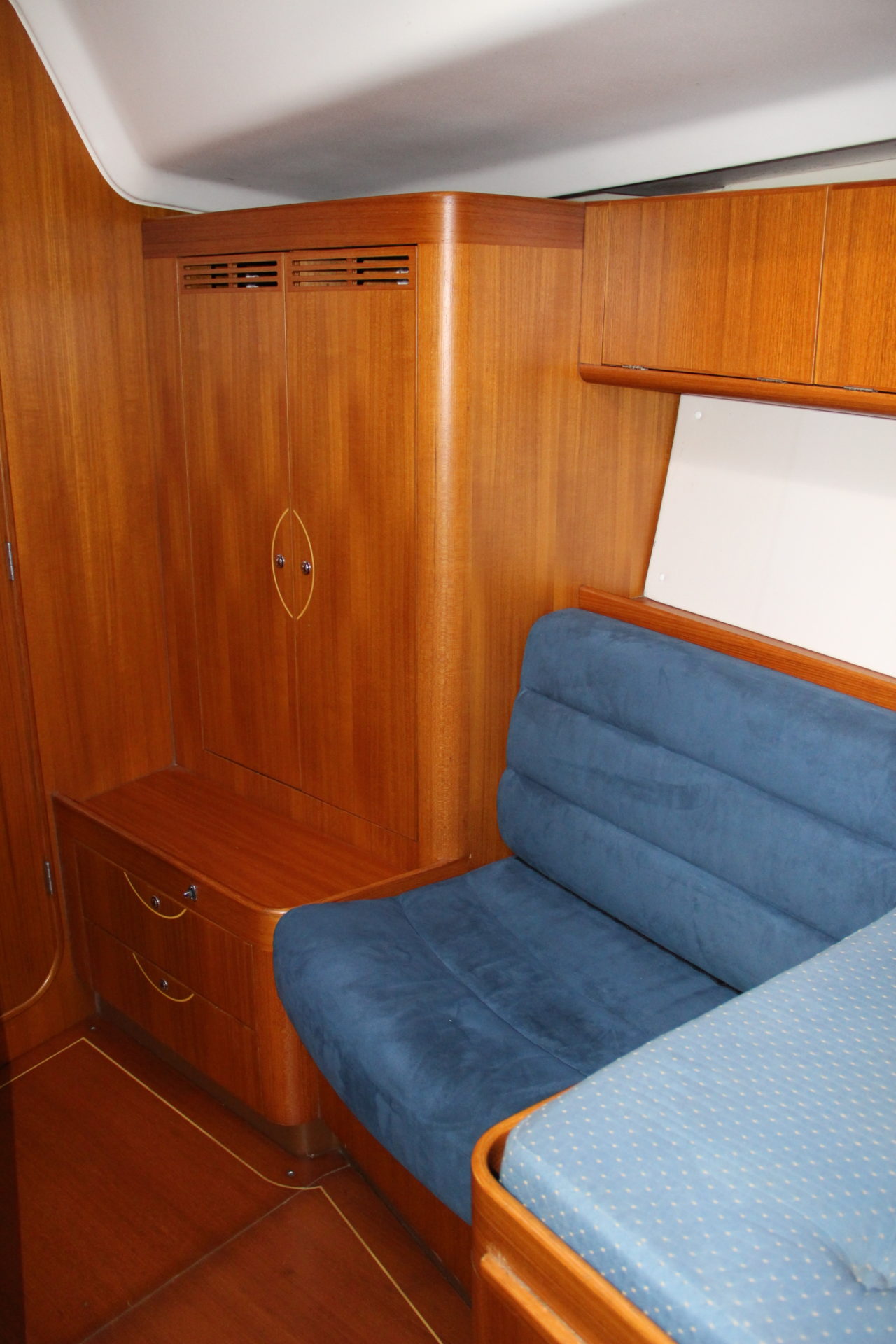

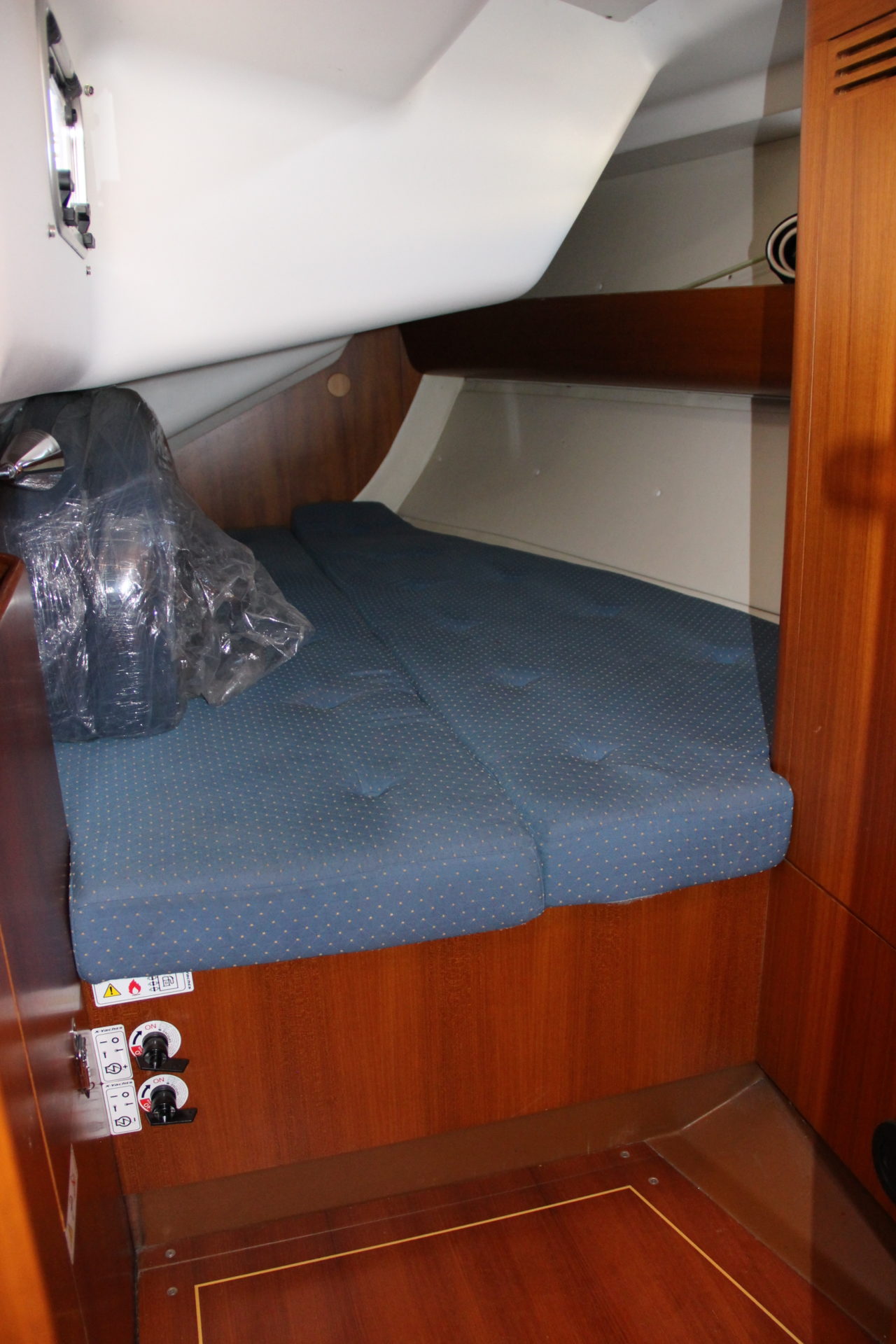

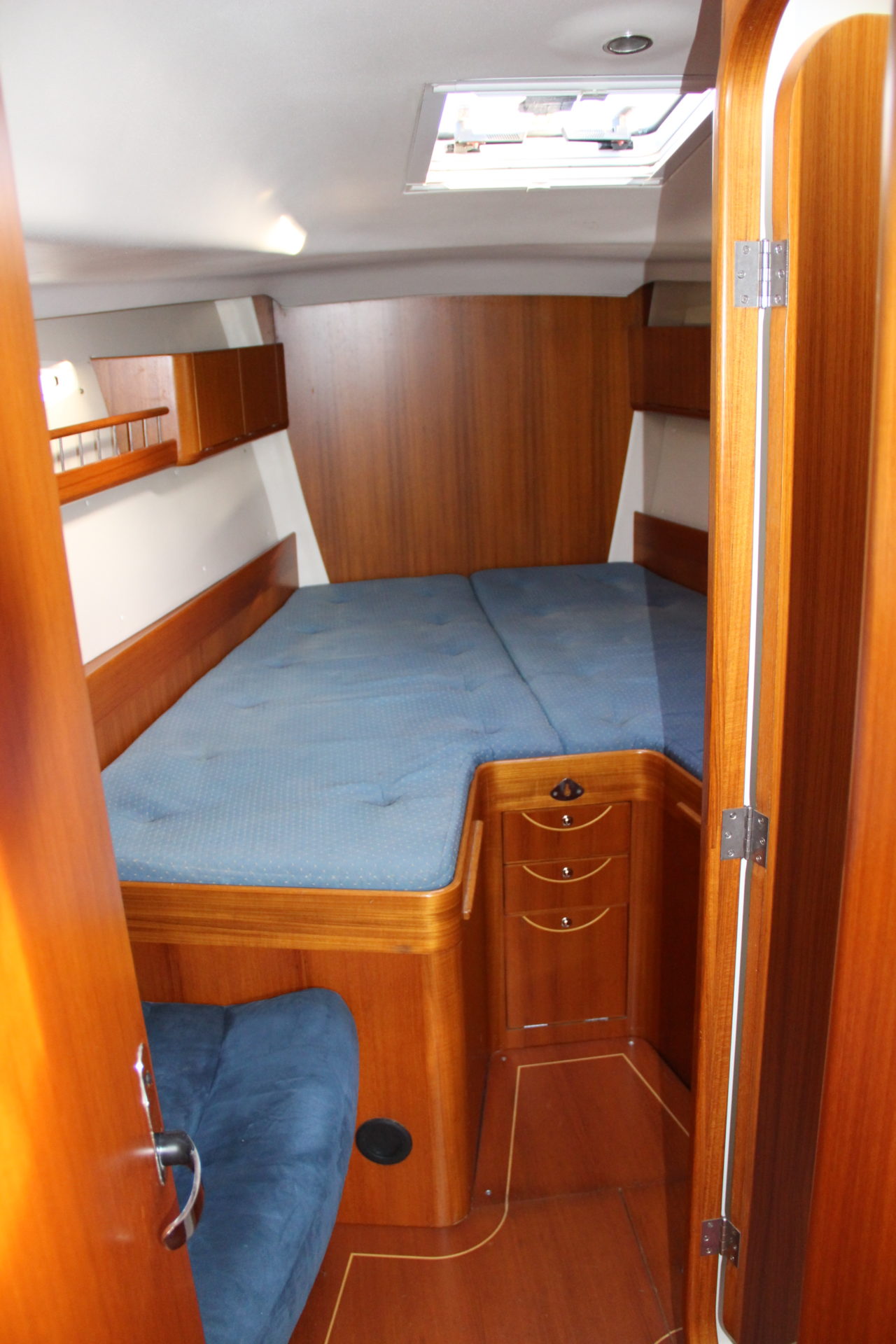

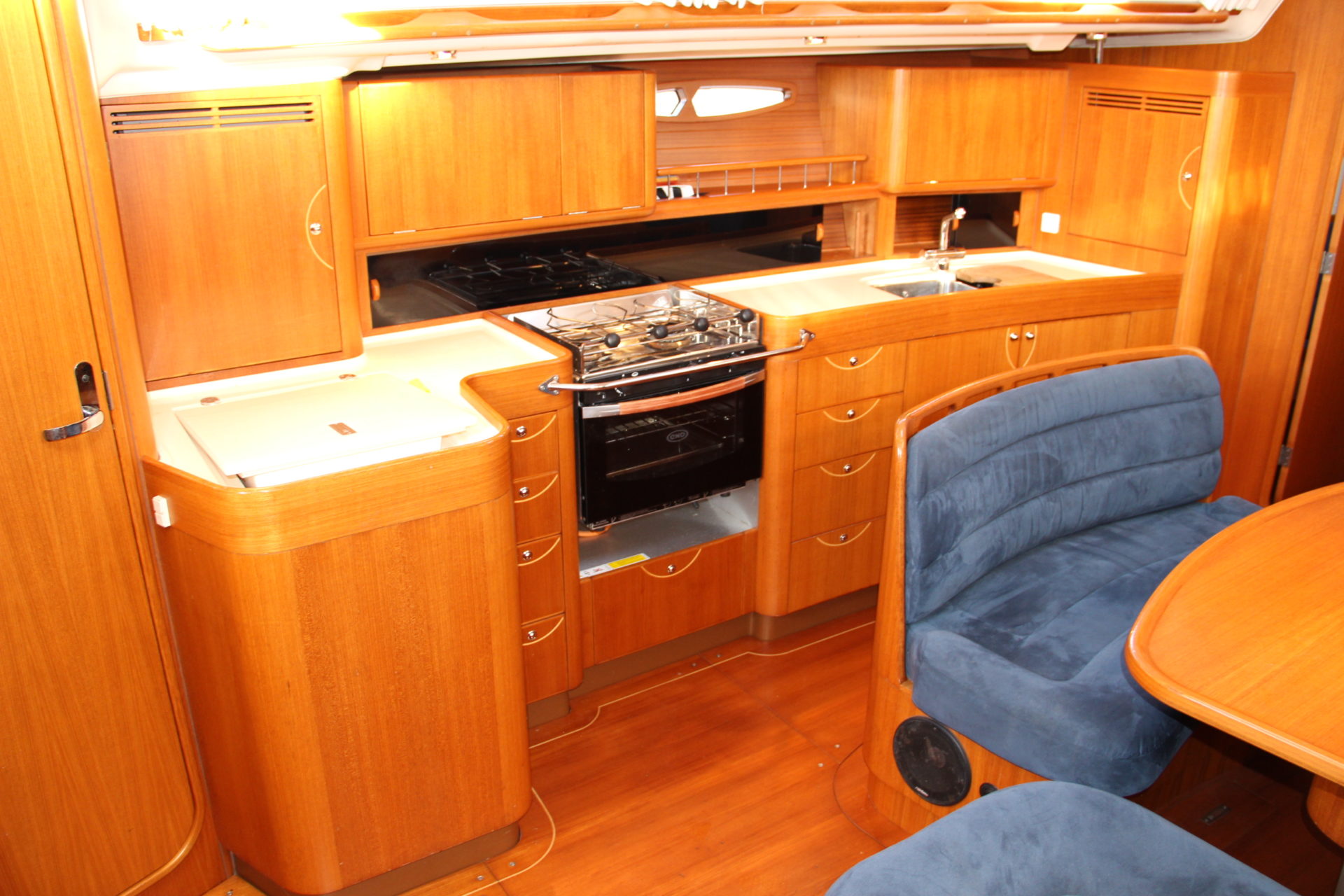

Accommodation

Interior

  • Eberspächer D5 heating system
  • Hot water container

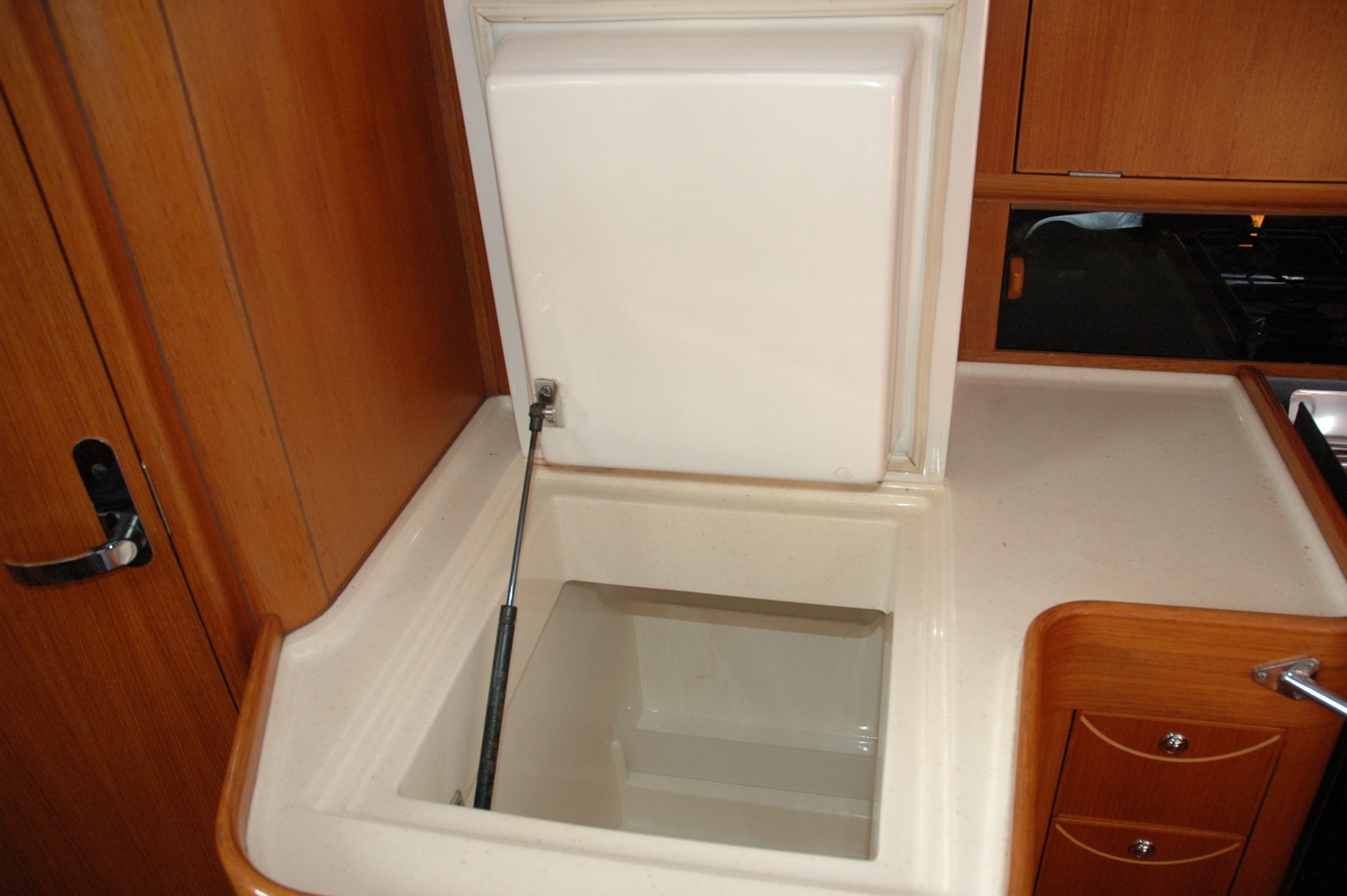

  • Isotherm SP water cooled refrigeration system for top-loading cool box

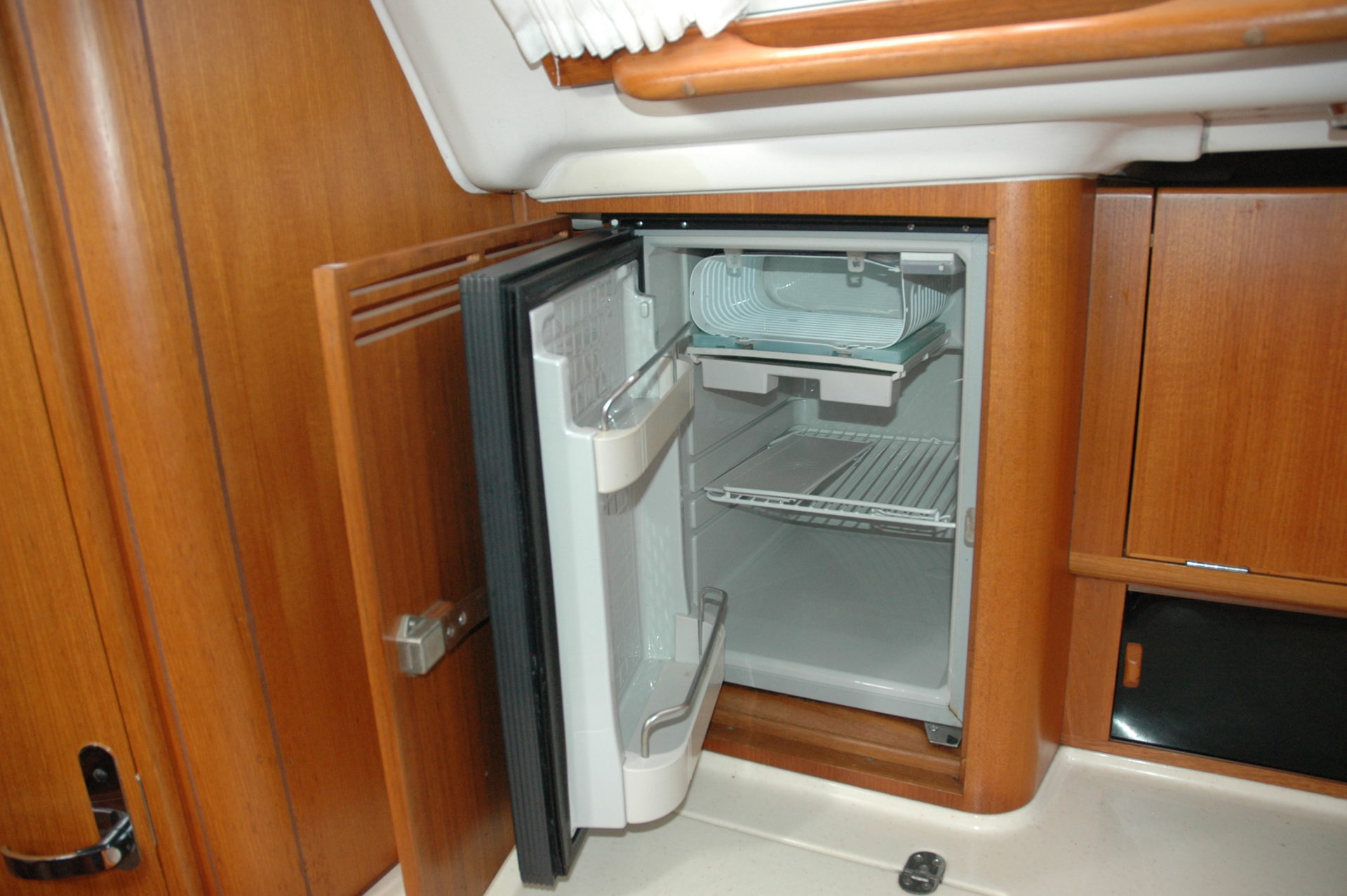

  • Additional front-loading refrigerator

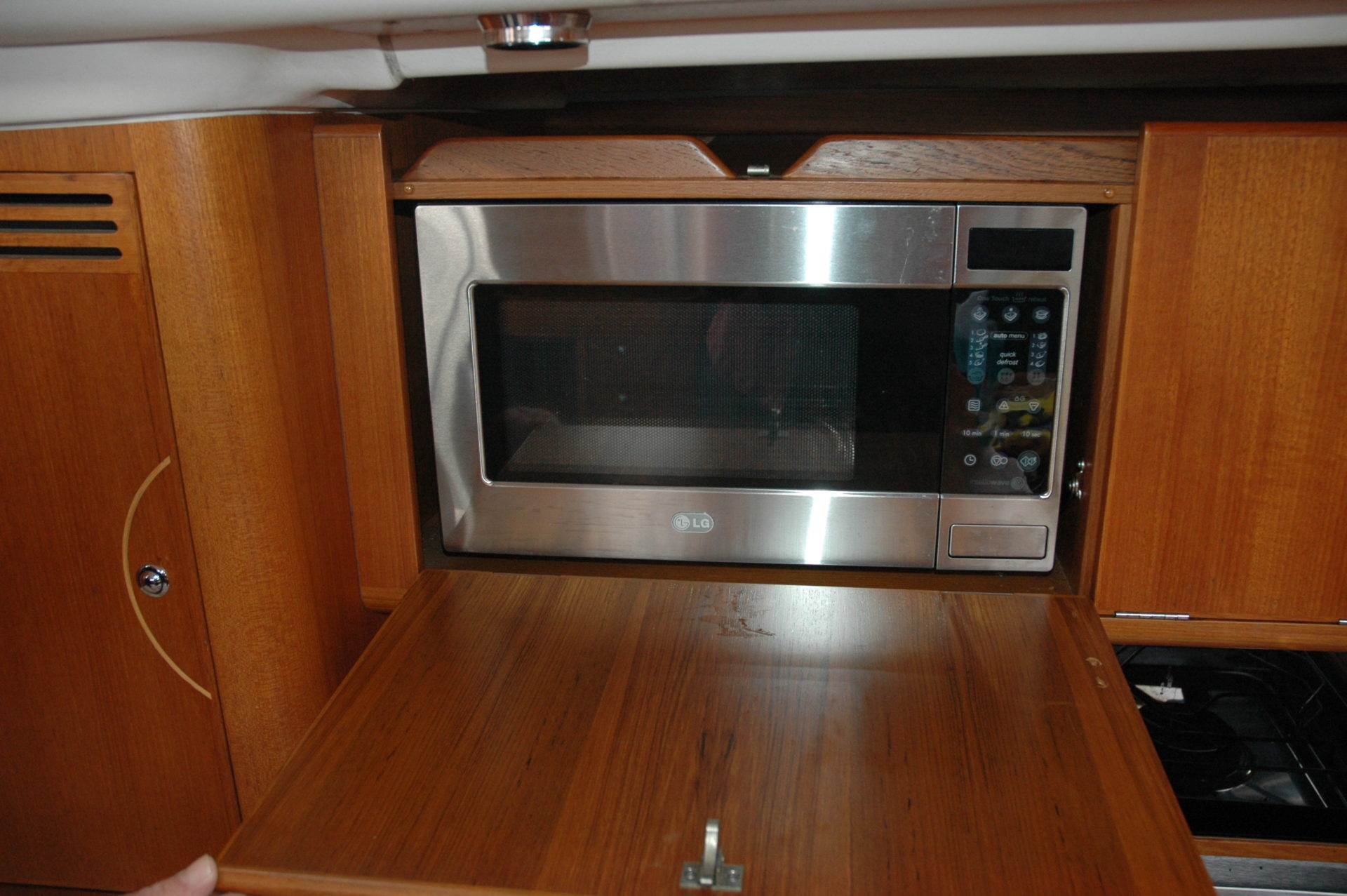

  • Microwave
  • Gas detector
  • Teak cutting boards to cover sink
  • 2x red night lights

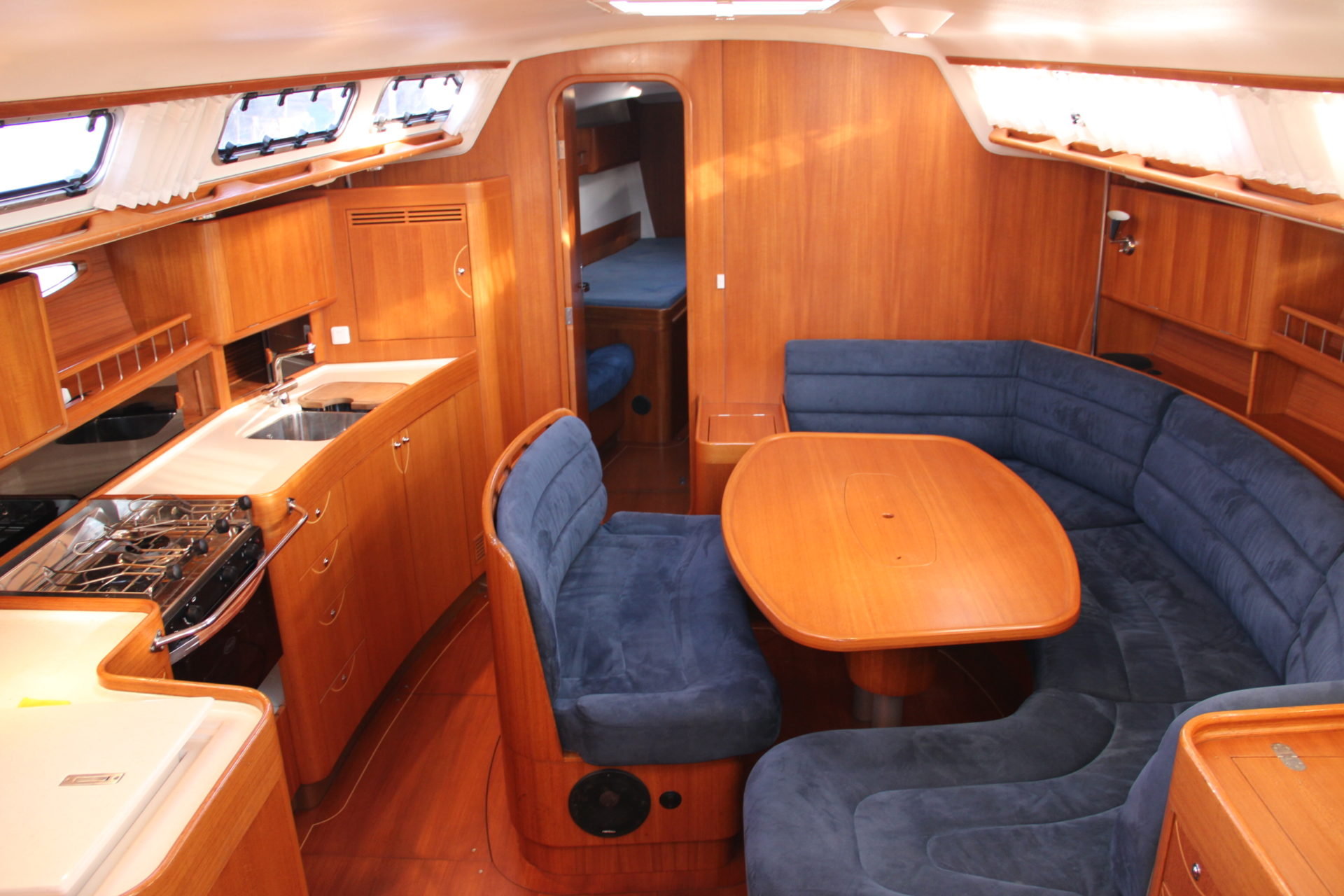

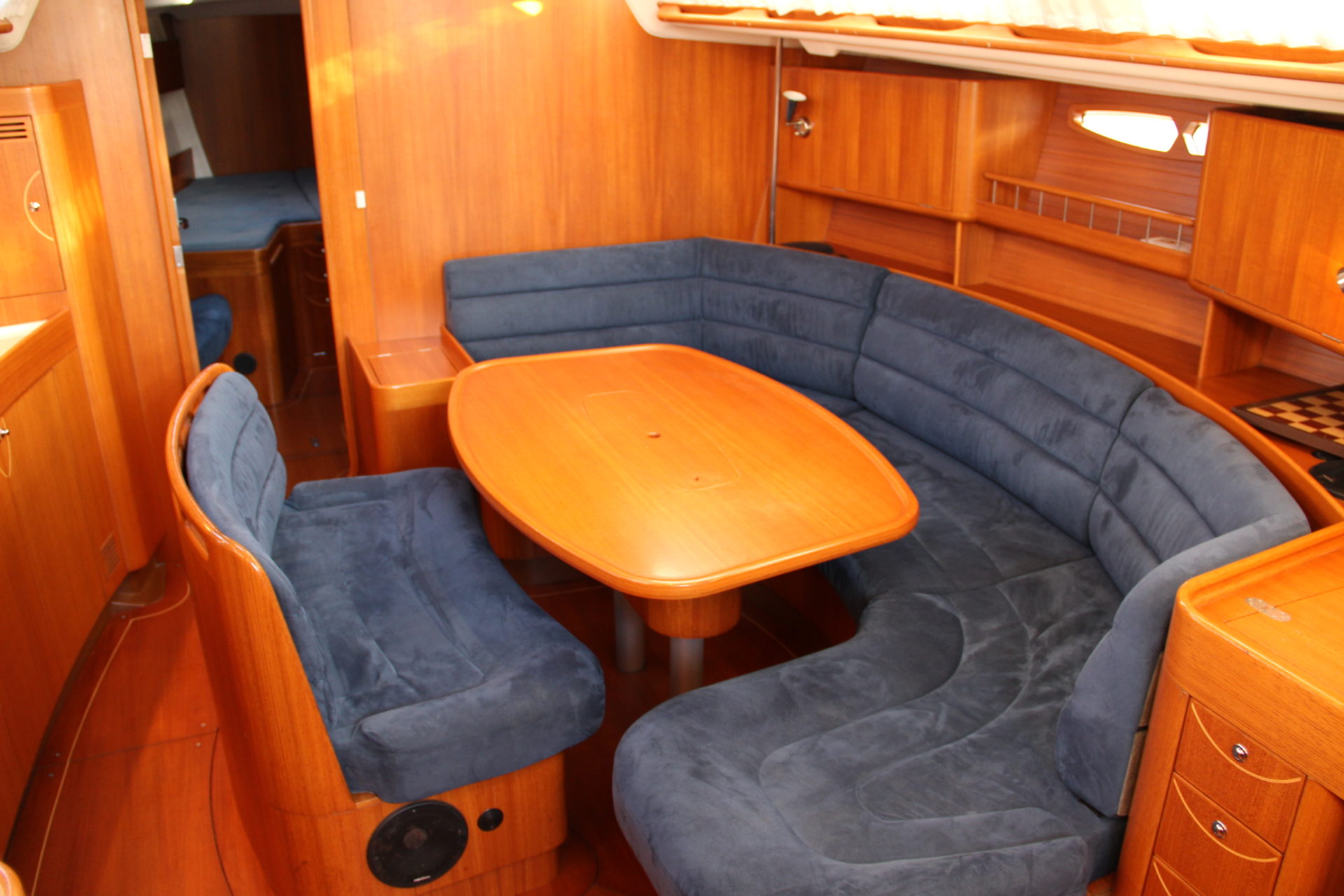

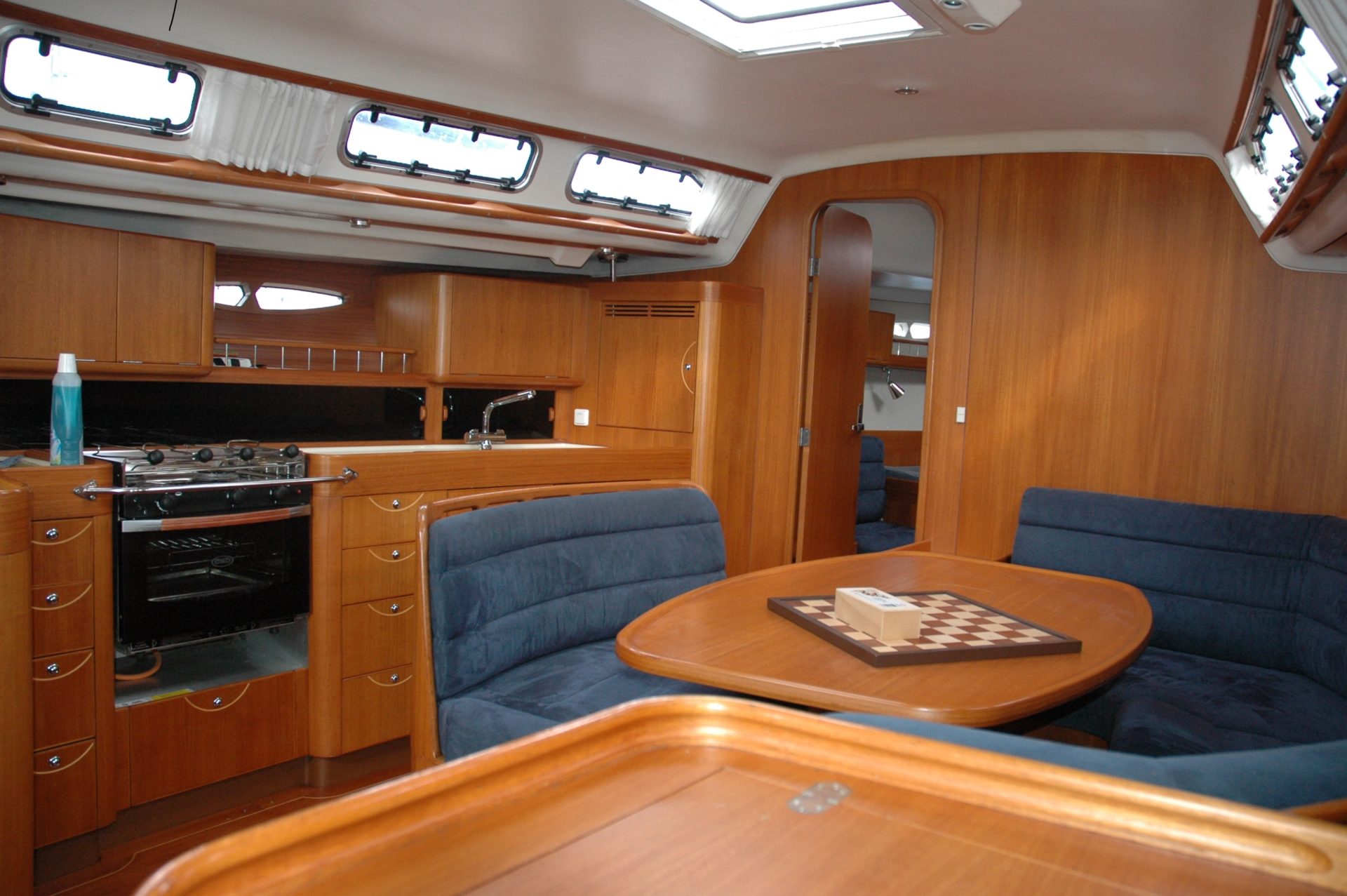

  • Alcantara upholstery in saloon in dark blue
  • Saloon table can be converted into additional sleeping berth (incl. cushion)

Systems

Engine

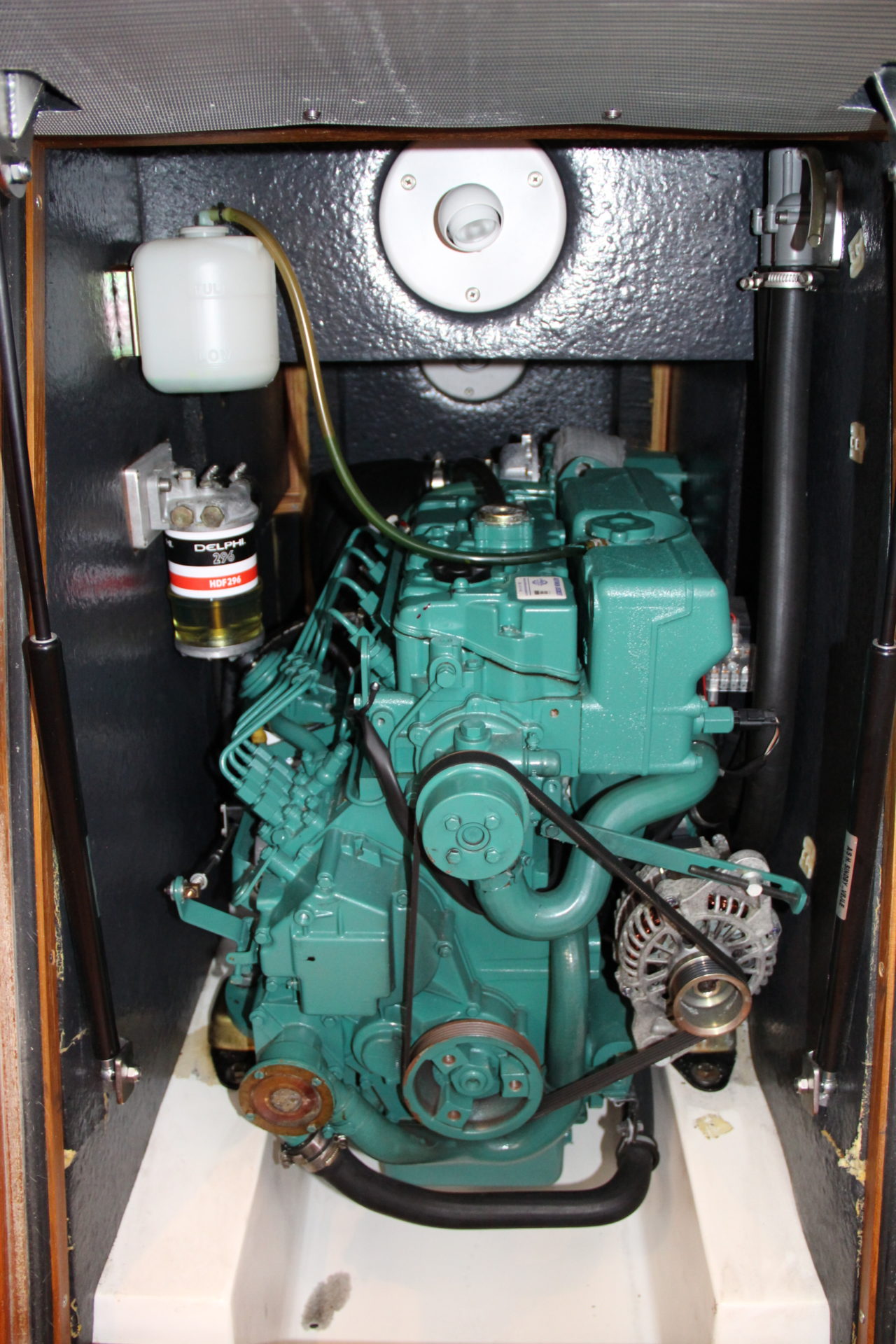

  • Volvo Penta D-2 75
  • S-drive rubber seal replaced 2014
  • High output alternator fitted
  • 3 blade folding propeller Gori
  • Fuel tank cleaned 2017
  • Additional fuel filter with water separator
  • Starter battery replaced 2019

Electrical

  • Batteries replaced 2019 (4x 105Ah)
  • Mastervolt 60A battery charger
  • Inverter 2000W
  • 3x 220V socket in interior
  • Battery monitor
  • Radio/CD player with speakers in saloon and cockpit

Electronics

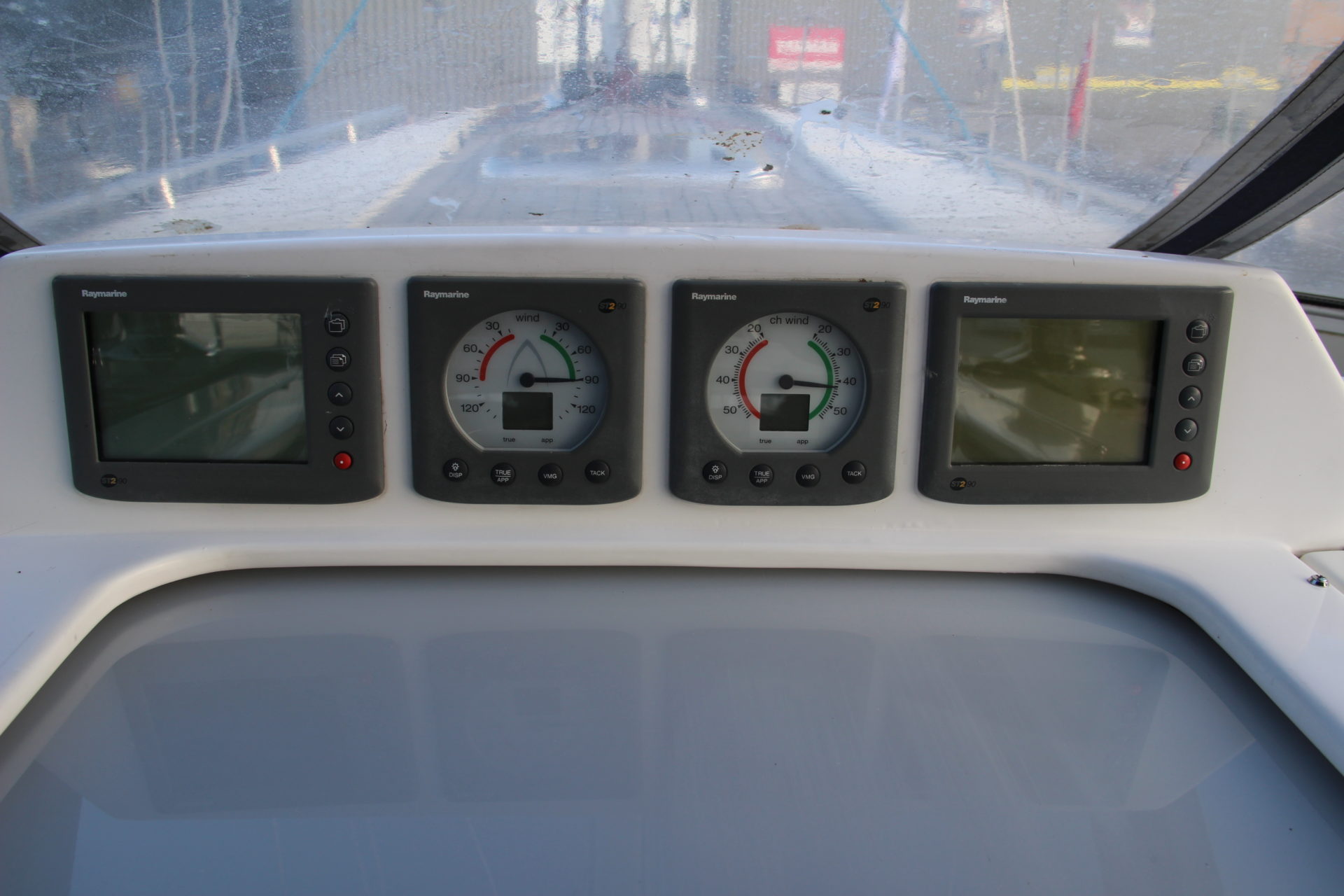

  • At console over sliding hatch:
  • 2x ST290 graphic display
  • 1x ST290 analog wind display
  • 1x ST290 analog CH wind display
  • Integrated into instrument system:
  • Autopilot CPU with gyro (selflearning) and direct Jefa drive
  • Radardome
  • AIS transponder
  • In console at steering wheel:
  • Raymarine E80 plotter
  • Raymarine ST290 autopilot control panel

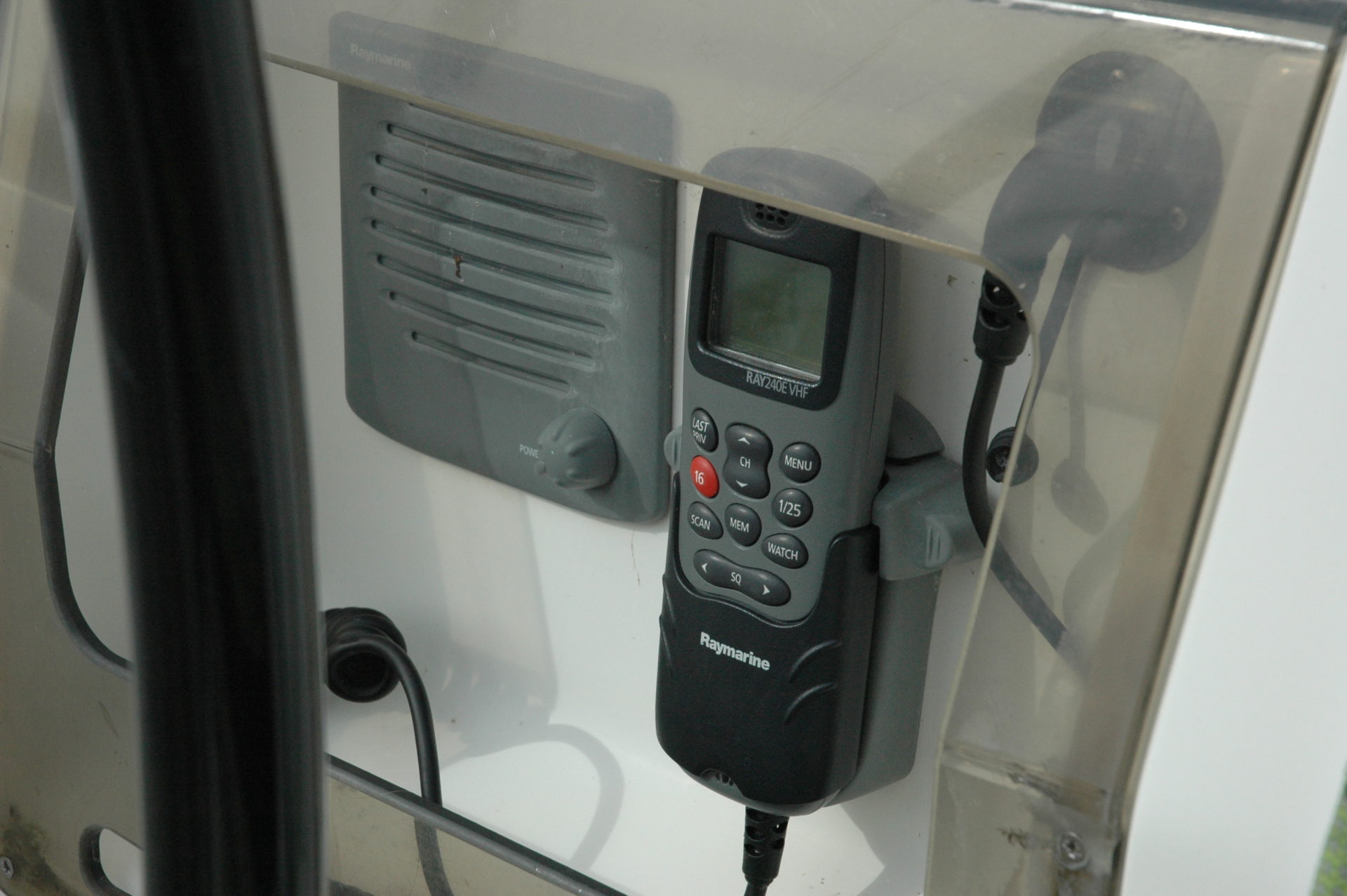

  • Second station for VHF (besides steering wheel) with speaker

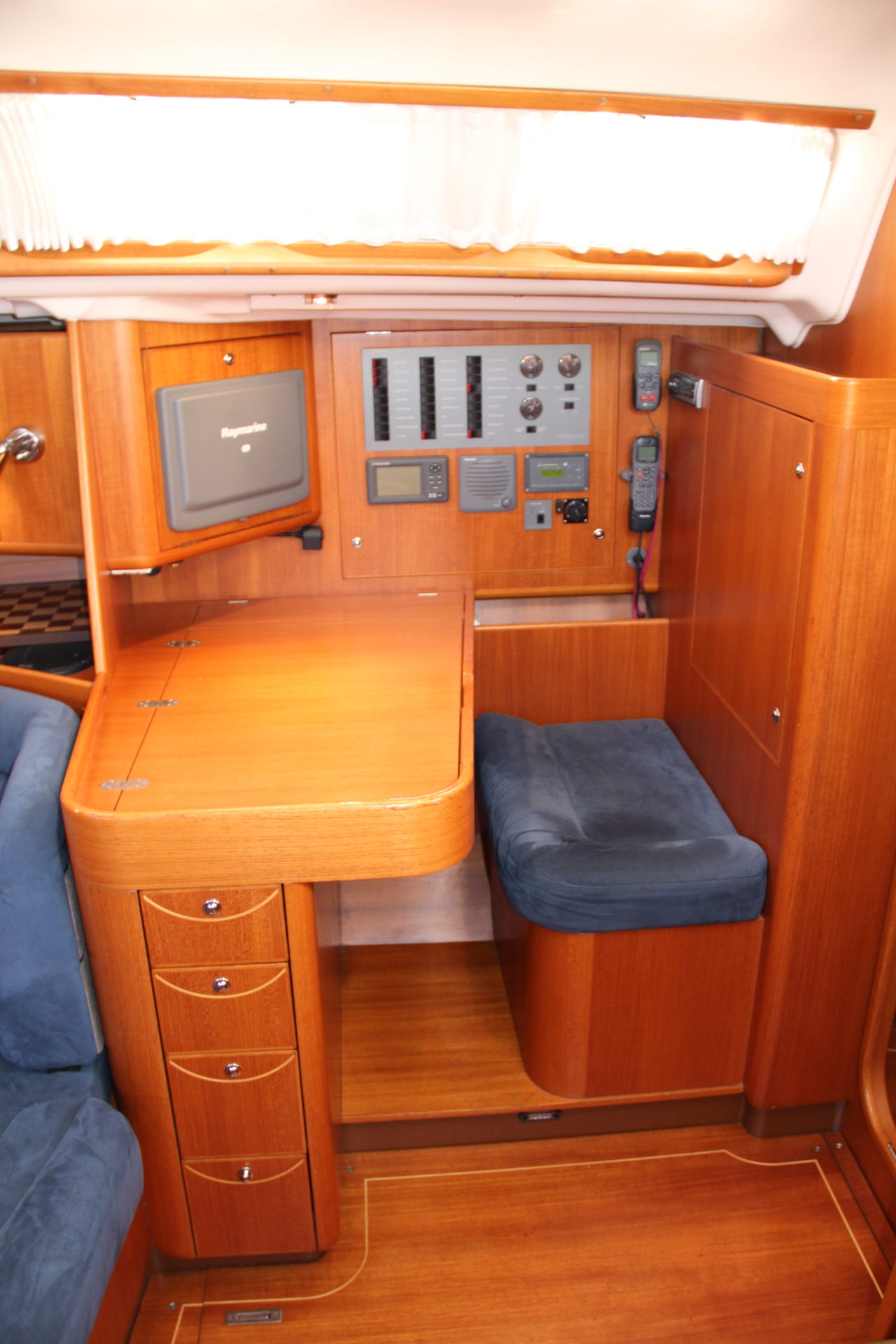

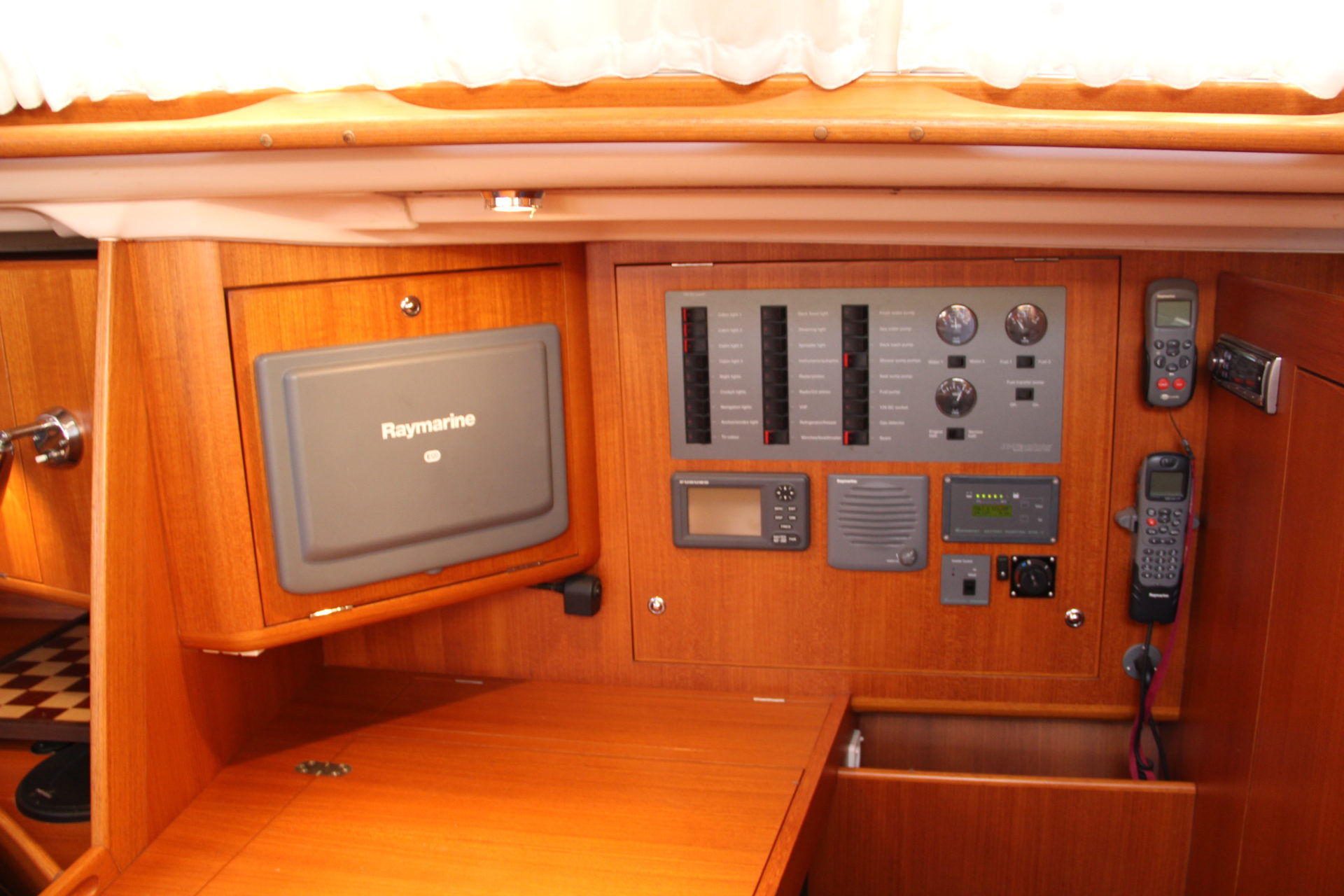

  • At nav station:
  • Raymarine E120 plotter
  • Raymarine 240E VHF
  • Raymarine SmartController for autopilot
  • Furuno NX-300 navtex receiver

Additional Information

  • Cover for cockpit table
  • Cover for steering wheel and console
  • Winter cover
  • Liferaft 8 persons (requires servicing)
  • Avalon RIB 3.5m
