Details

Exterior Details

Hull

• Hull epoxy infused in female moulds for optimum consolidation and high quality surface finish
• Structural hull liner bonded into hull with carbon fiber reinforcements to absorb all loads from keel and mast
• Single point lift attachment eye for easy and safe lifting and launching of the yacht
• Aft tender garage to accommodate inflatable tender (approx. 240x115x60 cm).
• Transom door electrically operated
• Hull moulded in light grey gelcoat with the 3 distinctive X-Yachts waterlines in white gelcoat
• Bottom treatment from yard (3x epoxy & 2x antifouling), since yearly maintained/refreshed by professionals
• MaxPower 24V compact retract bowthruster with 2x 55Ah batteries (batteries replaced 2020)

Deck

• Teak on cockpit sole and seats
• Teak on side decks
• Teak on coachroof

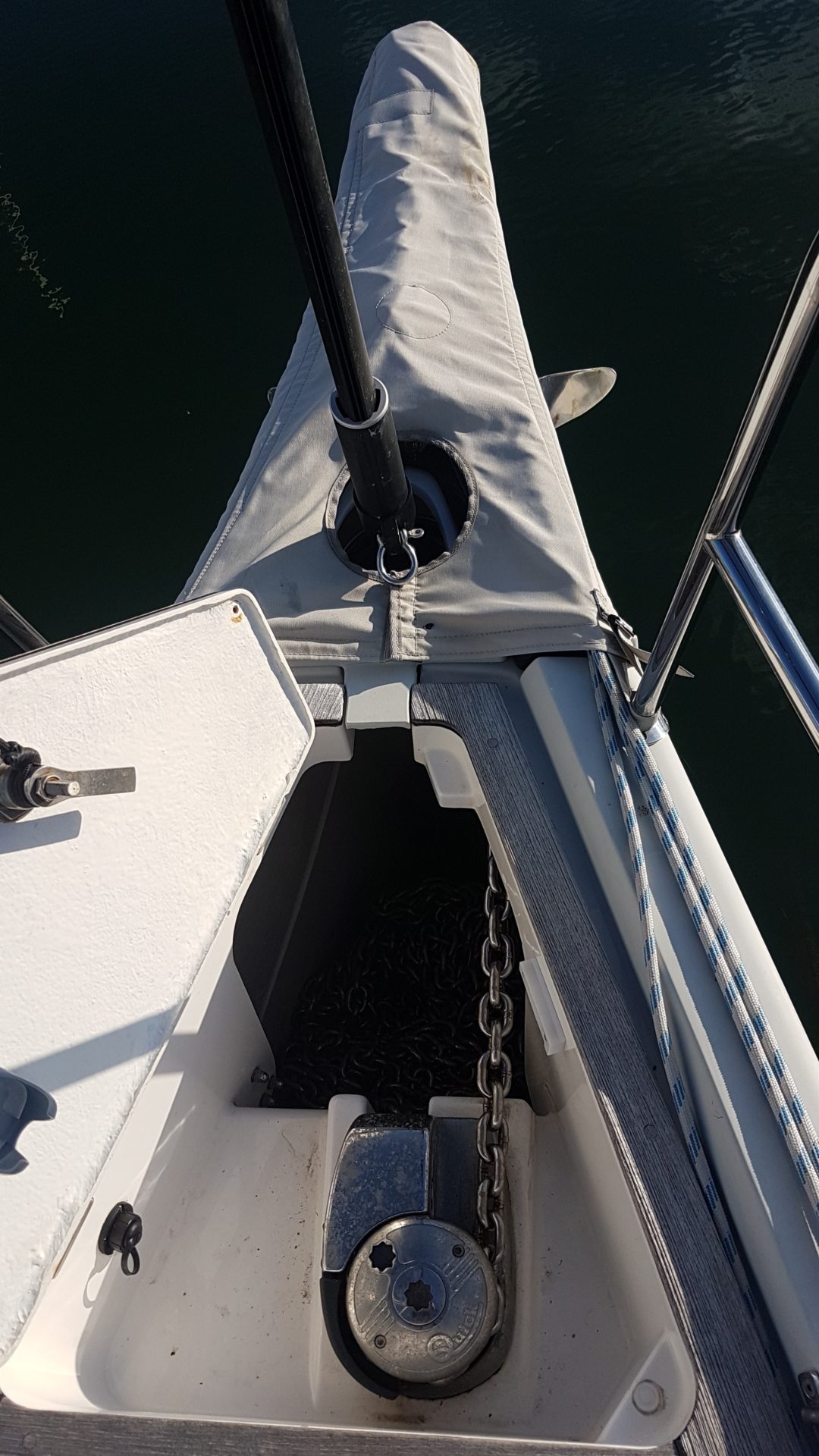

• Anchor locker - drained area with windlass and space for anchor chain
• Sail Cabin - aft of the anchor locker with space for general storage
• Gas springs fitted to sail locker, forward and aft cockpit locker (4 pcs)
• Halyard locker recessed into cockpit floor
• Foot chocks - deck recessed aft of steering wheels
• Cockpit floor locker with hinged lid, with space for storing cockpit table and liferaft storage below -Max size of liferaft 800 x 500 x 325
• Cockpit table in teak with aluminium legs
• Cockpit cushions in grey
• Bose speakers in cockpit
• 6x LED courtesy lighting in cockpit
• Sprayhood in light grey canvas on stainless steel frame
• Bimini for helmsman in light grey canvas on stainless steel frame
• Anchor chain upgrade to 75m stainless steel chain
• Anchor 30kg Bruce type (stainless steel) instead of standard Delta 25kg galvanized anchor
• Folding mooring cleats mounted amidships including stainless steel protection rails (2 pcs)
• Carbon fibre bow sprit for asymmetric spinnakers and Code 0's, accommodating a removable stainless steel anchor roller fitting.
• Outboard engine bracket mounted on aft pushpit
• Boarding gate option for standard lifeline (2 pcs)
• 12V Air Compressor mounted in sail locker (for dinghy inflation)

Sail Handling

• Mainsheet winches, electric Harken 60.2 STEH (2 pcs)
• Genoa winches, electric Harken 70.3 STEH (2 pcs)
• Electric Halyard winch on port side, electric Harken 50.2 STEH (1 pcs)
• Sail handling Pack 1 consisting of:
• - Asymmetric spinnaker equipment including 2 spectra sheets, 2 sheet blocks, 2 foot blocks, 2 cleats for parking the sheets and 2 Wichard shackles mounted incl 1:1 asymmetric tack line and tack block
• - Genoa sheet inhauler system (2:1) incl. 2 pad eyes, 2 Antal inhauler rings, 1 high load footblock, 1 mastbase diverter, 2 jammers and stainless steel protection rails mounted where necessary
• - Wichard foldable pad eyes mounted for outboard genoa sheeting (2 pcs)

Sails

• Full-batten mainsail, in 3DL Marathon 680 (Aramid / Carbon) 23,800 Dpi
• Furling jib with vertical battens, in 3DL Marathon 680 (Aramid / Carbon) 23,800 Dpi
• North Sails G2 gennaker in Norlon NO150
• Carbon snuffer for G2 gennaker

Mast & Rigging

• Southern Spars carbonfiber mast with external rail for ball bearing mainsail cars (mast prepared for mast jack)
• Ronstan series 6 ballbearing cars for mainsail
• Southern Spars carbonfiber Park Avenue boom
• Tricolour masthead/anchor light (LED)
• Combined steaming/deck light
• Additional mast steps
• Standing Rigging
• Split backstay fitted with hydraulic backstay adjuster on SB side only
• Discontinuous stainless steel rod rigging with rod turnbuckles
• Rod forestay with furling drum under deck
• Running Rigging
• 2:1 mainsail halyard
• Genoa halyard
• Spinnaker halyard
• Lazy jacks system

Accommodation

Interior

• Xp 50 - Three cabin layout with twin heads
• Oceanair blinds incl flyscreen fitted to skylights
• Floorboards of 16 mm marine plywood with imitated teak and Gaboon plywood inlay stripes and inspection hatches to access bilge
• Companionway with steps of curved unvarnished teak
• Eberspächer D5 heating system with vents in all cabins and heads

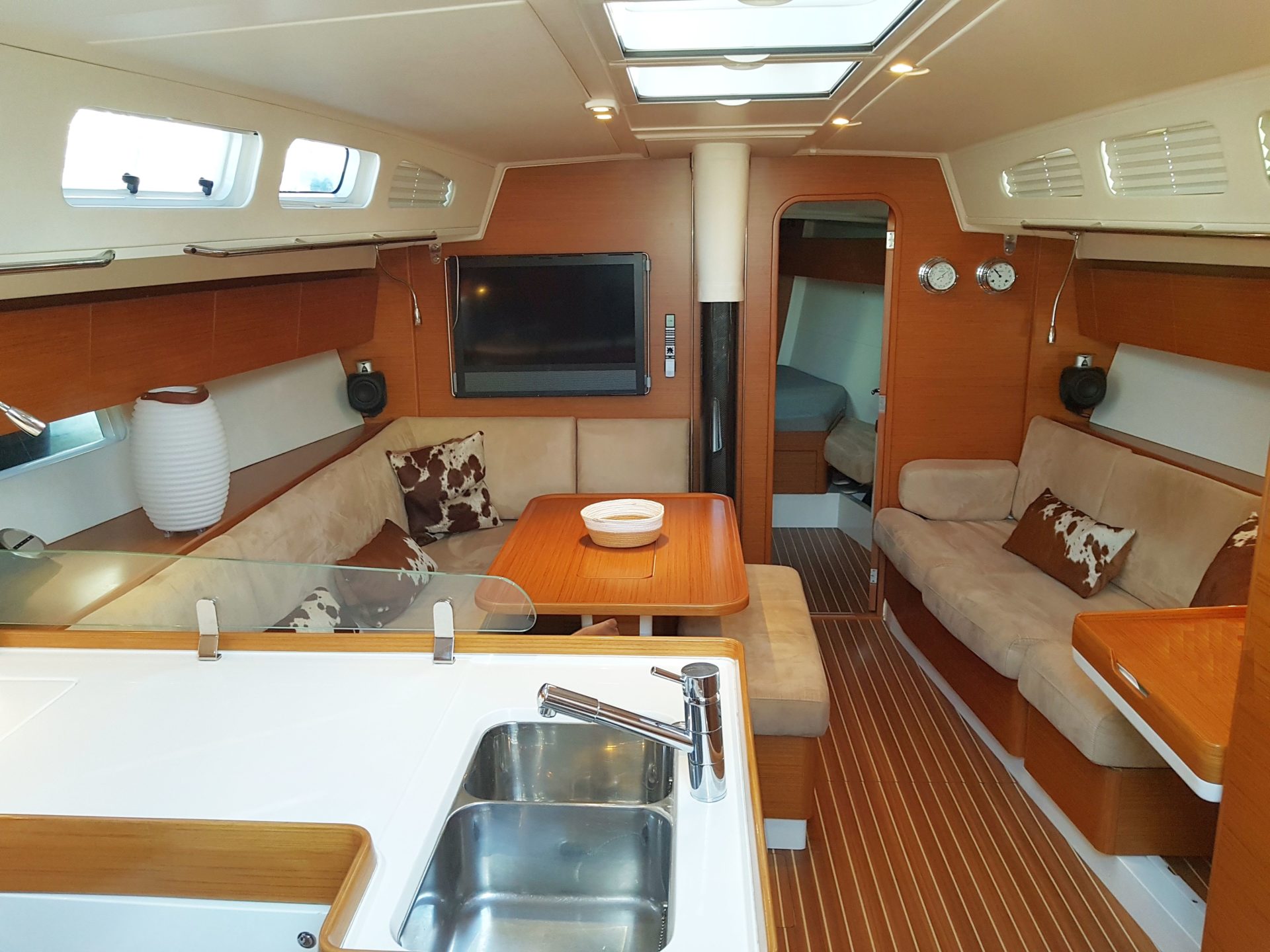

• Main cabin:
• Handrails by entrance and alongside coach roof portlights in main cabin in stainless steel
• Additional LED light strips below sofa, galley and overhead lockers
• Custom Bang & Olufsen sound system:
• - BeoSound 5 music system
• - Beolab 3 speakers
• - Beoplay V1 screen

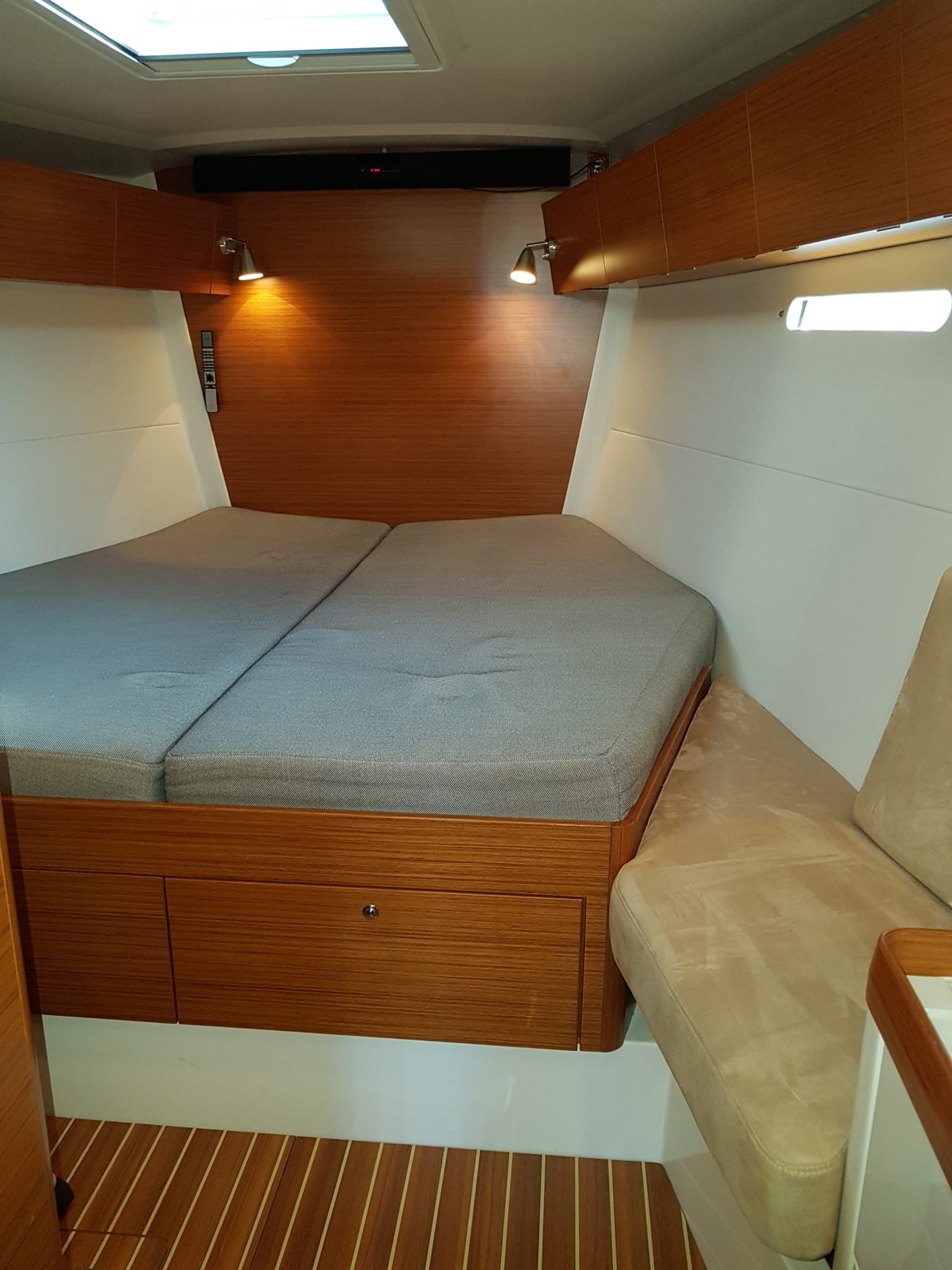

• Owner's cabin:
• Large double berth
• Seat with backrest cushion on both sides against hull
• Freeboard cupboards and shelves above berth
• 2 large drawers below owner's berth
• Bang & Olufsen Soundbar

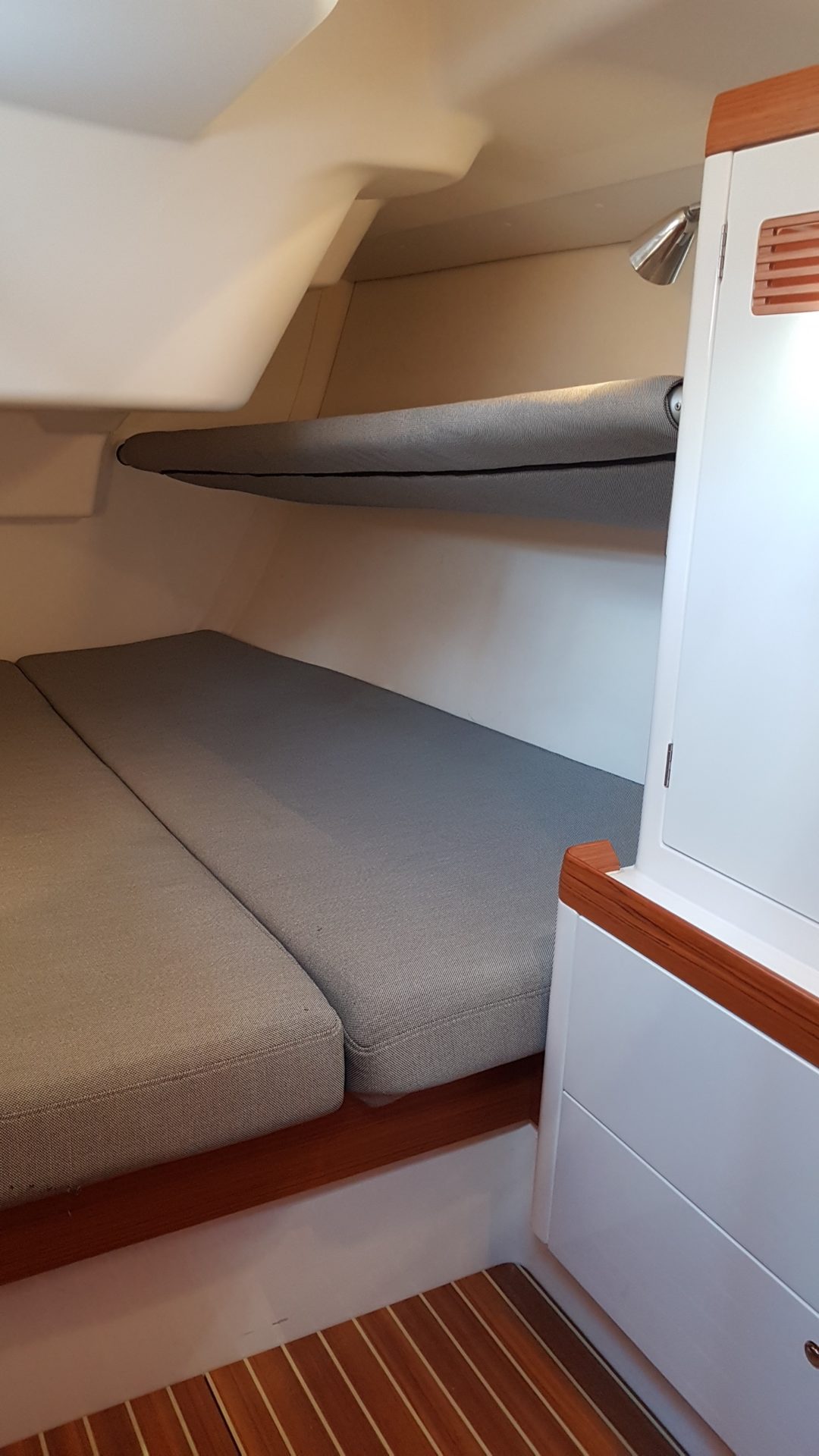

• Aft cabins:
• Additional freeboard hung sea berths (1 in each aft cabin)
• Head & Shower compartments:
• Electrical shower pump with sensor for automatic operation

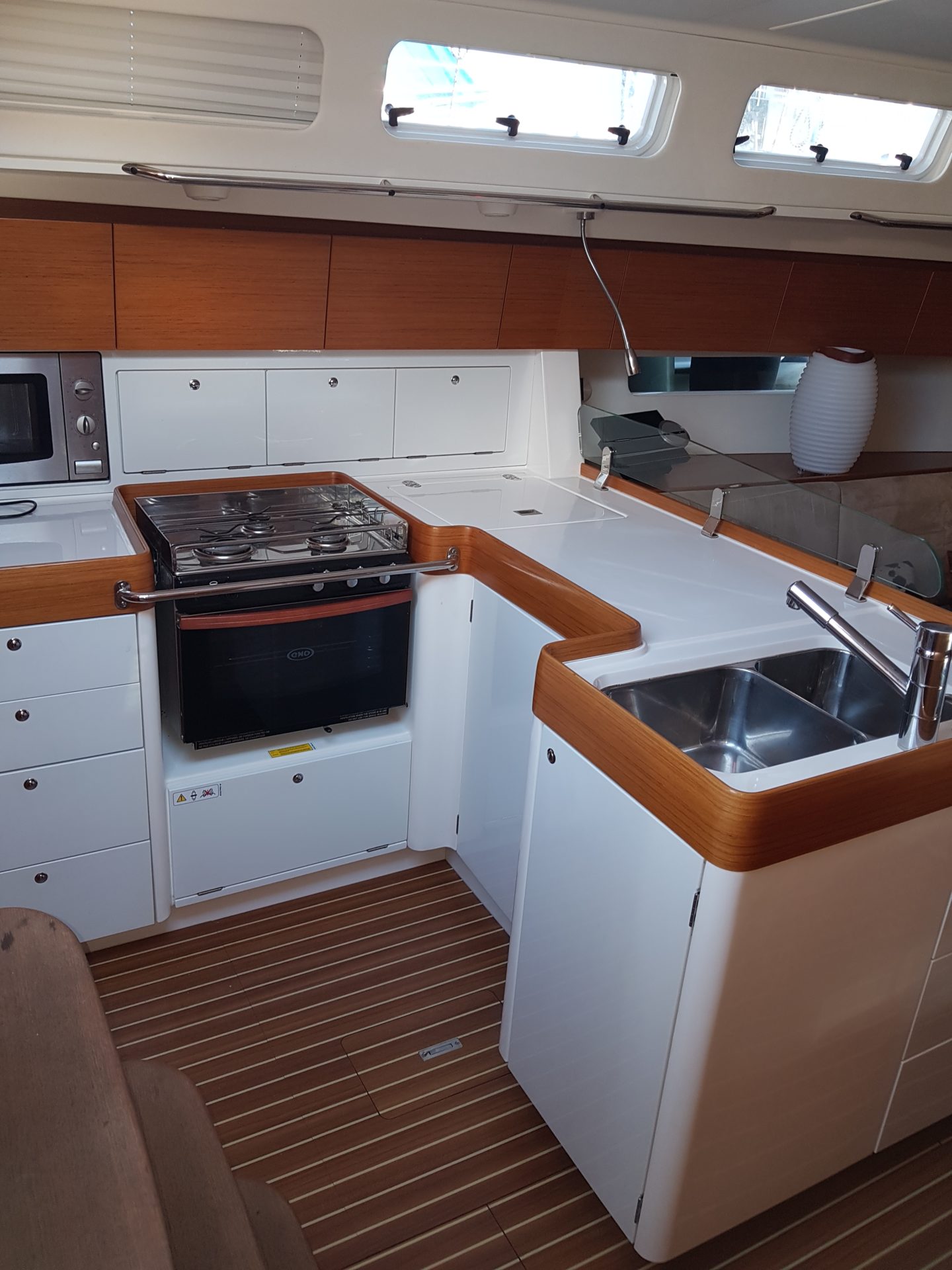

• Galley:
• Sinks, rectangular recessed stainless steel with single lever mixing tap including 2 cutting boards
• Waste bin mounted under sinks
• Refrigerator Isotherm Cruise 85l
• Top opened cool box (130l) upgrade to Magnum Isotherm unit
• Gimballed Gas cooker - 3 burner Eno cooker with oven
• Microwave oven with stainless steel front fitted in galley
• Gas detector alarm
• Electrical gas switch

Systems

Engine

• Main engine, Yanmar 4JH4-TE 75 HP diesel with saildrive, freshwater cooled.
• Alternator charging capacity 110 A @ 12V
• Special engine compartment with sound insulation ensures low noise level in yacht
• Folding propeller, 2-bladed bronze for S-drive
• Fuel tank 300l in aluminium mounted under floorboards in saloon
• Sail drive seal replaced 2020

Electrical

• 12V DC system throughout yacht
• 4x AGM batteries, each 110Ah (replaced 2019)
• Separate engine spiral cell battery (55 Ah, 12 V) mounted near main engine
• Combined charger/inverter 12V/2000W/100A
• Fischer Panda 10kW generator
• Galvanic isolator at shore power connection
• Standard 230V and 12V socket at main switch board
• Additional 230V sockets in galley, owner's cabin, and in each head

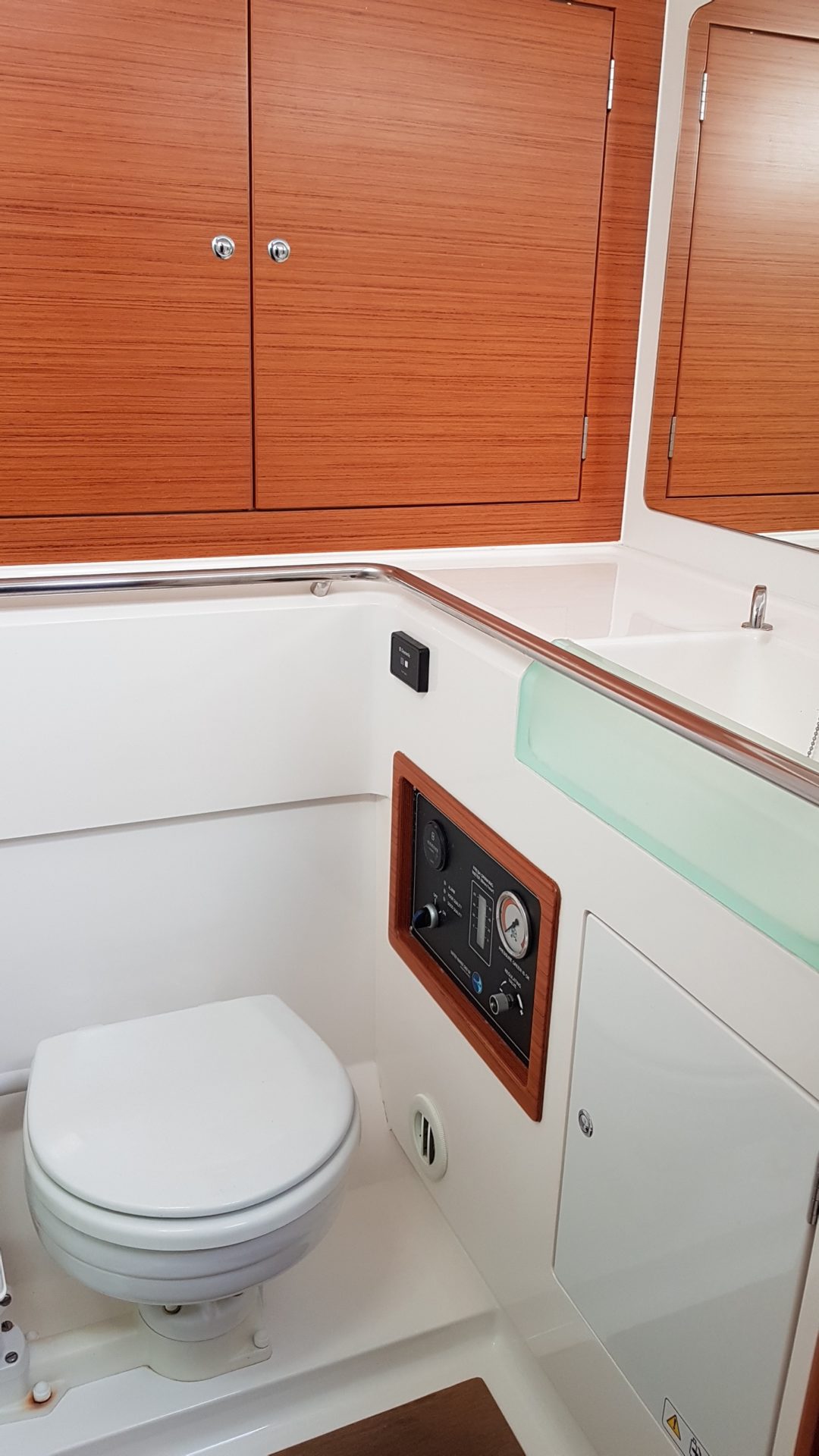

• Dessalator watermaker (60 l/h)

Electronics

• Base B&G package, including:
• 2 x H3000 GFD instrument
• 1 x GS 15 GPS Antenna
• 1 x Autopilot ACP1 with Ram T1
• 1 x H3000 Hydra main processor
• 1 x speed transducer
• 1 x depth transducer
• 1 x wind 810mm vertical mast head unit
• H3000 Gimballed Rate Compass (upgrade)
• Mounted at nav station:
• LCD screen at nav station
• Simrad OP40 command keyboard for operating Zeus plotter function on TV screen at nav station
• Simrad RS82 VHF with handset and loudspeaker
• Handset for satellite communication system
• nAIS 300B AIS system transceiver

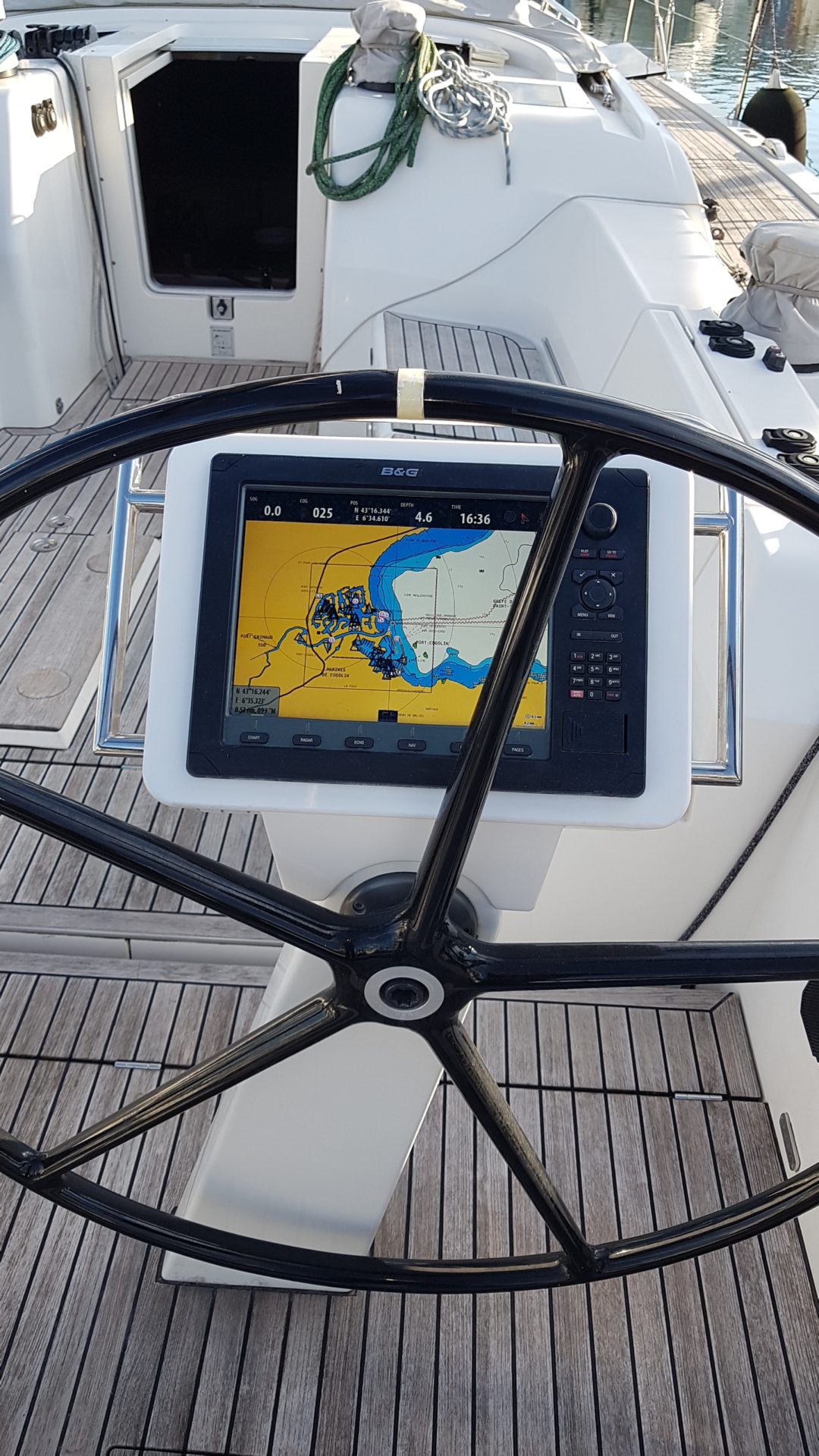

• 2x consoles at steering wheels, with:
• 2 x H3000 GFD instrument
• 1 x GPD pilot display
• 12" B&G Zeus plotter
• Simrad RS82 second VHF station with loudspeaker
• Mounted on mast:

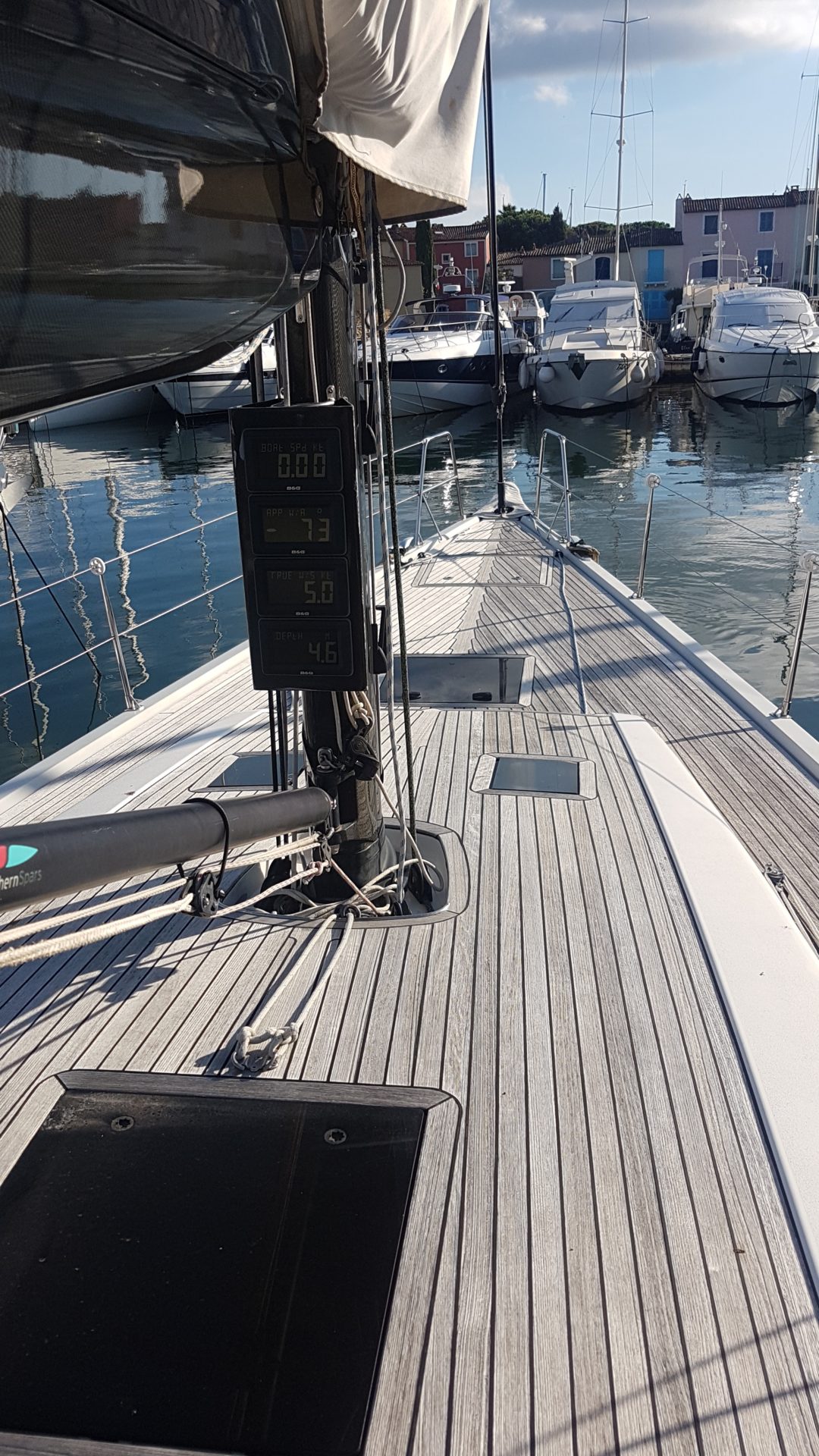

• 4 x 20/20 displays in carbon bracket

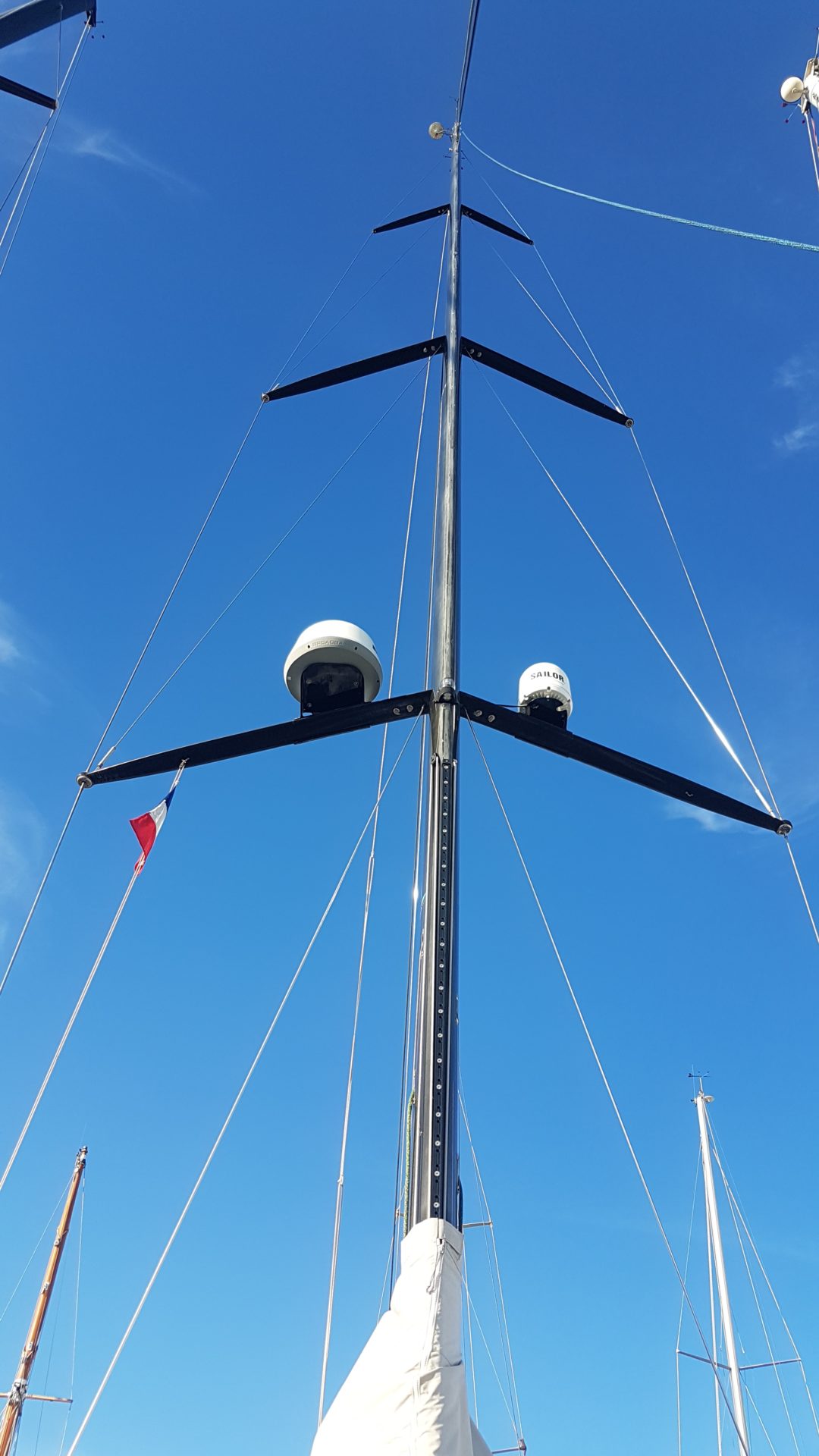

• 4G radar mounted above SB spreader
• Fleet Broadband Sailor 250 dome mounted above port spreader

Additional Information

• Steering wheel covers
• Winch covers
• Bowsprit cover
• Jib cover
• 2x sun awning with attachment to boom
• Liferaft
• 230 Zodiac tender with hard polyester floor
• Mercury 6hp outboard engine
• EPIRB
• Anchor bow protection cushion
• Carbonfiber flagpole
• 8 fenders
• Carbon gangway
