Details

Exterior Details

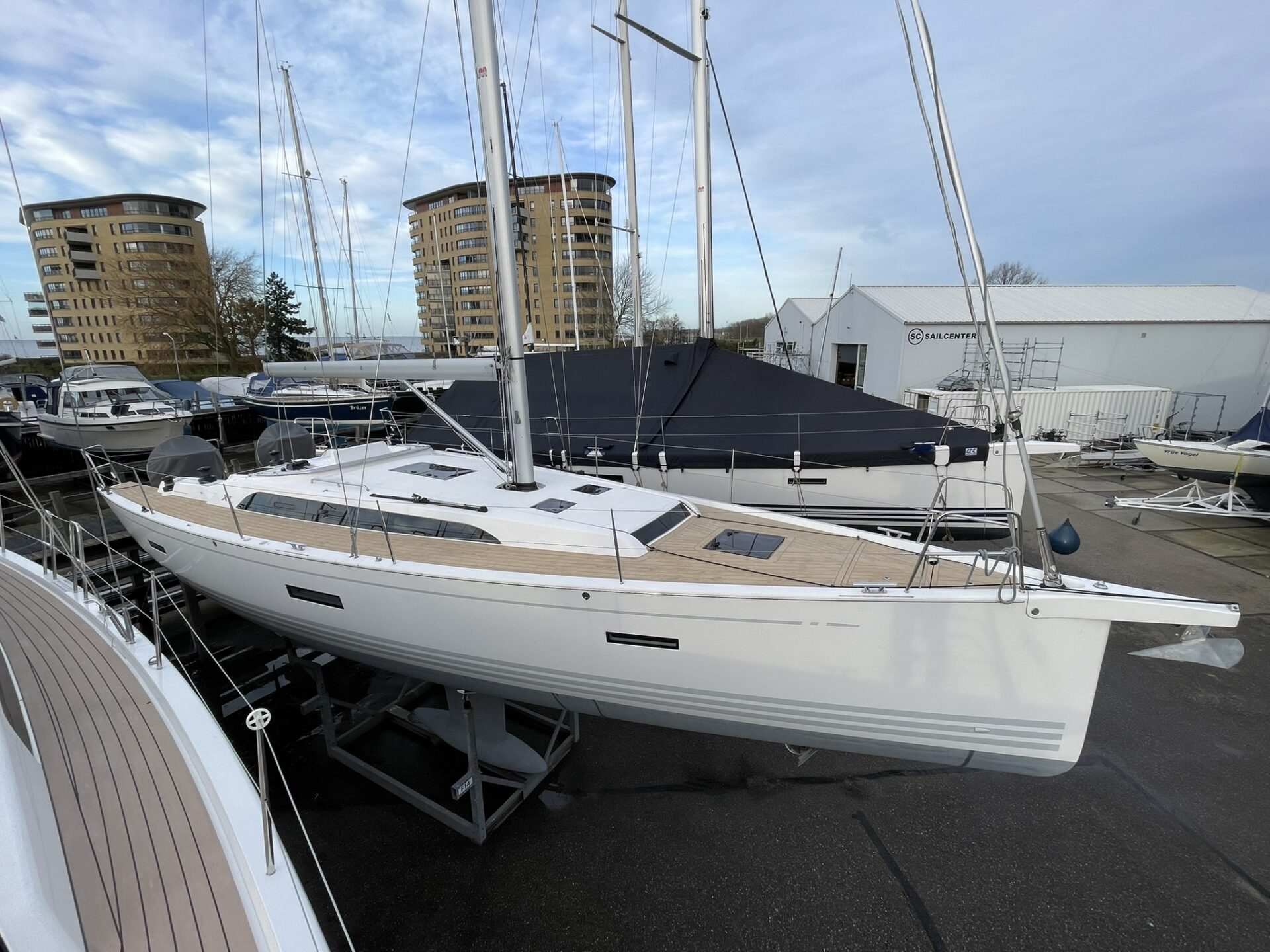

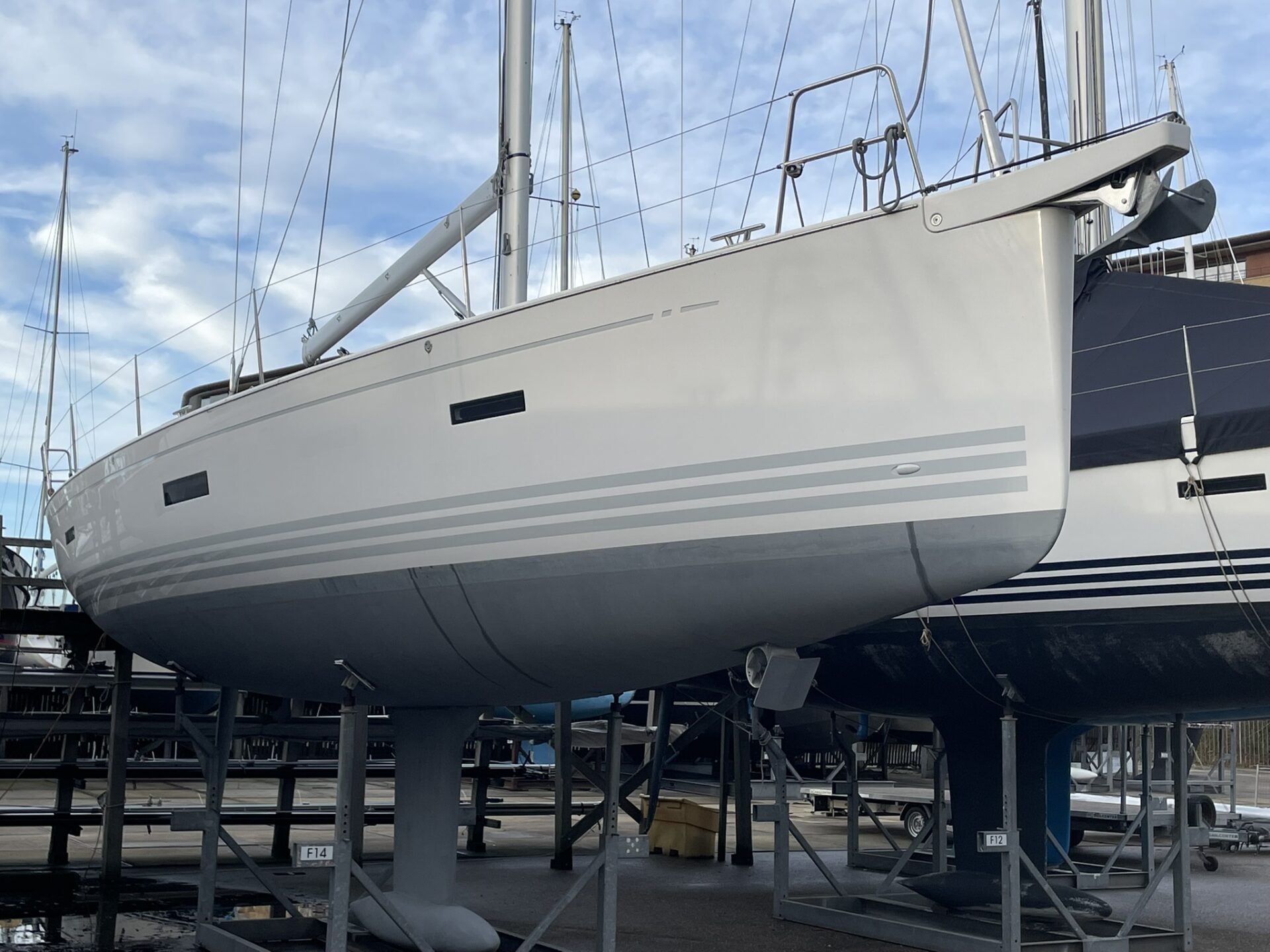

Hull

• Hull is vacuum epoxy infused, sandwich construction with structural fiberglass
• Steel girder frame for the keel
• Keel is a lead bulb underneath a steel fin, and is fully encapsulated in glassfibre/
• epoxy poured into a mould for perfect shape and finish
• Bottom treatment from yard (3x epoxy / 2x antifouling), maintained yearly since then
• Transom door to level of cockpit floor, with Flexiteek
• 3-blade folding propellor
• Retractable bowthruster MaxPower

Deck

• Flexiteek in cockpit (colour scrubbed with grey caulking)
• Flexiteek on side decks (colour scrubbed with grey caulking)
• Teak cockpit table with aluminium legs (removable)
• Cockpit cushions
• Larger genua winches (Harken Performa 50.2 STP)
• Electrical halyard winch on port side (Harken Performa 46.2 STPEH)
• Sail handling pack for gennaker, consisting of:
• - 2 sheets with soft-loop shackles
• - 2 ball bearing blocks on pad-eye at pushpits
• - 2 ball bearing turning blocks at level of genoa winches
• - 2 cleats for parking the gennaker sheets
• -Tackline, led below decks to stopper near SB halyard winch
• - 2 additional pad-eyes on bulwark for outboard sheeting
• Sprayhood on stainless steel frame (fabric in Sunbrella Titanium)
• Additional mooring cleats midships
• Carbonfiber bowsprit (in same colour as hull)
• Large dry saillocker in the bow of the boat
• Anchor locker with electrical anchor winch
• Upgrade to 50m anchor chain
• 20kg Delta anchor
• Cockpit shower
• Black composite steering wheels
• GRP consoles at steering wheels (for plotter and instruments)
• Ritchie magnetic compass in port side console at steering wheel

Sails

• UK Sails:
• - Mainsail in X Drive carbon with grey lite skin taffeta (2 full batten, 3 short batten, with 2 reefs)
• - Set of Ronstan ball bearing cars for mainsail
• Quantum Sails:
• - Furling jib in Fusion membrane with grey lite skin taffeta (with vertical battens and UV-cover) from year 2025 and not used yet
• - Cableless code 0 in carbon/aramide laminate with Profurl NEX 2.5 furler (86 m2)
• Covers:
• - Lazy bag mainsail cover (fabric in Sunbrella Titanium)
• - Furling jib cover (fabric in Weathermax Slate, not used yet)
• - 2x cover for steering wheels/consoles (fabric in Sunbrella Titanium)

Mast & Rigging

• Custom designed aluminum mast, boom and vang for X4.3 by John Mast
• Rod rigging as standard for all standing rigging
• Hydraulic backstay adjuster
• Furlex genoa furling system
• All halyards and sheets in dyneema
• Combined LED 3-colour/anchor light in top of mast
• Combined LED deck/steaming light on forward face of mast
• VHF antenna in top of mast with Aircell 7 cable
• Upgrade to gas spring in vang
• Lazy bag stack pack for mainsail, with custom spliced lazy jacks for support

Accommodation

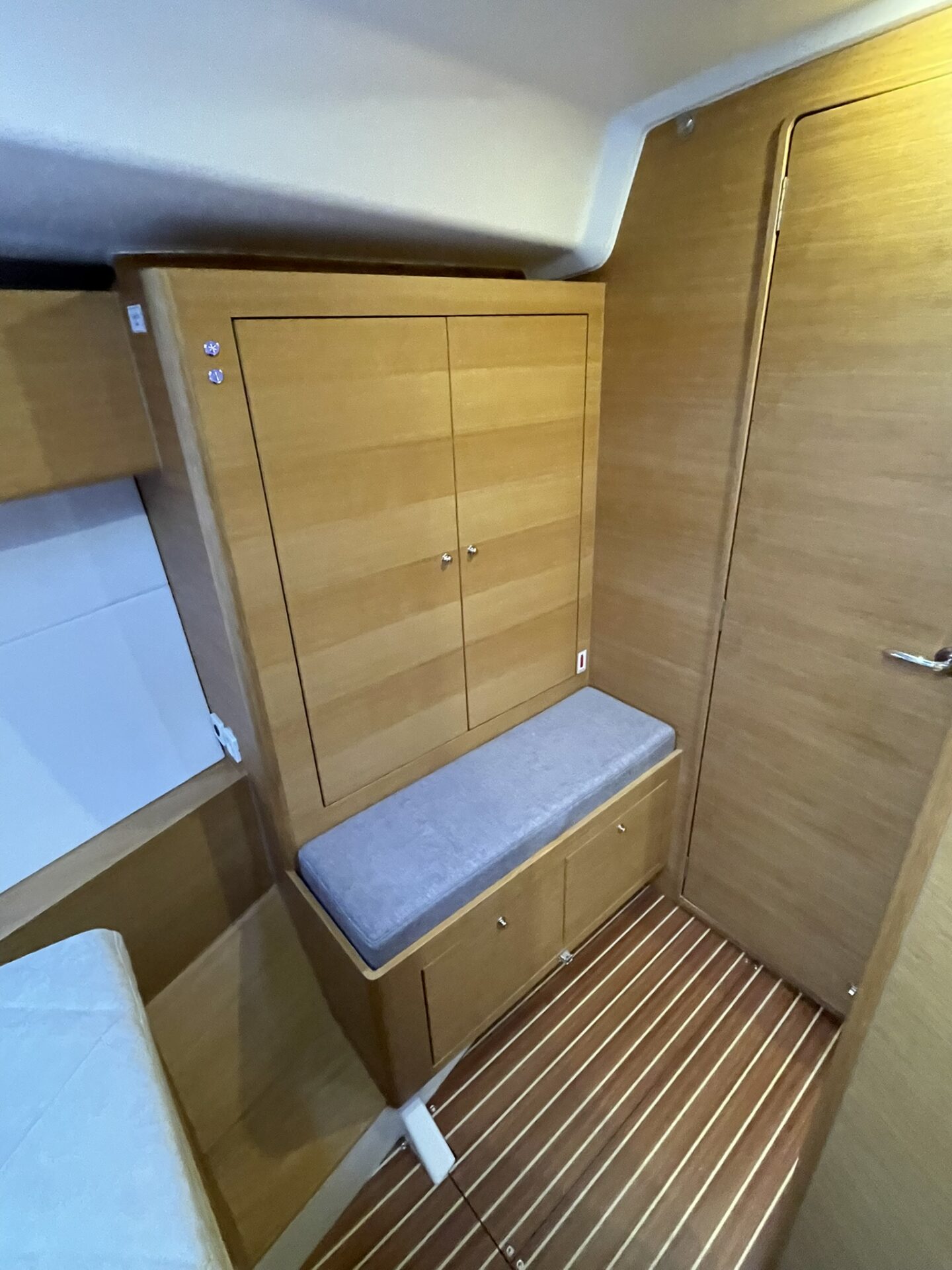

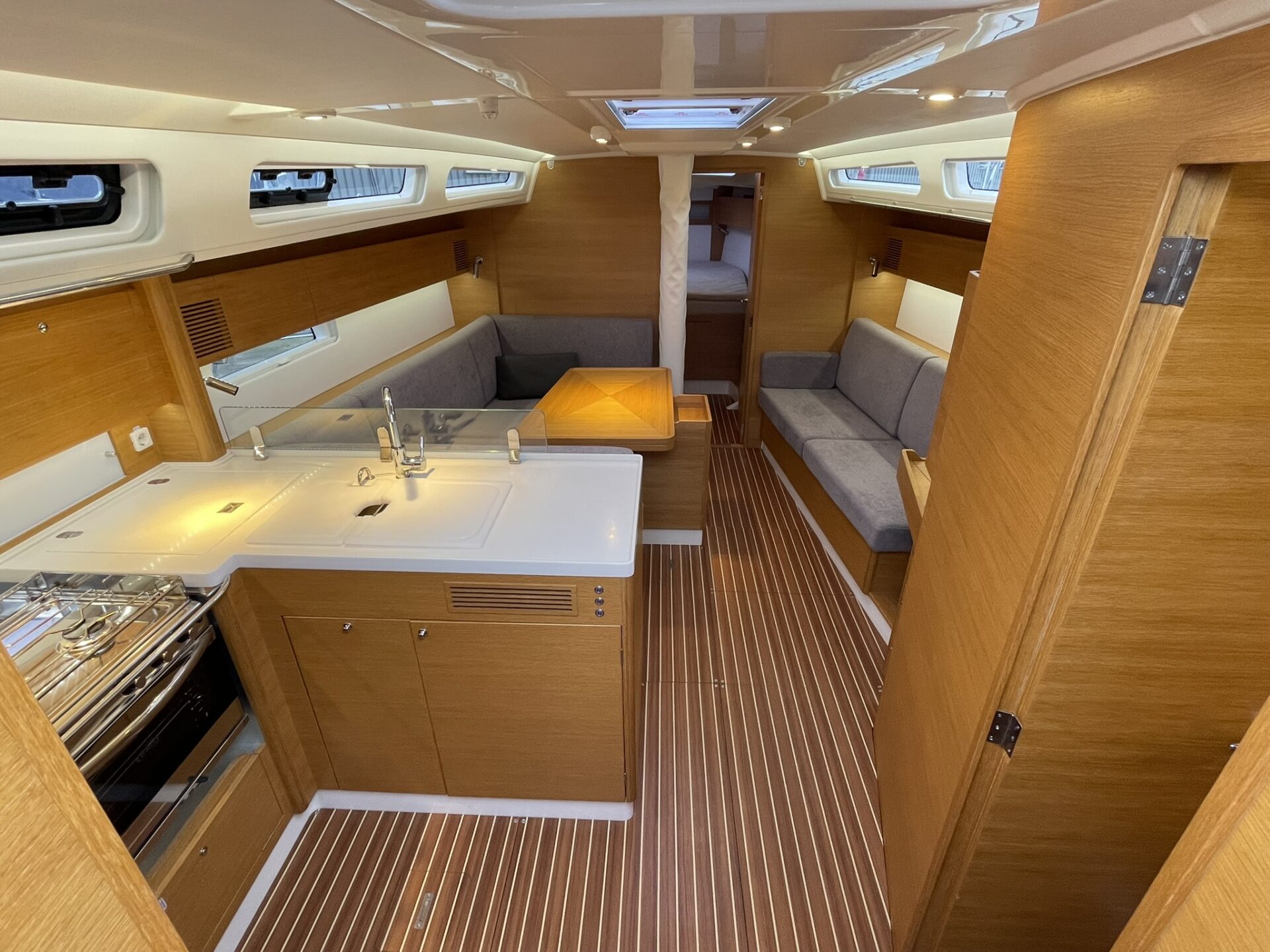

Interior

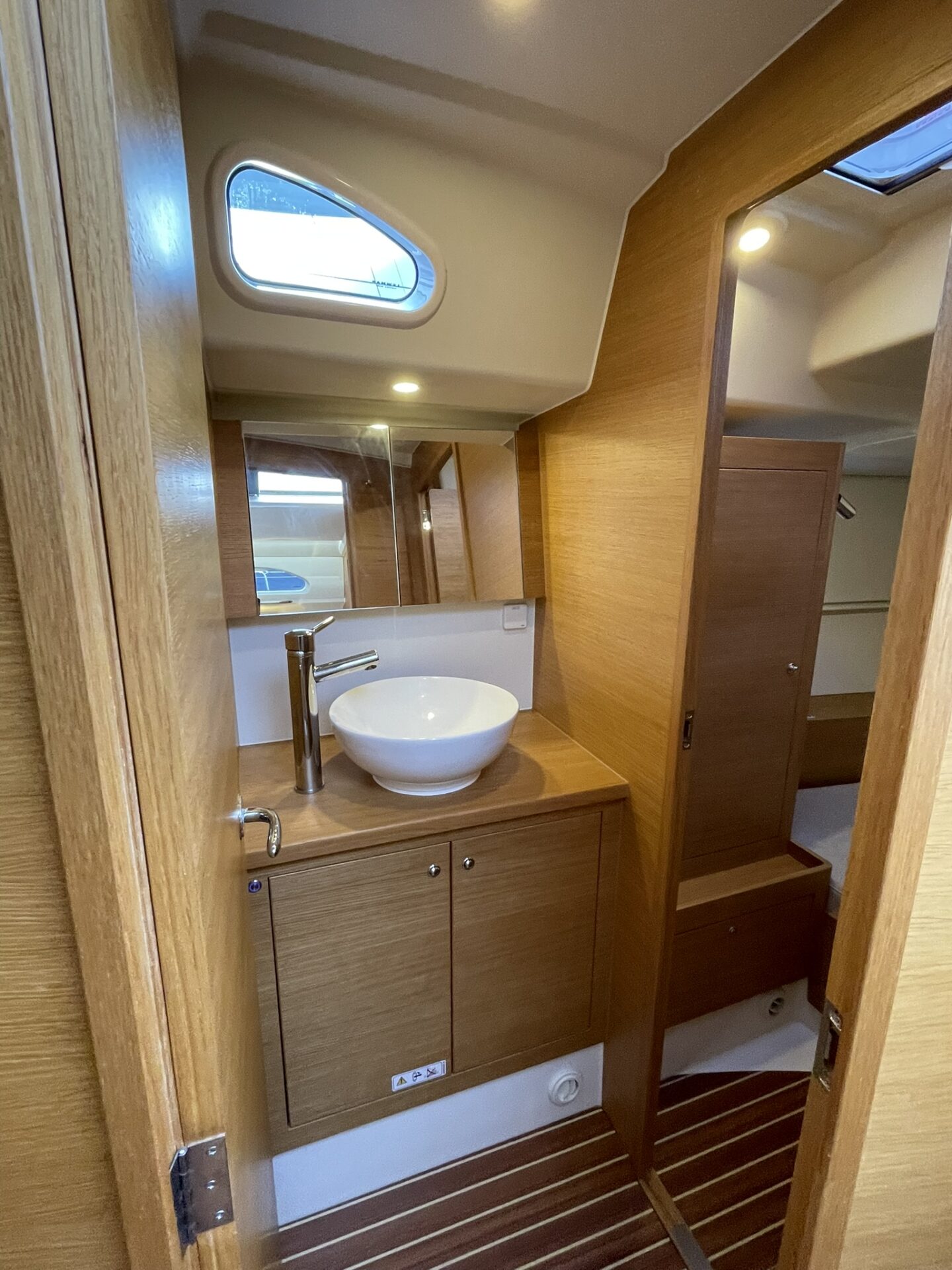

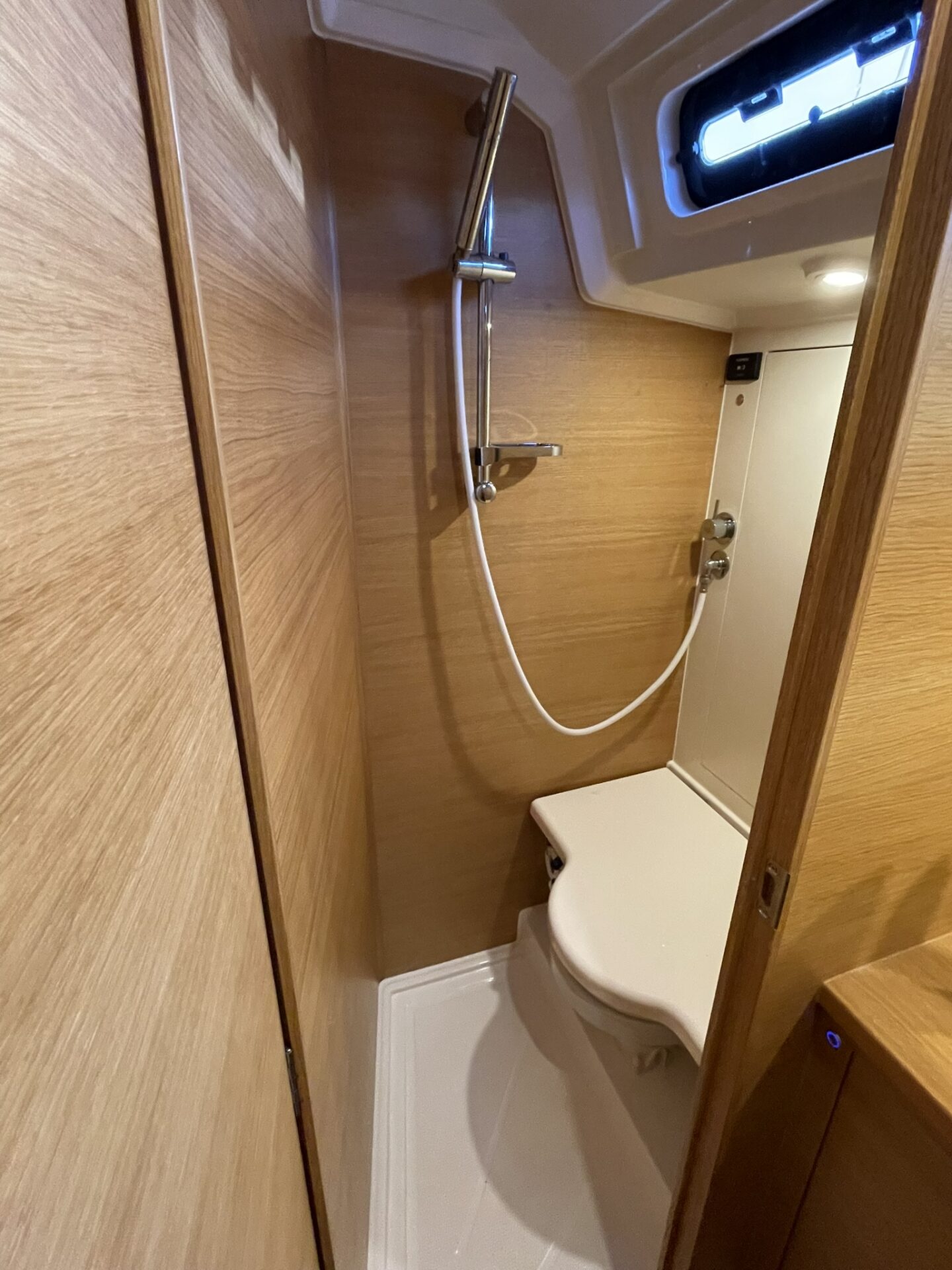

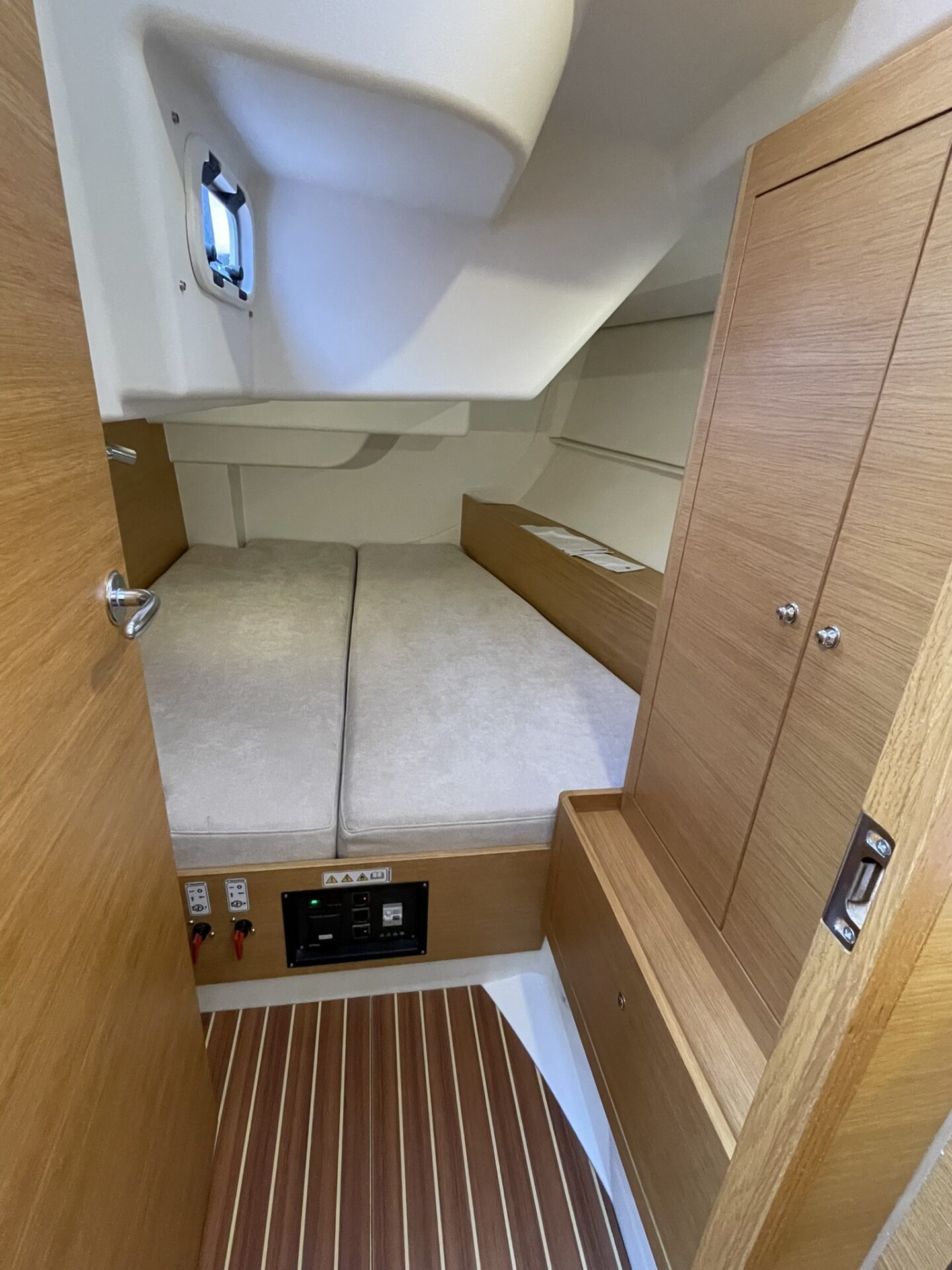

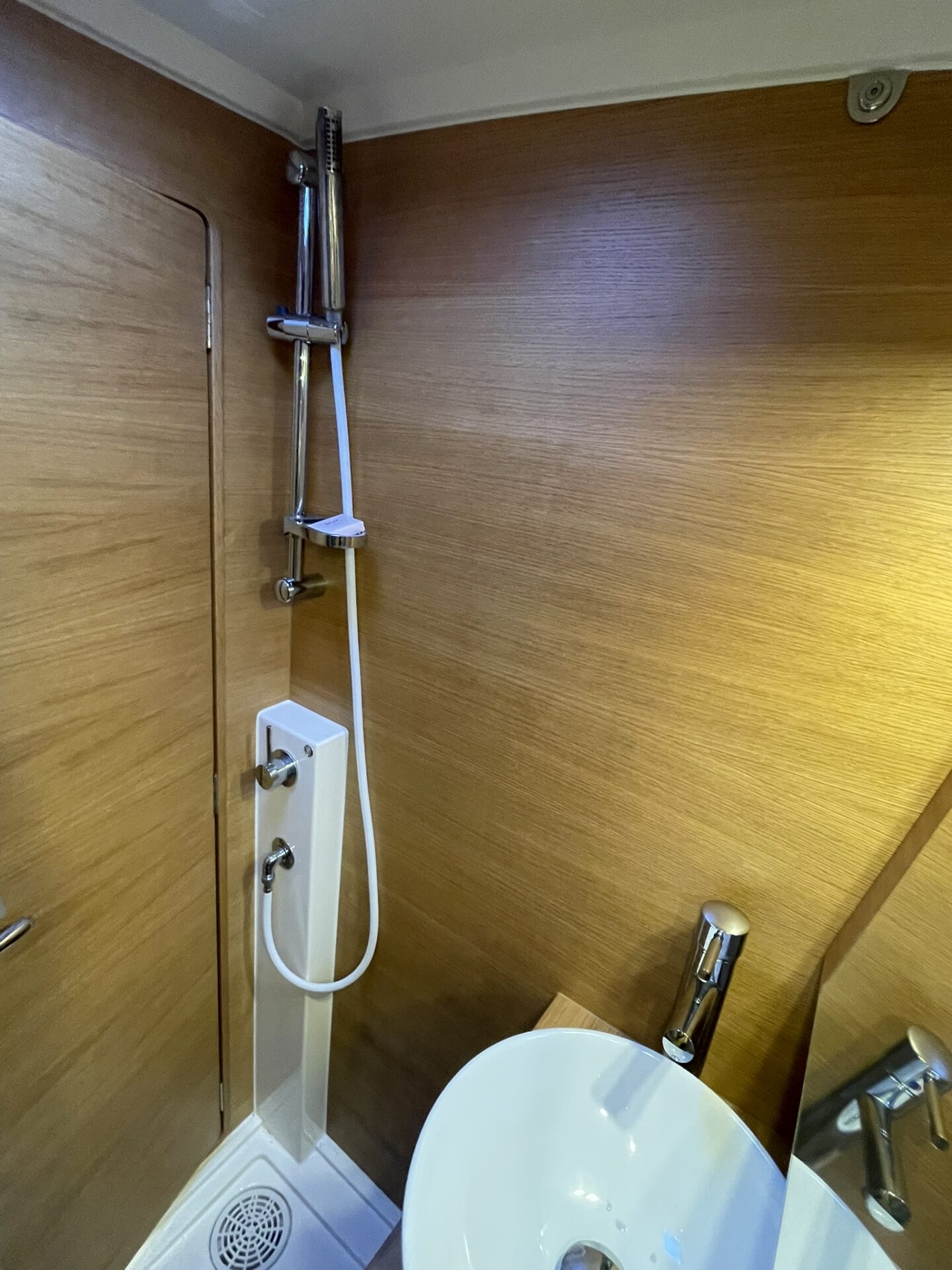

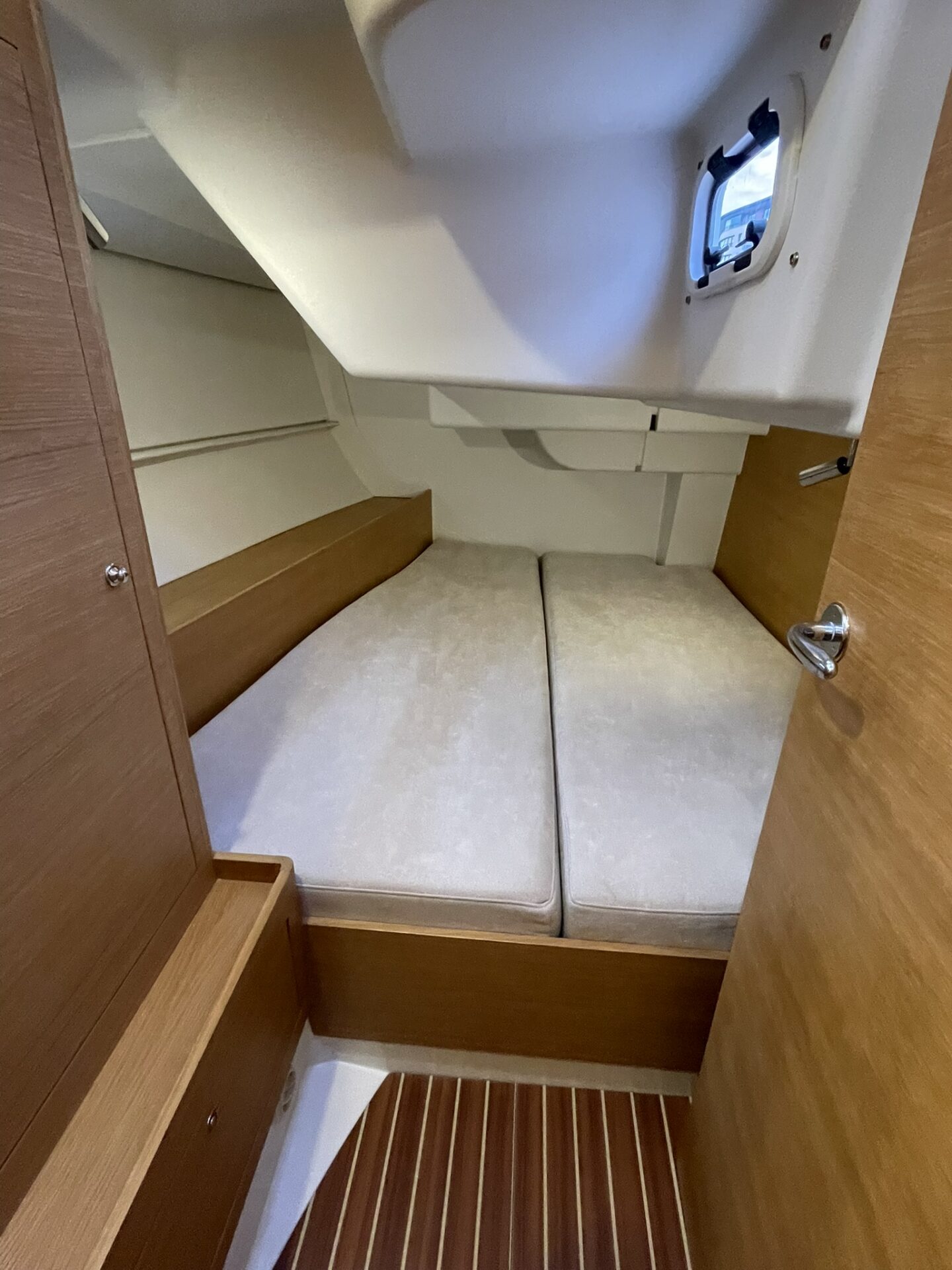

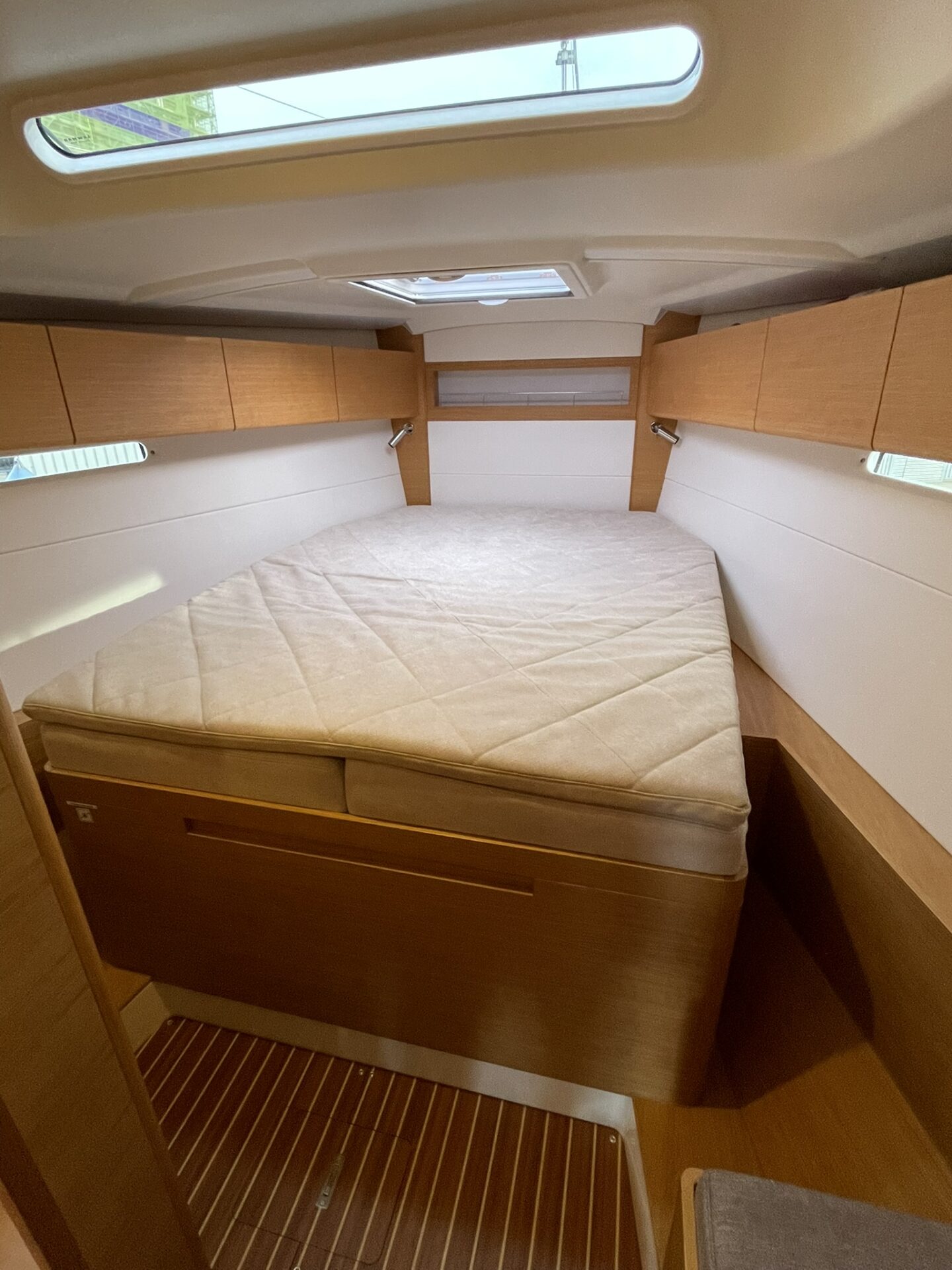

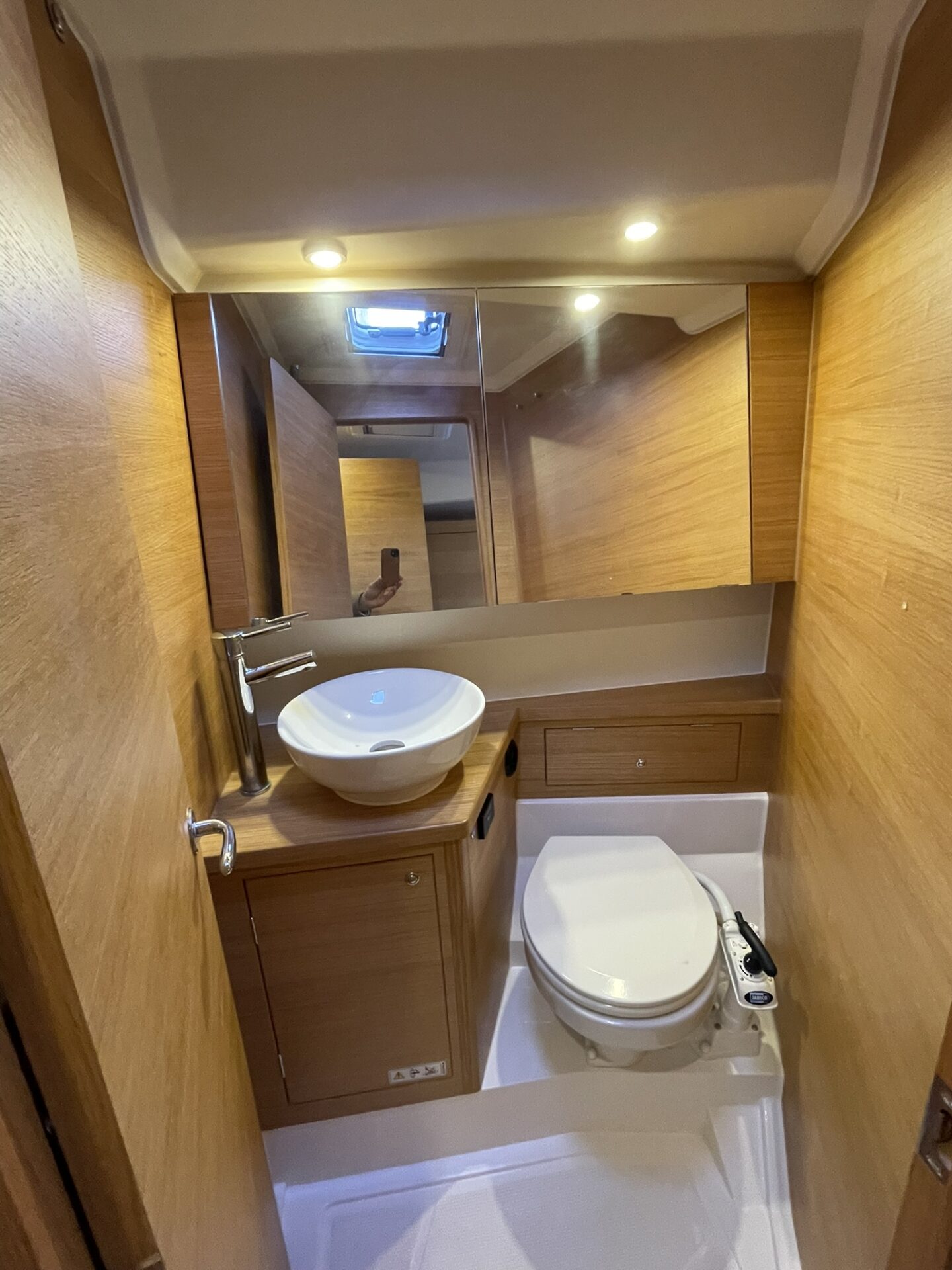

• 3-cabin/2-heads lay-out
• Full interior crafted with selected Nordic Oak veneer
• Lower section of cabinets in galley also in Nordic Oak veneer
• Floorboards with Koto stripes
• Webasto AirTop 5500 heating system with exits in all rooms
• OceanAir curtain system for all hatches and coachroof windows (incl. hull windows)
• Additional LED downlighting below cabinets in saloon (with dimmer)
• Additonal cabinet sections along hull in forward cabin

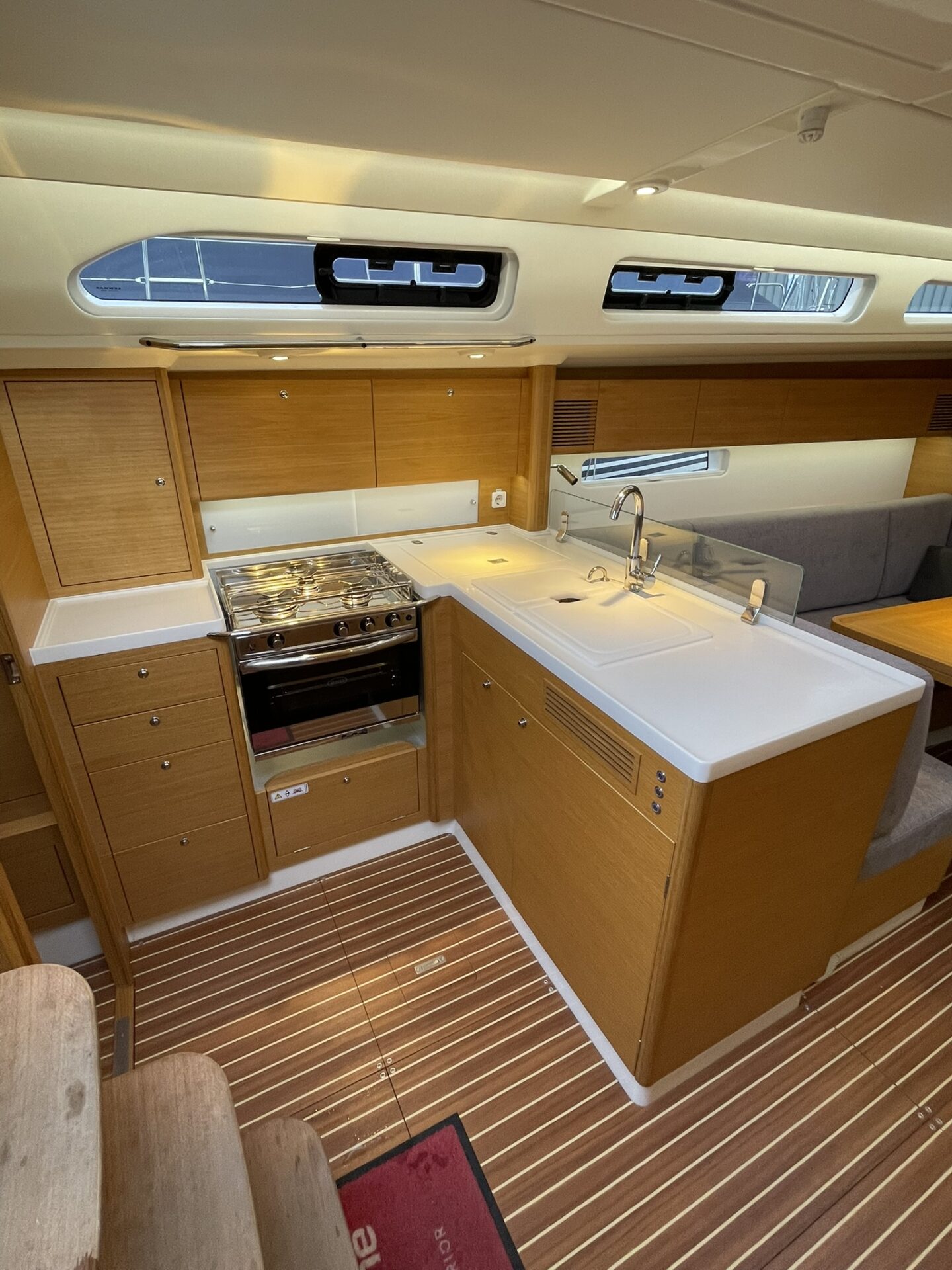

• 3-burner stove with oven in galley
• Additional refrigerator (front-loading) in galley with freeze compartment

Systems

Electrical

• Additional gel battery (total capacity then 330Ah)
• Galvanic isolator

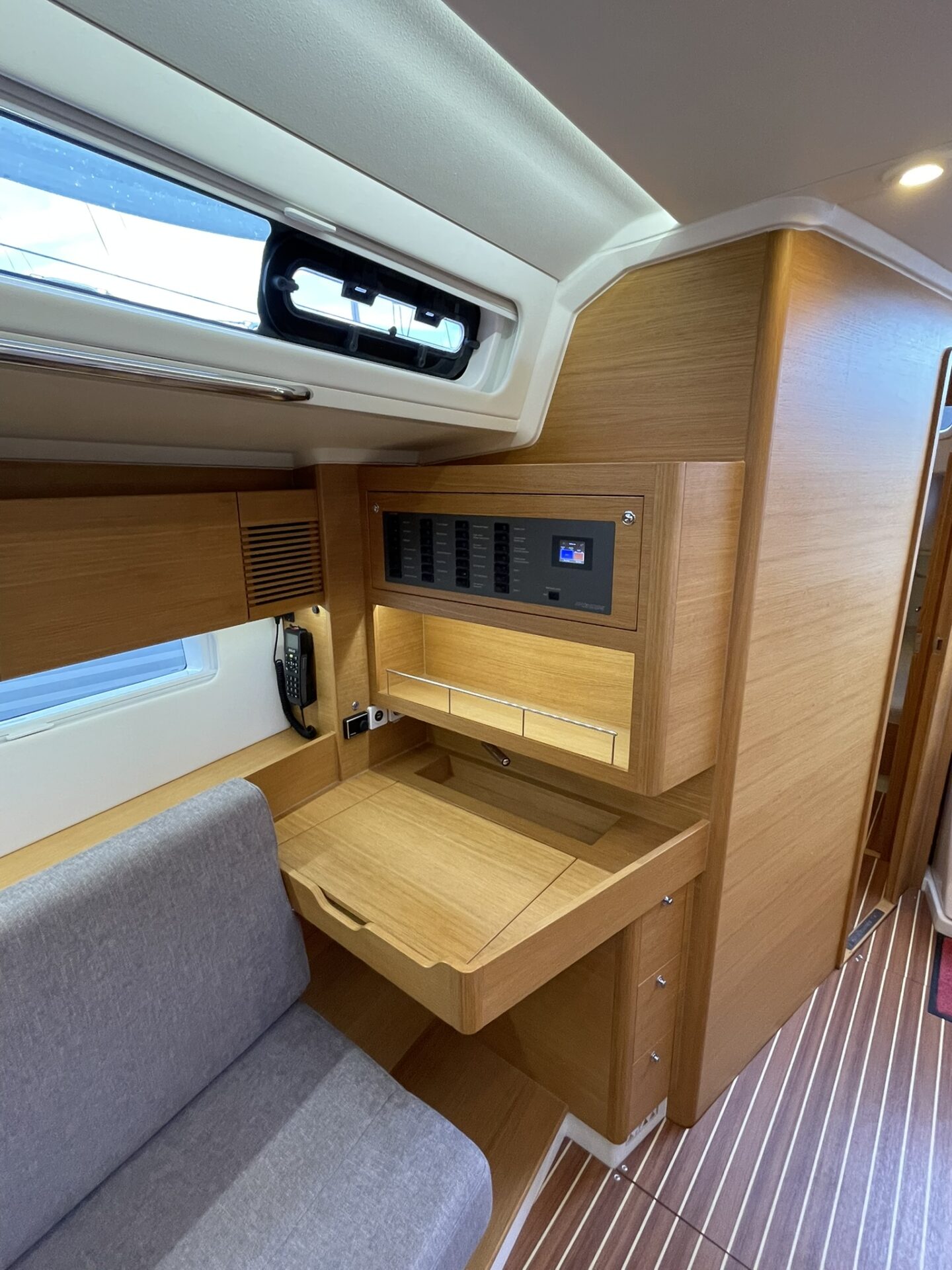

• Touchscreen at nav station upgraded to battery monitor, by installing shunt hardware
• Package of sockets, consisting of:
• - 6x 230V stopcontact: in galley (1), in each cabin (3), and in both heads (2)
• - 4x double USB socket on 12V: in each cabin (3) and at nav station (1)
• - 1x 12V exterior socket: in cockpit on SB side behind steering wheels

Electronics

• B&G Triton2 package, consisting of:
• - 5x Triton2 display
• - ZG100 GPS antenna
• B&G autopilot:
• - NAC-3 computer
• - Precision9 electronic compass
• - Triton2 control panel in console at port steering wheel
• - 1x additional Triton2 display in console at port steering wheel
• B&G WR10 wireless remote control for autopilot
• B&G Zeus3 9" plotter in console at SB steering wheel
• B&G V90S VHF at nav station
• B&G nAIS500 AIS transceiver, including NSPL-500 antenna splitter
• B&G H50 wireless handset for VHF in cockpit
