Details

Exterior Details

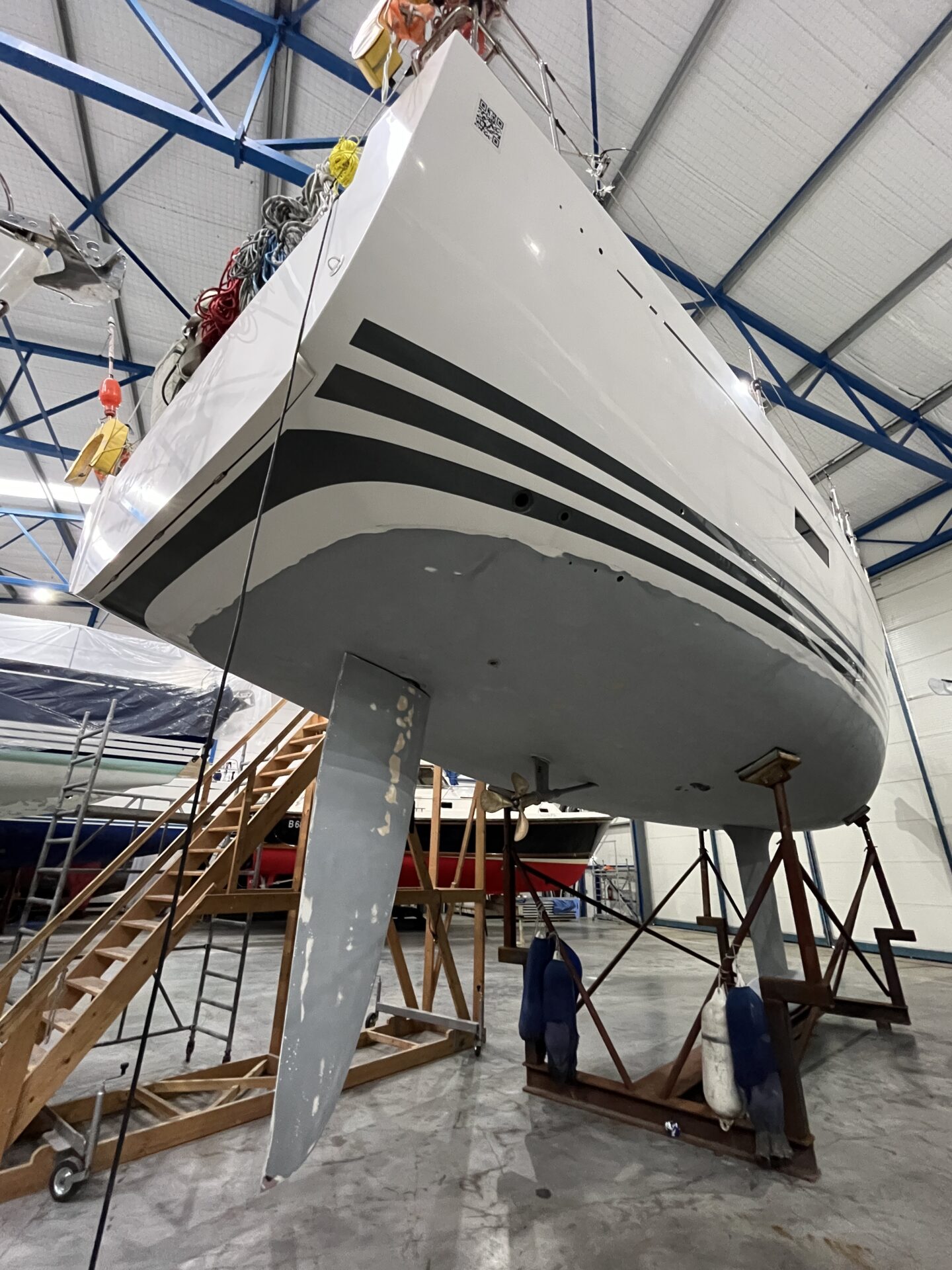

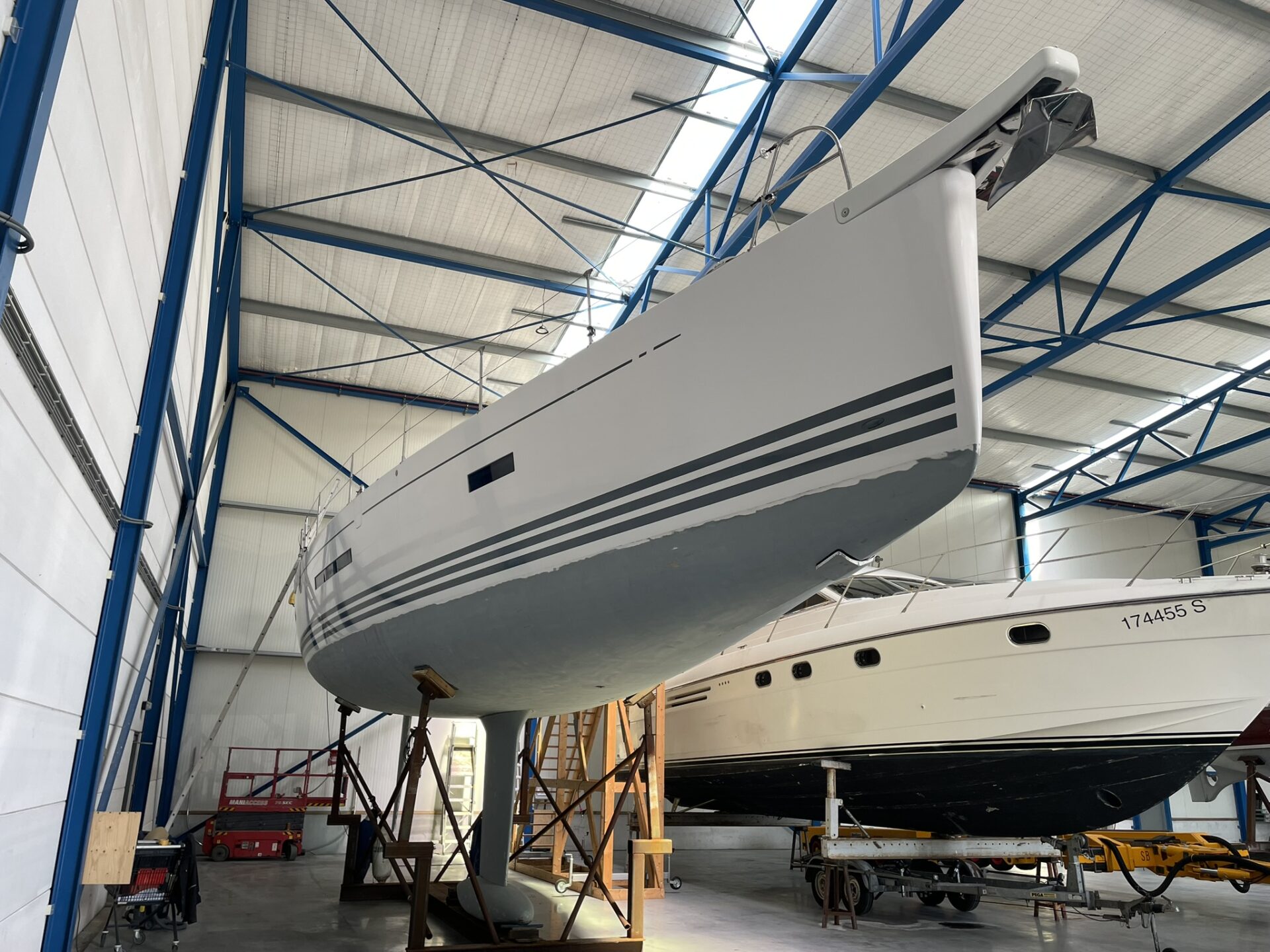

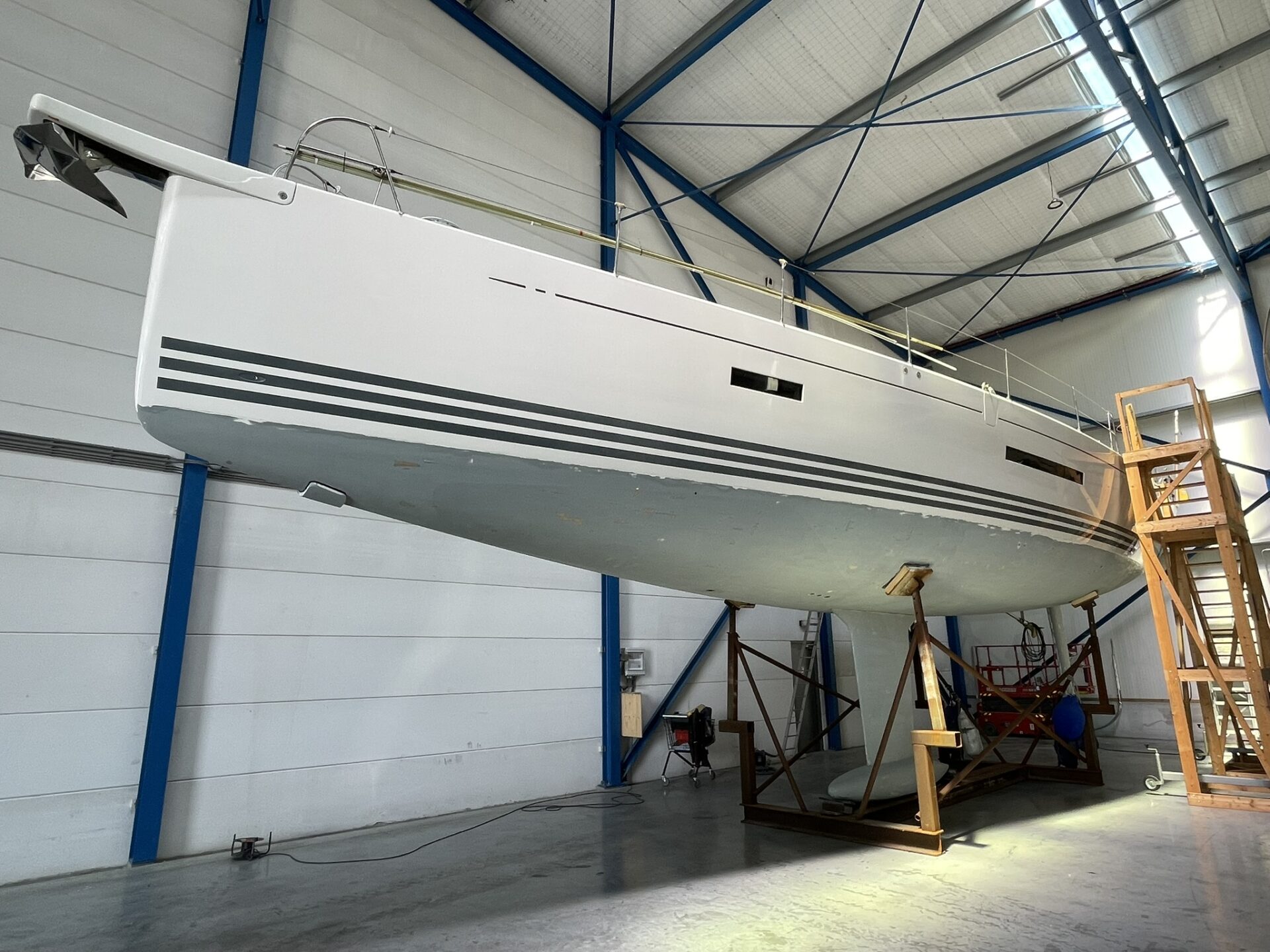

Hull

• Waterlines in dark grey
• Bottom treatment re-newed January 2025 (new epoxy primer and antifouling)
• Aft tender garage to accommodate inflatable tender. (Size Lmax = 320 cm, Bmax= 160 cm, Hmax = 65 cm)
• Transom door electrically operated
• Rescue ladder on transom + electrical rescue system to open transom platform from the sea
• Hull recessed portlights (6 pcs)
• Bowsprit in carbonfiber (white painted)
• Retractable bowthruster (24V MaxPower)

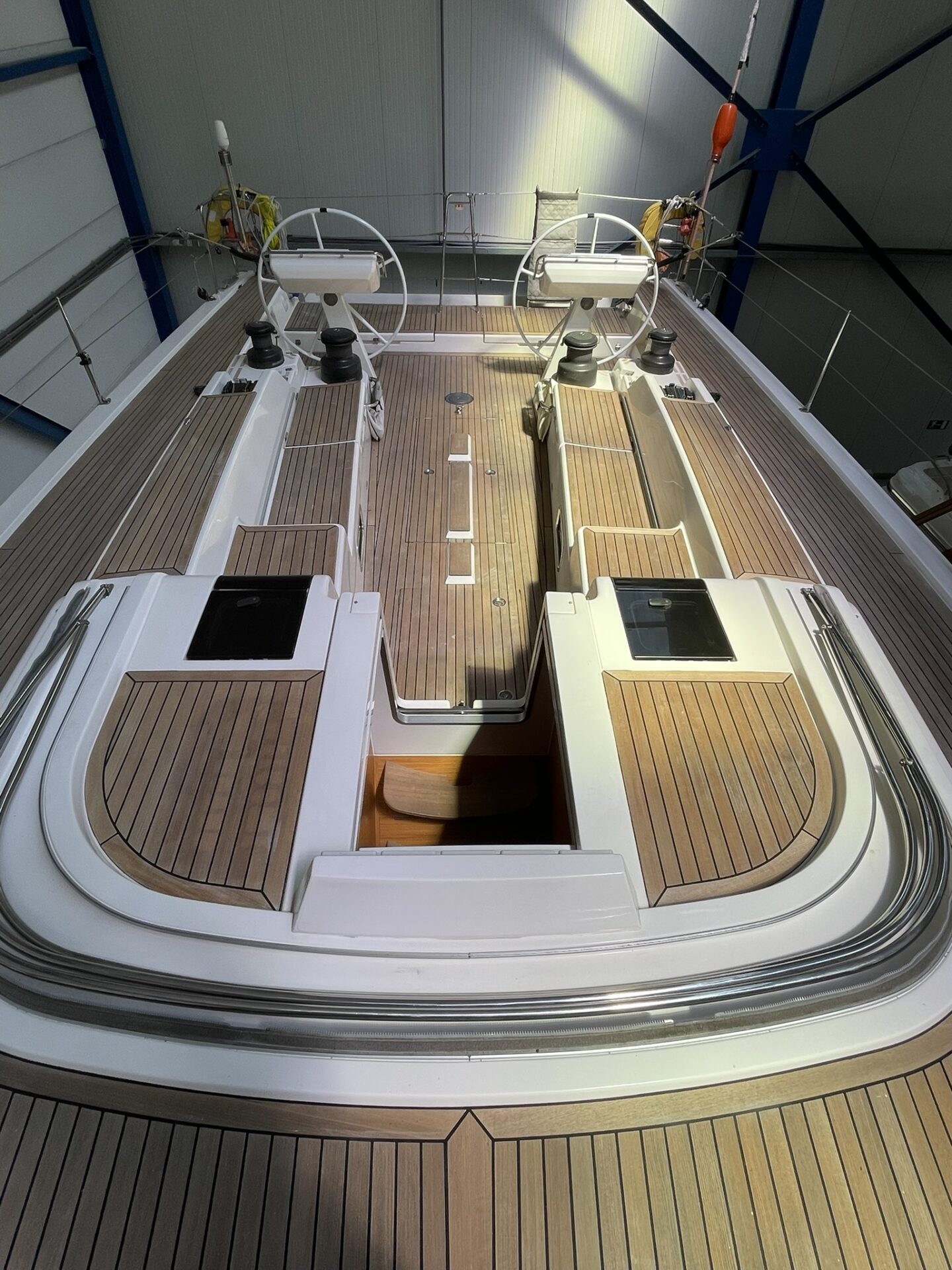

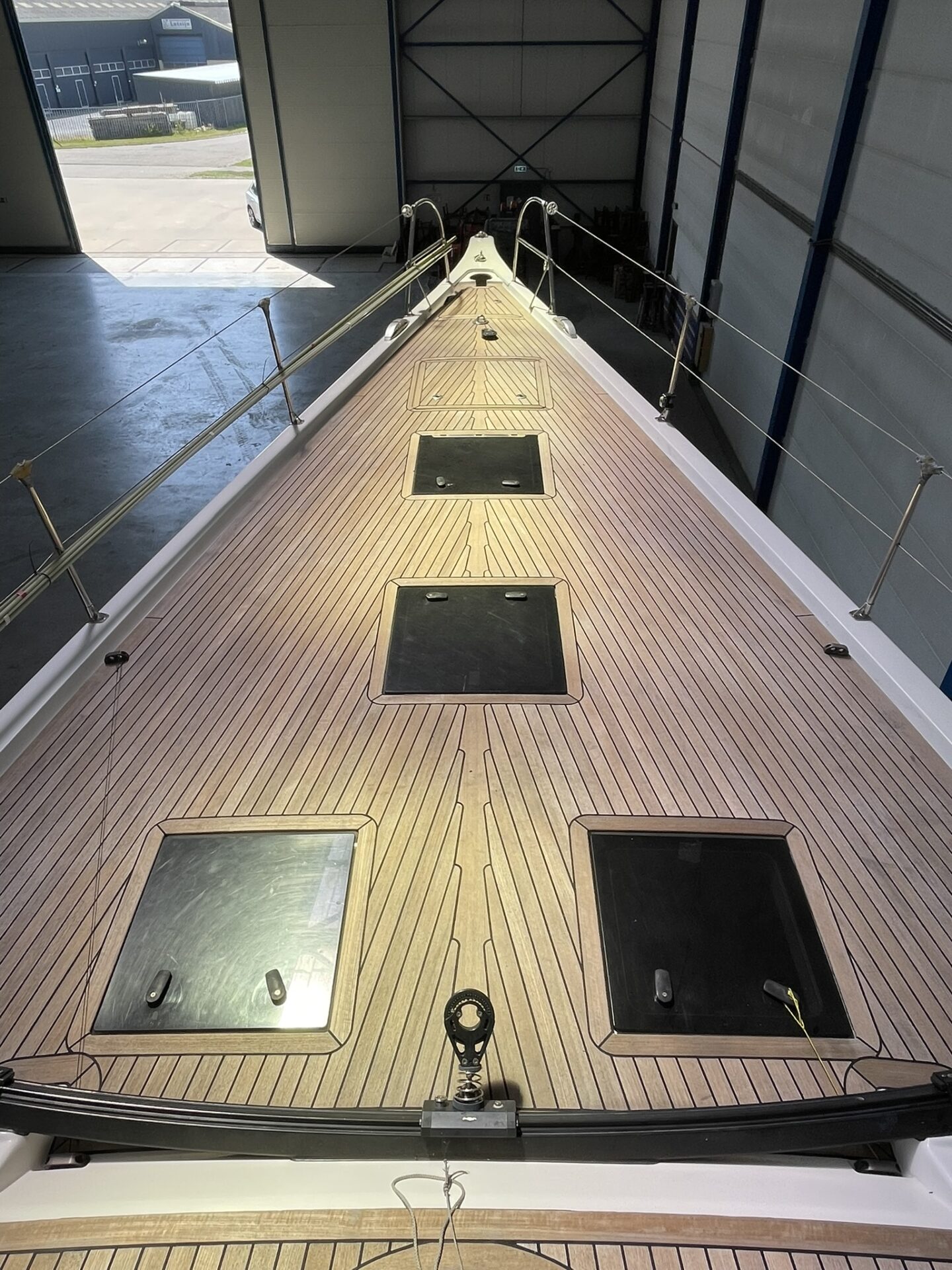

Deck

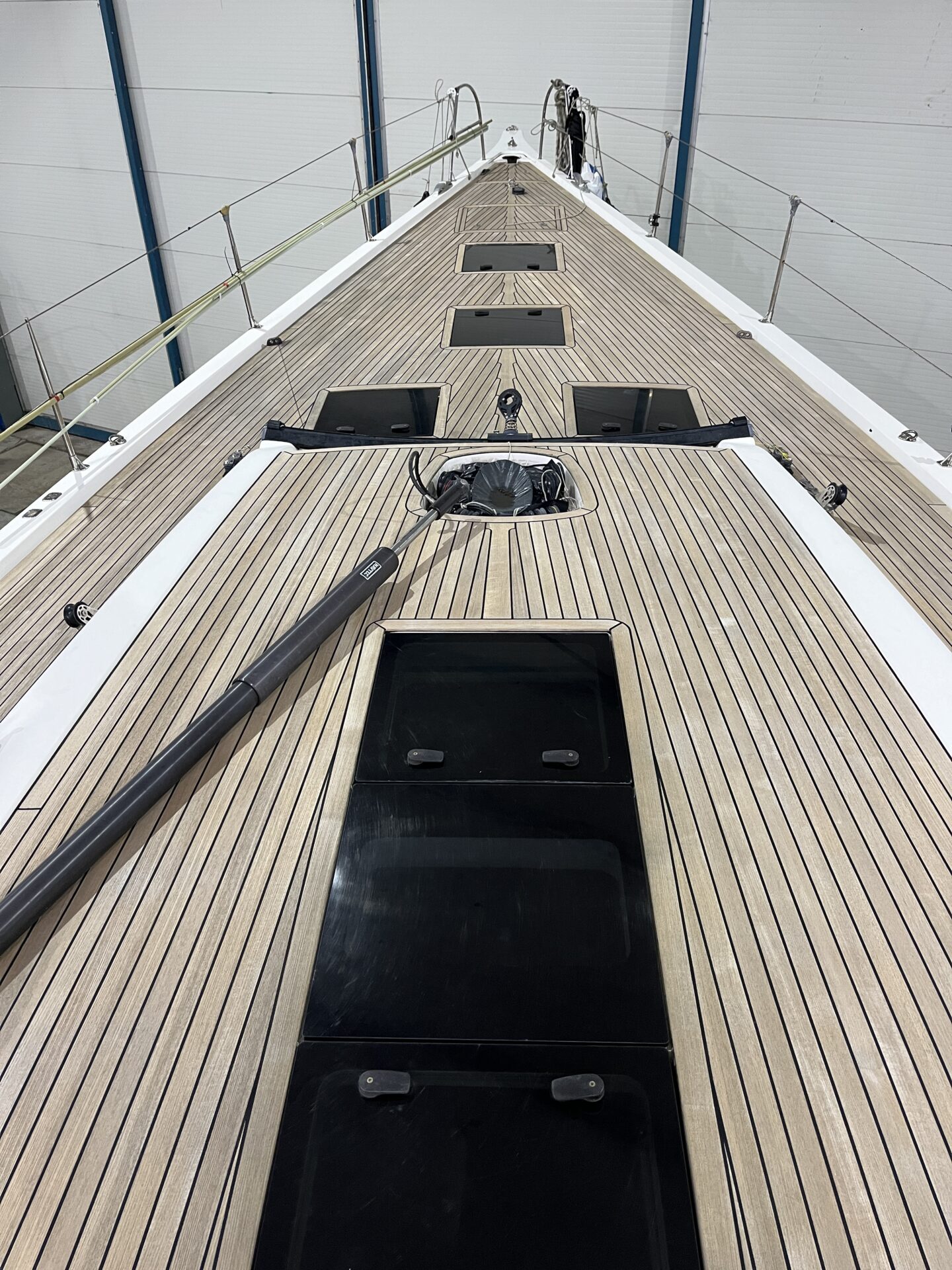

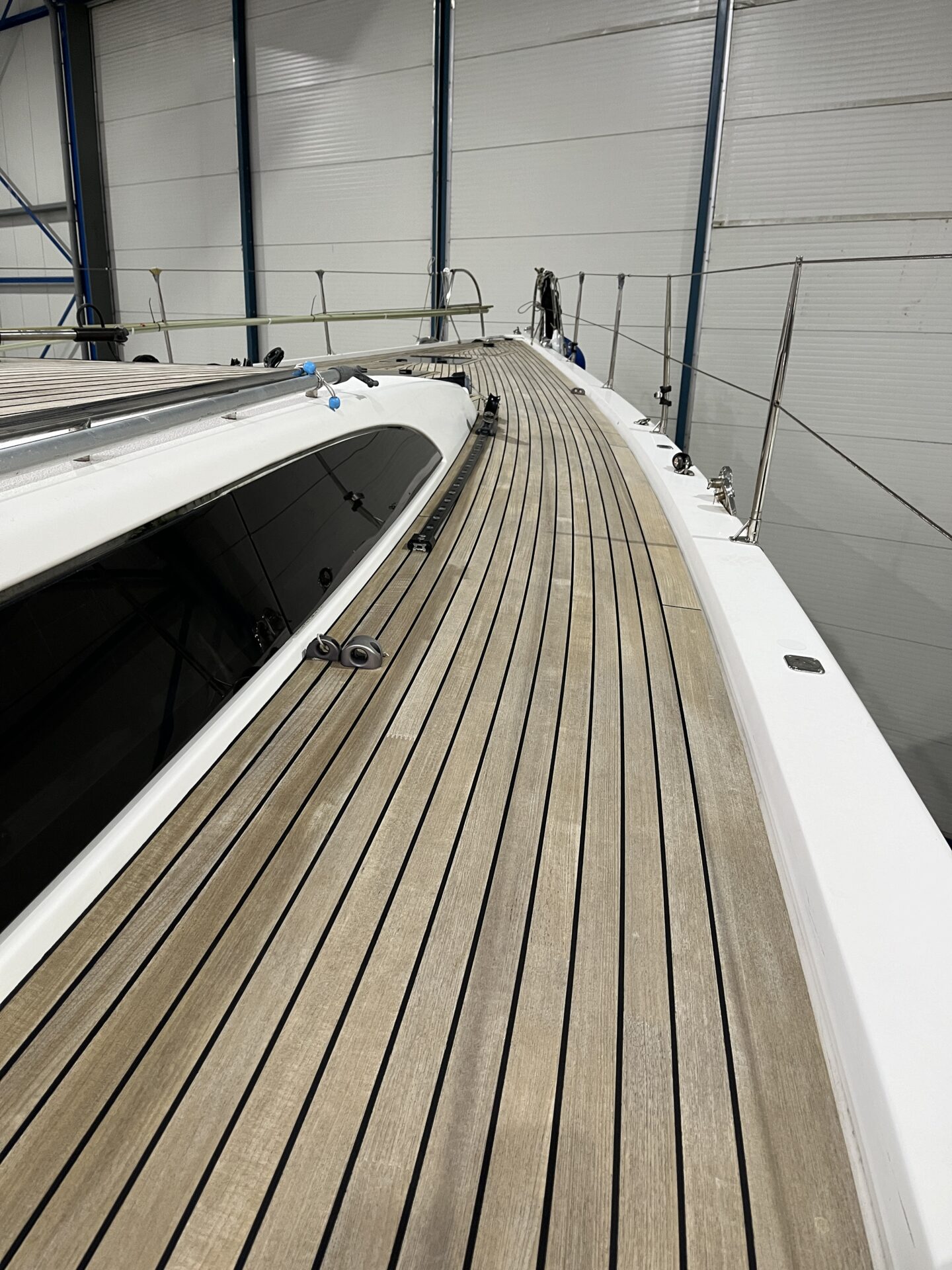

• Teak on side decks

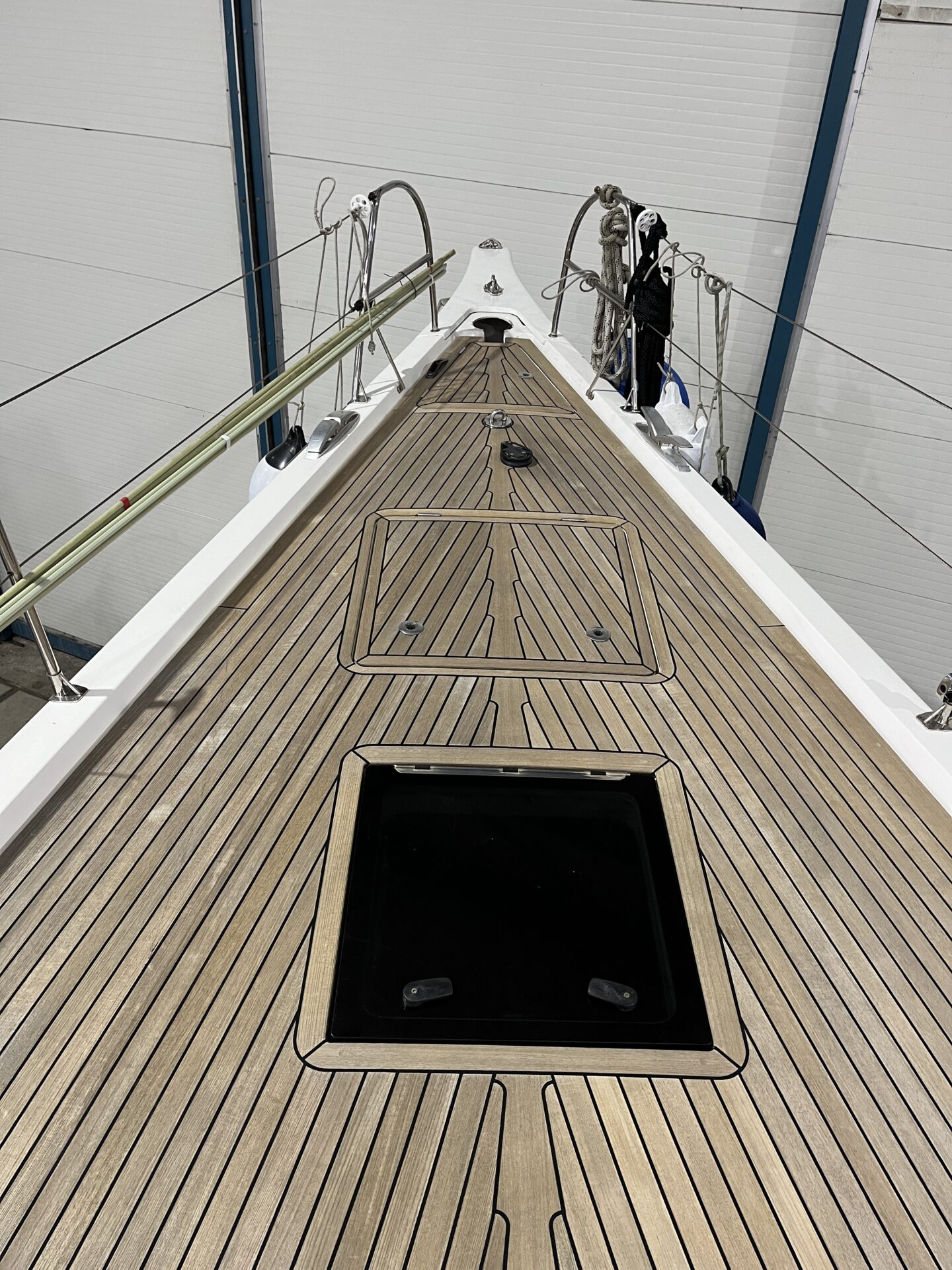

• Teak on top of coachroof
• Teak on cockpit coaming
• Boarding gates midships
• 6x foldable Nomen mooring cleats
• Removable pad-eye for inner jib
• Ultra Marine 35kg stainless steel anchor with 75m galvanised anchor chain
• Additional remote control for anchor in pedestal at SB steering wheel

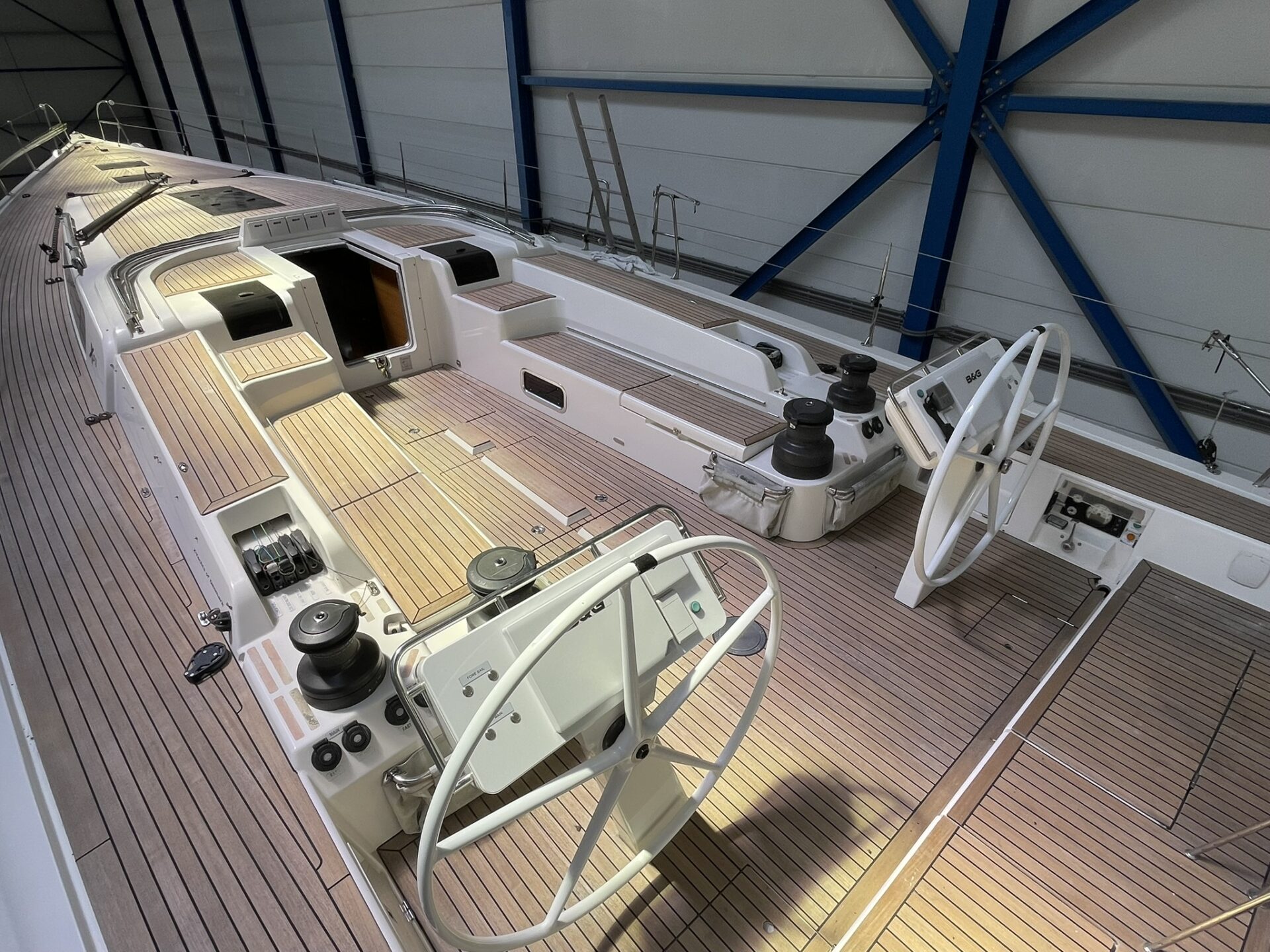

• Steering wheels in white GRP
• Maxi pedestals at steering wheel for plotter and instruments
• LED courtesy lights in cockpit (4 pcs)
• LED light in boom over cockpit
• Anchor locker - drained area with windlass and space for anchor chain
• Sail Cabin - aft of the anchor locker with space for general storage
• Piper berth mounted in sail cavin
• Gas locker for 2 x 3 kg gas bottle located in side deck
• Gas spring fitted to sail locker, forward and aft cockpit lockers (4 pcs)
• Foot chocks - deck recessed aft of steering wheels, can be placed in inclined position
• Extra set of removable teak foot chocks in front of steering wheel
• Integrated rope compartments in front of steering wheels, port and starboard, under side deck

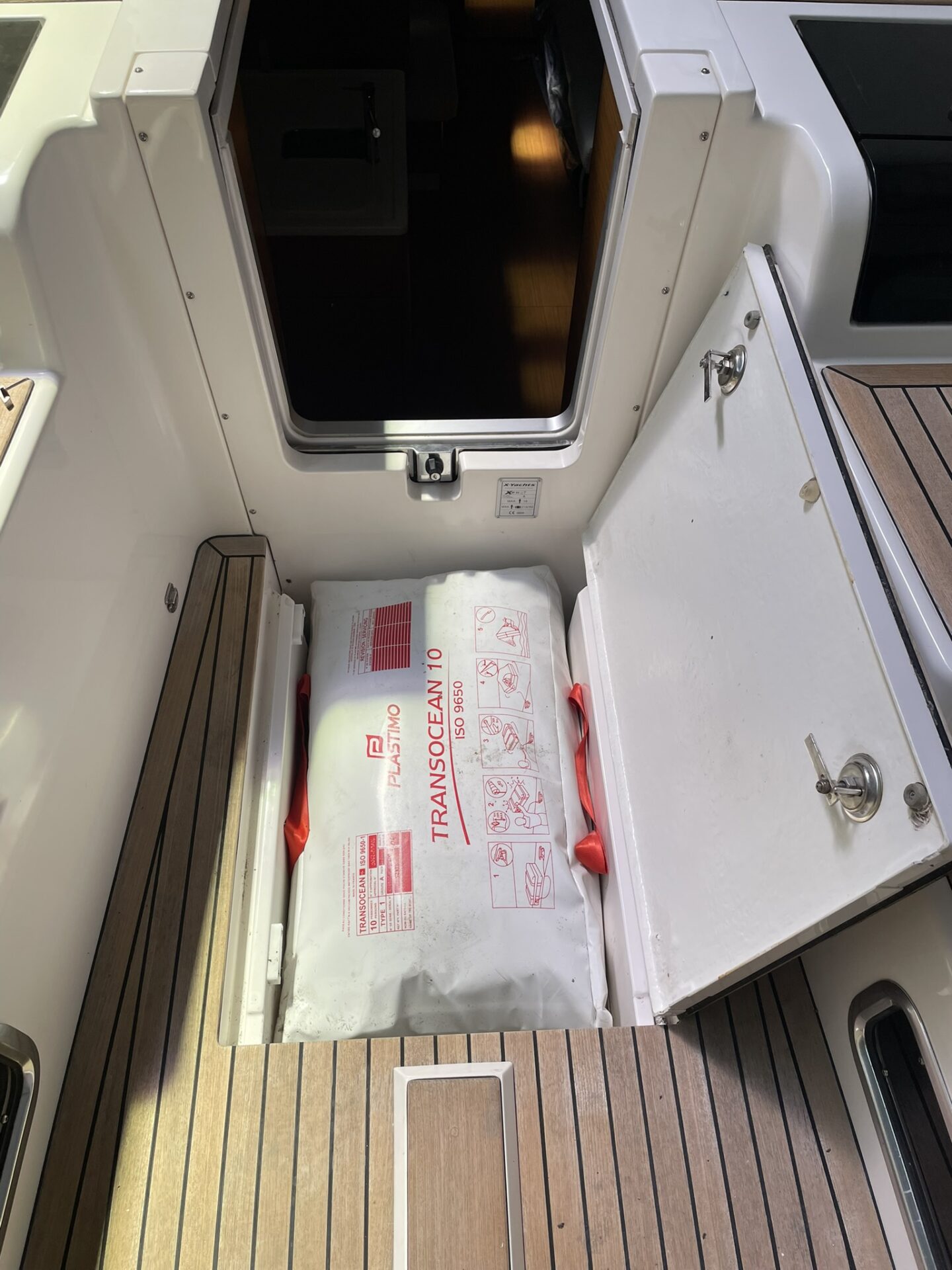

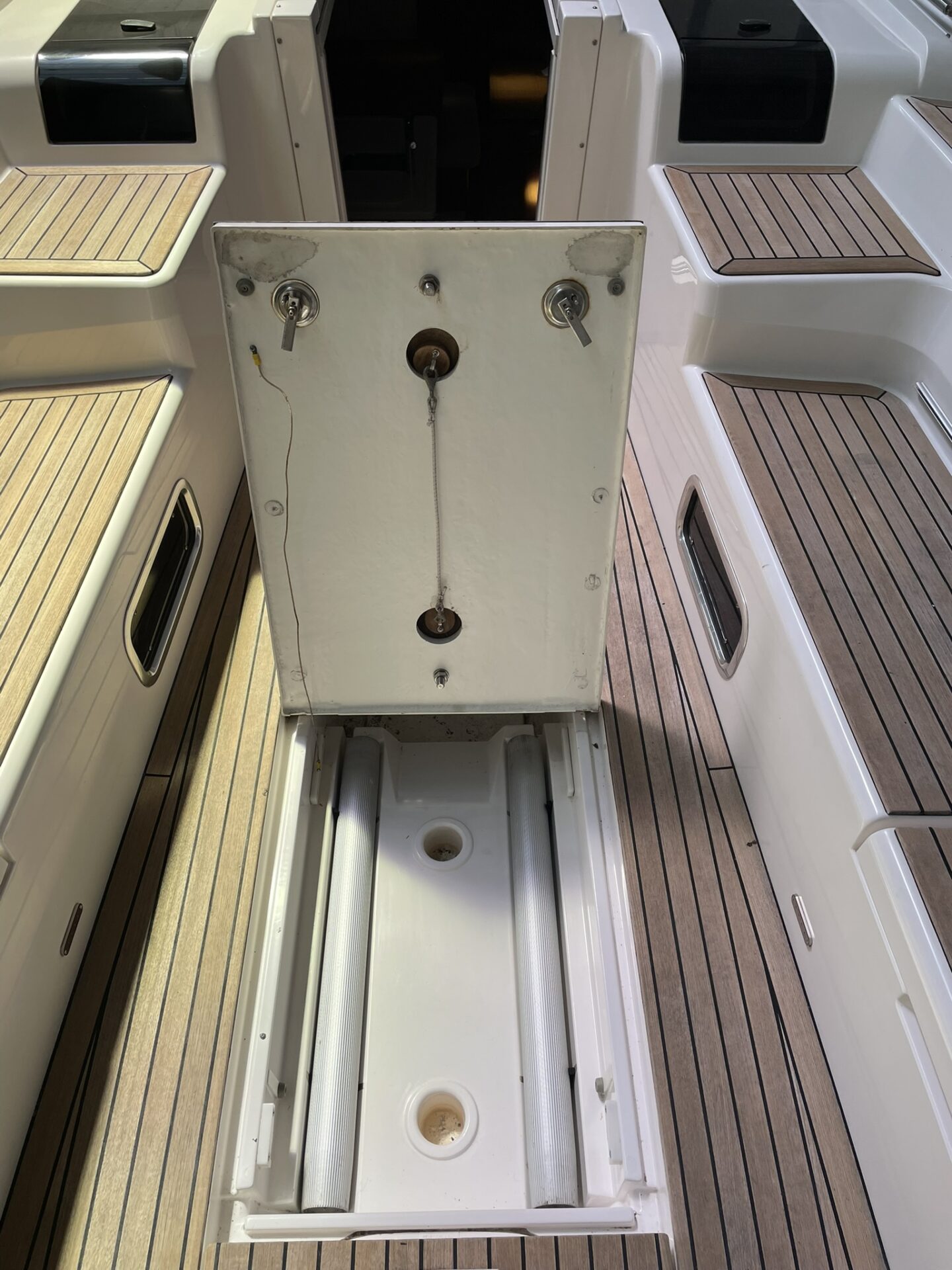

• Cockpit floor locker with hinged lid, with space for optional cockpit table and liferaft storage below
• Teak cockpit table
• Set of cockpit cushions with backrest

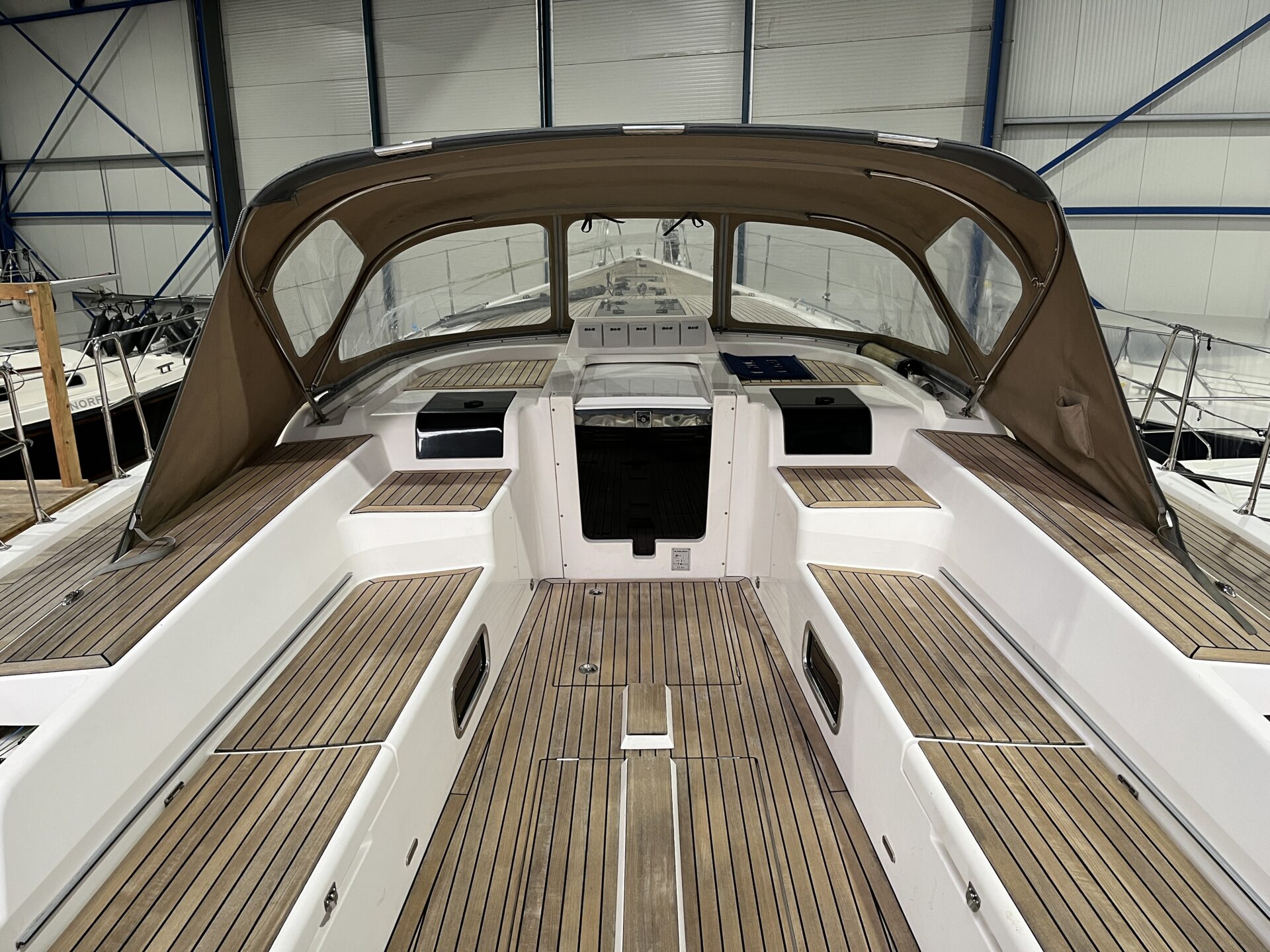

• Sprayhood with stainless steel frame, in beige canvas (2023)
• Extension part for sprayhood on removable frame, in beige canvas
• Bimini on stainless steel frame for helmsman position, in beige canvas

Sail Handling

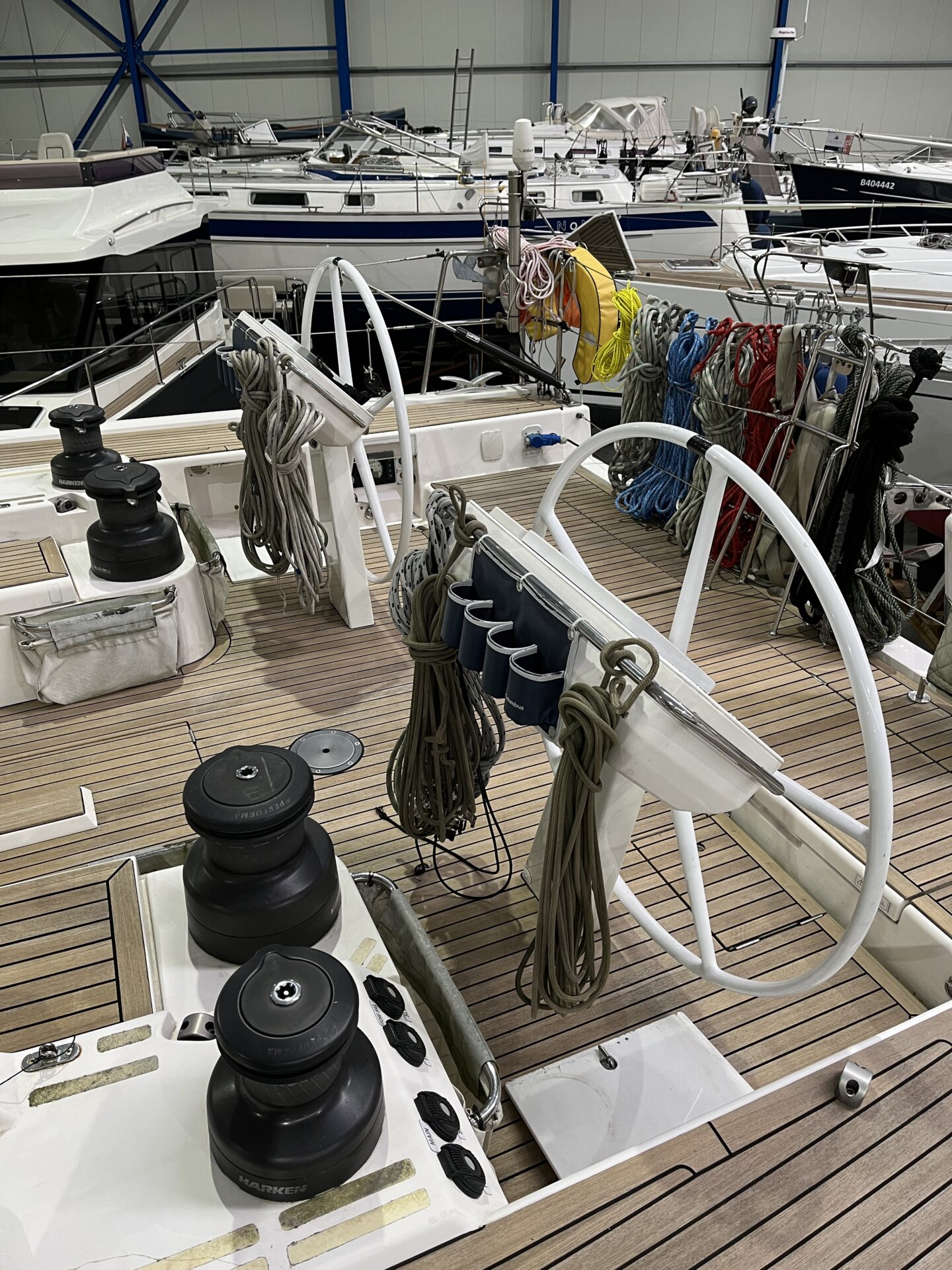

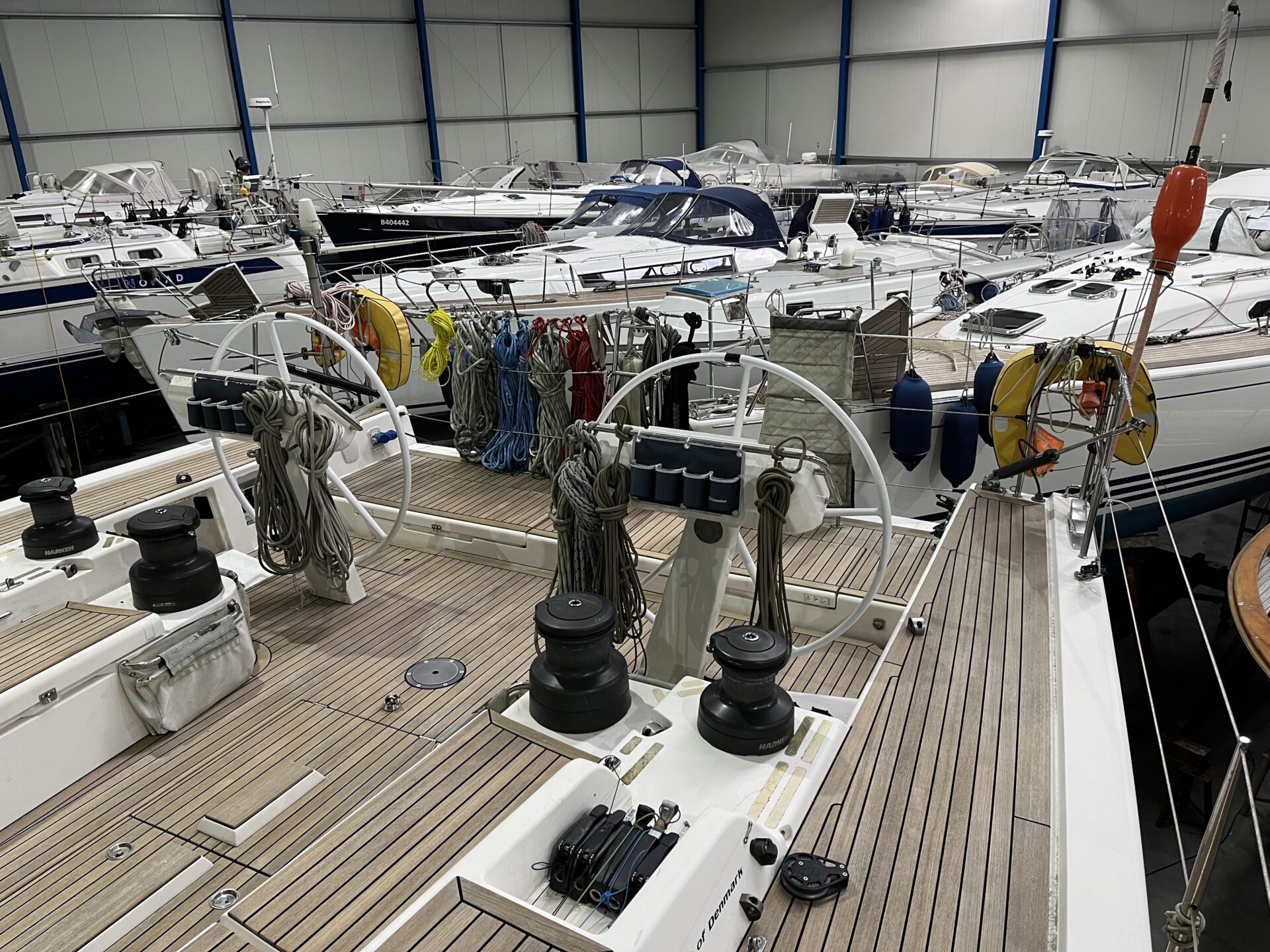

• Genoa winches, Electric Harken 80.2 STEPH
• Electric Mainsail/Halyard winch Harken 70.2 STEPH
• Additional control buttons for electric winches on pedestals at steering wheels
• Selftacking jib track on forward part of coachroof
• Deck package for sail handling of gennaker and code 0
• Additional pad-eyes on toerail for outboard sheeting of jib
• Spinnaker barberhauler system
• Electrical hydraulic handling package: Navtec 50 panel with functions for vang, backstay, outhaul, and genoa
• halyard

Sails

• Carbon main sail (2019)
• Carbon genoa 3 (2018)
• Carbon genoa 3 (2019)
• Carbon self tacking genoa 4 (2018)
• Carbon self tacking inner jib with anti-torsion cable, on Karver 4.5 ton furler
• Code 0 with anti-torsion cable (2023), on Karver 6 ton furler
• Gennaker A2 with sock (2018)

Mast & Rigging

• White painted aluminium mast by John Mast
• Rod rigging package (with positive NDT test report from March 2023)
• External mast track with ball bearing cars
• Carbonfiber V boom by Hall Spars
• Inner forestay package with halyard
• 2 additional mast steps on mast
• LED 3-colour/anchor light in top of mast
• LED combined deck/steaming light
• Upgrade of jib halyard to dyneema SK90 quality
• Code 0 halyard with 2:1 purchase in SK90 quality

Accommodation

Interior

• , nav station and cupboards included)
• Lay-out with medium galley and 3 heads compartments
• Varnished wooden veneer floorboards with inspection hatches
• Oceanair blinds incl flyscreen fitted to all skylights (9 pcs)
• Pleated curtains fitted to hull windows in owners and aft cabins (4 pcs)
• Companionway (GRP moulding) with steps of curved unvarnished teak
• Handrails by entrance and alongside coach roof portlights in main cabin in stainless steel
• White upholstery in saloon and on seat in owner's cabin
• LED lights throughout the interior

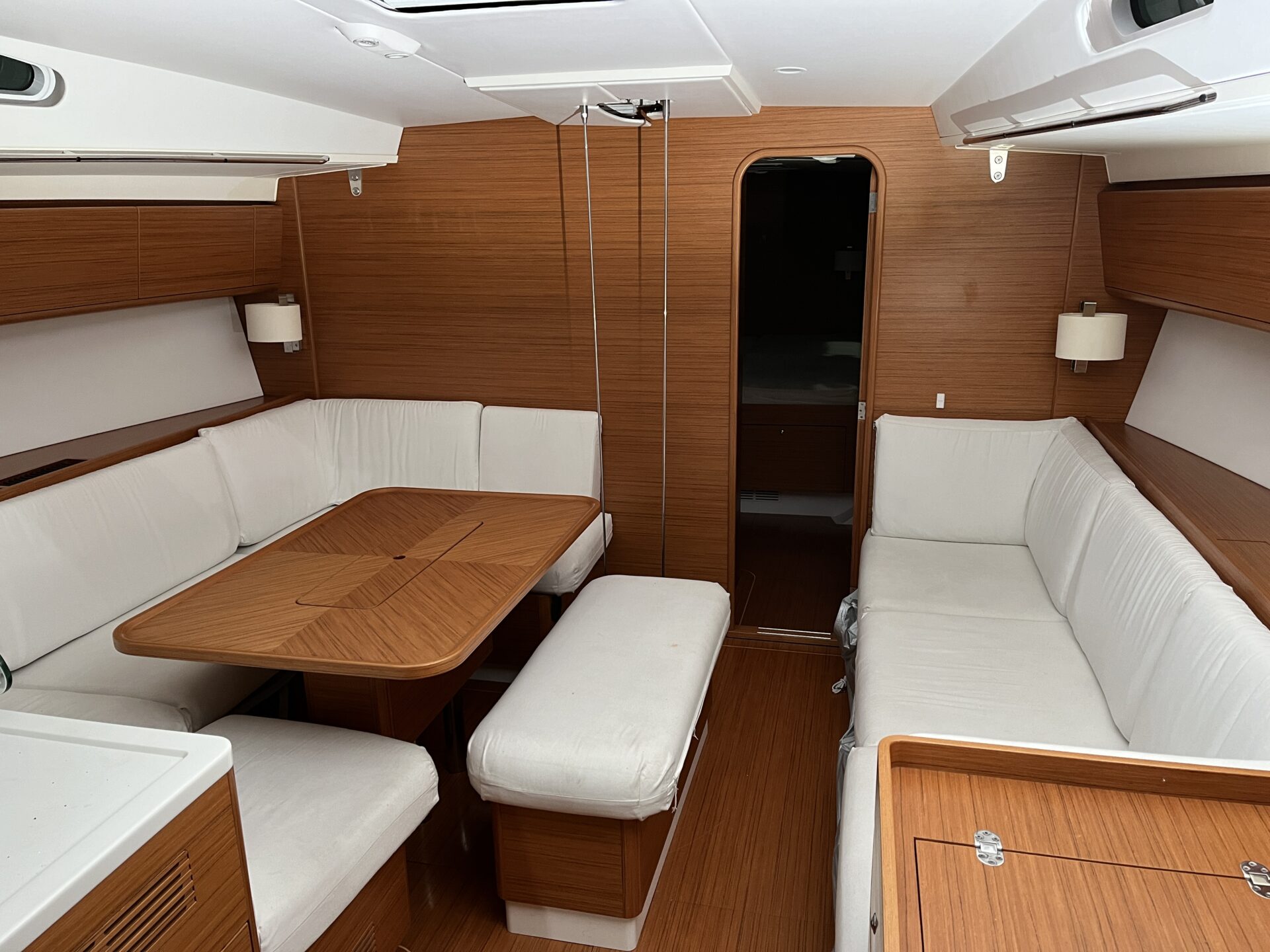

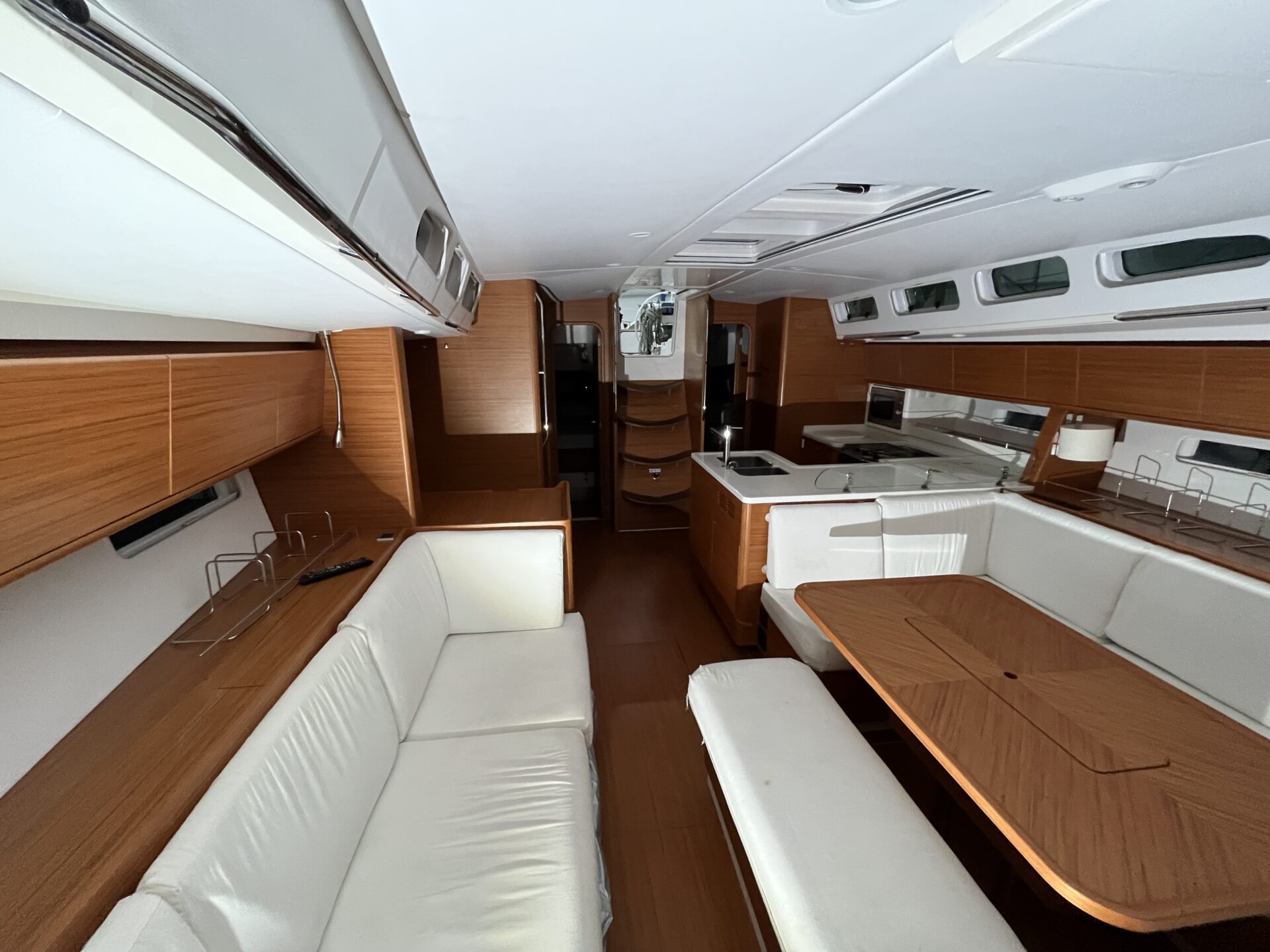

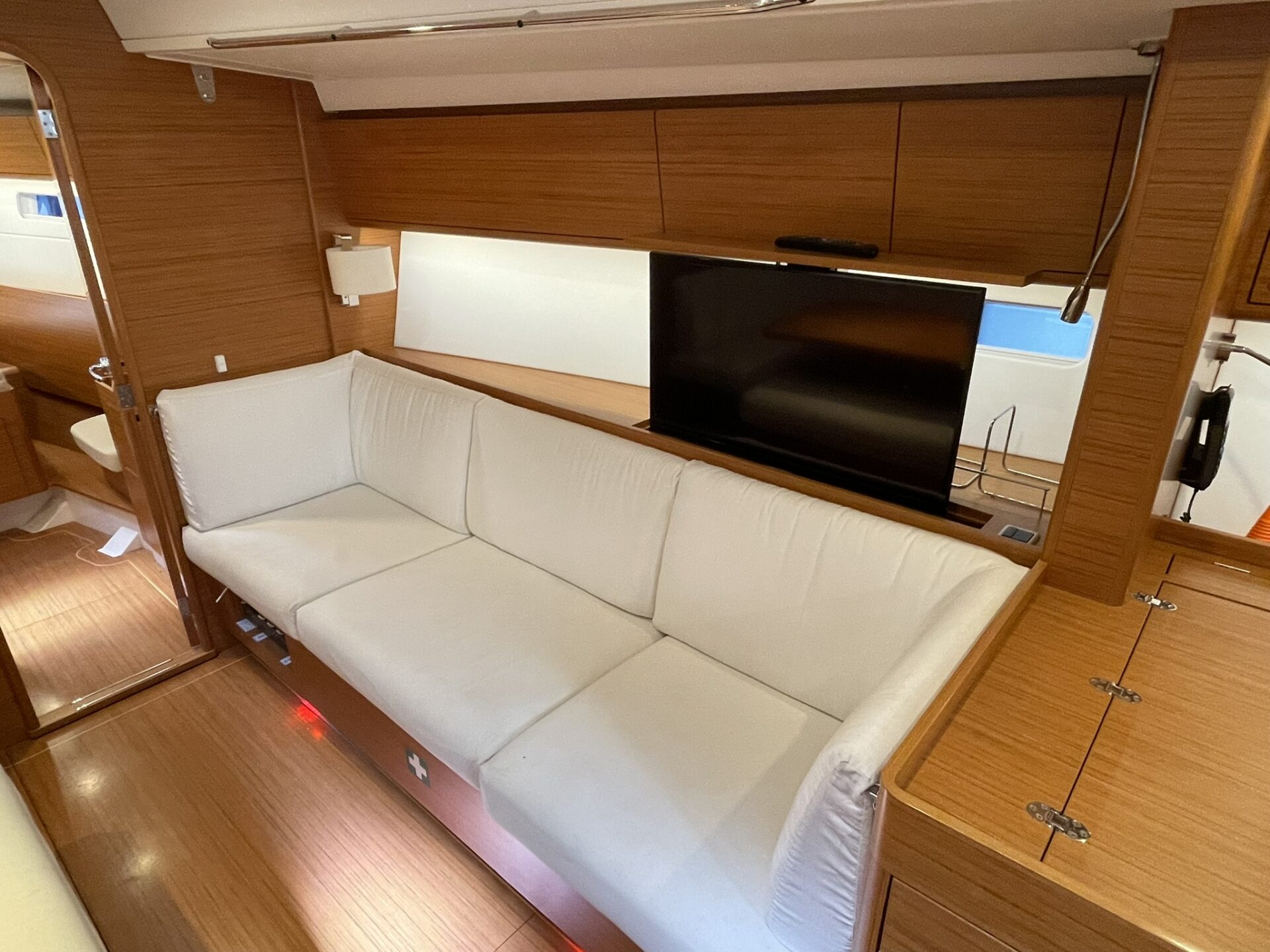

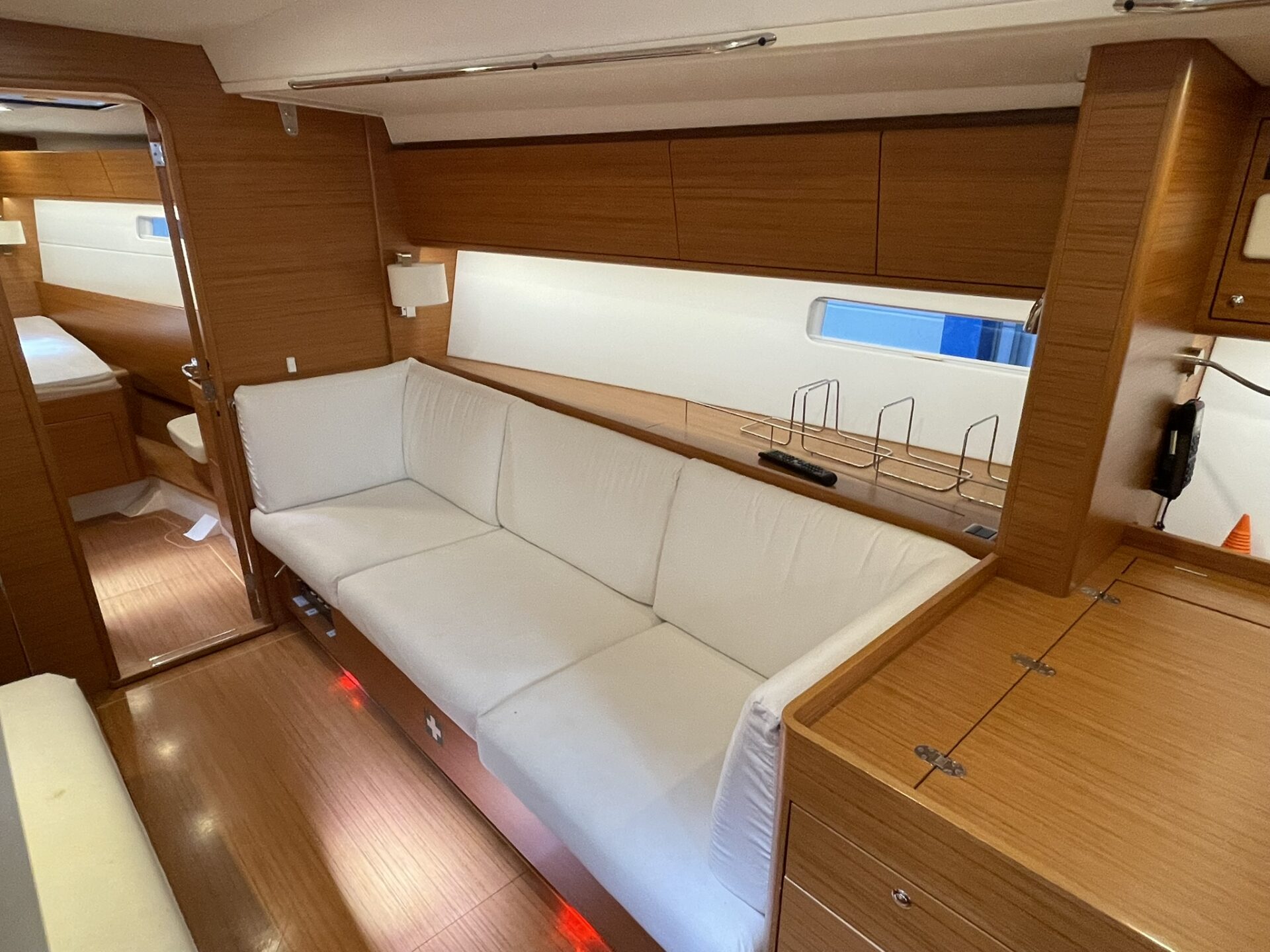

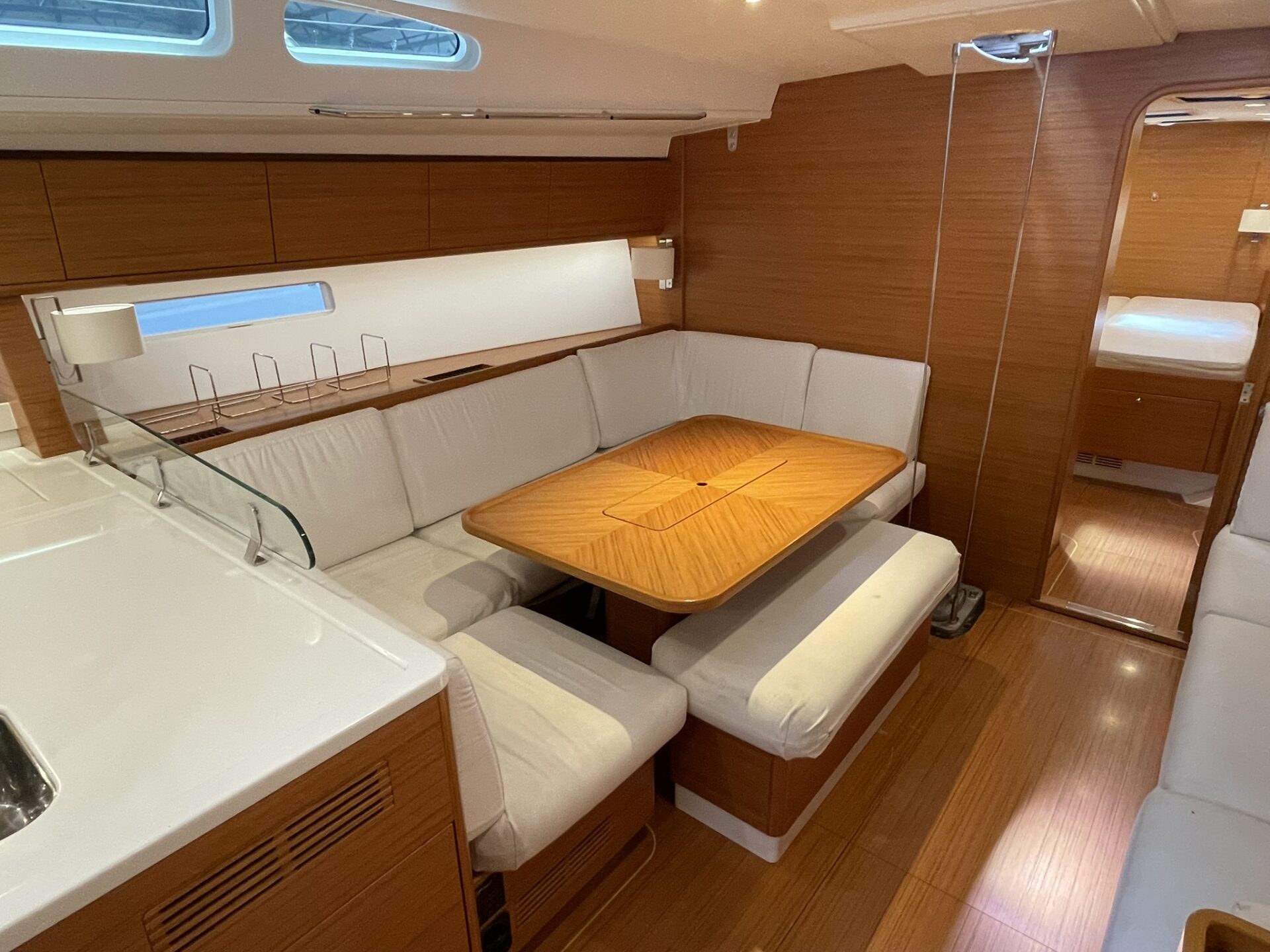

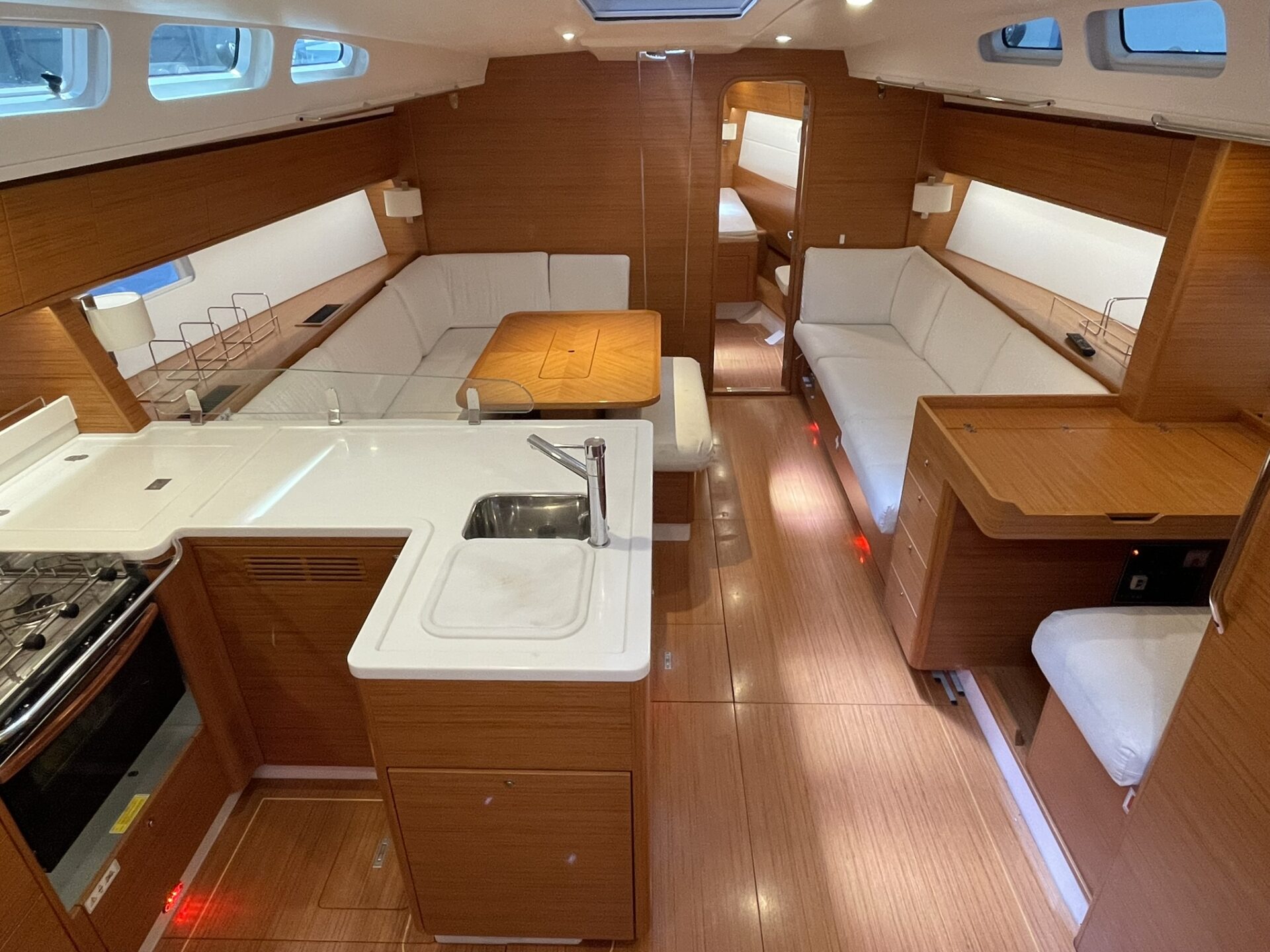

Saloon

• Flatscreen TV with electrical lifting system, connected to multimedia system
• Larger than standard sized saloon table
• Red night lights (4 pcs)
• Additional reading lights on bulkheads

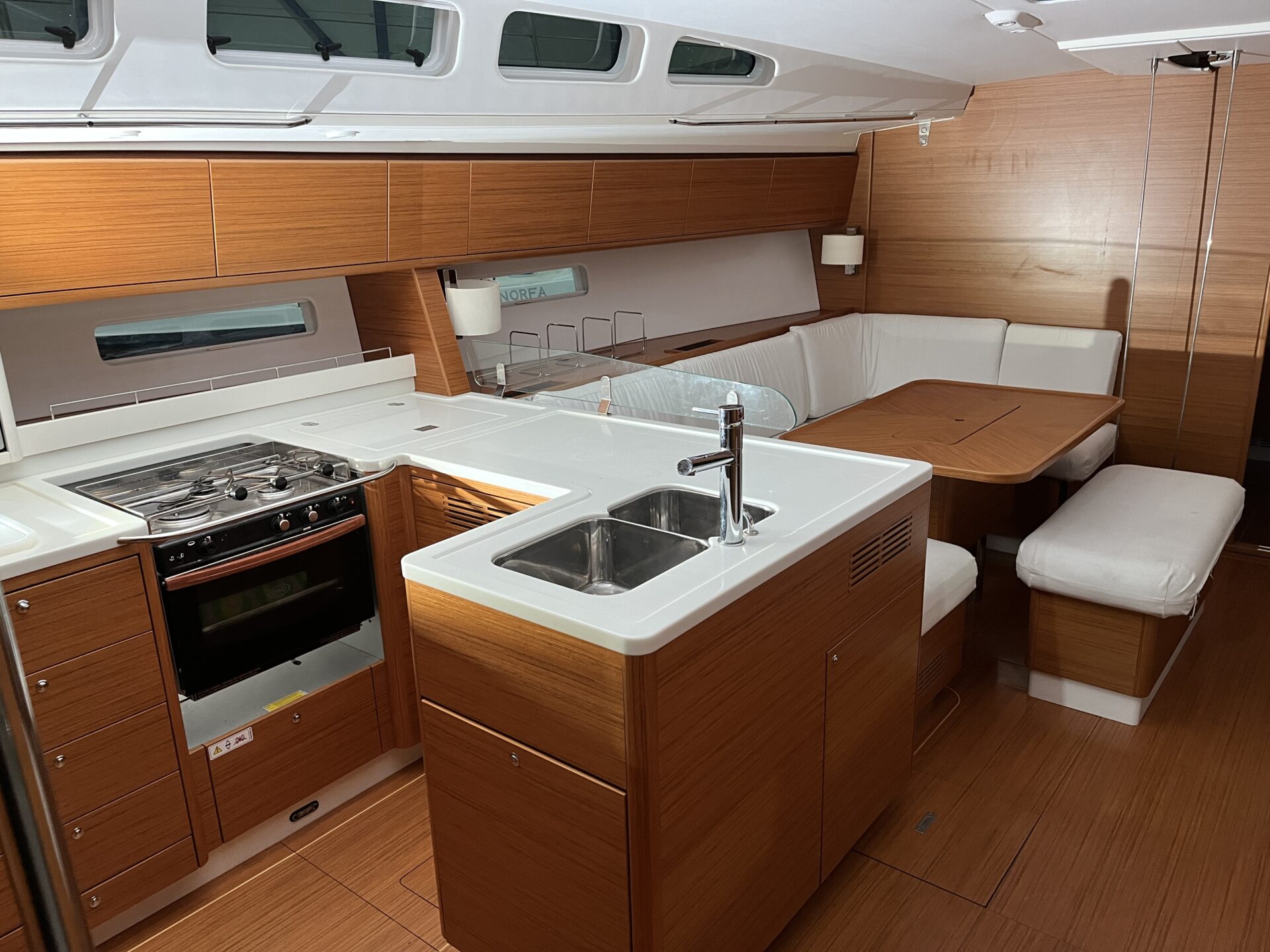

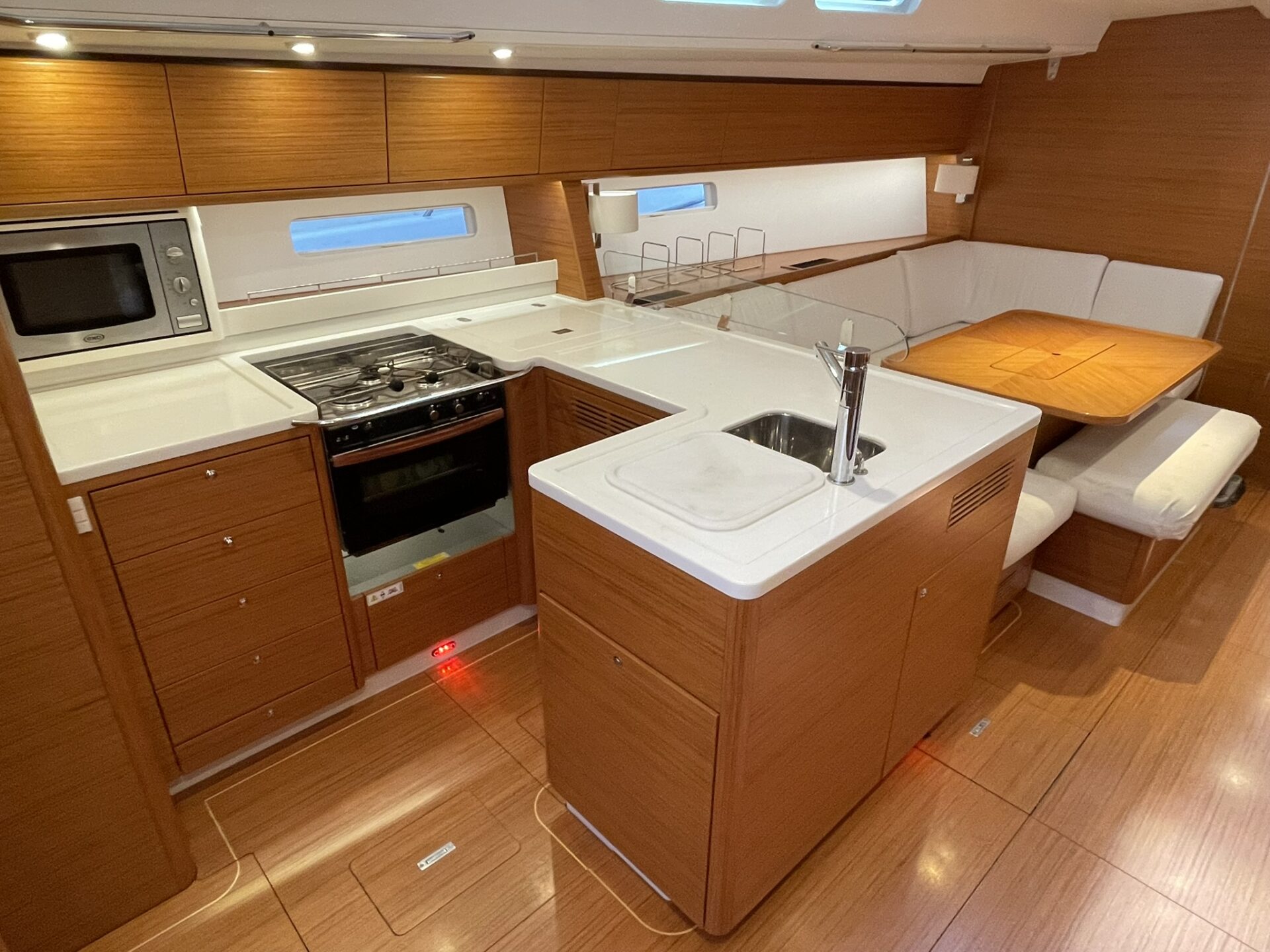

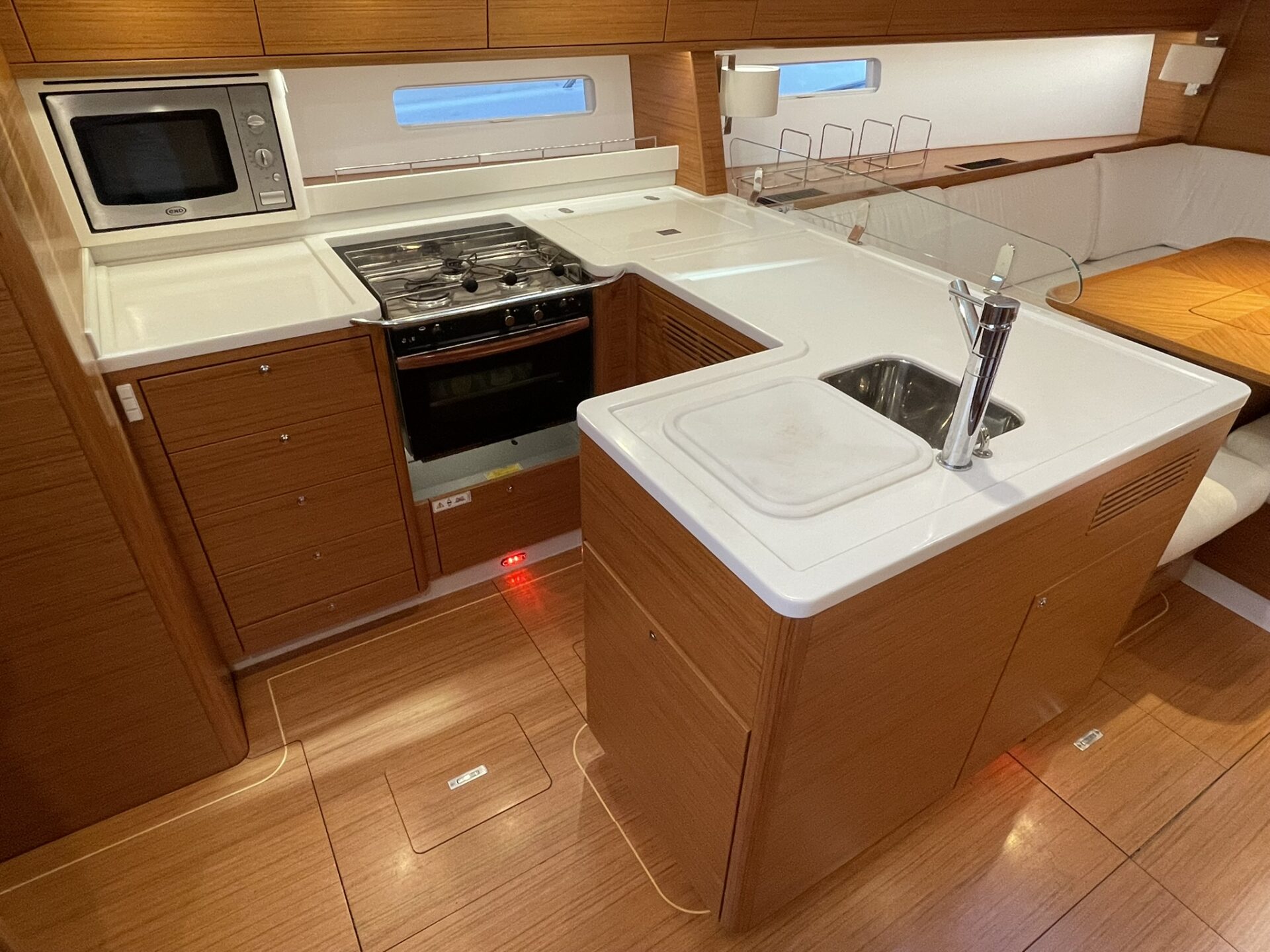

Galley

• Top-loading coolbox with freezing function
• Front-loading 85l refrigerator
• Corian worktop in white
• ENO 3-burner stove with oven

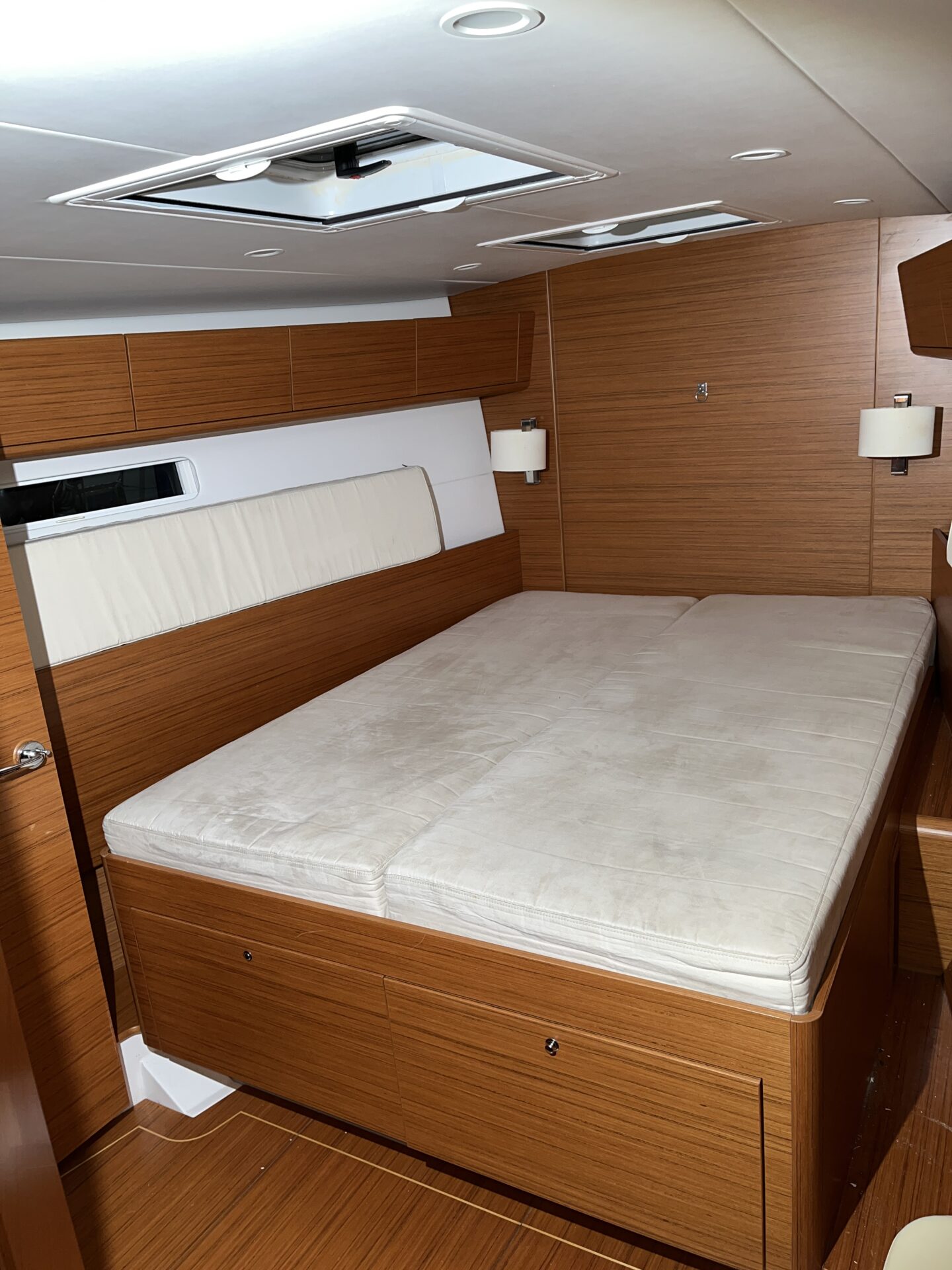

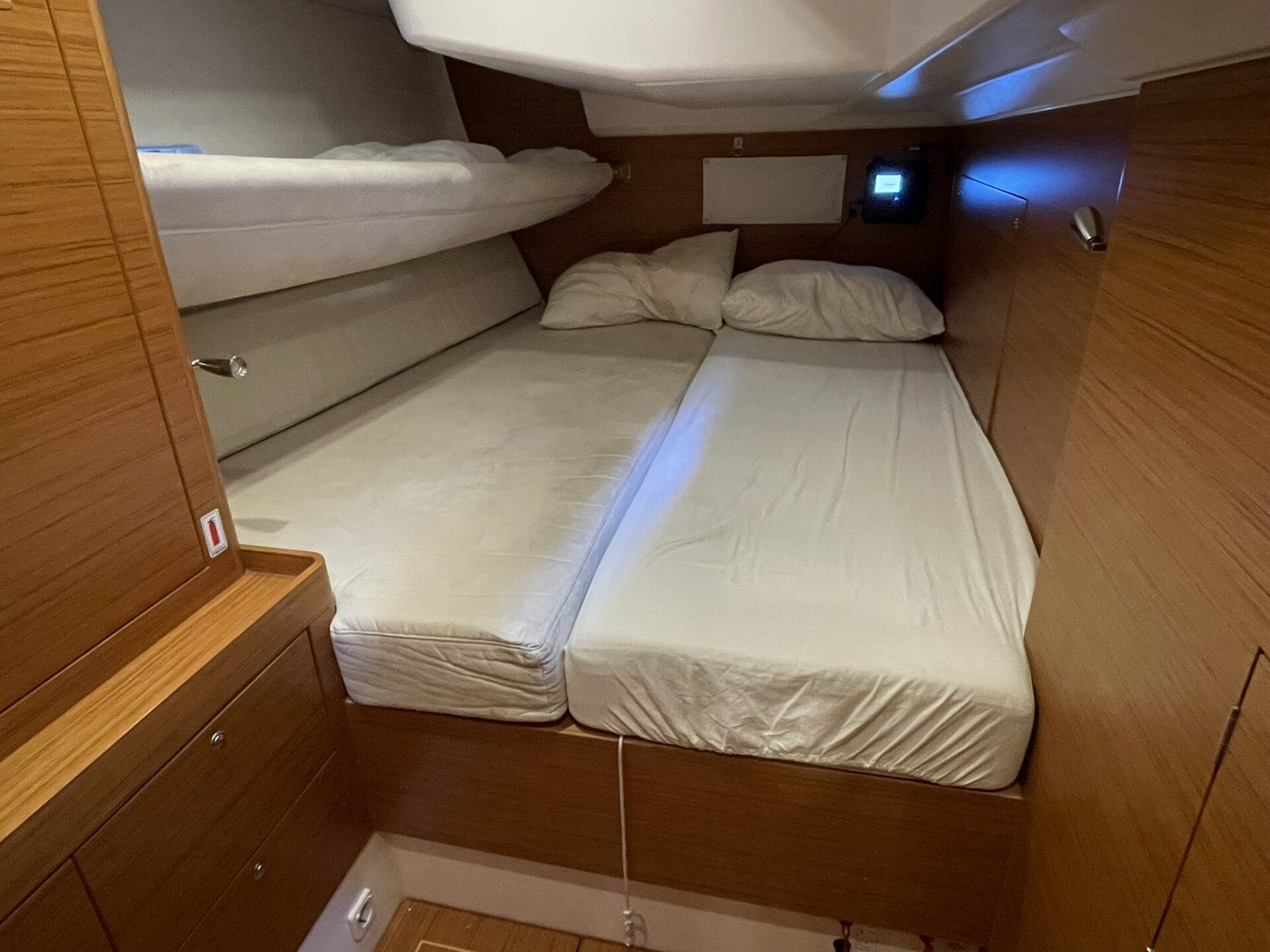

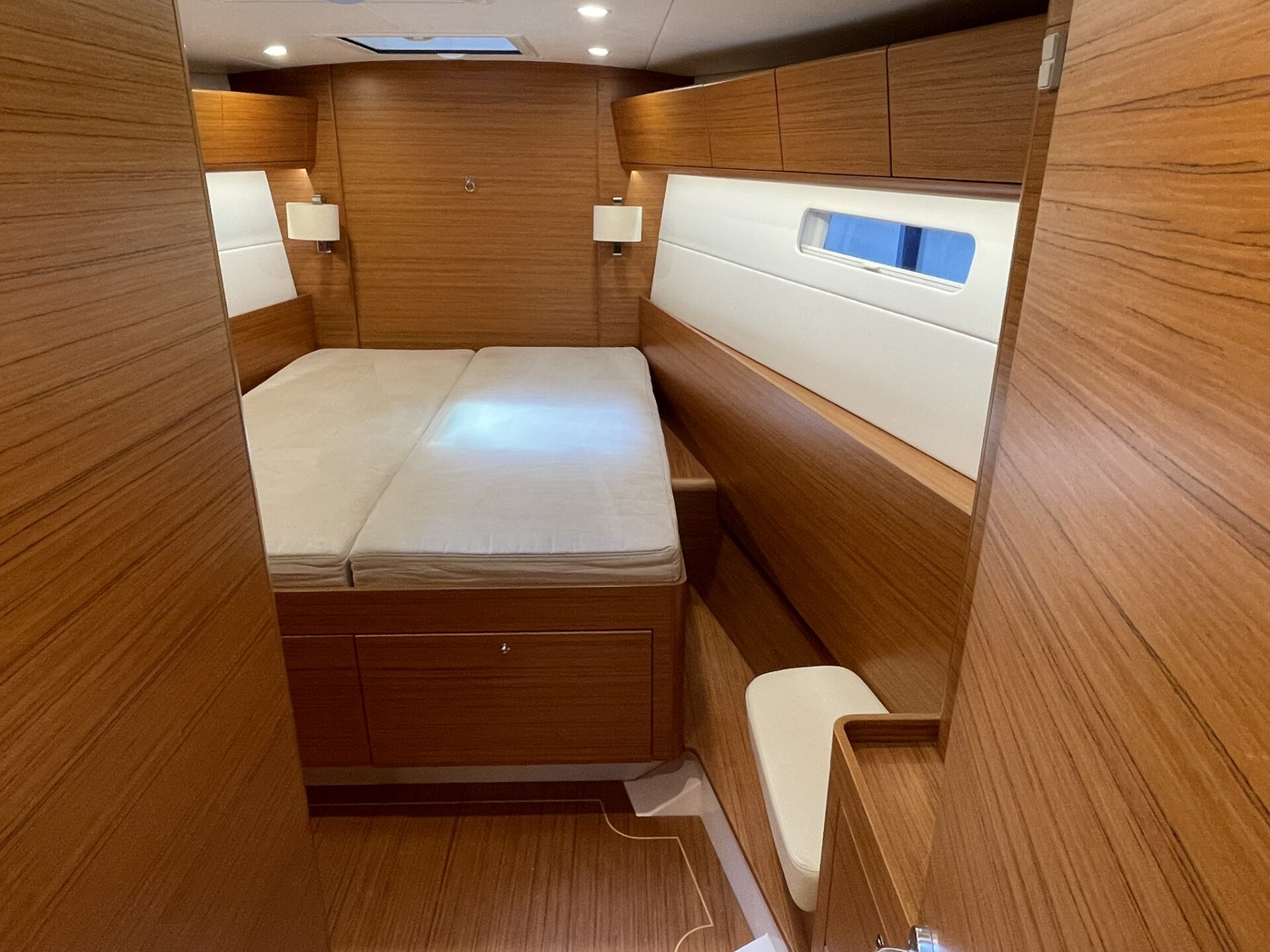

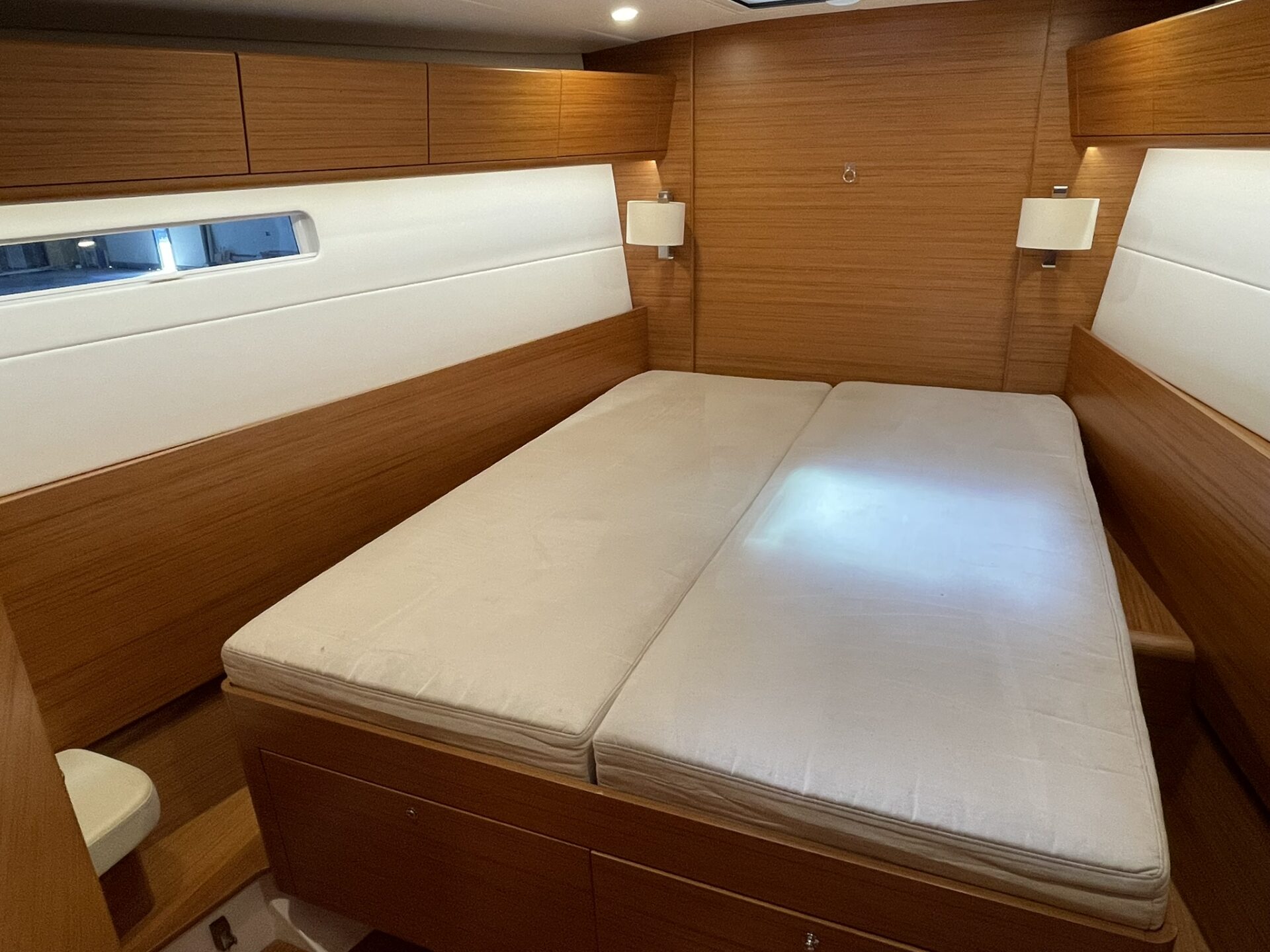

Forward cabin

• Spring matrasses for enhanced sleeping comfort
• Additional light switch next to bed
• Additional reading lights at bulkhead
• Freeboard cupboards and shelves above berth
• 2 large drawers below owner's berth for bedding

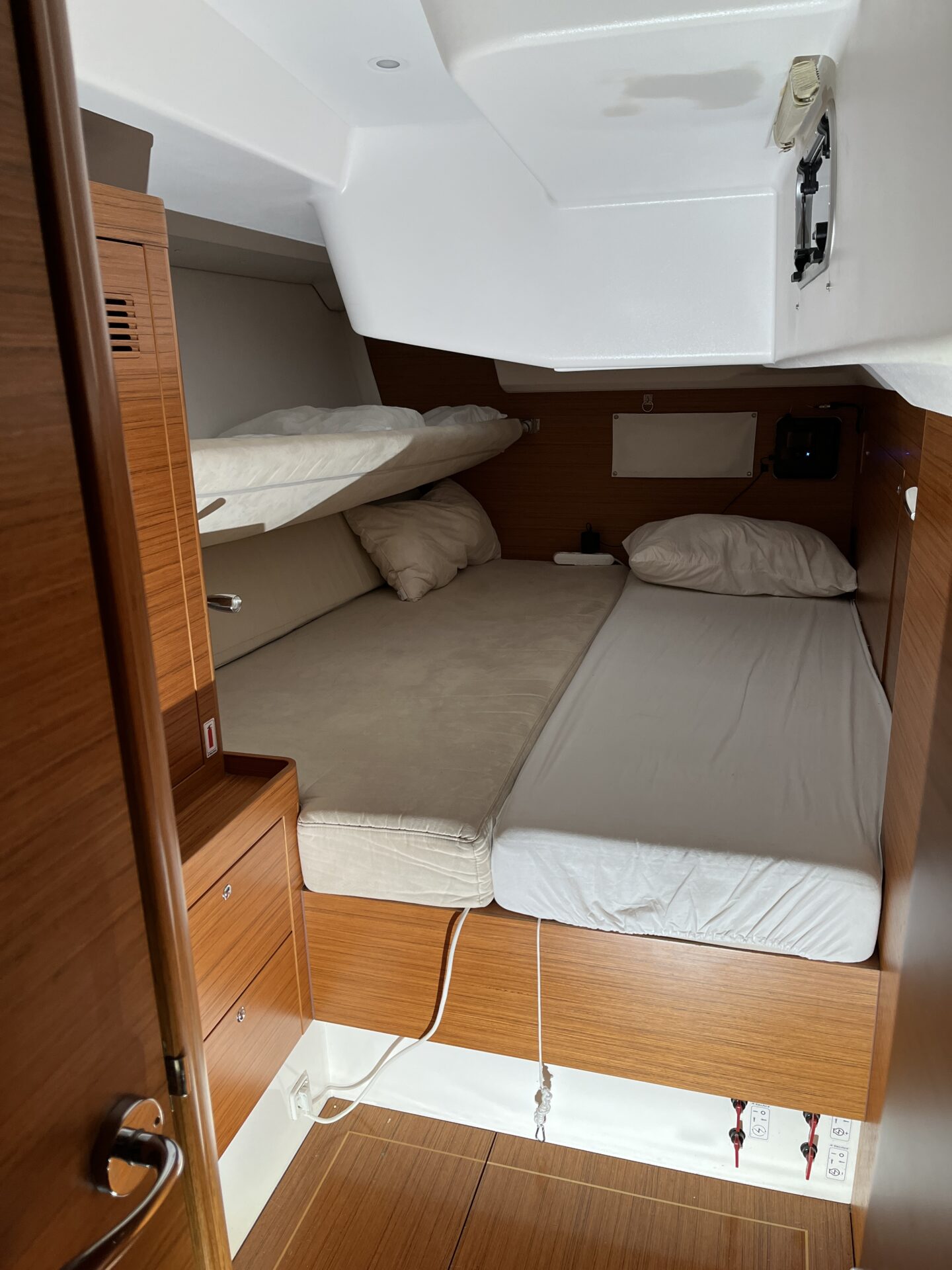

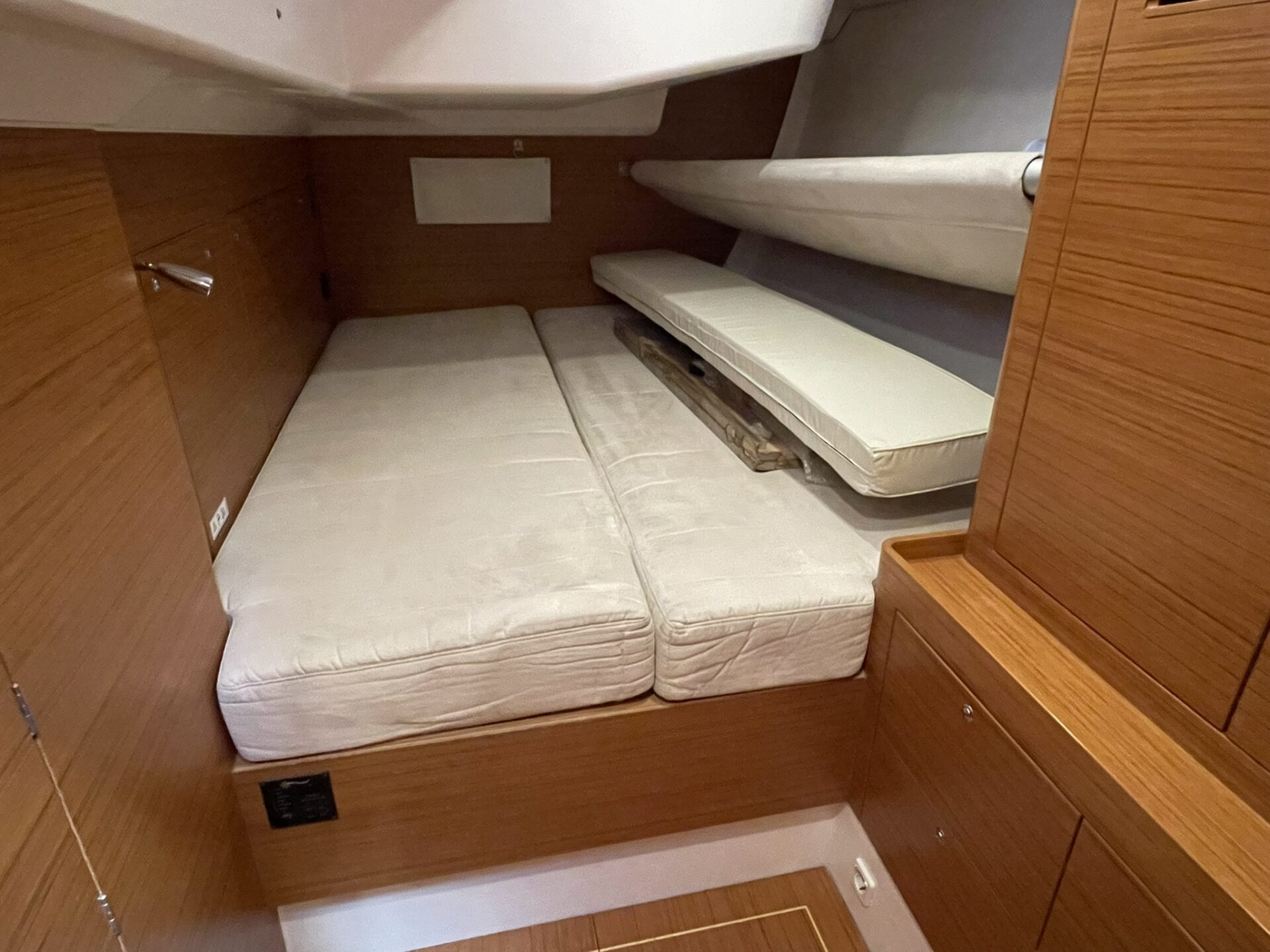

Aft cabins

• Freeboard hung sea berths in both aft cabins
• Spring matrasses for enhanced sleeping berths
• 2x extra openable port light in aft cabins

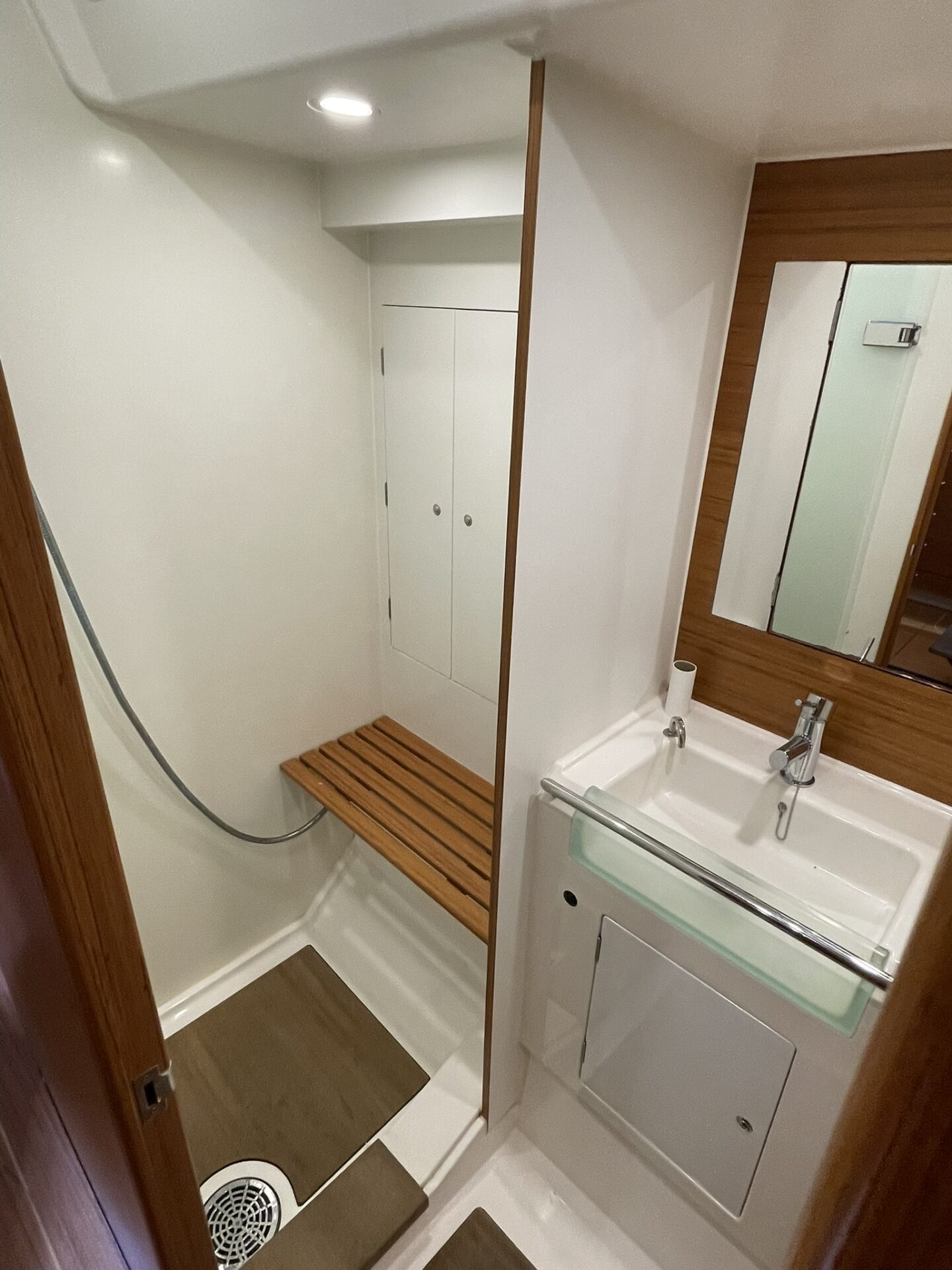

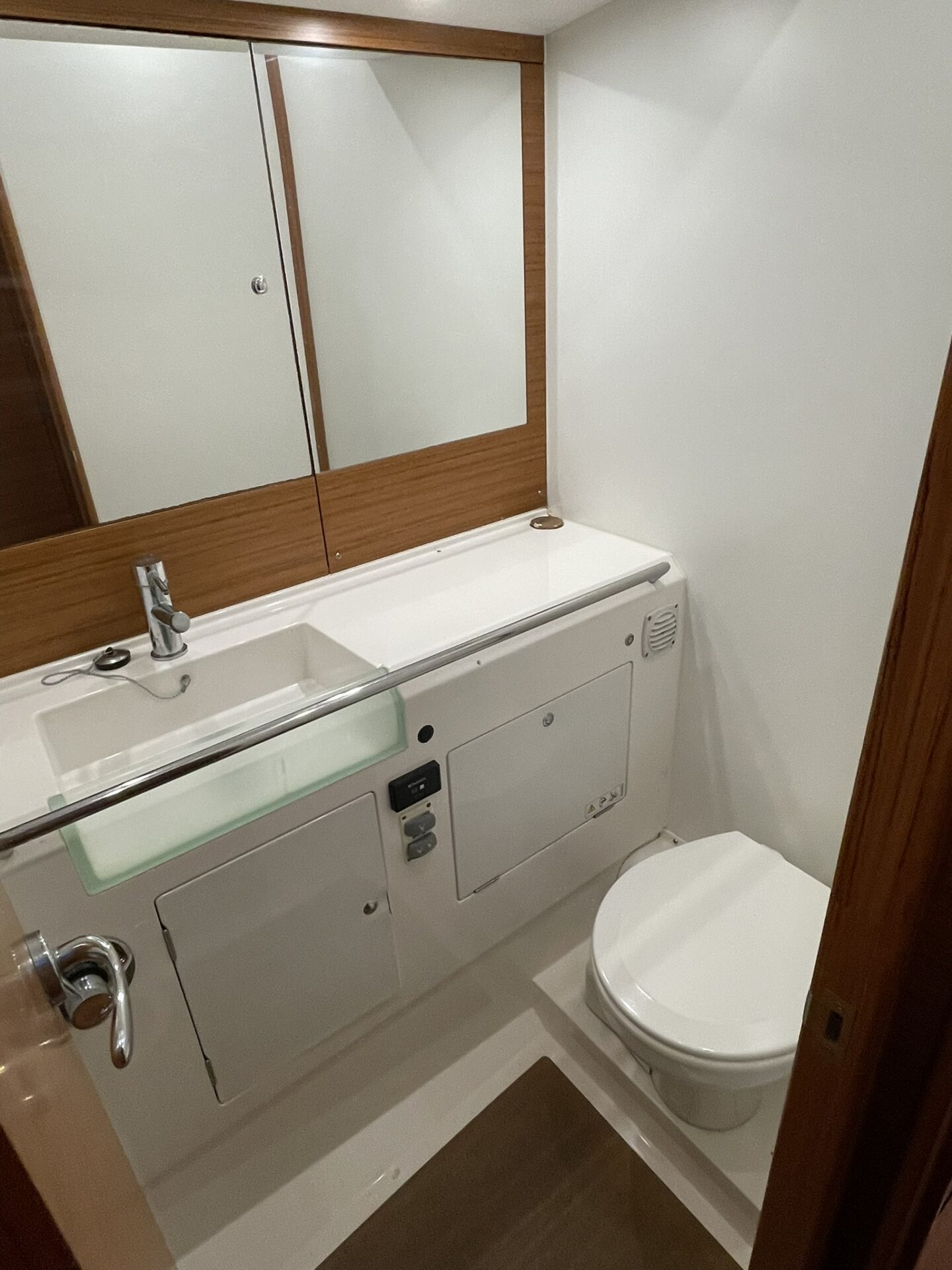

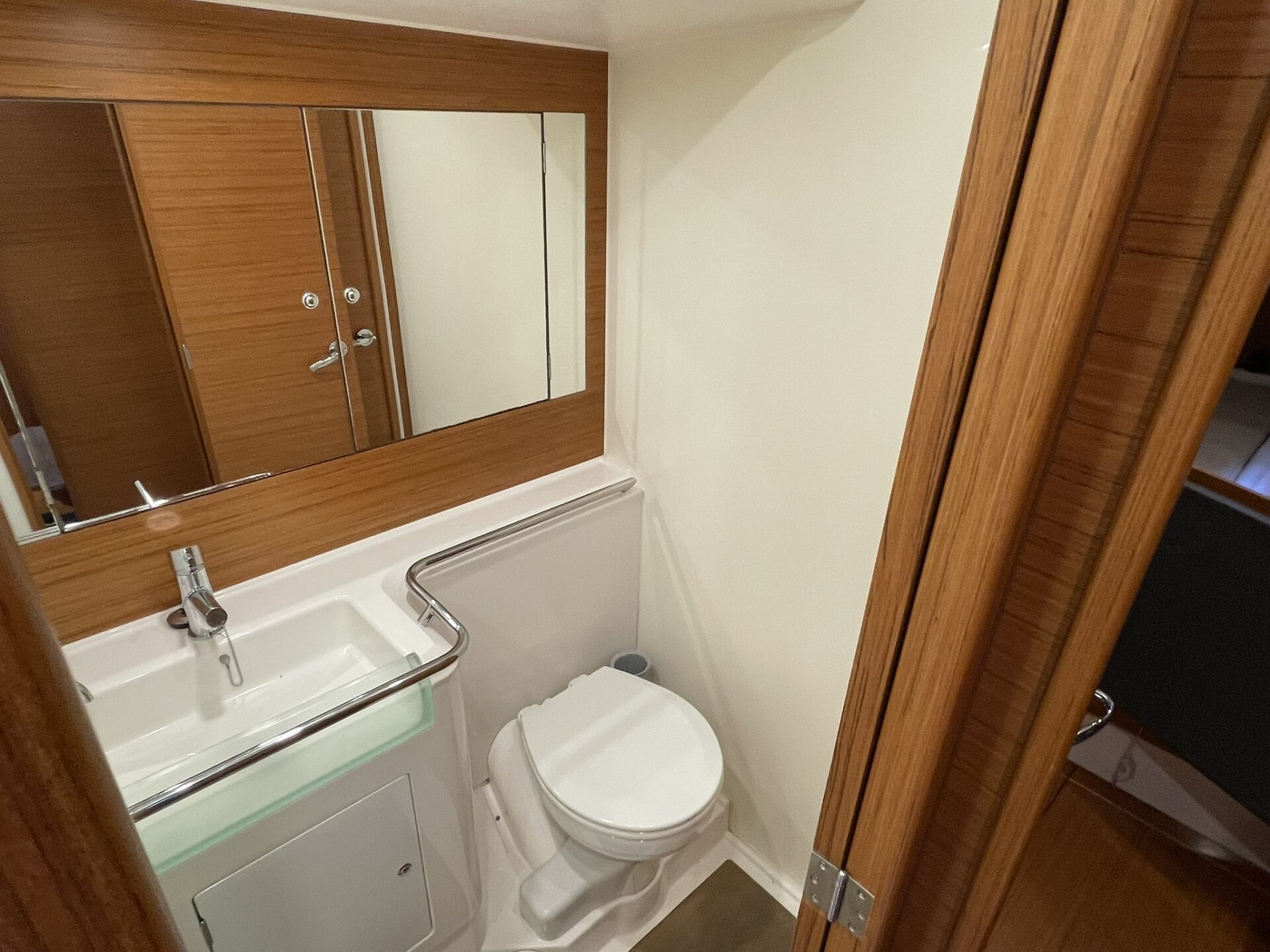

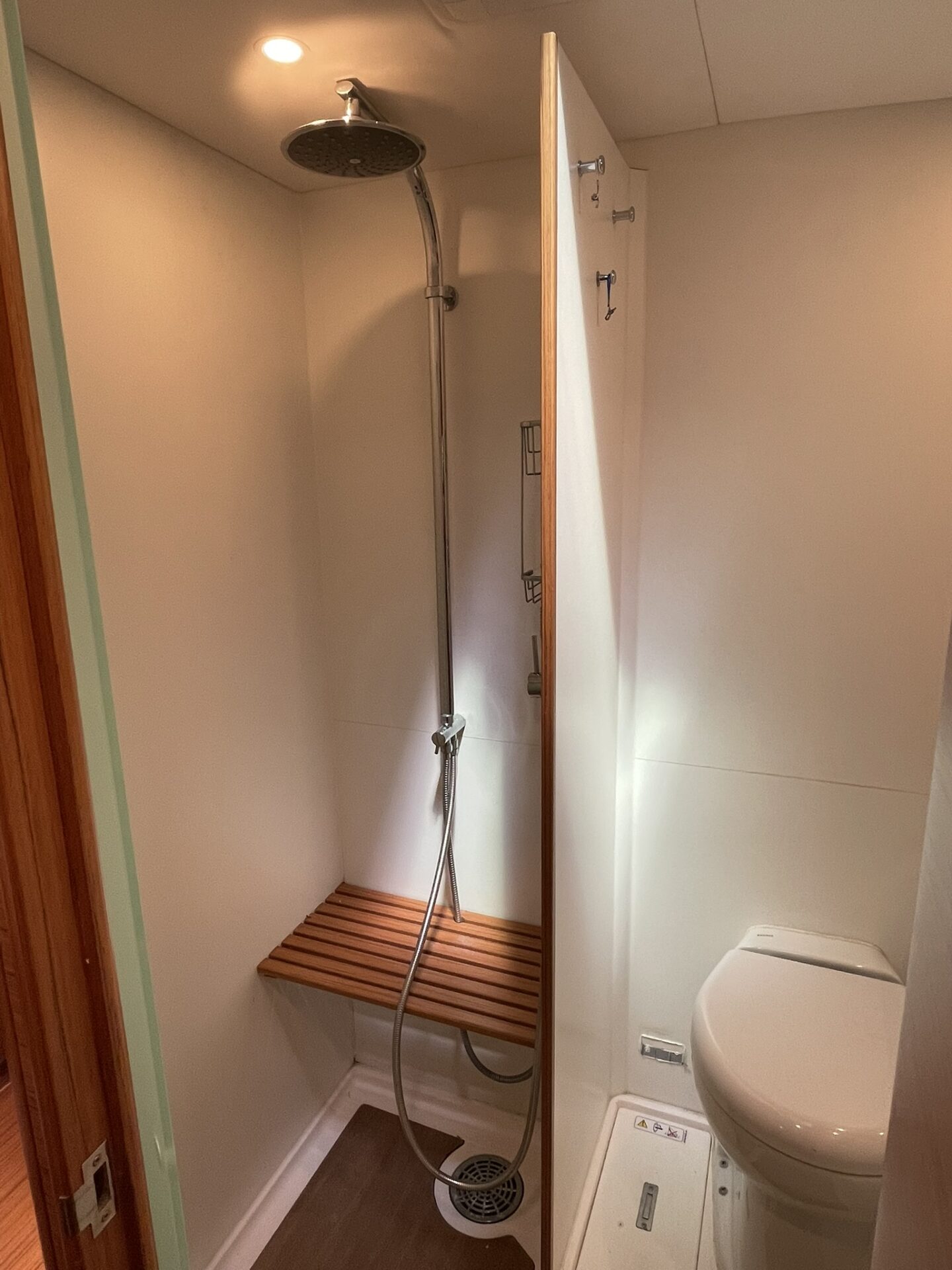

Head & Shower compartments

• Bulkheads covered with white laminate
• Tabletops and integrated sinks in a white composite moulding
• Tecma electrical toilet in forward heads
• 2x Jabsco QuietFlush electrical toilet in aft heads
• Electrical shower sump pump with sensor for automatic operation
• Unvarnished teak panels recess into shower and toilet floors

Systems

Engine

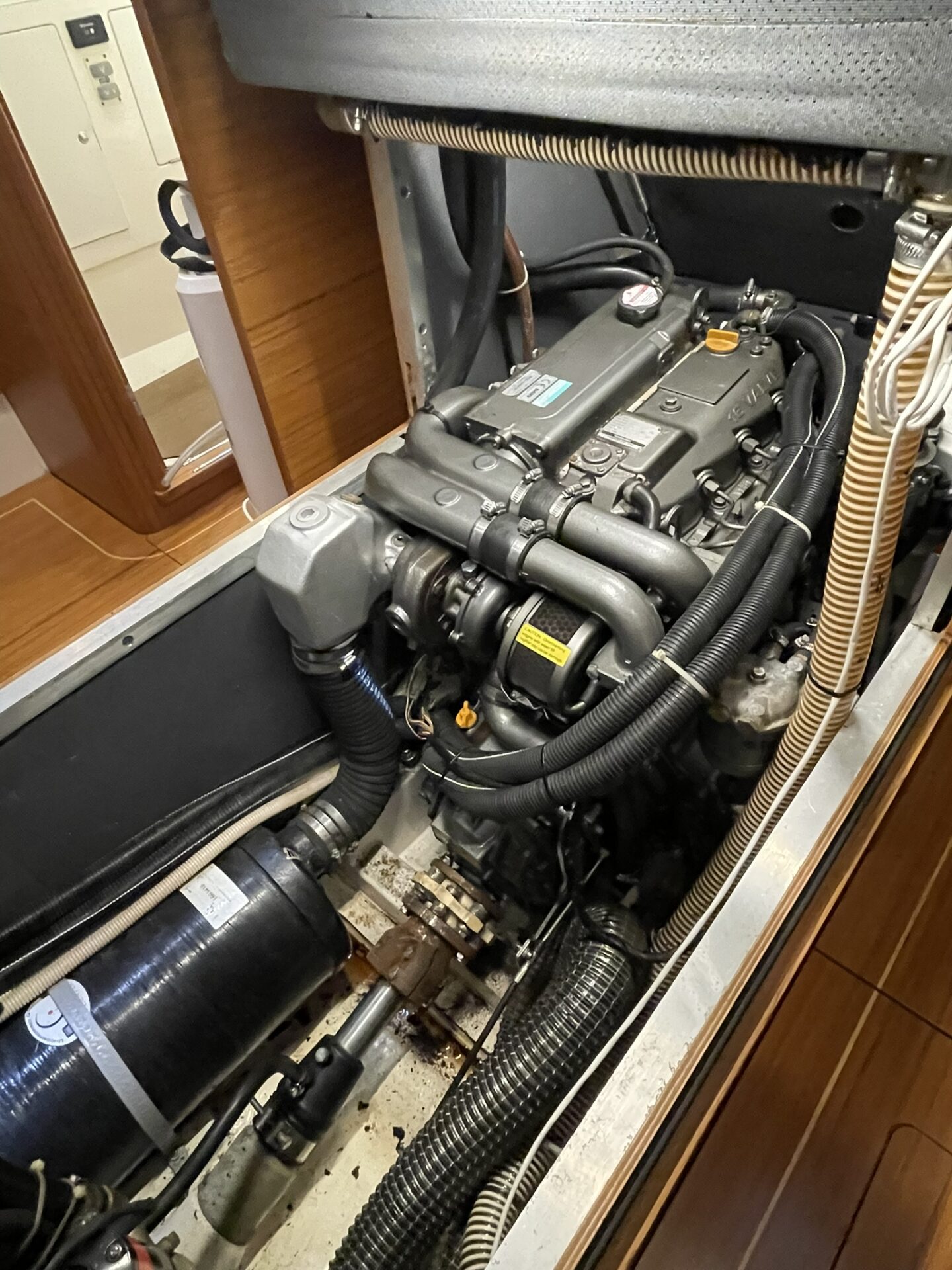

• Main engine - Yanmar 110 HP (4JH4) turbo charged, shaft drive made of high tensile corrosion resistant
• stainless steel.
• Extra 24V Alternator fitted on main engine for charging service battery bank
• Special engine compartment with sound insulation ensures low noise level in yacht
• Gori 3-blade folding propellor with overdrive gear

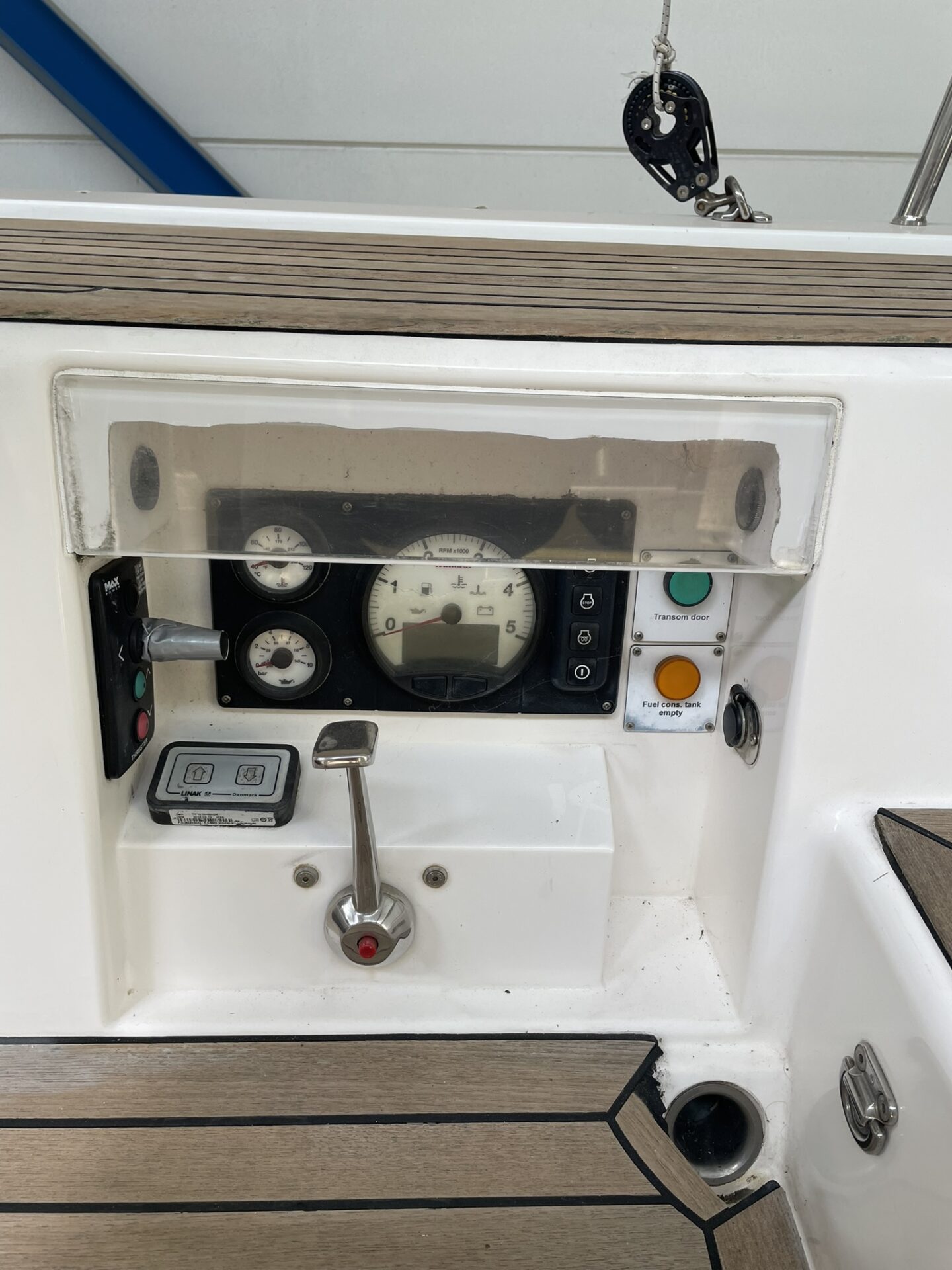

• Engine control panel (special C-type) and throttle/gear lever placed in starboard cockpit coaming

Plumbing

• Watermaker 60 l/h
• HFL airconditiong system with 3 units (saloon, fwd cabin, aft cabins)
• Each aircon unit is mounted on a dampening rubber plate
• Eberspächer heating system with 7 outlets
• Upgrade to Easy Start control panel for Eberspächer

Electrical

• 24V DC system throughout yacht
• 12V DC system for main engine and genrator installation
• Additional service batteries, in total 480 Ah @ 24V
• Combined charger/inverter 24V/3000W/70A
• BTM3 battery monitor
• Shore power connection with galvanic isolator
• 5x additional 220V socket in interior
• 4x additional 12V socket in interior
• 12V socket in cockpit
• 12V socket in tender garage
• Fischer Panda 15.000 generator - 10,2 kW
• Extra insulated compartment from Fischer Panda
• Electrical ventilation of genrator room

Electronics

• Full B&G Electronics Pack

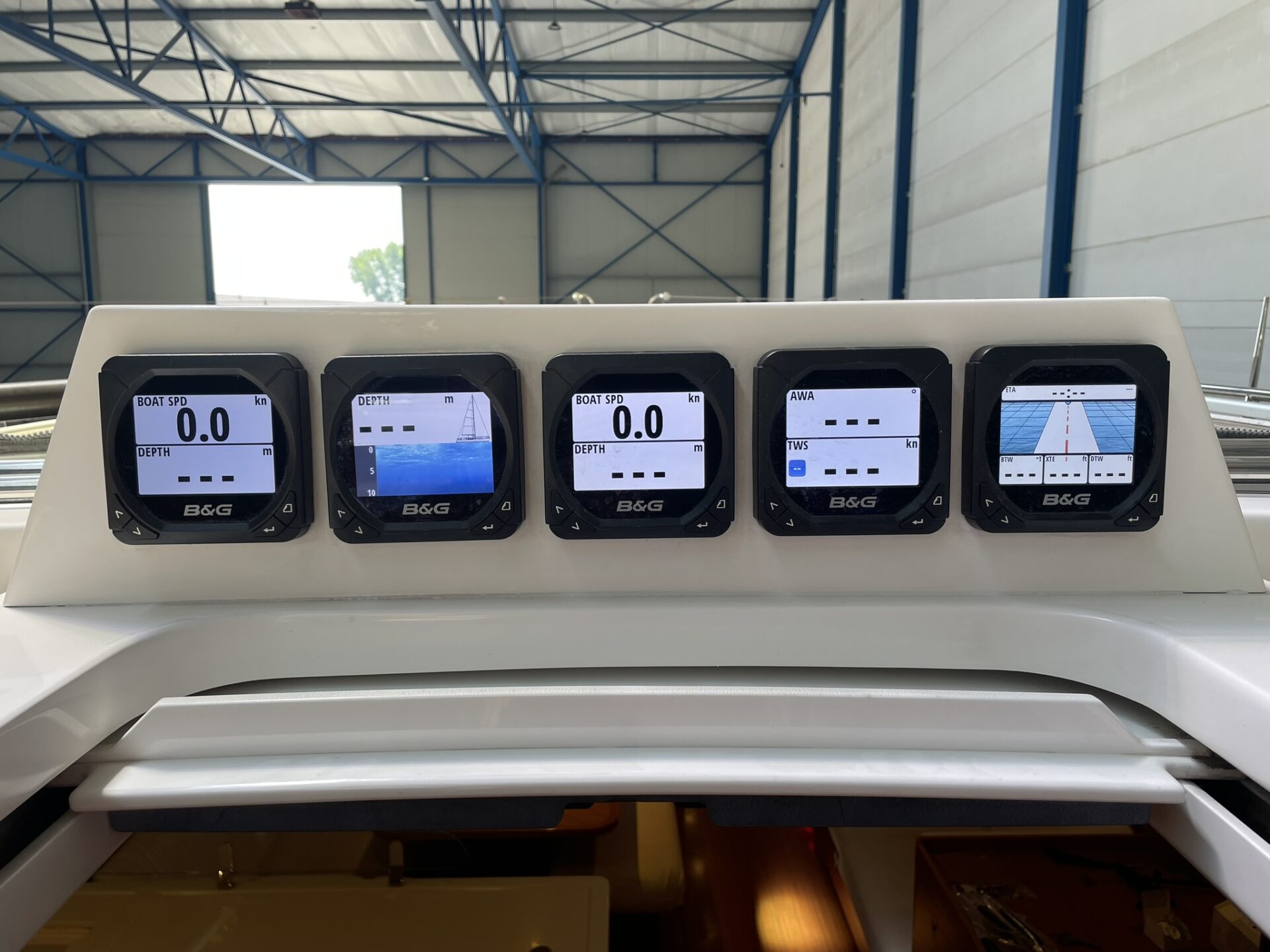

• 5x Triton instrument in console over sliding hatch
• 1x ZG1000 GPS antenna
• 1x Triton Pilot Computer
• 1x Triton rate Compass
• 1x Autopilot ACP1 power unit with Ram T3
• 1 x combined speed/depth/temperature transducer
• 1x wind forward looking transducer (replaced 2025)
• Radar, BR24, 18”, with mast bracket above fist spreader

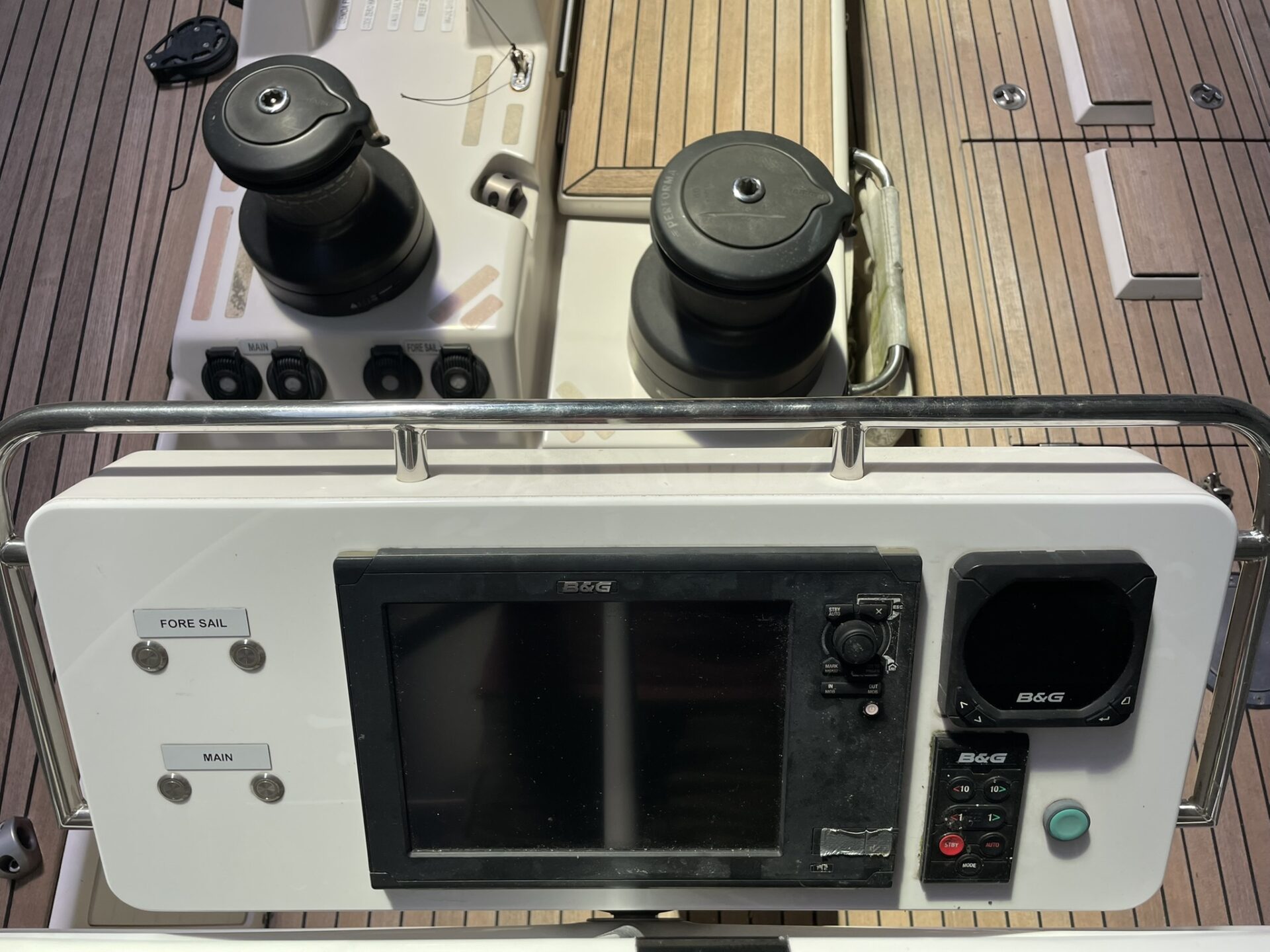

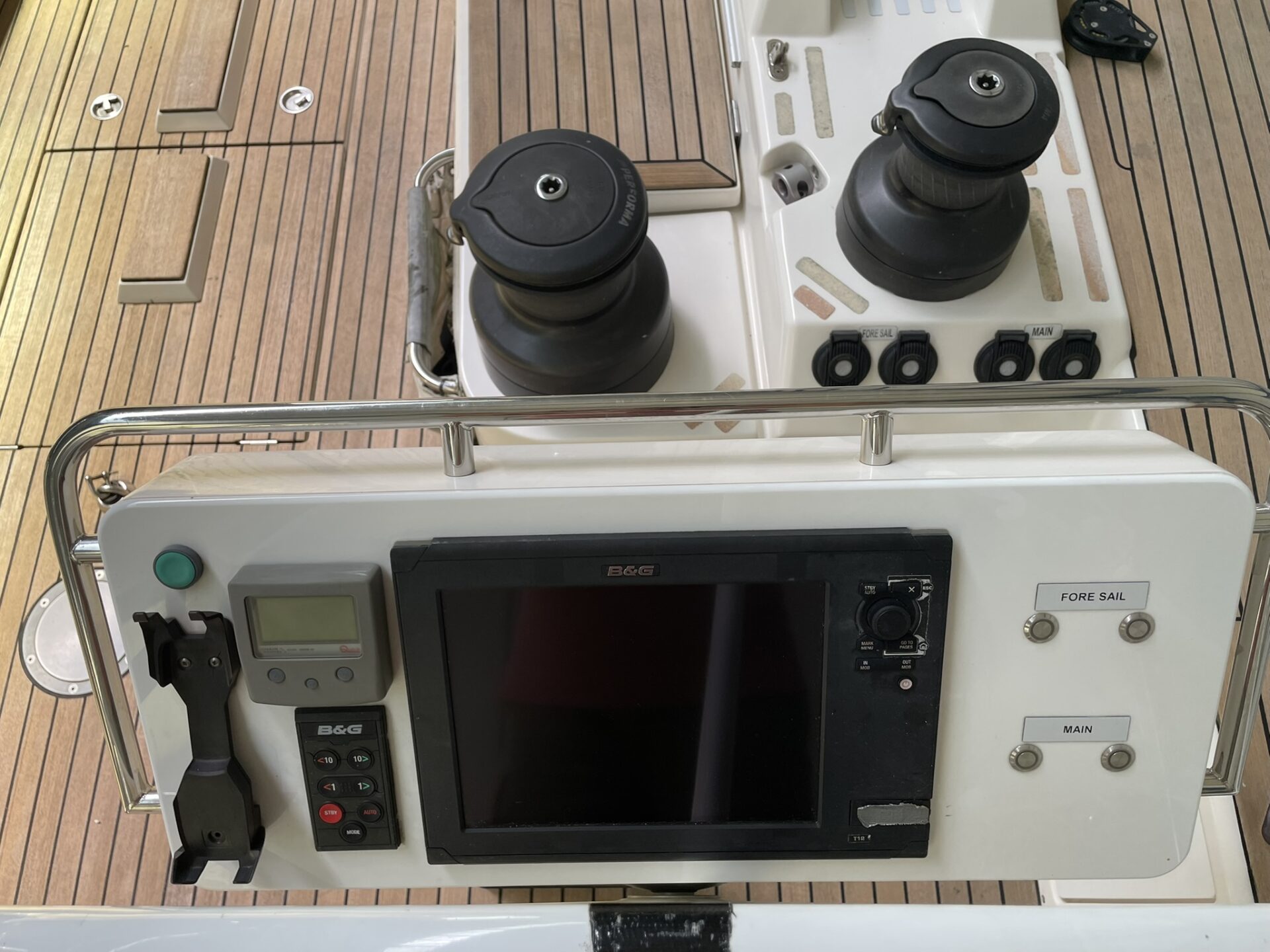

• 2x 12"B&G Zeus plotter (one each in pedestal at steering wheel)
• 2x Triton autopilot controller (one each in pedestal at steering wheel)
• 1x additional Triton display in pedestal at PS steering wheel
• B&G WIFI-1 module

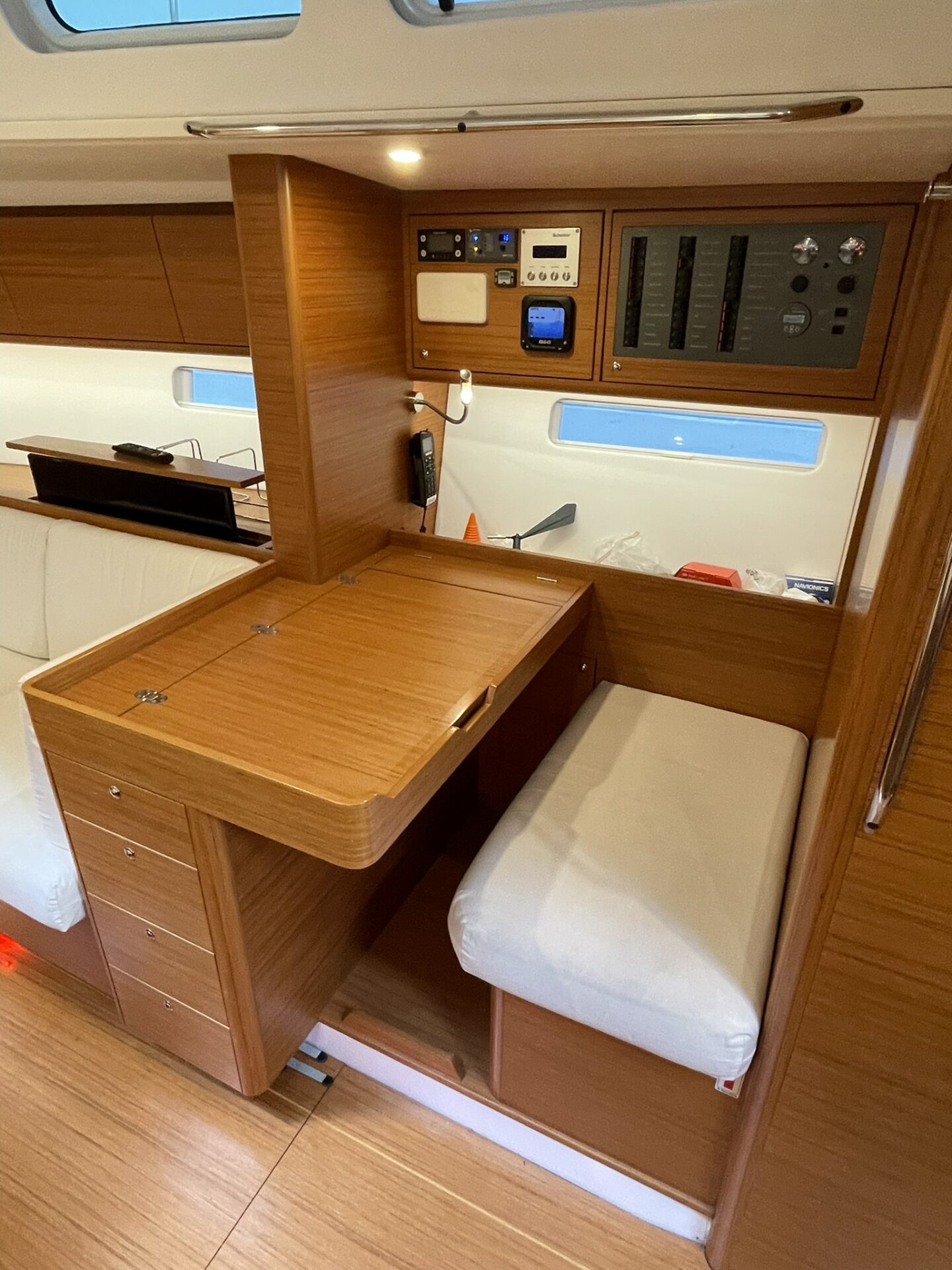

• Simrad VHF RS82 DSC at nav station
• Simrad HS35 wireless VHF repeater (cradel in pedestal at SB steering wheel)
• 1x additional Triton display at nav station
• B&G nAIS400 transceiver
• Physical ON/OFF switch for AIS
• Furuno navtex receiver at nav station
• Iridium Go! satelltie receiver (2023)

Additional Information

• Set of mooring ropes
• Set of fenders
• Zodiac 2.8m RIB with foldable transom
• Winch in tender garage for hauling in the RIB
• Carbon passerella CARBOWAY
