Details

Exterior Details

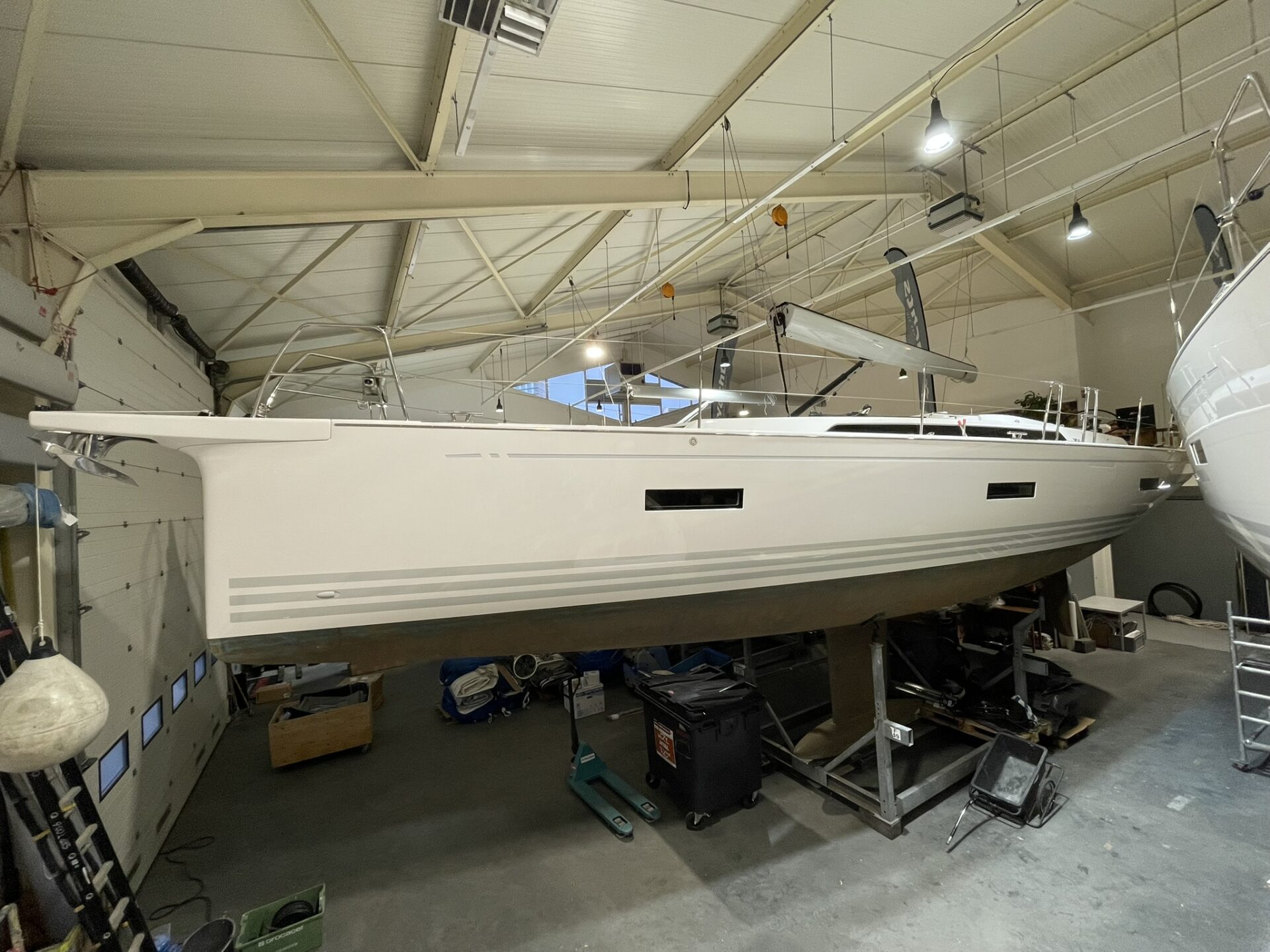

Hull

• Hull is vacuum epoxy infused, sandwich construction with structural fiberglass
• Steel girder frame for the keel
• Keel is a lead bulb underneath a steel fin, and is fully encapsulated in glassfibre/
• epoxy poured into a mould for perfect shape and finish
• White hull (RAL 9010) with light grey stripes (RAL 7035)
• Transom door with flexiteek on top
• Coppercoat bottom treatment from yard
• 3-blade folding propellor
• Retractable bowthruster MaxPower
• Stainless steel chafe strip along hull

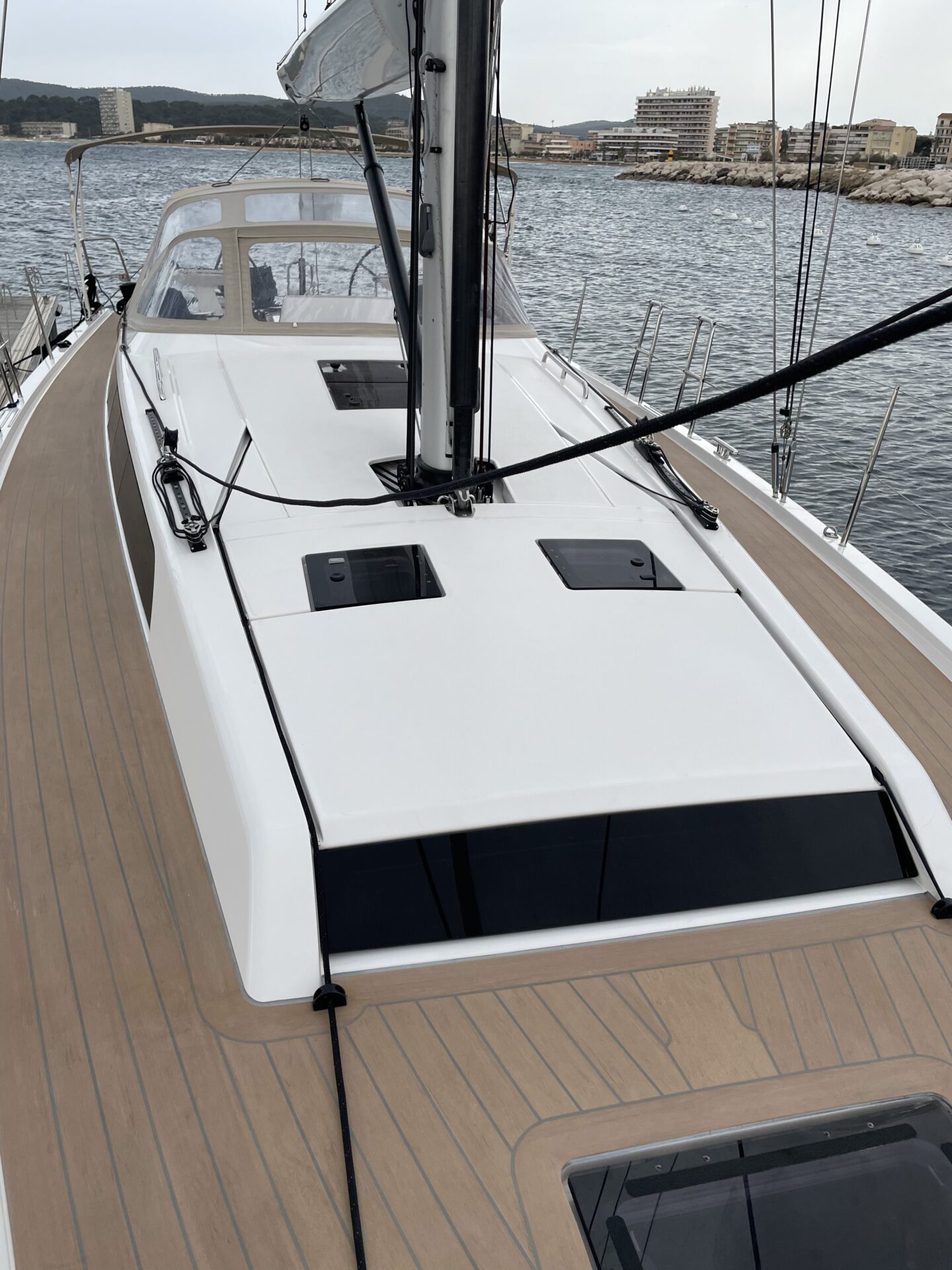

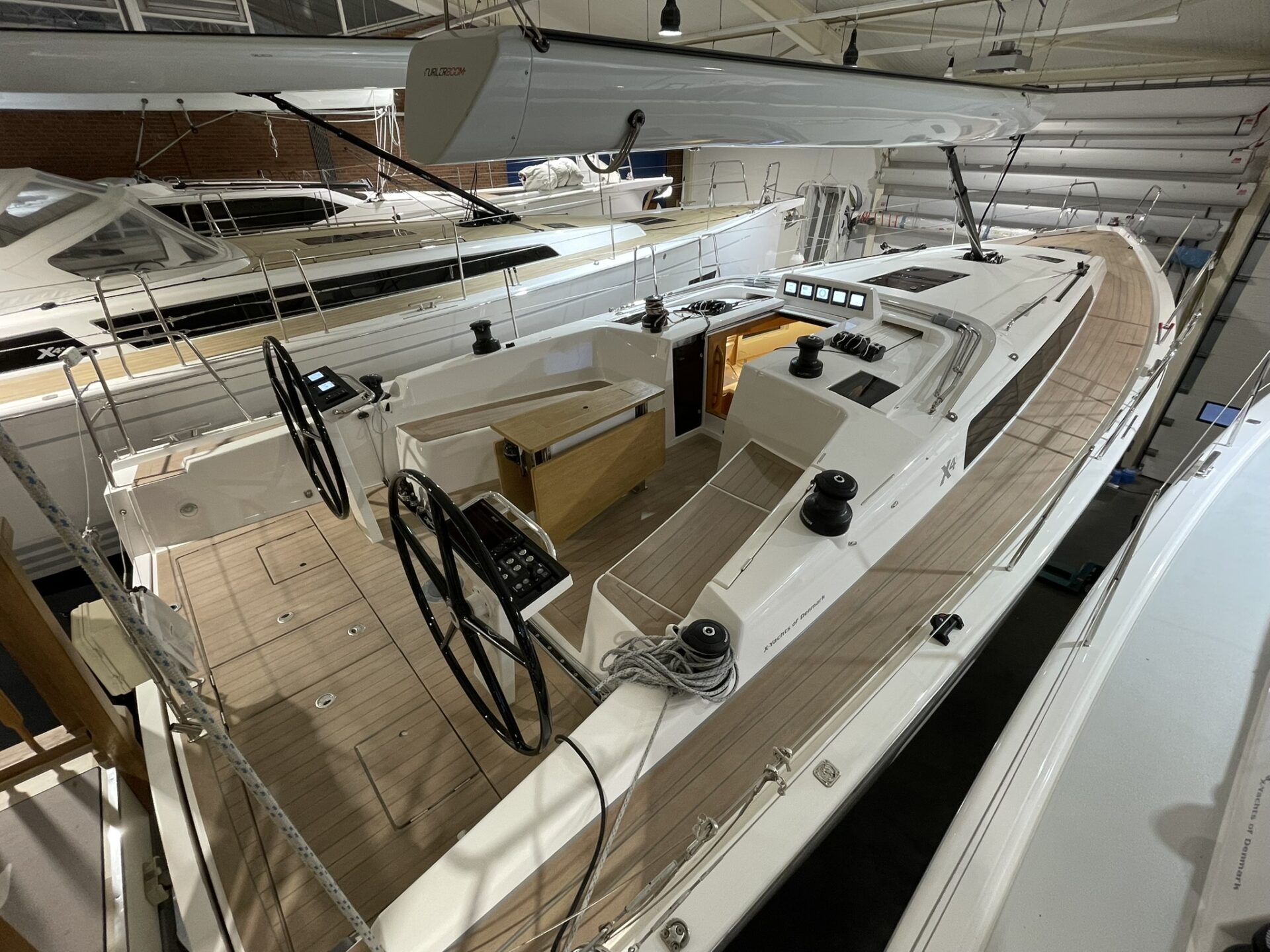

Deck

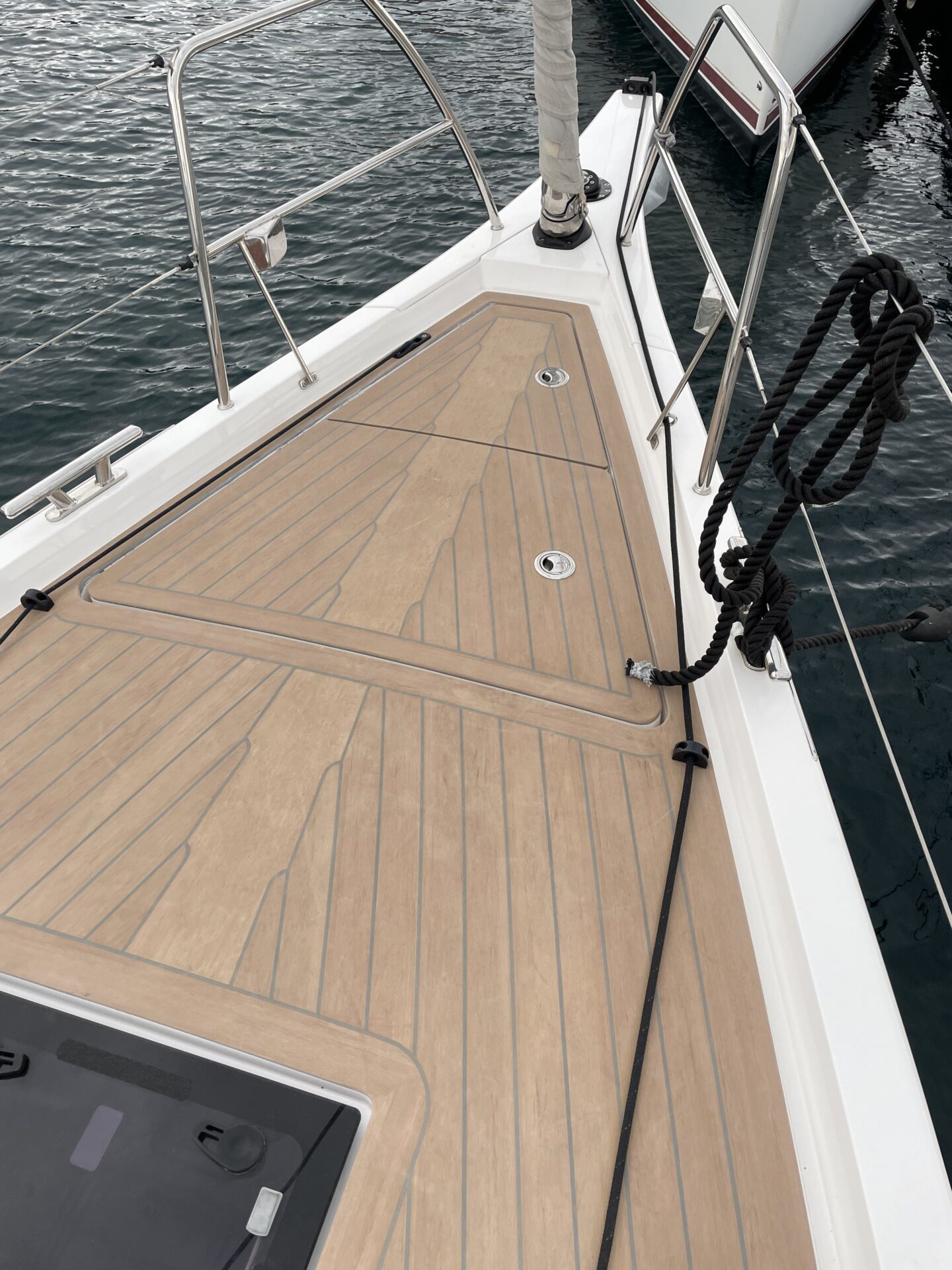

• Flexiteek on side decks, on coachroof and in cockpit with grey caulking
• Carbon fiber bowsprit
• Large dry saillocker in bow boat
• Anchor locker with electrical anchor winch and chain counter
• 16kg Delta anchor with 50m anchor chain
• Additional mooring cleats midships
• Gates in lifelines midships
• 2x Harken Performa 46 halyard winches
• Port side halyard winch is electric
• Additional control buttons for halyard winch at SB steering wheel console
• 2x Harken Performa 50 genoa winches
• 2x Harken Performa 46 mainsheet winches
• Starboard side mainsheet winch is electric
• Facnor electrical code 0 furler with control at the SB steering wheel console
• Deck lay-out package for gennaker (sheets, blocks, tackline)
• Sprayhood, foldable into recess in deck
• Bimini above steering wheels
• Cockpit shower

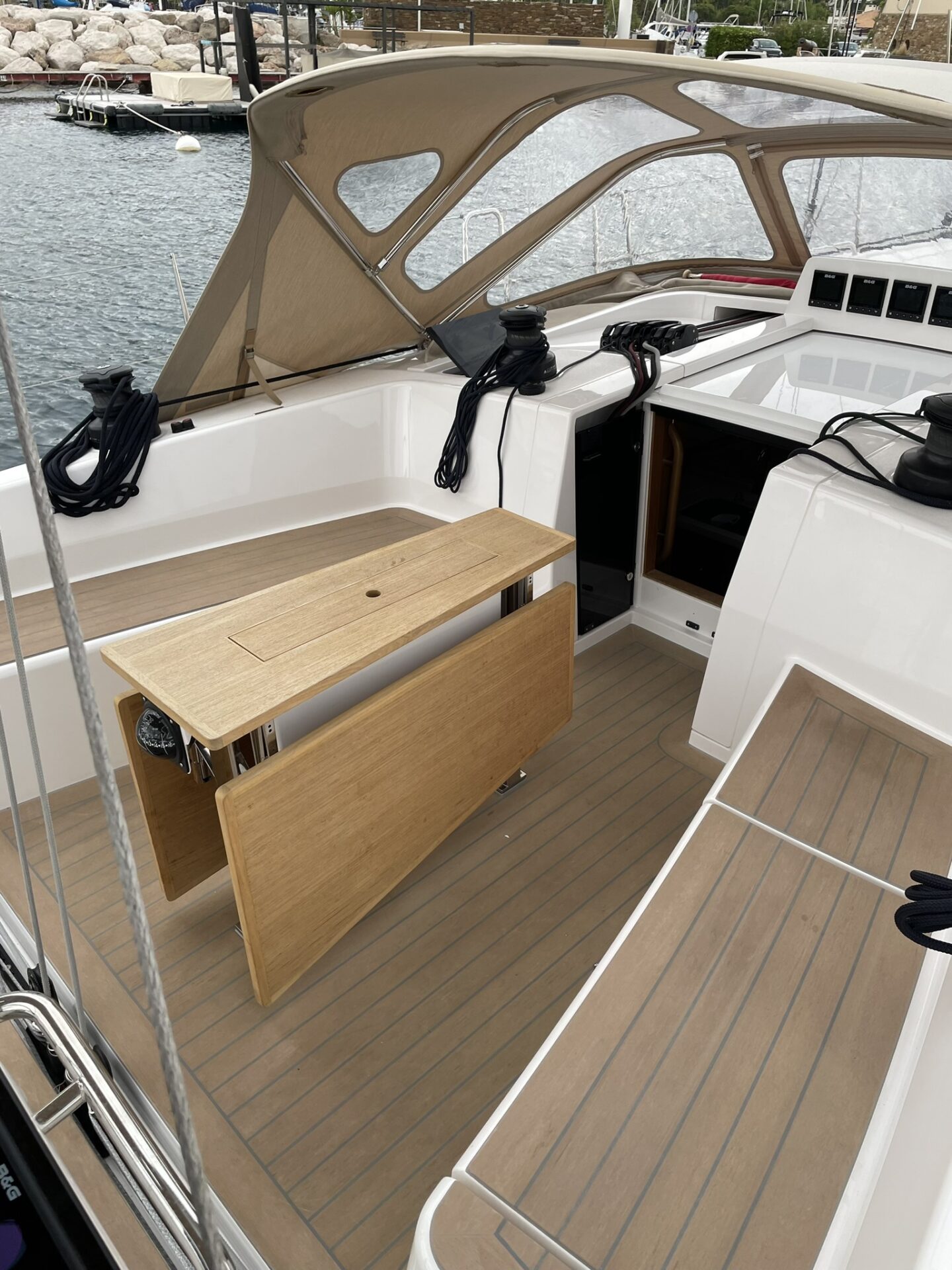

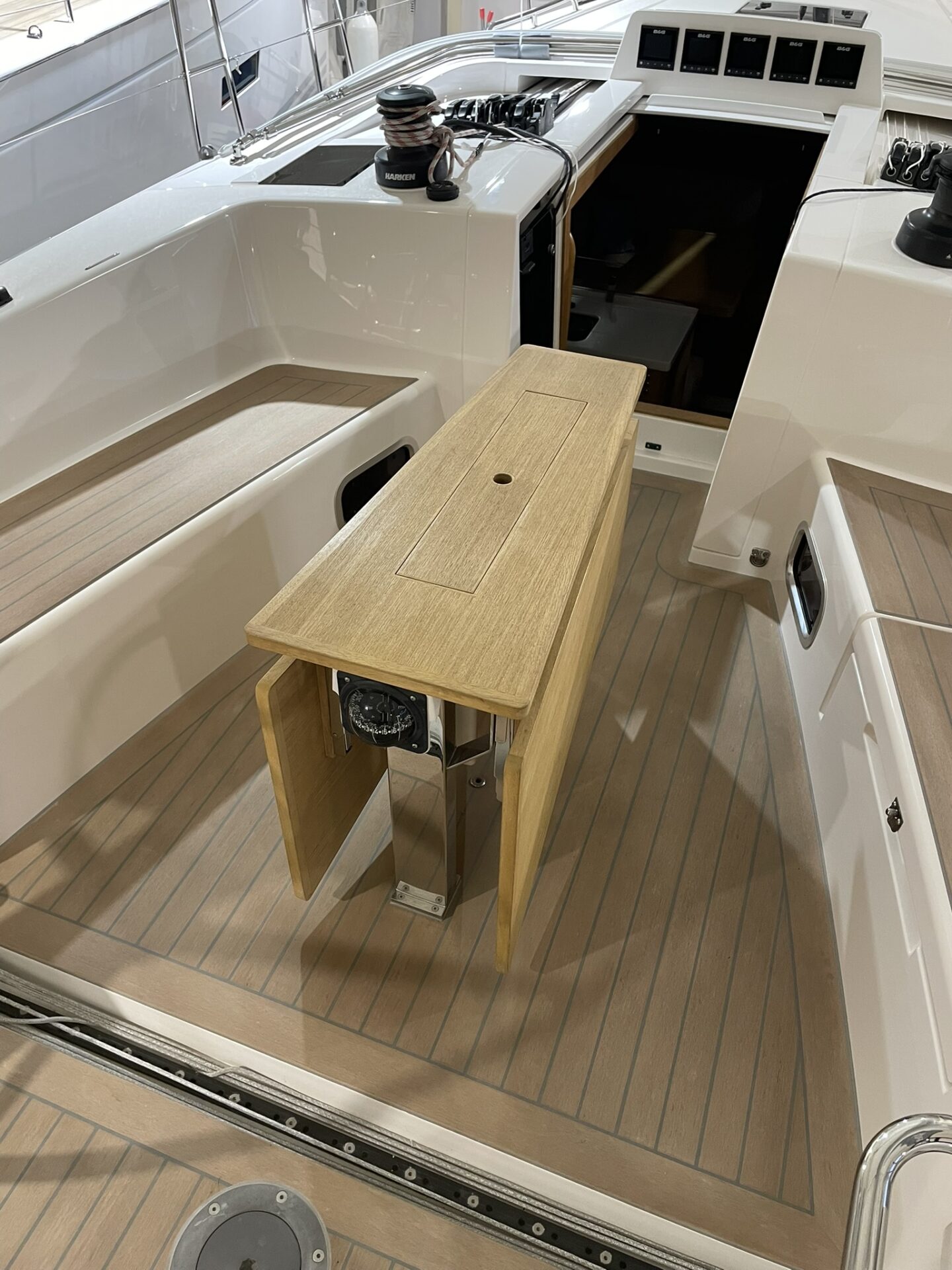

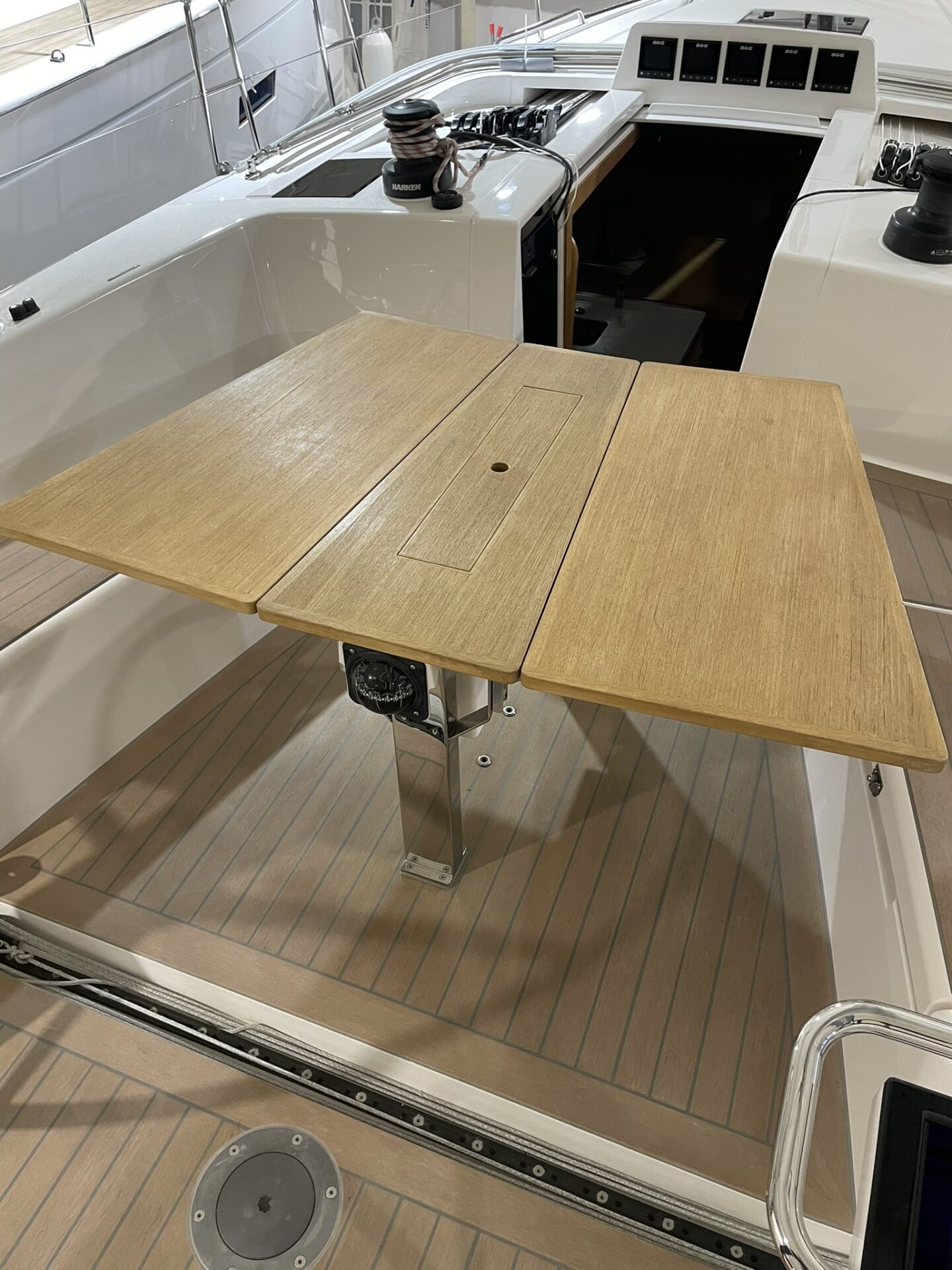

• Custom made cockpit table in teak on aluminium legs
• Black composite steering wheels
• Medium consoles at steering wheels (for plotter and instruments)
• White LED courtesy lights in steering wheel consoles and bathing platform
• Sea water deck wash pump with outlet in coclpit

Sails

• All Quantum Sails:
• Mainsail:
• - in Fusion M6
• - full-batten
• - 2 reefs
• Furling jib 106%
• - in Fusion M6
• - UV-cover on leech
• - reefing strengthening on luff
• AWA60 cableless code zero
• - on electrial Facnor furler
• Furling jib cover
• Steering wheel/console covers
• Cockpit table cover

Mast & Rigging

• Aluminium mast by John Mast
• Rod rigging as standard for all standing rigging
• Hydraulic backstay adjuster
• Furlex genoa furling system
• All halyards and sheets in dyneema
• Combined LED 3-colour/anchor light in top of mast
• Combined LED deck/steaming light on forward face of mast
• VHF antenna in top of mast
• Furlerboom V-shape in-boom furling system with cockpit light in white and red, including boom lift halyard
• Integrated boom cover for Furlerboom
• 2x LED light in spreaders
• Carbonfiber telescopic spinnakerboom on rail on the mast, including topping lift halyard
• Extra spinnaker halyard

Accommodation

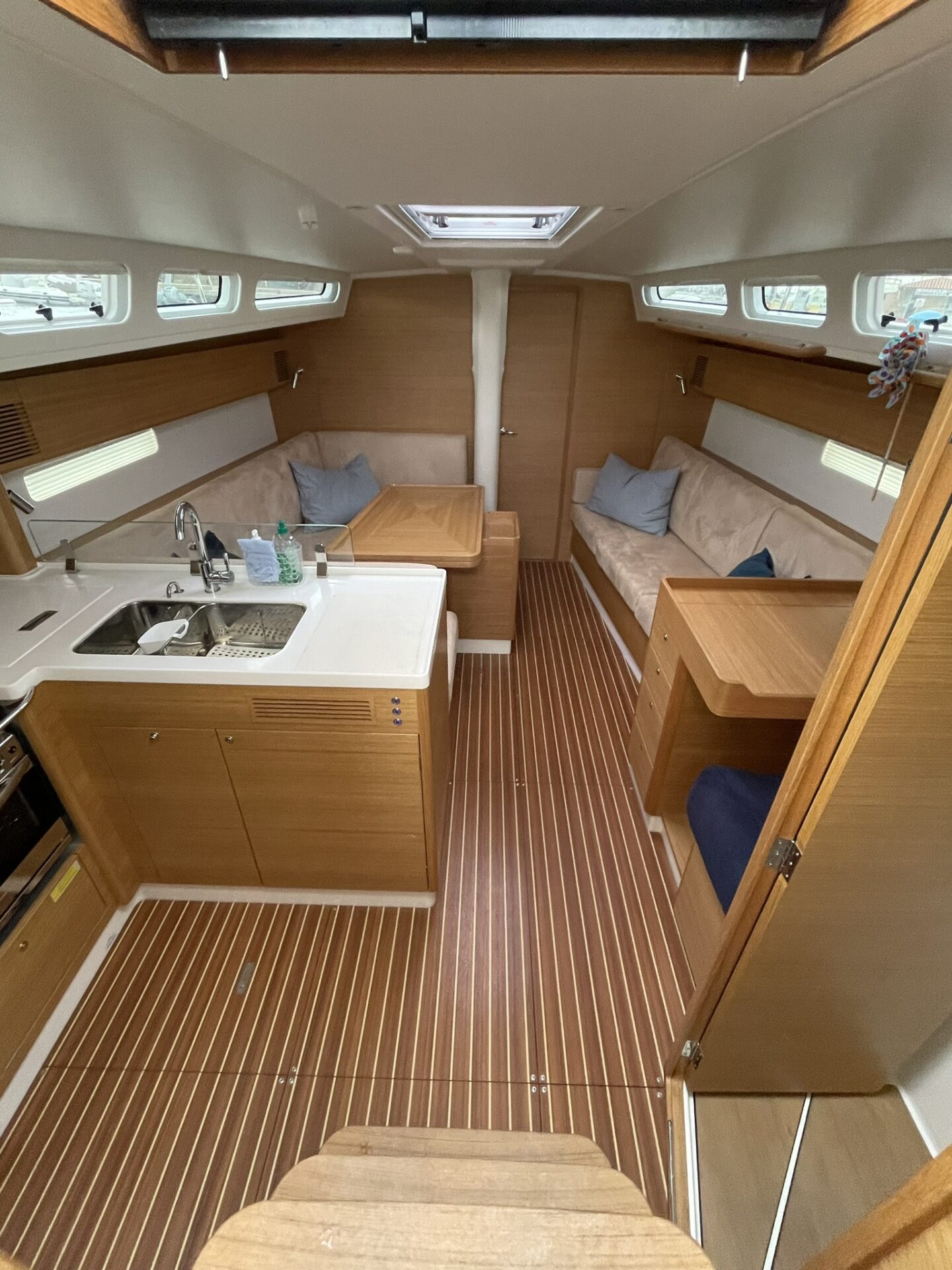

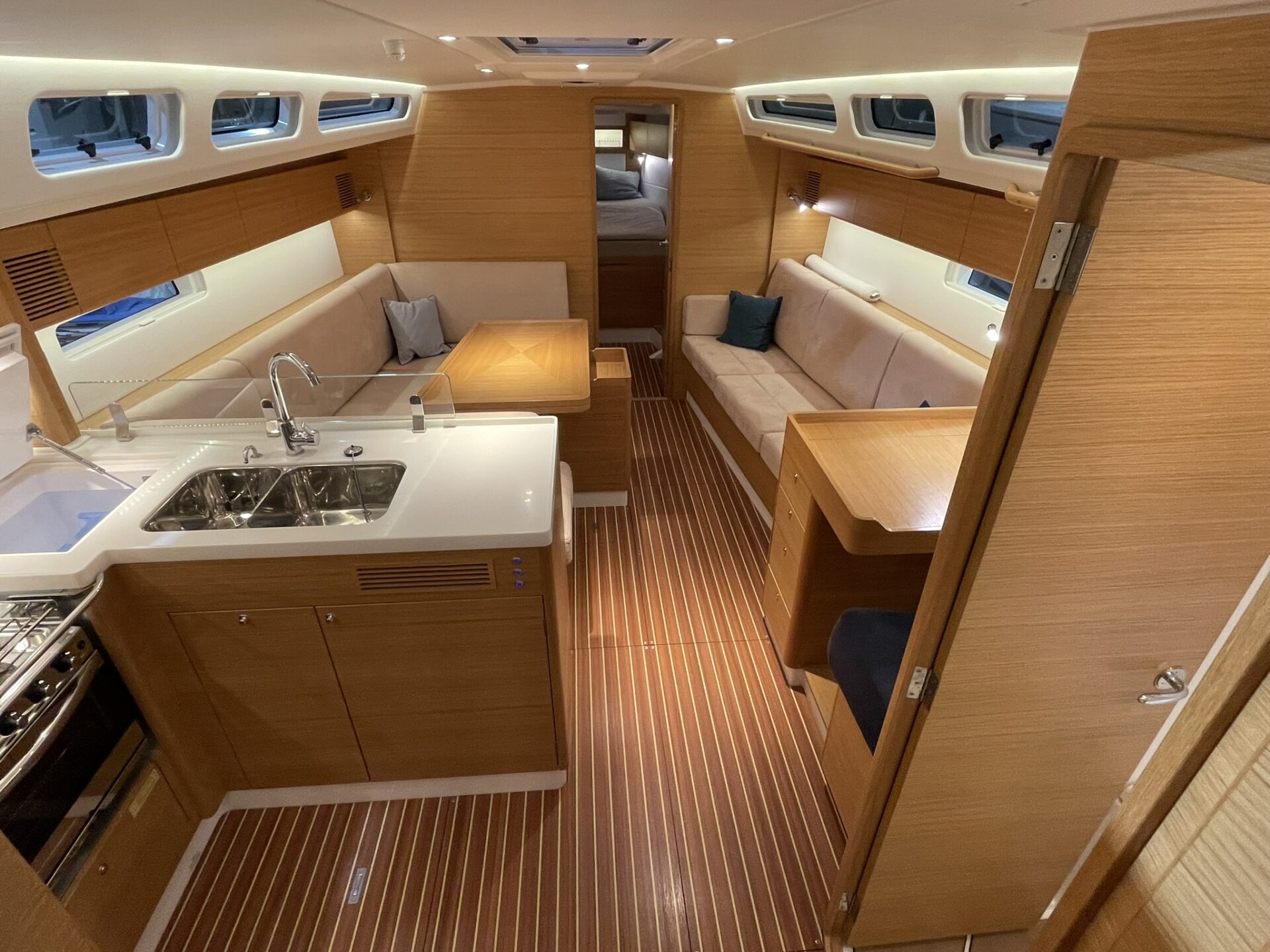

Interior

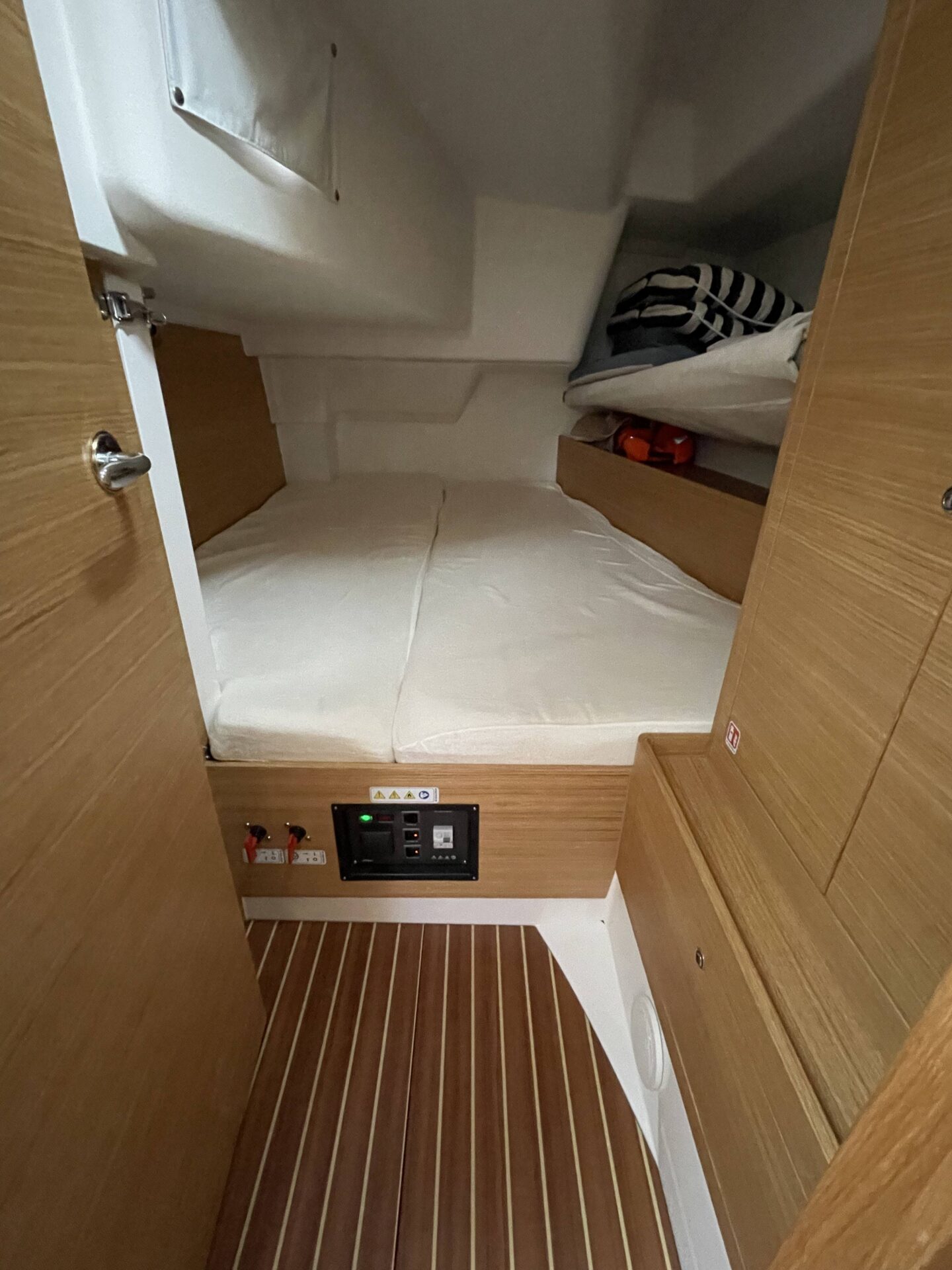

• 2-cabin/1-heads lay-out
• Full interior crafted with selected Nordic Oak veneer
• OceanAir curtain system for all hatches and coachroof windows (incl. hull windows)
• Additional LED downlighting below cabinets in saloon

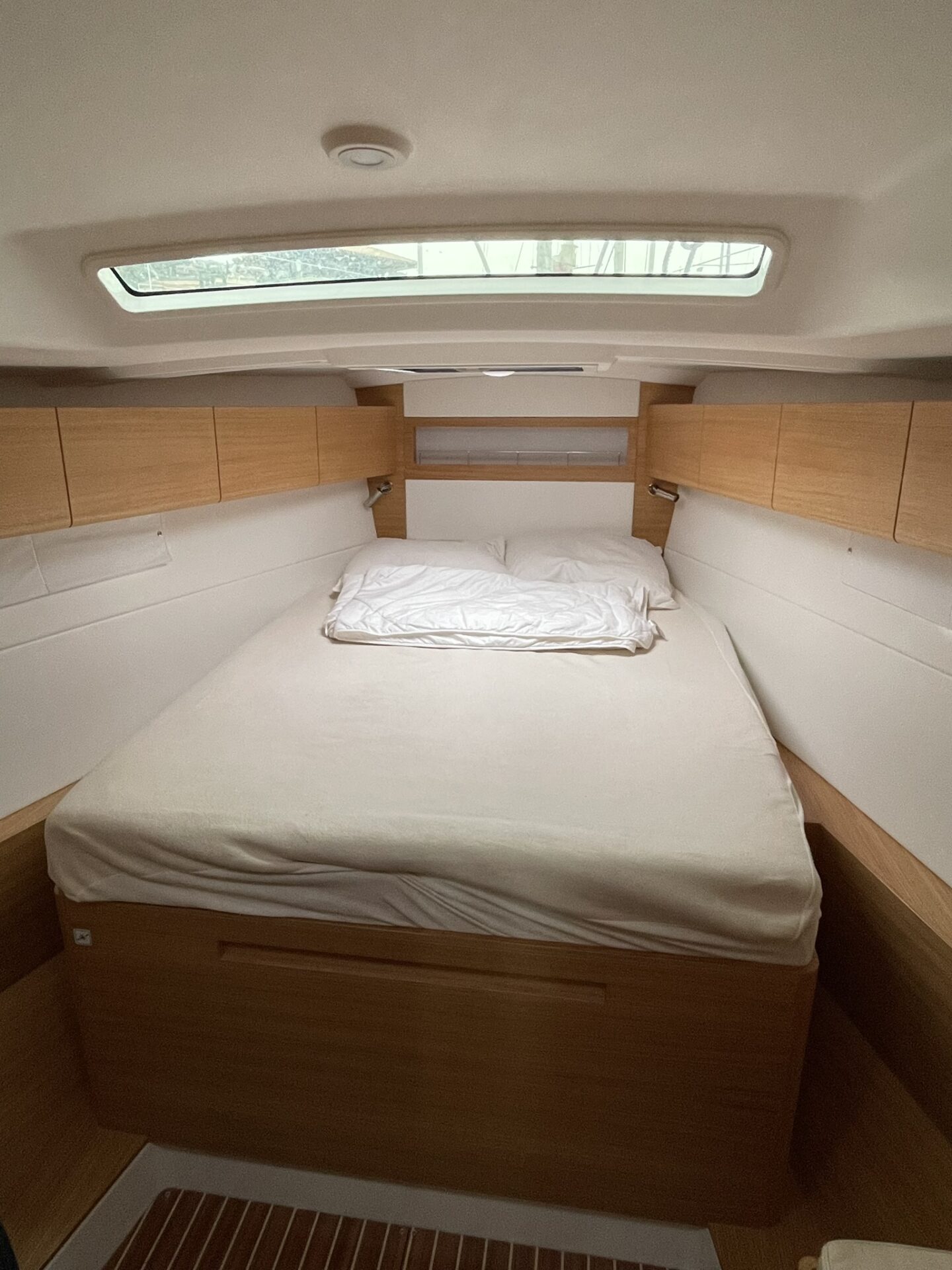

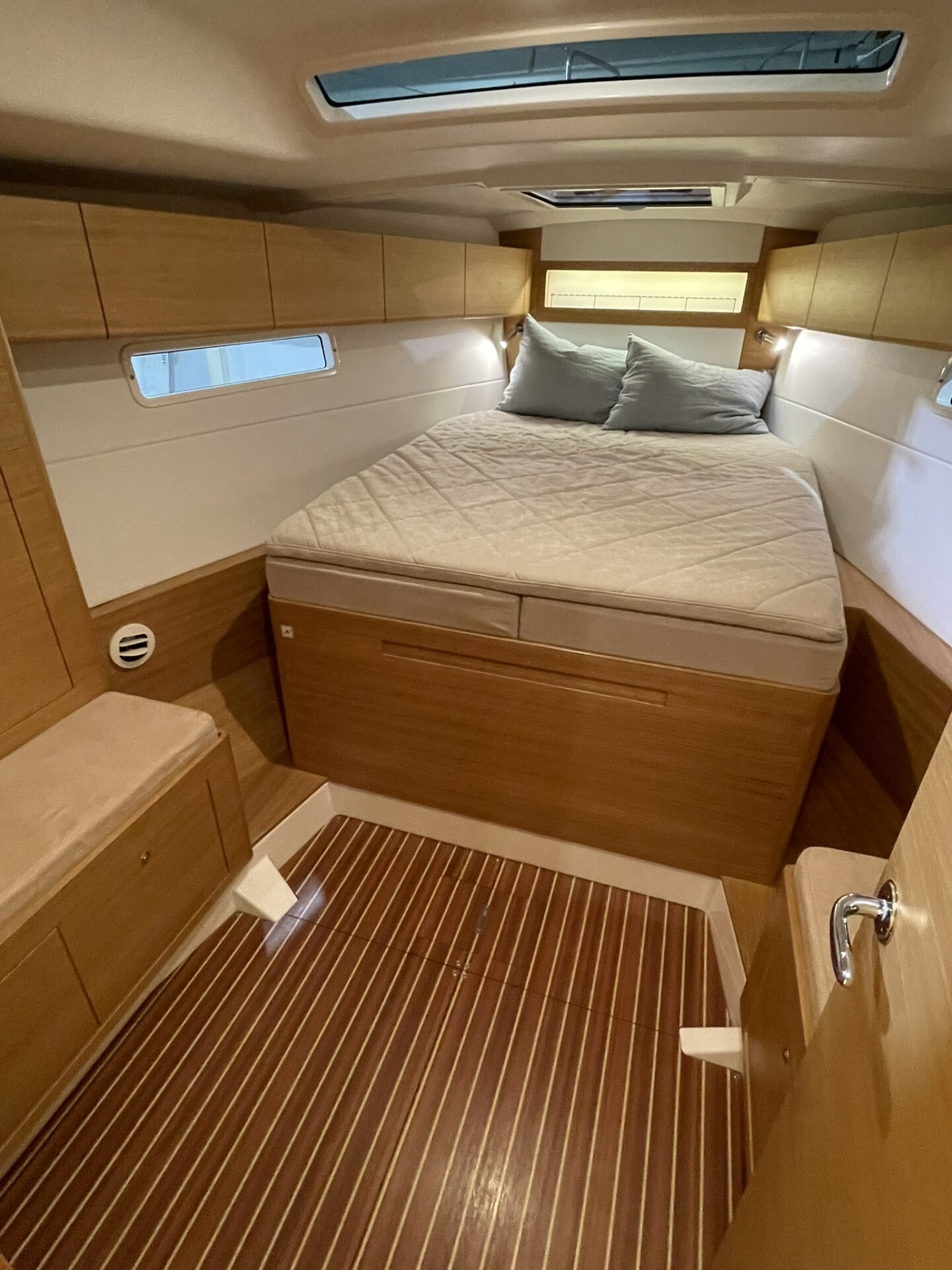

• Spring mattrasses in forward cabin
• Additonal cabinet sections along hull in forward cabin

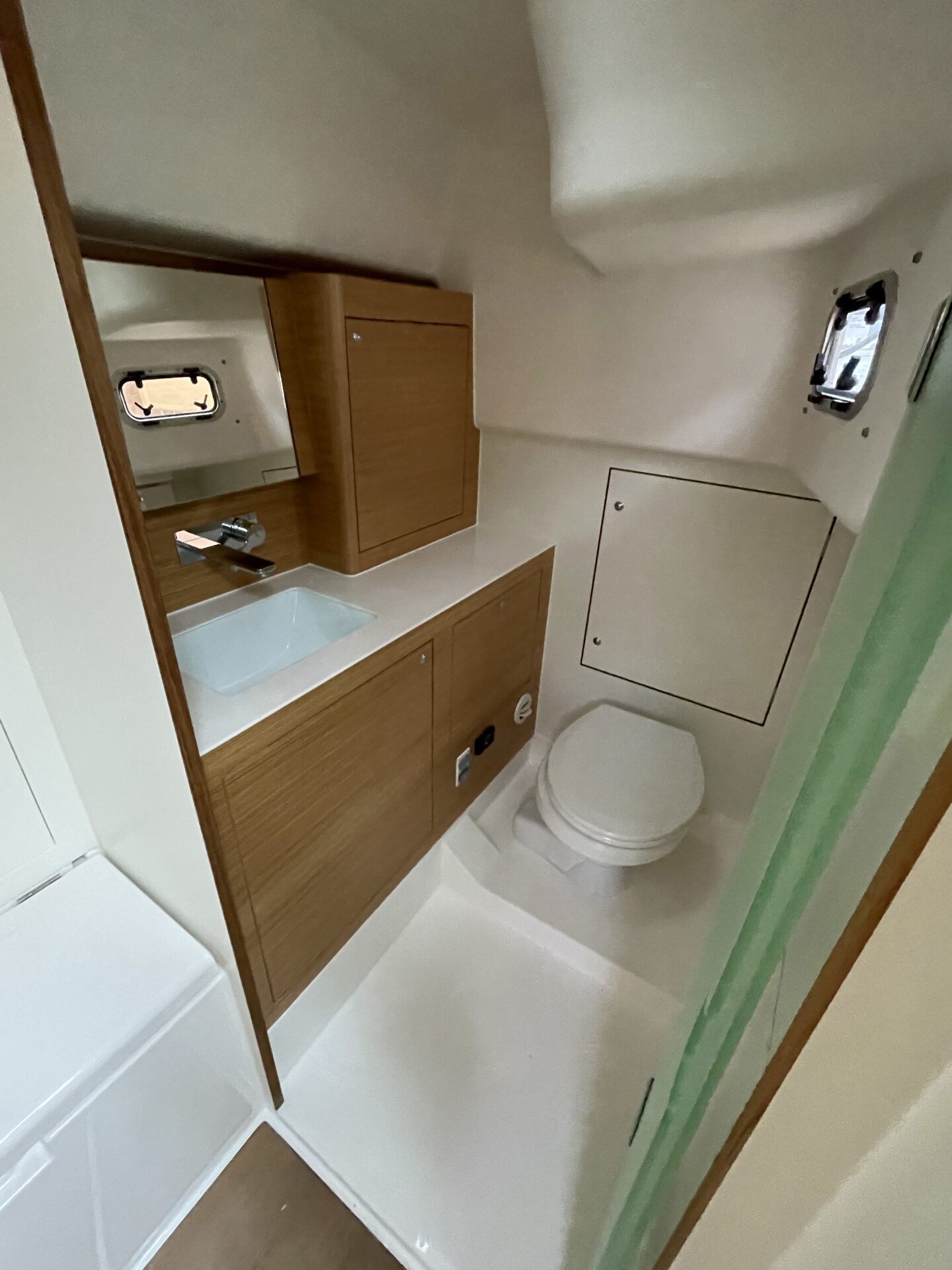

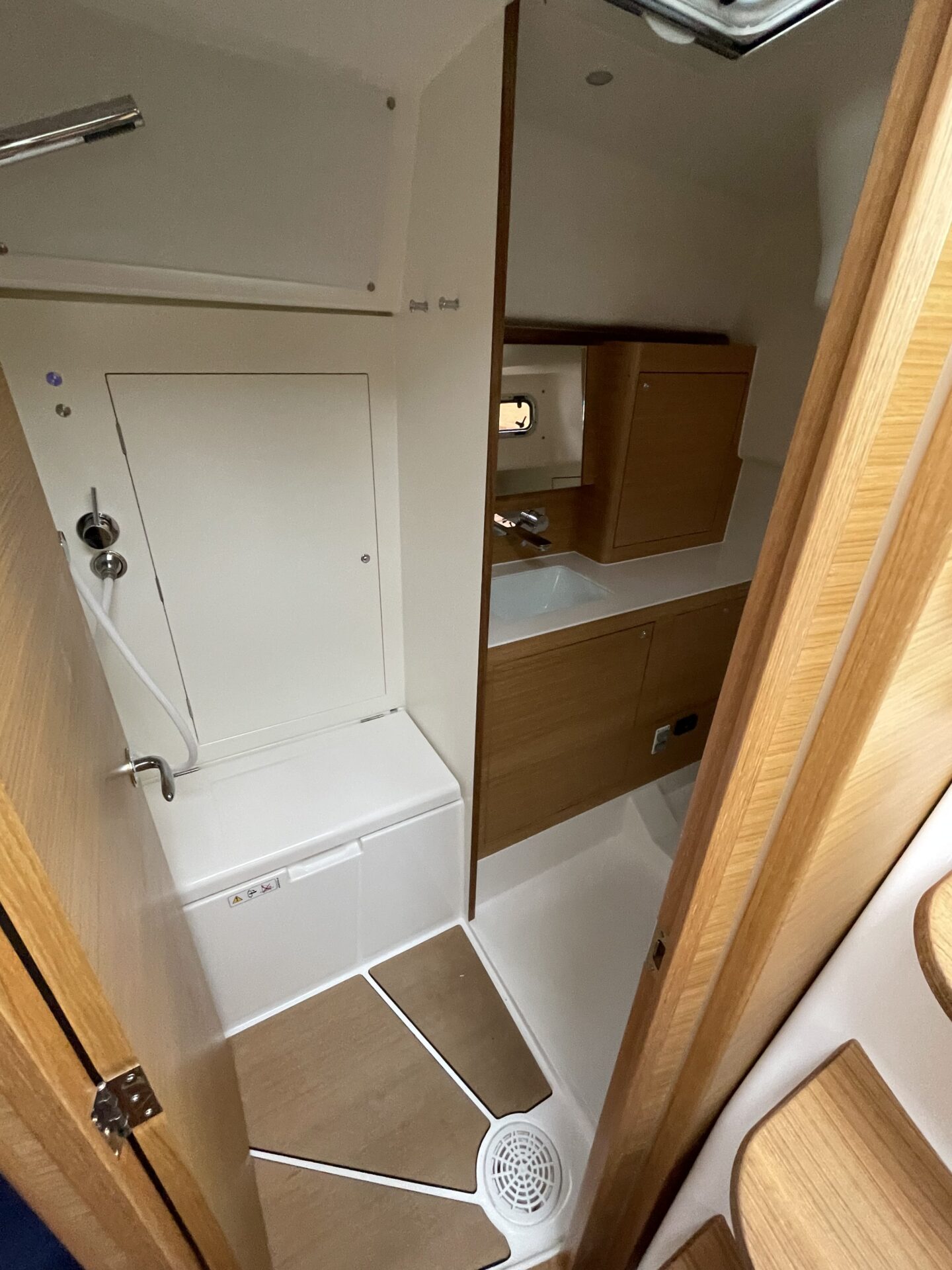

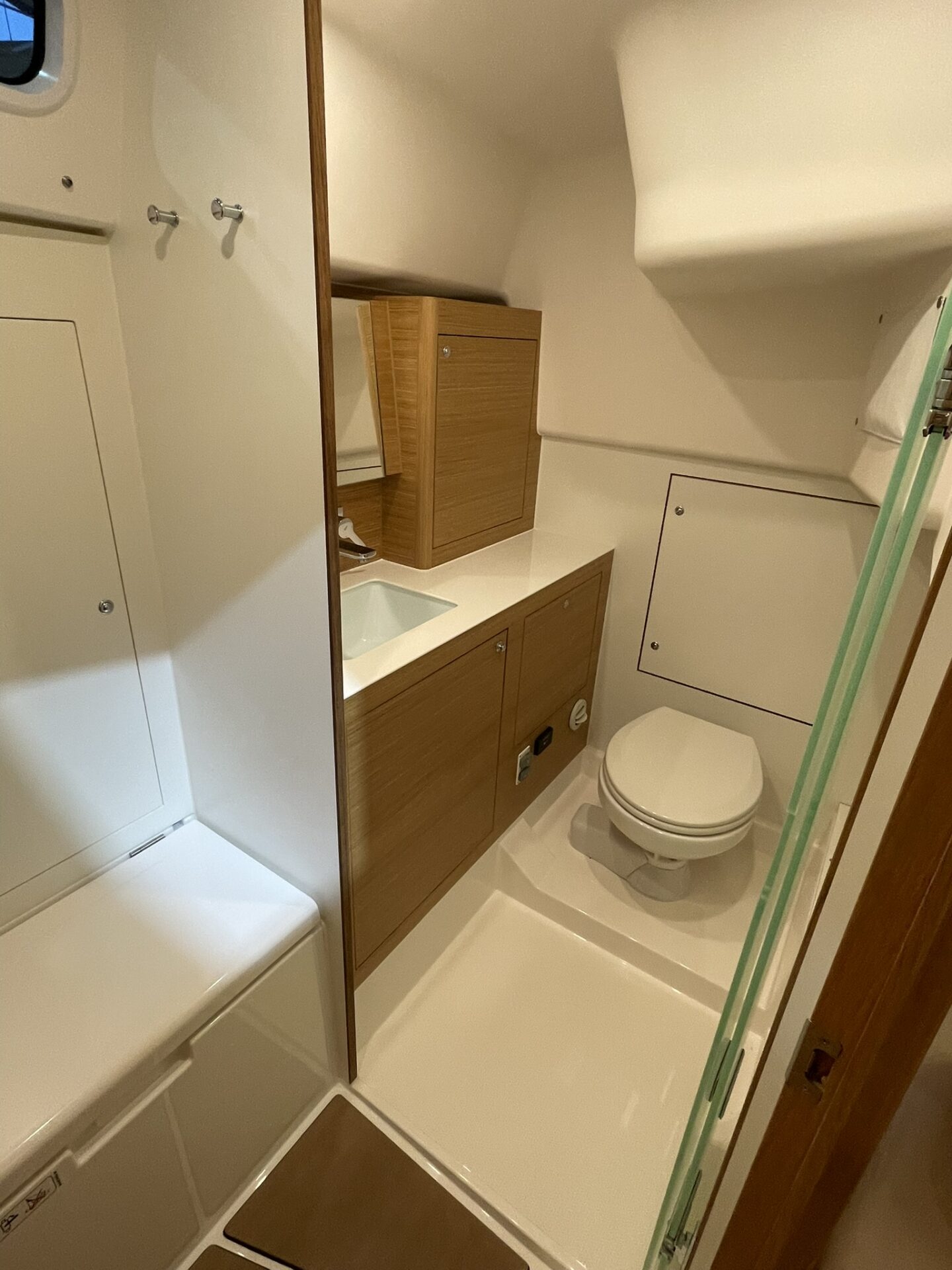

• Teak floor in heads
• Electrical toilet QuietFlush with option to flush with tank or outside water

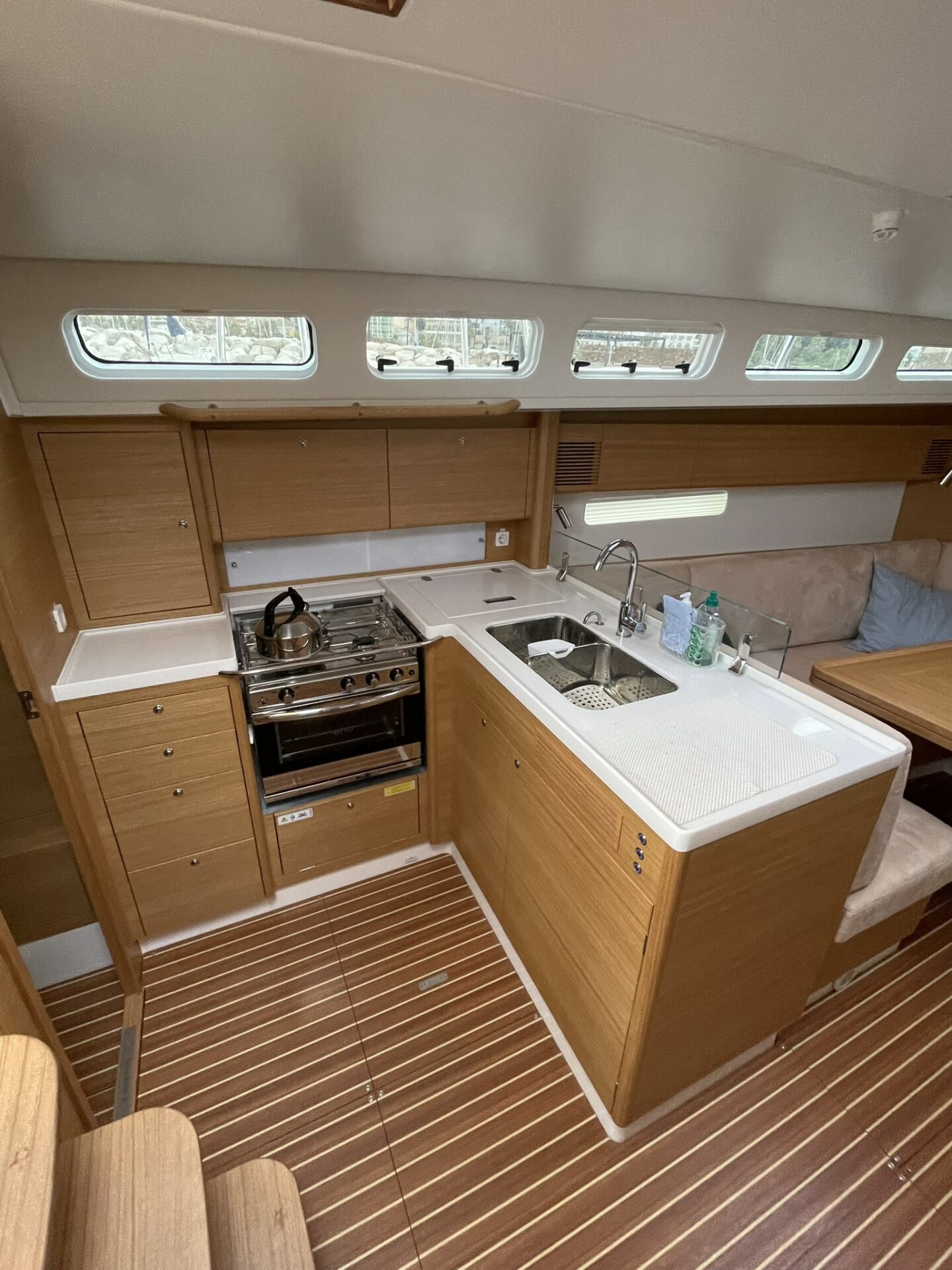

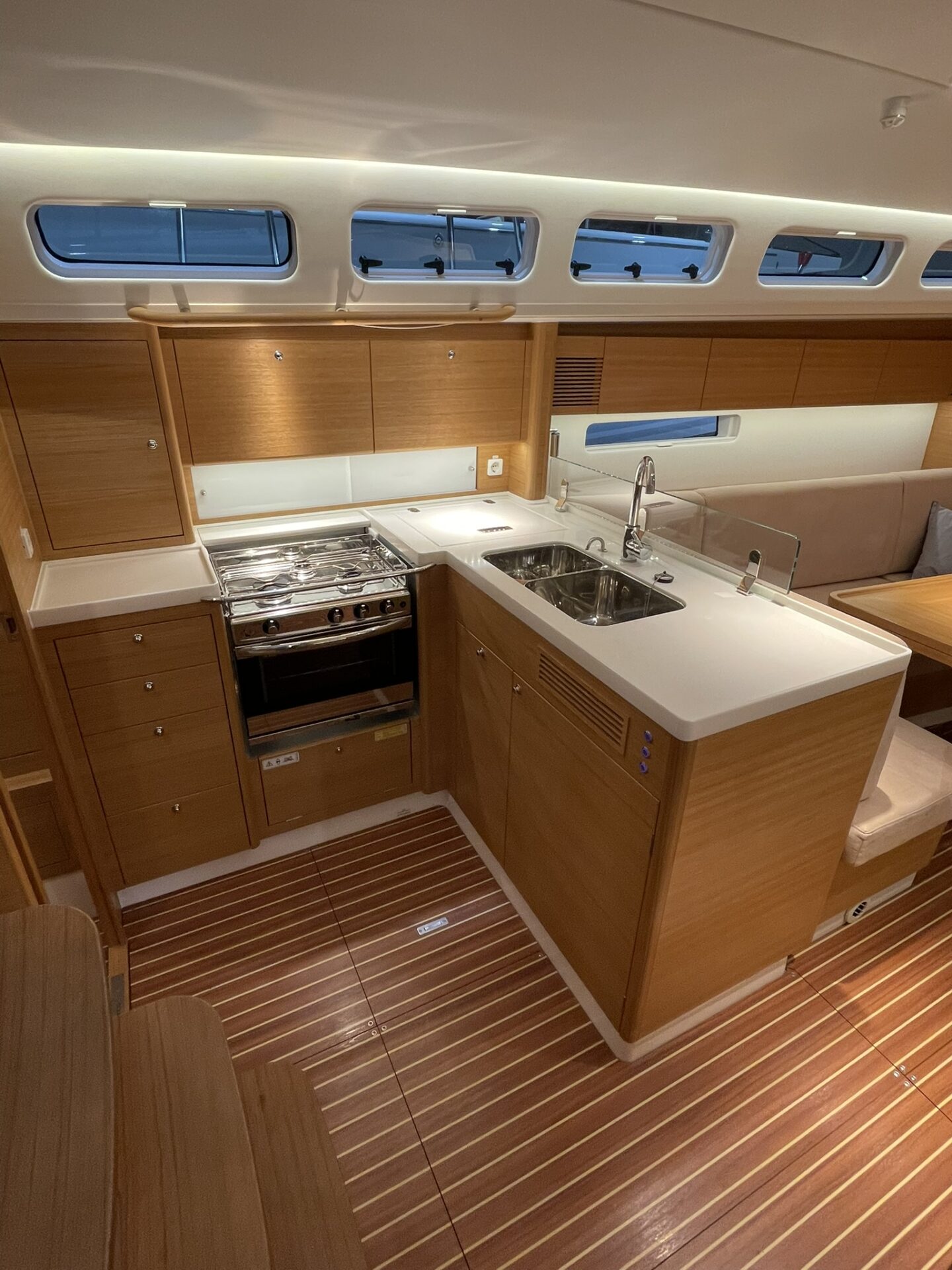

• 3-burner stove with oven in galley
• Wood veneer finish of lower sliding cabinets in galley
• Additional shelf in forward upper galley cabinet
• Additional refrigerator (front-loading) in galley with freeze compartment
• Eberspächer heater system

Systems

Electrical

• 3x 110Ah GEL battery
• Upgrade to combi charger/inverter 12V/2000W/80A

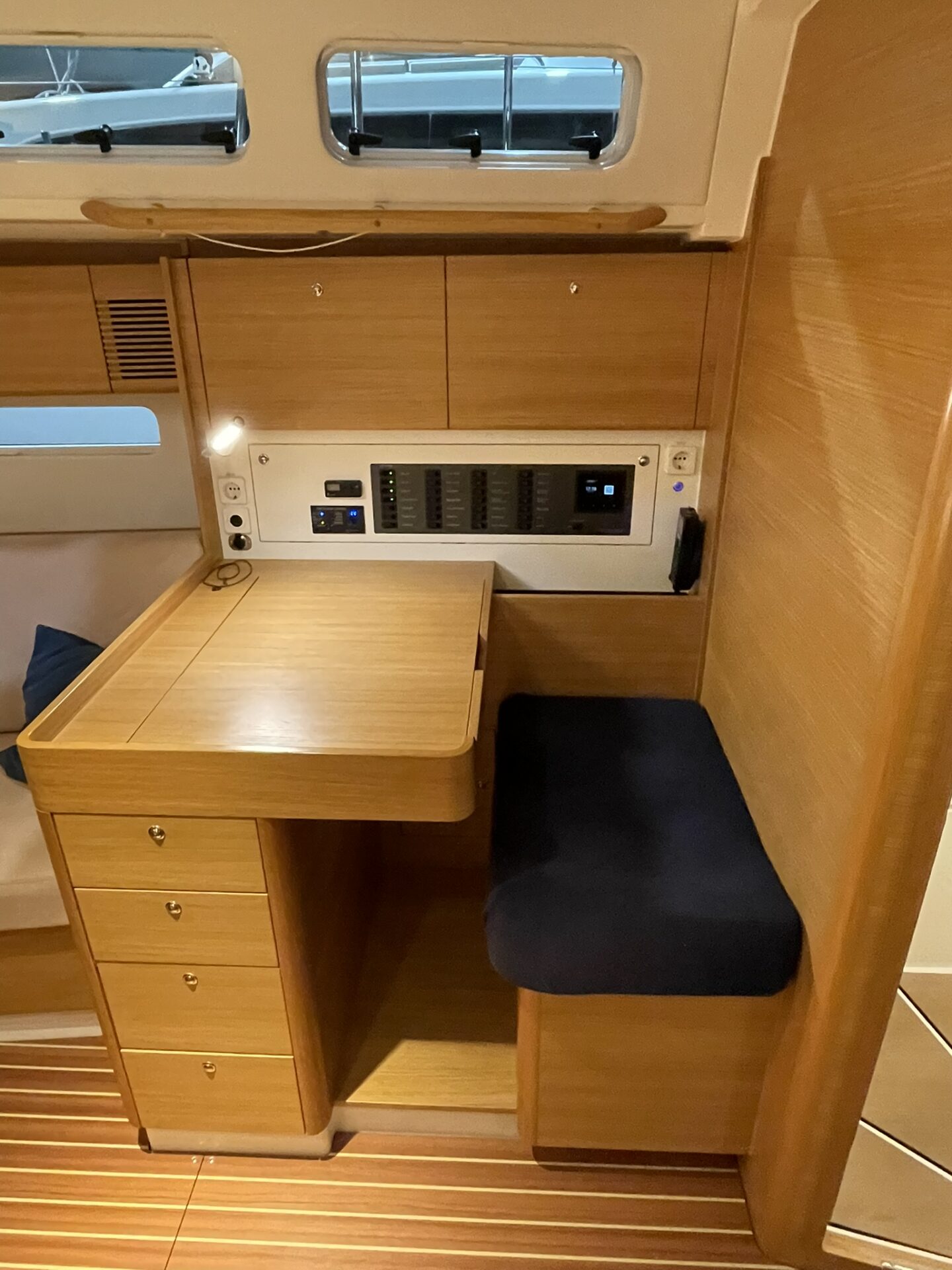

• Victron Color Control GX display with shunt for monitoring battery status
• Solar panel removable, with connection at the mast
• Additonal sockets: 6x 230V, 4x double USB, 1x 12v outside

Electronics

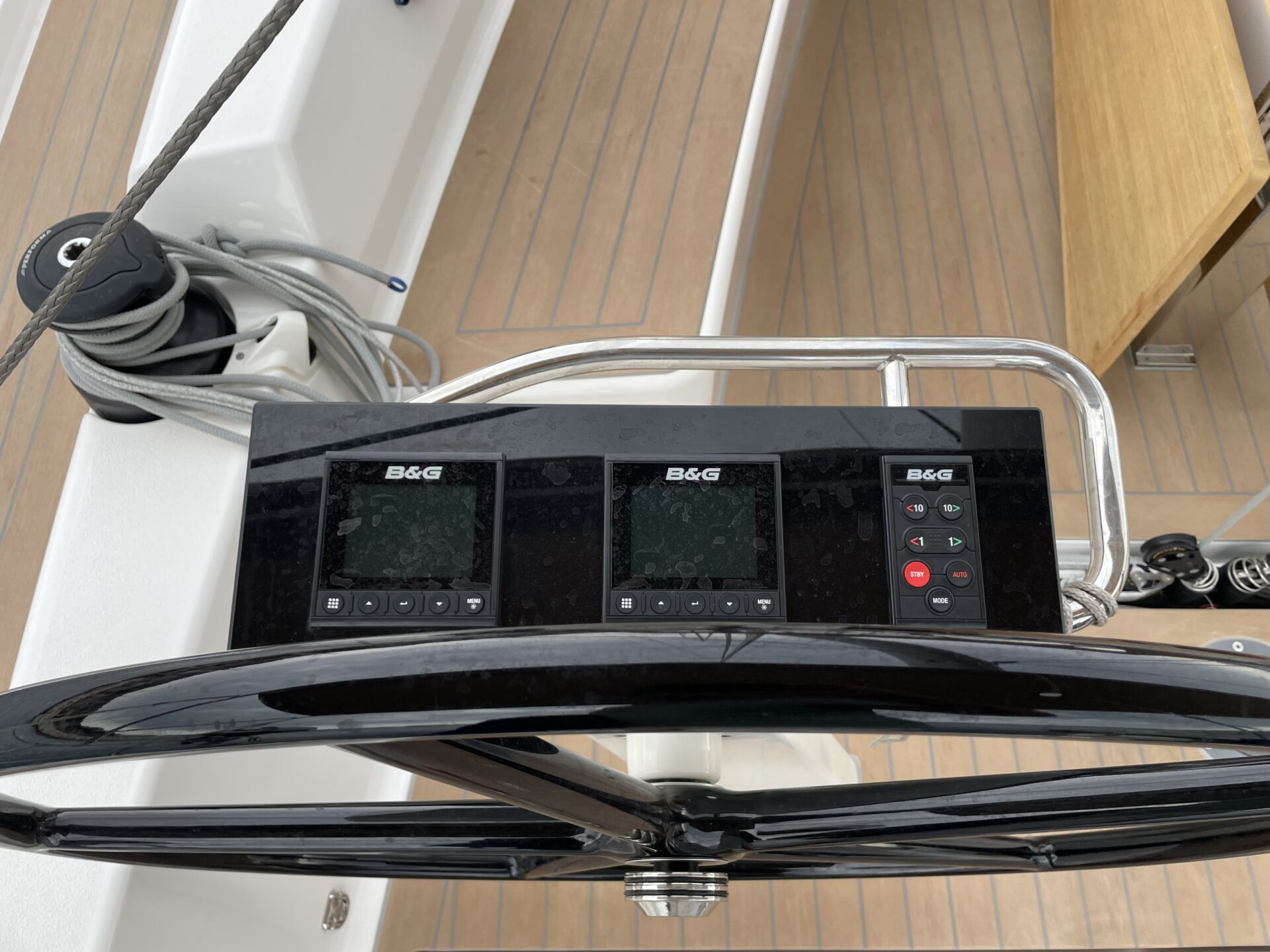

• B&G Triton2 package, consisting of:
• - 2x Triton2 display
• - ZG100 GPS antenna
• - transducers for speed, depth and wind

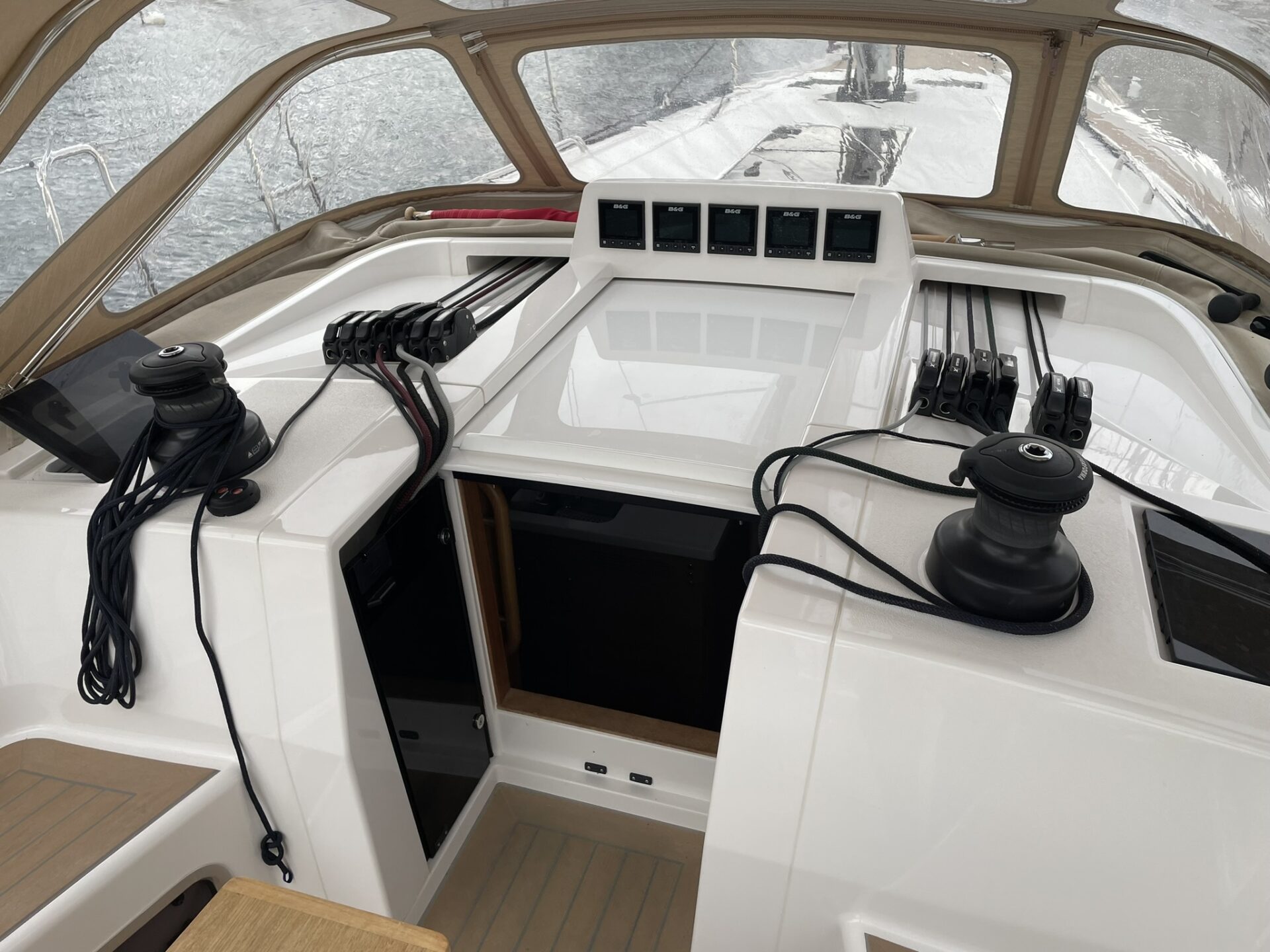

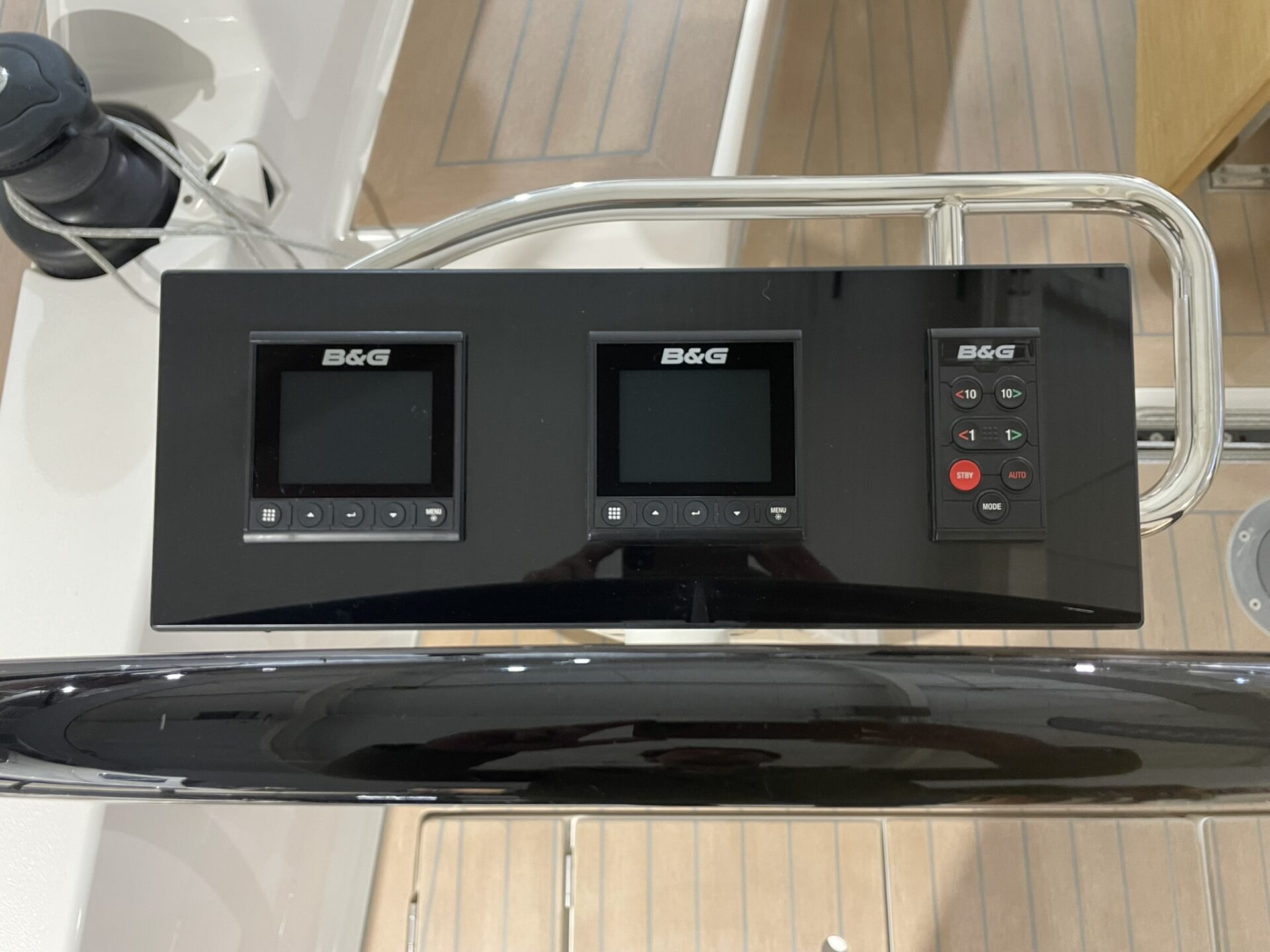

• 5x extra Triton2 display (total of 5 mounted in console above sliding hatch, further 2 in console at port side steering wheel)
• B&G autopilot:
• - NAC-3 pilot computer
• - Precision9 electronic compass
• - 1x Triton2 control panel in console at steering port side steering wheel
• - linear drive mounted on rudder quadrant

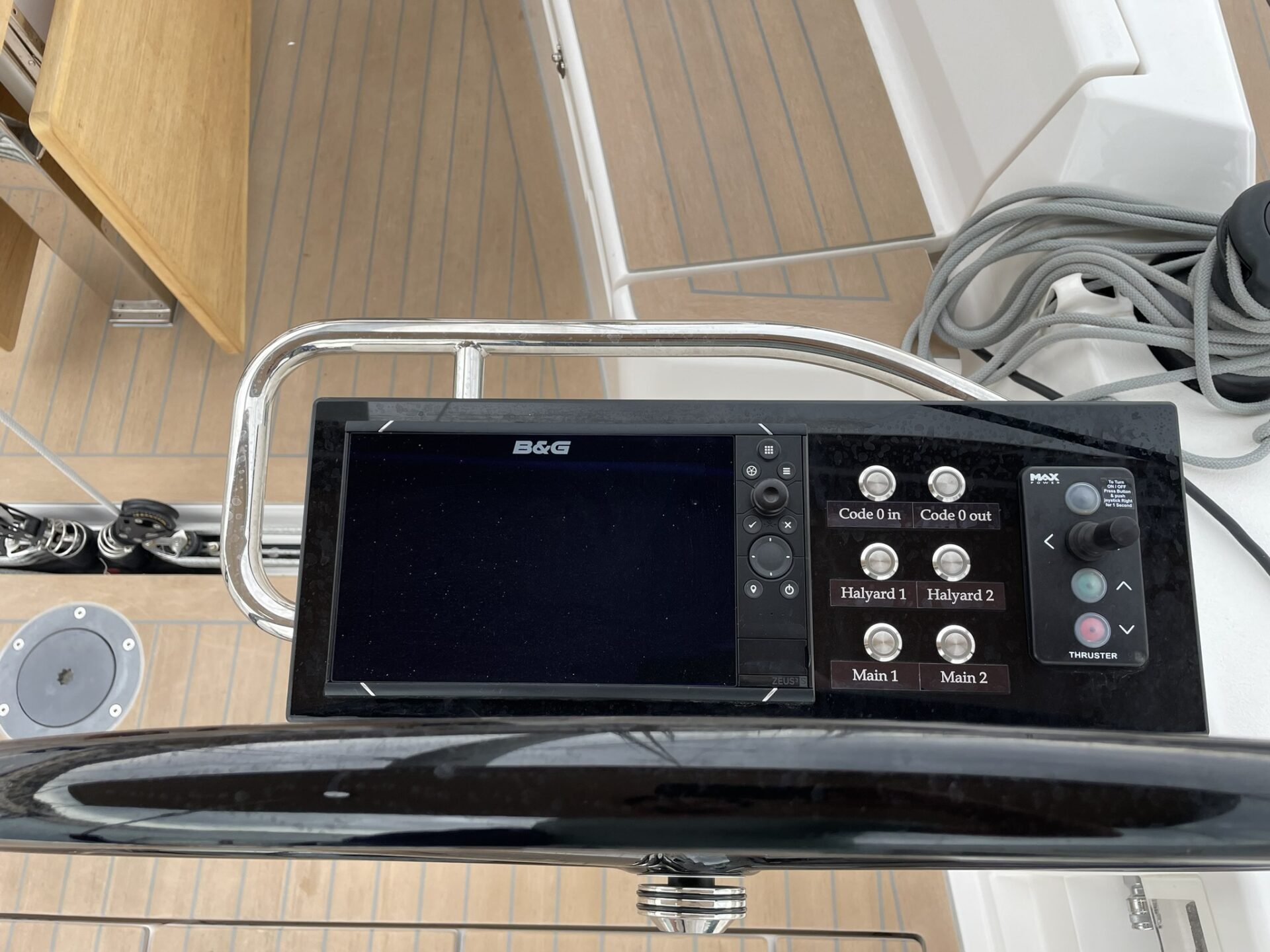

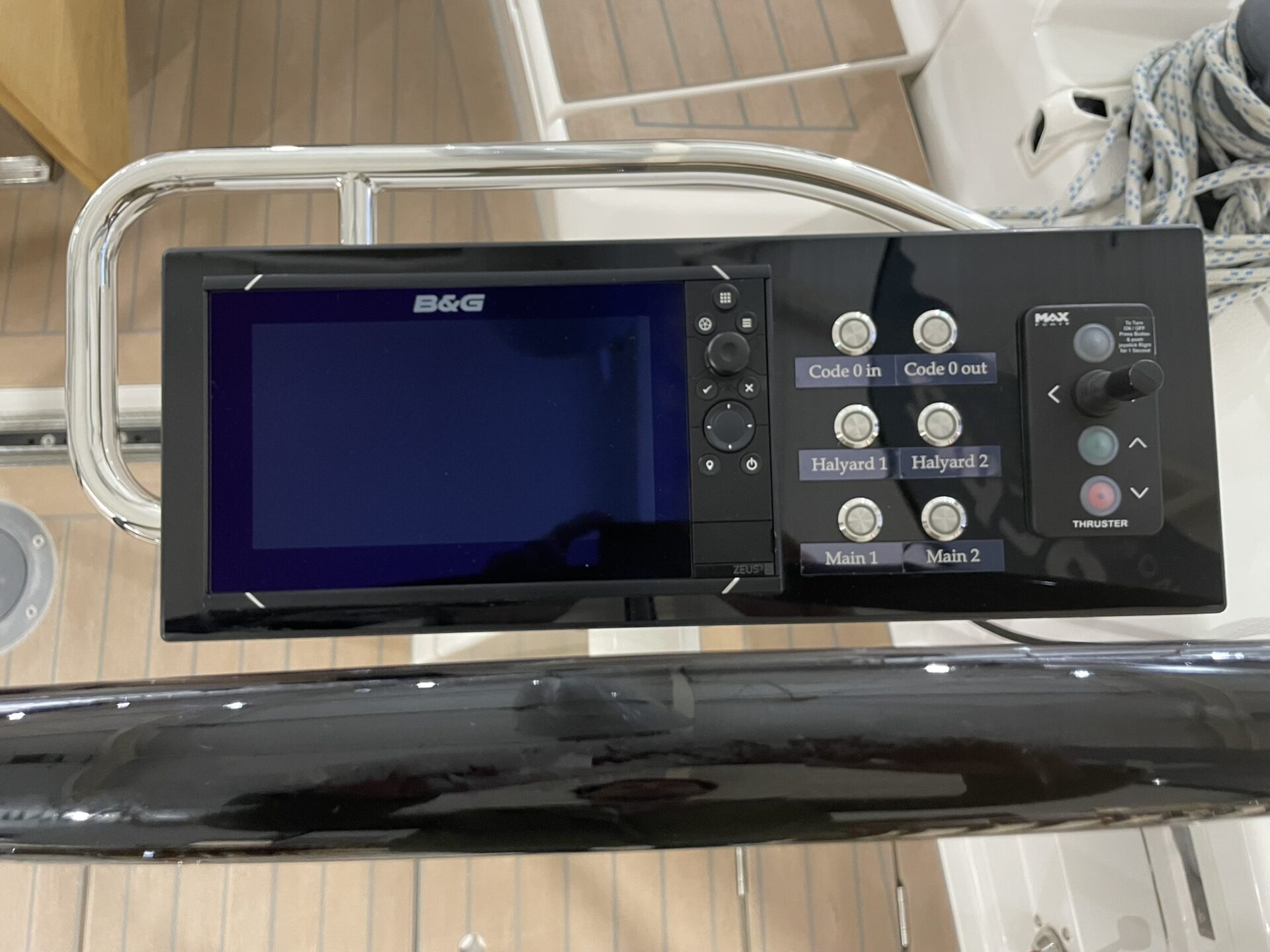

• B&G Zeus3S 9" GPS/plotter in console at SB steering wheel
• B&G V100-B VHF with AIS transducer incl. GPS-500 antenna
• B&G H60 wireless VHF handset in cockpit
• Compass on bracket under cockpittable

Additional Information

• Composite gangway by Carbonautica
• SeaGo 3-in1 rescue module
