Brokerage - Demo Boat

X4⁶

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X4⁶
  • Build Number: 36
  • Build Year: 2022
  • Lying: Haderslev, Denmark
  • Price: Sold
  • Ota yhteyttä: Andreas Ørbæk Olesen
  • Phone: +4525564200
  • Email: ao@x-yachts.com
X4⁶

Sold

Brand new X4⁶ for sale at the yard in Haderslev!
The boat hasn't been launched and is now ready for hand-over in July 2022.

This X46  is fitted with the most popular options such as Flexiteek, V-Furlerboom, Raymarine electronics, and air conditioning.

In the equipment list below, you will find all the extra options and discover many features which make this boat an exclusive example of the popular X46

VAT is unpaid.

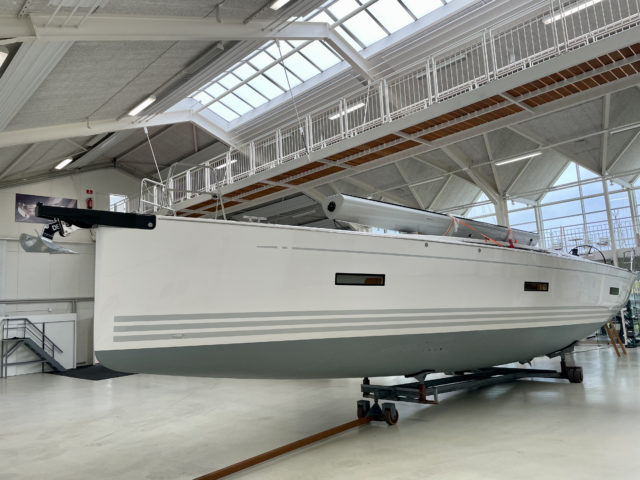

The X46 is on display at the showroom in Haderslev, Denmark.
(Please make an appointment before visiting)



Standard Specification

SuunnittelijaX-Yachts Design Team
Rungon pituus13.50 m44'3"
Waterline Length12.33 m40'5"
Leveys4.27 m14'0"
Draft2.30 m7'7"
Kölin paino - Vakio4,500 kg9,921 lbs
Paino - kevyt10,900 kg24,030 lbs
Engine Power42 kW57 hp
Polttoaine säiliö280 ltr74 gal (US)
Vesi säiliö360 ltr95 gal (US)

Standard X4⁶ brochure

Details

Exterior Details

Hull

  • Version (A1B1C2) - 3 cabins 2 heads with split port aft berth. Galley with white Corian worktop, fixed forward facing nav table large dining table and with Nordic Oak veneer throughout the yacht.
  • Hull Colour - 'Pure White' x 'Light Grey' integrated GELCOAT Water Lines
  • Bathing platform (Flexiteek) - The platform is operated electrically, integrated attachment for “hang on” bathing ladder with teak steps. - Flexiteek , vacuum applied, Scrubbed with grey caulking
  • Hull Treatment - 3 x layers of sprayed epoxy primer & 2 x layers of grey Hempel Mille NCT Antifouling

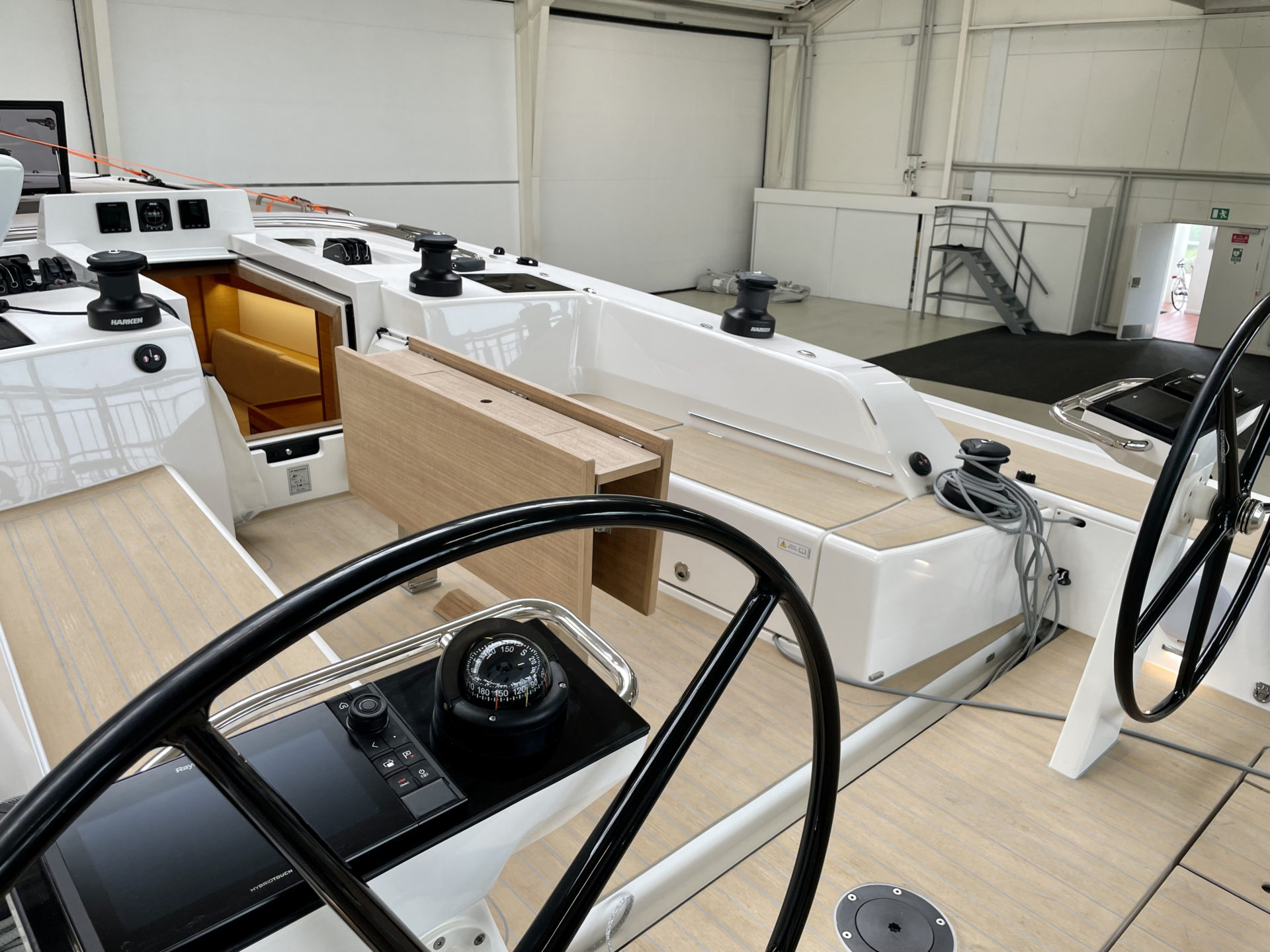

Deck

  • Flexiteek on Side Decks and cockpit - Vacuum applied, Scrubbed with grey caulking
  • Removable cockpit table - with two hinged leaves, resting on two stainless steel rectangular legs, with central bottle box in GRP, securely bolted with 8 bolts to cockpit floor and removable teak foot chock below the table
  • Cockpit Cushions Light Grey
  • Carbon Fibre Bow Sprit - Clear Coated Carbon fibre bow sprit for Asymmetric spinnaker
  • Composite Steering Wheels - 2 x Carbonautica black composite wheels

Sail Handling

  • Electric Winch - Mainsheet 2 x Harken Performa 46.2 STP Electric two-speed self-tailing winch
  • Electric Winches - Halyard 1 x Harken Performa 46.2 STP Electric two-speed self-tailing winch - PORT
  • Optional additional sheet Winches - 2 x Harken Performa 50.2 STP two-speed self-tailing winches, on coaming.
  • Longitudinal Genoa sheet tracks - on coach roof top
  • Sail Handling Pack 1: 1. Asymmetric spinnaker equipment including; 2 x Dyneema / Spectra sheets, 2 x gennaker sheet blocks, 2 x cleats for "parking" the sheets and 2 x Wichard shackles mounted incl. 1:1 asymmetric tack line and tack block + flip flop blocks 2. Outboard sheeting pad eyes mounted for self-tacker
  • Additional Masthead Spinnaker Halyard - 12 mm Dyneema SK78, incl. halyard block at mast and large Spinlock halyard clutch (1:1)
  • Halyard overview: Main halyard, Jib Halyard , Frictional spin. halyard , Masthead spin. halyard

Sails

  • Elvstrøm Sails In-boom Furling Mainsail - EPEX®, 64 m² grey Double taffeta, Technora Black (DEN 04), 25000 dpi, 5 full battens, 2 reefs, sail No, class insignia
  • Elvstrøm Sails Furling Jib 106% - EPEX®, 50 m² grey Double taffeta grey, Technora Black (DEN 04), 25000 dpi, 4 vertical battens, UV-acryl (on leech and foot), E-flex®, tell tales
  • Boom cover for Furling Boom - Light Grey. Other canvas colours available: Dark blue and dark grey. Ask your dealer for details.

Mast & Rigging

  • Aluminium mast with 3 spreaders and rod rigging.
  • Permanent backstay with integral hydraulic adjuster
  • 2 x Mast steps fitted to Aluminium mast
  • V-Furling Boom - 'Furler Boom T-20' infusion moulded monocoque glasfibre with carbon mandrel included. Spring loaded vang, boom lift/pasarella halyard, painted in grey
  • LED Tricolour & Anchor Light
  • LED Steaming Light combined with LED deck flood light

Keel

  • Standard 2.30m keel with lead bulb

Hatches / Portlights / Ventilation / Sprayhood

  • Sprayhood Light Grey - canvas with sturdy stainless steel framework
  • Cockpit Tent Light Grey - Canvas with removable side panels (attaches to sprayhood to enclose forward cockpit) - including bimini function by removing side panels.
  • Combined Pedestal and Wheel Covers Medium - 2 x Light Grey canvas covers for medium size pedestals.

Guard rail / Anchor / Stainless Steel Fittings

  • Gunwale Protection - Stainless Steel rail protection mounted along sheer line
  • 2 x Mooring Cleats Amidships
  • Polyester strap with wood bracket insert for skylight and galvanized shackle for centre point hoist -

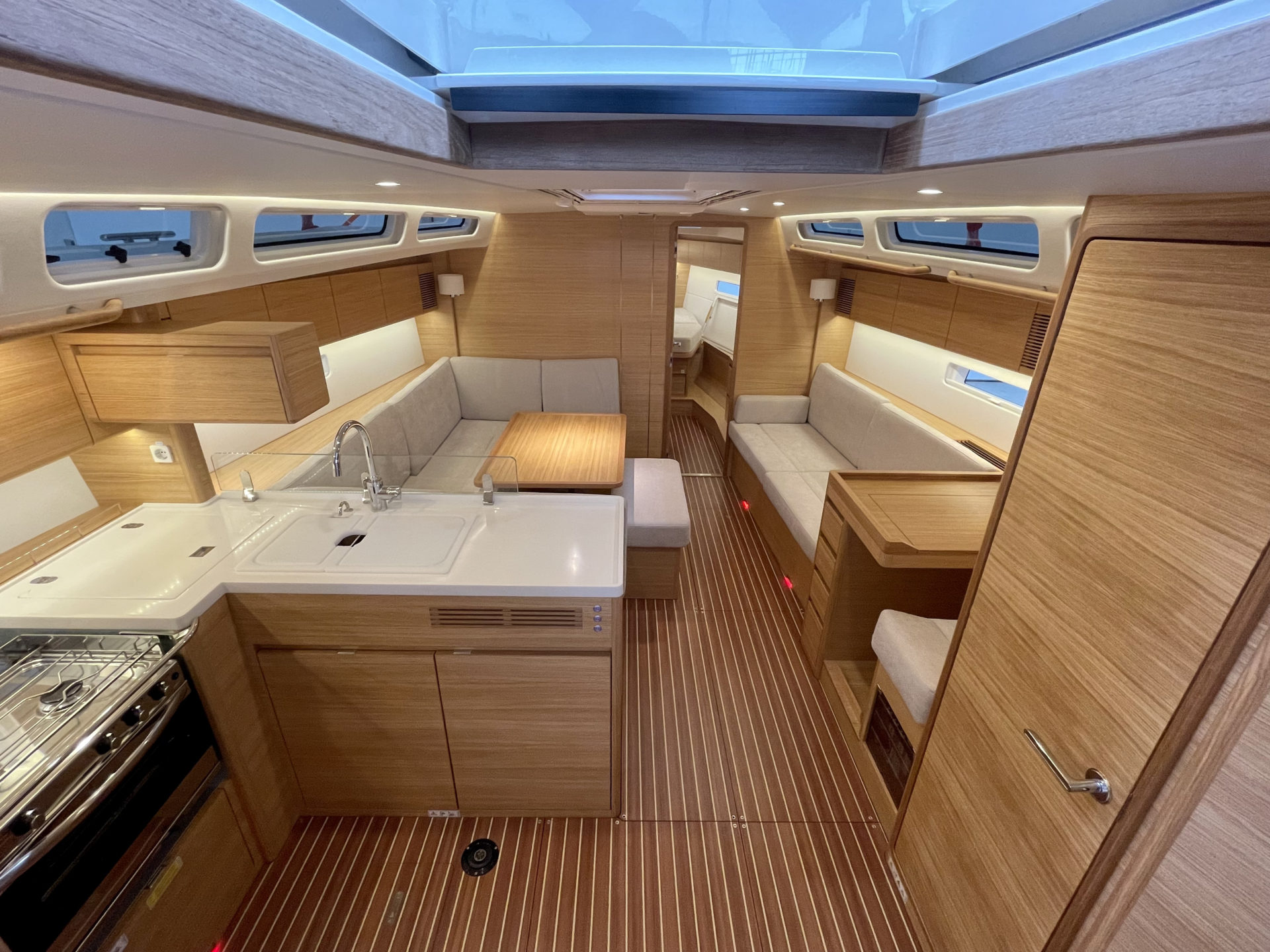

Accommodation

Saloon

  • Imitated Teak with gaboon inlay stripes - instead of standard imitated teak floorboards
  • Double Pouf - with storage, gas spring supported seat fixed to floorboards in two positions

Owners Cabin

  • Owner's cabin upper cupboards - Upper cupboards with bottom hindged doors fitted on freeboads above the berth

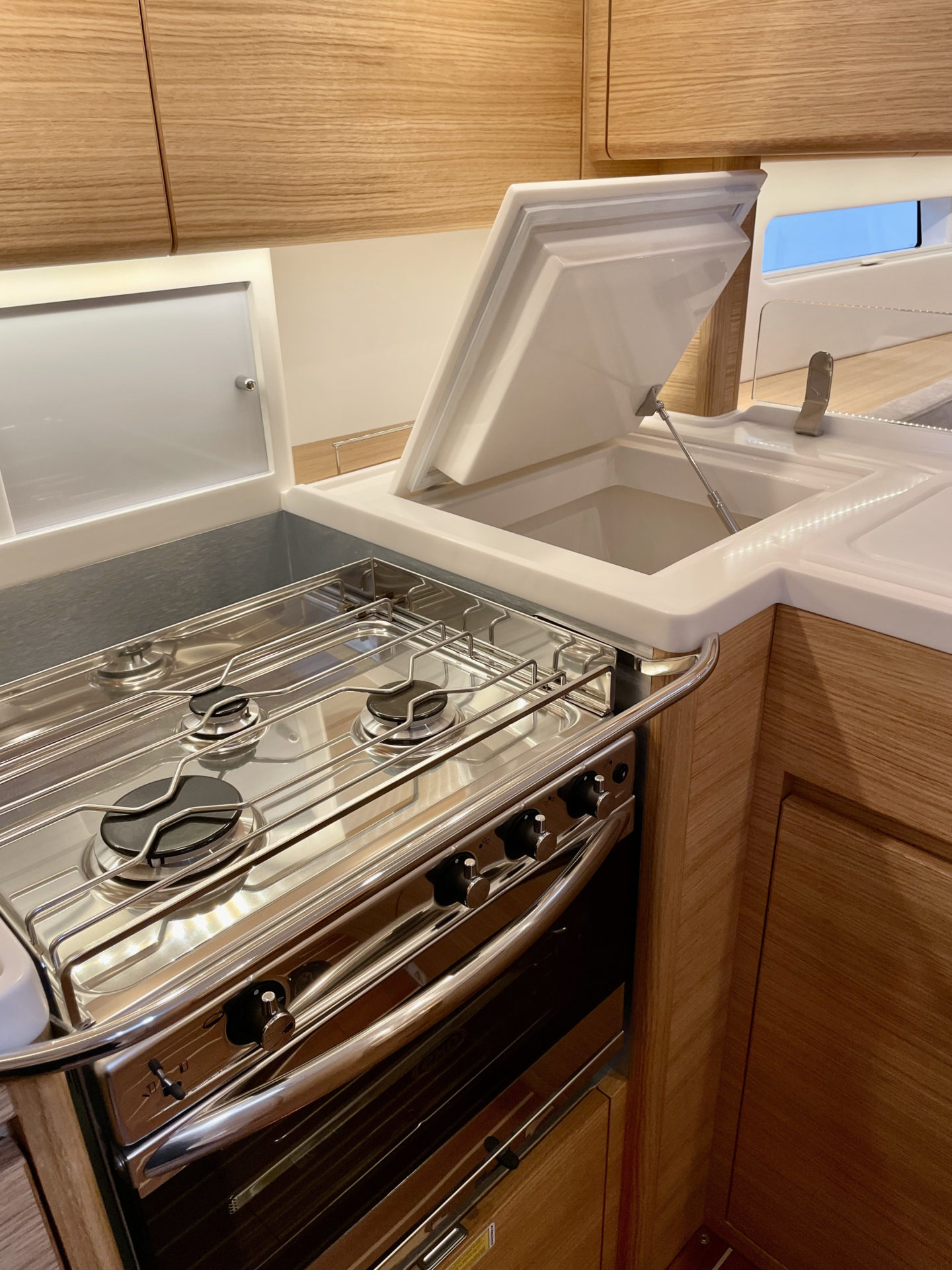

Galley

  • Transverse Cupboard - Transverse cupboard mounted in galley
  • White Corian - White Corian worktops in galley
  • Coolbox - 90 litre toploaded Insulated & watercooled Danfoss / Secom compressor & Isotherm accumulator plate
  • Fridge Front Opening - Frigoboat MS 80 litre with ice cube compartment, front opened , positioned in the galley

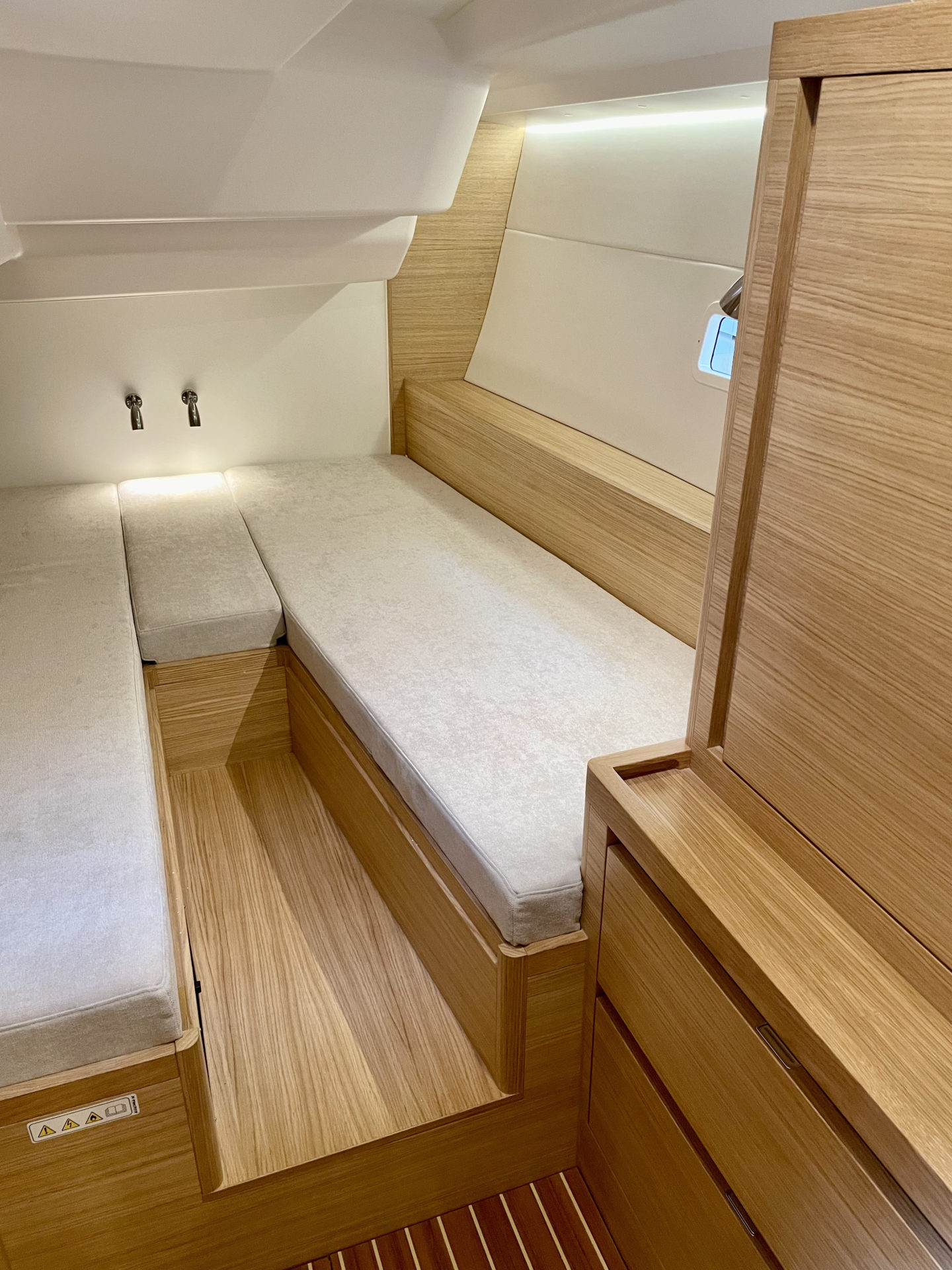

Starboard aft cabin

  • Sea Berths - Freeboard hung sea berths (only starboard aft cabin in version C2)

Portside aft cabin

  • Split berth

Systems

Engine

  • Main engine upgrade - Yanmar 80 HP CR ( 59 kW)
  • 3-Blade Folding Propeller - Gori 3-blade Single Pitch (SP) folding propeller for 80 HP engine
  • Generator, Fischer Panda 5000i neo, 4kW - fitted in lazarette

Plumbing

  • 2 x Tecma Electric Toilet - 12V electric, Tecma Elegance Short replacing standard manual toilet - per toilet (Saltwater flush)
  • Holding Tanks - 55 litre, Polyethylene holding tank per toilet (2 in total
  • Manual Fresh Water Pump - for freshwater in galley.
  • Pressurised hot & cold water system - with fresh water tank, 350 litres located in port side sofa in main cabin, 24 litre hotwater tank located in engine compartment

Electrical

  • Electric Anchor Windlass with 20 kg Delta anchor and anchor chain upgrade - 50 m of 10 mm calibrated galvanized anchor chain
  • Second Windlass Remote & chain Counter
  • Air-Conditioning - 1 x 7000 BTU owner's cabin.
  • Air-Conditioning - 1 x 7000 BTU main cabin.
  • Socket package, 230V AC & 12V USB & 12V outside socket: 230V- mounted one in galley, one in each cabin and one in each head & USB Double socket - mounted in each cabin and at nav station & 12V outside - in cockpit near helm station
  • Galvanic Isolator - 30 Amp load capacity, mounted in series with earth wire of shore power socket (to prevent stray current corrosion) - 220V
  • LED Cockpit Light - White, mounted over floor in cockpit (4 Pcs)
  • Ambient LED lighting pack in saloon
  • Red LED Courtesy Lighting
  • Fusion Multi Media Centre - Fusion Apollo MS-RA770 AM/FM/VHF/Apple AirPlay/Iphone/Ipod/USB/SiriusXM-Ready (USA only) fitted in main cabin near navigation station. One set of Fusion 4" 2 way 120 Watt black loudspeakers (2 pcs) mounted in main cabin
  • Cockpit Speakers - Fusion Cockpit loudspeakers fitted in cockpit connected to multimedia system (2 pcs)
  • Preparation for TV

Electronics

  • Medium mount - 2 x pedestal platforms with stainless steel grab rail, mounted on top of the pedestal
  • 2 x Raymarine i70 displays mounted in the garage - Including wind, depth, and speed transducers
  • 1 x Raymarine Axiom 7" display mounted on pedestal
  • 1 x Axiom 9" PRO-S Hybrid touch plotter mounted on pedestal
  • 1 x Shakespear VHF antenna for VHF & FM
  • 1 x Raymarine AIS 700
  • 1 x Ray 90 VHF mounted at chart table
  • 1 x Ray 90 VHF 2nd. handset mounted in cockpit
  • 1 x Compass, Silva 100B/H, mounted in garage
  • 1 x Radar Quantum2 Q24D with doppler technology WI-FI – 18”
  • 1 x NMEA engine interface

Thrusters

  • Retractable Bow Thruster - Max Power Compact retractable CR70/12V bow thruster including dedicated battery bank

Additional Information

  • On display at the showroom in Haderslev / X-Yachts Denmark
