Pocket Luxury

The all new X4⁰ is the smallest model in the pure X range; blending quality, performance and styling with cruising capability.

Hot out of the X-Yachts Design Office comes the X4⁰, a forty-foot performance cruising yacht that is just as capable for some serious mileage as it is blasting around the cans at the weekend. The new baby X-Yacht joins the hugely successful and critically acclaimed pure X range.

The design philosophy was very clear from the outset - like all our yachts, we place a huge emphasis on giving the owner a superb and comfortable sailing experience, on a yacht that is easy to handle by all the crew.

The X4⁰ was launched on 20th June. What a way to celebrate X-Yachts’ 40th Anniversary!

X-Yachts has developed an online web-configurator for each of the Pure X models, enabling you to design your own version of the yacht. Configure your own dreams.

Light, strong and stiff

Light, strong and stiff

With the introduction of the X-65 in 2007, X-Yachts started to infuse hulls for performance yachts utilising epoxy resin. Epoxy infusion construction offers fantastic control over the laminate allowing it to be optimised to maximise strength and stiffness, whilst saving weight.

In the X4⁰ all weight saved is used to increase the yacht’s stability enabling the crew to have a more relaxed time and to feel safer and more comfortable. The fact, that the hull is cured, baked at high temperatures for almost 24 hours, not only optimises the hull material properties but also minimises the risk of the darker coloured hull surfaces to suddenly start posturing, losing the surface finish.

With over 10 years of experience building epoxy infused yachts, X-Yachts took the decision in 2018 to build all models using this technology, one of the only yacht builders to do so.

Construction

At the heart of the X4⁰ is the galvanised steel keel grillage structure. Pioneered by X-Yachts back in 1981, the galvanised steel hull girder offers superb reassurance and safety. Its primary role is to spread keel and mast loads into the hull and it also enables the yacht to withstand extreme shock loads from grounding or an impact with a submersed object.

Not only is the keel structure immensely strong, it is also reliable and very easy to inspect for potential damage.

Bolted to the steel grillage is the keel with iron fin and heavy lead bulb with moderate draft. There is both a shallow and a deep draft option available.

Construction
Deck layout

Deck layout

The standard deck layout comes with: 4 winches, two halyards, self-tacker sheet and control line winches next to the entrance, and two main sheet winches aft of the cockpit’s backrest coamings within reach of the helmsman. The deck has an integrated recessed self-tacker track for an 88% jib.

There is an option for coach roof top longitudinal Genoa tracks and two dedicated Genoa sheet winches on top of the cockpit backrest coamings, enabling the Genoa size to go up to 106% for improved light wind performance.

Scandinavian Interior Design

There will be plenty of natural light and ventilation throughout the entire accommodation.

There will be plenty of natural light and ventilation throughout the entire accommodation.

Craftmanship

Craftmanship

The interior of the X4⁰ is designed to maximise the space available, creating a functional, safe and stylish user experience below deck. Once again, the interior design will have Danish design flair and carpentry at its very best.

The craftsmanship and detailing will be of a very high standard, being both traditional but with a modern appearance. The wooden veneer will be Nordic Oak as standard, with other options on offer.

Interior Surfaces

Bulkhead and Furniture Surfaces

Quarter sawn high quality wooden veneers, lightly sanded and varnished, from Italian suppliers. As standard furniture is built in Nordic Oak offering a light modern look. More traditional teak is also available.

Nordic Oak (Standard)

Nordic Oak (Standard)

Teak (Optional)

Teak (Optional)

Floorboards

Below samples have a hard wearing top surface of laminate imitating wooden veneers. As an alternative, top surface of genuine wooden veneer (as Bulkhead & Furniture) is also available.

Teak (Standard)

Teak (Standard)

Walnut (Optional)

Walnut (Optional)

Galley Worktop

The worktop is made of an advanced composite of natural minerals and pure acrylic polymer which creates a stone-hard, luxurious surface.

Camoan White Corian (Standard)

Camoan White Corian (Standard)

Black Quartz Corian (Optional)

Black Quartz Corian (Optional)

Upholstery and Mattress Fabrics

Just Fleckless is easy to clean. Each yarn is coated with a newly developed stain guard before processing without compromise to feel or appearance. 85% Polyester, 15% Viscose

750 Olive Grey (Standard)

750 Olive Grey (Standard)

01 Nature (Optional)

01 Nature (Optional)

05 Camel (Optional)

05 Camel (Optional)

403 Bambus (Optional)

403 Bambus (Optional)

710 Moon Grey (Optional)

710 Moon Grey (Optional)

10 Navy (Optional)

10 Navy (Optional)



Alsace and Nubilux; Extremely easily cleaned. 100% Polyester Microfiber Fabrics has knitted back and velor surface. Microfiber is breathable, durable and abrasion resistant.

Alsace Blue (Optional)

Alsace Blue (Optional)

Alsace Ivory (Optional)

Alsace Ivory (Optional)

Alsace Sand (Optional)

Alsace Sand (Optional)

Nubilux 709 Argent (Optional)

Nubilux 709 Argent (Optional)

X4⁰

Sailplan

The X4⁰ can sail fast and point high to the wind thanks to its powerful lines, precision moulded composite T keel with a heavy bulb of lead giving a high degree of stability.

Erittely

Suunnittelija X-Yachts Design Team
Length Overall 12.09 m 39'8"
Rungon pituus 11.5 m 37'9"
Waterline Length 10.4 m 34'1"
Leveys 3.81 m 12'6"
Syväys- vakio köli 2.1 m 6'11"
Syväys - syvä köli 2.4 m 7'10"
Kölin paino - Vakio 3050 kg 6724 lbs
Paino - kevyt 8100 kg 17857 lbs
Moottori 29.4 kW 40 hp
Polttoaine säiliö 180 ltr 48 gal(US)
Vesi säiliö 245 ltr 65 gal(US)

Palkinnot

​European Yacht of the Year

Nominated 2020

Performance Cruiser

X4⁰ in the media

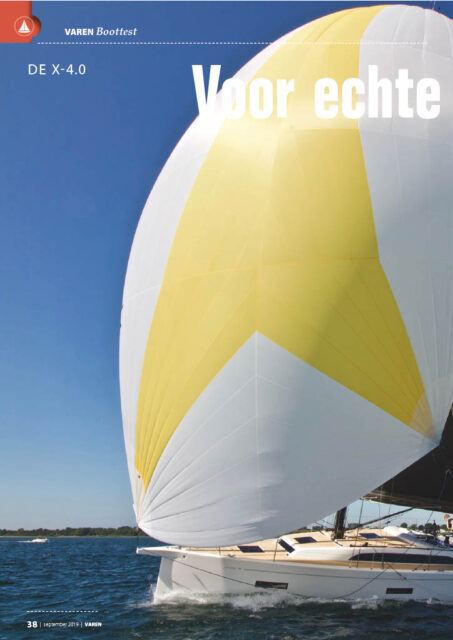

Varen

September 2019

Varen

Statements translated from the test “The design team of X-Yachts succeeded to design a new X4⁰, on which I have not much to remark. X stands for speed. X stands for quality. X stands for comfort.” “With wind force 3-4 we measured 8-9 knots with the gennaker. With the jib and mainsail at 30°, we did 7 knots medium speed and sometimes the meter went to 8,2 knots.” “The lines, colors and shapes are right and harmonious. The designers succeeded to create space, peacefulness and light under deck.” “Conclusion: the X4⁰ is the perfect boat for the real sailor. There are no remarks to be made."

Lue enemmän (4.32 MB)

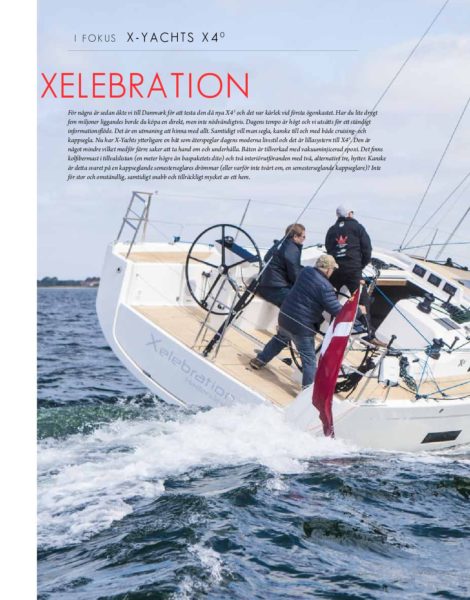

Search Magazine

August 2019

Search Magazine

Text: Search Magazine

Lue enemmän (542.35 KB)

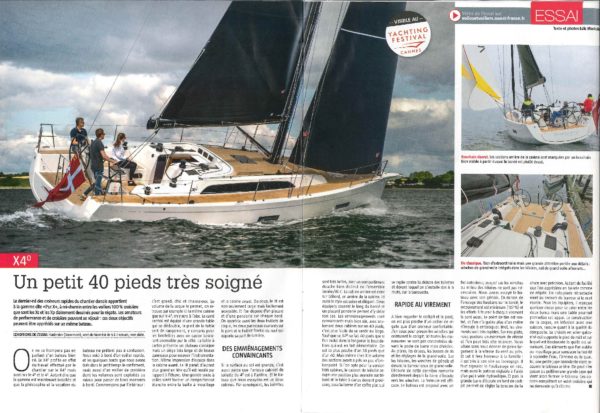

Voiles et Voiliers

September 2019

Voiles et Voiliers

Translated from French: The X4⁰ is a testimony of the know-how of the yard in terms of construction methods (hull in infusion, steel frame to sustain the load of keel and rig) as well as for quality of finish (very nice joinery, perfect adjustments). One can regret that this entry model is already a big boat, but the buyer mostly with this two cabins version enjoys the same qualities as on the larger yachts of the range. A chic, fast and comfortable boat… who could ask for more?

Lue enemmän (3.44 MB)

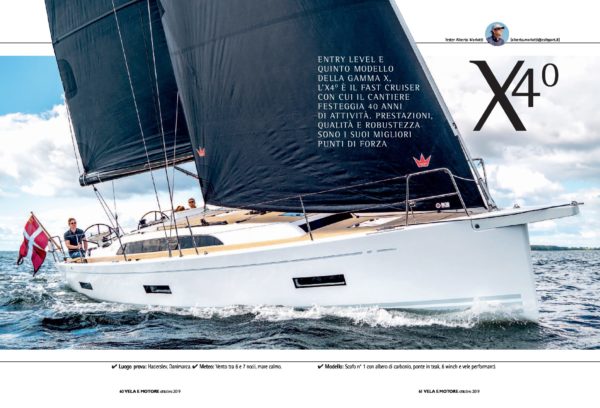

Vela E Motore

October 2019

Vela E Motore

Lue enemmän (3.90 MB)

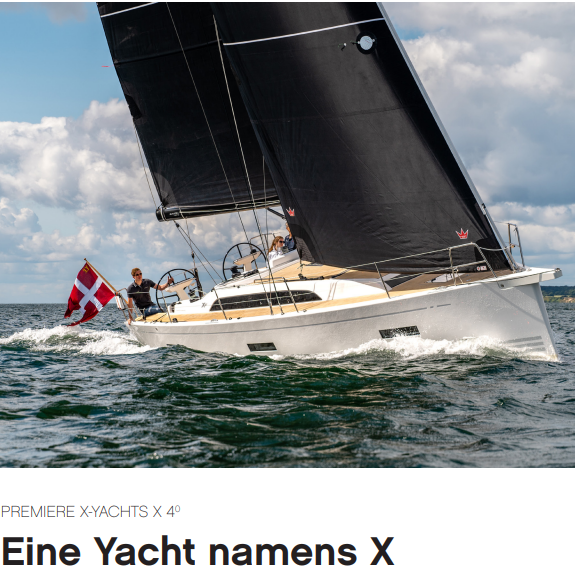

Floatmagazine.de

September 2019

Floatmagazine.de

Lue enemmän (5.39 MB)

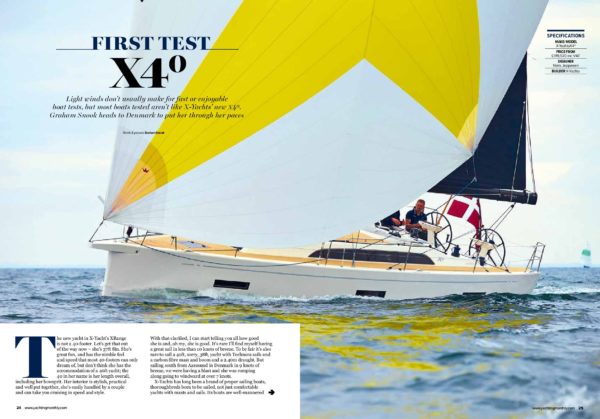

Yachting Monthly

October 2019

Yachting Monthly

The new yacht in X-Yacht’s XRange is not a 40-footer. Let’s get that out of the way now – she’s 37ft 8in. She’s great fun, and has the nimble feel and speed that most 40-footers can only dream of, but don’t think she has the accommodation of a 40ft yacht; the 40 in her name is her length overall, including her bowsprit. Her interior is stylish, practical and well put together, she’s easily handled by a couple and can take you cruising in speed and style. With that clarified, I can start telling you all how good she is and, oh my, she is good.

Lue enemmän (773.36 KB)

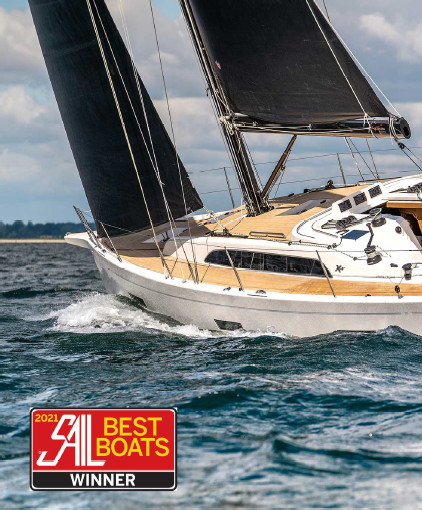

Sail Magazine

November 2019

Sail Magazine

Read the full article here: https://www.sailmagazine.com/boats/boat-review-x-yachts-x4degree

Lue enemmän ( B)
water

Price

*All prices are exclusive of VAT and may be subject to other taxes in your country. Please contact your local dealer if you require further information.
