Pocket Luxury Yacht

The X4⁰ is the smallest model in the Pure X range; blending quality, performance and styling with cruising capability.

Hot out of the X-Yachts Design Office came the X4⁰, a forty-foot performance cruising yacht that is just as capable for some serious mileage, as it is blasting around the cans at the weekends. The new baby Luxury X-Yacht joins the hugely successful and critically acclaimed Pure X range.

The design philosophy was very clear from the outset - like all our yachts, we place a huge emphasis on giving the owner a superb and comfortable sailing experience, on a yacht that is easy to handle by all the crew.

X-Yachts has developed an online web-configurator for each of the Pure X models, enabling you to design your own version of the sail yacht. Configure your own dreams.

Light, strong and stiff

Light, strong and stiff

With the introduction of the X-65 in 2007, X-Yachts started to infuse hulls for performance yachts, utilising epoxy resin. Epoxy infusion construction offers fantastic control over the laminate, allowing it to be optimised to maximise strength and stiffness, whilst saving weight.

In the X4⁰, all weight saved is used to increase the yacht’s stability, enabling the crew to have a more relaxed time and to feel safer and more comfortable. The fact, that the hull is cured, baked at high temperatures for almost 24 hours, not only optimises the hull material properties, but also minimises the risk of the darker coloured hull surfaces to suddenly start posturing, losing the surface finish.

With over 10 years of experience building epoxy infused yachts, X-Yachts took the decision in 2018 to build all models using this technology, one of the only yacht builders to do so.

Construction

At the heart of the X4⁰, is the galvanised steel keel grillage structure. Pioneered by X-Yachts back in 1981, the galvanised steel hull girder offers superb reassurance and safety. Its primary role, is to spread keel and mast loads into the hull. It also enables the yacht to withstand extreme shock loads from grounding or an impact with a submersed object.

Not only is the keel structure immensely strong, it is also reliable and very easy to inspect for potential damage.

Bolted to the steel grillage, is the keel with iron fin and heavy lead bulb with moderate draft. There is both a shallow and a deep draft option available.

Construction

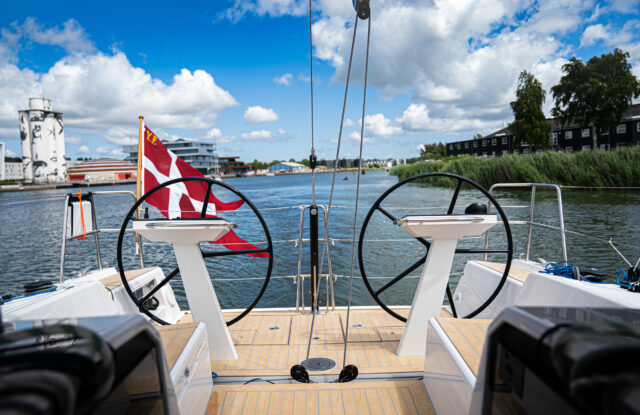

Deck layout

Deck layout

The standard deck layout comes with: 4 winches, two halyards, self-tacker sheet and control line winches next to the entrance, and two main sheet winches aft of the cockpit’s backrest coamings, within reach of the helmsman. The deck has an integrated recessed self-tacker track for an 88% jib.

There is an option for coach roof top, longitudinal Genoa tracks and two dedicated Genoa sheet winches on top of the cockpit backrest coamings, enabling the Genoa size to go up to 106% for improved light wind performance.

Interior luxury

Interior luxury

The interior of the X4⁰ is designed to maximise the space available, creating a functional, safe and stylish user experience below deck. Once again, the interior design will have Danish design flair and carpentry at its very best.

The craftsmanship and detailing will be of a very high standard, being both traditional but with a modern appearance. The wooden veneer will be Nordic Oak as standard, with other options on offer.

Interior Surfaces

Bulkhead and Furniture Surfaces

Quarter sawn high quality wooden veneers, lightly sanded and varnished, from Italian suppliers. As standard furniture is built in Nordic Oak offering a light modern look. More traditional teak is also available.

Nordic Oak (Standard)

Nordic Oak (Standard)

Floorboards

Below samples have a hard wearing top surface of laminate imitating wooden veneers. As an alternative, top surface of genuine wooden veneer (as Bulkhead & Furniture) is also available.

Teak without koto (Standard)

Teak without koto (Standard)

Walnut (Optional)

Walnut (Optional)

Teak with koto (Optional)

Teak with koto (Optional)

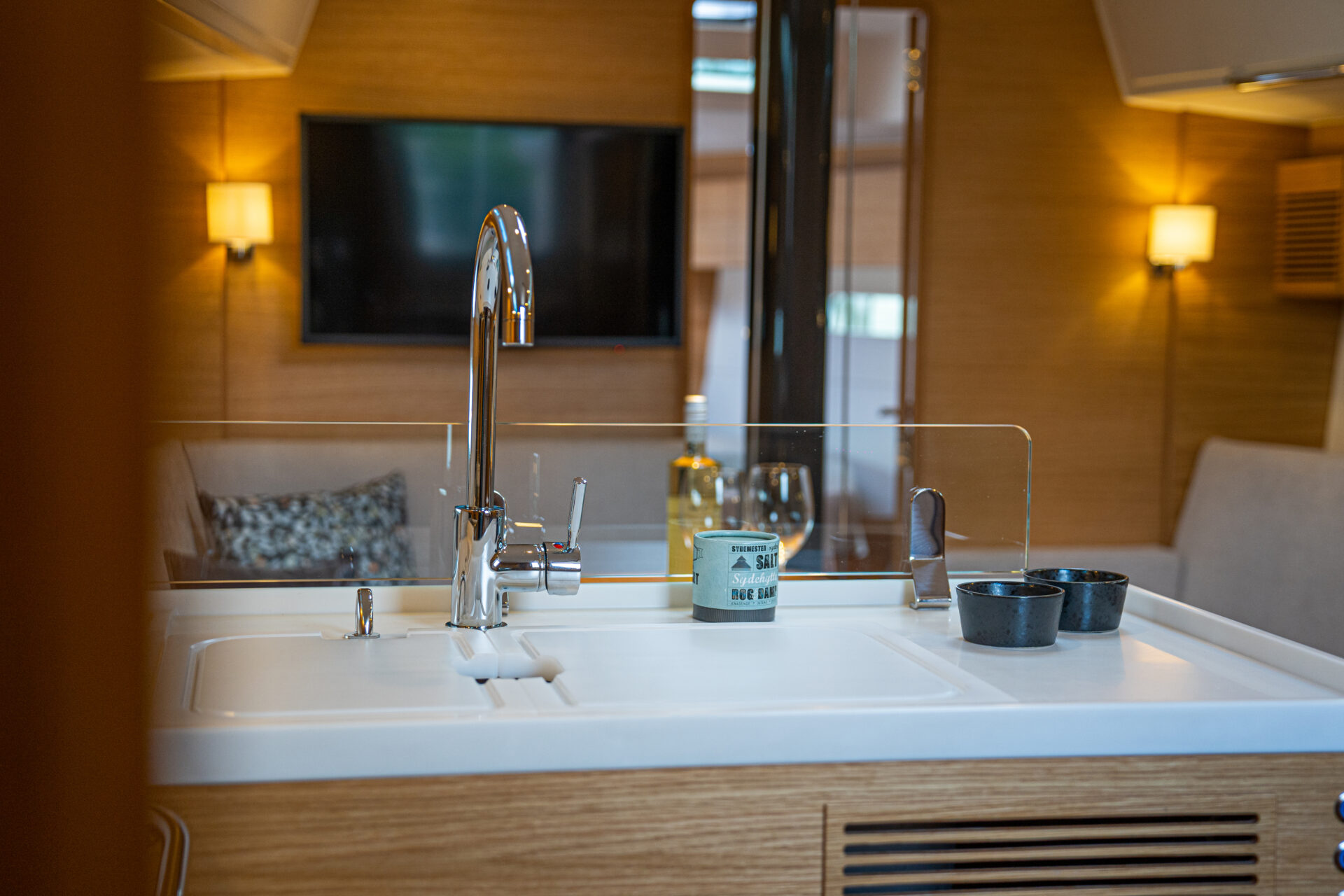

Galley Worktop

The worktop is made of an advanced composite of natural minerals and pure acrylic polymer which creates a stone-hard, luxurious surface.

Camoan White Corian (Standard)

Camoan White Corian (Standard)

Black Quartz Corian (Optional)

Black Quartz Corian (Optional)

Upholstery and Mattress Fabrics

Just Fleckless is easy to clean. Each yarn is coated with a newly developed stain guard before processing without compromise to feel or appearance. 85% Polyester, 15% Viscose

750 Olive Grey (Standard)

750 Olive Grey (Standard)

01 Nature (Optional)

01 Nature (Optional)

05 Camel (Optional)

05 Camel (Optional)

403 Bambus (Optional)

403 Bambus (Optional)

710 Moon Grey (Optional)

710 Moon Grey (Optional)

10 Navy (Optional)

10 Navy (Optional)



Alsace and Nubilux; Extremely easily cleaned. 100% Polyester Microfiber Fabrics has knitted back and velor surface. Microfiber is breathable, durable and abrasion resistant.

Alsace Blue (Optional)

Alsace Blue (Optional)

Alsace Ivory (Optional)

Alsace Ivory (Optional)

Alsace Sand (Optional)

Alsace Sand (Optional)

Nubilux 709 Argent (Optional)

Nubilux 709 Argent (Optional)

X4⁰

Sailplan

The X4⁰ can sail fast and point high to the wind thanks to its powerful lines, precision moulded composite T keel with a heavy bulb of lead giving a high degree of stability.

Specification

Designer X-Yachts Design Team
Length Overall 12.09 m 39'8"
Hull Length 11.5 m 37'9"
Waterline Length 10.4 m 34'1"
Beam (max) 3.81 m 12'6"
Draft - Std 2.1 m 6'11"
Draft - Deep 2.4 m 7'10"
Ballast - Std 3050 kg 6724 lbs
Displacement - Light 8100 kg 17857 lbs
Engine Diesel 29.4 kW 40 hp
Fuel Tank - Std 180 ltr 48 gal(US)
Water Tank - Std 245 ltr 65 gal(US)

Awards

​European Yacht of the Year

Winner 2020

Performance Cruiser

Cruising World – Boat of the Year

Winner 2021

Performance Cruiser

​Sail Magazine Best Boats

Winner 2021

Performance Cruiser

X4⁰ in the media

Varen

September 2019

Varen

Statements translated from the test: “The design team of X-Yachts succeeded to design a new X4⁰, on which I have not much to remark. X stands for speed. X stands for quality. X stands for comfort.” “Conclusion: the X4⁰ is the perfect boat for the real sailor. There are no remarks to be made."

Lees meer (4.32 MB)
Search Magazine

August 2019

Search Magazine

Text: Search Magazine

Lees meer (542.35 KB)
Voiles et Voiliers

September 2019

Voiles et Voiliers

Translated from French: The X4⁰ is a testimony of the know-how of the yard in terms of construction methods (hull in infusion, steel frame to sustain the load of keel and rig) as well as for quality of finish (very nice joinery, perfect adjustments).

Lees meer (3.44 MB)
Vela E Motore

October 2019

Vela E Motore

Lees meer (3.90 MB)
Floatmagazine.de

September 2019

Floatmagazine.de

Lees meer (5.39 MB)
Yachting Monthly

October 2019

Yachting Monthly

She’s great fun, and has the nimble feel and speed that most 40-footers can only dream of. Her interior is stylish, practical and well put together, she’s easily handled by a couple and can take you cruising in speed and style.

Lees meer (773.36 KB)
Sail Magazine

November 2019

Sail Magazine

Read the full article here: https://www.sailmagazine.com/boats/boat-review-x-yachts-x4degree

Lees meer ( B)
Sailing Magazine

May 2020

Sailing Magazine

"The new ‘baby’ of the X-Yachts fleet is a 40-footer that is a real looker and a great performer"

Lees meer (1.93 MB)
Yacht Revue

July 2020

Yacht Revue

REICH AN ERFAHRUNG X-Faktor. Die Werft legte bei der X 40 den Fokus nicht auf Zeitgeist, sondern setzte voll auf Funktionalität. Ein Zugang, der von Selbstbewusstsein zeugt

Lees meer (975.44 KB)
water

Price

*Afhankelijk van uw browser worden de prijzen inclusief of exclusief BTW getoond worden. Neem graag #contact met ons op om dit te bevestigen of voor meer informatie.
