Details

Exterior Details

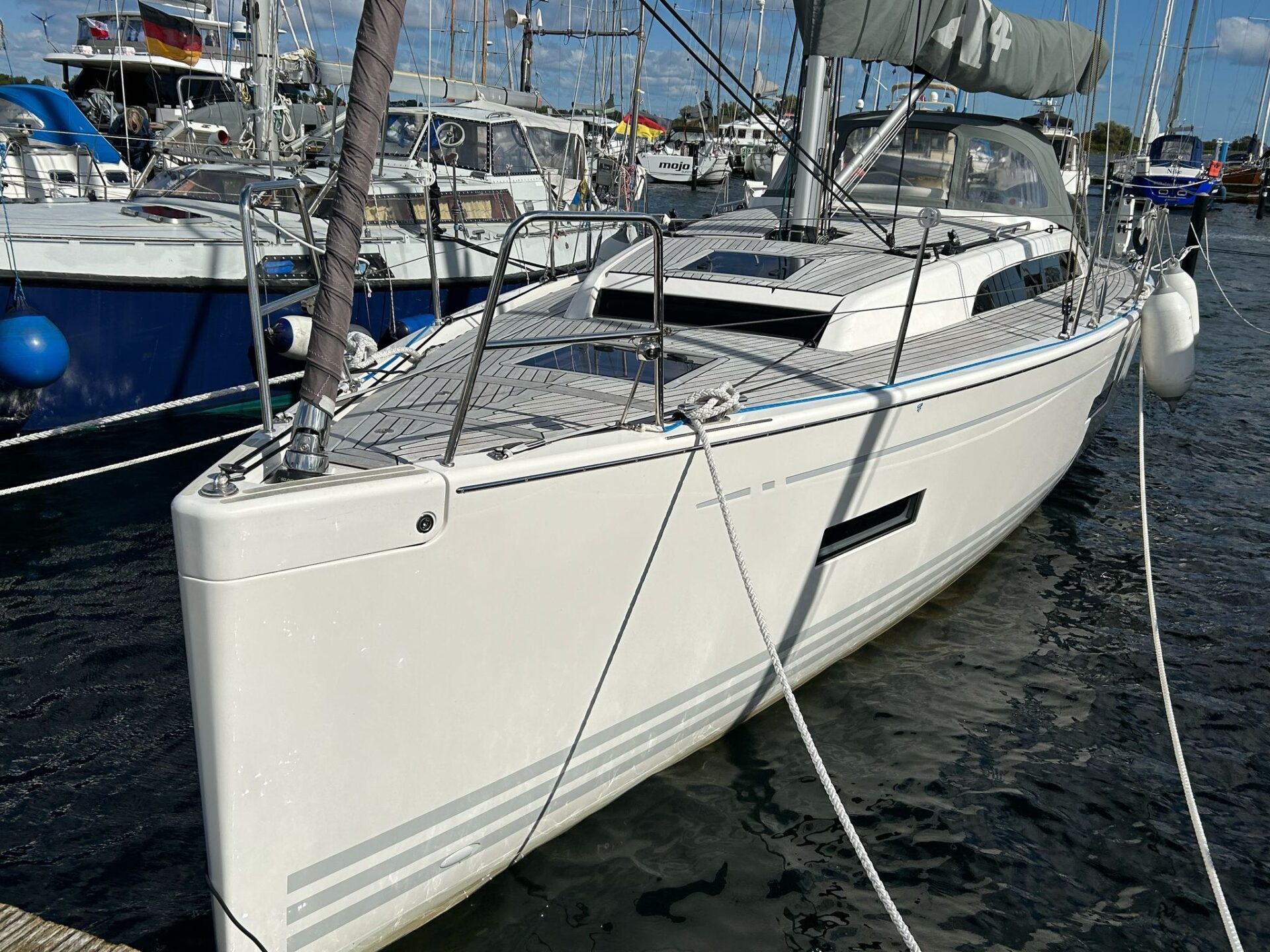

Hull

• X-Yachts hulls are built using the latest high tech construction technologies with a vacuum-infused, post-cured (Oven baked @ 70°C) EPOXY construction and gelcoat finish
• Heat galvanized steel frame improves strength, enables central lift hoist attachment & safety
• Hull Colour 'Pure White' (RAL 9010) & 3 x 'Light Grey' integrated GELCOAT Water Lines (RAL 7035)
• Flush through hull fittings are recessed into the hull for perfect flush finish. Reduced drag leads to more speed.
• Hull Portlights in grey tinted laminated toughened glass (6 in total)
• Hull Treatment - 3 x layers of sprayed epoxy primer & White Hempel Hard Racing Antifouling
• Gunwale Protection - Stainless Steel rail protection mounted along sheer line

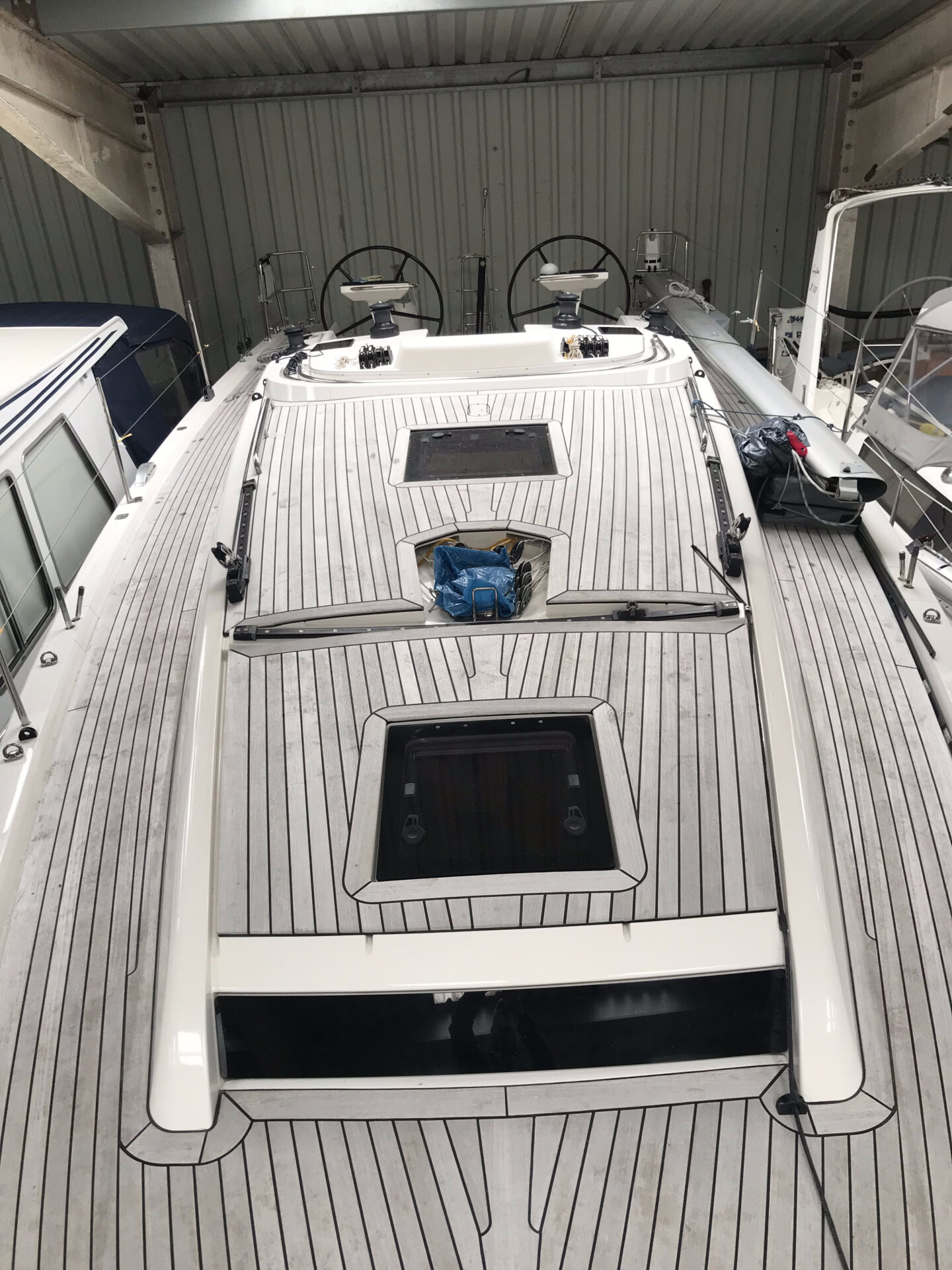

Deck

• Teak on cockpit floor and seats - Vacuum applied, 9mm nominal thickness with black caulking
• Teak on Side Decks - Vacuum applied, 9mm nominal thickness with black caulking
• Teak on Coachroof - Vacuum applied, 9mm nominal thickness with black caulking

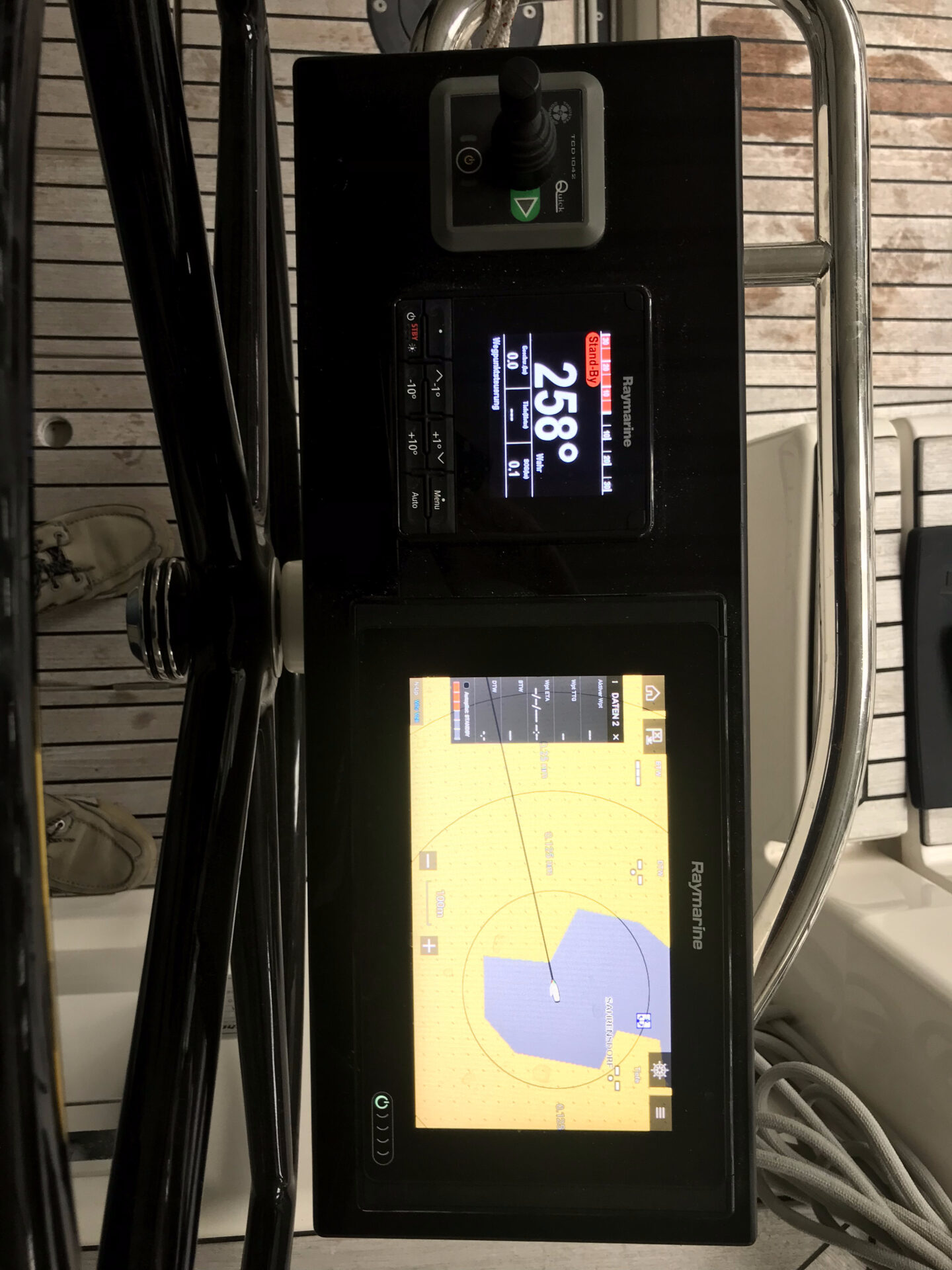

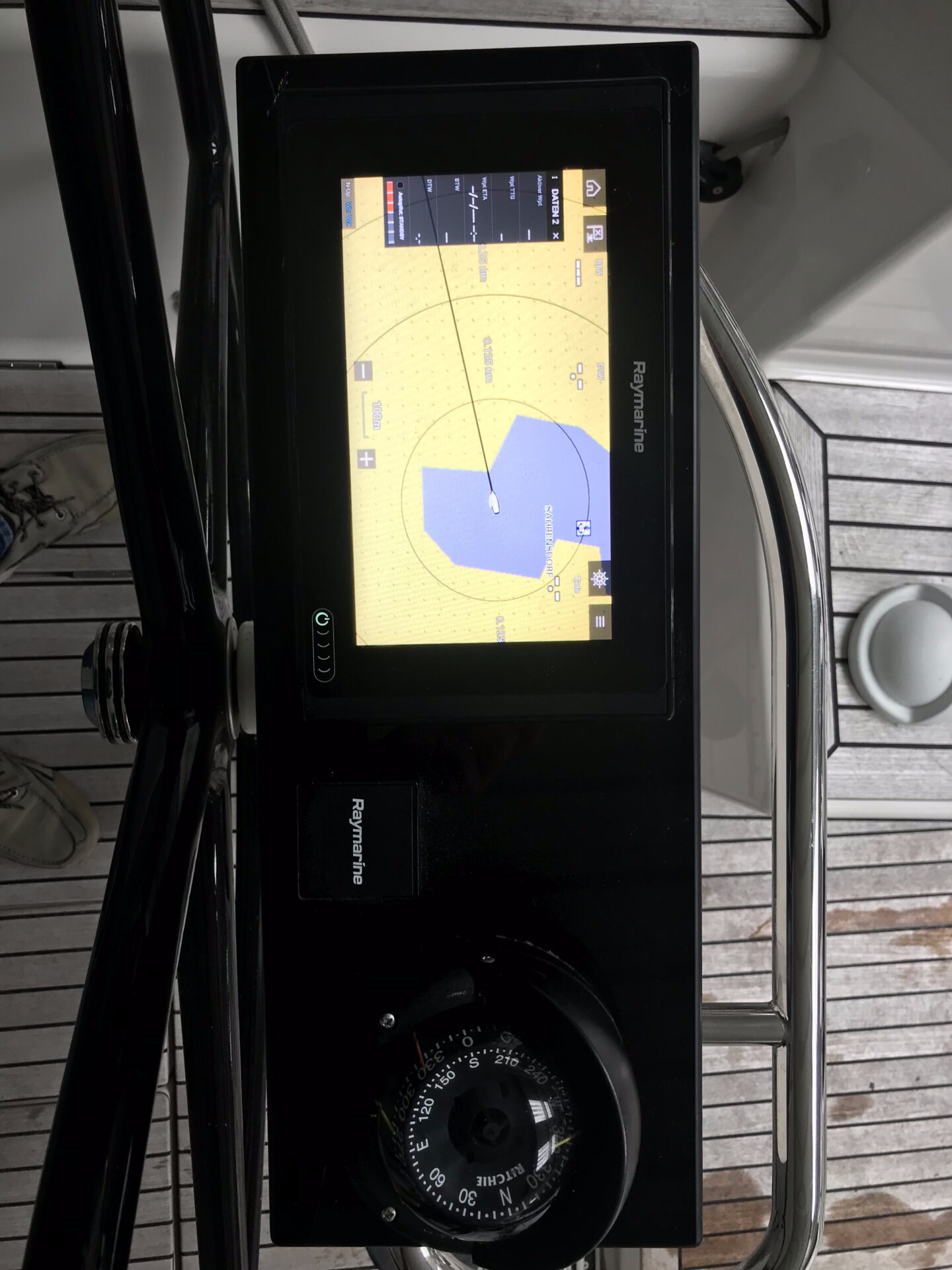

• New Medium mount: 2 x Console with stainless steel grab rail mounted on top of pedestal with mounting space for either Raymarine Axiom 9" display with remote display control . Colour matching pedestals RAL 9010

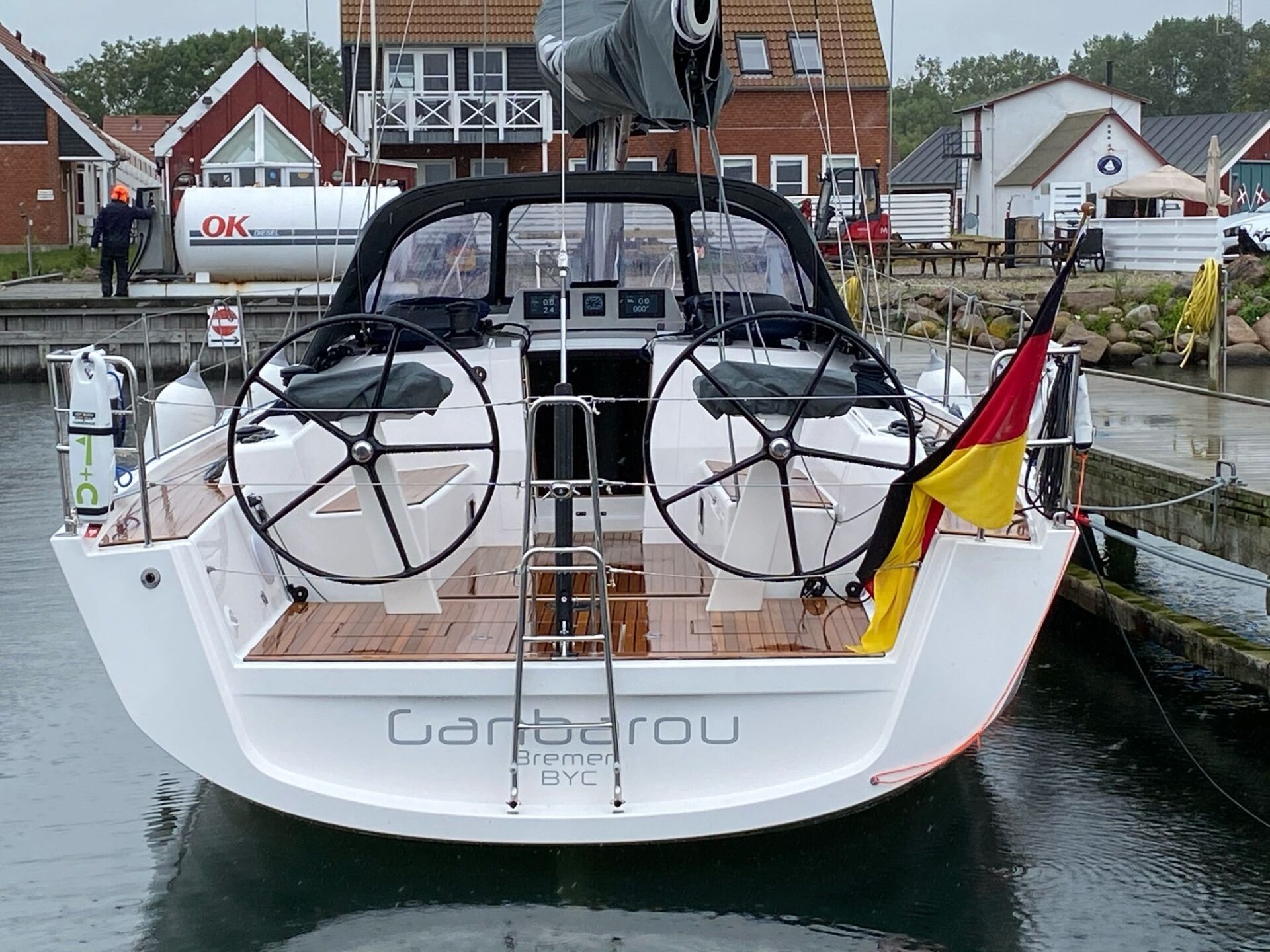

• Composite Steering Wheels - 2 x Carbonautica black composite wheels

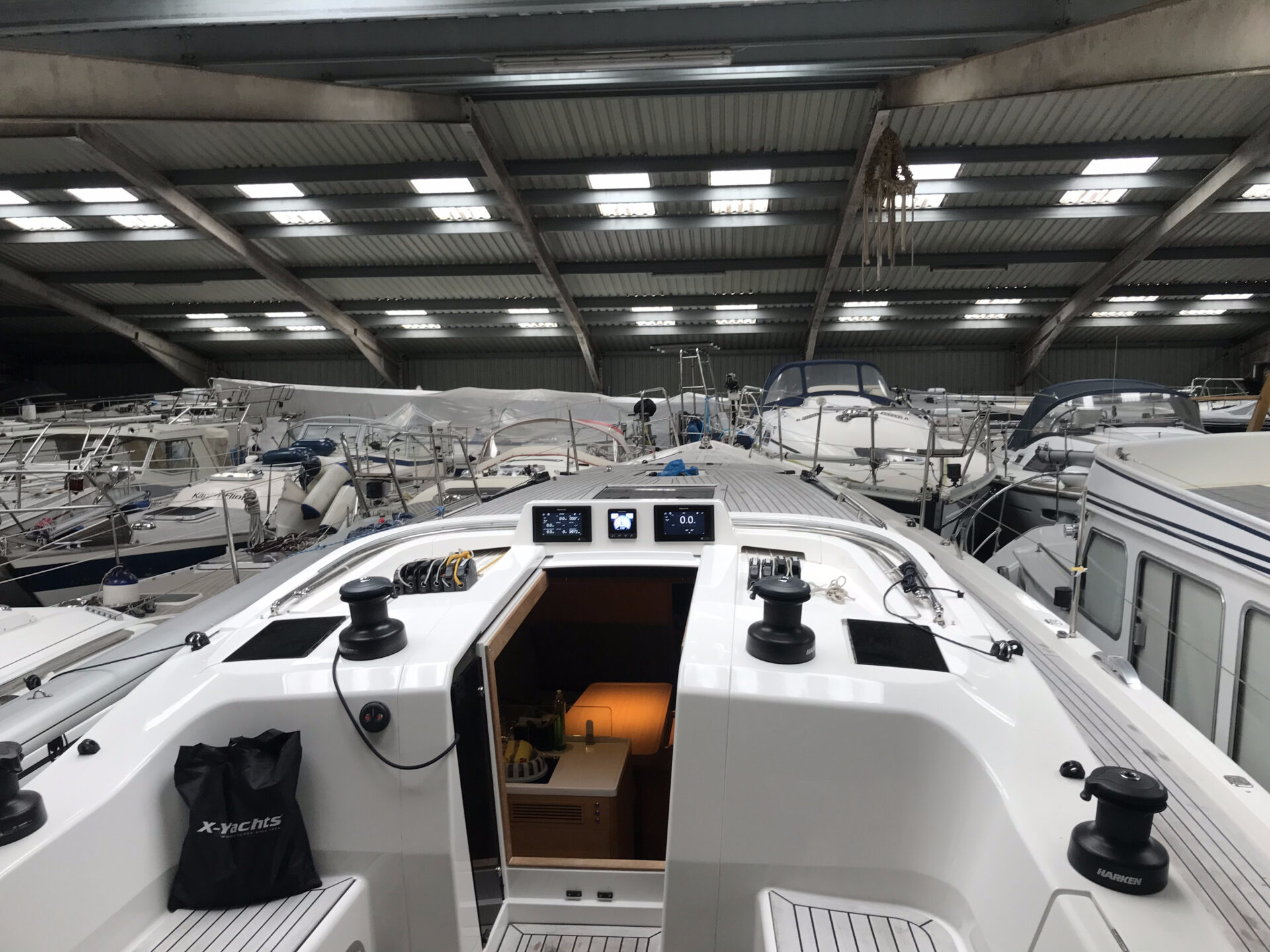

Sail Handling

• Self Tacking track recessed - into the coach roof, curved track and Toulon ball bearing traveller, single sheet led aft via the mast to halyard winch (one side).
• Mainsheet Winches - 2 x Harken Performa 40.2 STP two-speed self-tailing winches, on coaming
• Halyard Winches - 2 x Harken Performa 40.2 STP two-speed self-tailing winches, on coachroof
• Genoa Winches - 2 x Harken Performa 46.2 STP Manual two-speed self-tailing winches, on coaming
• Electric Port Halyard Winch - 1 x Harken Performa 46.2 STEPH two-speed self-tailing winch and manuel starboard halyard winch 46.2 STP Harken Performa
• Genoa tracks incl Car Control Lines - 4:1 to cockpit cam cleat
• Sail Handling Pack 1:
• 1. Asymmetric spinnaker equipment including; 2 x Dyneema / Spectra sheets, 2 x gennaker blocks, 2 x cleats for "parking" the sheets and 2 x Wichard shackles mounted incl. 1:1 asymmetric tack line and tack block
• 2. Outboard sheeting pad eyes mounted

Sails

• Doyle Oleu membrane sails ca.47 m² Double Taffeta grey black Tawron,filmless , 5 full battens, cunningham, overhead leechline, 2 reefs, sail No, trim stripes, tell tales, class insignia
• Doyle Oleu membrane Furling Jib 106% , ca. 38 m² Double Taffeta grey, Black Tawron, filmless ,4 vertical battens, UV-cover (on leech and foot), tell tales window
• Doyle Oleu Selftacking Furling Jib 89% , ca.31 m² , Triradial, DCX Laminat grey ,Double Taffeta Cool grey, 4 vertical battens, UV-Cover, tickler window.
• Gennaker , Elvström, with UK Snuffer ,Trioptimal, white
• Doyle Oleu Code 0 ,ca. 89 m² , Tricut, CZ optic2 Laminat , Cable and Facnor FX+2500 Furler Boom Cover 'dark Grey' - Canvas boom cover with X40 logo

Mast & Rigging

• Fractional double spreader rig
• Tapered silver anodised mast
• Stainless Steel headstay chainplate
• Stainless Steel bulwark recessed chainplates for shrouds
• Centre backstay with integral hydraulic adjuster and centre chain plate
• Alumast ( John Mast) with incresed P measurement +50cm
• Mast Steps - 2 x Mast steps fitted to Aluminium mast
• Vang upgrade - vang with gas cylinder
• Lazy Jacks - mounted on mast & boom including hooks, cleats on mast & rope
• LED Steaming Light Standard with furling Furlex headstay with an under deck drum. Furling line led back to cockpit for easy handling
• Discontinuous rod Rigging with tip cups incl. Racing Rod turnbuckels for V1's and D1'sStandard Halyards in Dyneema, much reduced stretch less than polyester halyards
• Code 0 Halyard 2:1 - Dyneema, 10mm, including mast block and large Spinlock halyard jammer (2:1)

Keel

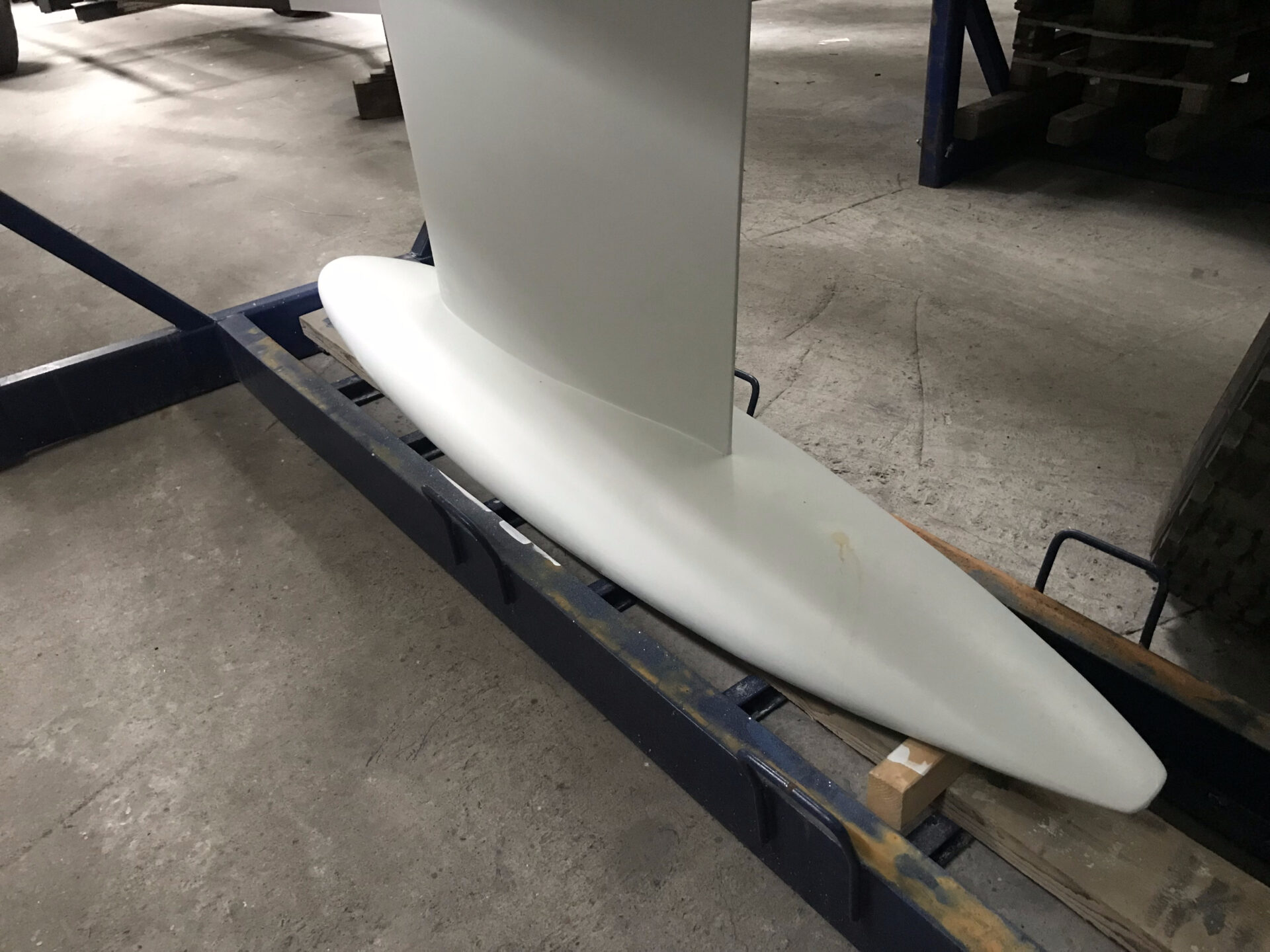

• Standard Keel - 2.1 m 'T' keel consists of antimony hardened lead T-bulb bolted and glued to cast iron fin for high strength, low centre of gravity for comfortable sailing performance. The Keel is totally encapsulated in three layers of CSM E-glass with epoxy for protection, perfect wing shape and maximum lift and height by sailing. The keel is securely bolted to the structural steel keel frame with stainless steel bolts for maximum safety and integrated central hoist

Hatches / Portlights / Ventilation / Sprayhood

• Flush Deck Hatches - Flush Frameless hatches on foredeck, coach roof and companionway
• Sprayhood Storage - Optional sprayhood attached to GRP upstand base on coachroof and neatly stored behind GRP upstand base

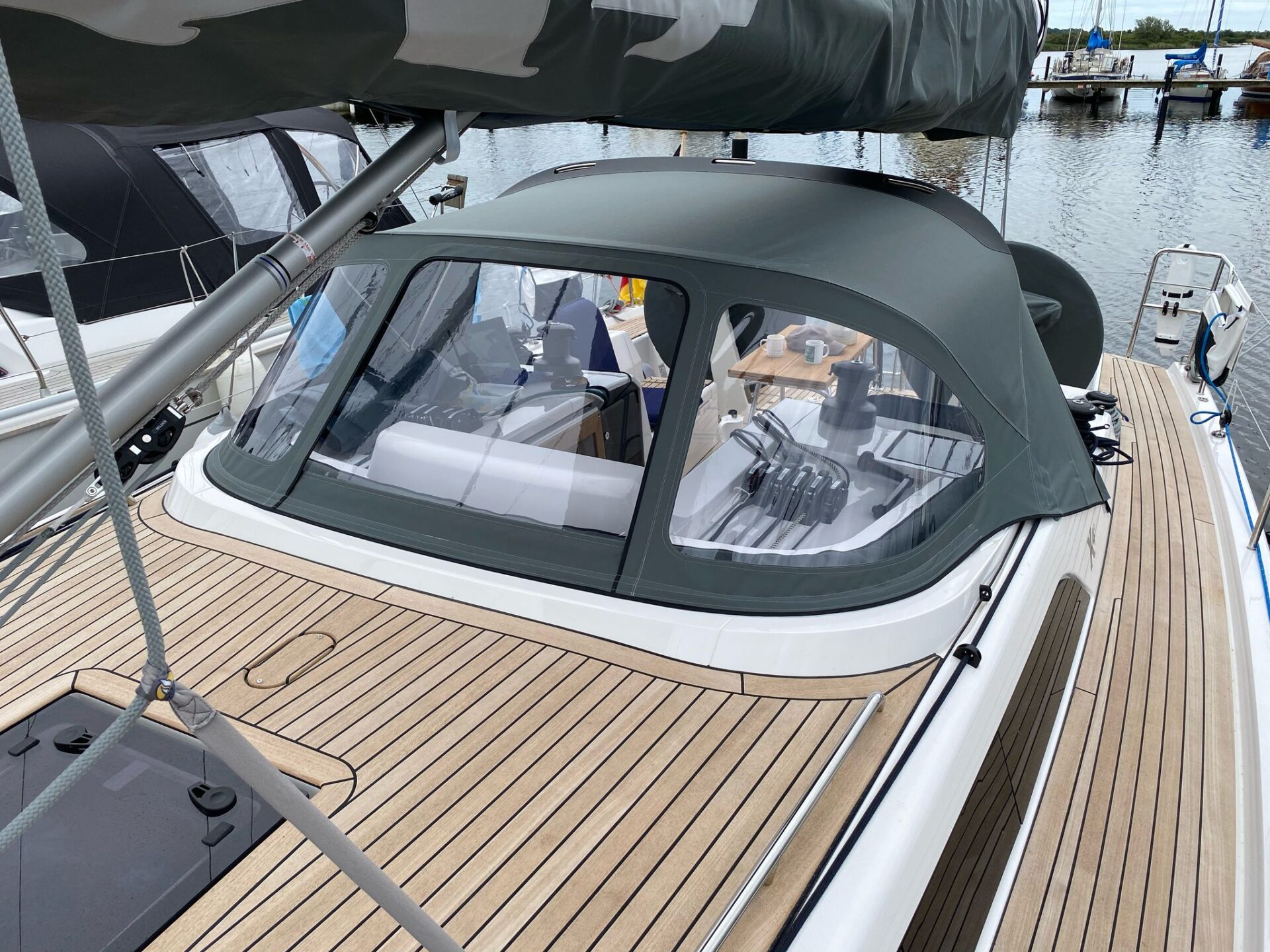

• Sprayhood 'dark Grey' - canvas with 2 sturdy stainless steel framework attached to GRP upstand base on coachroof
• Ocean Air Skyscreen Pleated Blinds - including flyscreen and blackout blinds for skylights in owners and aft cabin

Guard rail / Anchor / Stainless Steel Fittings

• Anchor upgrade - 16 kg Delta galvanized anchor instead of 10 kg standard DELTA type galvanised
• Folding Amidships Mooring Cleats - 2 x Nomen folding mooring cleats mounted amidships (300mm)
• Pad Eyes - In addition to the standard 4 foldable Wichard pad eyes in cockpit, a pack of 4 (2 each side) additional Wichard 6 mm foldable Padeye for safety lines

Accommodation

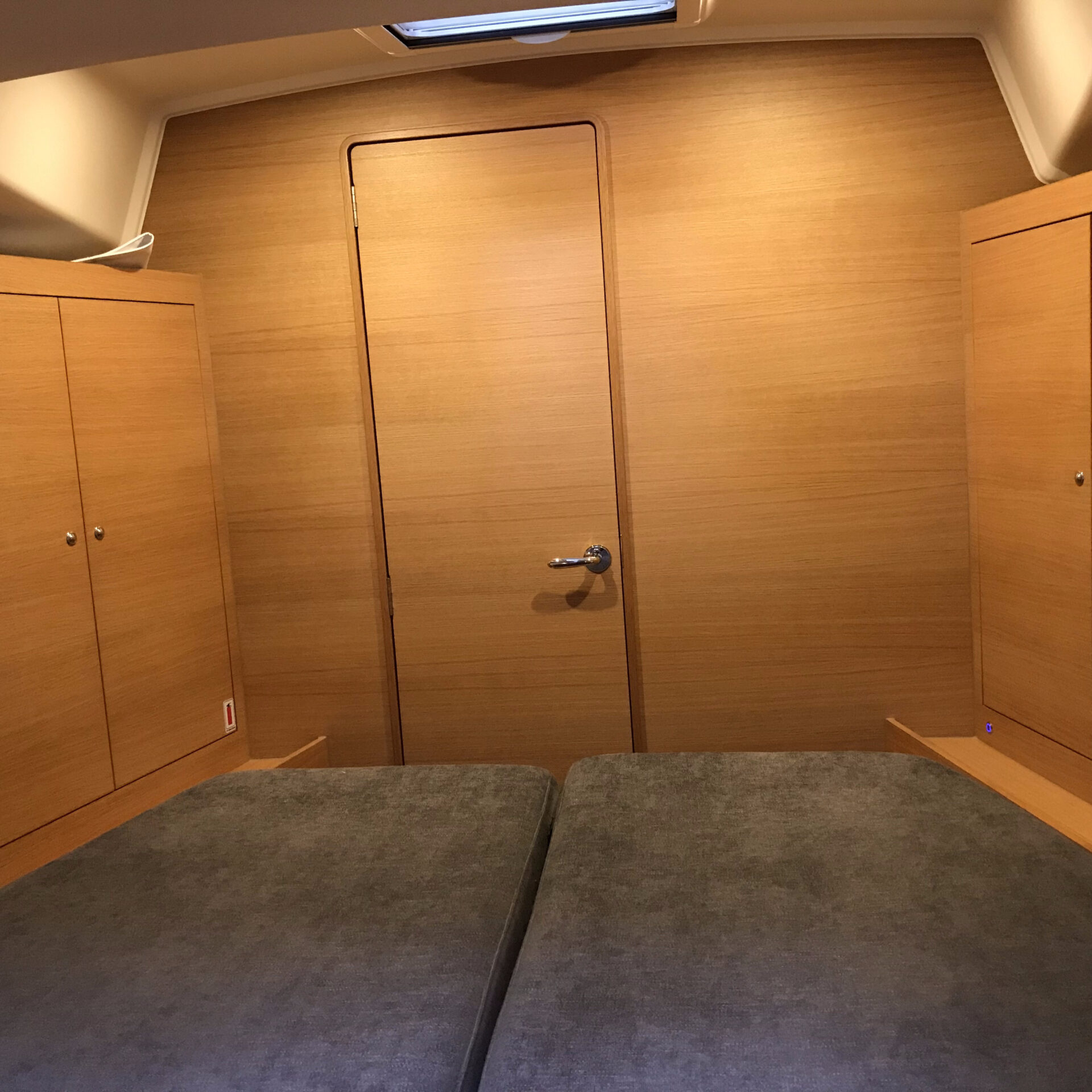

Owner cabin

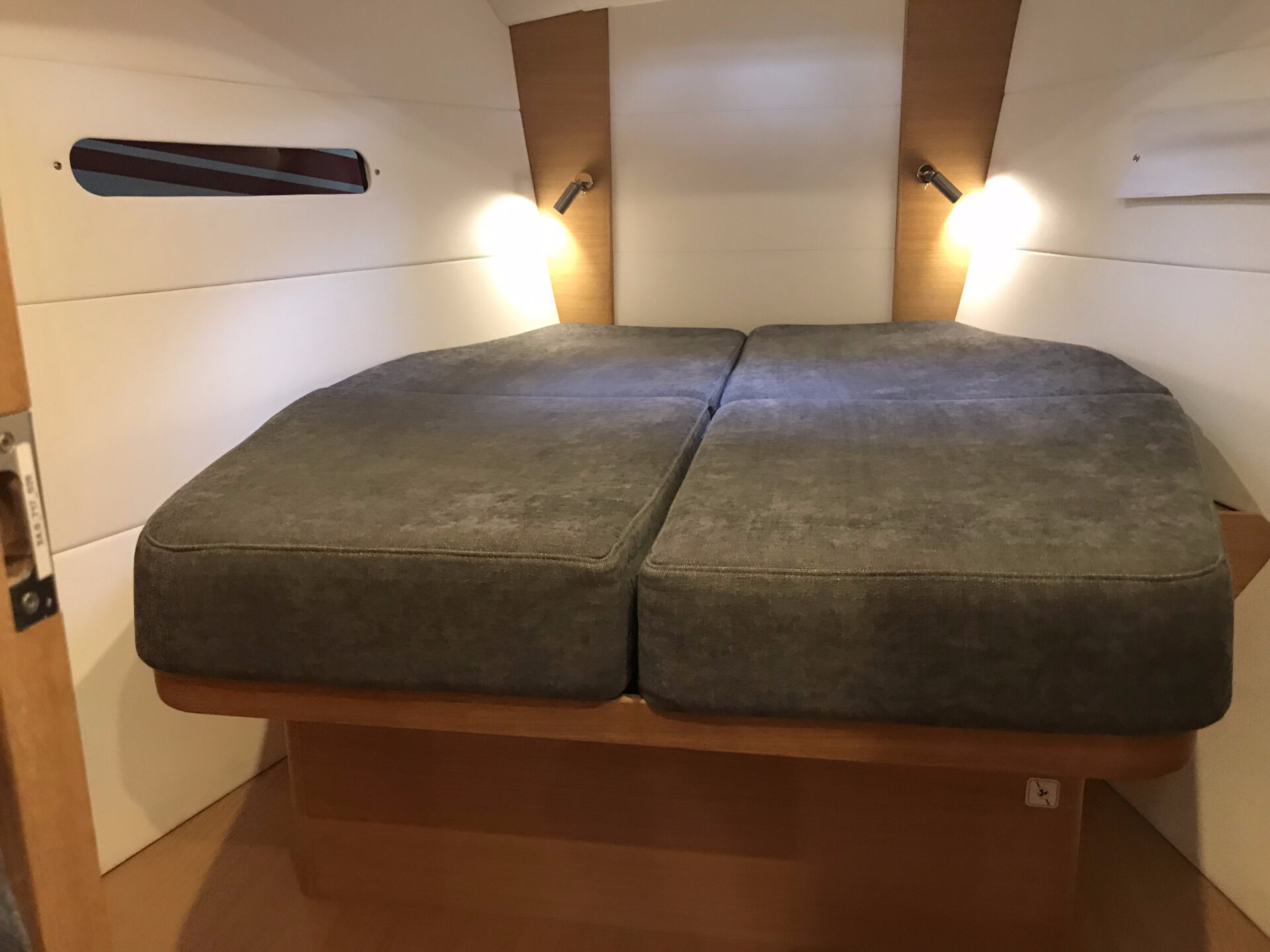

• Double berth - with hinged gas strut supported top access. Shelves next to berth

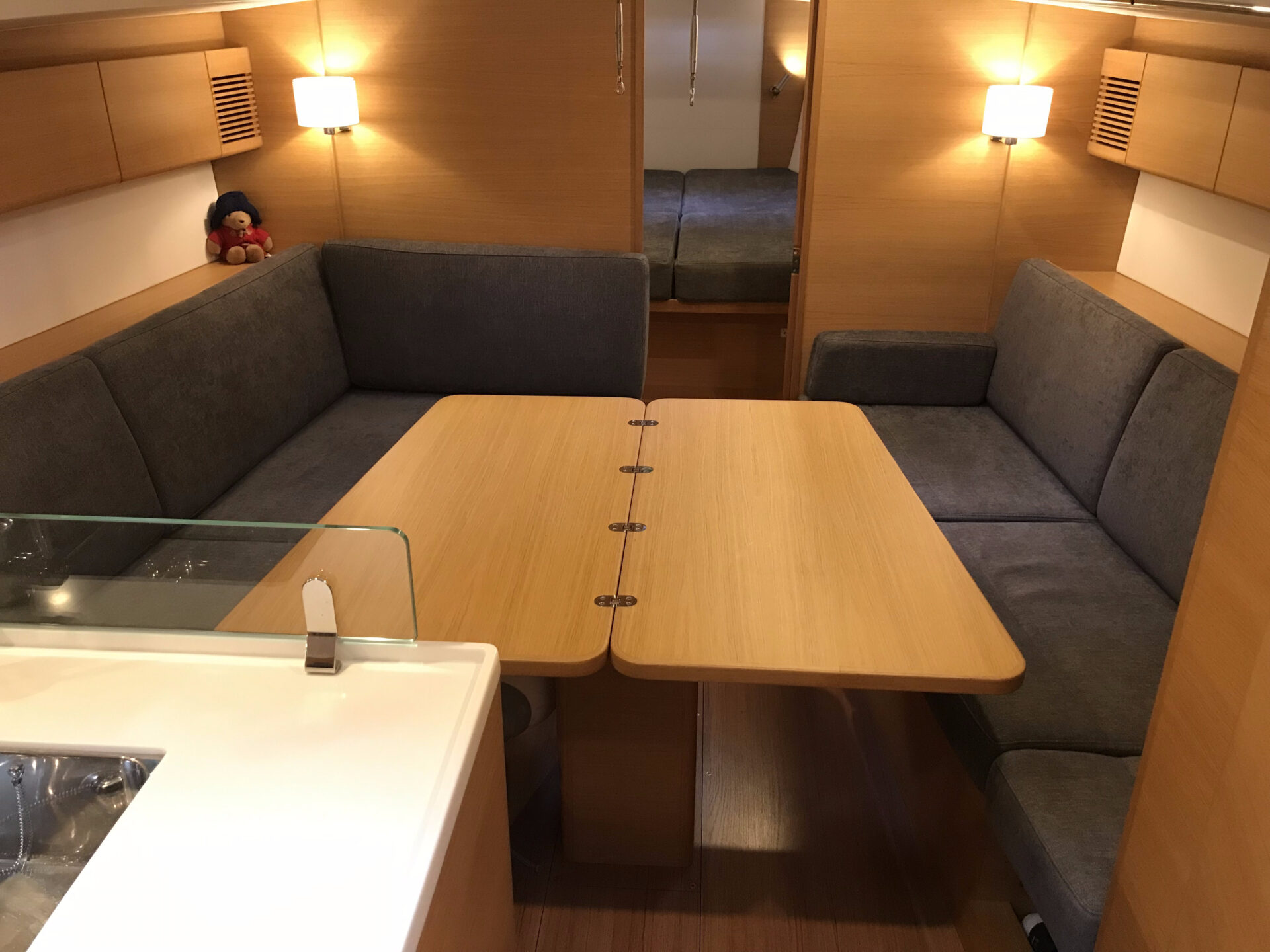

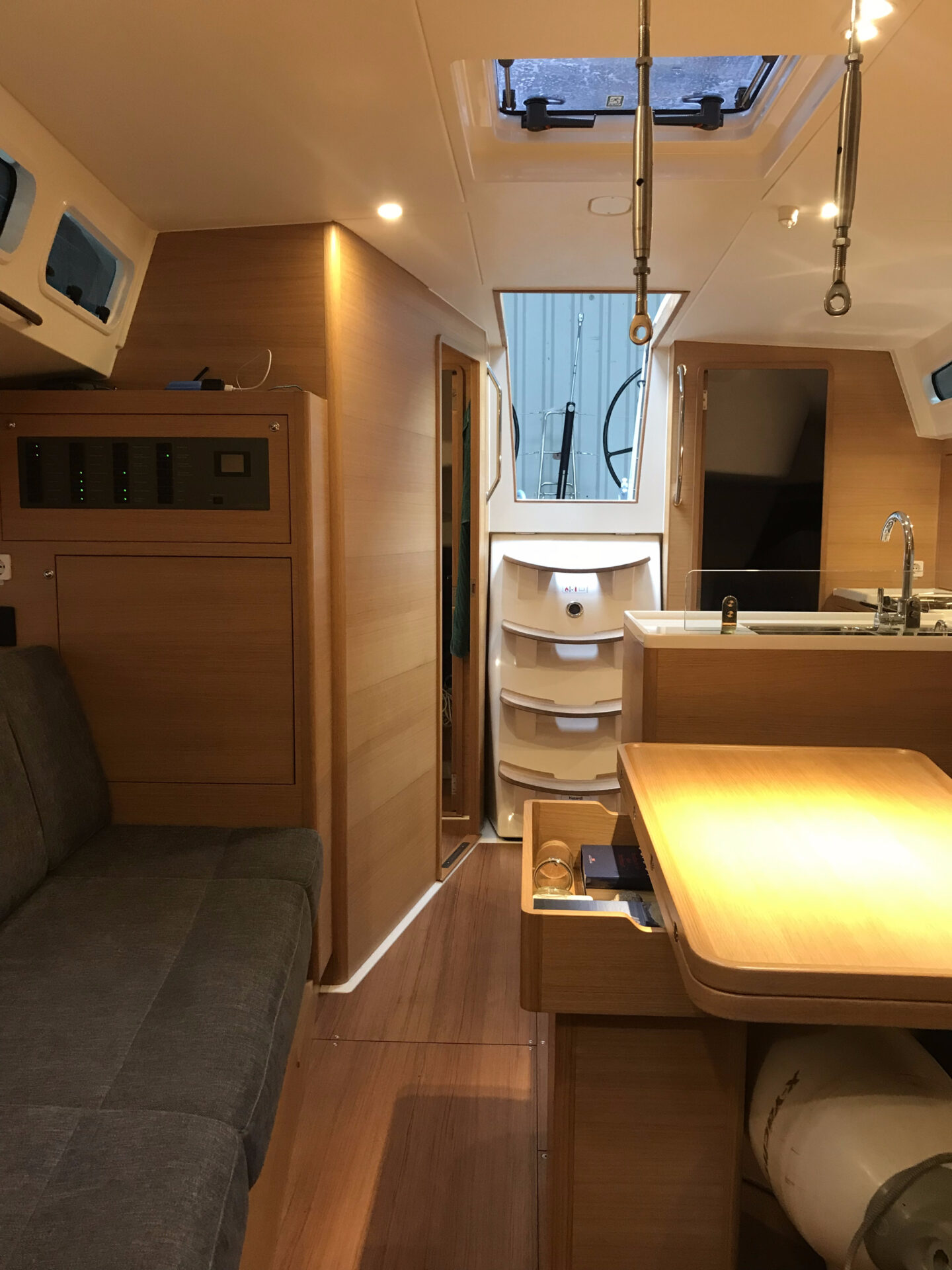

Main Cabin

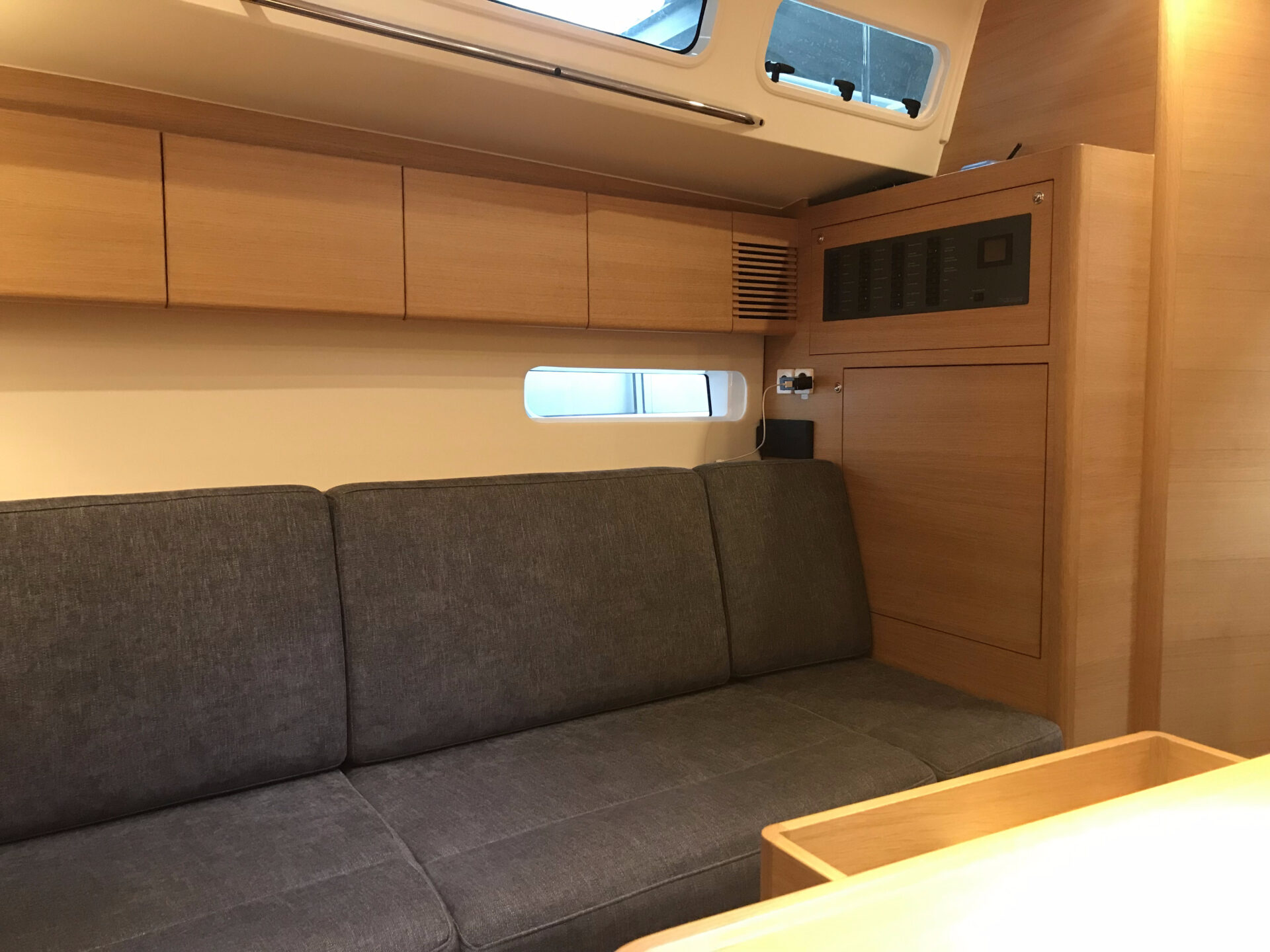

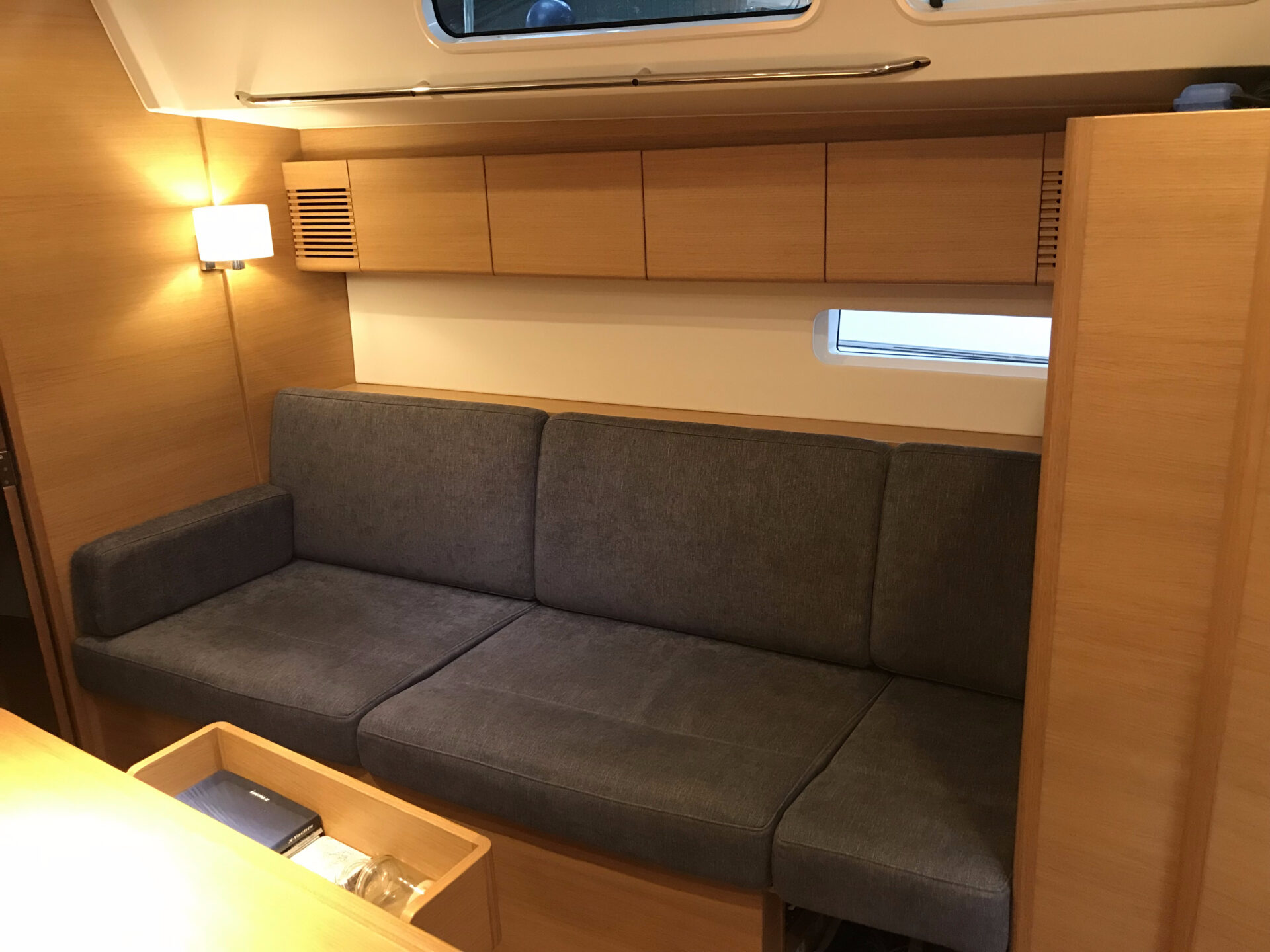

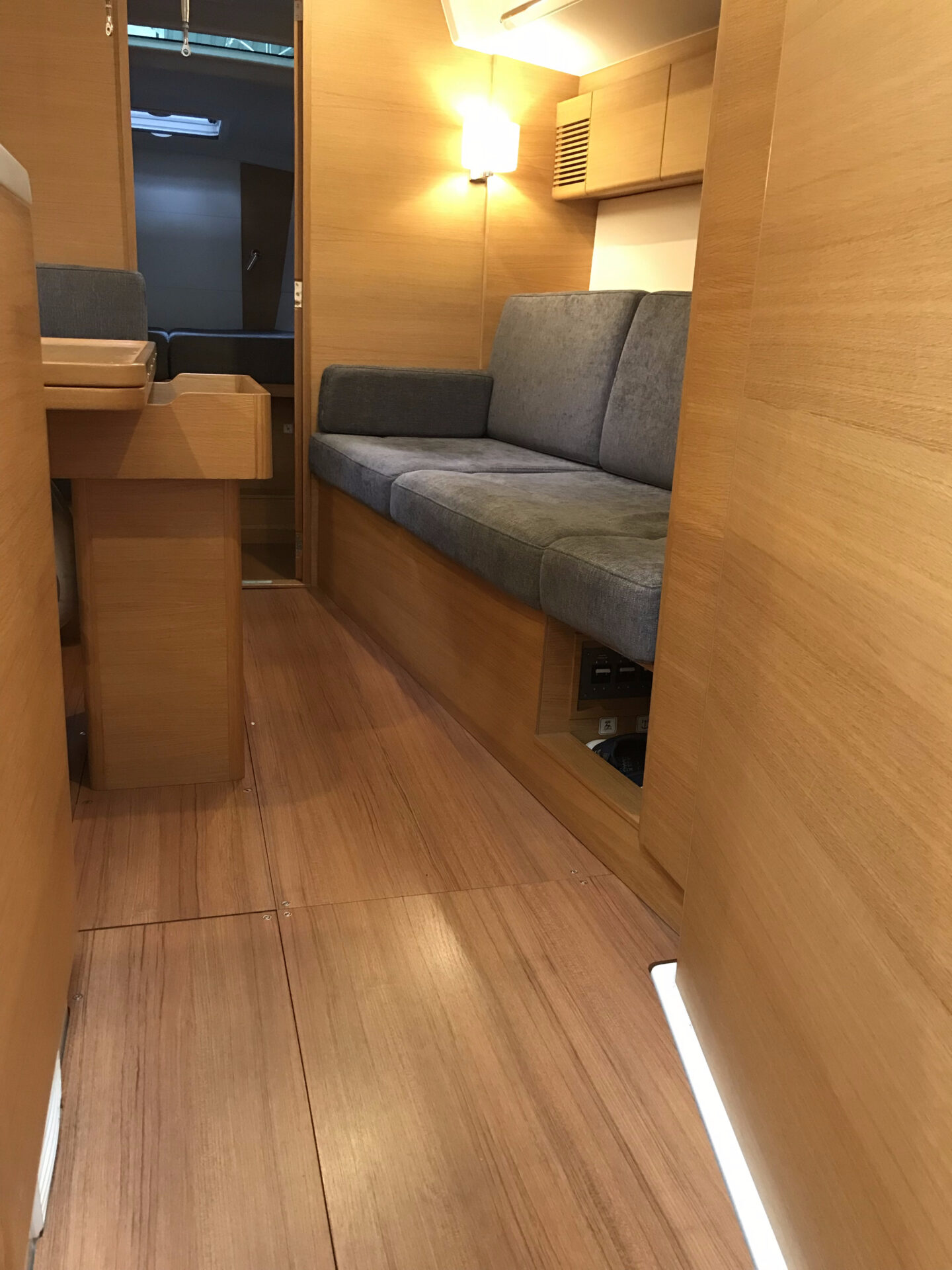

• Long sofa - Long sofa situated in starboard side with longitudinal backrest
• L-Sofa - Large L-sofa for 4 people in portside with longitudinal backrest

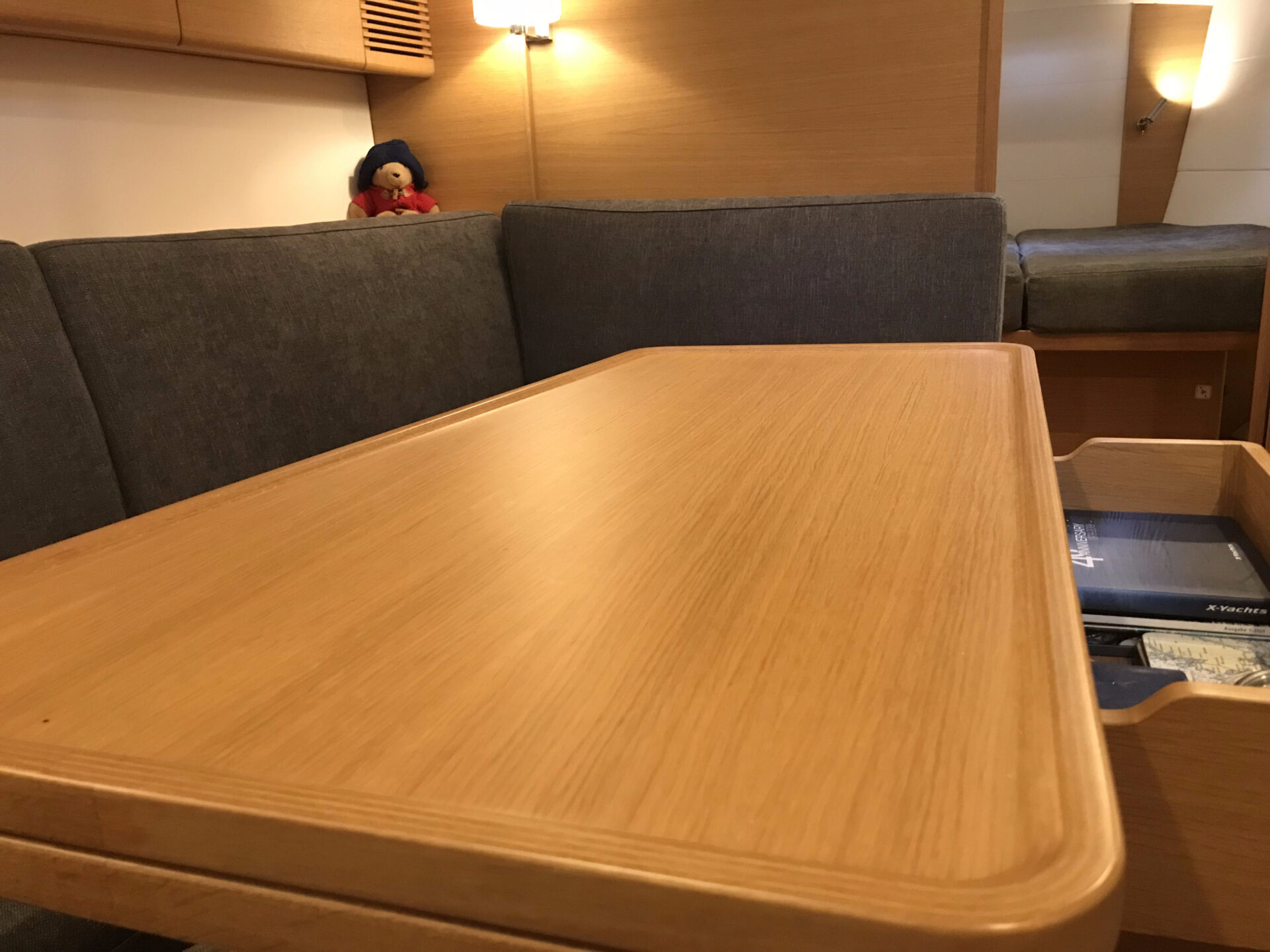

• Main cabin foldable dining table - table supported by centre box with wine bottle cabinet
• Main cabin upper cupboards - Upper cupboards with bottom hinged doors fitted on freeboards
• Main cabin cushions - Backrest cushions on port side along the main bulkhead and two arm rest cushions for starboard sofa
• Stainless steel Handrails - handrails in stainless steel, with stainless steel spacers inside the coachroof in each side

Aft Cabins

• Sea Berth - Freeboard hung sea berth fitted in both aft cabin

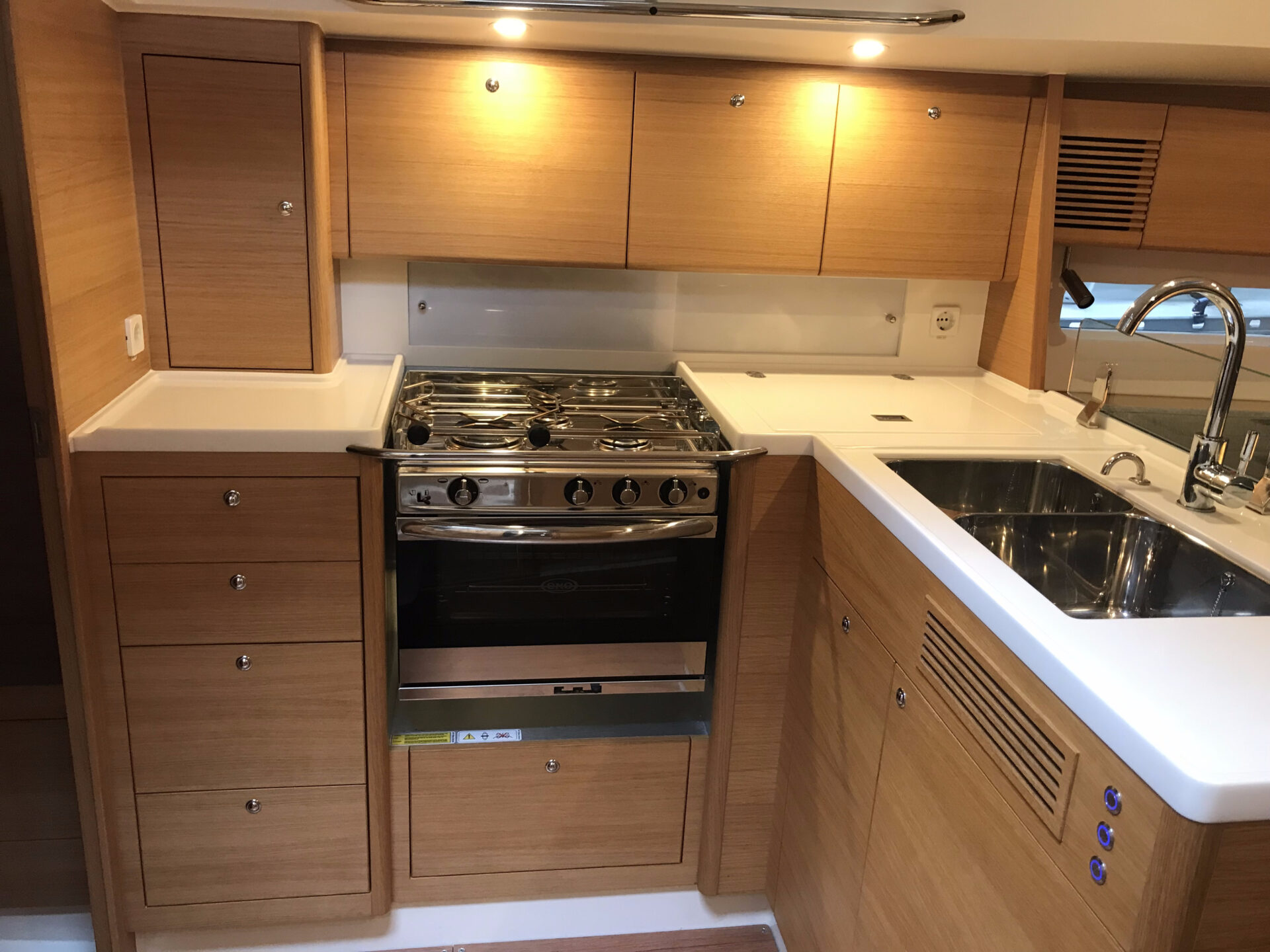

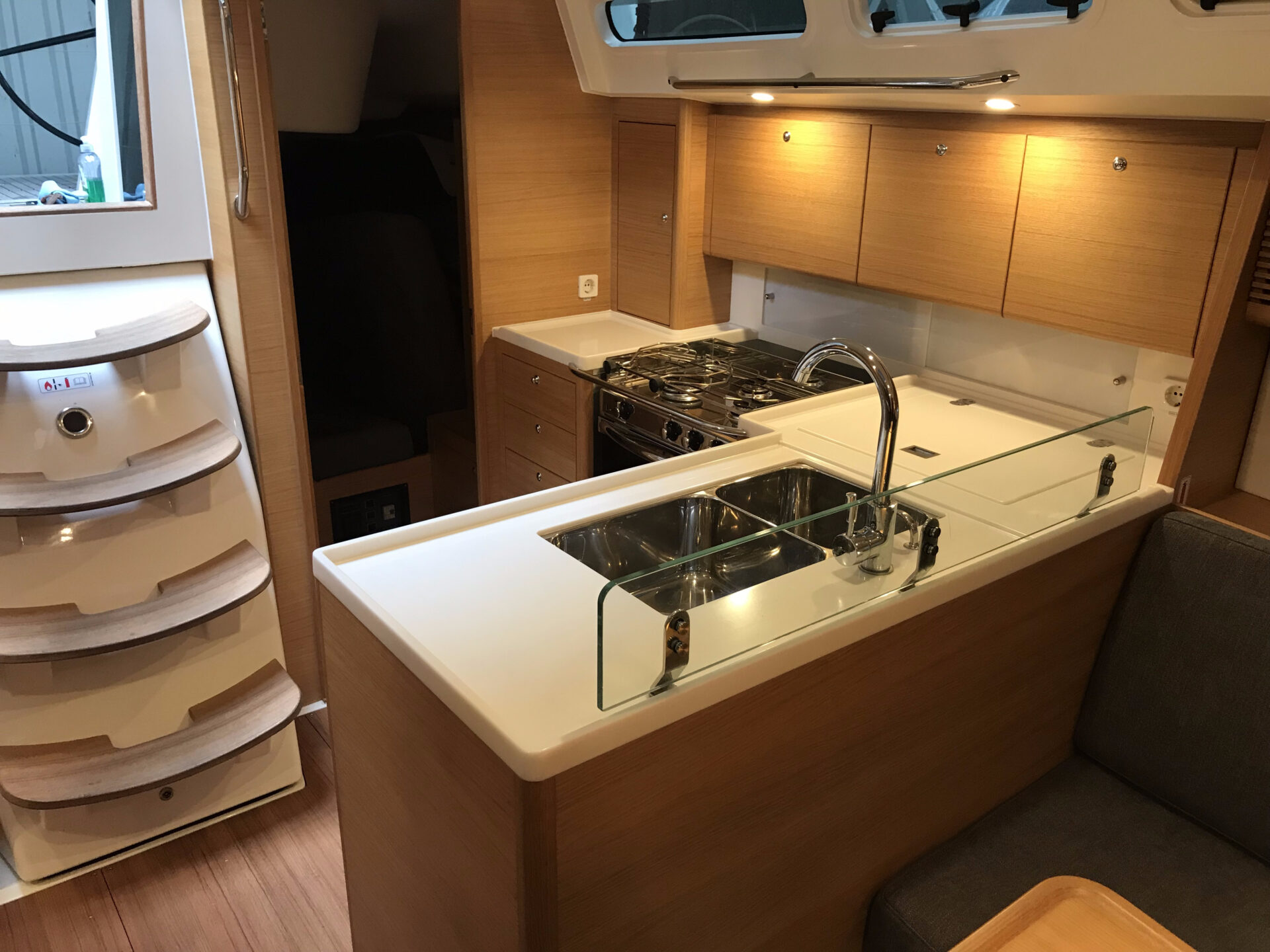

Galley

• White Corian - White Corian tops in galley
• Coolbox - 90 litre with 100mm insulation & watercooled Danfoss / Secop compressor & Isotherm accumulator plate
• ENO 3 Burner Oven & Grill - ENO, gimballed 3 burner hob, oven & grill

Systems

Engine

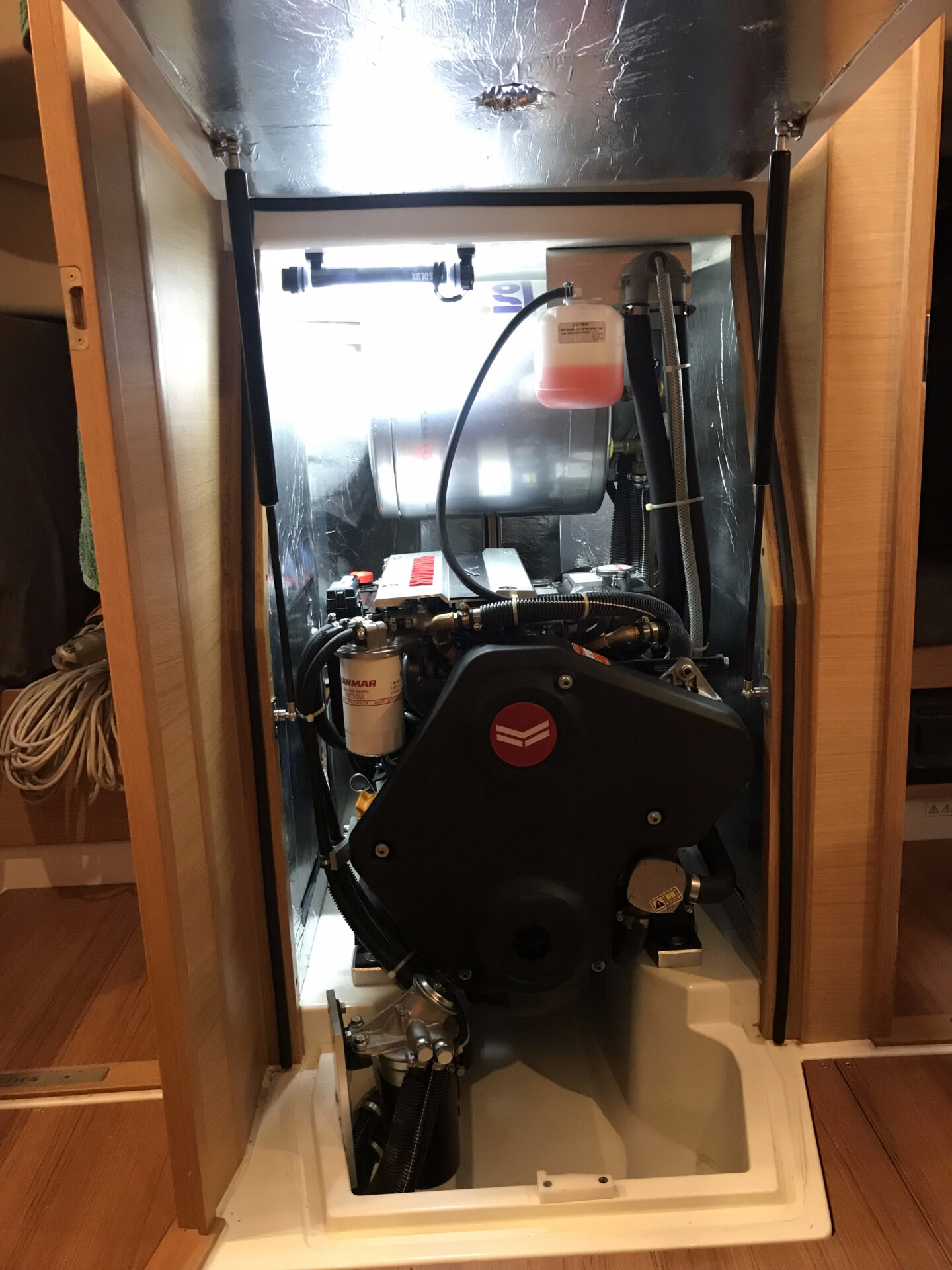

• Yanmar 40 HP - Yanmar 3JH40 (29 kW) common rail diesel engine
• 3-Blade Folding Propeller - Flex-O-Fold 3-blade folding propeller for 40 HP engine

Plumbing

• Pressurised hot & cold water system with fresh water tank, 270 litres located below port main cabin sofa
• Deck Shower located in aft cockpit
• Holding Tank - 40 litre, Polyethylene holding tank for toilet . Emptying by sea cock or deck suction
• Heating system - Eberspächer Airtronic 3 D6L with 5 outlets in saloon, owner's cabin, head and aft cabins (3 cabin layout)

Electrical

• LED Interior Lighting - LED lighting throughout the yachtShore Power Installation - 30A Battery charger & 255Ah 12V battery bank. Separate engine start battery
• Socket package, 230V AC & 12V USB & 12V outside socket: 230V- mounted one in galley, one in each cabin and one in each head & USB Double socket - mounted in each cabin and at nav station & 12V outside - in cockpit near helm station
• Galvanic Isolator - 30 Amp load capacity, mounted in series with earth wire of shore power socket (to prevent stray current corrosion) - 220V

Electronics

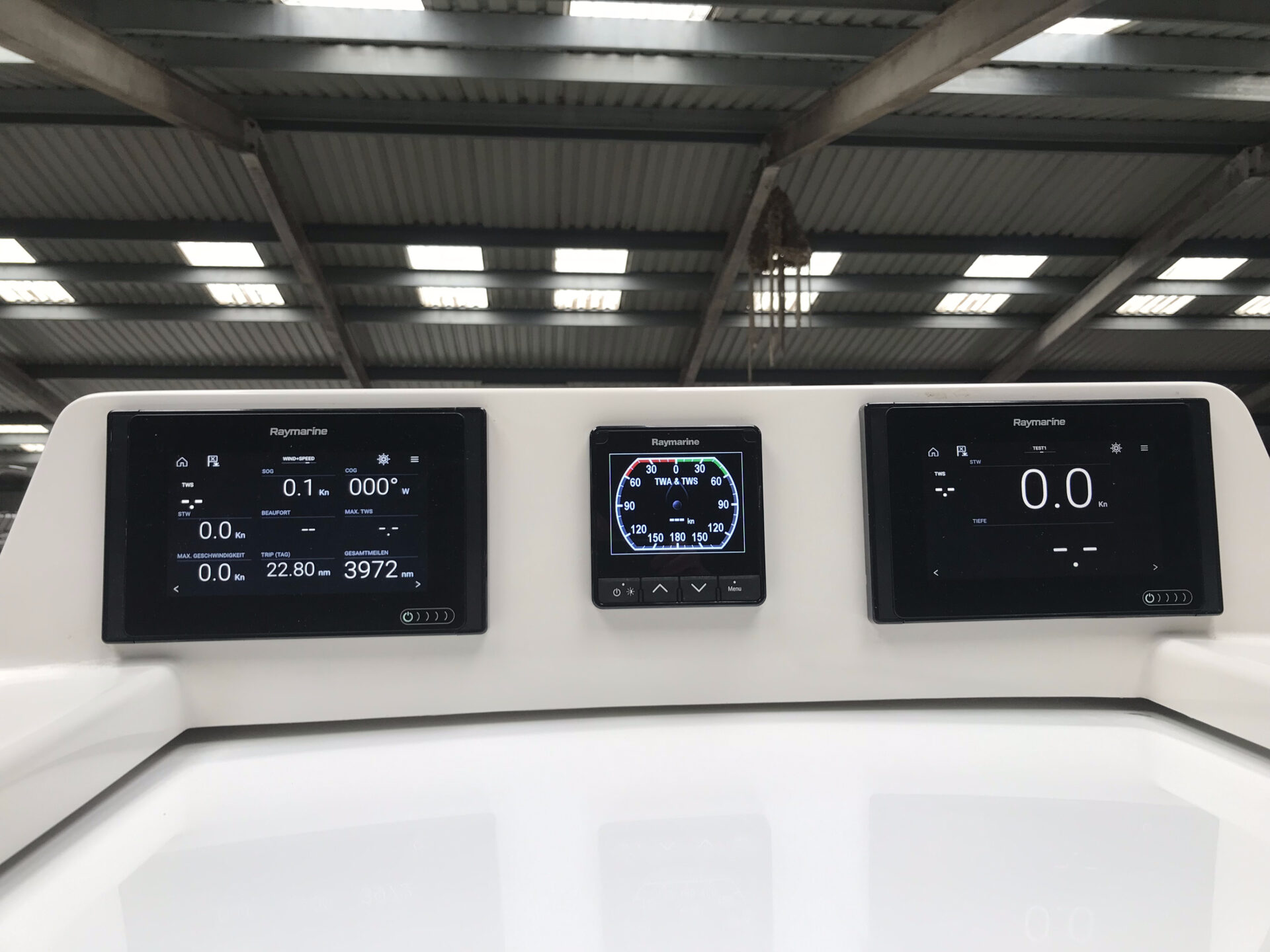

• 2 x Ray Axiom+ 7" touchscreen with integrated GPS antenna. Mounted in garage above sliding hatch
• 1 x Ray i70s instrument. Mounted in sliding hatch
• 1 x Ray Wind forward looking mast head transducer
• 1 x RayDepth, speed and temp transducer (combined)
• 1 x RayNet Network switch
• 1 x Ray Auto Pilot EV-200 course computer, RAM drive 1 with P70s pilot display.
• 2 x Ray Axiom+ 9" Touch plotter - only, multifunction mounted at wheel

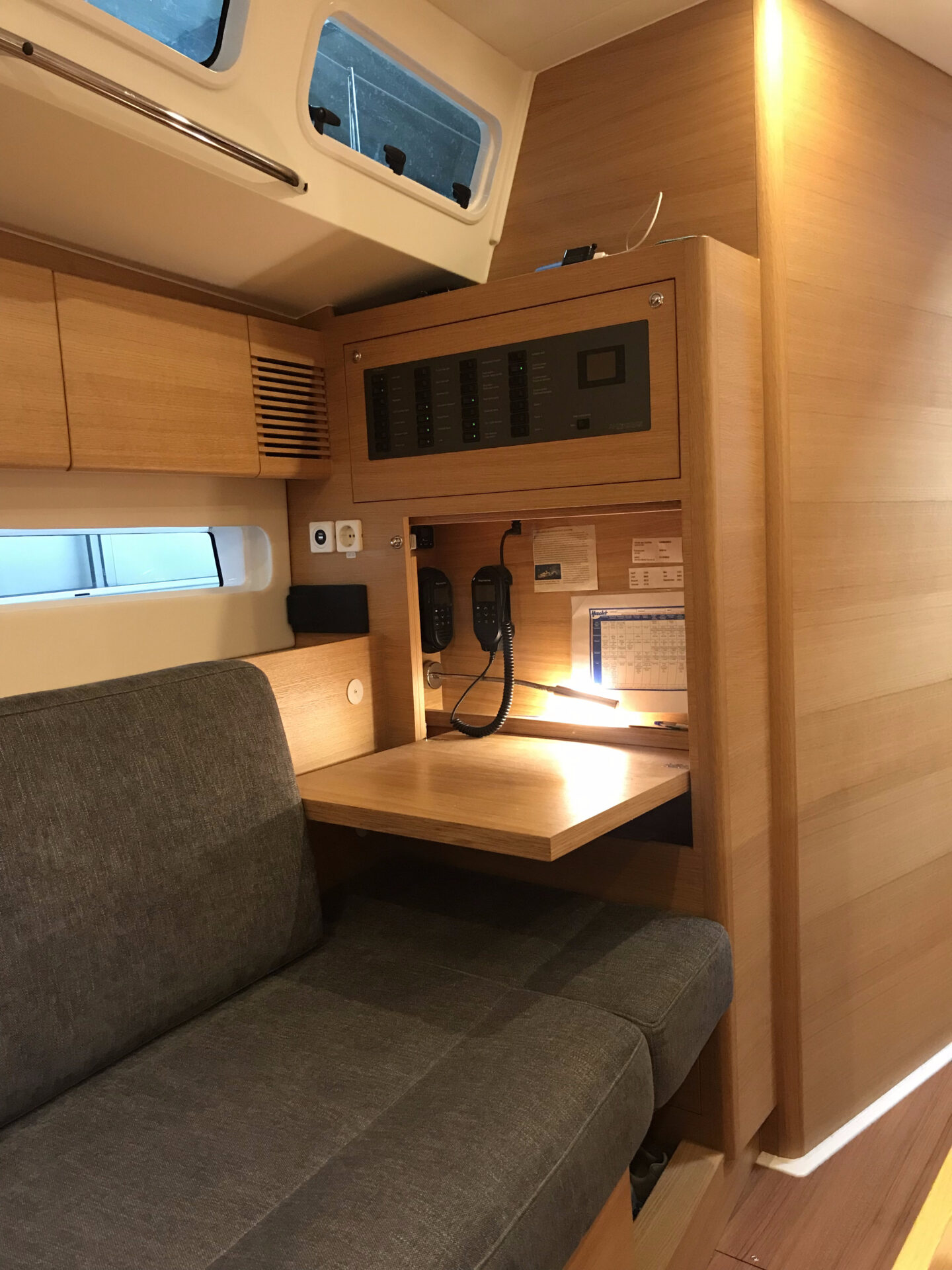

• 1 x Ray VHF Ray90 base station mounted w. loudspeaker, at nav station
• 1 x Ray VHF Ray 90/91 second station wireless, at cockpit with charging station at chart table
• 1 x Ray AIS700 Transceiver for Axiom series plotter incl. filter
• 1 x Shakespear VHF antenna for VHF & FM, cable Aircell7, Pom mast isolation mounted in mast head.
• Ritschie HF743, incl sun cover in Medium pedestal (on horizontal surfaces)
• Fusion Multi Media Centre - Fusion Apollo AM/FM/VHF/Apple AirPlay/Iphone/Ipod/USB/SiriusXM-Ready (USA only) fitted in main cabin near navigation station. One set of Fusion 4" 2 way 120 Watt black loudspeakers (2 pcs) mounted in main cabin
• Cockpit Speakers - Fusion cockpit loudspeakers fitted in cockpit connected to multimedia system (2 pcs)

Thrusters

• Retractable Bow Thruster - Retractable 12V bow thruster, Quick, with controls at starboard recess near steering wheel incl 12 V dedicated battery bank

Additional Information

• Accessories:
• Fire Extinguishers - 4 x 2 kg Powder fire extinguishers fitted throughout the yacht
• Harken Winch Handles - 2 x Winch handles (10") one touch
• Flag Pole - Teak with bronze bushing
• Fenders - 4 x White air-filled fenders with lanyards and X-Yachts logo
• Mooring Lines - 2 x 20m 14mm polyester mooring lines
• Shore Power Cable - 1 x 25m shore power cable
• Life raft , Modell Seatec Seago ISO 9650-2, 6 Pers., packed in a bag,

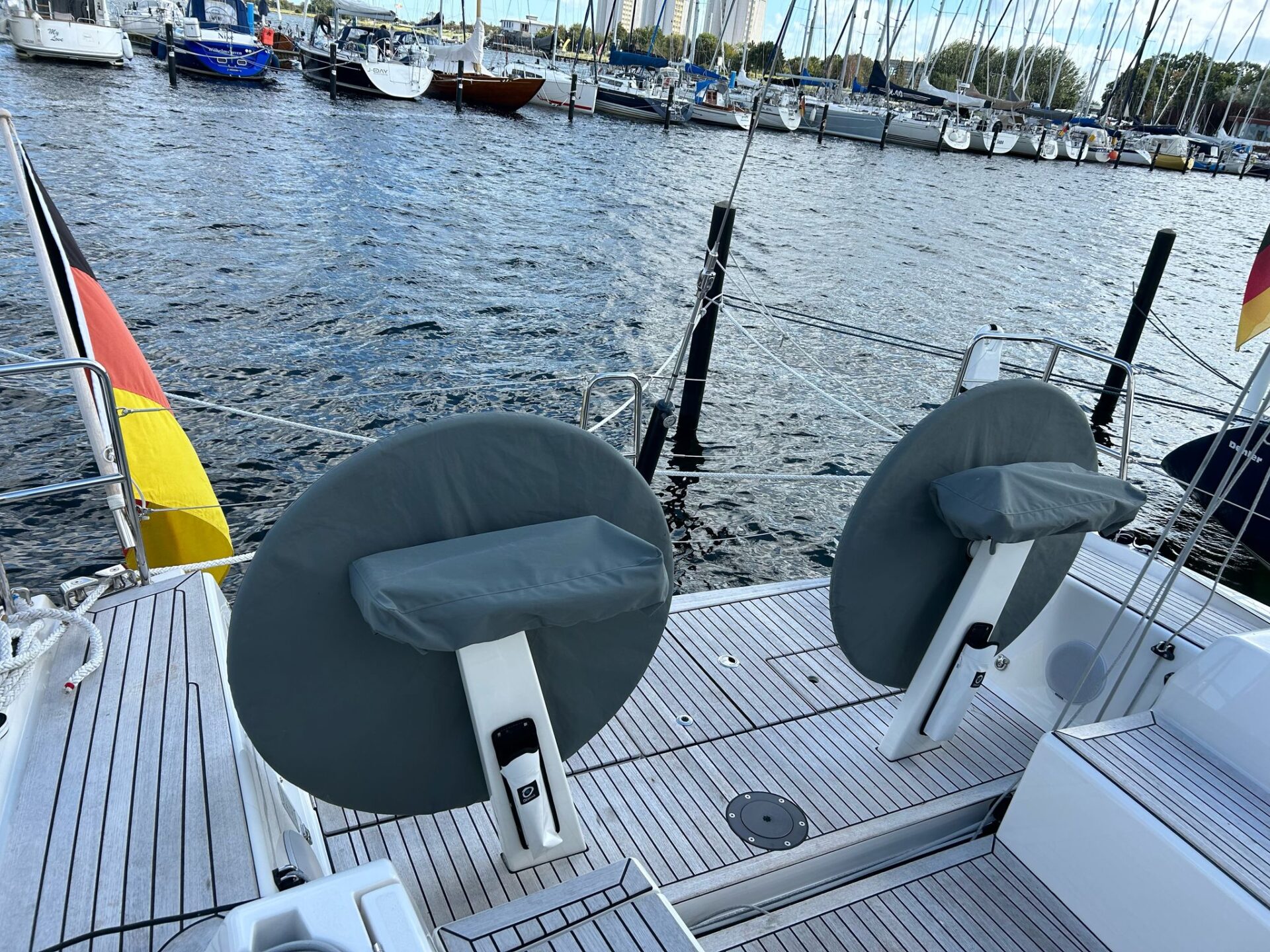

• Wheel and Instrumetbox Covers at PS/SB Color Dark grey
