Details

Exterior Details

Hull

• KEEL STRUCTURE - Heat galvanized steel keel frame improves strength, enables central lift hoist attachment & safety
• Hull Colour - 'Pure White' (RAL 9010) & 3 x 'Black Grey' integrated GELCOAT Water Lines (RAL 7021)
• Large Hull Portlights in grey tinted laminated toughened glass (6 in total)
• Hull Treatment - 3 x layers of sprayed epoxy primer & 2 x layers of White Hempel Hard Racing Antifouling
• Gunwale Protection - Stainless Steel rail protection mounted along sheer line

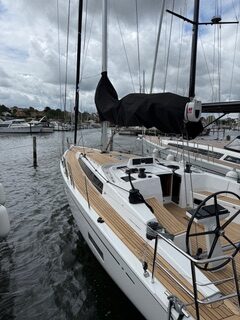

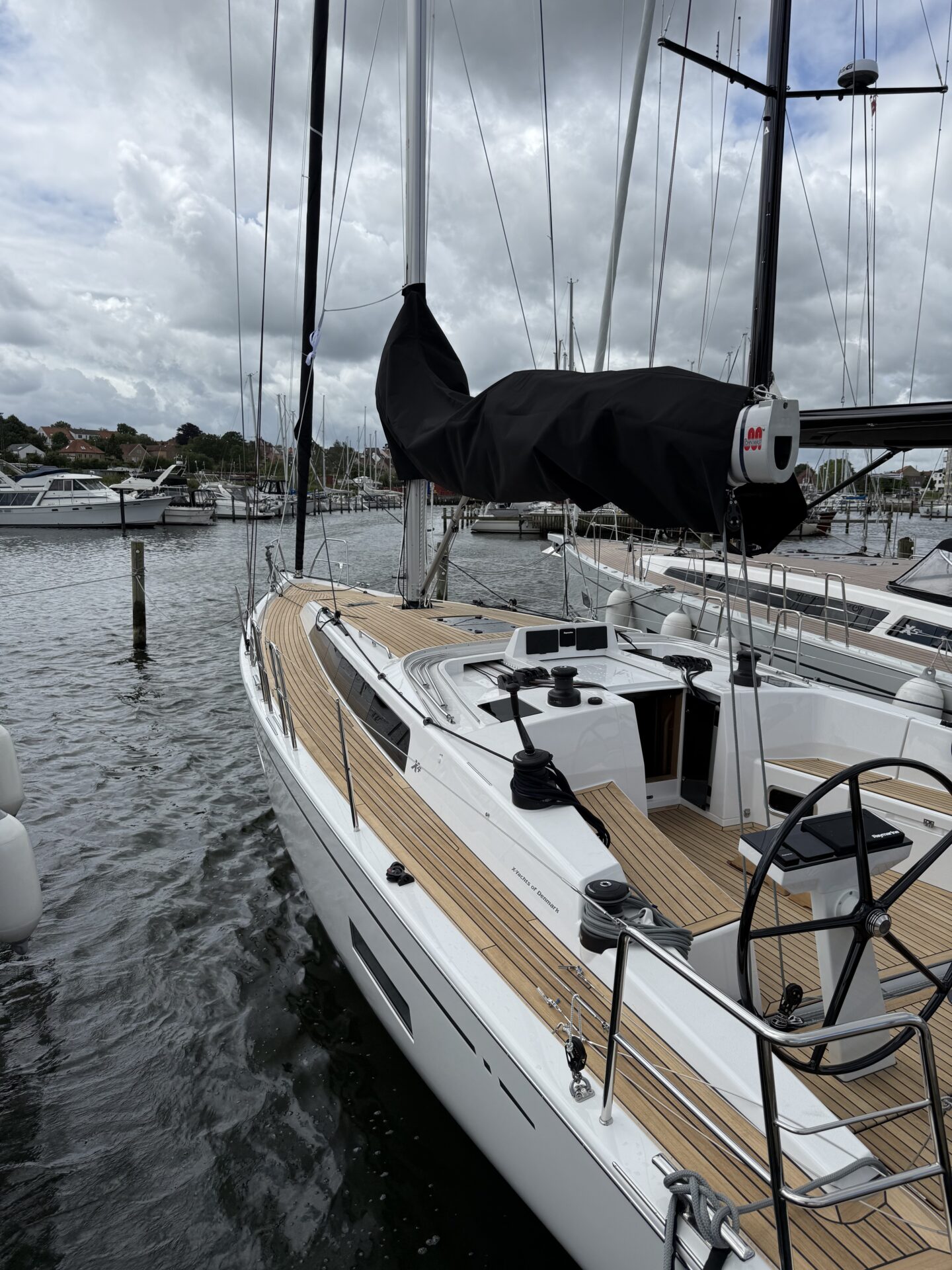

Deck

• Teak auf Sitzflächen und Cockpitboden - vakuum verklebt, 9 mm massiv mit schwarzer Fuge
• Teak on cockpit floor and seats - Vacuum applied, 9mm nominal thickness with black caulking
• Teak on Side Decks - Vacuum applied, 9mm nominal thickness with black caulking
• Teak on Coachroof - Vacuum applied, 9mm nominal thickness with black caulking
• Prepation Deck for Demountable cockpit table - with two hinged teak leaves, resting on two stainless steel rectangular legs, securely bolted with 4 bolts to cockpit floor
• New Medium mount - 2 x pedestal platforms with stainless steel grab rail, mounted on top of pedestal with space for optional autopilot, 9 inch plotter, thruster(s) controls and electrical throttle. Colour matching pedestals RAL 9010

Sail Handling

• Larger Genoa Winches - 2 x Harken Performa 50.2 STP Manual two-speed self-tailing winches, on coaming - up price
• Larger Halyard Winches - 2 x Harken Performa 46.2 STP two-speed self-tailing winches, on coachroof - up price
• Electric Port Halyard Winch - 1 x Harken Performa 46.2 STEPH two-speed self-tailing winch, on Port coachroof - up price
• Push Buttons as remote for electrical Halyard winch at steering console
• Genoa Car Control Lines - 4:1 to cockpit cam cleat
• "Sail Handling Pack 1:
• 1. Asymmetric spinnaker equipment including; 2 x Dyneema / Spectra sheets, 2 x gennaker blocks, 2 x foot blocks, 2 x cleats for ""parking"" the sheets and 2 x Wichard shackles mounted incl. 1:1 asymmetric tack line and tack block
• 2. Outboard sheeting pad eyes mounted"

Sails

• North Sails Premium Cruising Segel *
• North Sails Mainsail - NPL Tour Xi White Norlam, mit 5 durchgehende Latten, 2 Reefs, Klassezeichen, 55 m², inkl. Ronstan Trackless Gleitschlitten
• North Sails Furling Jib 106% - NPL Tour Xi White Norlam 4 mit senkrechte Segellatten, UV Schutz, Schaum, 42 m2
• North Sails Code65 HELIX - NPL Xi mit Helix Vorliekstruktur inkl. Anti-torsion Vorlieksnut (Bemerkung: Beinhaltet keine Trommel)
• Boom Cover - Canvas boom cover

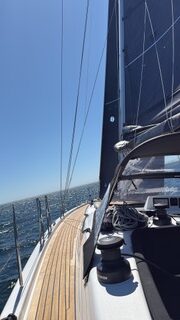

Mast & Rigging

• Fractional Double spreader rig
• Tapered silver anodised mast
• Stainless Steel headstay chainplate
• Stainless Steel bulwark recessed chainplates for shrouds
• Permanent central backstay with integral hydraulic adjuster
• LED Steaming Light combined with LED deck flood light - up price
• LED Tricolour & Anchor Light fitted at mast head
• Mast Steps - 2 x Mast steps fitted to Aluminium mast
• Vang upgrade - vang with gas cylinder - up price
• Lazy Jacks - mounted on mast & boom including hooks, cleats on mast & rope
• Standard with furling Furlex headstay with an under deck drum. Furling line led back to cockpit for easy handling
• Discontinuous rod Rigging with tip cups incl. Racing Rod turnbuckels for V1's and D1's
• Code 0 Halyard - Dyneema SK99, 10mm, including mast block and large Spinlock halyard jammer (2:1) (Note: exclude option for extra spinnaker halyard 1:1)

Keel

• Standard Keel - 2.2m 'T' keel consists of antimony hardened lead T-bulb bolted and glued to cast iron fin for high strength, low centre of gravity for comfortable sailing performance. The Keel is totally encapsulated in three layers of CSM E-glass with epoxy for protection, perfect wing shape and maximum lift and height by sailing. The keel is securely bolted to the structural steel keel frame with stainless steel bolts for maximum safety and integrated central hoist

Hatches / Portlights / Ventilation / Sprayhood

• Flush Deck Hatches - 9 pcs: GRP hatch above anchor locker and sail compartment plus 8 frameless hatches - see deck layout for details
• Port lights - 7 x openable coachroof port lights: 2 x openable coachroof port lights per side on outside coachroof for added ventilation in main cabin and in aft head, 1 for each aft cabin facing cockpit and 1 for each integrated in outside coaming stripe of glass, for added ventilation and light
• Sprayhood storage - Self draining recess for optional sprayhood to be stored in the deck.
• "Sprayhood Black - canvas with sturdy stainless steel framework.
• Other canvas colours available: Dark blue and dark grey. Ask your dealer for details."

Guard rail / Anchor / Stainless Steel Fittings

• Electric Anchor Windlass - with 25 m of 8 mm calibrated galvanised anchor chain
• Anchor - 16 kg Delta galvanised anchor (16 kg max)
• Anchor Chain Upgrade - 50 m of 8 mm calibrated galvanised anchor chain (up price)
• Second Windlass Remote & chain Counter - with Quick chain counter, mounted in cockpit
• White Painted Carbon Fibre Bow Sprit - White Painted Carbon fibre bow sprit for asymmetric spinnaker and code 0 pad eye integrated into the innovative S-bow design (accommodates the standard removable stainless steel anchor roller)
• Boarding Gates in Guardrails - for standard lifelines on both sides with champfer rails on bulwalk (3 per side)
• Bow Boarding Ladder - Stainless steel ladder with support rail between end of bowsprit to pullpit to help safe boarding

Accommodation

Generell

• Nordic Oak veneer - all wooden surfaces.
• Teak Laminate Floorboards - Floorboards in imitated teak laminate.
• LED Interior Lighting - LED lighting throughout the yacht
• "Blinds for owners -
• Ocean Air Skyscreen Blinds including flyscreen and blackout blinds for small skylights;
• Forward facing coachroof portlight and hull portlights fitted with blackout blinds; "
• "Blinds for aft cabins -
• Ocean Air Skyscreen Blinds including flyscreen and blackout blinds for small skylights in aft cabins;
• Hull portlights, portlight in cockpit coaming and portlight facing cockpit in aft cabins are fitted with push button blinds;"
• Ocean Air Skyscreen Pleated Blinds - flyscreen and blackout blind for main double saloon hatch (1450 x 500mm) & SKYSOL Classic blind for hull window in saloon - 1 set

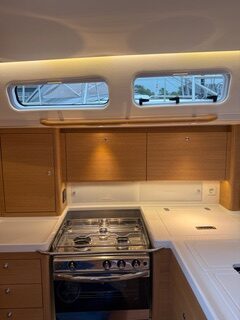

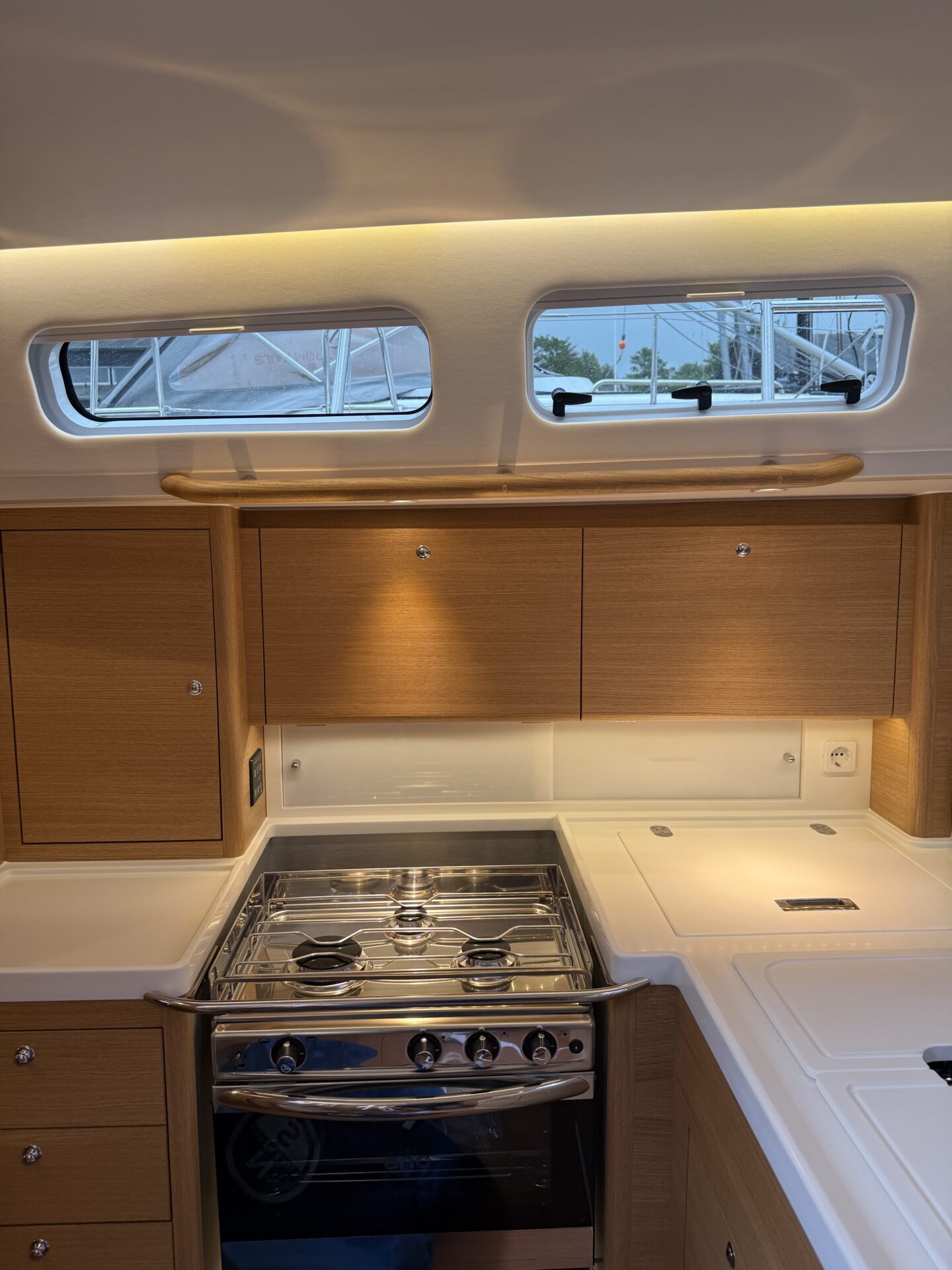

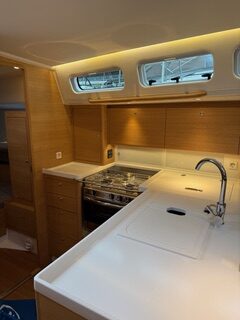

Pantry

• Coolbox - 90 litre toploaded insulated & watercooled Danfoss / Secom compressor & Isotherm accumulator plate
• ENO 3 Burner Oven - ENO, gimballed 3 burner hob & oven
• White Corian - White Corian worktops in galley
• Addetional shelves
• ENO 3 Burner Oven & Grill - ENO, gimballed 3 burner hob, oven & grill
• Fridge Front Opening - 65 litre with ice cube compartment, front opened with ASU start-up technology, positioned under sink
• Gas Detector Alarm
• Preparation for Nespresso Coffee Machine 115V, sliding shelf and socket

Owners

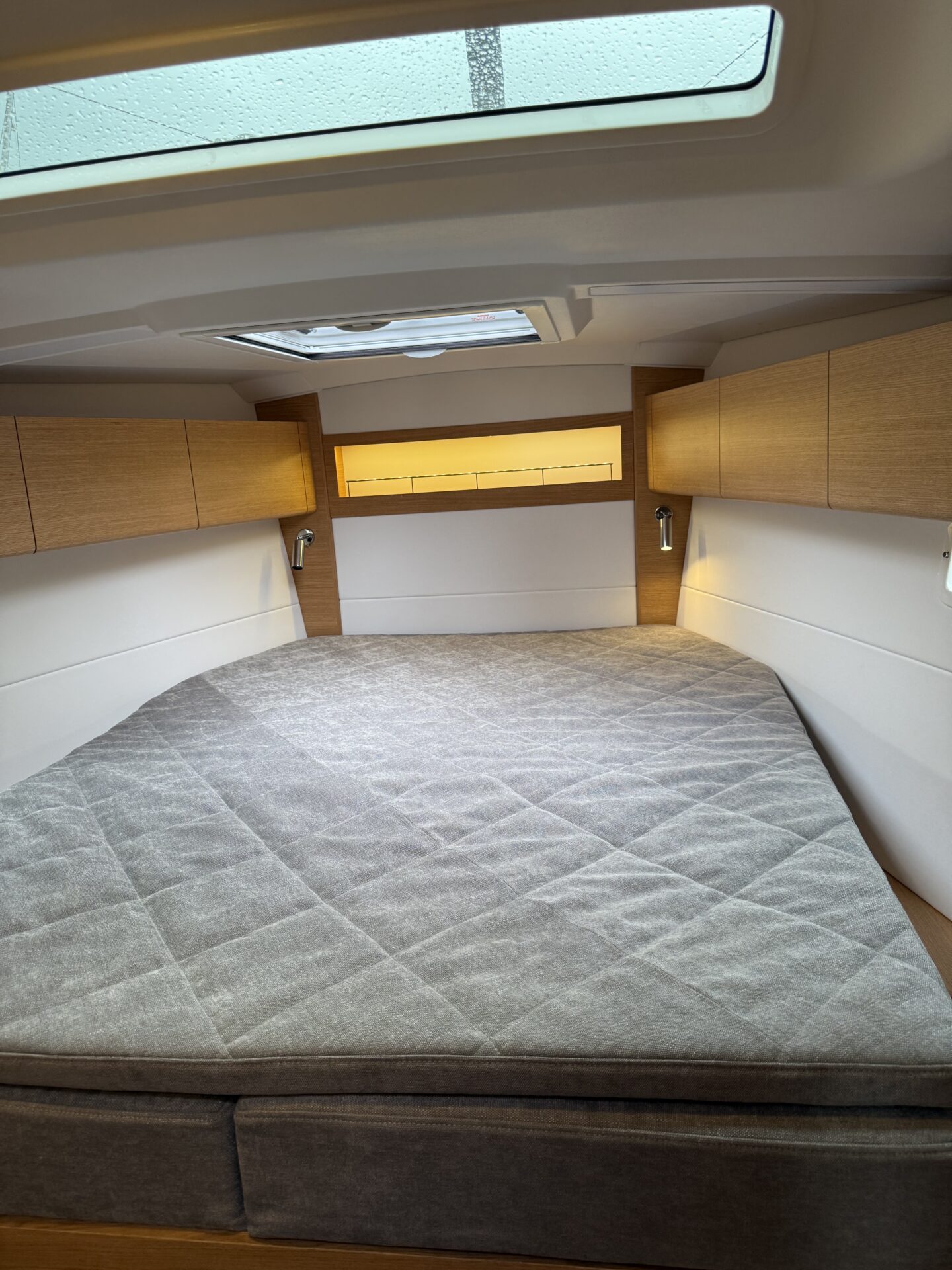

• Double berth - with hinged gas strut supported top access and drawers underneath. Shelves next to berth and accessory shelf on headboard.
• Spring Mattress - spring mattress in Owner's Cabin upgrading standard cold foam mattress
• Owner's cabin upper cupboards - Upper cupboards with bottom hindged doors fitted on freeboads above the berth

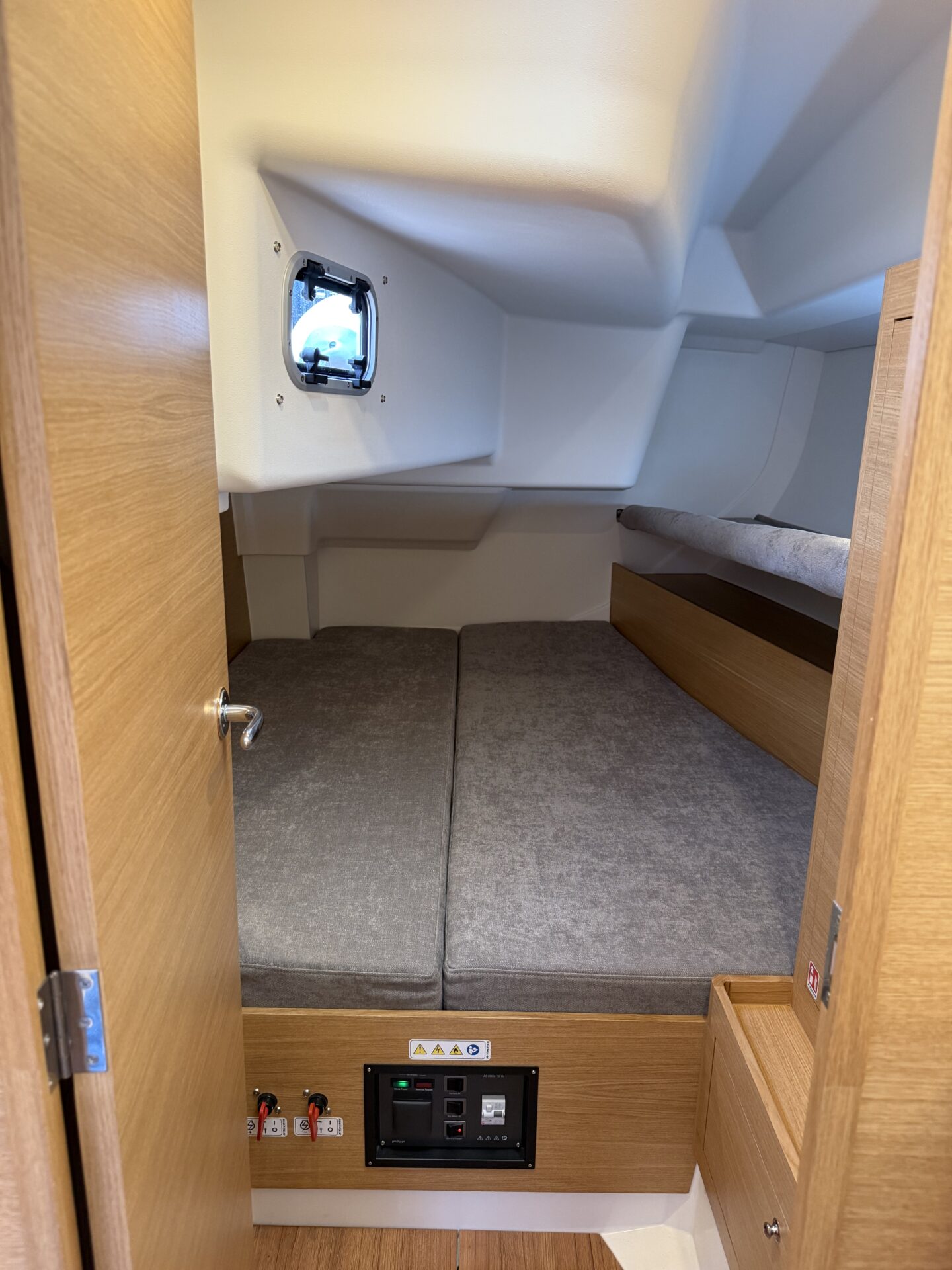

Aft cabins

• Double berth - with a shelf on the freeboard above the berth per aft cabin
• "Sea Berth - Freeboard hung sea berth (port aft cabin only)
• Note: To chose between upper cupboard or sea berth."
• "Sea Berth - Freeboard hung sea berth (SB aft cabin only)
• Note: To chose between upper cupboard or sea berth."

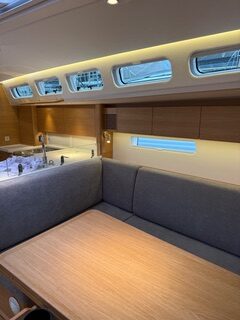

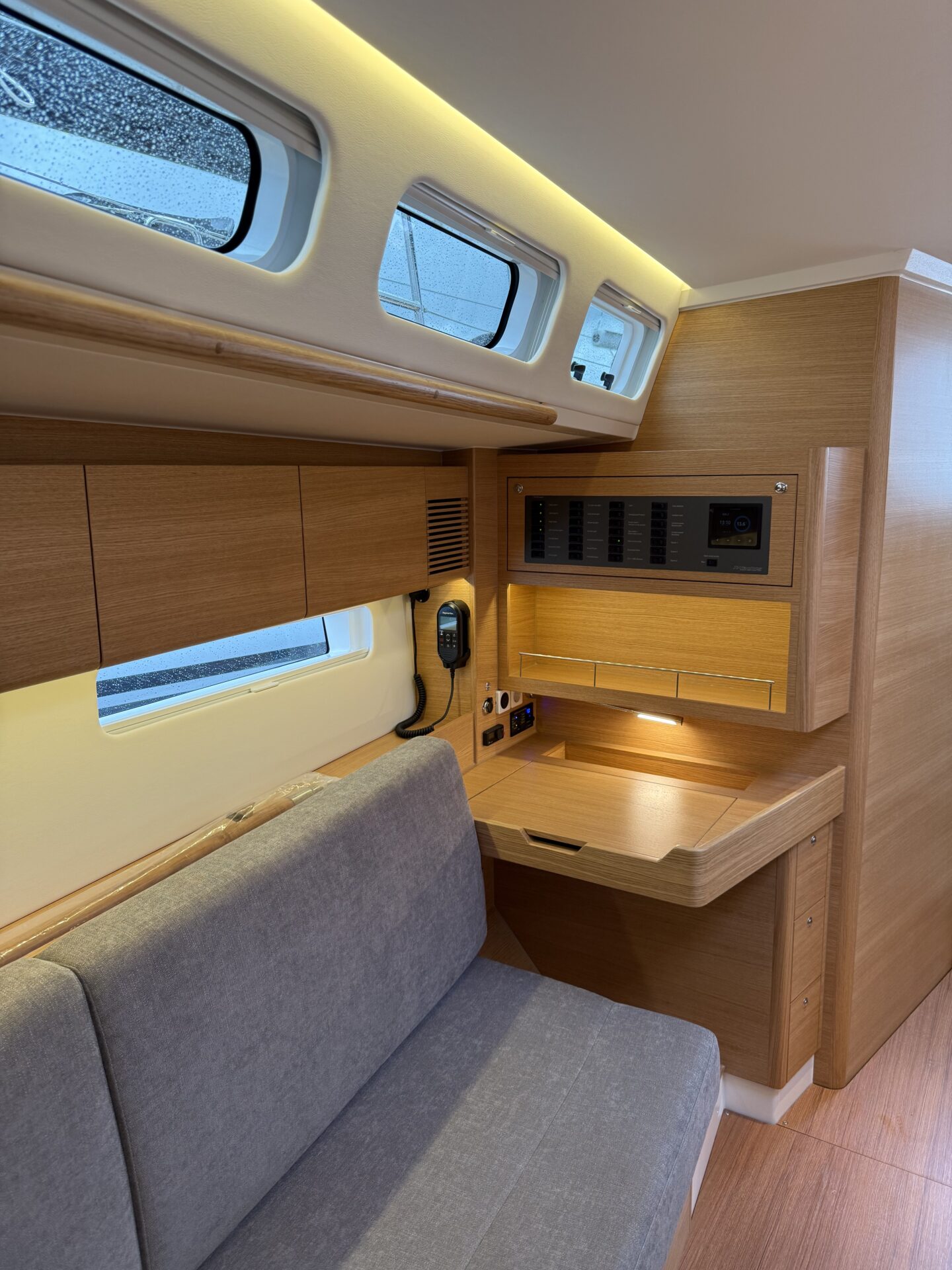

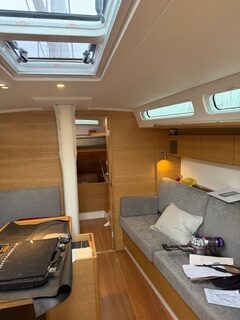

Main

• Long sofa - Long sofa situated in starboard side with longitudinal backrest
• U-Sofa - Large U-sofa for 6 people in portside with longitudinal backrest
• Main cabin dining table - table without table/drinks box below. Has top surface of wooden veneer with longitudinally grain direction
• Main cabin upper cupboards - Upper cupboards with bottom hinged doors fitted on freeboards
• Upgrade to Laminated Handrails - handrails in laminated oak, with stainless steel spacers inside the coachroof on each side - up price

Systems

Engine

• Fuel tank - aluminium 200 litres, centrally located below starboard aft cabin berth
• Yanmar 57 HP Upgrade - Yanmar 4JH57 (42 kW) common rail diesel engine incl. 2-blade folding propeller
• 3-Blade Folding Propeller - Flex-O-Fold 3-blade Ø 18" folding propeller for 57 HP engine - up price

Plumbing

• Pressurised hot & cold water system - with freshwater tank, 340 litres located in port side sofa in main cabin, 24 litre hotwater tank located in engine compartment. Deck Shower located in aft cockpit
• Holding Tanks - 55 litre, Polyethylene holding tank per toilet (2 in total). Emptying by seacock or deck suction
• Heating system - Eberspächer Airtronic 3 D6L with 5 outlets in saloon, owner's cabin, fwd head and both aft cabins (3- cabin version)

Electrical

• Shore Power Installation - 30A Battery charger & 255Ah 12V battery bank. Separate engine start battery
• LED Interior Lighting - LED lighting throughout the yacht
• Socket package, 230V AC & 12V USB & 12V outside socket: 230V- mounted one in galley, one in each cabin and one in each head & USB Double socket - mounted in each cabin and at nav station & 12V outside - in cockpit near helm station
• Combi Battery Charger & Inverter - 12V/2000W/70A including remote multi control panel and galvanic isolator replacing standard 30A charger. Note: Standard there are 220V at nav station (1) and galley (1). Additional 220V sockets can be ordered
• Victron Smart Solar Controller with socket on deck. (no solar panel)
• Ambient LED lighting pack
• MAIN CABIN
• A)     Between coachroof tops' vinyl panelling and coachroof side, and
• B)     Ambient light is fitted below upper cupboards with dimmer function

Electronics

• "2 x ALPHA 7"" Performance touchscreen displays
• Note 1: Mounted in garage above sliding hatch (max 2)
• "
• "1 x i70s instrument.
• Mounted in garage above sliding hatch"
• 1 x Smart Wind forward looking mast head transducer
• 1 x Depth, speed and temp transducer (combined)
• 1 x RayNet Network switch
• Additional electronics for Alpha 7" and i70s packs:
• Autopilot:
• X4.3 & X4.6: 1 x Auto Pilot EV-400 course computer RAM drive 2 with P70s pilot display
• Plotter options - no charts included:
• "2 x Axiom+ 9"" Touch plotter - only, multifunction
• Mounting at wheel in optional instrument box "
• VHF options - remember to choose VHF antenna:
• 1 x VHF Ray90 base station (internat.) w. loudspeaker, at nav station
• Other electronic options:
• 1 x AIS700 Transceiver for Axiom series plotter incl. filter
• Programming of MMSI number in VHF and/or AIS
• Antenna option:
• 1 x Shakespear VHF antenna for VHF & FM, cable Aircell7, Pom mast isolation mounted in mast head. Note: Windex is mounted separately

Thrusters

• Retractable Bowthruster - Max Power Compact retractable CR70/12V bowthruster with controls at starboard recess near steering wheel or at wheel in optional instrument box incl dedicated 12 V battery bank

Additional Information

• Fire Extinguishers - 4 x 2 kg Powder fire extinguishers fitted throughout the yacht and with fire port into engine room
• Harken Winch Handles - 3 x Winch handles (10") with Lock
• Flag Pole - Teak with bronze bushing
• Fenders - 4 x White air-filled fender with lanyards and X-Yachts logo
• Mooring Lines - 2 x 20 m 14 mm polyester mooring lines
• Shore Power Cable - 1 x 20 m shore power cable
• 2 x Additional Fender - White, Air-filled fender with lanyard & X-Yachts Logo
• Combined Pedestal and Wheel Covers Medium - 2 x Light Grey canvas covers for medium size pedestals. Other canvas colours available: Dark blue and dark grey. Ask your dealer for details.
• Ready for sailing in Flensburg!
