Details

Exterior Details

Hull

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Solid laminate in high stress areas around keel, rudder and through hull fittings
• • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
• waterlines in NGA Gelcoat (RAL 7011 dark grey)
• • Hull moulded in female moulds for highest quality surface finish
• • Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• from keel, mast and rigging
• • Prepared for single point hoist for easy and safe lifting and launching of yacht

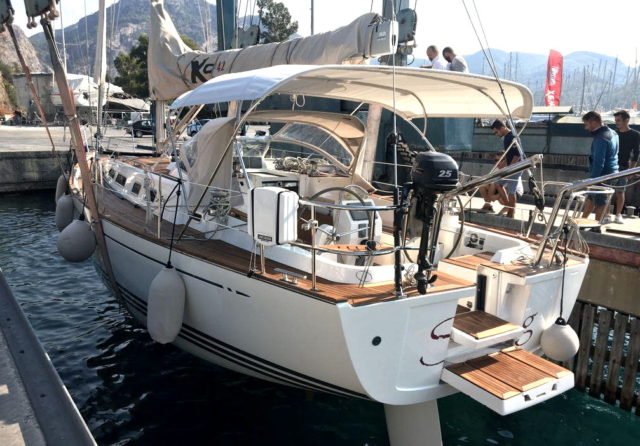

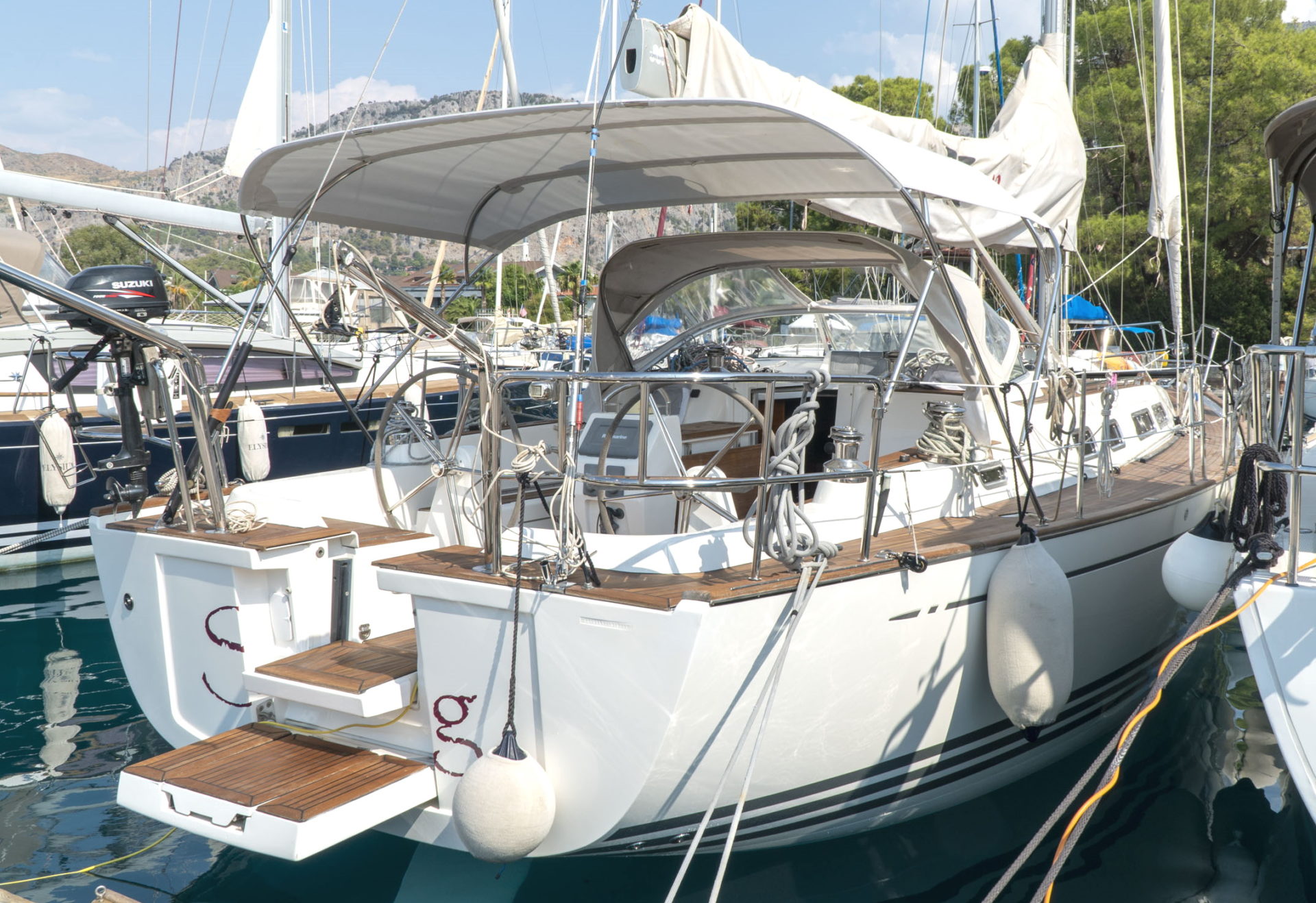

• • Bathing platform incorporated in transom port with electrical hoisting and
• lowering system
• • Bathing ladder in stainless steel mounted onto bathing platform
• • Continuous stainless steel rail protection mounted on sheerline
• • X-Yachts style hull recessed portlights (6 pcs

Deck

• uilt in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• • Deck and locker lids moulded in female moulds for highest quality surface finish
• • Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• sole, seats and bathing platform
• • Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker - Electric windlass with DELTA anchor
• • Space for a 6 man life raft in stb side transom locker
• • Gas springs fitted to sail cabin, port & stb cockpit lockers and port aft cockpit
• locker hatch (4 pcs)
• • Halyard locker recessed into cockpit
• • Cockpit table with space for navigationnel instruments and compas

Sail Handling

• Stainless Steel Andersen 58.2 primary winches
• • Stainless Steel Andersen 46.2 for Geman Mainsheet system
• • Stainless Steel Andersen 46.2 for halyards, including one electric
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Mainsail track in front of sprayhood
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware and rigging,stainless steel powsprit
• • Windscreen in Sekurit glass
• • Bimini

Sails

• NORTH SAILS quiver including
• Full batten mainsail with cover
• • Furling genoa 140 % with PROFURL furler
• • Self tacking Jibe 94 %
• Genoa 106 %
• • Gennaker

Mast & Rigging

• JOHN MAST Fractional double spreader, tapered silver anodized aluminium mast
• stepped on steel frame, specially designed for Xc 42
• • Combined deck and steaming light, Windex with light, tube for additional
• electrical equipment and 2 mast steps fitted
• • Silver anodized boom with single line reefing and internal boom outhaul with
• control on boom, telescopic vang and outer purchase block system
• • Split backstay fitted with single Navtec 10 integral backstay adjuster on starboard
• side and turnbuckle on port
• •Tip cups in stainless steel fitted to stainless steel tie rods (2 pcs)
• • Discontinuous rod rigging throughout with rod turnbuckles
• • Chain plates in stainless steel for forestay and split backstay (3 pcs)
• • Composit folding inerstay
• • Boom braker
• • PROFURL headsail furler
• • Running Rigging with Spectta halyard

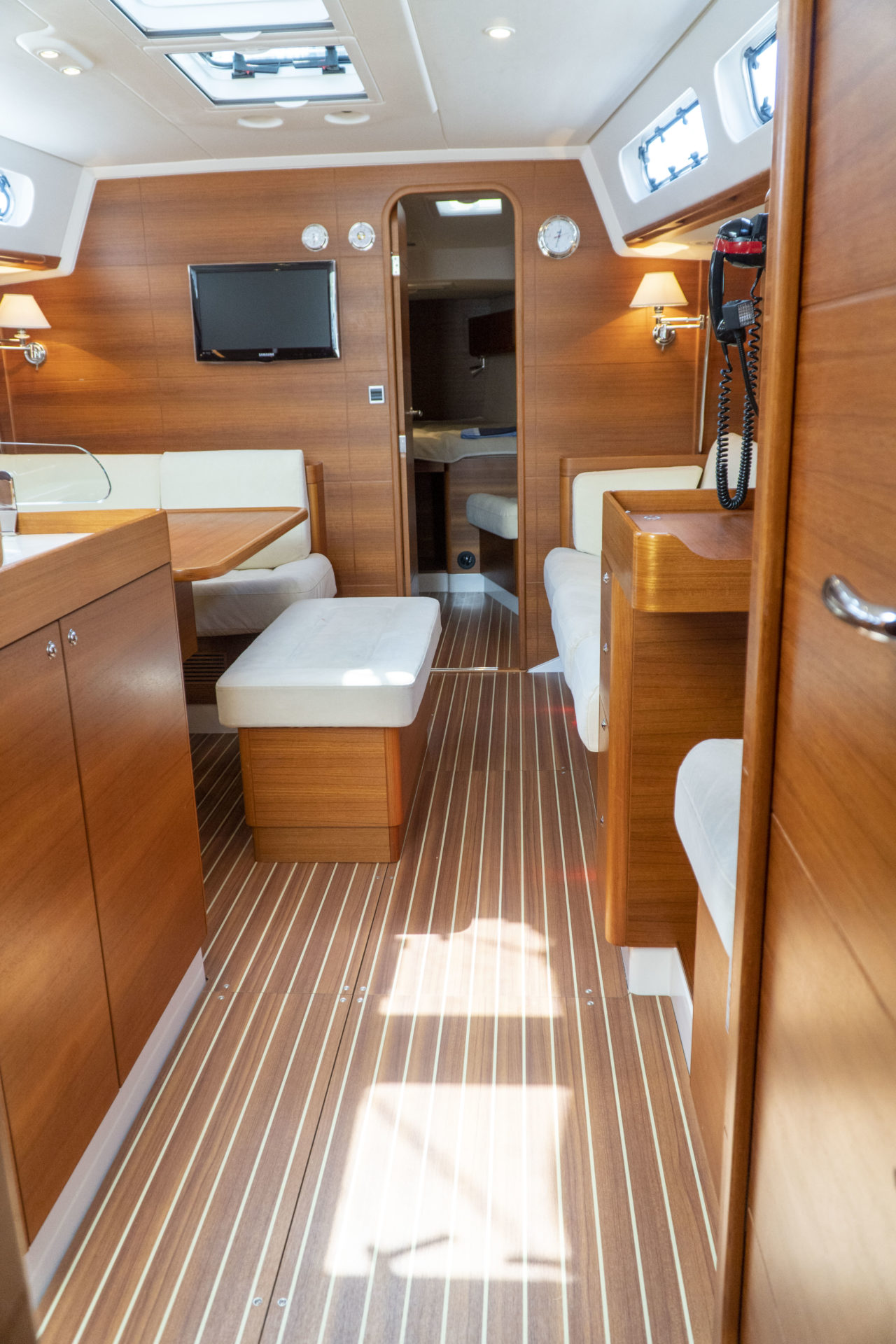

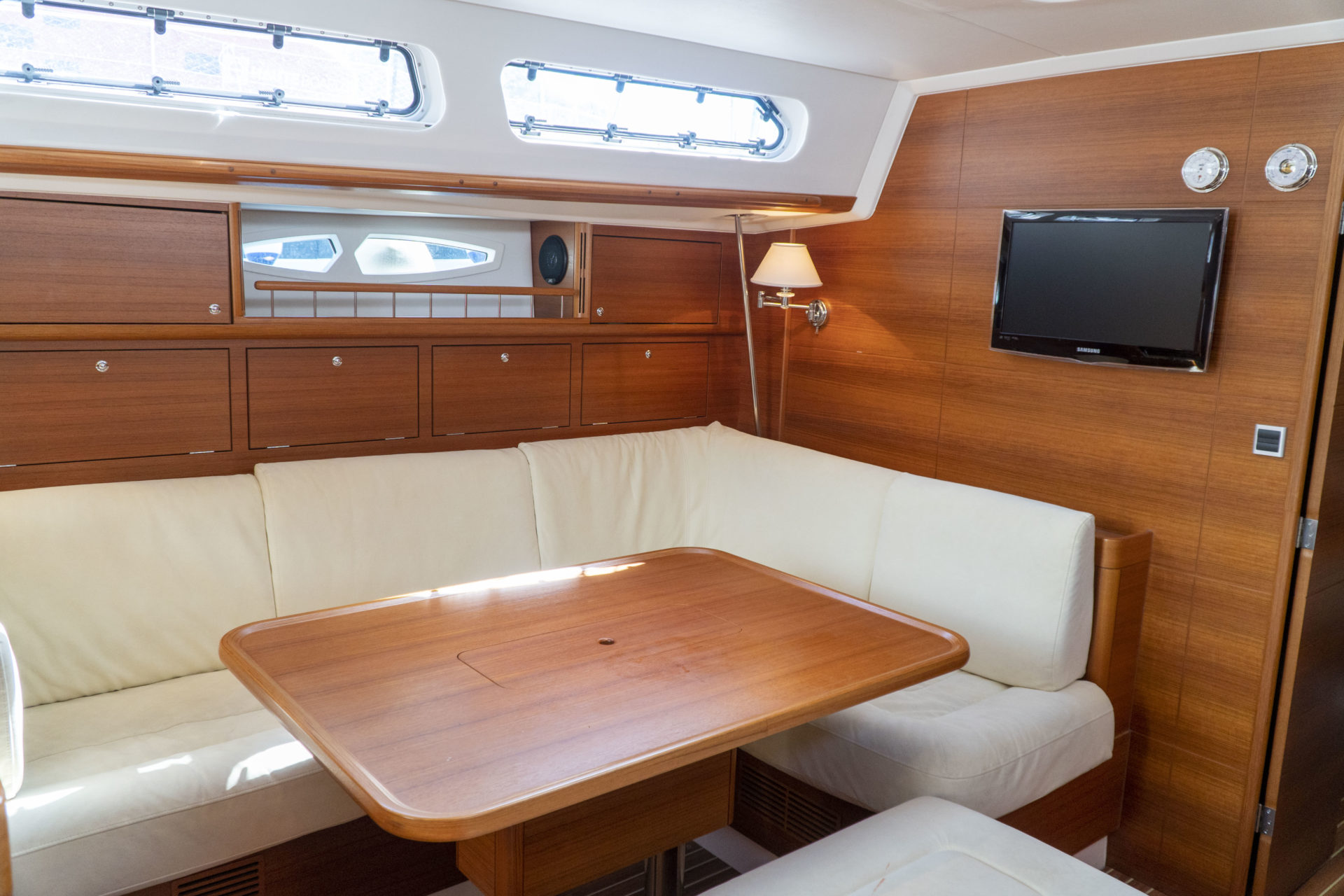

Accommodation

• 3 cabins layout, 2 bathrooms
• • Top grade teak , varnished and hand polished satin finish, Flushdeck hatches
• with Oceanair blinds incl flyscreen fitted to skylights, anti rollcanvas in all cabins.
• • Owner's cabin with large double berth 210 x 140 on portside with curved
• laminated battens, soffa on starboard
• • Owner’s bathroom with dedicated shower compartment with Plexi glass
• door.Marine toilets with holding tank

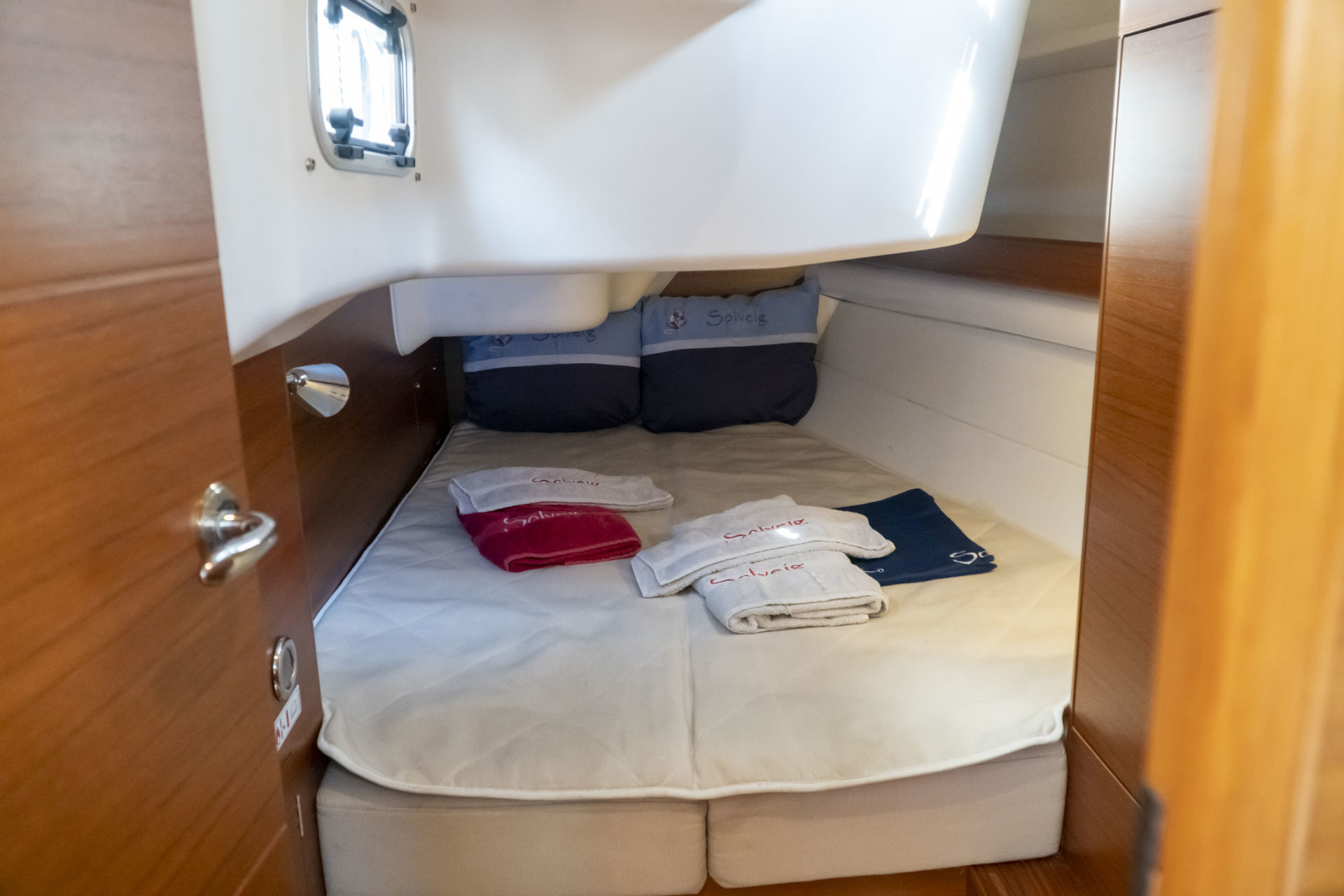

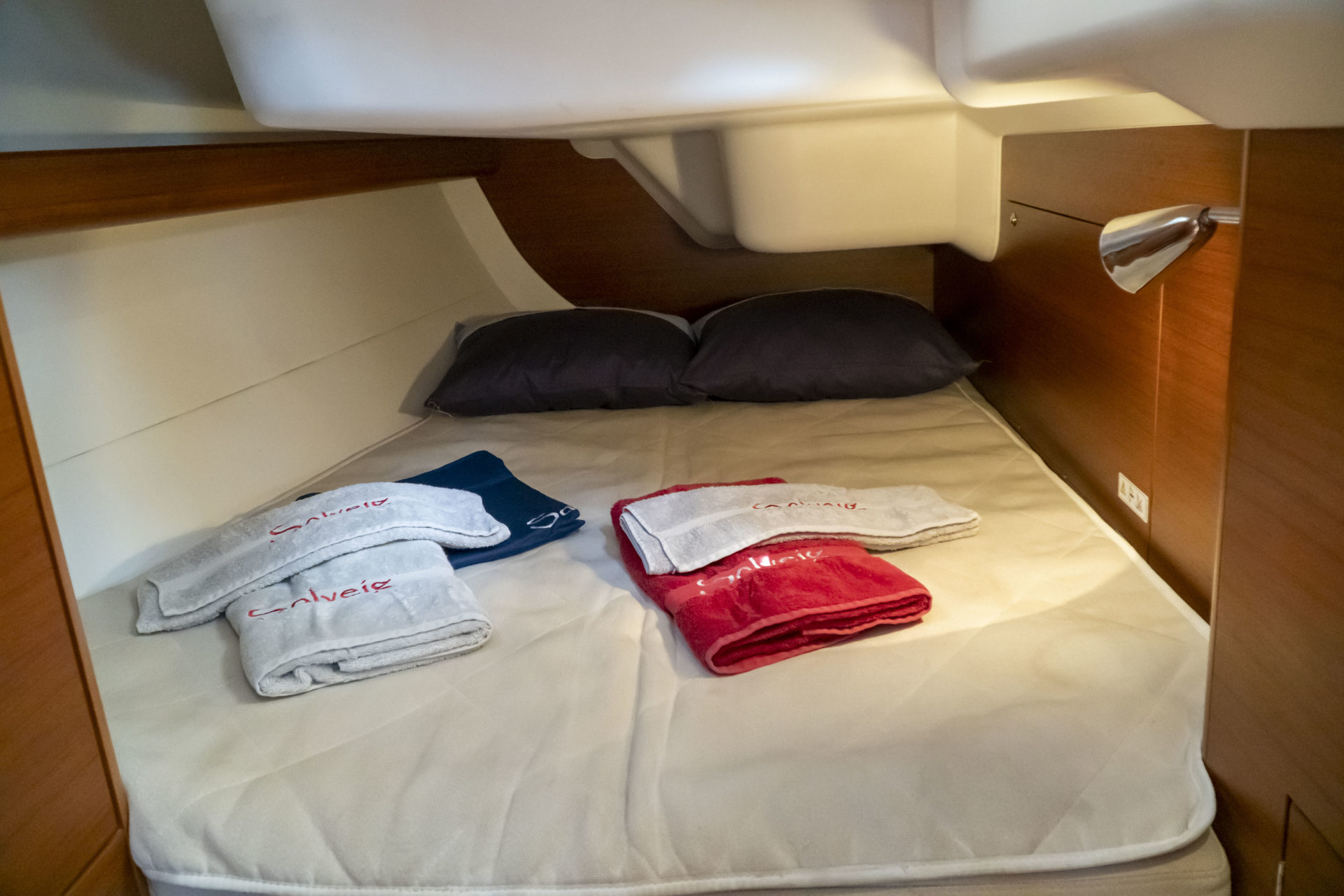

• • Large double berths in aft cabins
• • • Aft bathroom with shower, marine toilettes with holding tank Showers with
• electric drainage pump

Systems

Engine

• • Main engine - VOLVO D2 75 HP. annual maintenance
• • 1x Alternator 12V 115 Amp
• FLEXOFOLD 3 blades folding propeller
• • Fuel tank 250 L
• • Retractable bowthruster MAXPOWER Compac Retract 24 V

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank total 520 litres
• • Hot water tank Isotherm 30 l. Tank can be heated either by main engine or
• immersion heater connected to shore power
• • Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• • Seawater tap with electrical pump fitted at galley
• • Deck shower fitted at bathing platform with hot/cold freshwater
• • Electric frodge cooled Danfoss compressor

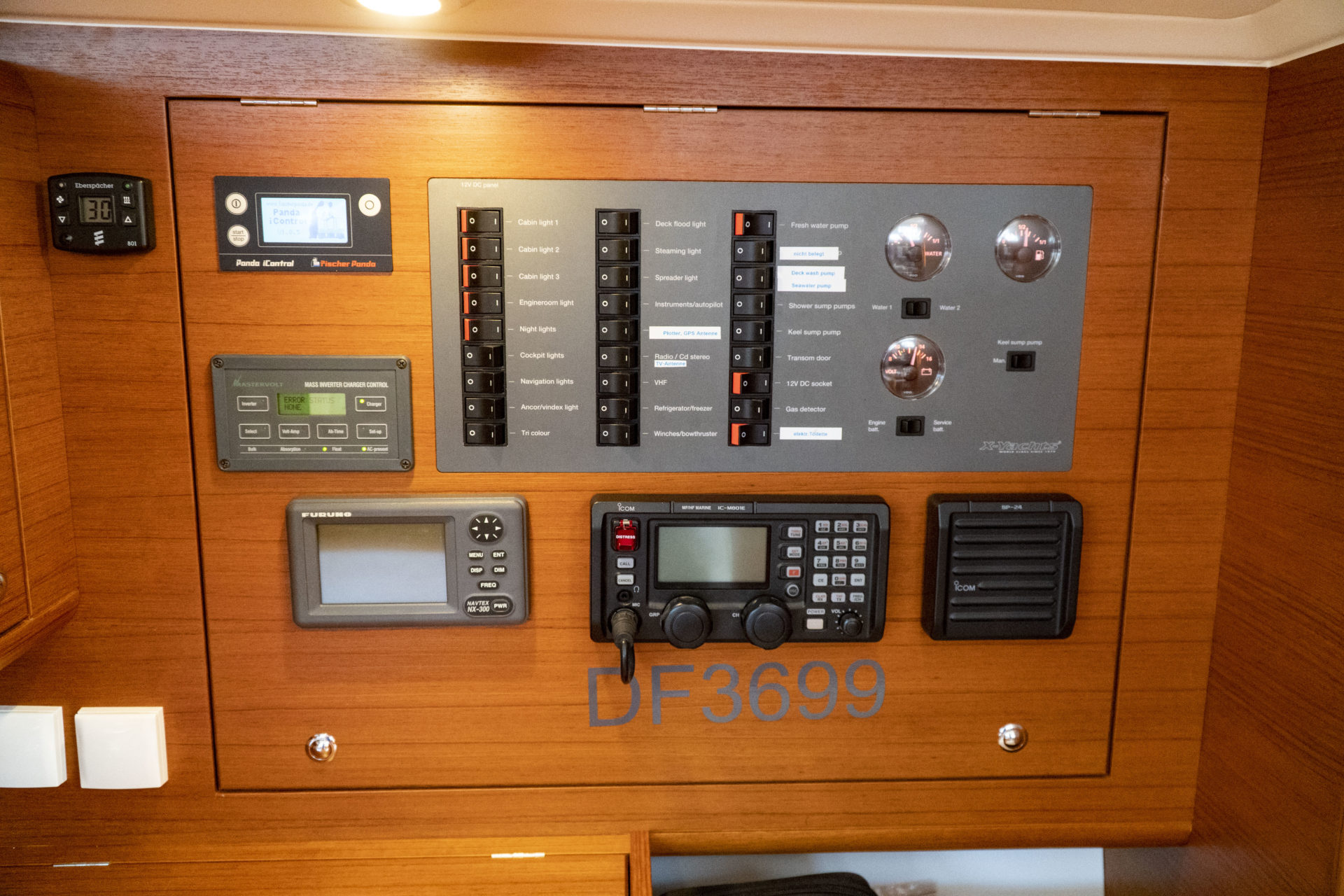

Electrical

• • 12 V installation for service Main switch and analogue VDO meters for fuel, water and battery voltage
• • AGM services batteries 520 Amp 2021
• • Separate engine spiral-cell battery (90 Ah, 12V)
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater and VICTRON battery charger 12 V/50A + inverter
• • Power Generator FISHER PANDA 4000i 4.0 KW (250h)
• Micro Wave
• 1 eelectrical toilett
• WEBASTO heater

Electronics

• RAYMARINE

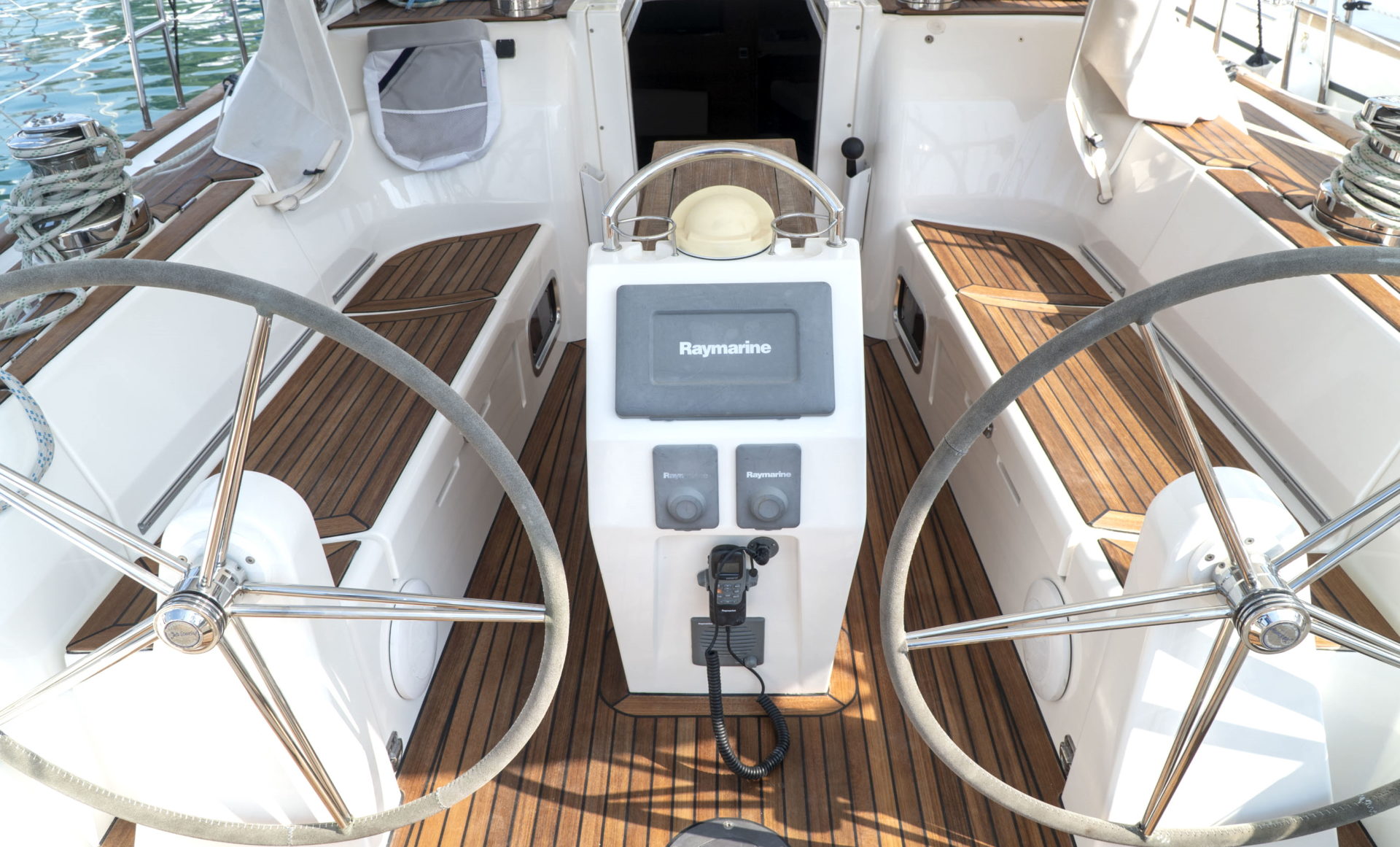

• • 3 x displays C 70 Graphic in the cockpit
• • 1 x C90 chart plotter at the chart table
• • 1 x C90 chart plotter in the cockpit
• • Auto pilot
• • E Barometer
• • FURUNO NAVTEX
• EPIRB
• VHF and Radio SSB
• •
