Details

Exterior Details

Hull

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Solid laminate in high stress areas around keel, rudder and through hull ttings
• • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
• waterlines in NGA Gelcoat (RAL 7011 dark grey)
• • Hull moulded in female moulds for highest quality surface nish
• • Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• from keel, mast and rigging
• • Prepared for single point hoist for easy and safe lifting and launching of yacht

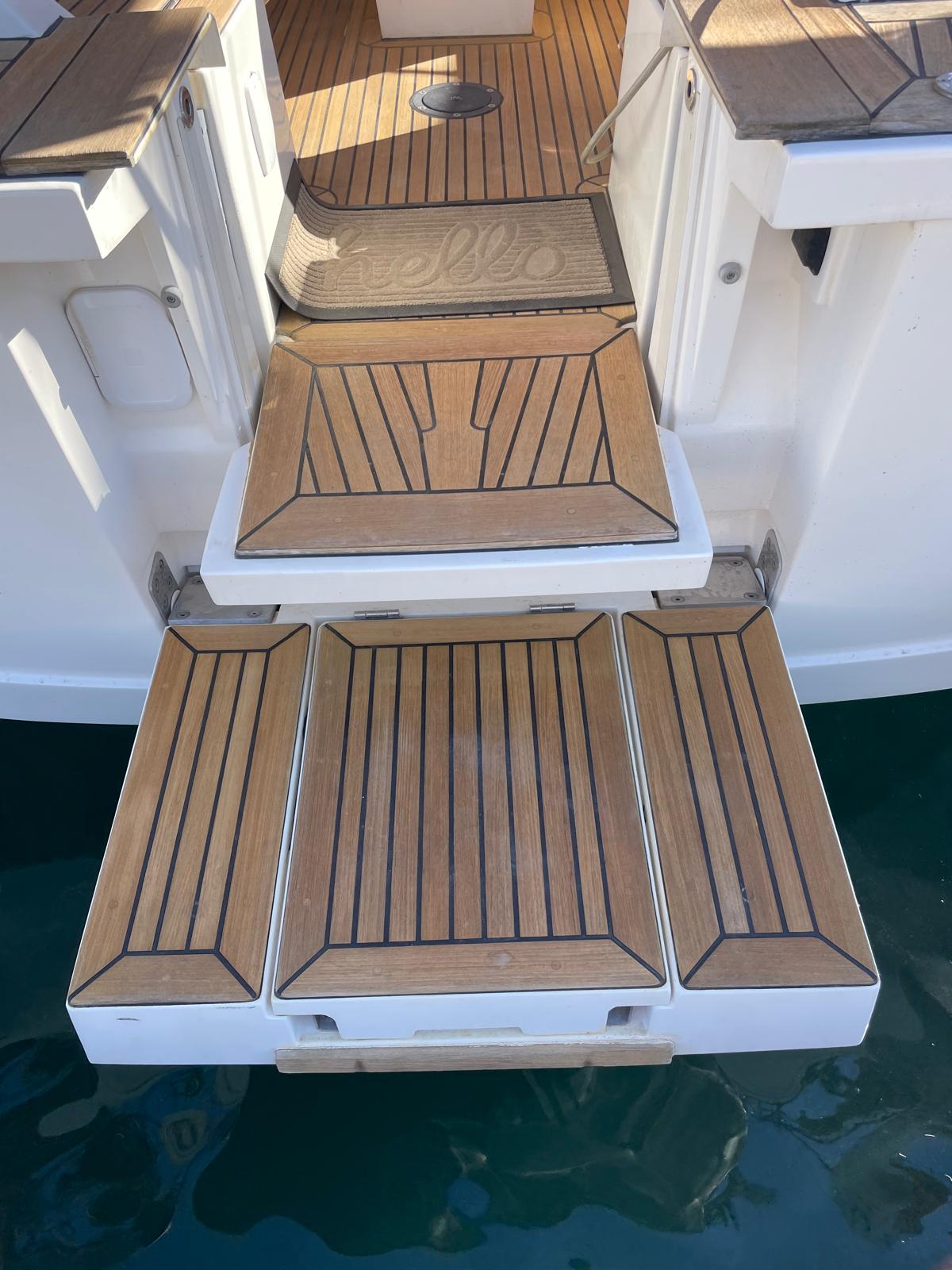

• • Bathing platform incorporated in transom port with electrical hoisting and
• lowering system
• • Bathing ladder in stainless steel mounted onto bathing platform
• • Continuous stainless steel rail protection mounted on sheerline
• • X-Yachts style hull recessed portlights (6 pc

Deck

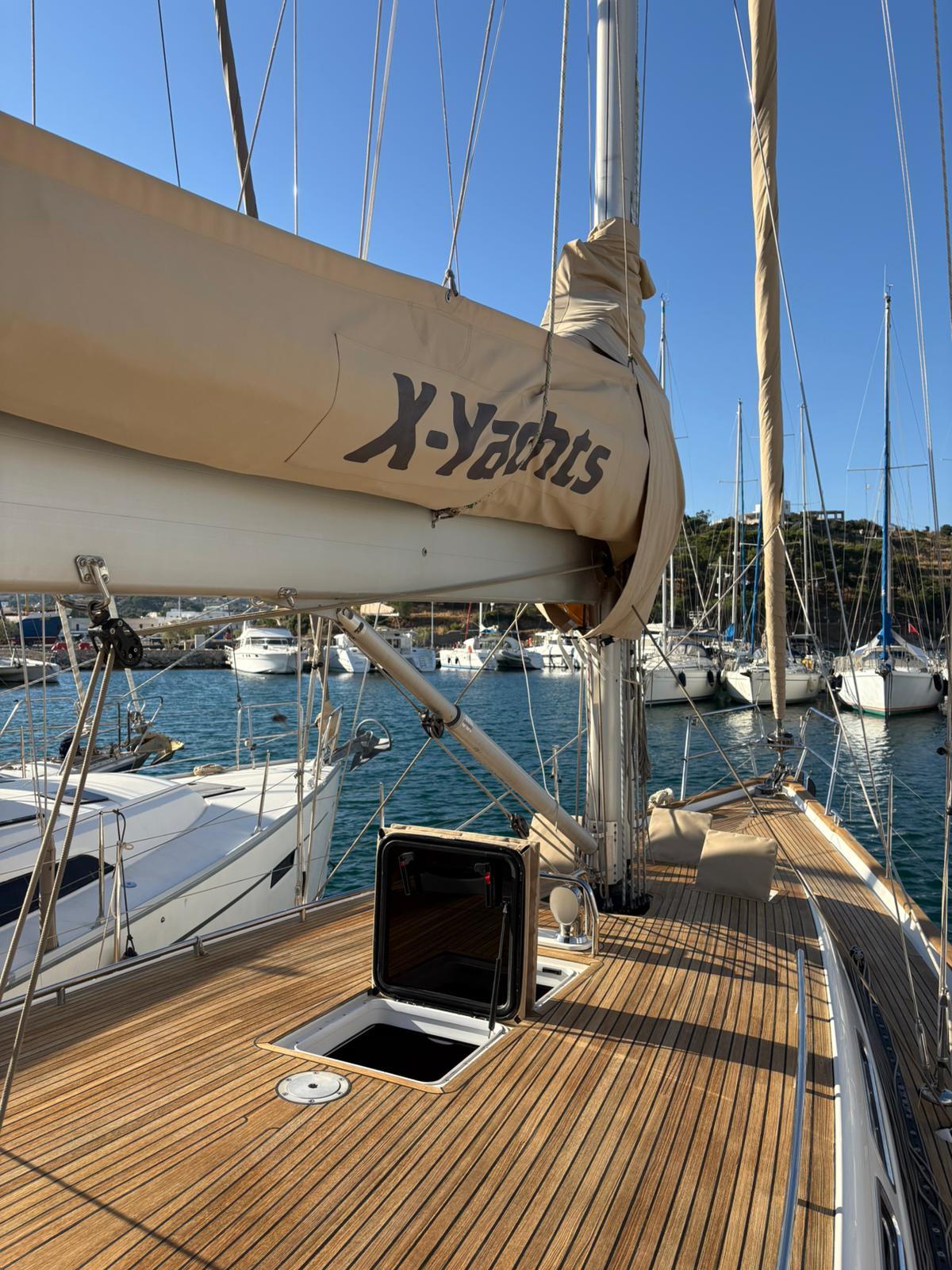

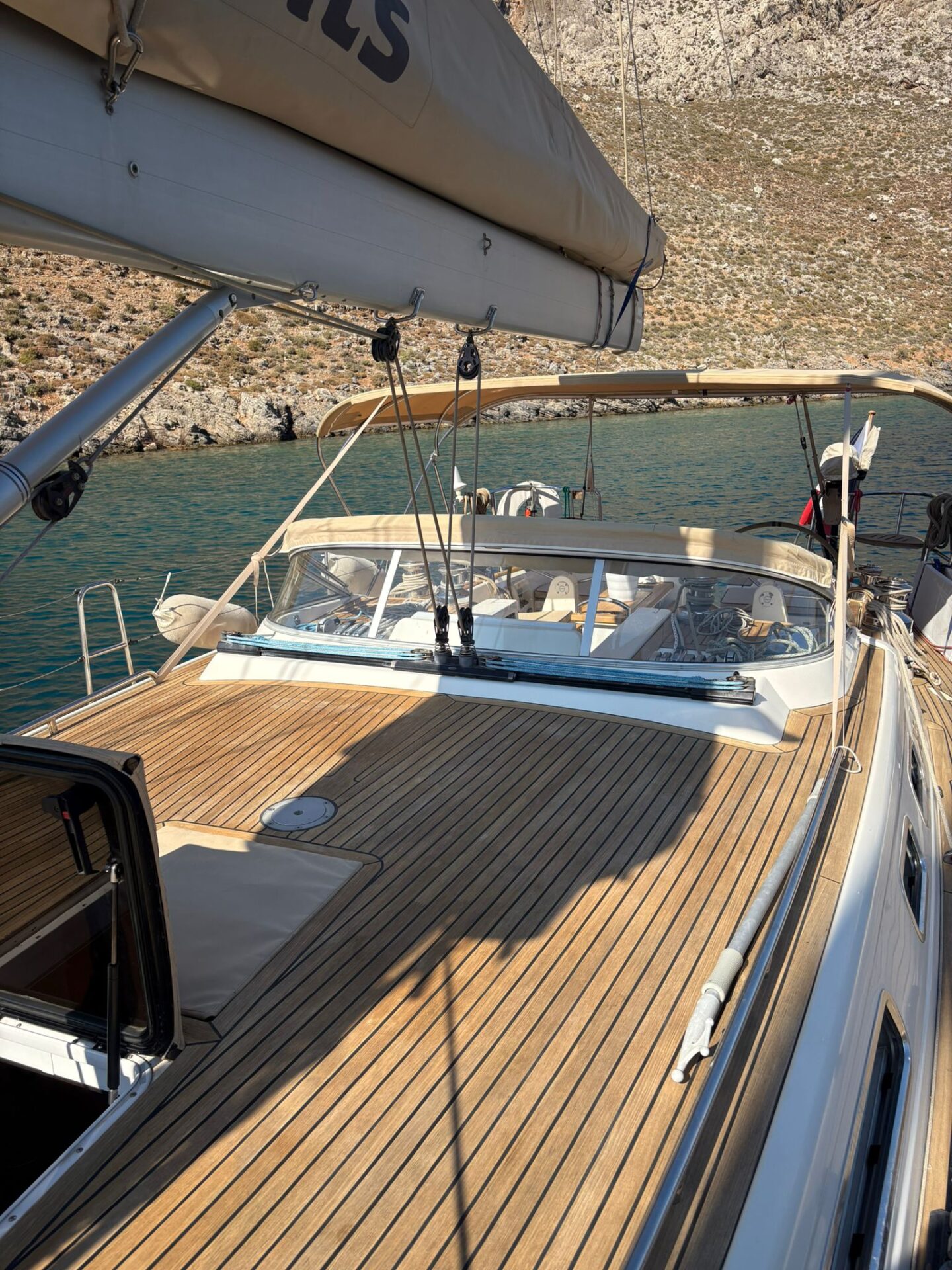

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• • Deck and locker lids moulded in female moulds for highest quality surface nish
• • Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• sole, seats and bathing platform
• • Bulwark with teak capping incorporated in deck/hull design

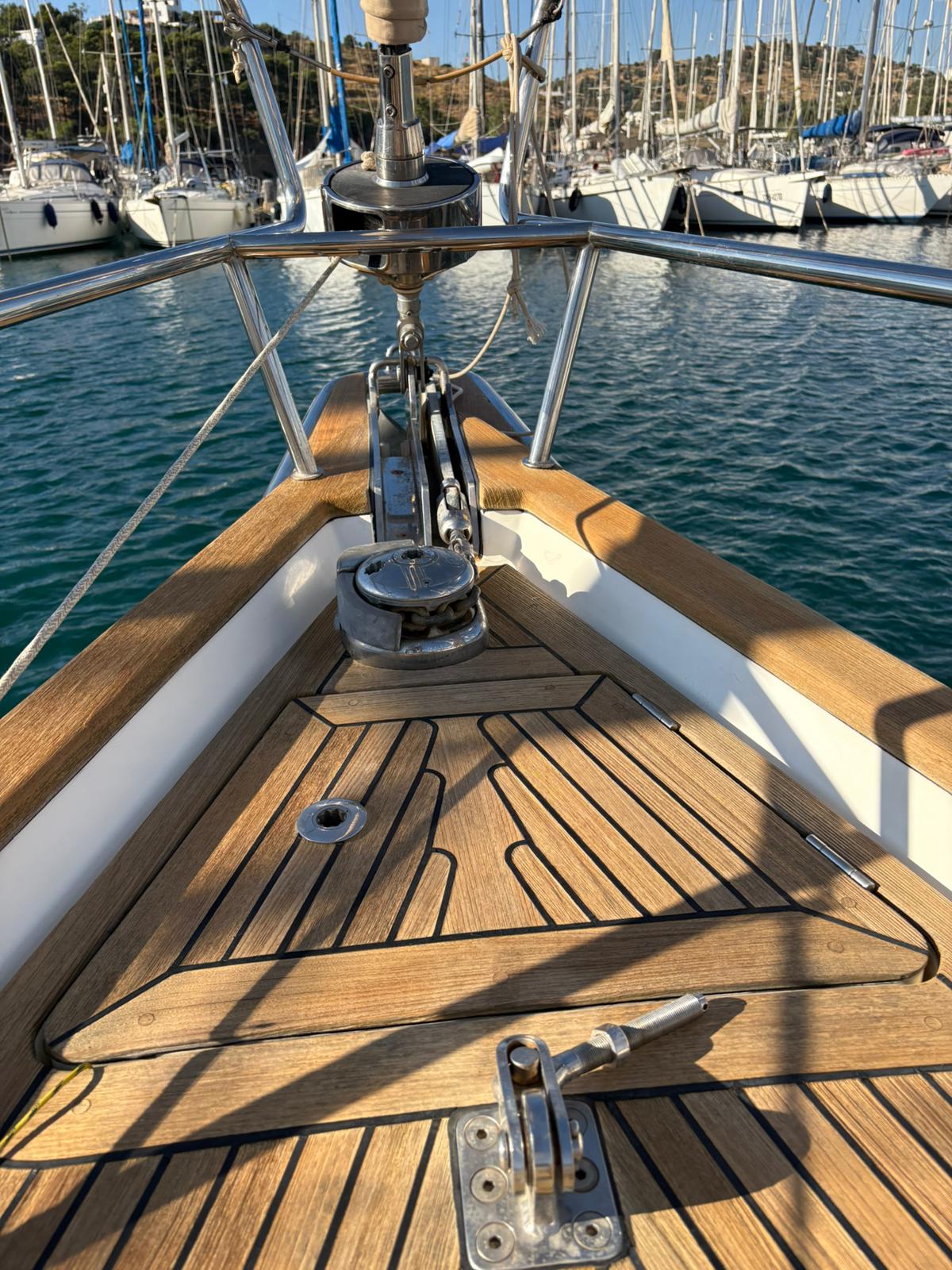

• • Anchor locker - Electric windlass with DELTA anchor
• • Space for a 6 man life raft in stb side transom locker
• • Gas springs tted to sail cabin, port & stb cockpit lockers and port aft cockpit
• locker hatch (4 pcs)

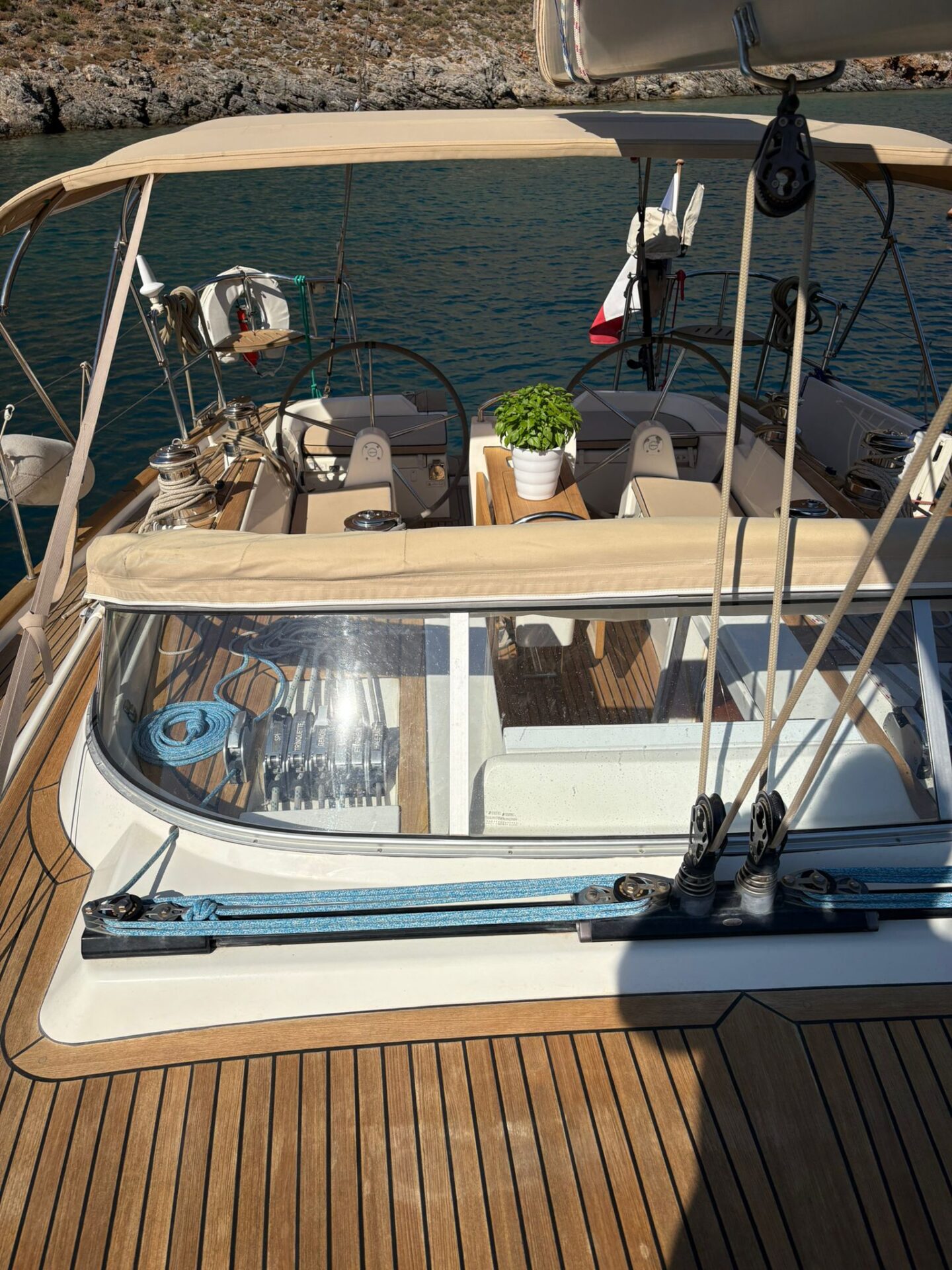

• • Halyard locker recessed into cockpit

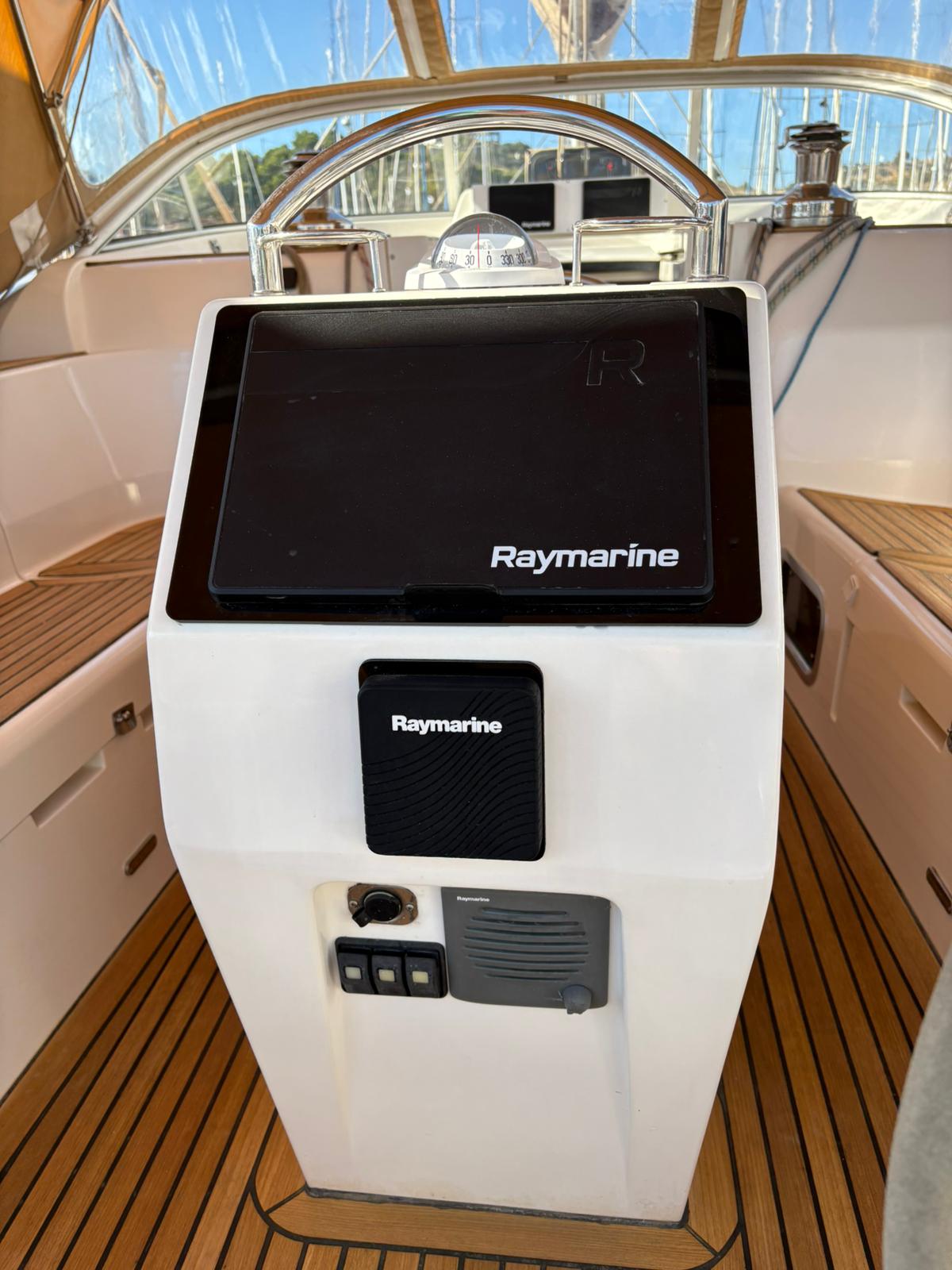

• • Cockpit table with space for navigationnel instruments and compa
• • Bimini2019

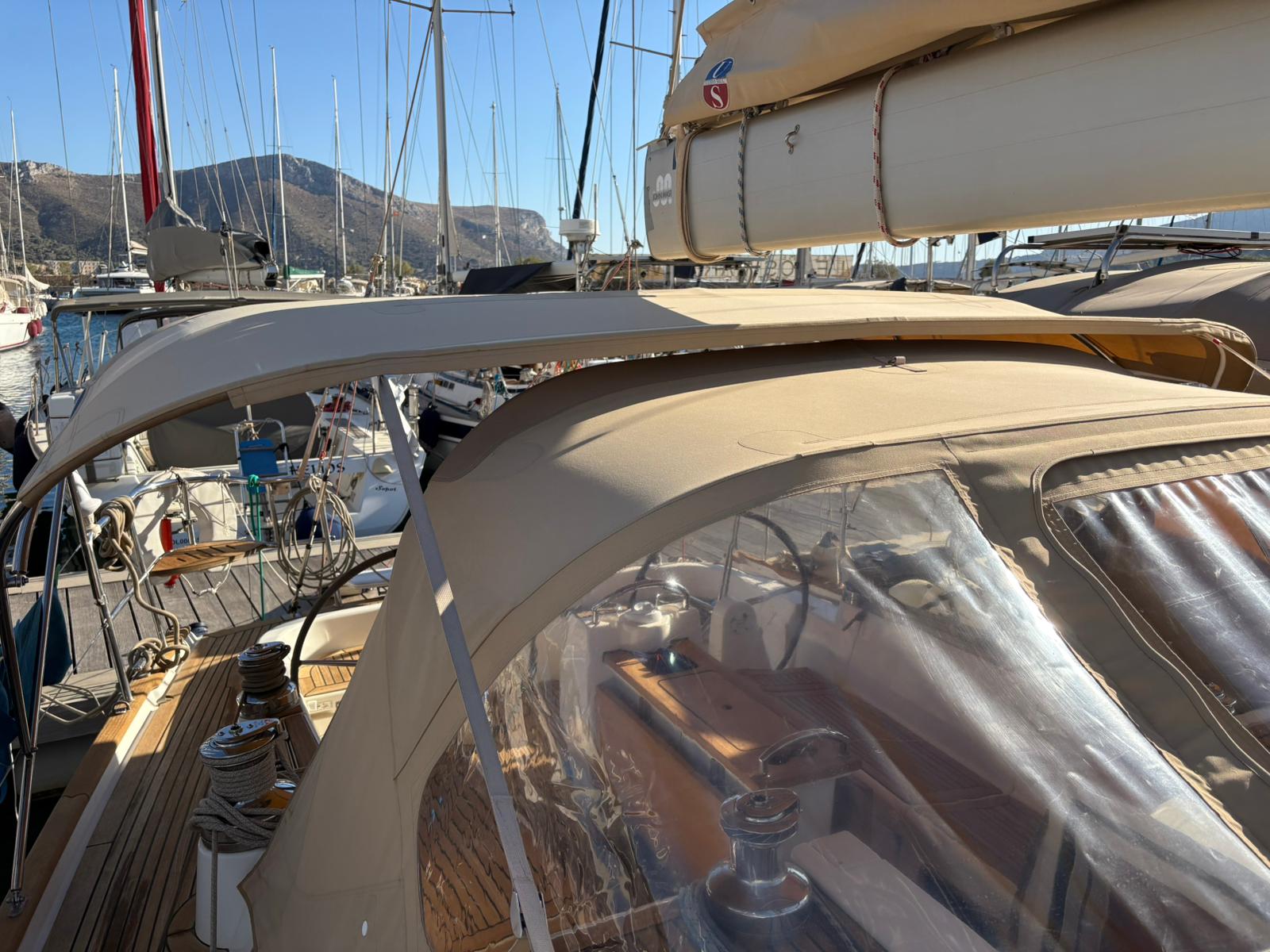

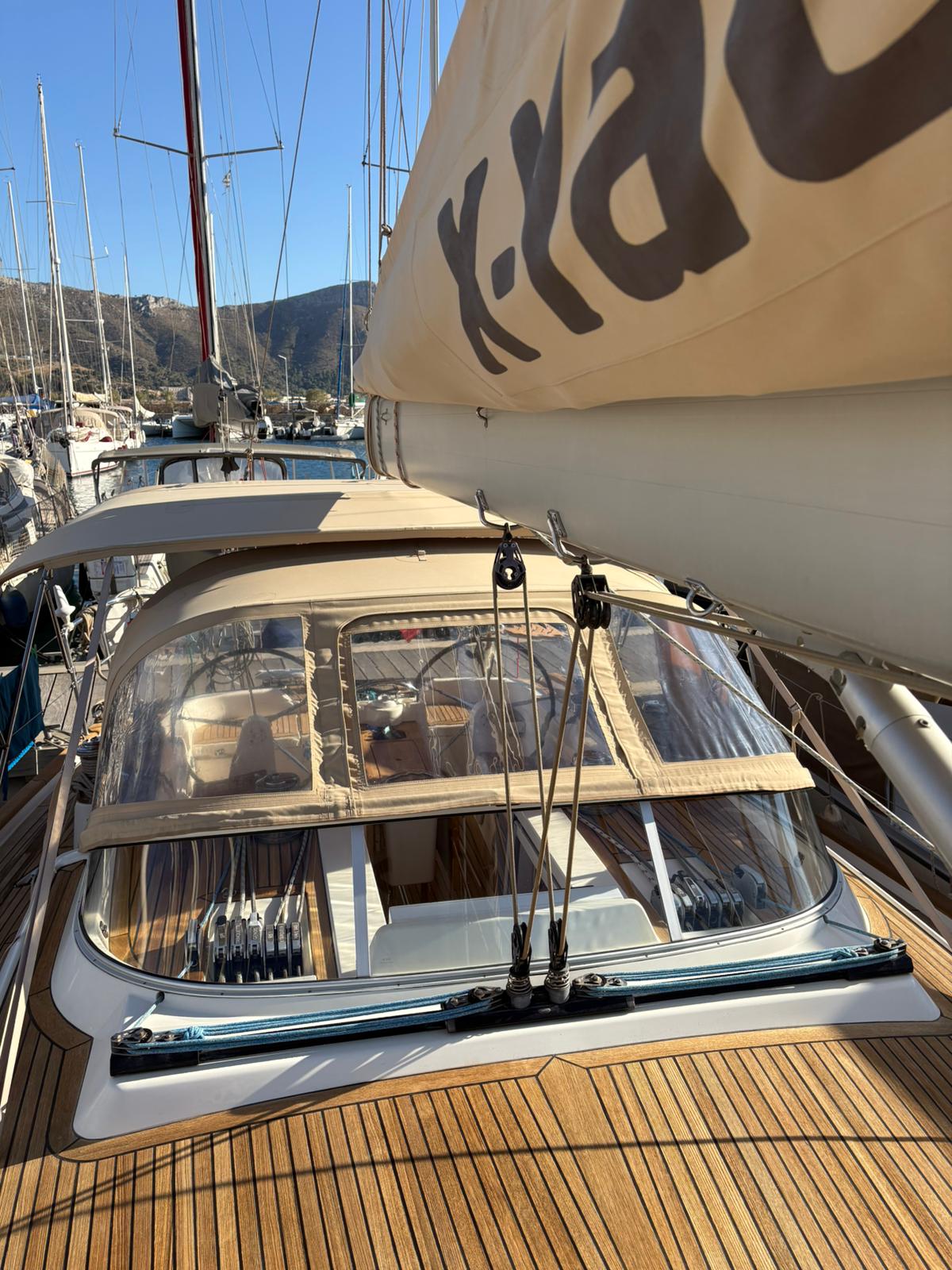

• • Sprayhood 2019

Sail Handling

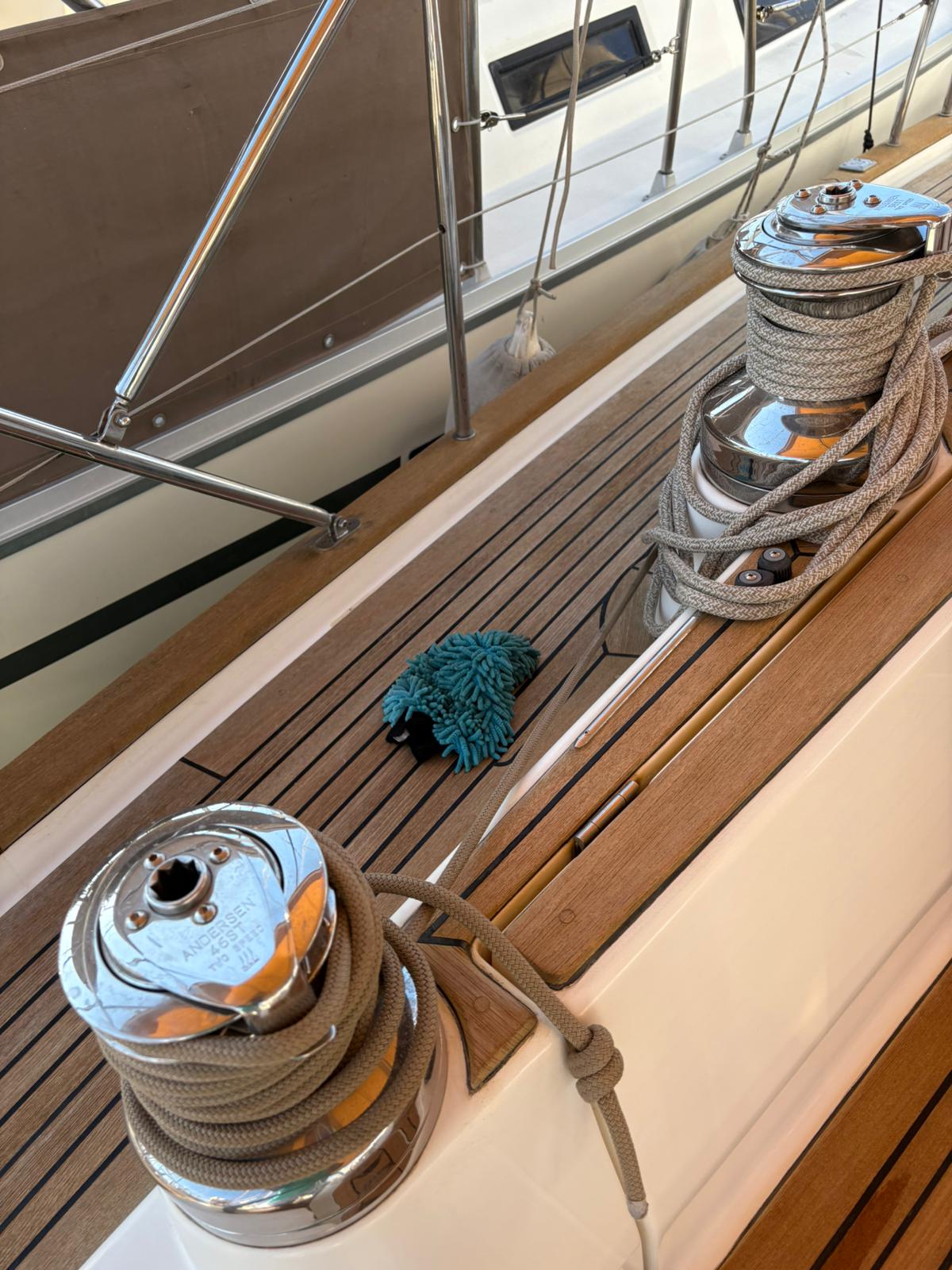

• Stainless Steel Andersen 58.2 primary winches
• • Stainless Steel Andersen 46.2 for Geman Mainsheet system
• • Stainless Steel Andersen 46.2 for halyards, including one electric
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Mainsail track in front of sprayhood
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware and rigging,stainless steel powsprit

Sails

• ULLMANN SAILS quiver including 2018
• Full batten mainsail DCX 9 semi full batten 3 reefs
• ANTAL travellers 2018
• Lazy bag
• Furling genoa 140 % DC with UV protection with PROFURL furler

Mast & Rigging

• JOHN MAST Fractional double spreader, tapered silver anodized aluminium mast
• stepped on steel frame, specially designed for Xc 42
• • Combined deck and steaming light, Windex with light, tube for additional
• electrical equipment and 2 mast steps tted
• • Silver anodized boom with single line reeng and internal boom outhaul with
• control on boom, telescopic vang and outer purchase block system
• • Split backstay tted with single Navtec 10 integral backstay adjuster on starboard
• side and turnbuckle on port
• •Tip cups in stainless steel tted to stainless steel tie rods (2 pcs)
• • Discontinuous rod rigging throughout with rod turnbuckles
• • Chain plates in stainless steel for forestay and split backstay (3 pcs)
• • PROFURL headsail furler
• • Innerstay deck fitting
• • Running Rigging with Spectta halyards

Keel

• Standard Keel

Systems

Engine

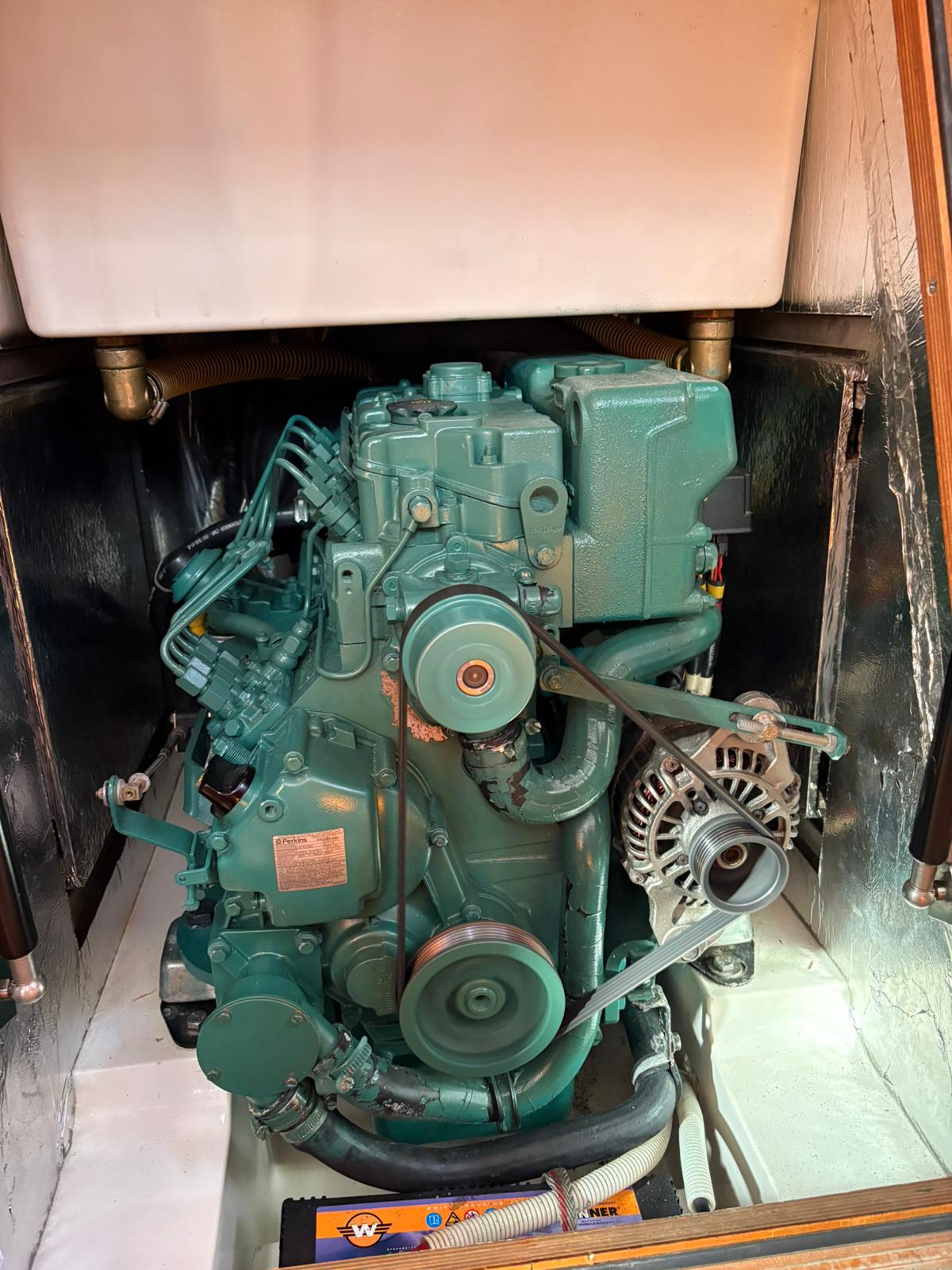

• • Main engine - VOLVO D2 75 HP. annual maintenance
• • 1x Alternator 12V 115 Amp
• FLEXOFOLD 3 blades folding propeller
• • Fuel tank 250 L
• • Retractable bowthruster MAXPOWER Compac Retract

Plumbing

• Seacocks and through hull ttings are bronze ball and ush mounted
• • Fresh water stainless steel tank total 520 litres
• • Hot water tank Isotherm 30 l. Tank can be heated either by main engine or
• immersion heater connected to shore power

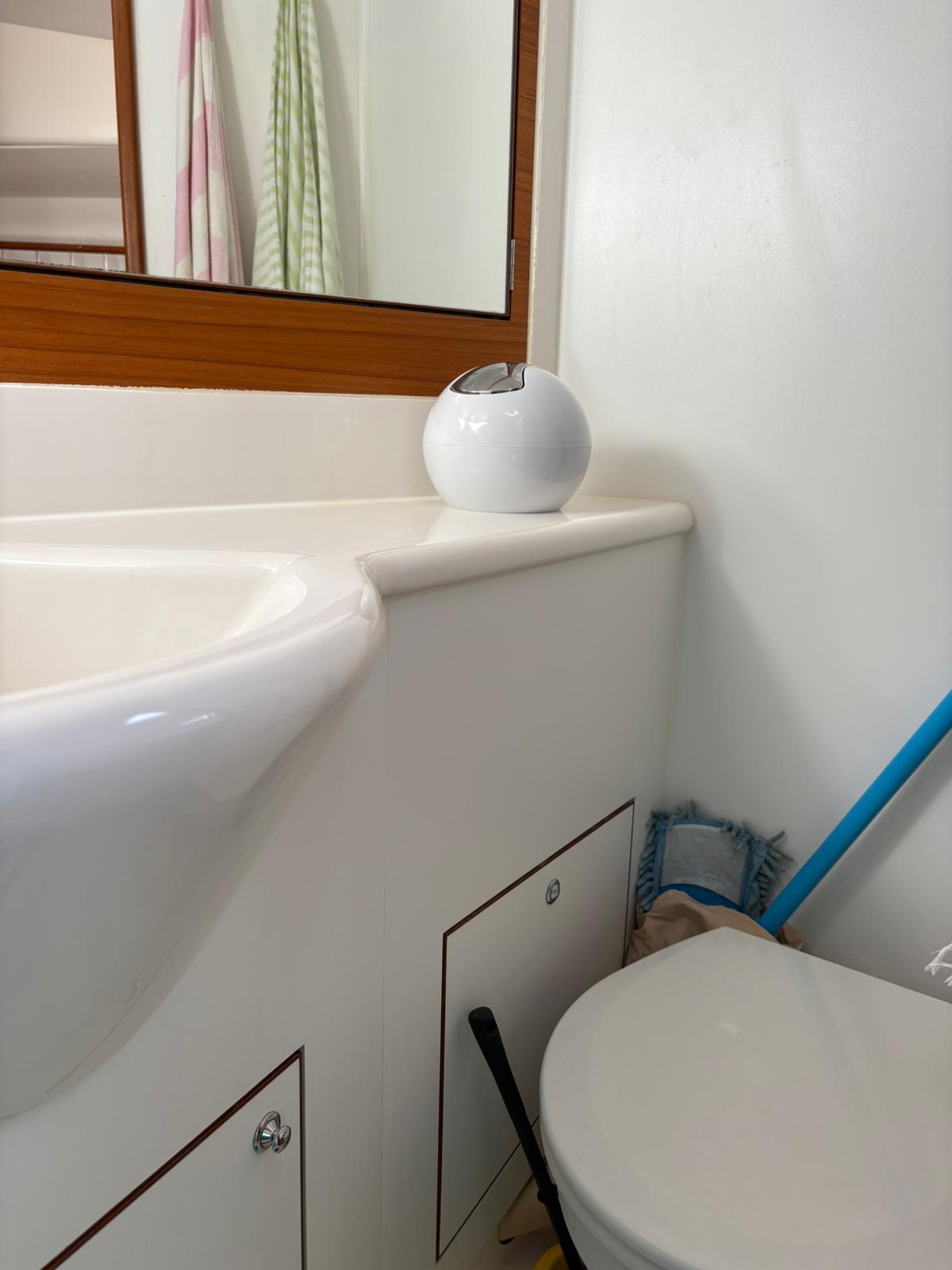

• • Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• • Seawater tap with electrical pump tted at galley
• • Deck shower tted at bathing platform with hot/cold freshwater
• • Electric fridge cooled Danfoss compresso
• • DESSALATOR watermaker (need service)

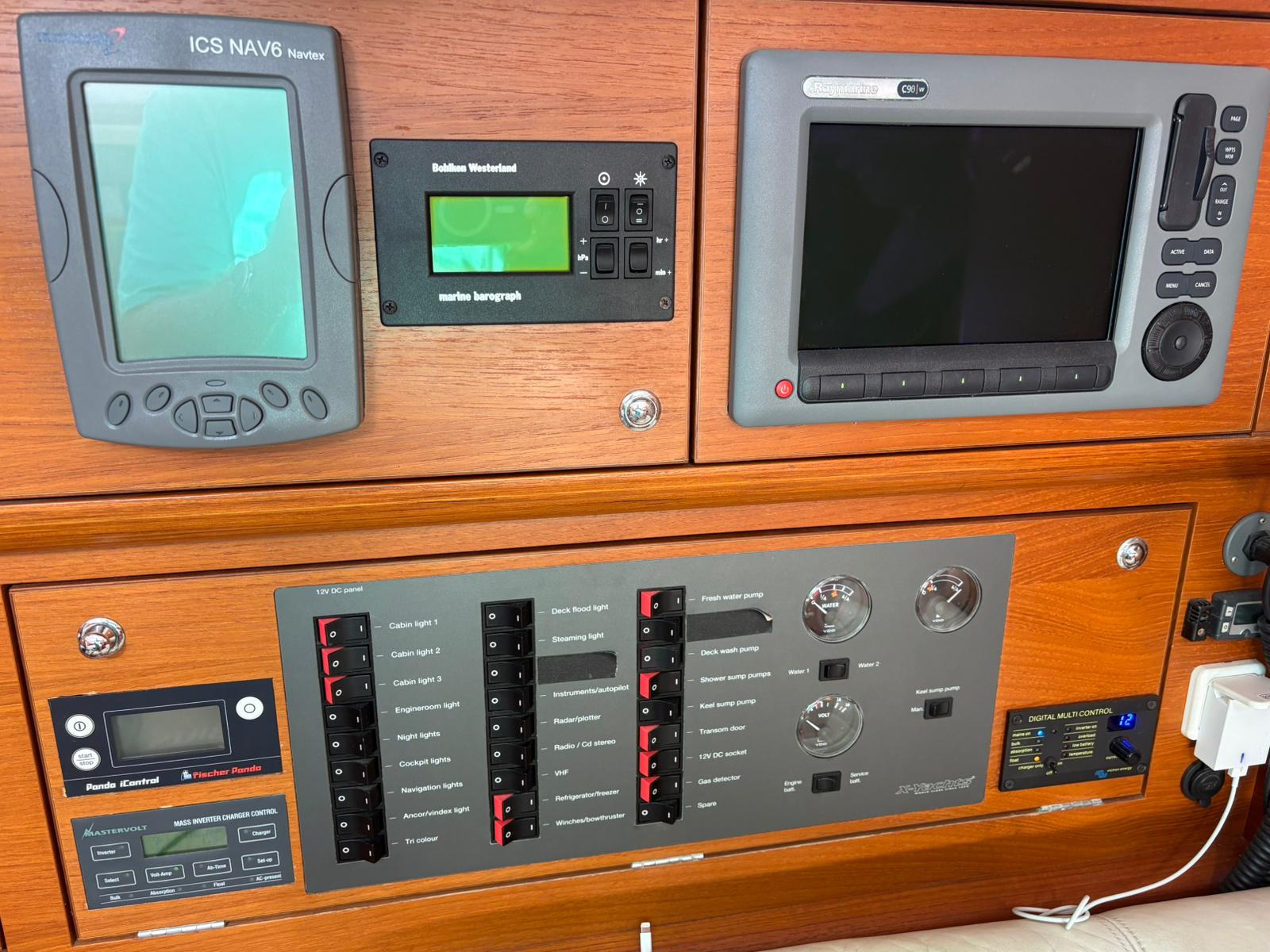

Electrical

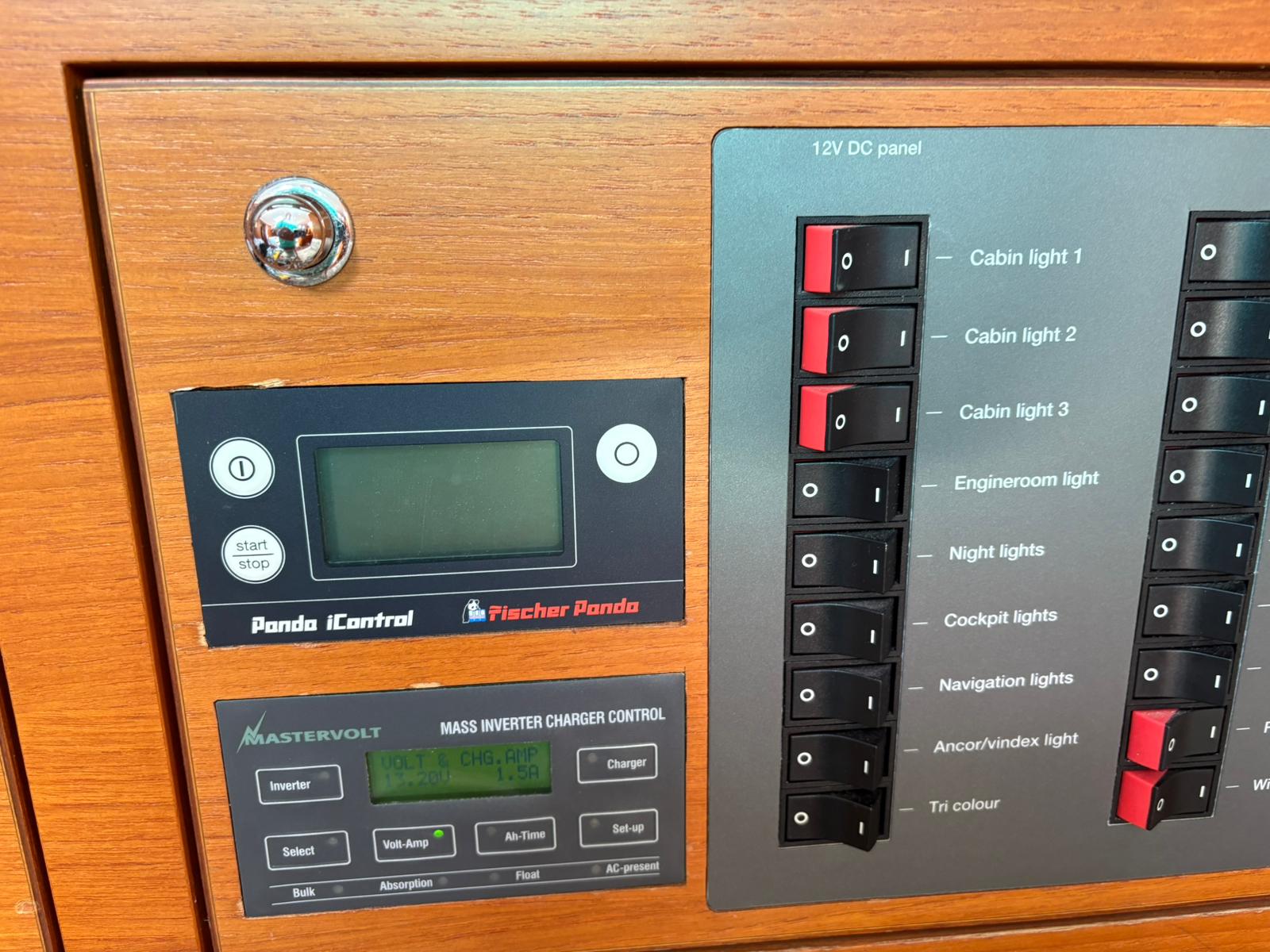

• • 12 V installation for service Main switch and analogue VDO meters for fuel, water and battery voltage
• • AGM services batteries VICTRON
• • Separate engine spiral-cell battery (90 Ah, 12V)
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater and VICTRON battery charger 12 V/50A

Electronics

• RAYMARINE
• • 2 x AXIOM 7 Multifonction display on the coach roof
• • 1 x 12 Multifonction in the cockpit

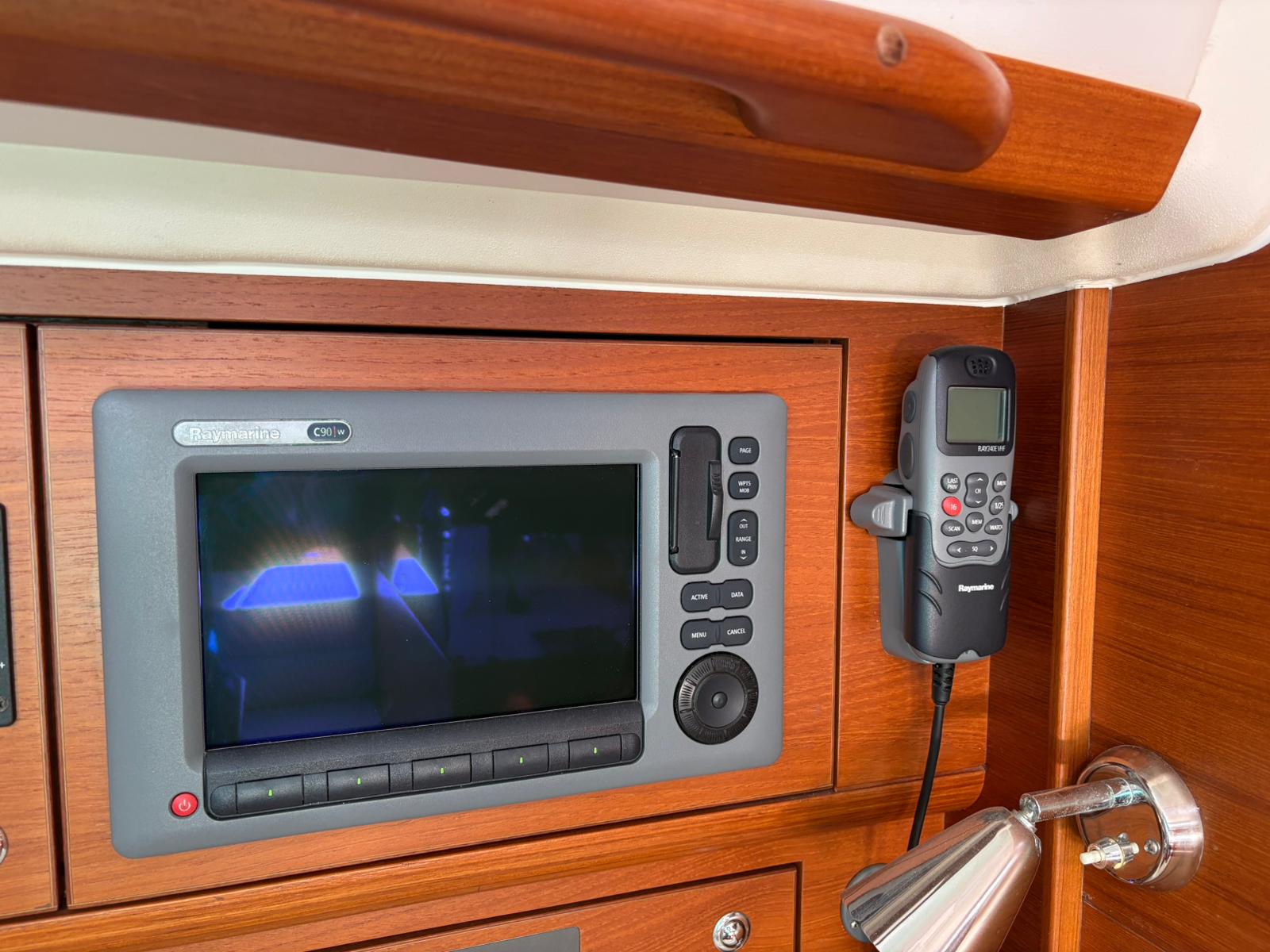

• • 1 x C90 chart plott
• • Auto pilot with P70S autocontrol
• • RAYCHART at the chart table
• • VHF RAYMARINE
