IMX 70

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: IMX 70
  • Build Year: 2005
  • Lying: Mallorca, Spain
  • Price: €1,299,000 (VAT Paid)
  • Dealer: X-Yachts Spain
  • Contact: Rodrigo Sanz
  • Phone: +34 649339604
  • Email:
IMX 70


This IMX-70 is a magnificent custom-built sailing yacht that has taken luxury and performance cruising to a whole new level. This impressive and powerful X-Yacht with four cabins and 4 head compartments represents the best in modern design and technology. Her interior is as elegant and beautiful as her exterior, with the finest teak veneers.

Standard Specification

DesignerX-Yachts Design Team
Hull Length21.40 m70'3"
Waterline Length18.63 m61'1"
Beam (max)5.37 m17'7"
Draft4.00 m13'1"
Ballast - Std10,300 kg22,708 lbs
Displacement - Light28.0 tonnes30.9 tons
Engine Power117 kW159 hp

Standard IMX 70 brochure


Exterior Details


  • Carbon Hull and deck construction with carbon composite bulkheads and keel floor structures


  • Teak laid deck
  • Teak laid cockpit
  • Fold down bathing platform
  • Timeless, elegant, clean and uncluttered deck with every feasible sailing control within reach of the helmsman
  • Transom garage to accommodate a dinghy and other equipment
  • Foldable cockpit table
  • Cockpit cushions
  • Bathing ladder

Sail Handling

  • Winches serviced every year
  • Vang Cylinder refitted in 2023
  • Backstay Cylinder refitted in 2022
  • Deck recessed mooring winch with foot controls


  • In boom furling main sail, 148m2
  • 110% Furling Jib, 124 m2
  • Gennaker, 350 m2
  • Code One, furling, 190 m2
  • I 28,65 m
  • J 7,9 m
  • P 28,10 m
  • E 9,2 m
  • Genoa sheets run below deck

Mast & Rigging

  • Hall Spars Carbon Mast
  • Carbon fibre furling boom
  • Mast re-stepped in 2022

Hatches / Portlights / Ventilation / Sprayhood

  • Deck recessed sprayhood dodger resting underneath teak decked carbon lids
  • Recessed cockpit speakers and port lights
  • Laminated and tinted hard glass port lights
  • Carbon flush deck hatches with stainless steel gas struts and locking devices
  • Forced ventilation in all cabins and toilets

Guard rail / Anchor / Stainless Steel Fittings

  • Anchor launch system that makes it easier to anchor
  • The yacht´s anchor is held in a deck recessed arm made of carbon. The arm is hinged and is brought forward by a hydraulic engine built into the bow
  • Carbon chain plates

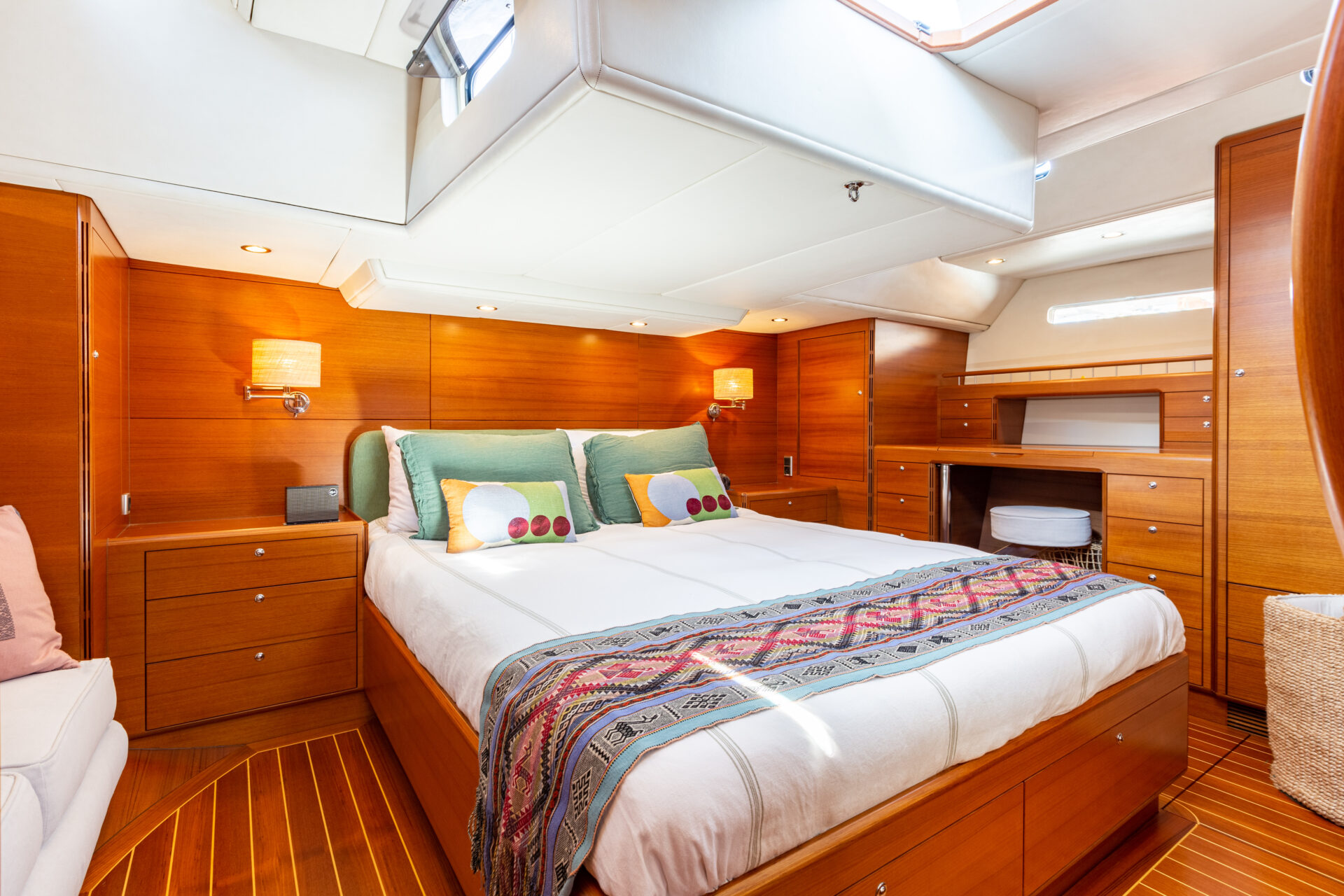

Owner´s Cabin

  • The very spacious owner´s cabin aft has a central large king size bed
  • Beauty table
  • Plenty of natural and artificial light
  • Ample wardrobes and drawers

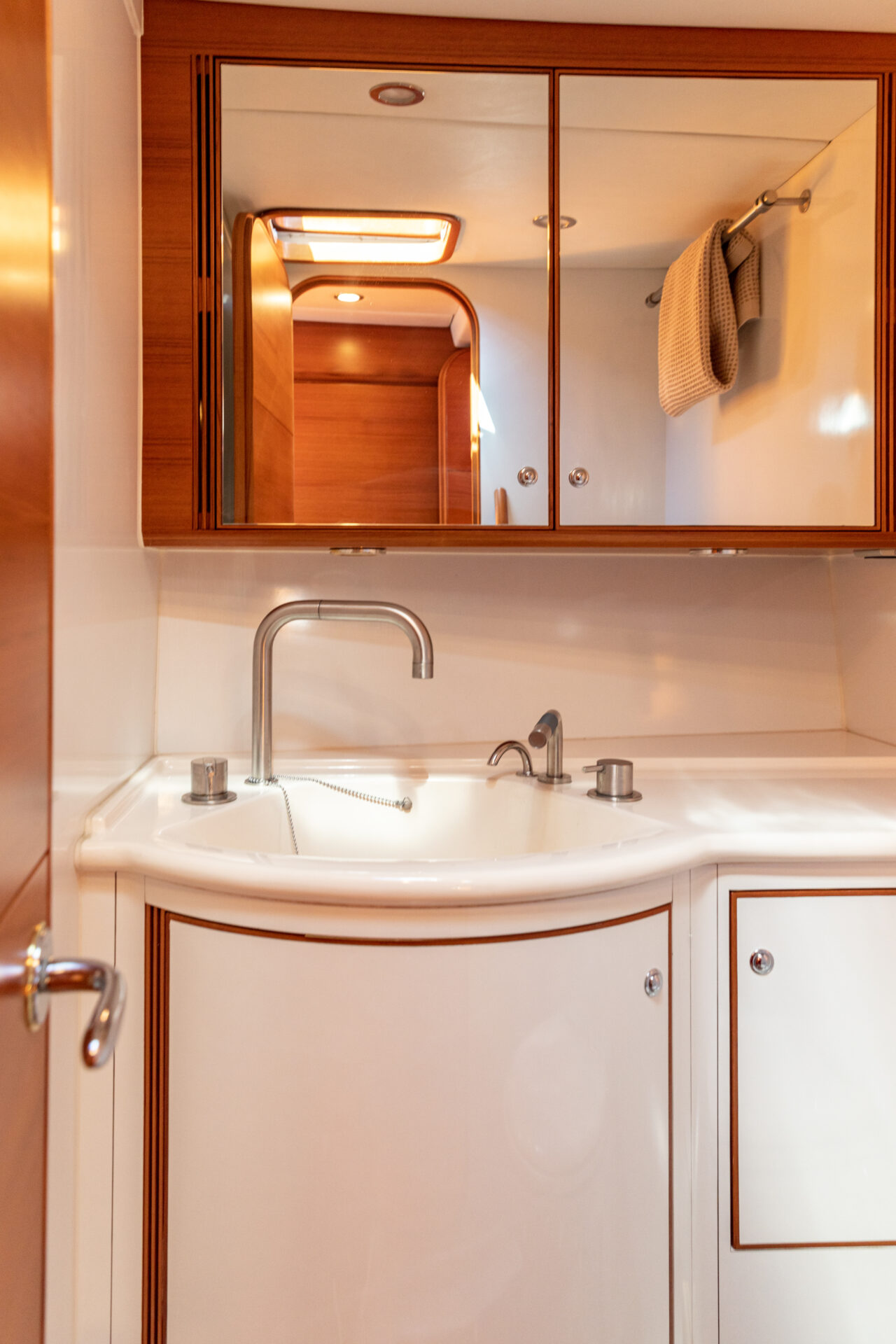

  • En-suite head with shower

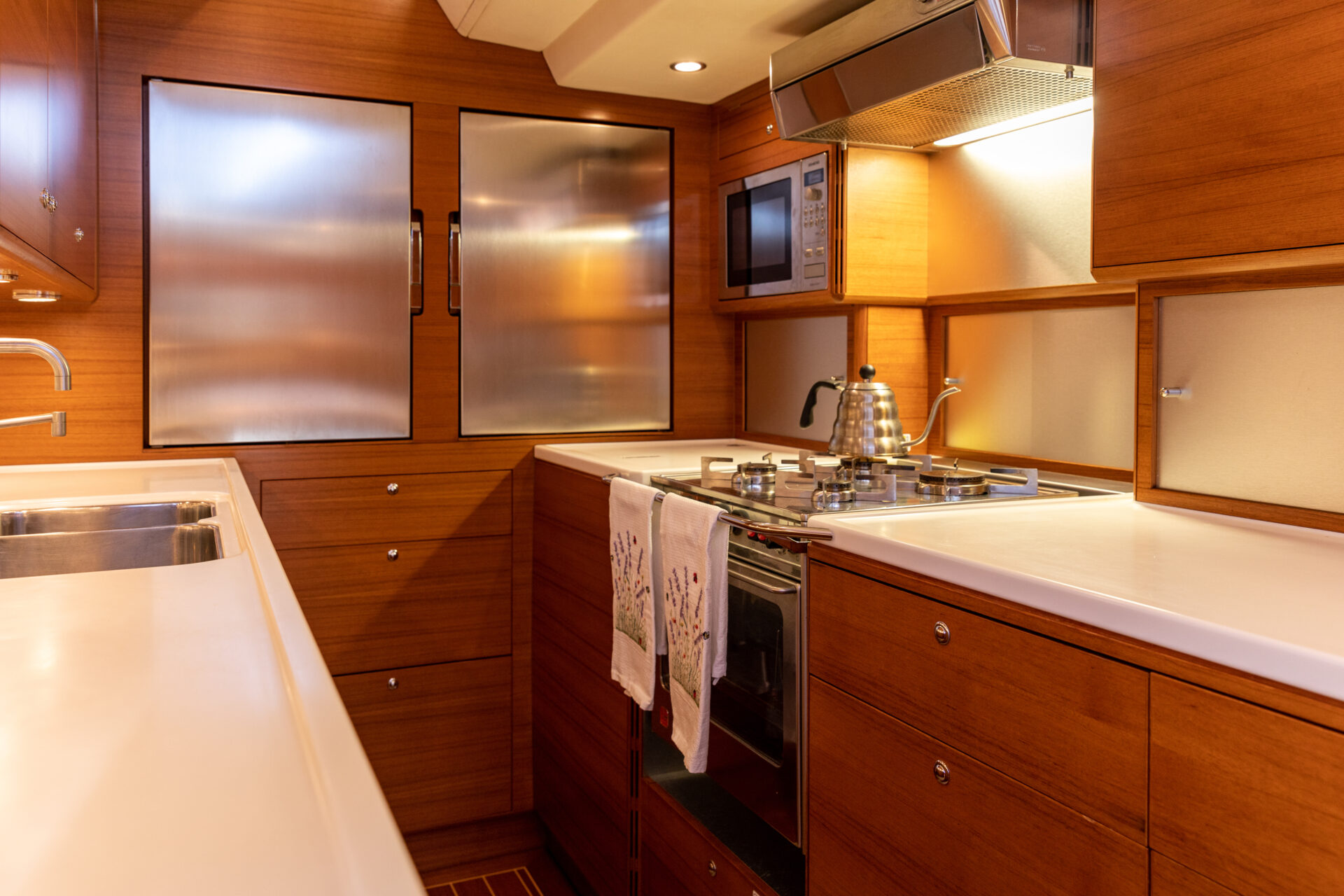

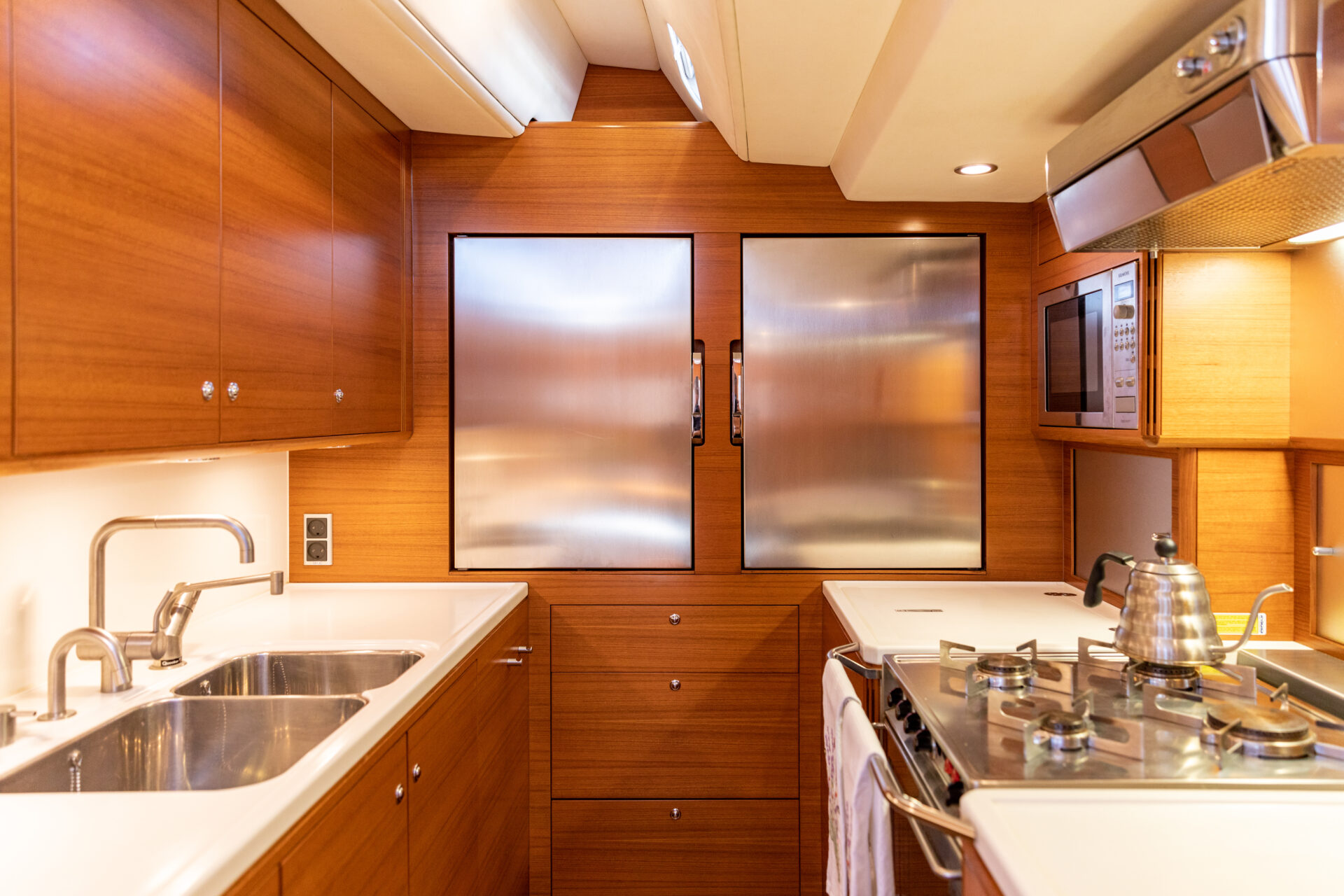

  • Galley with solid Corian work top
  • Luxurious faucets
  • 4 burner gas stove and oven
  • Microwave oven
  • A built-in 225 litre top opening freezer
  • 120 litre front opening Firigonautica fridge
  • Extractor fan



  • Yanmar 4LHA-HTP 160HP at rpm (new in 2017)
  • 306 engine hours
  • Cruising speed approx.. 8 to 9 knots
  • Maximum speed approx. 10 to 11 knots at 3300 rpm without the over speed (limited at 2000 rpm)
  • Hurth HSW 450 A2 gearbox with Aquadrive coupling
  • Gori folding 3-blade propeller

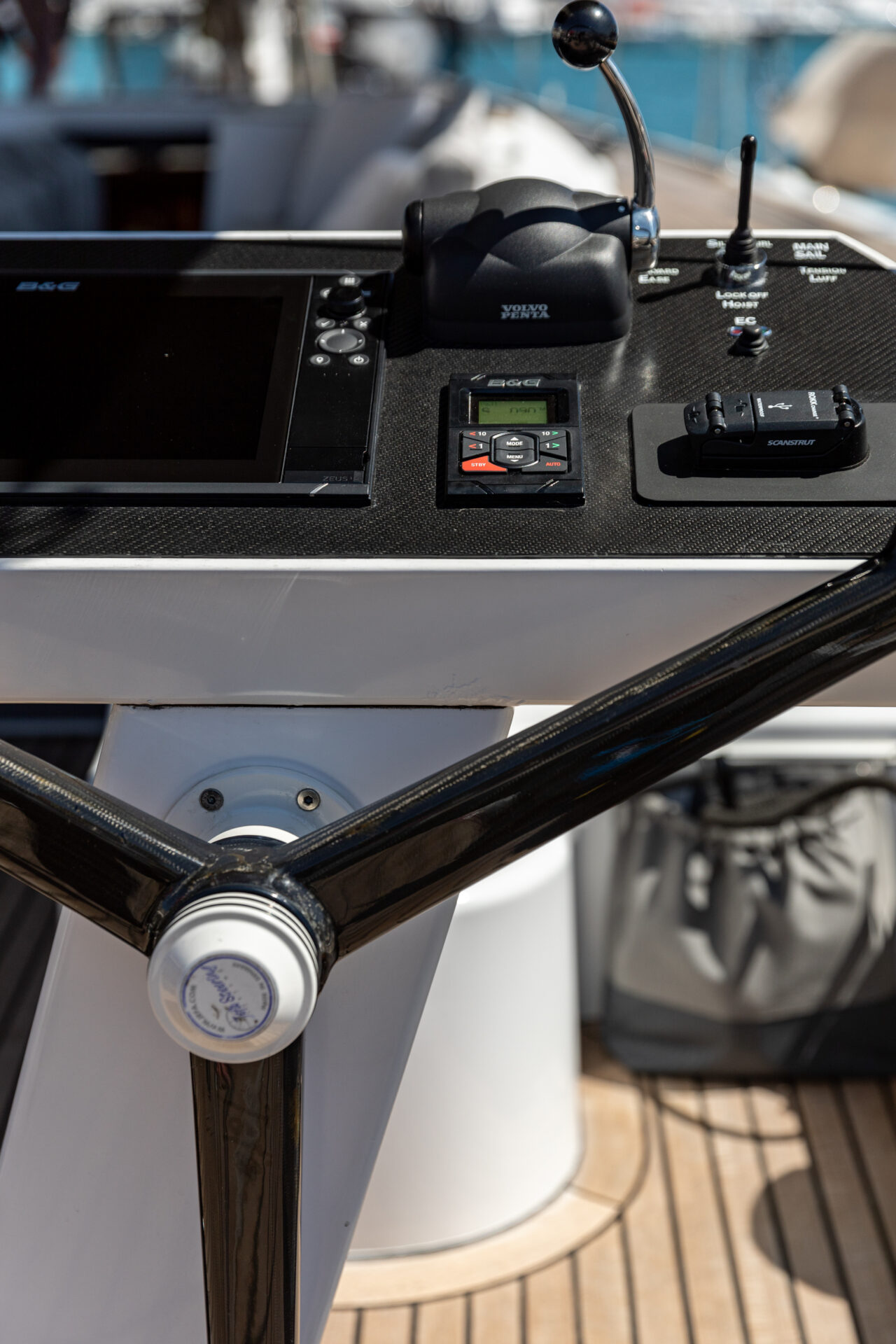

  • Electronic gear shift and throttle control at each steering position
  • Max Power Retract R315 bow thruster
  • Engine Control panel recesses into the cockpit coaming
  • The engine compartment below the cockpit is fully sound insulated using various materials and is accessible via starboard aisle just after the electrical switchboard.


  • Fuel tank approx. 700 litre (+day tank)
  • Water tank approx. 900 litre
  • Black water central tank
  • Hot water 2x40 litre boiler plus a New Quooker for boiling water in the galley
  • Water maker Spectra Newport 700, 24V with UV sterilizer
  • Climma air-conditioning in all cabins, 65.000 BTU in total


  • Generator Whisper 12KVA (New in 2016 )
  • 12 x Battery 2 volts providing 1000 Amps in 24 volt (new in 2017)
  • 2 x Start Battery, 180 Amps for the engine and the generator
  • 230V AC, sockets throughout the boat
  • 24V AC Automatic change over system for safe switch generator, shore and inverter power alternator


  • B&G Hercules full system (New in 2022)
  • Furuno GPS
  • Simrad radar display at each steering position and navigation
  • Simrad VHF-DSC Class D
  • GSM / GPRS
  • Sailor Iridium Sat phone
  • Computer with 17” Mermaid monitor plus a printer (built-in)
  • LED navigation lights
  • The navigation station is located at starboard of the companion way

Additional Information

  • From 2021 to 2023 she has had 400,000€ spent on upgrades and maintenance.
  • Major refit from October to March 2022- all information available upon request.
