X-34

Yacht Summary

X-34

Sold

Owner's Comments

Commissioned and tunned by X-Yachts for the Spi Ouest France 2008 (3ème IRC3 ), she has raced unfortunatly only one season, due to medical reason, Very lightly used, only for day sailling from 2009 to 2022.

Standard Specification

DesignerNiels Jeppesen
Hull Length10.36 m34'0"
Waterline Length9.09 m29'10"
Beam (max)3.41 m11'2"
Draft1.90 m6'3"
Ballast - Std2,200 kg4,850 lbs
Displacement - Light5,300 kg11,684 lbs
Engine Power15 kW20 hp
Fuel Tank - Std79 ltr21 gal (US)
Water Tank - Std197 ltr52 gal (US)

Standard X-34 brochure

Details

Exterior Details

Hull

  • Built in sandwich with polyester resin n construction with structural foam core,
  • • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
  • • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads
  • from keel, mast and rigging
  • • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue
  • waterlines

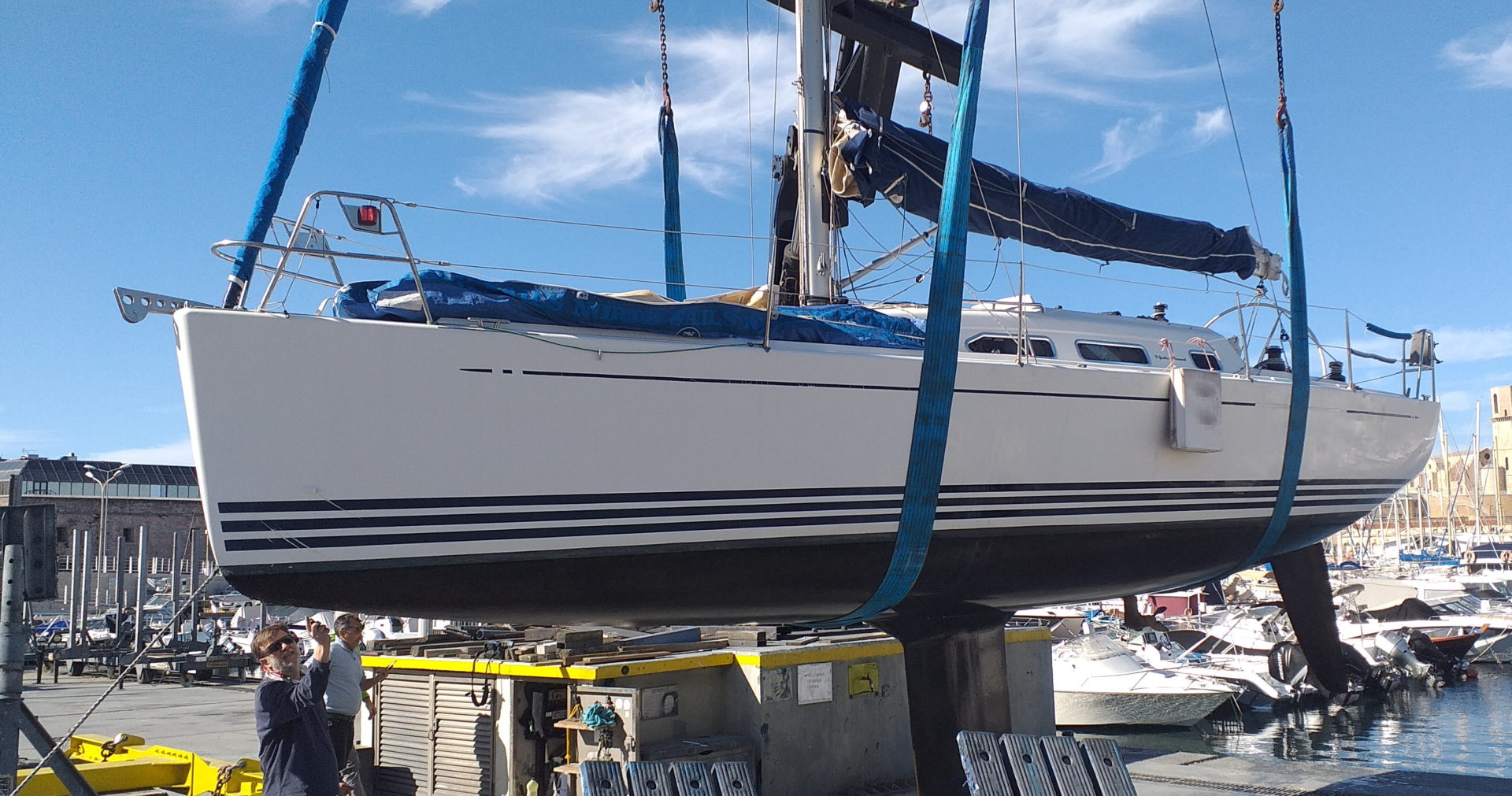

  • • Single point hoist for easy and safe lifting and launching of the yacht
  • • Structural bulkheads laminated to hull
  • • Keel securely bolted to reinforced keel structure
  • • Rudder stock mounted with needle and self aligning bearings
  • • Steering system with from « JEFA » , with gear box directly mounted on the sector of helml
  • • Stainless steel steering wheel with leather sheathing .

Deck

  • Non skid White gelcoat on the deck
  • Sprayhood
  • Electric windlass QUICK with remote control

Sail Handling

  • Deck Racing pack
  • • HARKEN winchs 2x 46.2 primary winches
  • • HARKEN winchs 2 x 40.2 for Geman Mainsheet system
  • • HARKEN winchs 2 x 40.2 for halyards ,
  • • Spinlock Jammer/clutches for halyards/control lines/reef lines
  • • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
  • • Code 0 fixed point
  • • Sprayhood with opening window

Sails

  • Racing NORTH SAILS 3DL, used only on season
  • Main 1 reeg
  • Genoa light 108 %
  • Genoa medium 108 %
  • Genoa 3 100 %
  • Genoa 5 90 %
  • Spinnaker S1 - S2- S4

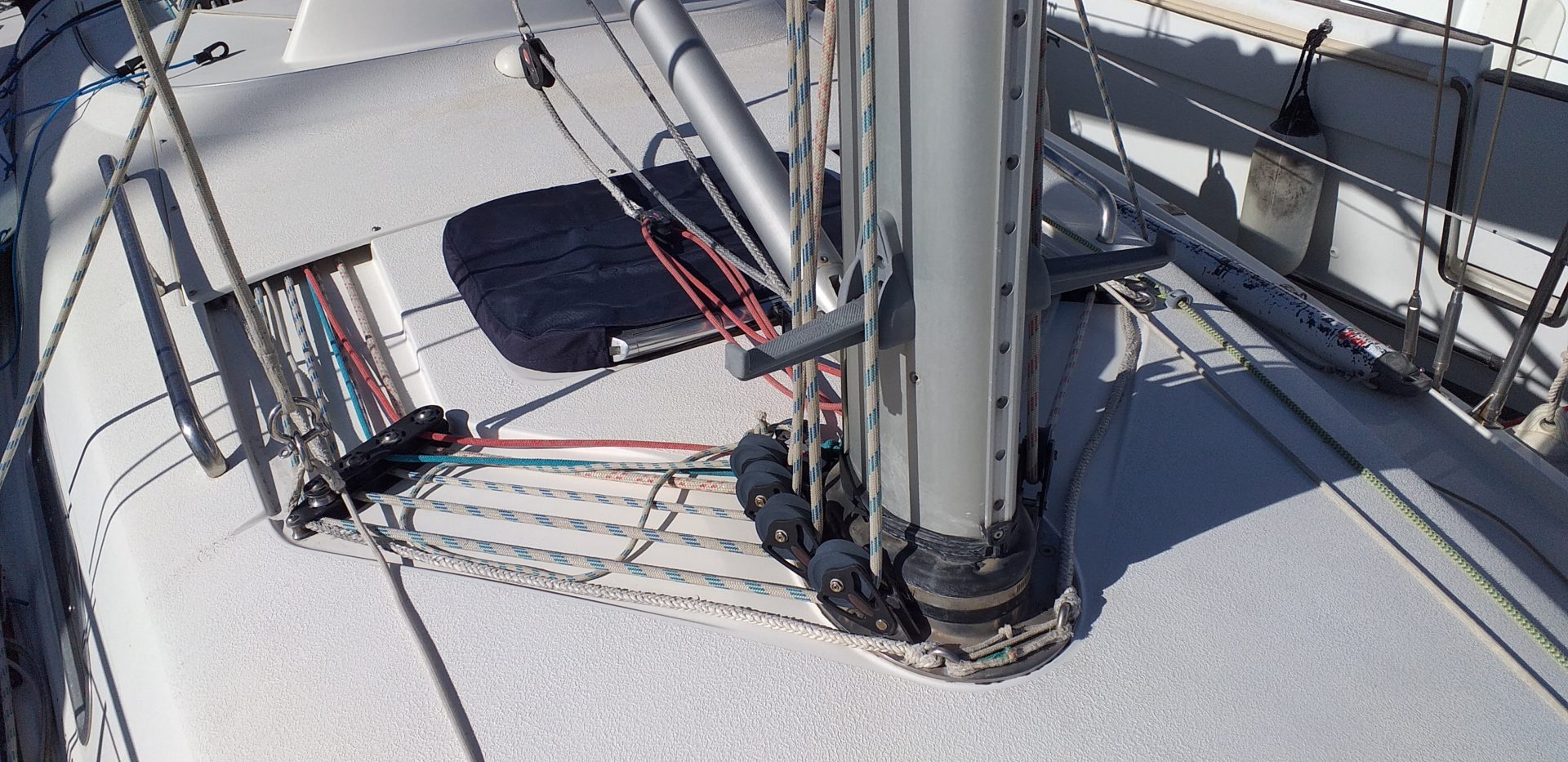

Mast & Rigging

  • • Mast and boom aluminium JOHN MAST 2 spreaders
  • • Rod Rigging
  • • PROFURL with Rod forestay and furling under deck
  • • Backstay with Magic weehl and control line in the cockpit
  • • Symetric spinnaker hardware and rigging with carbon boom

Keel

  • Standard keel 1.90 m

Accommodation

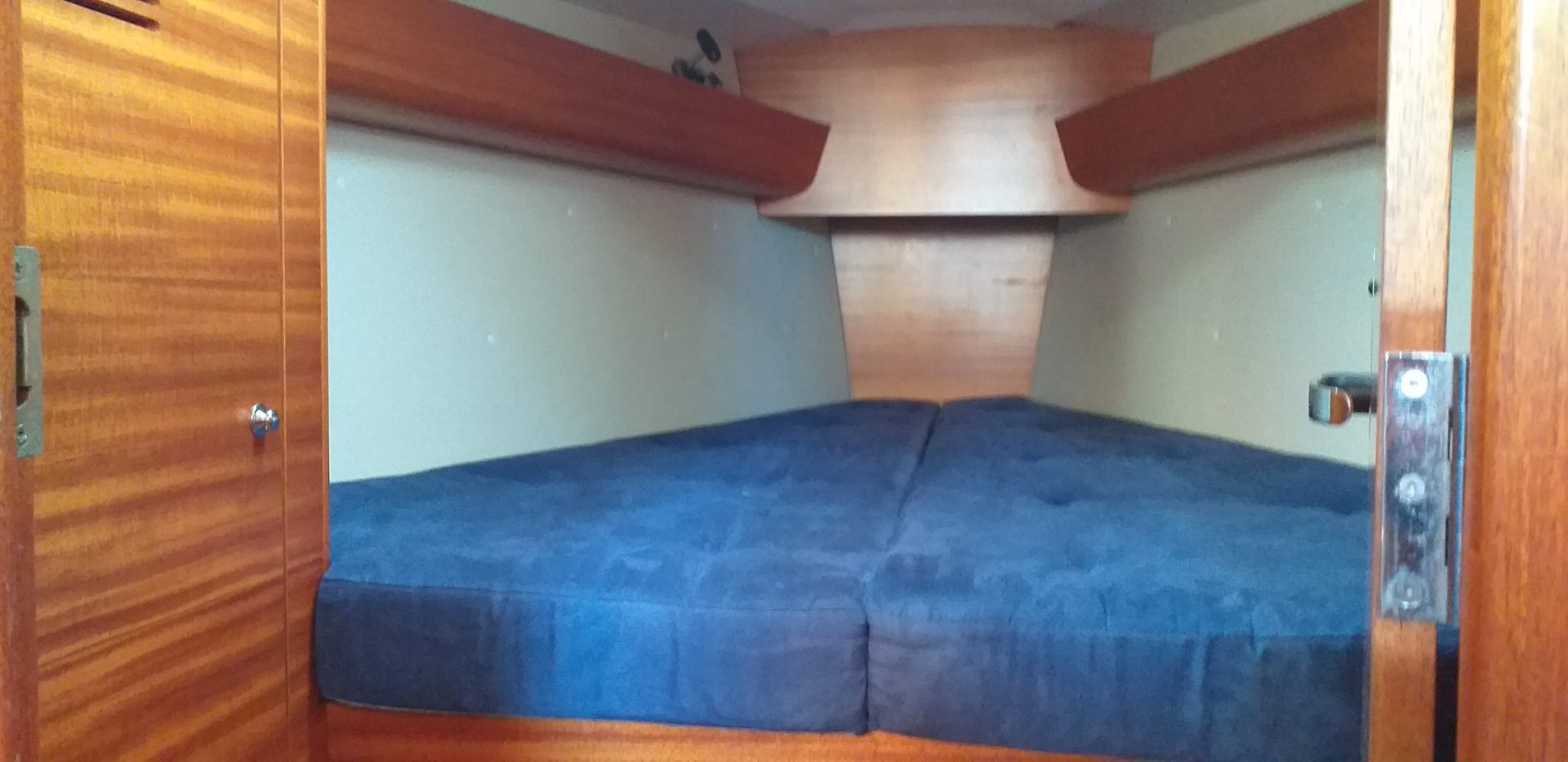

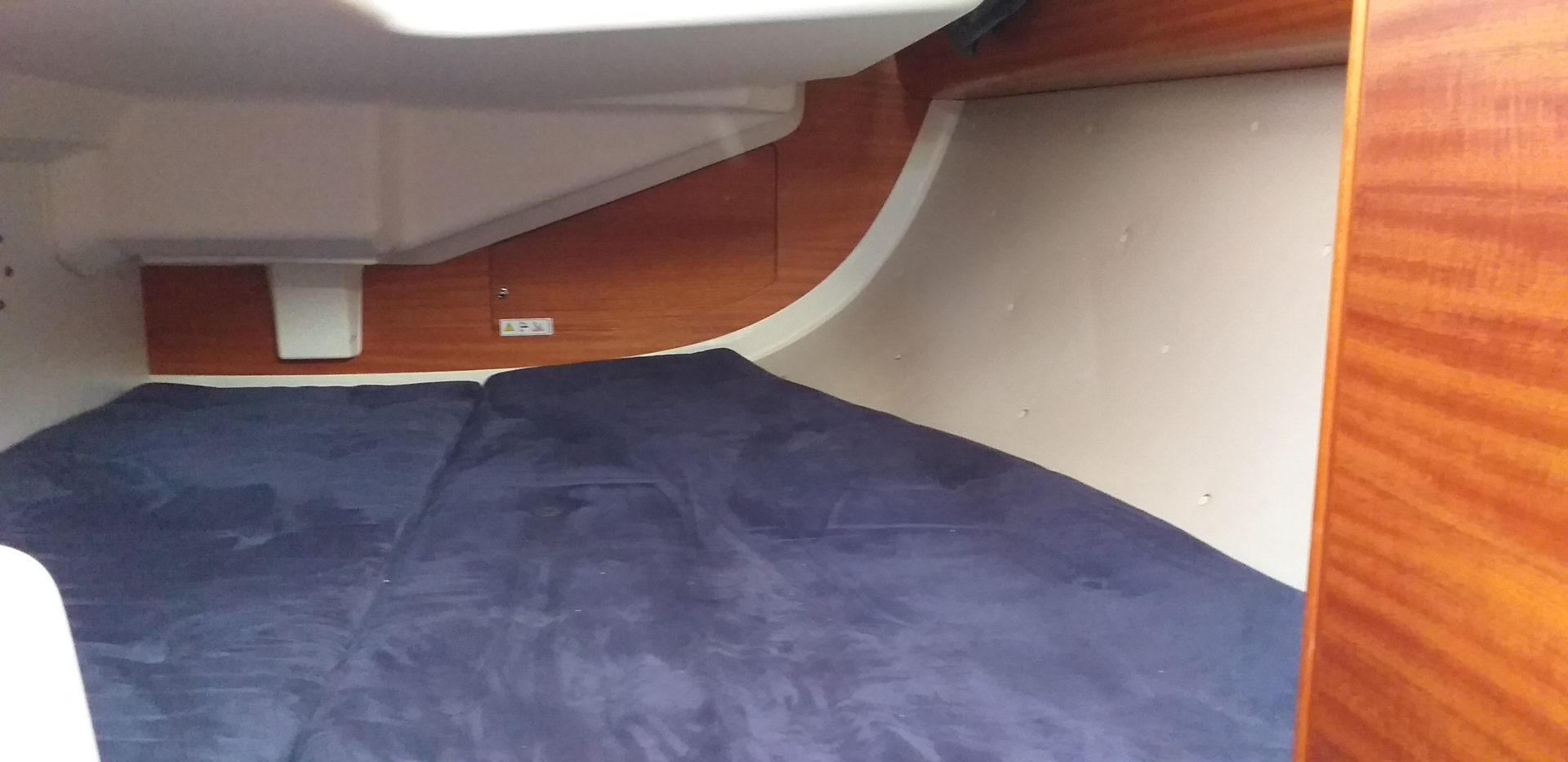

2 Cabins accomodations

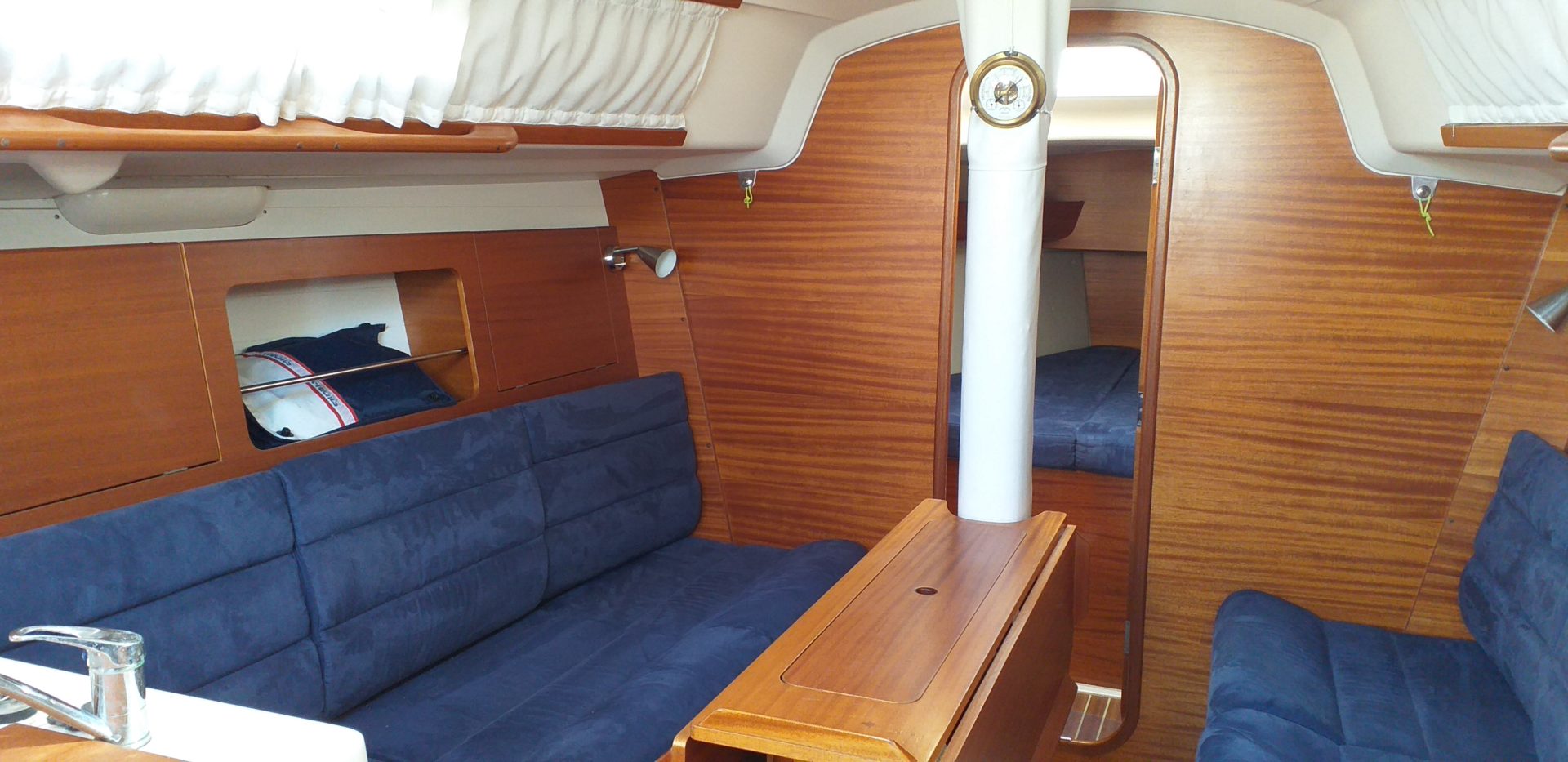

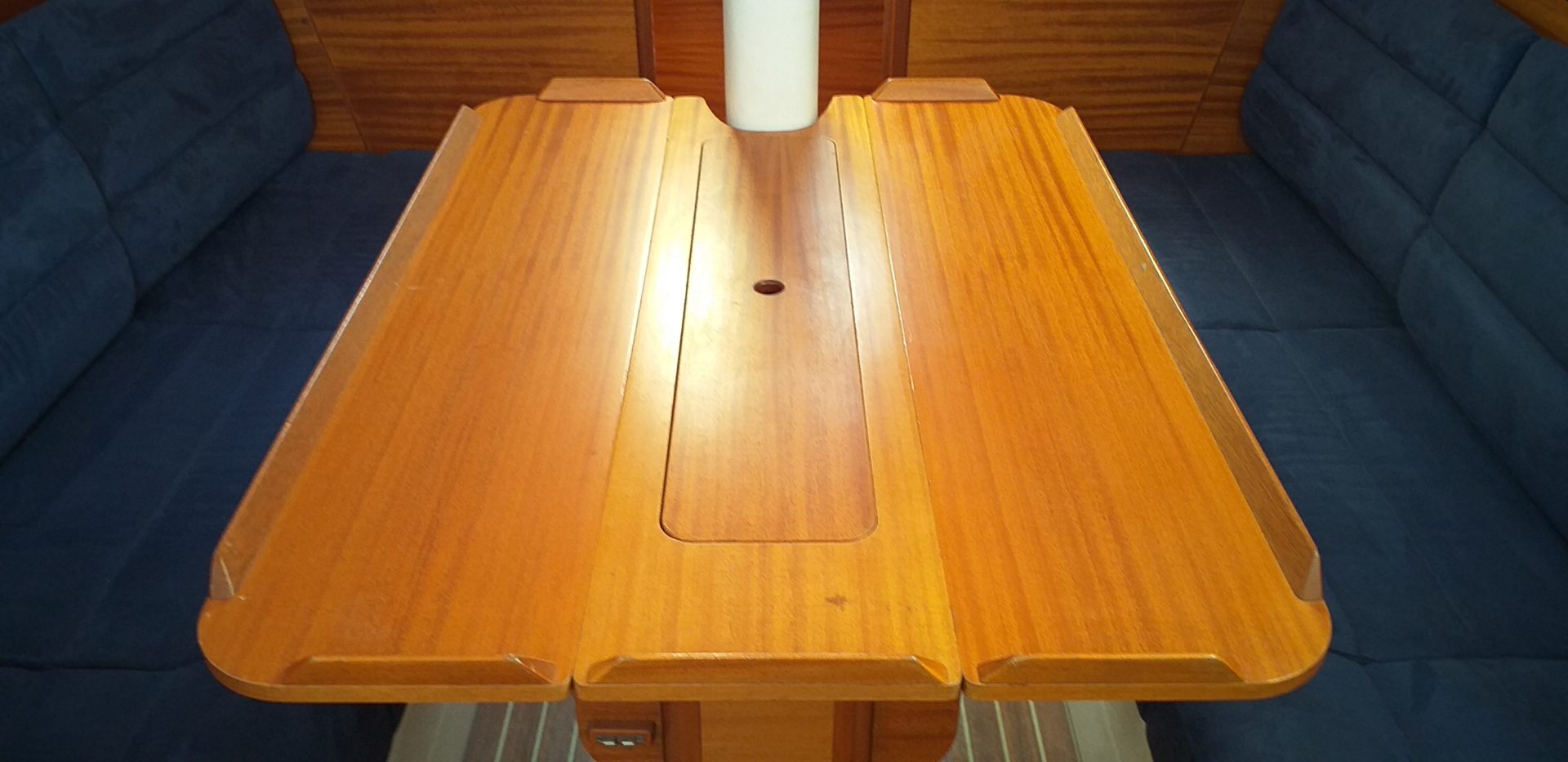

  • Mahogany wood inside. upolstery Alcantara royal blue

Systems

Engine

  • YANMAR 3YM20 21 HP
  • saildrive gasket replacement and full service scheduled feb 2022
  • Gazole tank 80 L
  • Engine hours under 300 H

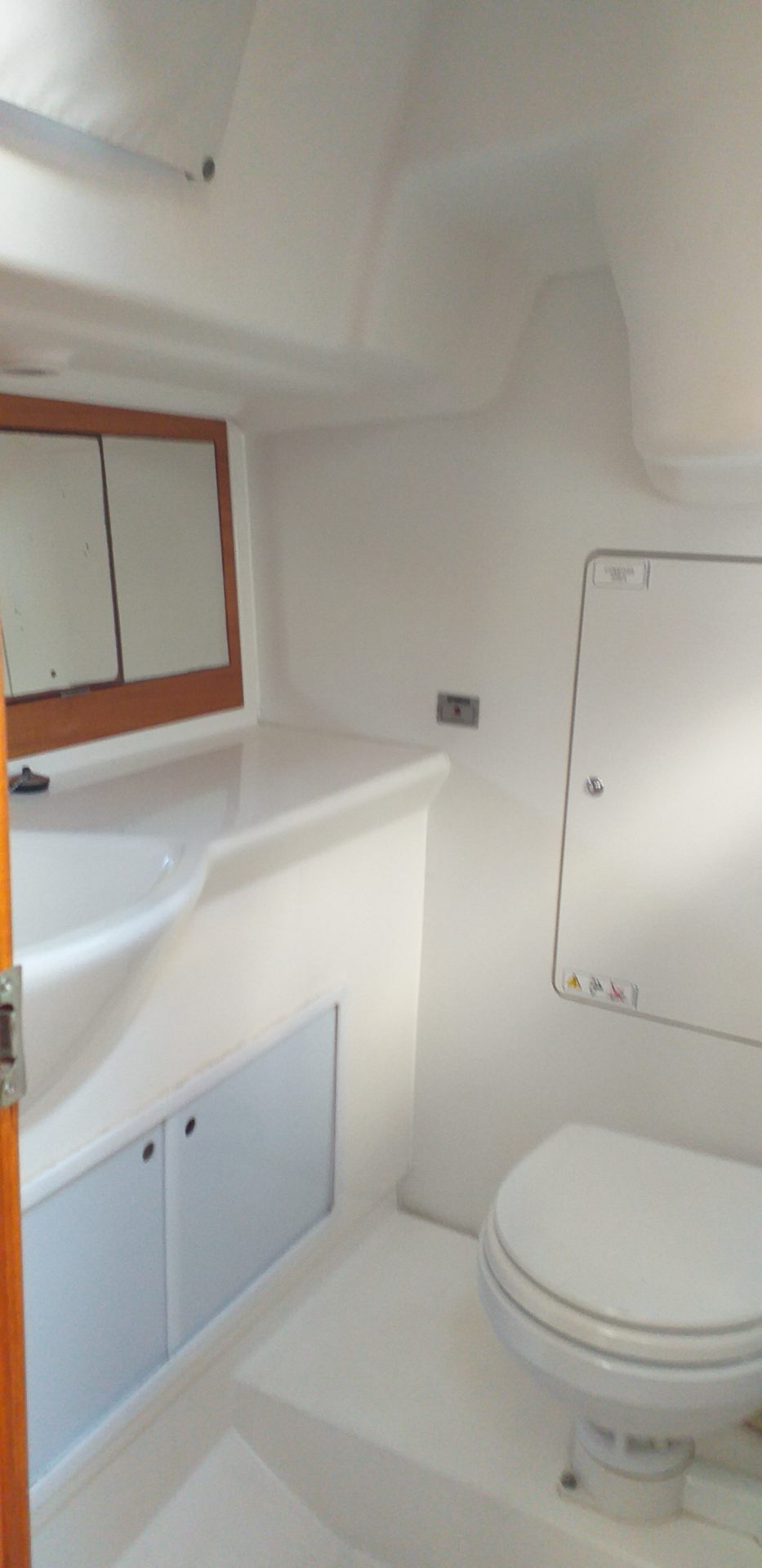

Plumbing

  • • Seacocks and through hull fittings are bronze ball and flush mounted
  • • Fresh water tank 200 L
  • • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or immersion heater connected to shore power
  • • Holding tank, and deck outlet
  • • Pressurized freshwater system for hot and cold water throughout yacht
  • • Deck shower
  • • Fridge top opened 115 l with compressor

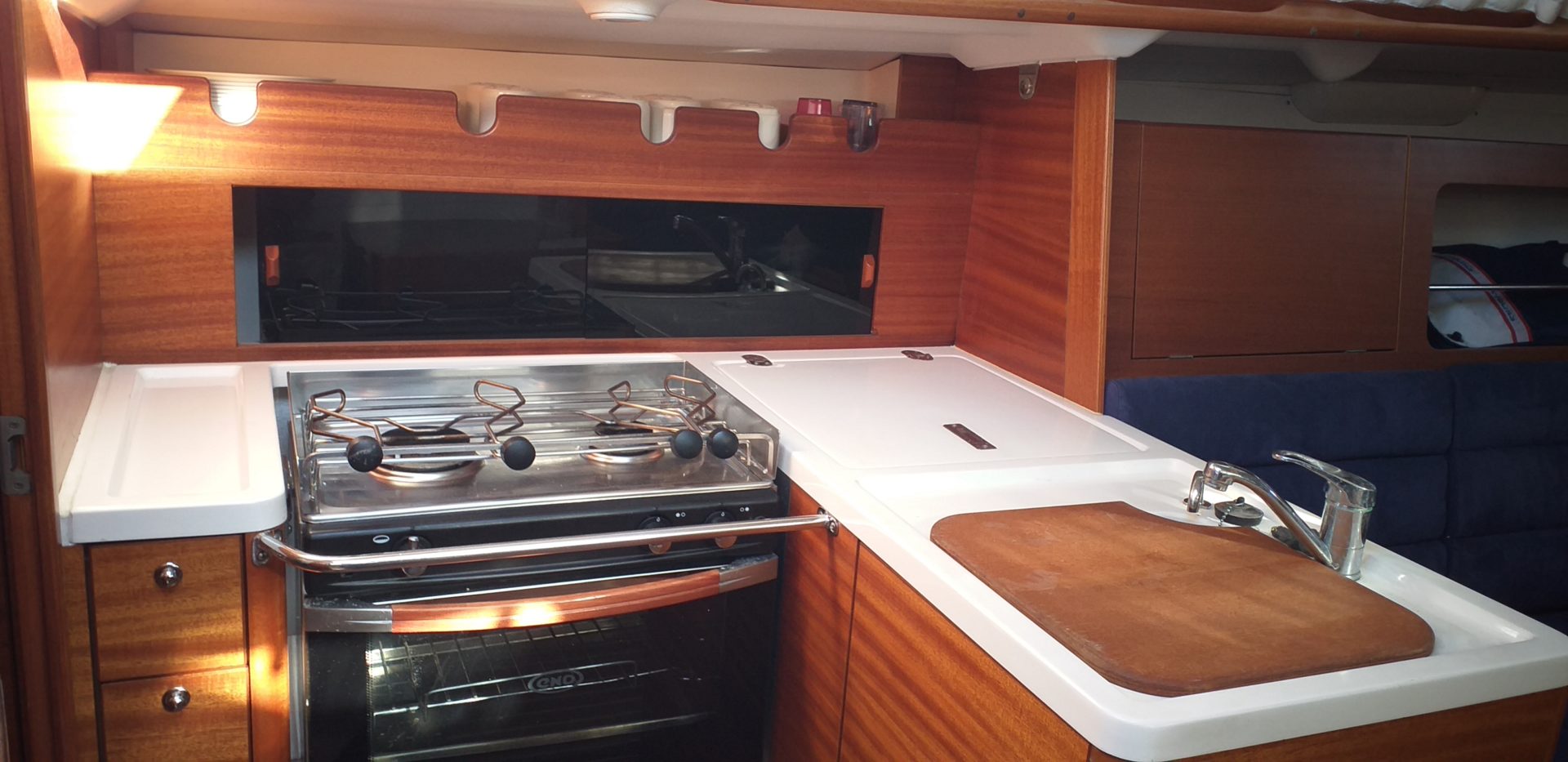

  • • ENO Gas cooker - 2 burner with oven

Electrical

  • • Main switch board with autolaitic fuses and 3 analogue VDO meters for fuel, water and battery voltage
  • • Service batterie 1 x 140 amp 2021
  • • 2020 engine spiral-cell battery
  • • Shore power installation with shore power inlet mounted in cockpit
  • • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
  • • STERLING automatic battery charger 12V/30 A

Electronics

  • ◦ B&G H3000 Electronic
  • ◦ Log- Speed- Deepth - Wind sensors with vertical MHU

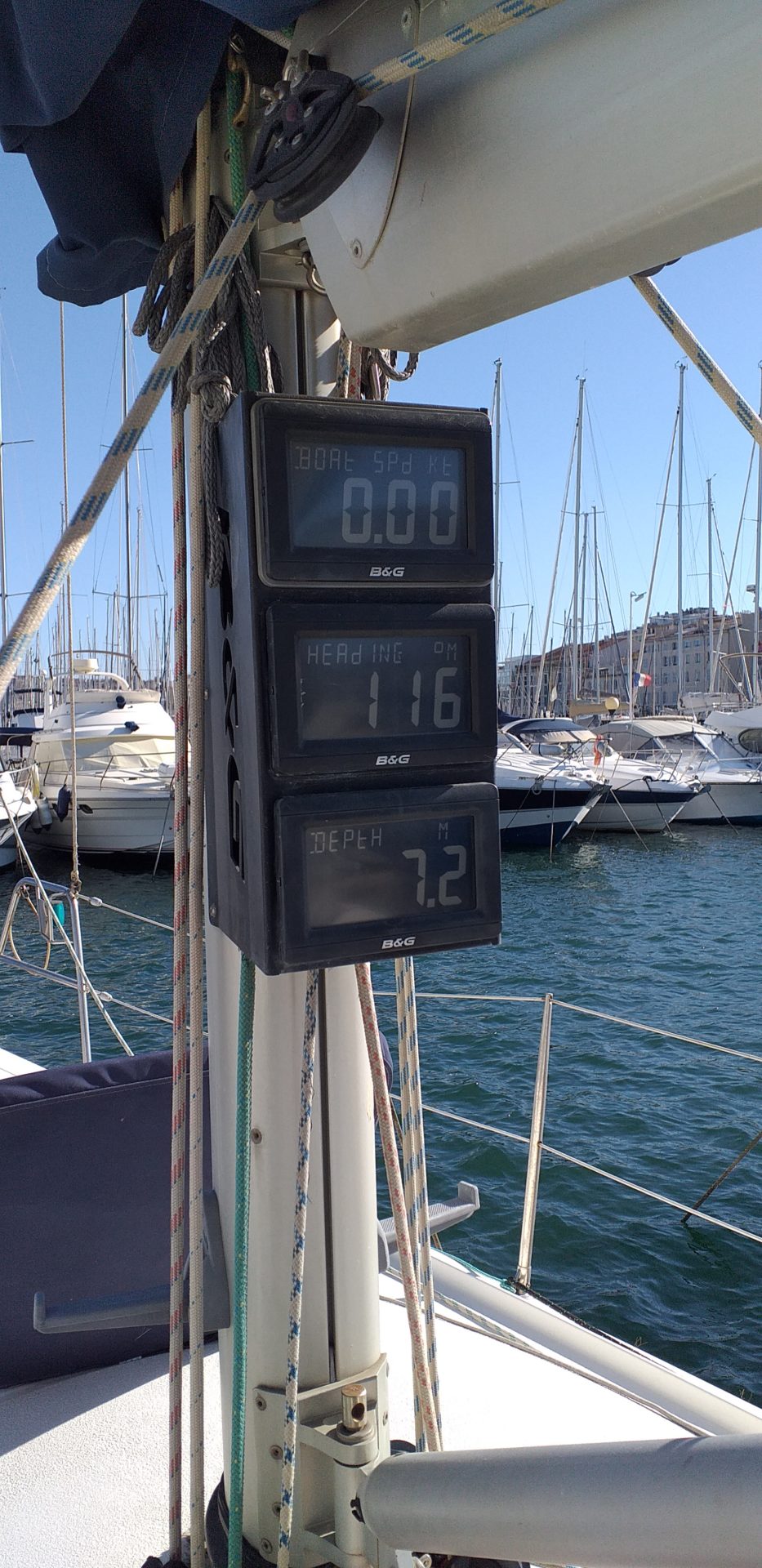

  • ◦ 3 x 20/20 on mast bracket
  • ◦ 1 x GFD display on the coach roof
  • ◦ Autopilot H3000 with display in the cockpit
  • ◦ Chart plotter SIMRAD CP31 on the chart table
  • ◦ VHF SIMRAD RD68 DSC
  • ◦ Radio CD MP3 JVC with HP int ext
