Details

Exterior Details

Hull

• Built in sandwich with polyester resin n construction with structural foam core,
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue waterlines
• • Single point hoist for easy and safe lifting and launching of the yacht
• • Structural bulkheads laminated to hull
• • Keel securely bolted to reinforced keel structure
• • Rudder stock mounted with needle and self aligning bearings
• • Steering system with from « JEFA » , with gear box directly mounted on the sector of helml
• • Stainless steel steering wheel with leather sheathing .

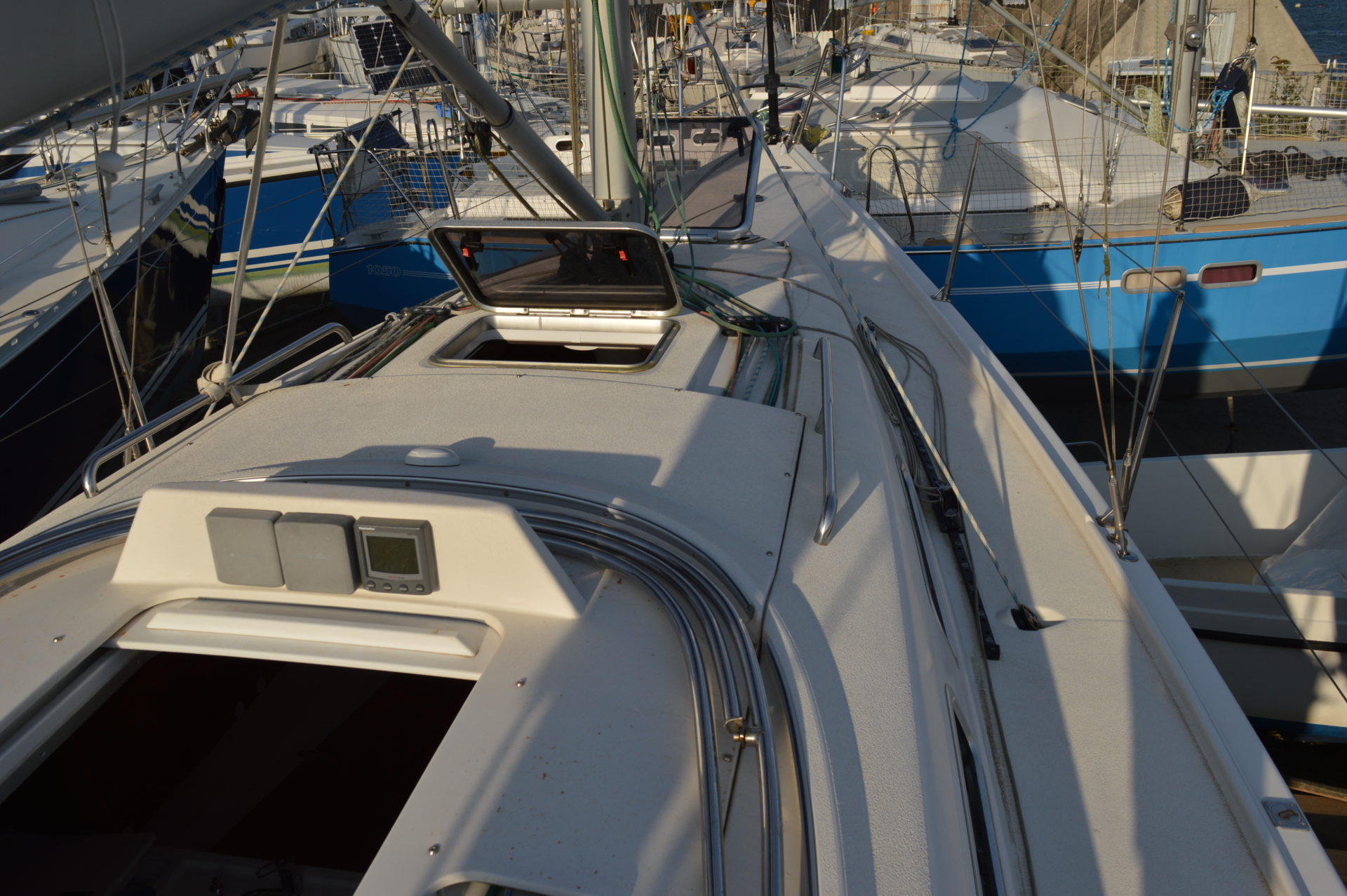

Deck

• Non skid White gelcoat on the deck
• Sprayhood
• Electric windlass QUICK with remote control
• Deck shower with hot and cold water

Sail Handling

• • HARKEN winchs 2x 46.2 primary winches
• • HARKEN winchs 2 x 40.2 for Geman Mainsheet system
• • HARKEN winchs 2 x 40.2 for halyards ,
• • Spinlock Jammer/clutches for halyards/control lines/reef lines
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Code 0 fixed point
• • Sprayhood
• • Carbon spinnaker pool

Sails

• Racing Main NORTH SAILS 3DL, used
• Genoa 110 % INCIDENCES
• Lazybag and leazy jack
• Spinnaker

Mast & Rigging

• • Mast and boom aluminium JOHN MAST 2 spreaders
• • Rod Rigging
• • PROFURL with Rod forestay and furling under deck
• • Backstay with Magic weehl and control line in the cockpit
• • Asymetric spinnaker hardware and rigging with carbon boom

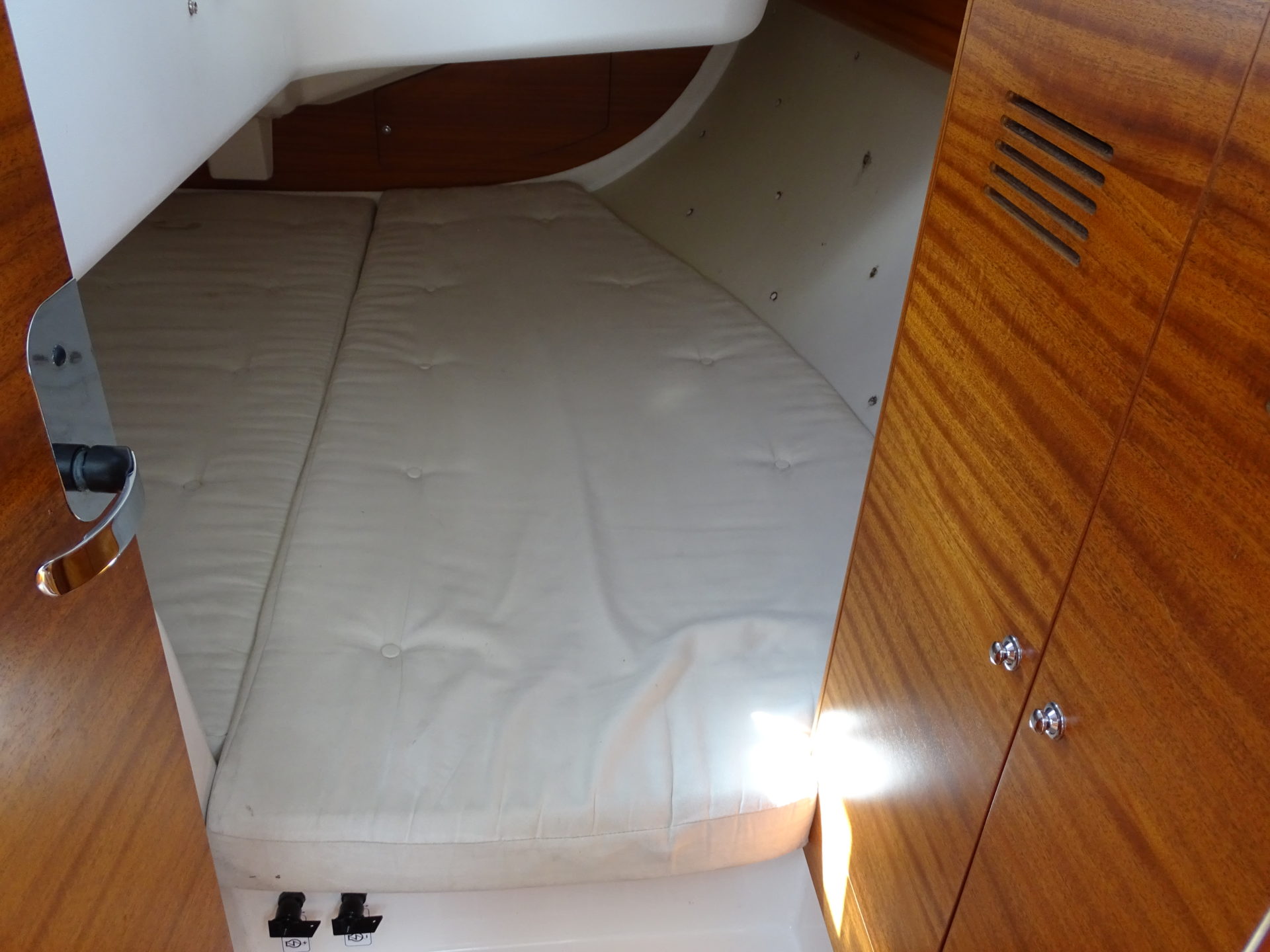

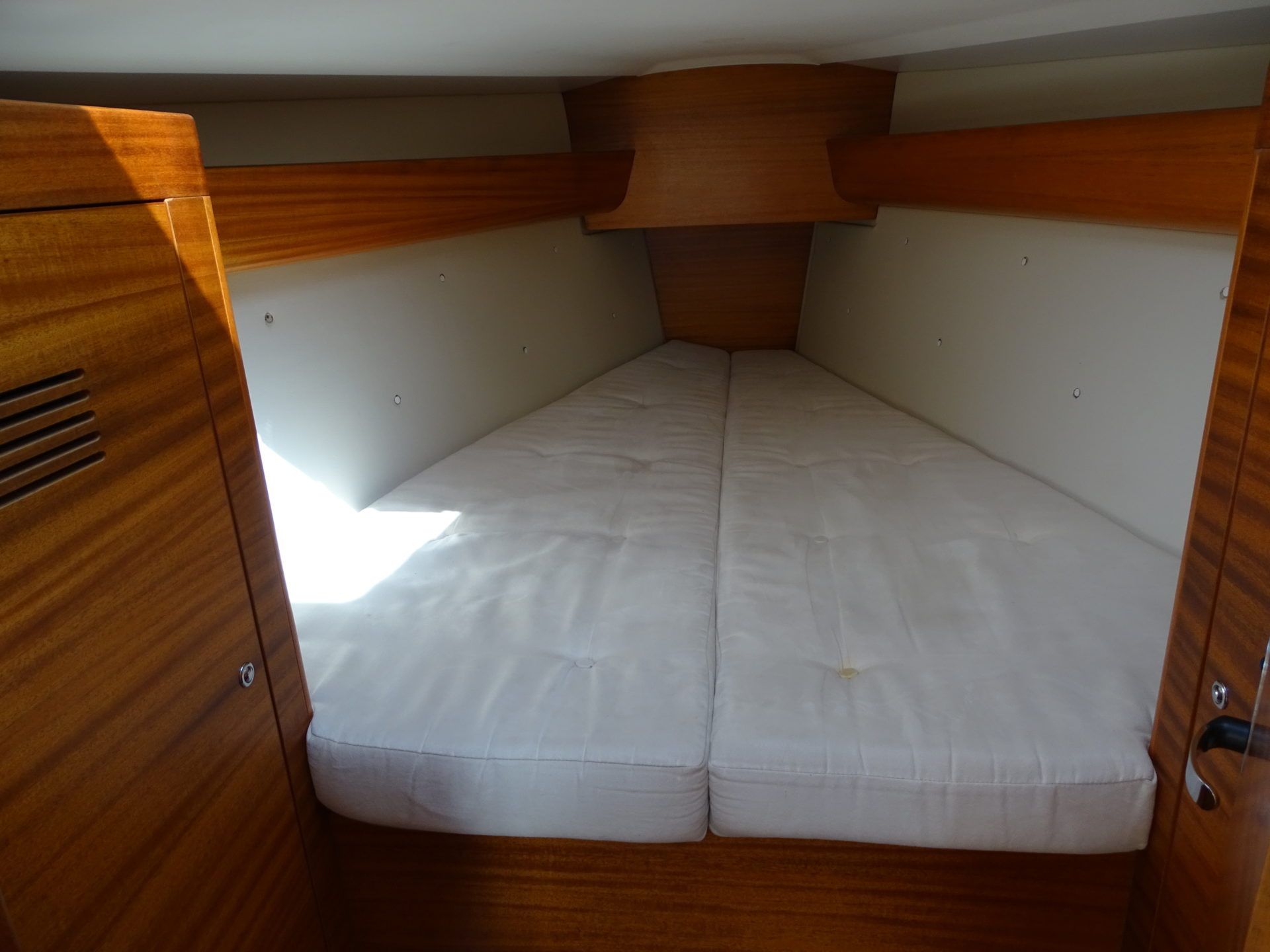

Accommodation

• Mahogany wood inside. upolstery Alsace beige

Systems

Engine

• YANMAR 3YM20 21 HP
• Flexofold 2 blades folding propeller
• Gazole tank 80 L

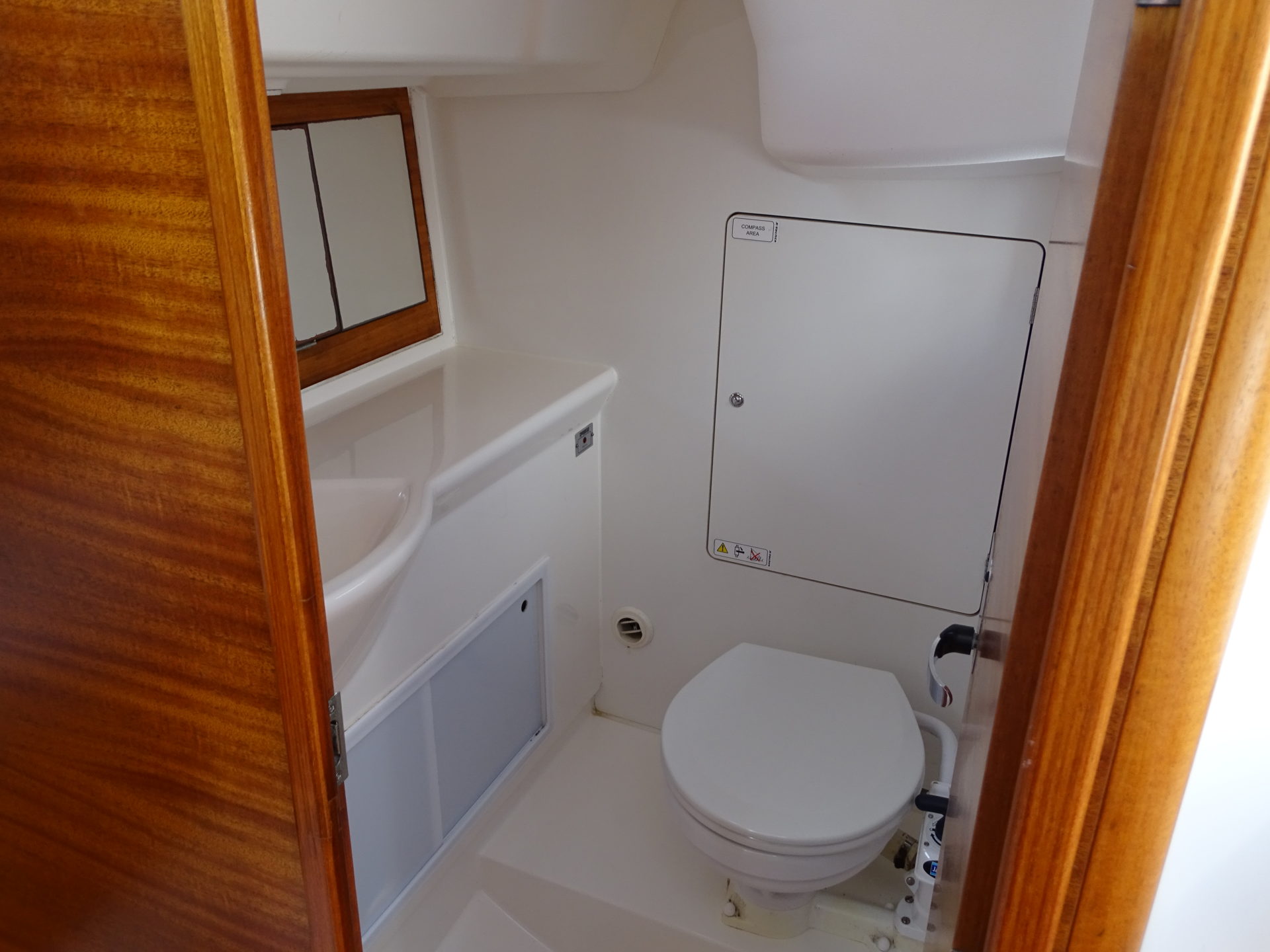

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water tank 200 L
• • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or immersion heater connected to shore power
• • Holding tank, and deck outlet
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Deck shower
• • Fridge top opened 115 l with compressor

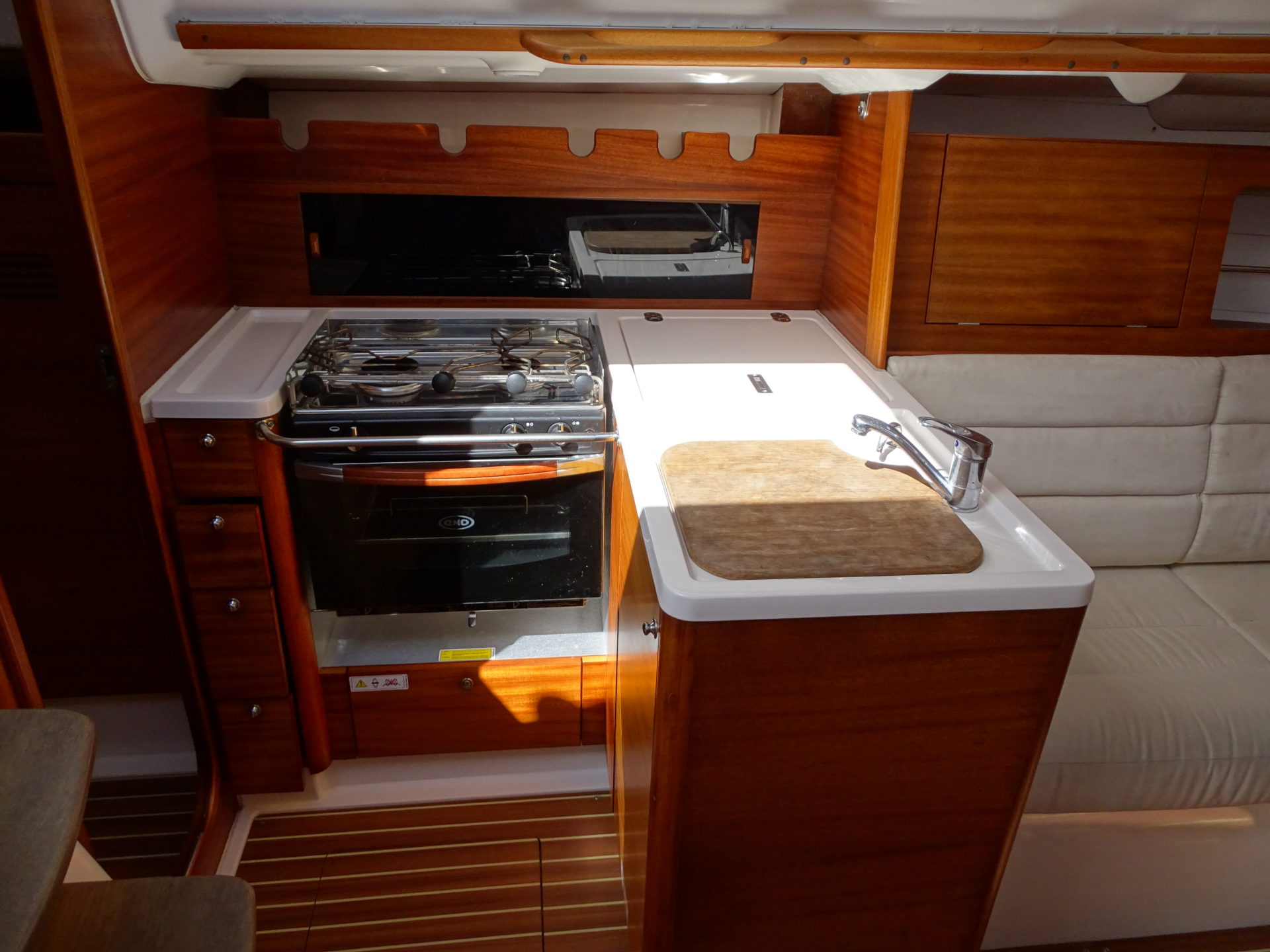

• • ENO Gas cooker - 2 burner with oven

Electrical

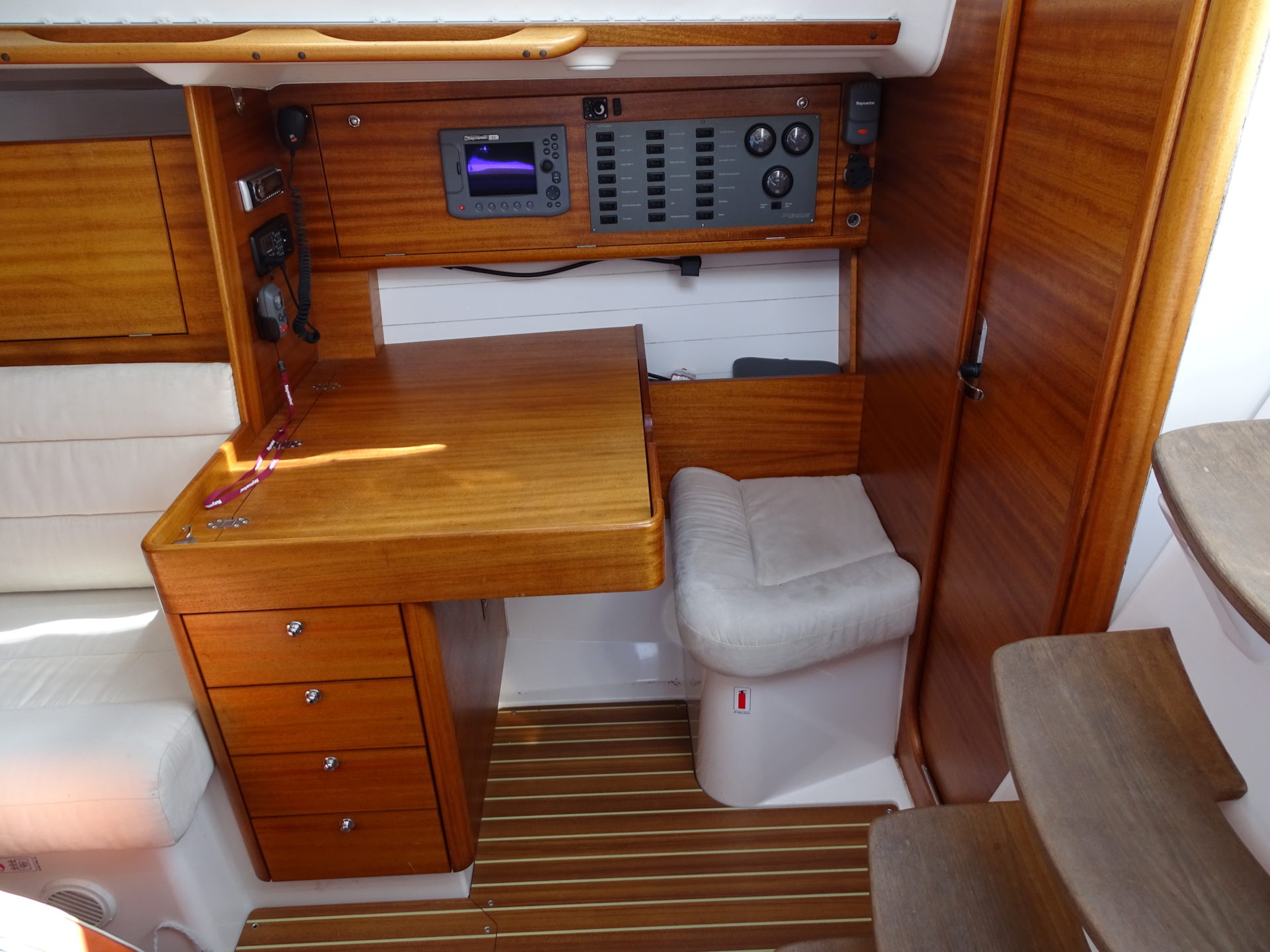

• • Main switch board with autolaitic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• • Service batterie x 2
• • Engine spiral-cell battery
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• • EBERSÄCHER heater

Electronics

• ◦ RAYMARINE Electronic
• ◦ Log- Speed- Deepth - Wind sensors
• ◦ 3 x ST60 in the coach roof
• ◦ Autopilot RAYMARINE 6001 with JEFA drive and wireless control S100
• ◦ Chart plotter RAYMARINE C70 on the chart table
• ◦ VHF SIMRAD RD68 DSC
• ◦ AIS
• ◦ Radio CD MP3 JVC with HP int ext
