Brokerage

X-34

Yacht Summary

X-34

Sold

Standard Specification

DesignerNiels Jeppesen
Hull Length10.36 m34'0"
Waterline Length9.09 m29'10"
Beam (max)3.41 m11'2"
Draft1.90 m6'3"
Ballast - Std2,200 kg4,850 lbs
Displacement - Light5,300 kg11,684 lbs
Engine Power15 kW20 hp
Fuel Tank - Std79 ltr21 gal (US)
Water Tank - Std197 ltr52 gal (US)

Standard X-34 brochure

Details

Exterior Details

Hull

  • Built in sandwich with polyester resin n construction with structural foam core,
  • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads
  • from keel, mast and rigging
  • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue
  • waterlines
  • Single point hoist for easy and safe lifting and launching of the yacht
  • Keel securely bolted to reinforced keel structure
  • Rudder stock mounted with needle and self aligning bearings
  • Steering system with from « JEFA » , with gear box directly mounted on the
  • sector of helml
  • New epoxy bottom 04/2023
  • NAUTEX composit steering wheel + cover

Deck

  • Non skid White gelcoat on the deck
  • Sprayhood
  • Electric windlass QUICK with remote control
  • Deck shower

Sail Handling

  • HARKEN winchs 2x 46.2 primary winches
  • HARKEN winchs 2 x 40.2 for Geman Mainsheet system
  • HARKEN winchs 2 x 40.2 for halyards ,
  • Spinlock Jammer/clutches for halyards/control lines/reef lines
  • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
  • Code 0 fixed point
  • Sprayhood
  • Carbon and aluminium spinnaker pool

Sails

  • NORTH SAILS Main 3DI RAW 360 2021
  • NORTH SAILS Genoa 3DI RAW 360 2021
  • NORTH SAILS Spinnaker NY90 0.75 2021
  • NORTH SAILS Gennaker Norlon 0.75 2008
  • ELVSTROM Technora Main full batten 2013
  • ELVSTROM Technora Genoa batten 2013
  • ELVSTROM Technora jibe 2016
  • Spinnaker med 2013

Mast & Rigging

  • Mast and boom aluminium JOHN MAST 2 spreaders
  • Rod Rigging replaced 2021
  • PROFURL R350 new 2021 with Rod forestay and furling under deck
  • Backstay with Magic wheel and control line in the cockpit
  • Asymetric spinnaker hardware and rigging with carbon and aluminium spinnaker boom

Systems

Engine

  • YANMAR 3YM20 saildrive
  • Maxprop propeller 2 blades
  • Rubber seal replaced 04/2023

Plumbing

  • Seacocks and through hull fittings are bronze ball and flush mounted
  • Fresh water tank 200 L
  • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or
  • immersion heater connected to shore power
  • Battery charger 30 amp
  • Holding tank, and deck outlet
  • Pressurized freshwater system for hot and cold water throughout yacht
  • Fridge top opened 115 l with compressor wiring to be fixed

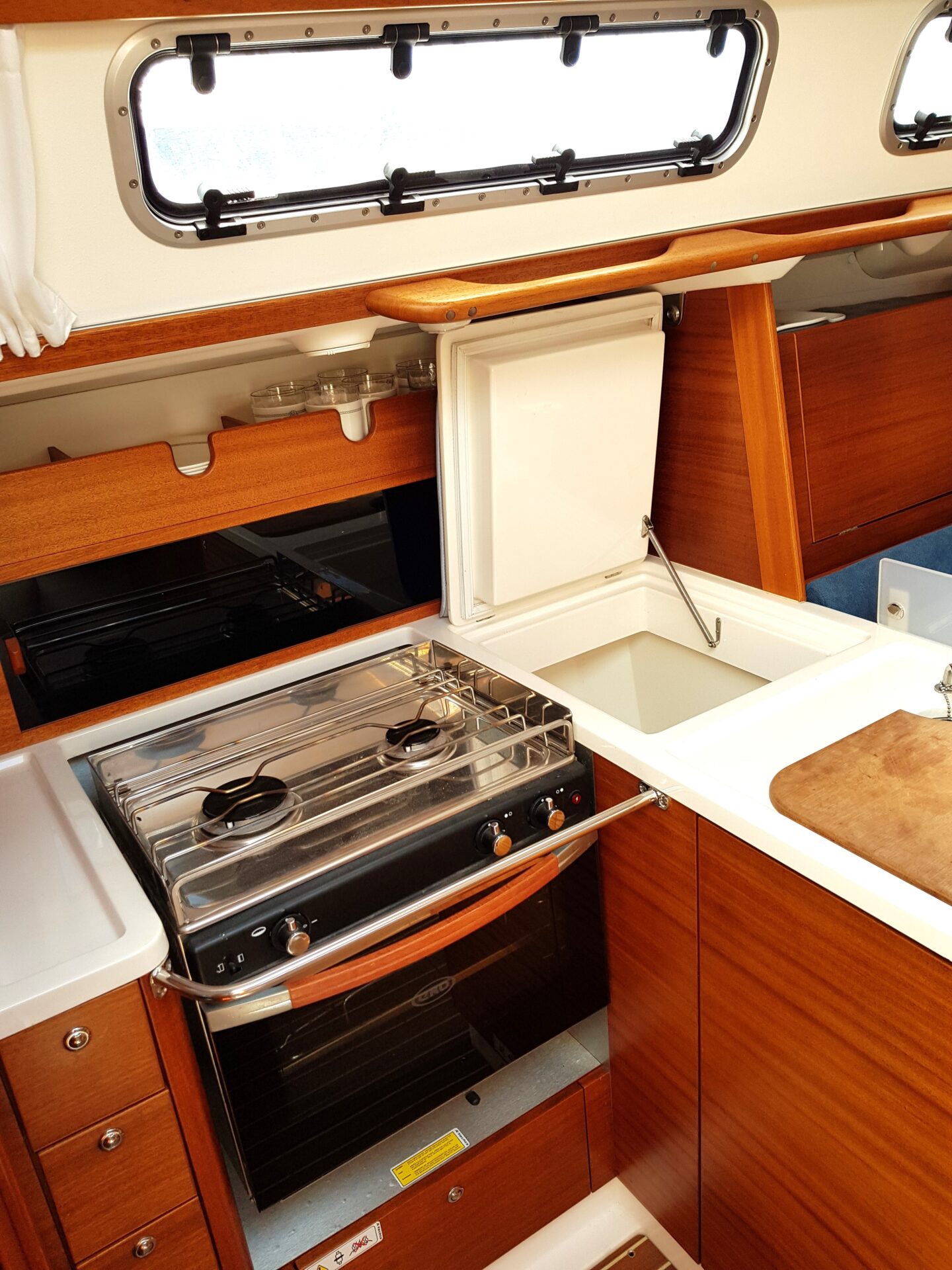

  • ENO Gas cooker - 2 burner with oven
  • EBERSPACHER heater

Electronics

  • RAYMARINE ST 60 Electronic
  • Log- Speed- Deepth - Wind sensors
  • MFD I 70 S
  • Autopilot RAYMARINE 6001 with JEFA drive and wireless control S100
  • Chart plotter RAYMARINE AXIOME 9 Year 2021
  • VHF RAYMARINE 240 E
  • AIS receiver RAY350
  • Radio CD MP3 JVC with HP
