Brokerage

X-40

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X-40
  • Build Number: 135
  • Build Year: 2009
  • Lying: St. Annaland, Netherlands
  • Price: Price on application.
  • Dealer: X-Yachts Holland
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email: info@x-yachts.nl

View X-40 Brochure

X-40

Yacht Enquiry or Offer

To discuss your requirements call X-Yachts Holland on +31 (0)36 536 9057 or complete the form below.

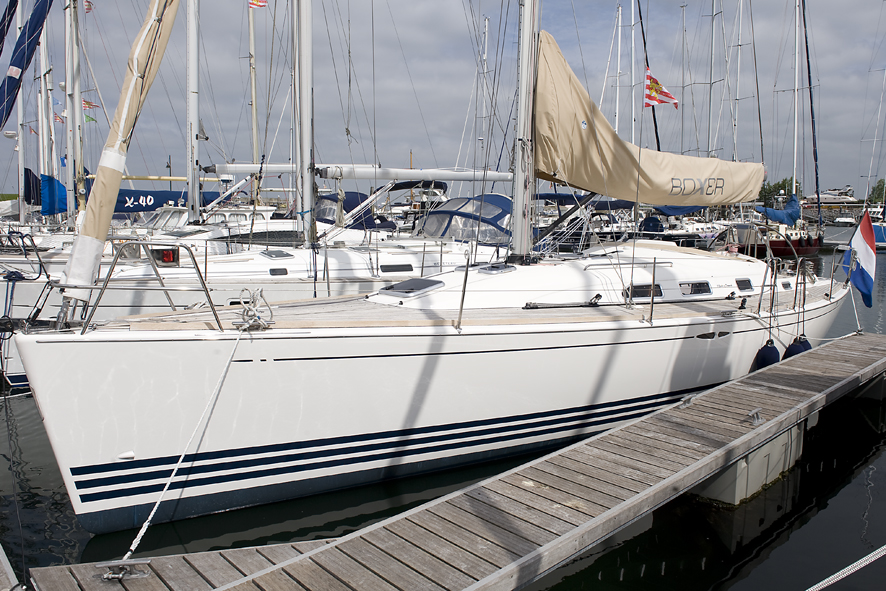

Truly immaculate X-40, from first owner who has taken care of his yacht with the greatest level of attention and care for details. Always stored inside for the winters and kept in excellent condition throughout, she is a special X-40 to view and experience yourself.

Standard Specification

DesignerNiels Jeppesen
Hull Length12.19 m40'0"
Waterline Length10.17 m33'4"
Beam (max)3.80 m12'6"
Draft2.10 m6'11"
Ballast - Std3,200 kg7,055 lbs
Displacement - Light7,450 kg16,424 lbs

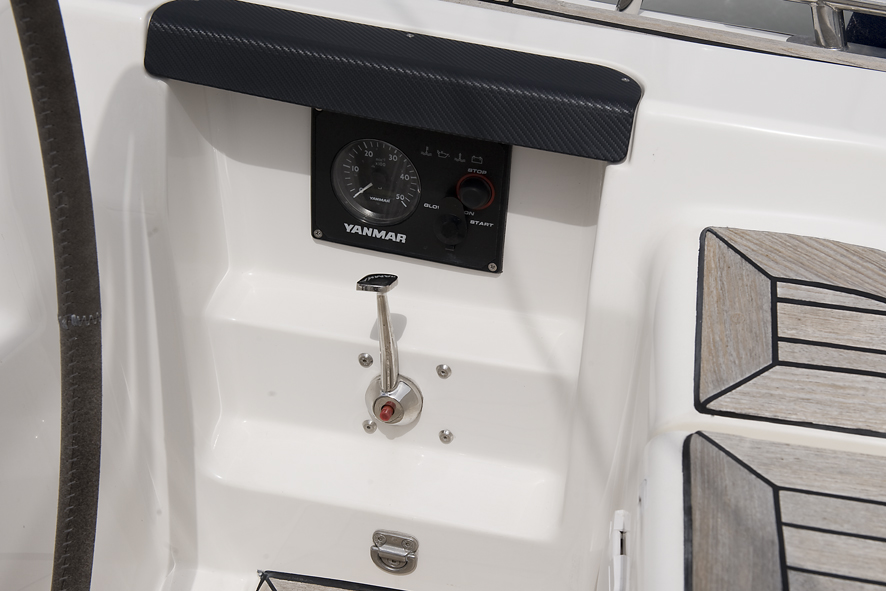

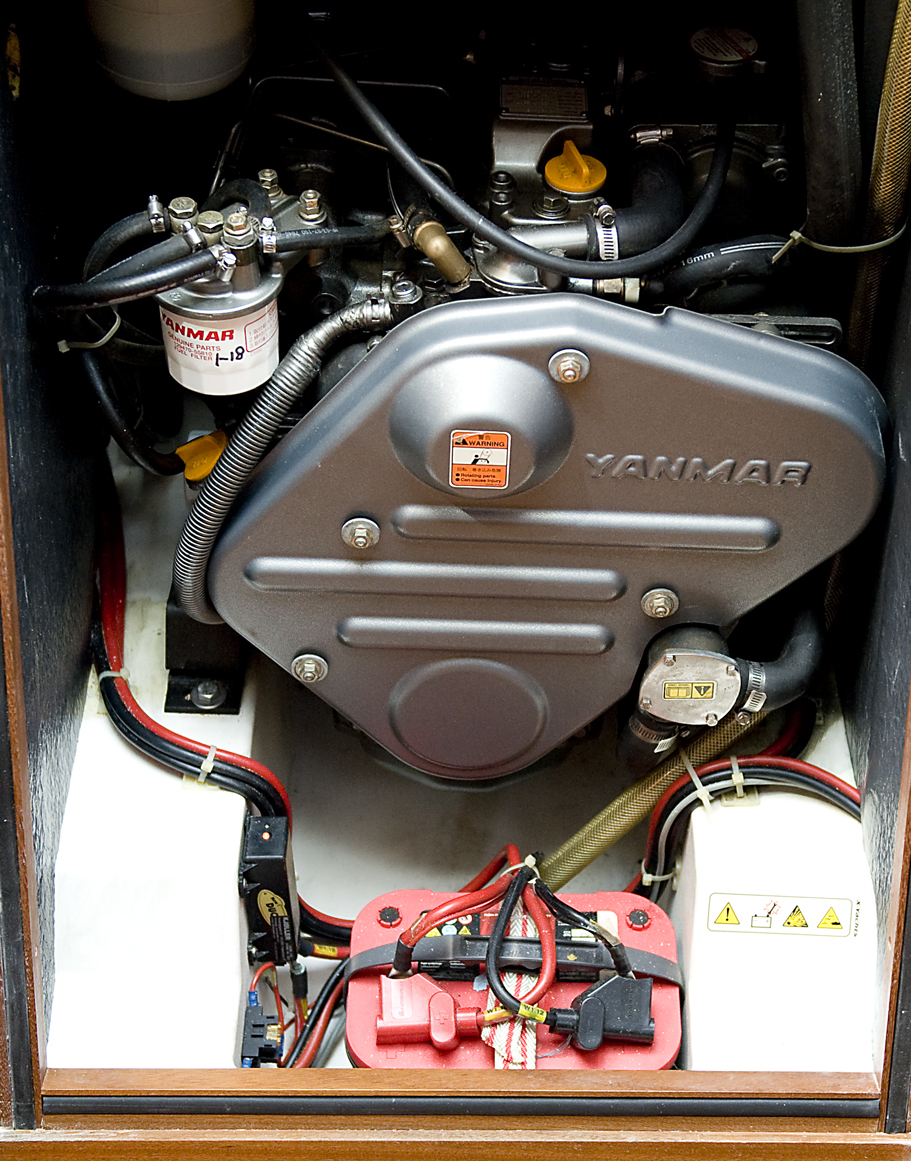

Engine Power30 kW41 hp

Details

Exterior Details

Hull

  • Bottom treatment from yard: 3x epoxy & 2x antifouling
  • Antifouling yearly maintained by professional during indoor winter storage
  • Stainless steel chafing strip along length of hull
  • 3M wax protection applied to hull yearly

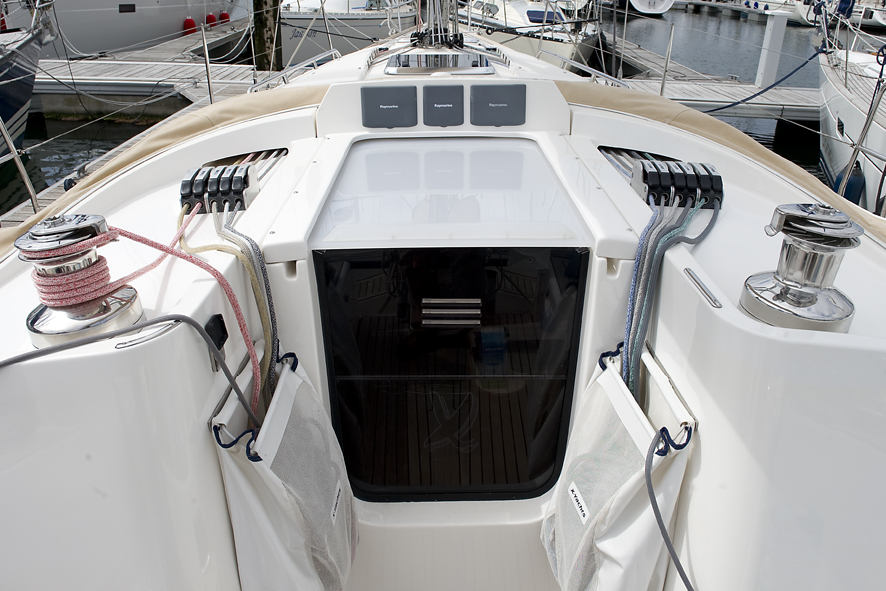

Deck

  • Teak on side decks
  • Upgraded Andersen 46ST electrical halyard winch on port side
  • Upgraded Andersen 46ST manual halyard winch on SB side

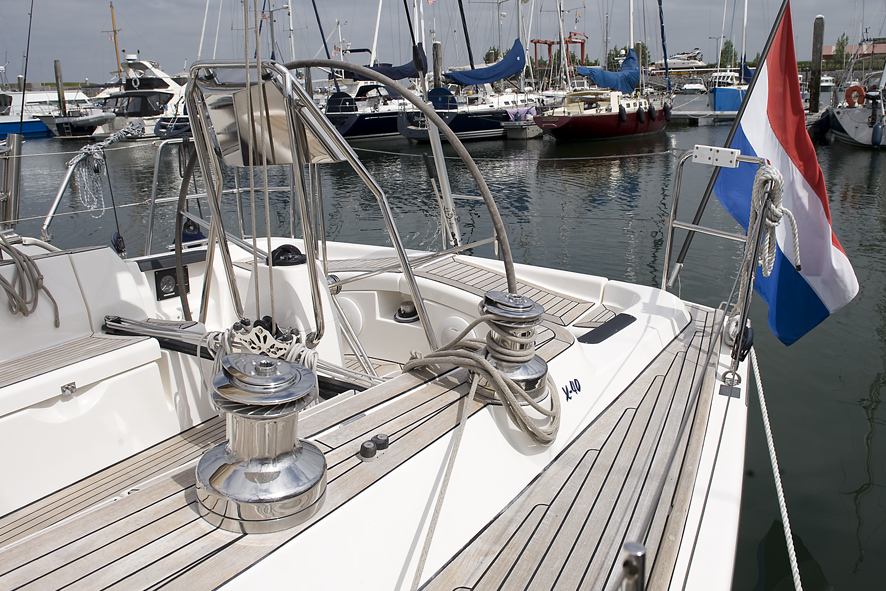

  • Larger Andersen 52ST genoa winches
  • Larger Andersen 46ST mainsheet winches
  • Gennaker package (dyneema sheets and ball-bearing blocks)
  • Inhaulers for jib
  • Gas springs on cockpit lockers
  • Shower in cockpit (hot and cold water)
  • Speakers in cockpit
  • Electrical anchor winch

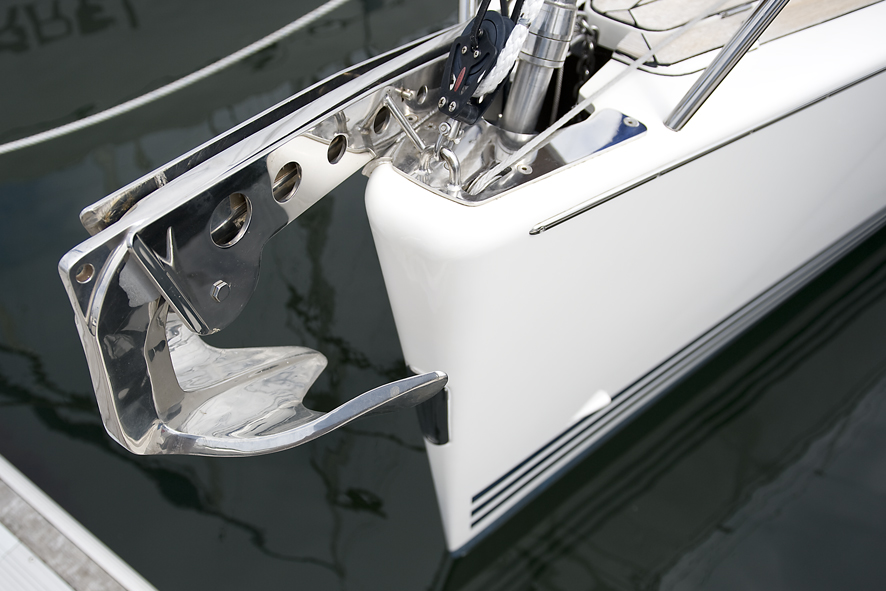

  • Stainless steel anchor
  • Stainless steel anchor chain (25m)
  • Wash down pump with exit in anchor locker (fresh water)
  • Mooring cleats midships
  • Gates in lifelines midships

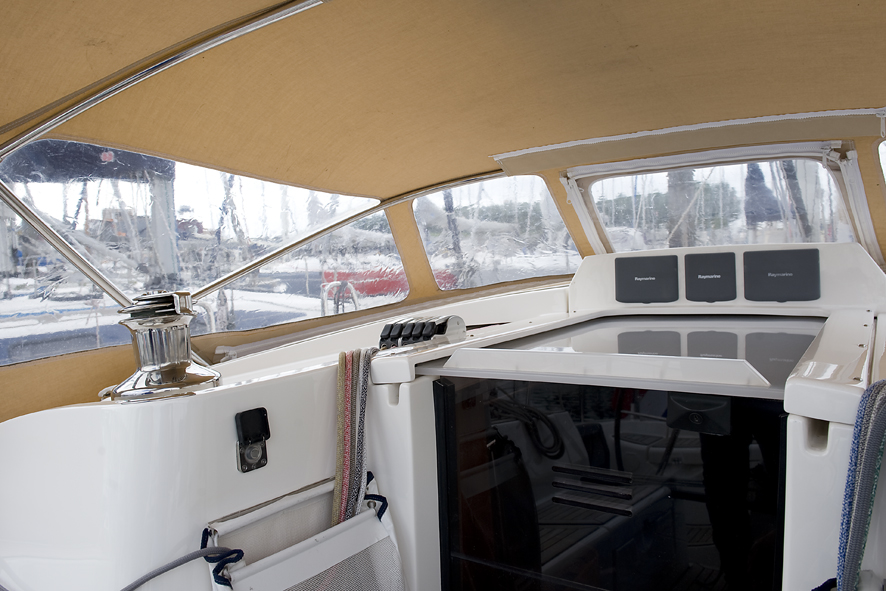

  • Sprayhood and cover in beige canvas
  • Cockpit table Laguna (mounting plate at steering wheel console)
  • Storage system for washboards in deep cockpit locker
  • Storage system for mooring lines in aft cockpit locker

Sails

  • All North Sails:
  • Mainsail in 3DL Marathon (full-batten, offshore taffeta finish, 2 reefing points, trim stripes)
  • Genoa 108% furling in 3DL Marathon (vertical battens, offshore taffeta finish, trim stripes)
  • Gennaker G2 with snuffer
  • Heavy weather jib

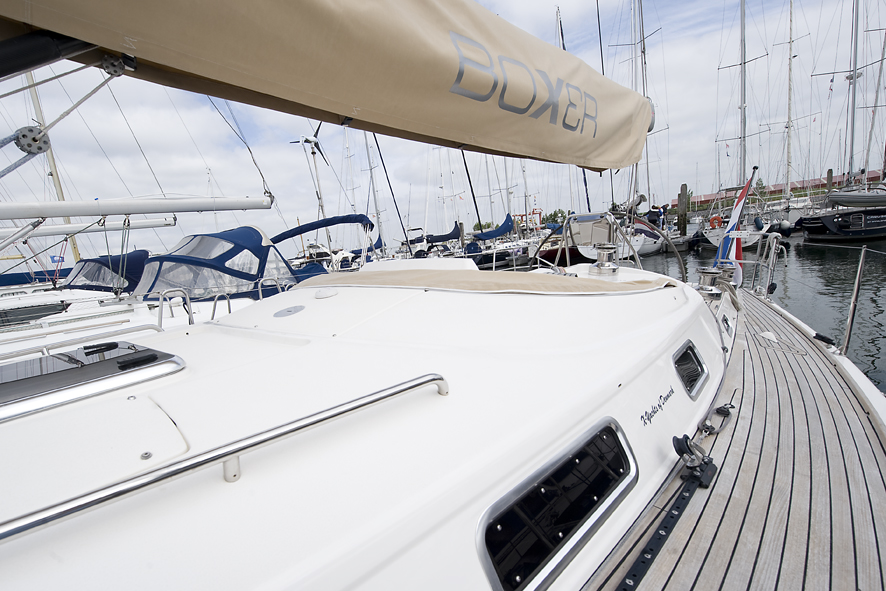

  • Mainsail cover in beige canvas
  • Furling jib cover in beige canvas

Mast & Rigging

  • 3-spreader aluminium mast with rod rigging
  • Reckmann furling system for genoa
  • PBO backstay from Powerlite
  • Carbon abackstay flicker
  • Holmatro hydraulic backstay adjuster
  • External masttrack with Frederiksen ball bearing cars for mainsail
  • Combined steaming/decklight including bracket
  • 3-colour light in top of mast
  • Additional mast steps
  • Custom lazy jacks with spliced-in thimbles

Accommodation

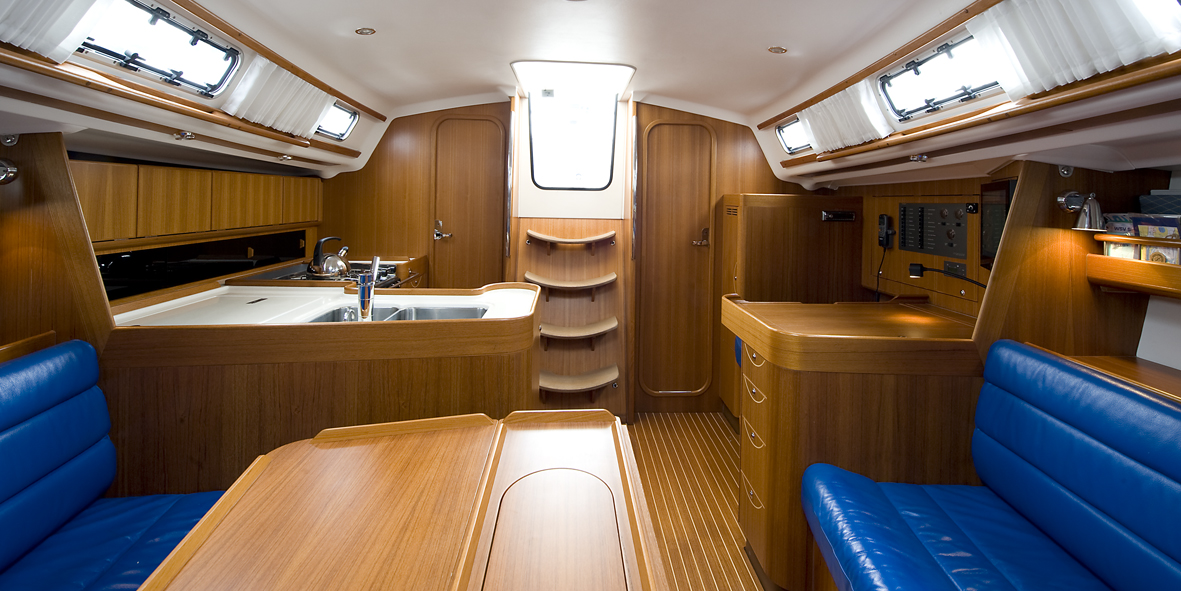

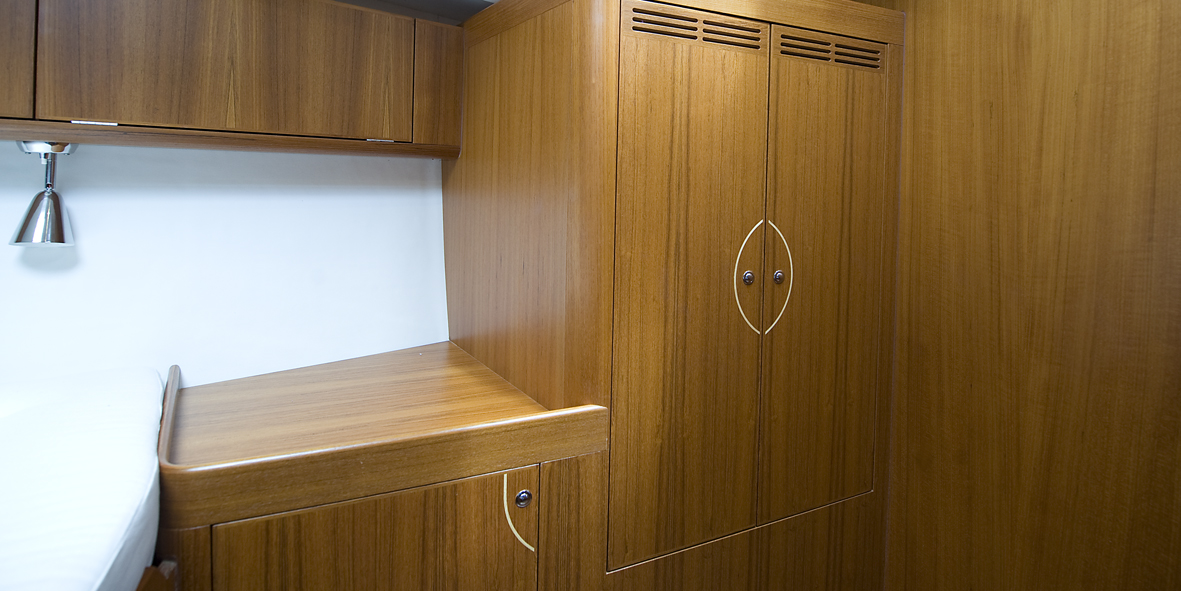

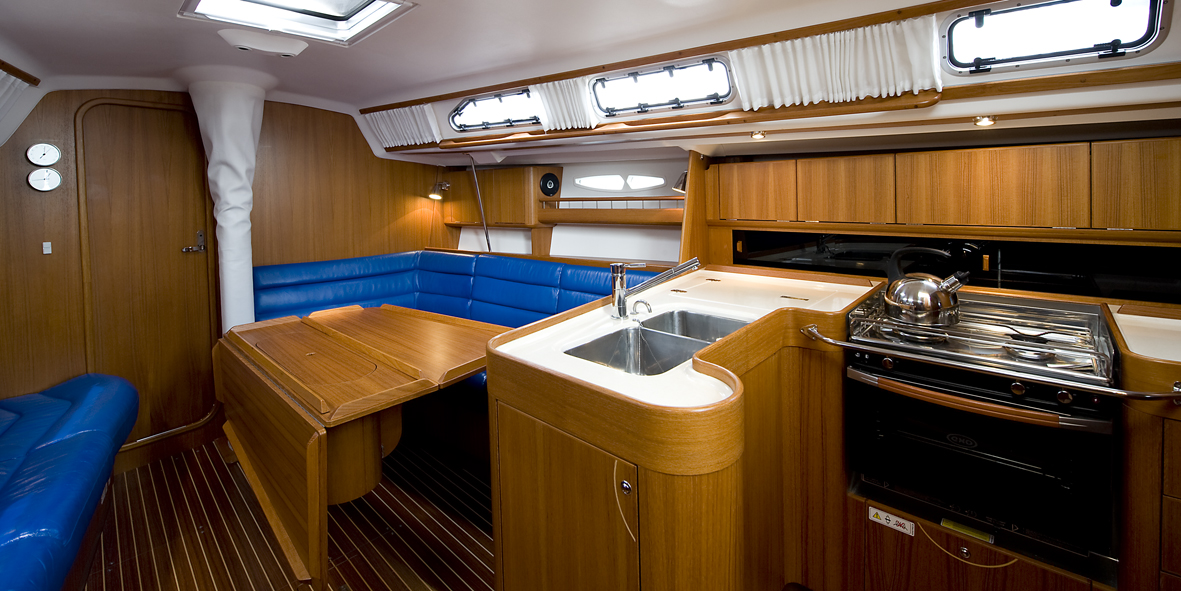

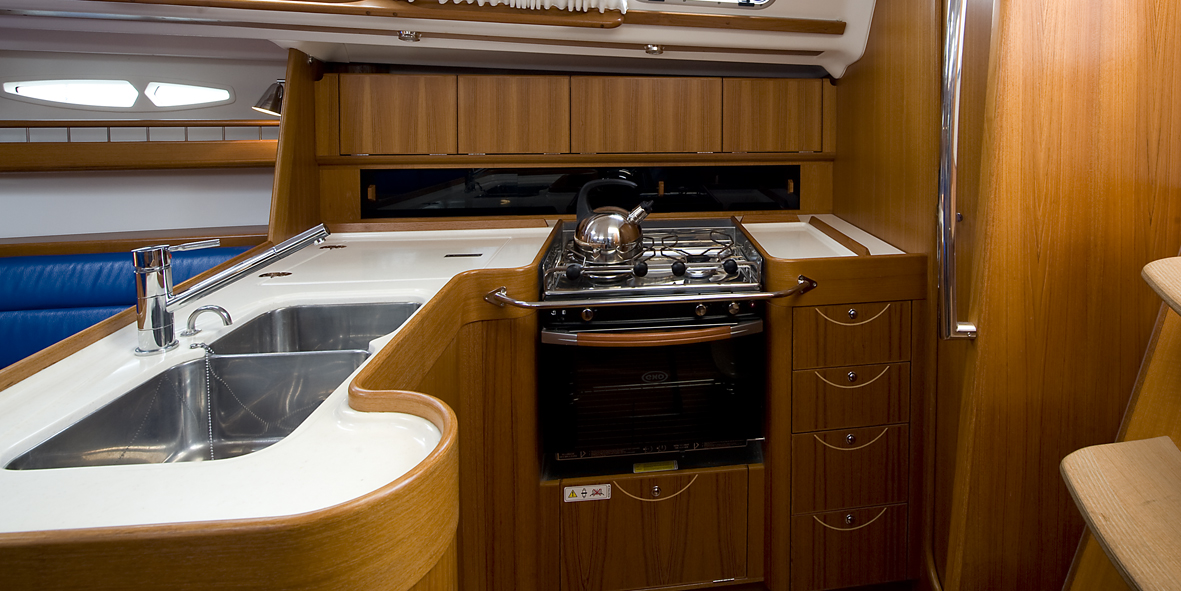

Interior

  • Teak interior
  • Upgraded Kyoto floorboards
  • Heating system with 4 outlets

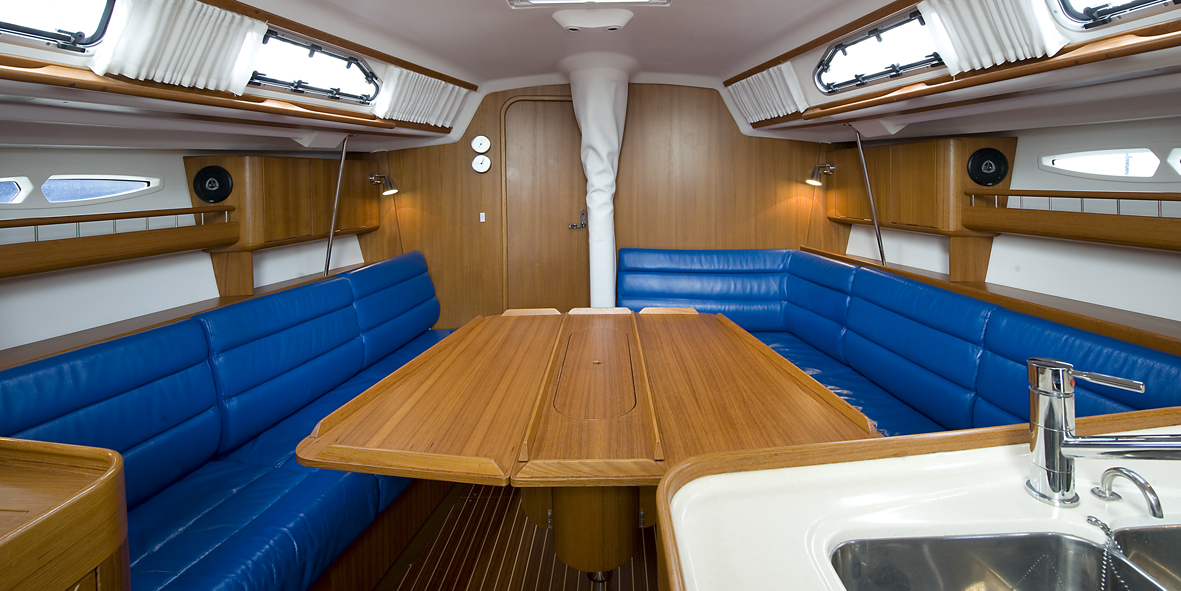

  • Leather upholstery on all seating cushions
  • Jabsco QuietFlush electrical toilet
  • Holding tank for toilet (possible to be by-passed)

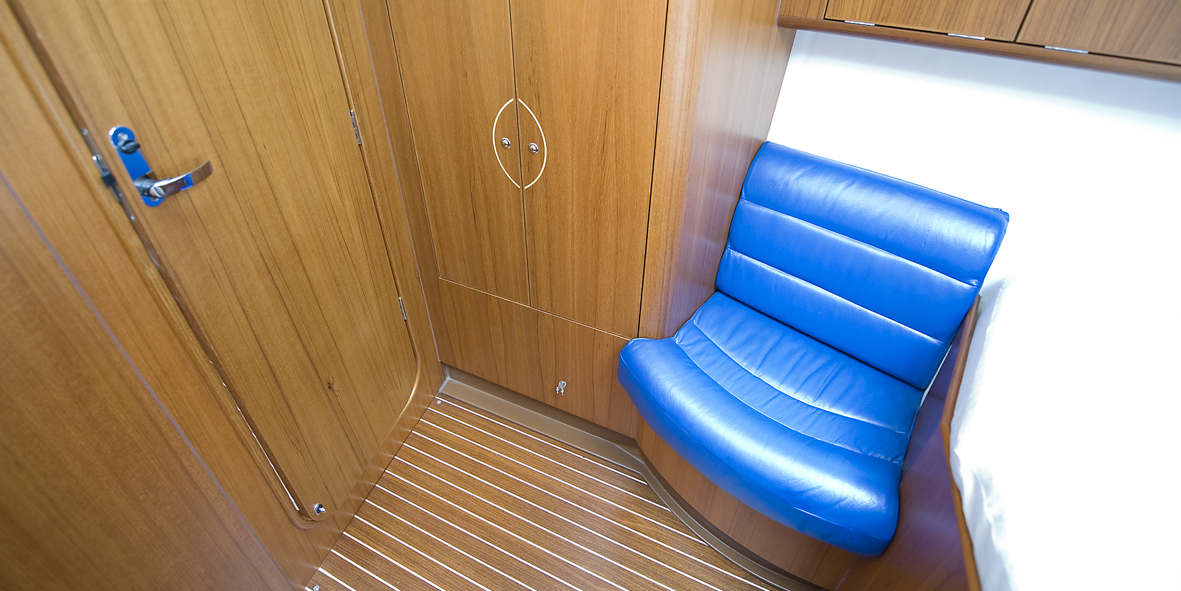

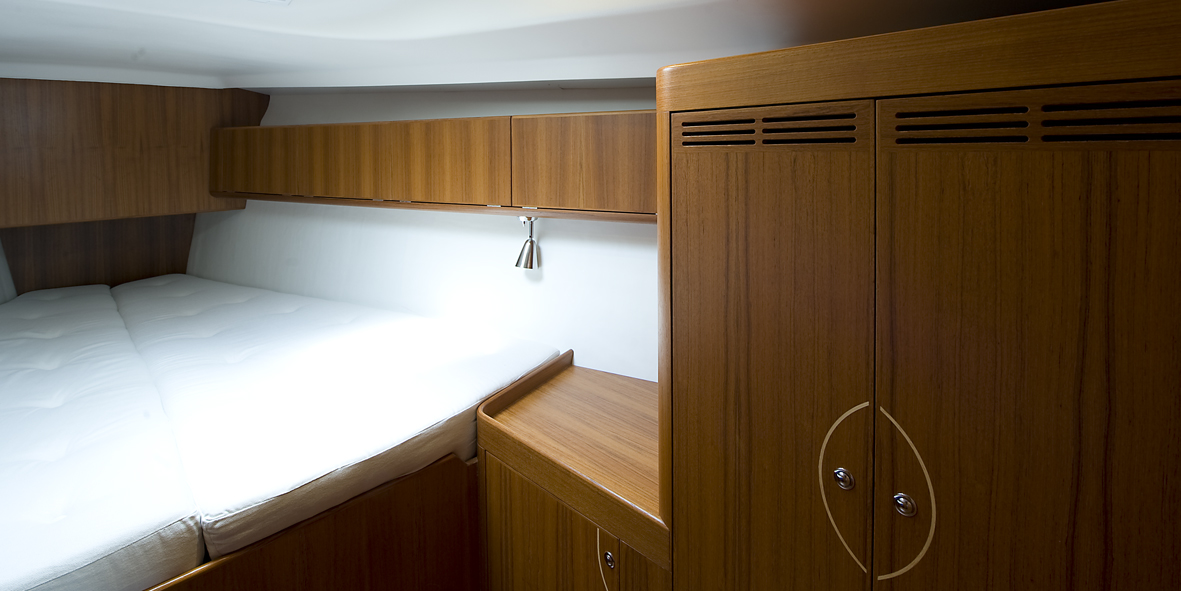

  • Additional sea berth in SB aft cabin

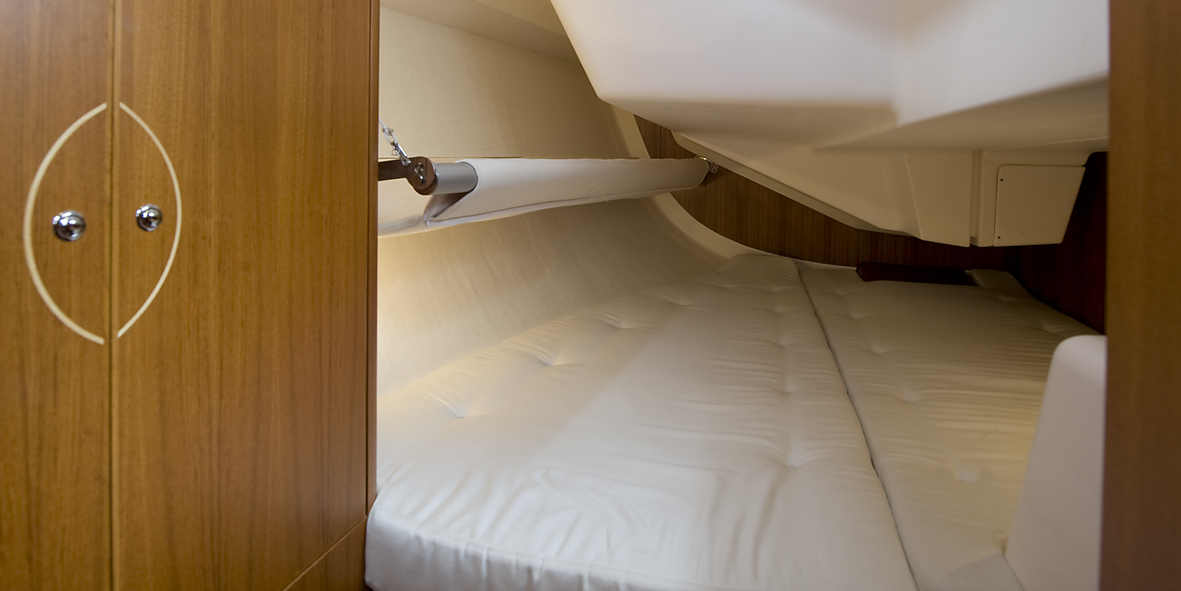

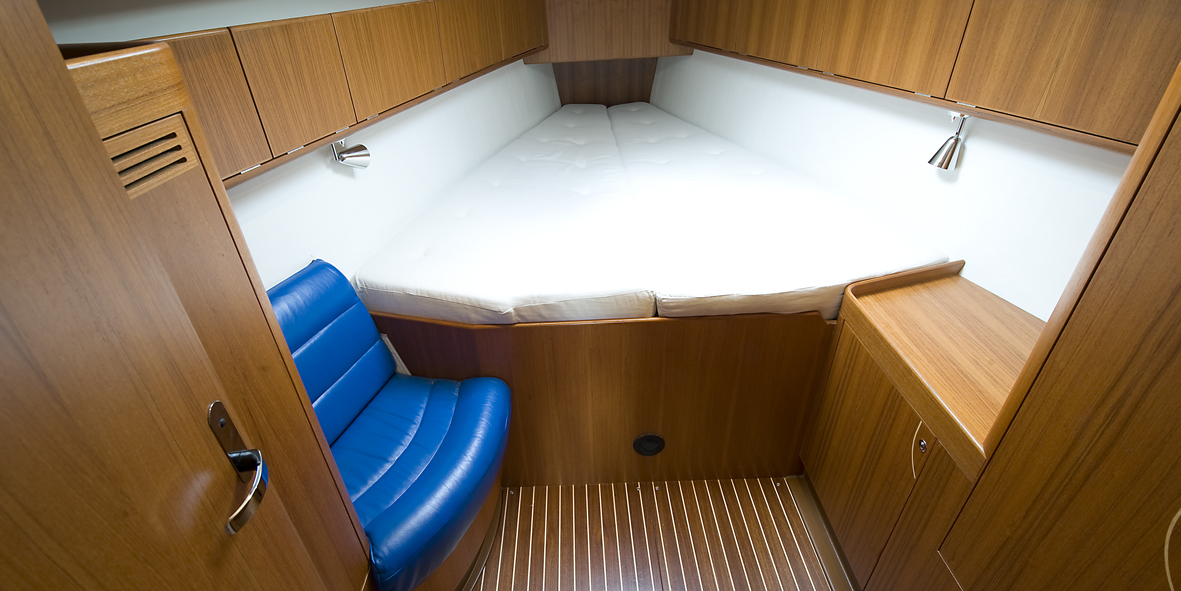

  • New matrasses in forward cabin (2017)
  • Watercooled refrigerator with accumulator plate

Systems

Electrical

  • 2x 120Ah gel battery (replaced 2017)
  • Mastervolt BTM battery monitor
  • 1x 55Ah starter battery
  • Shore power connection with socket in anchor locker
  • 50A battery charger
  • Automatic switch for bilge pump
  • Electrical gas switch
  • Gas alarm
  • Wifi router/amplifier
  • JVC radio/CD/DVD player

Electronics

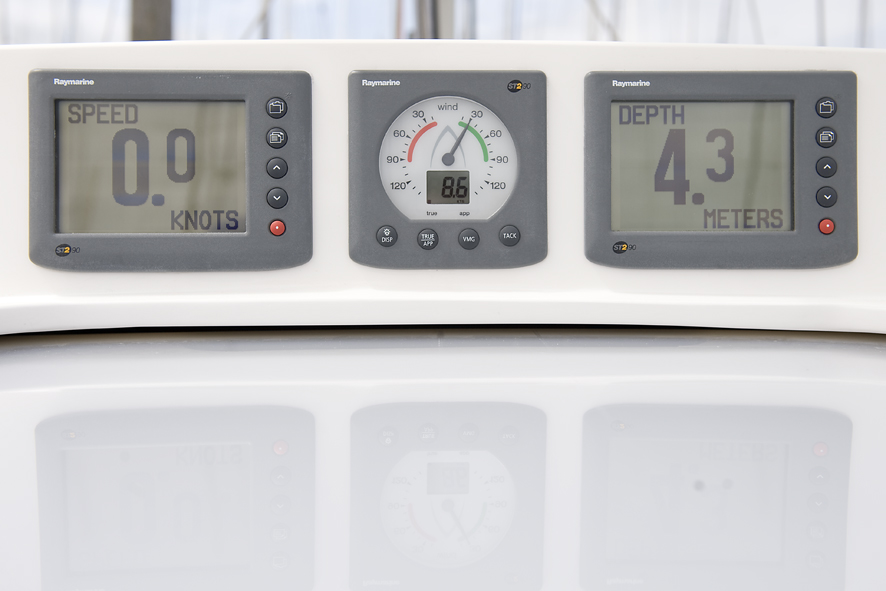

  • Raymarine ST290 system, with:
  • Above sliding hatch:
  • 2x graphic display
  • 1x analog wind display
  • In large stainless steel console at steering wheel:
  • Raymarine E80 plotter
  • ST290 autopilot control kepypad (with Jefa drive direct on rudder quadrant)
  • ST290 control keypad to change the graphic displays
  • In recess behind steering wheel:
  • 2nd connection for VHF

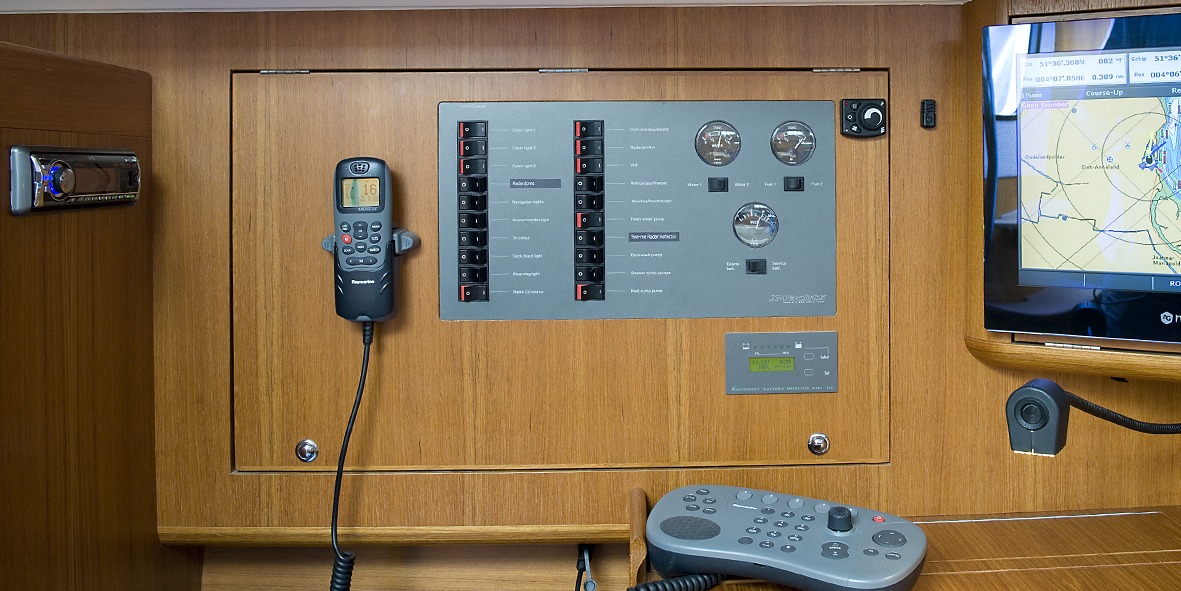

  • At nav station:
  • Raymarine Ray240E VHF
  • 15" LCD screen which mirrors the E80 plotter
  • Raymarine keypad to control/view plotter image at the LCD screen
  • AIS transponder
  • In mast:
  • VHF antenna
  • Digital radardome
  • Sea-me active radarreflector

Additional Information

  • The elegant yet sporty looking X-40 was first launched in spring 2004. She is a fast cruiser and designed to set the standard for quality built yachts and still features the same outstanding characteristics as the other Performance Cruisers in the X-Yachts range such as sandwich hull and deck, steel hull girders, composite keel with low CG, and so forth. All requirements for optimum sailing performance.
  • The X-40 is standard equipped with many relevant extras such as teak in the cockpit, 6 full stainless Andersen winches, rod rigging, German mainsheet system, integrated sprayhood in recessed storage, and ofcourse basic cruising amenities such as refrigerator and hot water container.
  • In 2009 a new interior lay-out was introduced with a 2-cabin lay-out and single aft heads only, making space in the saloon for a corner sofa and providing an abundance of space in the forward cabin. This particular X-40 is built in that configuration.
