Details

Exterior Details

Hull

• • Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Structural bulkhead in marine plywood varying of thickness from 9-22 mm.
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging

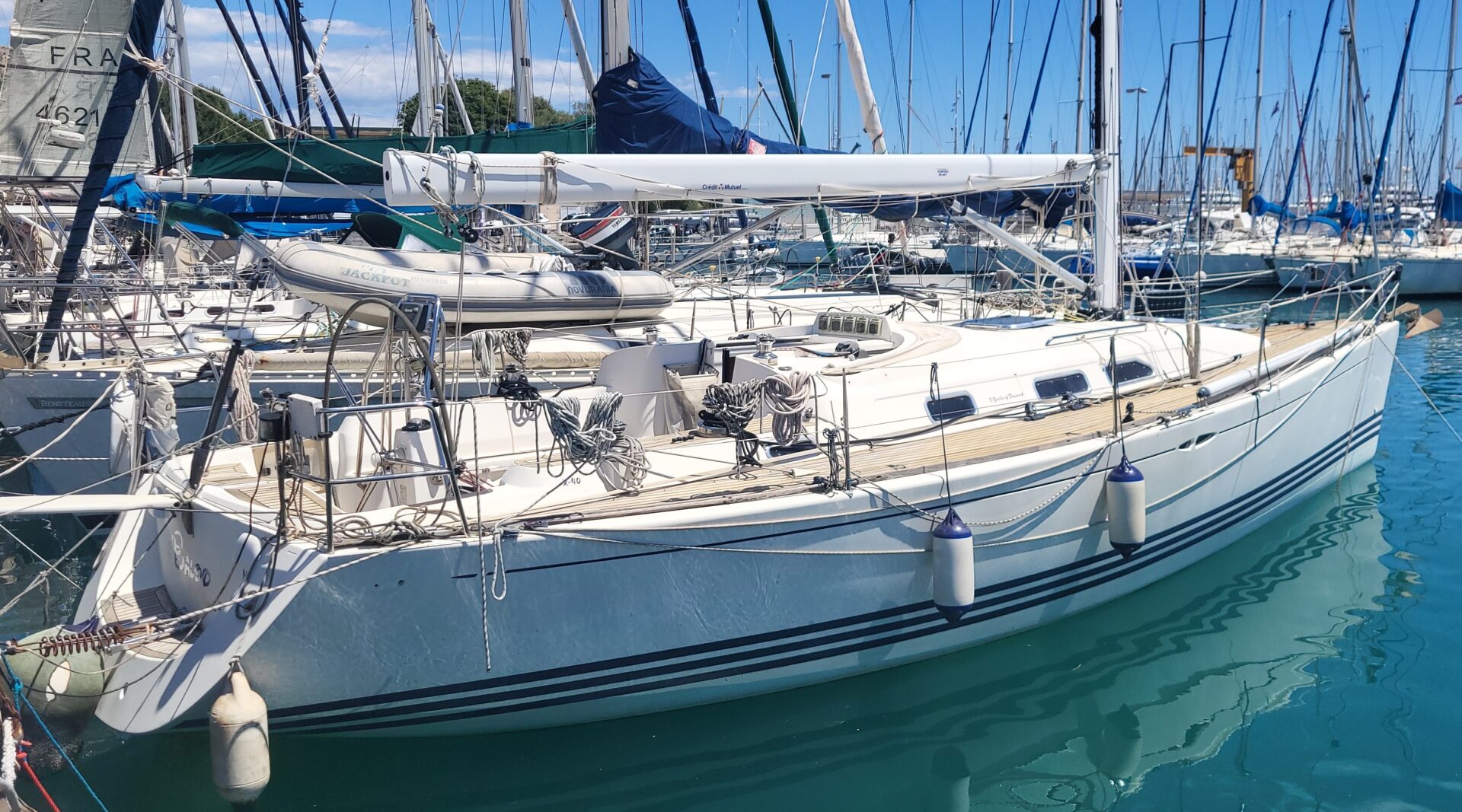

• • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue waterlines
• • Single point hoist for easy and safe lifting and launching of the yacht
• • Structural bulkheads laminated to hull
• • Hull recessed portlights - (6 pcs)
• • Keel securely bolted to reinforced keel structure
• • Deck built in sandwich construction with structural foam and bi and uni-directional E – Glass cloth, white gelcoat
• • Rudder blade of sandwich construction laminated
• • Rudder stock constructed of solid, high aluminium with welded wings
• • Rudder stock mounted with needle and self aligning bearings
• • Steering system with from « JEFA » , with gear box directly mounted on the sector of helmle

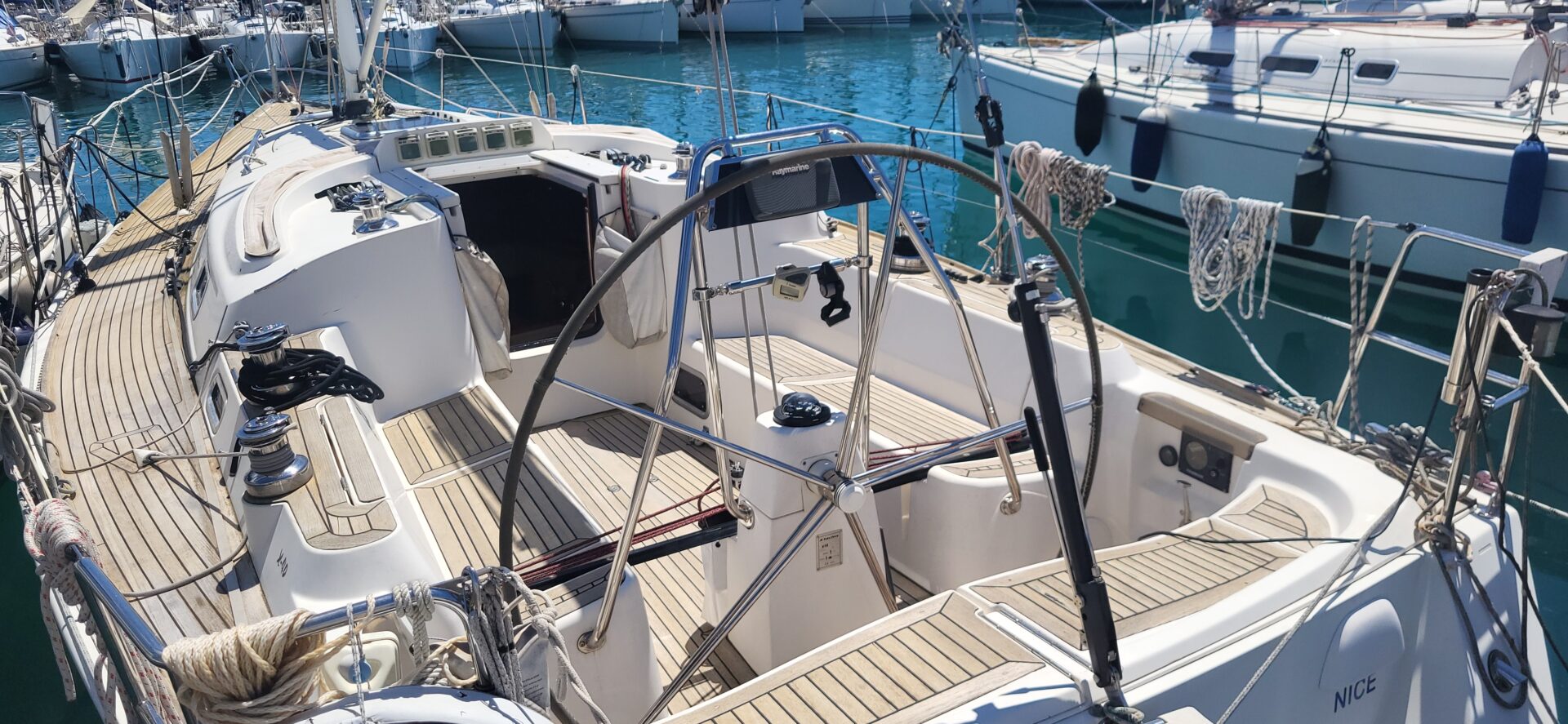

• • Aluminium JEFA steering wheel 1,70 m diameter

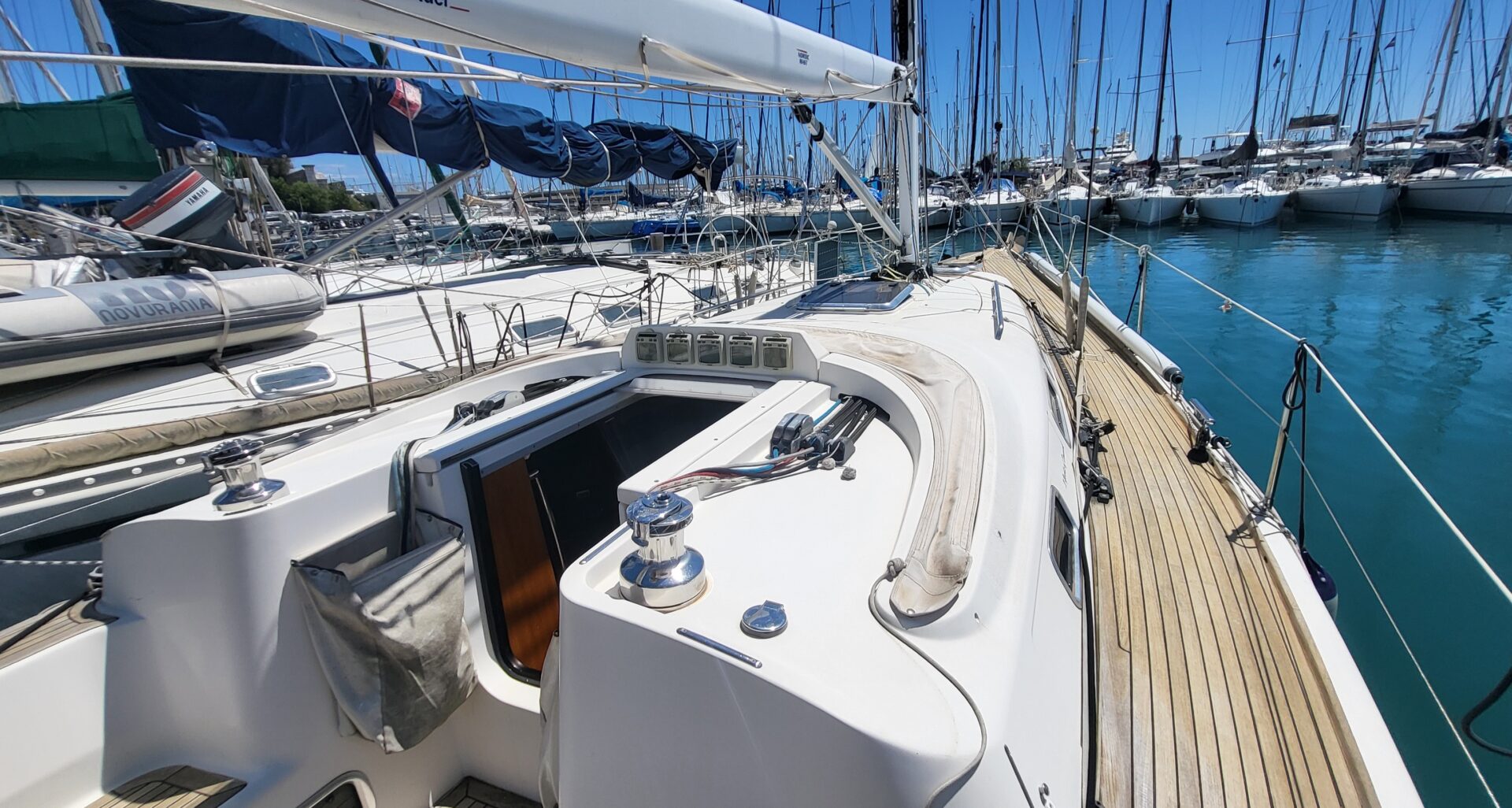

Deck

• • Teak, on side deck, cockpit sole seats and bathing plateform. Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker -
• • Gas spring fitted to forward and both aft cockpit lockers
• • Moorings cleats in stainless steel lounted fore, including stainless steel protection rails
• • Bathing ladder in stainless steel integrated in transom platform
• • Stainless Steel handrails on coachroof
• • Sprayhood on stainless steel arch
• • Electrical windlass + anchor and chain

Sail Handling

• • Stainless Steel Andersen 2 x ST 46.2 primary winches
• • Stainless Steel Andersen 2 x ST 40.2 for Geman Mainsheet system
• • Stainless Steel Andersen 2 x ST 40.2 for halyards ,1 electrical
• • Spinlock Constrictir/Jammer/clutches for halyards/control lines/reef lines (x9)
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Symetric spinnaker hardware and rigging with carbon boom

Sails

• • Full batten mainsail ELVSTROM Hydranet 2015
• • Genoa 140 % Cruising
• • Racing main sail 2017
• • Lazy bag and lazy jack
• • Genoa 100 % 3DI Carbon NORTH SALS 2018
• • Genoa 140 % 3DI Carbon NORTH SALS 2018

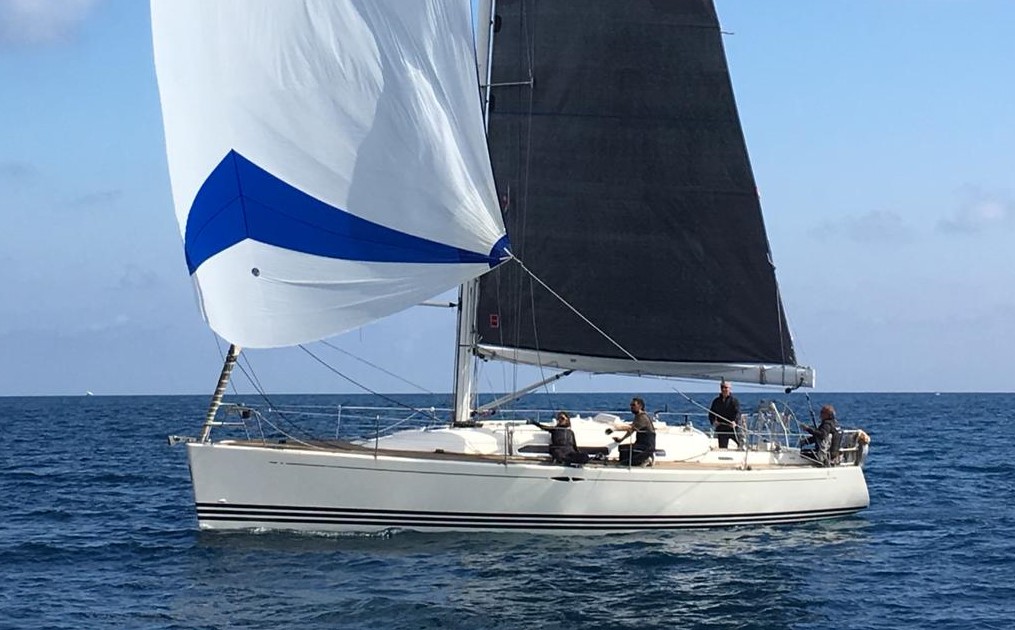

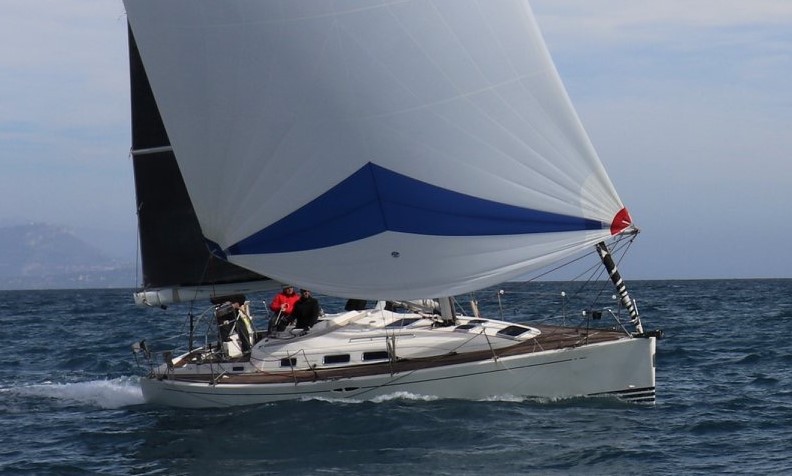

• • Symetric spinnaker new 2024
• • Code 0 NORTH SAILS

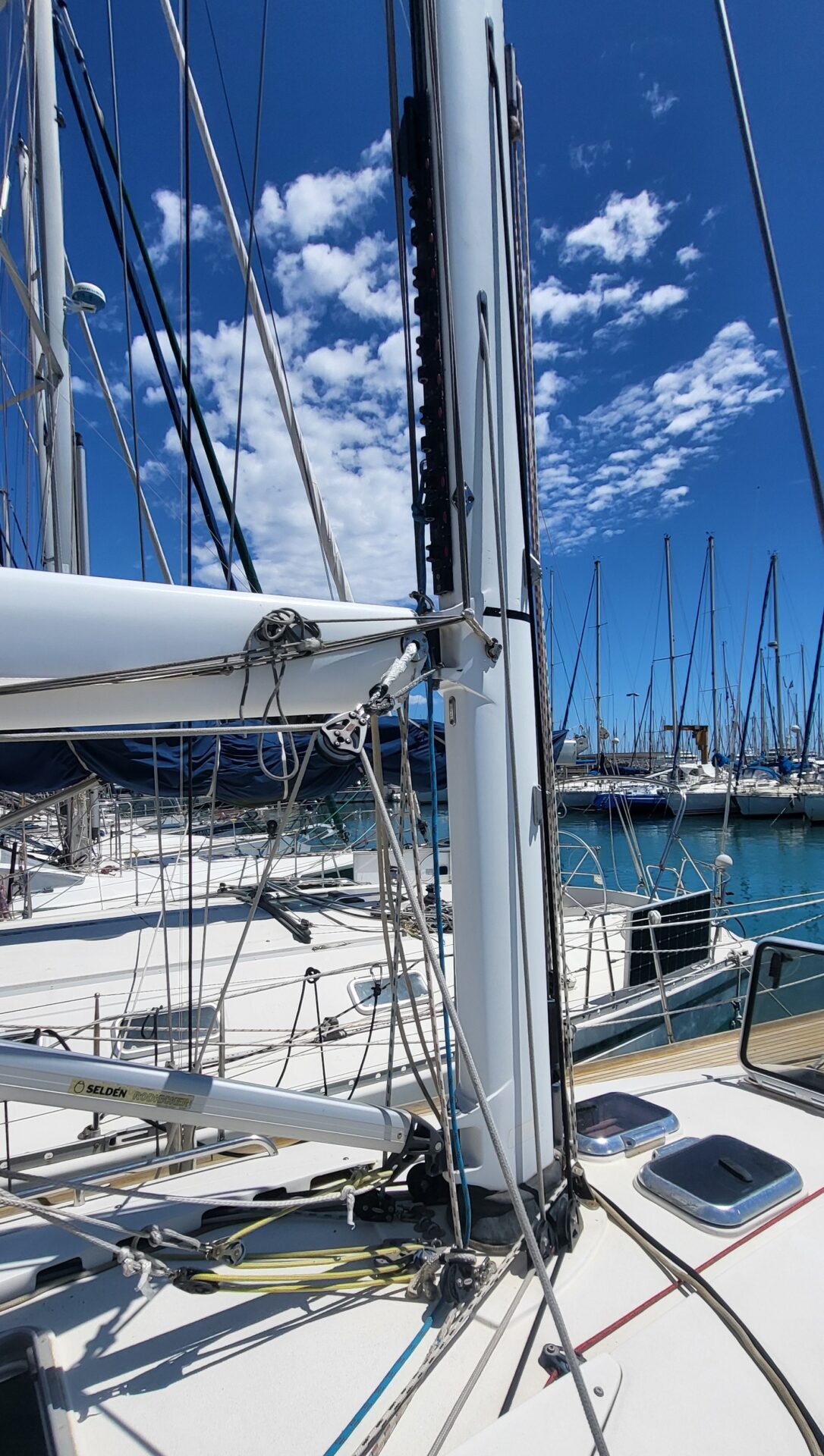

Mast & Rigging

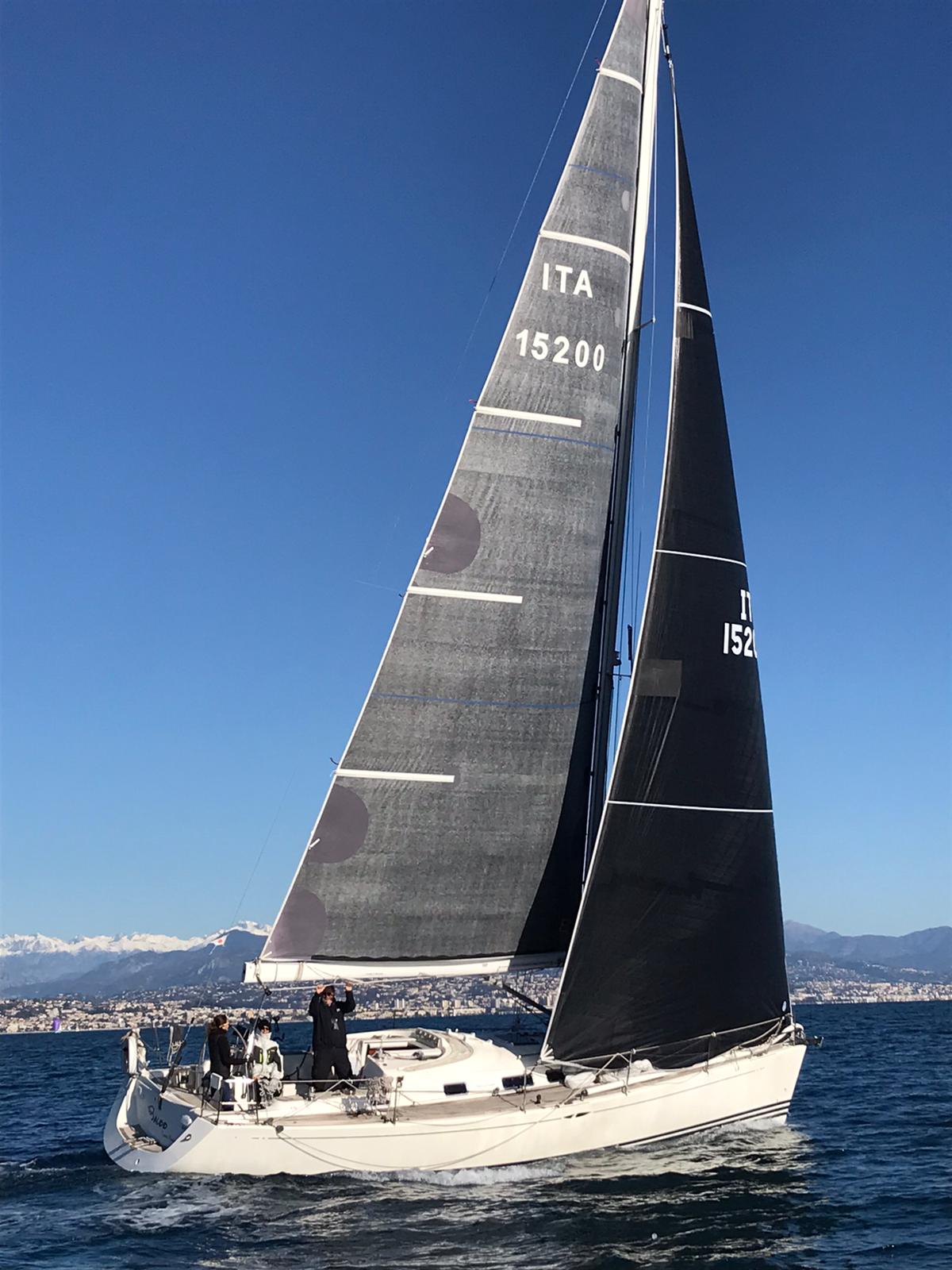

• NORDIC MAST white painted carbon mast and carbon boom double spreader stepped mast,
• • Mast track + battcars

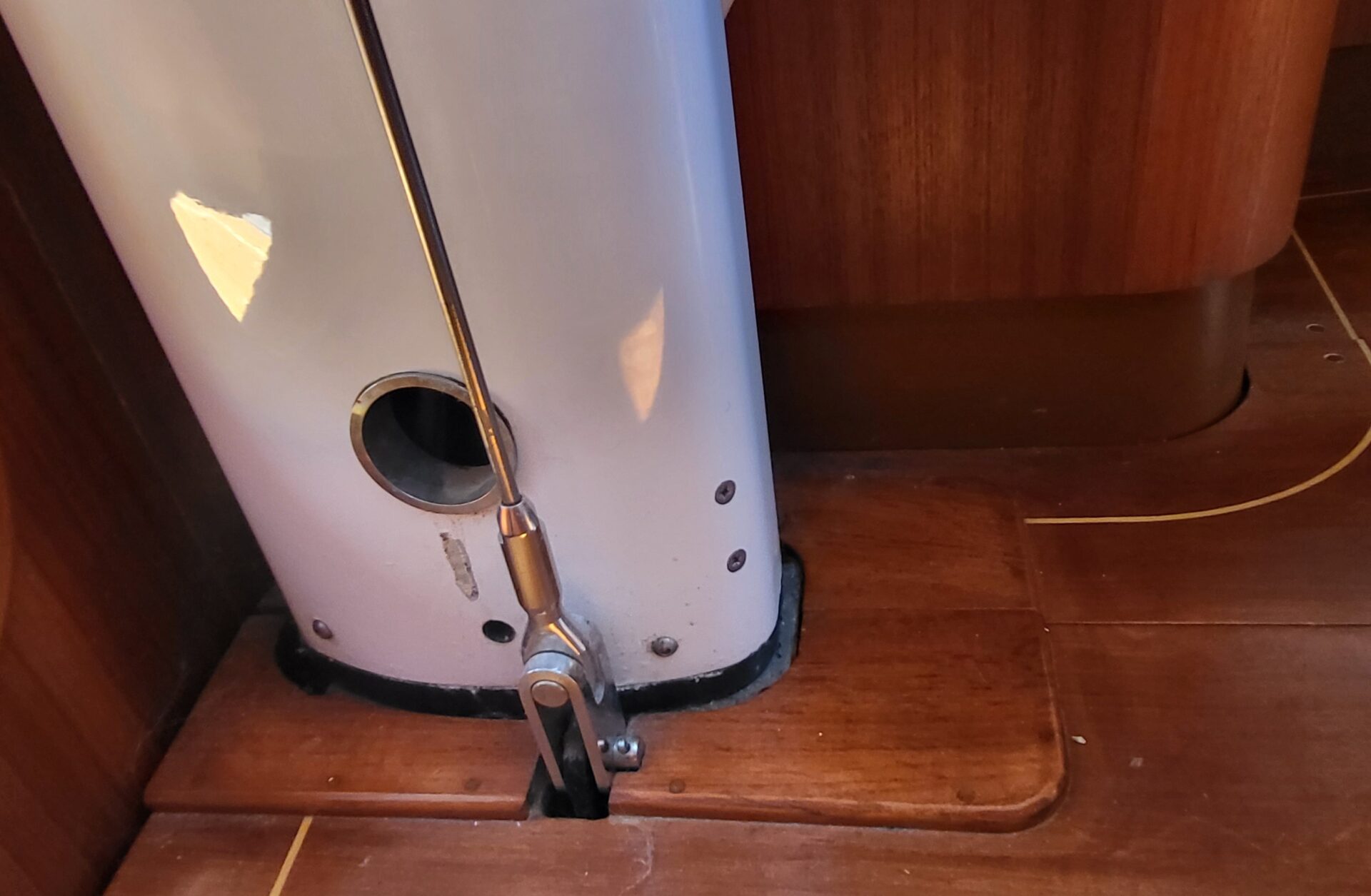

• • Discontinuous rod rigging with rod turnbuckles
• • Telescopic vang with outer purchase block system
• • Preparatiob for mast jack
• • PROFURL headsail furler installed

Keel

• Sport keel 2.40m with heavy bulb draftmade of antimony hardened lead bulb bolted and glued to cast iron fin

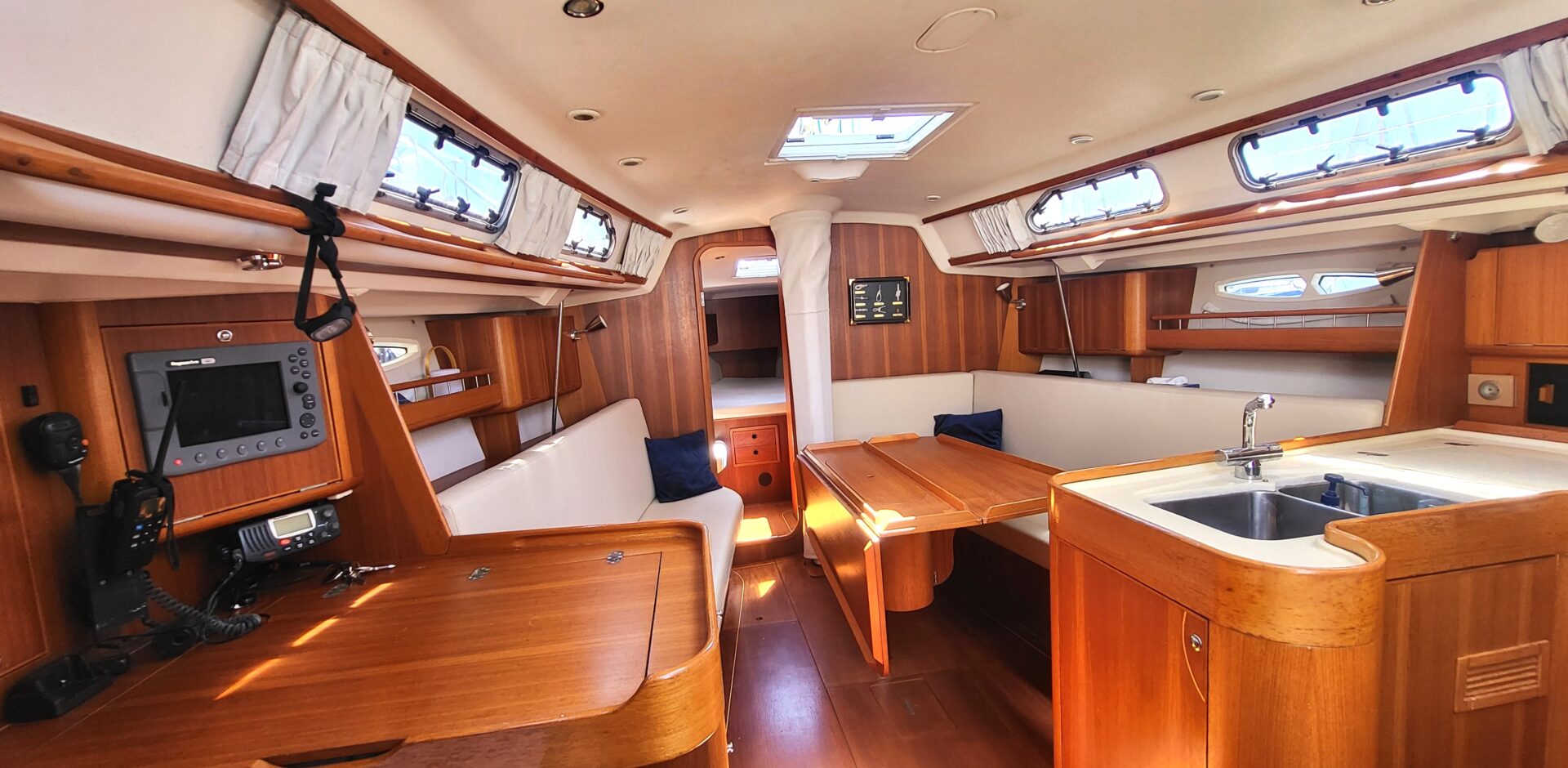

Accommodation

Classic layout 2 cabins

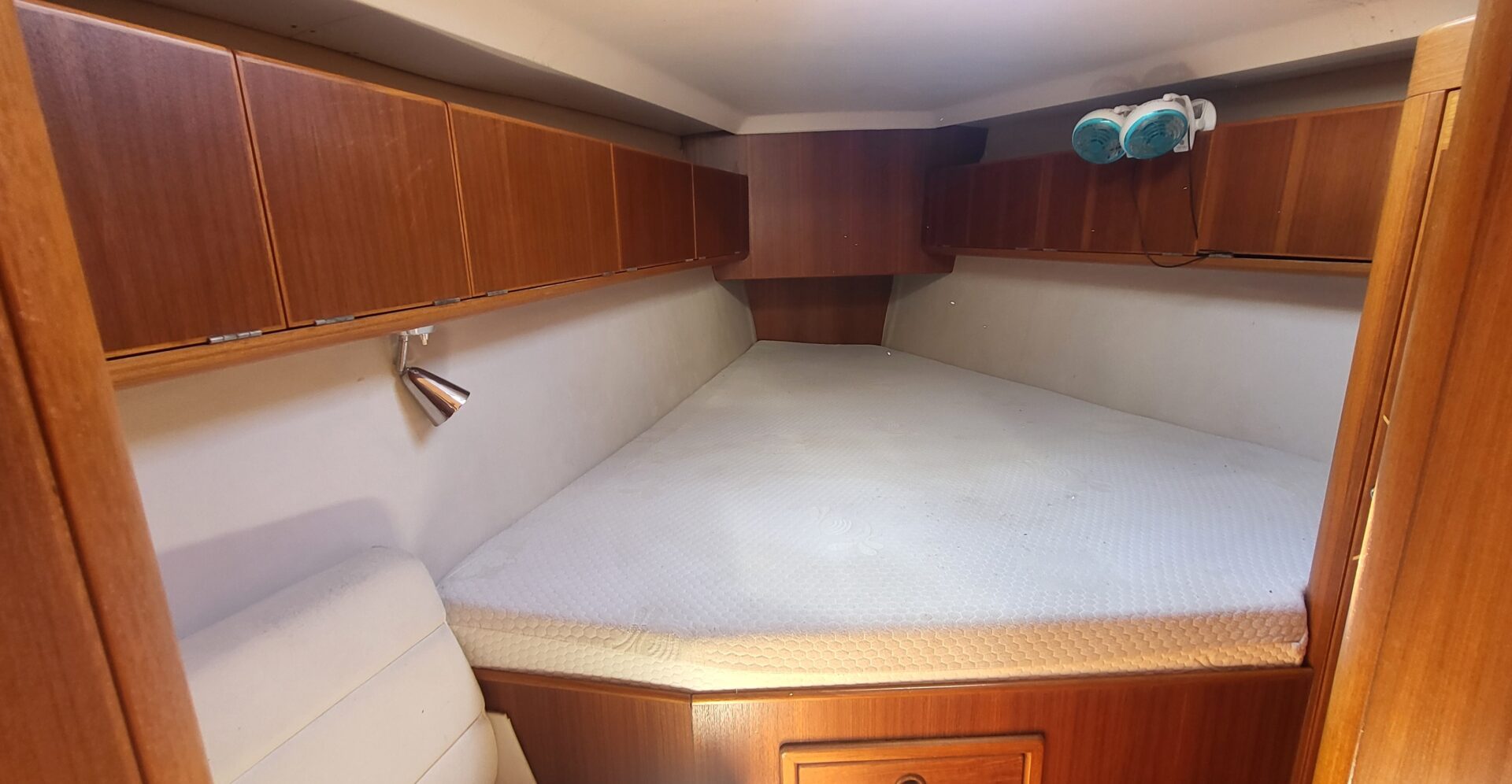

• Classic layout with 2 cabins and 2 heads, 2 additional beds in the saloon

Systems

Engine

• • Engine YANMAR 3JH4CE40 Hp, water cooled diesel engine with S-Drive
• Rubber seal replaced 2022
• • Special engine compartment with sound insulation
• • FLEXOFOLD folding propeller, 3-bladed bronze
• • Gasoil tank 90 L

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank (180 litre)
• • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or immersion heater connected to shore power
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Deck shower
• • Fridge top opened 125 l built in Isotherm SP, accumulator plate and compressor

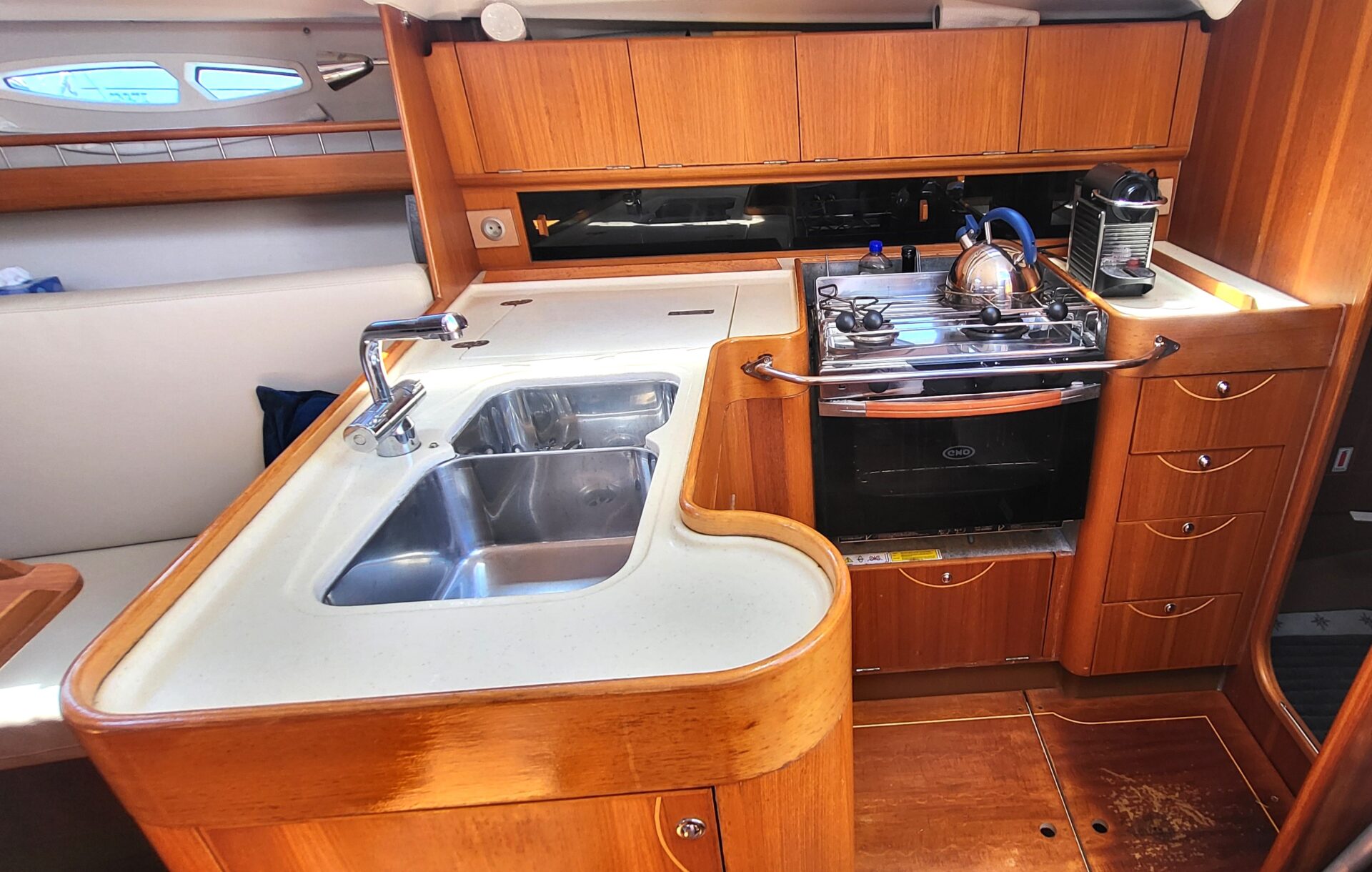

• • Gimballed Gas cooker - 3 burner Eno GASCOGNEcooker with oven

Electrical

• Main switch board with automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• • Gel services batteries Gel 2 x 130 Amp 2018
• • Separate engine spiral-cell battery
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• • Automatic battery charger 12V/30 Ah replaced 2020
• • EBERSPACHER D4 heater
• • General lights and dome spotlights integrated in inner liner

Electronics

• o ST 6001 autopilot gyro
• o Tack Tick wireless with 5 display on the coah roof
• o Sensors for log – speed – depth – wind
• o RAYMARINE C80 Color at the chart table and Ckart plotter E4 at the helm
• o Ray 54 VHF
• o CD player + 2 loudspeakers in main cabin
• o Cockpit HP with automatic switch VHF / Hifi
• o AIS transpondeur

Thrusters

• Liferat 8 (need sercvice ) and safety equipemnt
• Dinghy and HB engine
