Details

Exterior Details

Hull

• Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• Structural bulkhead in marine plywood.
• Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• ALW GRIP Navy blue hull repainted in 2022 with 3 white waterlines
• Single point hoist for easy and safe lifting and launching of the yacht
• Standard keel 2.30m draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• Keel securely bolted to reinforced keel structure

Deck

• Teak, on side deck, cockpit sole seats and transom, refitted in 2014.
• Anchor locker - drained area with LOFRANS 1000 W electric windlass
• Bathing ladder in stainless steel integrated in transom
• Sprayhood

Sail Handling

• Aluminium LEWMAR 2 x B52 STA primary winches
• Aluminium LEWMAR 2x 44.2 for spinnaker
• Aluminium LEWMAR 2x 44.2 for halyards,
• RONSTAN Jammer/clutches for halyards/control lines/reef lines (x9)
• Mainsail track in the cokpit
• PROFURL furling forestay furling line led back to cockpit
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• Symmetrical spinnaker hardware and rigging with aluminium boom
• SELDEN carbon gennaker boom

Mast & Rigging

• SPARCRAFT aluminium mast and boom, 3 spreaders, mast head, Rod rigging.
• SPARCRAFT masthead, triple spreader keel stepped mast, tapered silver anodized aluminum
• Discontinuous rod rigging with rod turnbuckles
• Silver anodized boom with single line reefing and internal boom outhaul
• Telescopic vang with outer purchase block system
• PROFURL furkler with Rod forestay replaced 2023
• Folding innerstay
• Backstay with hydraulic NAVTEC backstay adjuster

Accommodation

Classic layout 2 cabins

• Pure owner layout , 2 cabins with classic saloon, teak wod inside

Systems

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• Hot water tank Isotherm 40 l. Tank can be heated either by main engine or immersion heater connected to
• shore power
• Pressurized freshwater system for hot and cold water throughout yacht
• Deck shower
• Fridge top opened built in Isotherm SP, accumulator plate and compressor

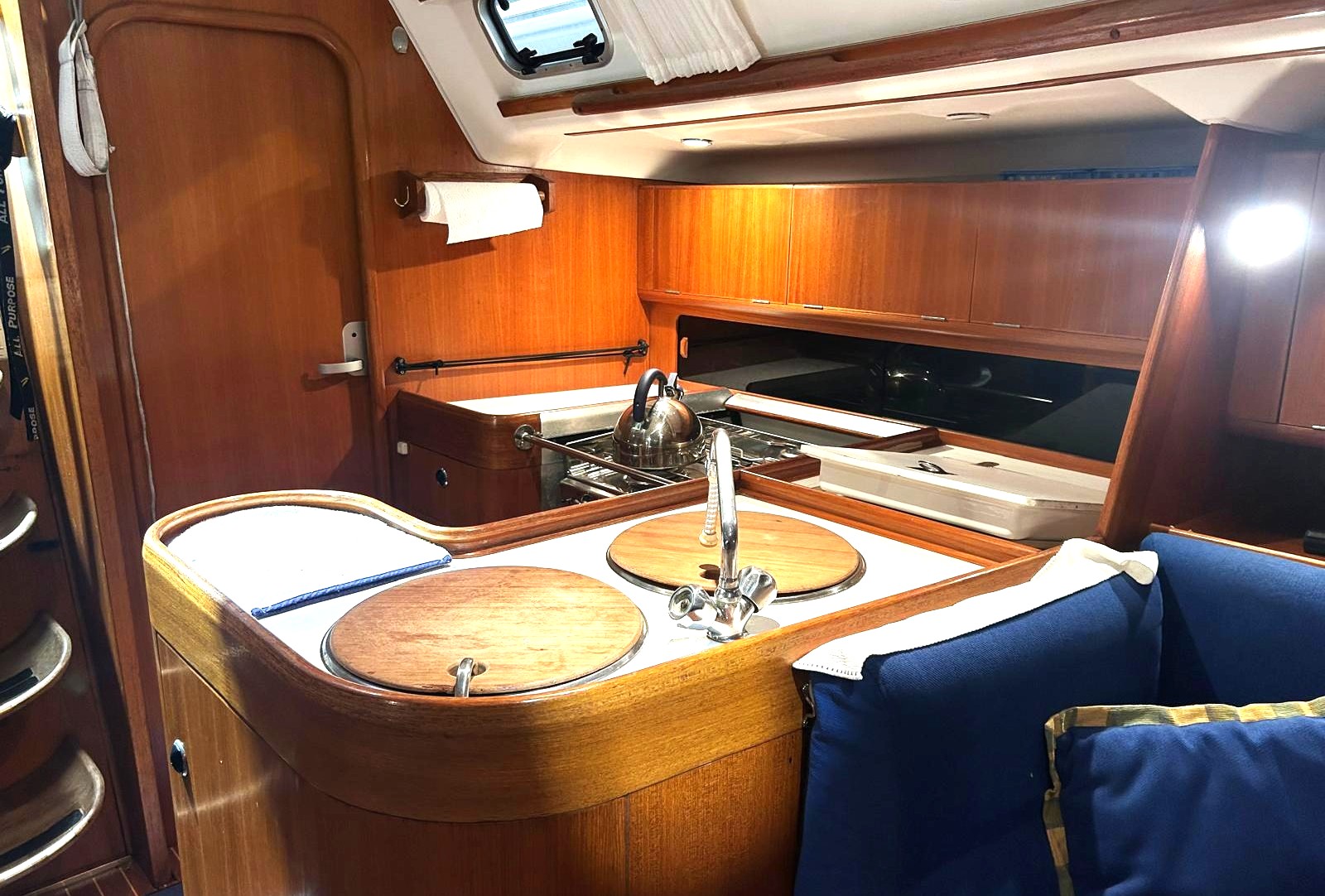

• Gimballed Gas cooker – 2x burner Eno cooker with oven
• ARDIC heater

Electrical

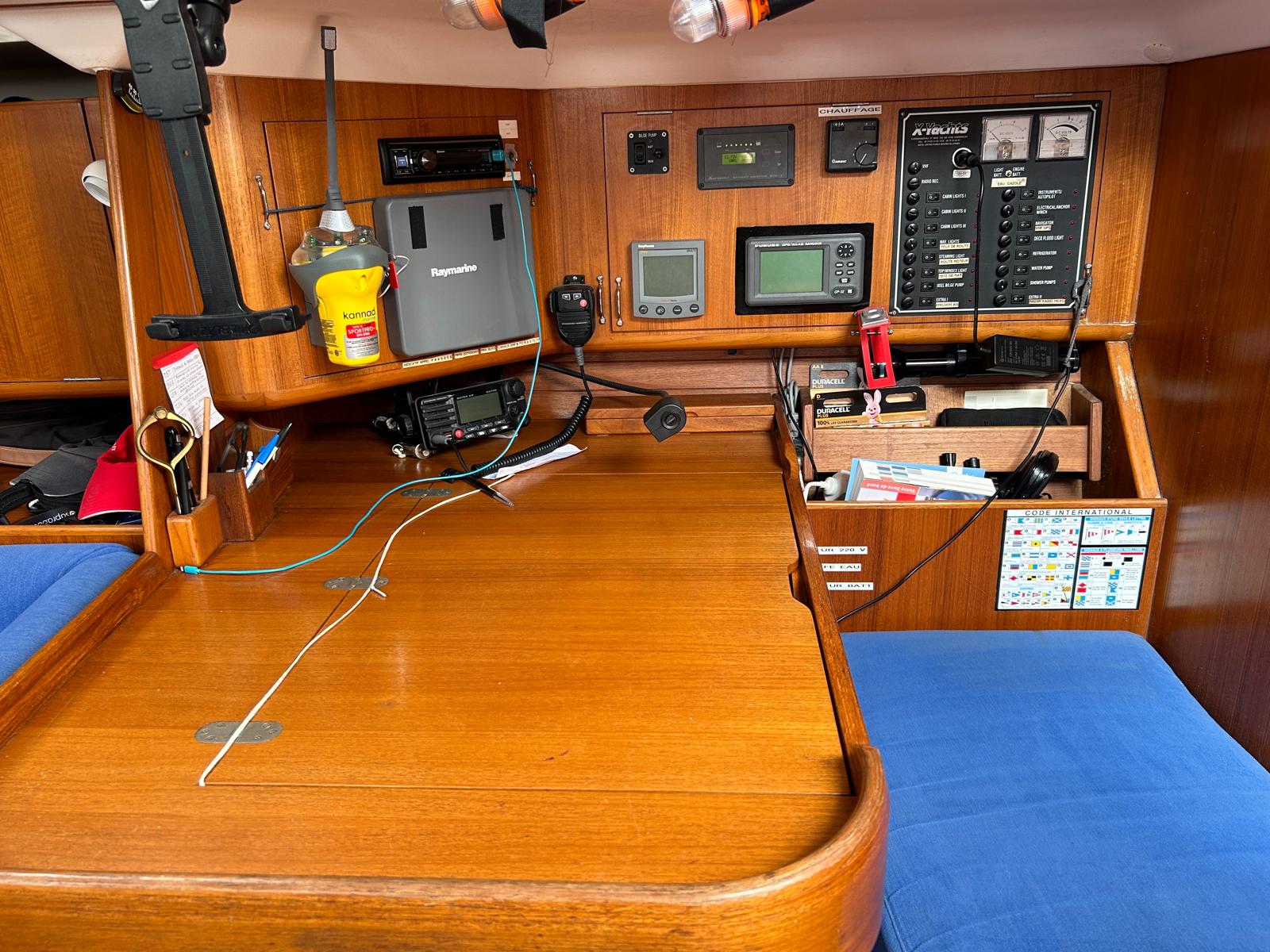

• Main switch board with analogue meters for fuel, water and battery voltage
• Gel service batterie bank 2 x 200 Amp 2015
• Separate engine battery (74 Ah, 12V)
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and
• battery charger
• Automatic battery charger DOLPHIN 60 Ah
• Battery monitor MASTERVOL

Electronics

• RAYMARINE electronic
• Autopilote RAYMARINE ST 6000
• Transduceurs for Loch- Sondeur- Girouette wind
• 5 display ST 60 on the coachroof + 1 at the chart table
• GPS Chart plotter RAYMARINE
• FURUNO GP 32
• VHF
• Radio CD + 2 HP in the saloon and 2 HP in the cockpit
