Details

Exterior Details

Hull

• Hull
• • Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Structural bulkhead in marine plywood varying of thickness from 12-28 mm.
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• • Outer surface of hull in white sprayed white RAL 9010 Gelcoat with 3 blue waterlines
• • Single point hoist for easy and safe lifting and launching of the yacht
• • Structural bulkheads laminated to hull
• • Hull recessed portlights - (6 pcs)
• • Sport keel 2.50m with bulb draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• • Keel securely bolted to reinforced keel structure
• • Deck built in sandwich construction with structural foam and bi and uni-directional E – Glass cloth, white gelcoat
• • Rudder blade of sandwich construction laminated
• • Rudder stock constructed of solid, high aluminium with welded wings
• • Rudder stock mounted with needle and self aligning bearings
• • Steering system with from « JEFA » , with gear box directly mounted on the sector of helmle
• • Stainless steel steering wheel 1,70 m diameter with leather sheathing

Deck

• Deck

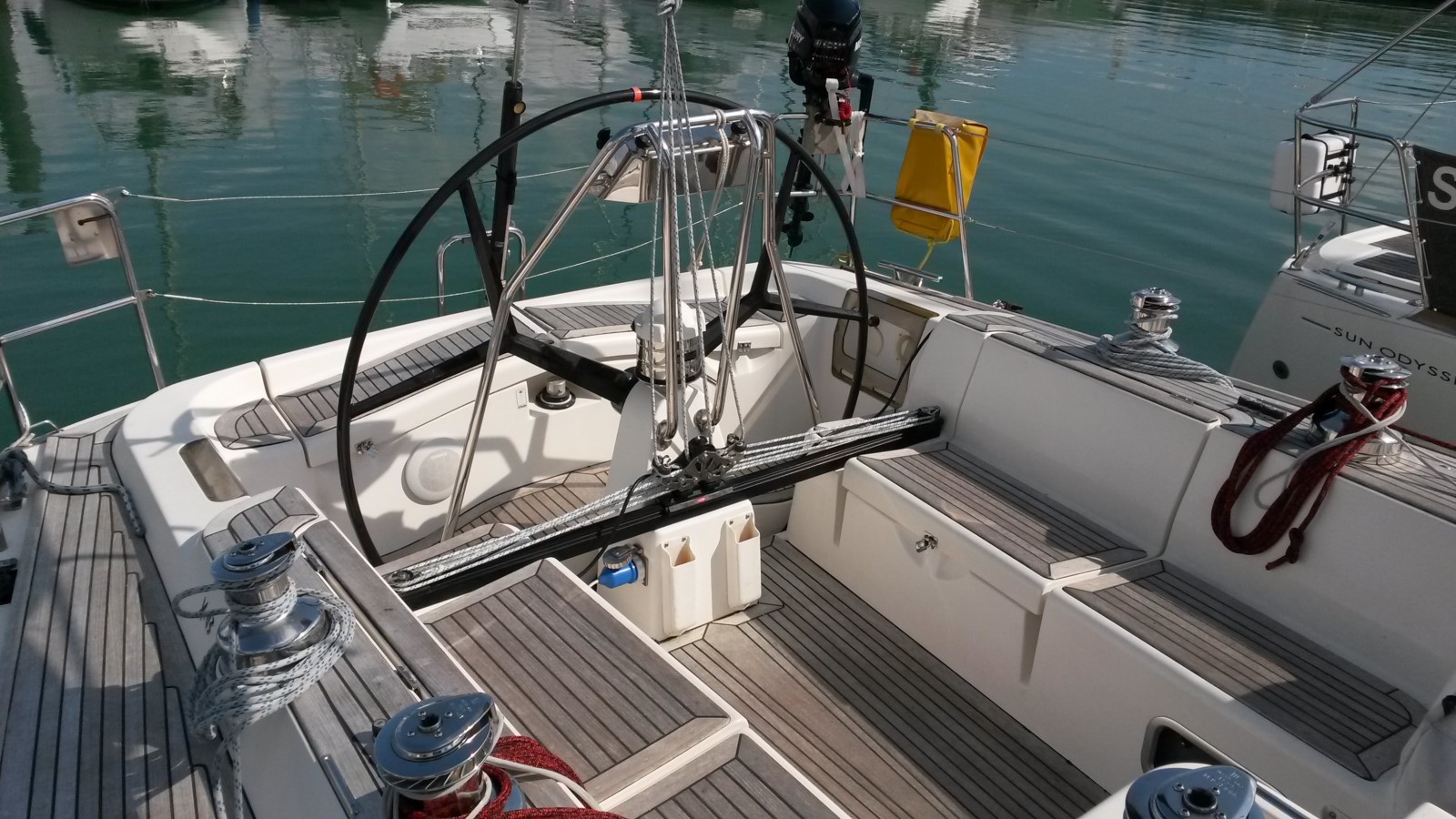

• • Teak deck, Cockpit sole seats and bathing plateform with teak. Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker - drained area with 12 V 1000 W LOFRANS PROJECT 1000 electric windlass
• • DELTA anchor16 kg
• • Gas spring fitted to forward and both aft cockpit lockers
• • Moorings cleats in stainless steel lounted fore, aft and amidships, including stainless steel protection rails
• • Bathing ladder in stainless steel integrated in transom platform
• • Stainless Steel handrails on coachroof
• • Outboard engine bracket on aft pushpit
• • Sprayhood on stainless steel arch

Sail Handling

• Andersen Winches:
•  Halyards: 2 x 46.2 ST
•  Main Sheet: 2 x 46.2 ST
•  Genoa Sheets2 x 52.2 ST
• Spinnaker equipment
• Carbon Wheel with cover
• Lofrans 100 W Electric windlass

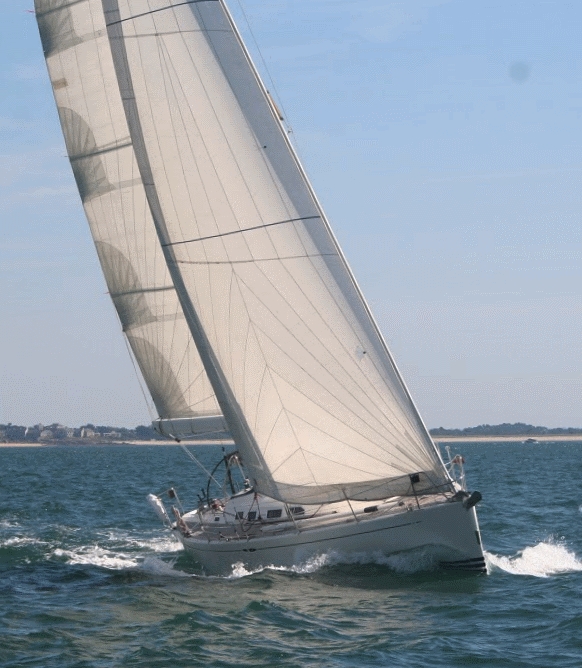

Sails

• Sails by Delta Voiles
•  Full batten Mylar mainsail
•  Furling Mylar Genoa 132%
•  Mylar Solent 106%
•  Code 0 on Profurl furler
•  Light Spinnaker 0.5 oz
•  Medium Spinnaker 0.9oz
•  Spinnaker snuffer

Mast & Rigging

• Carbon Mast and Boom Nordic Mast white painted
• Carbon Spinnaker pole
• Mainsail on Ronstan track with ballslide cars
• Mainsail halyard new
• Profurl Genoa Furler
• Rod standing rigging

Keel

• Deep draft 2.50 m

Accommodation

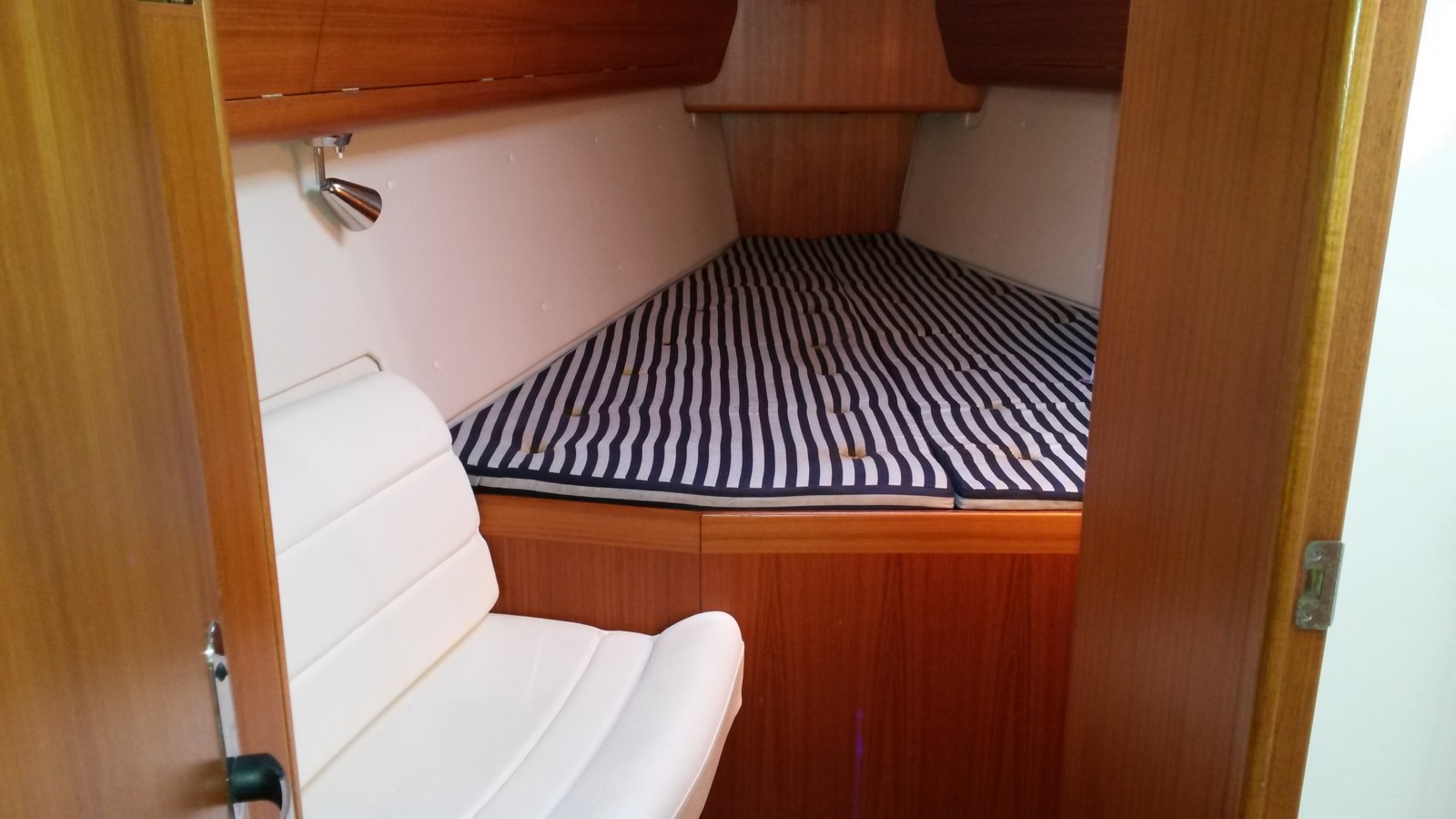

• Modern 3 cabins layout
• Upholstery in white skai
• Hung sea berths in aft cabins
• Nice teak joinery
• Battens mattress bed

Systems

Engine

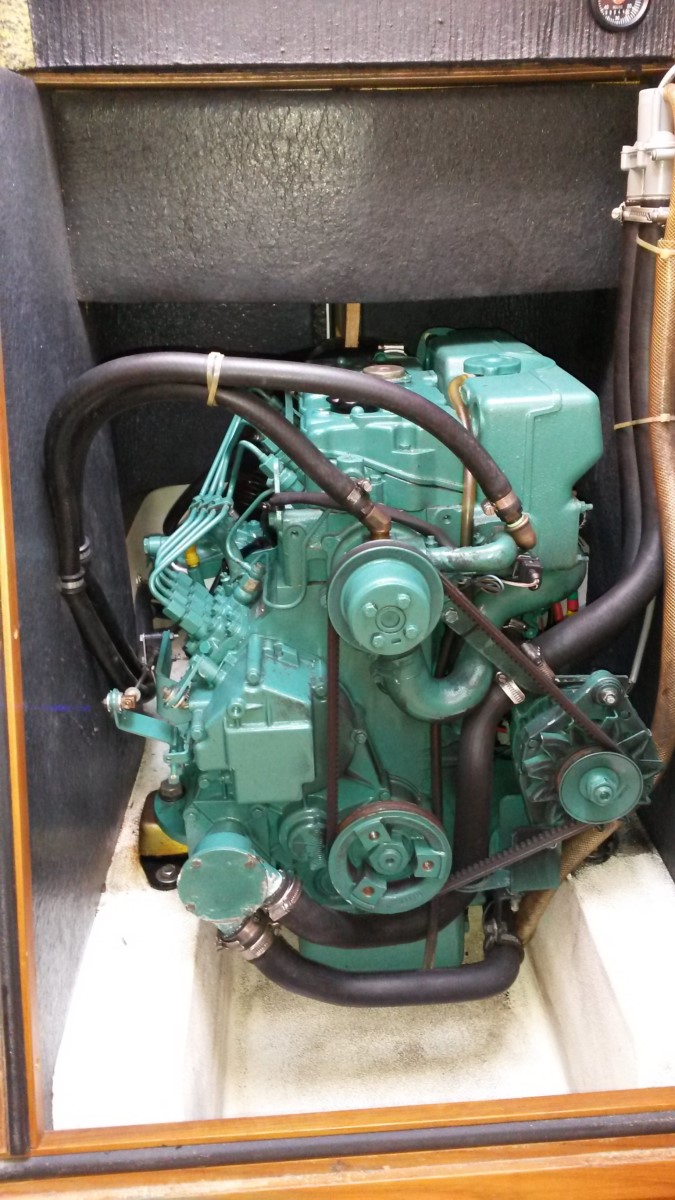

• • Engine VOLVO D2 55 Hp, water cooled diesel engine with S-Drive
• • Special engine compartment with sound insulation
• • FLEXOFOLD folding propeller, 2-bladed bronze for S-drive
• • Gasoil tank 130 L
• • Full engine service and rubber sail drive remplaced 2021

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank (380 litre)
• • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or immersion heater connected to shore power
• • Holding tank, for botht toiletts and deck outlet
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Deck shower hot cold
• • Fridge top opened 163 l built in Isotherm SP, accumulator plate and compressor
• • Gimballed Gas cooker - 3 burner Eno GASCOGNEcooker with oven

Electrical

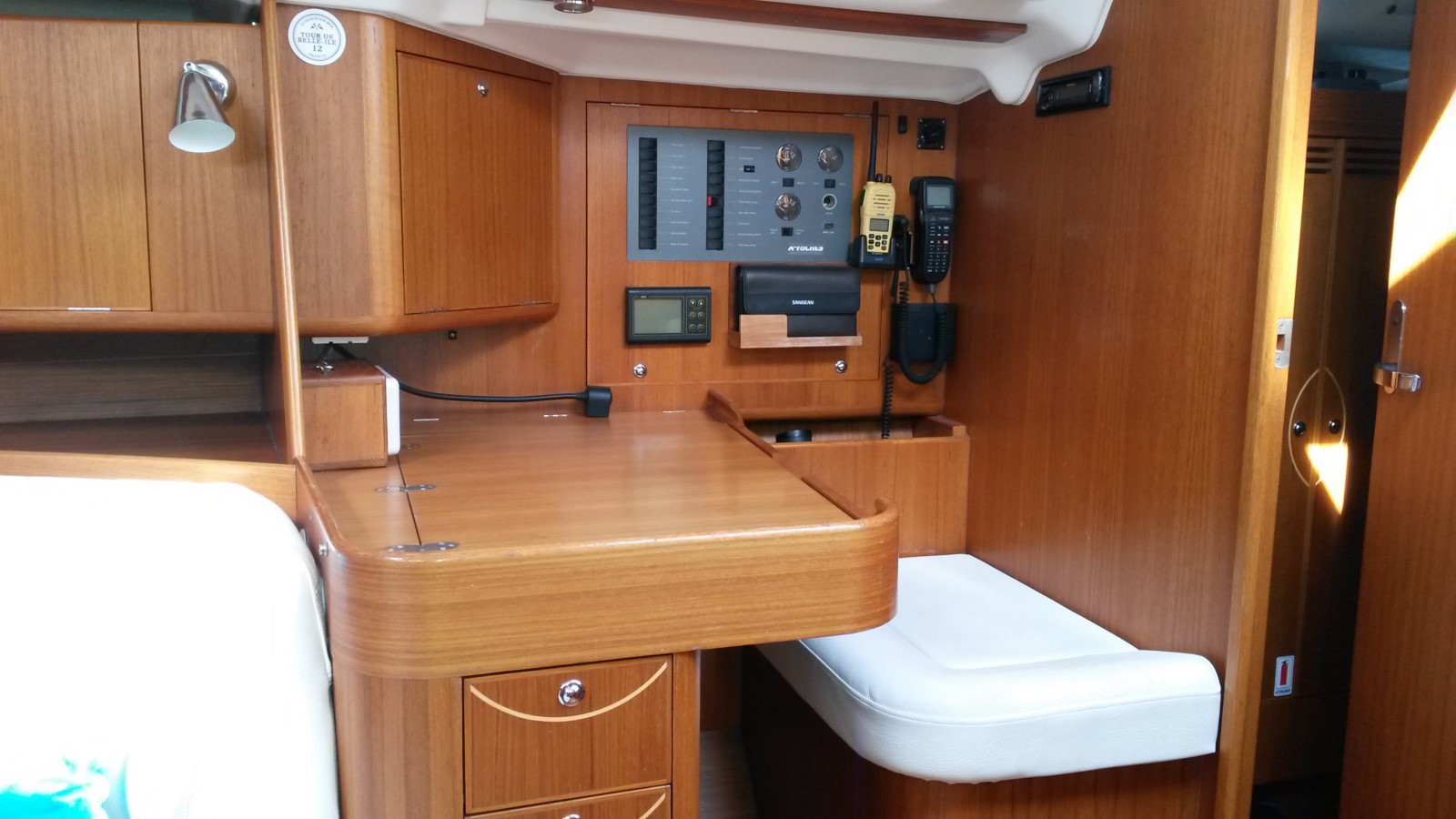

• Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• • Gel services batteries 2 x 180 amp 2014
• • Separate engine spiral-cell battery
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• • MASTERVOLT automatic battery charger 12V/40 Ah
• • General lights and dome spotlights integrated in inner liner
• • EBESPACHER central heater

Electronics

• Complete NKE Electronics': Speed/Depth/Wind
•  Mast Jumbo Display
•  Chart Table display
•  2 x Displays on companionway console
•  Autopilot NKE (2015) with Gyro compass and remote control
• Furuno GP32 GPS
• RAYMARINE A 70 on the crahsbar
• Raymarine A70 plotter at steering console
• Shipmate RS87 VHF with DSC
• AIS transponder
• PC interface
