Brokerage

X-43

Yacht Summary

X-43

Sold

X-43  First handed yacht, teak modern layout,  very goodshape

Standard Specification

DesignerNiels Jeppesen
Hull Length12.93 m42'5"
Waterline Length11.45 m37'7"
Beam (max)3.97 m13'0"
Draft2.20 m7'3"
Ballast - Std3,700 kg8,157 lbs
Displacement - Light8,600 kg18,960 lbs

Standard X-43 brochure

Details

Exterior Details

Hull

  • Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
  • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
  • Structural bulkhead in marine plywood varying of thickness from 12-28 mm.
  • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging

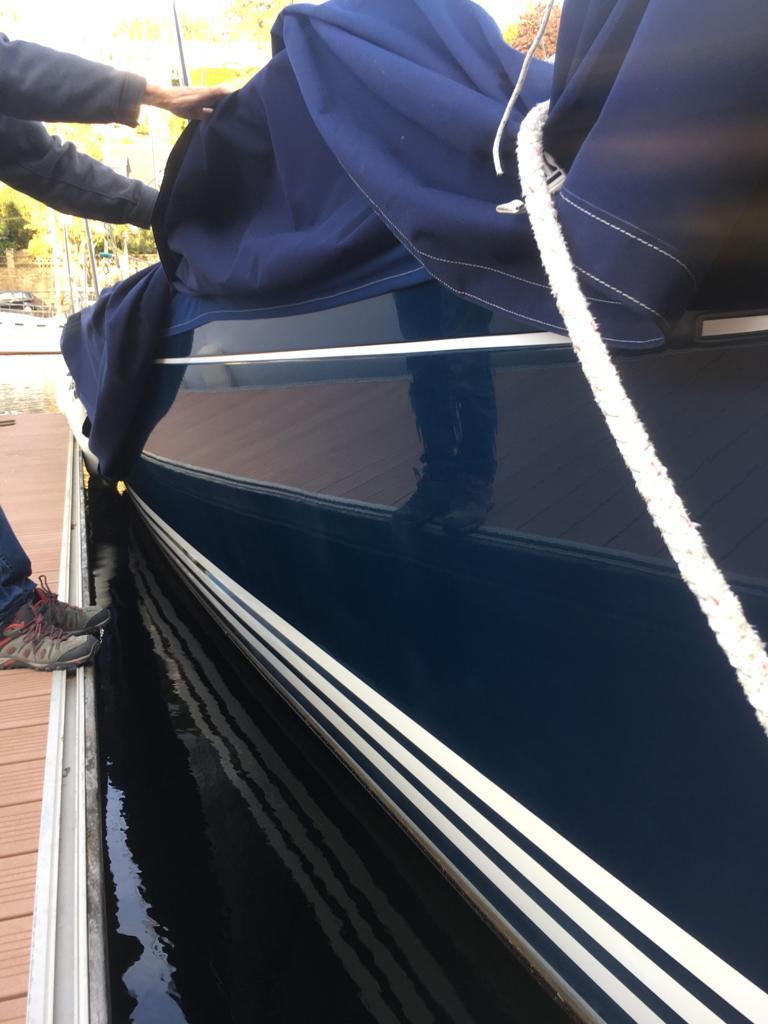

  • Outer surface of blue hull RAL 5011 Gelcoat with 3 white waterlines
  • Single point hoist for easy and safe lifting and launching of the yacht
  • Structural bulkheads laminated to hull
  • Hull recessed portlights - (6 pcs)
  • Stanadard keel 2.20m with heavy bulb draftmade of antimony hardened lead heavy bulb bolted and glued to cast iron fin
  • Keel securely bolted to reinforced keel structure
  • Deck built in sandwich construction with structural foam and bi and uni-directional E – Glass cloth, white gelcoat
  • Rudder blade of sandwich construction laminated
  • Rudder stock constructed of solid, high aluminium with welded wings
  • Rudder stock mounted with needle and self aligning bearings
  • Steering system with from « JEFA » , with gear box directly mounted on the sector of helmle
  • Stainless steel steering wheel 1,70 m diameter with leather sheathing

Deck

  • White non skid on the deck, Cockpit sole seats and bathing plateform with teak. Bulwark with teak capping incorporated in deck/hull design
  • Anchor locker - drained area with 12 V 1000 W LOFRANS PROJECT 1000 electric windlass
  • DELTA anchor16 kg
  • Gas spring fitted to forward and both aft cockpit lockers
  • Bathing ladder in stainless steel integrated in transom platform
  • Stainless Steel handrails on coachroof
  • Sprayhood on stainless steel arch

Sails

  • Mainsail full batten X-VOILES 2022 + lazybag
  • Furling Genois X-VOILES Triradial 140 % lightly used
  • Solent X-VOILES Triradial 110% 2015
  • Assymetrical Spinnaker
  • Symetrical Spinnaker

Mast & Rigging

  • SPARCRAFT fractional triple spreader keel stepped mast, tapered silver anodized aluminum
  • Discontinuous rod rigging with rod turnbuckles
  • Silver anodized boom with single line reefing and internal boom outhaul
  • Telescopic vang with outer purchase block system
  • Split backstay fitted with hydraulic NAVTEC backstay adjuster
  • PROFURL headsail furler
  • Spinnaker deck equipment

Keel

  • Standard keel 2.20 m with heavy bulb

Accommodation

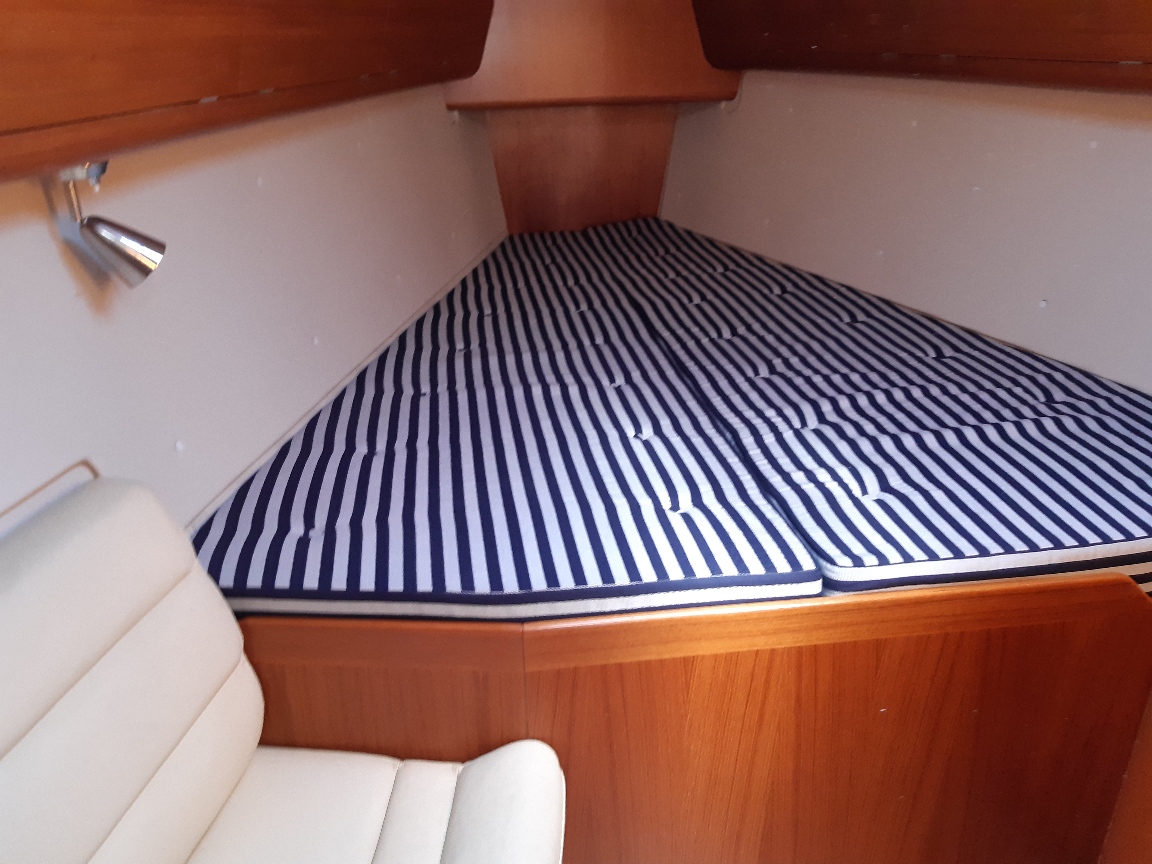

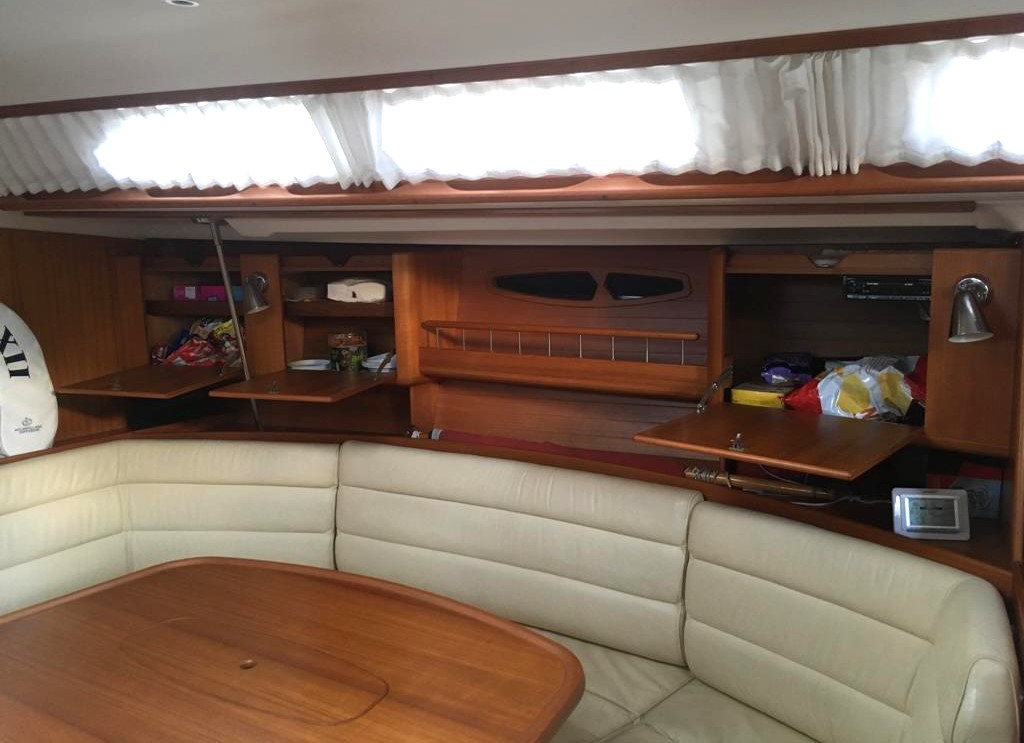

  • Teak 3 cabins Modern layout

Systems

Engine

  • Engine VOLVO 2040 38 Hp, water cooled diesel engine with S-Drive
  • Special engine compartment with sound insulation
  • FLEXOFOLD folding propeller, 2-bladed bronze for S-drive
  • Gasoil tank 130 L
  • Rubber sail drive remplaced 2019

Plumbing

  • Seacocks and through hull fittings are bronze ball and flush mounted
  • Fresh water stainless steel tank (380 litre)
  • Hot water tank Isotherm 19 l. Tank can be heated either by main engine or immersion heater connected to shore power
  • Holding tank, for botht toiletts and deck outlet
  • Pressurized freshwater system for hot and cold water throughout yacht
  • Deck shower hot and cold
  • Fridge top opened 163 l built in Isotherm SP, accumulator plate and compressor
  • Gimballed Gas cooker - 3 burner Eno GASCOGNEcooker with oven

Electrical

  • Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
  • Gel services batteries 2 x 110 amp
  • Separate engine spiral-cell battery
  • Shore power installation with shore power inlet mounted in cockpit
  • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
  • MASTERVOLT automatic battery charger 12V/40 Ah

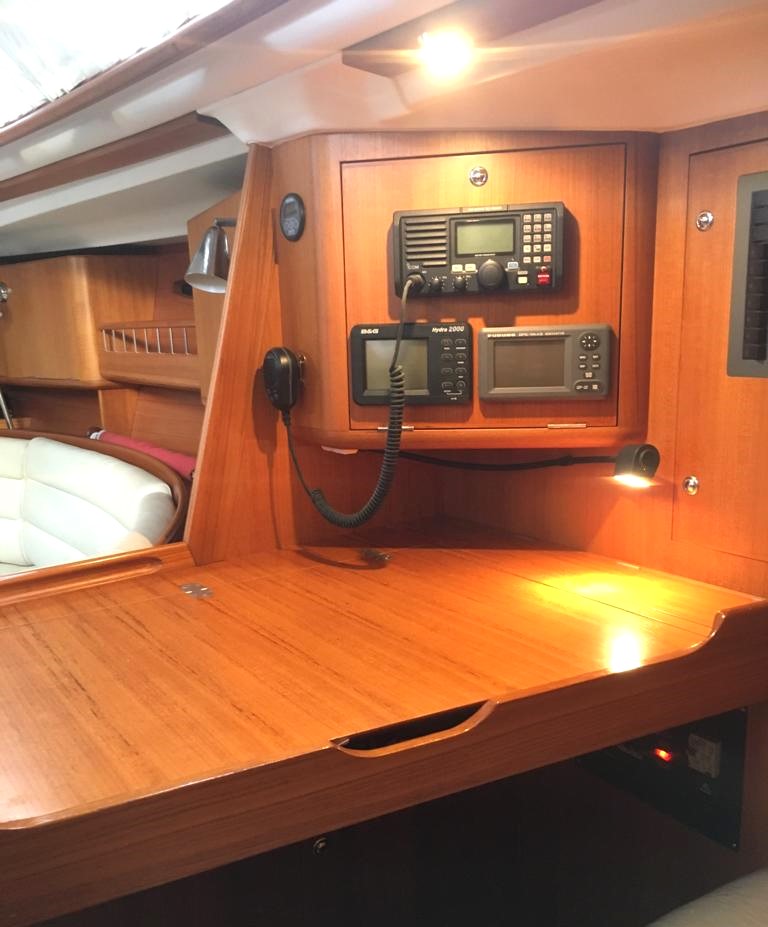

Electronics

  • B&G Hydra 2000 electronics
  • B&G autopilot Hydra , Halcyon compass
  • Sensors for log – speed – depth – wind
  • Multi dysplay x 3 with one at the chart table
  • Analogic dysplay x 2
  • GPS FURUNO GP 33 at the chart table
  • VHF ICOM
