Owner's Comments

A true blue water cruiser. Fast and comfortable this X-482 has been largely optimized for easy to manoeuver shorthanded, she has been very lighly used during his life.
Antifoulling july 2022; Available end of August 2022

Details

Exterior Details

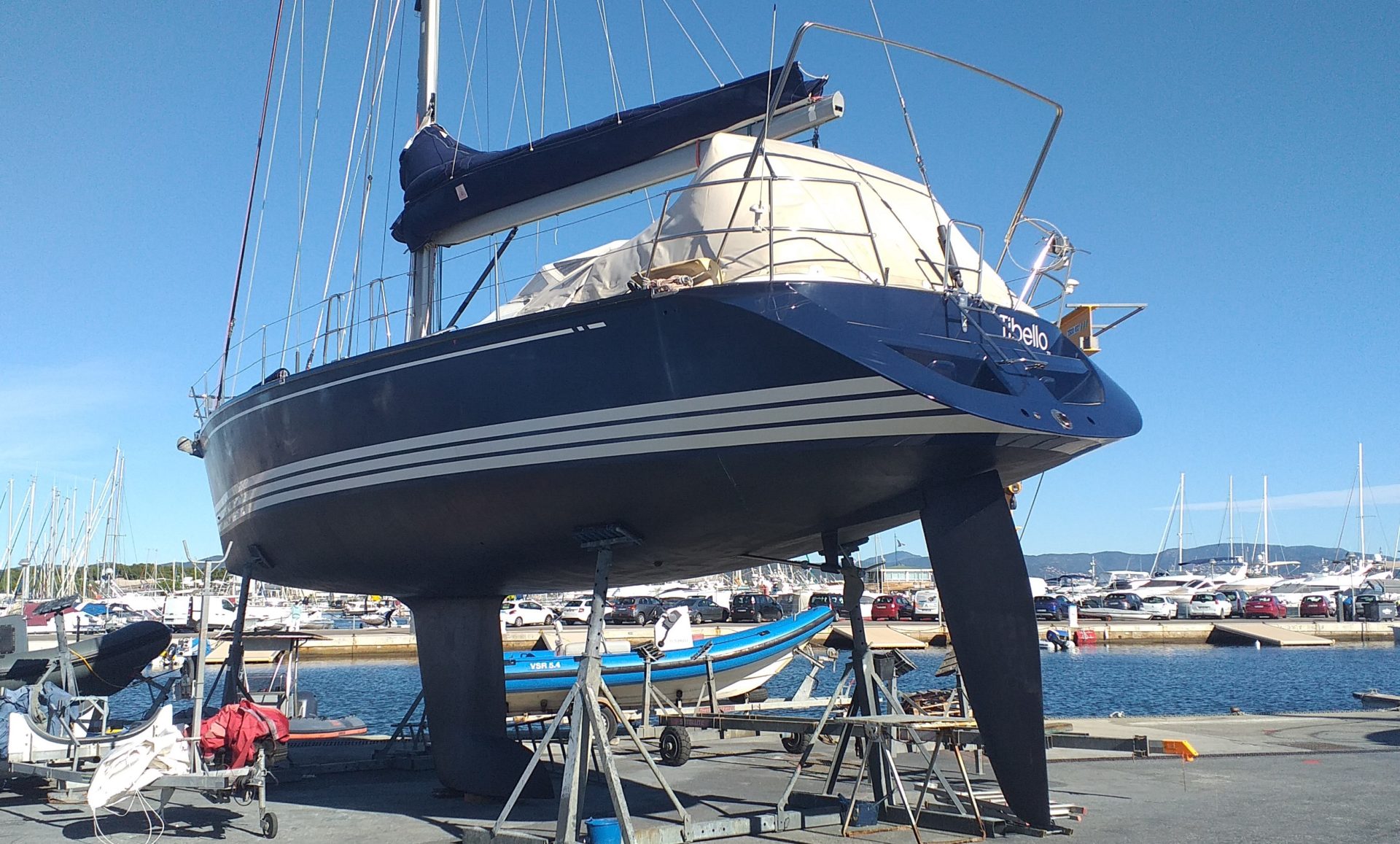

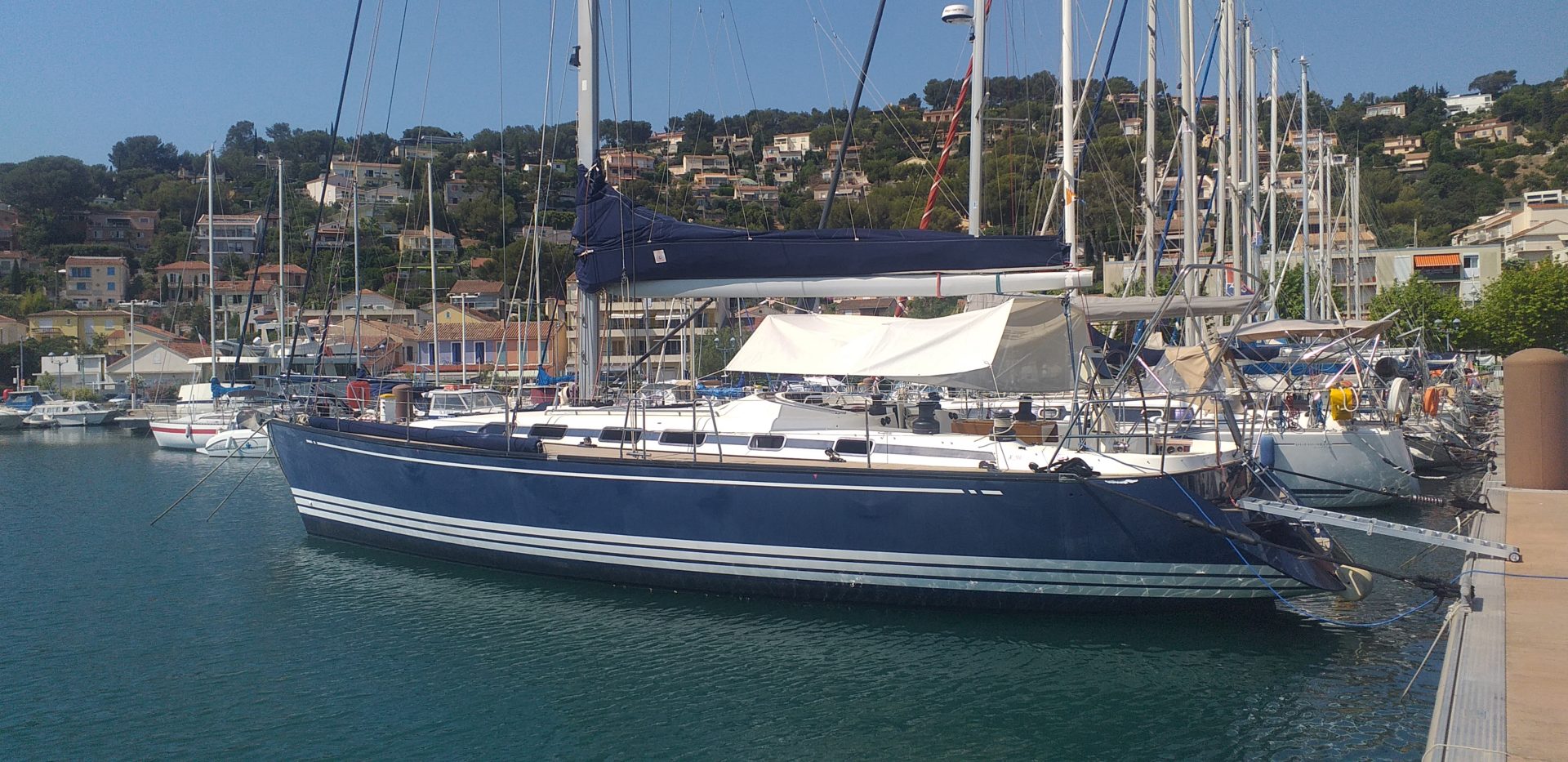

Hull

• Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• • Blue hull with white stripes
• • Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• • Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging

Deck

• • FLEXITEAK 2016 on deck, coach roof and cockpit
• • Stanless steel steering wheel and customides crashbar
• • Anchor locker - drained area with 12 V 1700 W LOGRANS electric windlass DELTA Anchor
• • Sail locker accessible from deck hatch, plenty of storage space for sails and dinghy
• • Gas spring fitted to forward and both aft cockpit lockers
• • Bathing ladder in stainless steel

Sail Handling

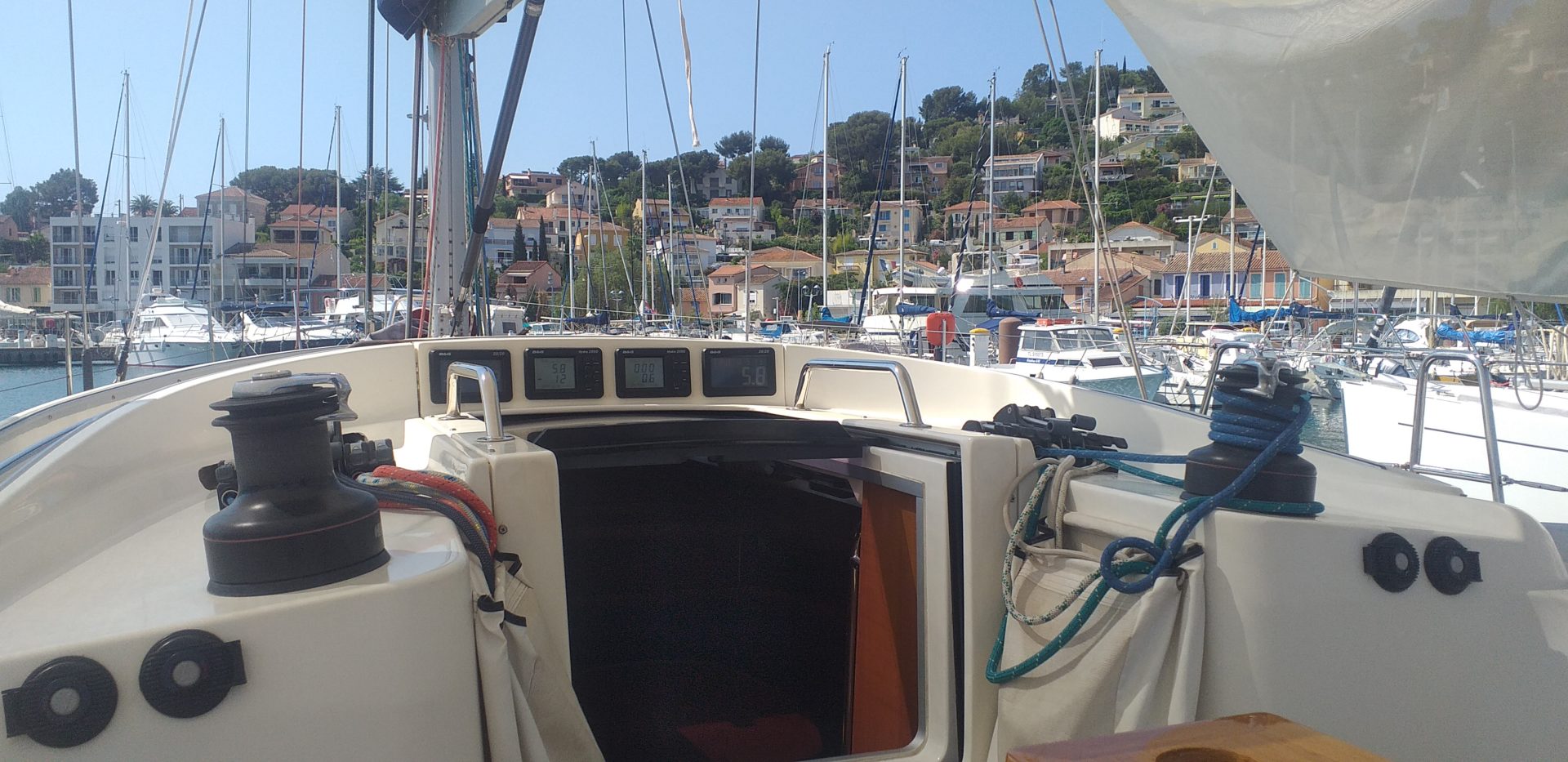

• • 2 x HARKEN 62.3 primary winches
• • 2 x HARKEN 46.2 for Geman Mainsheet system
• • 2 x HARKEN elecrical 46.2 for halyards,
• • ANTAL Jammer/clutches for halyards/control lines/reef lines (x9)
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Symetric spinnaker hardware with carbon spinnaker pool

Sails

• • Mainsail full batten NORTH SAILS SRP 95/75 2012 2 reefs with RONSTAN travellers
• • Furling Genoa NORTH SAILS 140 % SRP 95/75 2012
• • NORTH SAILS Jibe Hydranet 2016.. never used
• • Lazybag and lazyjack
• • Ssymetric spinnaker NORTH SAILS

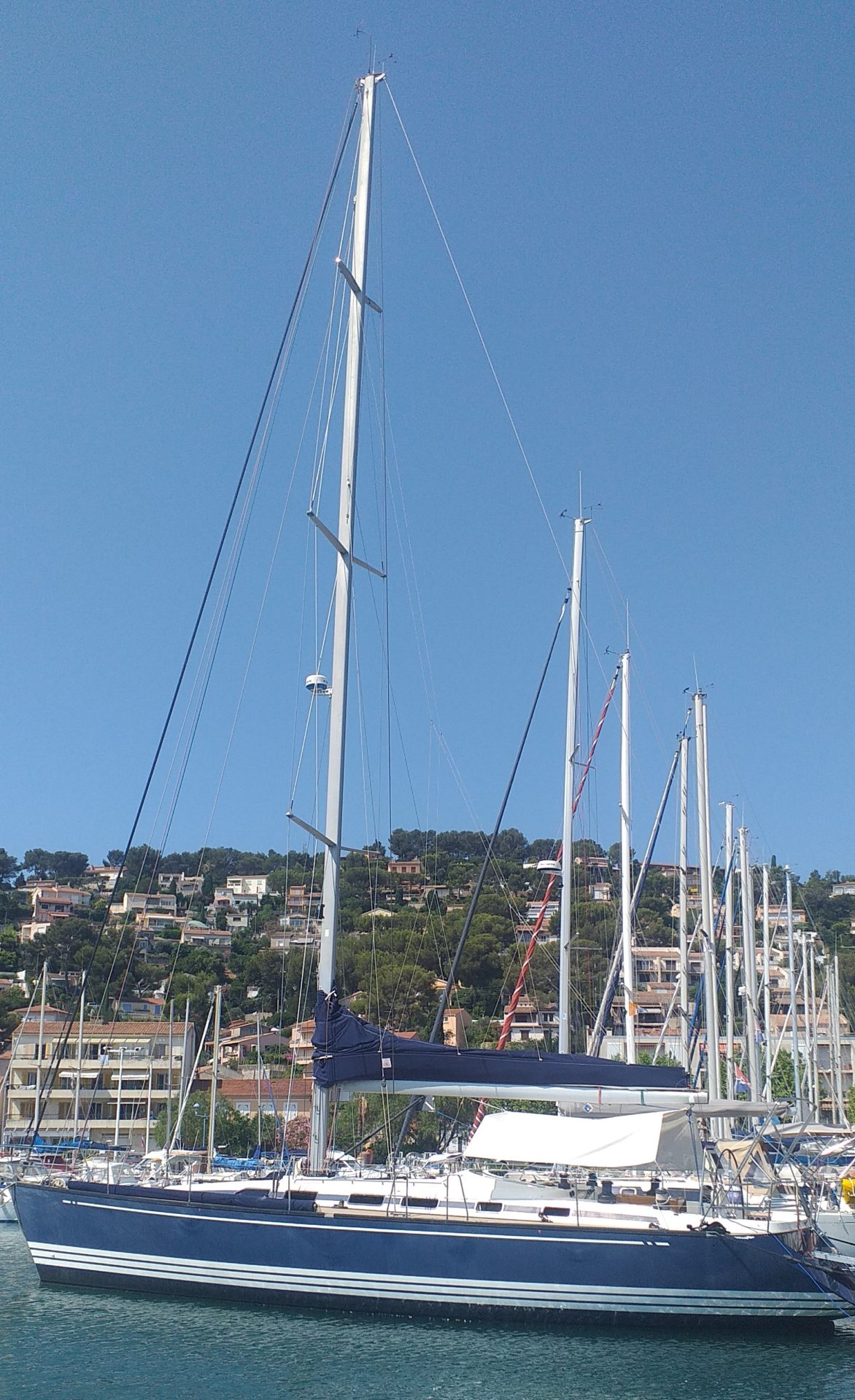

Mast & Rigging

• • SPARCRAFT fractional triple spreader keel stepped mast, tapered silver anodized aluminum
• • Discontinuous NAVTEC rod rigging with rod turnbuckles replaced 2013
• • Aluminium boom
• • RECKMANN RS 2000 furler service 2013
• • NAVTEC hydraulic centrale for backstay and vang service 2016
• • Innerstay

Keel

• • Standard keel 2.40m draftmade of antimony hardened lead bulb bolted and glued to cast iron fin
• • Keel securely bolted to reinforced keel structure

Hatches / Portlights / Ventilation / Sprayhood

• LEWMAR black anodized hatches and portlights, all replaced 2017

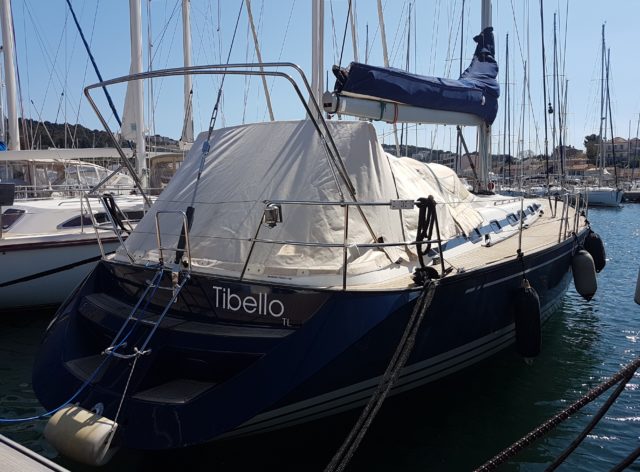

• Sprayhood 2016 an stainless steel arh with strorage on the roof
• Bbimini 2016 on stainless steel arch
• Winter tente

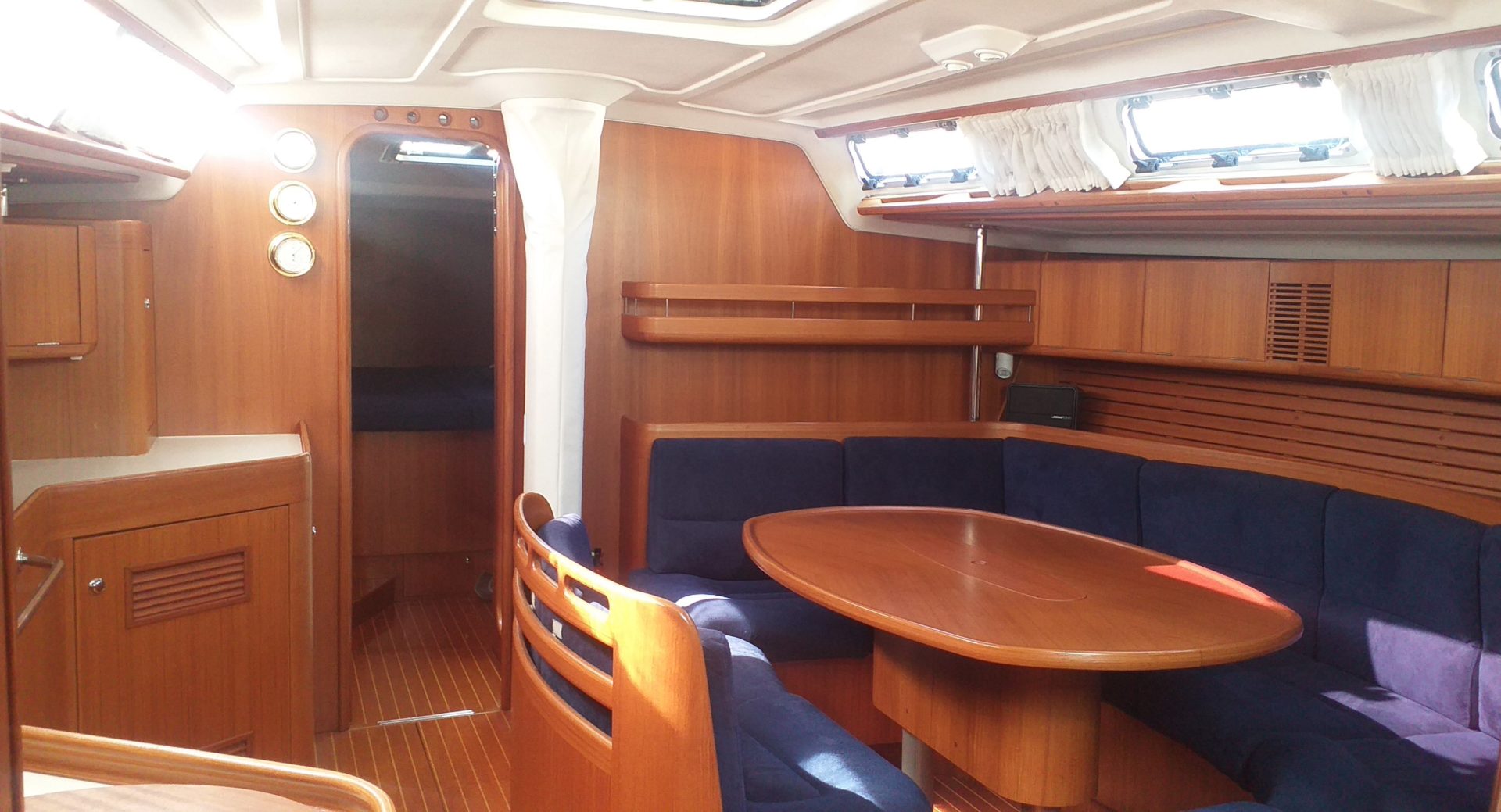

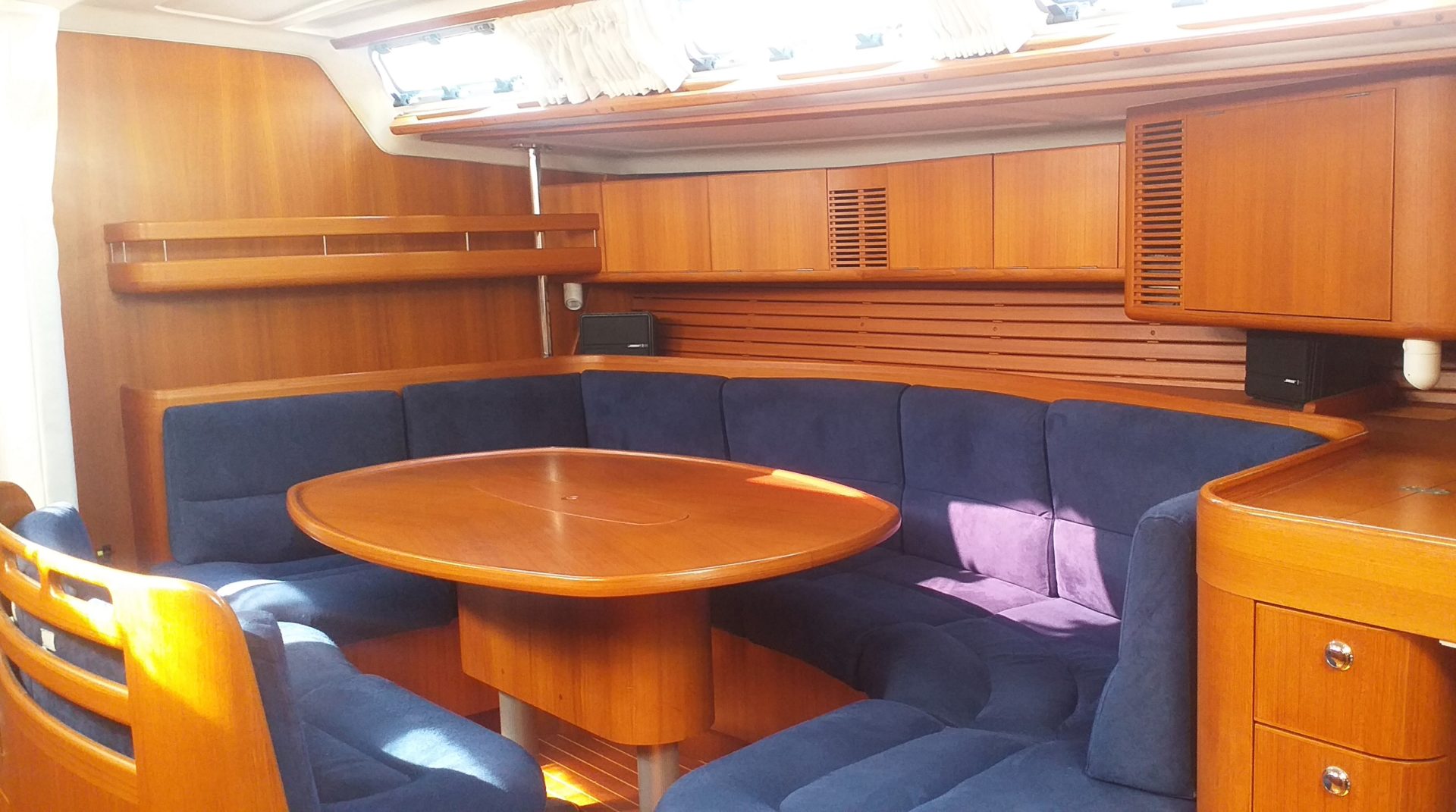

Accommodation

• • Top grade teak , varnished and hand polished satin finish
• • Modern layout 3 cabins 2 toilets
• • Alcantara upohlstery in the saloon and cabins

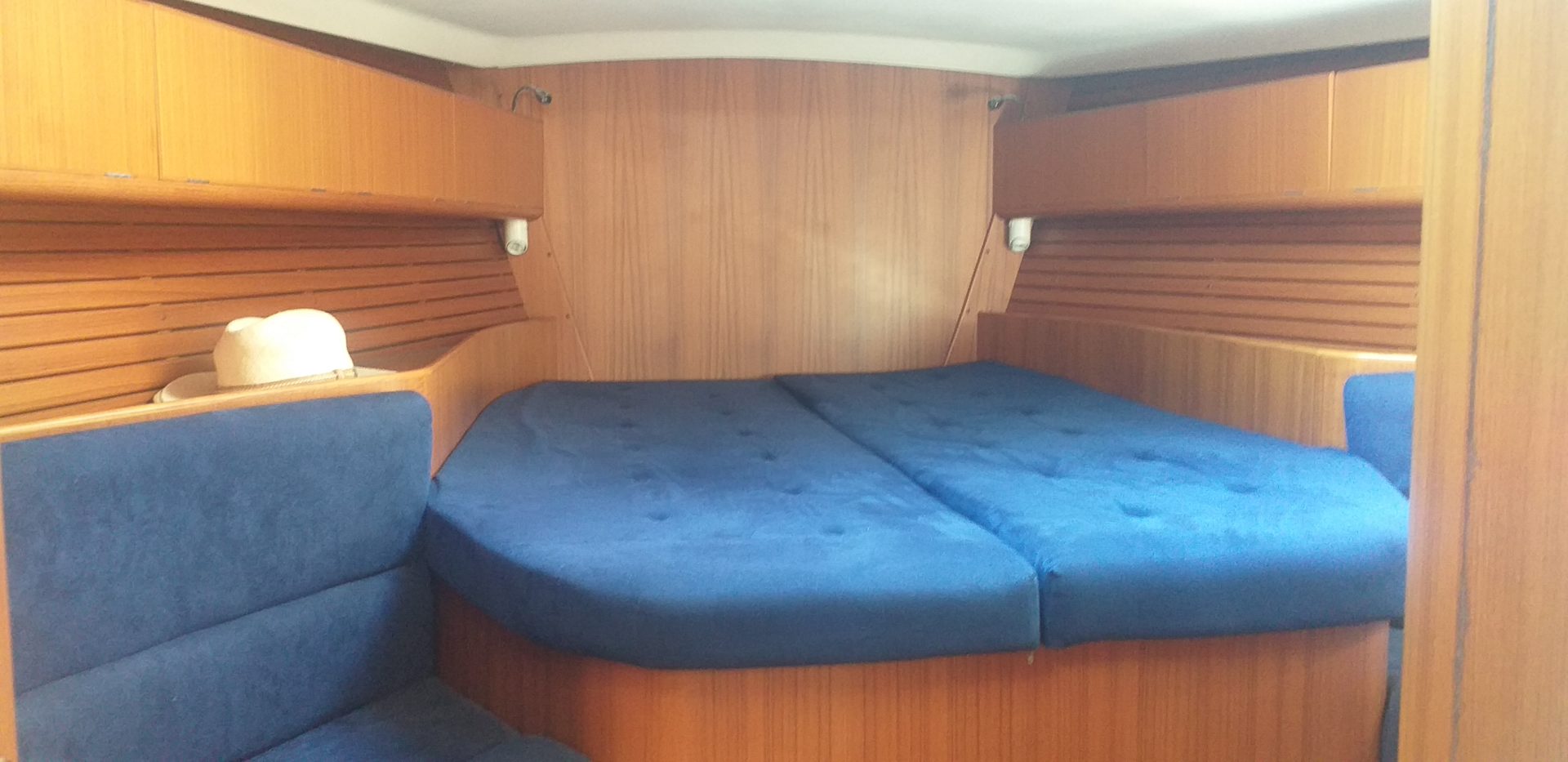

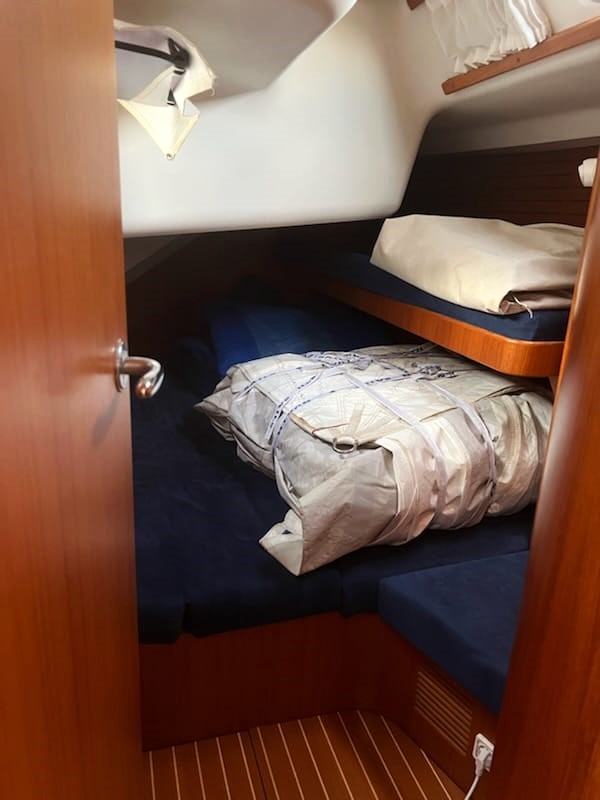

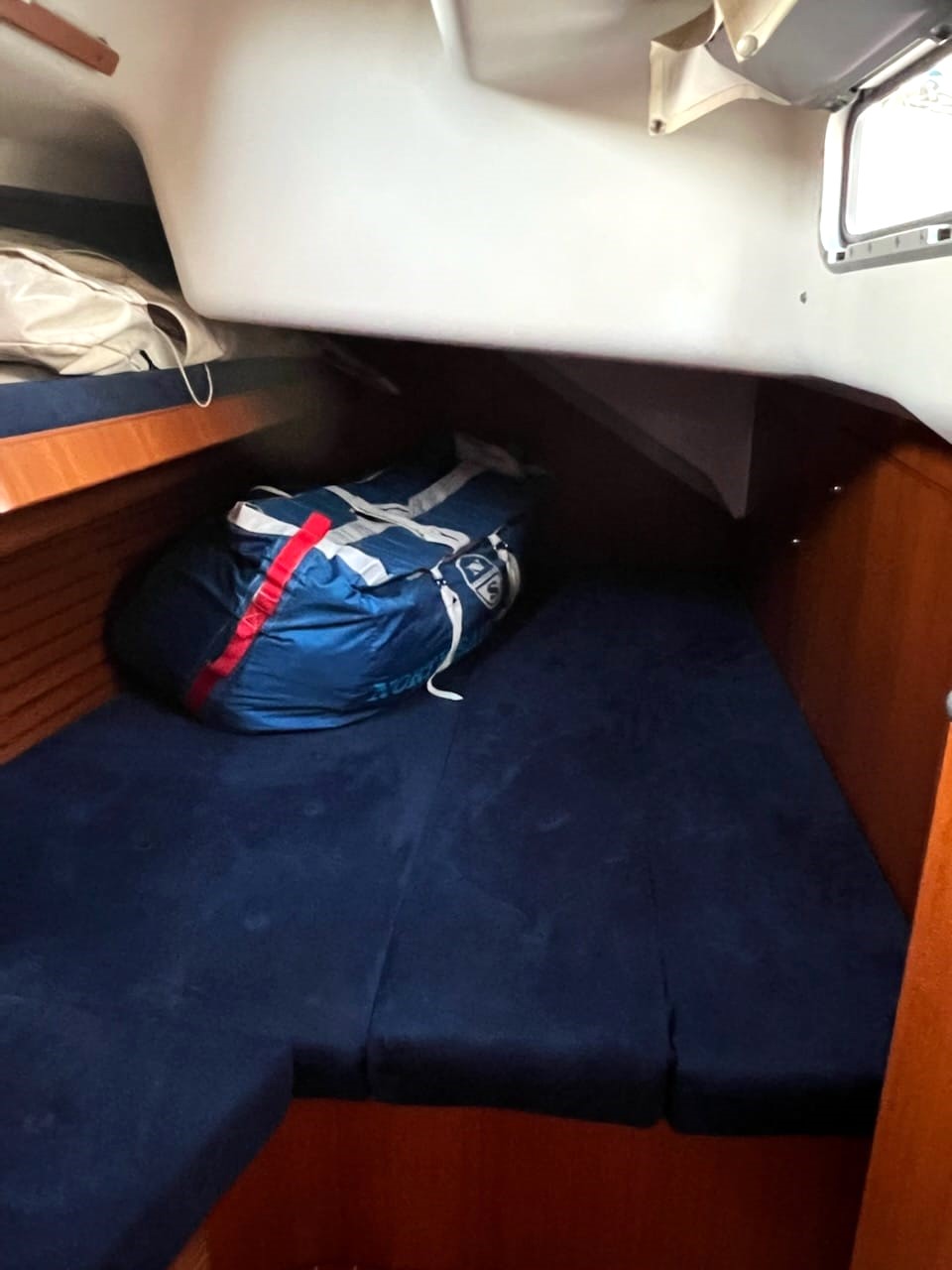

• • Aft cabins with sea berth

Systems

Engine

• • Engine YANMAR 75 HP 4JH3 TE water cooled diesel engine Regulary maintened
• • Gas oil tank 218 L
• • Special engine compartment with sound insulation
• • MAXPROP 3-bladed bronze
• • Retractable SIDE POWER bowthruster 24 V 2013 with 2 x spirall 55 A

Plumbing

• • Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank ( litre)
• • Hot water tank Isotherm 40 l. connected to the engine end shore power
• • Pressurized freshwater system for hot and cold water
• • Deck shower
• • Fridge top opened with compressor
• • Additional fridge with front opened 2015

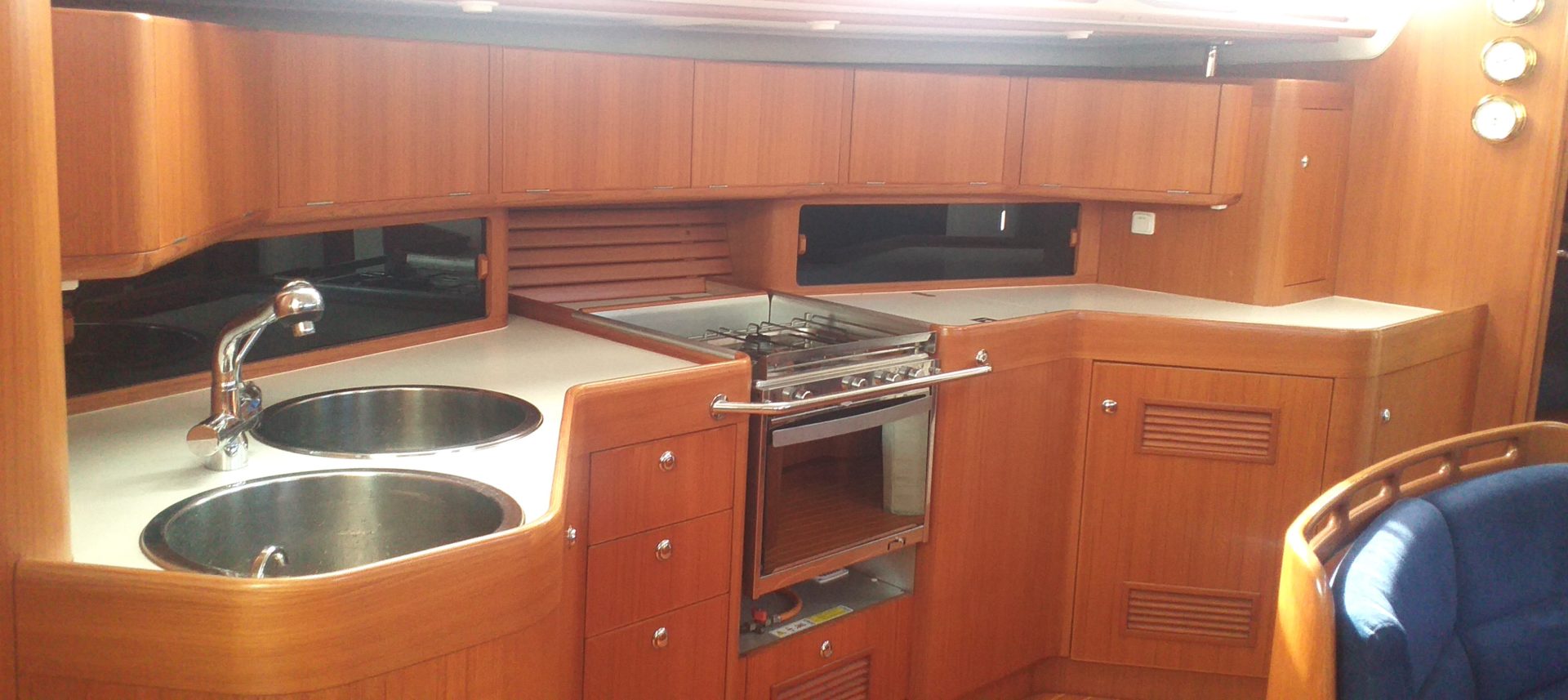

• • Gimballed Gas cooker – 3x burner cooker with oven

Electrical

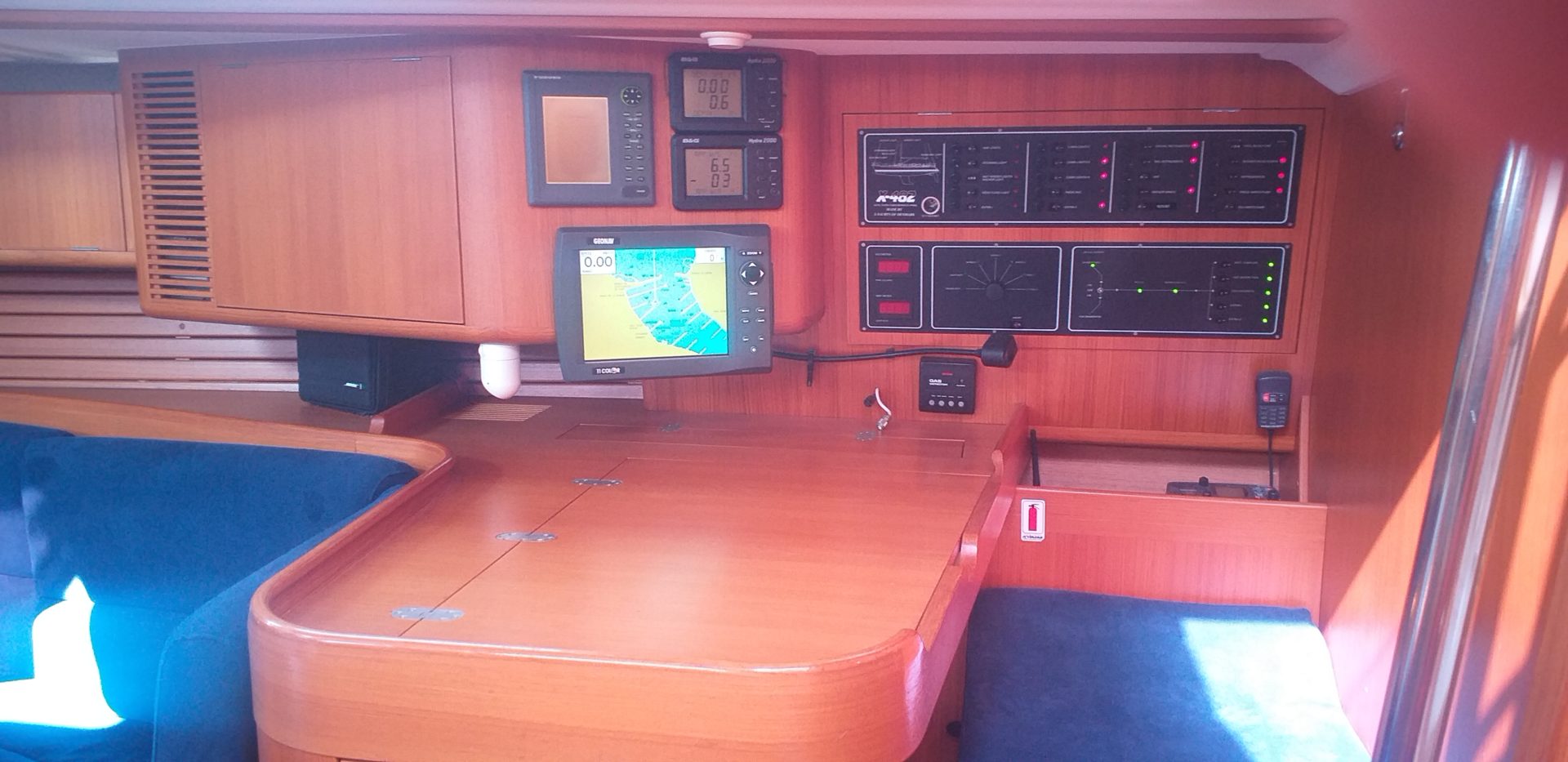

• • Main switch board with 27 automatic fuses and 3 analogue VDO meters for fuel, water and battery voltage
• • GEL VICTRON services batteries bank 2 x 220 Amp 2018
• • Separate engine gel battery (55 Ah, 12V)
• • 2x 55 Ah, 12V for bowthruster 24 V
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• • MASTERVOLT automatic battery charger 12V/80A

Electronics

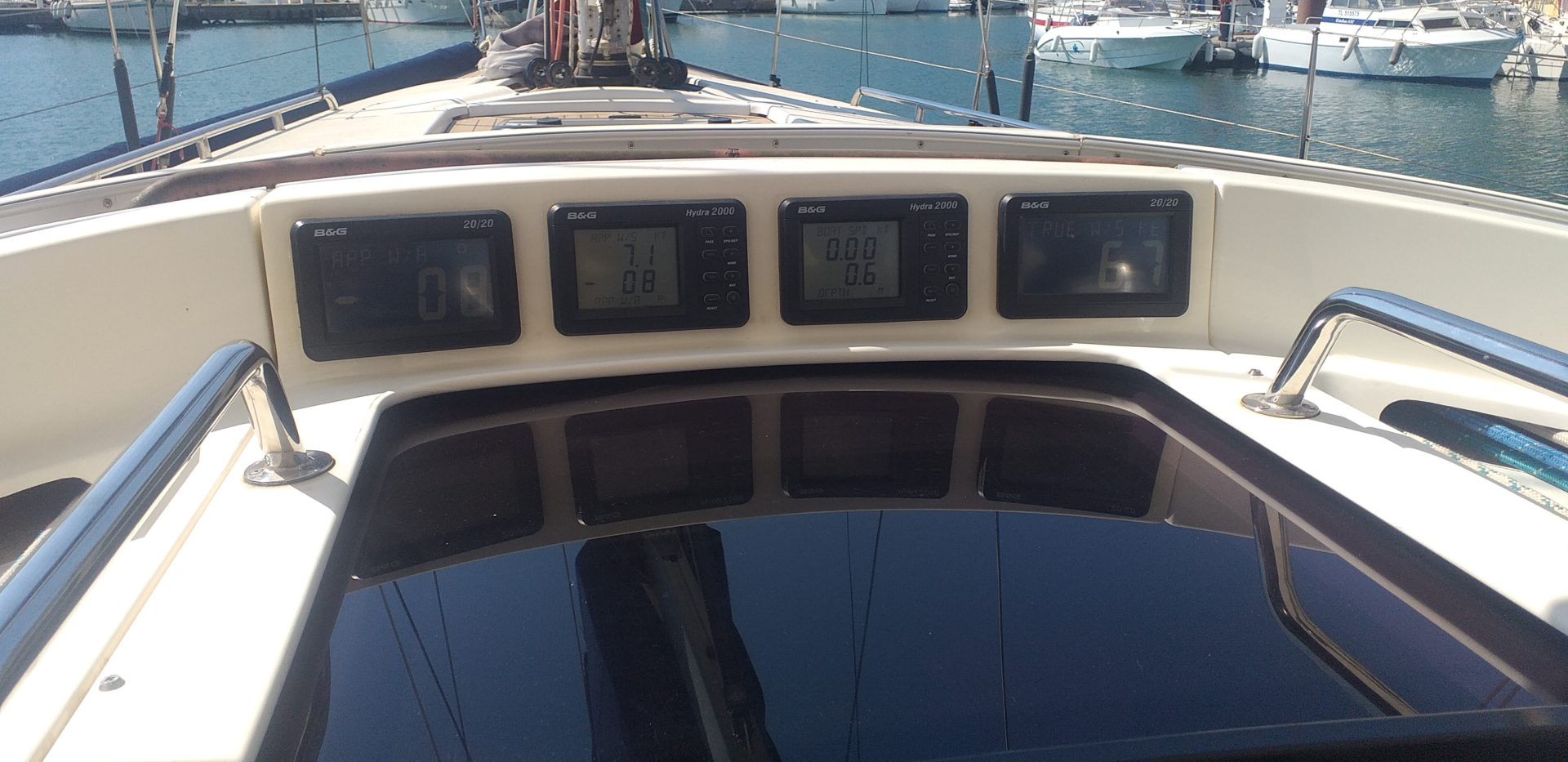

• • B&G HYDRA 2000 with 2 x Multifonction + 2x 20/20 dysplays on the coachroof
• • speed, loch and deepth transducers, carbon vertical MHU

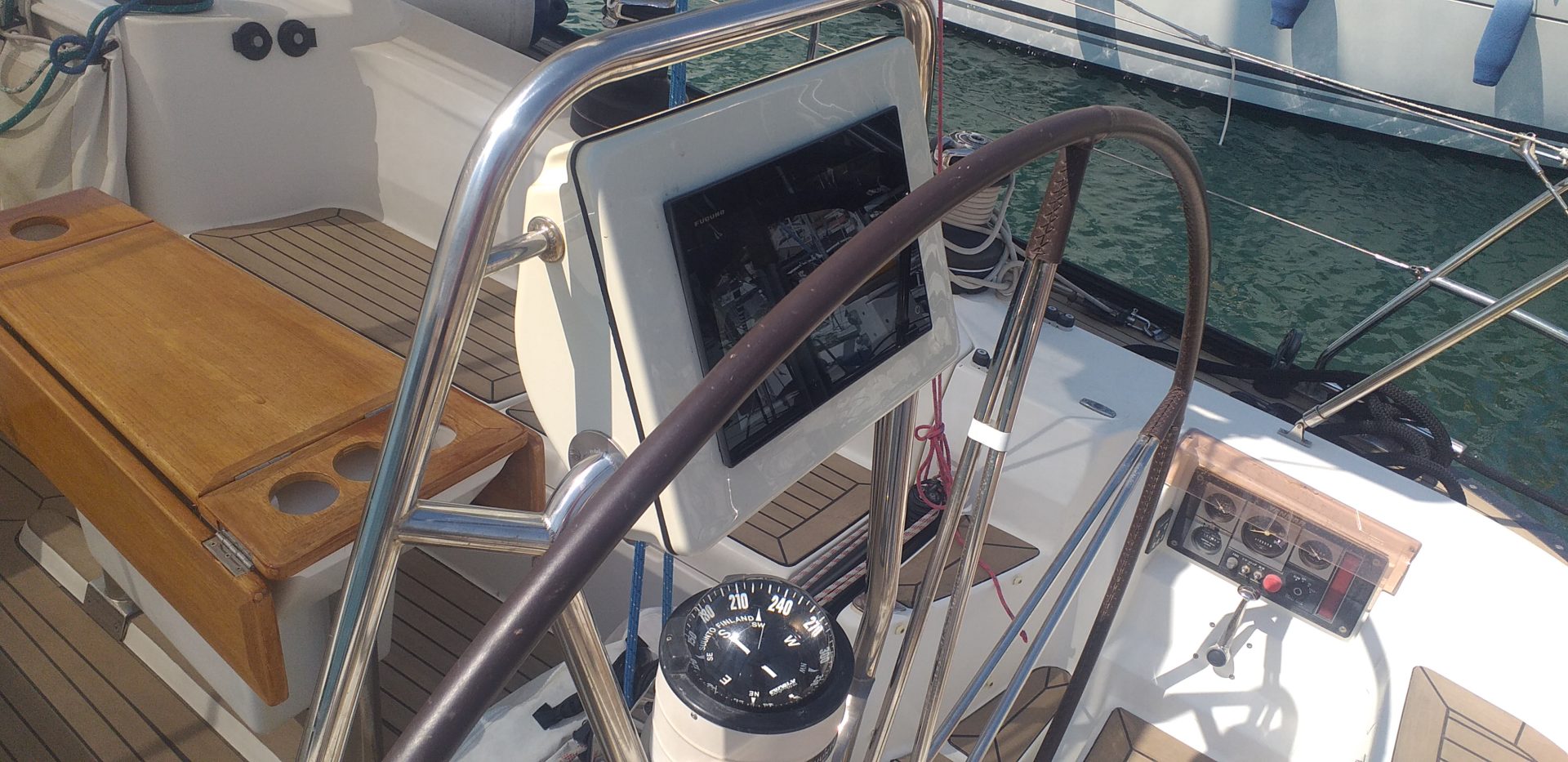

• • FURUNO NAVNET Touch 201( color chartplotter on the crashbar (redisigned)
• • GEONAV color chartplotter at the chart table
• • VHF GEONAV VHF
• • AIS Emetter and receiver VESPER XB8000
• • B&G HYDRA 2000 Autopilot with Halcyon compass
