Details

Exterior Details

Sail Handling

• Genoa Winches HARKEN 74.3STA (instead of HARKEN 64.3STA) Set, 2 pcs
• Spinnaker Equipment Slider and sidewinder for mast end fitting and
• operation of spinnaker pole, alloy spinnaker pole with deck shoes, spectra sheets
• and guys with spliced on shackles, spectra down haul, sheet blocks and additional 2 snatch blocks
• Port Genoa Winch Electric

Sails

• MainSails:
• 3DL600L 22400, 1 reef
• 3DL600 Marathon 22400 (2005)
• 3DL680 Marathon (2014)
• Trysail C- cut polyester NSP Premium 9.5 L
• Genoa/Jibs:
• Genoa Light 143% 3 DL600 L 8820
• Genoa Medium 143% 3 DL600 L 16800
• Genoa 1 Heavy 143% 3 DL600 L 19600
• Jib Top 143% 3 DL600 L 14700
• Genoa 3 108% 3 DL600 L 22400
• Genoa 4 Max ORC 98% 3 DL600 L 23800
• Genoa Furling 143% 3 DL600 Marathon 22400 (2005)
• Genoa Furling 3 DL680 Marathon (2014)
• Storm Jib C- cut polyester NSP Premium 9.5 L
• Wind seeker / SPI Staysail D- cut Racing Normal 1.7 NL
• Spinnakers:
• Spinnaker S-1 Gradient Spinnaker Superlite 50
• Spinnaker S-2 Gradient Spinnaker Superlite 50
• Spinnaker S-3 Gradient Spinnaker Airx 900
• Spinnaker S-4 Gradient Spinnaker Airx 700 (needs repair)

Systems

Engine

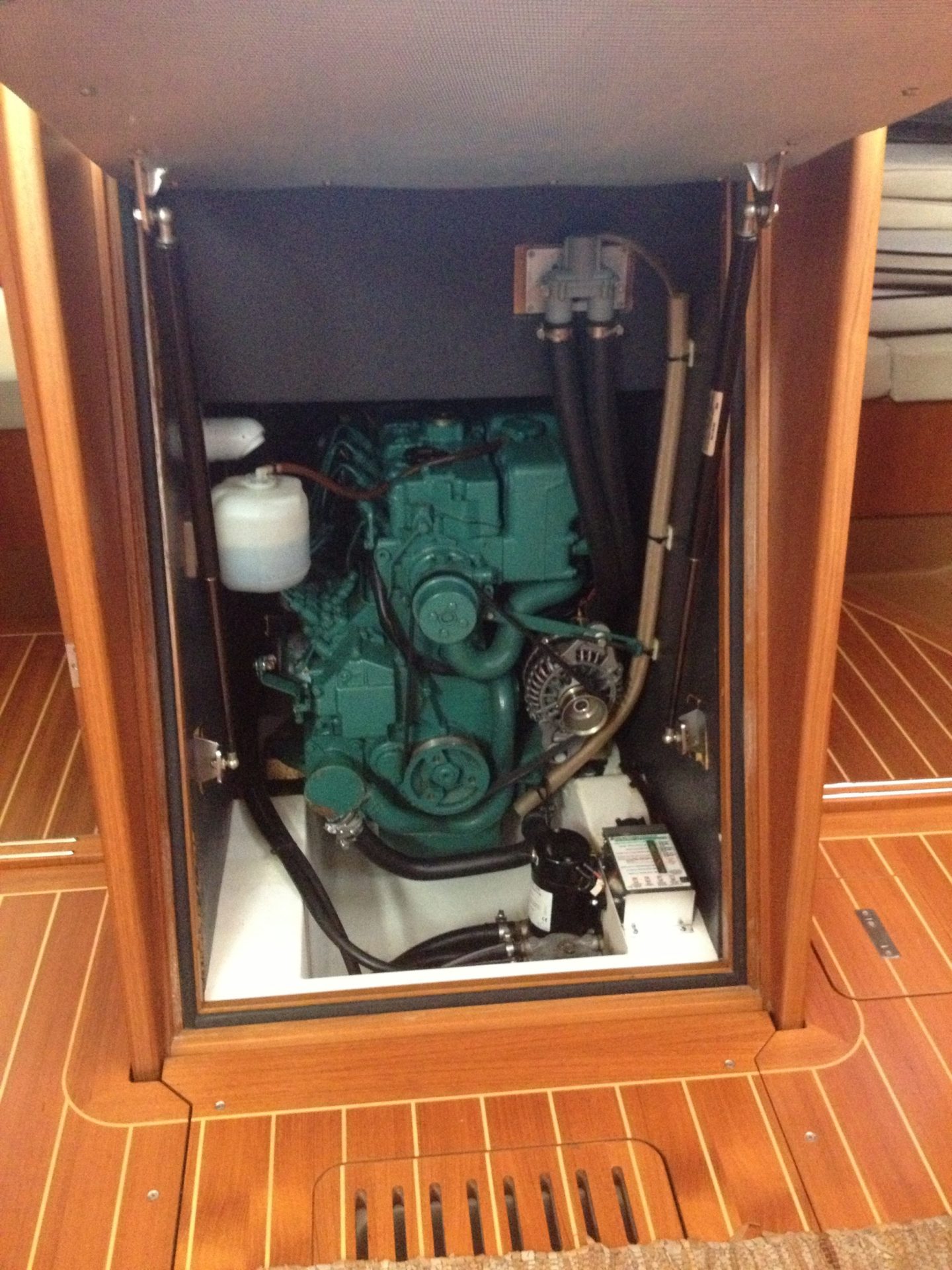

• VOLVO D2 - 75/5
• Propeller 3 blade folding 20x14 for D2-75 engine

Electronics

• Digital Compass: B & G Halcyon Fluxgate 2000 tactical compass istrument in
• cockpit and outread at 20/20’s
• Magnetic Compass
• Automatic pilot Hydra 2000 display w. autopilot drive type 2, mounted

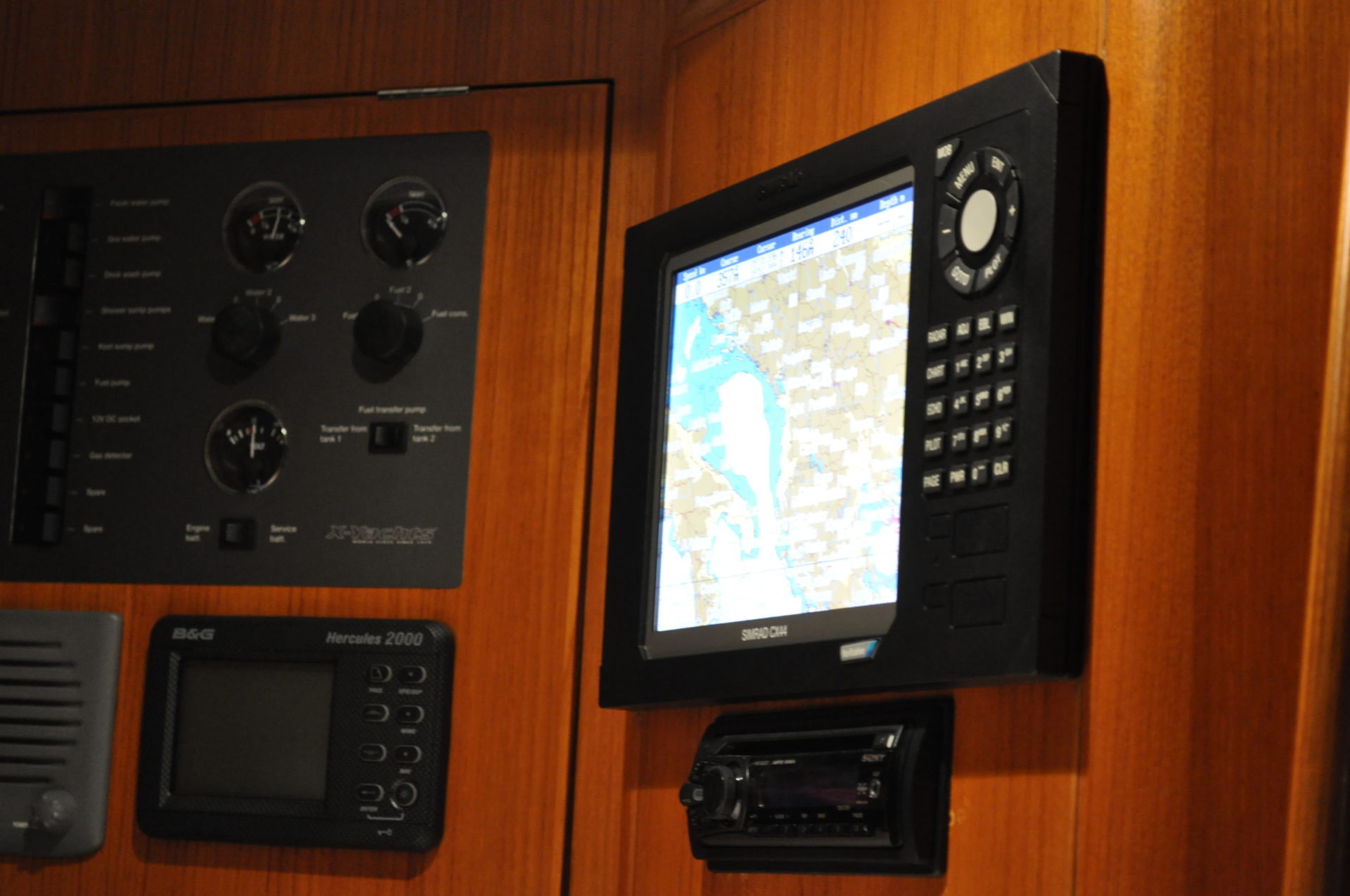

• Gps Plotter Shimrad CX44 TFT 10”
• Instruments Hydra 2000 starter pack, consisting of FFD display with NMEA, interface box, log, echo and wing transducer
• Windex antenna with FM filter- wired to chart table
• Radio Ray 240E DSC-D- full function handset
• Ray 240 VHF cockpit loudspeaker including on/off switch

Thrusters

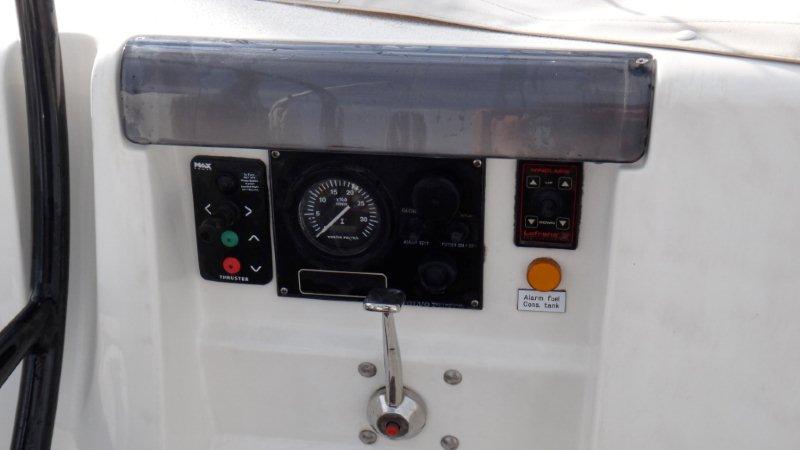

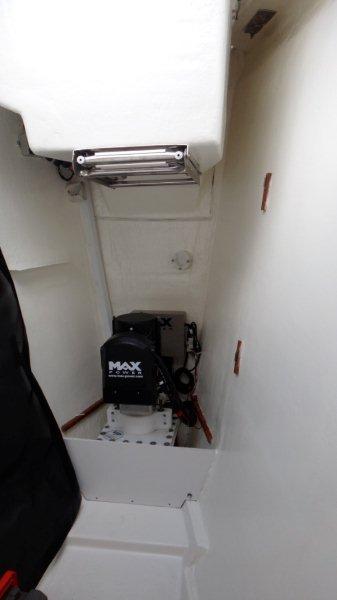

• Bow-thruster Retractable Max Power VIP 150 12V

Additional Information

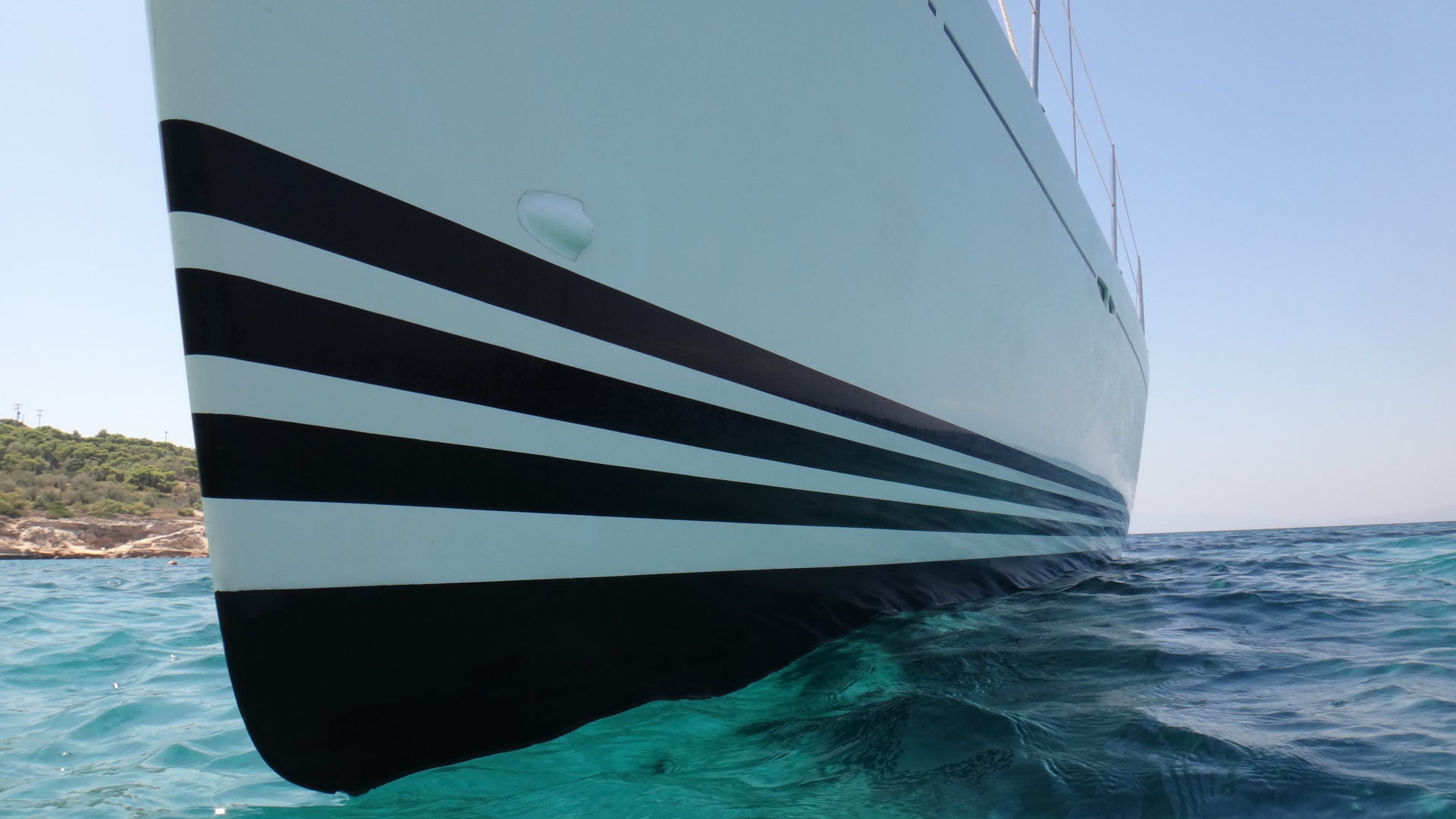

• Bottom Treatment Mat sanding, 3 x epoxy / 2 x antifouling (required for
• osmosis guarantee)
• Automatic switch on keel bilge pump
• Extra manual bilge pump
• 60 Amp Maastervolt IVO Smart 12/60
• Battery charger, repl. Standard 40 amp
• Additional 120 AH Gel Service batteries securely mounted under main cabin’s sofa
• 12 V socket , mounted
• 220 V socket , mounted
• Galvanic isolator type Guest 30 Amps

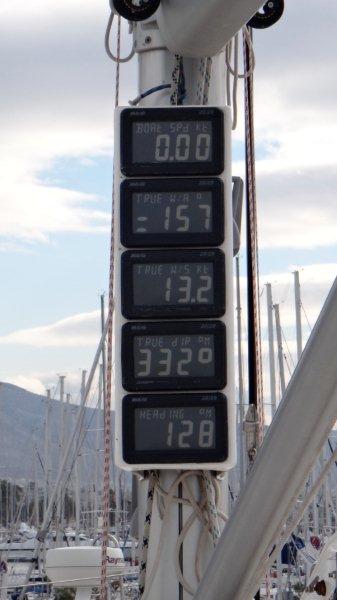

• 20/20 Maxi display mounted on mast bracket or above garage
• FFD display- none NMEA mounted on mast bracket, at garage, nav. Station or
• helm
• SAFETY EQUIPMENT
• Fire fighting
• Fire detection
• Life Rafts
• Life Jacket
• Life Rings
• Steel cradle Foldable, galvanized type 4
• Polyester strap and galvanized shackle for central hoist (attachment eye is standard)
• Carbon fibre wheel 2 pcs
• Carbon Spinnaker pole Yes
• Mast Jack hydraulic arrangements
• Red night lights Over floor in saloon
• OTHER EQUIPMENT
• Anchor winch Loframns (1500 W)
• Boarding ladder 1 aluminum / 1 carbon
• Shower With hot/ cold freshwater at bathing platform
• Νavtec system 5 for hydraulic backstay with pump in cockpit
• Gasspring in vang
