Details

Exterior Details

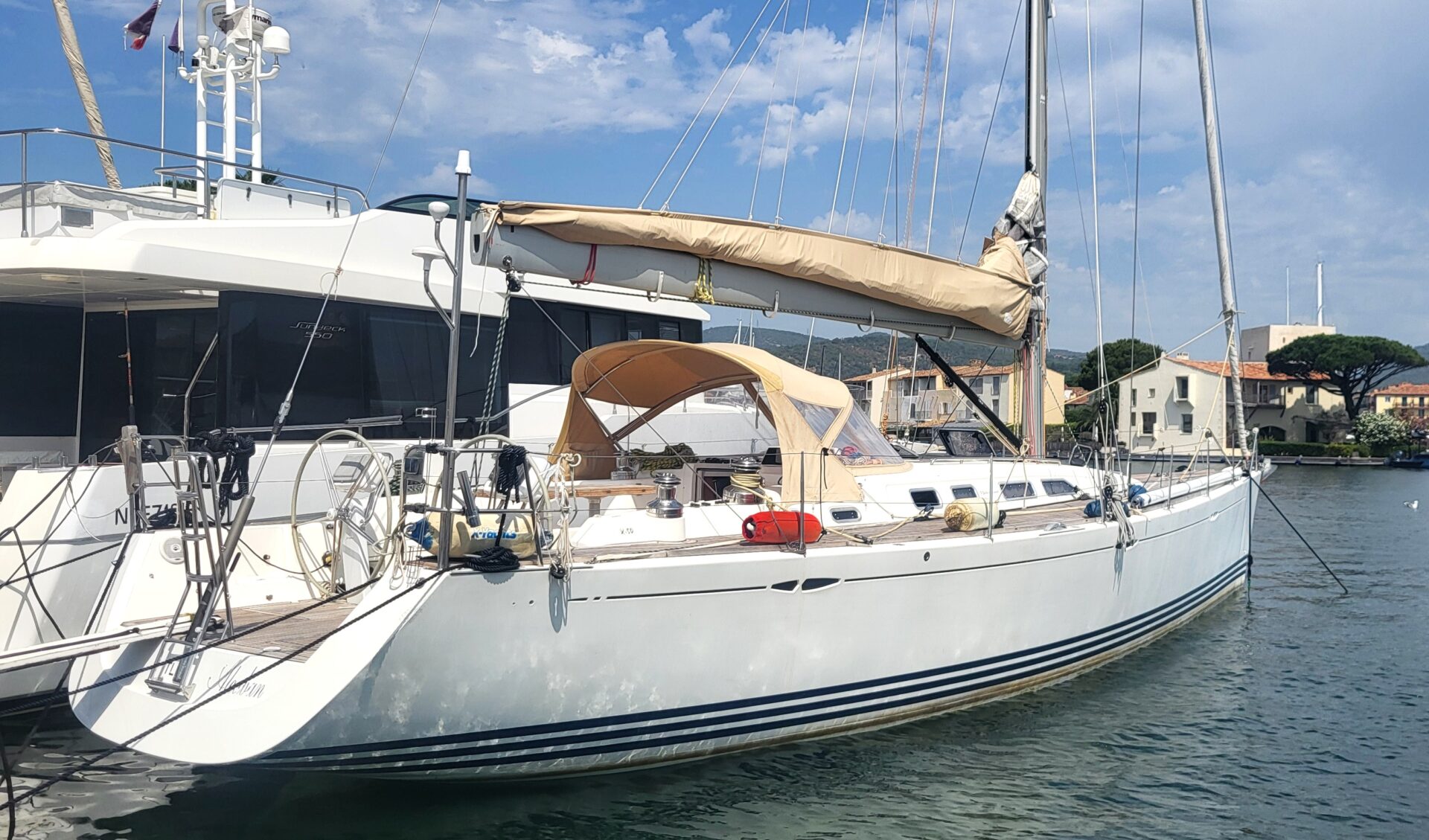

Hull

• Built in sandwich construction with structural compressed foam
• White hull and navy blue stripes
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Solid laminate in high stress areas around keel, rudder and through hull ttings
• • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
• navy blue waterlines in NGA Gelcoat
• • Hull moulded in female moulds for highest quality surface nish
• • Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• from keel, mast and rigging
• • Prepared for single point hoist for easy and safe lifting and launching of yacht
• • Bathing ladder in stainless steel mounted
• • X-Yachts style hull recessed pot (RAL 7011 dark grey)rtlights (6 pc

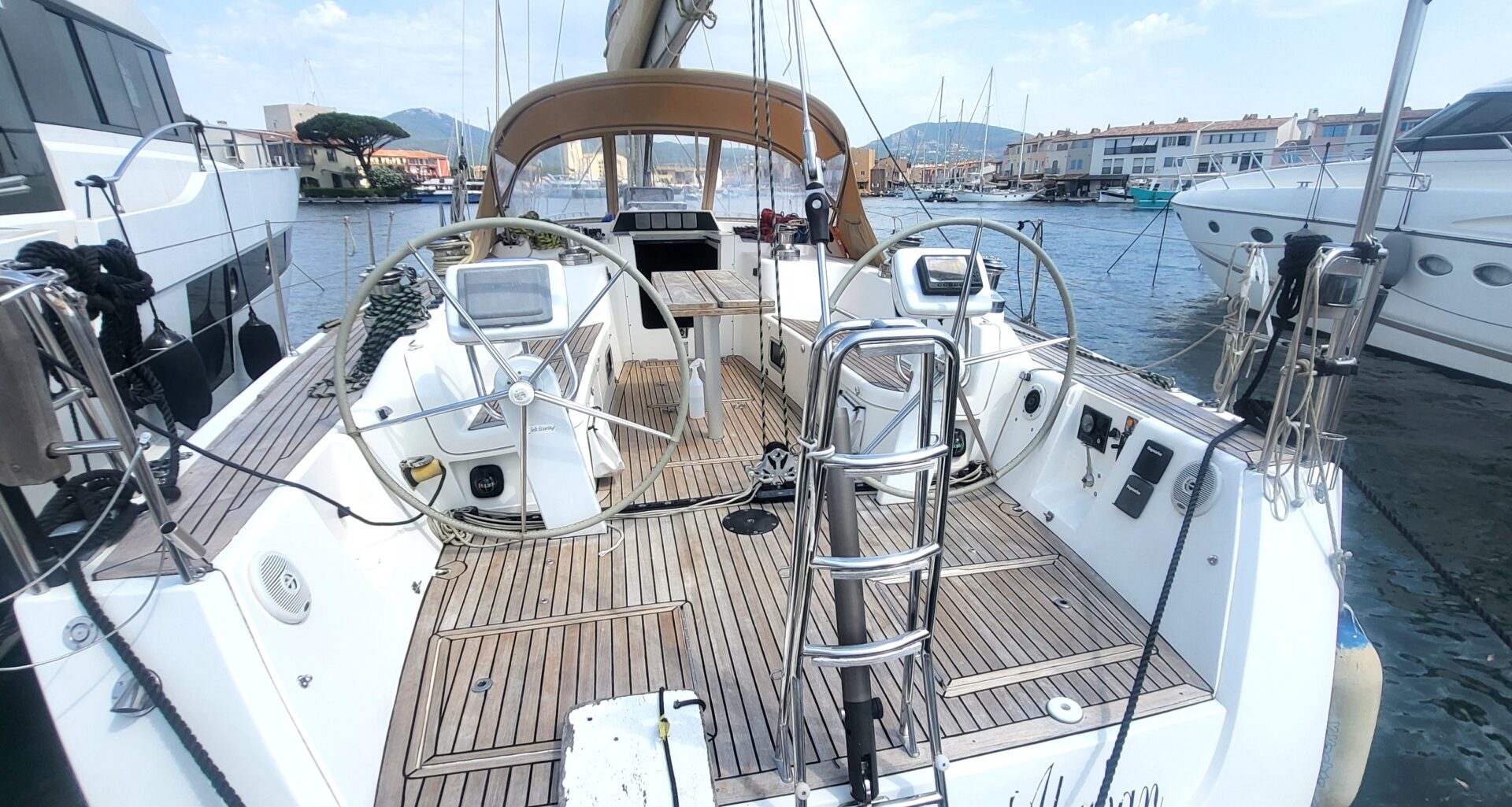

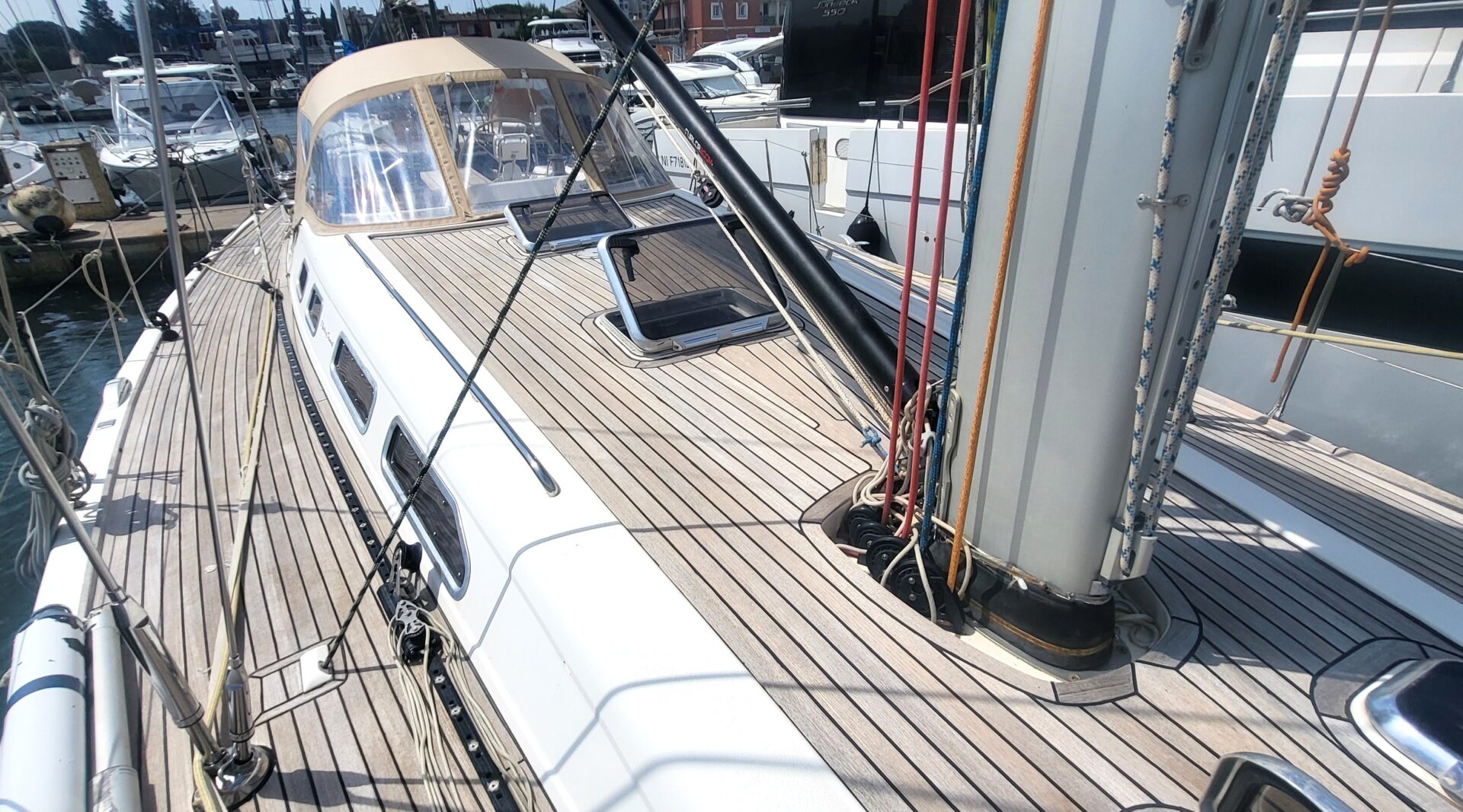

Deck

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• • Deck and locker lids moulded in female moulds for highest quality surface nish
• Large storage locker in the bow with deck and interior access
• • Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• sole, seats and bathing platform
• • Bulwark with teak capping incorporated in deck/hull design
• • Anchor locker - Electric windlass with DELTA anchor
• • Gas springs tted to sail cabin, port & stb cockpit lockers and port aft cockpit
• locker hatch (4 pcs)
• • Halyard locker recessed into cockpit
• • Cockpit table
• • Sprayhood

Sail Handling

• Stainless Steel Andersen Electrical 68.2 primary winches
• • Stainless Steel Andersen Electrical 58.2 for Geman Mainsheet system
• • Stainless Steel Andersen Electrical 52.2 for halyards,
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Ssymetric spinnaker hardware

Sails

• QUANTUM SAILS FURLING genoa
• NORTH SAILS Full batten mainsail

Mast & Rigging

• JOHN MAST Fractional three spreader, tapered silver anodized aluminium mast
• stepped on steel frame,
• • Silver anodized boom with single line reeng and internal boom outhaul with
• control on boom, telescopic vang and outer purchase block system
• • Central backstay with single NAVTEC adjuster
• • Discontinuous rod rigging throughout with rod turnbuckles
• • RECKMANN headsail furler with drum under the deck
• • Innerstay deck fitting with runners
• • Running Rigging with Spectta halyards

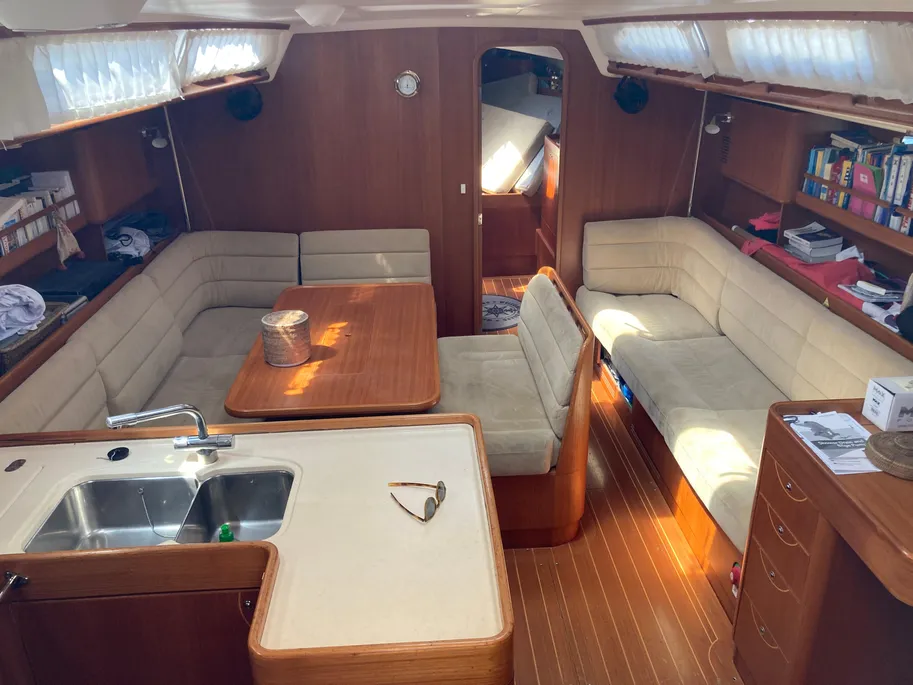

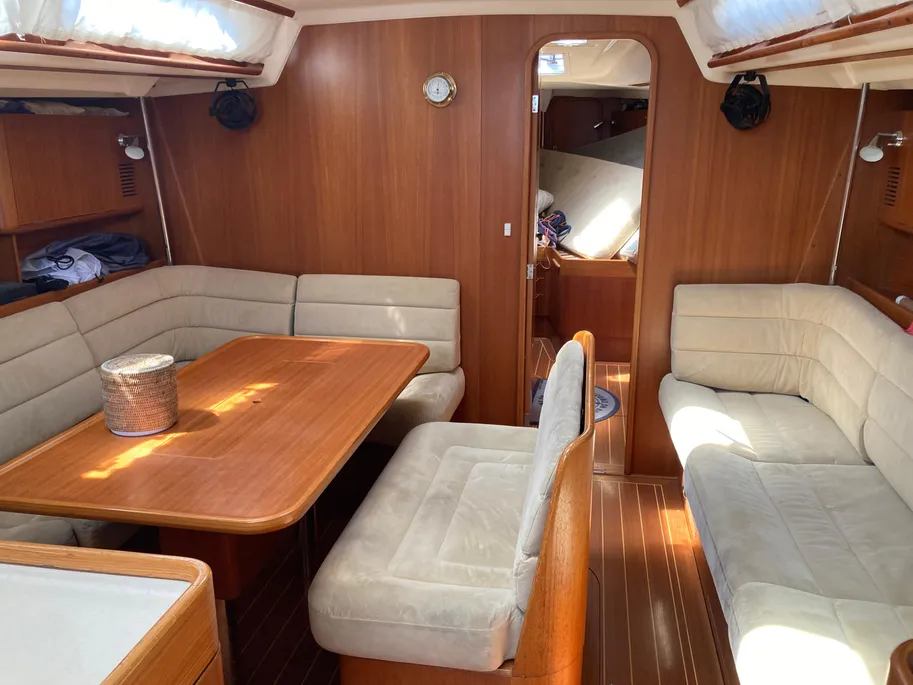

Accommodation

3 cabins layout Classic

Systems

Engine

• • Main engine - VOLVO D2 75 HP. annual maintenance
• 3 blades folding propeller
• • Retractable bowthruster MAXPOWER Compac Retract
• • Aditionnal GO Tank 105 L

Plumbing

• Seacocks and through hull ttings are bronze ball and ush mounted
• • Fresh water stainless steel tank total 450 litres
• • Hot water tank Isotherm. Tank can be heated either by main engine or
• immersion heater connected to shore power
• • Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• • Deck shower tted at bathing platform with hot/cold freshwater
• • Electric fridge cooled Danfoss compresso
• • DESSALATOR watermaker
• • Air conditionning 10 000 BTU <in the saloon and 6 000 BTU in owners cabin, with heater transfer
• • EBERSPACHER heater D5

Electrical

• • 12 V installation for service Main switch and analogue VDO meters for fuel, water and battery voltage
• • Separate engine spiral-cell battery
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater
• • MASS battery charger 12 V/50A + Inverter
• • FISHER PANDA 5 KVA generator

Electronics

• RAYMARINE
• • ST 60 Multifonction display on the coach roof
• • E 80 + E 120 chart plotter
• • Auto pilot with P70S autocontrol
• • Radar antenna
• • VHF RAY 53
