Details

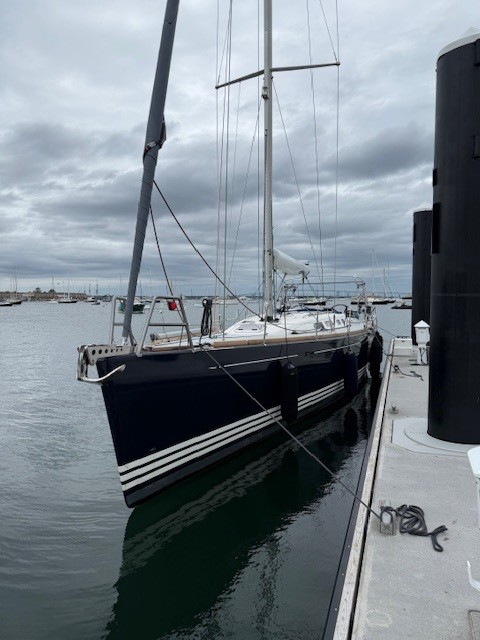

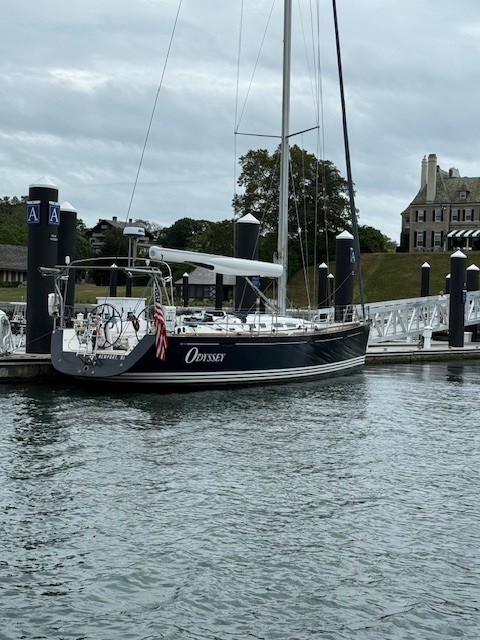

Exterior Details

Hull

• Built in sandwich construction with structural compressed foam
• White hull and navy-blue stripes
• Bi-directional E-glass strategically positioned for strength and weight optimization
• Solid laminates in high stress areas around keel, rudder and through hull fittings
• Navy Blue with White Waterlines, wrapped over original dark blue, 2023
• Hull molded in female moulds for highest quality surface finish
• Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads from keel, mast and rigging
• Single point hoist for easy and safe lifting and launching of yacht
• Bathing ladder in stainless steel mounted
• Standard keel in storage. Available if deep draft is not wanted

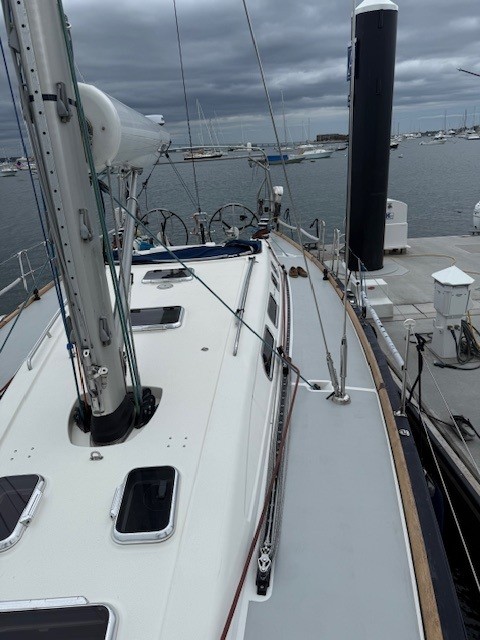

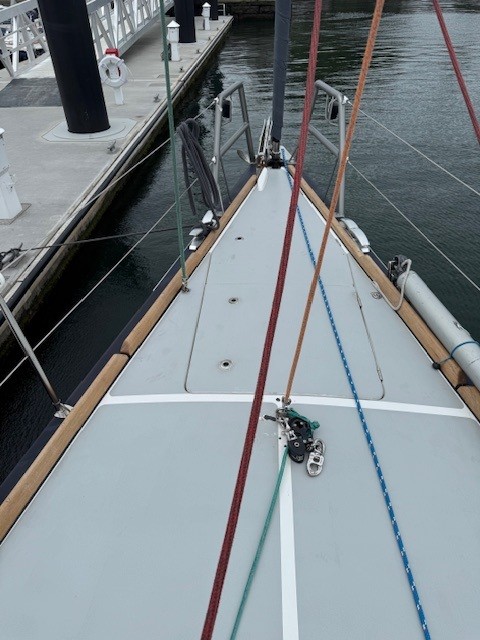

Deck

• Built in sandwich construction with structural compressed foam
• Bi-directional E-glass strategically positioned for strength and weight optimization
• Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• Side Decks Awl Gripped with nonskid in Gray
• Deck and locker lids molded in female molds for highest quality surface finish
• Large storage locker in the bow with deck and interior access
• Teak, vacuum applied, 9 mm nominal thickness in cockpit sole, seats and bathing platform
• Bulwark with teak capping incorporated in deck/hull design
• Anchor locker - Electric windlass with Stainless Steel anchor

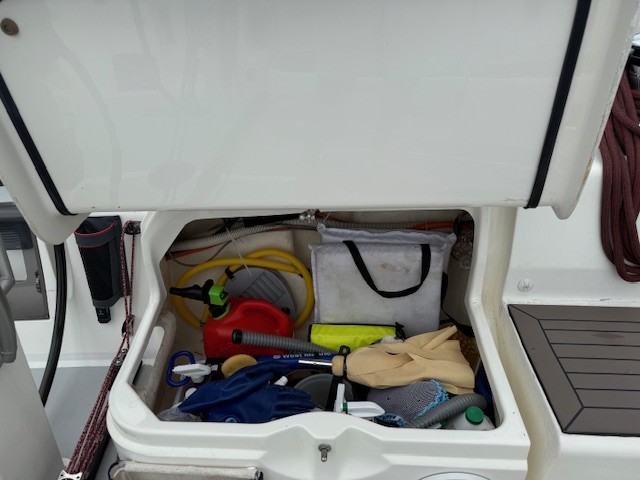

• Gas springs fitted to sail cabin, port & stbd cockpit lockers and port aft cockpit locker hatch
• Halyard locker recessed into cockpit
• Teak Cockpit table
• Sprayhood in dark blue

Sail Handling

• Harken Electrical primary winches
• Harken Electric Mainsheet system

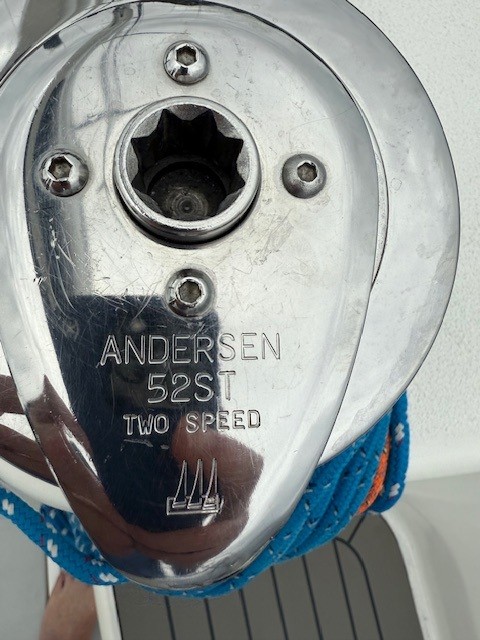

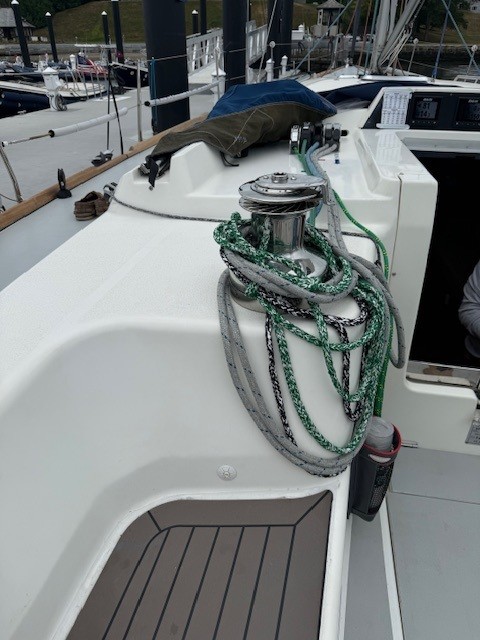

• Stainless Steel Andersen Electrical 52.2 for halyards,
• Spinlock Jammer/clutches for halyards/control lines/reef lines
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines

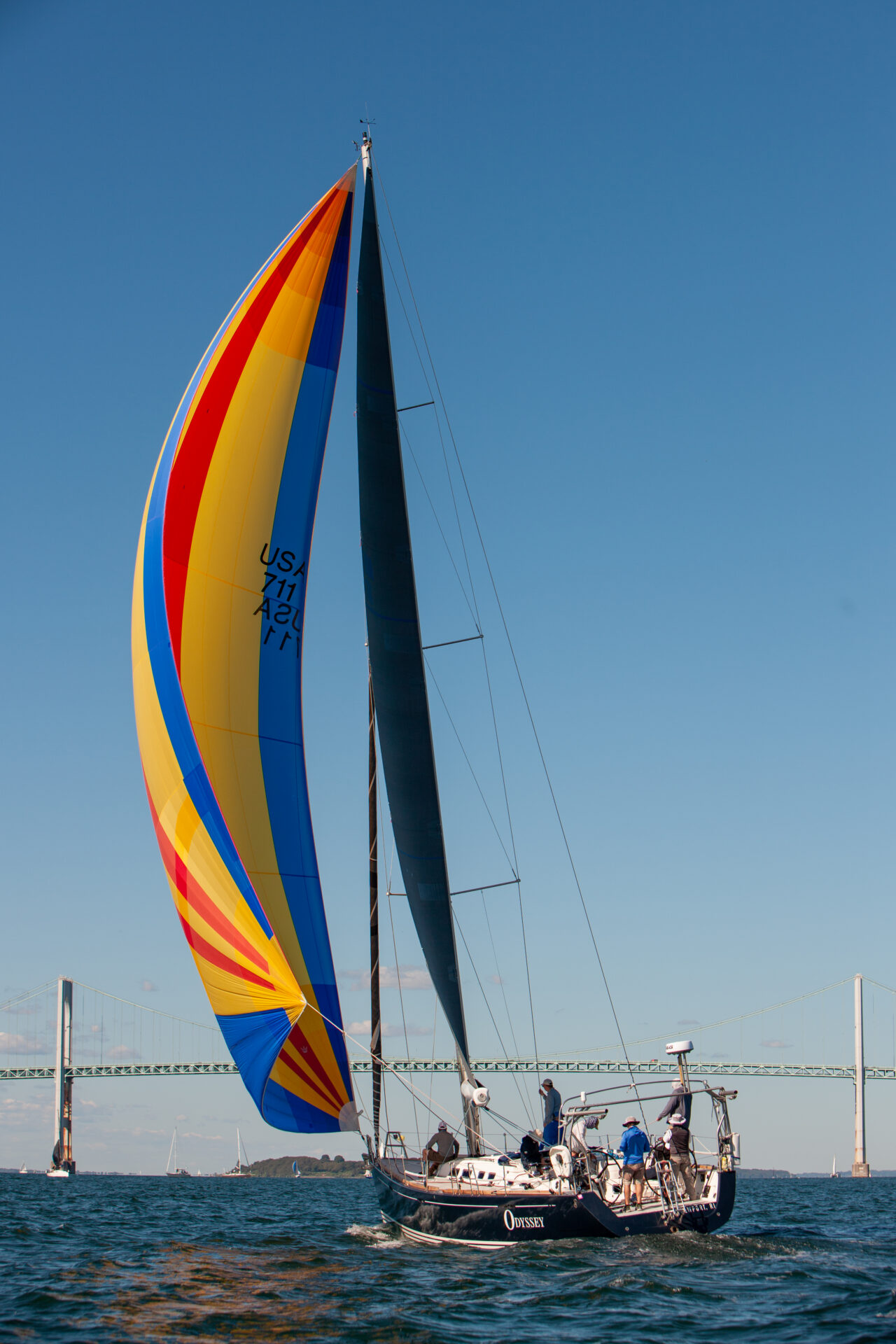

• Asymmetric spinnaker gear
• Symmetric Spinnaker gear

Sails

• Doyle Mainsail
• Doyle 106% Jib, 2025
• Shore 136% Genoa, 2024
• Storm Stays'l, Doyle 2024
• Quantum Spinnaker 2023
• Asymmetric Spinnaker 2018
• Furling Tweener, (Code Sail), never used.

Mast & Rigging

• JOHN MAST Fractional three spreader, tapered silver anodized aluminum mast stepped on steel frame,

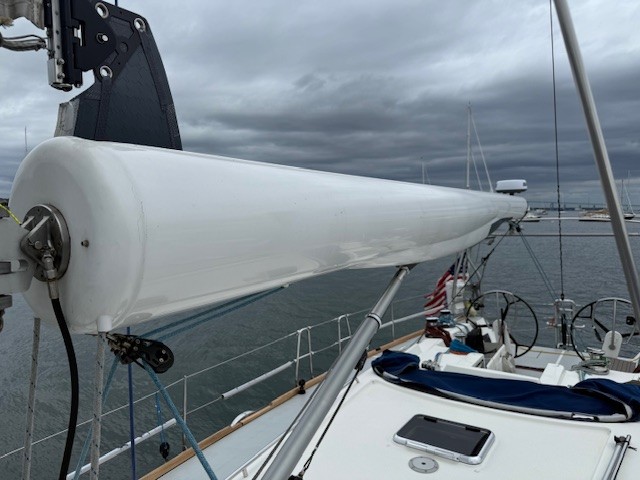

• Furlerboom, in-boom furler with Hydraulic
• Hydraulic Vang
• Central backstay with single NAVTEC adjuster

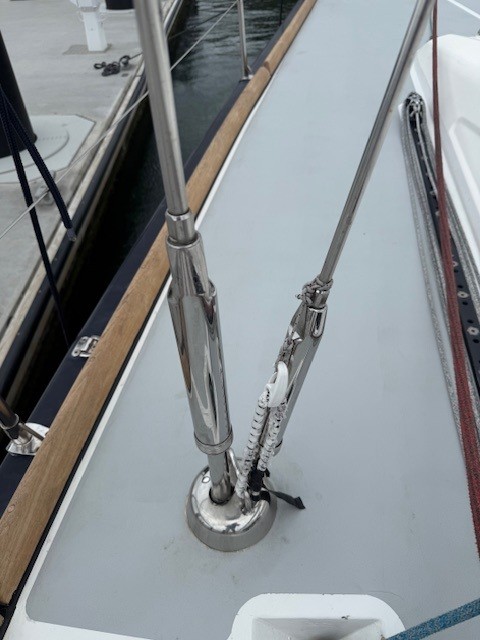

• New Discontinuous rod rigging throughout with rod turnbuckles
• New Running Rigging
• Innerstay deck fitting with runners, New
• Spectra Topping Lift

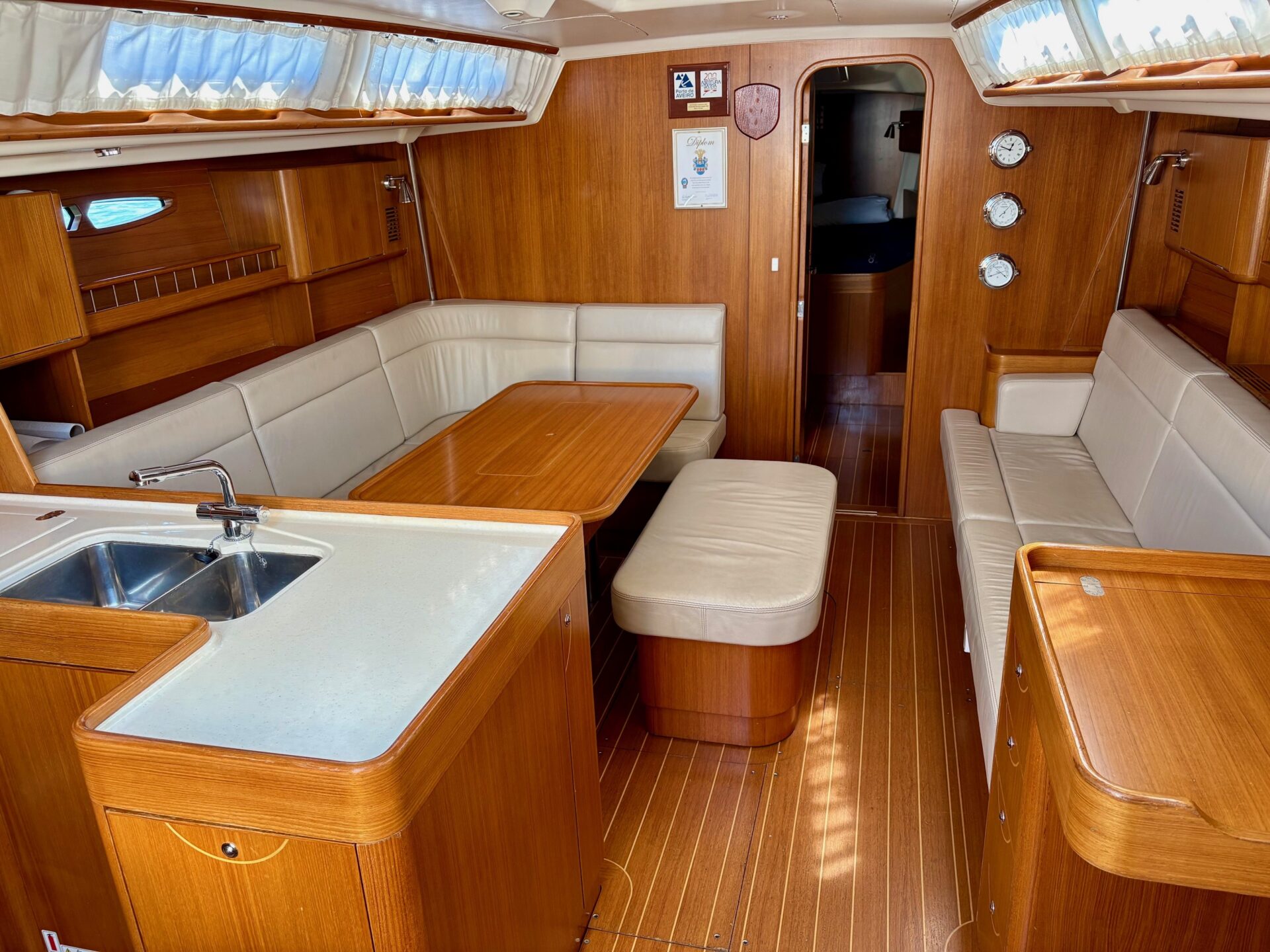

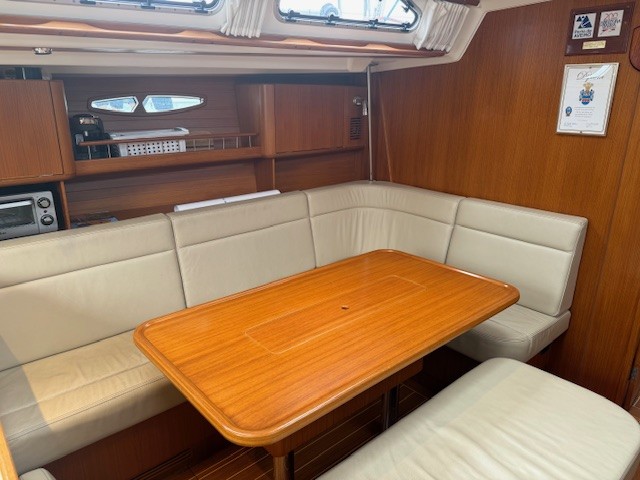

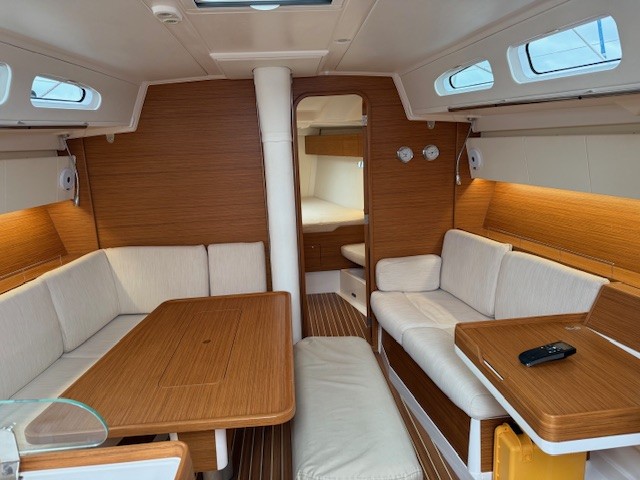

Accommodation

Layout

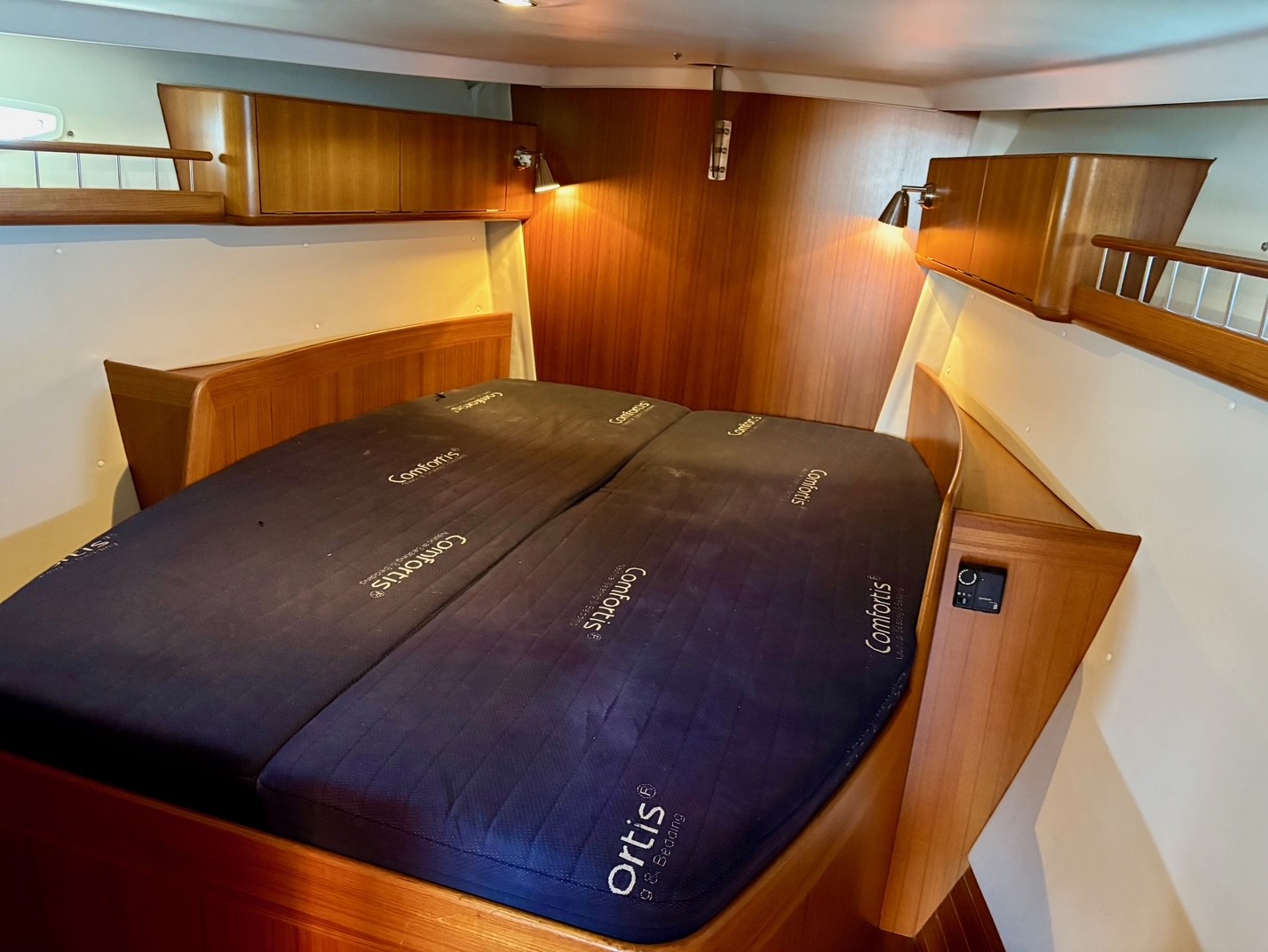

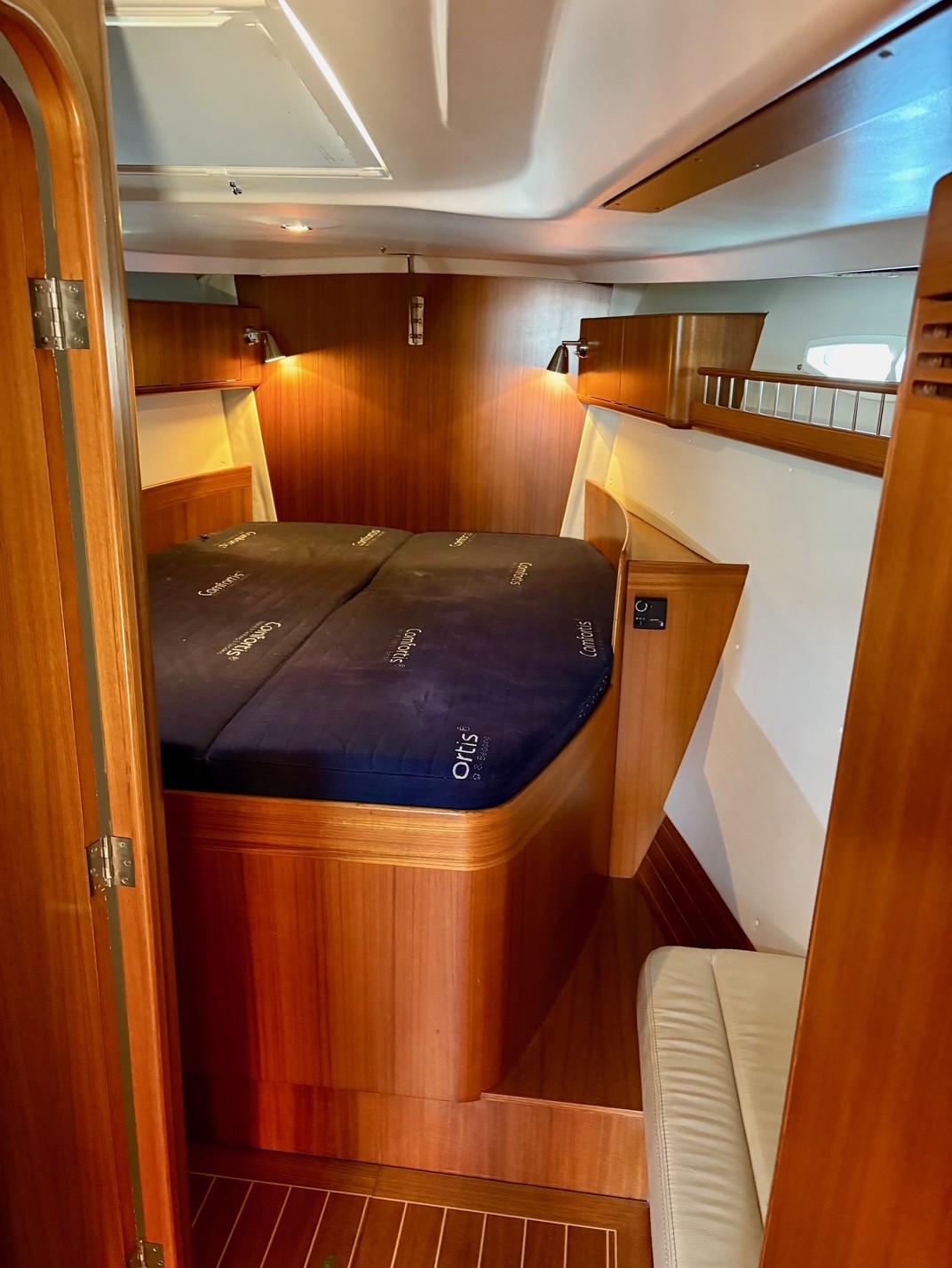

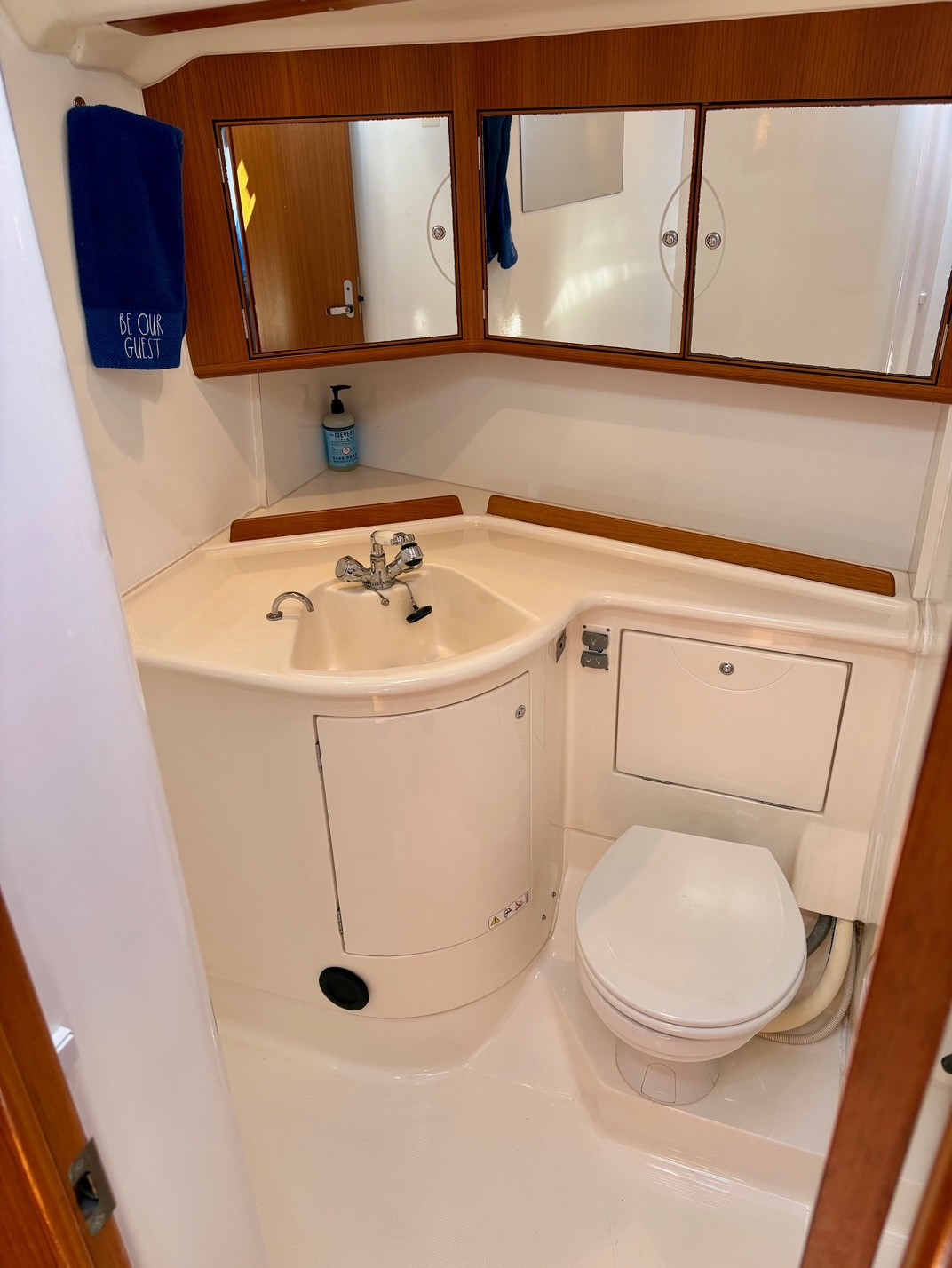

• 3 Cabin layout with 3 Heads

Systems

Engine

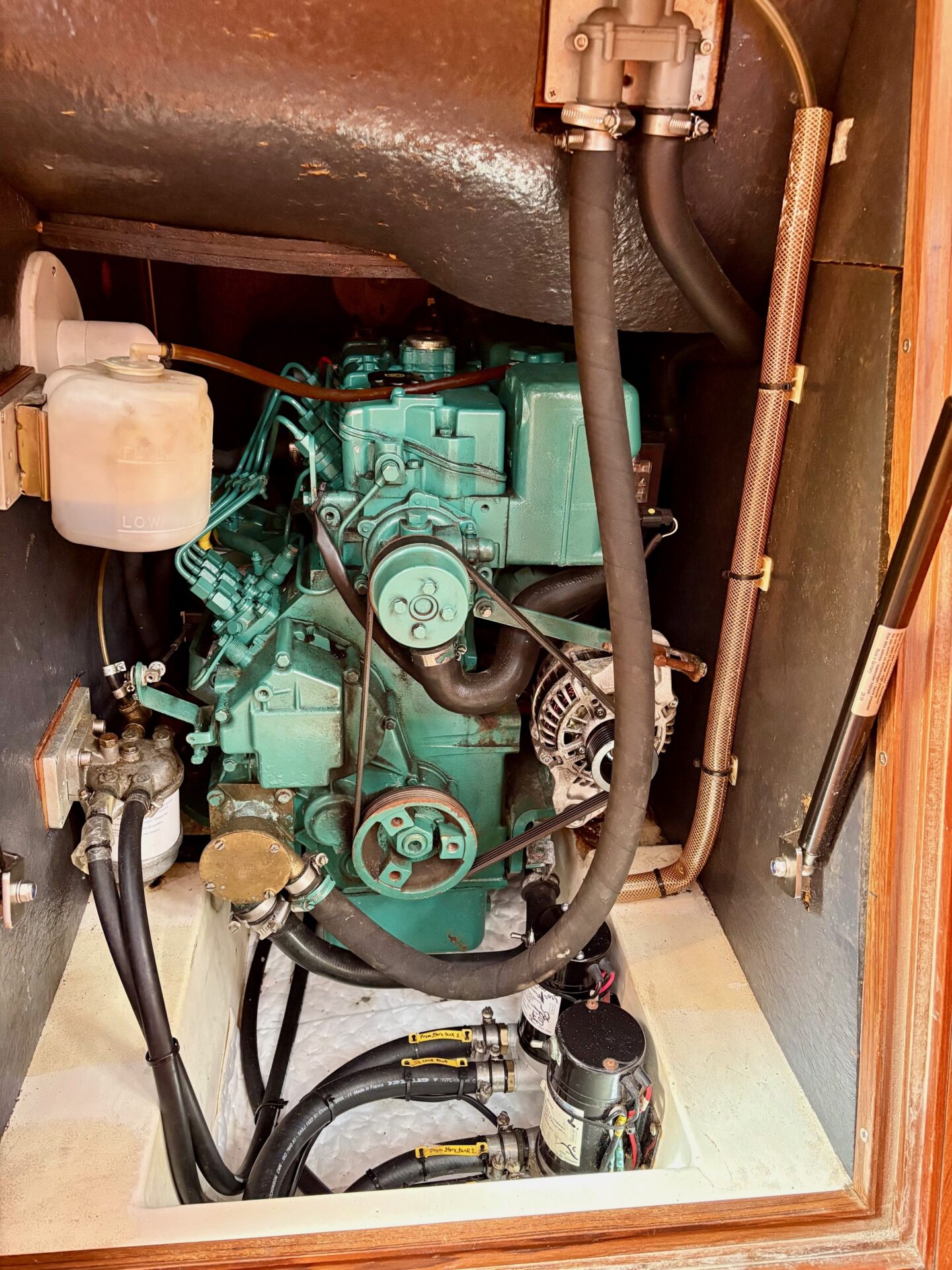

• Main engine - VOLVO D2 75 HP. annual maintenance
• 3 blade folding propeller
• Additional Tank 105 L

Plumbing

• Spinlock Seacocks and through hull fittings throughout
• Fresh water stainless steel tank
• Isotherm Hot water tank heated either by main engine or immersion heater connected to shore power
• Holding tanks for two heads
• Deck shower fitted at bathing platform with hot/cold freshwater

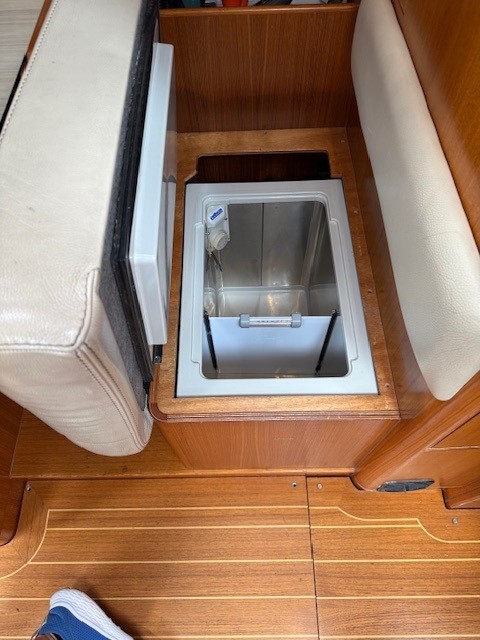

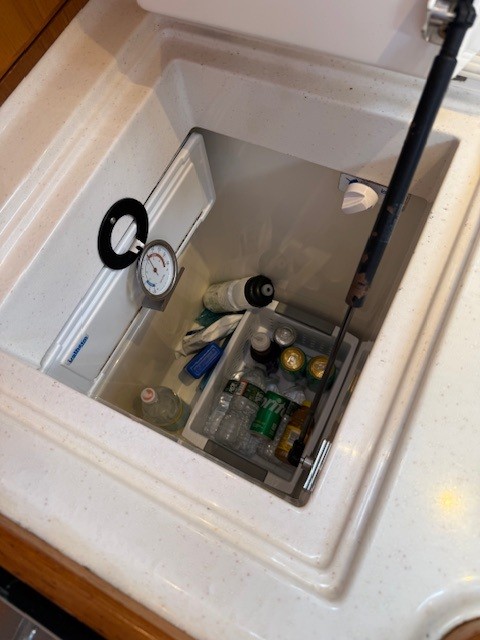

• 3 Electric fridges
• Air conditioning 3 Units

Electrical

• Mastervolt Lithium battery system for service
• Separate; AGM battery for engine start
• Shore power installation with shore power inlet mounted in cockpit through converter providing 110 V 50hz shore power
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for ship's power.
• Mastervolt battery charger + Inverter
• Fisher Panda 5 KVA generator

Electronics

• New Brookes & Gatehouse, 2023:

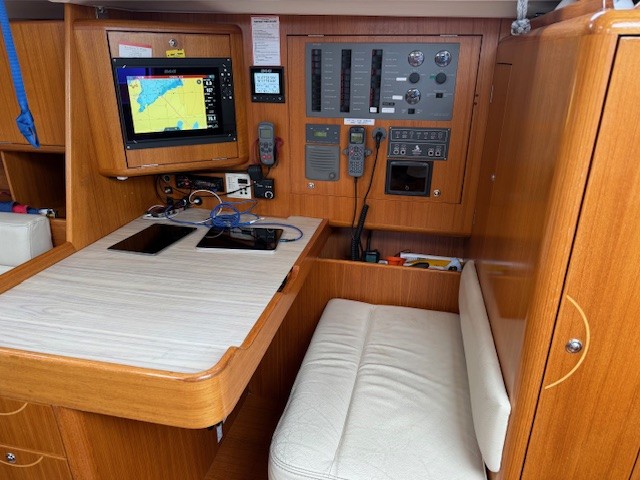

• Chartplotter at nav station

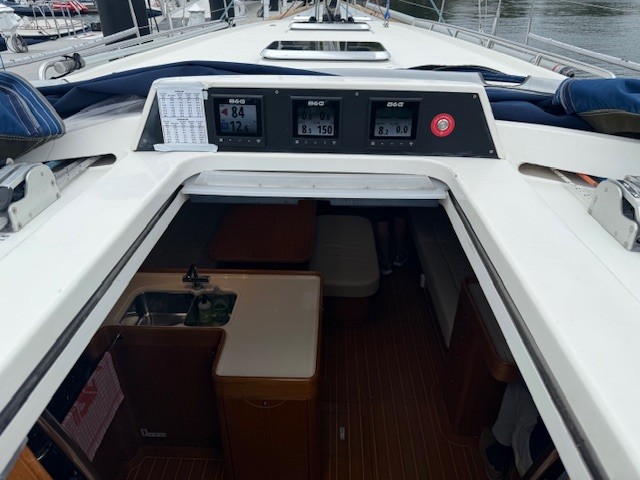

• 4 4X4 sailing instruments above companionway
• 4X4 Sailing instrument at nav station

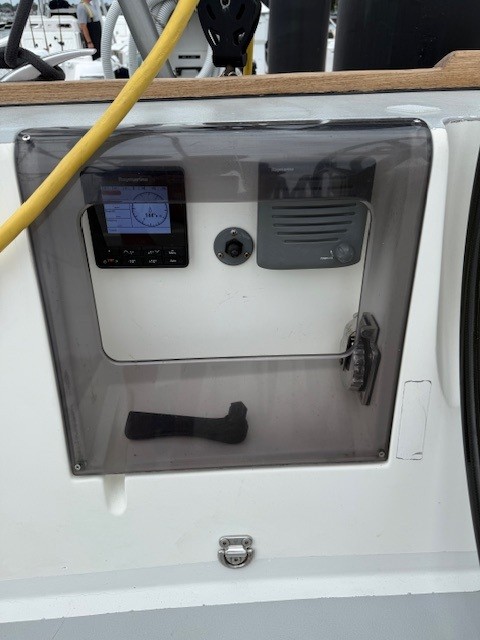

• Raymarine Auto Pilot
• Raymarine VHF Radio

Additional Information

• Lee cloths on bunks for offshore
• 8 man Life raft, 2024
• Lewmar electric windlass
• SS Anchor
• 60' chain; 100 ' rode
