Details

Exterior Details

Hull

• - Built in sandwich construction with structural compressed foam
• - Bi-directional E-glass strategically positioned for strength and weight optimization
• - Solid laminate in high stress areas around keel, rudder and through hull fittings
• - Outer surface layer of hull in light grey sprayed Gelcoat (RAL 7035) with
• - 3 waterlines in NGA Gelcoat (RAL 9010 white)
• - Hull moulded in female moulds for highest quality surface finish
• - Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• - Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• - from keel, mast and rigging Prepared for single point hoist for easy and safe lifting and launching of yacht
• - Bathing ladder in stainless steel
• - Continuous stainless steel rail protection mounted on sheerline
• - X-Yachts style hull recessed portlights (6 pcs

Deck

• - Built in sandwich construction with structural compressed foam
• - Bi-directional E-glass strategically positioned for strength and weight optimization
• - Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• - Deck and locker lids moulded in female moulds for highest quality surface finish
• - Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpitsole, seats.
• - Bulwark with teak capping incorporated in deck/hull design
• - Anchor locker - Electric windlass with SPADE anchor
• - Sail locker with access on the deck
• - Large sprayhood with stainless-steel frame
• - Space for a 6 man life raft in stb side transom locker

Sail Handling

• - 2 x Electrical 24 V Stainless Steel Andersen 72.2 primary winches
• - 2 x Andersen 68.2 Stainless Steel incl 1 Electrical 24 V for German Mainsheet system
• - Stainless Steel Andersen 52.2 for halyards, including 1 Electrical 24 V
• - Spinlock Jammer/clutches for halyards/control lines/reef lines
• - Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• - Asymetric spinnaker hardware and rigging,stainless steel powsprit
• - Large Sprayhood

Sails

• DELTA VOILES quiver including
• - 2020 Full batten hydranet mainsail
• - 2020 Furling hydranet genoa 105 %
• - Code 0 with furler
• - Assymetric spinnaker with snuffer

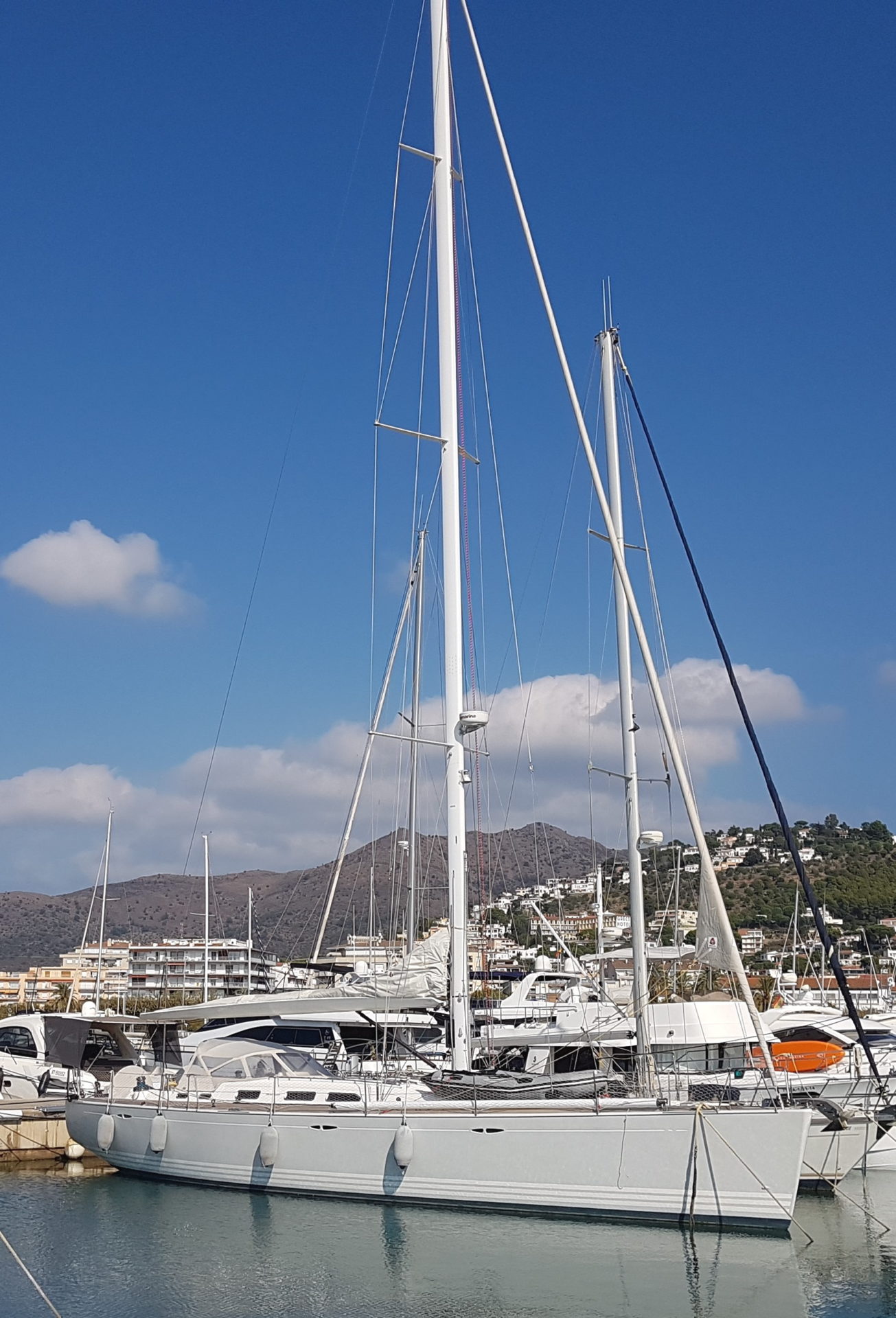

Mast & Rigging

• - White painted aluminium mast fractional triple spreader,
• - stepped on steel frame, specially designed for X- 55
• - Combined deck and steaming light, Windex with light, tube for additional
• - electrical equipment and 2 mast steps fitted

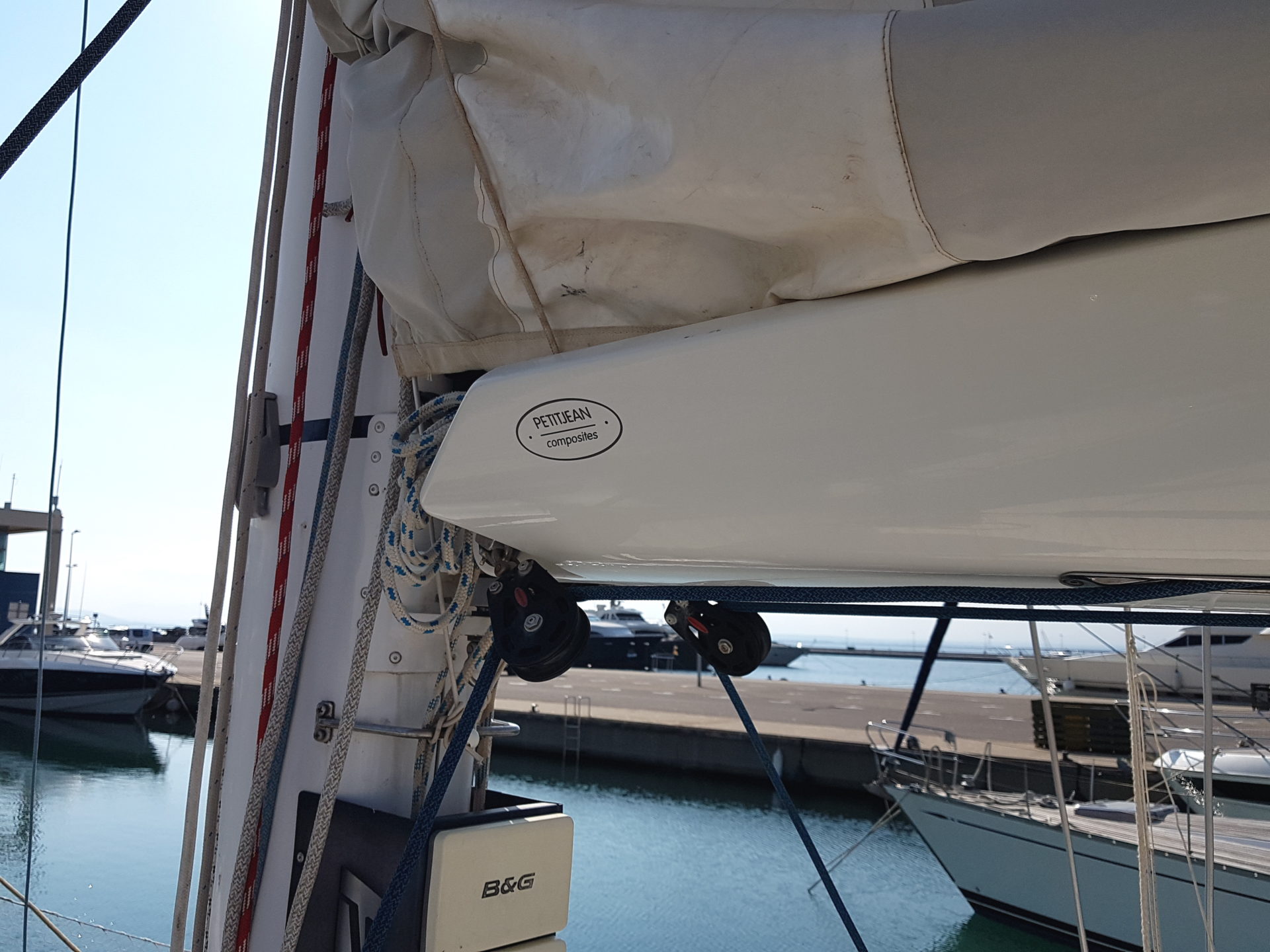

• - Carbon Park Avenue boom boom with reefing line
• - Navtec hydraulic centrale for backstay and vang
• - side and turnbuckle Tip cups in stainless steel fitted to stainless steel tie rods (2 pcs)
• - Discontinuous rod rigging throughout with rod turnbuckles
• - RECKMANN RS2000 headsail furler under deck service 2020
• - Running Rigging with Spectra halyard

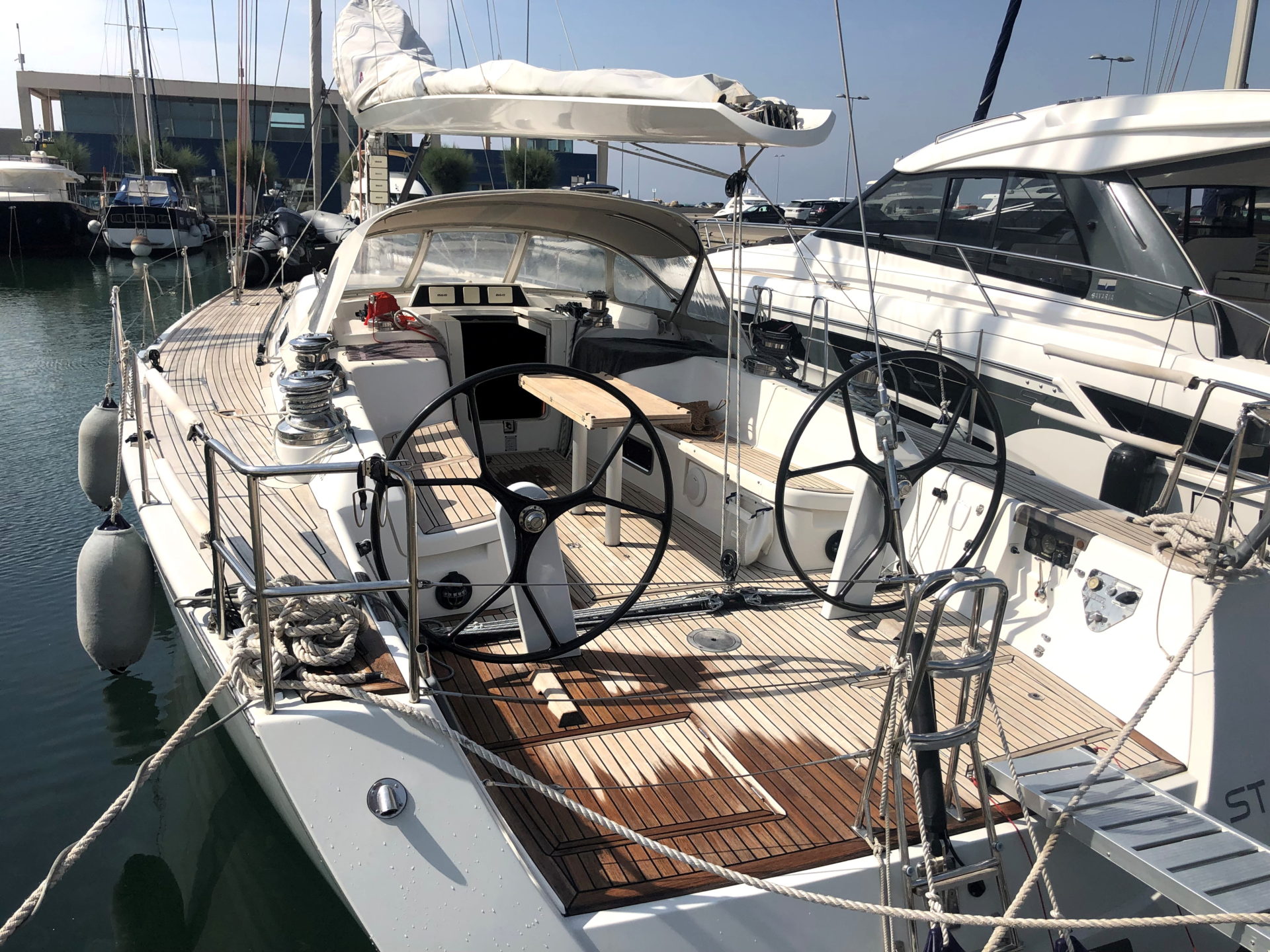

• - 2 x carbon steering wheel

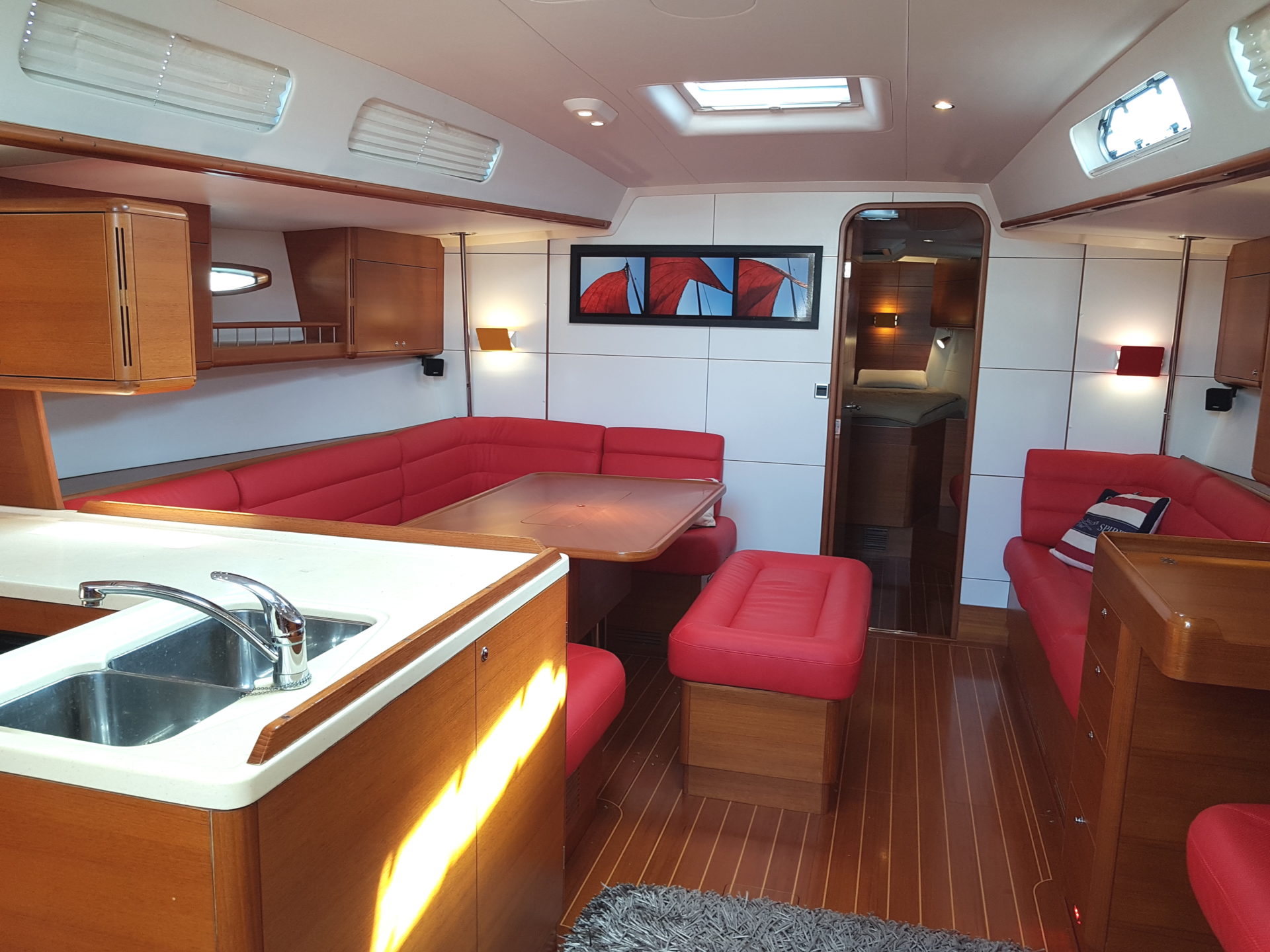

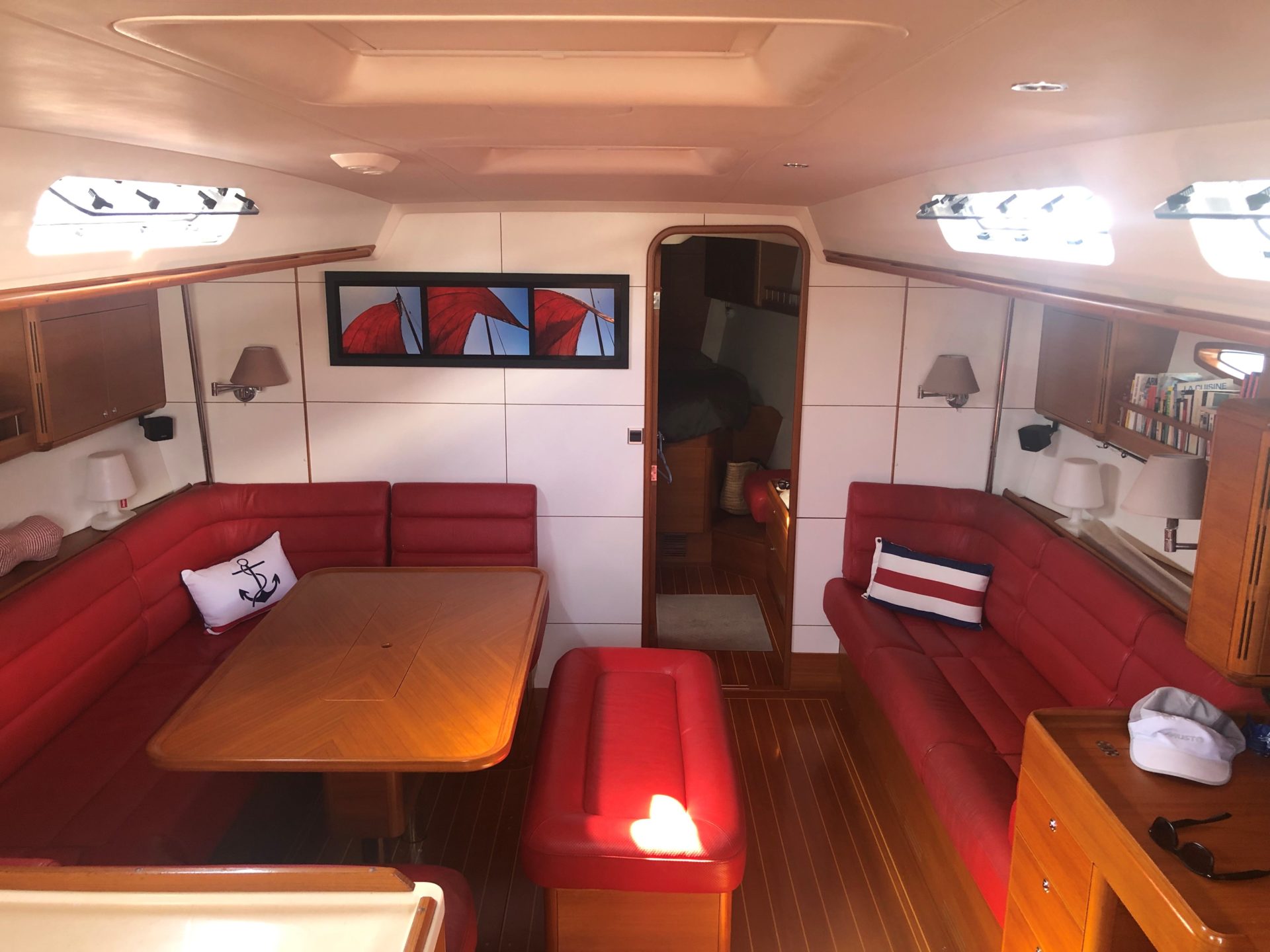

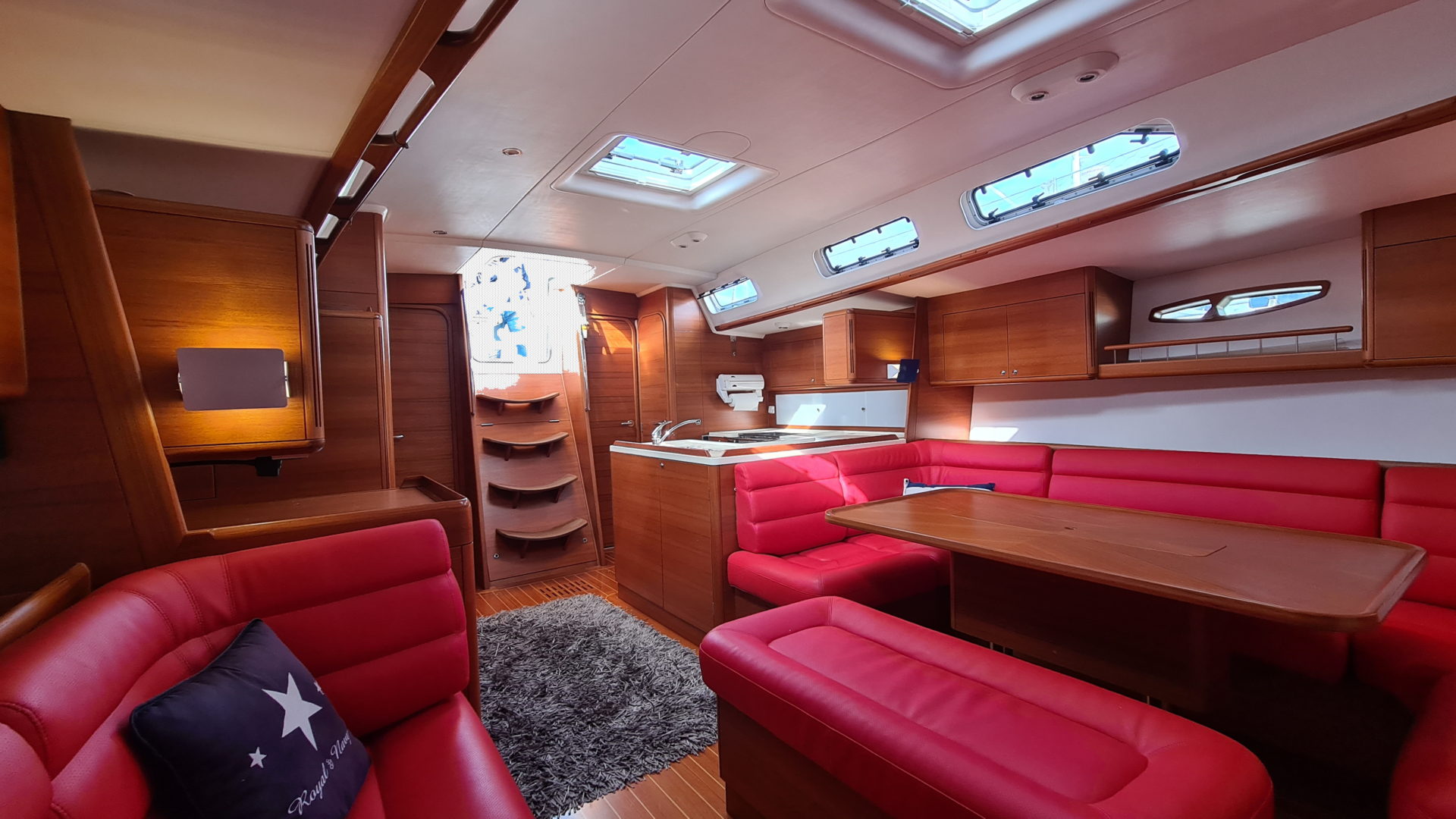

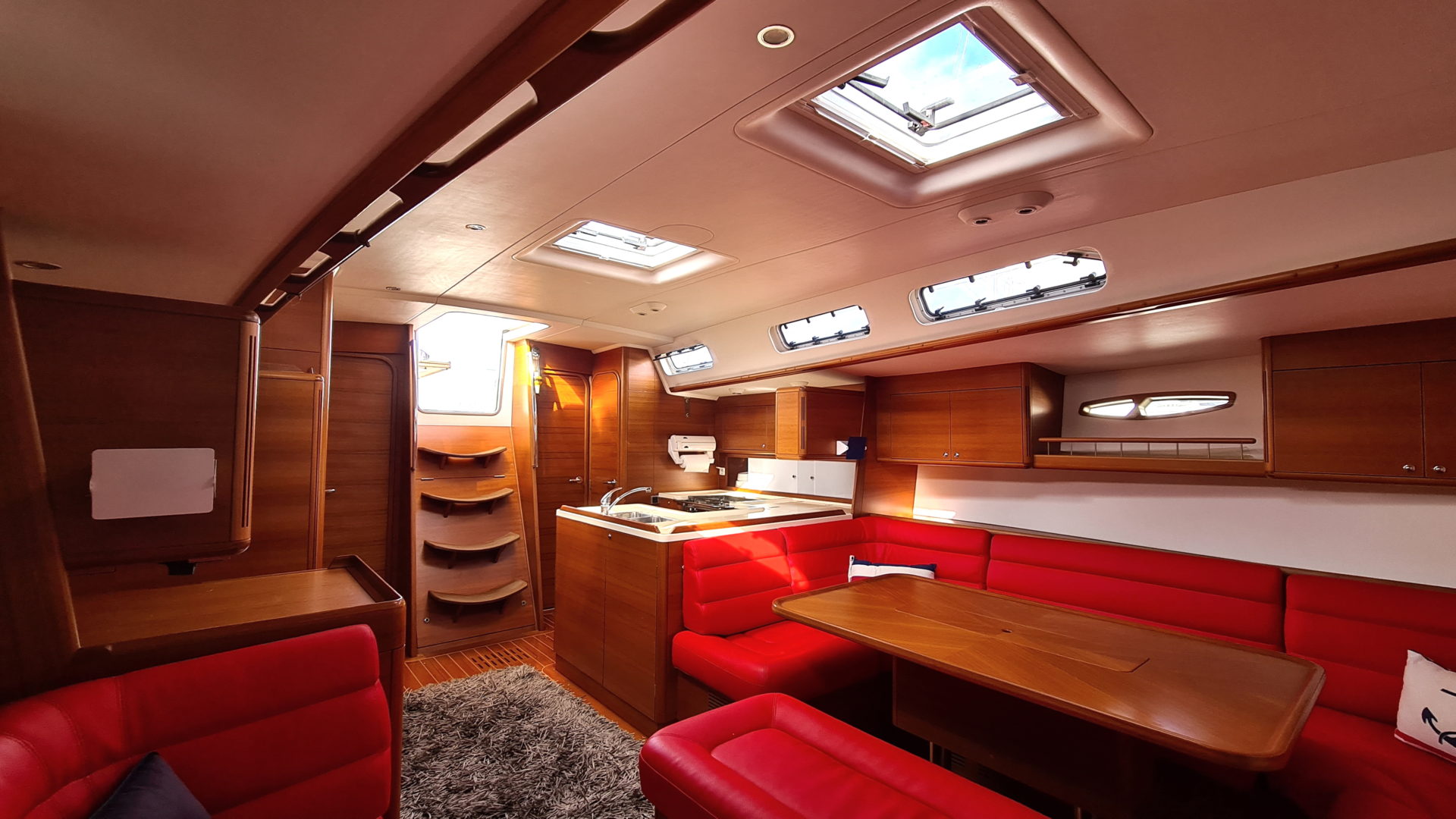

Accommodation

• - 3 cabins layout, 2 bathrooms

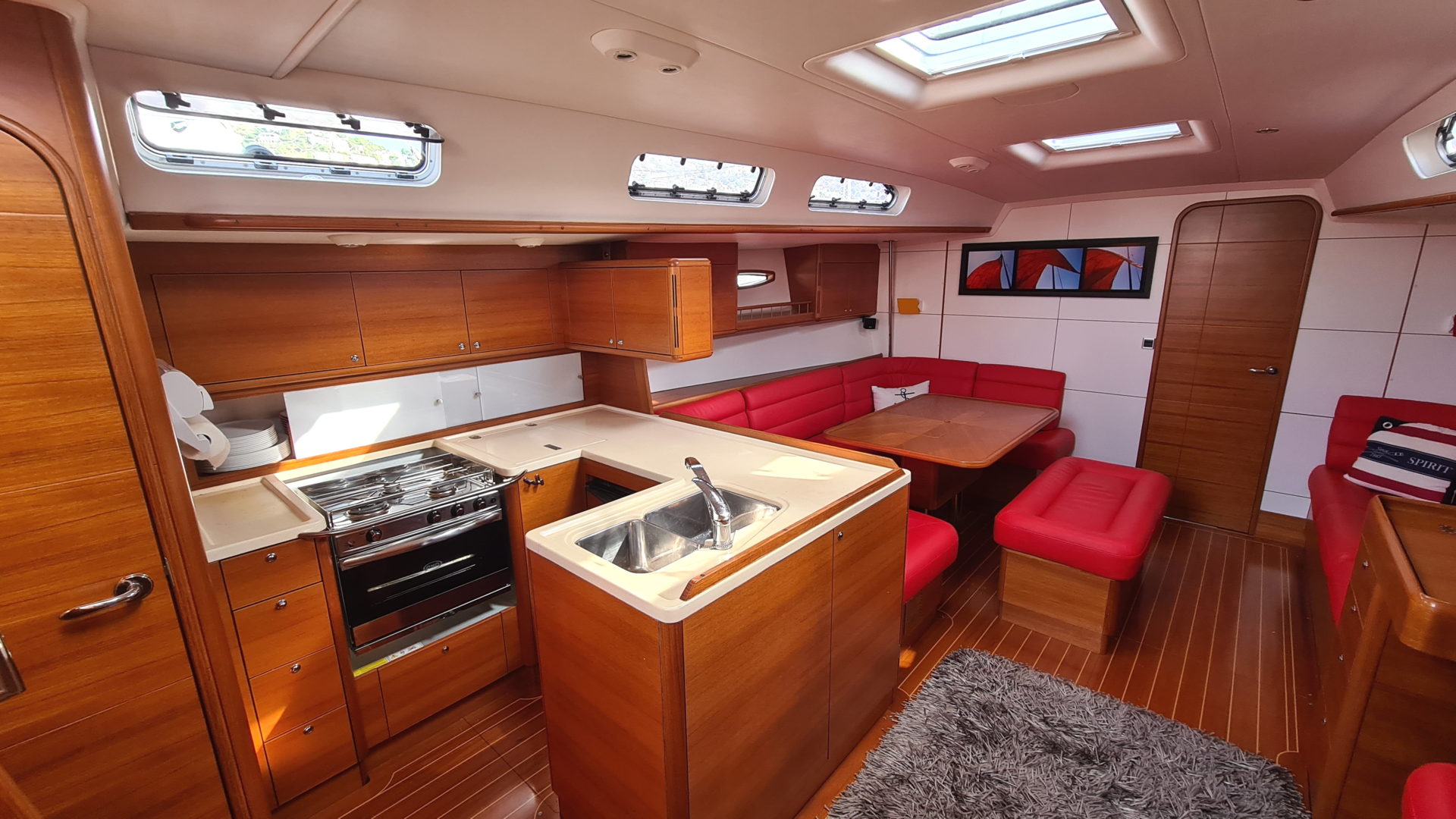

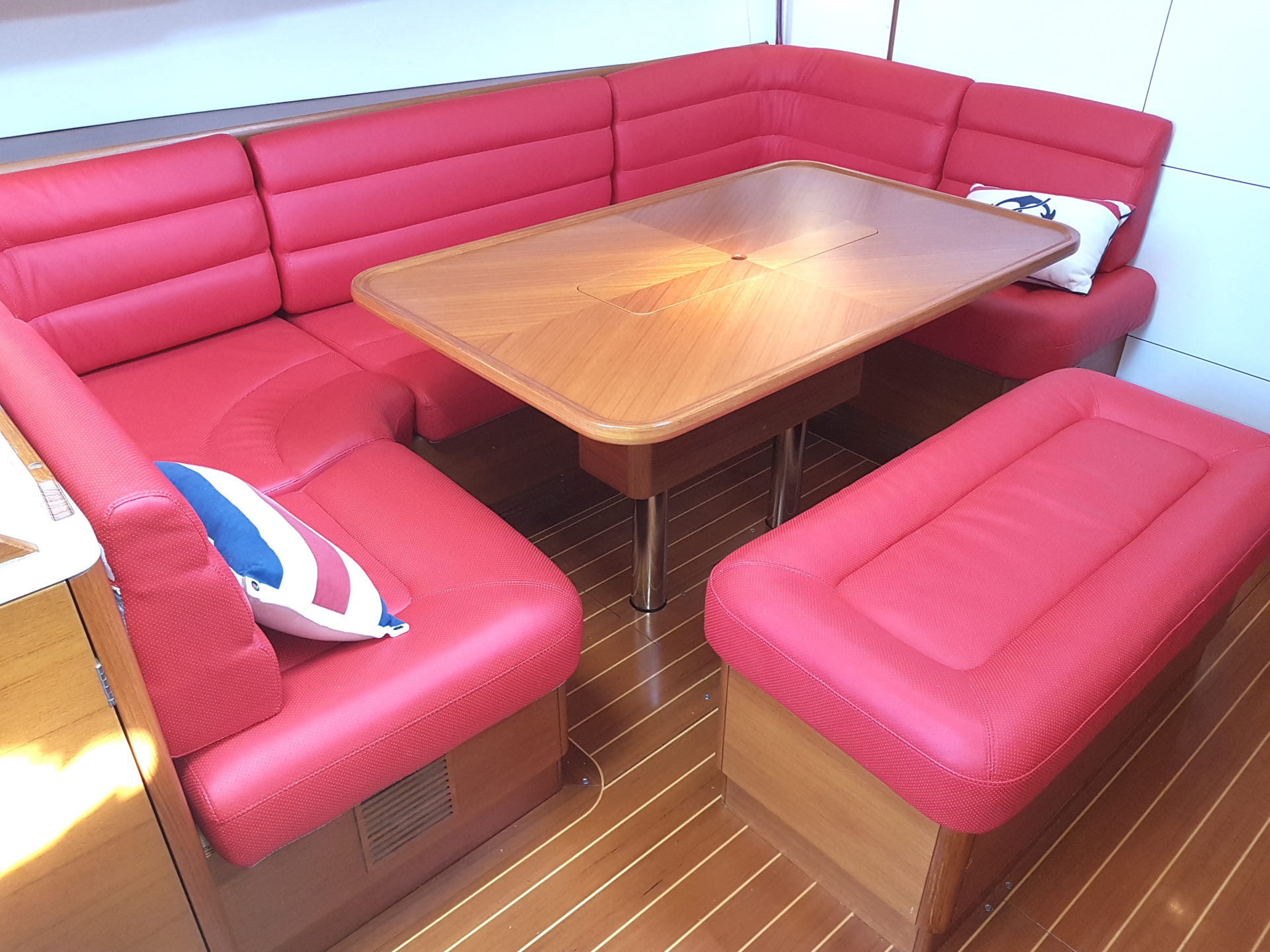

• - Red leather upholstery in the saloon
• - Top grade teak , varnished and hand polished satin finish
• - Oceanair blinds incl flyscreen fitted to skylights, anti rollcanvas in all cabins.

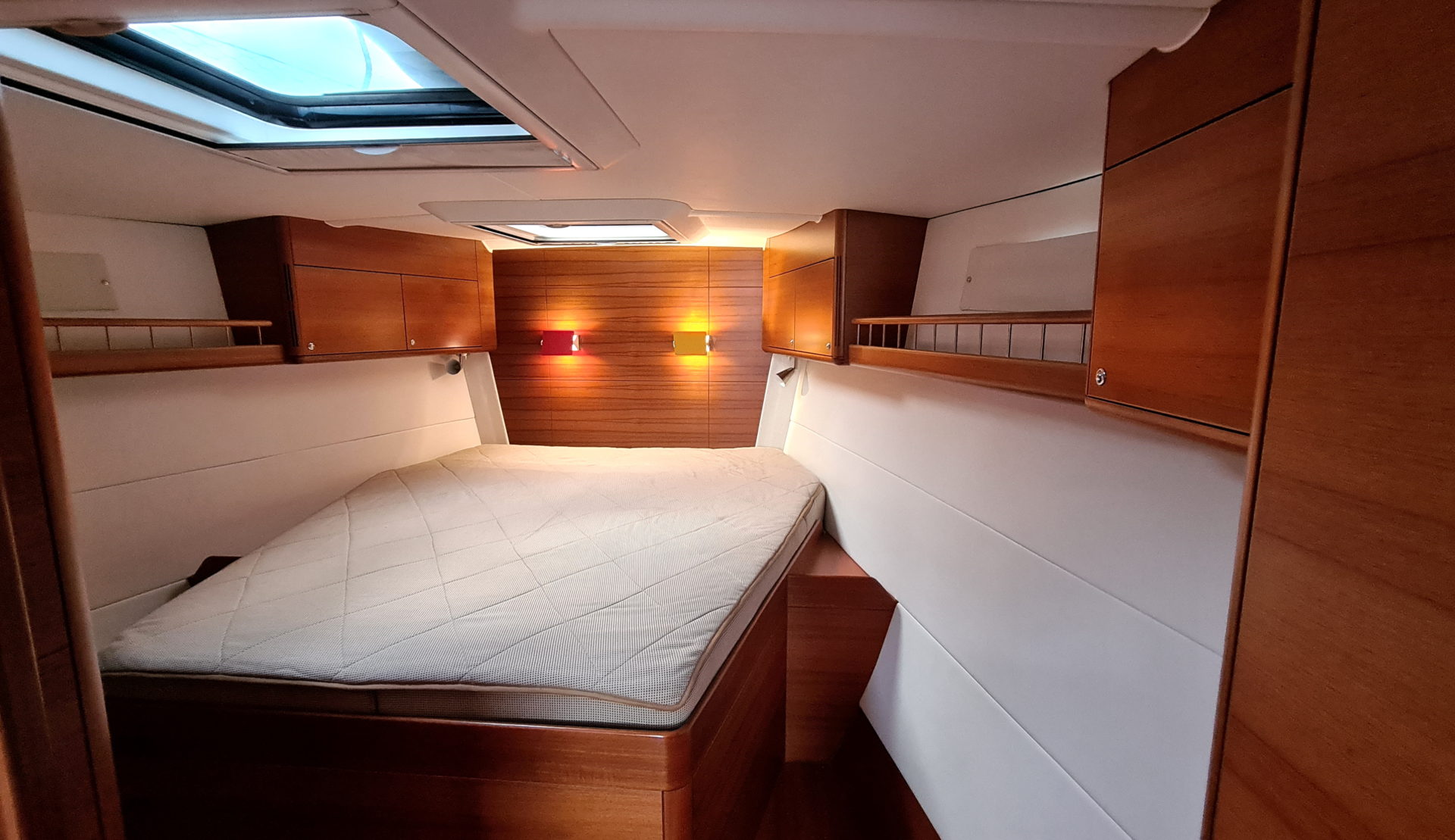

• - Owner's cabin with large central double berth 210 x 176

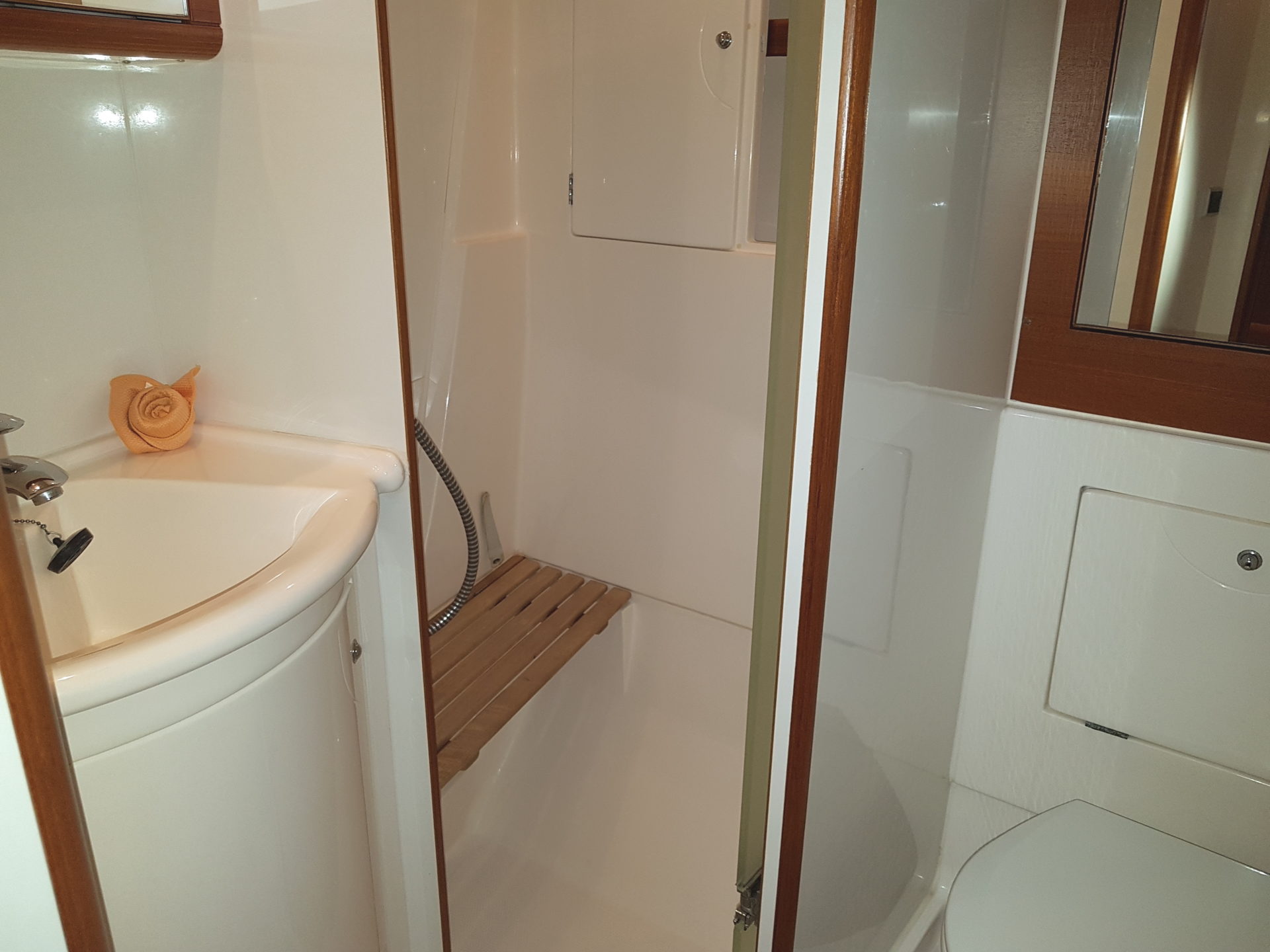

• - Owner’s bathroom with dedicated shower compartment with Plexi glass door
• - Aft bathroom with shower and electric drainage pump
• - Marine electrical toilets with holding tank in each bathroom

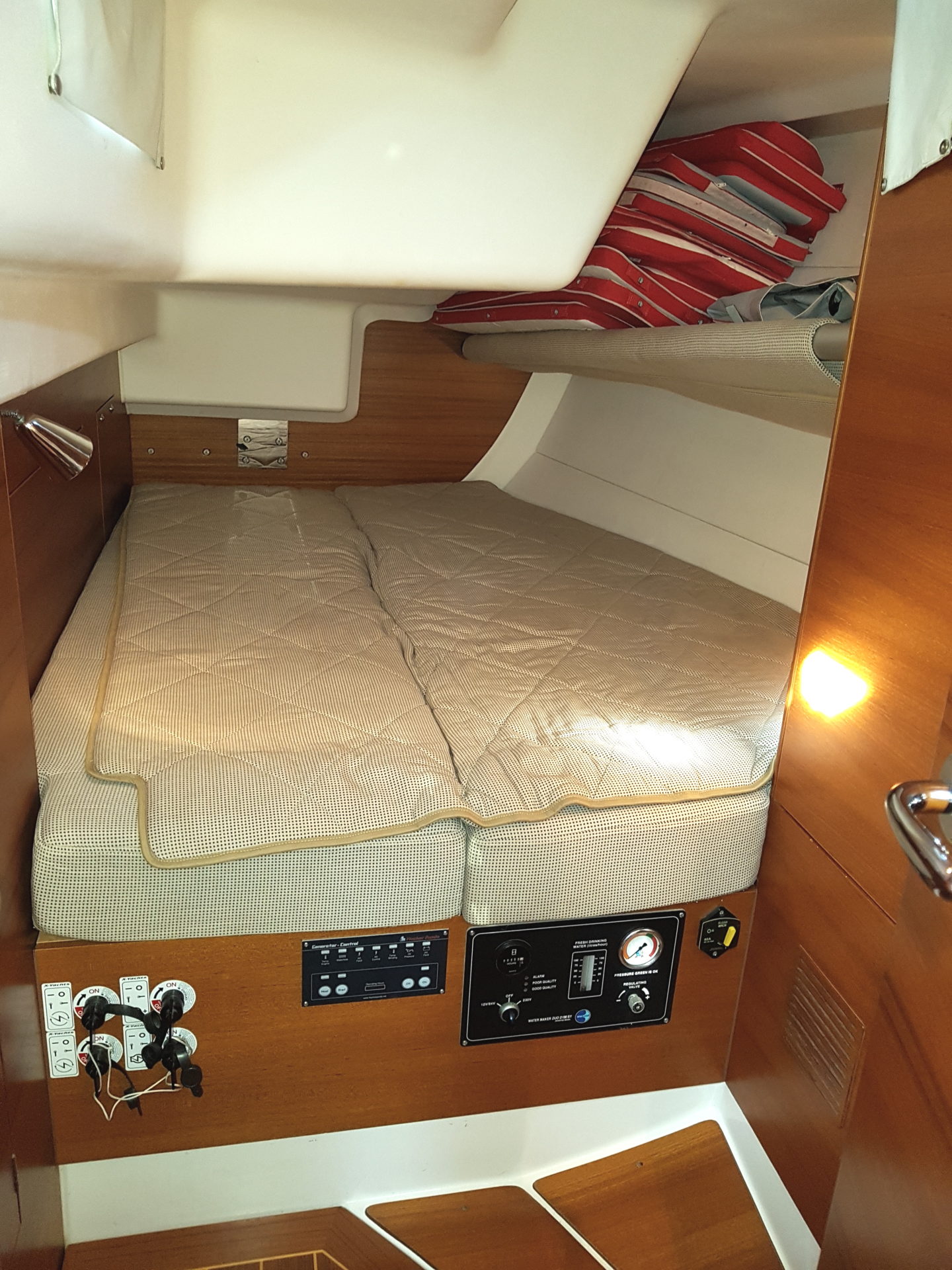

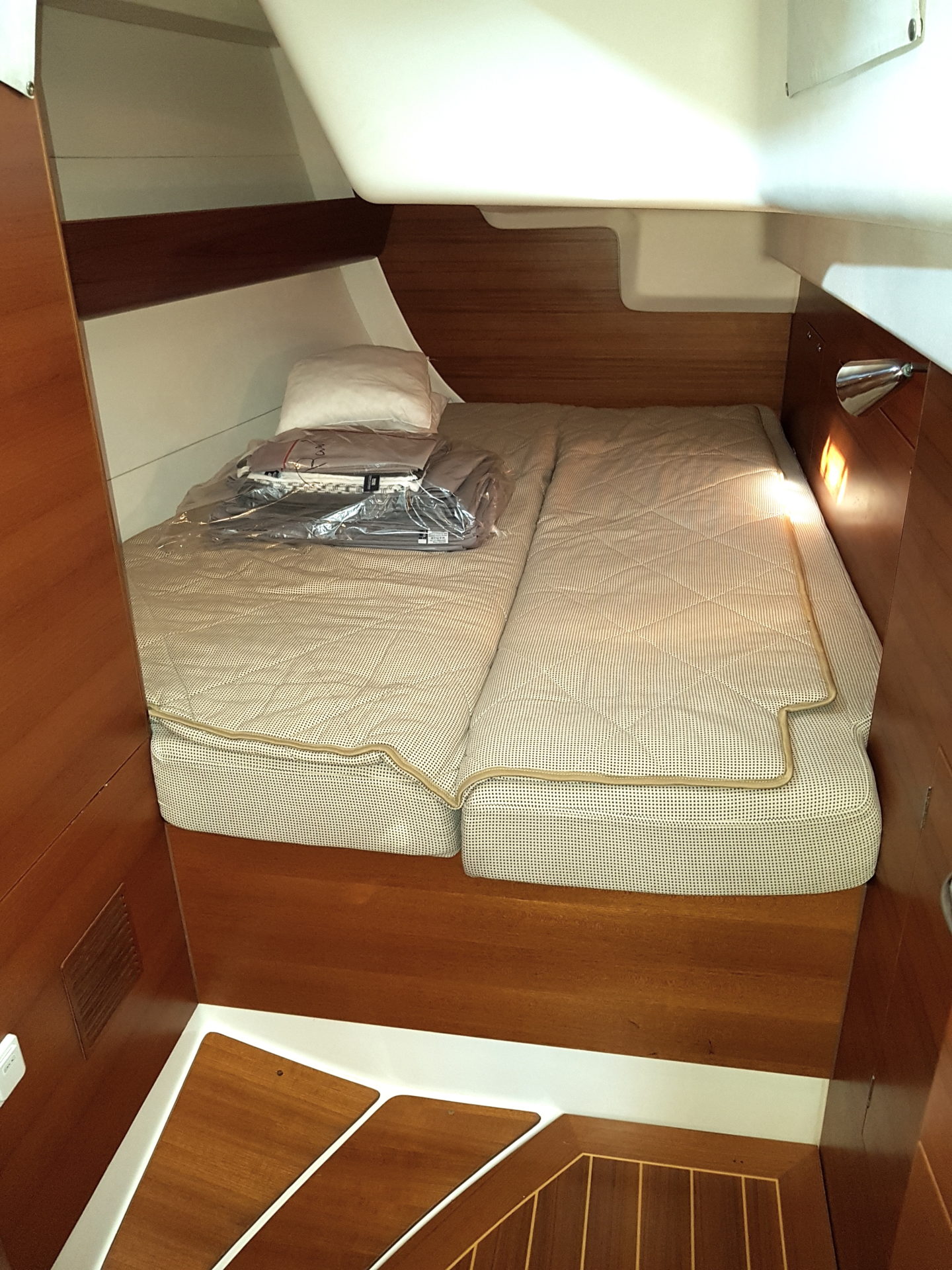

• - Large double berths in aft cabins

Systems

Engine

• - Main engine - YANMAR 4 JH4 110 HP. annual maintenance, full service 2020
• - 1x Alternator 24V 115 Amp
• - FLEXOFOLD 3 blades folding propeller
• - Fuel tank 400 L
• - Retractable bowthruster MAXPOWER VIP 150 24 V

Plumbing

• - Seacocks and through hull fittings are bronze ball and flush mounted
• - Fresh water stainless steel tank total 550 litres
• - Hot water tank Isotherm 40 l. Tank can be heated either by main engine or
• - immersion heater connected to shore power
• - Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• - Seawater tap with electrical pump fitted at galley
• - Deck shower fitted at bathing platform with hot/cold freshwater
• - Electric fridge cooled Danfoss compressor

Electrical

• 24 V installation for service Main switch and analogue VDO meters for fuel, water and battery voltage
• - 480 Ah AGM services batteries 2021
• - Separate engine spiral-cell battery (55 Ah, 12V)
• - Shore power installation with shore power inlet mounted in cockpit
• - AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and VICTRON battery charger 24 V/50A + inverter
• - Micro Wave
• - Additional fridge 85 L with front opening
• - EBERSPACHER Heater D10 6 outlets
• - Génerator FISHER PANDA 6 KVA
• - Watermaker DESSALATOR 60 L/H Duo 24 V/ 220 V

Electronics

• - B&G H 3000 with Hercules processor
• - 4 x 20/20 mounted on mast bracket with remote vision
• - 2 x H 3000 GFD display
• - H 3000 analogic wind indicator
• - Depth and speed sensor, wind sensor with vertical carbon mast head unit.

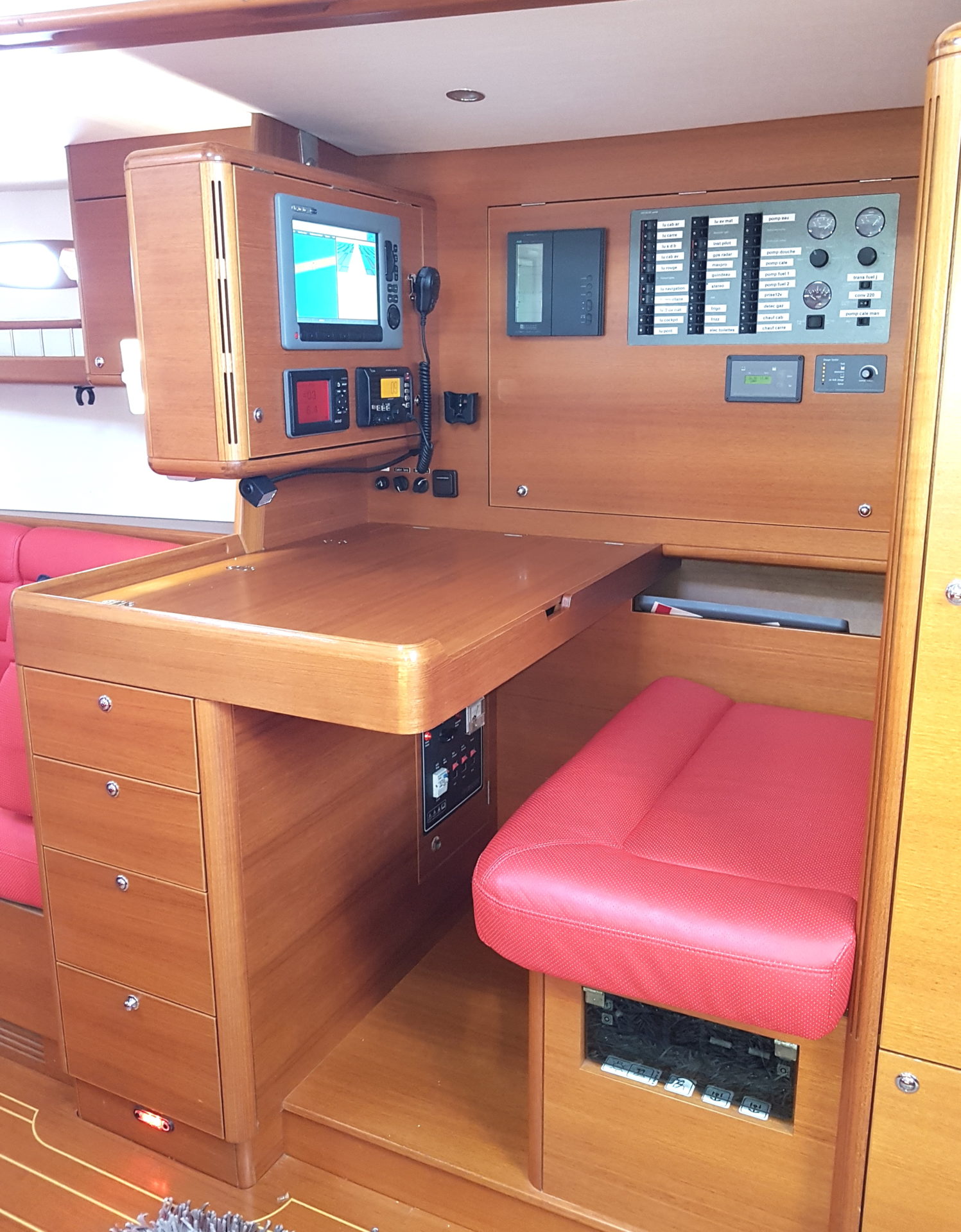

• - 1 x chart plotter RAYMARINE C120 W at the chart table
• - 1 x chart plotter RAYMARINE C120 W in the cockpit
• - Auto pilot with RAYMARINE computer
• - EPIRB
• - VHF ICOM M505
• - Ais CLASS B
• - Radar antenna 18”
