Yacht Summary

X-55



Professionally cared for and continually updated. She's ready for anykind of sailing, near and far.

Antigua to Bermuda Race 2019

Standard Specification

DesignerX-Yachts Design Team
Hull Length16.76 m55'0"
Waterline Length14.45 m47'5"
Beam (max)4.57 m15'0"
Draft3.20 m10'6"
Ballast - Std6,000 kg13,228 lbs
Displacement - Light16,501 kg36,378 lbs

Standard X-55 brochure

Details

Exterior Details

Hull

  • Boot Stripe repainted (2021)
  • Bottom blasted and recoated with full interprotect system (2020)
  • Anti foul paint Sea Hawk Brand
  • Keel Striped to bare metal and glassed with west system
  • All through hulls serviced, many replaced (2021)
  • New cutlass bearing (2021)

Deck

  • Primary Winches: (2) Harken Electric 2 speed 72STE-FS 24 V (serviced 2020)
  • Secondary - (1) Harken Electric 2 speed 68STE-FS 24 V (1) Harken Manual 68STE (serviced 2020)
  • Halyard: (1) Harken Electric 52STE-FS 24 V, (1) Harken Manual 52 STE(2019)
  • 3 Harken winch handles
  • Multiple Genoa & spin sheets (2019-2021)
  • Ronstan Jib cars replaced(2020)
  • Navtec hydraulic system for backstay with pump in cockpit
  • Magnetic Compass mounted starboard at helm (2019)
  • 95m 3/8-inch marked anchor chain stainless steel on windlass
  • 50M 3/8 inch galvanized chain
  • 35kg Stainless Steel Ultra Anchor (2015)
  • Spare 25kg anchor, rope and chain
  • Antares 1024 electric windlass
  • 100 foot removable jackstay strap (2018)
  • JonBuoy MOB device (2018)
  • MOB recovery sling
  • Folding teak cockpit table, with recessed storage compartment (refinished 2020)

Sails

  • Main (2019) Evolution, 3+2 battens, 3 reef points with lazy jacks (serviced 2022)
  • Roller furling Jib (2019): Evolution 106 percent (serviced 2022)
  • UK Heavy weather jib on furler (2018)
  • One Sail Gennaker with top-down roller furler
  • Asymetric Gennaker

Mast & Rigging

  • Aluminum mast, 3 spreaders
  • Removed and inspected 2019 and 2020
  • Harken B car mainsail track system
  • Mast mounted spin track & pole mount (no pole)
  • 2 spinnaker and 2 genoa halyards (2019)
  • Main halyard (2020)
  • Spare halyard
  • Topping lift/cutter halyard (2018)
  • 3 sets of reef lines (2020)
  • Lopo light spreader lights (2019)
  • All sheaves replaced 2019

Accommodation

  • Domectic 6,000 BTU for aft cabins, 6,000 BTU for owners, HFL 10,000 BTU for saloon; the units have reverse cycle option for heating (2020)
  • Air con salt water circ pump replaced 2021
  • Frigoboat fridge/freezer top open box- Keel cooled (2021)
  • Isotherm refrigerator front opening box

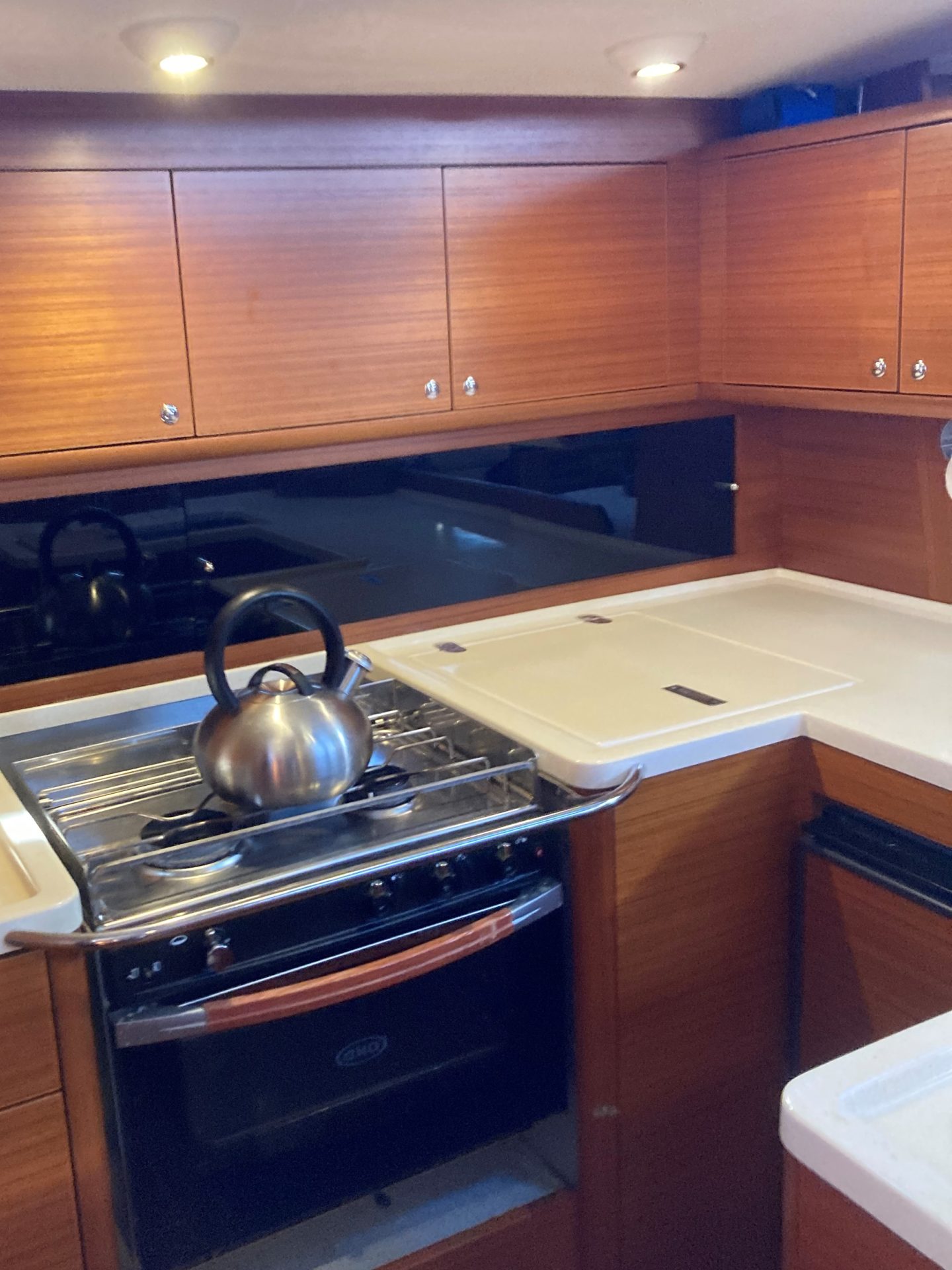

  • Propane Gas 3 burner stove plus oven with 2 bottle vented tank compartment
  • Manual bilge pump
  • Electric bilge pump with auto sump
  • White Italian leather upholstery on seating areas
  • Sheets, blankets, duvet covers, pillows, bath towels, beach towels. Two sets
  • Fully outfitted galley, many new appliances
  • Organized box of manuals for all systems

Systems

Engine

  • Main Engine- Yanmar 4JH-110hp with KM4A Reverse Gear (2021)
  • Engine room painted with awlgrip(2021)
  • Engine room insulation changed (2021)
  • New engine control head, cables and display installed with main engine
  • Exhaust system completely replaced (2021)
  • Bow thruster, Max Power VIP 150, 24 V
  • Yanmar fuel filter/water separator (2021)
  • MaxProp 3 blade feathering prop
  • Shaft Shark, shaft mounted line cutter (2017)
  • 3 fuel tanks: 170L consumption tank and port/starboard 229L tanks with fuel transfer system. Cleaned/Inspected (2020)
  • Jefa Steering system, (bearings replaced 2021)
  • Electric Hydraulic ram for autopilot (2020)
  • Full complement of engine spares on board; belts, pumps, filters.

Plumbing

  • (2) Jabsco electric heads each with 25-30L holding tanks, self draining capability and with deck outlets (owners’ cabin and starboard aft)
  • (1) manual head (port aft) direct discharge only
  • showers in each head with sump pumps
  • Hot/Cold pressurized fresh water system
  • 2 water tanks of 225L each
  • Deck shower with hot/cold fresh water 2020
  • Salt water anchor wash down pump
  • Fresh water maker, Spectra Ventura 200, 24v (2021)
  • Spares for all pumps on board
  • Charcoal filter for drinking water at galley sink (2021)

Electrical

  • Fisher Panda generator 8.0 i 6 kw (2019)
  • Exhaust system completely replaced (2021)
  • Mastervolt Mass Charger 24/50 (2018)
  • Mastervolt Invertor 60hz (2019) 1 60 hz outlet at Nav station
  • Mastervolt Invertor 50 hz (2019) 50 hz outlets throughout vessel
  • Victron Energy BMV602 battery monitor
  • Victron 880-amp (@12v) AGM house battery bank (2018)
  • Dedicated engine battery (2018) and separate generator battery, with crossover switch
  • (1) 12v outlet
  • Solar panels 100AH/day with controllers (2019)
  • 220v/50 Amp (US) shore power cord 100 feet

Electronics

  • ICOM IC-M324G VHF radio with GPS (2015)
  • Fleet One satellite phone via hand set, data and txt via laptop (2019)
  • Raymarine e125 multifunction display 12-inch (2015)
  • Raymarine axion backup GPS in Nav station (2019)
  • 15" IPAD connected to Raymarine for on deck display with mount.
  • Siruis SR150 weather unit (2015)
  • Raymarine 650 AIS system (2015)
  • Raymaion Axion back up plotter(2019)
  • Mast top VHF antenna (2020)
  • Raymarine 4kw radome scanner mounted first spreader
  • Raymarine SPX Smart AutoPilot system with display at helm; remote controller
  • Raymarine depth/speed/temperature transducer (2016)
  • Raymarine masthead wind instrument transducer (2019)
  • 5-Raymarine programmable display units (2020)
  • Masthead unit replaced 2021
  • ICOM remote VHF on board not installed.
  • Alpine Stereo, Sirius capable, Bluetooth, USB port; 2 speakers in cabin; 2 speakers in cockpit; (2019)
  • Masthead unit replaced 2021
  • ICOM remote VHF on board not installed.

Additional Information

  • Recent upgrades:
  • Repowered 2021 with Yanmar 4JH110KM4A and reduction gear.
  • Panda 8000i generator new in 2019
  • Frigoboat keel cooled refrigeration system installed 2021
  • Spectra Ventura 200 water-maker 24V installed 2021
  • Raymarine axion back up plotter installed 2019
  • Hydraulic drive for autopilot 2019
  • Raymarine multifunction display 2019
  • Fleet one satellite system installed 2018
  • Jib new 2019
  • Main sail new 2019
  • 50Hz inverter 2019
  • 60 HZ inverter 2019
  • Hatch gaskets replaced 2021
  • All running rigging replaced 2019
  • Dodger replaced 2019
  • Dometic AC units replaced 2020-2021
  • AC circulation pump replaced 2020
  • Stainless anchor chain 2019
  • Roller furler an 2:1 for stay sail 2020
  • Jefa rudder bearings changed 2021
  • Sheaves in Rig replaced 2020
  • Solar panels on bimini 2019
  • Passerelle rebuilt 2021
  • 10 person Solas raft 2019
  • JonBuoy MOB device 2019
  • Boot stripe re-painted 2021
  • Bottom blasted and full Interprotect system 2020
  • Anti-fouling is SeaHawk
  • Keel stripped to bare metal and Glassed with west system 2020
  • Spares for every pump and motor. $10K n spares
  • Inventory:
  • 10 person SOLAS life raft (2019)
  • EPIRB (2019)
  • 12 FT Caribe tender (2016)
  • 15 HP Yamaha enduro (serviced 2022)
  • Full complement of hand tools and power tools
  • Plumbing, electrical, winch repair, paint touch up, metric and standard fasteners, hose clamps, sail repair and rigging kits on board.
  • New Dodger (2020)- Sunbrella
  • Magma propane grill 2019
  • Bracketed folding sun awning (2019) - Sunbrella
  • Bimini over wheel (2019) - Sunbrella
  • Main Cover: (2014) Sunbrella
  • Canvas wheel covers (2020)
  • Cockpit cushions (working) 4 white foam with vinyl covering
  • Cockpit cushions (formal) 2 blue sunbrella covered foam cushions with set of decorative pillows (2015)
  • Floor covering for down below (2020)
  • 8 Fenders
  • 8 dock lines
  • Water hose
  • Passerell/gangplank: folding with teak trim, with bag (re-decked and painted (2021)
  • Spares for every pump and motor. $10K n spares
  • Full complement of tools, $7 to 8K in tools.
  • Carib Tender with 15 HP Yamaha 2 stroke
  • Two paddle boards
  • Two sets of linens
  • Fully outfitted galley
