Owner's Comments

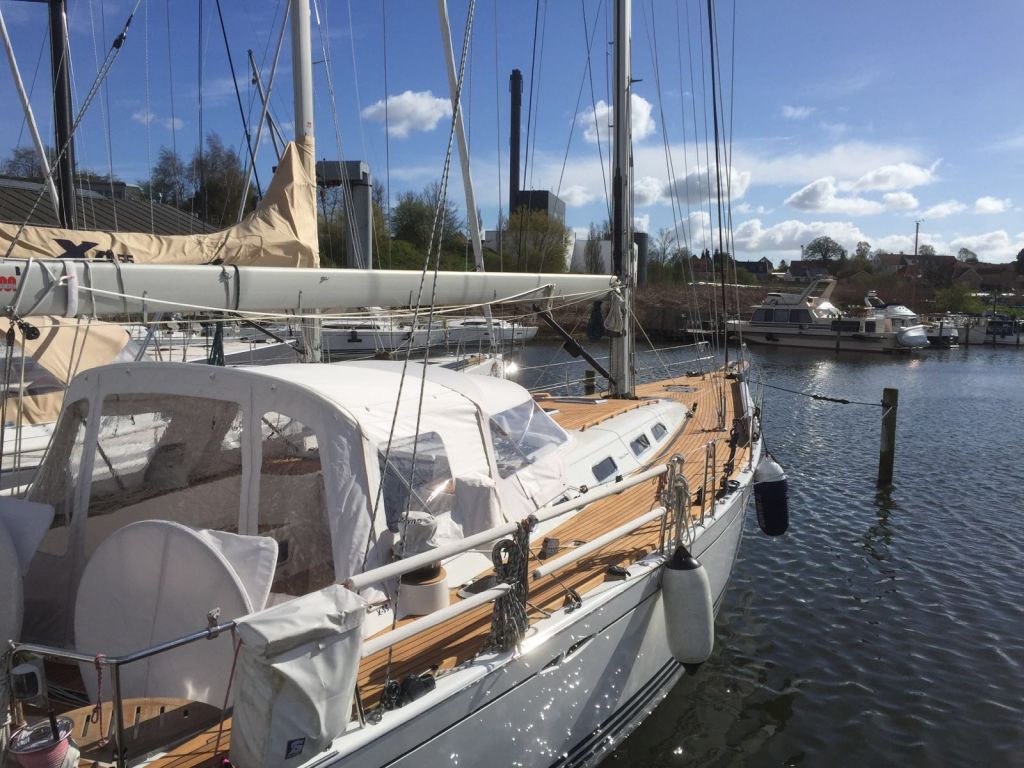

GUNVOR has been fully upgraded and tunned for blue water cruising.   She  has been professionnaly and carefully  maintained by sole owner, refitted by X-Yachts in 2016/2017 Winner of ARC in 2011

She is ready for long distance and blue water cruising with short crew (furling boom - electrical winches) with confort and safety,

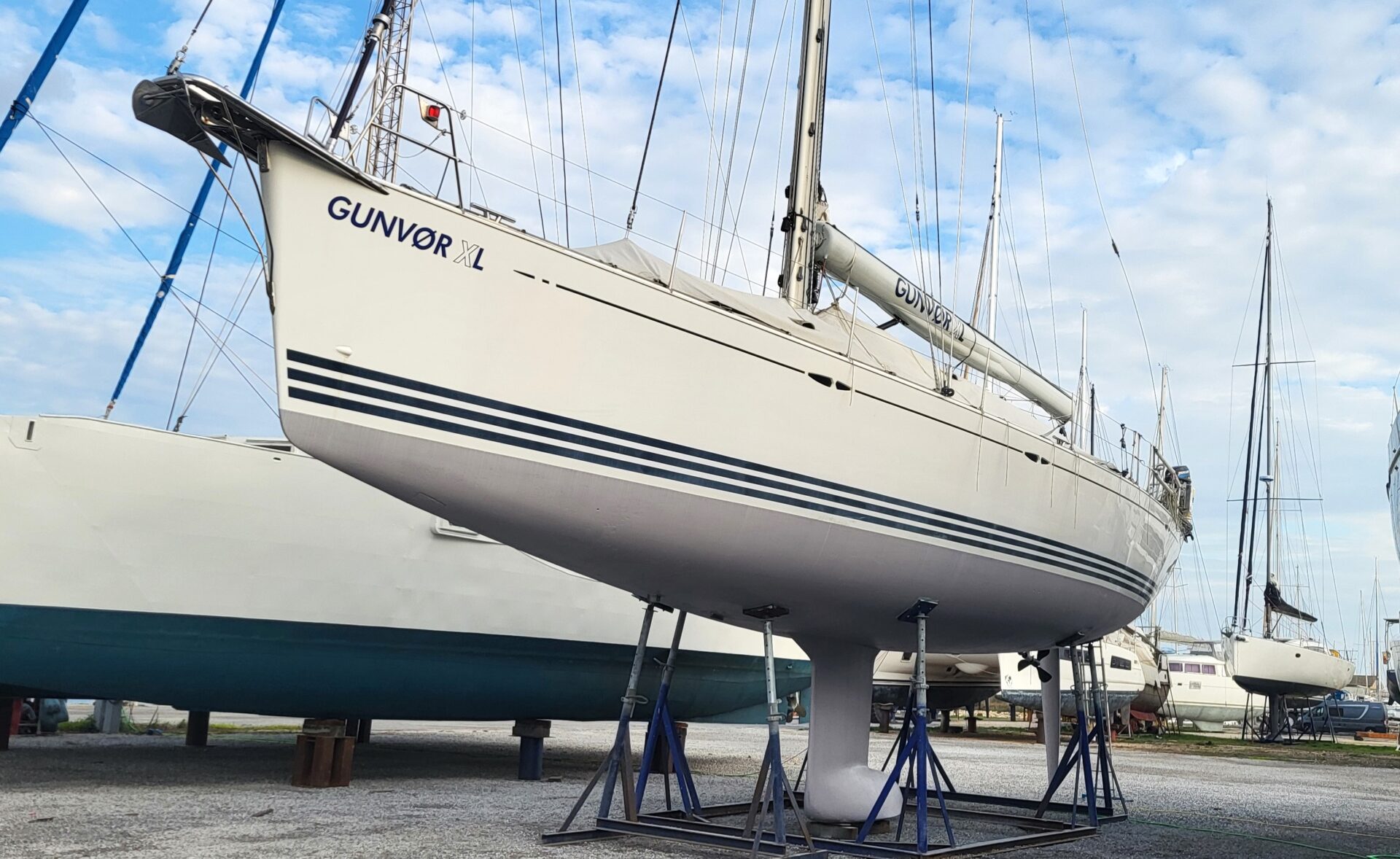

Ashore in South of France for winter service

Details

Exterior Details

Hull

• Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging
• Outer surface of hull in white sprayed white RAL 9010  Gelcoat with 3 blue waterlines
• Single point hoist for easy and safe lifting and launching of the yacht
• Hull recessed portlights -  (6 pcs)
• Keel 2.50 m with heavy bulb  draftmade of antimony hardened lead  bulb bolted and glued to cast iron fin
• Keel securely bolted to  reinforced keel structure
• Deck built in sandwich construction with structural foam  and bi and uni-directional  E – Glass cloth, white gelcoat
• Rudder stock mounted with needle and self aligning bearings
• Steel protection around the hull
• Crash protection on the bow

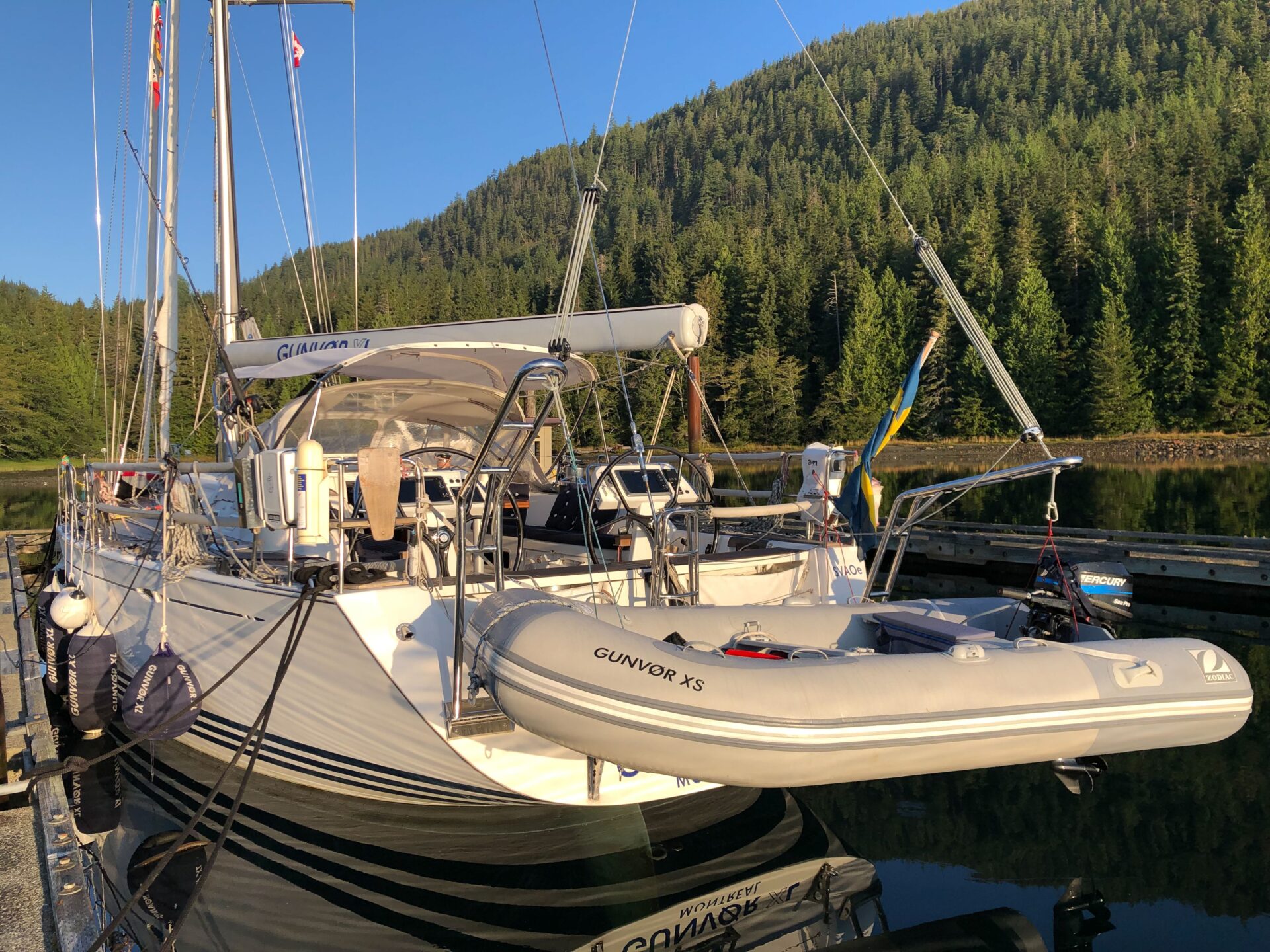

• Folding and removable davits for dinghy

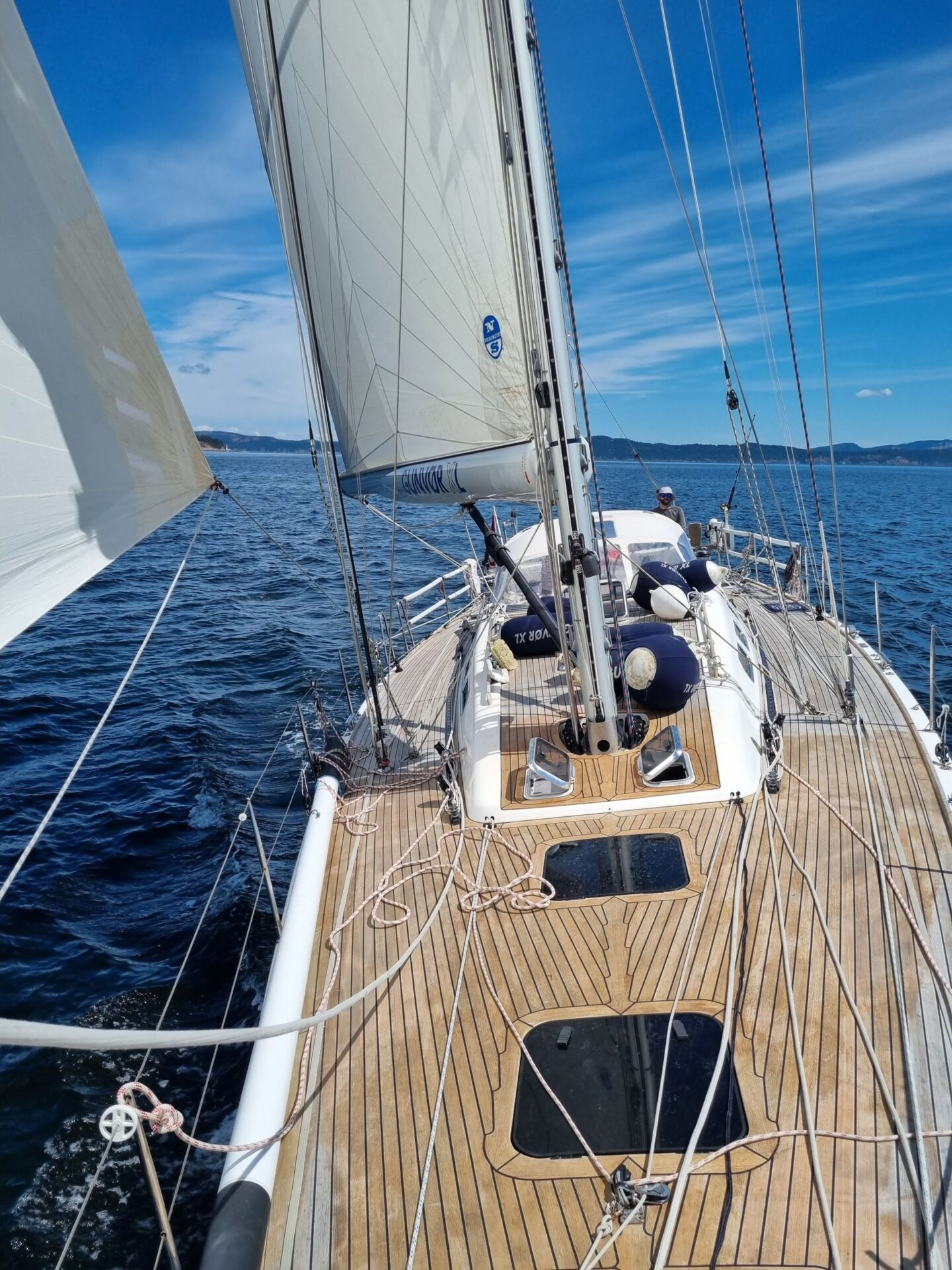

Deck

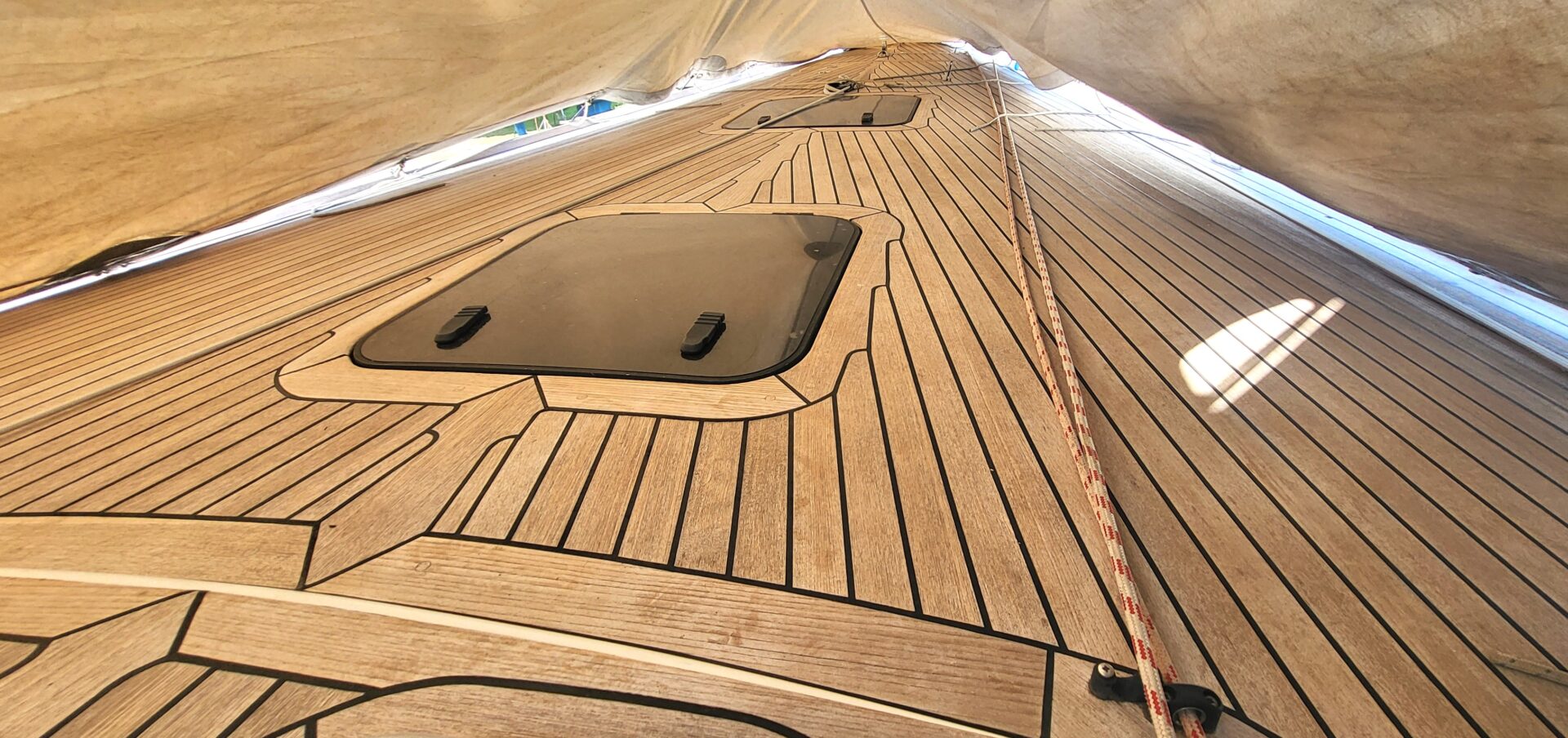

• Teak, on side deck, coach roof,  cockpit sole seats and bathing plateform.
• Gas spring fitted to forward and both aft cockpit lockers
• Locker in the cockpit for table and liferat
• Bathing ladder in stainless steel integrated in transom platform + front lader
• Stainless Steel handrails on coachroof
• Sprayhood and bimini on stainless steel arch

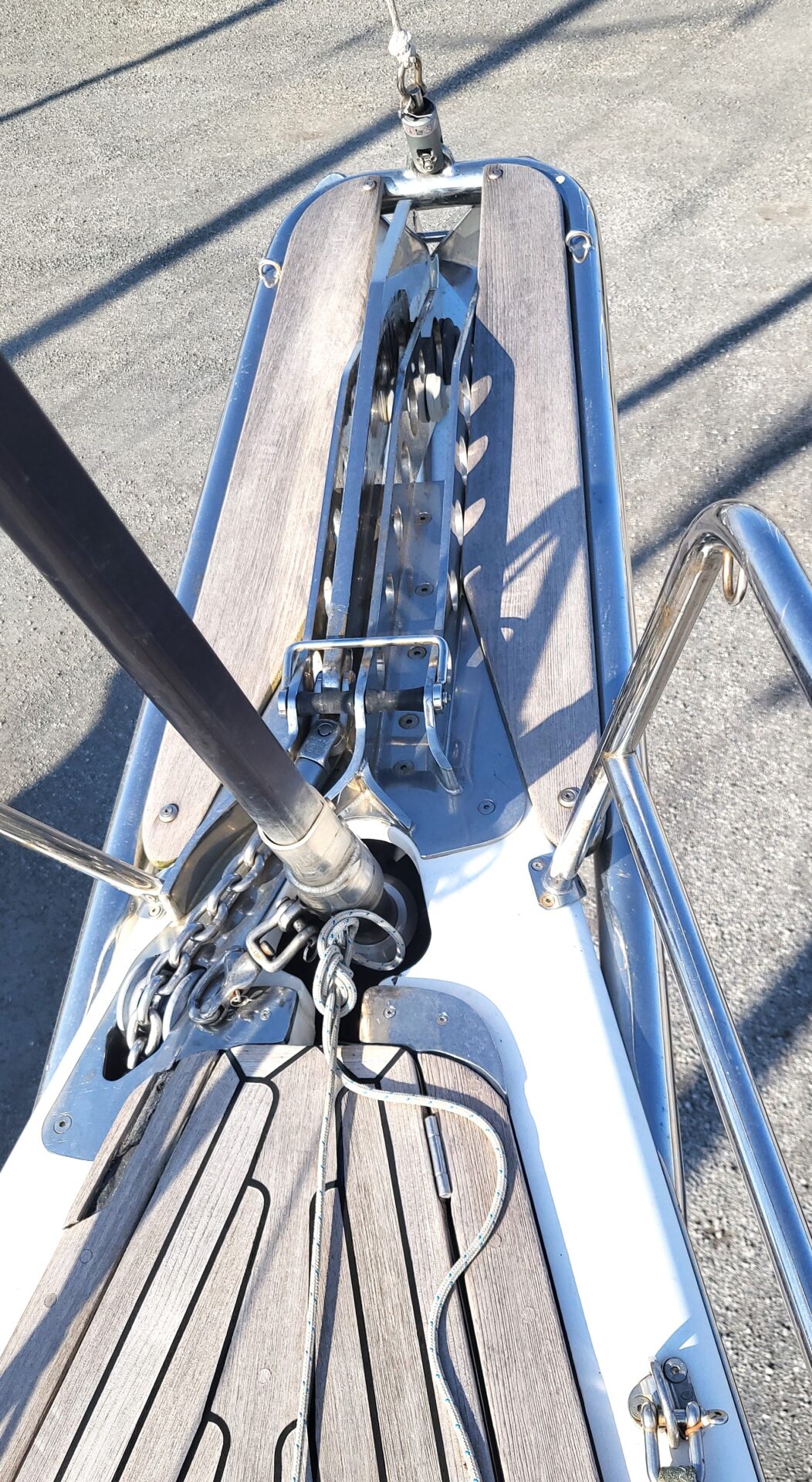

• Electrical windlass, + chain counter  + remote control stainless steel DELTA 32 kg anchor and 50 m stainless steel chain  + second anchor CQR 22 kg
• Teak gangway
• Deck washing pump
• Sail locker with canvas sling for gennaker storage

Sail Handling

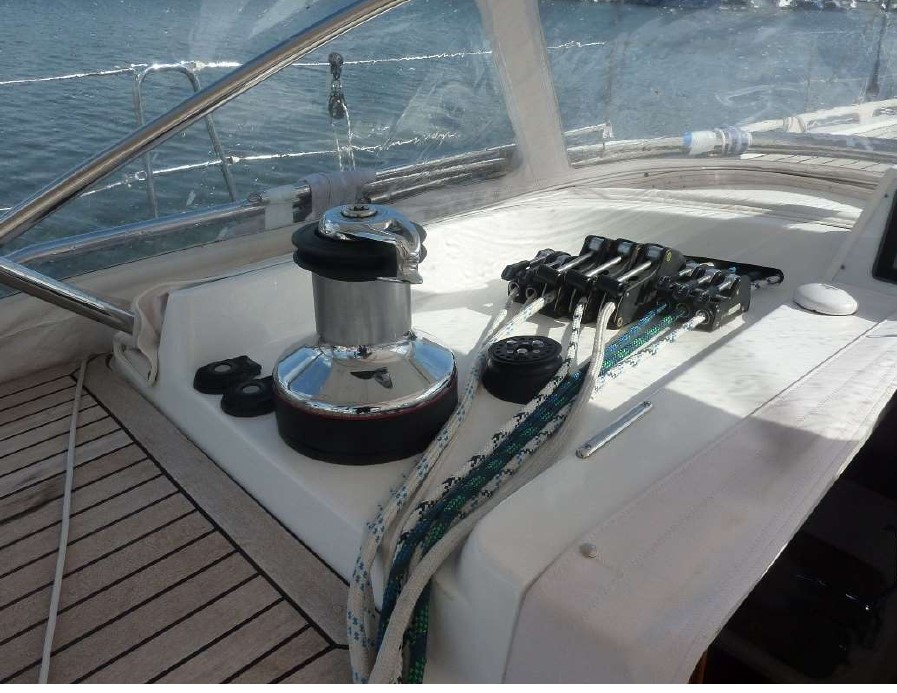

• Electrical Harken 2 x  ST 70.2 primary winches
• Electrical Harken  2 x ST 60.2 for Geman Mainsheet system
• Electrical Harken  2 x ST  53  for halyards
• Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• Symetric  and asymetrical spinnaker hardware and rigging with  carbon boom
• RECKMANN  headsail furler with drum under deck
• Fixing point for inerstay
• Stainless steel bowpsprit (similar as Xc-50)

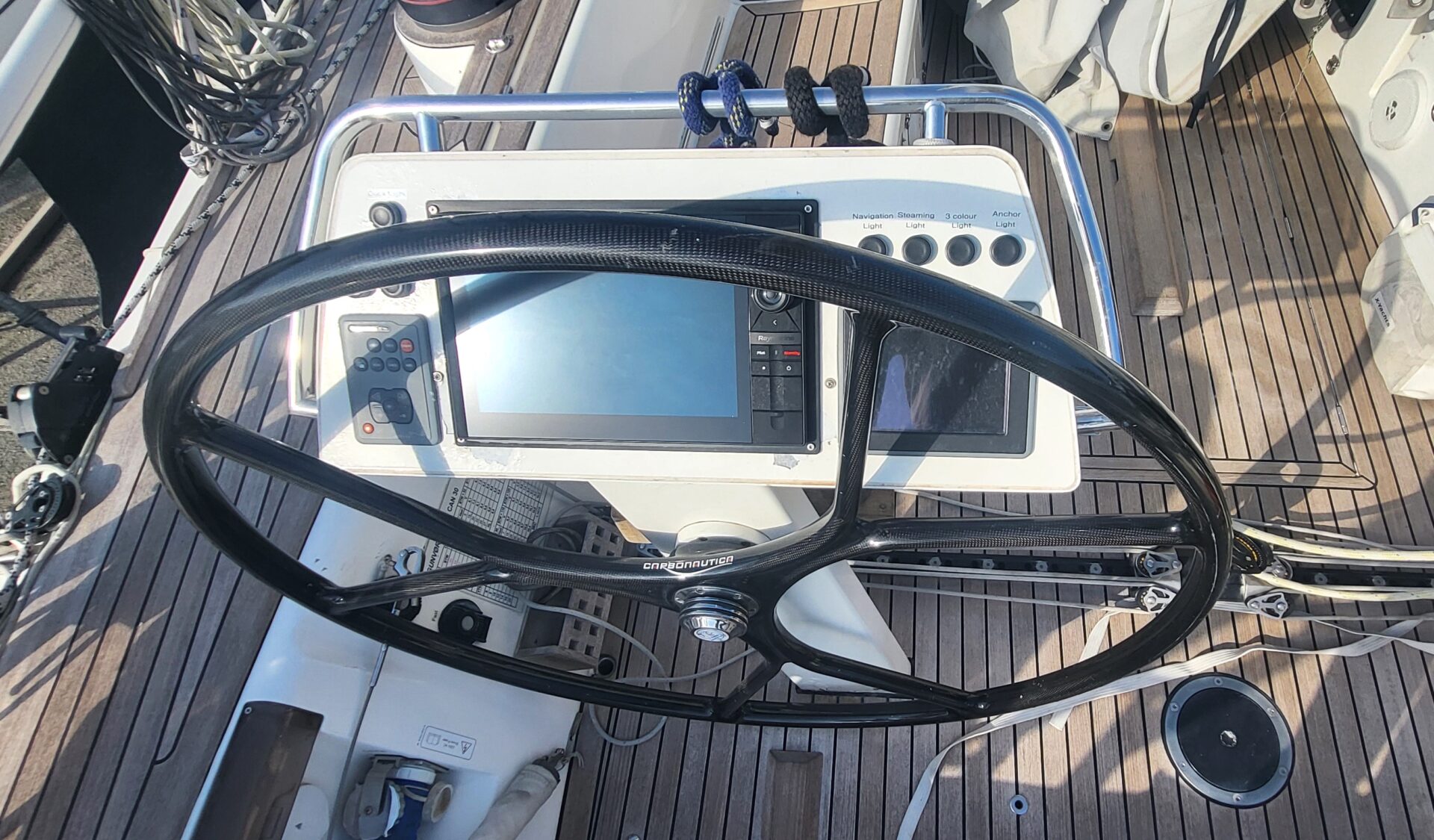

• Composit steering wheel black painted and large consol

Sails

• Furling mainsail fullbatten  ONE SAIL  93.5 m2
• Furling genoa NORTH SAILS 135 %        96.3 m2
• Furling genoa  ONE SAILS 108 %           67.4 m2
• Furling staysail NORTH SAILS                    37 m2
• 1  x Gennaker Code 1     NORTH SAILS      120 m2
• 1 x Gennaker Code 2      NORTH SAILS      131 m2
• 3 x Symetrical spinnaker medium 0.75 - 1.5 - 2.5    257 m2

Mast & Rigging

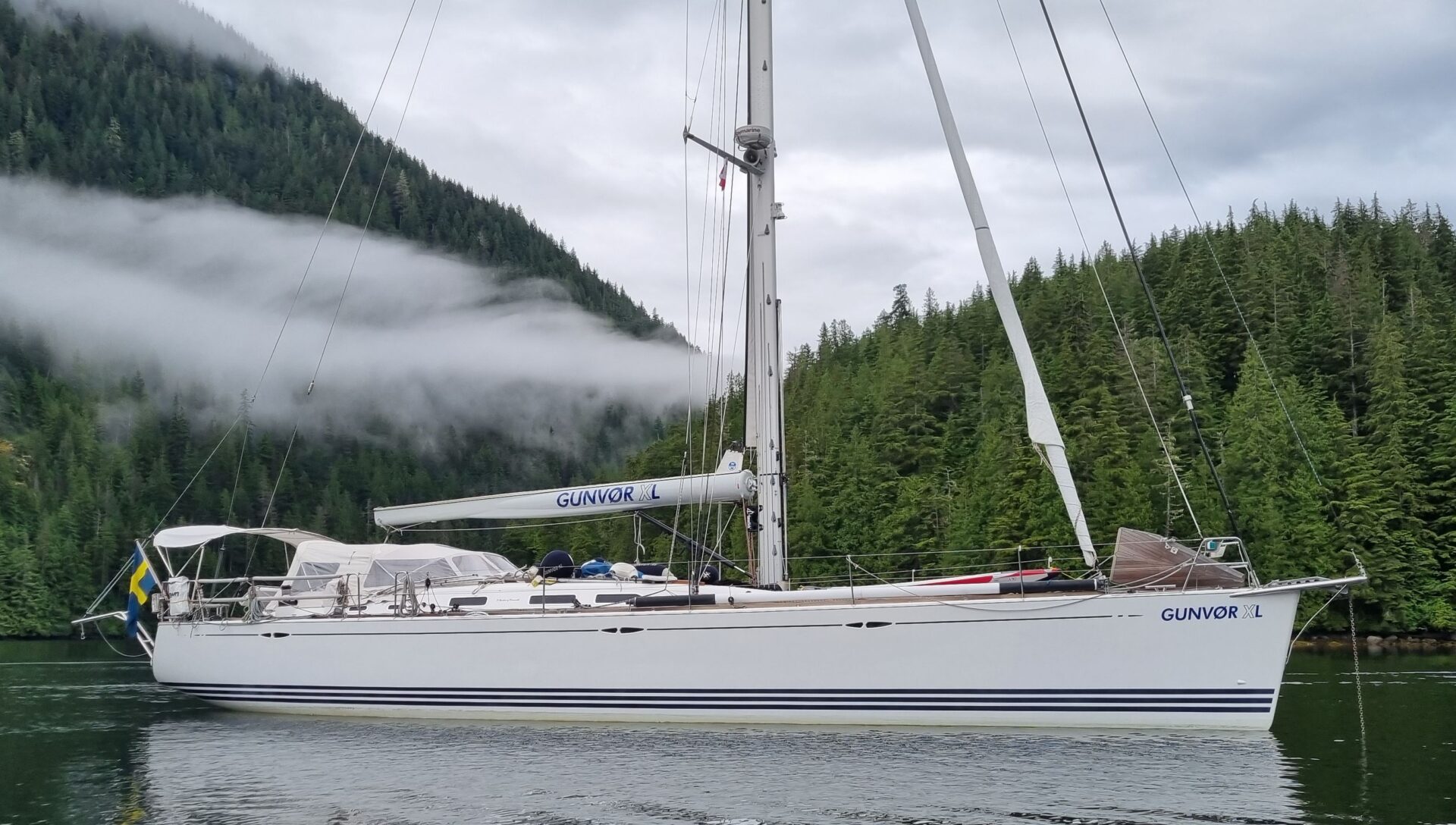

• Aluminium anodized  mast  from JOHN MAST and 2017 FURLERBOOM furling boom

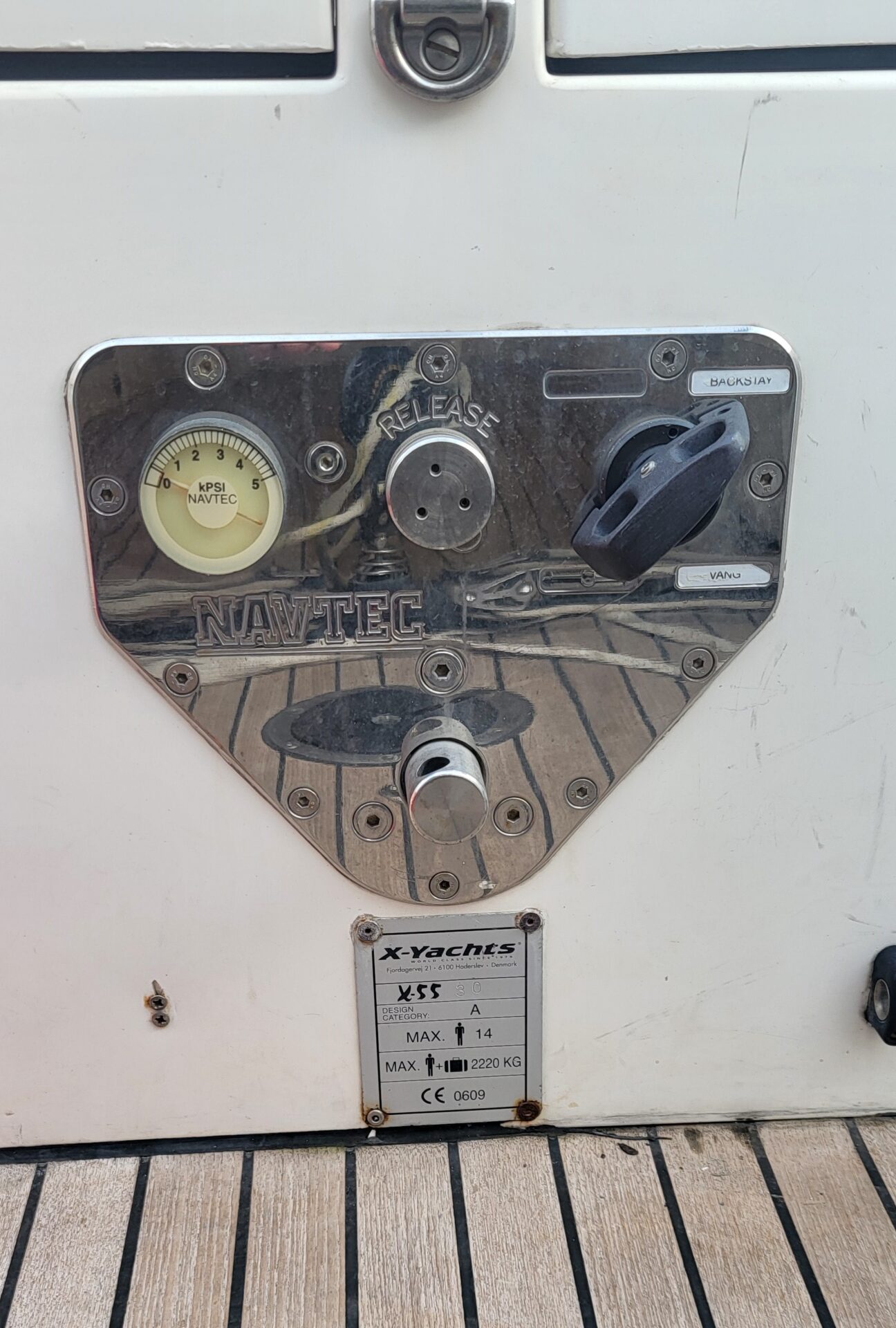

• Hydraulic vang and backstay
• Discontinuous rod rigging
• RECKMANN  headsail furler
• Carbon spinnaker pool
• Mastjack with ENERPACK
• Barber hauler+ extra.pad eyes

Systems

Engine

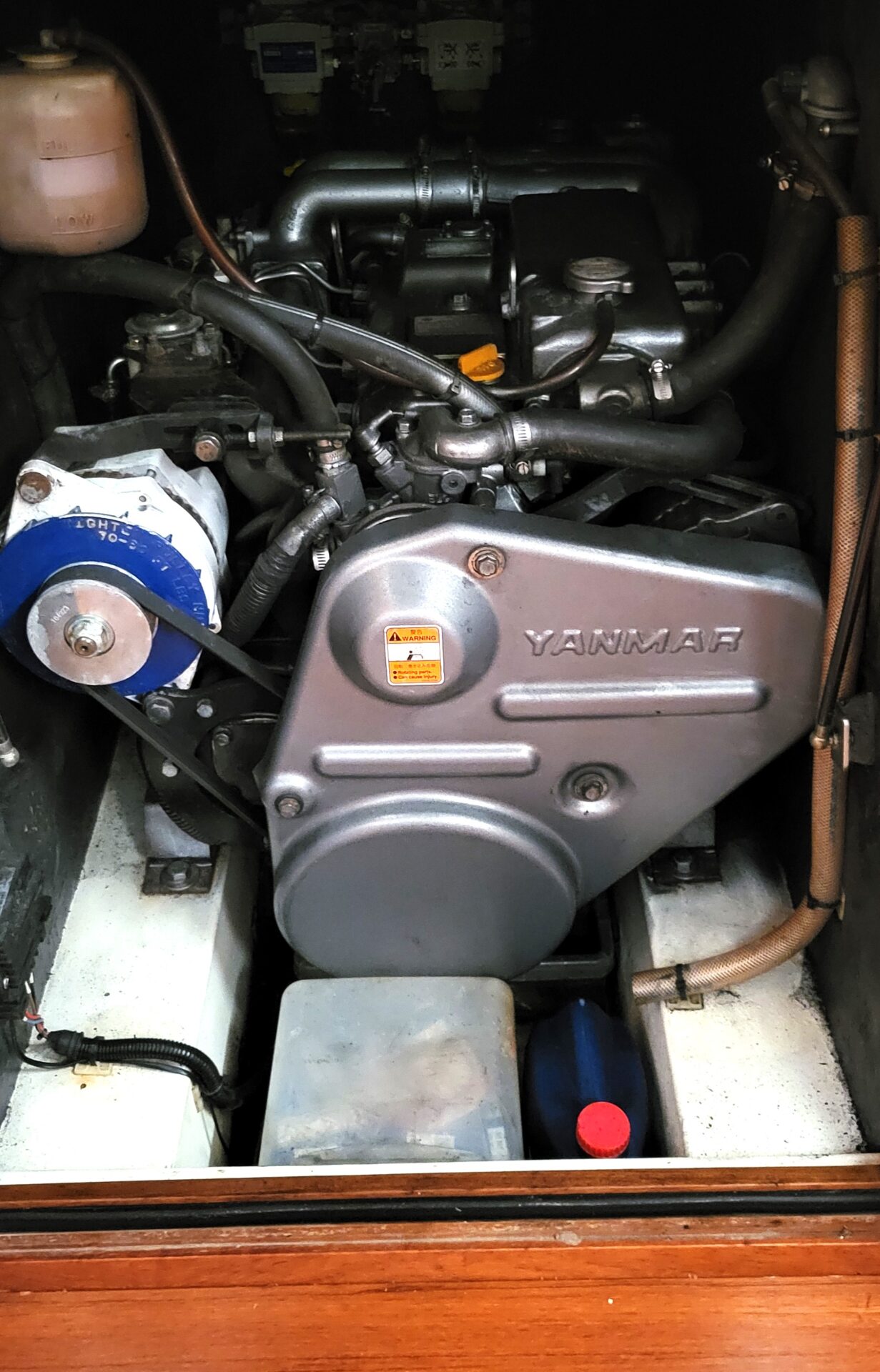

• Engine YANMAR 4JH 110 HP water cooled diesel engine with direct drive
• Special engine compartment with sound insulation
• Alternator
• GORI  3 blades folding  propeller + rope cutter
• Gasoil tank   400 L +  extra 230 L
• Retractable MAXPOWER bowthruster

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• Fresh water stainless steel tank   Total 550  L
• Hot water tank Isotherm 40 l. Tank can be heated either by main engine or immersion heater connected to shore power

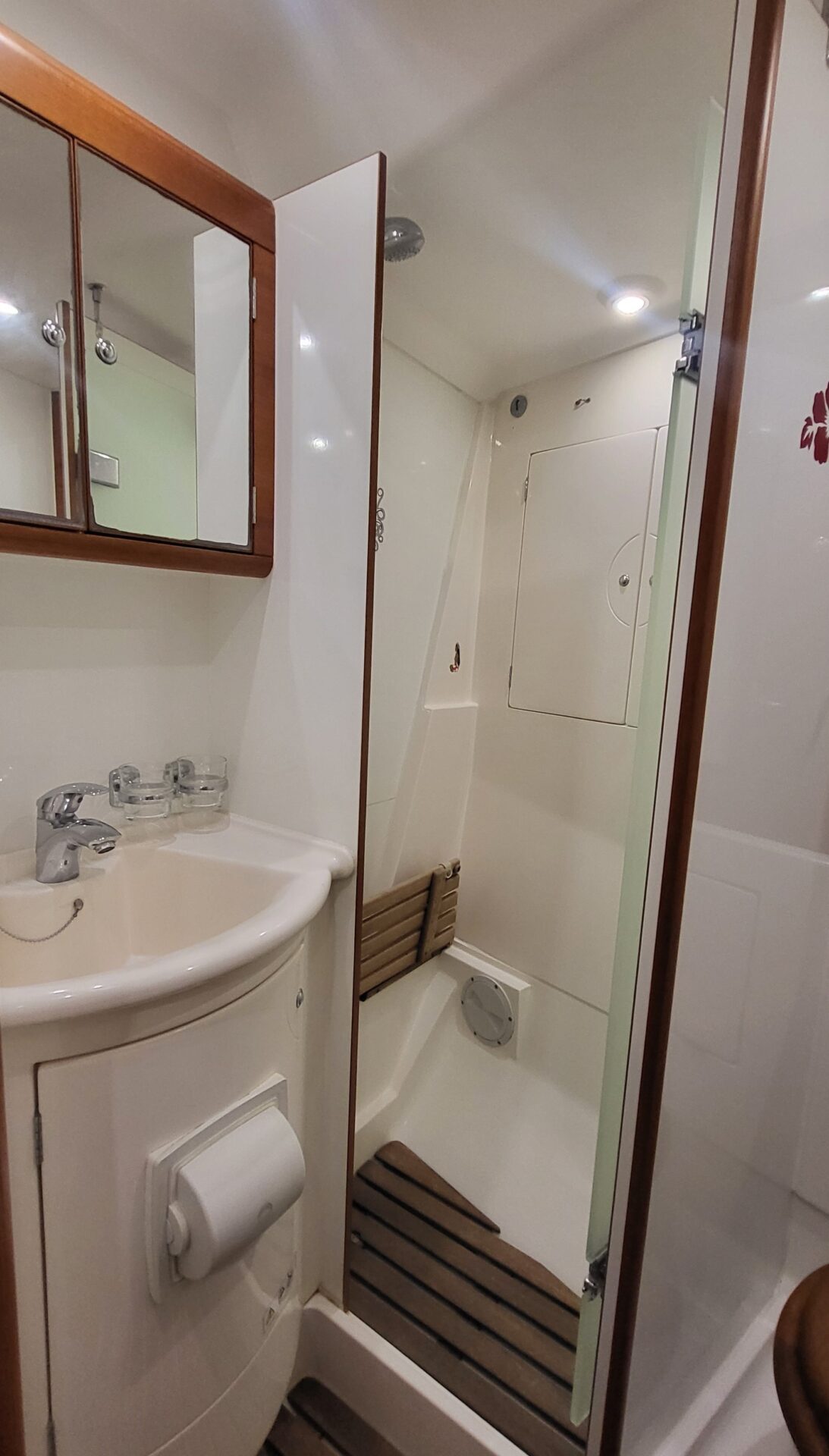

• Electrical toiletts in owner and crew heads
• Holding tank x 1  for marine toiletts and deck outlet
• Pressurized freshwater system for hot and cold water throughout yacht
• Deck shower

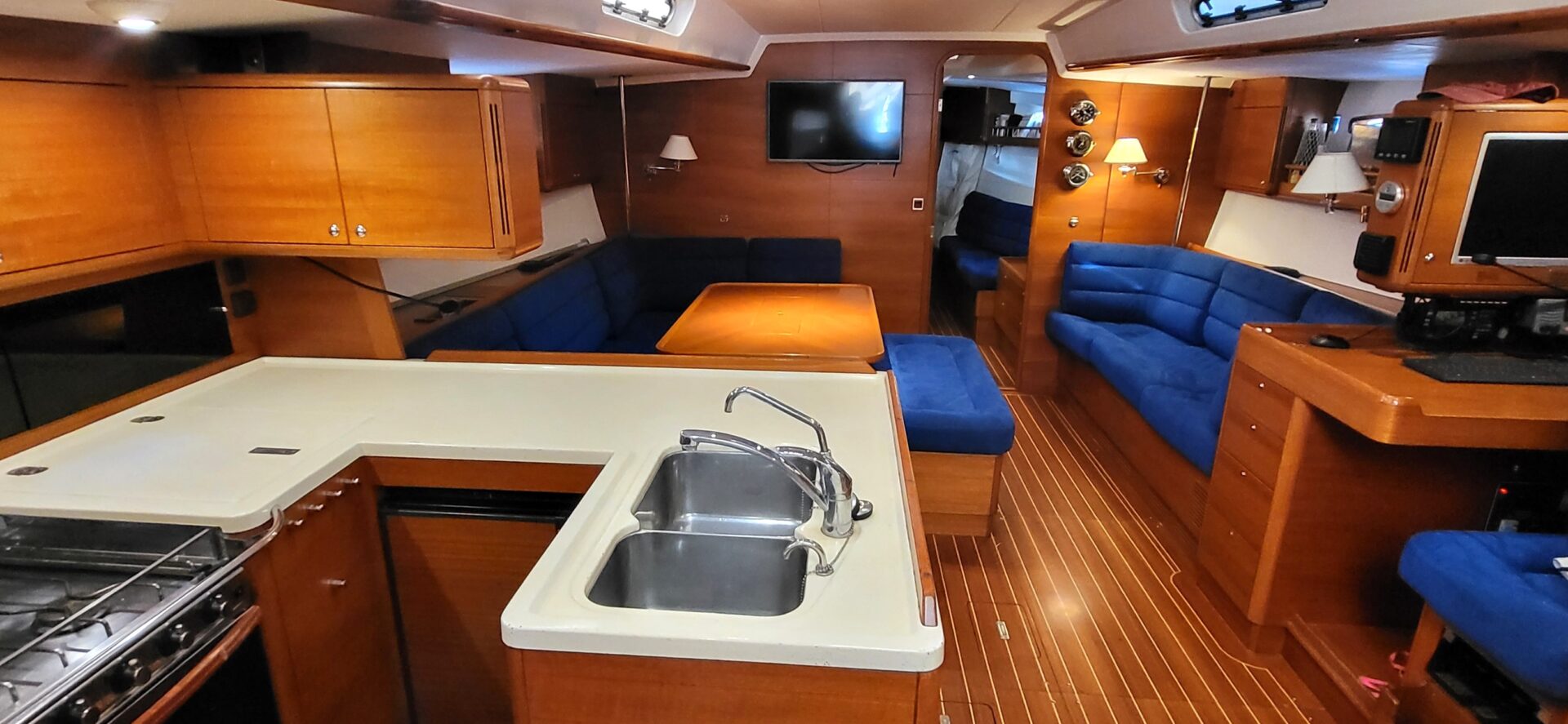

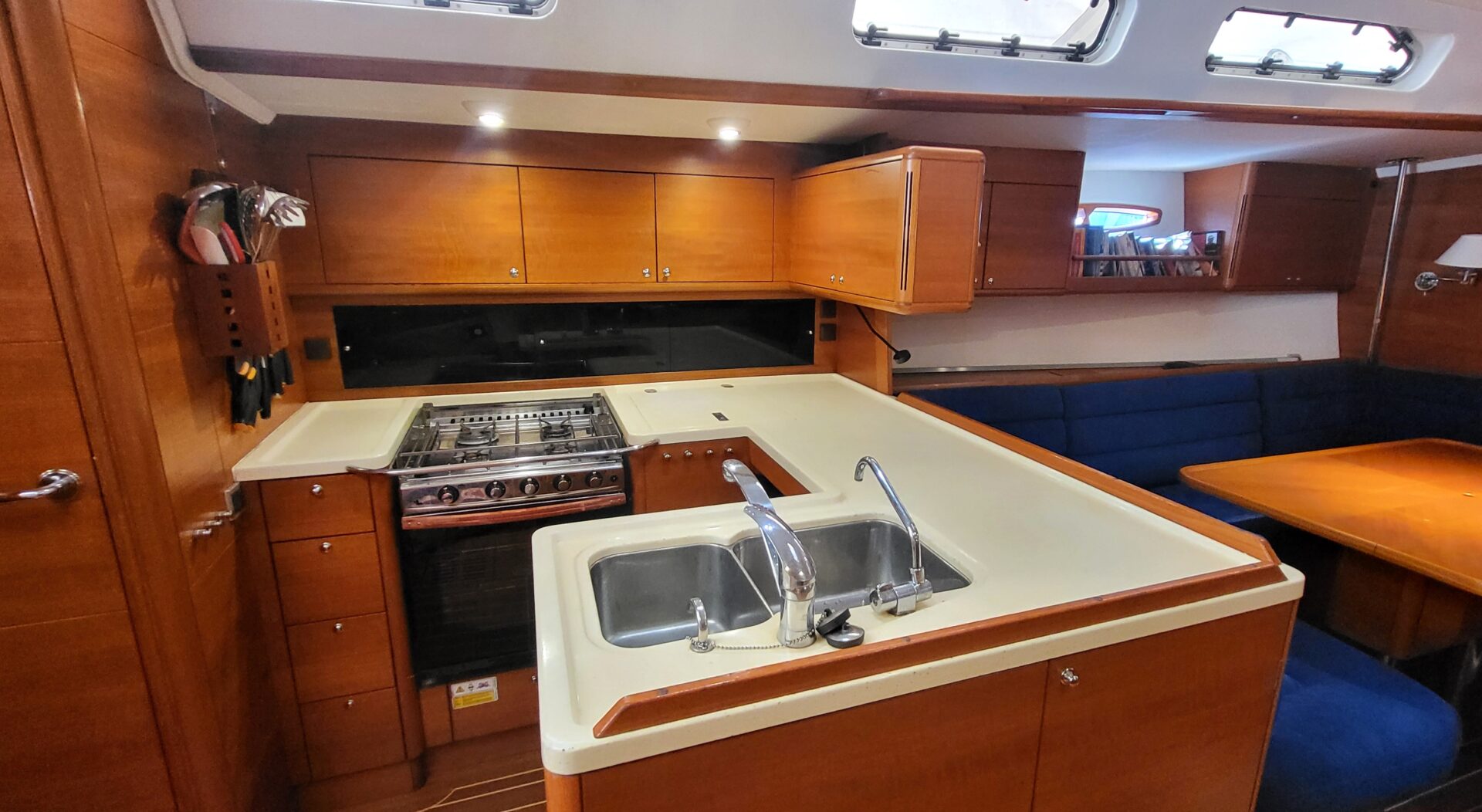

• Gimballed Gas cooker - 4 burner cooker with oven
• Gas detector
• Double gas system EU and USA   ready for 4 - 6 kg bottles
• AIr conditionning COOLMAX 3 units  in the saloon and owner's cabin
• EBERSPACHER with water circuit
• Electrical fridge x 3  one convertible to freezer
• Fresh water maker DESSALATOR DUO  24 V / 220 V   100 L/H
• BAUER junior air compressor for diving bottle

Electrical

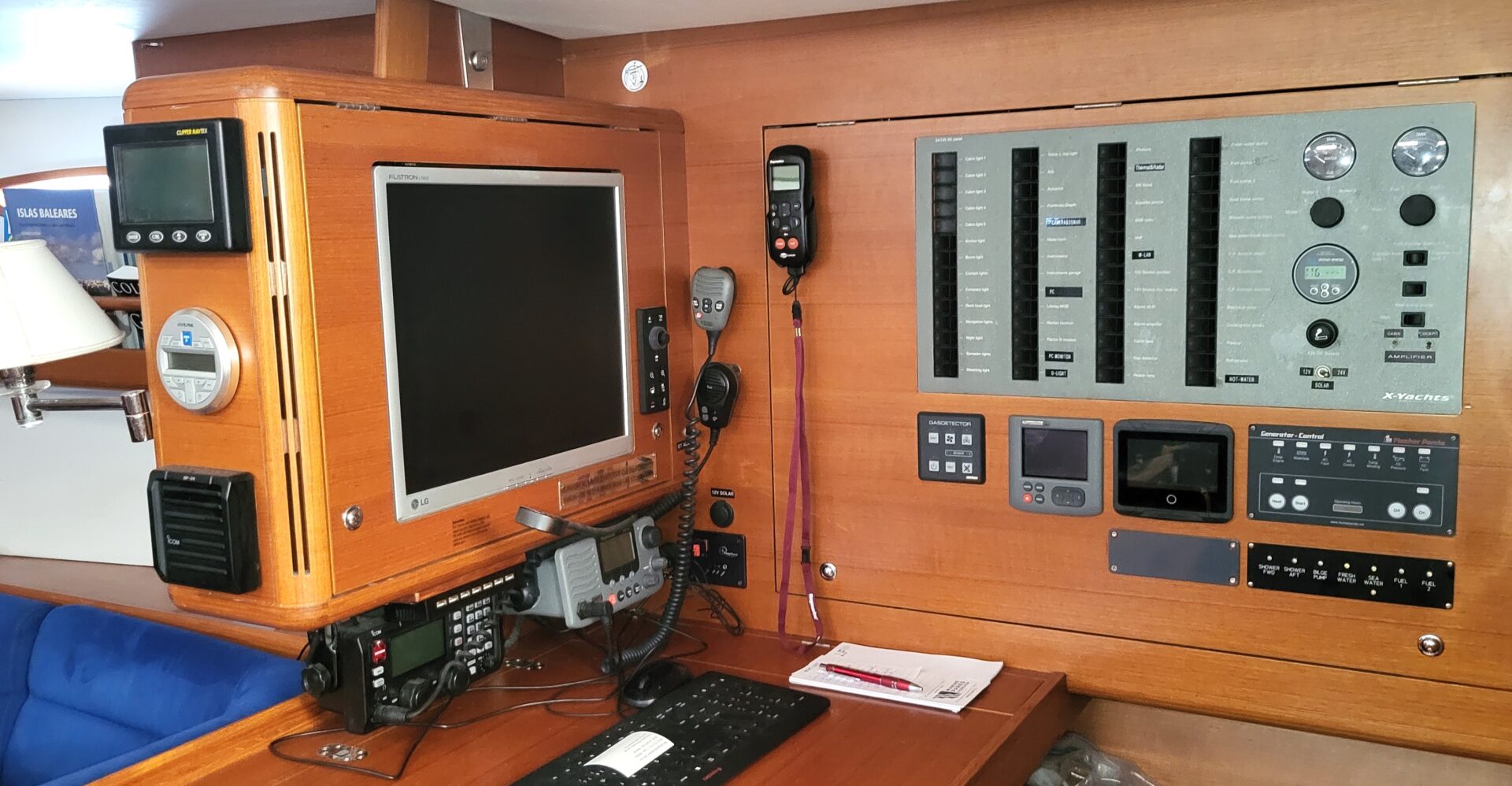

• Main switch board with automatic fuses 24 V
• Lithium batteries  6 x 100  amp new +  controller
• 2 x Separate engine spiral-cell battery 12 V
• MASTERVOLT Automatic battery charger  24V/ 80 Ah + MASTERVOLT Mass Combu 24/3500   inverter new
• Generator  FISHER PANDA 12 KVA
• Solar pannel
• WATT &SEA Hydro generator
• Camera + underwater lights
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and battery charger
• General lights and dome spotlights integrated in inner liner
• Red led in the saloon, and owners cabin

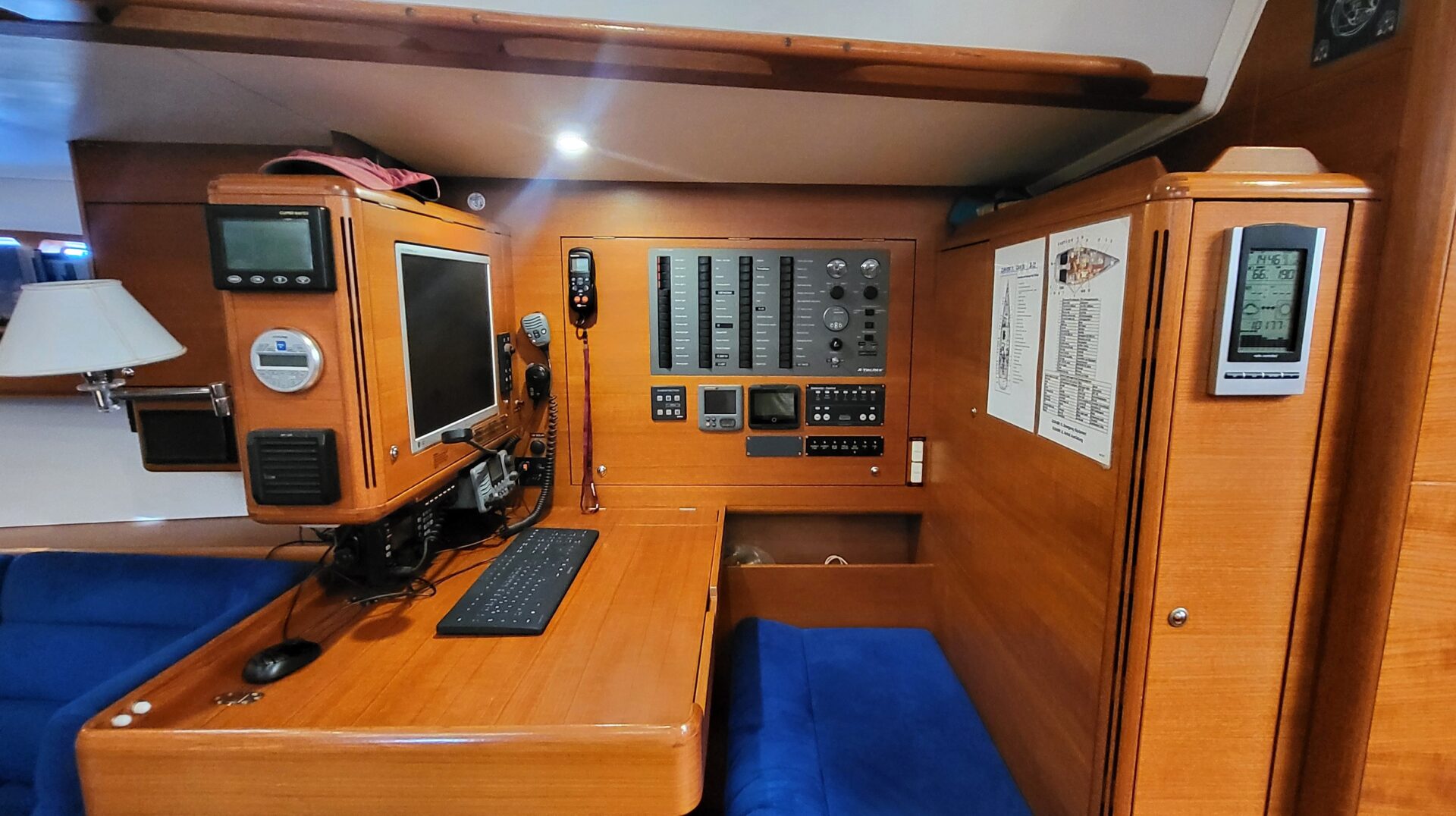

Electronics

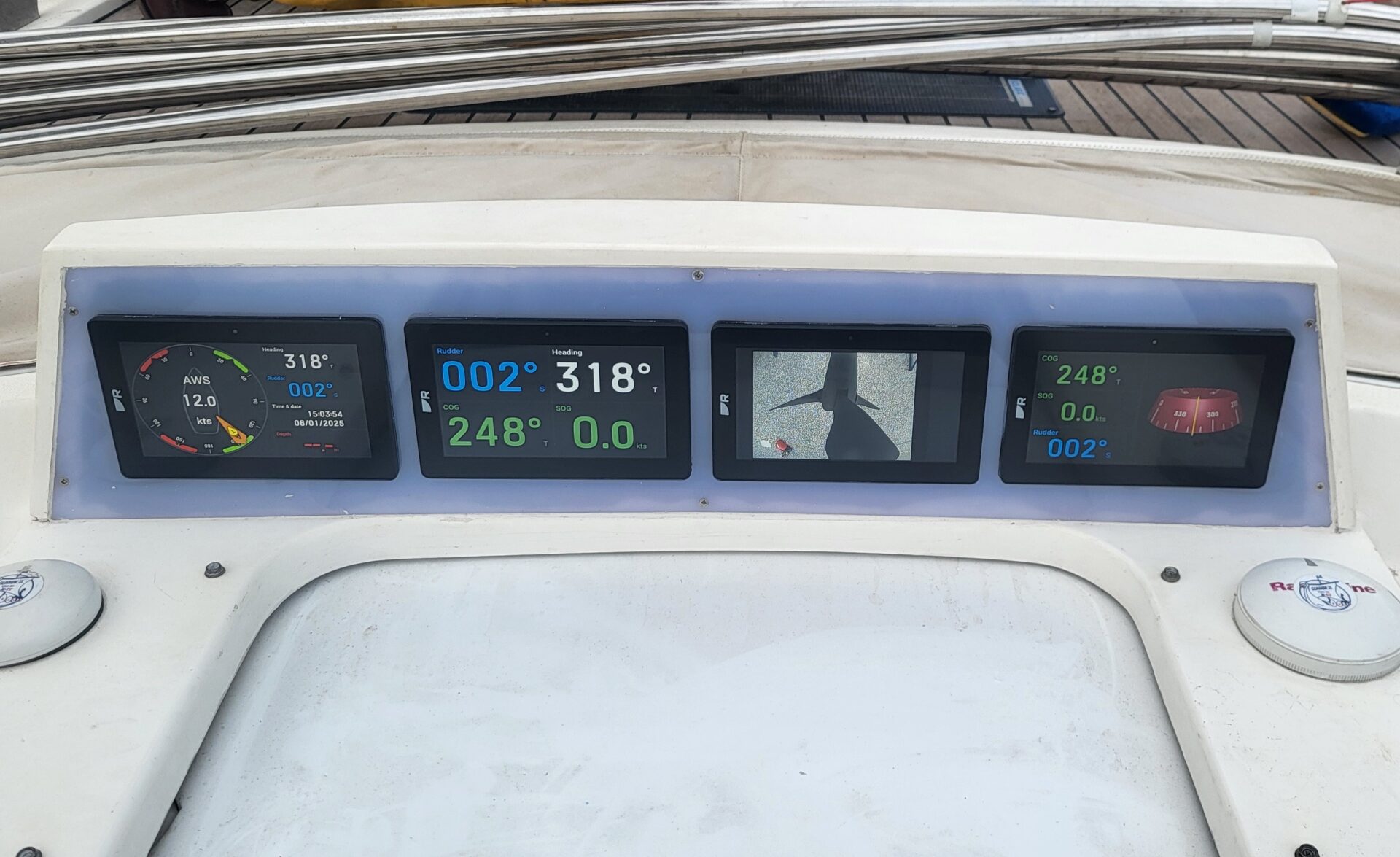

• RAYMARINE with 4 x Alpha 7 New 2024  display on the companionway
• Log, speed, depth sensors with fish finders
• 3 x Maxi display TACKTIK  on mast bracket
• 2 X AXIOM Pro 12 "  New at both steering wheel + 1 genaral display at Port side
• RAYMARINE EV 1 autopilot  with control at Std and Port side
• Gyro compass
• Forward looking sonar
• Radar HD antenna
• RAYMARINE 218 VHF DSC  active antenna loudspeaker
• ICOM SSB M802
• Locomarine yacht router and wifi booster
• Computer with Wifi connected to  SSB and satellit
• AIS transpondeur
• Radio CD with CD and DVD , subwoofer + 4 HP in the saloon  and 4 in the cockpit

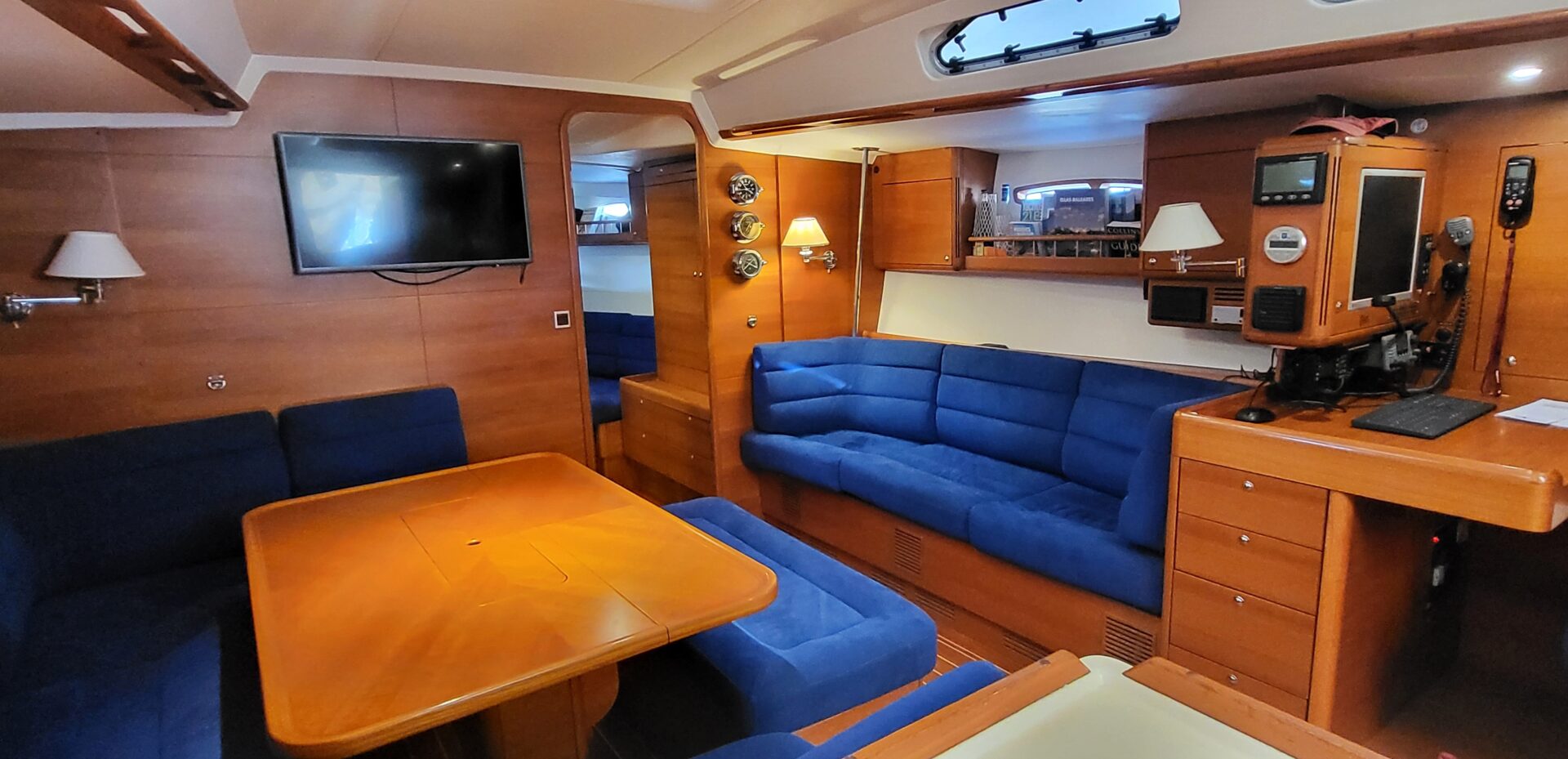

• SAMSUNG TV 32 " connected on RAYMARINE network

Thrusters

• 8 Person liferat with grab bags
• Raymarine Lifetags
• Horse and Dan buoy, various safety line and fixing points

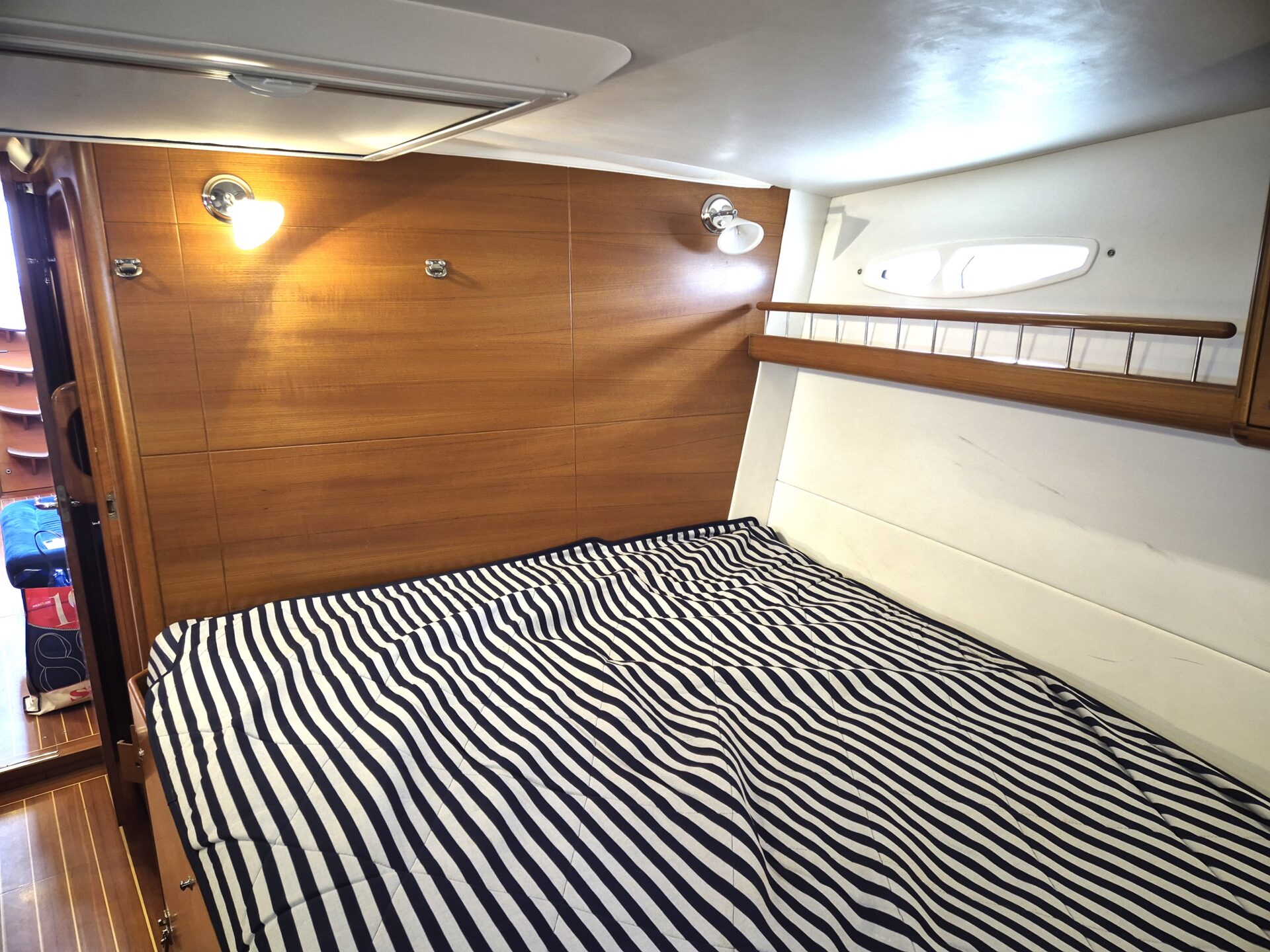

• All beds with lee cloth
• Cockpit tent
• Cockpit cushions
• Additional handholds
• Large set of spareparts, for engine, pumps, and rigging, ...  for round the world sailing  trip !
