Details

Exterior Details

Hull

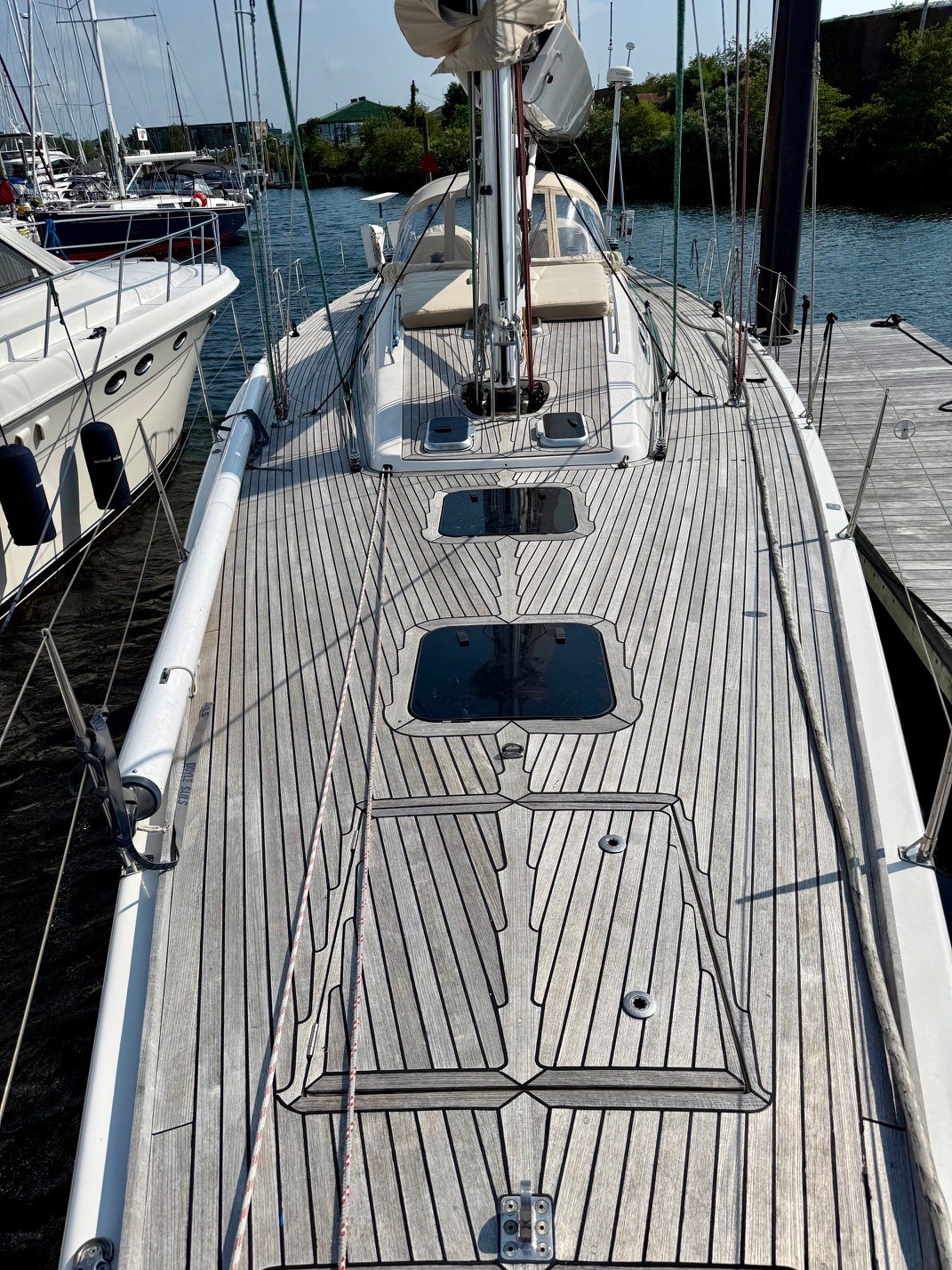

• Deck and Hull:

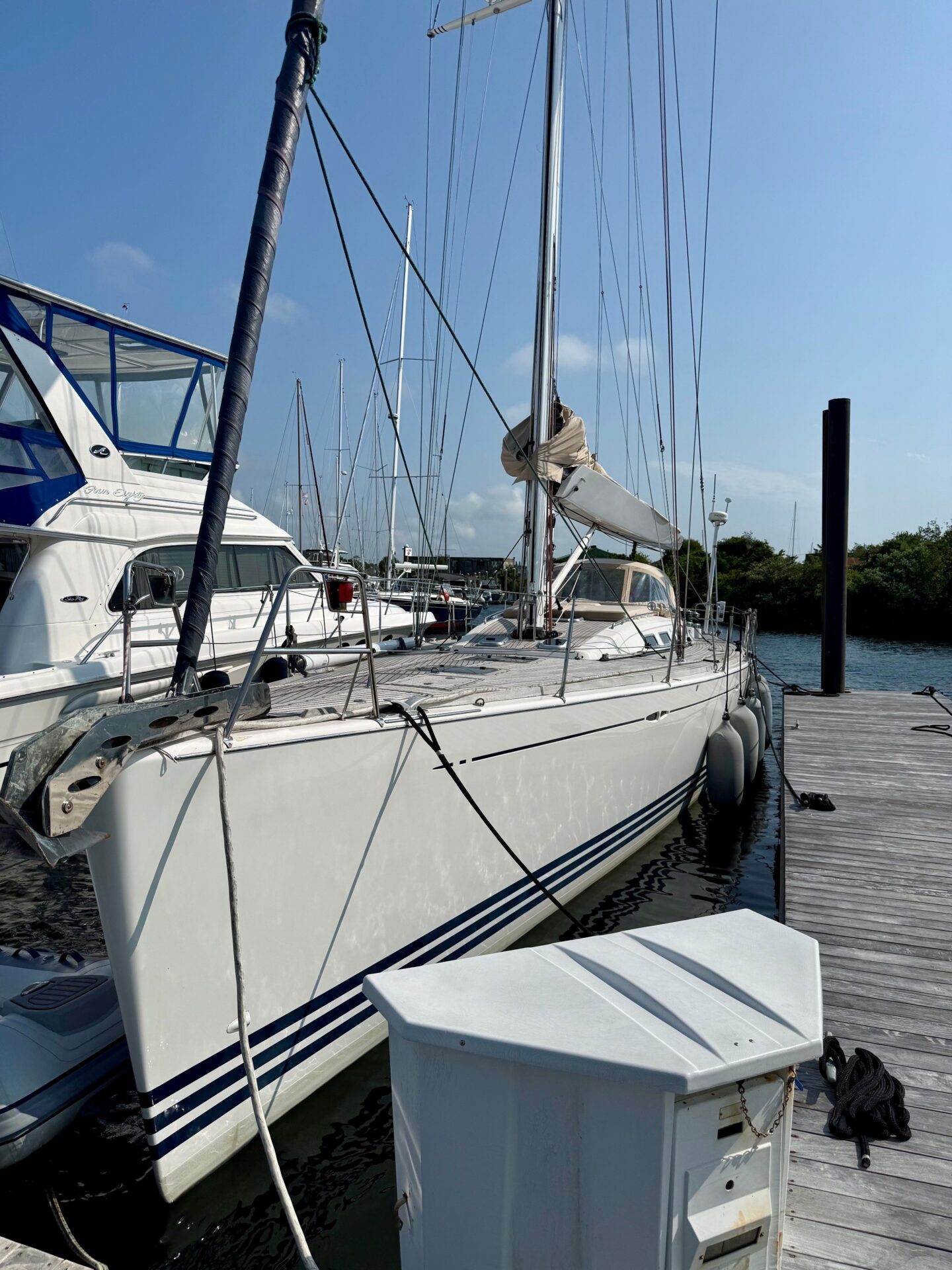

• - Hull Color: White Hull with Dark Blue Stripes

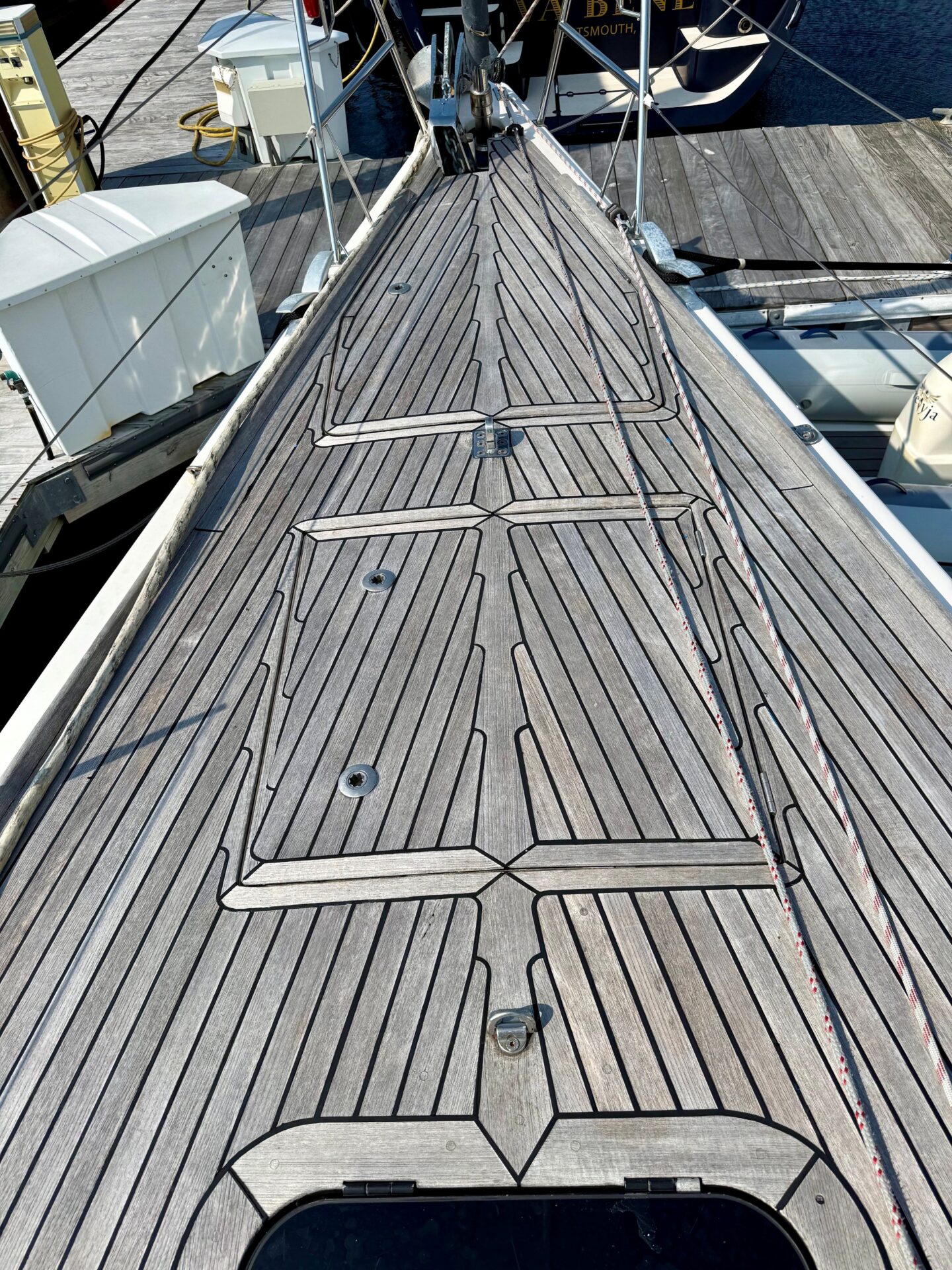

• - Teak on Side Deck
• - Teak on House Top
• Description Including Improvements 2019 to Present:

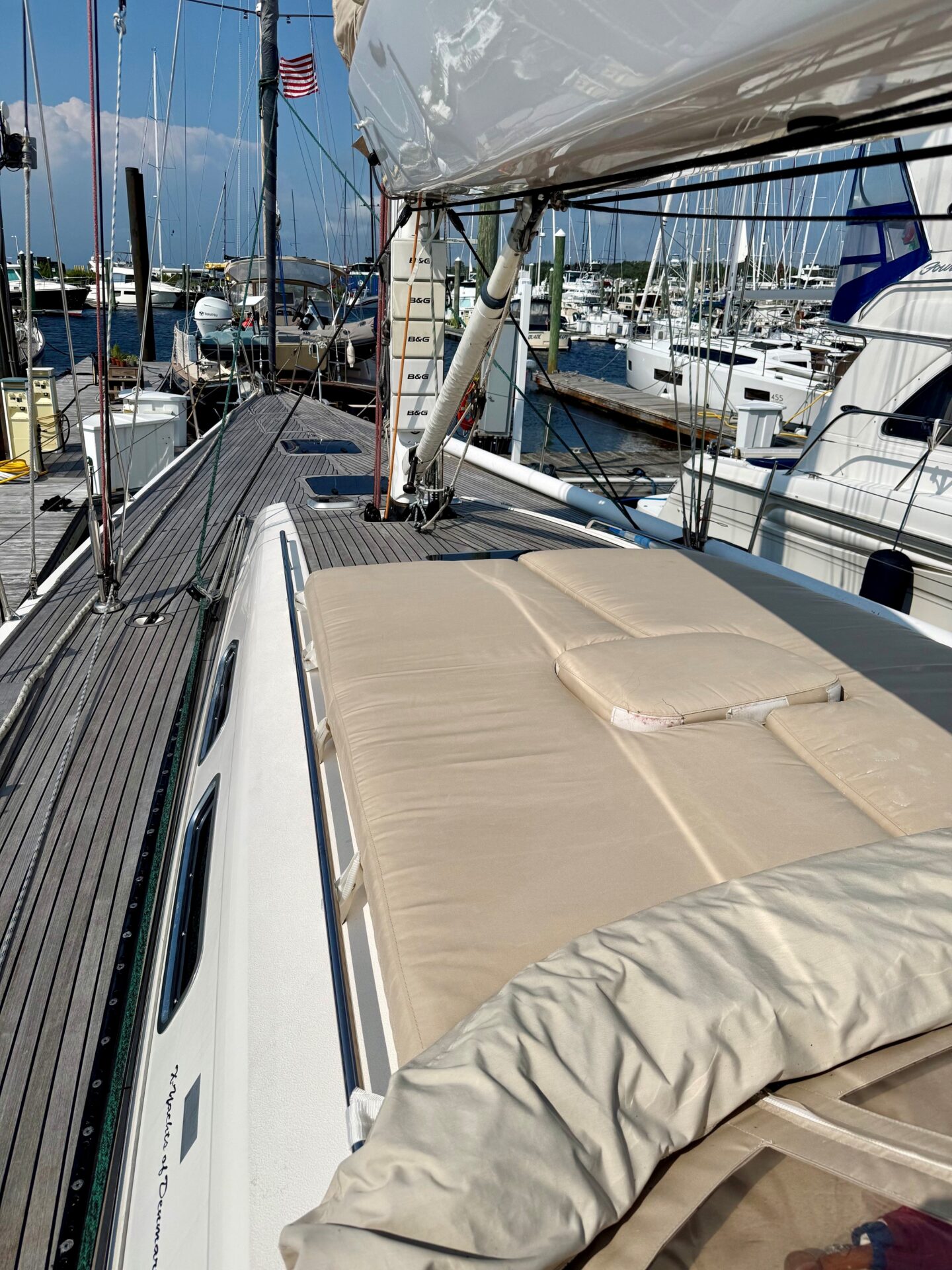

• Custom Tan Sunbrella Lounge Cushion on House Top (NEW 2019)
• - Bimini, Beige (easily deployed and retracted while sailing or at anchor)
• - Teak bracket for outboard mounted on aft push pit rail
• - IMX 70 wheel pedestal instrument boards (NEW instrument boards 2019)
• - Carbon helm wheels instead of stainless steel
• - Cockpit light, red LED mounted two in front cockpit, two behind wheels
• - Viking life raft, inspected and certified 2019

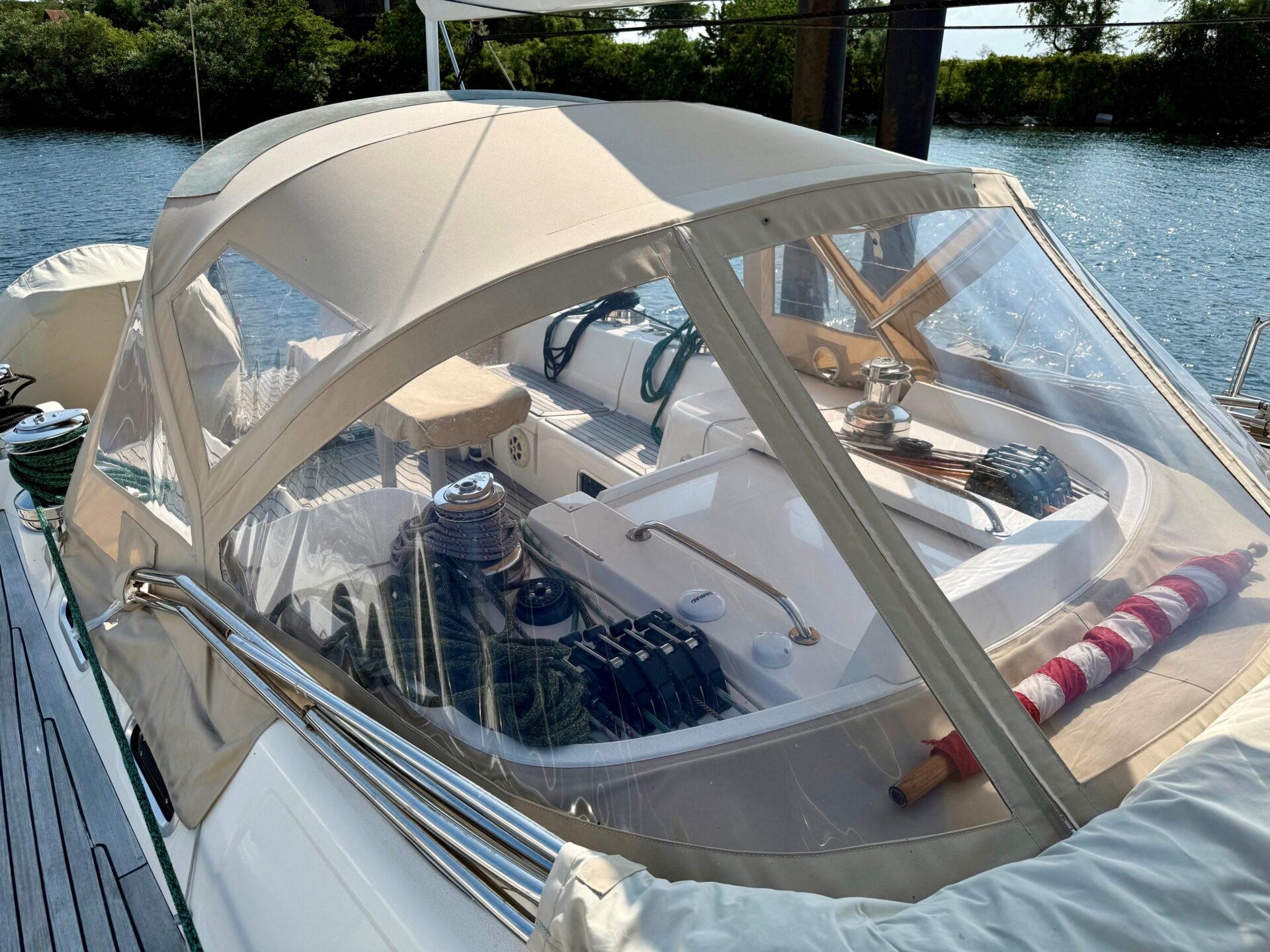

• - NEW 2019 Sprayhood/dodger in beige (design modified for improved sightlines)
• - NEW 2019 Aft Helmsman Bimini with integrated removable soft solar panels
• - NEW 2019 seals between skylight and deck on skylights

Sail Handling

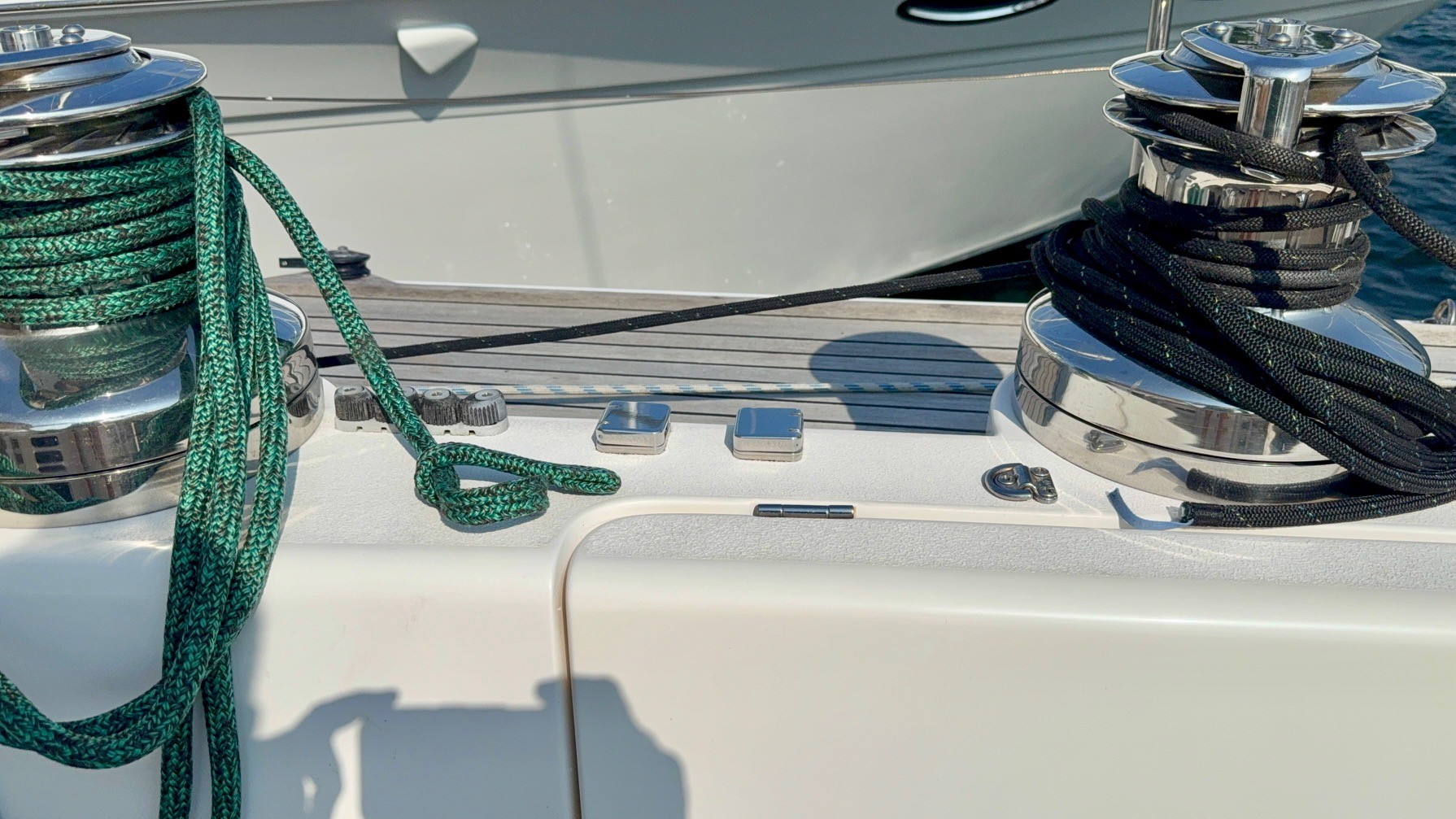

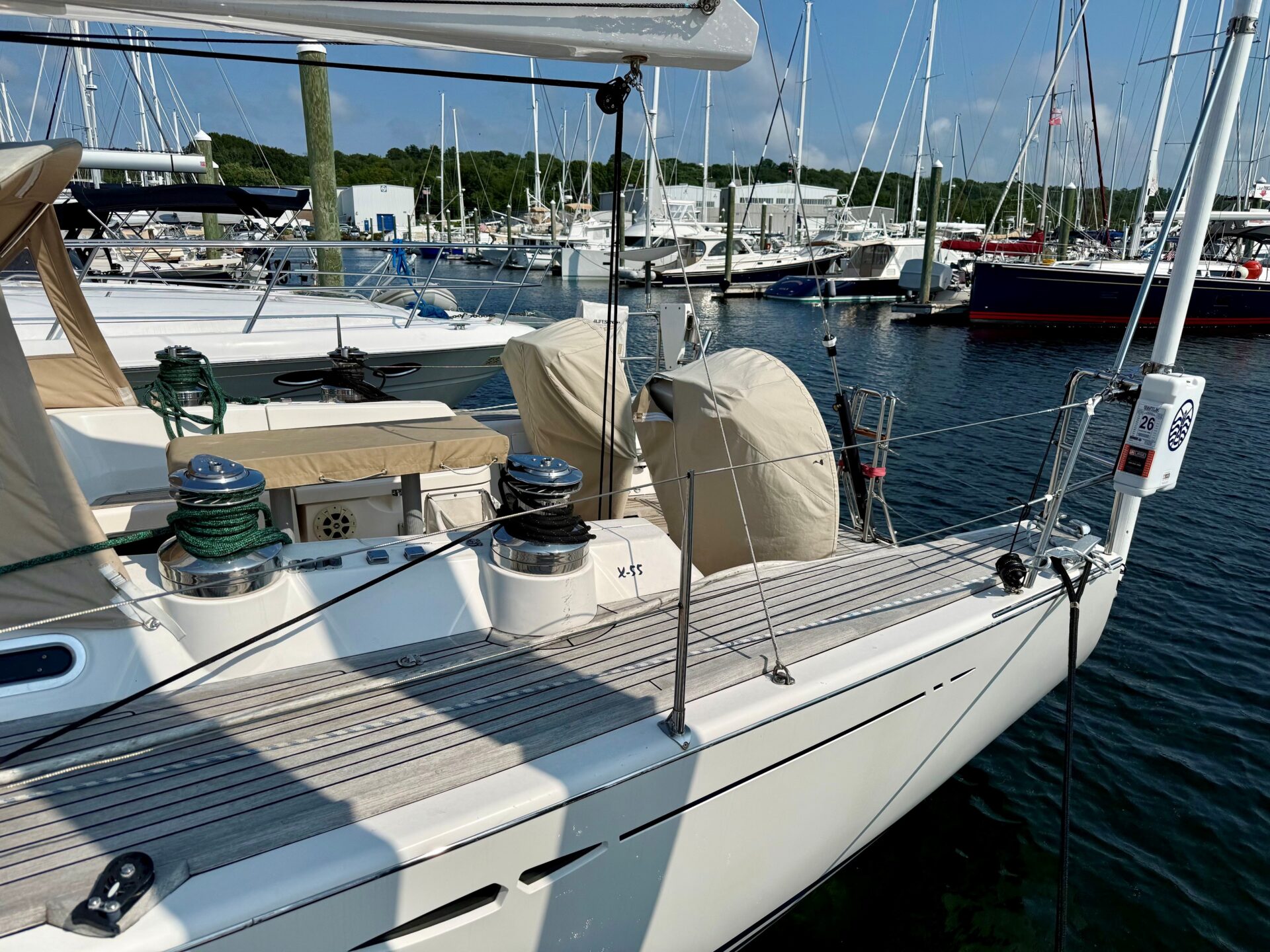

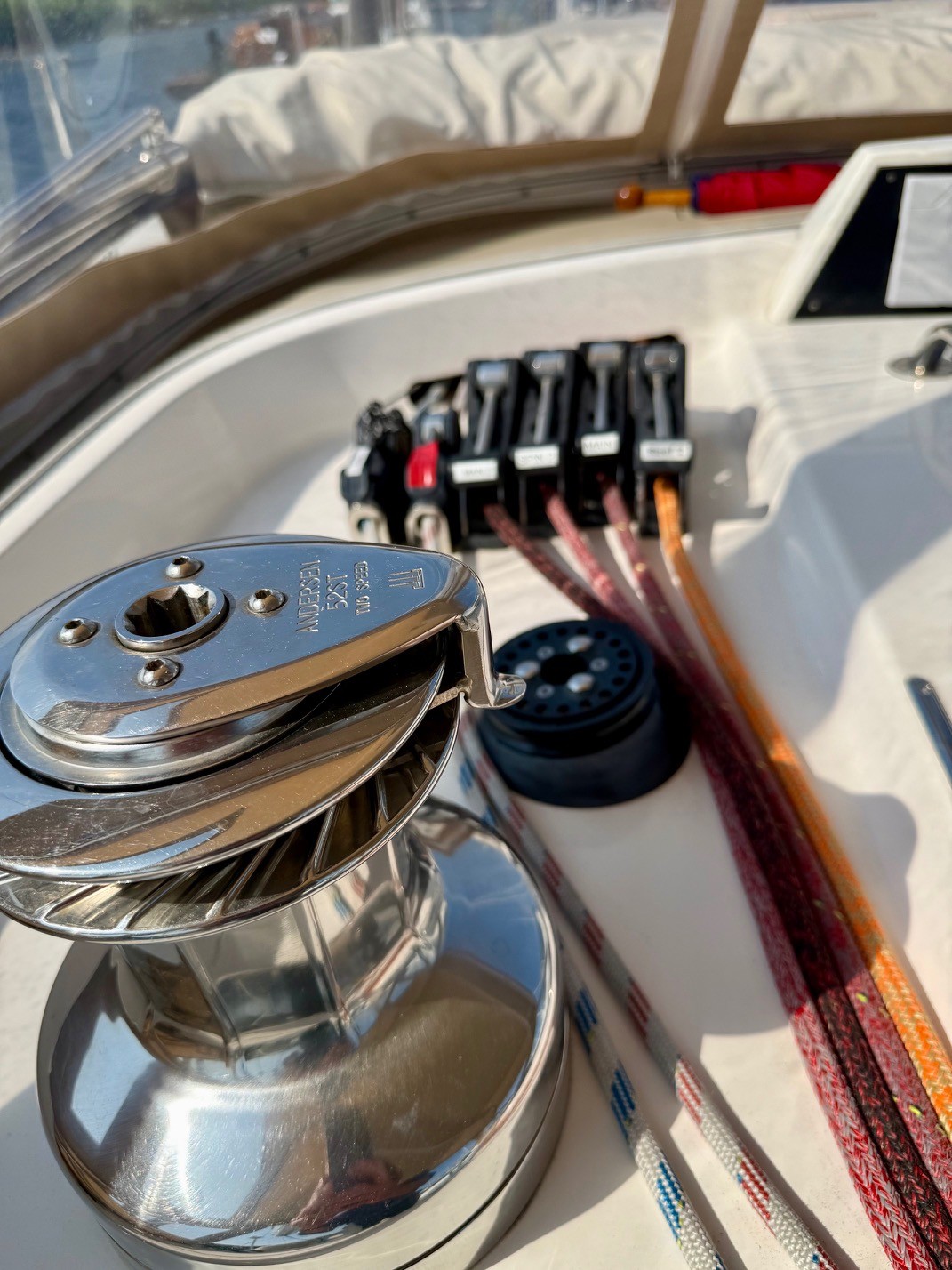

• - 2 x electric Andersen 72STE genoa winches
• Stainless steel control buttons
• - 2 x electric Andersen 68STE mainsheet winches
• Black control buttons mounted on pedestals
• - 2 x electric Andersen 52STE halyard winches
• Stainless steel control buttons
• - Open halyard sheaves (100 MM) – one each side

Sails

• - Gennaker G2 with snuffer, well maintained excellent condition
• - Spinnaker S2 with snuffer, well maintained excellent condition
• - NEW 2019 Mainsail – North Sails Boom furling NPL Tour UltraX
• - NEW 2019 108% Jib - North Sails Furling Jib with Battens NPL Tour UltraX
• - NEW 2019 A3 – North Sails A3 Asymetric NorLon NY150
• - NEW 2019 Staysail – North Sails Inner Jib NPL Tour UltraX NorLam,
• - Integrated inner forestay cable, halyard lock halyard and deck tensioner

Mast & Rigging

• - Spinnaker equipment, complete with carbon pole stowed on mast, extra long track.
• - Furlerboom infusion molded carbon/fiberglass shell with carbon mandrel
• NEW 2019 carbon mandrel
• - Reckmann RS2000 below deck jib furler
• - Triple spreader carbon mast, white painted, Nordic Mast
• - Mast (P=22.35 m, IG=23.25 m)
• - Mast prepared for top halyards
• - Carbon white painted mast bracket for 5 x 30/30 displays
• - Mast jack system including internal jack
• - Sea-Me active radar reflector
• - Windex VHF antenna with FM filter
• - Integrated boom LED cockpit light
• - Integrated spreader mast LED lighting
• - NEW 2019 Install inner forestay including mast and deck attachment points and check stay equipment. Cable integrated into North Sails staysail.
• - NEW 2019 rod rigging
• - NEW 2019 running rigging:
• Main halyard, Genoa Halyard, Spinnaker Pole Downhaul, Genoa Sheets, Genoa Car, Main Sheet, Vang, Jib Furler Line
• - NEW 2019 Install Port and Starboard preventor line ends run along boom
• - NEW 2019 LED Tricolor/all white top light
• - NEW 2019 LED combo deck/steaming light
• - NEW 2019 rope hangers on bulkhead in forward sail locker
• - NEW 2019 2 pad-eye port/starboard for preventer system block mounts

Keel

• Draft keel, 2.90 m; 9'5"

Hatches / Portlights / Ventilation / Sprayhood

• Stainless steel protection rail mounted on rounded sheerline
• - Mechanical operated, deck recessed, hinged anchor launch system
• - 75 m chain
• - Lofrans’ Project X3 Windlass
• NEW 2020 wired controls at bow
• - Anchor chain counter and controls with display mounted on Starboard pedestal
• - Danforth secondary anchor with 60 m lead inlay anchor rope
• - NEW 2019 Delta 55 lbs. anchor
• - NEW 2019 spliced to anchor chain additional 100 m lead inlay anchor rope

Guard rail / Anchor / Stainless Steel Fittings

• Portlights / Extra Canvas / Cockpit

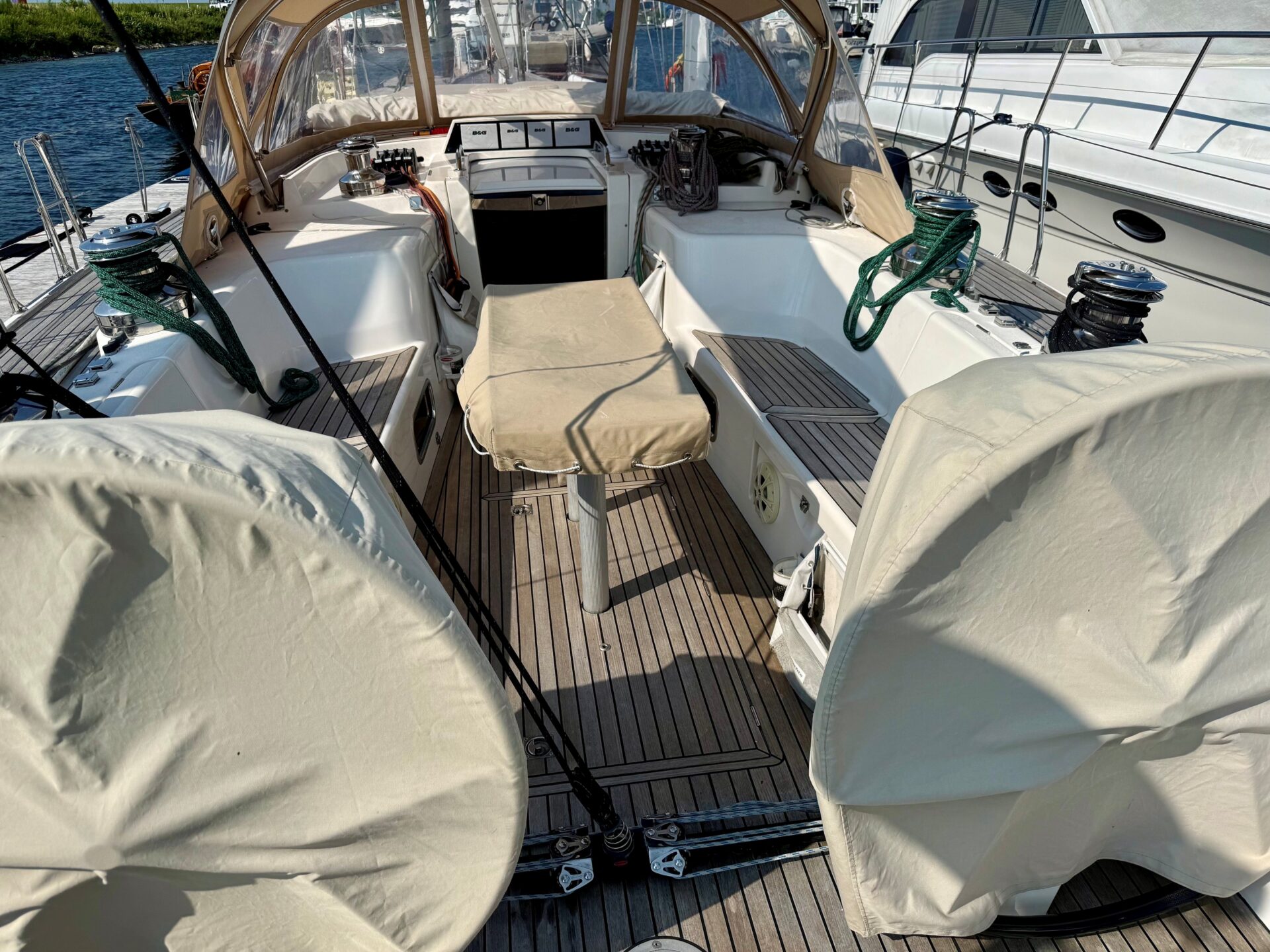

• - Canvas cover for carbon wheels and IMX style pedestal boxes in beige

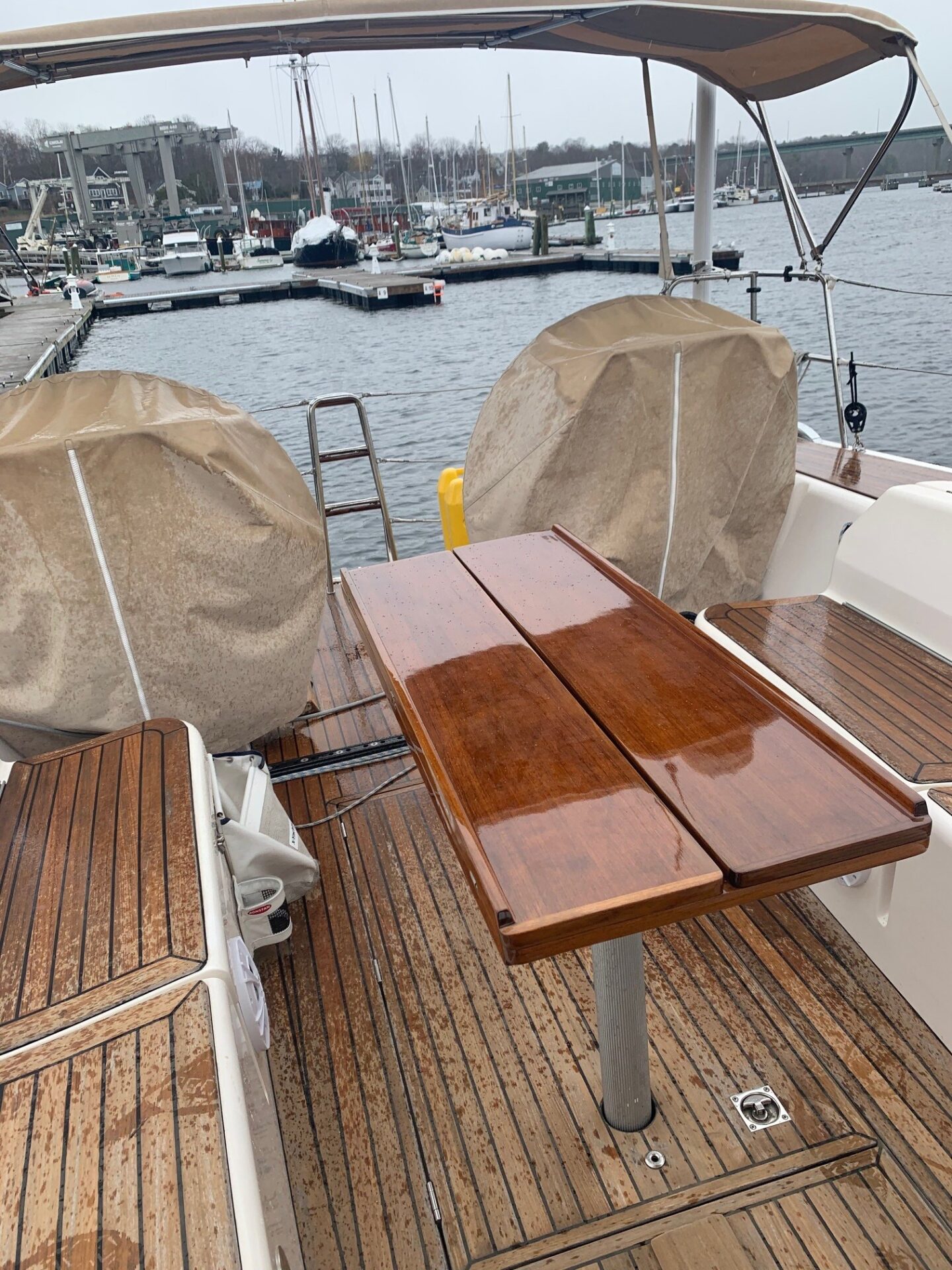

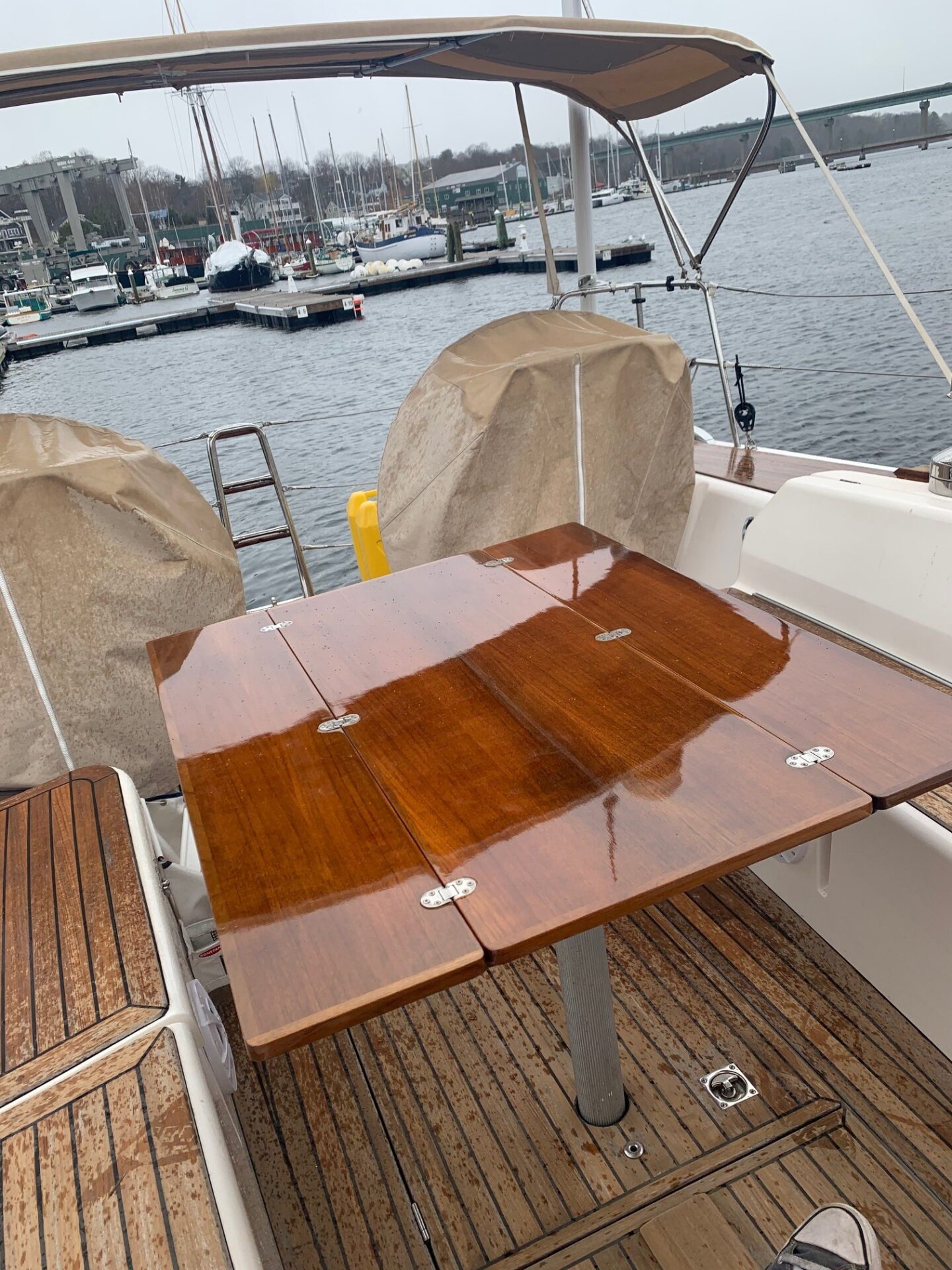

• - Teak Cockpit table with dedicated cockpit storage space
• - Winch covers
• - NEW 2019 Cockpit table canvas cover
• - NEW 2020 foredeck canvas Bimini/hatch-covers
• - NEW 2019 beige Cockpit cushions with back-rests and rail mounts
• - NEW 2019 coach roof mattress, color sand

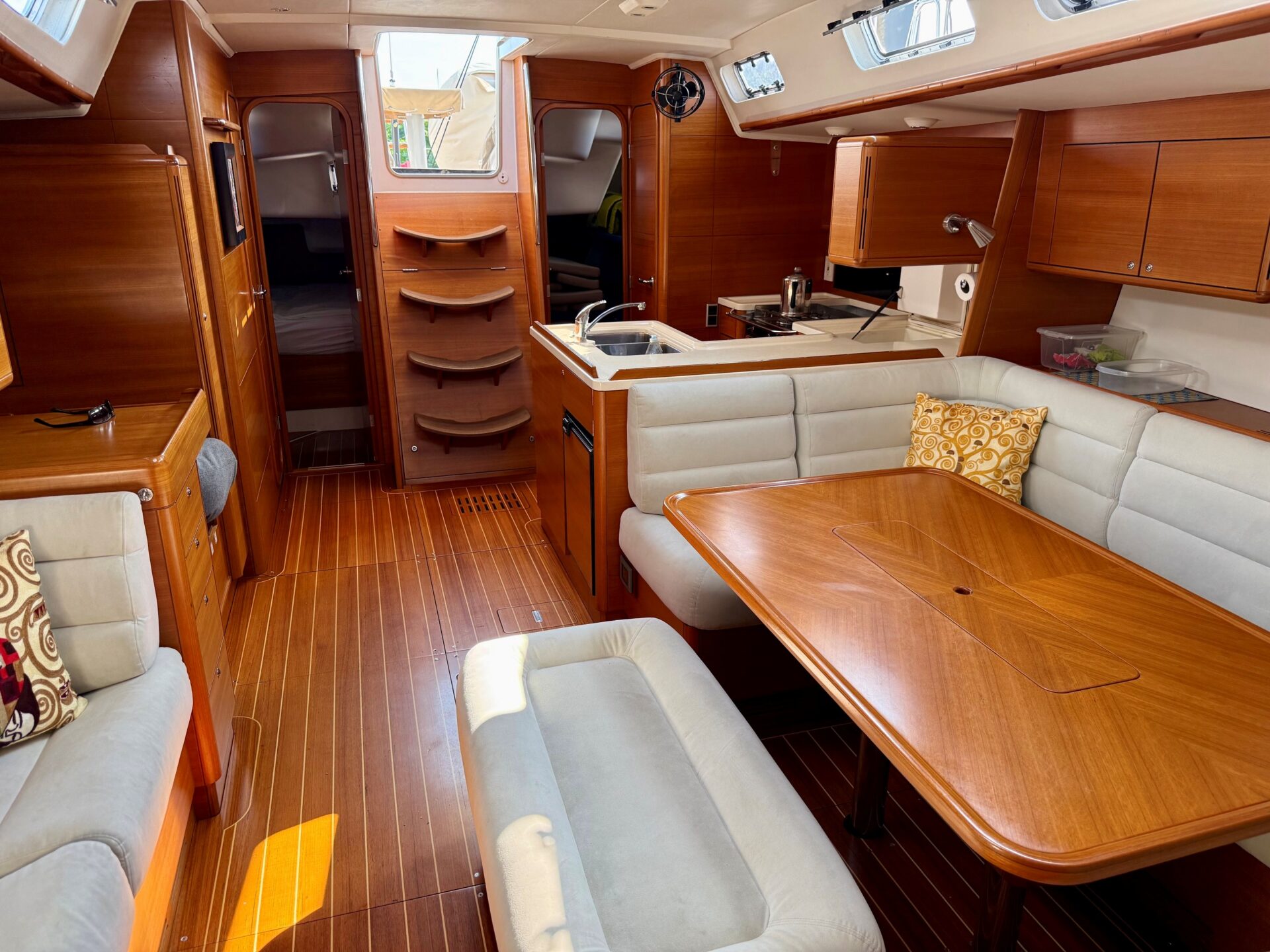

Accommodation

General / cabins / heads:

• - Woodwork finished in teak with hand polished satin finish

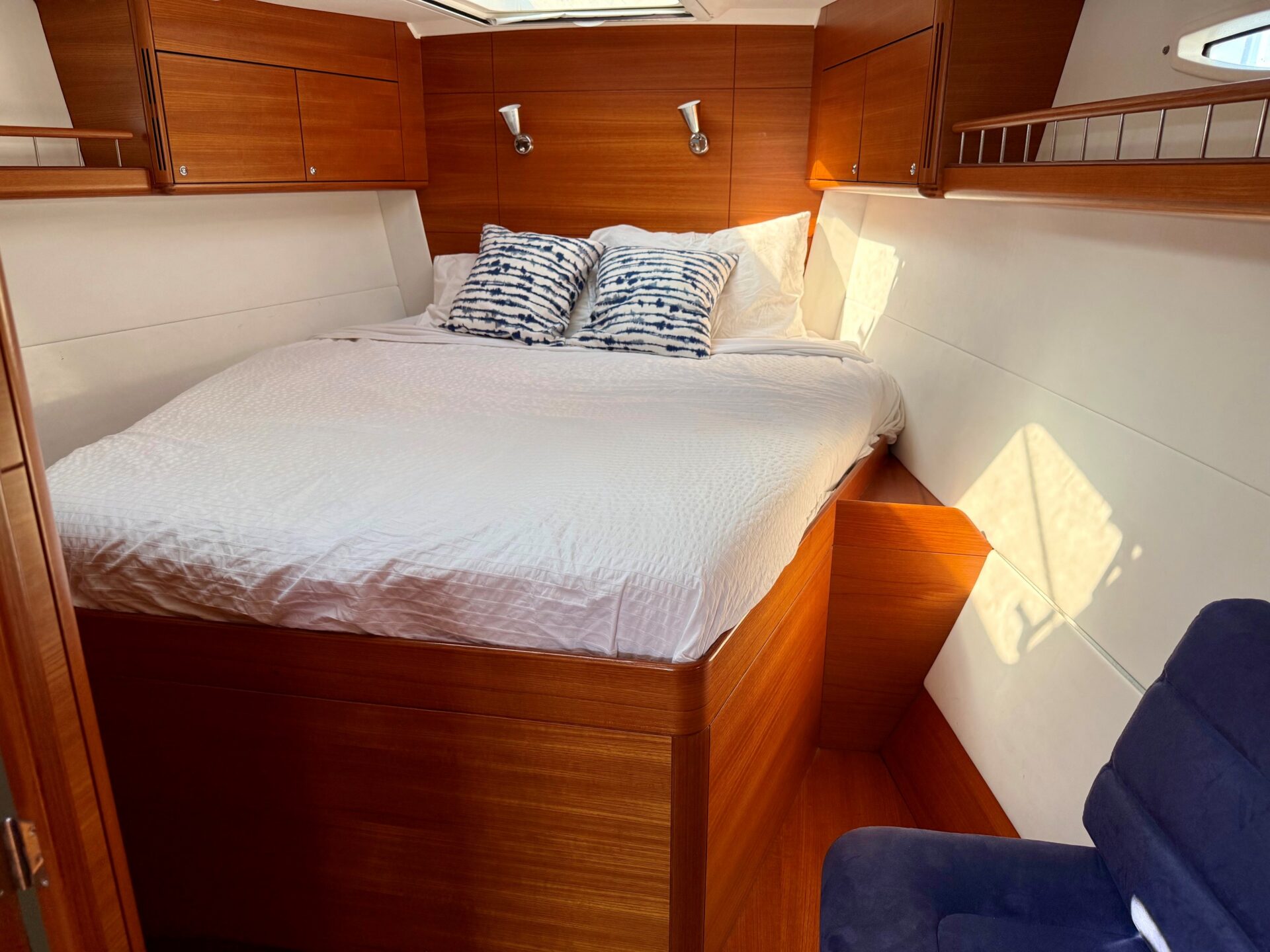

• - 3 x cabins, 2 aft with added pipe-berths
• - Leather in saloon – Color – Elmosofft Beige 02048
• - Cabins: Alsace Blue 010
• - All berths have batten system and spring mattresses for improved comfort

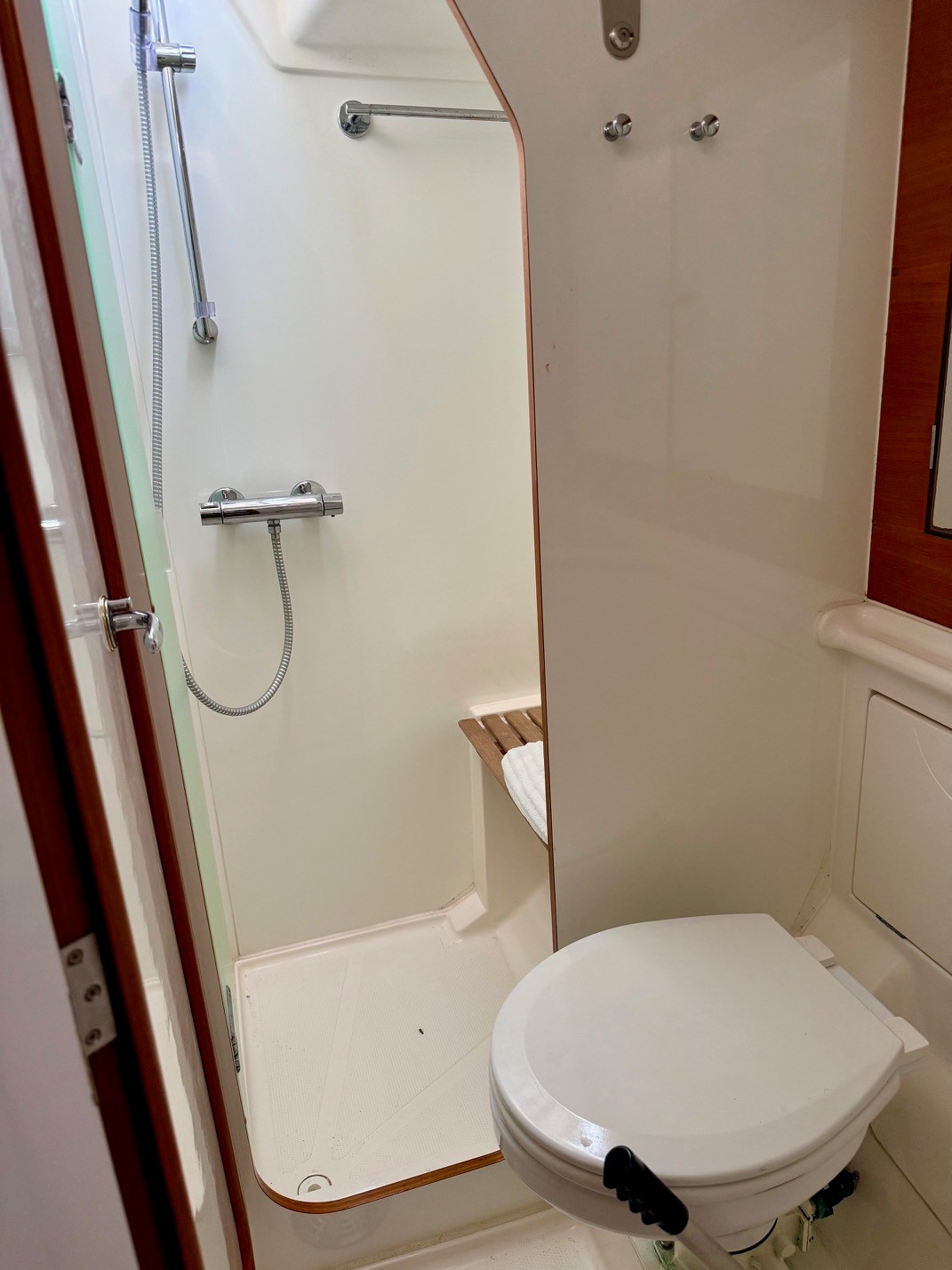

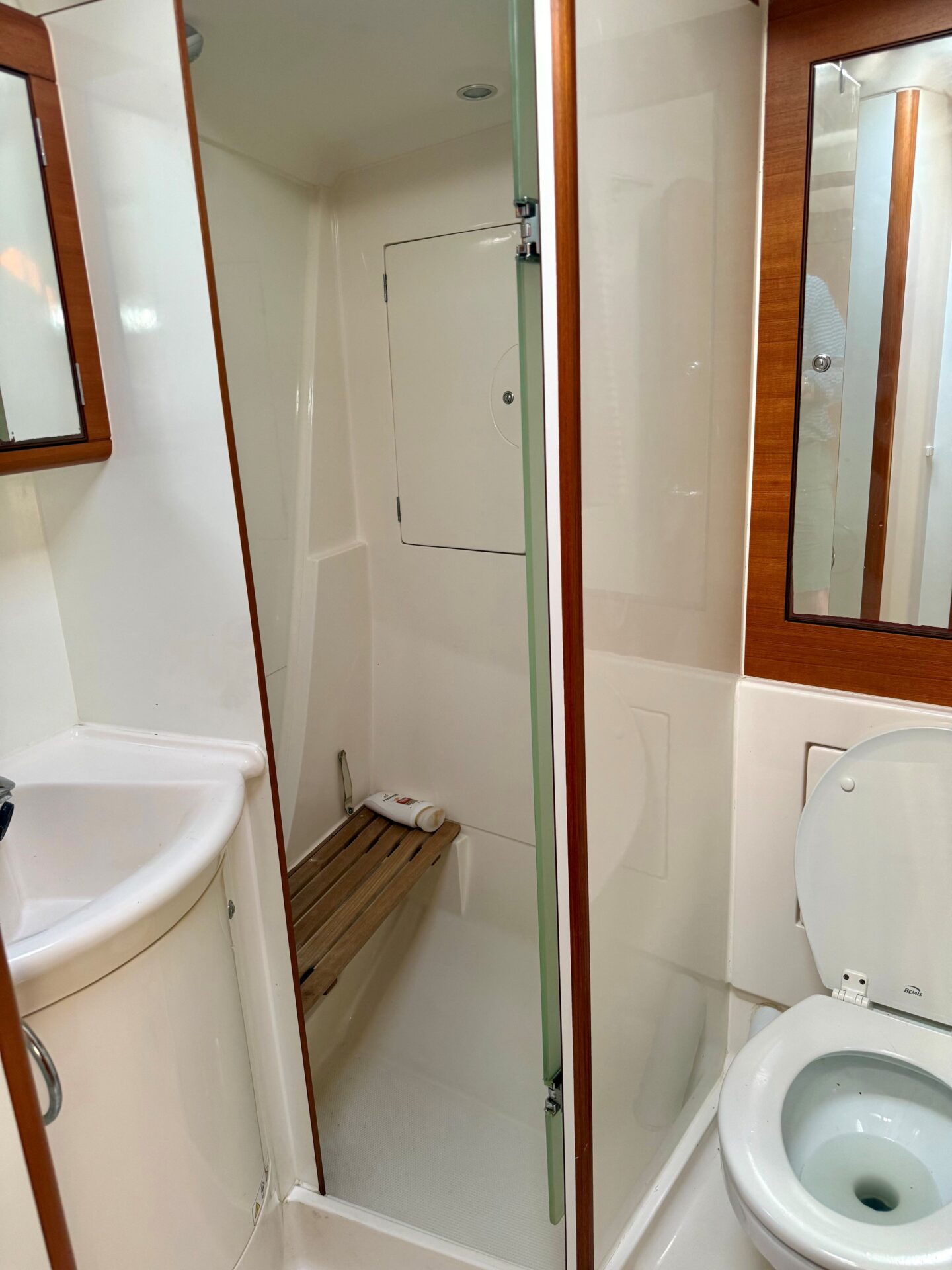

• - 3 x heads, forward and starboard with separate showers
• - Port aft head removable s/s bar for hangers (good as a wet locker offshore)
• NEW 2019 manual toilet pumps
• - Red night light in saloon 3 on starboard side, 1 at galley
• - Dimmers on saloon lights circuit
• - Oceanair integrated screens and blackout curtain on all 4 skylight hatches
• - Curtains on all side ports
• - NEW 2019 Sirocco Gimbal Fans. 1 in each cabin, 1 in salon area and 1 in galley
• - NEW 2019 Double USB sockets 1 in forward cabin 2 at nav station
• - NEW 2019 – 30+ interior lights changed to LED
• - NEW 2019 Extra shelves in aft cabin closets
• - NEW 2019 Additional towel racks in all heads and hooks in cabins

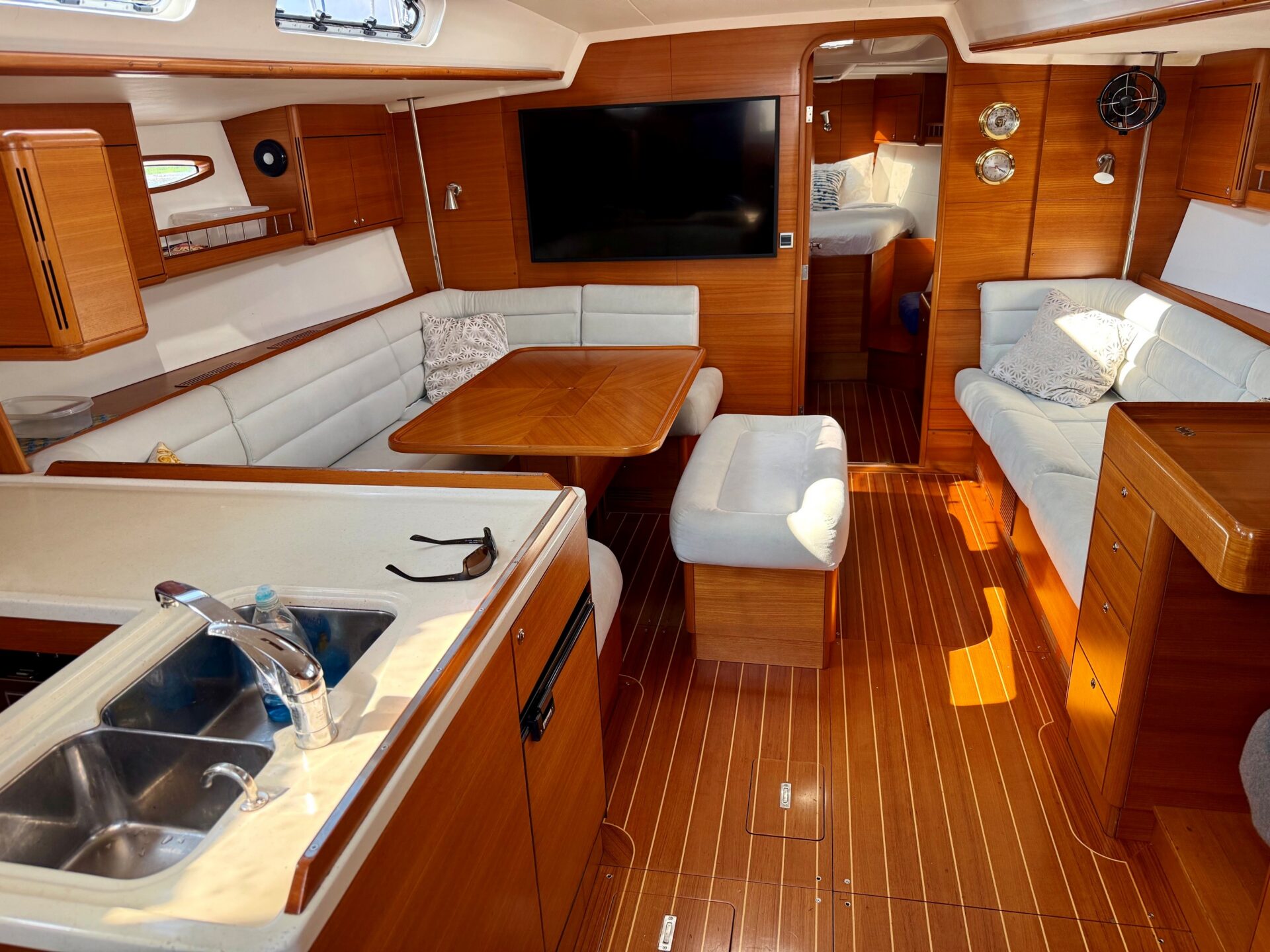

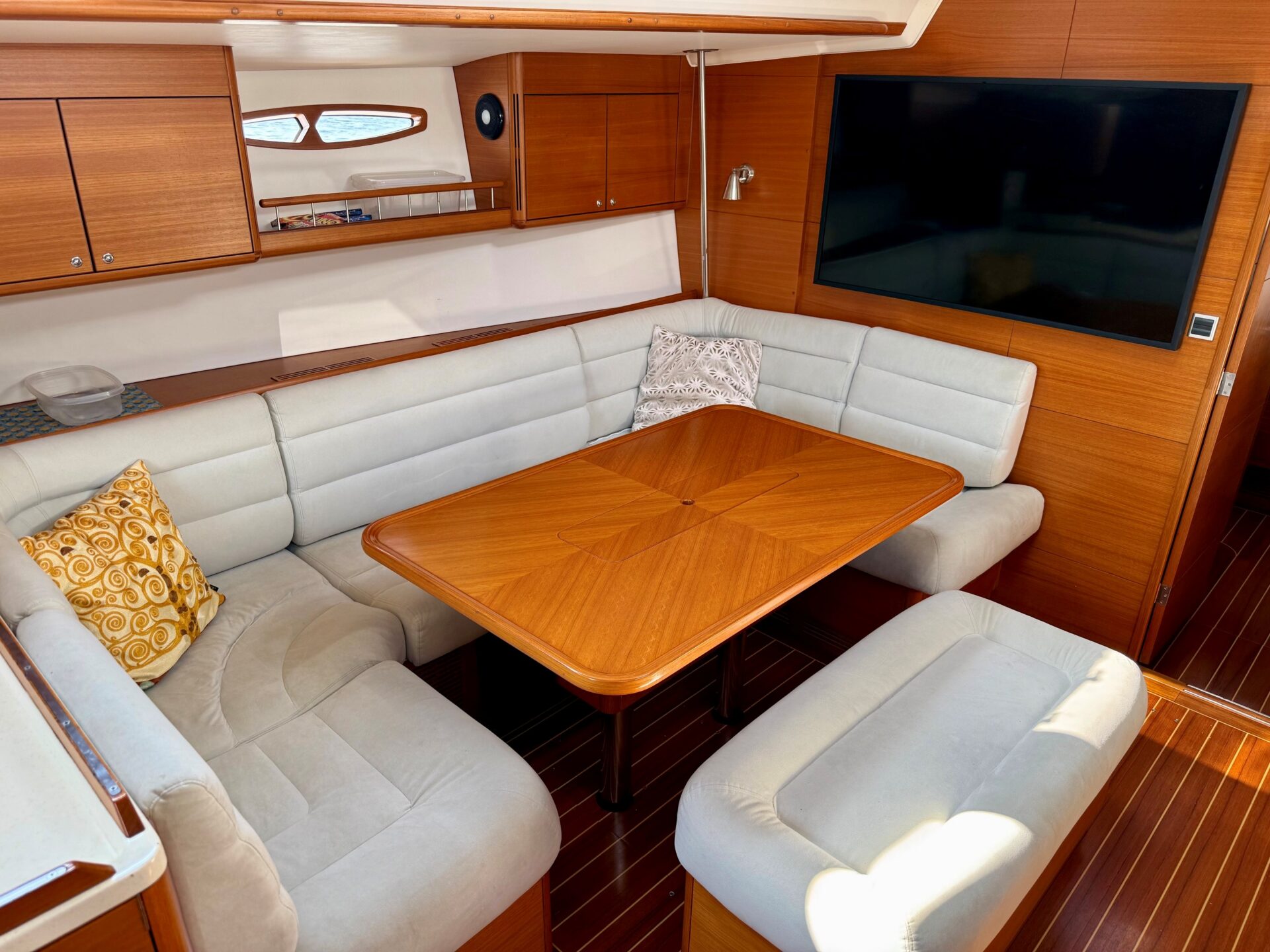

• Saloon / Nav station:
• - NEW 2019 Nav station integrated Samsung 24” monitor for computer and B&G chart plotter repeater
• - NEW 2019 custom shelf under LCD screen designed and built by X-Yachts
• - NEW 2019 lee cloths port and starboard in saloon

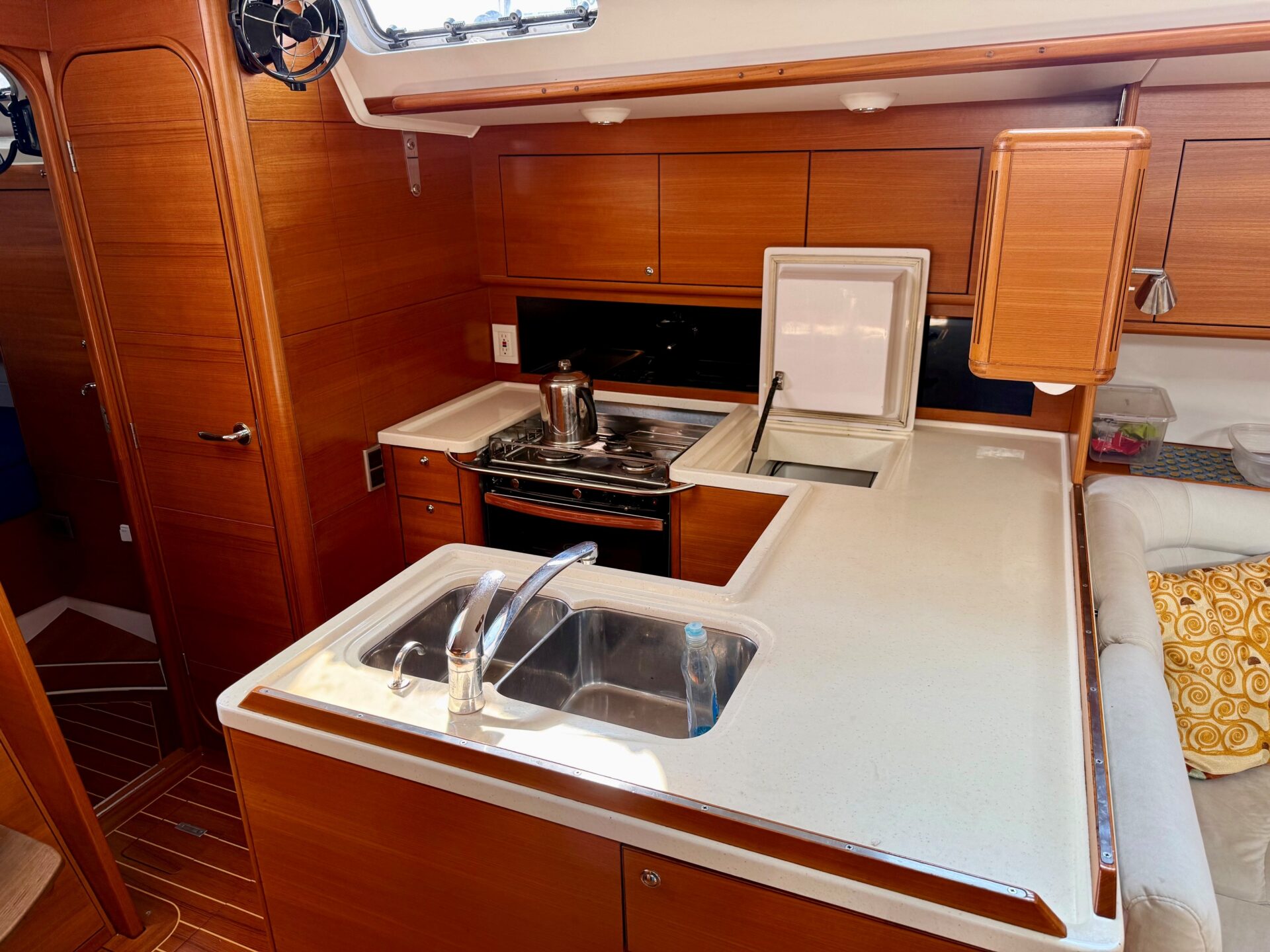

• Galley:
• - Eno 3 burner 1 oven gas cooker
• - Foot pump for freshwater
• - Electrical gas switch
• - Gas detector with alarm

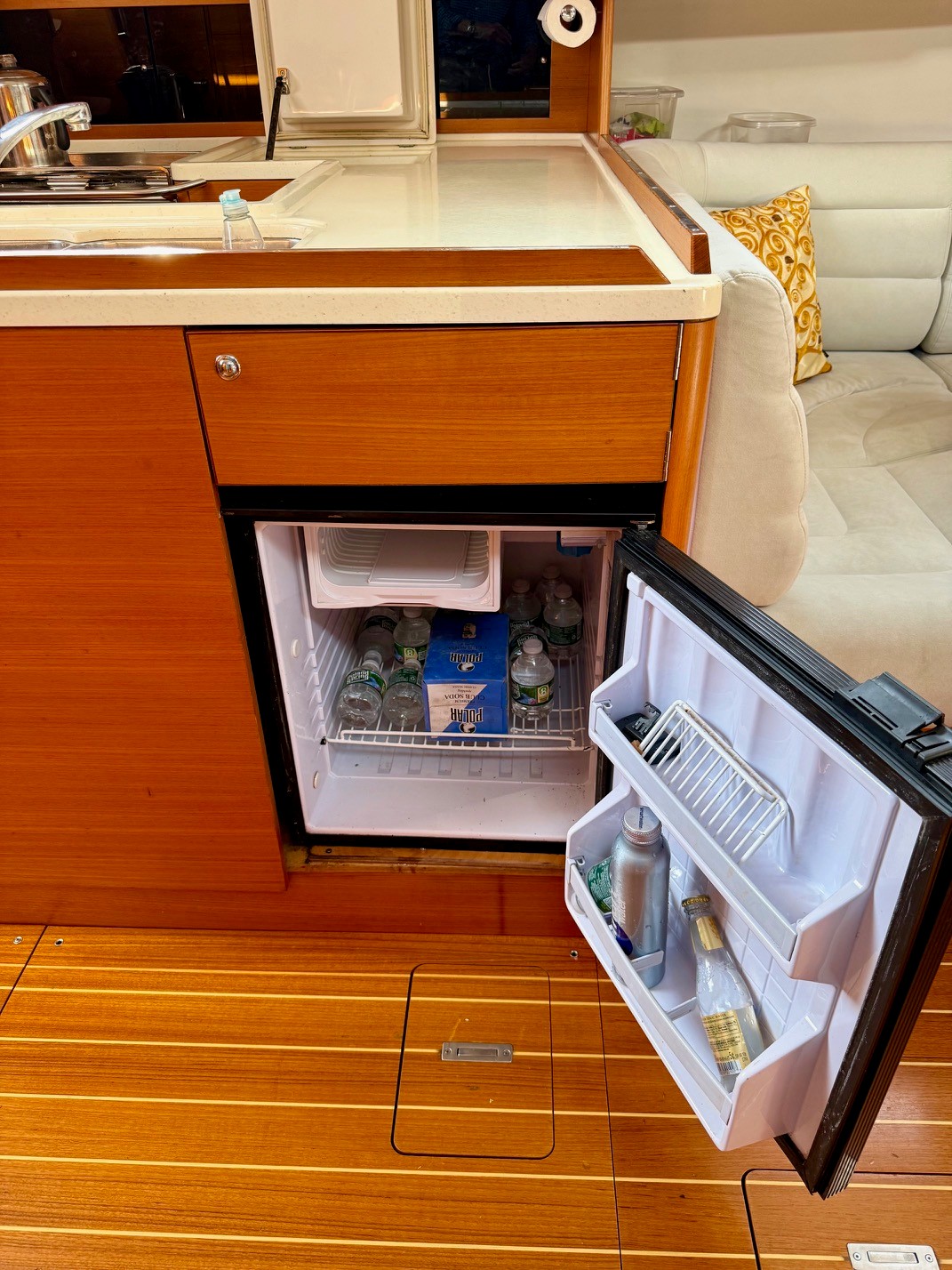

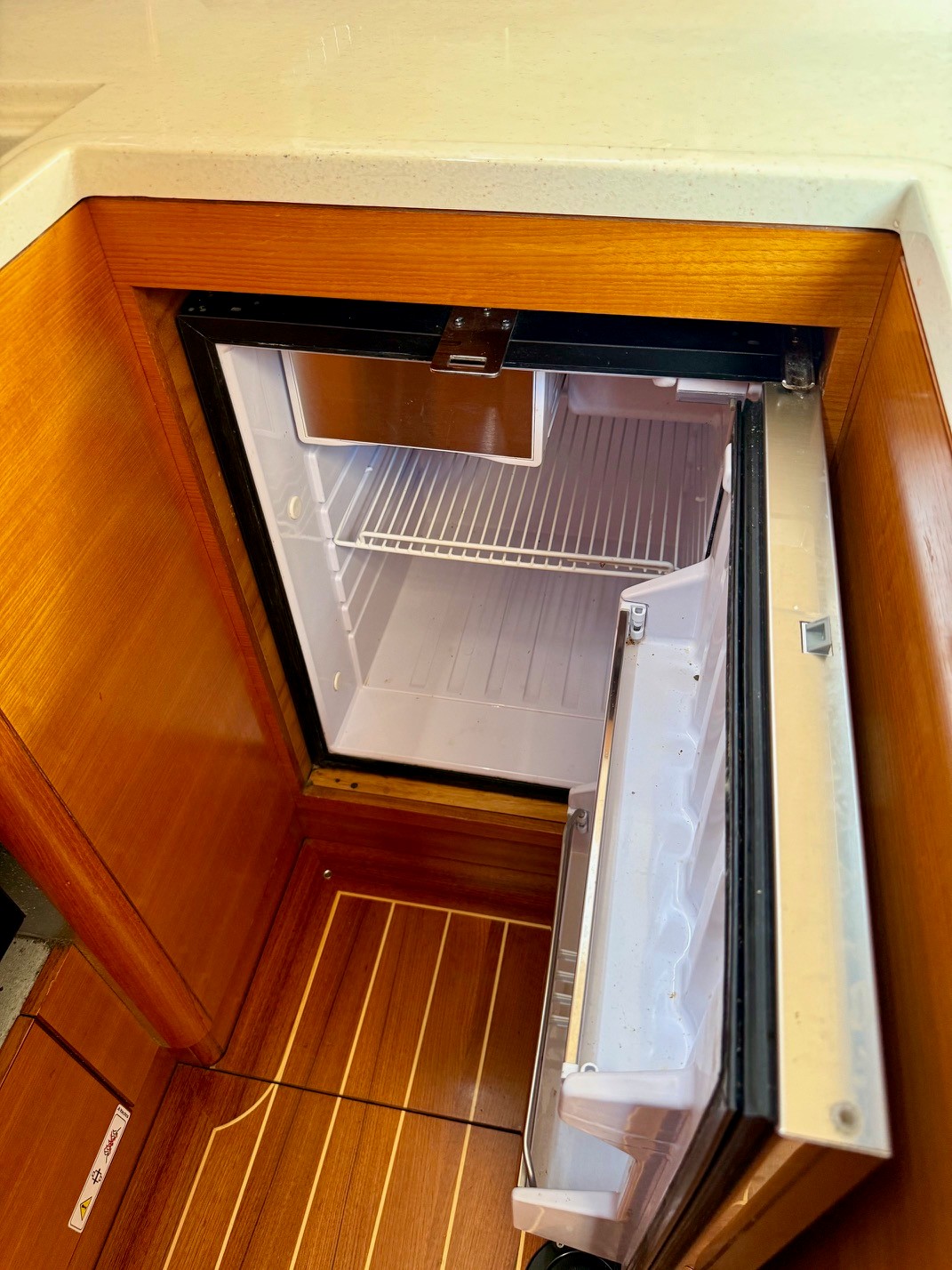

• - Isotherm 85L fridge, front opened
• - Isotherm MAGNUM 2507SP fridge/freezer top opening box
• - Galley teak rail with S/s chafe strips on top of galley counter tops
• - NEW 2019 Extra teak fiddles in cabinets
• - NEW 2019 s/s paper towel rack in galley
• - NEW 2019 Additional Isotherm Cruise Classic 65L fridge
• - NEW 2019 Seagull X-1F purifier unit connected to existing cold water pressure system

Systems

Engine

• - 3 blade feathering propeller with shaft drive type
• - NEW 2019 Yanmar 4JH110 115 Hp Common Rail engine. 4-cylinder & turbocharged w/ an air cooler. Improved fuel efficiency and emissions over standard engine.
• - NEW 2019 Yanmar C30 engine control panel
• - NEW 2019 6 blade propeller instead of standard 3 blade

Plumbing

• - Holding tank, self draining front toilet
• - Diesel – 2 storage tanks and 1 consumption tank for a total of 620 L capacity
• - Water – 2 storage tanks for a total of 490 L
• - Complete aircon system in all cabins and saloon (10k+6k+6k BTU), reverse cycle for heat
• NEW 2020 230v salt water feed pump
• - Automatic switch on electric bilge pump
• NEW 2019 Keel sump pump and automatic switch
• - Extra manual bilge pump
• - Wash down pump in anchor well connected to salt and freshwater
• - Shower with hot/cold water in cockpit
• - NEW 2019 Spectra Newport 700c water maker 24v produces 130 lph (230 hrs.)

Electrical

• - Special 115/230 and 50/60 Hz electrical system installed. Compatible with 50 0r 60 hz
• - 5 x 230v AC sockets
• - Diesel generator Panda 6.5 kW
• - NEW 2019 Hydro-generator – Watt & Sea cruising 600 (600 W) w/ Bluetooth app display
• - NEW 2019 Mia Sole 125 CIGS solar panel on top of helmsman Bimini
• - NEW 2019 Victron SmartSolar charge controller with Bluetooth display app
• - NEW 2019 8 x 115A gel deep cycle batteries for domestic use 24v
• - NEW 2019 1 x 50Ah Maxxima start battery
• - NEW 2019 Mastervolt Mass Combi 24/2600-60 Inverter/Charger

Electronics

• - 1 x Halcyon compass
• - Upgraded B&G Vertical 145 cm wind transducer
• - NEW 2019 speed/depth transducer
• - NEW 2019 B&G Radar Broadband 4G mounted on first spreader
• - NEW 2019 B&G H-5000 Autopilot
• - NEW 2020 Jefa Steering 24v DU-TS6-24 autopilot motor
• - NEW 2019 B&G Forward looking sonar
• - NEW 2020 B&G NAIS 500 Class B AIS transceiver
• - NEW 2019 Sailmon E4 silver processor
• - NEW 2019 B&G V90 black box VHF w/ wired handset & loudspeaker at chart-table and second wireless H50 handset and loudspeaker connected to V90 at port helm
• - NEW 2019 B&G Triton2 display

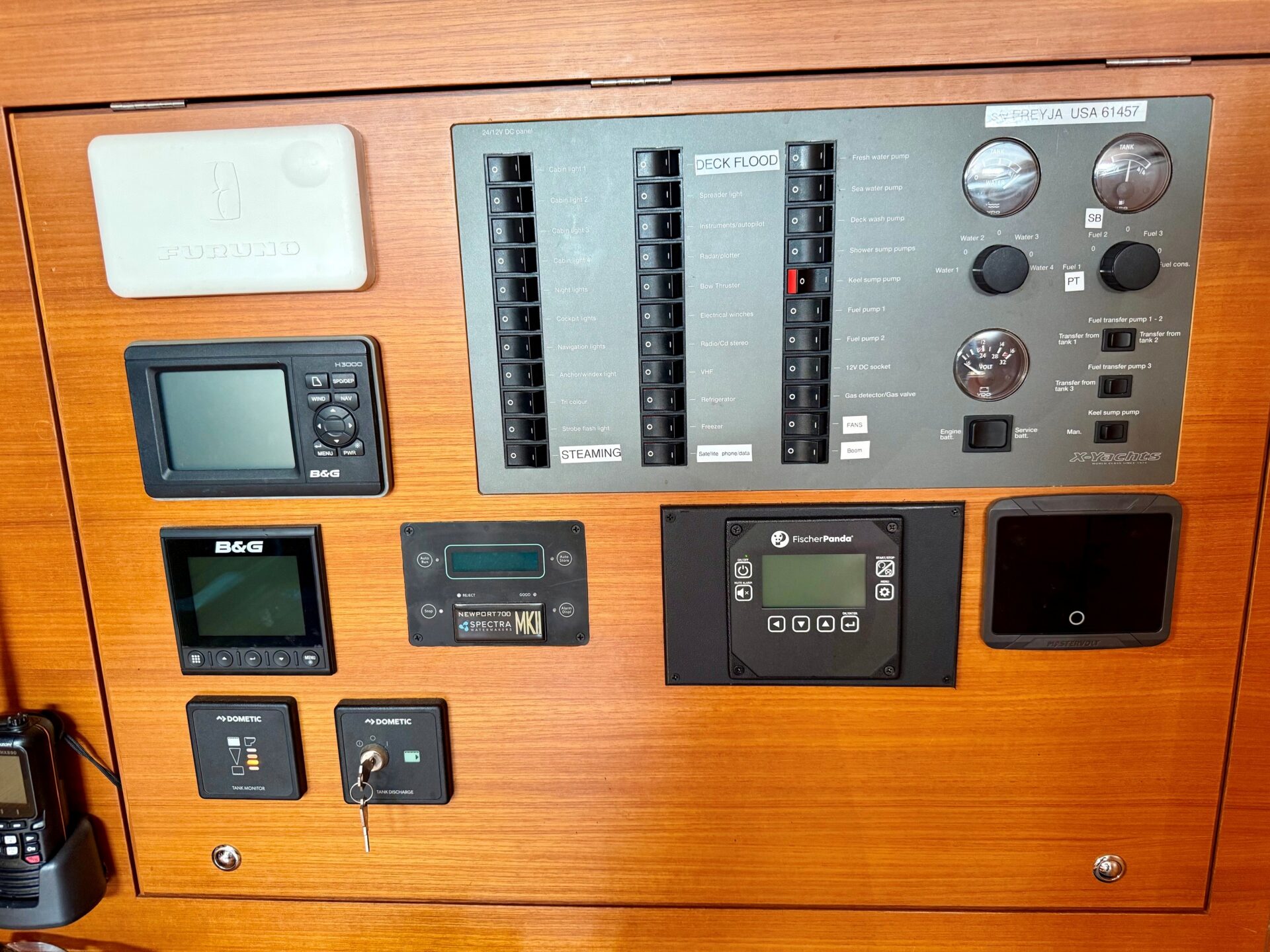

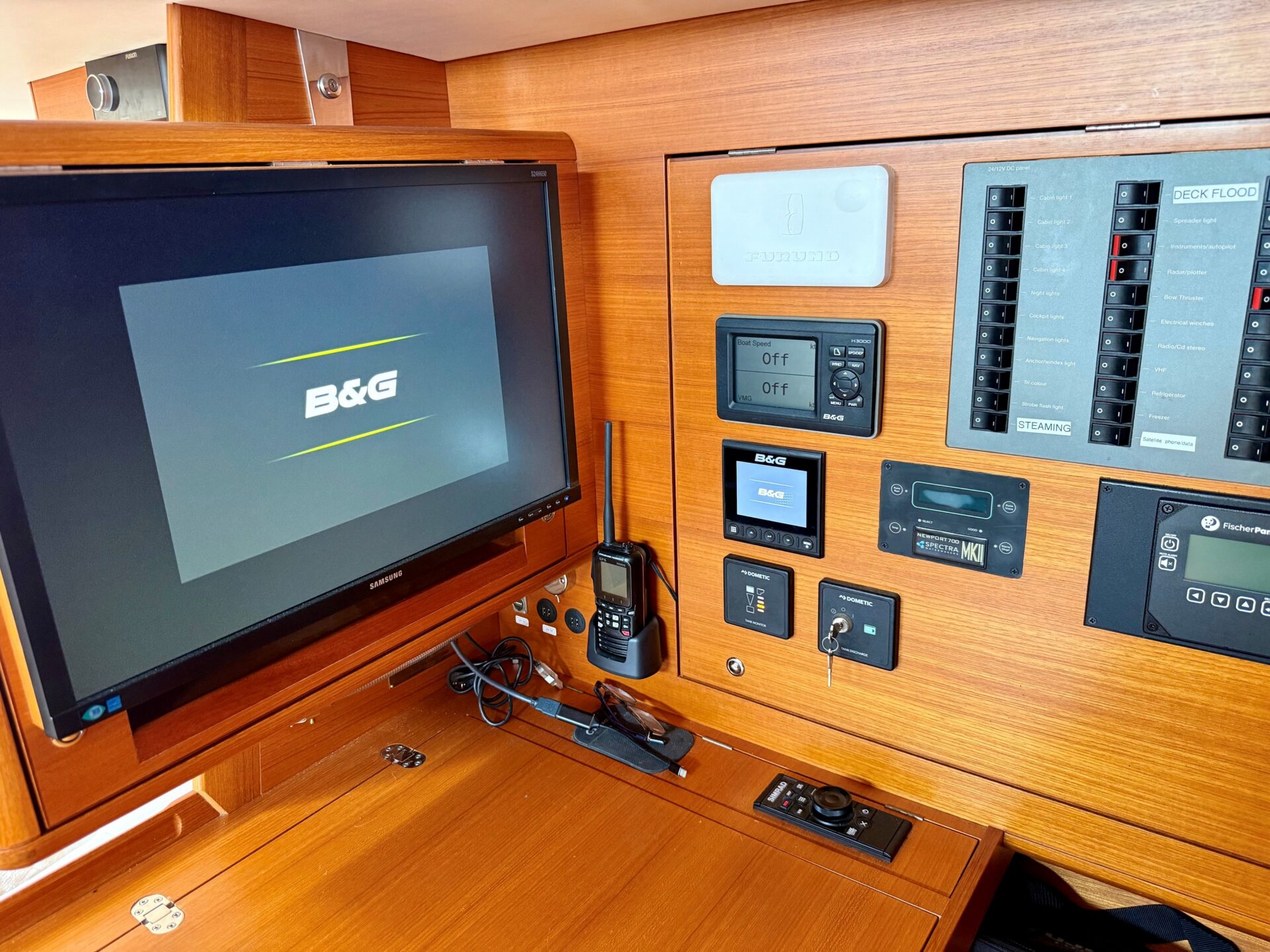

• - Nav Station:
• Simrad i50 AIS unit at nav station
• Furuno Navtex NX-300
• NEW 2019 B&G ZC2 remote at chart table and connected to starboard helm Zeus3
• NEW 2019 Samsung 24” monitor for computer and Zeus3 repeater

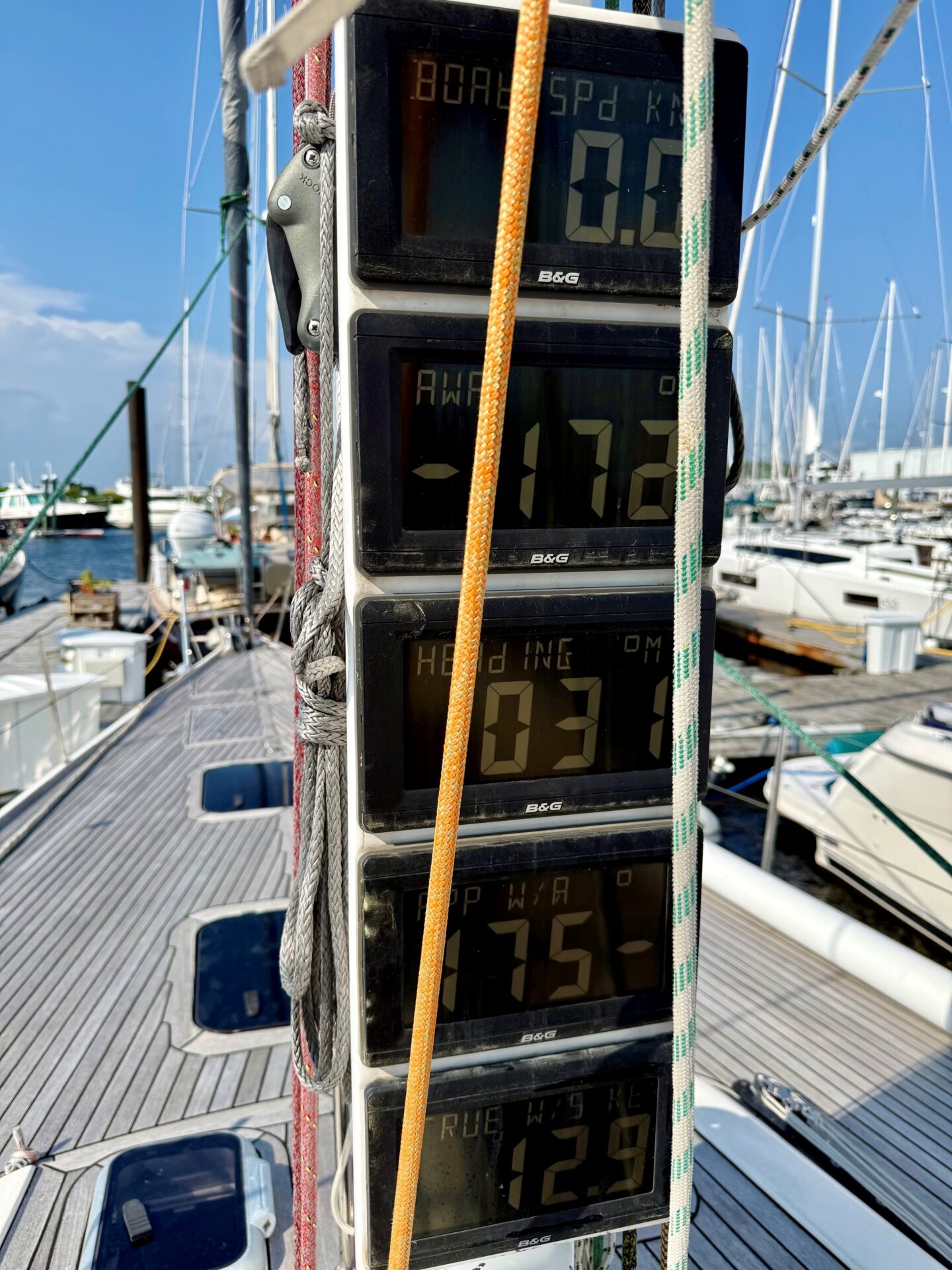

• - Mast display units: 5 x B&G 30/30 displays
• - Coach roof over sliding hatch display units:
• 2 x B&G GFD units
• 2 x B&G analogue wind (360 and close hauled)

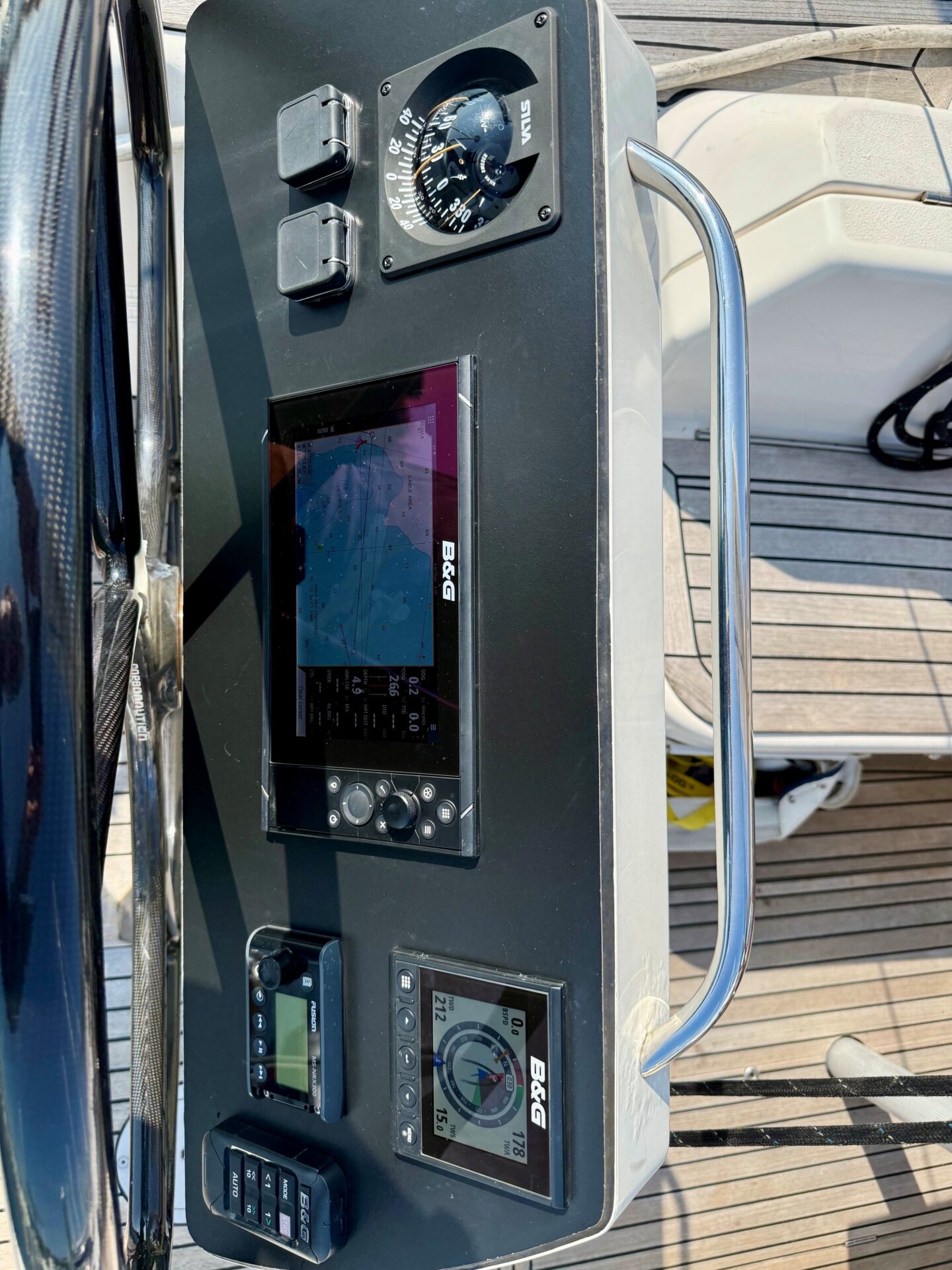

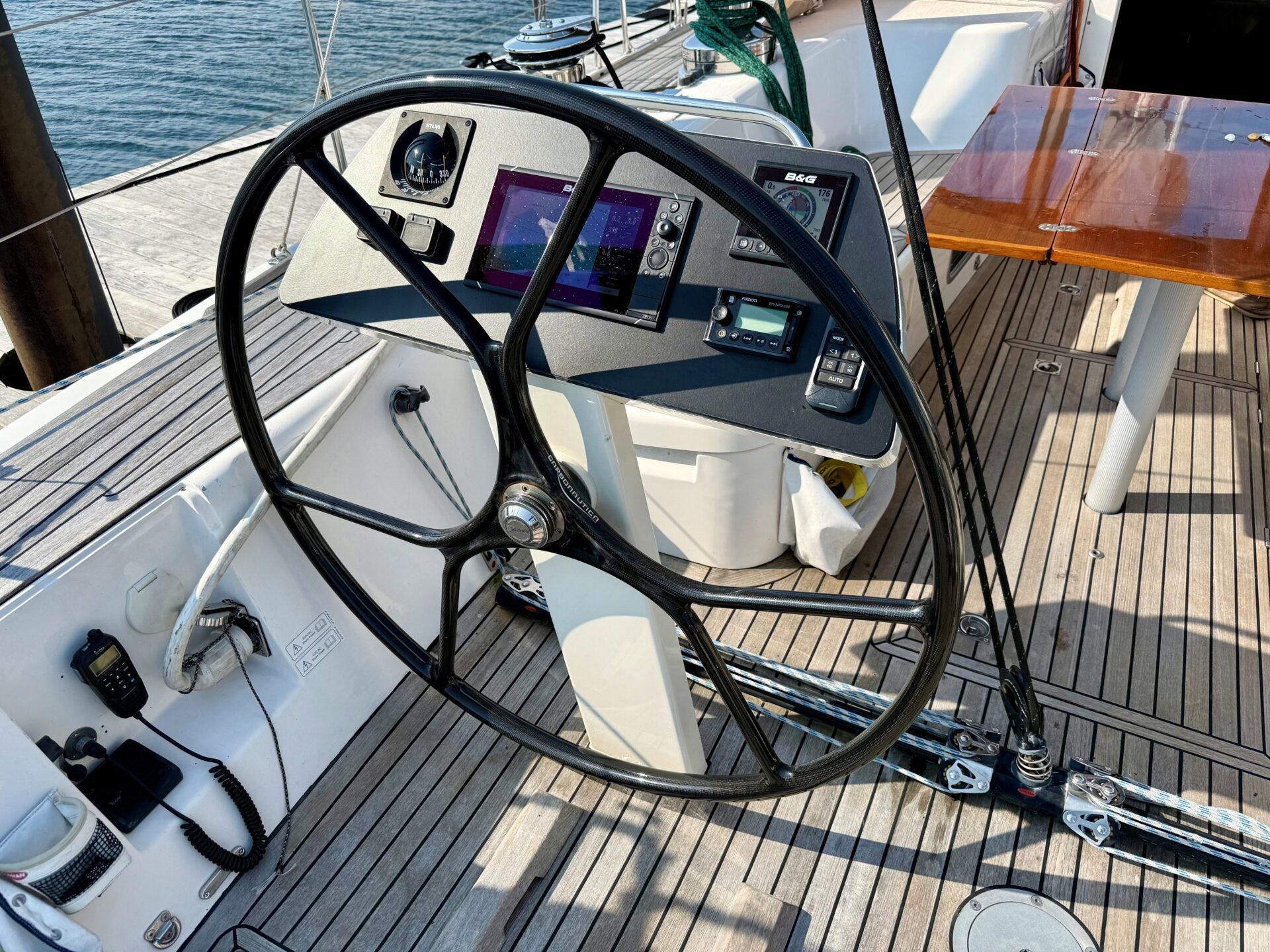

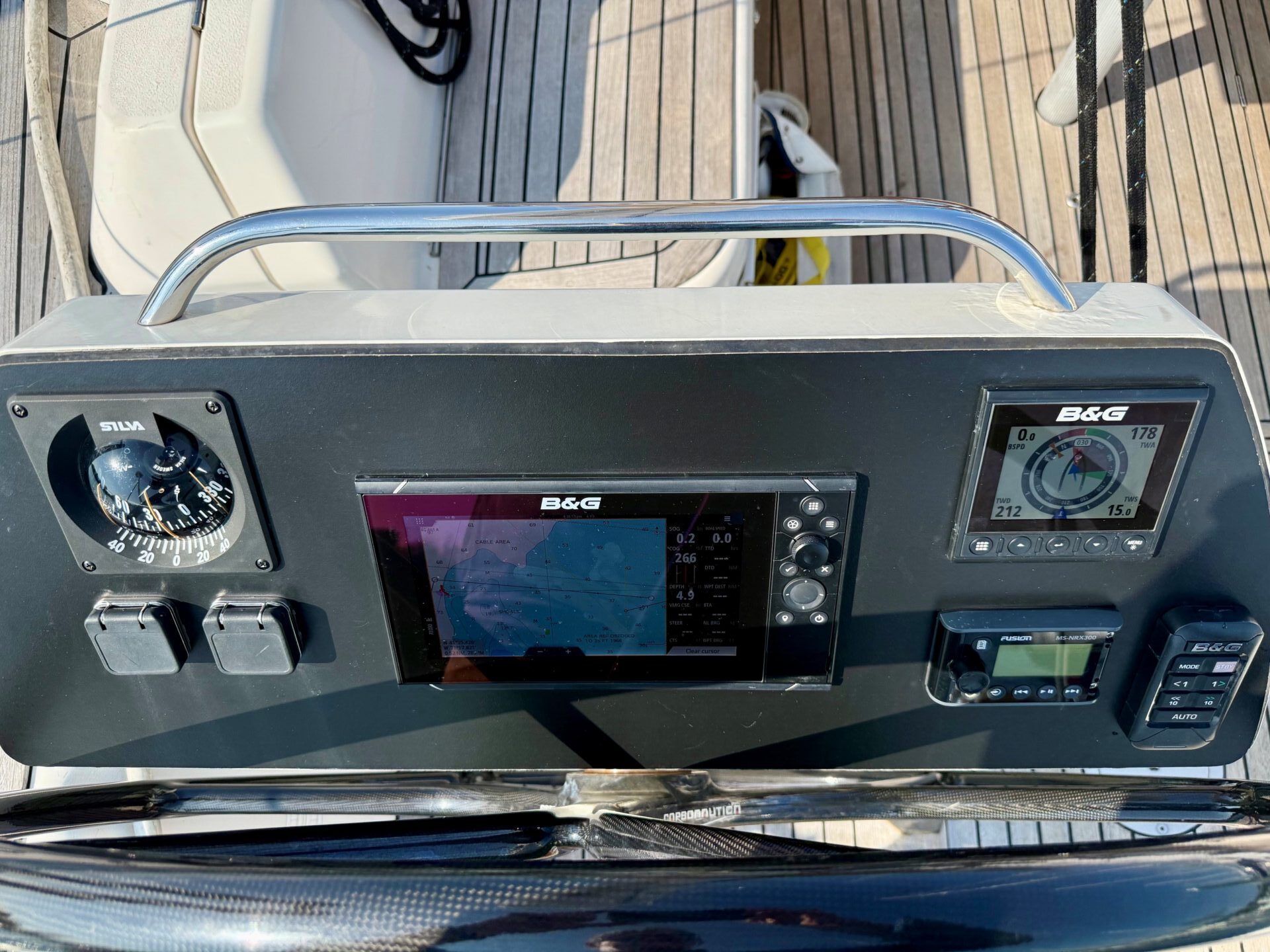

• - Starboard Helm Electronics:
• Main sheet starboard electric winch controls
• Anchor chain controls and counter
• NEW 2019 Zeus 3-12” MFD
• NEW 2019 Compass Silva 100BH Illume
• NEW 2019 Fusion MS-NRX300 wired remote
• NEW 2019 H5000 pilot key-pad
• - Port Helm Electronics:
• Main sheet port electric winch controls
• NEW 2019 Zeus3-9” MFD
• NEW 2019 Compass Silva 100BH Illume
• NEW 2019 Triton pilot controller
• WIFI / Cell / Sat Communications:
• - NEW 2019 Scanstrut antenna pole at port stern

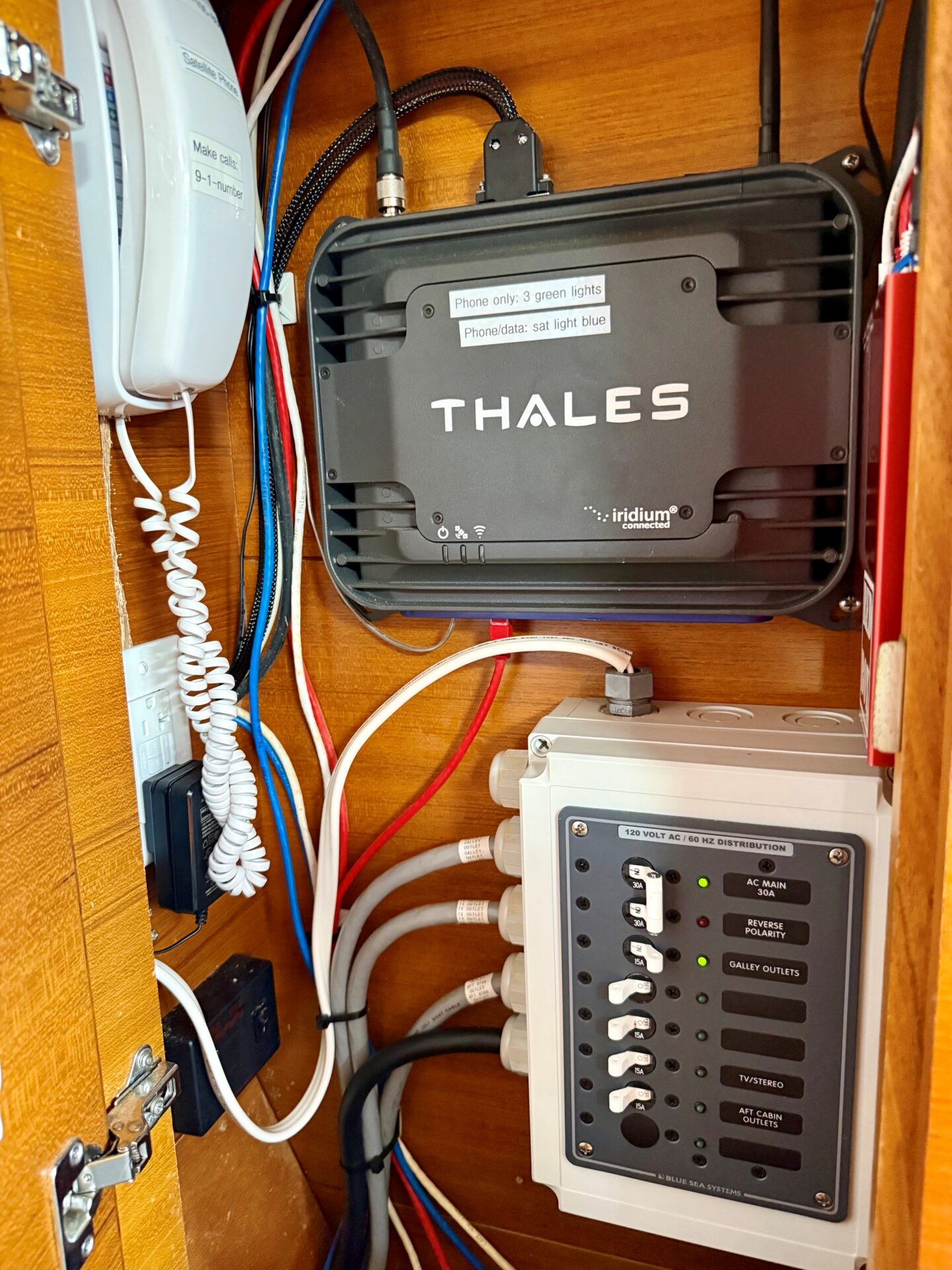

• - NEW 2019 Thales VesseLINK for Iridium Certus satellite voice/data
• - NEW 2019 Bullet WIFI extender
• - NEW 2019 Pepwave BR1 cell/WIFI router
• - NEW 2019 Mobilemark 4 in 1 LTM Antenna (external WIFIi, cell, GPS antenna)
• - NEW 2020 Redbox boat network (cell/WIFI/sat) selector

Thrusters

• - Retractable bow thruster, VIP 150-24V w/ control mounted at engine panel recess
• - NEW 2019 6 blade propeller instead of standard 3 blade

Additional Information

• Extensive 2019 refit and additions by X-Yachts at their Denmark headquarters facility:
• Included New:
• Main Engine
• Watermaker
• Standing Rod Rigging
• Furlerboom Carbon Mandrel
• Addition of Inner Forestay
• Aft Bimini with Integrated Soft Solar Dodger
• inverter/charger
• Watt &Sea Hydro-Drive
• New Batteries, Electronics, Sails, Running Rigging, Communication Equipment, Large Screen TV, Stereo, and Many Other Additions.
• UPGRADES 2021 to Present
• 2021
• Installation of holding tank, macerator pump and sanitation monitoring panel at nav station for both aft heads (previously both heads flushed directly overboard). All three heads were replaced with new.
• Stereo Replaced with upgraded speakers, sub-woofer and power amp
• Samsung flat screen TV replaced
• Interior leather upholstery was replaced with new foam and light beige Ultrasuede covers.
• 2022
• Freezer upgraded with new SeaFrost compressor, cold plates and control panel
• Galley refrigerator replaced.
• Complete HVAC system replacement. New three zone AC/heat in owner cabin, aft cabins and main salon. Electric heating coil to supplement reverse cycle
• Complete electrical system overhaul including:
• New 24-volt House Bank (6 batteries) all new wiring & fuses
• New 12-Volt Starting battery
• New MaterVolt monitoring panel at nav station
• New 120-volt inverter with dedicated breaker panel and three 120-volt outlets for US appliances
• New 230-volt inverter
• 2023 – Preparing Freyja to race
• 2023 ORR Rating Certificate

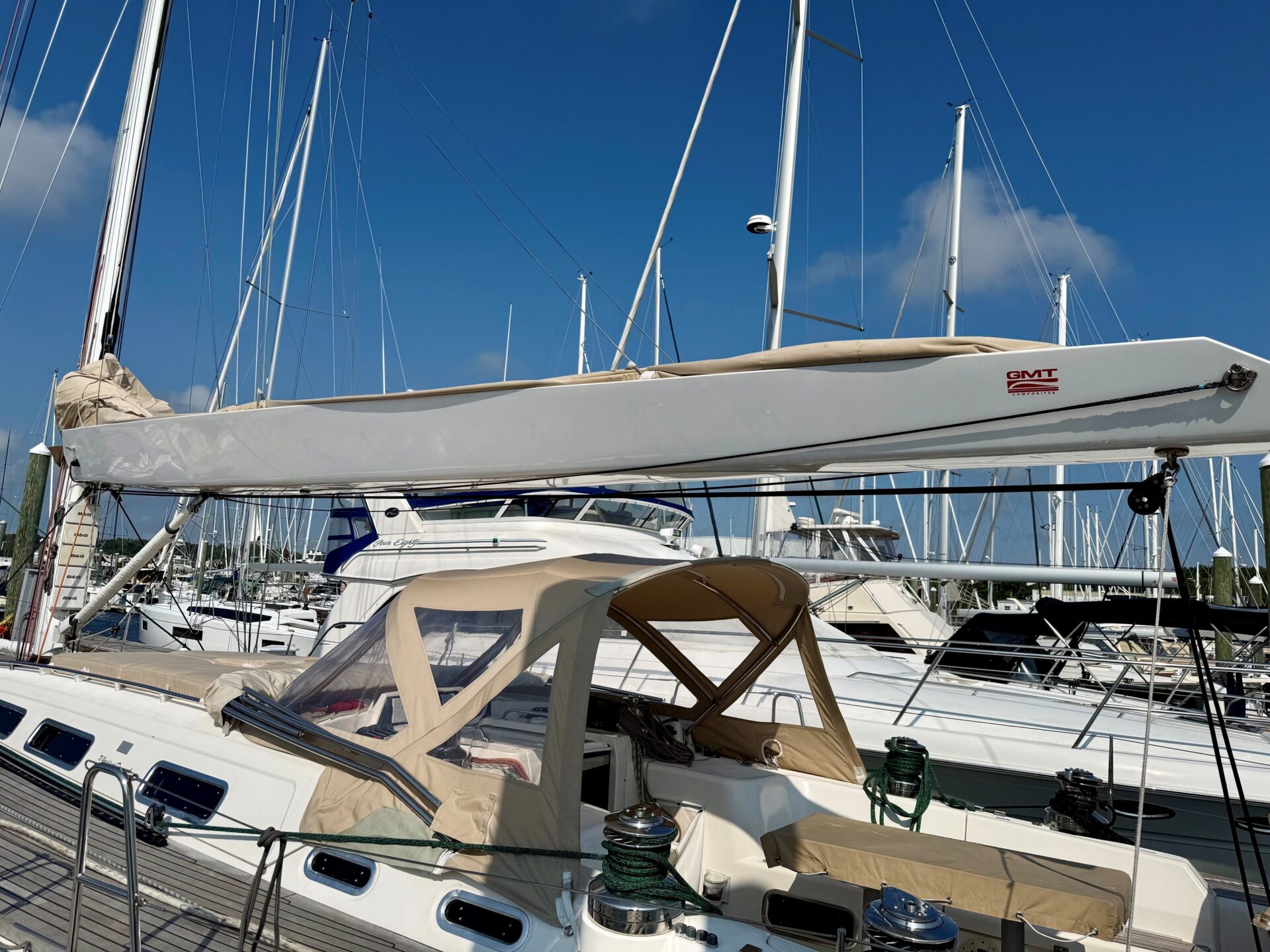

• New Custom carbon pocket boom GMT Composites with slab reefing and lazy jacks
• New Harken Mainsail track
• Replace 5 B&G 30/30 displays at mast
• Replace 4 B&G coach roof displays at companion way, so as to share data directly with (and be of the same generation as) Zeus3 system at helm and nav station
• All new Running Rigging, Sheets, Halyards, Reefs
• New Racing Sails by Doyle:
• New fully battened Stratus Mainsail with Harken cars for new mast track
• New 109% Stratus Jib
• New Laminated Code 0 headsail
• New custom Jacklines running from bow to stern and T shaped configuration on cockpit floor
• Inspect/repack or upgrade Life Raft, MOM and all safety equipment
• Starlink Internet System
• 2024
• Updated 2024 ORR Rating Certificate – incorporating new incline test
• New Cori folding Prop
• New racing upholstery covers for all interior cushions
• 2025
• New Doyle Stratus Jib – to replace exiting one damaged during Bermuda Race. This new sail remains in its bag unused. The existing jib was repaired and now functions as a delivery/cruising sail.
• New Cockpit Dodger
• 2026
• New Lewmar Windlass and windlass control pad
• Anchor chain replaced with 300’ of new gauge chain
• New Fisher Panda Genset to replace existing, which was original to the boat in 2007
