Brokerage

X-65

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X-65
  • Build Number: 6
  • Build Year: 2012
  • Lying: Lavrio, Greece
  • Price: €1,700,000 (VAT Paid)
  • Dealer: X-Yachts Australia
  • Contact: Kevin Wallis
  • Phone:
  • Email: kw@x-yachts.com.au
X-65

X-65 Icon X-Yacht

Katherine is a stunning example of an icon X-Yacht, There were only six of the X-65's built and she is probably the most optioned X-Yacht on the planet

No expense has been spared in her maintainance and continuous upgrades that have been done by her singe owner

Katherine is set up for short handed sailing allowing you to have one of the largest yachts with out the need for crew

Owner's Comments

We love Katherine - she is our third X-Yacht and ahe has taken us to all corners of the globe in a safe and comfortable way. we have set her up for short handed sailing and being our home away from home

Standard Specification

DesignerX-Yachts Design Team
Hull Length20.01 m65'8"
Waterline Length17.68 m58'0"
Beam (max)5.36 m17'7"
Draft3.00 m9'10"
Ballast - Std10,000 kg22,046 lbs
Displacement - Light27.5 tonnes30.3 tons
Engine Power110 kW150 hp
Fuel Tank - Std779 ltr206 gal (US)
Water Tank - Std913 ltr241 gal (US)

Standard X-65 brochure

Details

Exterior Details

Hull

  • Hull built in a female mould in vacuum laminated sandwich construction using epoxy resin and compressed structural foam
  • Hull white with three blue waterline stripes
  • Steel frame as part of the hull structure
  • Aft rib garage
  • Single point lifting
  • Electronic Ultra Sonic Antifouling system covering all surfaces including Gori prop and shaft

Deck

  • Deck built in female mould in vacuum sandwich construction using resin and compressed structural foam
  • Teak deck on sides, coach roof cockpit and transom door
  • Through deckgas locker for storage of gas bottles
  • Life raft storage in starboard aft cockpit floor locker

Sail Handling

  • Harken self tailing winches - all electric
  • Rod forestay with motorised Rekman unit

Sails

  • Full wardrobe of One Sails including Technora main, Staysail, Spinnakers and Code zero

Mast & Rigging

  • Tapered carbon mast, fractional 3 - spreader - painted white
  • Lopolight navigation lights
  • Furling boom by Furler boom driven by a Bamar 182 A high load electric motor
  • Discontinuous rod rigging throughout with rod turnbuckles
  • Dyneema halyards

Keel

  • Keel 2.75m - L shape

Hatches / Portlights / Ventilation / Sprayhood

  • Coach roof port lights( 16)
  • Hatch over GRP garage
  • Spring loaded wash board
  • Deck hatches
  • Sprayhood in integrated deck recess

Guard rail / Anchor / Stainless Steel Fittings

  • Anchor 40 kg delta with 100 m of 12 mm chroma s/s chain
  • Quick Dave 2500 w windlass
  • Nomen mooring cleats
  • Padeyes ( 8 ) in cockpit

Accommodation

Owners Cabin

  • Double berth to port side of cabin
  • Forward of berth is a small night table

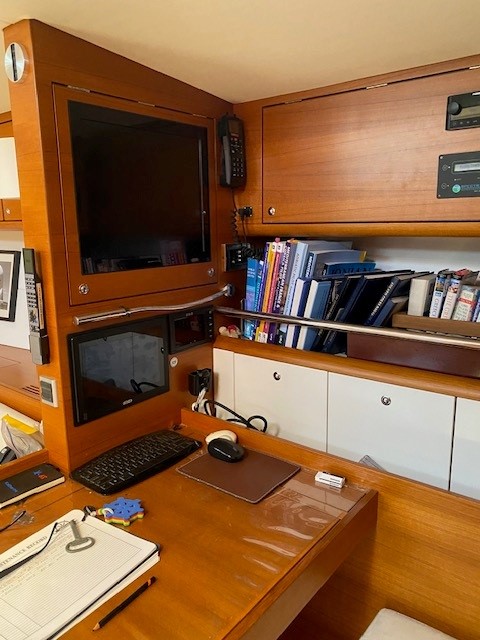

  • Large office deck and fold out seat
  • Ensuite forward of cabin with toilet, sink, and large shower compartment

Guest Cabins

  • Two aft guest cabins with wardrobes, night table and drawers
  • Ensuite for each cabin with toilet, sink and shower

Skippers Cabin

  • Aft of galley with bunk berths
  • Wardrobe
  • Ensuite with toilet and shower compartment

Systems

Engine

  • Large engine room with sound suppression and auto fire extingusher system
  • Volvo D3-150 hp 5 cylinder common rail diesel engine

Plumbing

  • True Design seacocks
  • SS water tanks - 900 litre capacity
  • Hot water 75 litres plus addition 75 litres for Owners Cabin

Electrical

  • 24 volt DC system
  • All LED lighting
  • Masterview bus system with CZone
  • Mastervolt li-Ion 24/160 Ah batteries (5)

Electronics

  • All electronics upgraded in 2015 and additional upgrades on 2022
  • B & G Zues instruments throughout
  • Bang & Olfsen sound system
  • Fusion Apollo hideaway audio system
  • Remote monitoring of all systems

Thrusters

  • Bow and stern thruster

Additional Information

  • There are so many options and additions to this beautiful yacht - for more information please contact Kevin for a full inventory and photo gallery
  • M +61 414 258666
  • W kw@x-yachts.com.au
