Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X4⁰
  • Build Number: 40739
  • Build Year: 2021
  • Lying: Mystic, CT, United States
  • Price: Sold
  • Dealer: X-Yachts USA
  • Contact: Robert Rodgers
  • Phone: 8606253898
  • Email:


Pocket Luxury

The all new X4⁰ will be the smallest model in the pure X range; blending quality, performance and styling with cruising capability.

Hot out of the X-Yachts Design Office comes the X4⁰, a forty-foot performance cruising yacht that is just as capable for some serious mileage as it is blasting around the cans at the weekend. The new baby X-Yacht joins the hugely successful and critically acclaimed pure X range.

The design philosophy was very clear from the outset - like all our yachts, we place a huge emphasis on giving the owner a superb and comfortable sailing experience, on a yacht that is easy to handle by all the crew.

The X4⁰ was launched in summer 2020. What a way to celebrate X-Yachts’ 40th Anniversary!

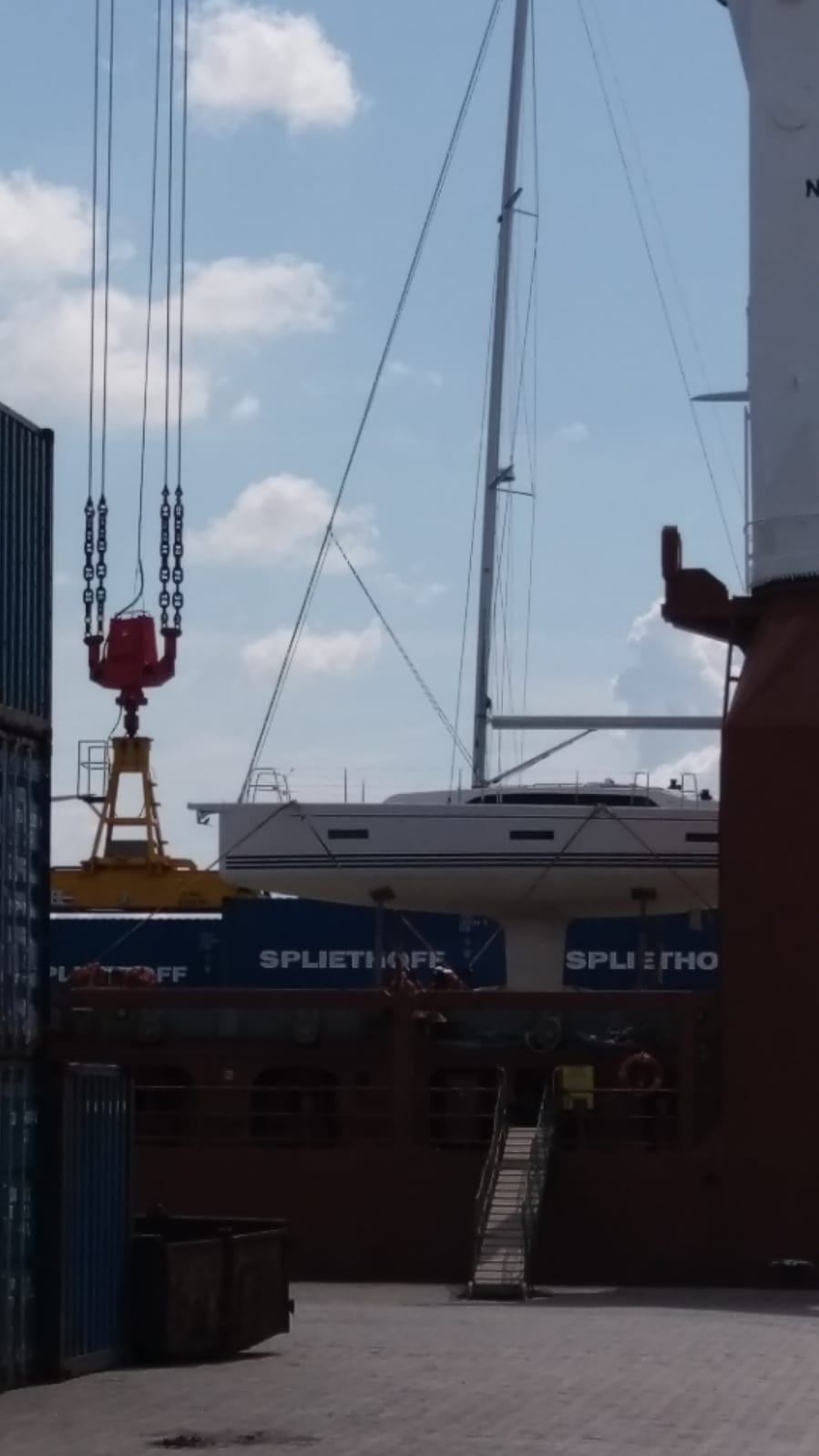

This is a boat we imported for use in the fall boat shows and is now available for sale.  It is the only X-4.0 that will be available for the summer of 2022.

Standard Specification

DesignerX-Yachts Design Team
Hull Length11.50 m37'9"
Waterline Length10.40 m34'1"
Beam (max)3.81 m12'6"
Draft2.10 m6'11"
Ballast - Std3,050 kg6,724 lbs
Displacement - Light8,100 kg17,857 lbs

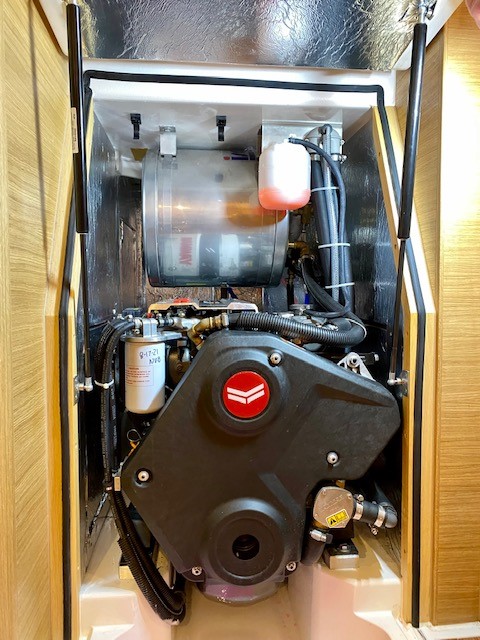

Engine Power29 kW40 hp
Fuel Tank - Std180 ltr48 gal (US)
Water Tank - Std245 ltr65 gal (US)

Standard X4⁰ brochure


Exterior Details


  • Light, strong and stiff
  • With the introduction of the X-65 in 2007, X-Yachts started to infuse hulls for performance yachts utilizing epoxy resin. Epoxy infusion construction offers fantastic control over the laminate allowing it to be optimized to maximize strength and stiffness, whilst saving weight.
  • In the X4⁰ all weight saved is used to increase the yacht’s stability enabling the crew to have a more relaxed time and to feel safer and more comfortable. The fact, that the hull is cured, baked at high temperatures for almost 24 hours, not only optimizes the hull material properties but also minimizes the risk of the darker colored hull surfaces to suddenly start posturing, losing the surface finish.
  • With over 10 years of experience building epoxy infused yachts, X-Yachts took the decision in 2018 to build all models using this technology, one of the only yacht builders to do so.
  • At the heart of the X4⁰ is the galvanized steel keel grillage structure. Pioneered by X-Yachts back in 1981, the galvanized steel hull girder offers superb reassurance and safety. Its primary role is to spread keel and mast loads into the hull and it also enables the yacht to withstand extreme shock loads from grounding or an impact with a submersed object.
  • Not only is the keel structure immensely strong, it is also reliable and very easy to inspect for potential damage.
  • Bolted to the steel grillage is the keel with iron fin and heavy lead bulb with moderate draft. There is both a shallow and a deep draft option available.


  • The standard deck layout comes with: 4 winches, two halyards, self-tacker sheet and control line winches next to the entrance, and two main sheet winches aft of the cockpit’s backrest coamings within reach of the helmsman. The deck has an integrated recessed self-tacker track for an 88% jib.
  • There is an option for coach roof top longitudinal Genoa tracks and two dedicated Genoa sheet winches on top of the cockpit backrest coamings, enabling the Genoa size to go up to 106% for improved light wind performance.

Sail Handling

  • The X4⁰ can sail fast and point high to the wind thanks to its powerful lines, precision moulded composite T keel with a heavy bulb of lead giving a high degree of stability.

Additional Information

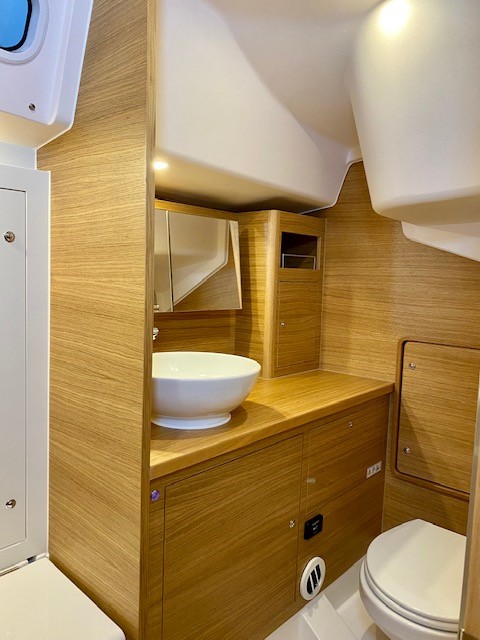

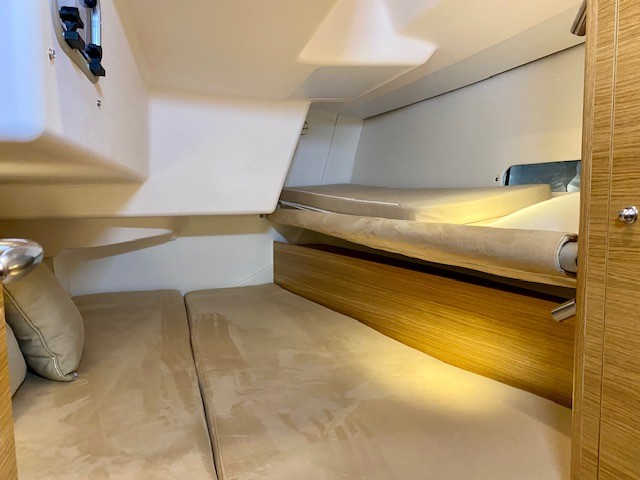

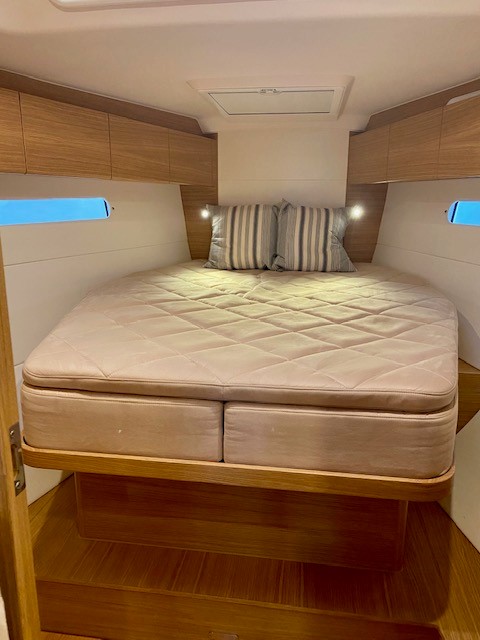

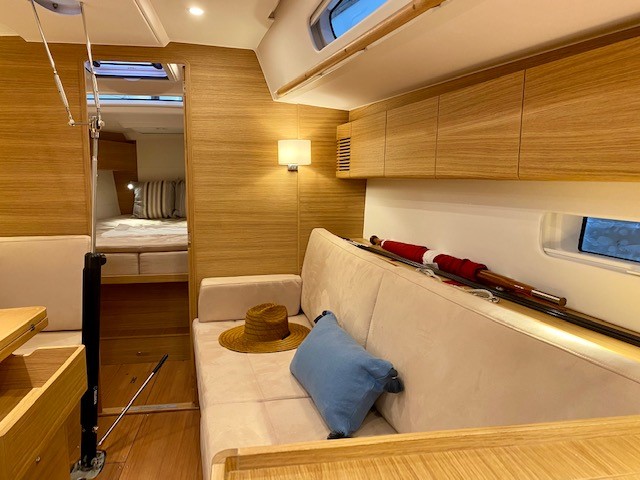

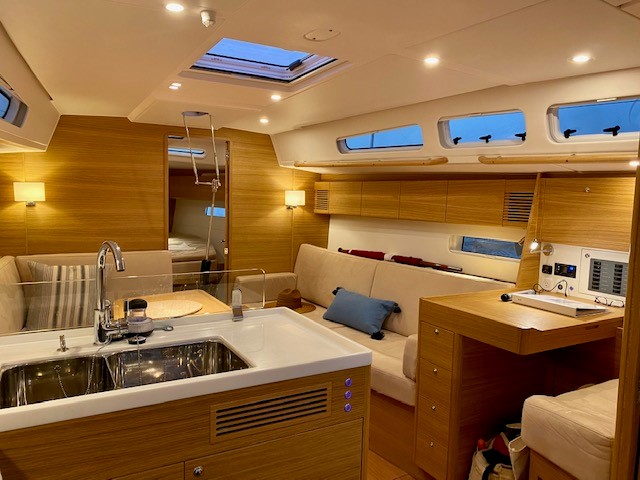

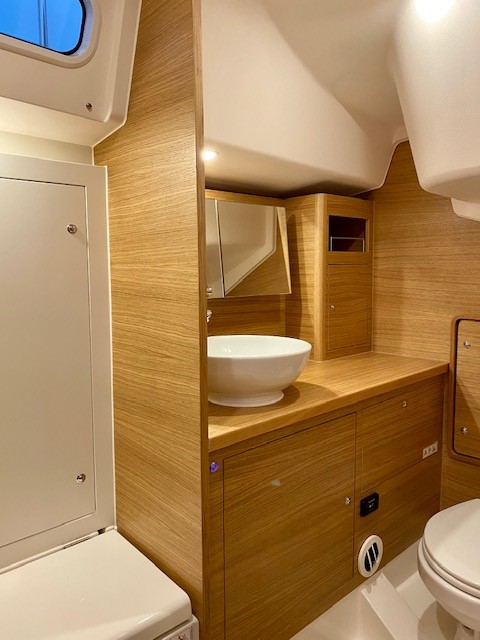

  • 2 Cabin, 1 Head Layout

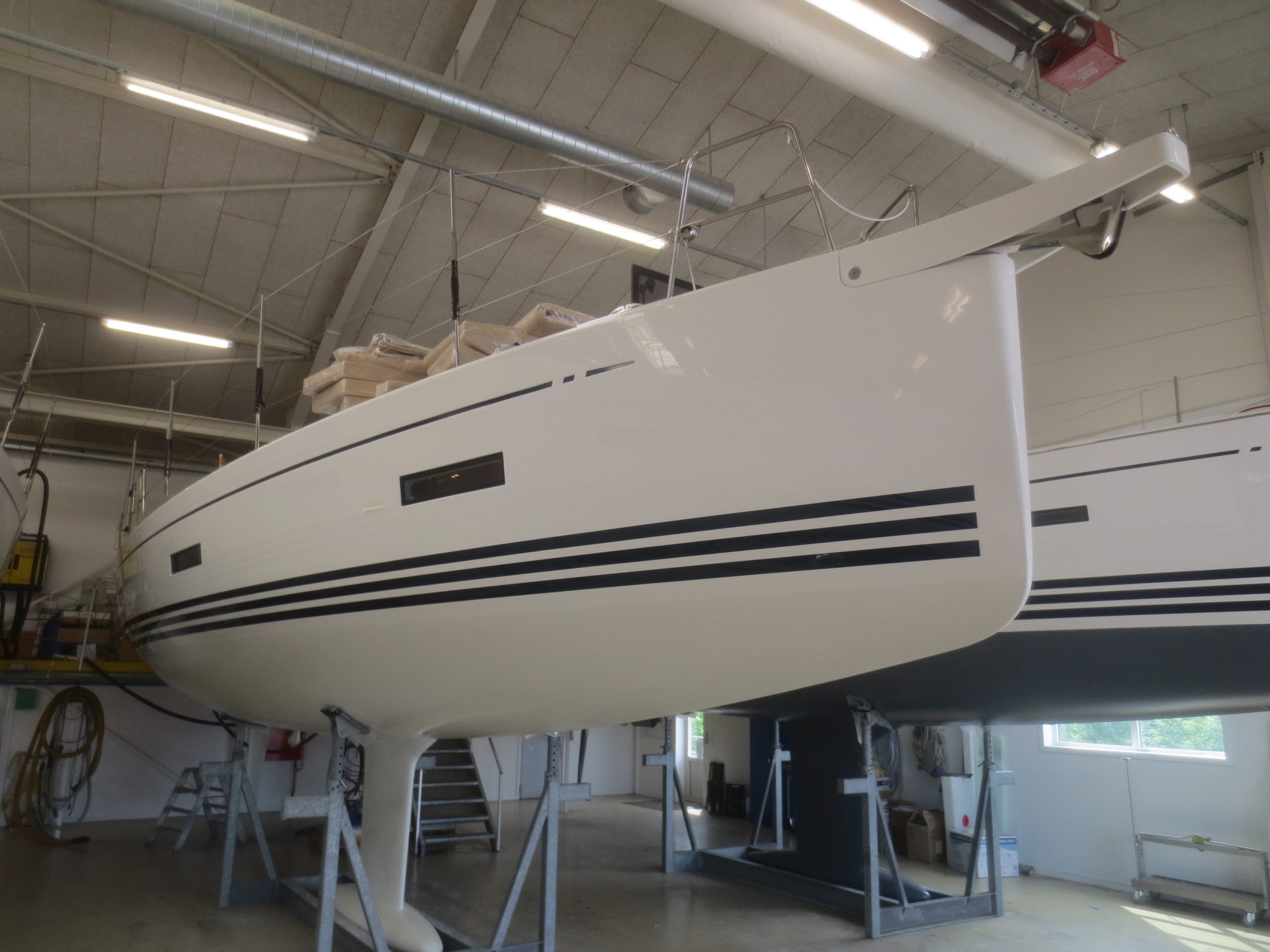

  • White Hull with Dark Blue Stripes
  • Swim Platform with Teak
  • Removeable Teak Cockpit Table, Varnished
  • Teak on Side Decks
  • Tan Cockpit Cushions
  • Harken Performa 46.2 Jib Winches on Coaming
  • Jib Sheet Tracks on House Top
  • Equipped for Asymmetric Spinnaker
  • Tan Dodger
  • Full Width Bimini for Helmsman
  • Bruce Anchor with 100' Galvanized Chain Rode
  • Boarding Gates, Port & Starboard
  • Quick Electric Anchor Windlass
  • 6 Nomen Folding Cleats on Rail
  • Carbon Fiber Sprit for Asym, Painted White
  • Harken Electric Halyard Winch
  • Rod Rigging with Tip cups & Racing Rod Turnbuckles for V1's & D1's
  • Harken Hydraulic Backstay Adjuster
  • Recessed Furlex Roller Furling for Jib
  • Folding Mast Steps
  • Lazy Jack System for Mainsail
  • LED Running Lights; TriColor Masthead, Anchor Light
  • Dyneema Halyards
  • Additional Spinnaker Halyard
  • Composit Steering Wheels by Carbonautica
  • Custom Pedestal Mounts for Instruments
  • Emergency Bilge Pump inside Cabin in addition to Cockpit
  • Espar Heating System
  • Victron charger / Inverter
  • Raymarine Instruments: 2 Chart Plotters, Radar, Autopilot, Full Sailing Instrumemts, VHF below and cockpit, AIS transceiver and receiver
  • Fusion Multi Media Center; Speakers below and in cockpit
  • Preparation for TV; Wiring and masthead antenna
  • North Sails 3Di Mainsail and Jib
