Brokerage - Demo Boat

X4⁶

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X4⁶
  • Build Number: 14
  • Build Year: 2019
  • Lying: Marina Muiderzand, Netherlands
  • Price: Price on application.
  • Dealer: X-Yachts Holland
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email: info@x-yachts.nl
X4⁶

Demo Boat

Contact X-Yachts Holland

To discuss your requirements call X-Yachts Holland on +31 (0)36 536 9057 or complete the form below.

This is the opportunity to sail a truly immaculate brand new X4.6 this season.

Standard Specification

DesignerX-Yachts Design Team
Hull Length13.50 m44'3"
Waterline Length12.33 m40'5"
Beam (max)4.27 m14'0"
Draft2.30 m7'7"
Ballast - Std4,500 kg9,921 lbs
Displacement - Light10,900 kg24,030 lbs
Engine Power42 kW57 hp
Fuel Tank - Std280 ltr74 gal (US)
Water Tank - Std360 ltr95 gal (US)

Standard X4⁶ brochure

Details

Exterior Details

Hull

  • White hull with light grey stripes
  • Bottom treatment (3x epoxy / 2x antifouling) in grey Hempel Hard Racing

Deck

  • Electrical transom platform with teak decking

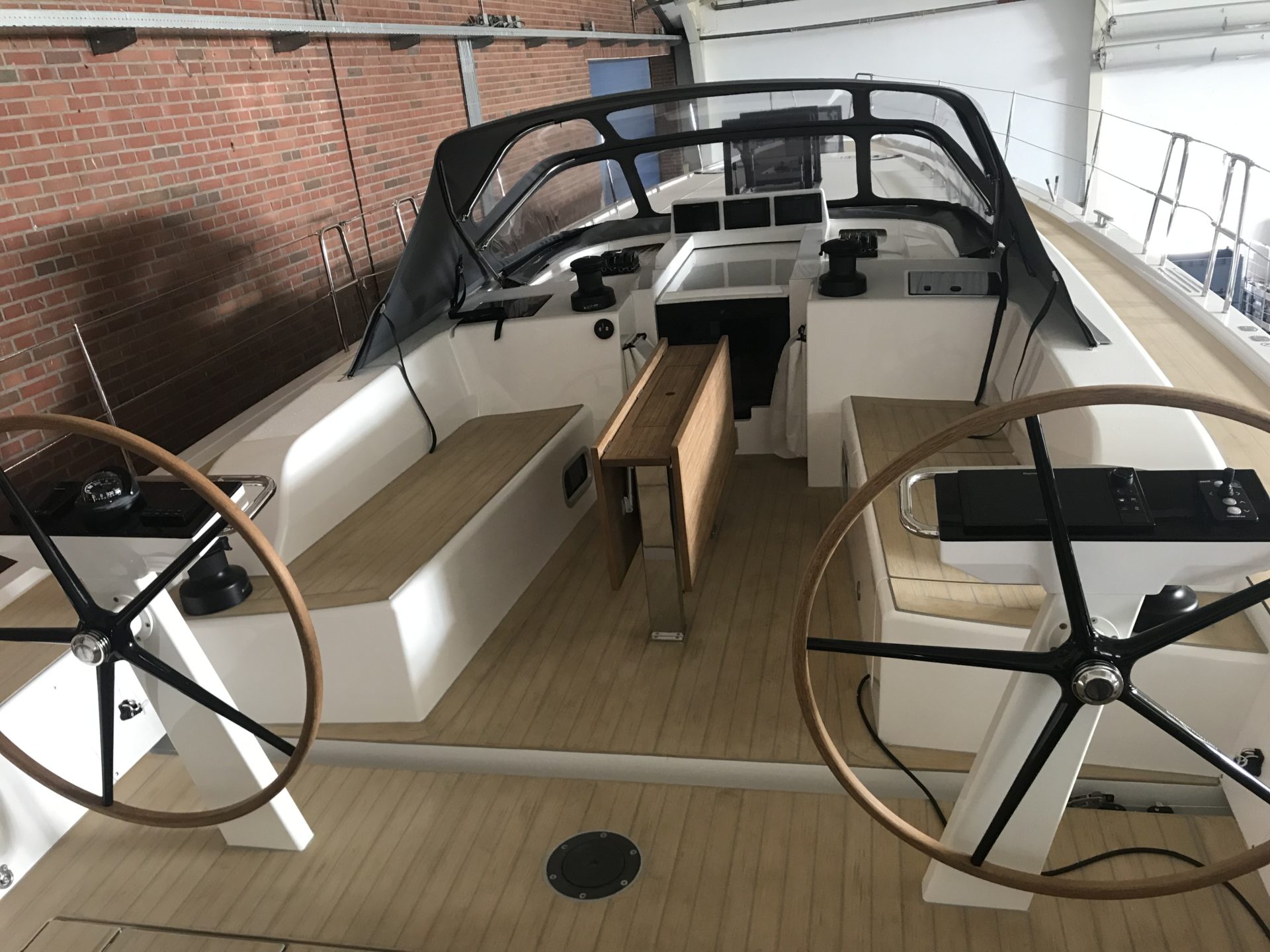

  • X-Yachts 40 year anniversary steering wheels: teak rim on black composite spokes
  • Flexiteek in cockpit (scrubbed with grey caulking)
  • Flexiteek on transom platform (scrubbed with grey caulking)
  • Flexiteek on side decks (scrubbed with grey caulking)
  • Cockpit table in teak with GRP center box (removable)
  • Electrical halyard winch on port side (Harken Performa 46.2 STE)
  • Larger sized mainsheet winches (Harken Performa 50.2 ST)
  • Sailhandling pack for gennaker
  • Sprayhood with 3-piece stainless steel frame
  • Gates in lifelines midships
  • Additional mooring cleats midships
  • Carbonfiber bowsprit
  • 4x additional Wichard pad-eye

Sails

  • Elvstrom Sails:
  • In-boom furling mainsail in EPEX technora with cool grey taffeta finish
  • Self-tacking jib 'fatfurl' in EPEX technora with cool grey taffeta finish and UV-cover
  • Cover for Furlerboom
  • Cover for furling genoa
  • Covers for steering wheels and cockpit table
  • Cockpit cushions

Mast & Rigging

  • Furlerboom V-shape in-boom furling system, with stronger vang and including boom lift halyard
  • LED light mounted in end of boom
  • Upgrade to electrical Furlex system for genoa
  • Combined 3-colour/anchor light (LED)
  • VHF antenna in top of mast with Aircell 7 cable

Accommodation

Interior

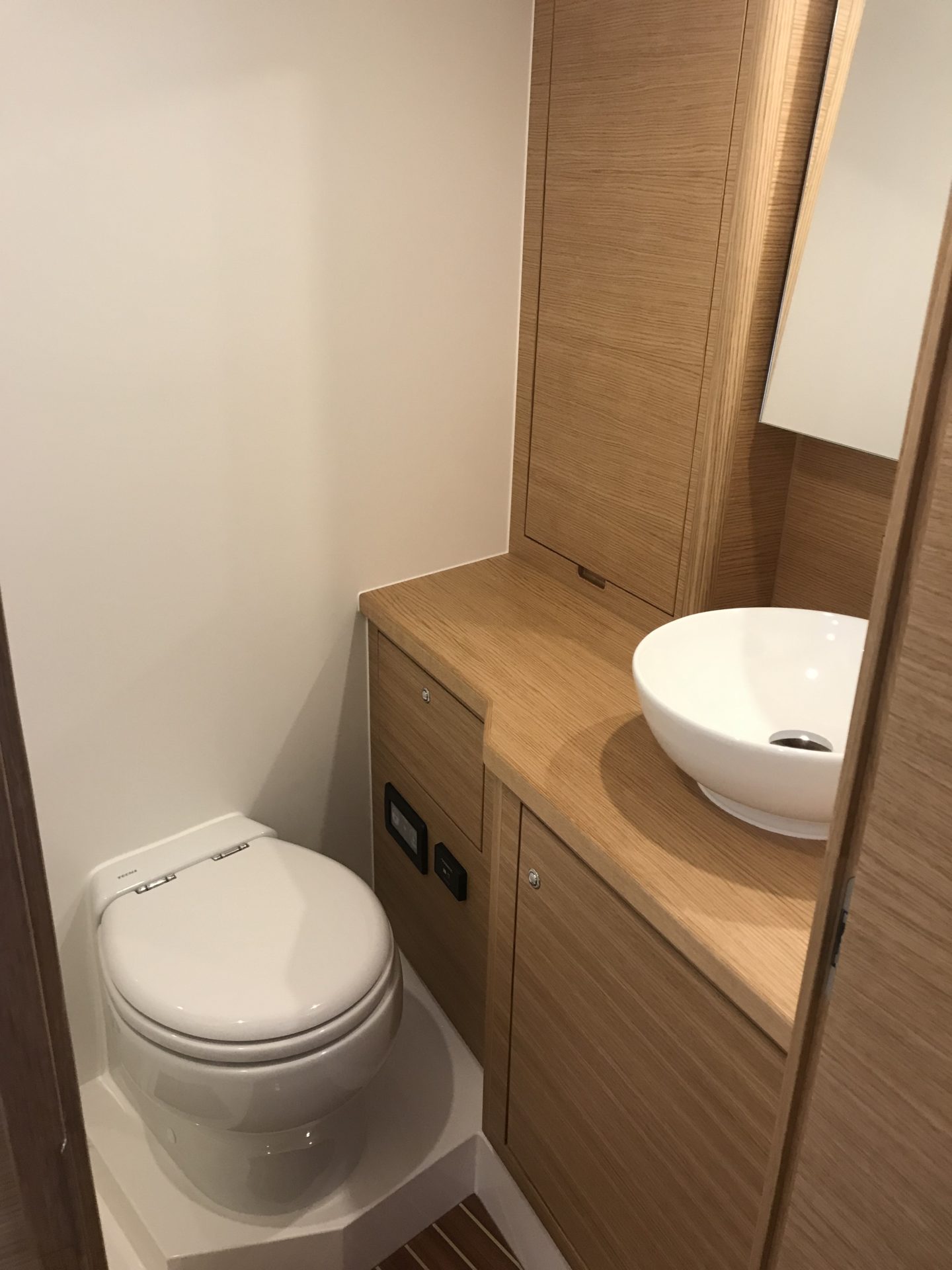

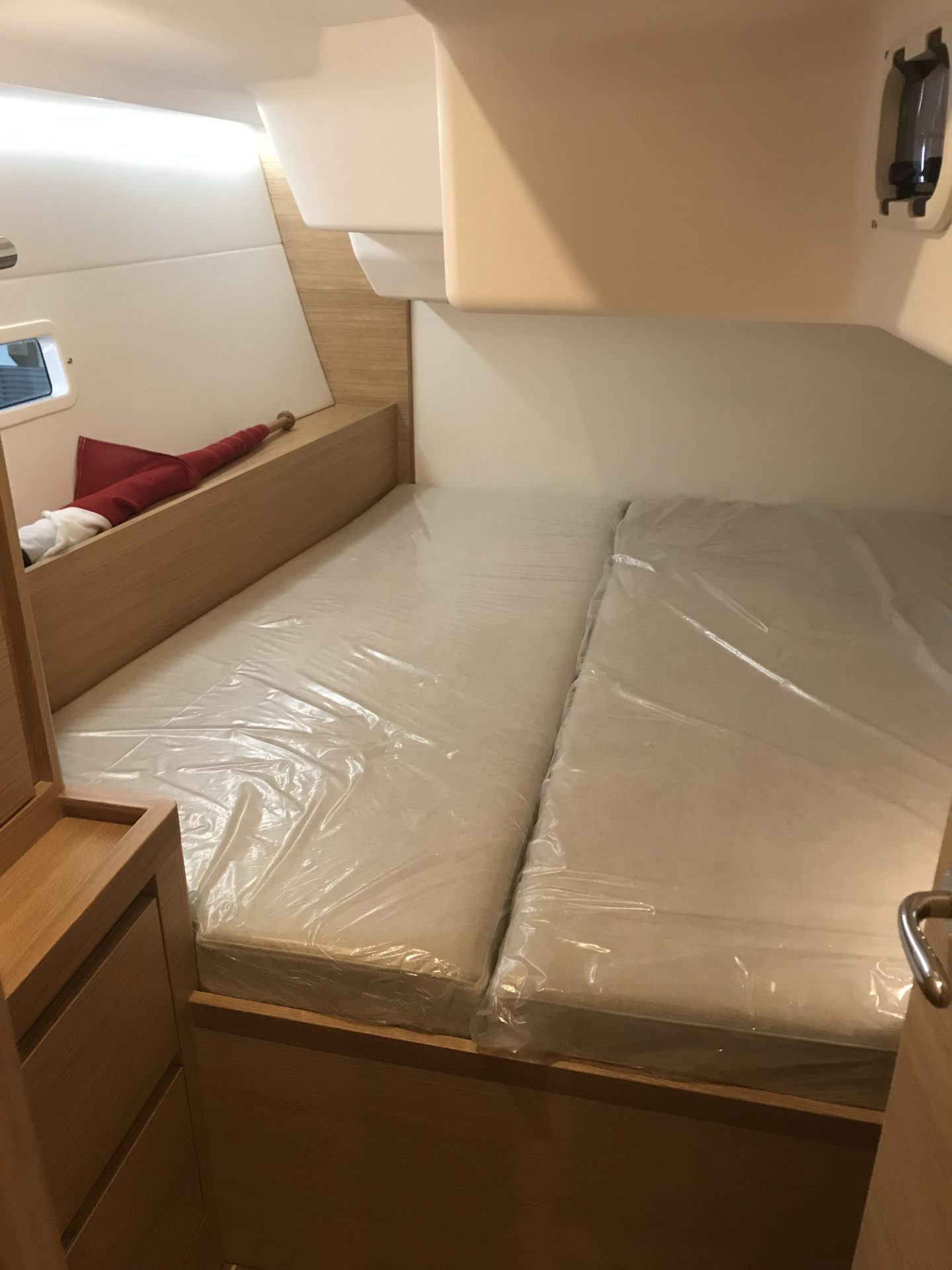

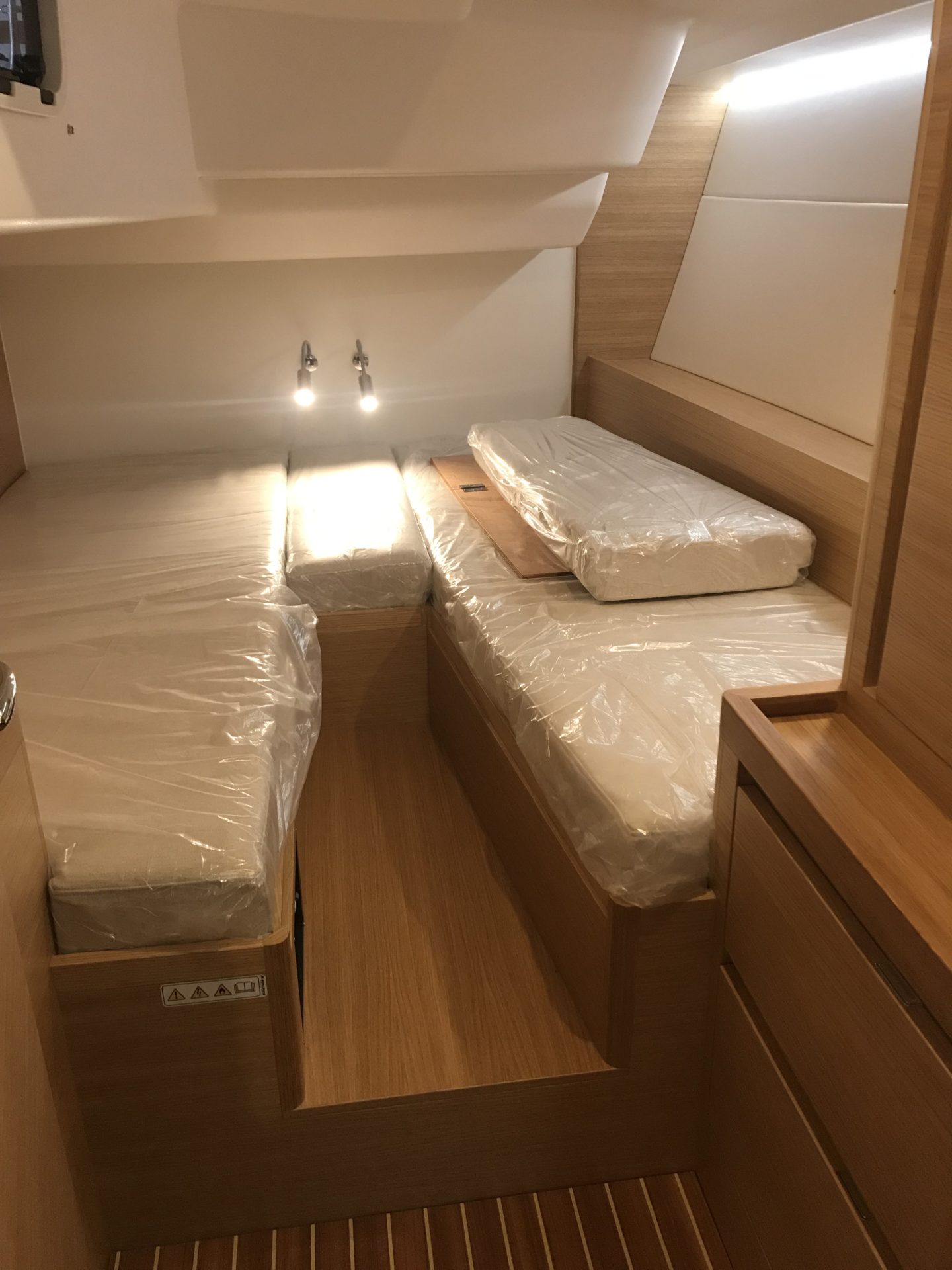

  • 3 cabins, 2 toilets, port aft cabin with split berth
  • Nordic Oak interior with teak laminate with Koto stripes floorboards
  • Preparation for heating system
  • Additional package of indirect LED lighting

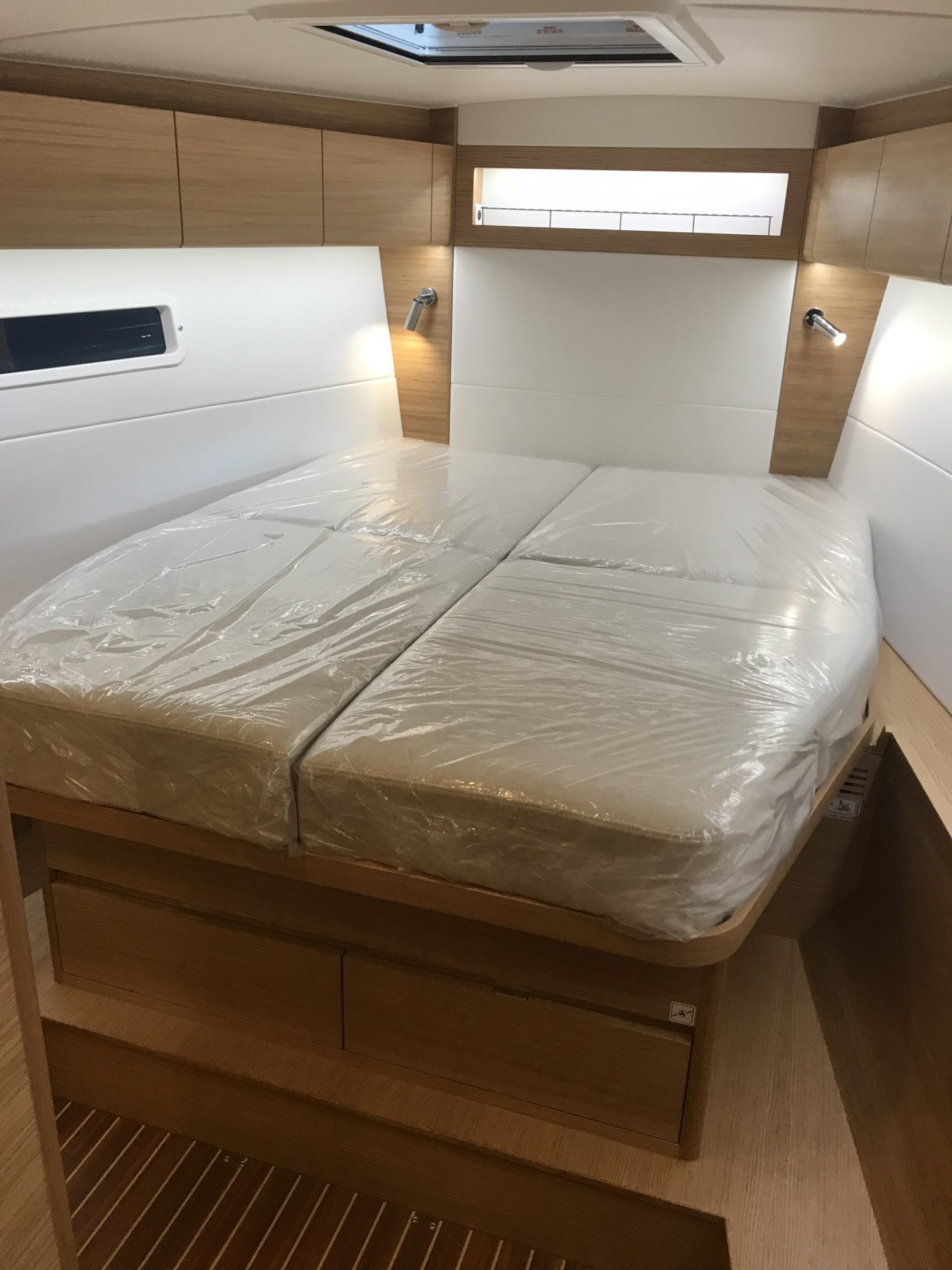

  • Forward cabin: Upgrade to spring matrasses and cupboards along freeboard
  • Dining table with bottle box storage space
  • Cupboards along the freeboard
  • Handrails along the freeboard in laminated wood

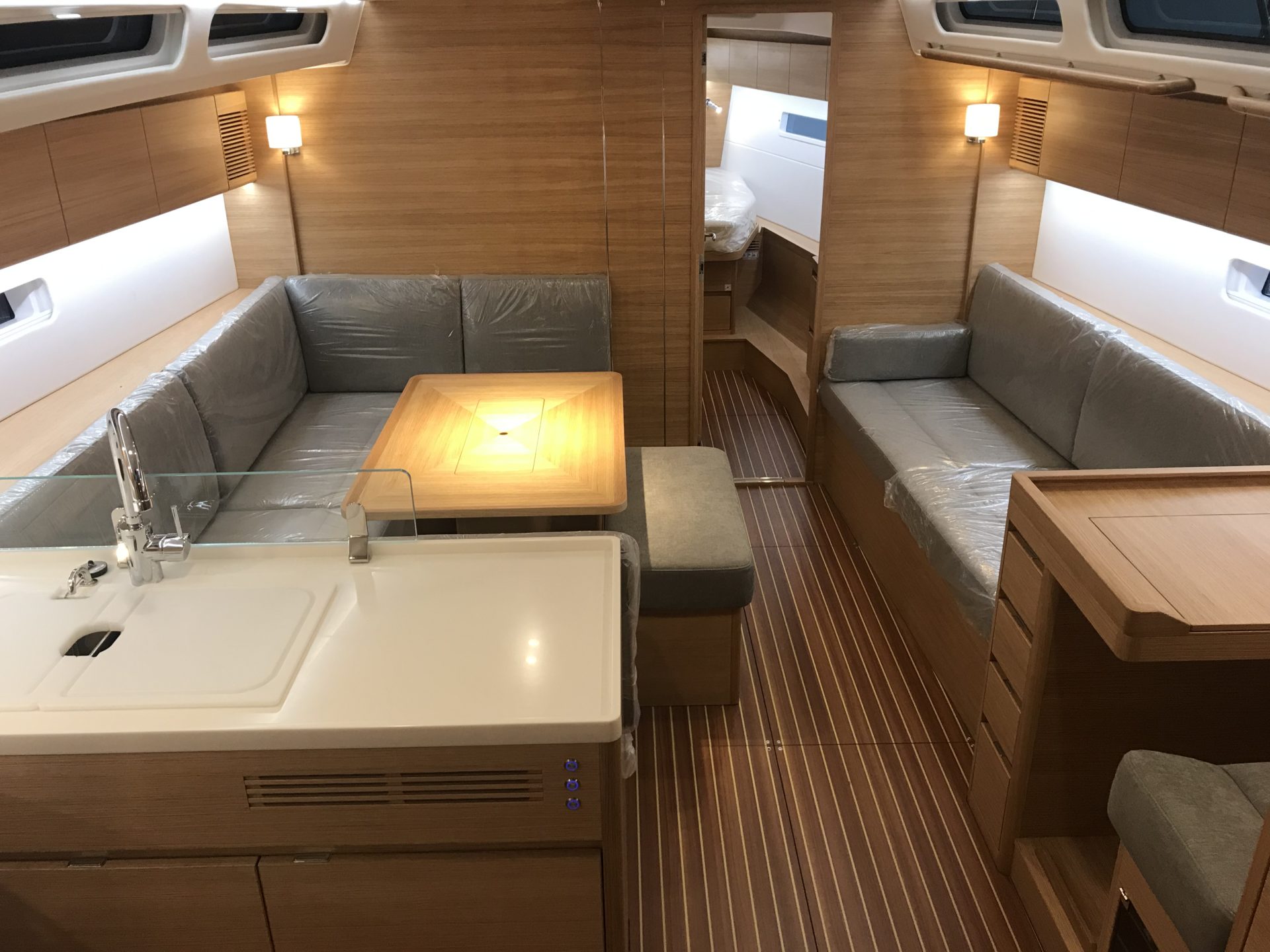

  • Additional backrest cushions for transverse part of the U-sofa
  • Double pouffe midships
  • OceanAir package for hatches and windows in saloon- soft vinyl panelling around side windows, with Skysol blinds- Skysol blinds for hull windows- combined blind/mosquito net for hatch

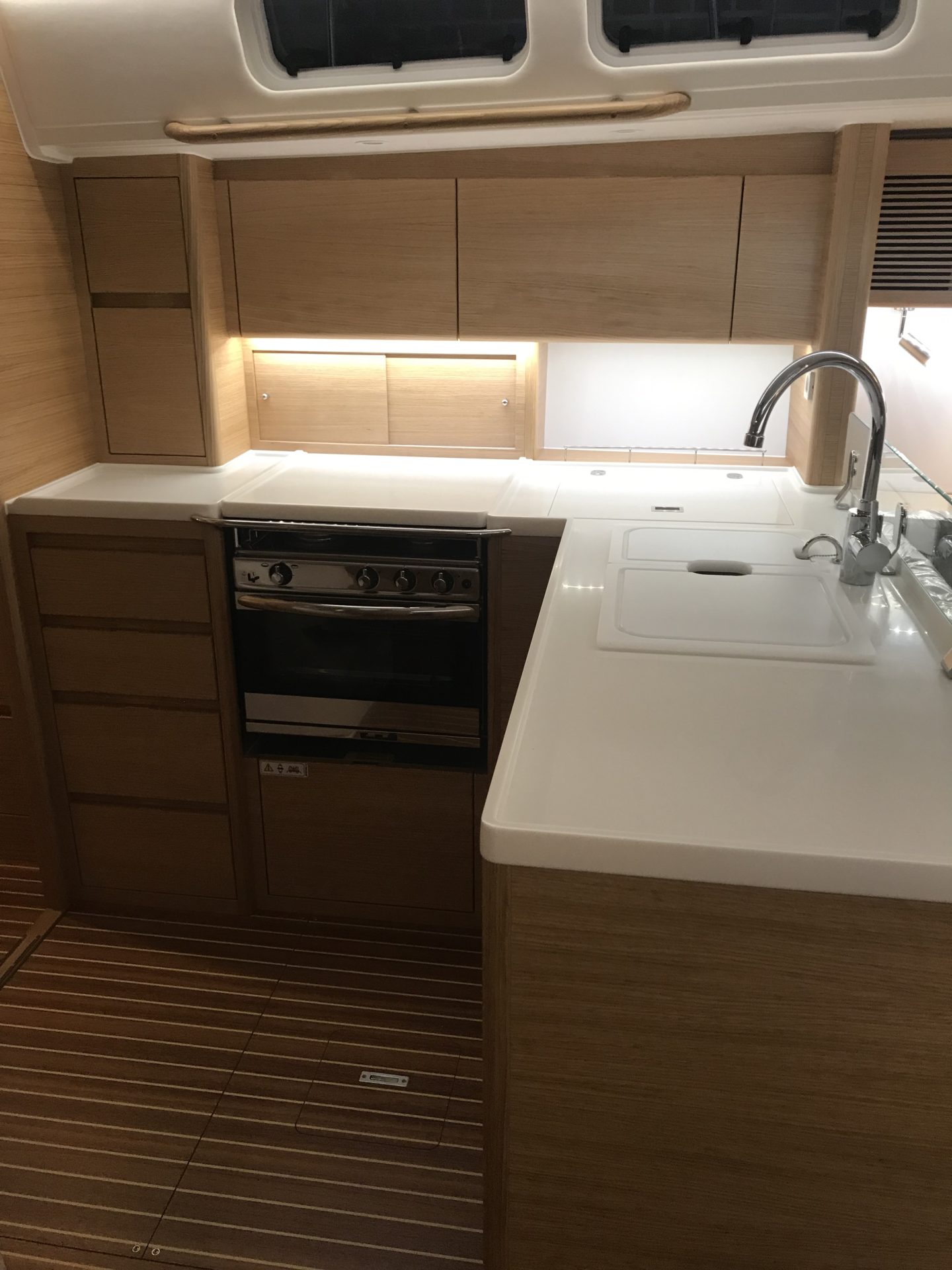

  • ENO 3 burner stove/oven
  • 90 litre top loaded cool box
  • Additional corian top plate (above gas stove)
  • Additional front-loading refrigerator (Frigoboat 80l)

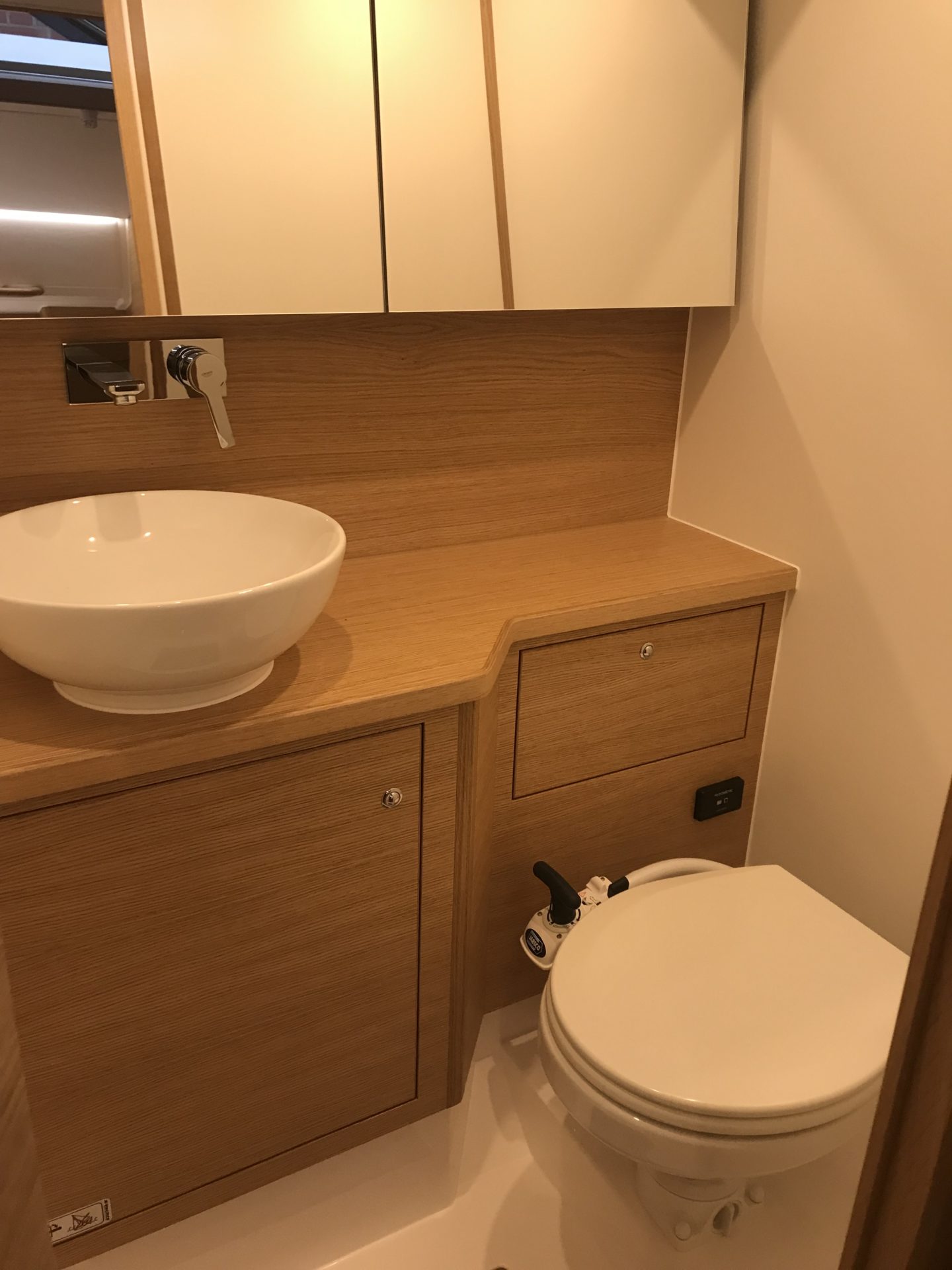

  • Electrical Tecma toilet in forward heads

Systems

Engine

  • Yanmar 4JH57, 4-cylinder, direct injection common rail, diesel engine. Maximum power output is 42kW (57 hp) at 3000 rpm.
  • Upprice for 3-blade folding propellor

Electrical

  • 12V DC system throughout the yacht
  • 12V DC system for main engine installation
  • 12V 260 Ah AGM batteries (2x130 Ah) are mounted close to centre line under the floorboards
  • 1 x 12V 70 Ah AGM battery for engine start is mounted under the entrance floorboards
  • 1 x 12V/125A alternator to charge battery banks when engine is running
  • 12V/50A battery charger is fitted to charge the batteries
  • Combi 12V/2000W-70A (charger/inverter)
  • X-Yachts main switch board with automatic (resettable) fuses
  • Digital touch panel with voltage and tank monitoring as standard
  • Battery monitoring on digital touch panel
  • Battery bank upgraded with additional battery (total 390 Ah)
  • Sockets package: 230V sockets, USB sockets and 12v socket
  • Galvanic isolator

Electronics

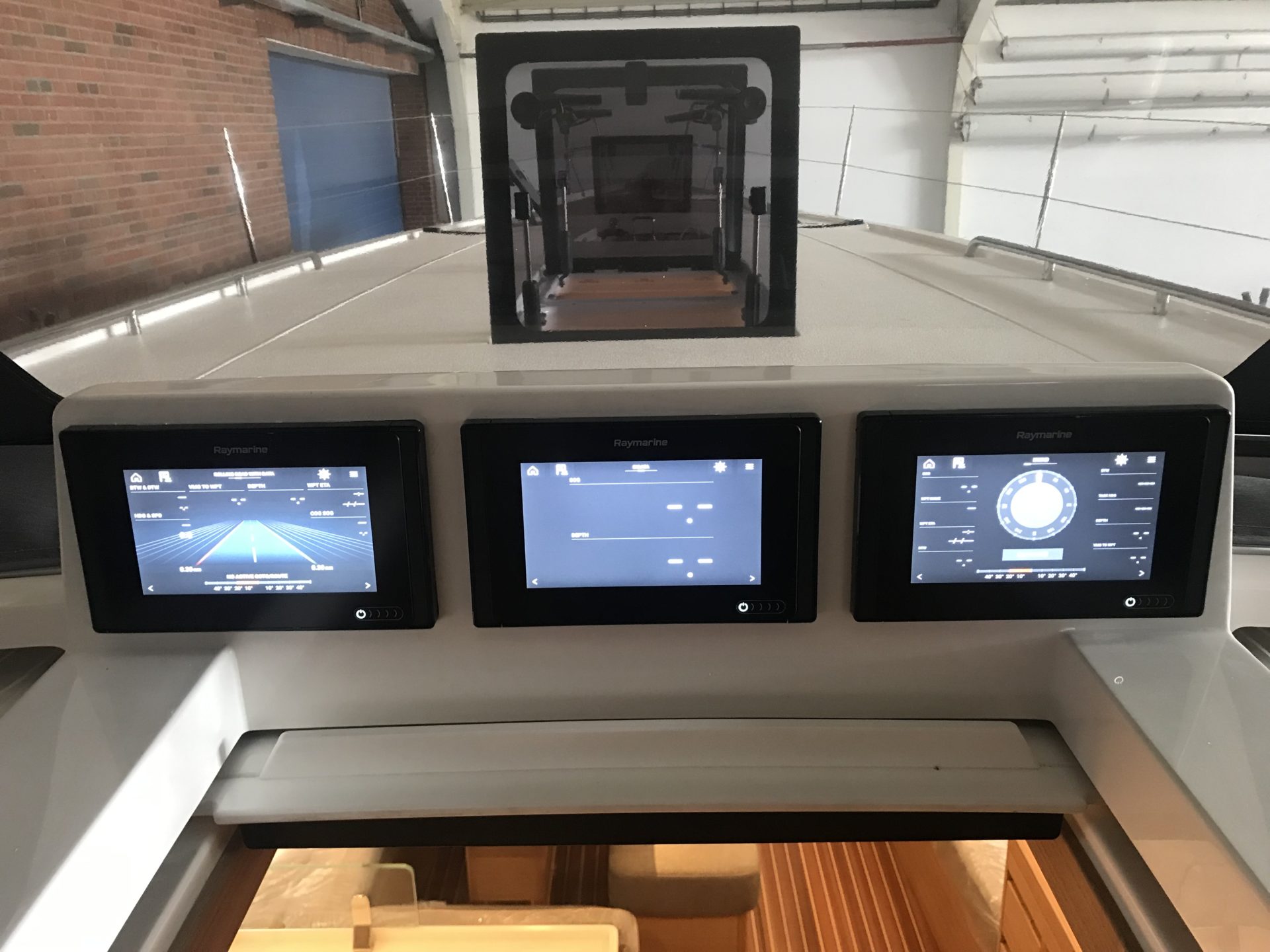

  • Raymarine Axiom package: 2x Axiom touchscreen above entrance - transducers for speed, depth and wind- 1x i70s graphic colour display- Raynet Network Switch
  • Third Raymarine Axiom display above entrance
  • Raymarine autopilot:- EV-400 computer- drive directly mounted on rudder quadrant- electronic compass- 1x p70s control display
  • Raymarine Axiom PRO 9" plotter in SB side console
  • Raymarine Ray90 VHF
  • Raymarine AIS700 transceiver
  • 2x medium console at steering wheels (for plotter and other instruments)
  • Ritchie magnetic compass in port side console

Thrusters

  • Retractable bowthruster (MaxPower Compact Retraft) with dedicated battery bank
