Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X4⁶
  • Build Number: 40
  • Build Year: 2022
  • Lying: Almere, Netherlands
  • Price: Sold
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email:



To discuss your requirements call on +31 (0)36 536 9057 or complete the form below.

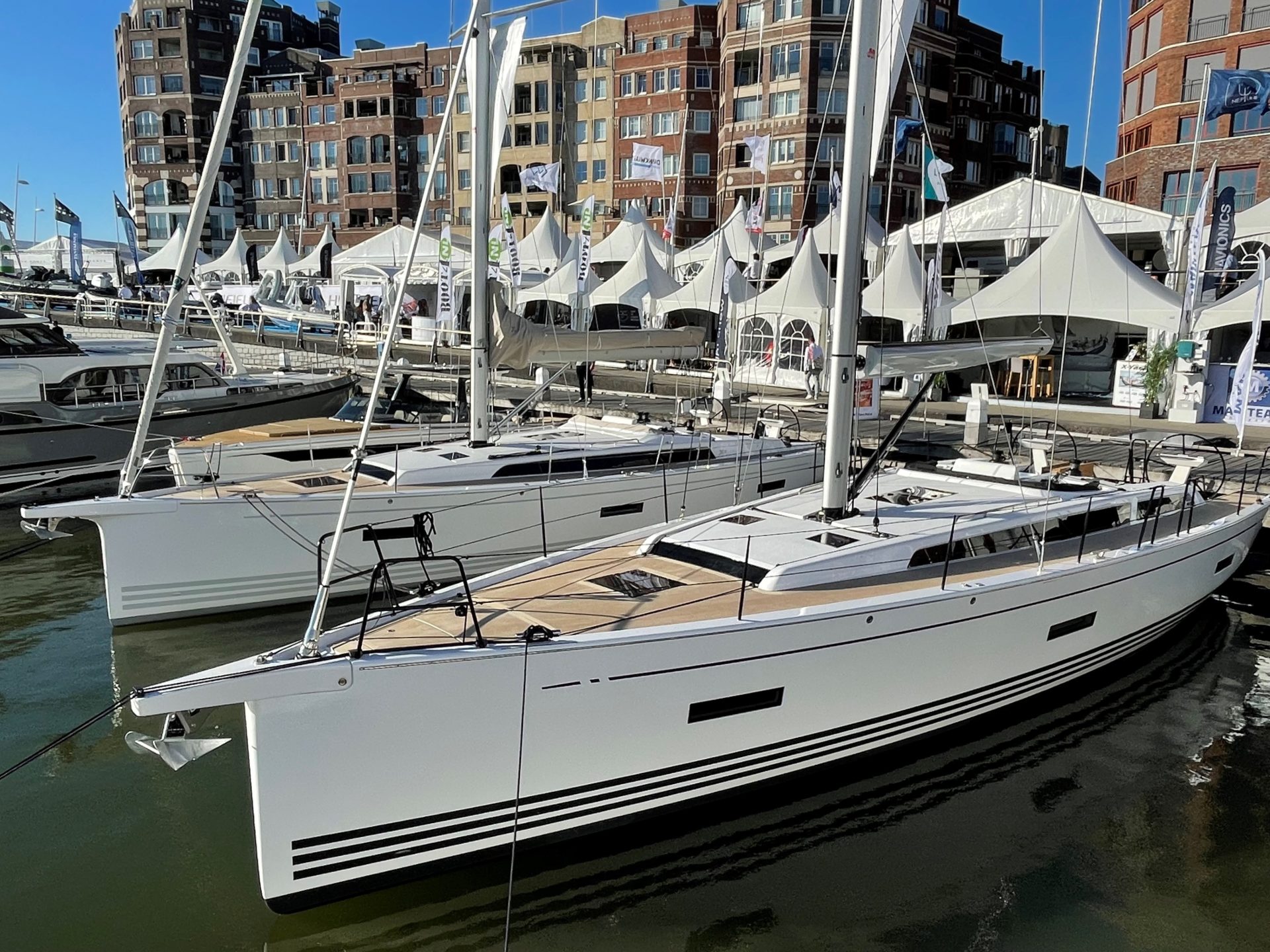

Brand new demonstrator X4.6 for the Dutch market, only displayed at Hiswa Boatshow 2022 and not sailed at all. Specified with detail and directly available for those who desire a new yacht but do not wish to delay plans because of the current long delivery/build times.

Discounted to a price of € 695.000,-- ex VAT. Compared to the new value of € 777.000,-- ex VAT this is an opportunity not to miss.

Standard Specification

DesignerX-Yachts Design Team
Hull Length13.50 m44'3"
Waterline Length12.33 m40'5"
Beam (max)4.27 m14'0"
Draft2.30 m7'7"
Ballast - Std4,500 kg9,921 lbs
Displacement - Light10,900 kg24,030 lbs
Engine Power42 kW57 hp
Fuel Tank - Std280 ltr74 gal (US)
Water Tank - Std360 ltr95 gal (US)

Standard X4⁶ brochure


Exterior Details


  • Waterlines in black grey gelcoat (RAL 7021)
  • Bottom treatment (3x epoxy / 2x antifouling), finished with Hempel Hard Racing in black
  • Stainless steel chafing strip along length of hull
  • Transom door (electrically operated) with Flexiteek decking
  • Carbonfiber bowsprit (in colour of hull)


  • Flexiteek on side decks and in cockpit (colour 'bleached' with grey caulking)
  • Cockpit table (foldable teak leafs with GRP storage box) on stainless steel frame, removable
  • Cockpit cushions in dark grey (seating and backrest)
  • Composite black steering wheels
  • Consoles for instruments and plotters, 1 mounted at each steering wheel pedestal
  • Sprayhood on 3-piece stainless steel frame, foldable into recess
  • Upgrade to 50m anchor chain
  • Gates in lifelines midships
  • Mooring cleats midships

Sail Handling

  • Port halyard winch upgraded to Harken Performa 50.2 electrical
  • SB halyard winch upgraded to Harken Performa 50.2 manual
  • Port mainsheet winch upgraded to Harken Performa 50.2 electrical
  • SB mainsheet winch upgraded to Harken Performa 50.2 manual
  • Additional stainless steel control buttons for electrical winches (6 buttons mounted in total on pedestals at steering wheels)
  • Deck package for gennaker (sheets, pad-eyes and blocks, including tackline with stopper)


  • In-boom furling mainsail in EPEX technora with double taffeta finish
  • Self-tacking jib in EPEX technora with double taffeta finish, including UV-cover
  • Cableless code sail with EPEX luff, flown on Profurl NEX2.5 furler

Mast & Rigging

  • Furlerboom V-shape in-boom furling system, with LED light above cockpit
  • Combined 3-colour/anchor light (LED) in top of mast
  • Combined steaming/deck light (LED)
  • VHF antenna in top of mast, with Aircell 7 cable



  • 3 cabin, 2 toilets, port aft cabin with split berth
  • Floorboards in teak laminate with Koto stripes
  • Package of indirect LED strip lighting throughout interior

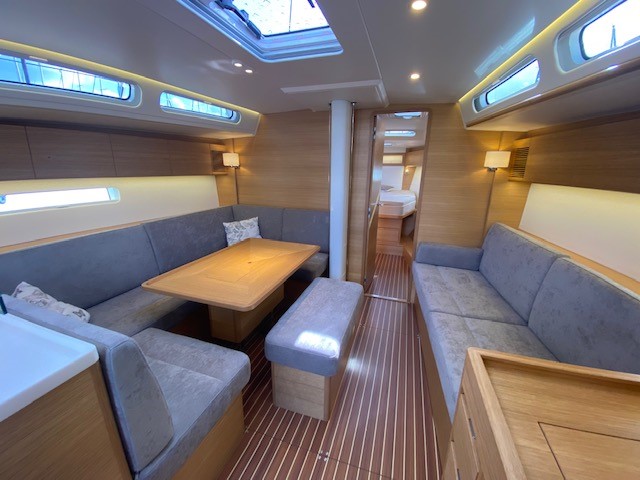

  • Saloon table with integrated bottle storage
  • Pouffe midships for additional seating area and storage
  • Lower cabinet sections of galley in wood veneer (i.o. standard white painted)
  • Hatch in floorboard in galley to access below storage space
  • Additional 80l front-loading refrigerator
  • Additional cupboards along freeboard in forward cabin
  • Spring matrasses in forward cabin

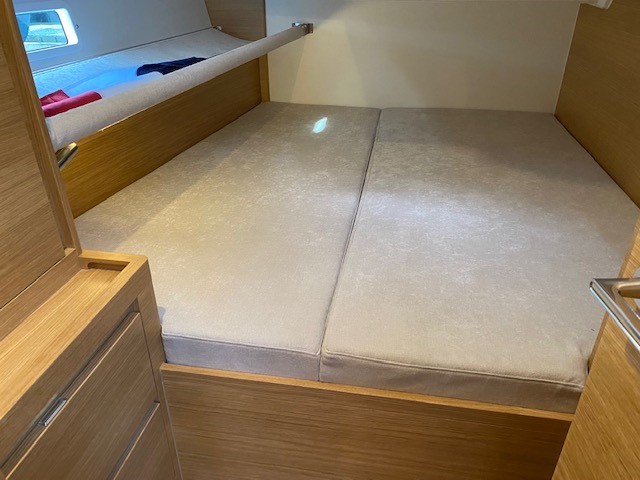

  • Seaberth along hull freeboard in SB aft cabin

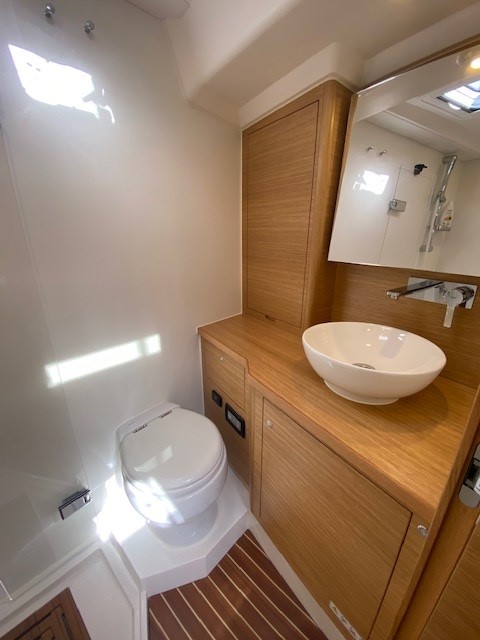

  • Tecma electrical toilet salt water flush in forward heads



  • Yanmar 57hp main engine
  • 3-blade folding propellor
  • MaxPower retractable bowthruster


  • Additional service battery (total of 3x 130Ah gel batteries)

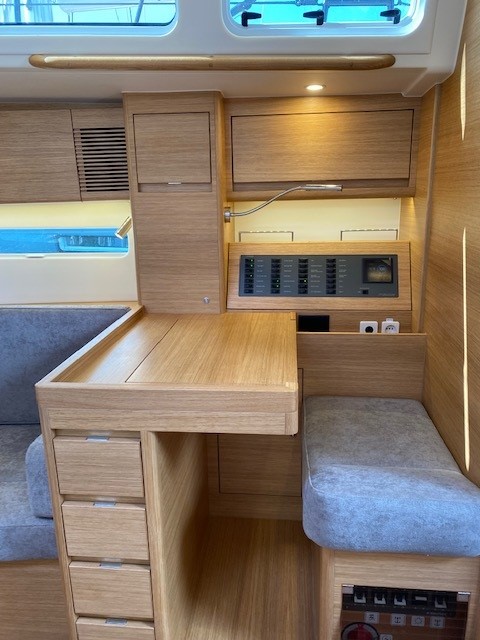

  • Simarine touchscreen display at nav station, with shunt mounted for battery monitoring
  • Combined charger/inverter (12V/2000W/70A)
  • Sockets package throughout interior (230V and 12V USB) and a 12V socket in cockpit
  • Galvanic isolator mounted at shore power inlet

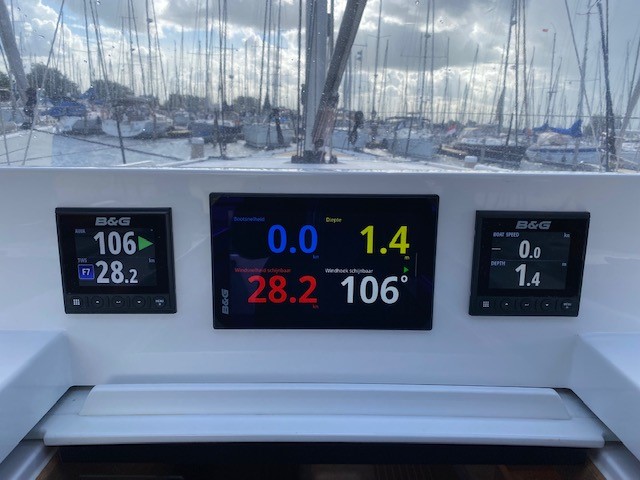

  • B&G Triton2 package with:
  • - 2x Triton2 disply
  • - ZG100 GPS antenna
  • - IDST triducer for speed, depth and water temperature
  • B&G autopilot:
  • - NAC-3 pilot CPU
  • - Precision9 electronic compass
  • - Ram T2 drive mounted on quadrant
  • - 1x Trion2 pilot controller
  • B&G Zeus3S 9'' plotter
  • B&G V100-B VHF with integrated AIS transponder, incl. GPS-500 antenna
  • B&G H60 wireless handset for VHF

Additional Information

  • Cover for furling mainsail
  • Cover for cockpit table
  • Cover for steering wheels and consoles
