Details

Exterior Details

Hull

• • Vacuum infusion lamination with epoxy resin and postcured
• • White gelcoat hull RAL 9010. 3 Light Grey Stripes in Gelcoat RAL 7035
• • Bathing platform with teak floor and bathing ladder with teak steps.
• • 6 Hull windows in Tempered Glass
• • Tender garage with gelcoat finishing bottom part
• • 3 layers Epoxyprimer
• • Antifouling Speedy Carbonium by Veneziani, new 2022

Deck

• • Teak caulking in grey
• • Teak on coachroof 9mm thickness vacuum applied

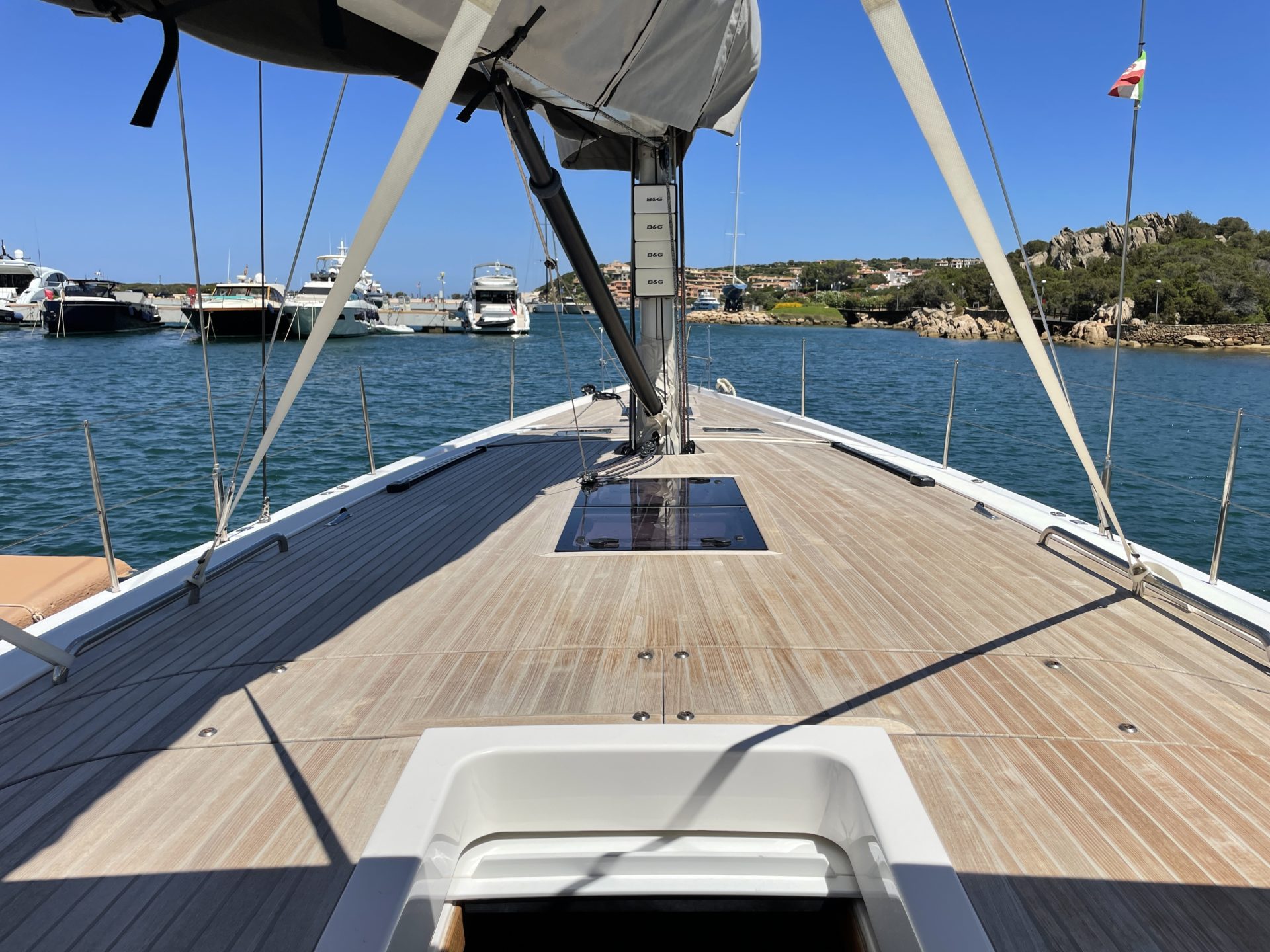

• • Teak on deck 9mm thickness vacuum applied
• • Foldable cockpit table in teak and S/S legs, with central locker for bottles
• • ANCHOR EQUIPMENT
• Standard Equipment
• • Anchor windlass with Delta anchor 25 Kg
• Extras
• • Upgrade Stainless steel Bruce anchor 30 kg
• • Anchor Chain 75 m in stainless steel
• • Remote control for anchor windlass with chain counter mounted in cockpit - Mooring cleats amidship

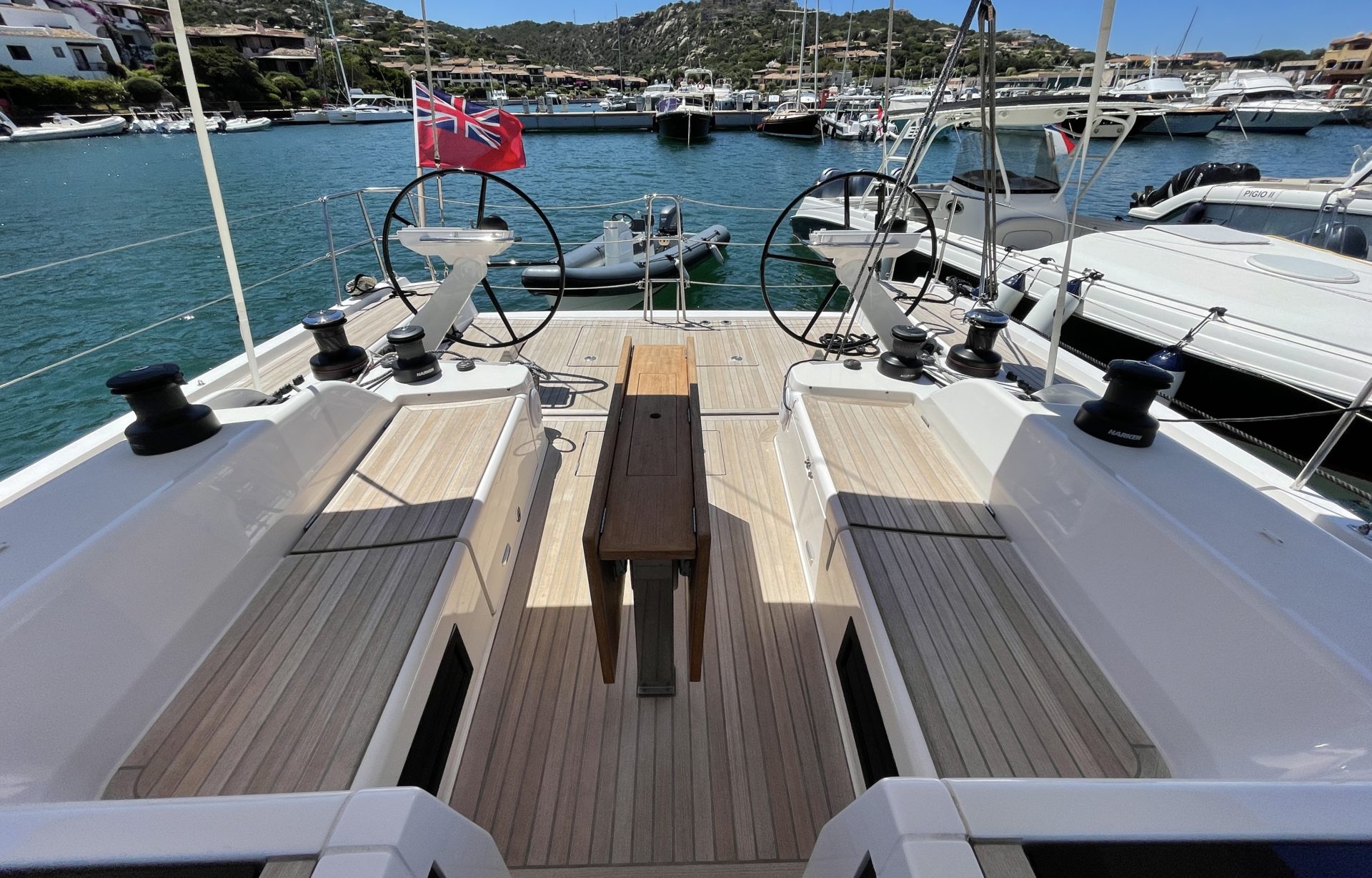

• • Teak in cockpit and on cockpit benches (9mm thickness)
• • Selftacking track, equipped with ball bearing car and sheet led back to halyard winch
• • Composite steering wheel
• • 2x instrument box at wheels

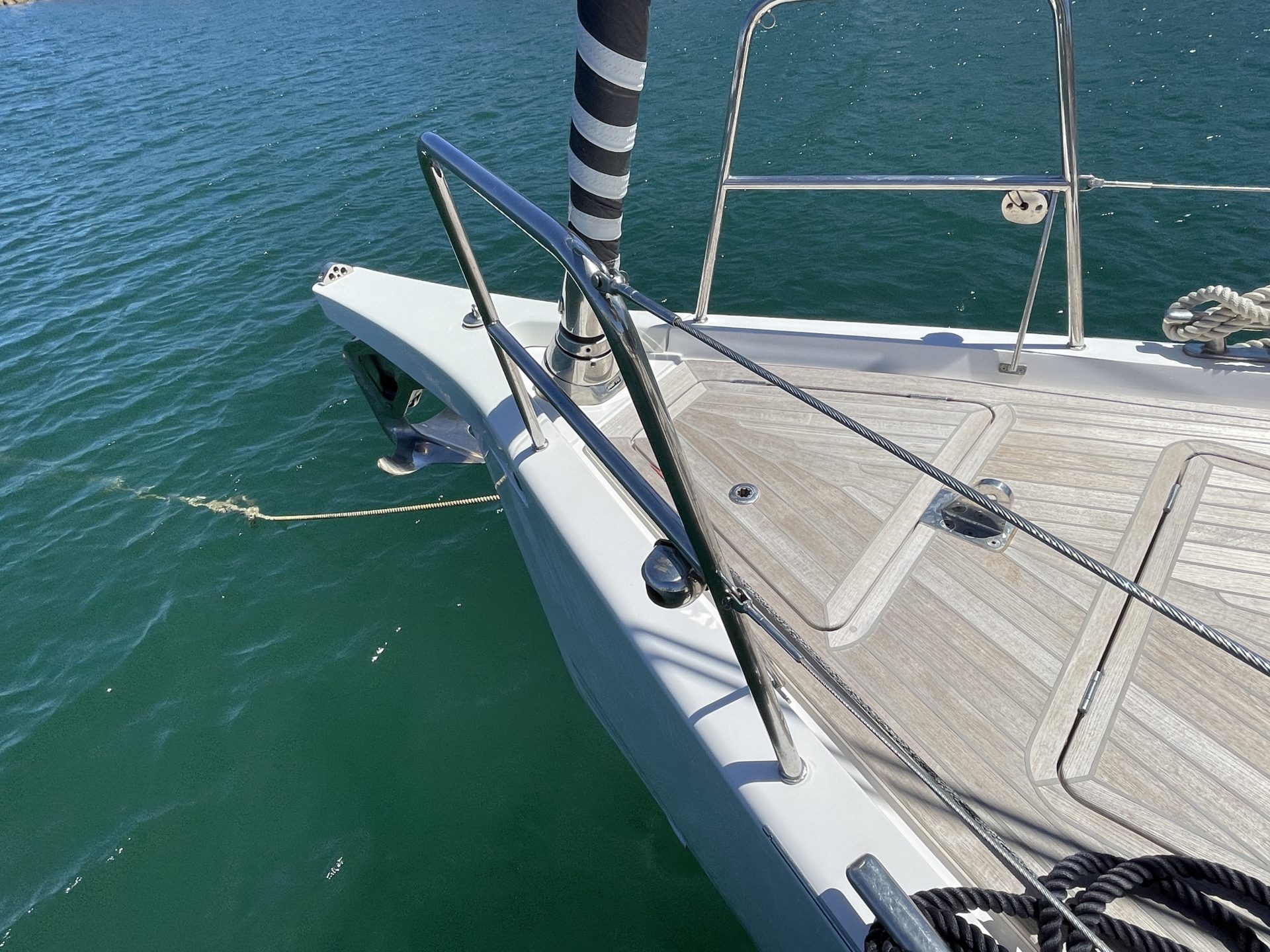

• • Carbon Bowsprit

Sail Handling

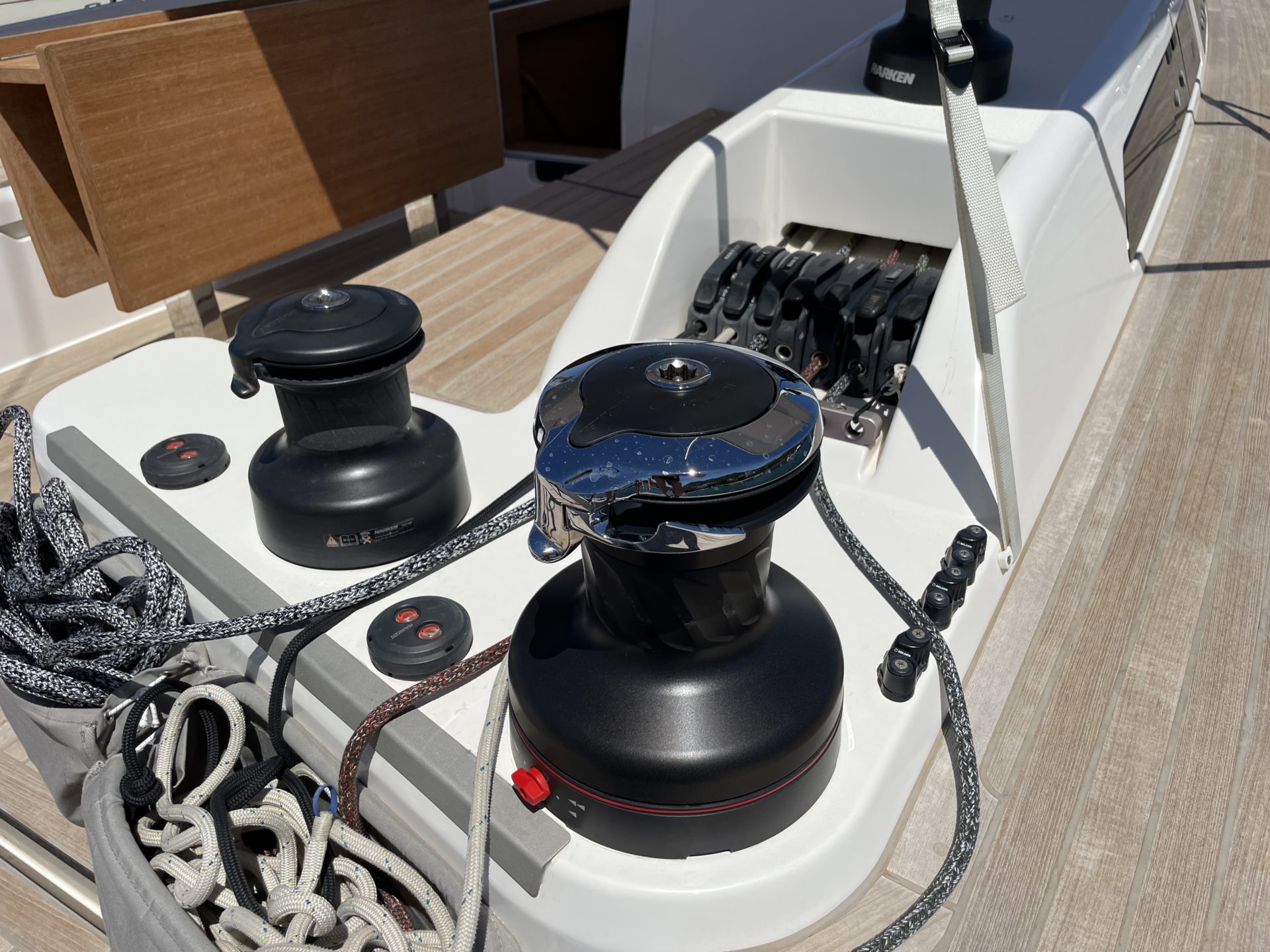

• • 2x HARKEN ELECTRIC Performa self-tailing Winches, 50.2 STP
• • 2x Harken 60 REWIND ELECTRIC self-tailing Winches with customs buttons for control from both steering pedestals
• • 6x Halyard / Sheet bags, installed 2022
• • Main sheet and Jib sheets, new 2022
• • Inner forestay predisposition on mast and deck.
• • Mainsail traveller electrified with 2 buttons each side for handling.
• • 2 Additional Winches 2 x Harken Performa 50.2 STP self tailing for Genoa Sheet on Coamings
• • Lifelines opening amidship for easy access on board.
• • Longitudinal jib tracks with adjustable track led back to cockpit, for an easier trim
• • Sailing pack 1: Asymmetric equipment., 2 Dyneema/Spectra, sheets for asy. 2 Aft blocks, tack line and outer sheeting fixed point for genoa. Etc.
• • Barber hauler for Asymmetric spinnaker
• • Mainsail Cars Ronstan Ball Sliding
• • Code 0 Halyard 2:1 in SK90 10mm
• Owner's Upgrades:
• • New Mast step blocks (high load)
• • New blocks under boom for mainsheet (High load UBI MAYOR)
• • New Barber hauler with 2:1 purchase
• • Jib cars purchase System 6:1
• • Lazy Jack in dynema
• • 2 Spinlock at mast for Jib Halyard and Stay Sail

Sails

• • Doyle Mainsail in Stratis with battens
• • Cruising Mainsail (2 seasons ), in lfiber Xc/fiber lay
• • Doyle Jib
• • Self Tacking Jib, DCX with battens, new 2022
• • 1x Stay sail
• • A3 (Red) , 0,75 with Snuffer
• • Almost new - Code ZERO in CZ with FURLER UBI MAJOR
• • Windseeker

Mast & Rigging

• Standard equipment
• • JOHN MAST Aluminium mast, and rod rigging
• • Hydraulic backstay pump
• • Furling forestay Furlex 400 TD
• • Steaming light / deck Lights
• Extras
• • Park Avenue Carbon Boom, repainted 2022
• • Mainsail Cover, new 2022
• Adjustable furling forestay

Keel

• • T-Bulb 2,40 m draft

Accommodation

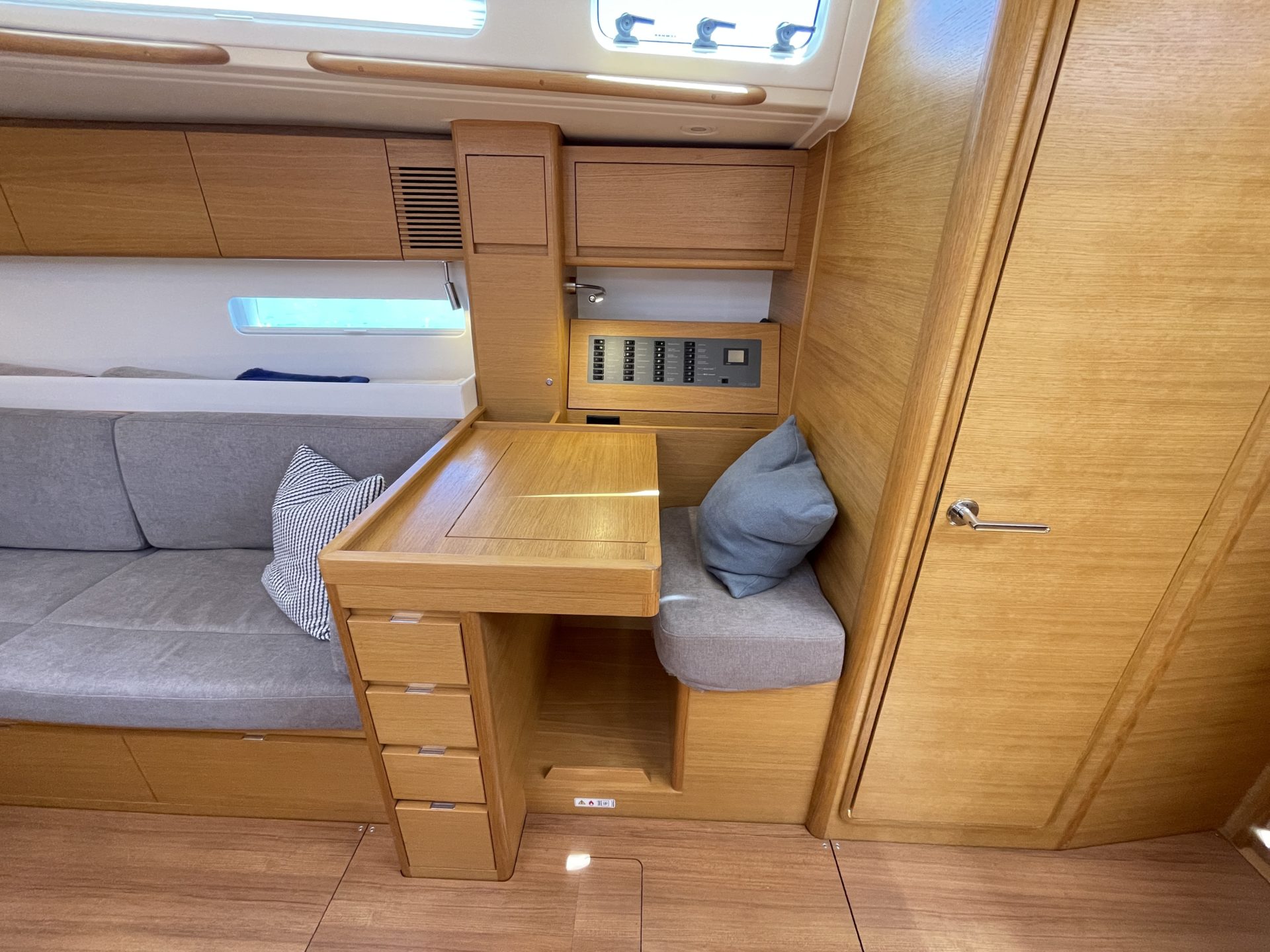

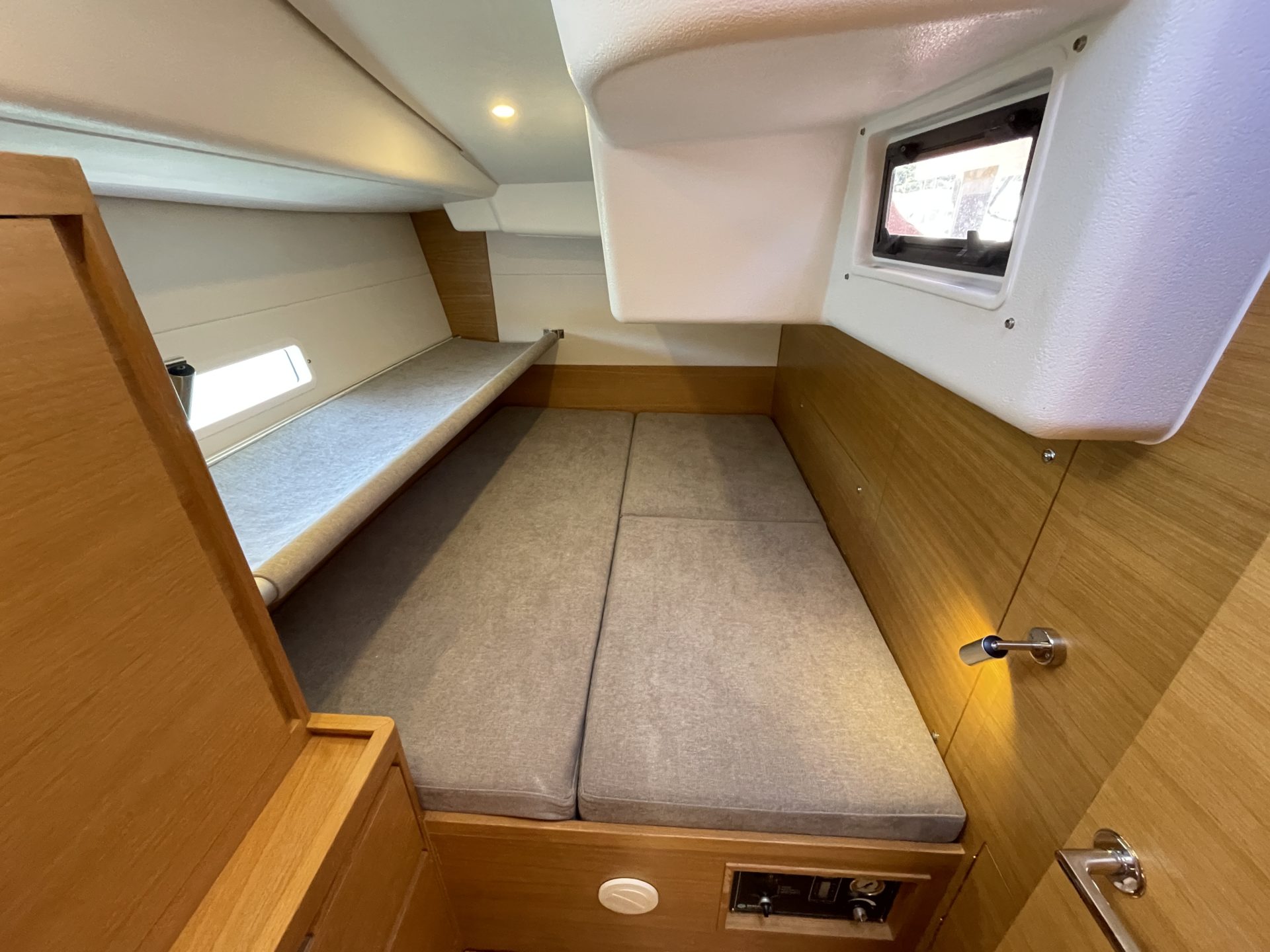

• 3 cabins layout with Nordic Oak interrior
• Spare floorboards in Nordic Real Oak,
• Mattress covers for all the beds
• PVC light cover for all the cushions

Systems

Engine

• • Yanmar engine 80hp, ca. 650 h as of August 2022
• • 3 blades propeller for upgraded engine
• • Diesel: 300 lt tank Additional diesel tank 85 lt, with electric transfer pump
• • Retractale bow thruster Max Power compact retract, and additional Service battery

Plumbing

• • Standard Equipments
• • Hot water tank 24 lt
• • Holding tank for black waters 55 lt (1 per head)
• Extras
• • Watermaker due 60 lt/h
• • Heating system Eberspacher
• • Seawater tap at galley with electric pump
• • 90 lt top opening fridge

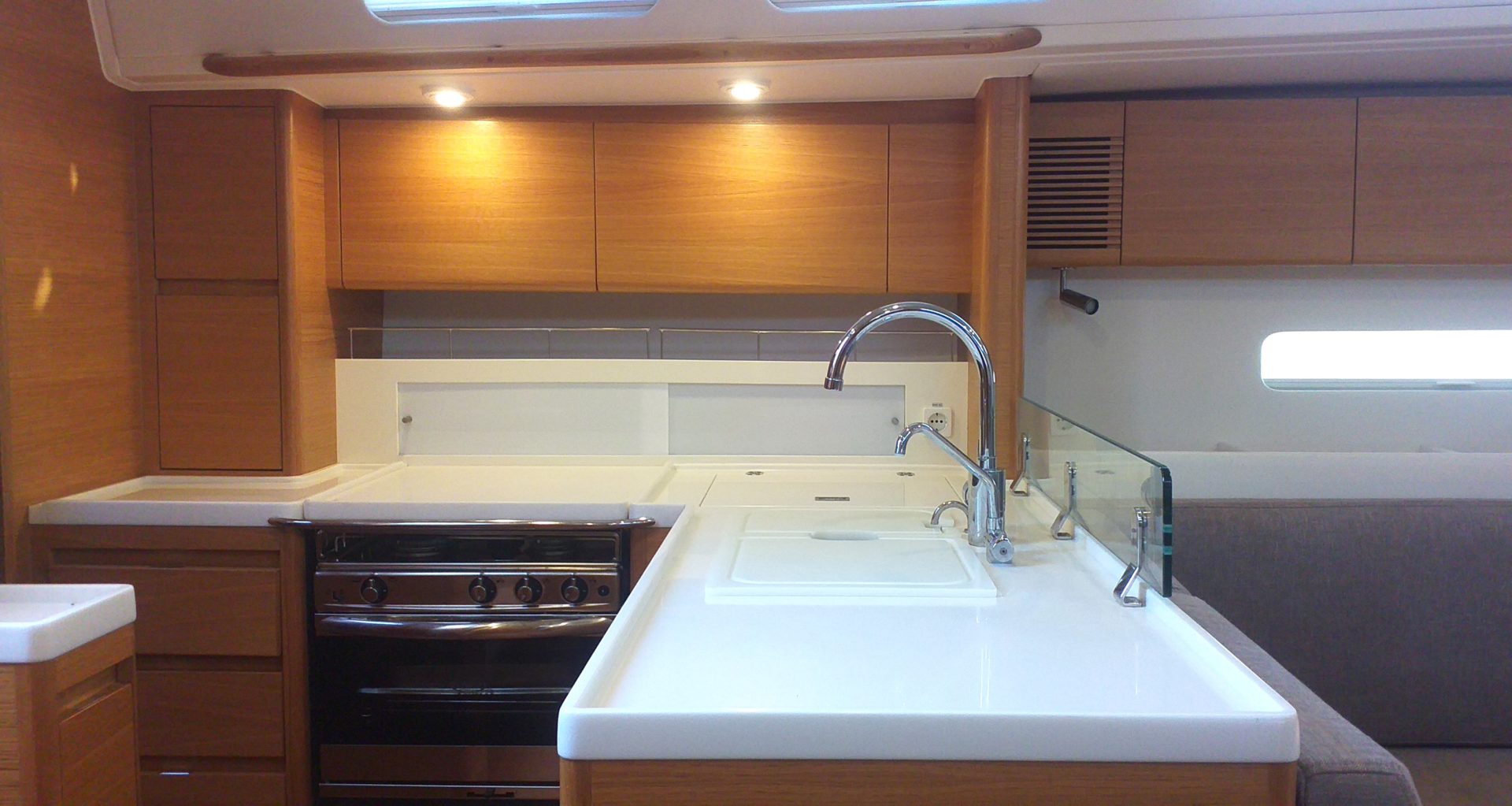

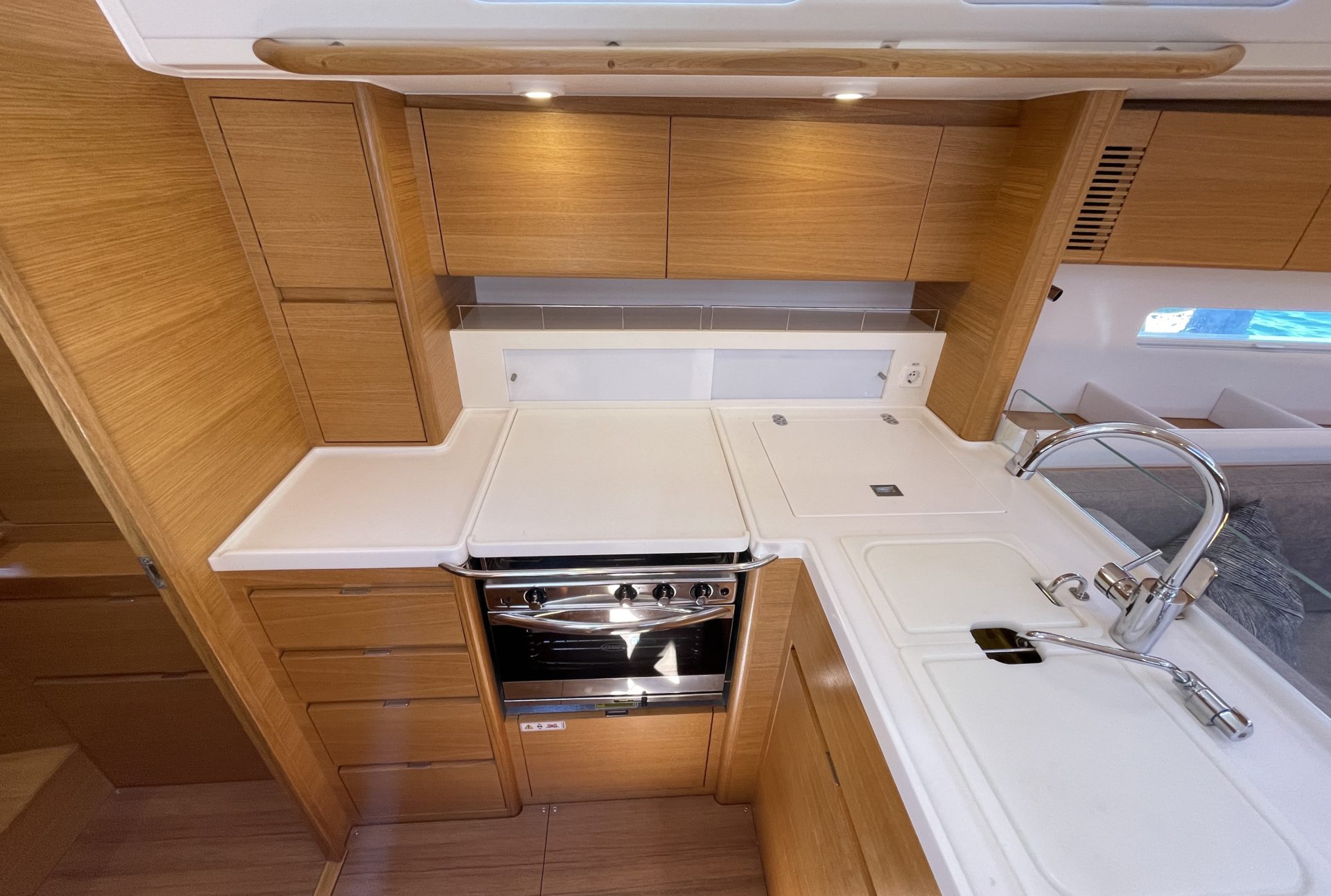

• • 3 burner galley with Oven and Grill
• • Corian Top
• • Additional front opening fridge Frigo 65 lt
• • 2x WC TECMA, electric 12 V. Serie Tecma Elegance Short seawater
• • Shower equipment in aft head

Electrical

• • Battery charger 50 Ah, Engine battery
• • LED lights
• Extras
• • 4x 130 Ah Victron AGM batteries, installed 2022
• • Cockpit lights LED (4) mounted on cockpit
• • Ambient lights led stripes In Saloon and in cabins :
• • 220V Sockets: (1 per cabin e 1x Heads). USB/12V: (1 per cabin + at chart table). 12 V in cockpit
• • Tricolour/anchor light
• • ANTENNA LTE/UMTS/GPS GSM+Router e antenna WI-FI at first spreader
• • Hi-fi FUSION
• • Owner'scabin Independent module
• • HI-FI FUSION Serie Apollo 770
• • 4x Speaker in dinette + Subwoofer
• • 2x Speakers in cockpit

Electronics

• • B&G Pack(H5000) Inclusive of:
• • 2 x H5000 Graphic display, 1 x ZG 100 GPS Antenna
• • 1 x H5000 Hydra main processor, 1 x Speed transducer, 1 x depth transducer, Pressure transducer and Tracking, Sea Temperature transducer and tracker
• • 1 x Wind 810 mm vertical carbon MHU transducer 1 x Service port for up dates (at nav station)
• • 1 x H5000 Autopilot controller incl. H5000 pilot key pad - 12 V with Precision 9 compass and Jefa drive connected to B&G system
• • 2 x 7" Zeus3 plotter with integrated Wifi mounted in cockpit 1 x Network expansion port
• • Navionics Silver card
• • 1 x B&G V90BB VHF AIS RX with handset, loudspeaker & VHF antenna and 1 x VHF H50 wireless handset. Note: Stand-alone unit
• • 1 x Radar, 4G 18" w. mast bracket and cable connected to B&G Zeus plotter for aluminium mast, not installed
• • 2 x compass Silva100B/H
• • NAIS-500 NSPL-500+ GPS500+ N2K

Thrusters

• • Safety equipment
• • Policarbonate gangways with bag
• • Rib ZODIAC Cadet 230 Aero (fit the tender garage when fully inflated)
• • Electric engine for rib: ePropulsion spirit 1.0, solar panel and Solar/12v Charger
