Details

Exterior Details

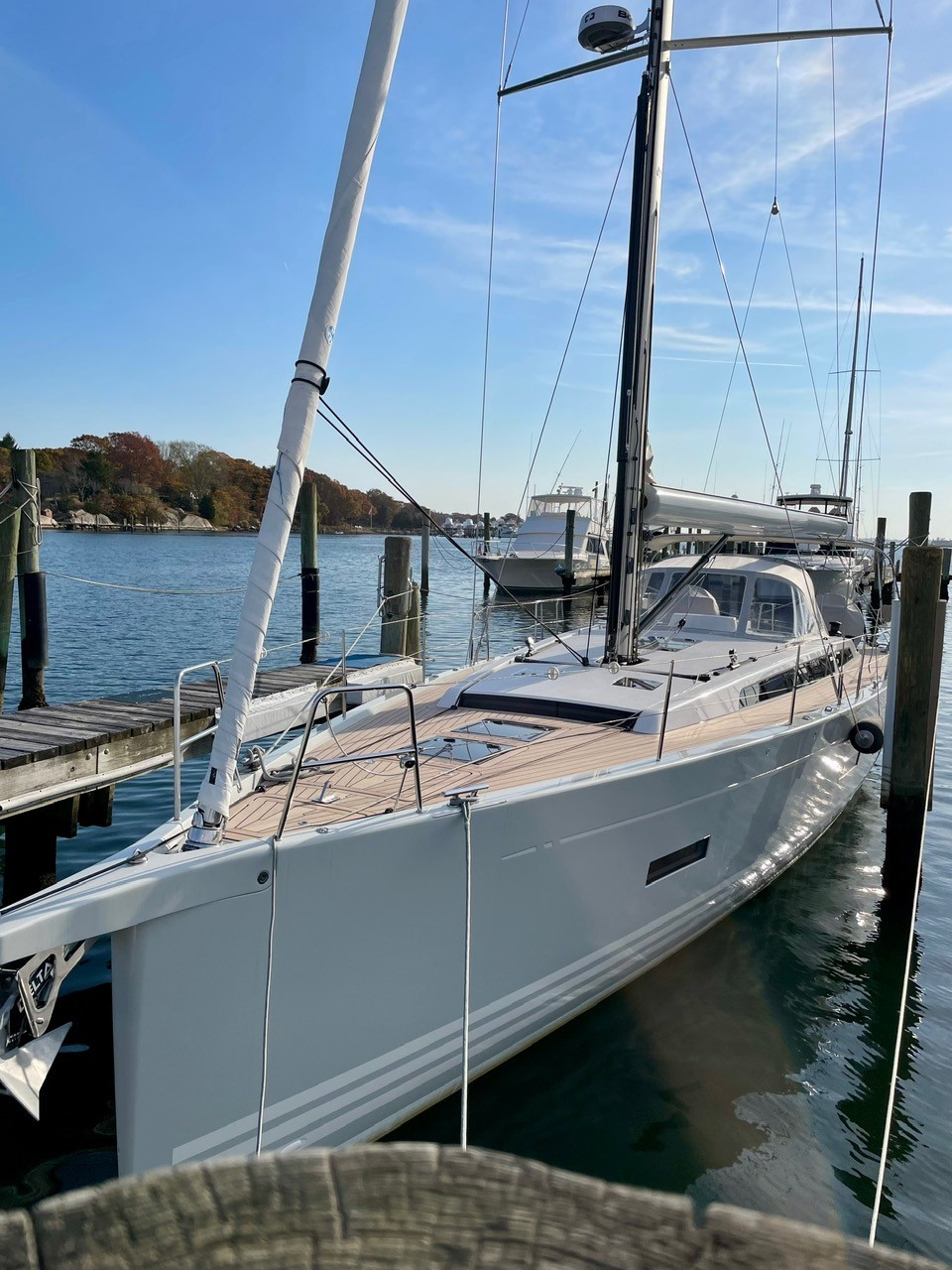

Hull

• Light Grey with 3 white integrated water Lines
• 3 cabins 2 heads, galley with white Corian worktop, forward facing nav station, oak veneer dining table, light oak veneer throughout with slightly lighter oak cabin flooring, dinghy garage.
• Flexiteek on cockpit floor, seats, side decks and bathing platform
• Removable varnished teak cockpit table
• Cockpit cushions, light grey
• Instrument box above sliding companionway hatch for 3 displays
• 2 coats bottom paint applied spring 2024
• Lead keel,  draft 6’8”

Deck

• CANVAS
• Sprayhood (dodger with stainless steel framework. Light grey to match hull, folds into deck garage.
• Bimini - canvas with stainless steel tubes and deck fittings. Light Grey to match hull color
• Boom cover for Furling Boom - Lightest Grey to Match Hull Color
• Combined Pedestal and Wheel Covers
• Cockpit table cover - light grey canvas
• Canvas covers for hull windows
• 2 Carbonautica white painted composite wheels
• 2 Large mount Consoles for chart plotter with stainless steel grab rail

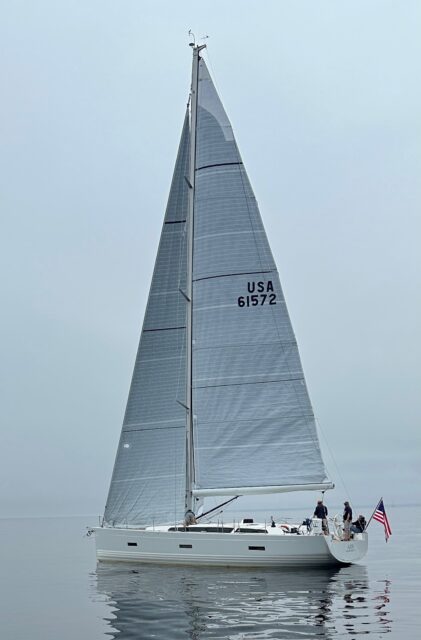

Sails

• The North Sails include the main (with Furlerboom),  self-tacking roller furling 88% jib, 104% roller furling genoa, a ,75 oz A3 asymmetrical spinnaker for moderate air, and a 1.2 oz A4 asymmetrical spinnaker for heavier air.
• Self-Tacking track recessed in coach roof; single sheet led aft via the mast to cockpit winch
• 4 Harken Performa 50.2 STP Electric two-speed self-tailing
• 2 Harken Performa 50.2 STP two-speed self-tailing winches, manual, on coaming
• Longitudinal Genoa sheet tracks on coach roof top, with outboard sheeting pad eyes.
• Asymmetric spinnaker equipment including 2 Dyneema Spectra sheets, 2 gennaker sheet blocks, 2 cleats for "parking" the sheets and 2 Wichard shackles mounted including 1:1 asymmetric tack line and tack block
• 2 Barber haul sheet blocks, 2 tweaker blocks, 2 pad eyes, 2 diverter blocks, 2 cleats, 2 x 6 mm spectra tweaker ropes and stainless-steel chamfer rails
• Electric main sheet traveler recessed into deck, adjustable by push button control.
• SAILS:
• North Furling mainsail for furling boom, 3Di Ocean 700, with 5 full battens, 2 reefs, class mark, 73 m2
• North Sails Furling Jib - 3Di Ocean 700, with painted UV leech protection, foam luff and 4 vertical battens, 57 m2
• North Sails Furling Jib - 3Di Ocean 700, with painted UV leech protection, foam luff and 4 vertical battens, 57 m2
• Asymmetrical North Sail spinnakers, 1 .75 oz A3 and 1 1.2 oz A4. Snuffer included.
• 4 spare North Sail battens for replacement of main or jib battens stored above upper cabinets in forward owner’s cabin

Mast & Rigging

• Fractional triple spreader rig, tapered silver anodized mast, with 2 Mast steps, discontinuous rod rig with turnbuckle, stainless steel headstay chainplate, stainless steel bulwark recessed chainplates for shrouds, permanent backstay with integral hydraulic adjuster
• LED steaming light combined with LED deck flood light, LED tricolor, anchor light and strobe at mast head
• O-Furling Boom -infusion molded monocoque glasfibre with carbon mandrel included. Spring loaded vang, boom lift/pasarella halyard
• Furling headstay Furlex 400 TD with under deck drum with furling line led back to cockpit
• Rod rigging, discontinuous with tip cups incl. racing rod turnbuckles for V1's and D1's
• Inner forestay, Kevlar, with turnbuckle, chain plate with tack point on deck, stainless steel stay tang attachment on mast, sheave box, incl. spectra halyard, mast base block and jammer
• Additional Masthead Spinnaker Halyard - 12 mm dyneema SK78, incl. halyard block at mast and large spinnaker halyard clutch (1:1)
• Code 0 Halyard - Dyneema SK99, 10 mm, including mast block and large Spinlock halyard clutch (2:1)

Accommodation

Interior features

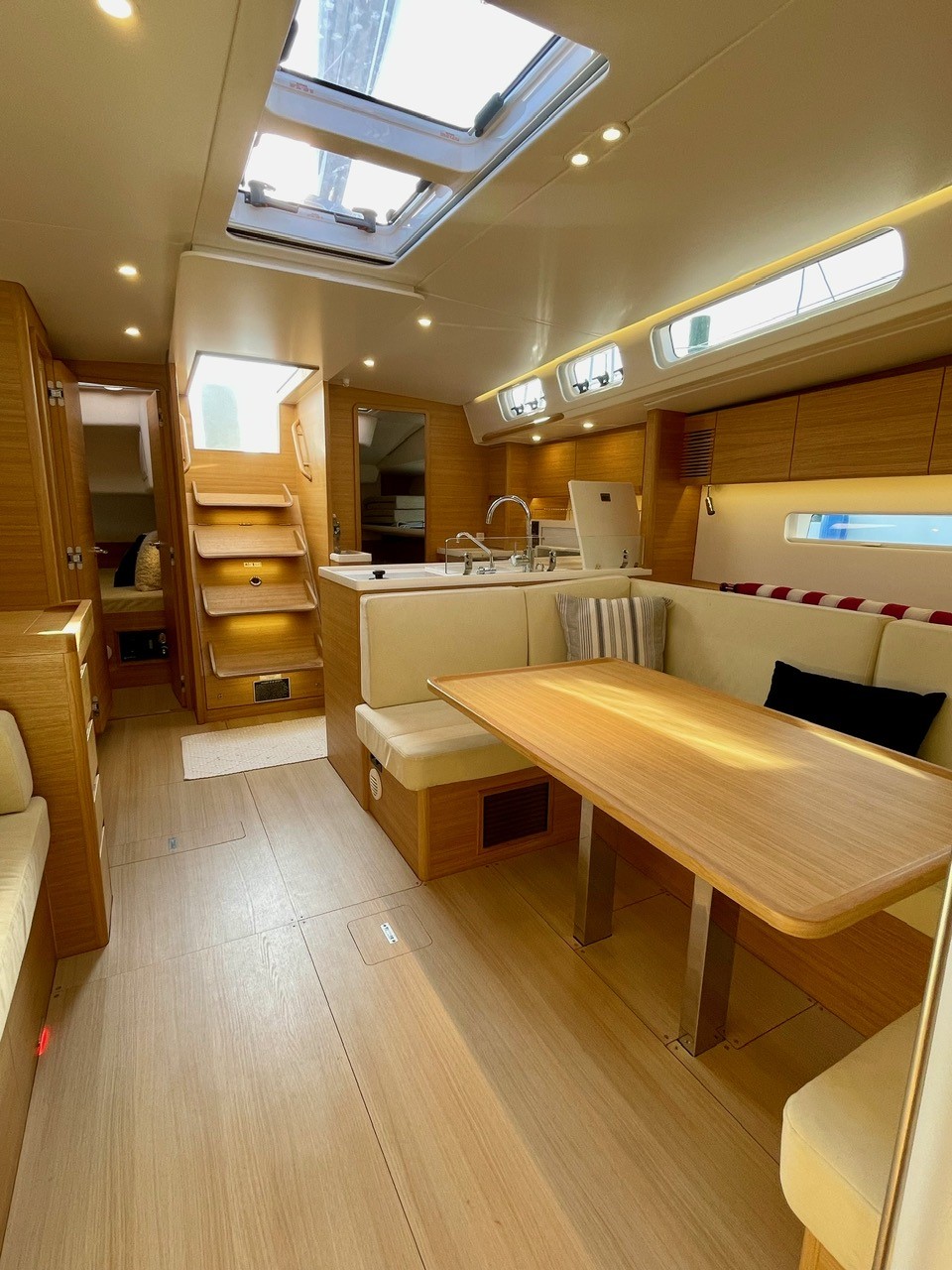

• Wooden doors, bulkheads and other surfaces are light oak. (excluding companionway steps) Floorboards are slightly lighter oak

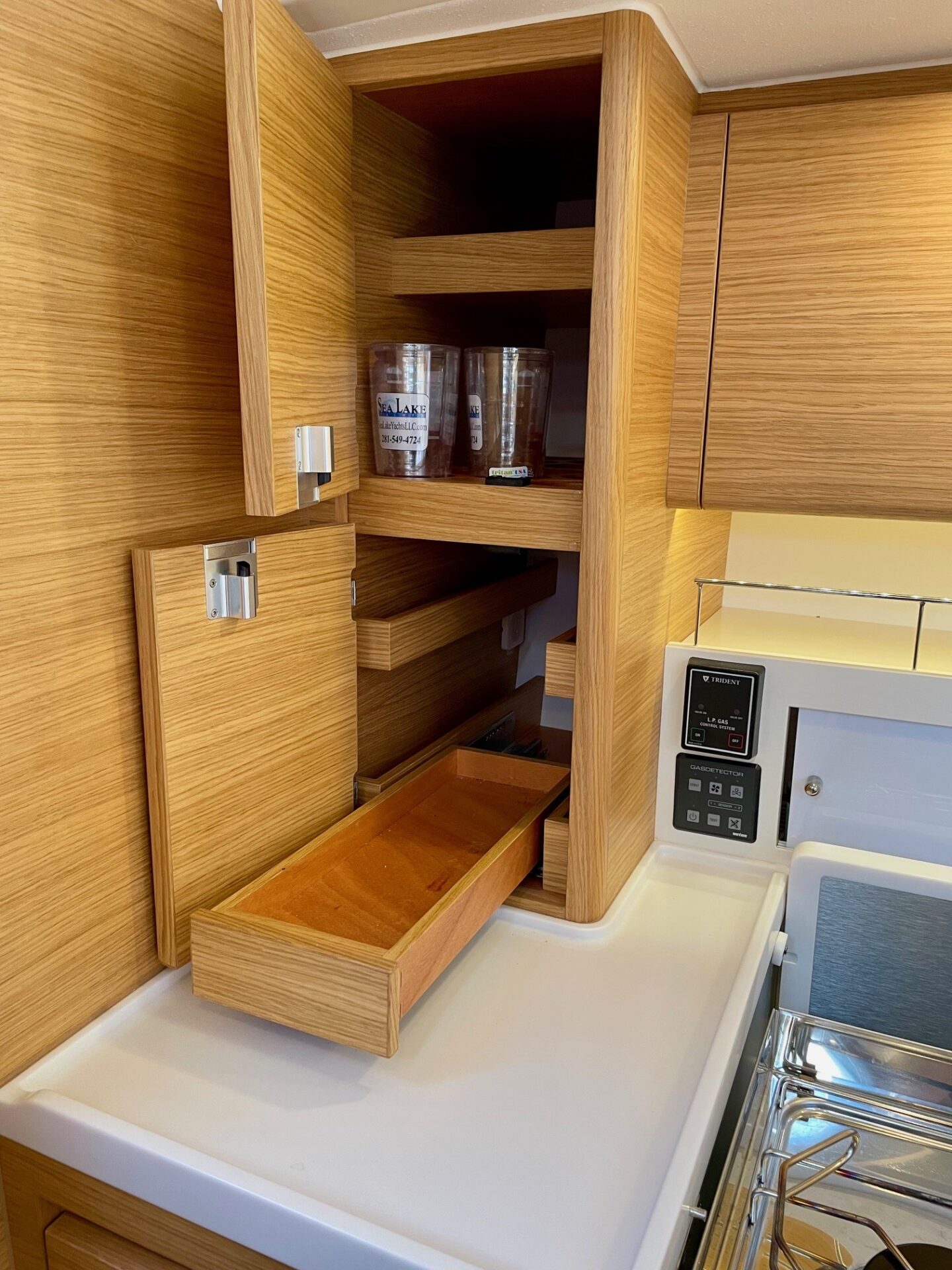

• Upper cupboards throughout
• 90 liter top loaded Insulated & water-cooled Danfoss cool box
• 85 liter front opening fridge with ice cube compartment, under sink

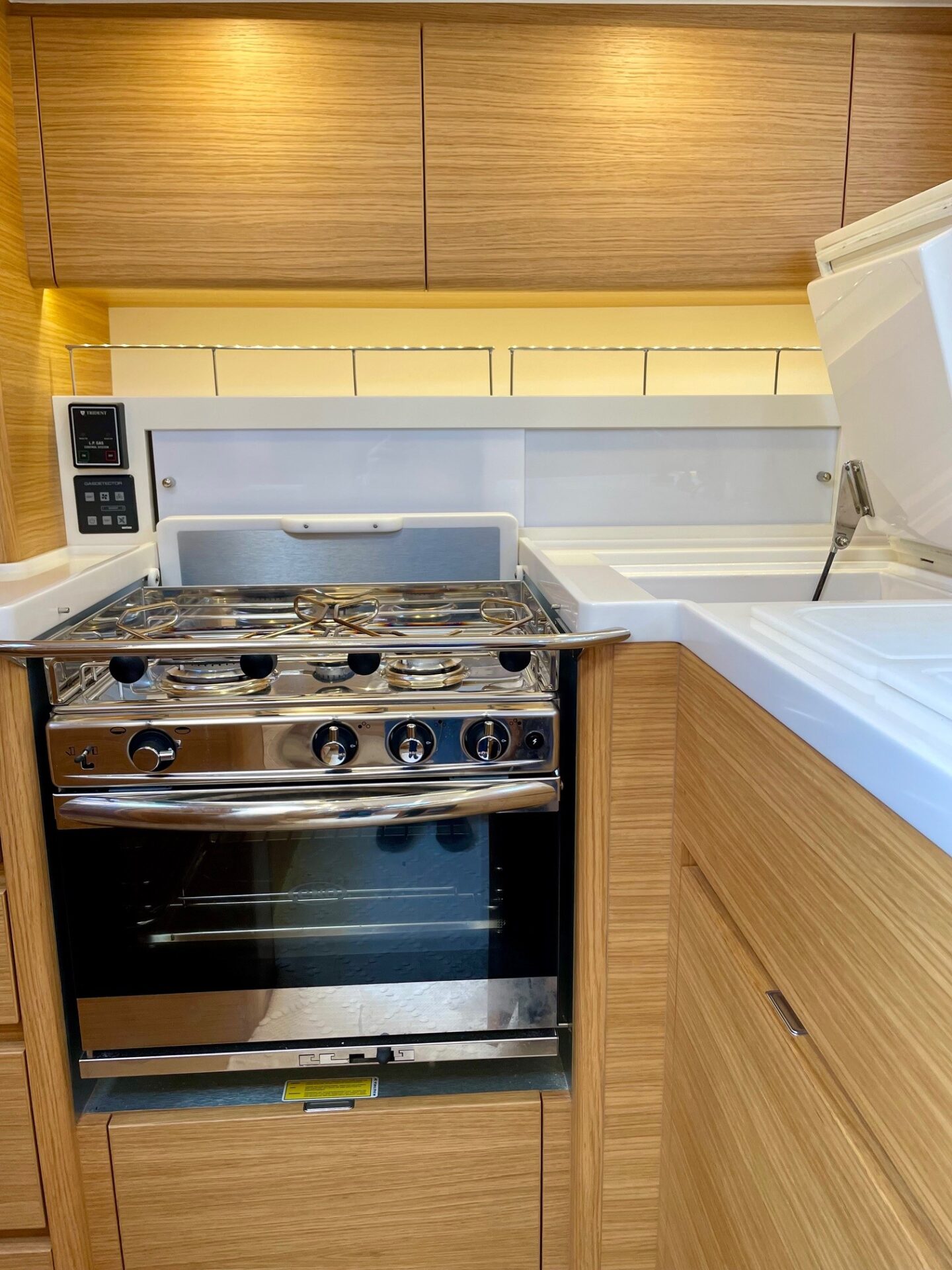

• ENO 3 burner gimballed oven & grill

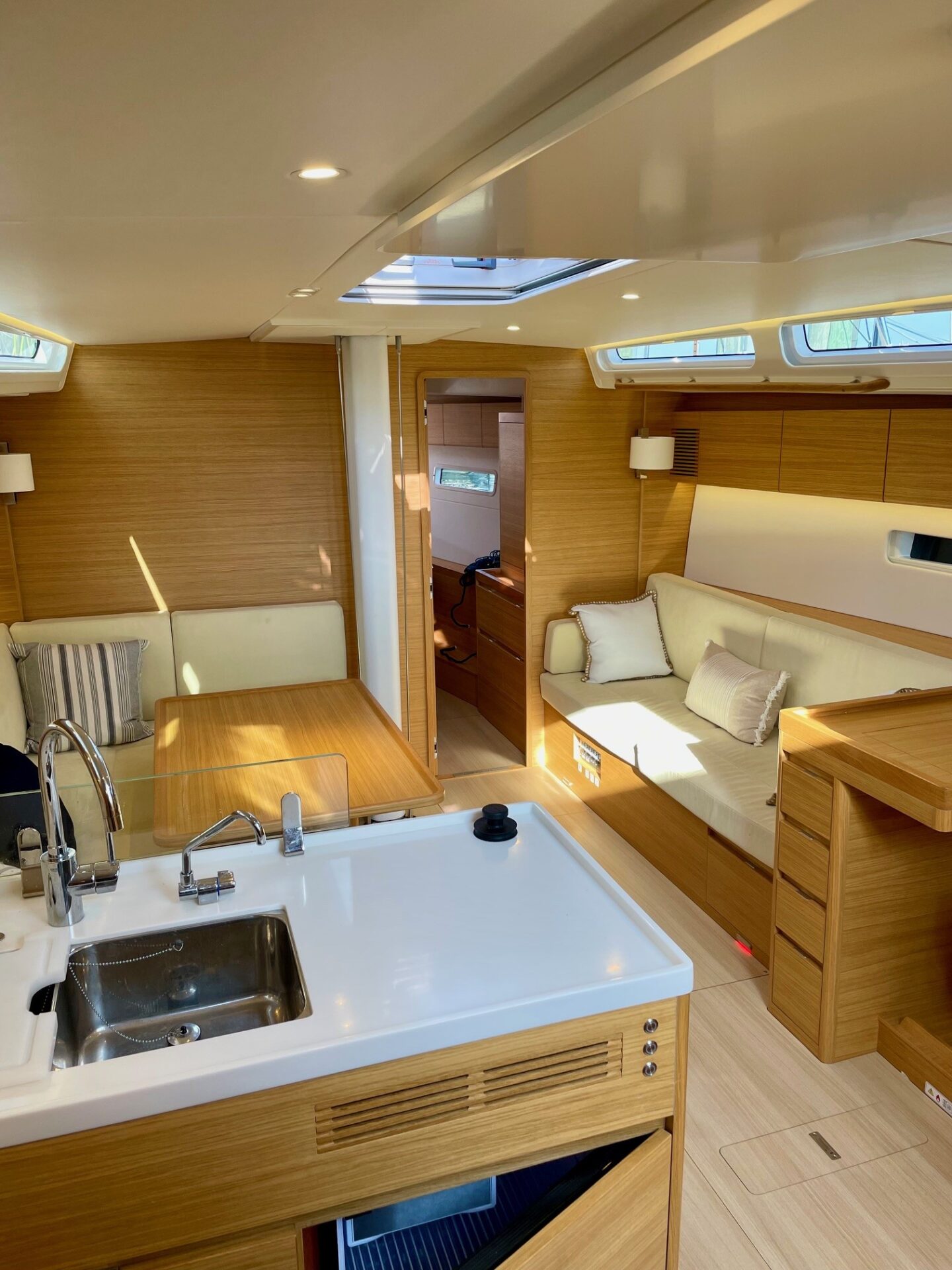

• White Corian counter tops in galley with cutting boards over sink
• 10V power to microwave location
• Gas detector alarm
• Manual pump toilets (two heads)
• White Corian worktops with integrated Corian rectangular sinks instead of standard

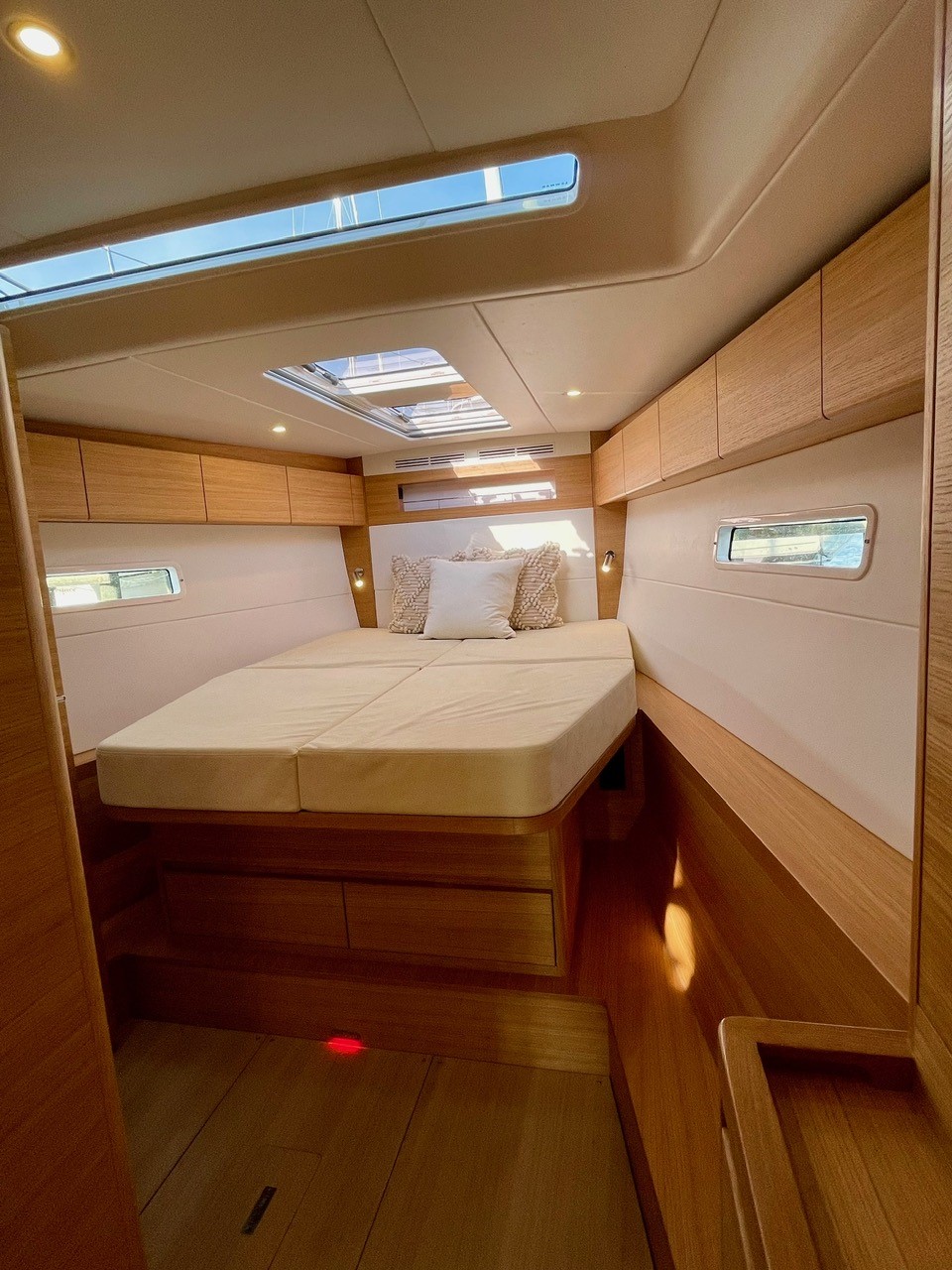

• Double berths port and starboard
• Folding sea berths each side
• Pressurized hot & cold-water system with 310 liters fresh water tank
• 24 litter hot water tank engine compartment
• Deck shower in aft cockpit
• 55 liter, polyethylene holding tank per toilet, emptying by sea cock or deck suction
• Additional manual bilge pump mounted inside aft cabin with long hose - 1 pcs
• Seawater combined deck rinse and seawater tap with electric pump fitted in anchor locker, and in galley
• Heating system
• Air-Conditioning, 12.000 BTU for main cabin, 7000 BTU for owner's cabin and 7000 BTU for aft cabins. Runs on shore power or generator
• 2 10lb propane tanks

Systems

Engine

• Fuel tank - aluminum 300 liters
• Main engine upgrade - Yanmar 80 HP CR (59 kW) with 3 blade folding propeller replacing standard Yanmar 57 HP CR engine
• Extra fuel tank – 85-liter aluminum tank under the main cabin floorboards. Include electrical fuel transfer pump.

Plumbing

• Pressurized hot & cold-water system with 310 liters fresh water tank
• 24 litter hot water tank engine compartment
• Deck shower in aft cockpit
• 55 liter, polyethylene holding tank per toilet, emptying by sea cock or deck suction
• Additional manual bilge pump mounted inside aft cabin with long hose - 1 pcs
• Seawater combined deck rinse and seawater tap with electric pump fitted in anchor locker, and in galley
• Heating system
• Air-Conditioning, 12.000 BTU for main cabin, 7000 BTU for owner's cabin and 7000 BTU for aft cabins. Runs on shore power or generator
• 2 10lb propane tanks

Electrical

• 50A Battery charger and 2-12V 130Ah GEL Batteries. Separate engine start battery
• LED Interior Lighting throughout
• 110 VAC outlets in each cabin, nav station, heads and galley
• USB-A & USB C mounted in in each cabin, nav station, heads and galley and at each steering pedestal
• 12V Socket at throttle control recess at starboard helm

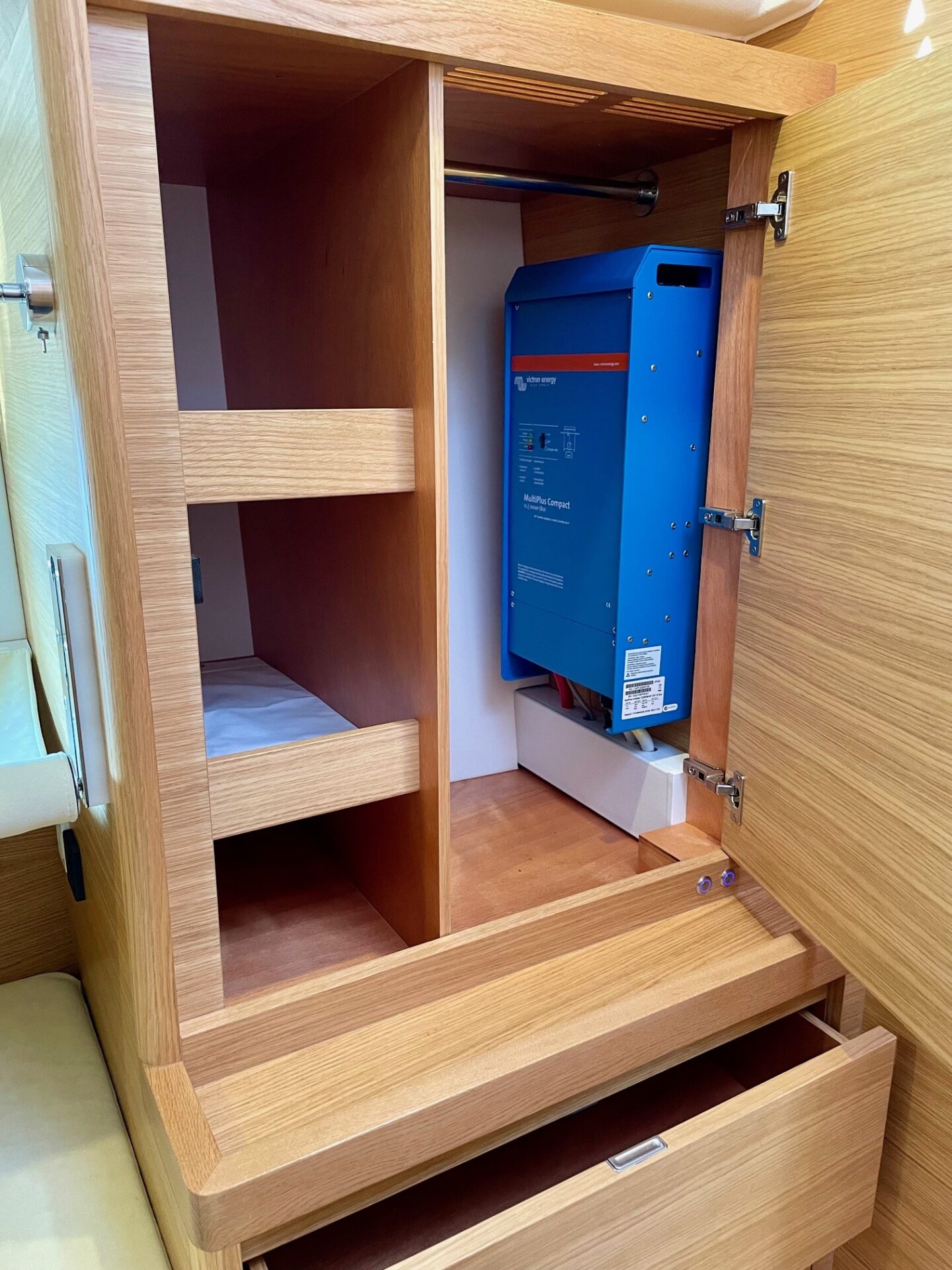

• Combi Battery Charger & Inverter (110V) - 12V/2000W/50A including remote multi control panel and galvanic isolator replacing standard 50A charger
• Shunt hardware that allows monitoring of charge and discharge of service battery bank
• LED cockpit light, white, mounted over floor in cockpit (4 Pcs)
• Ambient light in roof tops vinyl paneling below cupboards and other various locations
• 3 red LEDs courtesy lights in main cabin mounted at floor level and 1 in owner's cabin
• Fusion Apollo MS-RA770 AM/FM/VHF/Apple Airplay/Iphone/Ipod/USB/Sirius XM-Ready in near navigation station.
• Fusion 4" 2-way 120 Watt black loudspeakers (2 pcs) mounted in main cabin
• Fusion Cockpit loudspeakers in cockpit
• Preparation for TV 110V socket and cable next to mast foot
• Generator, Fischer Panda 8000i, 6kW - fitted in service compartment behind main engine. Fuse box upgraded to 32 A.
• 110 AC distribution panel upgraded to handle both shore and generator power including 4 AC groups with automatic fuses

Electronics

• B&G H5000 with wind, speed and depth sensors
• 2 Zeus 12 displays, one at each helm with radar and AIS display
• 3 Trident displays at companion way
• 1 B&G V100 VHF AIS RX with handset at nav station
• 1 B&G H100 VHF second handset in cockpit
• 1 B&G  Radar, Halo+ 20 connected to B&G Zeus 12
• 1 Auto pilot with WR10 wireless remote & base station

Thrusters

• Retractable bow thruster - Max Power Compact retractable CR70/24V bow thruster including dedicated battery bank with controls at starboard podium

Additional Information

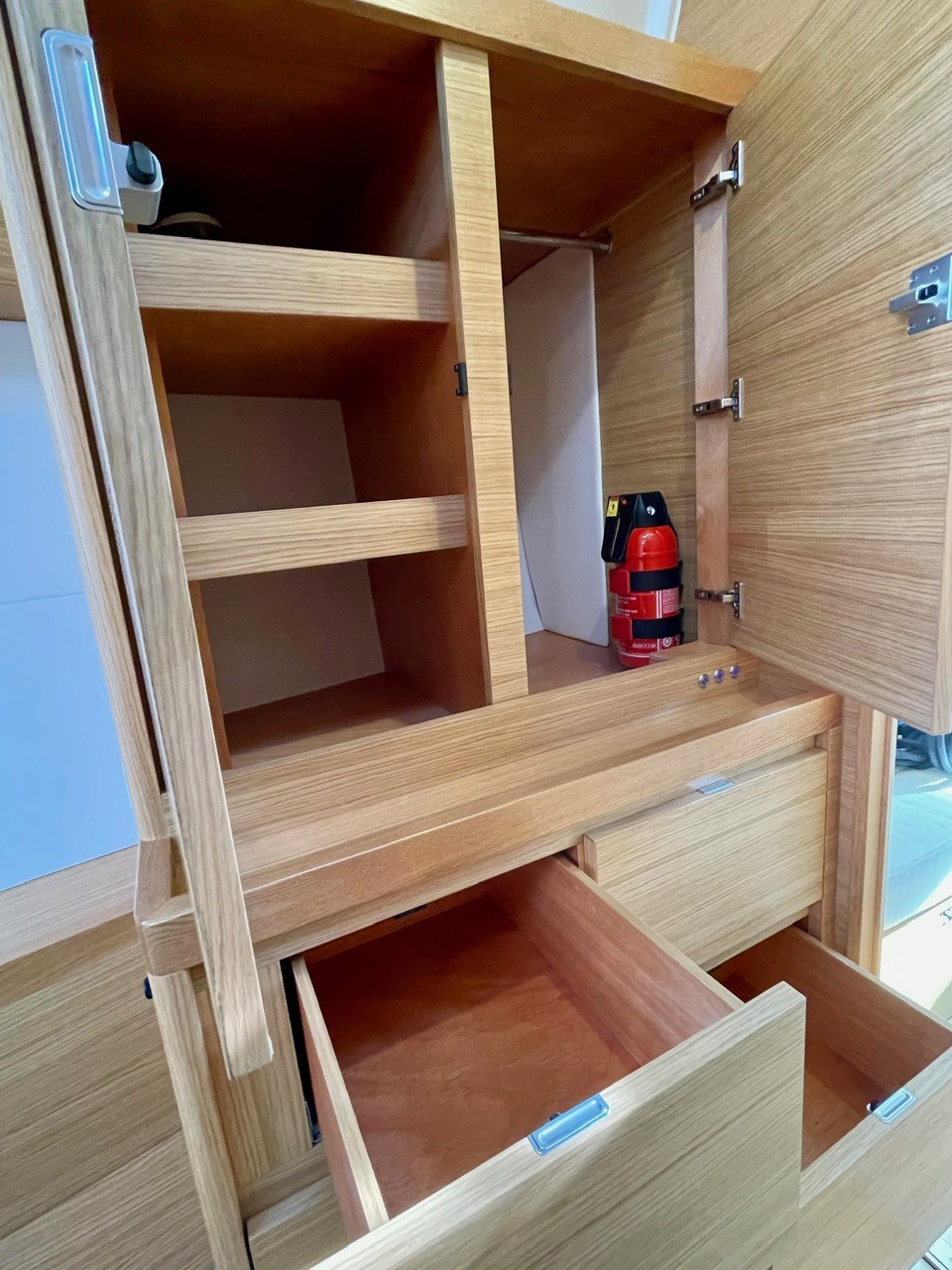

• 4-2 kg powder fire extinguishers fitted throughout the yacht with fire port into engine room
• 3 Harken Winch Handles (10") with lock
• Teak flagpole with bronze bushing and flag
• 4 white air-filled fenders with lanyards with custom dark grey covers
• 4-14 mm polyester mooring lines
• 1 25m shore power cable
• Electric Osculati air pump for inflating or deflating RIB
