Details

Exterior Details

Hull

• Hull is vacuum epoxy infused, sandwich construction with structural fiberglass
• Steel girder frame for the keel
• Keel is a lead bulb underneath a steel fin, and is fully encapsulated in glassfibre/
• epoxy poured into a mould for perfect shape and finish
• Transom door with teak on top
• Additional bottom treatment from yard (epoxy primer and antifouling)
• 3-blade folding propellor
• Retractable bowthruster MaxPower
• Stainless steel chafing strip along length of hull

Deck

• Teak on side decks, on coachroof and in cockpit
• Carbon fiber bowsprit
• Large dry saillocker in bow boat
• Anchor locker with electrical anchor winch
• 20kg stainless steel Delta anchor
• Additional mooring cleats midships
• Gates in lifelines midships
• 2x Harken Performa 46 halyard winches
• Port side halyard winch is electric
• 2x Harken Performa 50 genoa winches
• 2x Harken Performa 46 mainsheet winches
• Deck lay-out package for gennaker (sheets, blocks, tackline)
• Sprayhood with lower than standard profile, foldable into recess in deck, in light grey
• Cockpit shower
• Cockpit table in teak on aluminium legs (removable)
• Black composite steering wheels

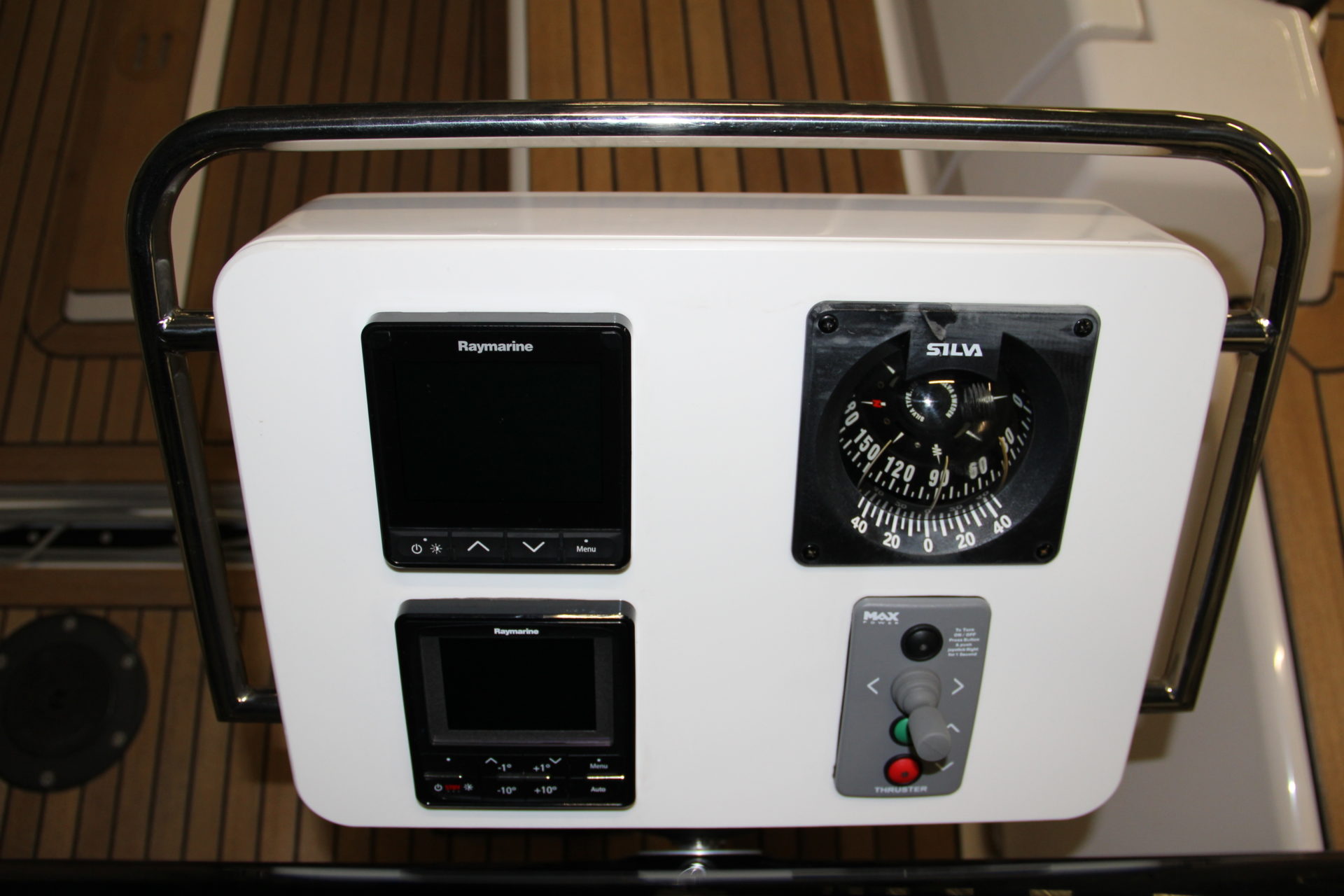

• Maxi consoles at steering wheels (for plotter and instruments)
• Silva magnetic compass in console at steering wheel
• 4x white LED courtesy lights in cockpit
• Speakers in cockpit for multimedia radio
• Cockpit cushions

Sails

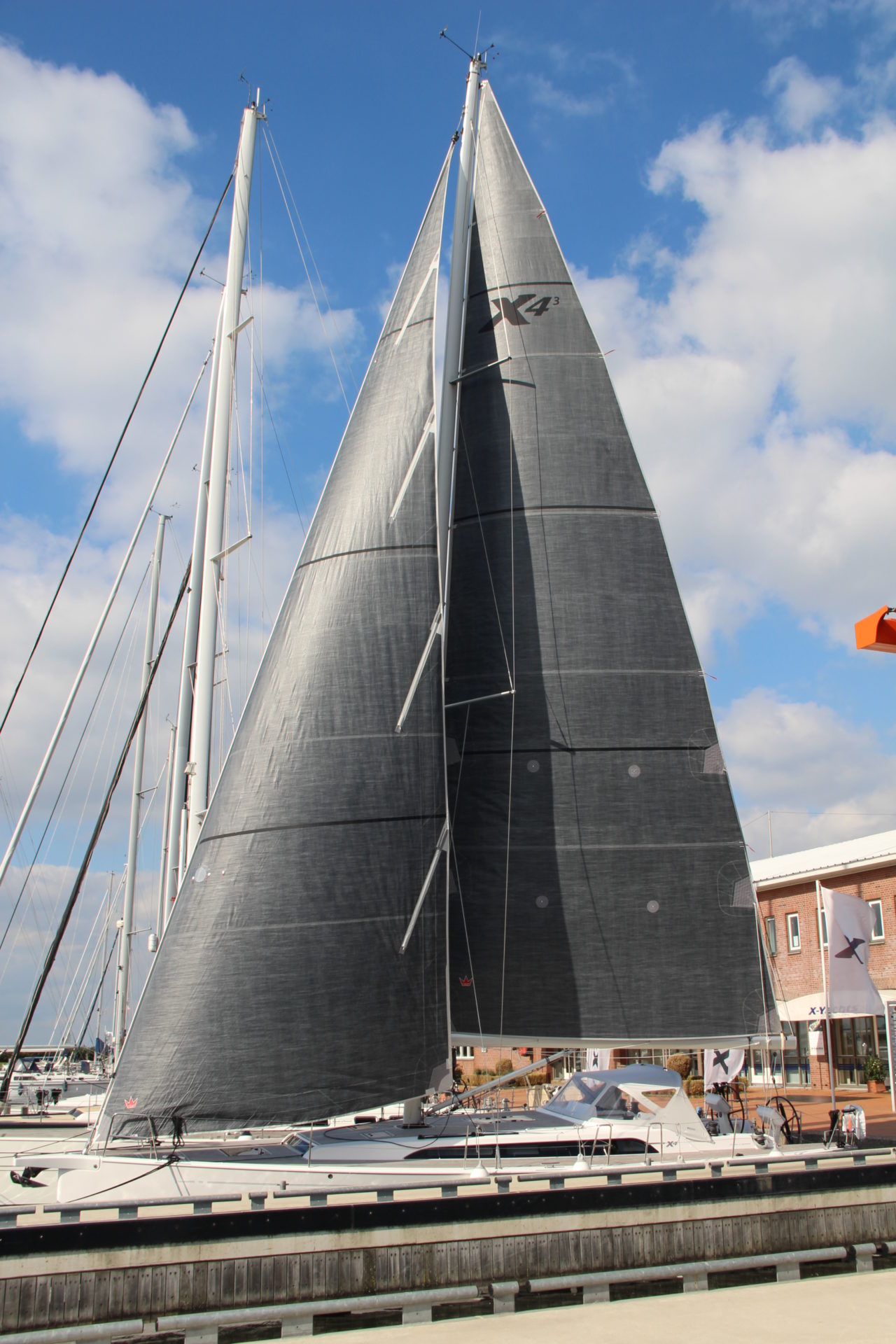

• All Elvstrom Sails
• Mainsail:
• - in EPEX technora membrane
• - 2-sided GLP finish
• - 5x full-batten
• - 2 reefs
• Seldén MDS batten car system
• Furling jib 108%
• - in EPEX technora membrane
• - 2-sided GLP finish
• - UV-cover on leech
• - reefing strengthening on luff
• Code 2 gennaker (164 m2)
• - in Nylite 90 cloth
• - with snuffer
• Mainsail cover in light grey

Mast & Rigging

• Custom designed aluminum mast, boom and vang for X4.3 by Seldén
• Rod rigging as standard for all standing rigging
• Hydraulic backstay adjuster
• Furlex genoa furling system
• All halyards and sheets in dyneema
• Combined LED 3-colour/anchor light in top of mast
• Combined LED deck/steaming light on forward face of mast
• Lazy jacks system for handling the mainsail

Accommodation

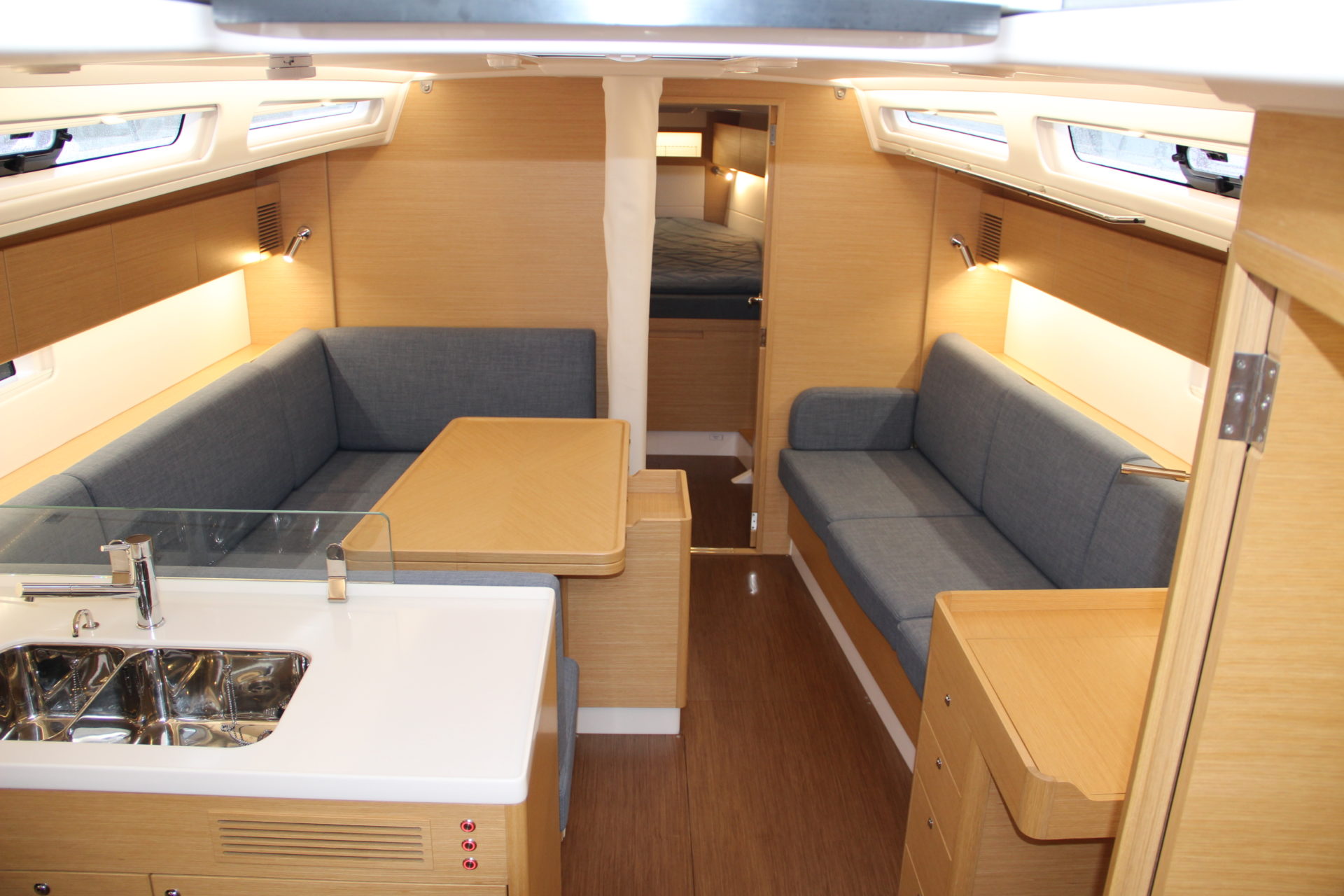

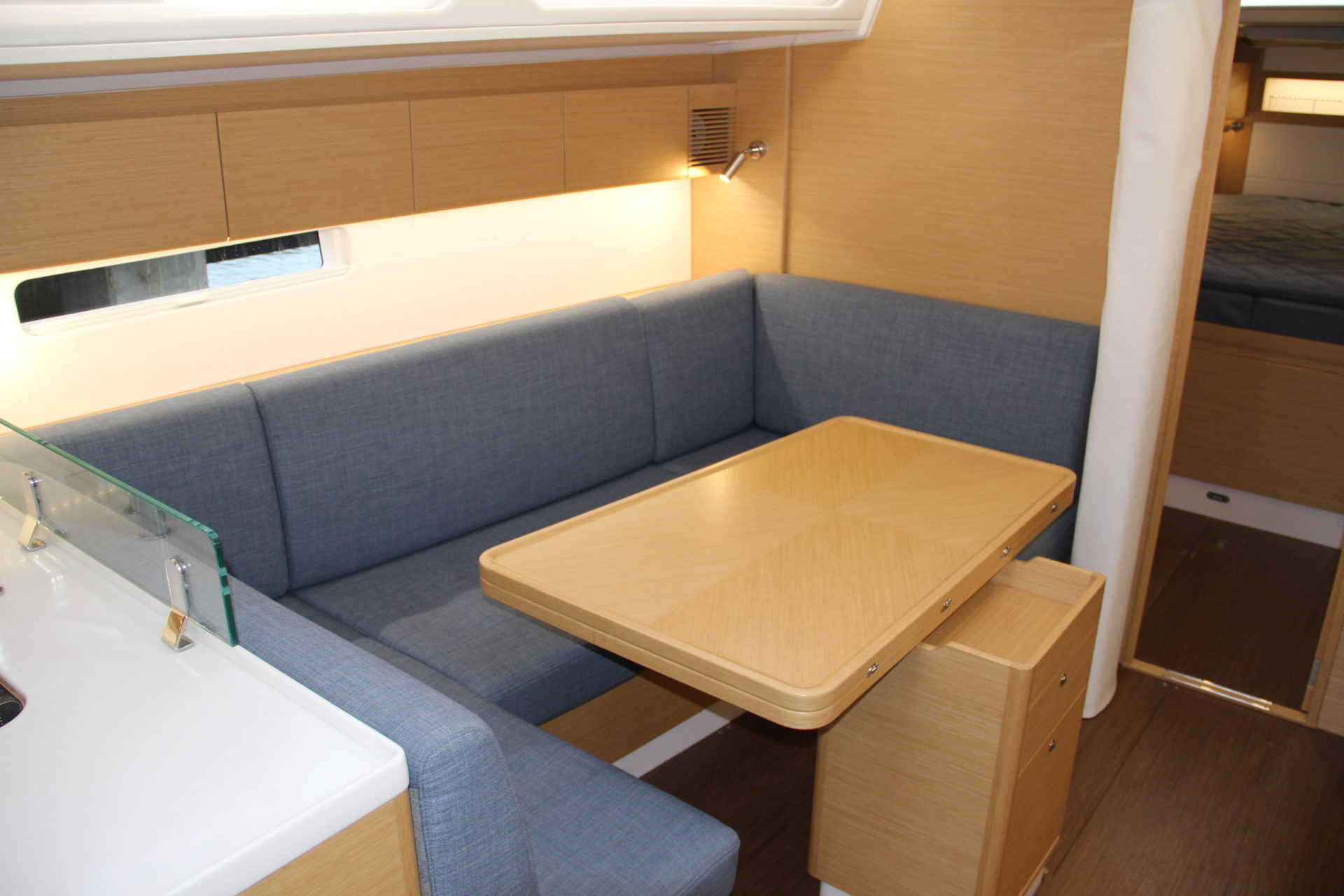

Interior

• 2-cabin/1-heads lay-out
• Full interior crafted with selected t-oak veneer
• OceanAir curtain system for all hatches and coachroof windows (incl. hull windows)
• Additional LED downlighting below cabinets in saloon
• 4x red LED nightlights

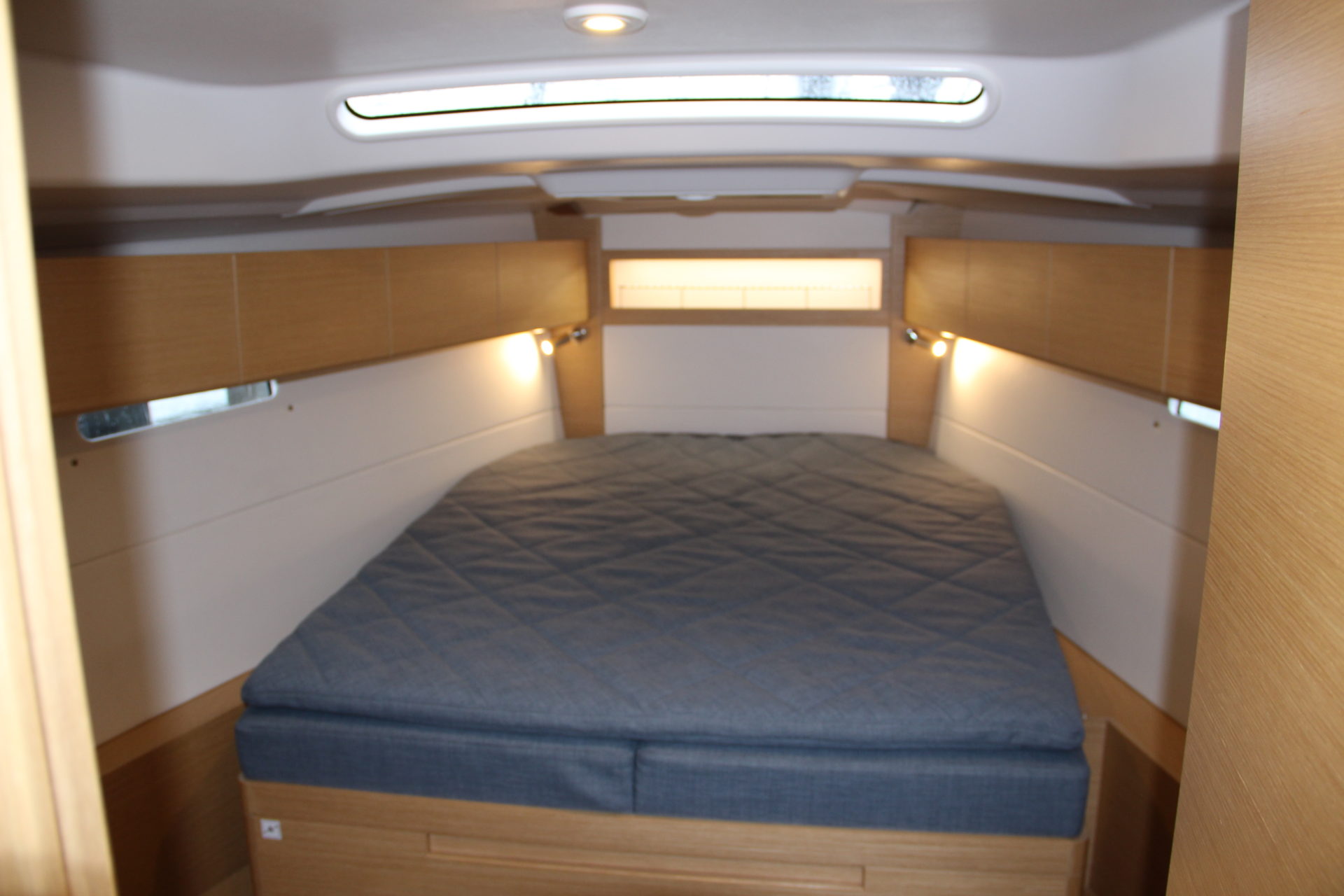

• Spring mattrasses in forward cabin
• Additonal cabinet sections along hull in forward cabin
• Teak floor in heads

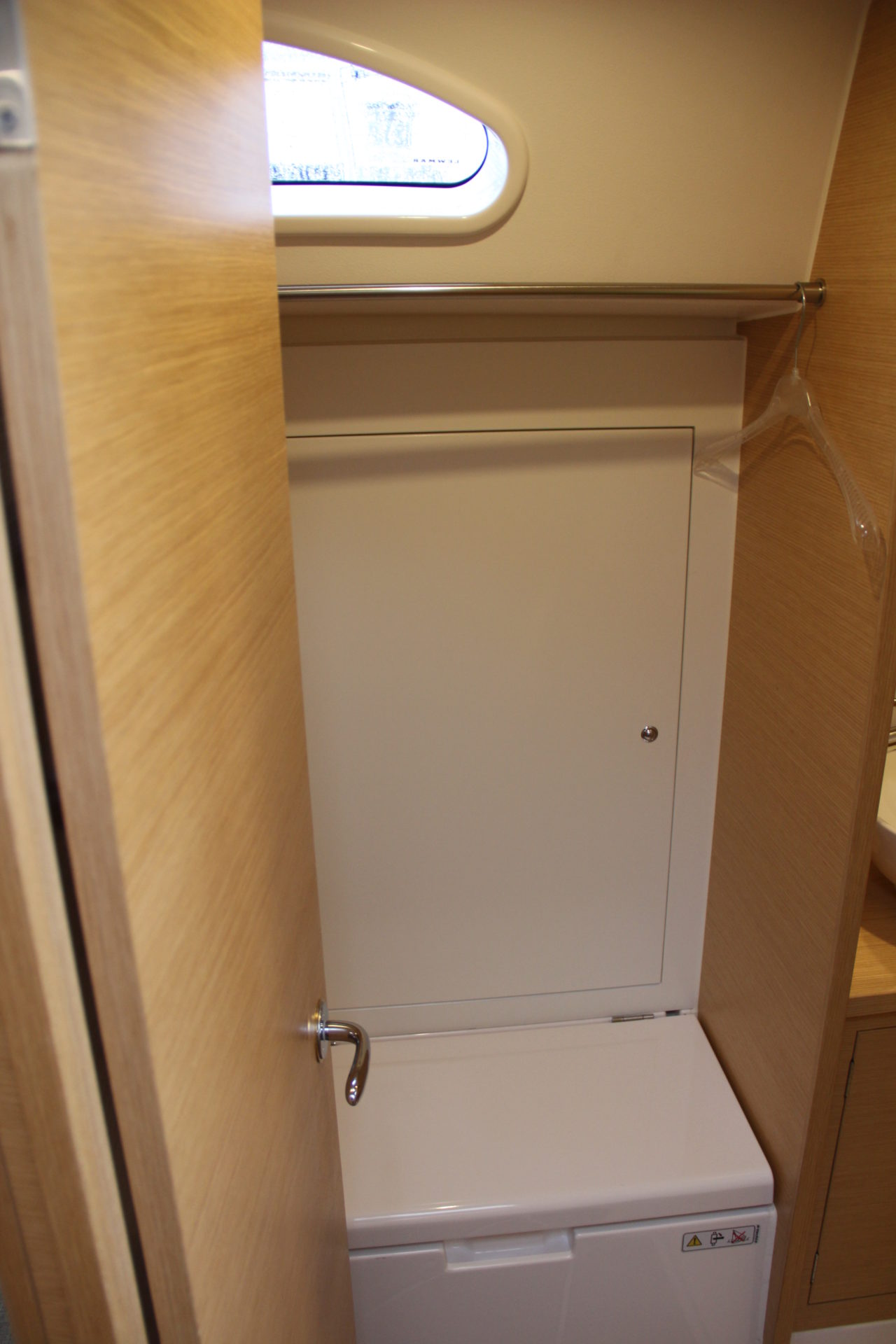

• Stainless steel hanging bar in aft shower (for wet gear)

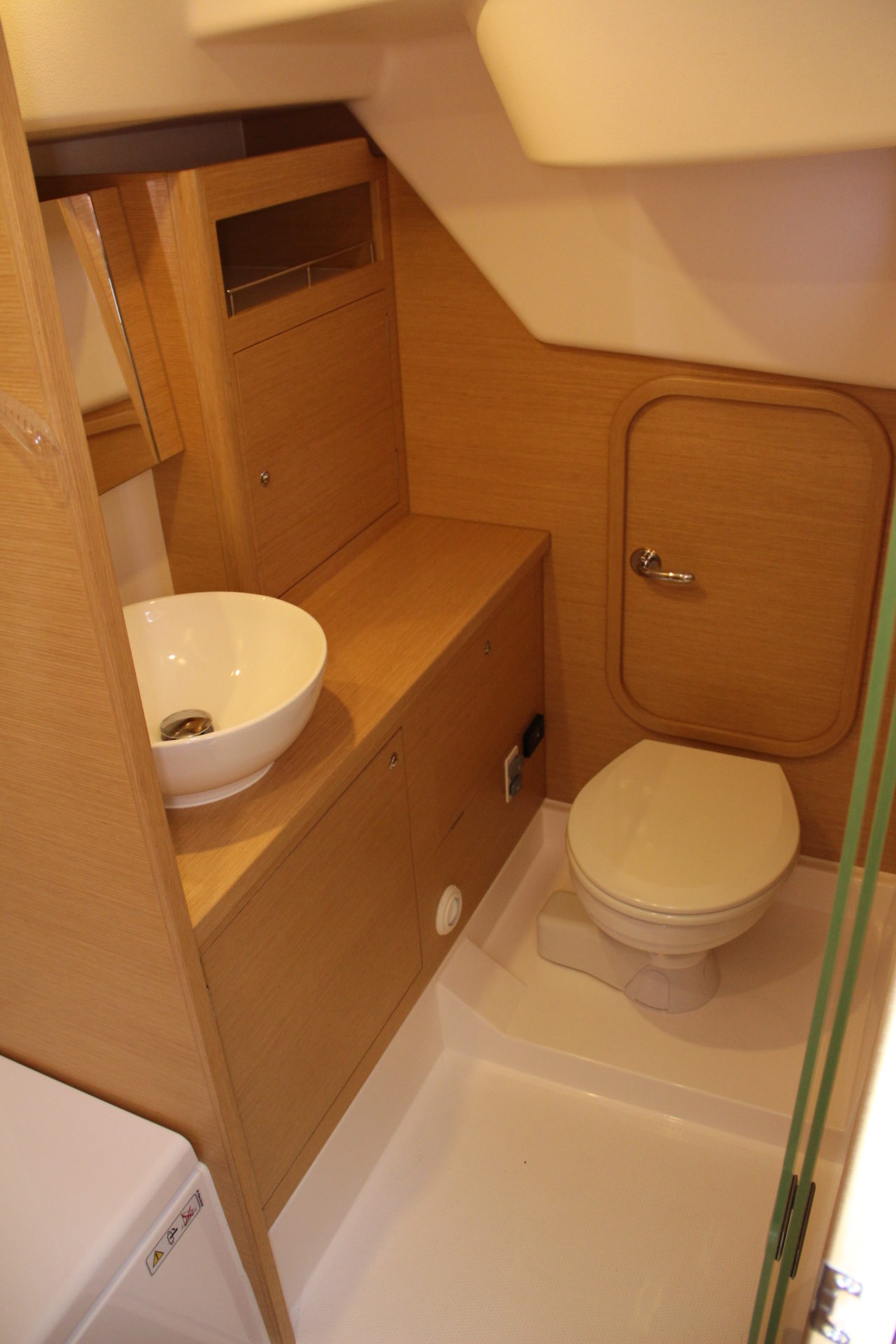

• Electrical toilet QuietFlush

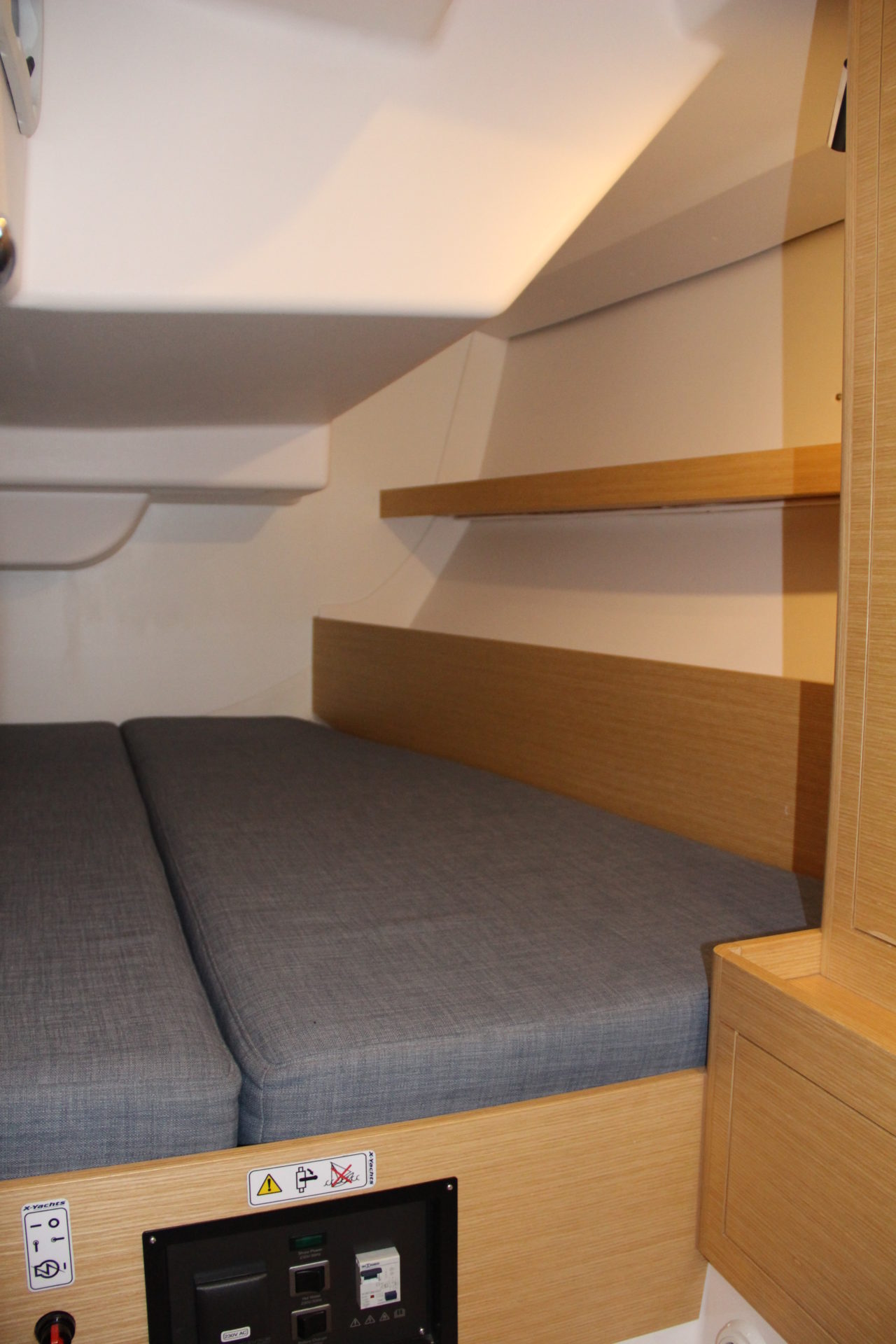

• Additional top shelf in aft cabin
• 3-burner stove with oven in galley
• Additional refrigerator (front-loading) in galley with freeze compartment
• Microwave
• Nespresso machine in drawer

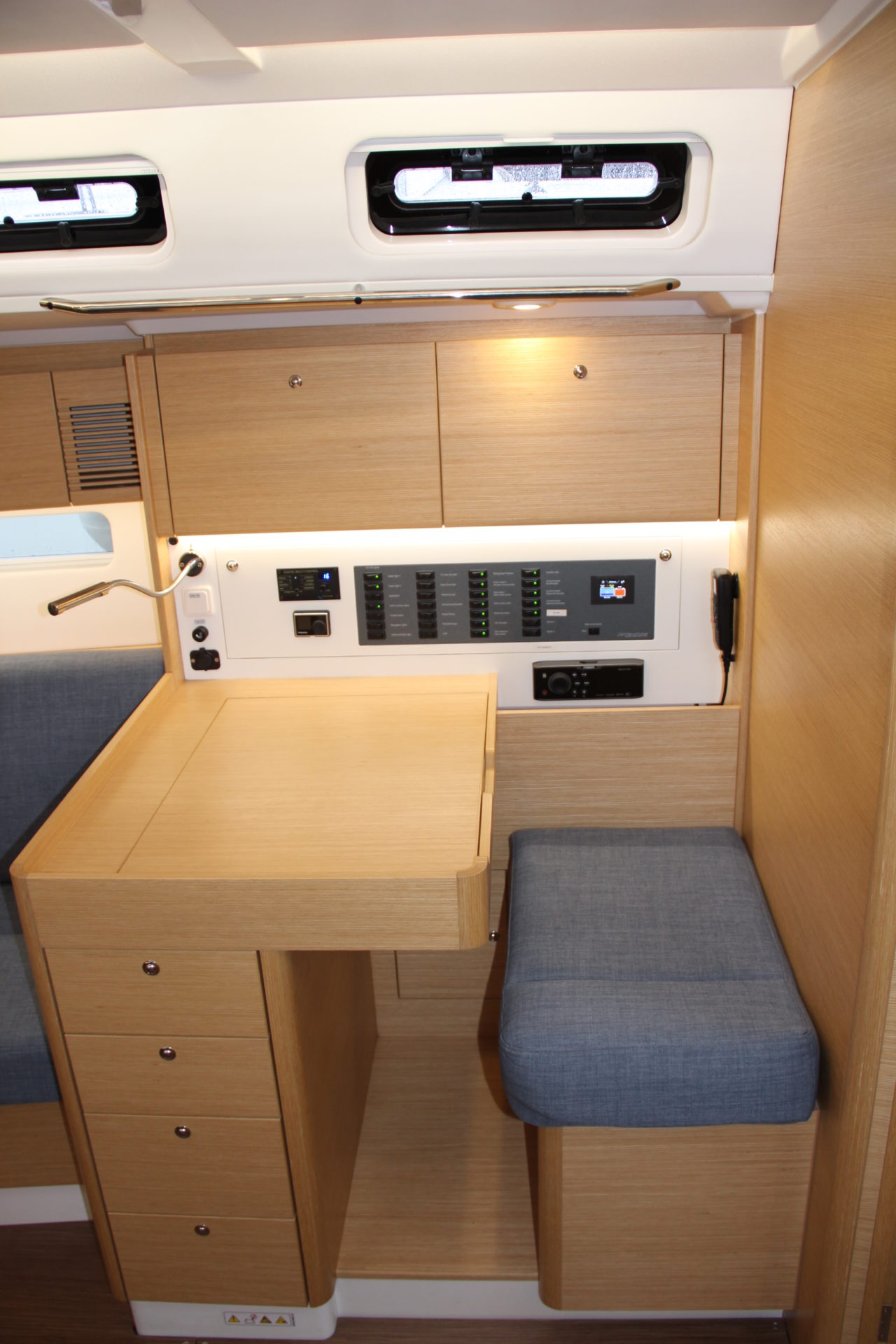

• Fusion AV750 multimedia radio at nav station with speakers in saloon
• Webasto AirTop 55 diesel heating system with digital control panel

Systems

Electrical

• Upgrade of service battery bank to 3x 110Ah AGM battery
• Upgrade to combi charger/inverter 12V/2000W/70A
• Battery monitor system integrated into switchpanel
• 3x additional USB-socket (nav station, forward cabin, aft cabin)

Electronics

• Raymarine a75 base package, consisting of:

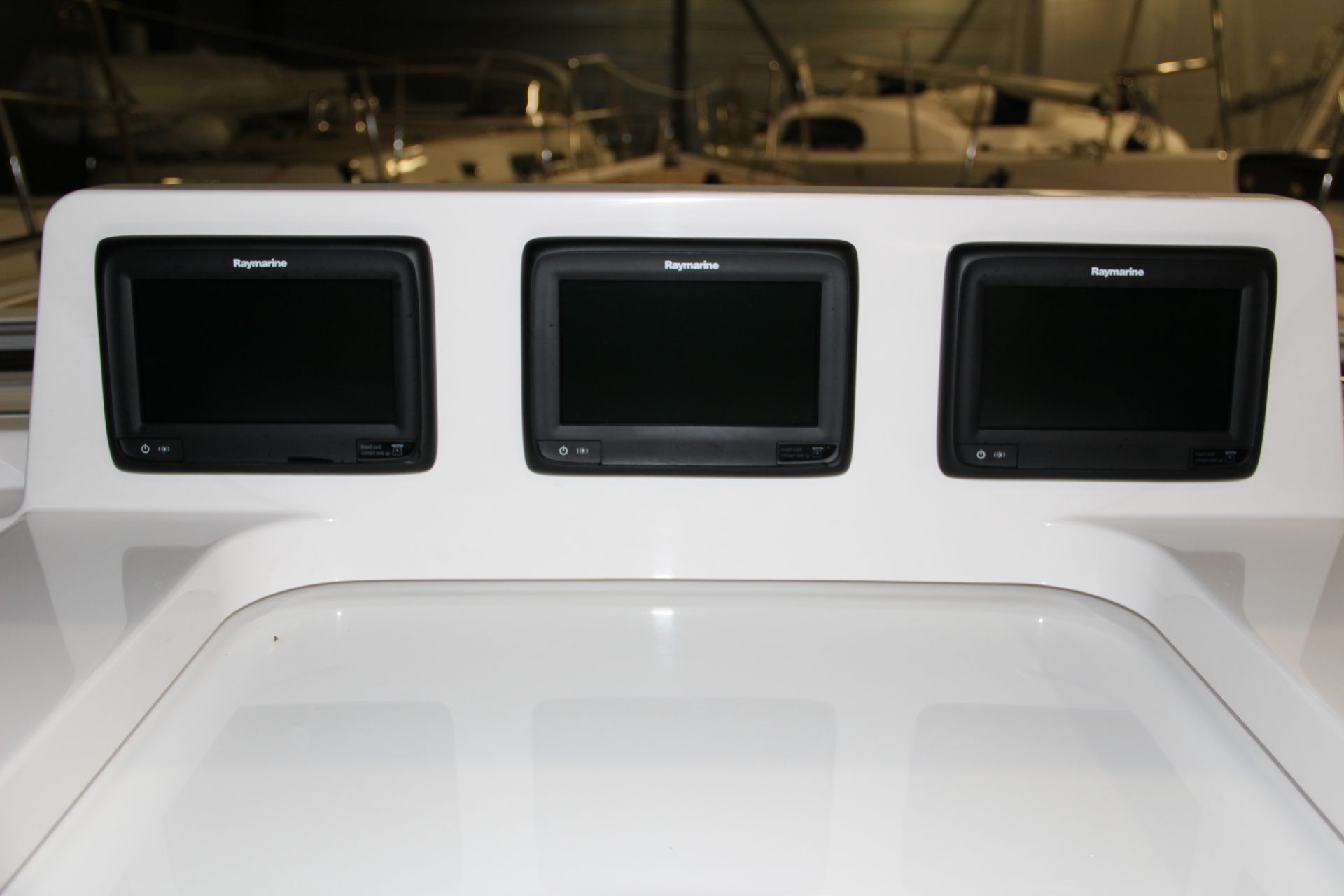

• - 3x a75 plotter/display above sliding hatch
• - 1x i70 display in console at steering wheel
• - transducers for speed, depth and wind
• Raymarine autopilot:
• - EV-400 pilot computer
• - EVO electronic compass
• - 1x p70 control panel in console at steering wheel
• - linear drive mounted on rudder quadrant
• Raymarine eS97 GPS/plotter in console at steering wheel
• Raymarine Ray260 DSC-D VHF with horn and speaker
• Raymarine AIS650 transceiver with AIS100 antennasplitter
