X4³

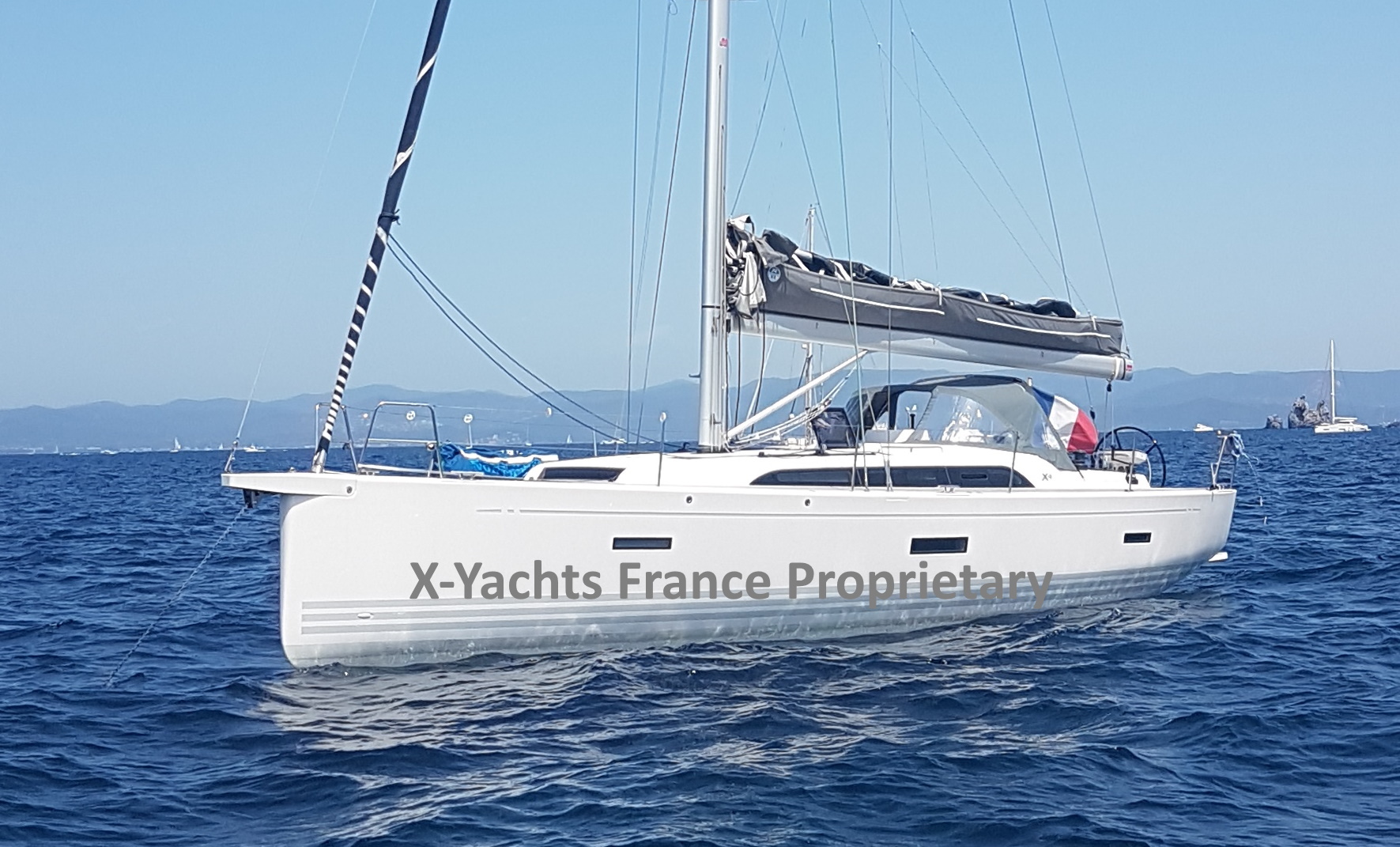

Yacht Summary

X4³

Sold

Standard Specification

DesignerX-Yachts Design Team
Hull Length12.67 m41'7"
Waterline Length11.33 m37'2"
Beam (max)3.99 m13'1"
Draft2.20 m7'3"
Ballast - Std3,700 kg8,157 lbs
Displacement - Light9,400 kg20,723 lbs
Engine Power33 kW45 hp
Fuel Tank - Std200 ltr53 gal (US)
Water Tank - Std340 ltr90 gal (US)

Standard X4³ MkII brochure

Details

Exterior Details

Hull

  • The X43 hull is a composite construction, using the latest construction technologies with a
  • vacuum-infused, post-cured epoxy construction.
  • The hull is a full sandwich construction, using foam core, biaxial E-glass skins
  • • Bi-directional E-glass strategically positioned for strength and weight optimization
  • • Solid laminate in high stress areas around keel, rudder and through hull fittings
  • • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
  • waterlines in NGA Gelcoat (RAL 7011 dark grey)
  • • Hull moulded in female moulds for highest quality surface finish
  • • Structural bulkhead in marine plywood varying in thickness from 16-30 mm
  • • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
  • from keel, mast and rigging
  • • Prepared for single point hoist for easy and safe lifting and launching of yacht
  • • Bathing platform
  • • X-Yachts style hull recessed portlights (6 pcs

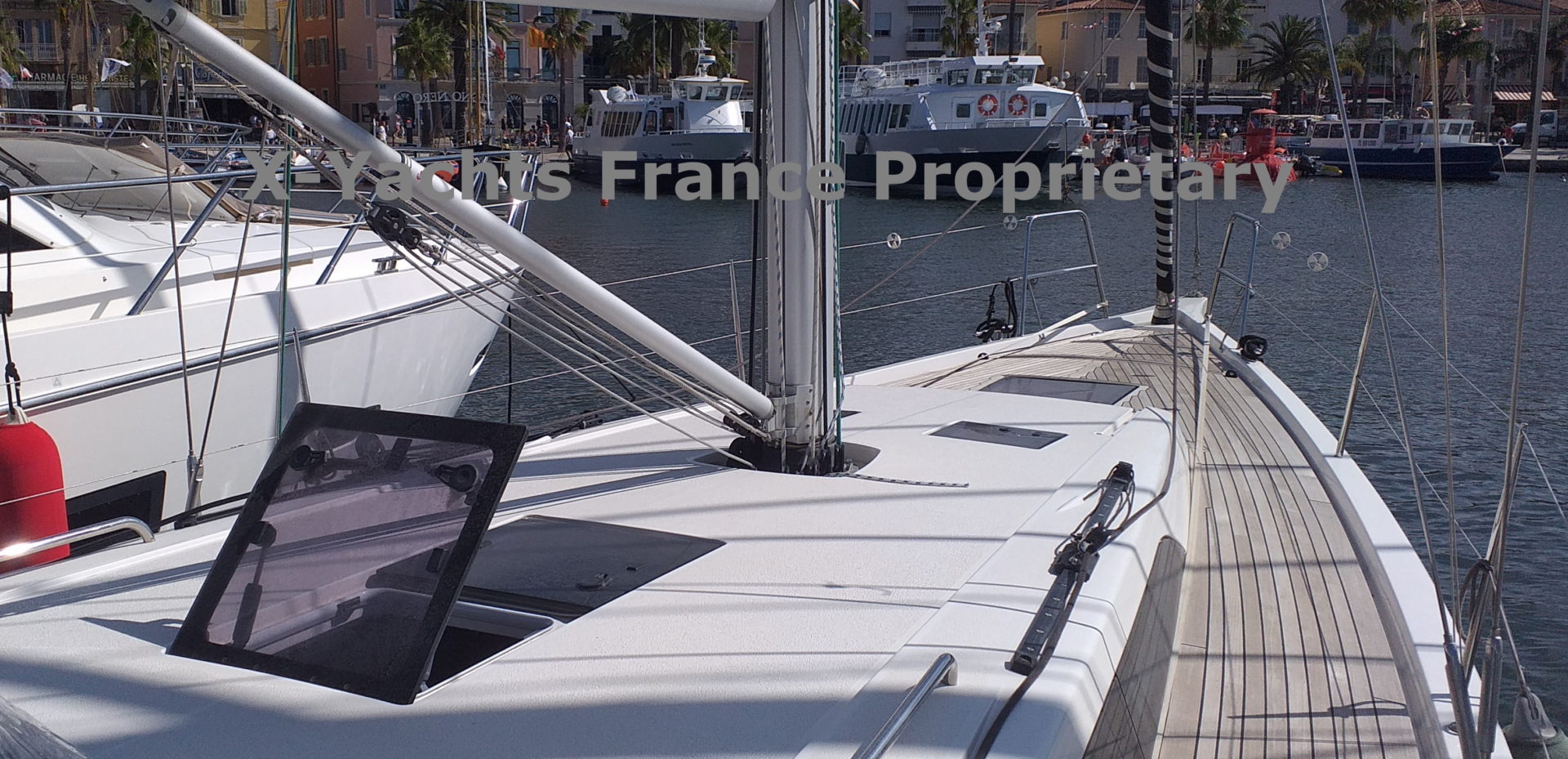

Deck

  • • Built in sandwich construction with structural compressed foam
  • • Bi-directional E-glass strategically positioned for strength and weight optimization
  • • Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
  • • Large sail locker, accessible from deck hatch , and inside the yacht
  • • Deck and locker lids moulded in female moulds for highest quality surface finish
  • • Teak, vacuum applied, 9 mm nominal thickness on side deck, and cockpit
  • sole, seats and bathing platform
  • • With painted bowsprit
  • • Electric windlass with DELTA anchor

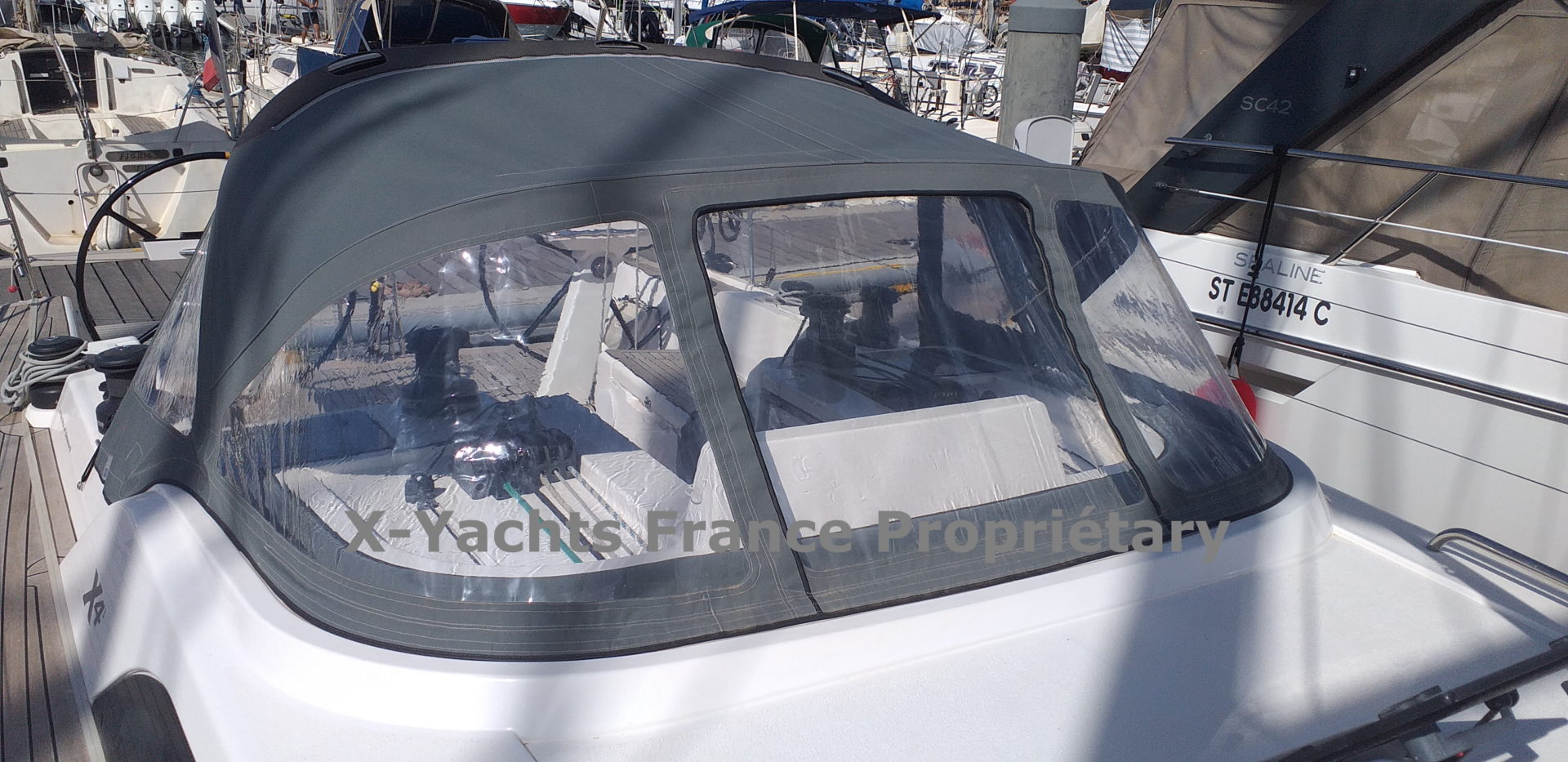

  • Large sprayhood with stainless steel frame (like new !)
  • Gas springs fitted to sail cabin, port & stb cockpit lockers and port aft cockpit
  • locker hatch (4 pcs)

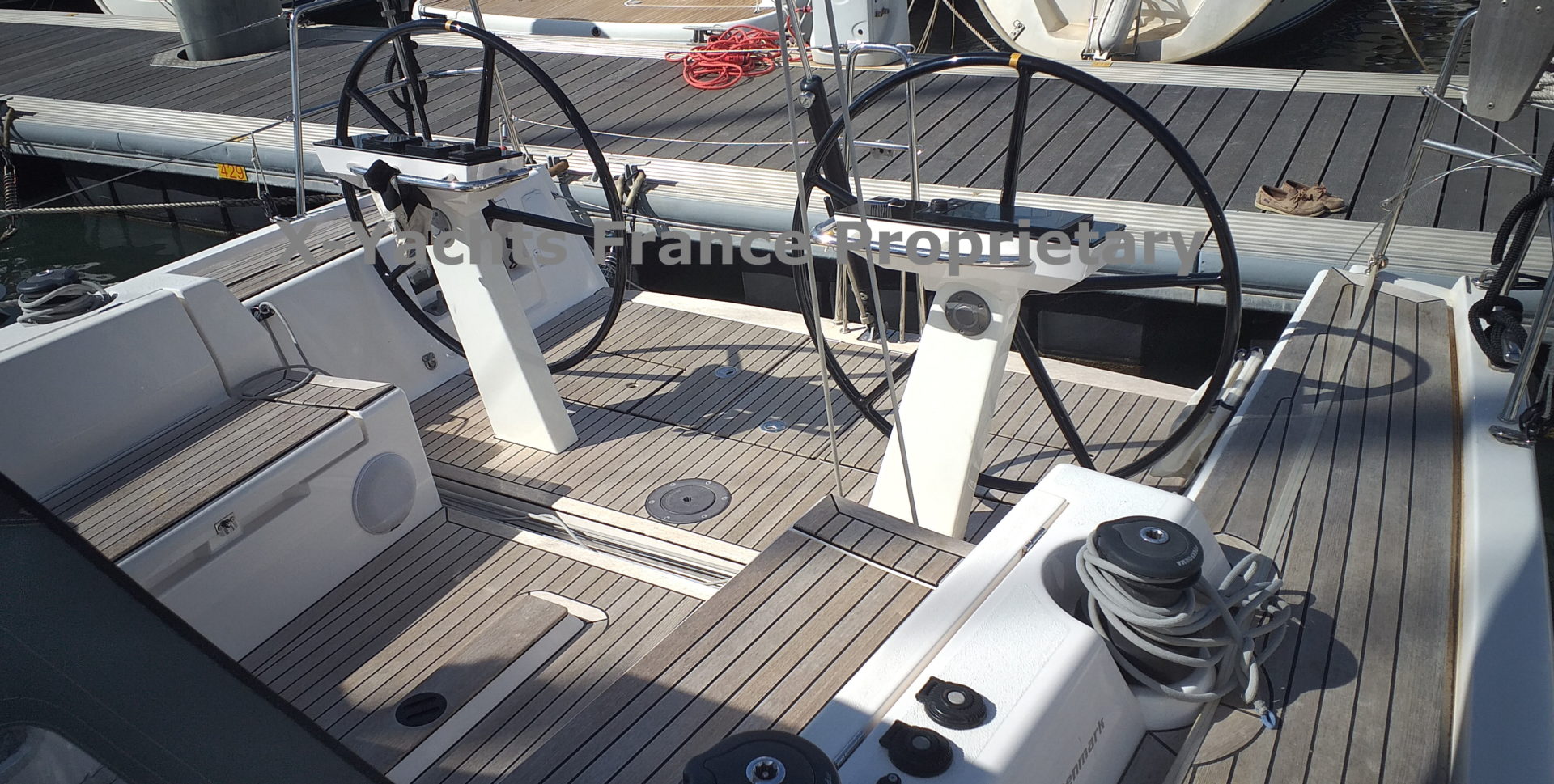

  • • Cockpit table
  • Composit steering wheels black painted

Sail Handling

  • 2 x 46 ST HARKEN PERFORMA for halyard, 1 electrical port side
  • • 2 x 46 ST HARKEN PERFORMA for mainsail with German system ,
  • • 2 x ST 50 HARKEN PERFORMA Electrical for genoa

Sails

  • • Full batten mainsail NORTH SAILS 3DI RAW 76 16800dpi 2 reefs 55 m2
  • • Lay bag and lazy jack
  • • Tide Marine mast track and travellers
  • • Furling Genoa 108 % 3Di Raw 760 S 19600 dpi 4 vertical battens, UV
  • protection
  • • Code Gzero Norlon Ny205 102 m2 with r FACNOR FX250 furler

Mast & Rigging

  • • Mast and boom from JOHN MAST , 2 spreaders set
  • • Rod rigging
  • • FURLEX genoa furler with drum under the deck
  • • Hydraulic cylinder for backstay

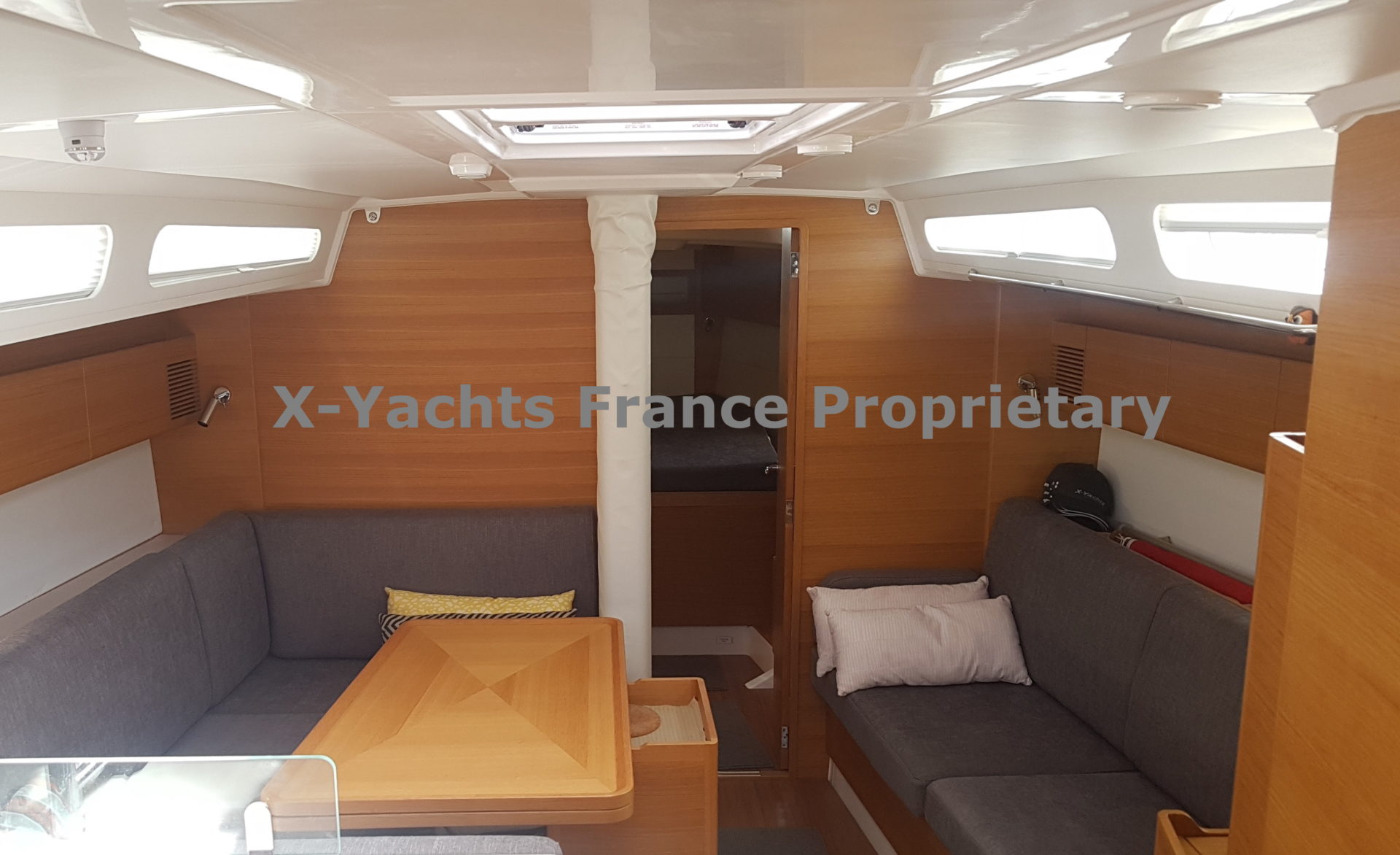

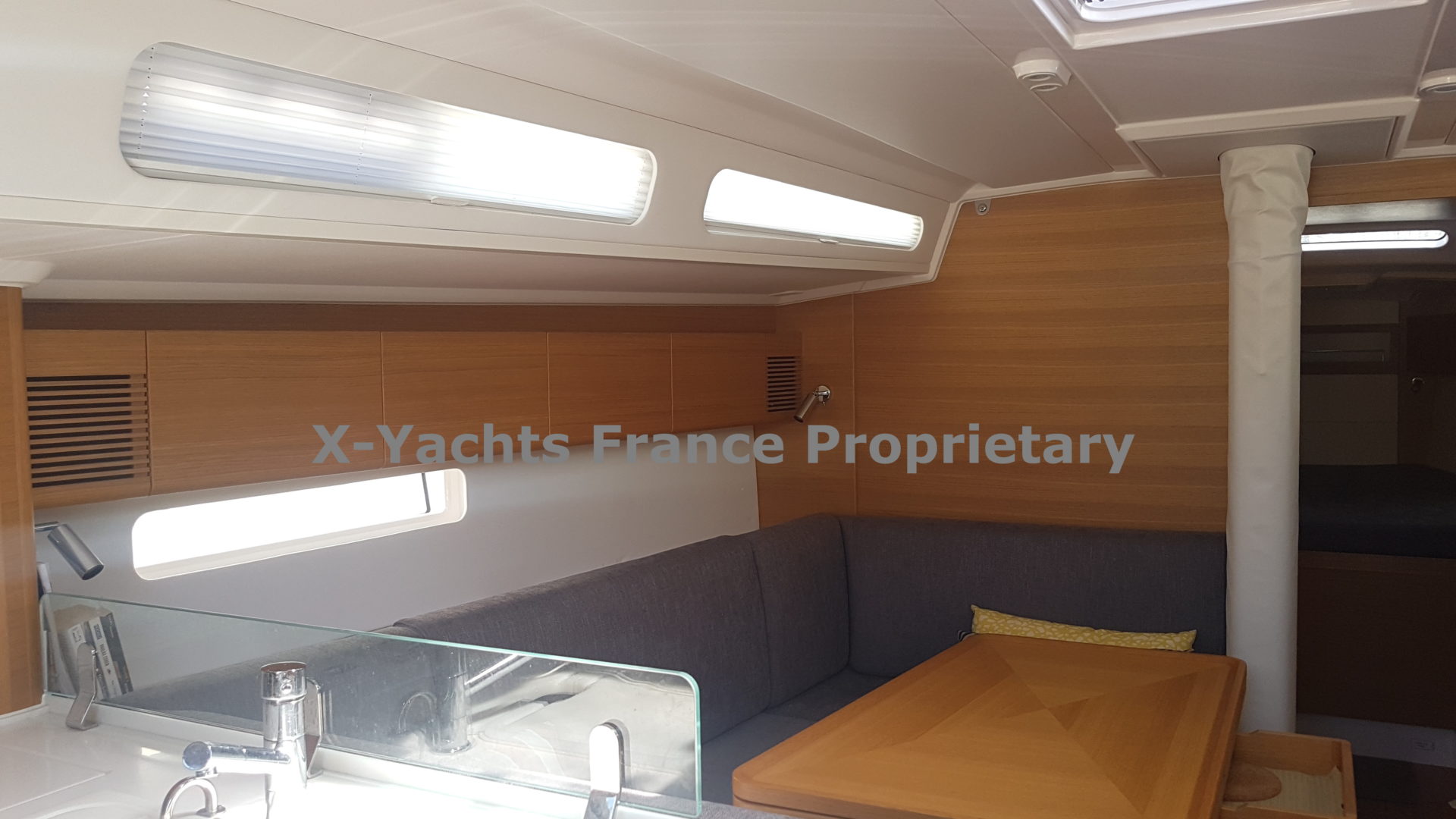

Accommodation

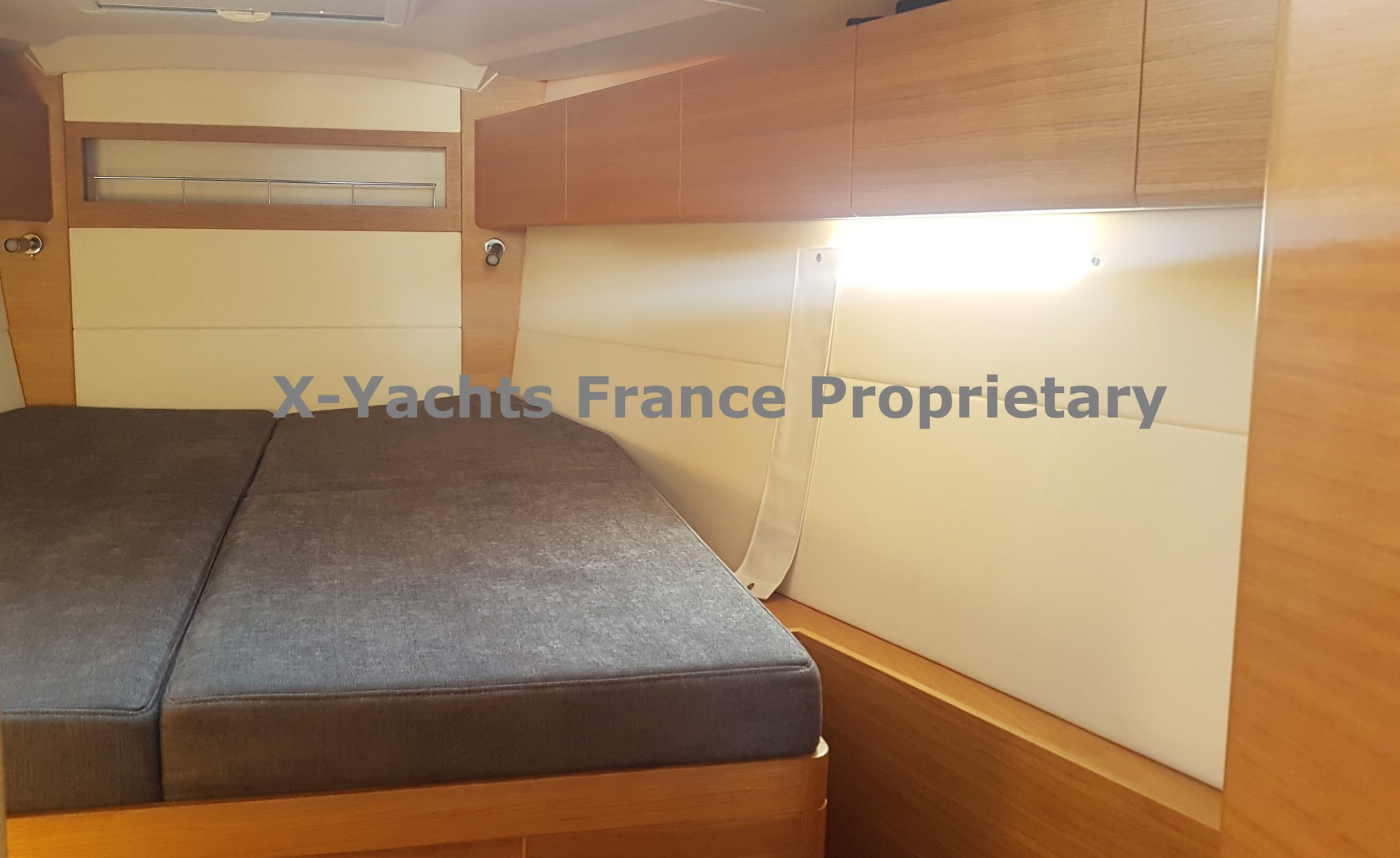

  • 3 cabins layout, , 2 heads
  • • Nordic oak
  • • Sea berth in the 2 aft cabin

Systems

Engine

  • YANMAR Engine 4JH 57 HP SD 60 with GORI 2 blades folding proppeller
  • • 12 V / 120 AMp alternator
  • • Starting battery 70 Ah
  • • Gas oil tank 200 L
  • • Retractable MAXPOWER bowthruster

Plumbing

  • Fresh Water tank 340 L, , hot water 24 L
  • • Electric fridge with 90 L with ses water cooling, additional fridge
  • • Gas cooking
  • • Electical toilett Quitflush in the aft head
  • • Holding tank 55 L x 2
  • • FUSION MS-AV750 multimedia setero with 2 12 W HP in the saloon and 2 HP in
  • the cockpit

Electrical

  • Service battery Total 220 V Amp
  • • 12 V 120 Amp alternator
  • • Combinated Inverter Battery charger 12 V - 2000 W / 70 Amp
  • • 12 V plug at the charte table
  • • Led lights

Electronics

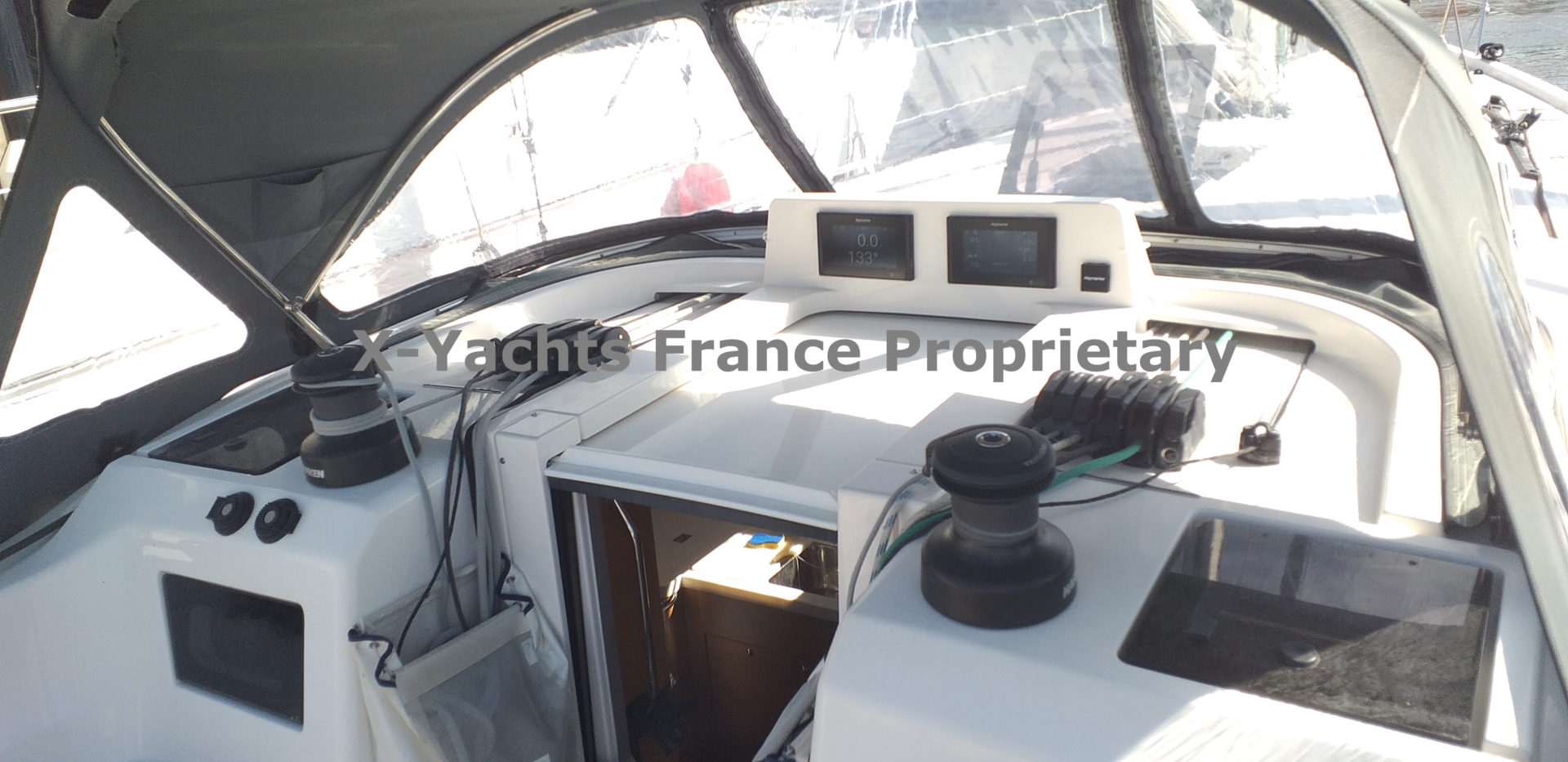

  • • 2 x AXIOM 7" on the coachroof, with wifi
  • • 1 w AXIOM 9 " on the steering wheel port side
  • • 2 I70 on the steering wheel Stbd, 1 x I70 on the chart table
  • • Wind sensor with RAYARINE high speed, speed and deepth transducer
  • • Autopilot EV-400 with type 1 tiller, contril unit P7
  • • VHF RAY 260 with HP
  • • VHF/ GSM delta 2006
  • • AIS Class B RAYMARINE 650

Thrusters

  • Safety equipment with liferat
  • Sun owning (new !)

Additional Information

  • Like a new one ! Very poor used Available Mid seprember 2021
