Details

Exterior Details

Hull

• Hull is vacuum epoxy infused, sandwich construction with structural fiberglass
• Steel girder frame for the keel. Keel is a lead bulb underneath a steel fin, and is fully encapsulated in glassfibre/epoxy poured into a mould for perfect shape and finish

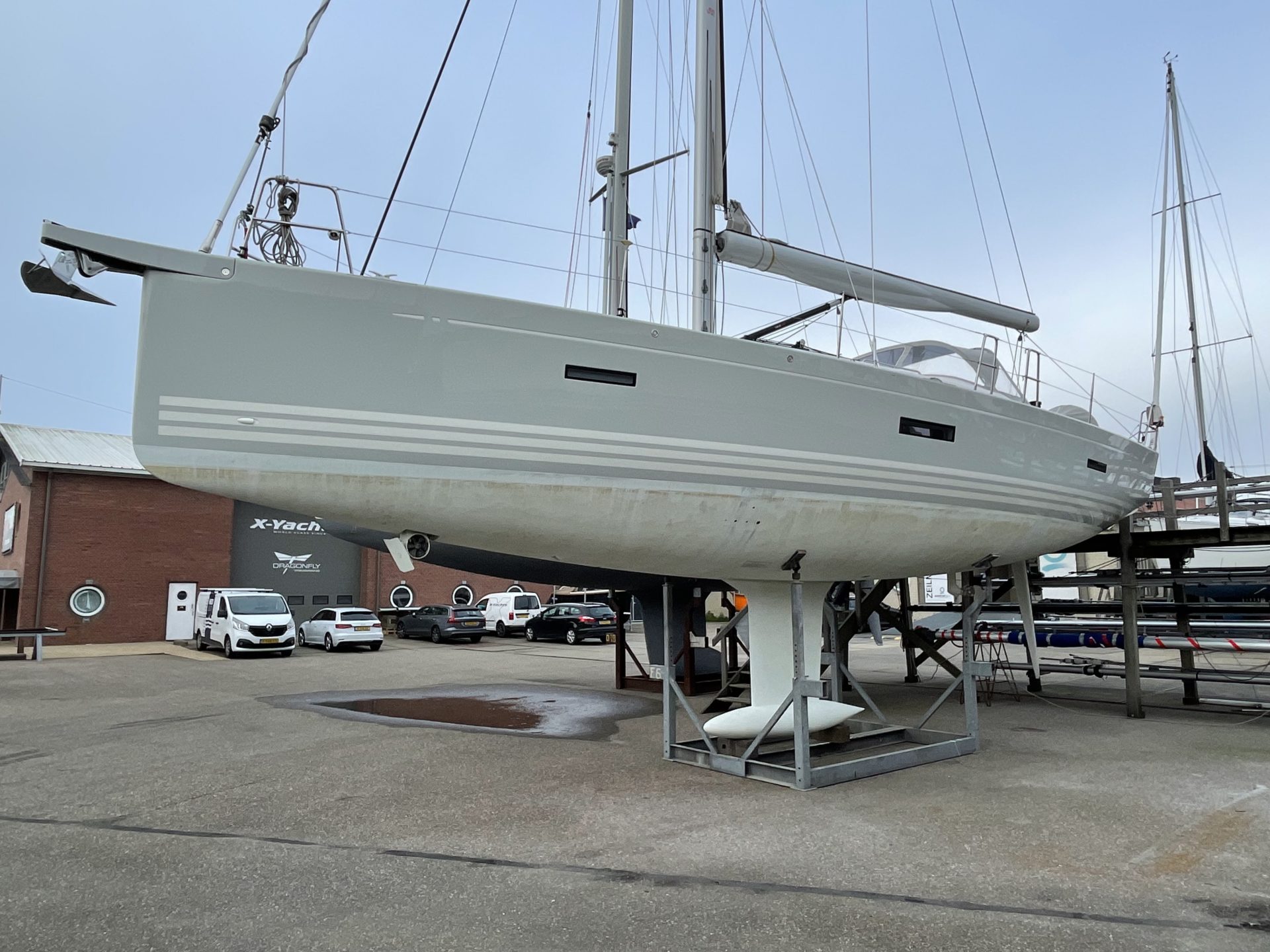

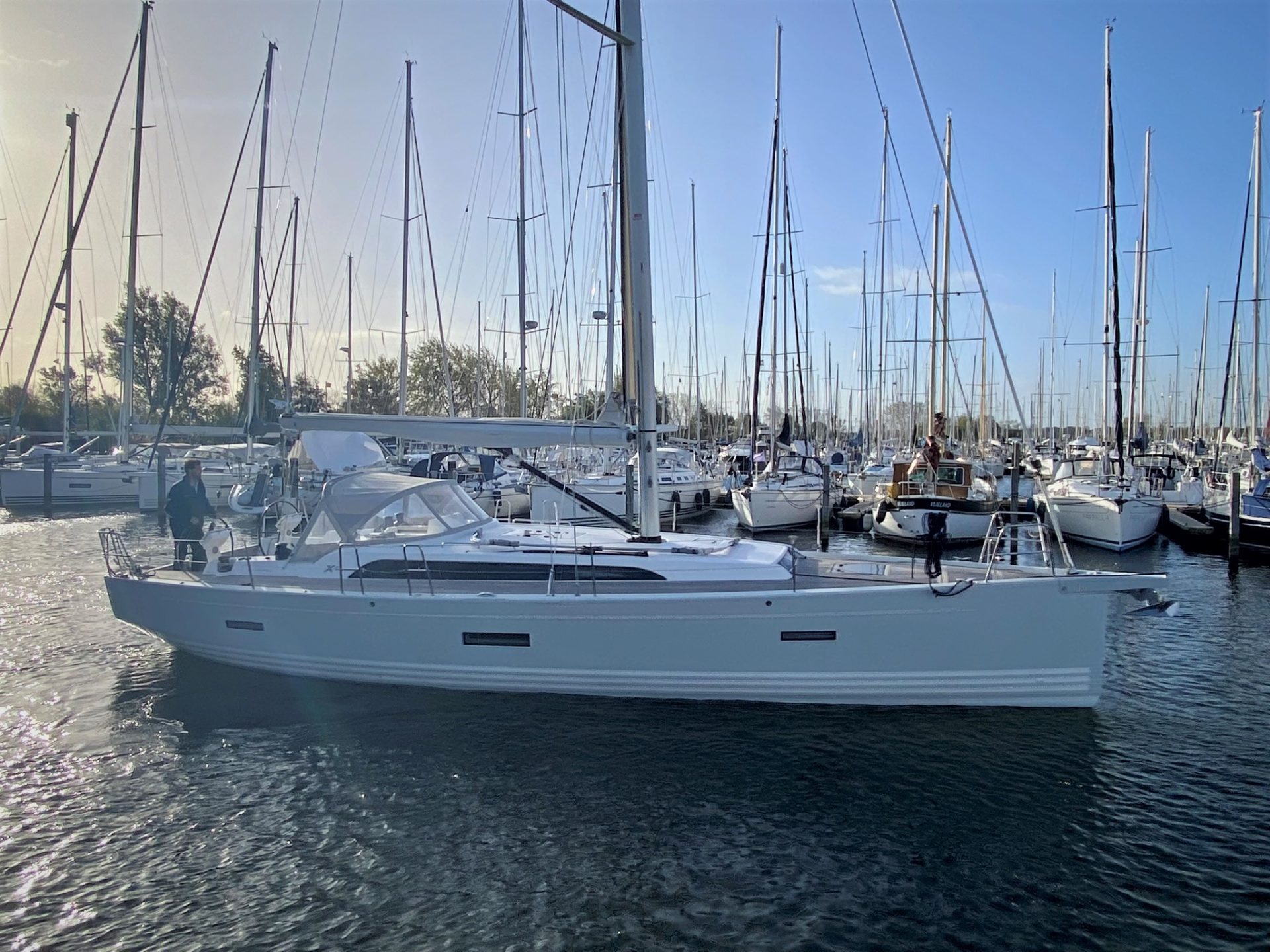

• Hull in light grey gelcoat (RAL 7035) with the distinctive 3 waterlines in white gelcoat (RAL 9010)
• Carbonfiber bowsprit on boat (painted in light grey to match the hull colour)
• Bottom treatment from yard (epoxy primer and antifouling)
• Antifouling latest applied spring 2022
• Large transom platform with teak deck

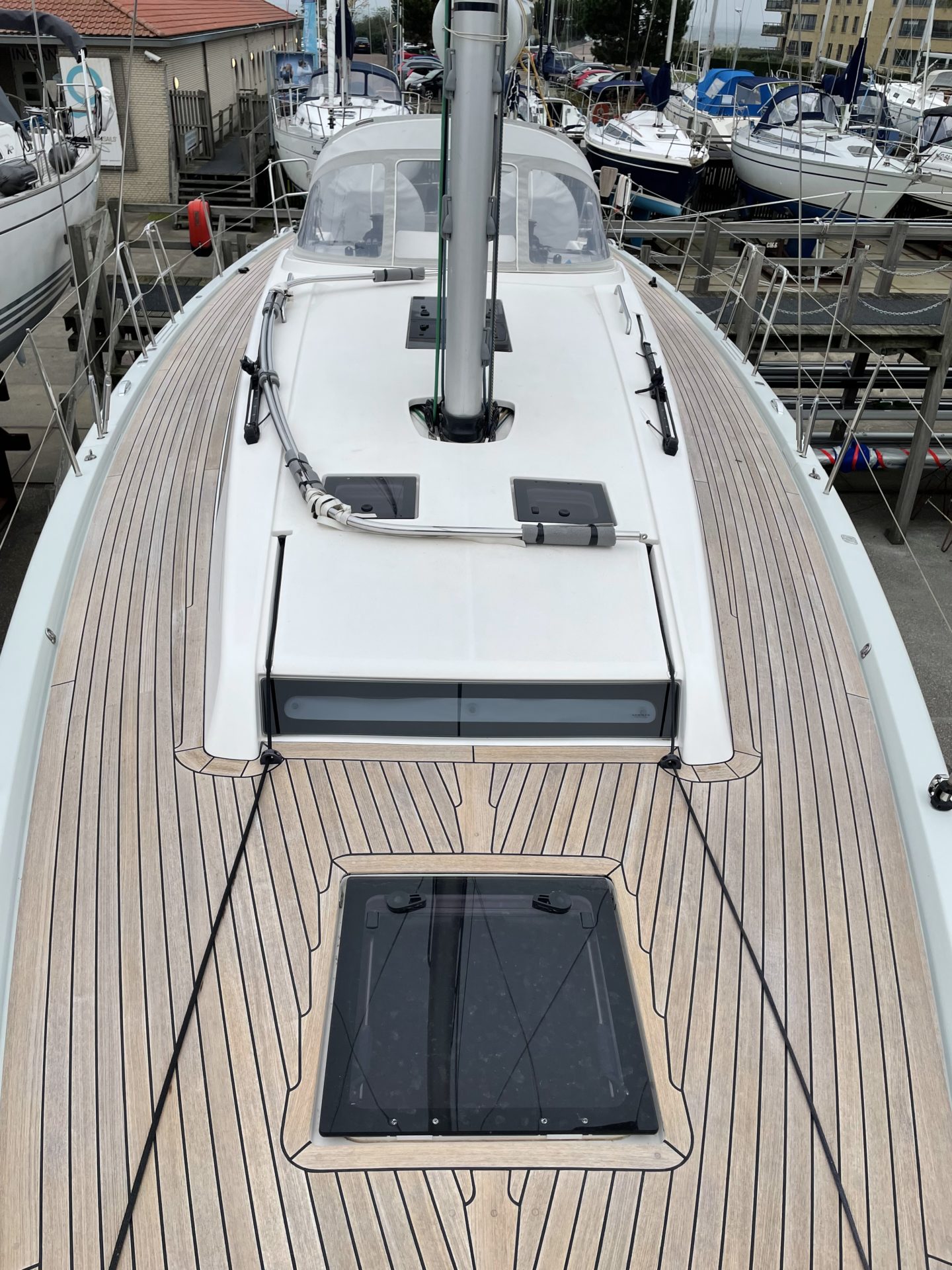

Deck

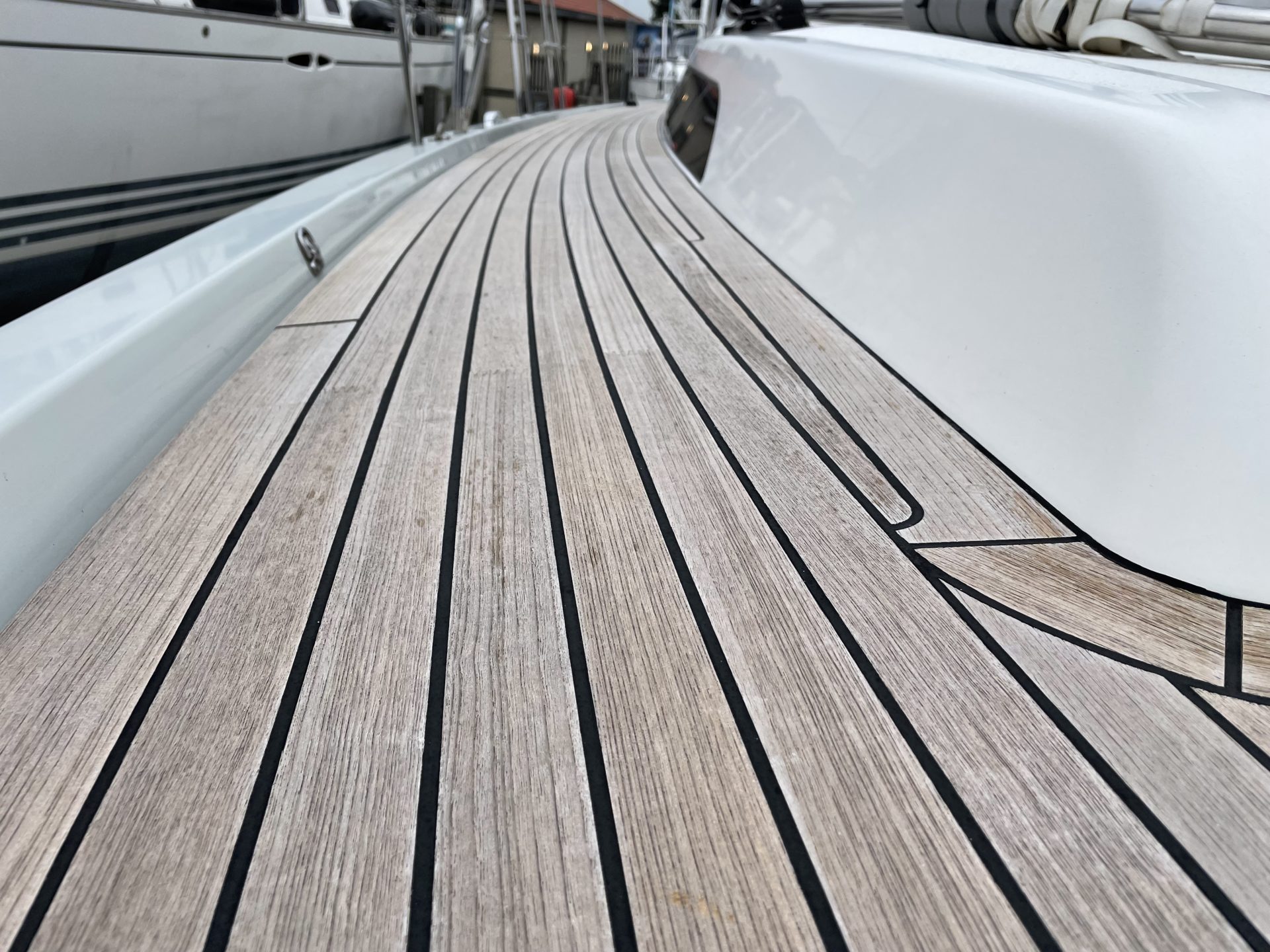

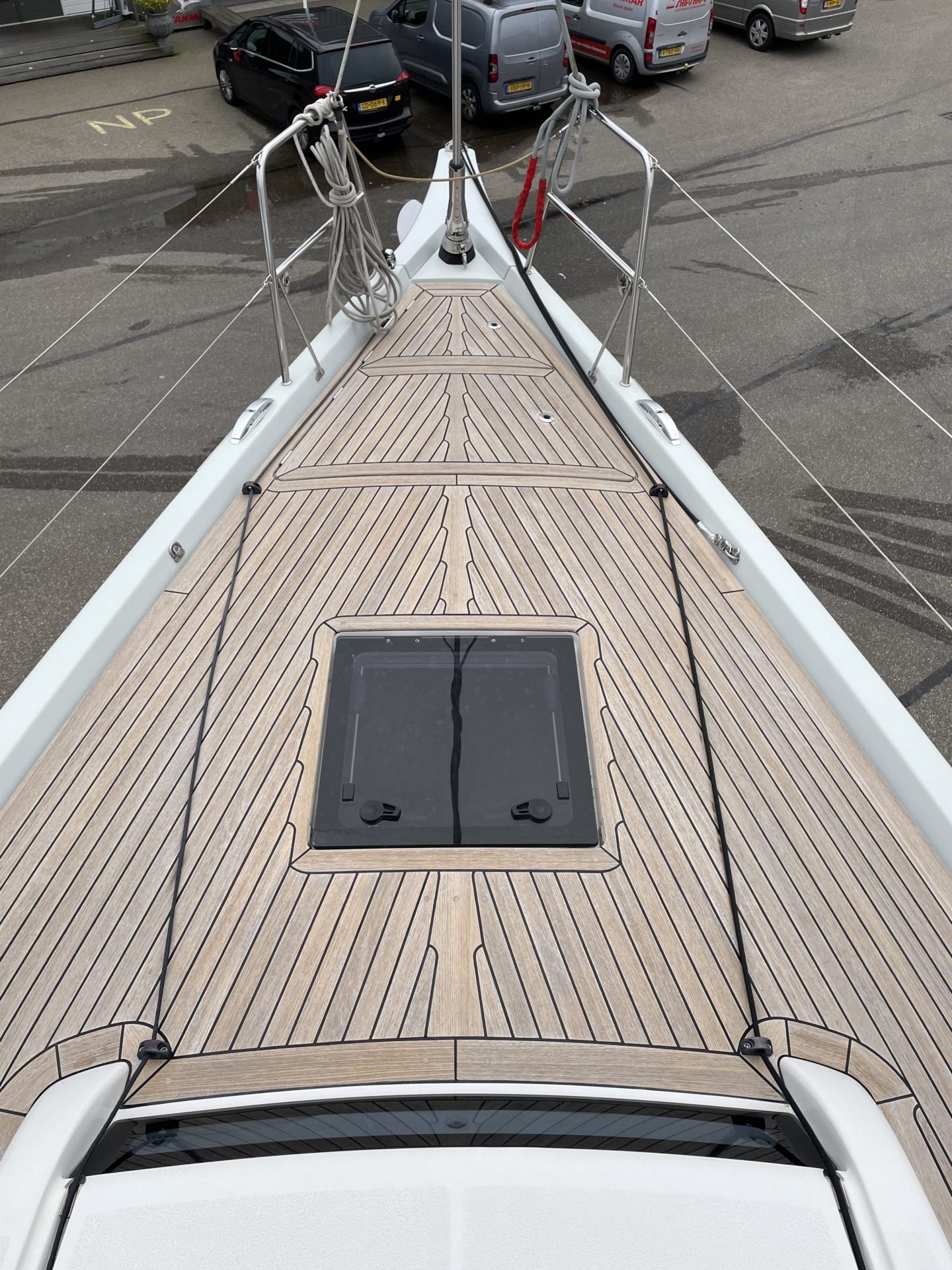

• Teak in cockpit and on side decks
• Large dry saillocker in the bow of the boat
• Anchor locker with electrical anchor winch
• 20kg stainless steel Delta anchor with 50m anchor chain
• Connection in cockpit for remote for anchor winch
• 6x Nomen foldable mooring cleats (fore, aft and midships)
• Gates in lifelines midships
• 6x additional Wichard folding pad-eyes mounted (on various locations)

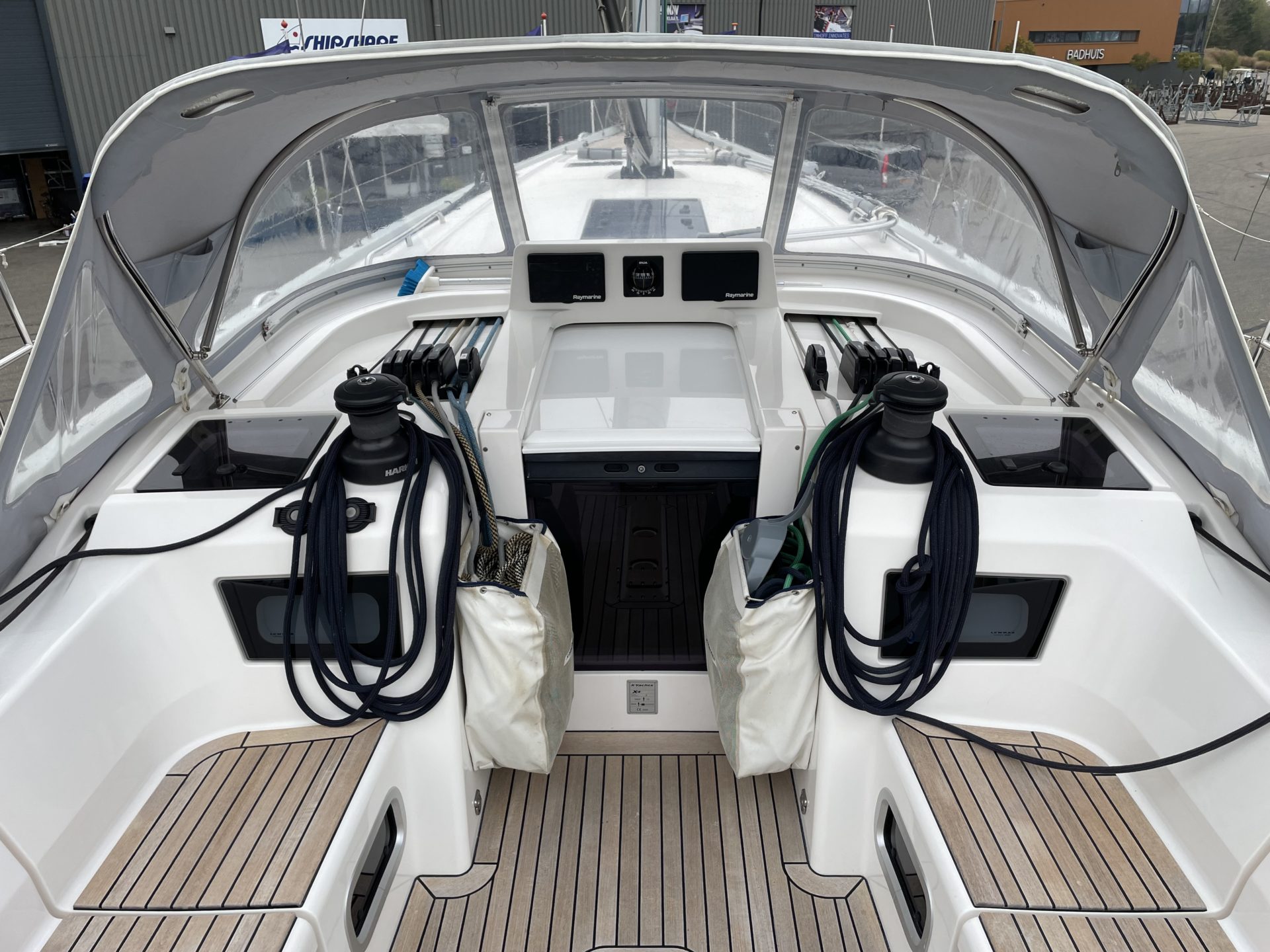

• Sprayhood, foldable into recess in deck, in light grey canvas
• Cockpit tent, in light grey canvas
• Bimini for aft part of cockpit (above helmsman) in light grey canvas
• Cockpit table in teak on aluminium legs (removable)
• Black composite steering wheels
• Medium consoles at steering wheels (for plotter and instruments)
• LED courtesy lights in cockpit
• Cockpit speakers
• Outboard engine bracket in teak

Sail Handling

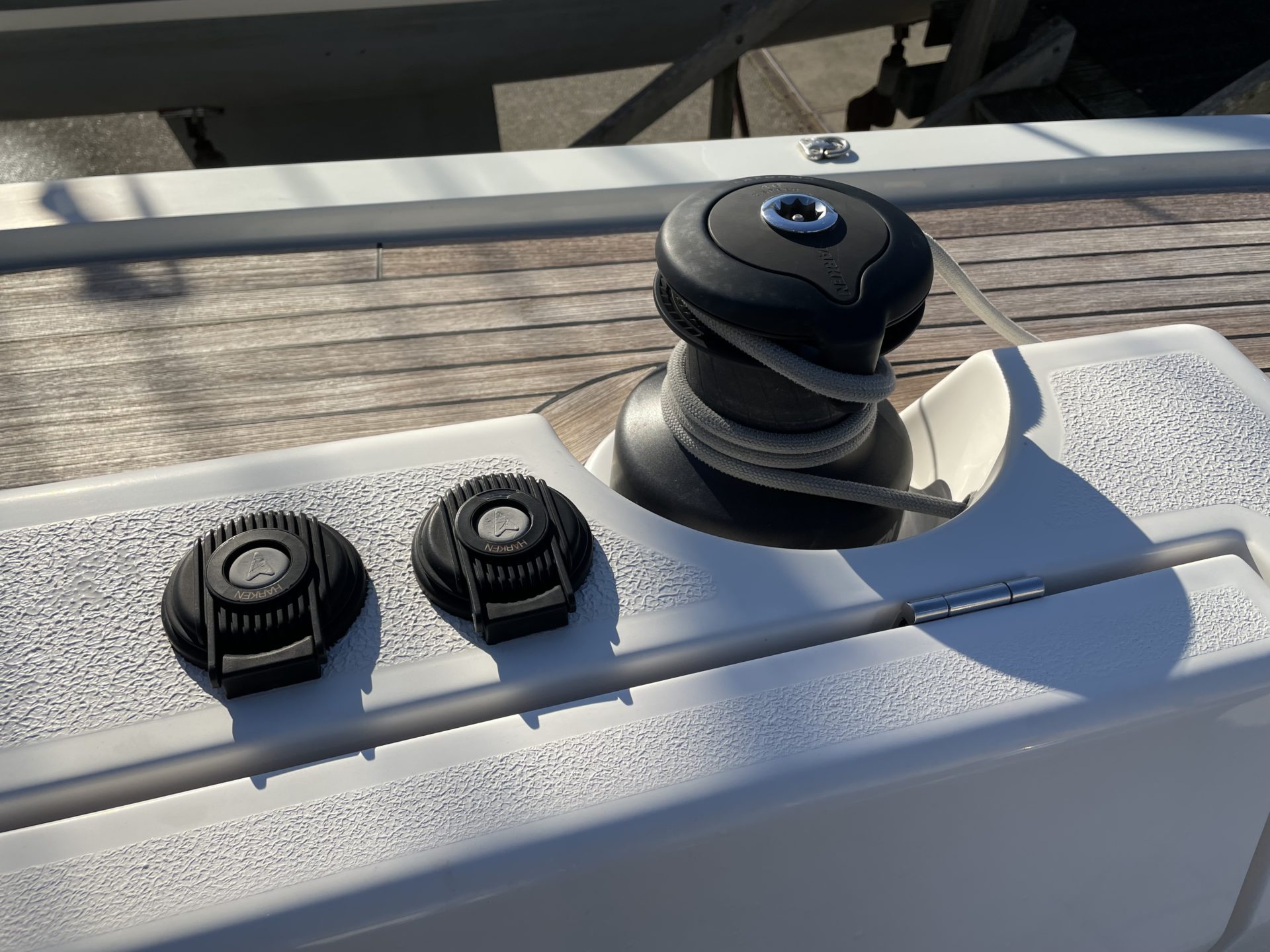

• 1x manual Harken Performa 46 halyard winch
• 1x electrical Harken Performa 46 halyard winch (on PS)
• 2x manual Harken Performa 50 genoa winches
• 2x electrical Harken Performa 46 mainsheet winches
• Gennaker deck and sheeting package

Sails

• North Sails mainsail:
• - in spectra carbon laminate
• - 5x full-batten
• - 2 reefs
• North Sails furling jib 106%
• - in spectra carbon laminate
• - vertcal battens
• - UV-cover on leech
• North Sails code 0 sail
• - in North Sails Xi laminate
• - with anti-torsion stay and furler
• North Sails G2 gennaker
• - in Norlon cloth
• - with snuffer
• Cover for Furlerboom in light grey
• Genoa cover in light grey
• Covers for both pedestals and steering wheels in light grey
• Suncover to protect the whole boat when left at mooring

Mast & Rigging

• Custom designed aluminum mast, boom and vang for X4.3 by John Mast
• Rod rigging as standard for all standing rigging
• Furlerboom in-boom furling system, with spring loaded vang
• Furlerboom is prepared for LED lighting if desired
• Hydraulic backstay adjuster
• Furlex genoa furling system
• All halyards and sheets in dyneema (standard halyards for mainsail, genoa and gennaker)
• Additional boom lift halyard for Furlerboom
• Additional code 0 halyard
• Combined LED 3-colour/anchor light in top of mast
• Combined LED deck/steaming light on forward face of mast
• Masthead VHF antenna

Accommodation

Interior

• 3-cabin/2-heads lay-out
• Full interior crafted with selected Nordic oak veneer
• Eberspächer heating system with vents in each cabin

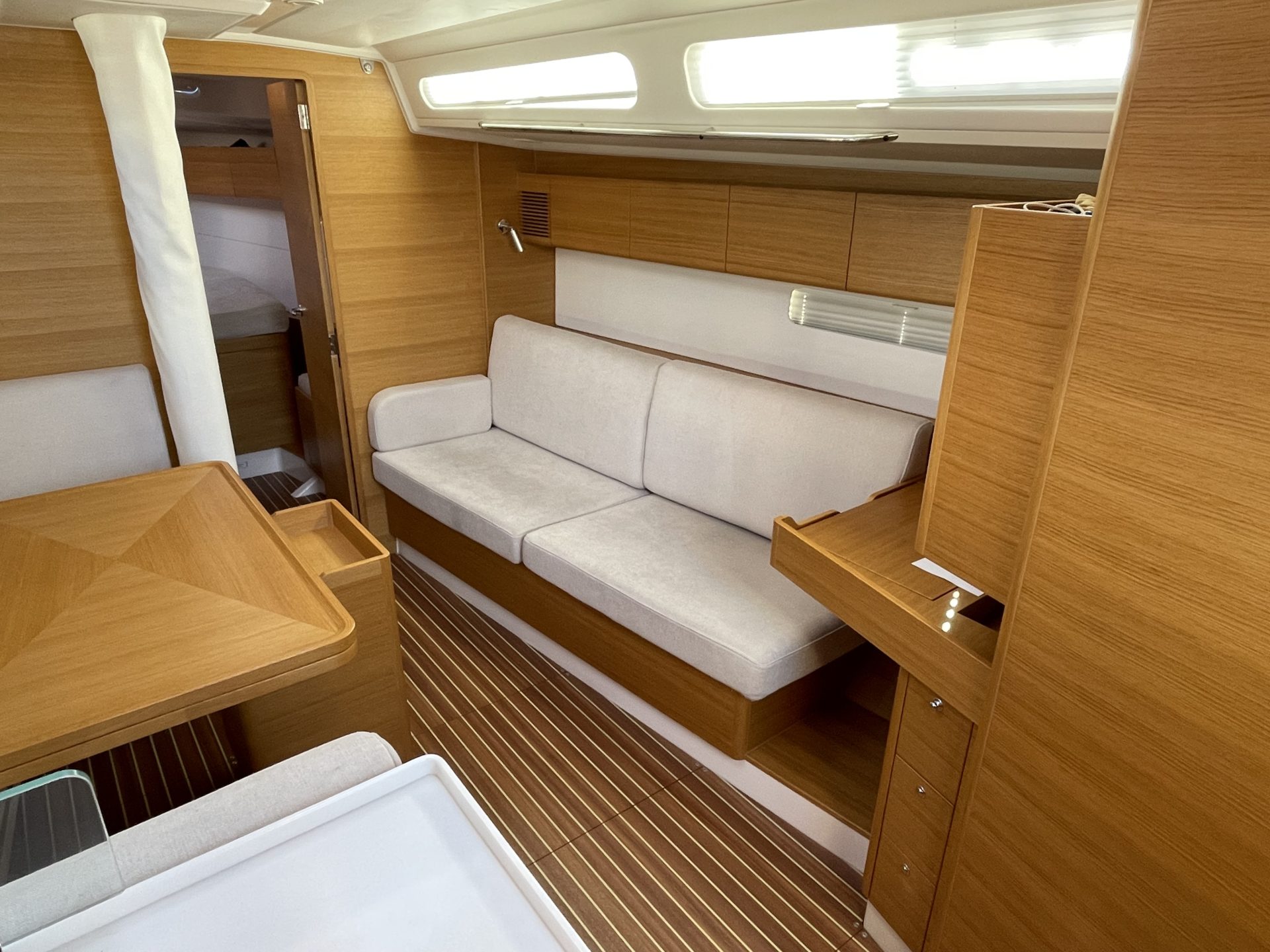

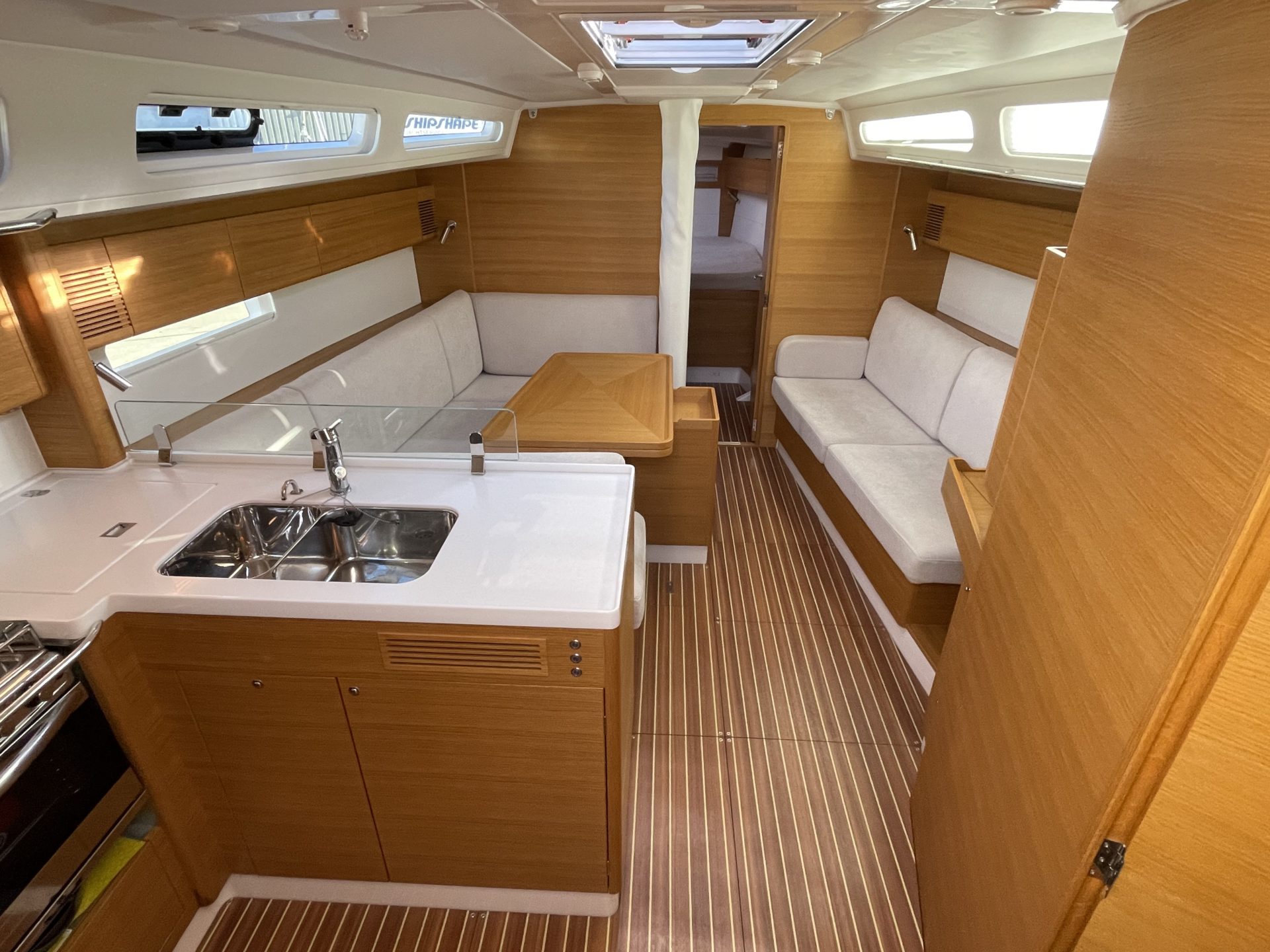

Saloon

• OceanAir curtain system for all hatches, coachroof windows and hull windows
• Additional LED downlighting below cabinets in saloon
• Fusion MS-AV750 multimedia center with speakers

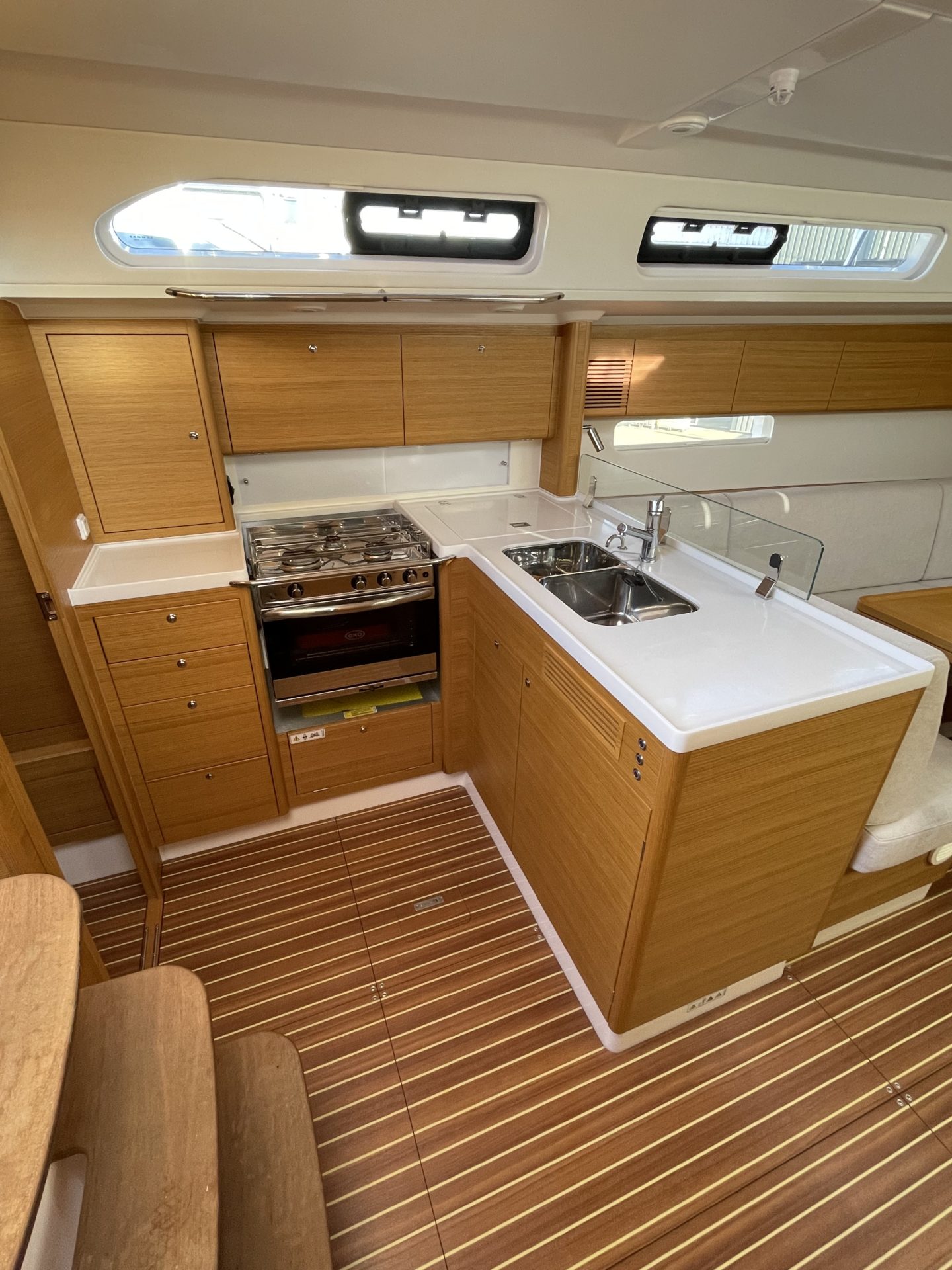

Galley

• 3-burner stove with oven in galley
• Electrical gas switch
• Additional front-loading refrigerator 65l
• Nespresso Inissia coffee machine, mounted on sliding drawer inside galley cupboard

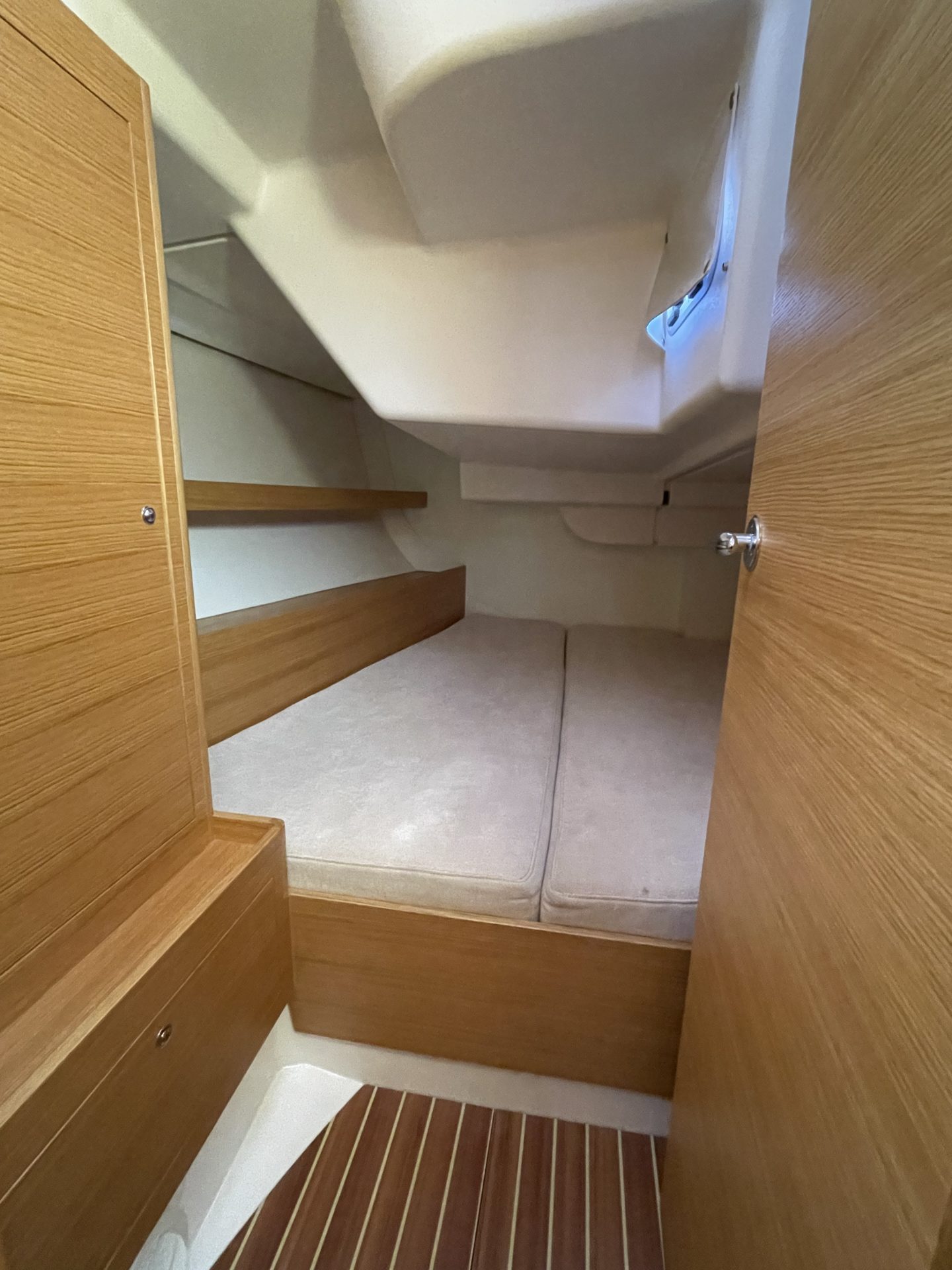

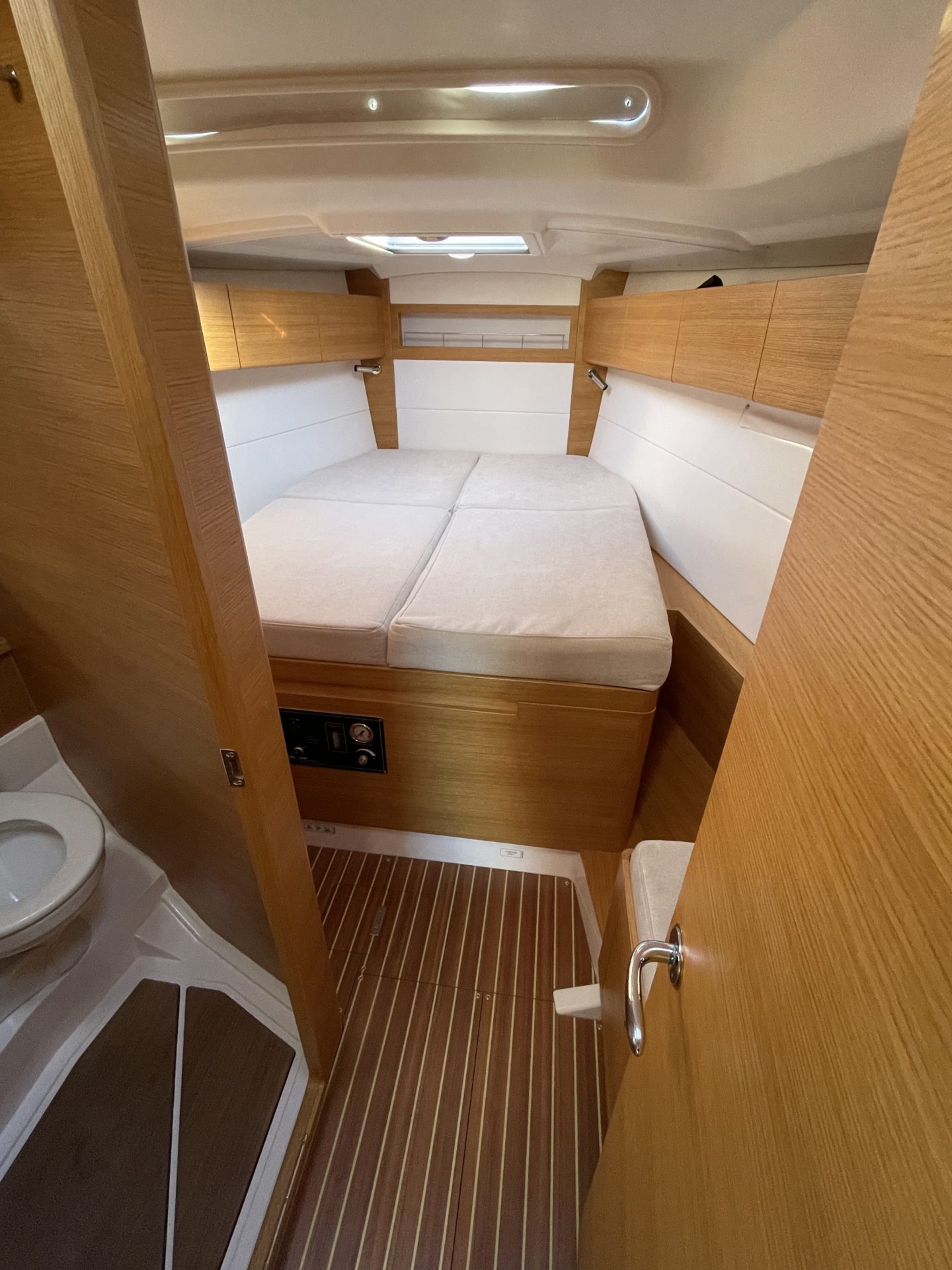

Forward cabin

• Spring mattrasses in forward cabin
• Additonal cabinet sections along hull in forward cabin
• OceanAir curtain system for deck hatches

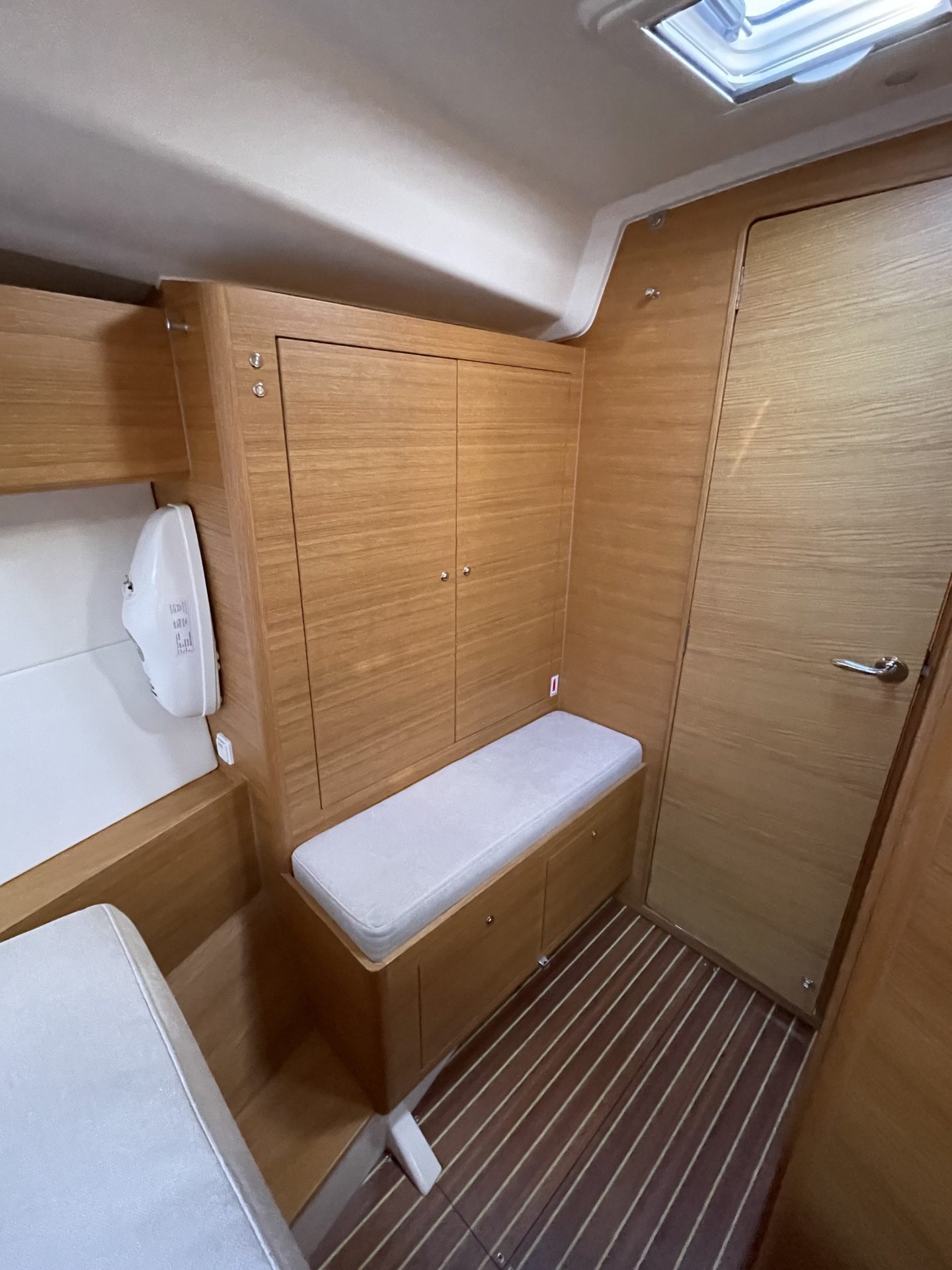

Aft cabins

• Freeboard hung sea berth in PS aft cabin
• Additional storage shel in SB aft cabin
• OceanAir curtain system for deck hatches

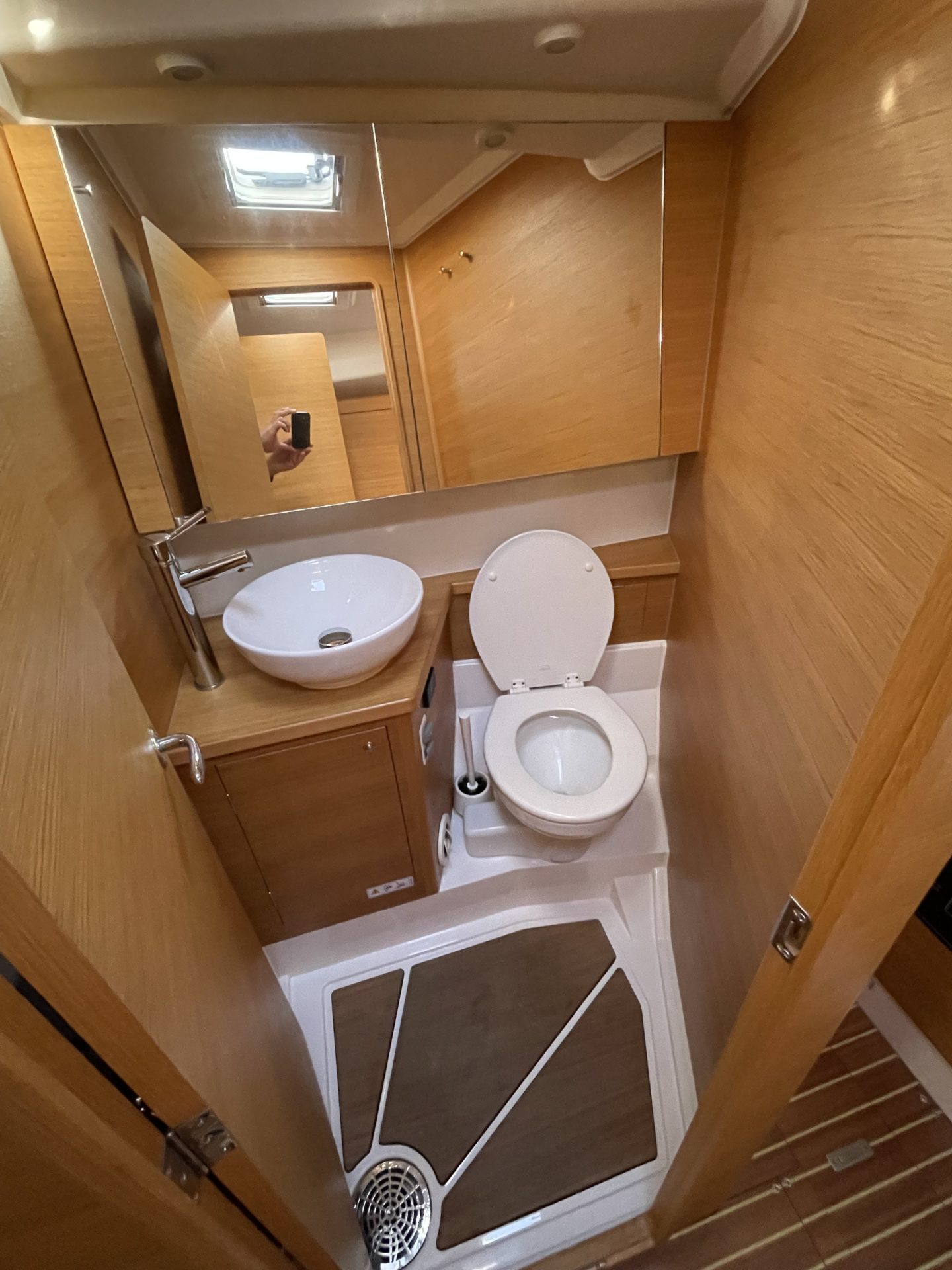

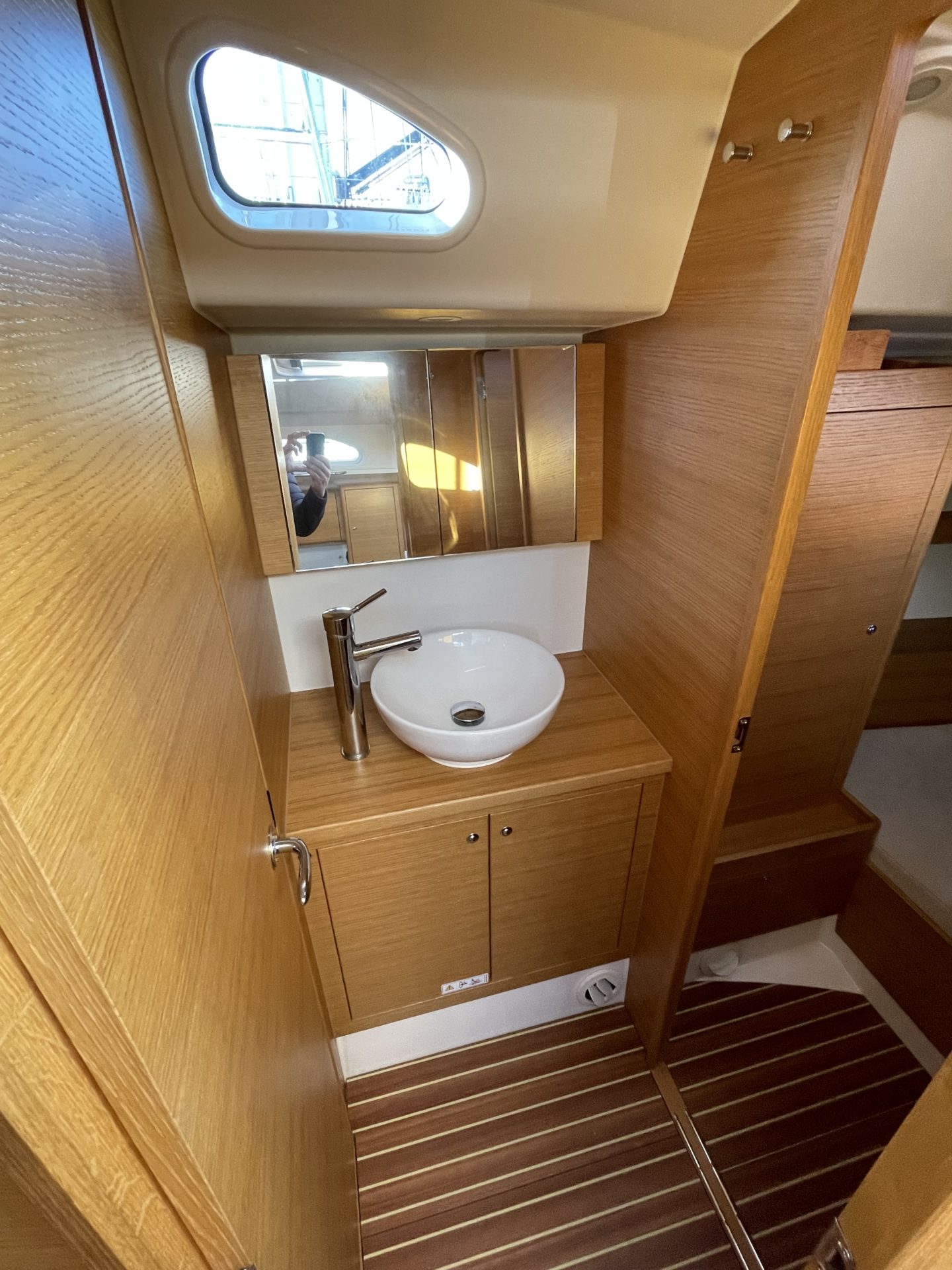

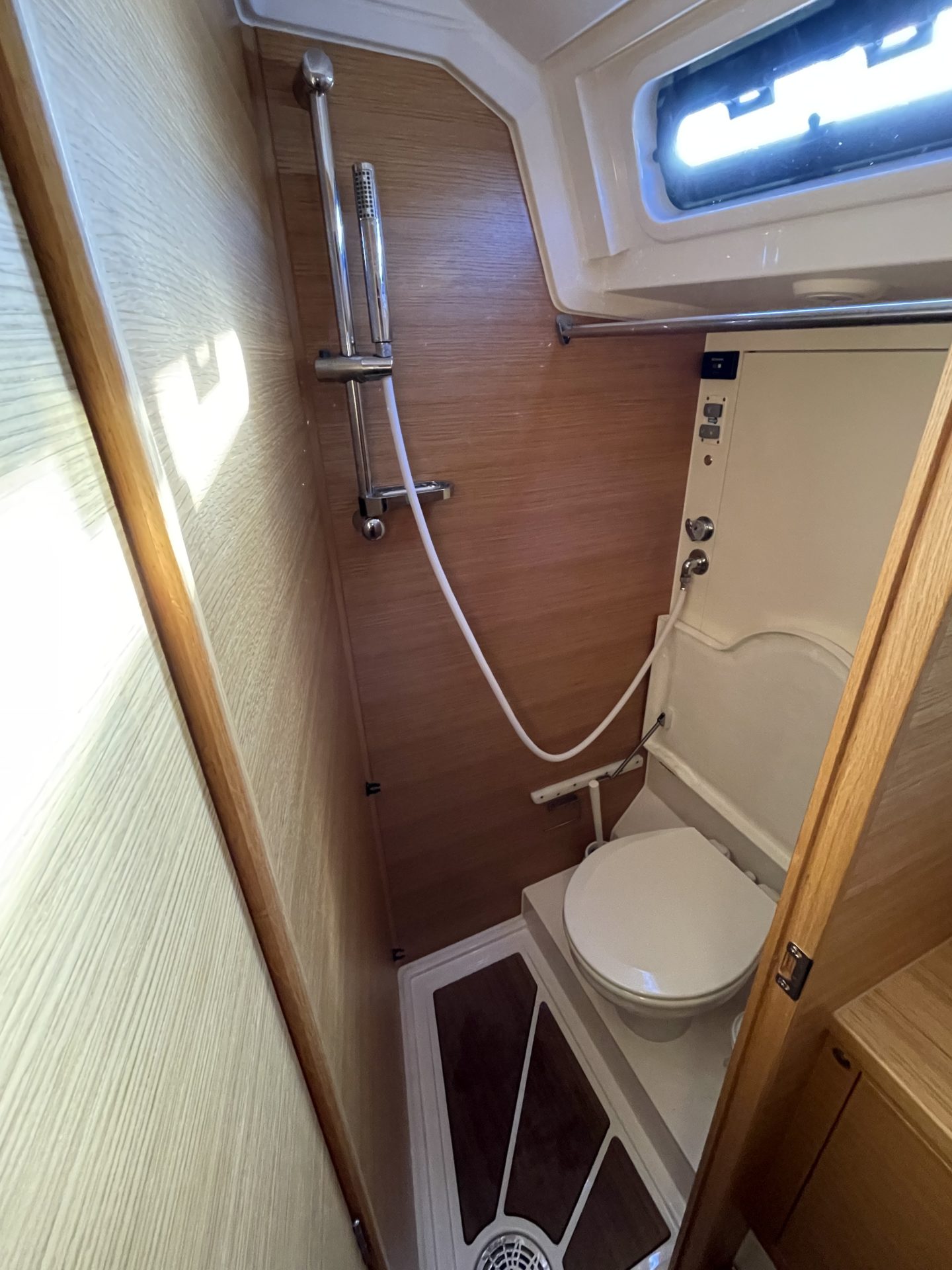

Heads

• Teak floors in both forward and aft heads
• 2x electrical toilet
• Stainless steel hanging bar for sailing gear in aft heads

Systems

Engine

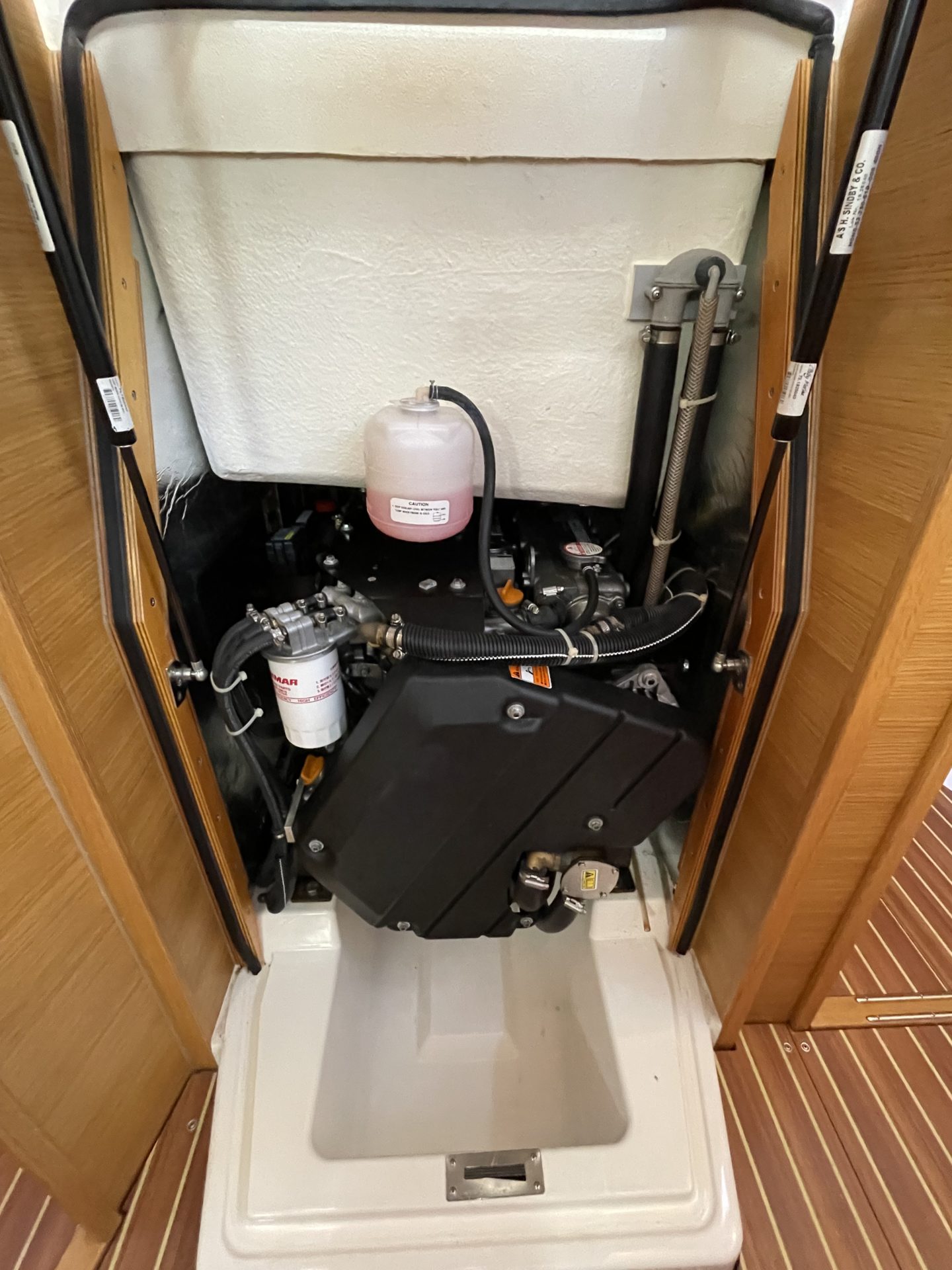

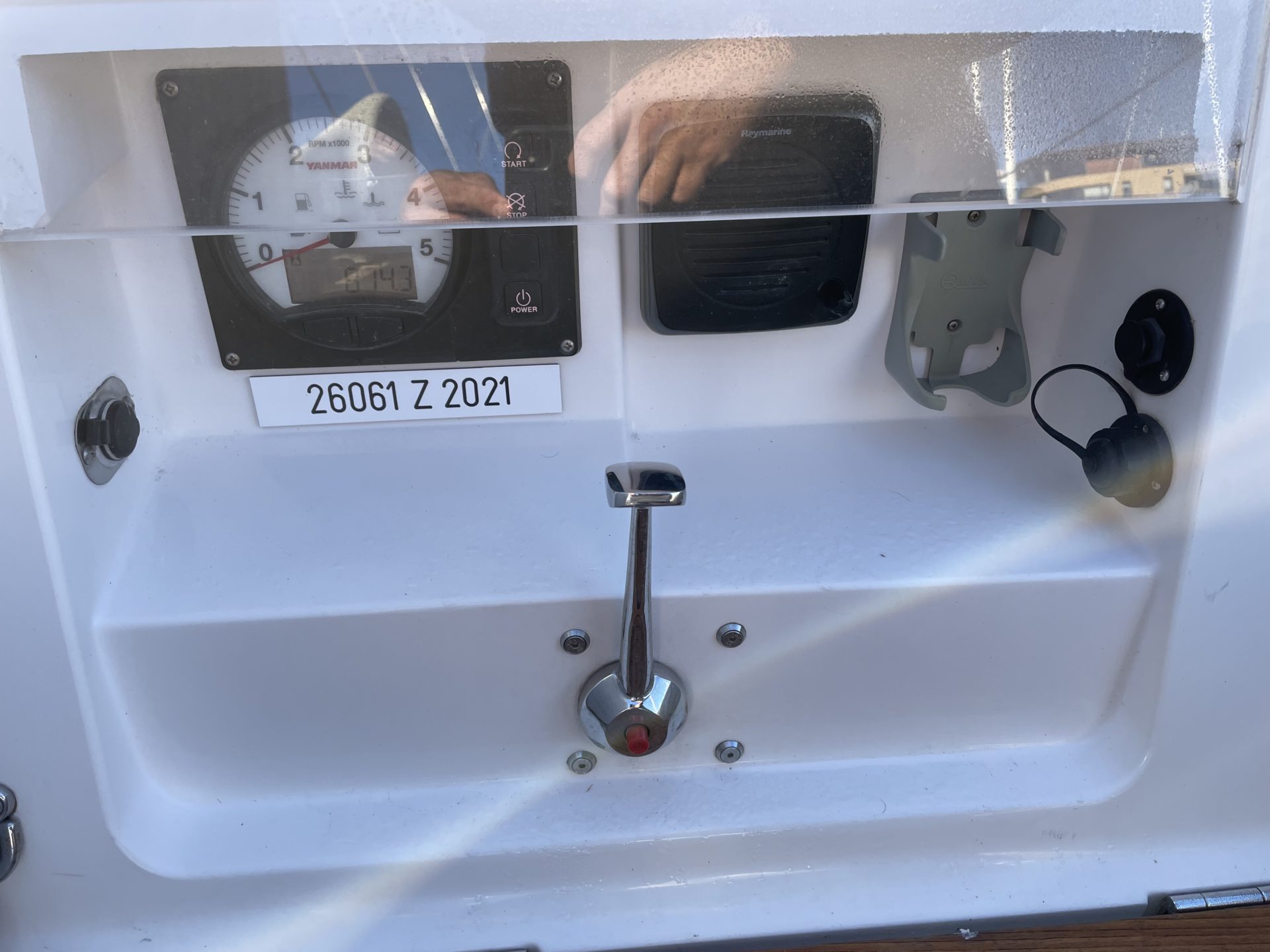

• Yanmar 45hp main engine, last serviced July 2022
• Repair/maintenance kit for engine
• 3-blade folding propellor

Plumbing

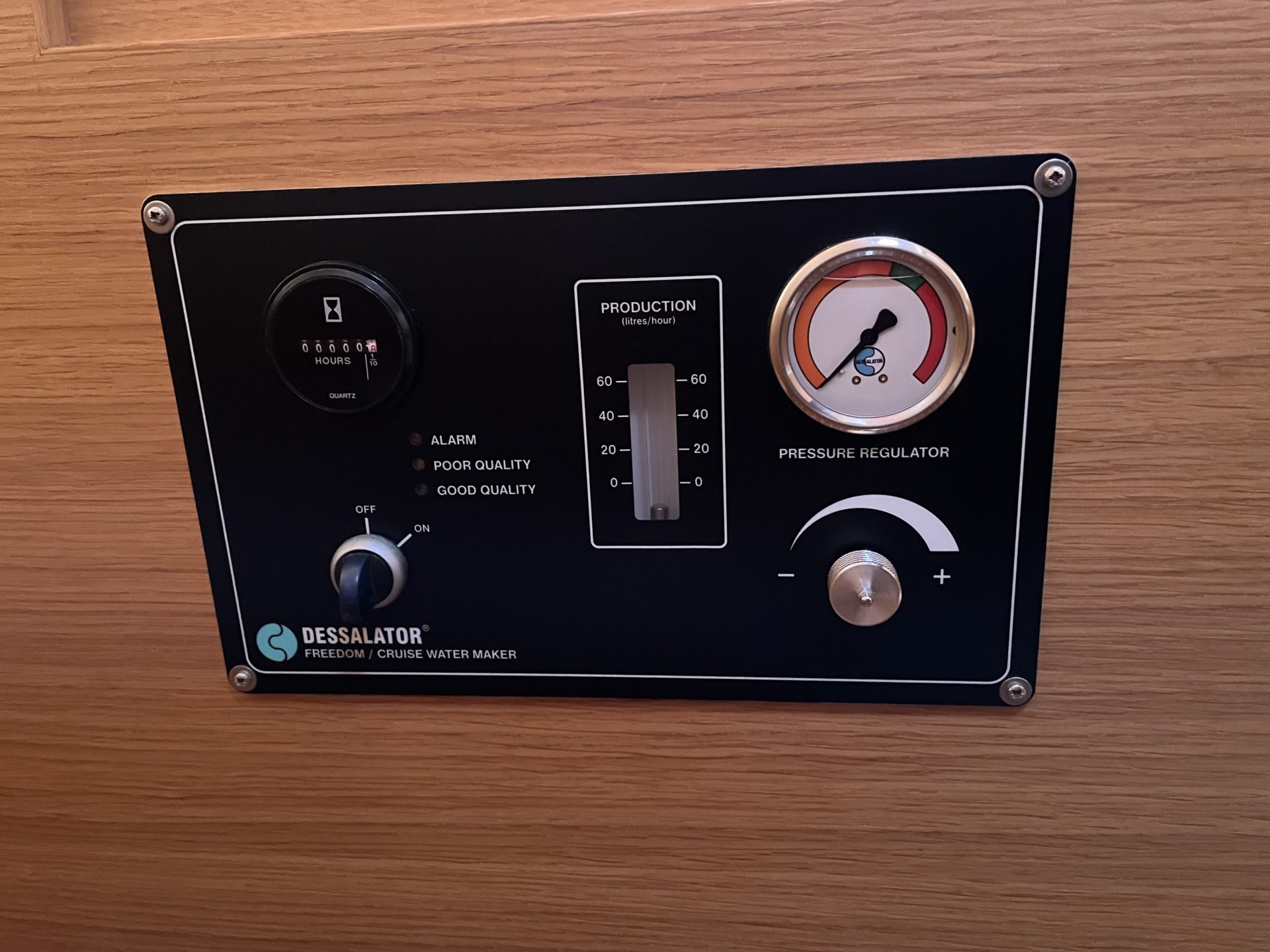

• Dessalator watermaker (60 l/h) fitted below bed in forward cabin
• Cockpit shower

Electrical

• Upgrade of service battery bank to 3x 110Ah AGM battery

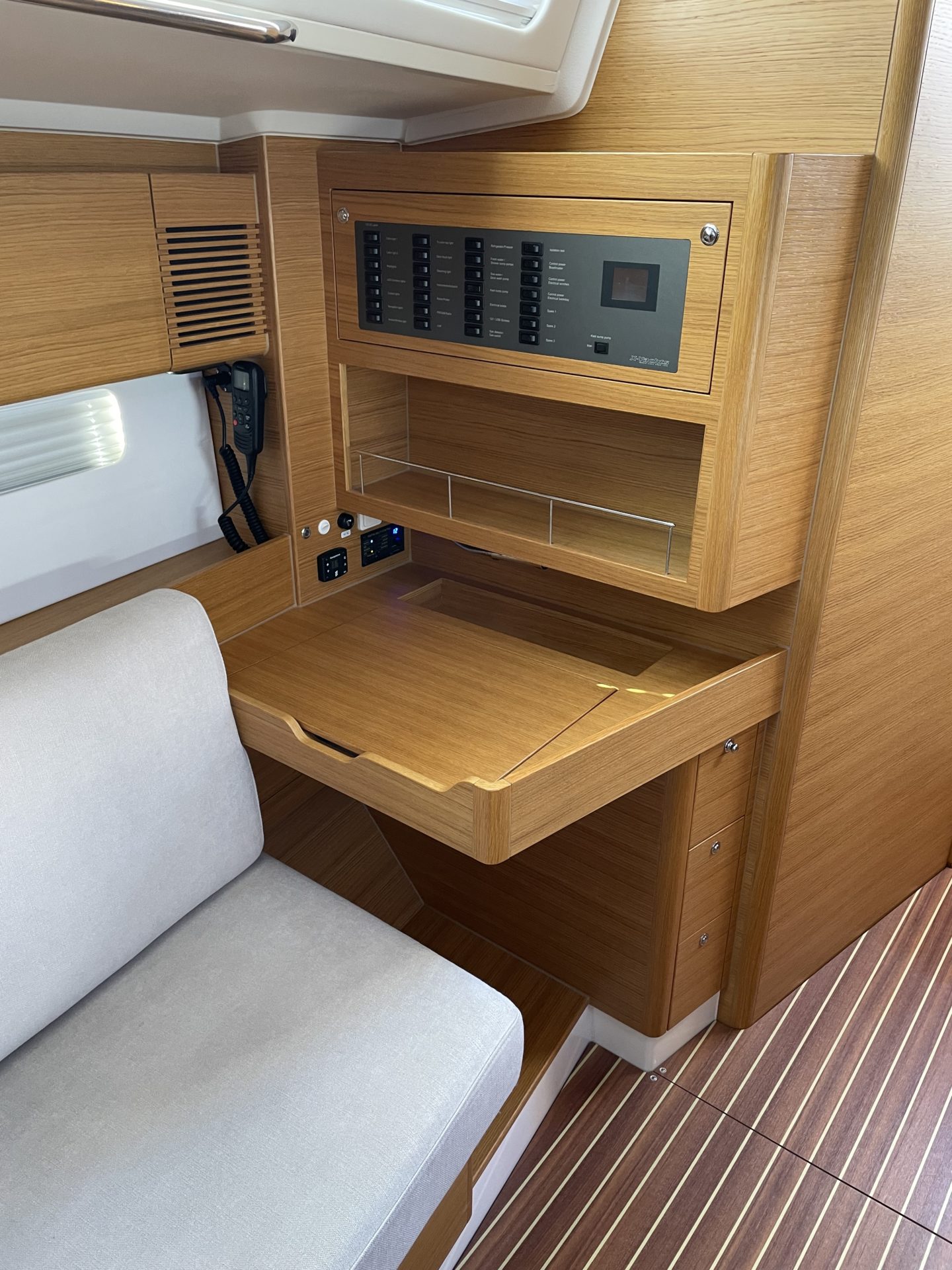

• Combined charger/inverter (12V/2000W/70A) with remote control at nav station
• 3x additional 230V sockets (1 in each cabin)
• 3x additional 12V socket (1 in each cabin)
• Additional 12V socket in cockpit

Electronics

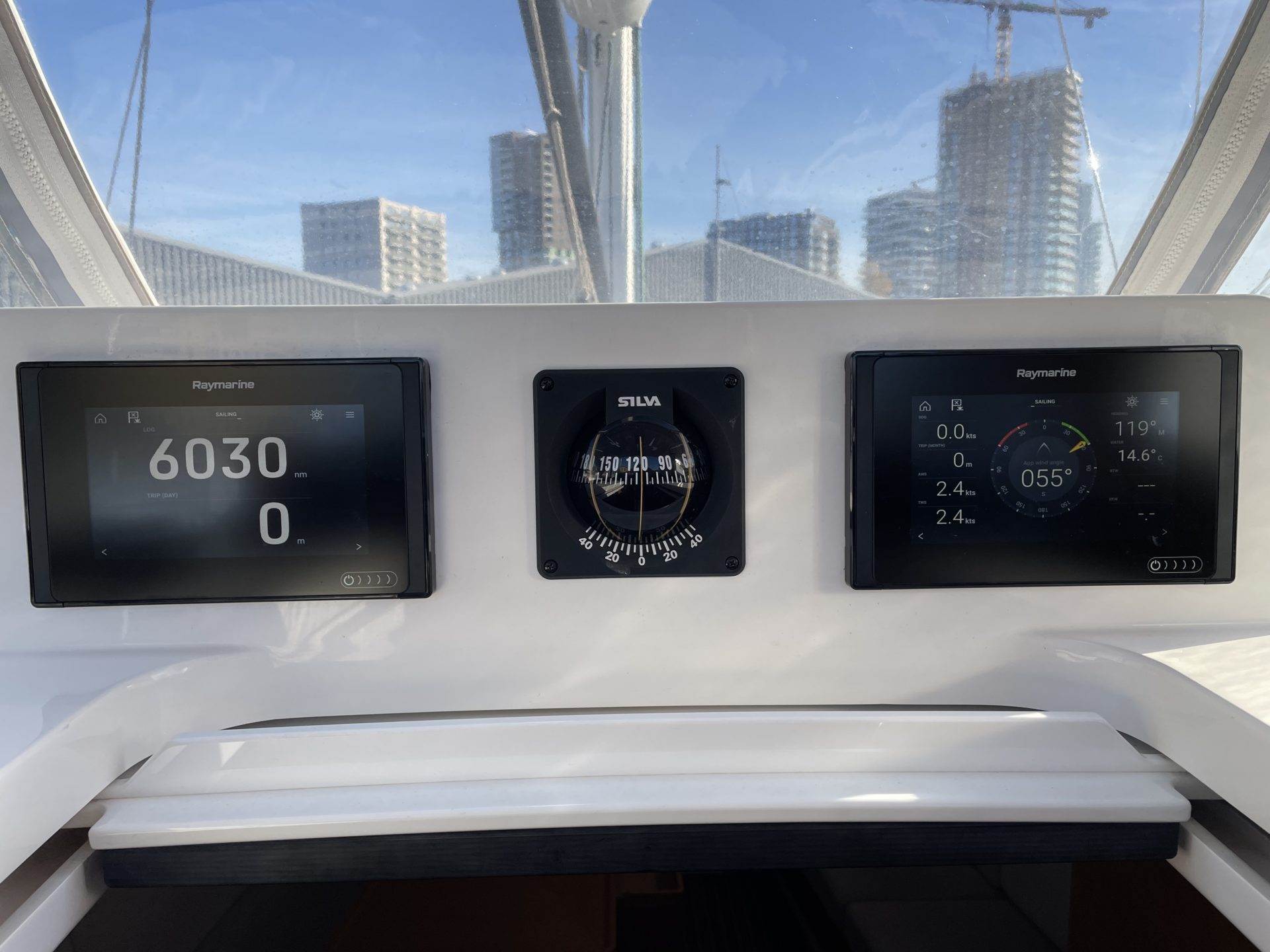

• 2x Raymarine Axiom 7" display in console above sliding hatch
• Silva magnetic compass in console above sliding hatch
• Transducers for speed, depth and wind
• Raymarine EV-400 autopilot with electronical compass and linear drive

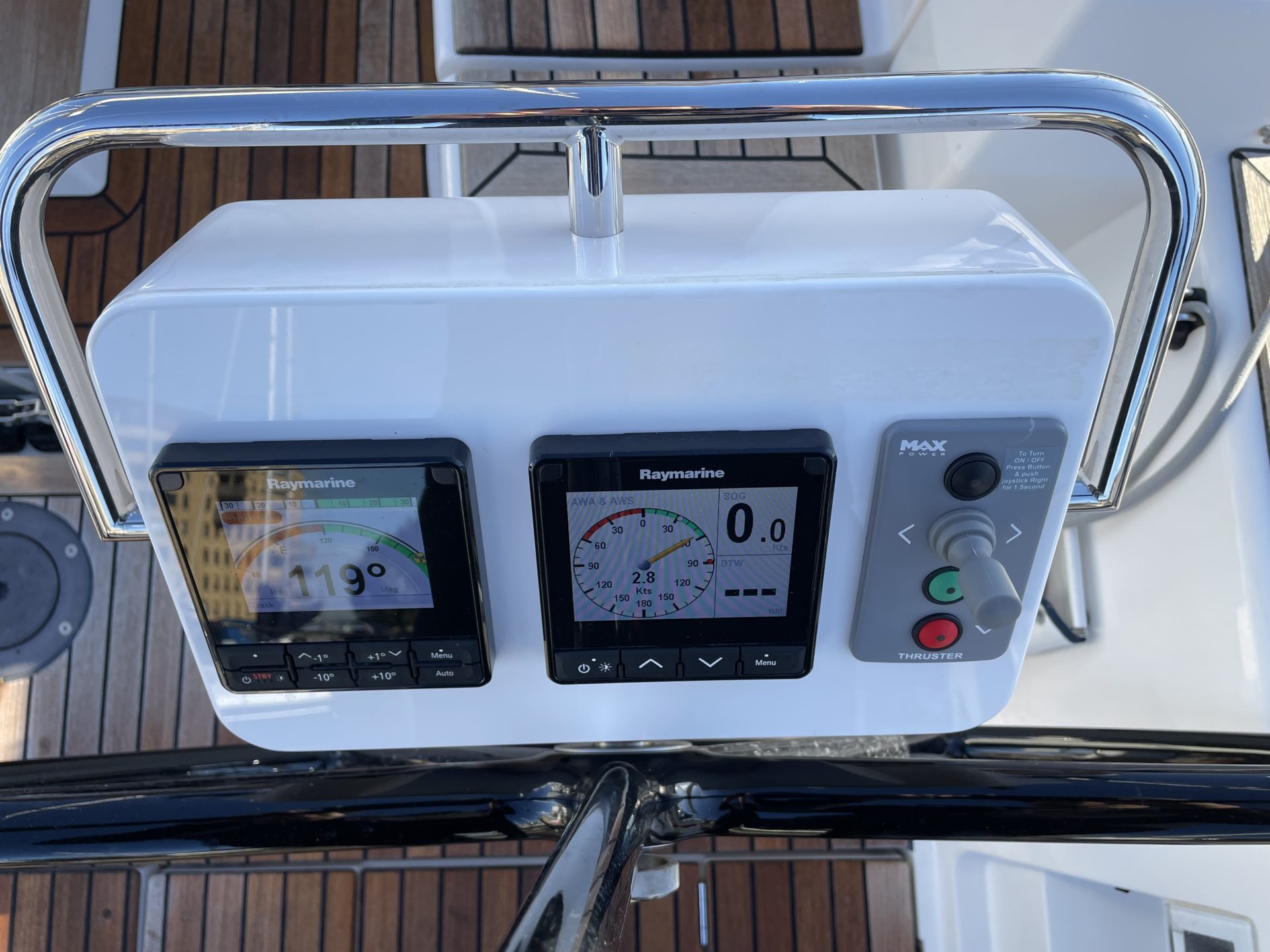

• Raymarine p70 autopilot display, mounted in console at SB steering wheel
• Raymarine i70 display, mounted in console at SB steering wheel

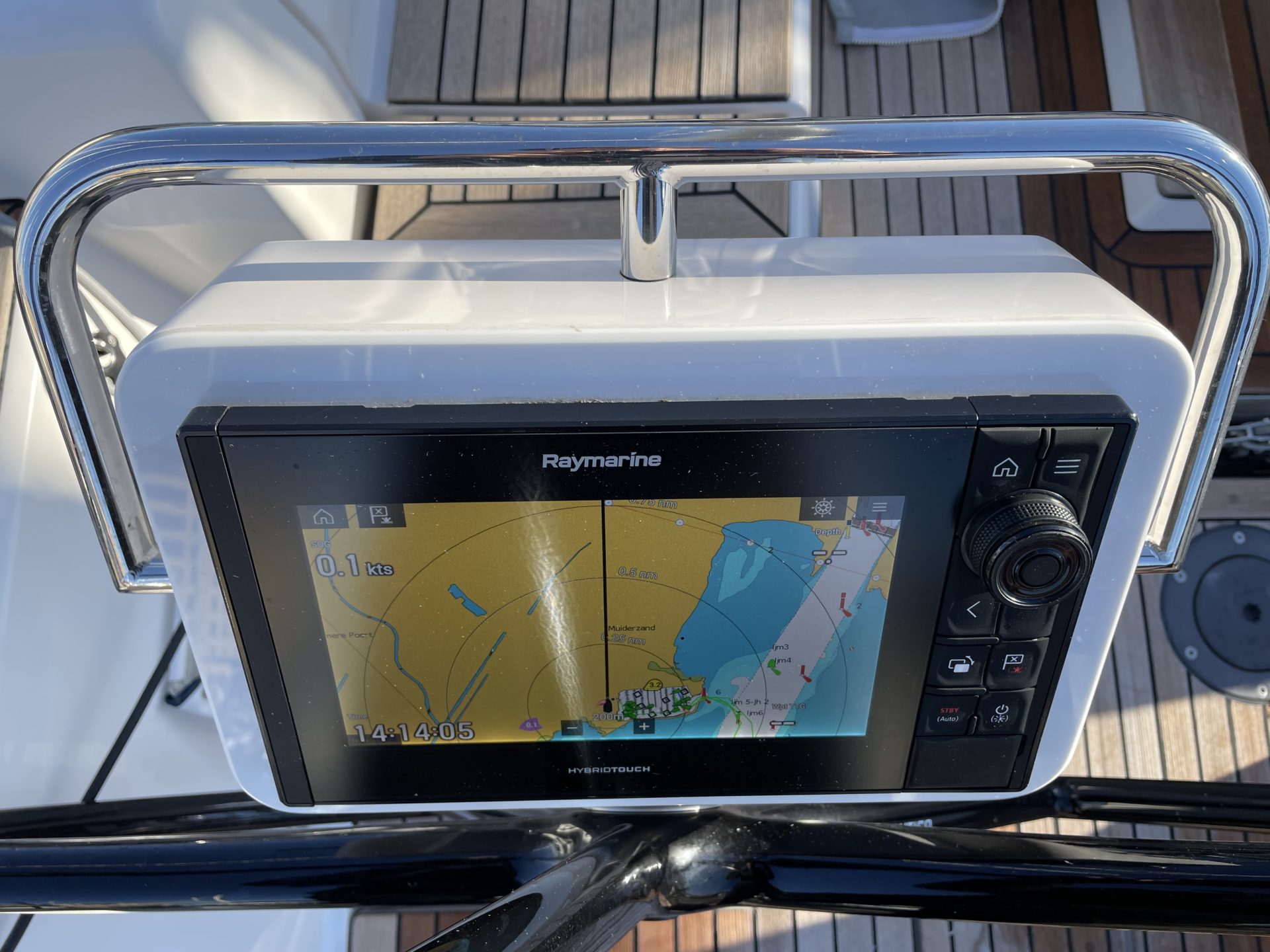

• Raymarine Axiom PRO 9" plotter, mounted in console at PS steering wheel
• Raymarine Ray260 VHF at nav station
• Second station for Ray260 VHF in cockpit
• Raymarine AIS650 transceiver

Thrusters

• MaxPower Compact Retract bowthruster (joystick mounted in console at SB steering wheel)

Additional Information

• Complete set of mooring lines and fenders
• 3x Harken winch handle
• Inflatable dinghy
• Honda 2.3hp outboard engine
• Teak flag pole
• Life raft (2019)
• 4x adult lifejackets
• Carbonfiber foldable gangway
