Details

Exterior Details

Hull

• Hull Colour - 'Pure White' (RAL 9010) & 3 x 'Light Grey' integrated GELCOAT Water Lines (RAL 7035)
• Flush through hull fittings are recessed into the hull for perfect flush finish. Reduced drag leads to more speed.

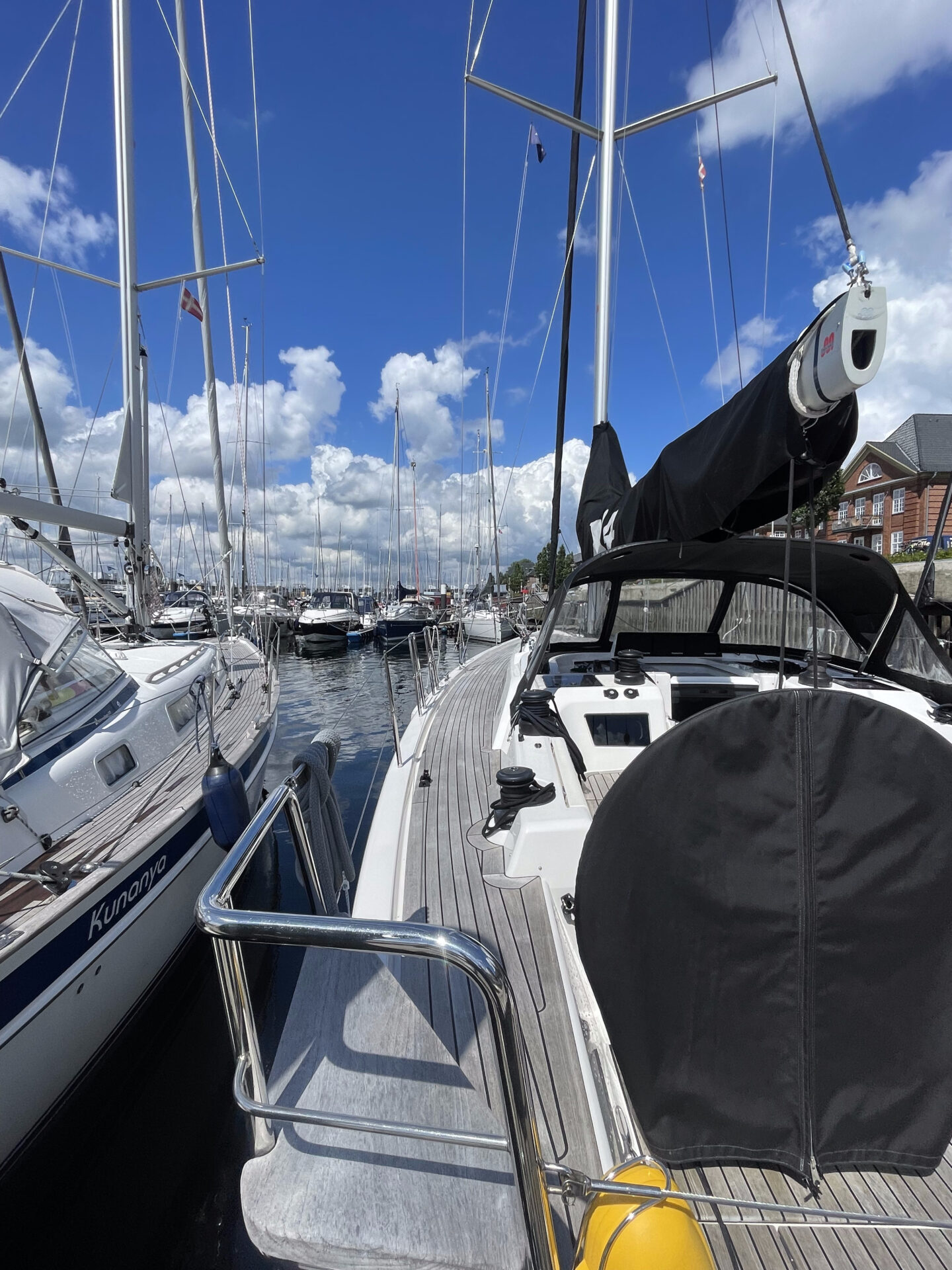

• Bathing Platform Medium (TEAK) - Foldable with mechanical hoisting system and attachment point for separate bathing ladder. Teak on platform.
• Hull Treatment - 3 x layers of sprayed epoxy primer & White Hempel Mille NCT Antifouling
• Gunwale Protection - Stainless Steel rail protection mounted along sheer line

Deck

• Teak on cockpit floor and seats - Vacuum applied, 9mm nominal thickness with black caulking

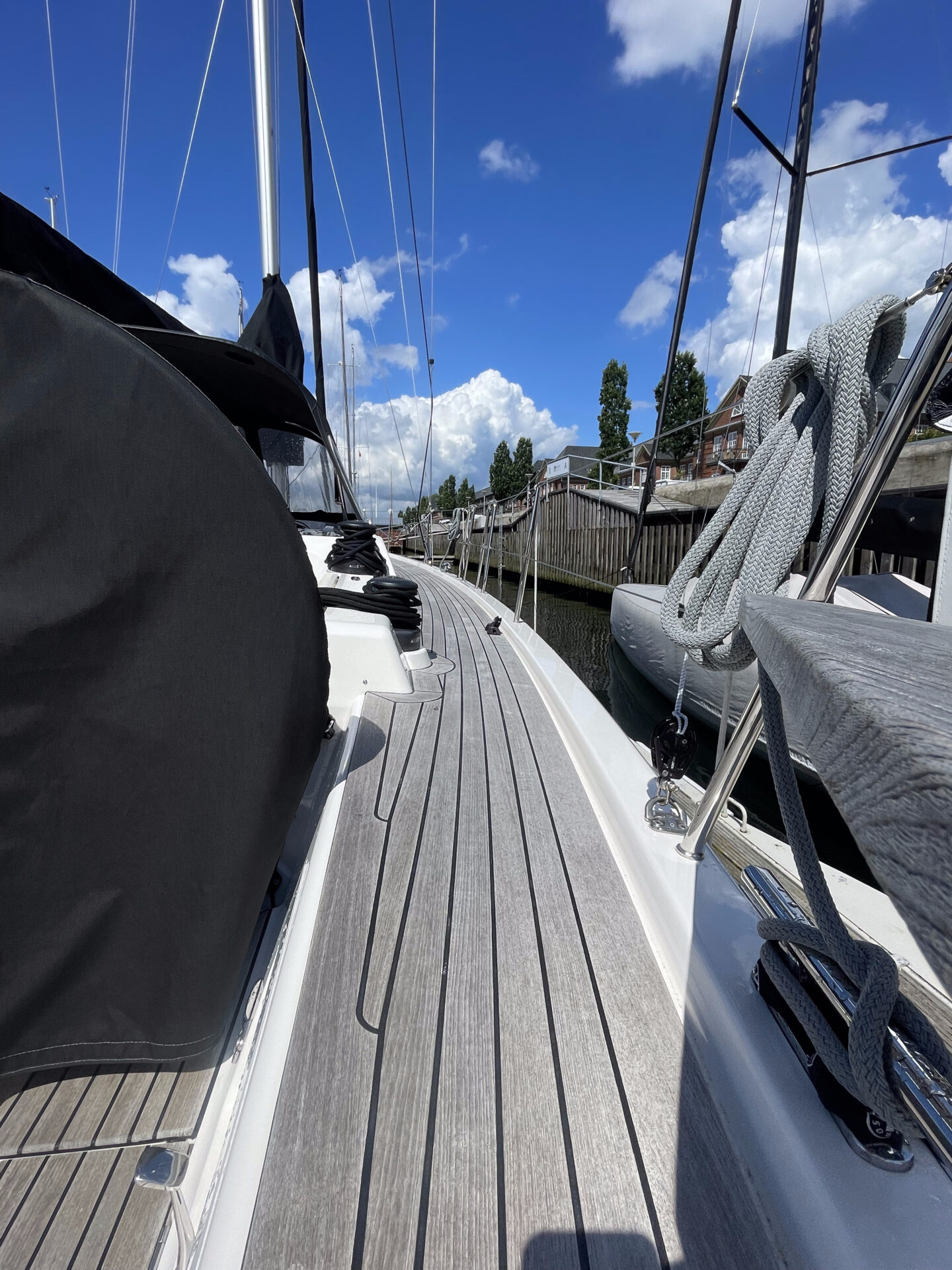

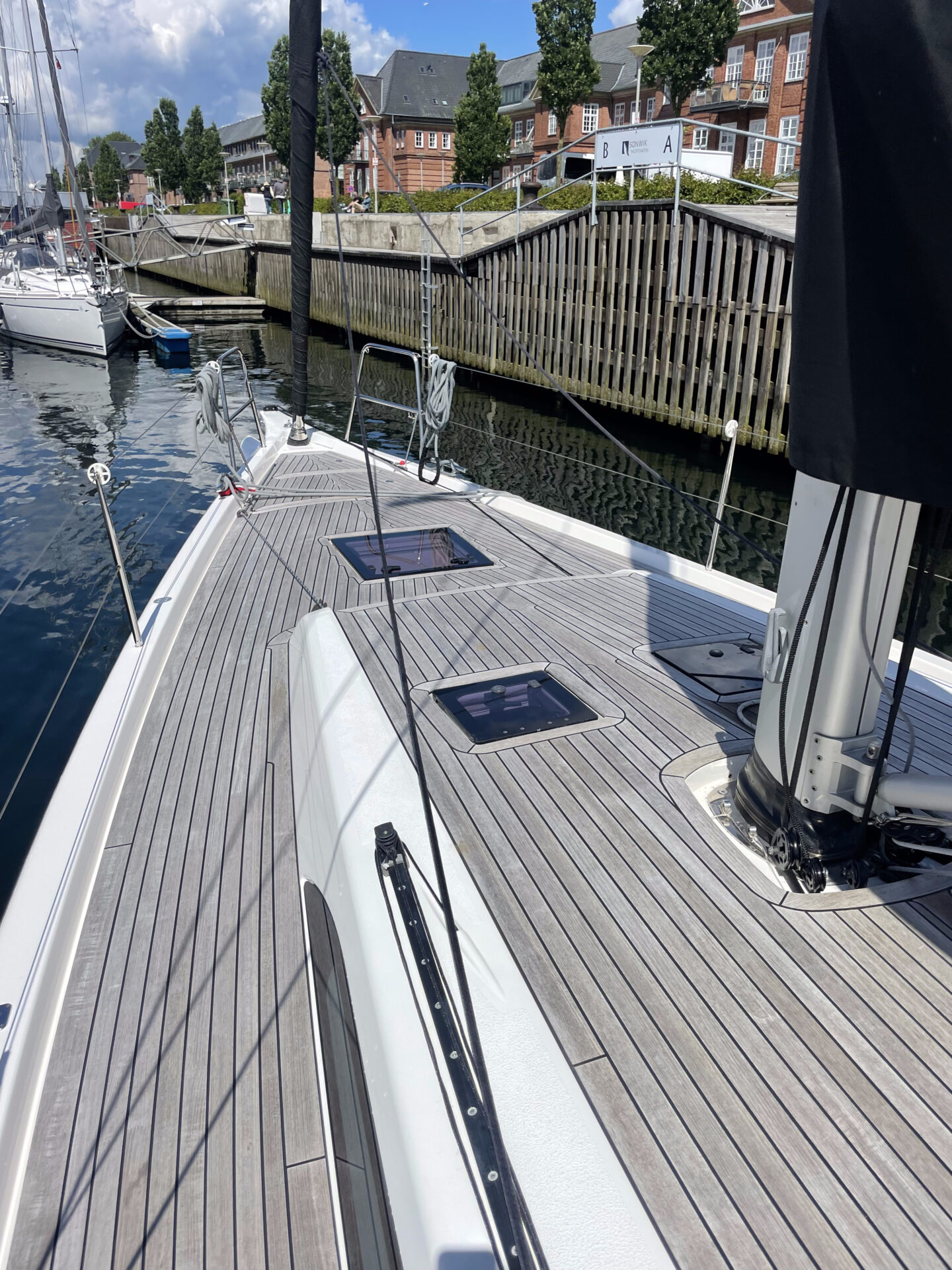

• Teak on Side Decks - Vacuum applied, 9mm nominal thickness with black caulking
• Teak on Coachroof - Vacuum applied, 9mm nominal thickness with black caulking

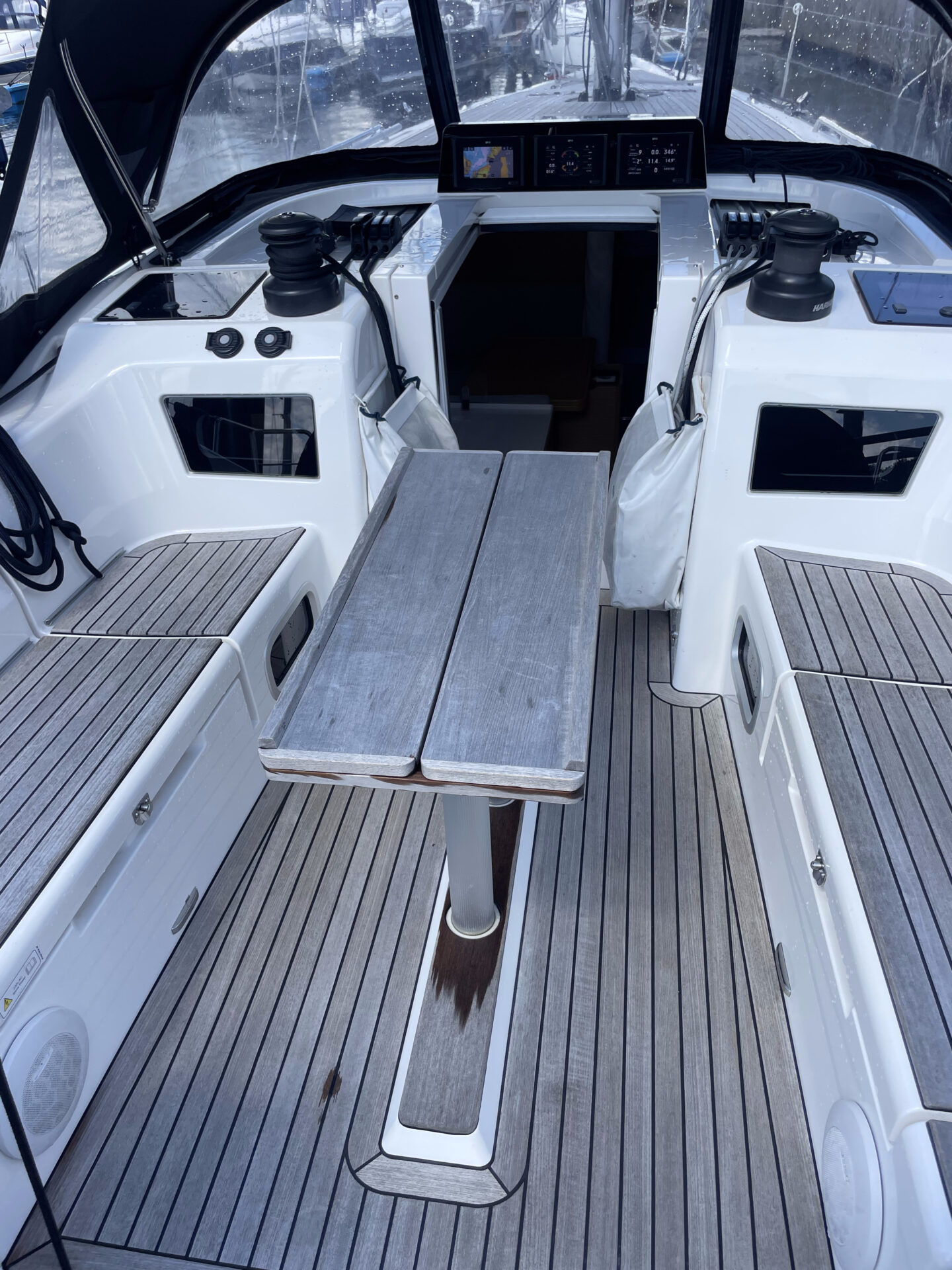

• Cockpit Table Removable - with foldable leafs & Aluminium legs mounted to cockpit floor
• Cockpit Cushions Light Grey - 6 cm thick cushions, canvas covered, securely mounted by an alloy track and bolt rope.
• New Medium mount: 2 x Console with stainless steel grab rail mounted on top of pedestal
• Composite Steering Wheels - 2 x Carbonautica black composite wheels (up price)

Sail Handling

• Larger Genoa Winches - 2 x Harken Performa 50.2 STP Manual two-speed self-tailing winches, on coaming - up price
• Mainsheet Winches - 2 x Harken Performa 46.2 STP two-speed self-tailing winches, on coaming
• Halyard Winches - 2 x Harken Performa 40.2 STP two-speed self-tailing winches, on coachroof
• Electric Port Halyard Winch - 1 x Harken Performa 46.2 STEPH two-speed self-tailing winch, on Port coachroof - up price
• Genoa Car Control Lines - 4:1 to cockpit cam cleat
• "Sail Handling Pack 1:
• 1. Asymmetric spinnaker equipment including; 2 x Dyneema / Spectra sheets, 2 x gennaker blocks, 2 x foot blocks, 2 x cleats for ""parking"" the sheets and 2 x Wichard shackles mounted incl. 1:1 asymmetric tack line and tack block
• 2. Outboard sheeting pad eyes mounted"

Sails

• Doyle Großsegel ( Ice Membrane) black mit Ronstan Rutscher Serie 6
• Doyle Genua ( Ice Membrane) black
• Doyle Code 0 mit Furler
• Doyle Gennaker mit Bergeschlauch
• Baumkleid

Mast & Rigging

• "John Mast/Rigg komplett anstelle Selden Mast/Rigg (Fraktionales 2-Saling Rigg)
• Silber-Eloxierter Mast
• Fallen in Dyneema SK78, mit geringerer Dehnung als Polyester
• Edelstahl Vorstagsplatte
• Edesltahl Fixierung für Wanten, verbunden mit Schott
• Zentrales Achterstag mit manueller Hydraulikpumpe zum spannen"
• Lazy Jacks - montiert am Mast und Baum, incl. Leinen und Klemmen
• Rollanlage "FURLEX" mit Trommel unter Deck - Leinenbedienung ins Cockpit geführt für einfache Handhabung
• Diskontinuierliches Rodrigg mit Edelstahlpüttingen inkl. Racingwantschrauben für V1 und D1

Keel

• Standard Keel - 2.2m 'T' keel consists of antimony hardened lead T-bulb bolted and glued to cast iron fin for high strength, low centre of gravity for comfortable sailing performance. The Keel is totally encapsulated in three layers of CSM E-glass with epoxy for protection, perfect wing shape and maximum lift and height by sailing. The keel is securely bolted to the structural steel keel frame with stainless steel bolts for maximum safety and integrated central hoist

Hatches / Portlights / Ventilation / Sprayhood

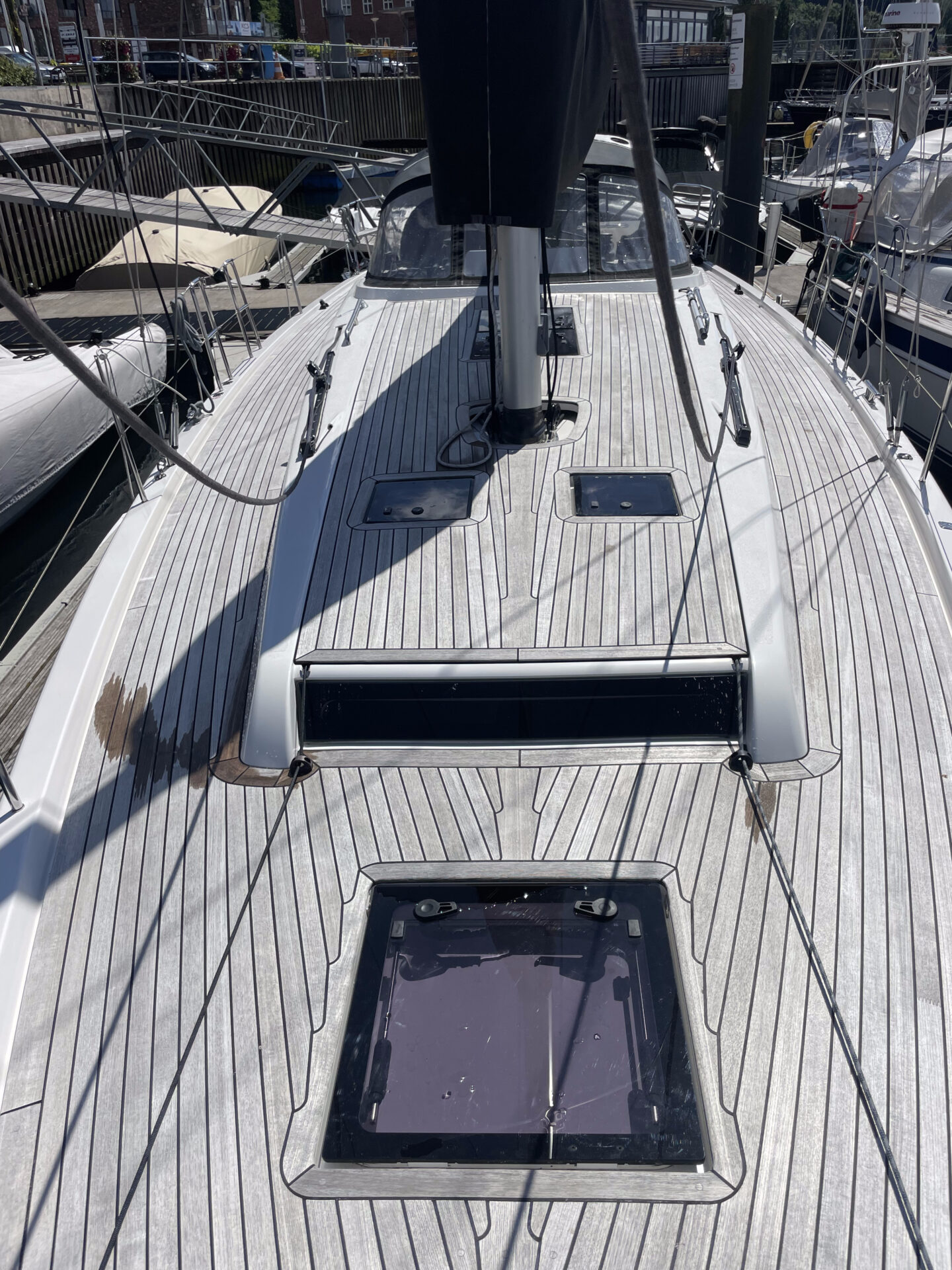

• Flush Deck Hatches - Flush Frameless hatches on foredeck, coach roof and companionway
• Sprayhood Storage - Self draining deck recess for Optional sprayhood to be stored flush in the deck

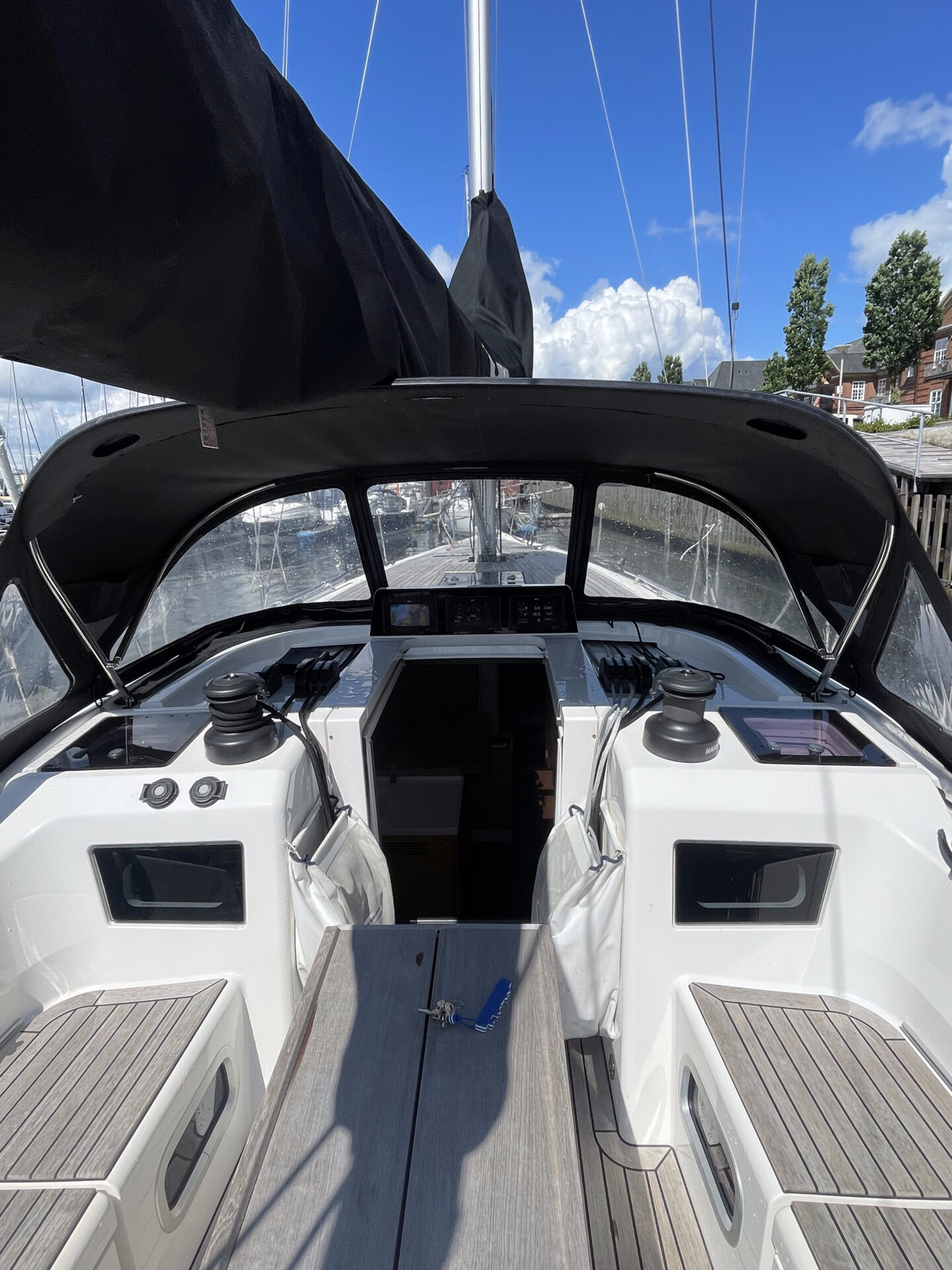

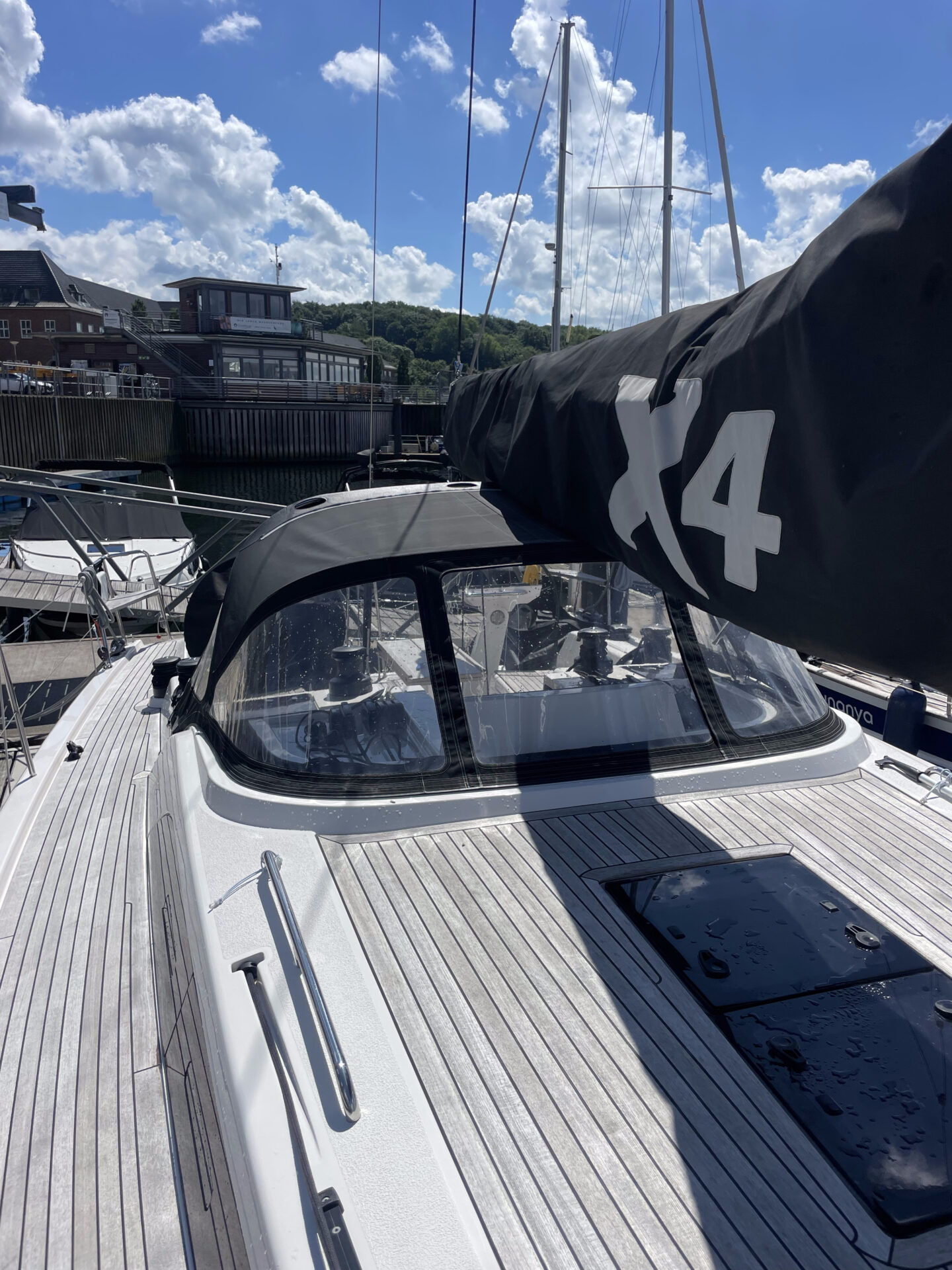

• "Sprayhood Light Grey - canvas with sturdy stainless steel framework.
• Cockpit Tent in Light Grey - Canvas with removable side panels (attaches to sprayhood to enclose forward cockpit) -

Guard rail / Anchor / Stainless Steel Fittings

• Boarding Gates in Guardrails - for standard lifelines on both sides with champfer rails on bulwalk (3 per side)
• Electric Anchor Windlass - with 25 meters of 8 mm calibrated galvanised anchor chain
• Anchor - 16 kg Delta galvanised anchor
• Folding Amidships Mooring Cleats - 2 x Nomen folding mooring cleats mounted amidships
• White Painted Carbon Fibre Bow Sprit - White Painted Carbon fibre bow sprit for Asymmetric spinnaker (accommodate the standard removable Stainless steel anchor roller)
• Bow Boarding Ladder - Stainless steel

Accommodation

Generell

• 3-cabin Version mit two heads
• Nordic Oak veneer on all wooden surfaces. Floorboards in imitated teak laminate.
• Ocean Air Gardinen mit Insektennetz - und Verdunklungsrollos für die Skylights in Vor- und Achterkabine(n)
• Verdunklungsdruckknopfgardinen - für Vor-und Achterkabine(n)
• Ocean Air Gardine mit Insektennetzrollo für das doppelte Skylight im Salon (1450 x 500 mm) und SKYSOL Classic Gardine für das Rumpffenster im Salon – 1 Satz
• Ocean Air Skyscreen Pleated Blinds - including flyscreen and blackout blinds for skylights in owners and aft cabin(s)
• Blinds - Popper blinds for hull windows in aft cabin(s) and owner's cabin
• Ocean Air Skyscreen Pleated Blinds - flyscreen for main double saloon hatch (1450 x 500mm) & SKYSOL Classic blind for hull window in saloon - 1 set Note: Only flyscreen or blackout blind possible!

Owners

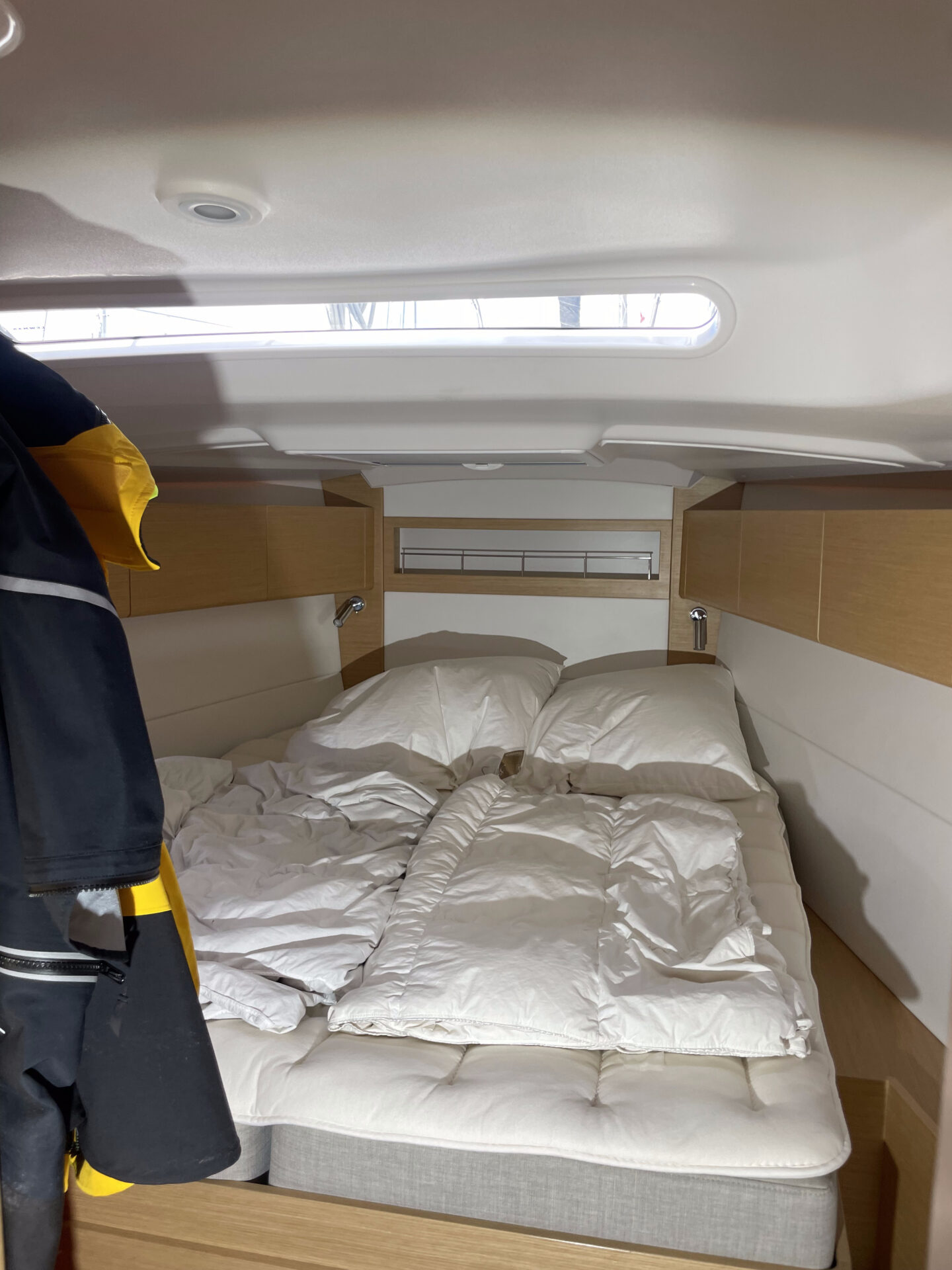

• Double berth - with hinged gas strut supported top access and drawers underneath. Shelves next to berth and accessory shelf on headboard.
• Freeboard cabinets above the berth (port & starboard) in Owner's Cabin

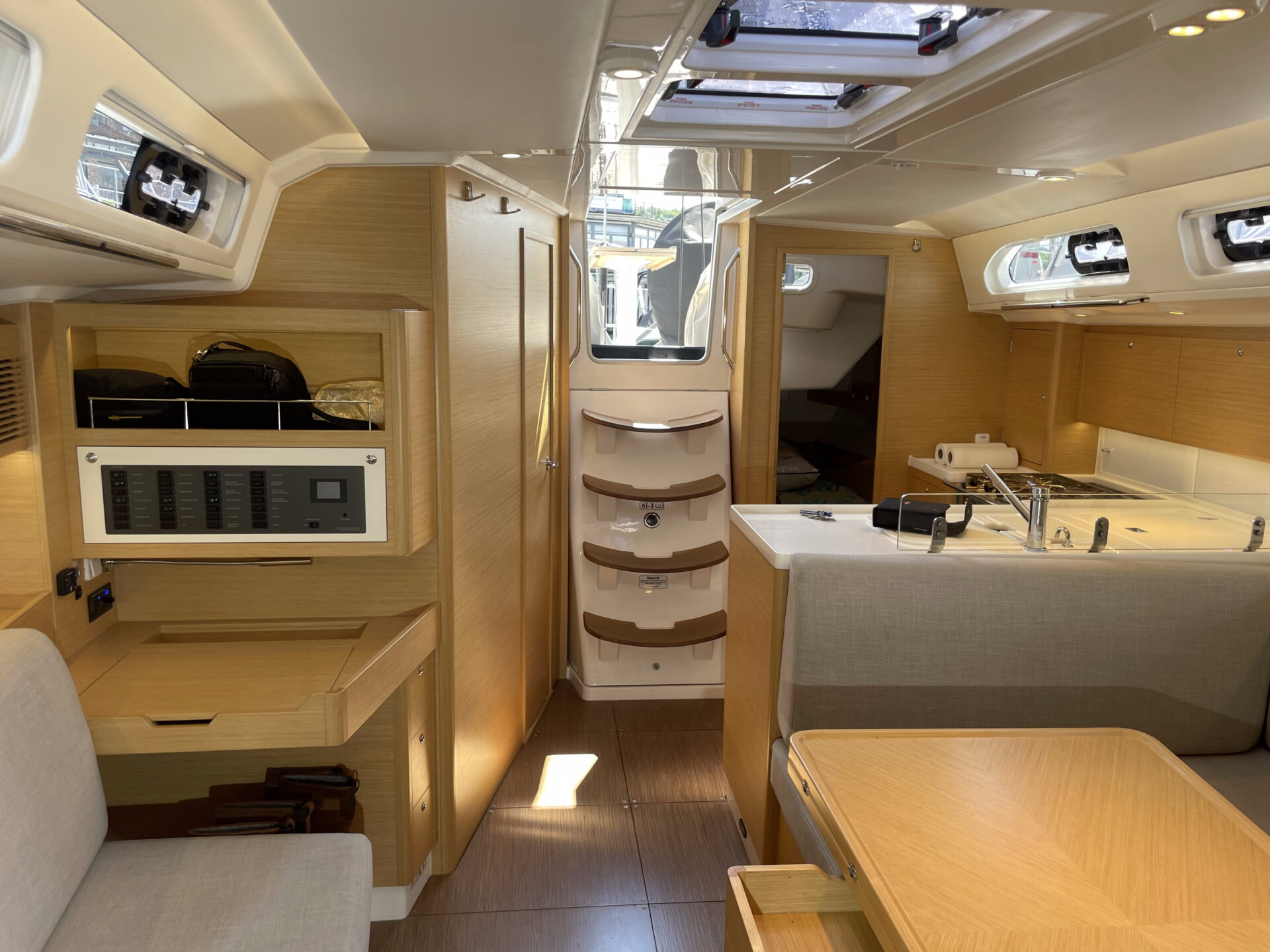

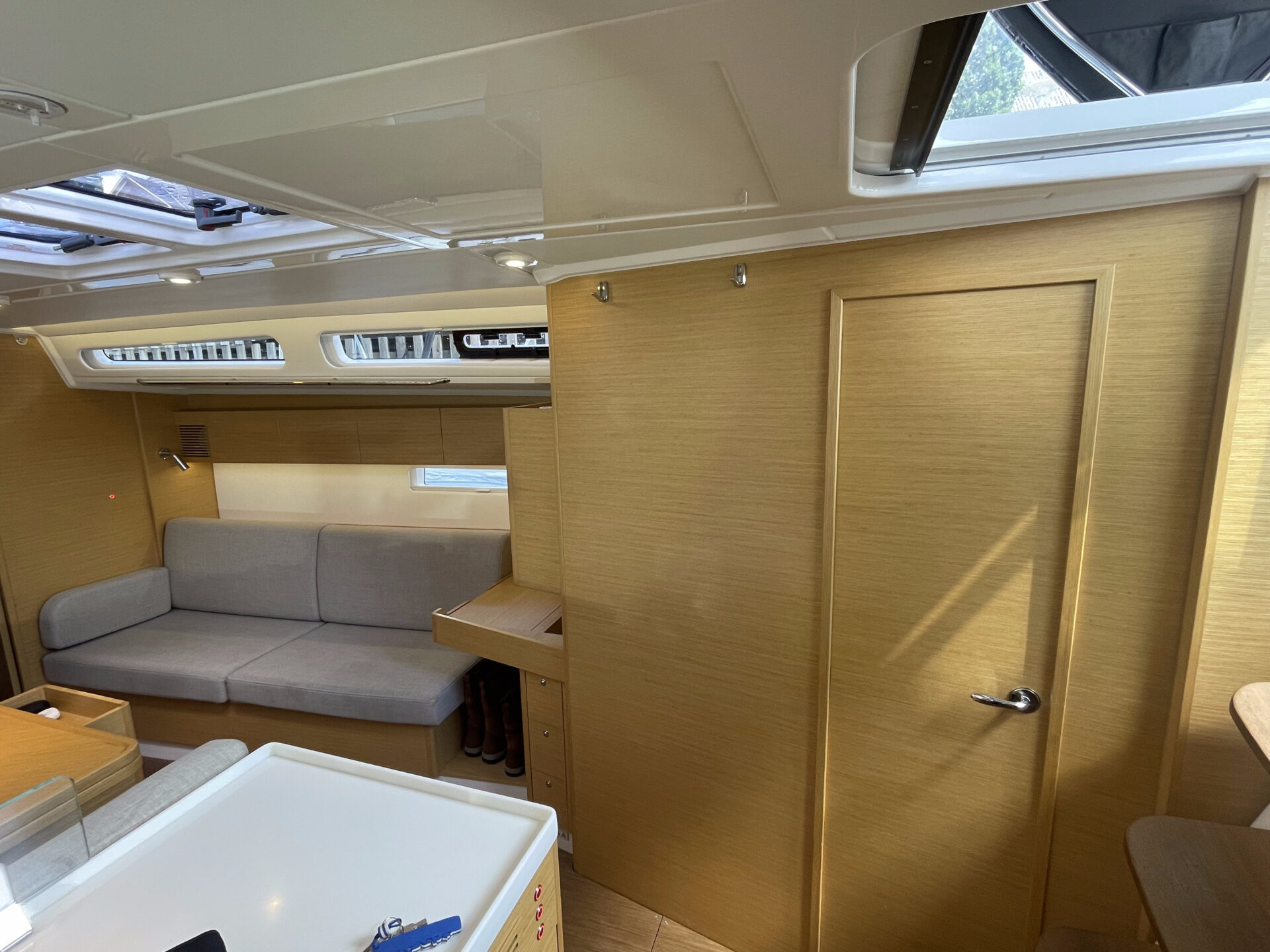

Salon

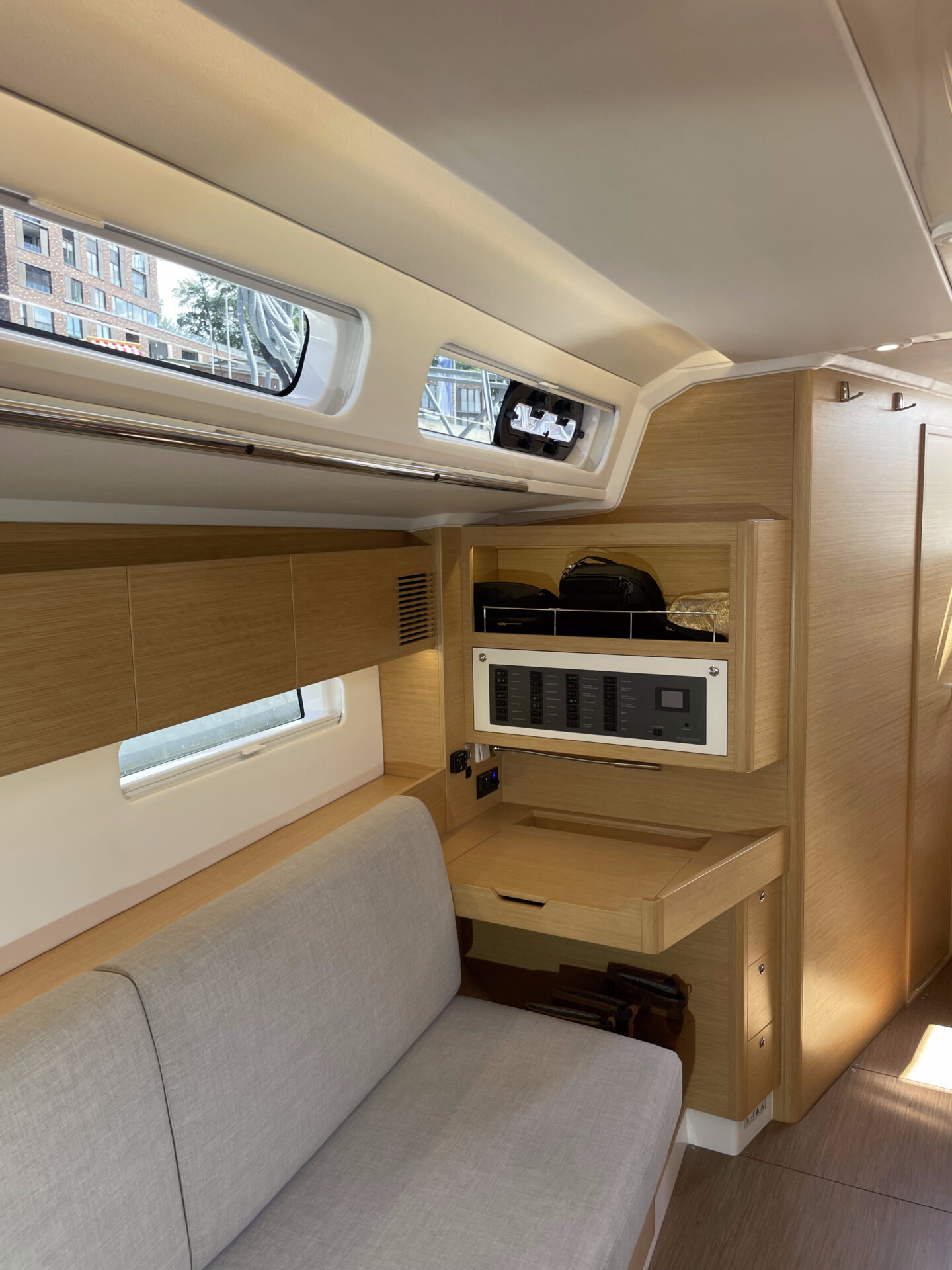

• Grosszügiges Sofa - an Steuerbord mit Rücklehne
• U-Sofa an Backbord - mit Rückenlehne welches ausreichend Platz für 4 personen gibt
• Long sofa - Long sofa situated in starboard side with longitudinal backrest
• U-Sofa - Large U-sofa for 4 people in portside with longitudinal backrest
• Main cabin foldable dining table - table supported by centre box with wine bottle cabinet and drawer
• Main cabin upper cupboards - Upper cupboards with bottom hinged doors fitted on freeboards
• Stainless steel Handrails - handrails in stainless steel, with stainless steel spacers inside the coachroof in each side
• LED Interior Lighting - LED lighting throughout the yacht
• LED Ambiant Lighting - LED courtesy light below top cupboards in main cabin with dimmer

Aft cabin

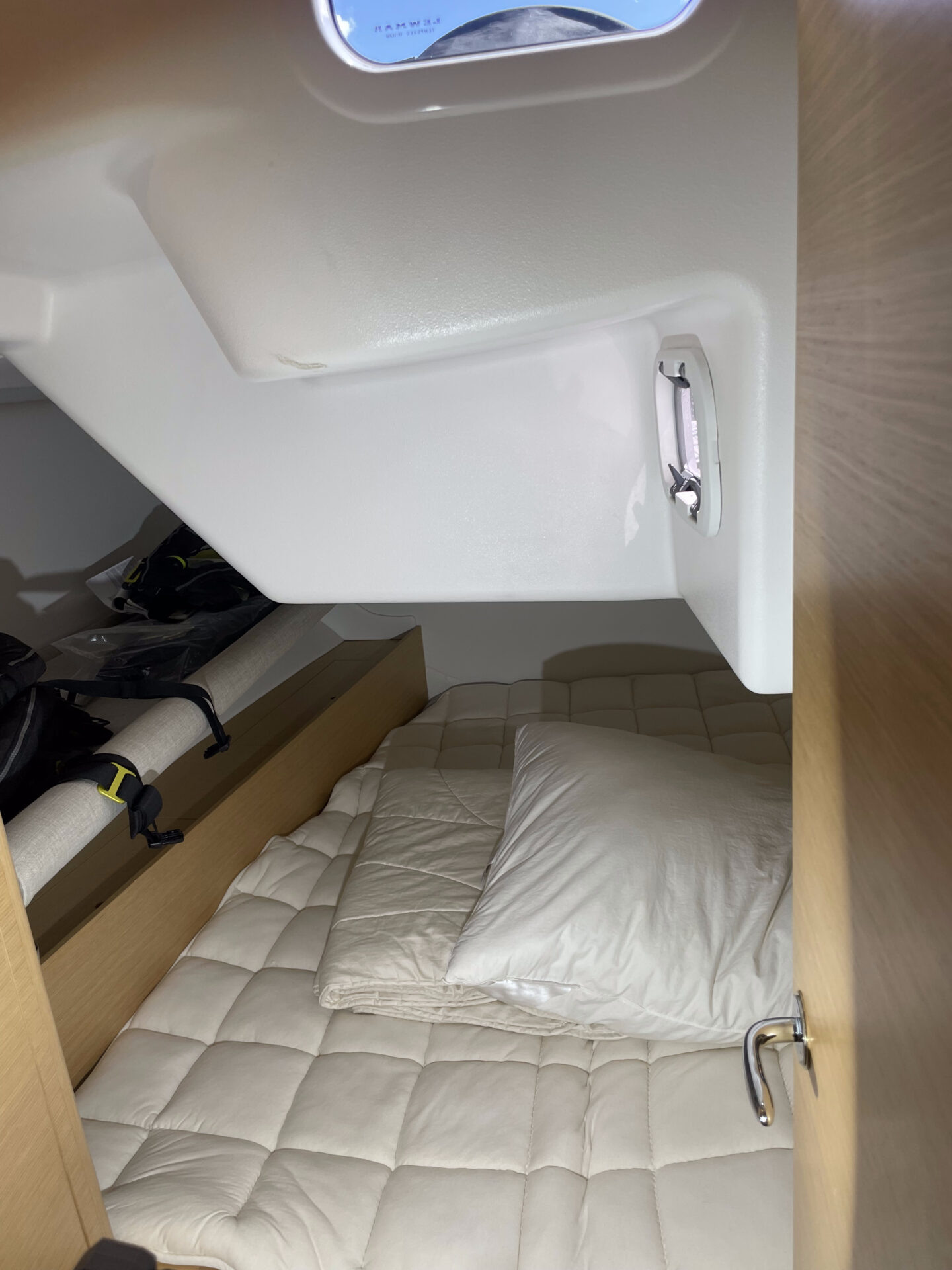

• Sea Berths - 2 x Freeboard hung sea berths (1 fitted in each aft cabin)

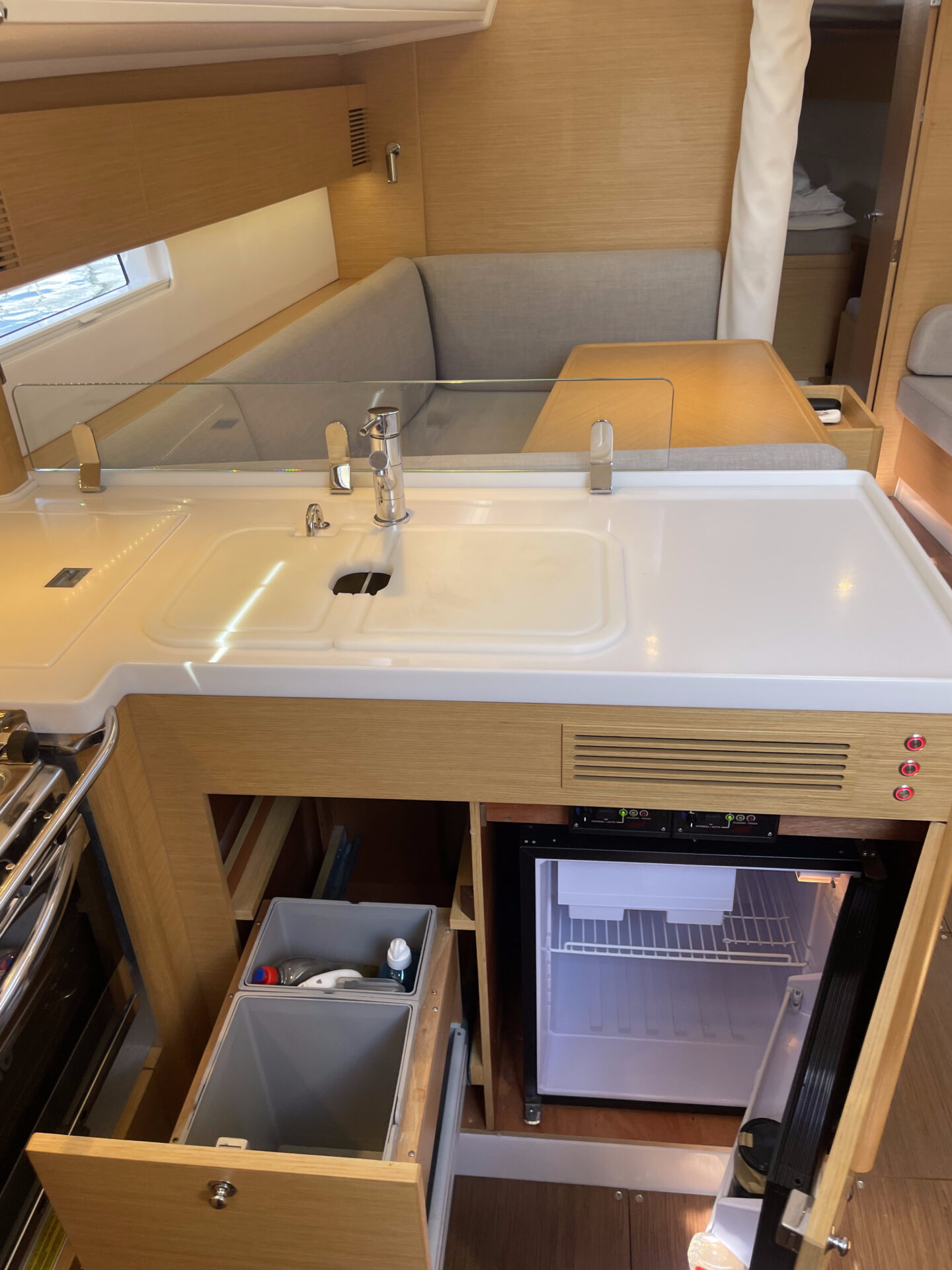

Pantry

• White Corian - White Corian tops in galley
• Coolbox - 90 litre with 100mm insulation & watercooled Danfoss / Secop compressor & Isotherm accumulator plate

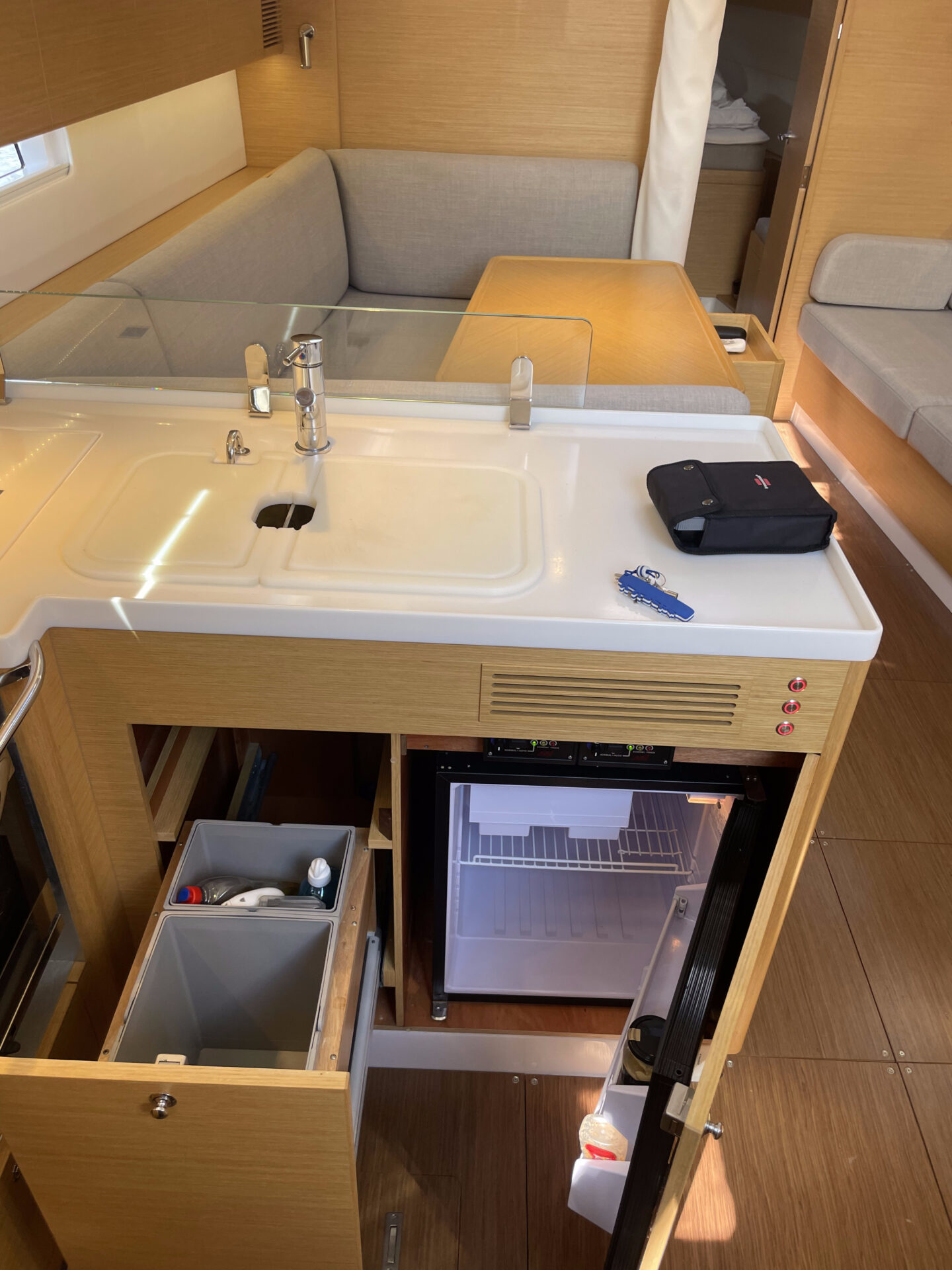

• Fridge Front Opening - 65 litre with ice cube compartment, front opened with ASU start-up technology, positioned under sink

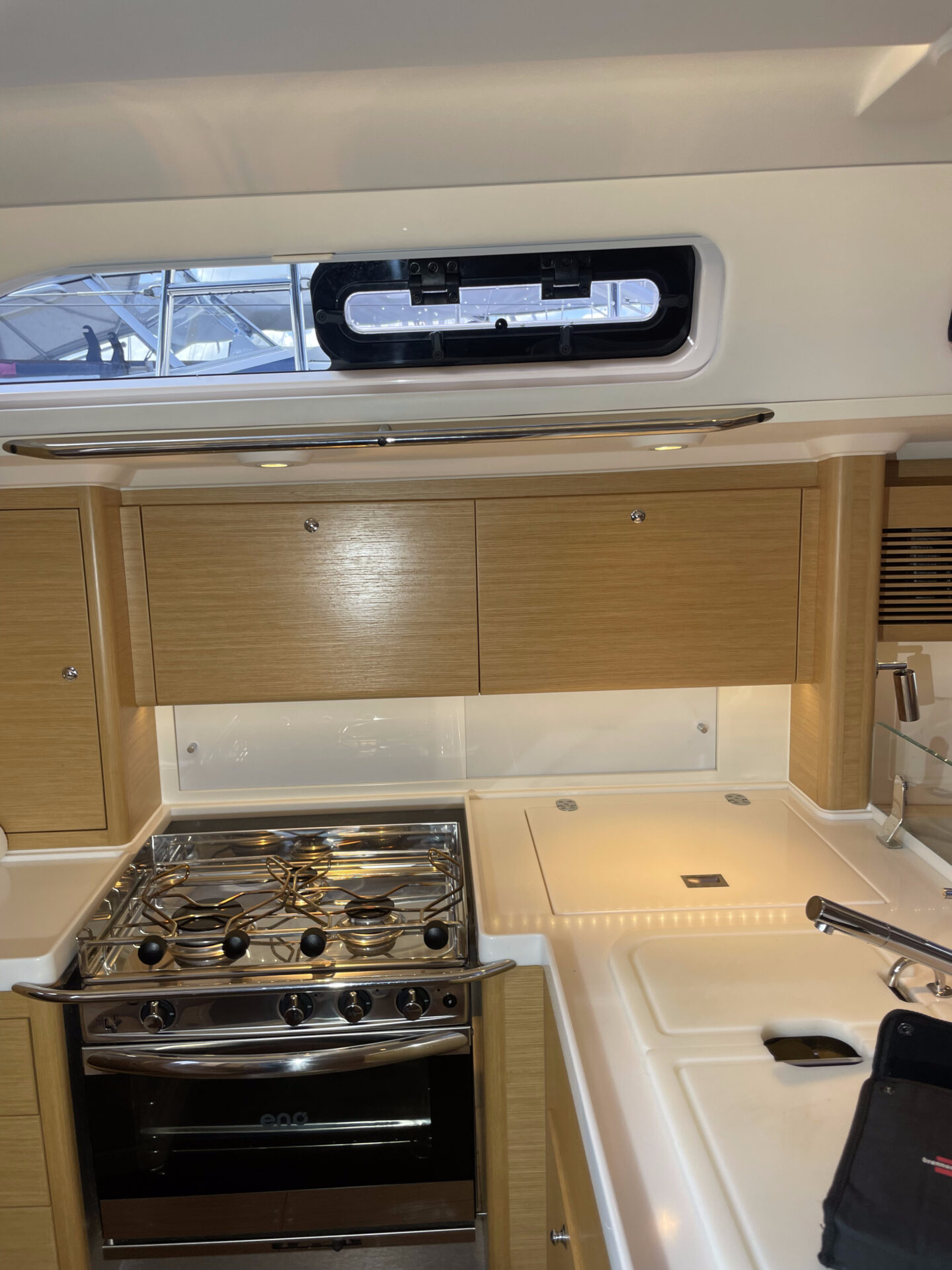

• ENO 2 Burner Oven - ENO gimballed 2 burner hob & oven
• Nespresso Citiz - incl. sliding shelf integrated in cupboard

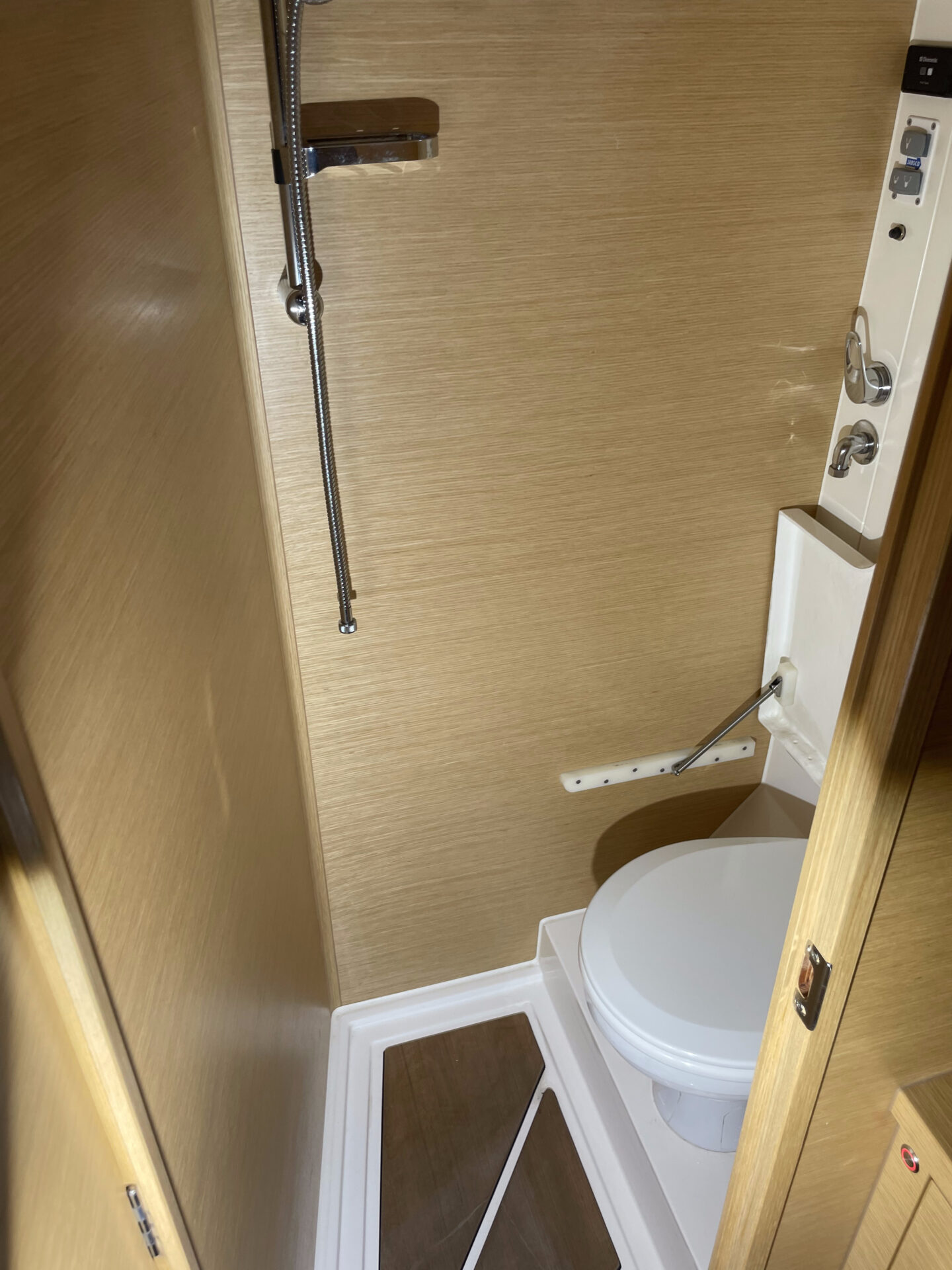

Heads

• Electric Toilet - 12V electric, quiet flush toilet (regular size) - up price
• Teak Floor in Heads - 2 head version

Systems

Engine

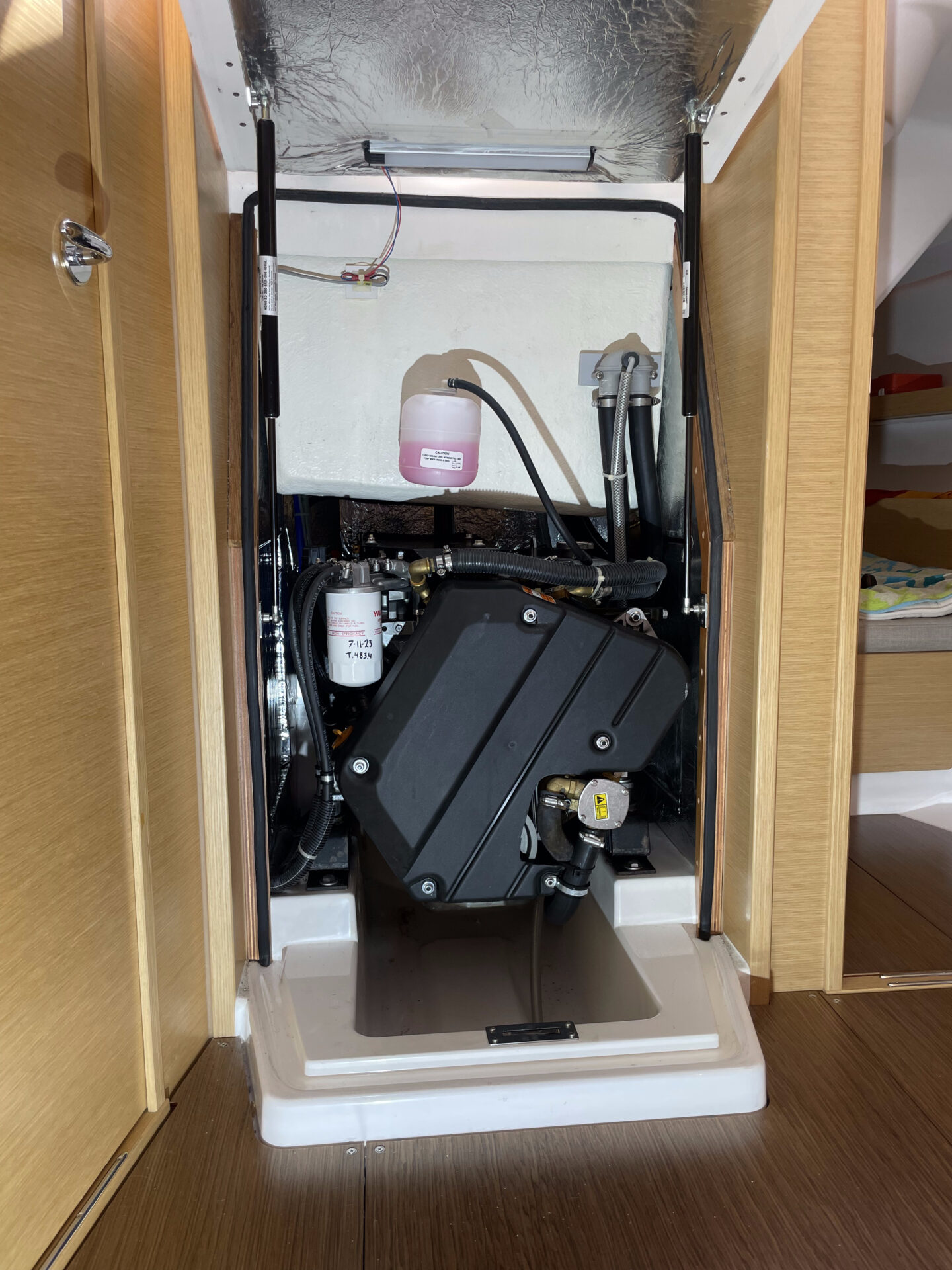

• Yanmar 45 HP - Yanmar 33 kW (45 hp) common rail diesel engine
• 3-Blade Folding Propeller - Flex-O-Fold 3-blade
• Fuel tank - aluminium 200 litres, centrally located under Starboard berth to keep weight centered around the keel for best sailing performance

Plumbing

• "Pressurised hot & cold water system with fresh water tank, 340 litres located below port main cabin sofa
• Deck Shower located in aft cockpit"
• Holding Tank - 55 litre, Polyethylene holding tank per toilet . Emptying by sea cock or deck suction

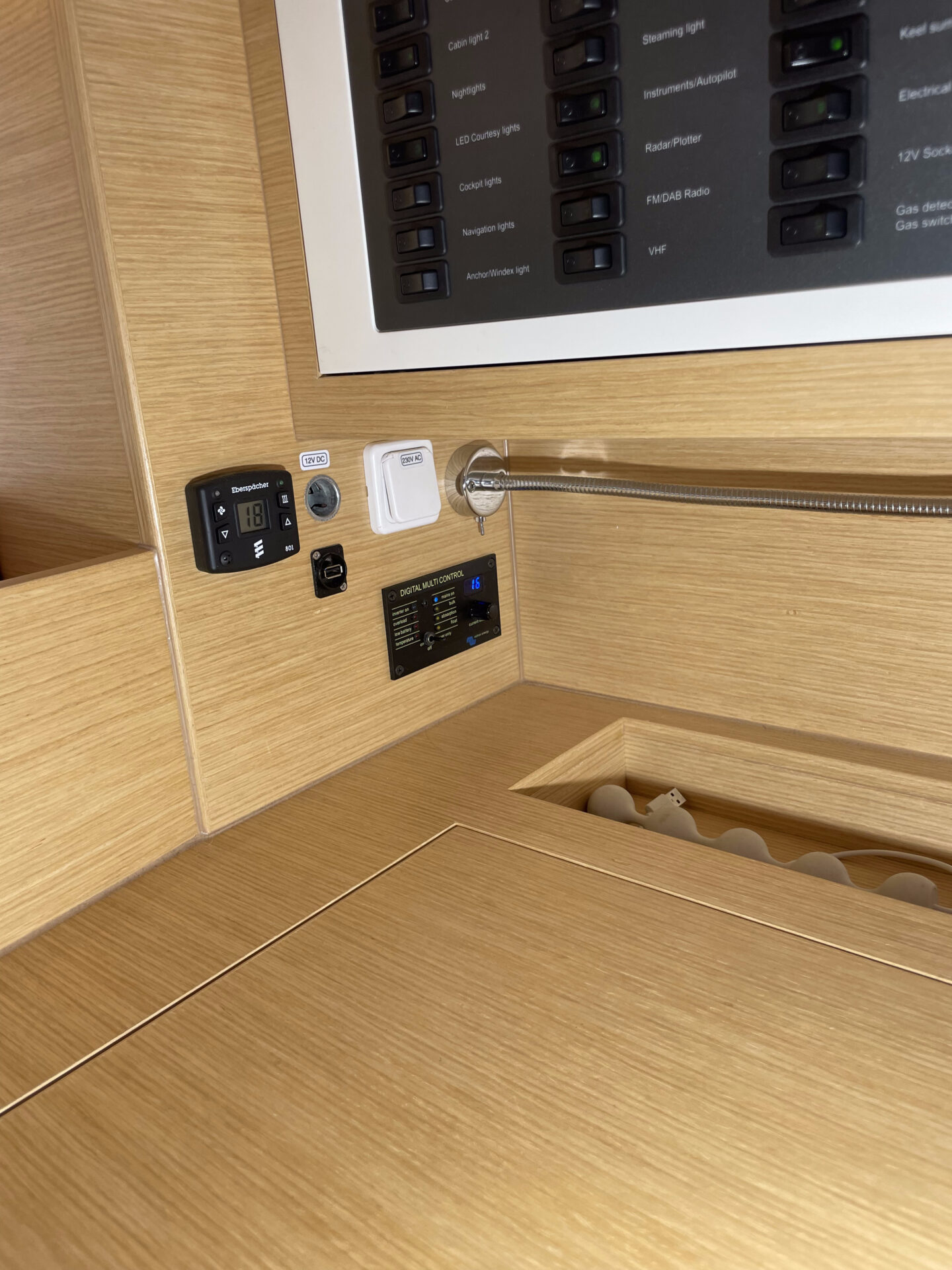

• Heating system - Eberspächer D5 with 5 outlets in saloon, owner's cabin, fwd head and both aft cabins (3- cabin version)

Electrical

• Shore Power Installation - 30A Battery charger & 2 x 12V 220Ah Batteries. Separate engine start battery

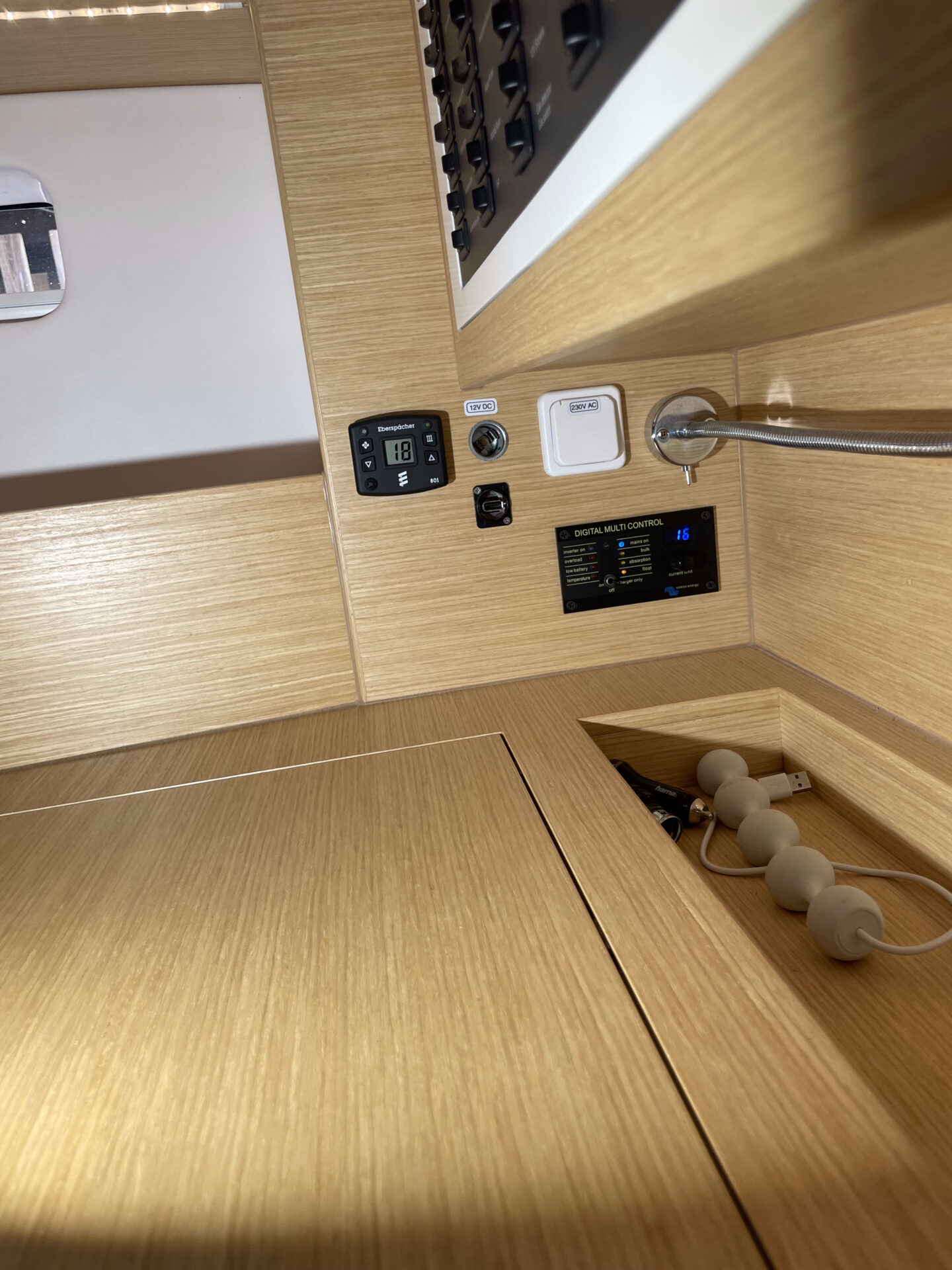

• Combi Battery Charger & Inverter - 12V/2000W/70A including remote multi control panel and galvanic isolator replacing standard 30A charger. Note: Standard there are 220V at nav station (1) and galley (1). Additional 220V sockets can be ordered
• LED Cockpit Light - White, mounted over floor in cockpit (4 Pcs)
• Galvanic Isolator - 30 Amp load capacity, mounted in series with earth wire of shore power socket (to prevent stray current corrosion) - 220V
• Red LED Courtesy Lighting - 4 x LEDs in main cabin mounted at floor level

Electronics

• 1 x I70s display montiert am Kartentisch
• 1 x Depth, speed and temp transducer (combined)
• 1 x Wind forward looking mast head transducer
• 1 x Raystar RS150 GPS antenna
• 1 x RayNet Network switch

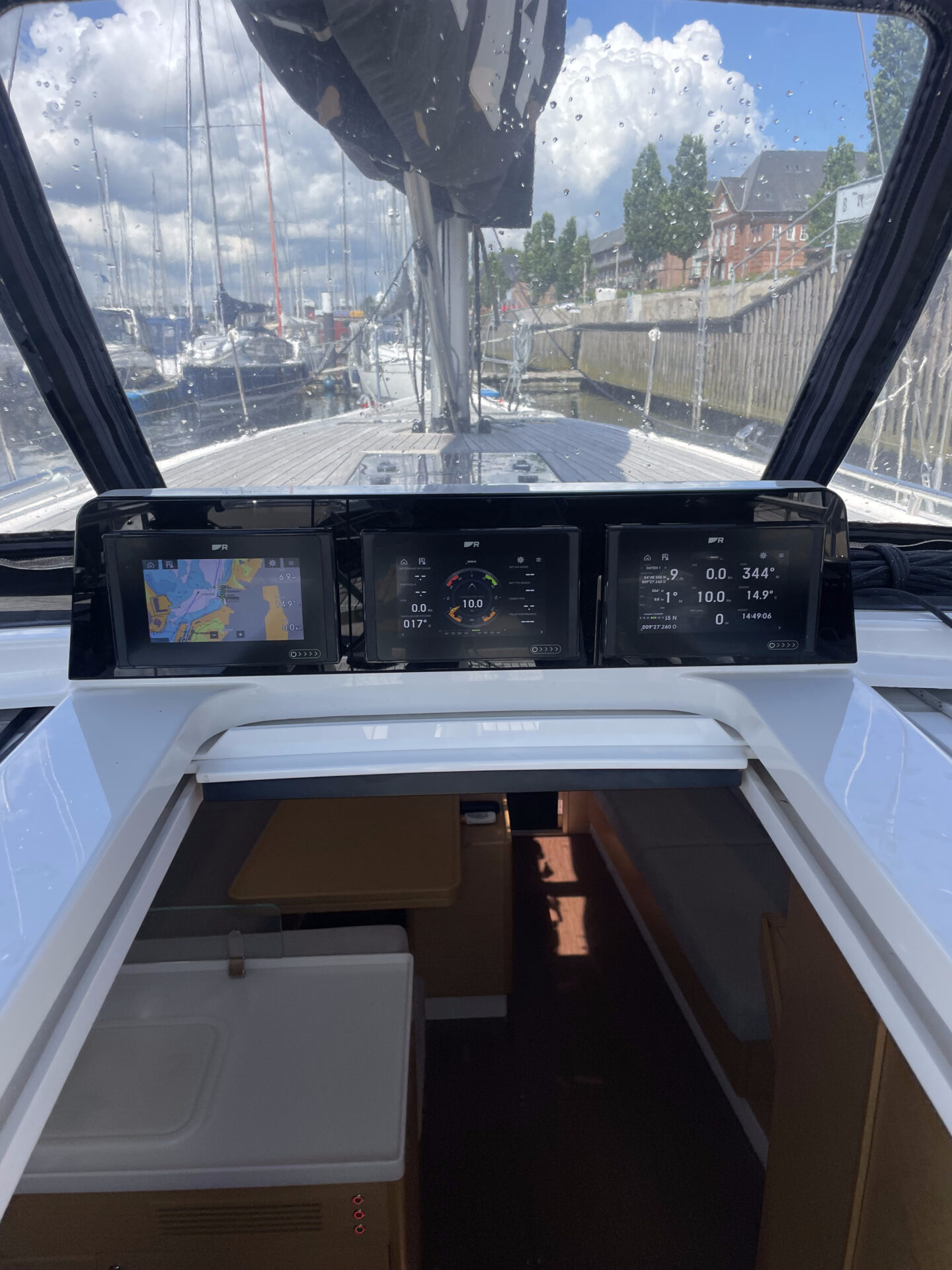

• 3 x iRaymarine Axion 7 MFD montiert über dem Niederganginstrument

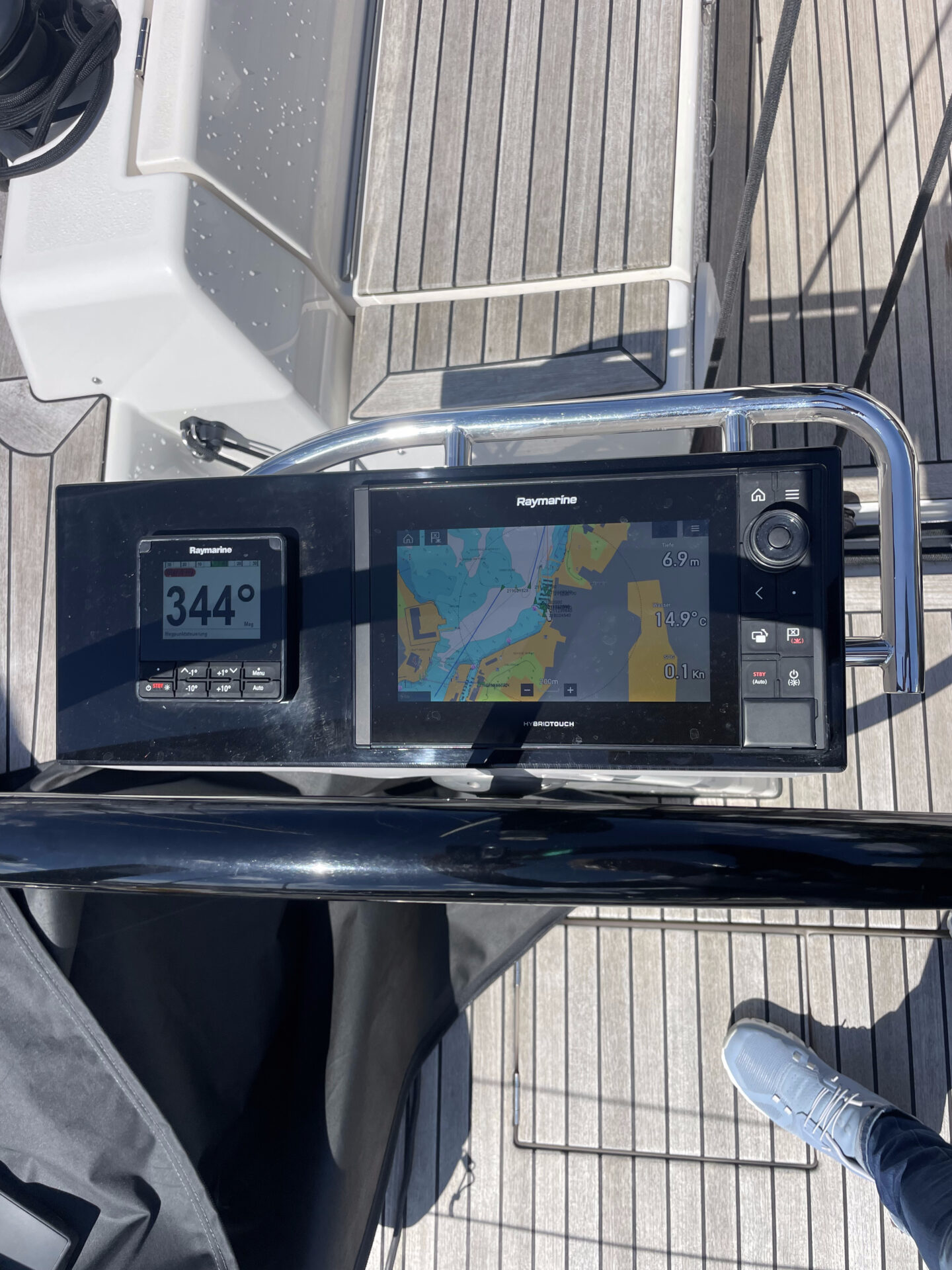

• Autopilot X4.3, 1 x Auto Pilot EV-400 course computer RAM drive 2 with P70 pilot display

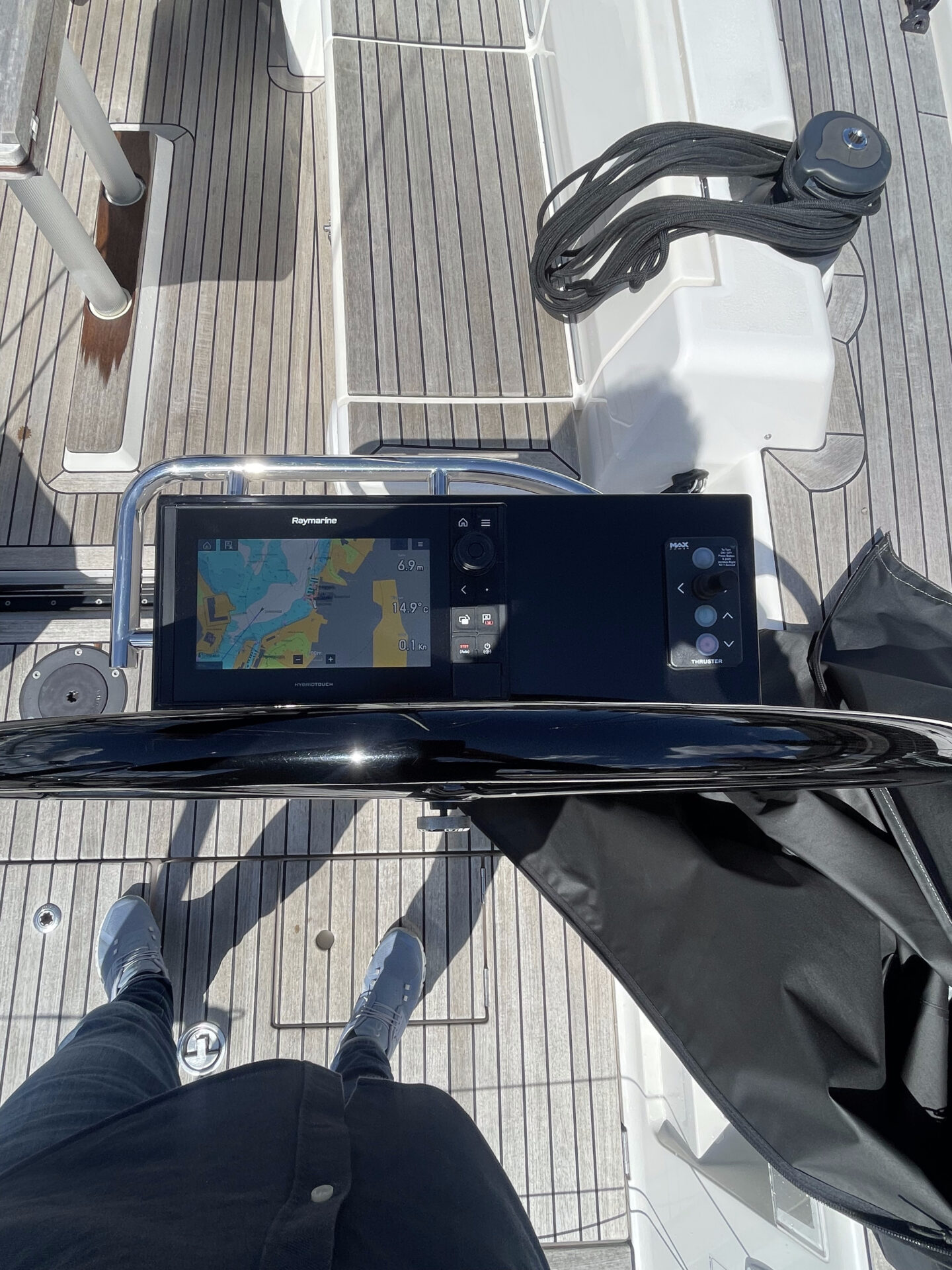

• 1 x Axiom 9" PRO-S Hybrid touch plotter montiert backbord Steuerstand
• 1 x Axiom 9" PRO-S Hybrid touch plotter, montiert Steuerbord am Steuerstand
• 1 x Shakespear VHF antenna for VHF & FM, cable Aircell7, Pom mast isolation mounted in mast head. Note: Windex is mounted separately
• 1 x AIS700 Transceiver for Axiom series plotter incl. filter
• 1 x VHF Ray90 base station (internat.) w. loudspeaker, at nav station or cockpit,

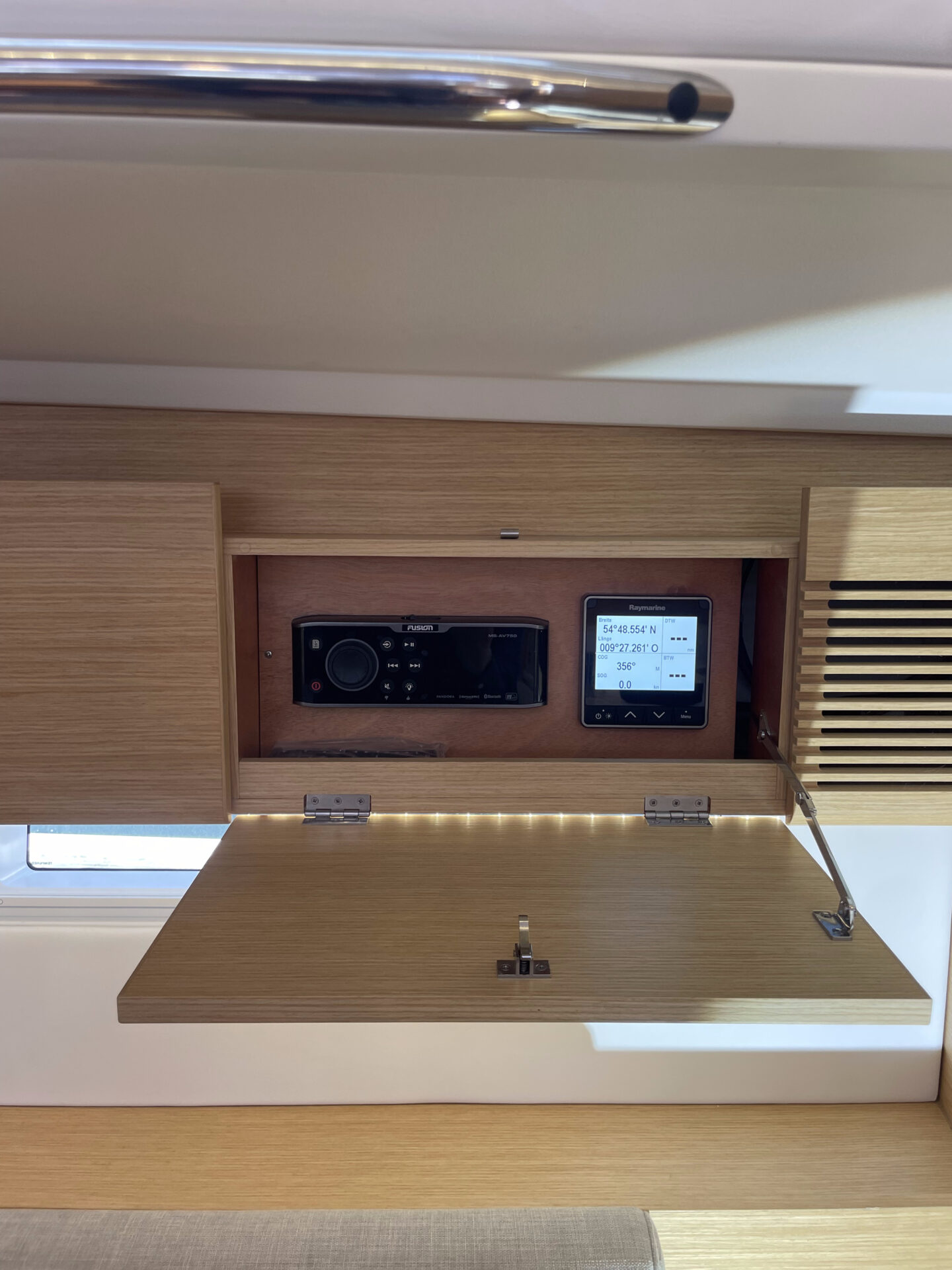

• Multimedia Anlage - Fusion Apollo MS-RA770 AM/FM/VHF/Apple AirPlay/Ipone/Ipod/USB/SiriusXM-Ready (nur in den USA) montiert im Salon bei der Navigationsecke. 1 Satz Fusion 4" Lautsprecher, 2-Wege, 120W schwarze Lautsprecher (2 Stck.), montiert im Salon
• Fusion Cockpitlautsprecher - montiert im Cockpit, angeschlossen an das System (2 Stck.)

Thrusters

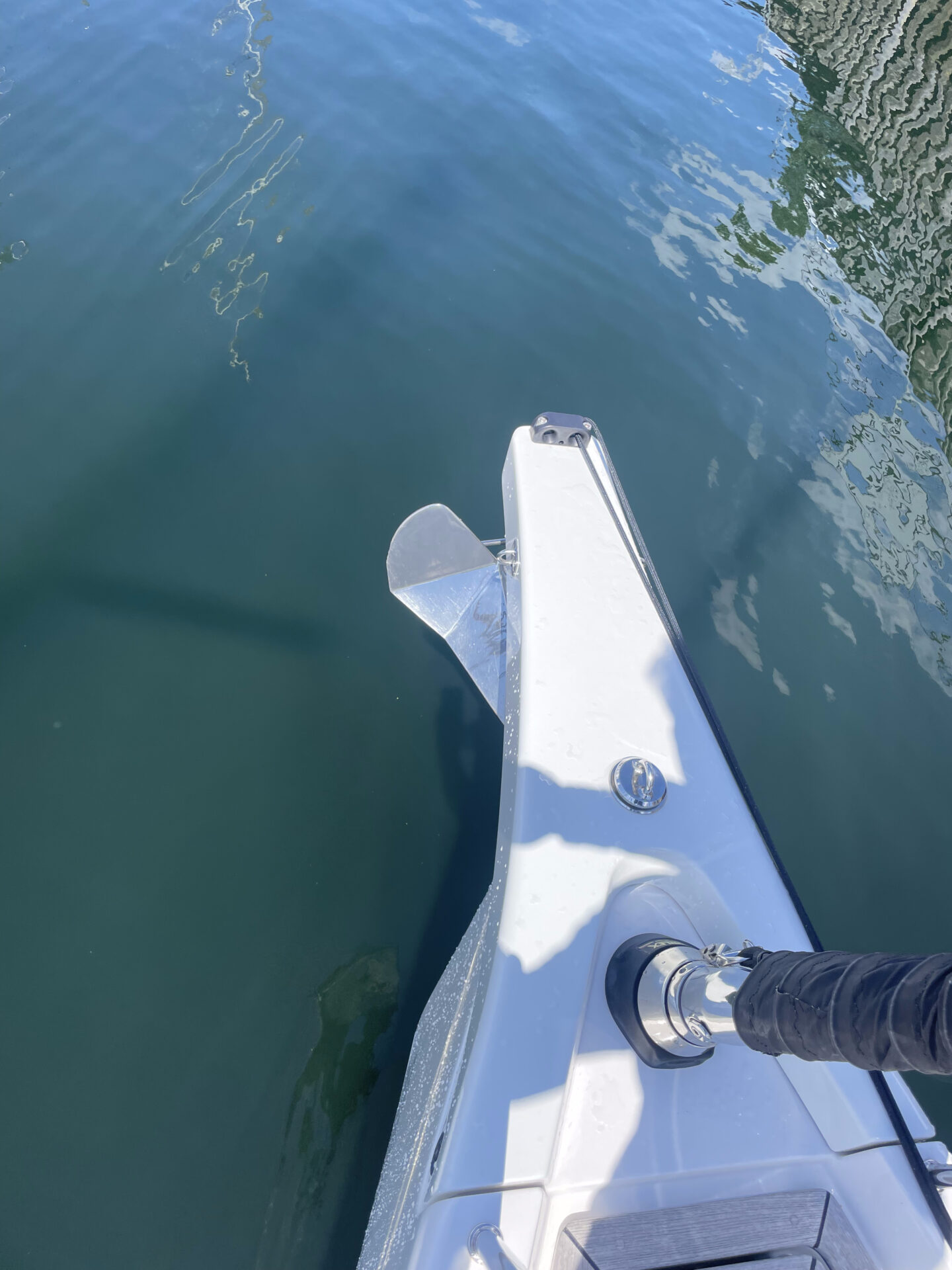

• Retractable Bow Thruster - Max Power Compact retractable 12V bow thruster with controls at starboard recess near steering wheel

Additional Information
