Details

Exterior Details

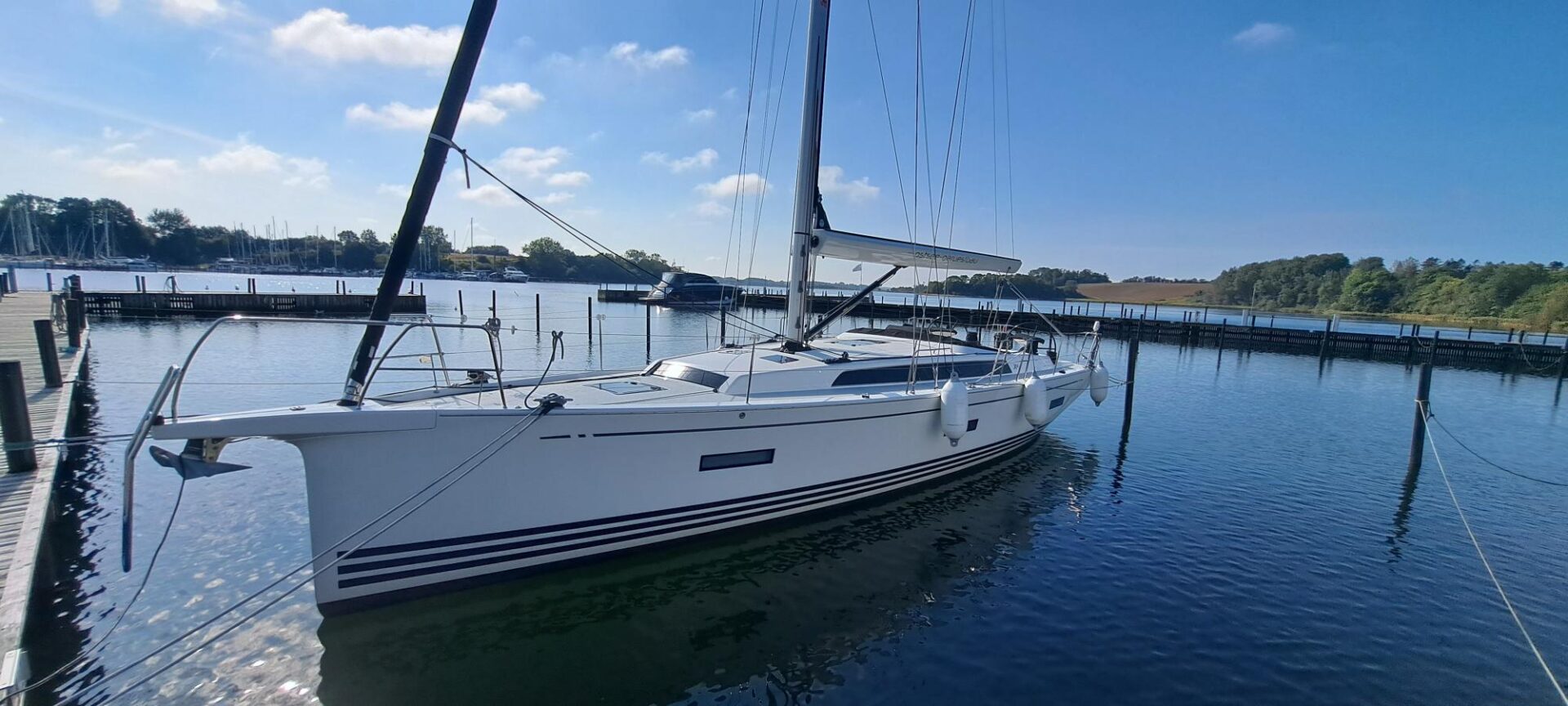

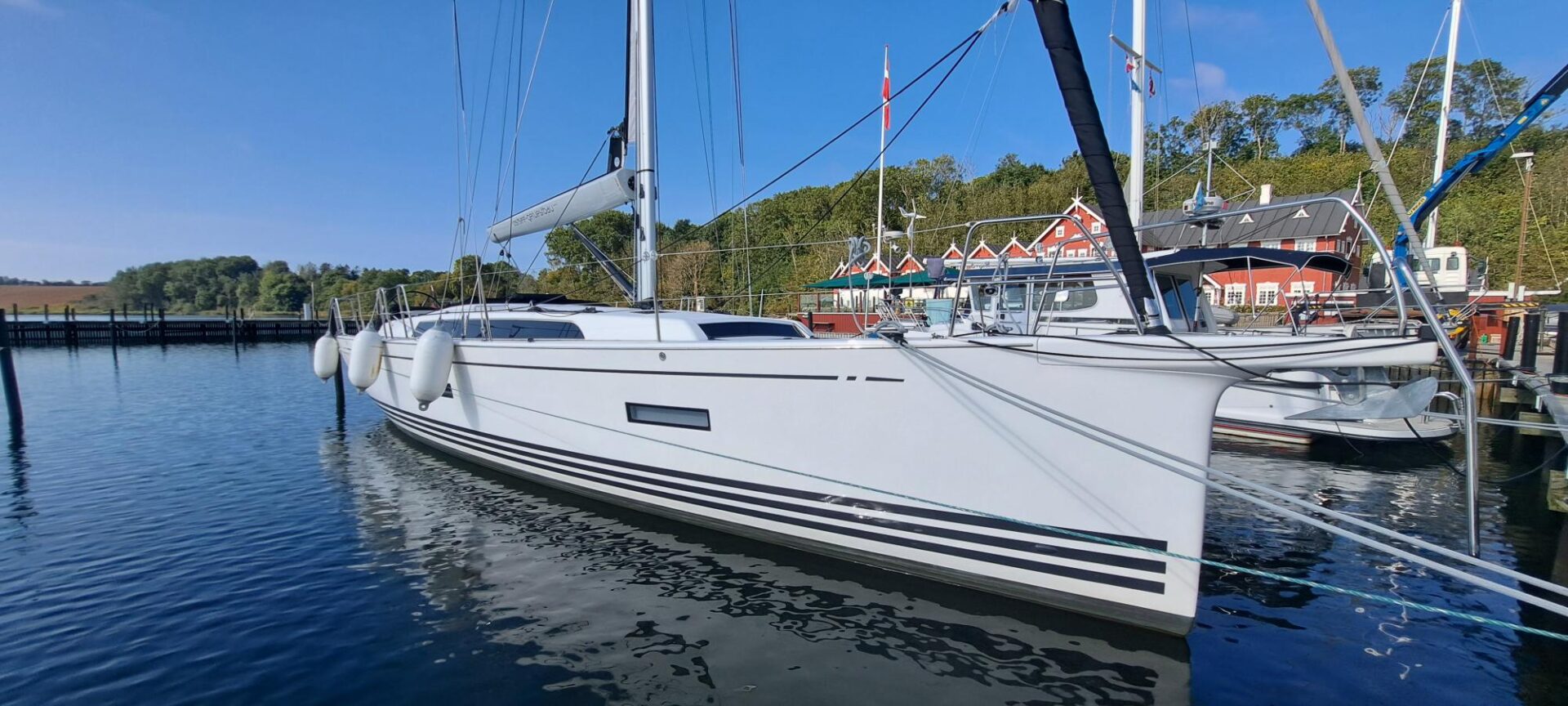

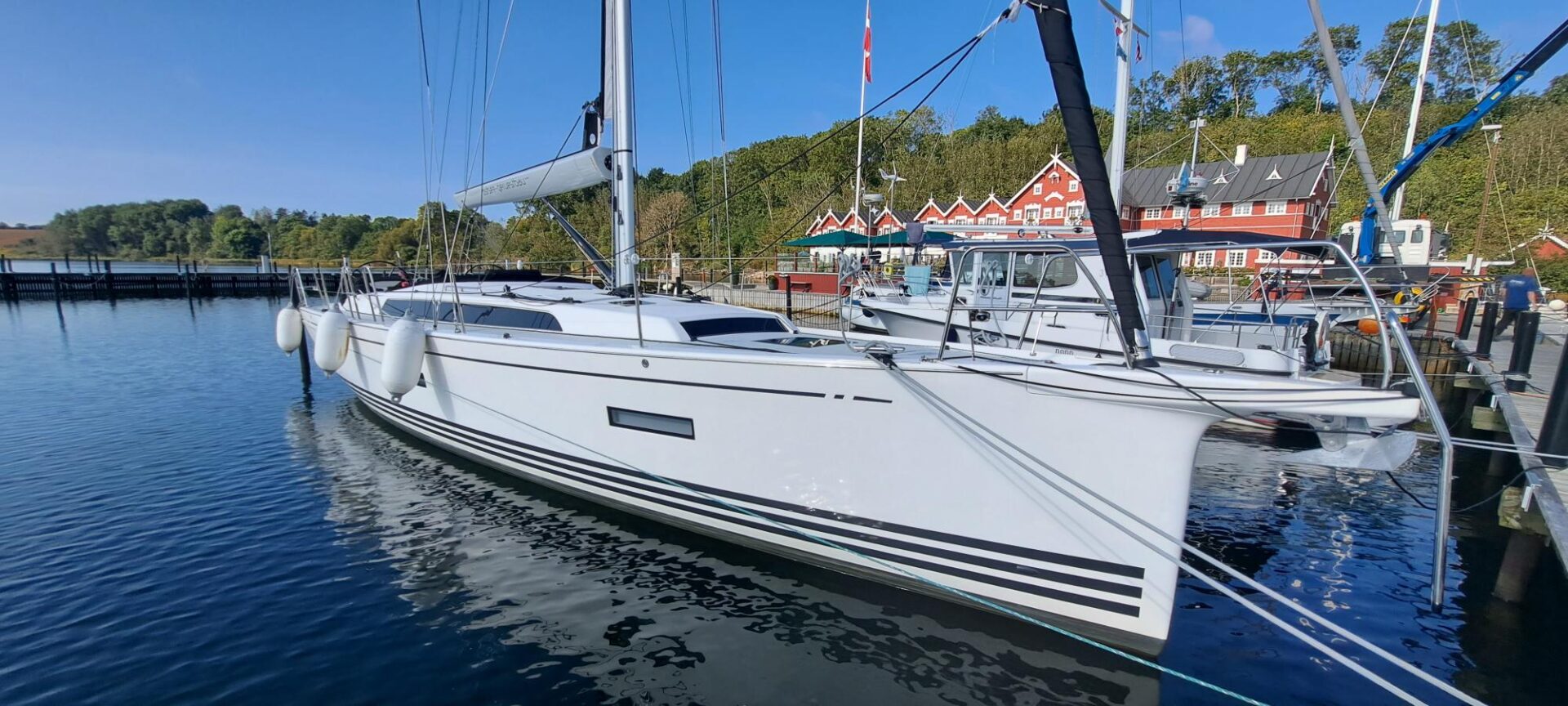

Hull

• HULL - X-Yachts hulls are built using the latest high tech construction technologies with a vacuum-infused, post-cured (Oven baked @ 70°C) EPOXY construction and gelcoat finish
• KEEL STRUCTURE - Heat galvanized steel keel frame improves strength, enables central lift hoist attachment & safety
• Hull Colour - 'Pure White' (RAL 9010) & 3 x 'Black Grey' integrated GELCOAT Water Lines (RAL 7021)
• HULL DETAILING
• Large Hull Portlights in grey tinted laminated toughened glass (6 in total)
• Hull Treatment - 3 x layers of sprayed epoxy primer & 2 x layers Copper coat
• Gunwale Protection - Stainless Steel rail protection mounted along sheer line

Deck

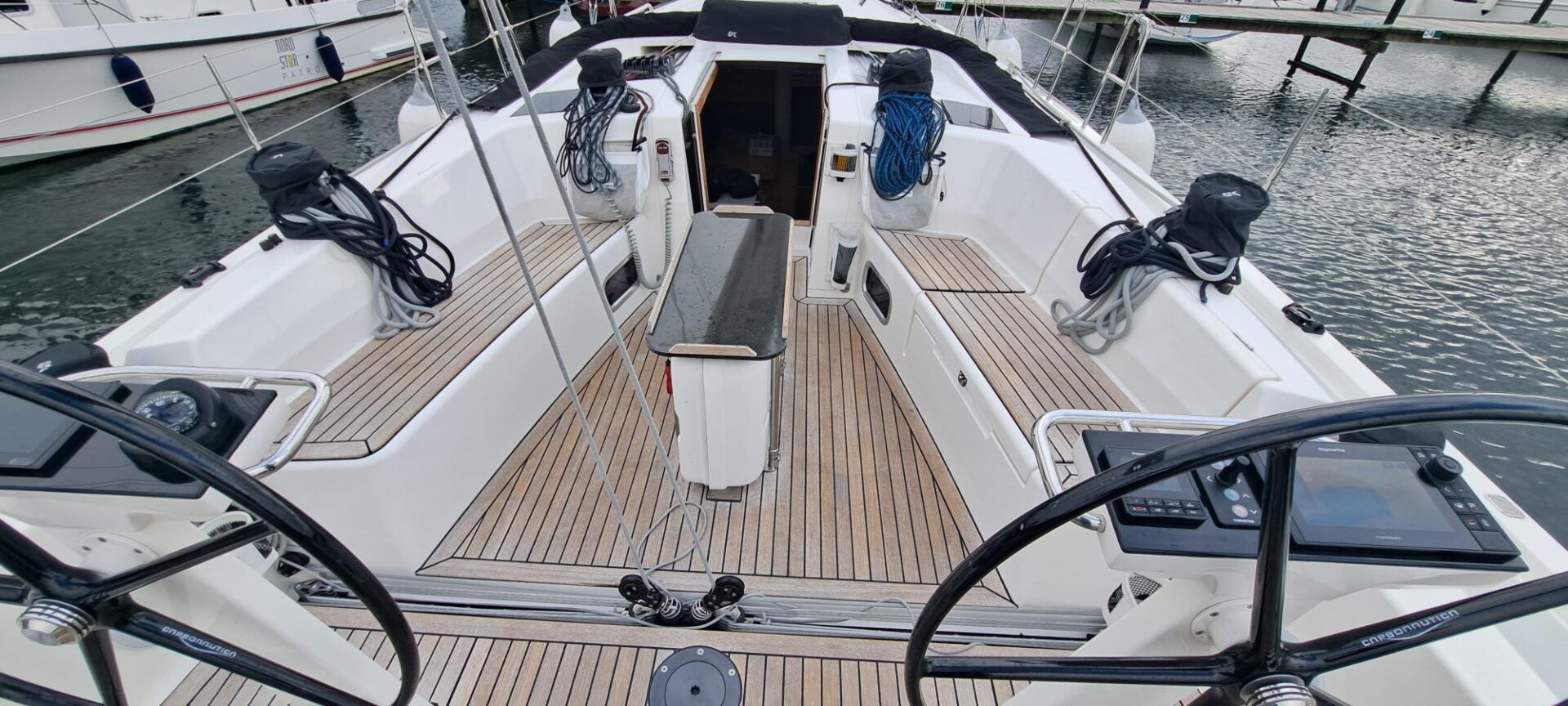

• Teak on cockpit floor and seats - Vacuum applied, 9mm nominal thickness with black caulking
• Light grey side Deck ( RAL 7035)
• Additional demountable carbon cockpittable smal , with space for liferaft below the table
• Demountable cockpit table - with two hinged teak leaves, resting on two stainless steel rectangular legs, securely bolted with 4 bolts to cockpit floor

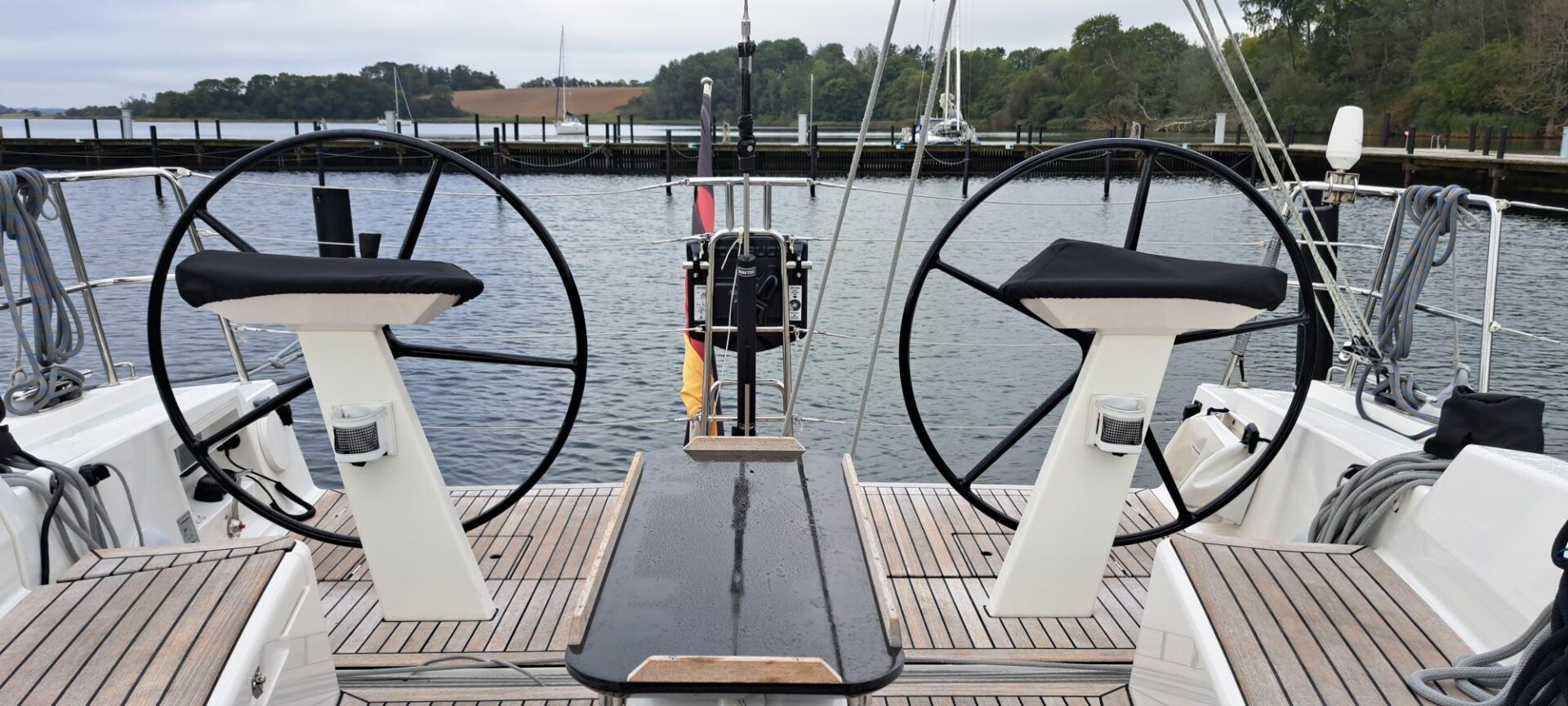

• Composite Steering Wheels - 2 x Carbonautica black composite wheels instead of stainless steel wheels
• New Medium mount - 2 x pedestal platforms with stainless steel grab rail

Sail Handling

• Genoa Winches - 2 x Harken Performa 46.2 STP Manual two-speed self-tailing winches, on coaming
• Larger Genoa Winches - 2 x Harken Performa 50.2 STP Manual two-speed self-tailing winches, on coaming
• Mainsheet Winches - 2 x Harken Performa 46.2 STP two-speed self-tailing winches, on coaming
• Halyard Winches - 2 x Harken Performa 40.2 STP two-speed self-tailing winches, on coachroof

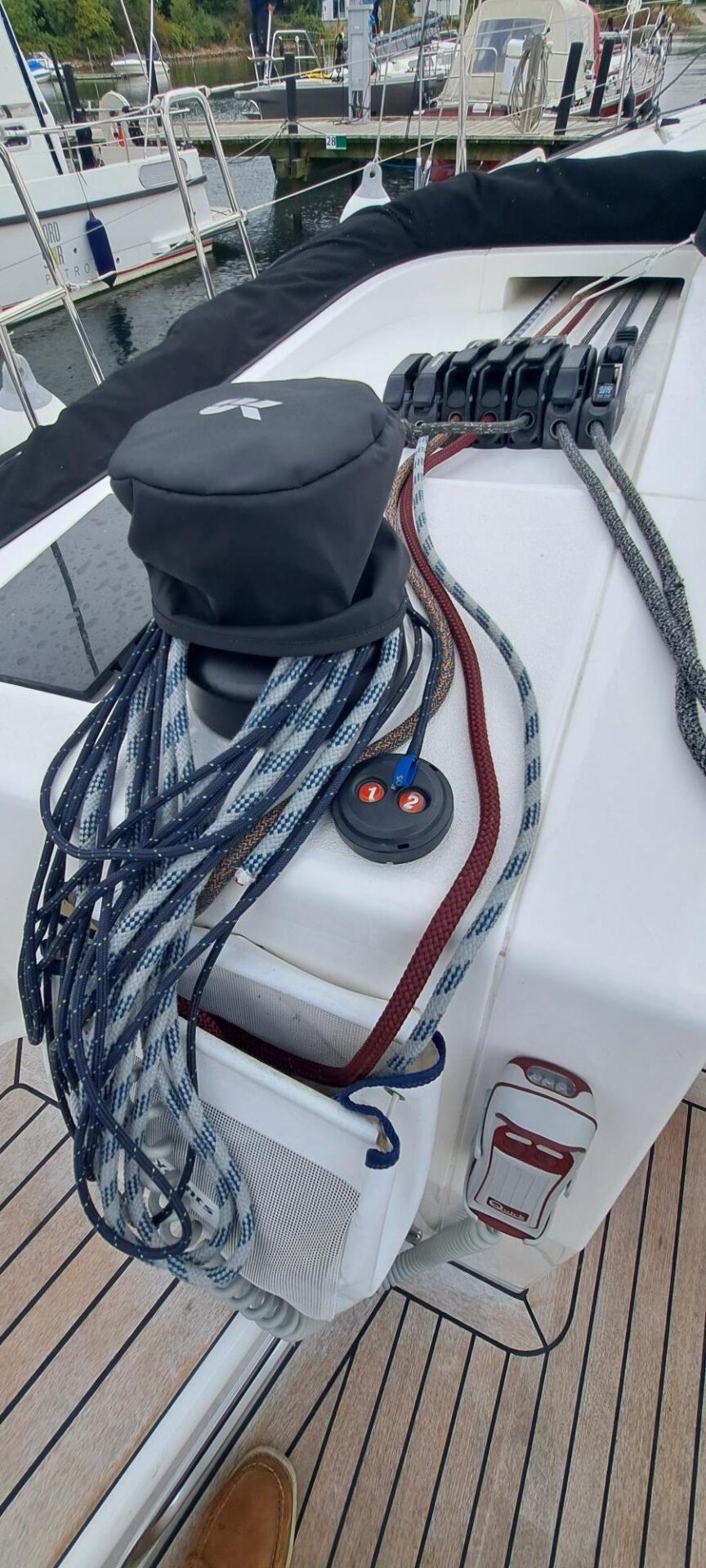

• Electric Port Halyard Winch - 1 x Harken Performa 46.2 STEPH two-speed self-tailing winch, on Port coachroof
• Self Tacking track recessed - into the coachroof, curved track and Toulon ball bearing traveller, single sheet led aft via the mast to halyard winch (one side).
• Genoa Car Control Lines - 4:1 to cockpit cam cleat
• Sail Handling Pack 1:
• Asymmetric spinnaker equipment including; 2 x Dyneema / Spectra sheets, 2 x gennaker blocks, 2 x foot blocks, 2 x cleats for "parking" the sheets and 2 x Wichard shackles mounted incl. 1:1 asymmetric tack line and tack block
• Outboard sheeting pad eyes mounted

Sails

• North Sails Furling Mainsail - 3Di Ocean black with 5 full battens, 2 reefs,, 55 m², incl. luff leech hardware for furlerboom
• North Sails Furling Jib 106 % - 3Di Ocean black , with painted UV leech protection and 4 vertical battens, 42 m²
• North Sails Selftacking Furling Jib 90 % - 3DI Ocean 700, with UV leech protection and 4 vertical battens
• North Sails Code55 Helix - NPL Xi with Helix luff structure cablefree inkl. Facnor Furler
• UK Gennaker top down furler 138 qm inkl. Furler
• UK Sails Running Gennaker - G2 MH incl. snuffer for easy launch and recovery, 168m² 0,9 oz
• Boom cover for Furling Boom - black

Mast & Rigging

• Fractional Double spreader rig
• Tapered silver anodised mast
• Stainless Steel headstay chainplate
• Stainless Steel bulwark recessed chainplates for shrouds
• Permanent central backstay with integral hydraulic adjuster
• LED Steaming Light
• LED Steaming Light combined with LED deck flood light
• LED Tricolour & Anchor Light fitted at mast head
• Mast Steps - 2 x Mast steps fitted to Aluminium mast
• V-Furling Boom - 'Furler Boom T-18' infusion moulded monocoque glasfibre with carbon mandrel included. Spring loaded vang, boom lift/pasarella halyard, painted in grey to suit colour of standard anodised mast.
• Standard with furling Furlex headstay with an under deck drum. Furling line led back to cockpit for easy handling
• Discontinuous rod Rigging with tip cups incl. Racing Rod turnbuckels for V1's and D1's
• Main and Genua Halyard upgrade to SK99 with Tylaska Shackel for main Halyard
• Additional Masthead Spinnaker Halyard - 12mm Dyneema SK78, incl. halyard block at mast and large Spinlock halyard jammer (1:1)

Keel

• Standard Keel - 2.2m 'T' keel consists of antimony hardened lead T-bulb bolted and glued to cast iron fin for high strength, low centre of gravity for comfortable sailing performance. The Keel is totally encapsulated in three layers of CSM E-glass with epoxy for protection, perfect wing shape and maximum lift and height by sailing. The keel is securely bolted to the structural steel keel frame with stainless steel bolts for maximum safety and integrated central hoist

Hatches / Portlights / Ventilation / Sprayhood

• Ocean Air Skyscreen Blinds including flyscreen and blackout blinds for small skylights;
• Forward facing coachroof portlight and hull portlights fitted with blackout blinds;
• Blinds for aft cabins -
• Ocean Air Skyscreen Blinds including flyscreen and blackout blinds for small skylights in aft cabins;
• Hull portlights, portlight in cockpit coaming and portlight facing cockpit in aft cabins are fitted with push button blinds;
• Ocean Air Skyscreen Pleated Blinds - flyscreen and blackout blind for main double saloon hatch (1450 x 500mm) & SKYSOL Classic blind for hull window in saloon - 1 set

Guard rail / Anchor / Stainless Steel Fittings

• Flush Deck Hatches - 9 pcs: GRP hatch above anchor locker and sail compartment plus 8 frameless hatches - see deck layout for details
• Port lights - 7 x openable coachroof port lights: 2 x openable coachroof port lights per side on outside coachroof for added ventilation in main cabin and in aft head, 1 for each aft cabin facing cockpit and 1 for each integrated in outside coaming stripe of glass, for added ventilation and light
• Sprayhood storage - Self draining recess for optional sprayhood to be stored in the deck.
• Sprayhood black - canvas with sturdy stainless steel framework.
• GUARD RAILS / ANCHOR EQUIPMENT / STAINLESS STEEL FITTINGS
• Electric Anchor Windlass - with 25 m of 8 mm calibrated galvanised anchor chain
• Anchor - 16 kg Delta galvanised anchor
• Anchor Chain Upgrade - 50 m of 8 mm calibrated galvanised anchor chain
• Mooring Cleats Amidships - 2 x Stainless steel cleats mounted amidships
• White Painted Carbon Fibre Bow Sprit - White Painted Carbon fibre bow sprit for asymmetric spinnaker and code 0 pad eye integrated into the innovative S-bow design (accommodates the standard removable stainless steel anchor roller)
• Boarding Gates in Guardrails - for standard lifelines on both sides with champfer rails on bulwalk (3 per side)

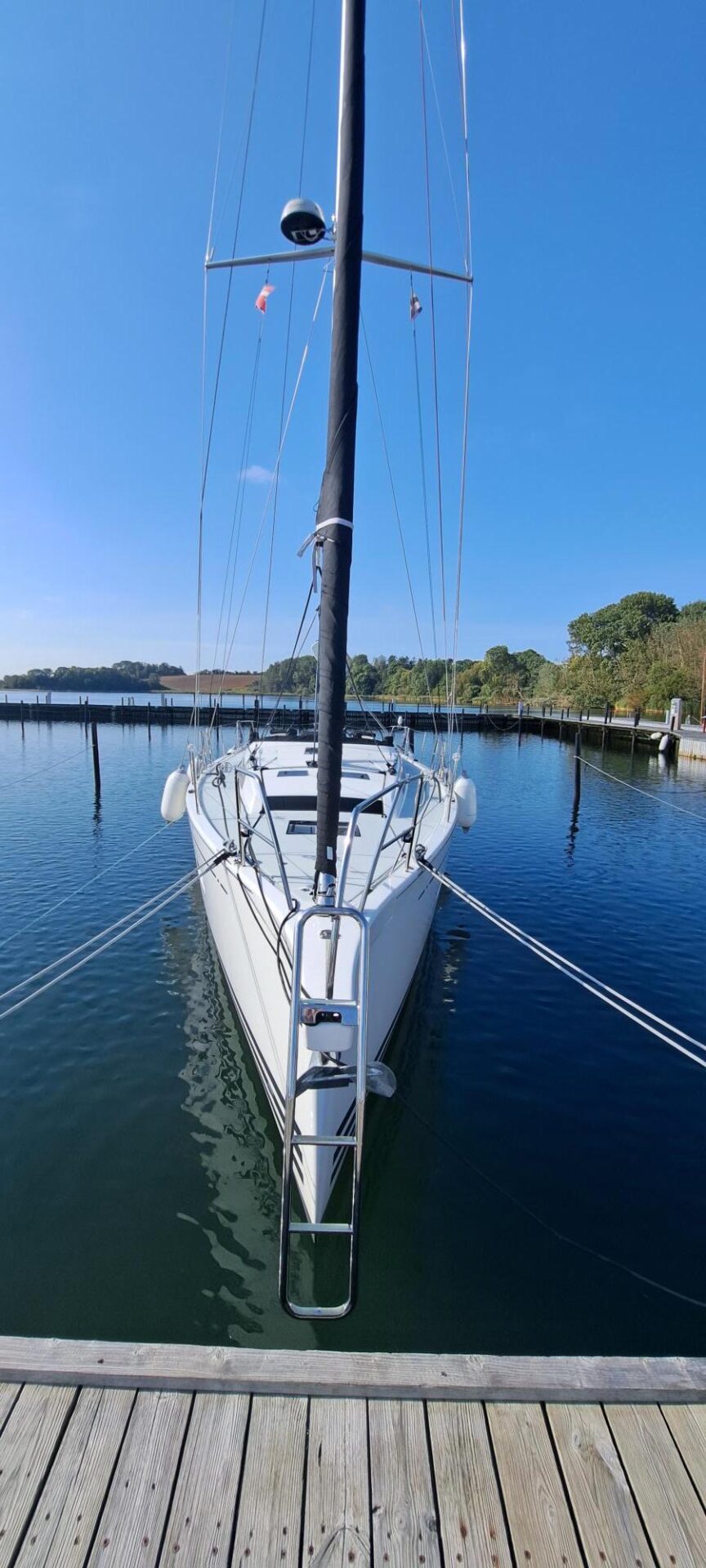

• Bow Boarding Ladder - Stainless steel ladder with support rail between end of bowsprit to pullpit to help safe boarding
• Pad Eyes - In addition to the standard 4 foldable Wichard pad eyes in cockpit, a pack of 4 (2 each side) additional Wichard 6 mm foldable Padeye for halyard parking and safety lines -

Accommodation

Cabins/Salon/Head

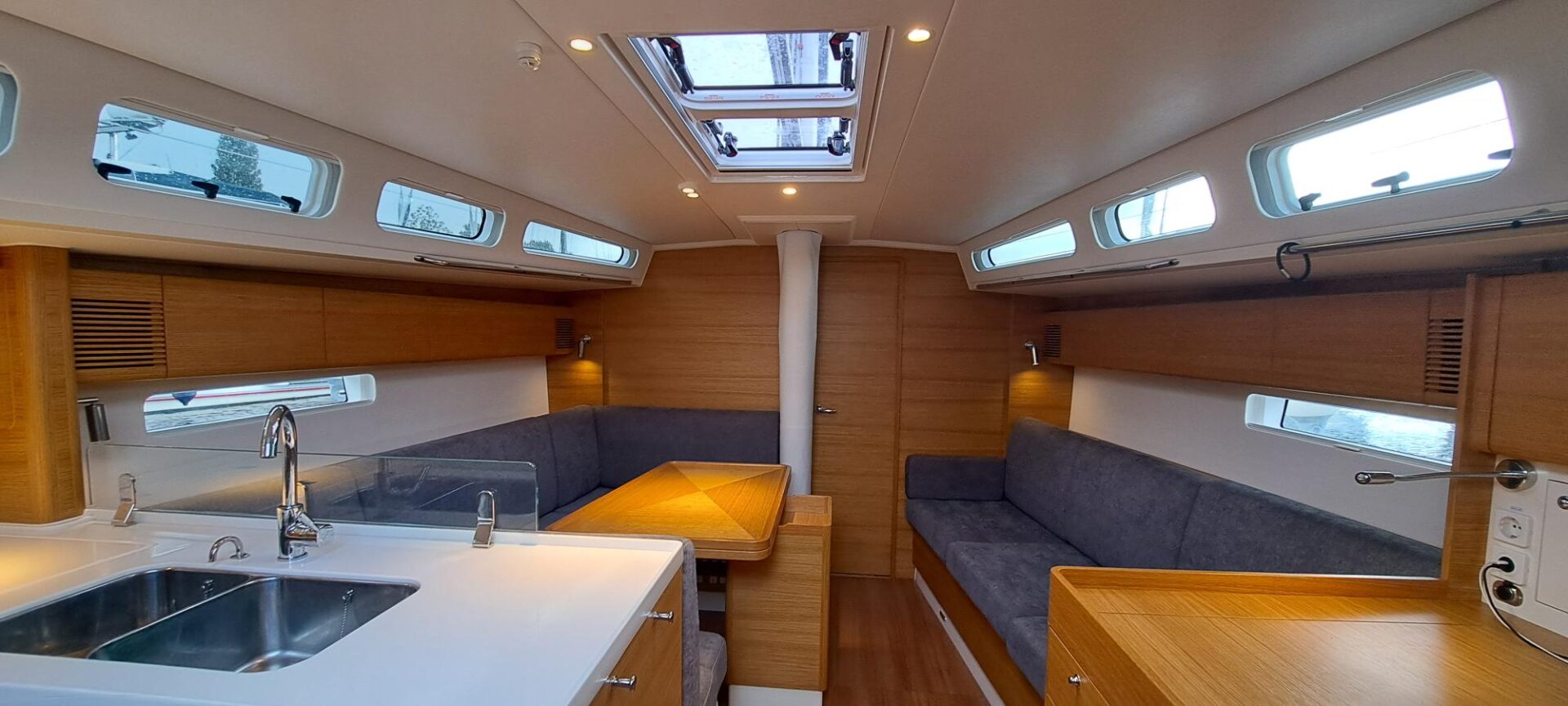

• Long sofa - Long sofa situated in starboard side with longitudinal backrest

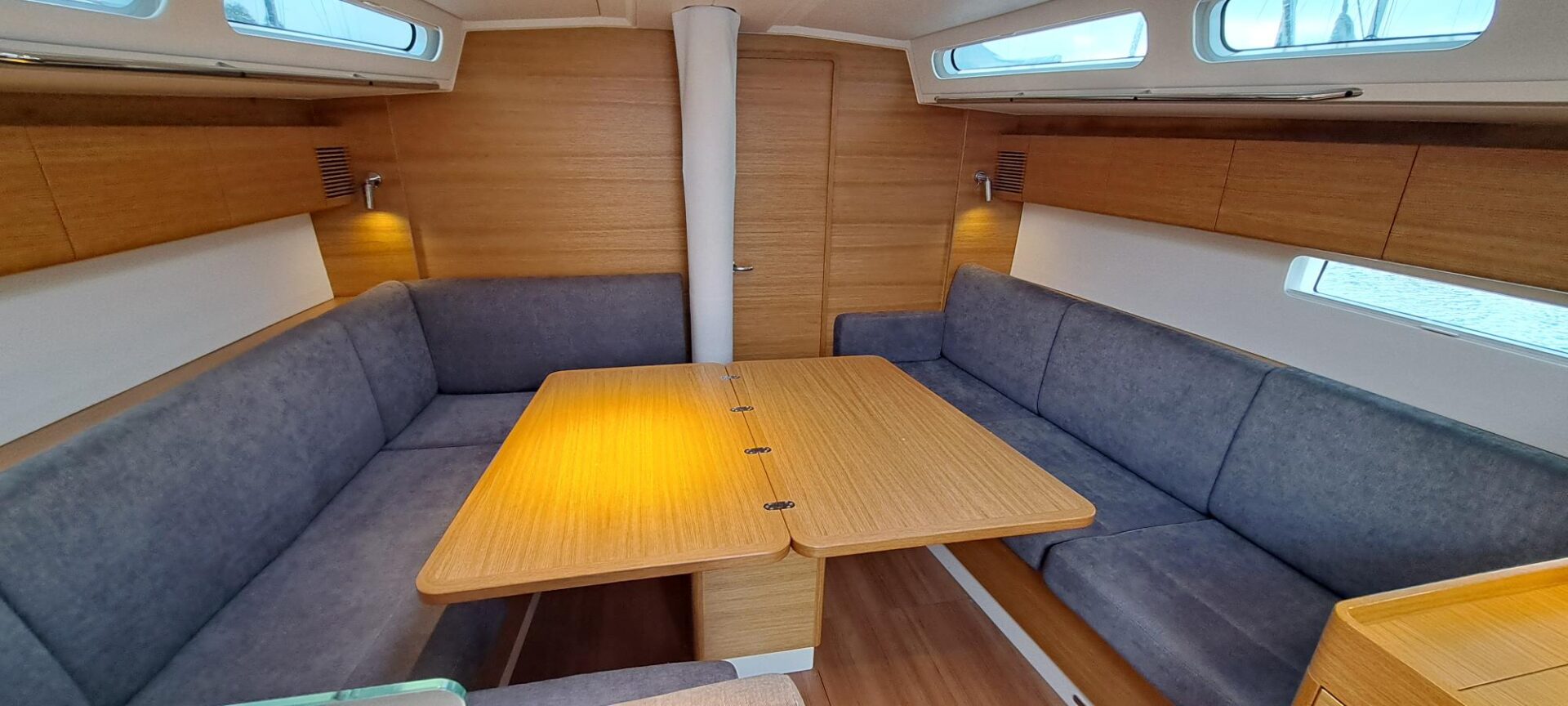

• Main cabin dining table - table without table/drinks box below. Has top surface of wooden veneer with longitudinally grain direction
• Main cabin upper cupboards - Upper cupboards with bottom hinged doors fitted on freeboards
• Stainless steel Handrails - handrails in stainless steel, with stainless steel spacers inside the coachroof on each side
• LED Interior Lighting - LED lighting throughout the yacht
• Coolbox - 90 litre toploaded insulated & watercooled Danfoss / Secom compressor & Isotherm accumulator plate

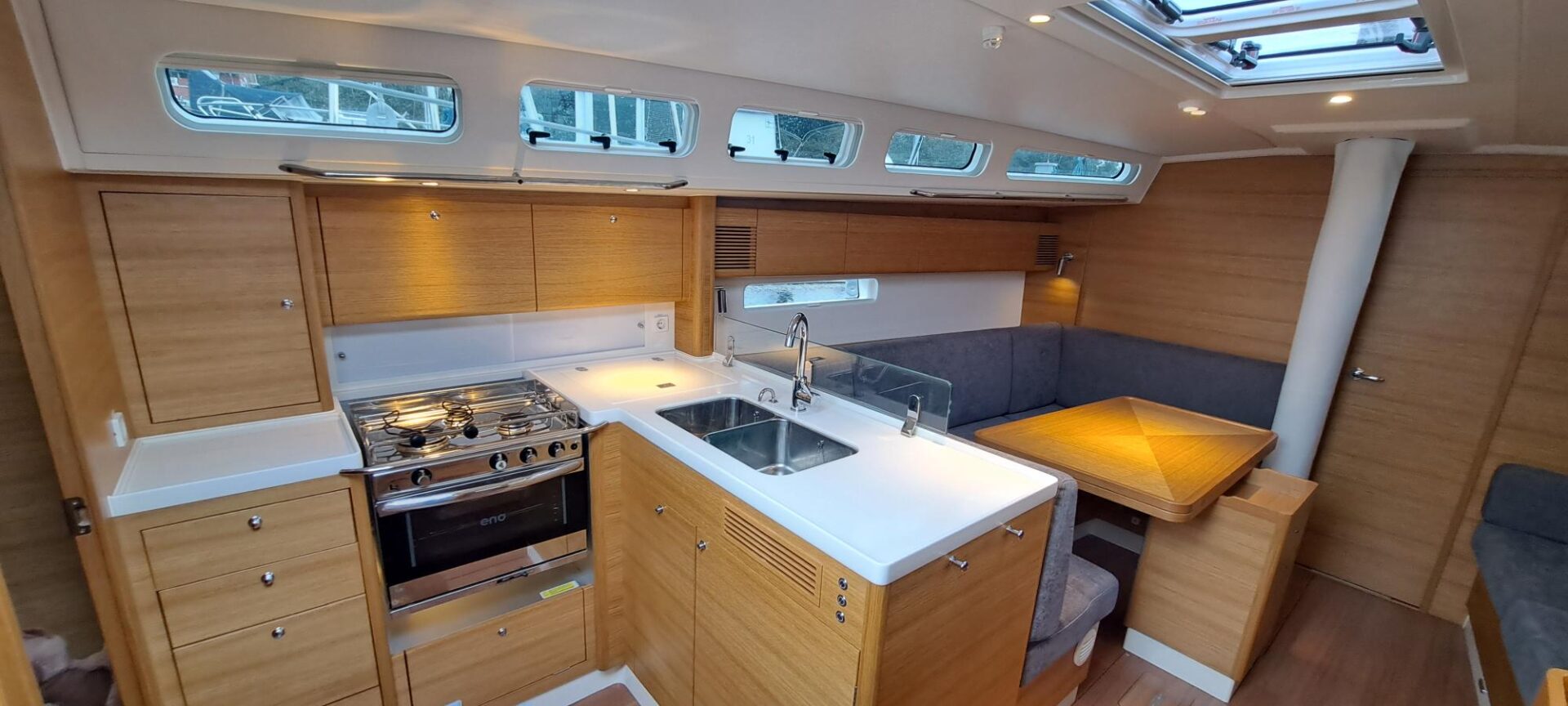

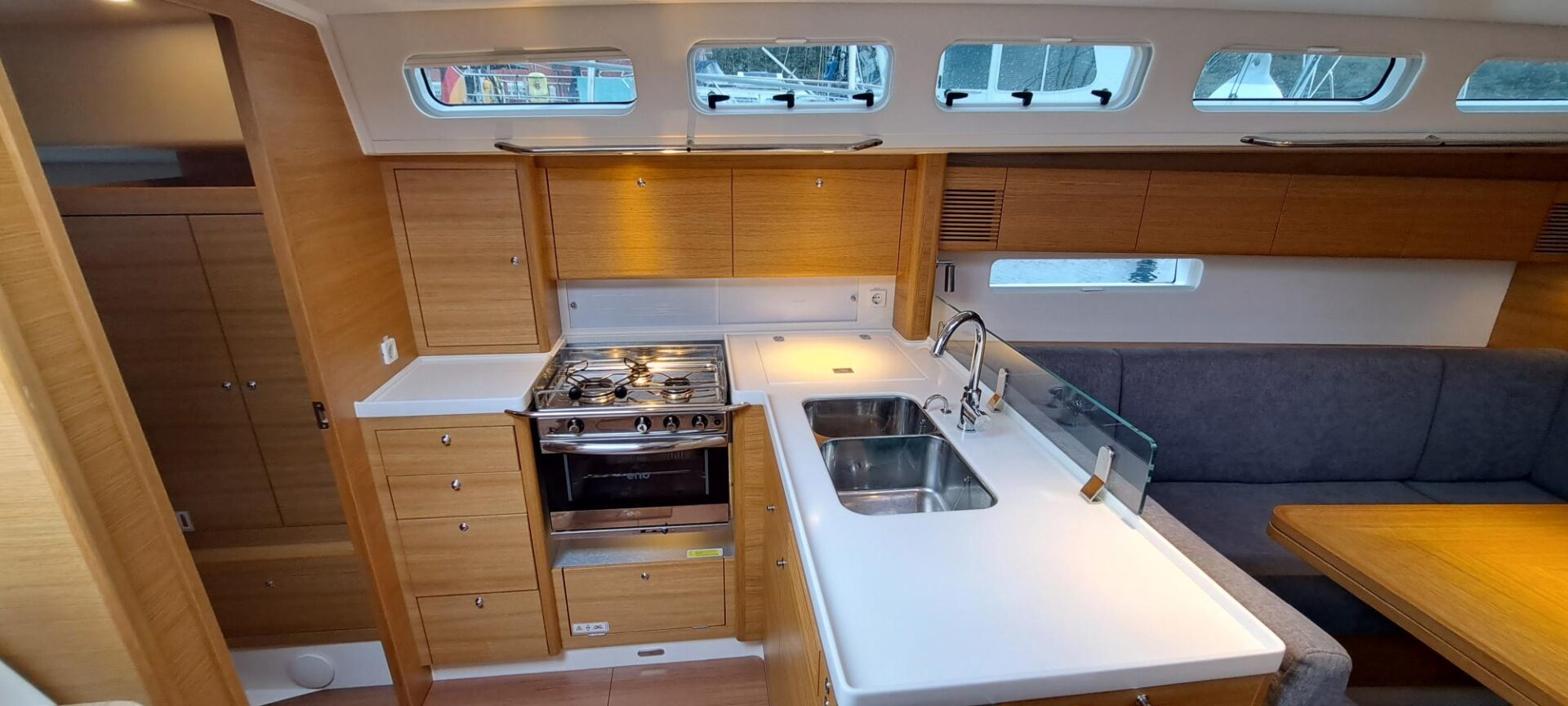

• ENO 3 Burner Oven - ENO, gimballed 3 burner hob & oven
• White Corian - White Corian worktops in galley
• Fridge Front Opening - 65 litre with ice cube compartment, front opened with ASU start-up technology, positioned under sink
• Nespresso Citiz - mounted on sliding shelf integrated in cupboard

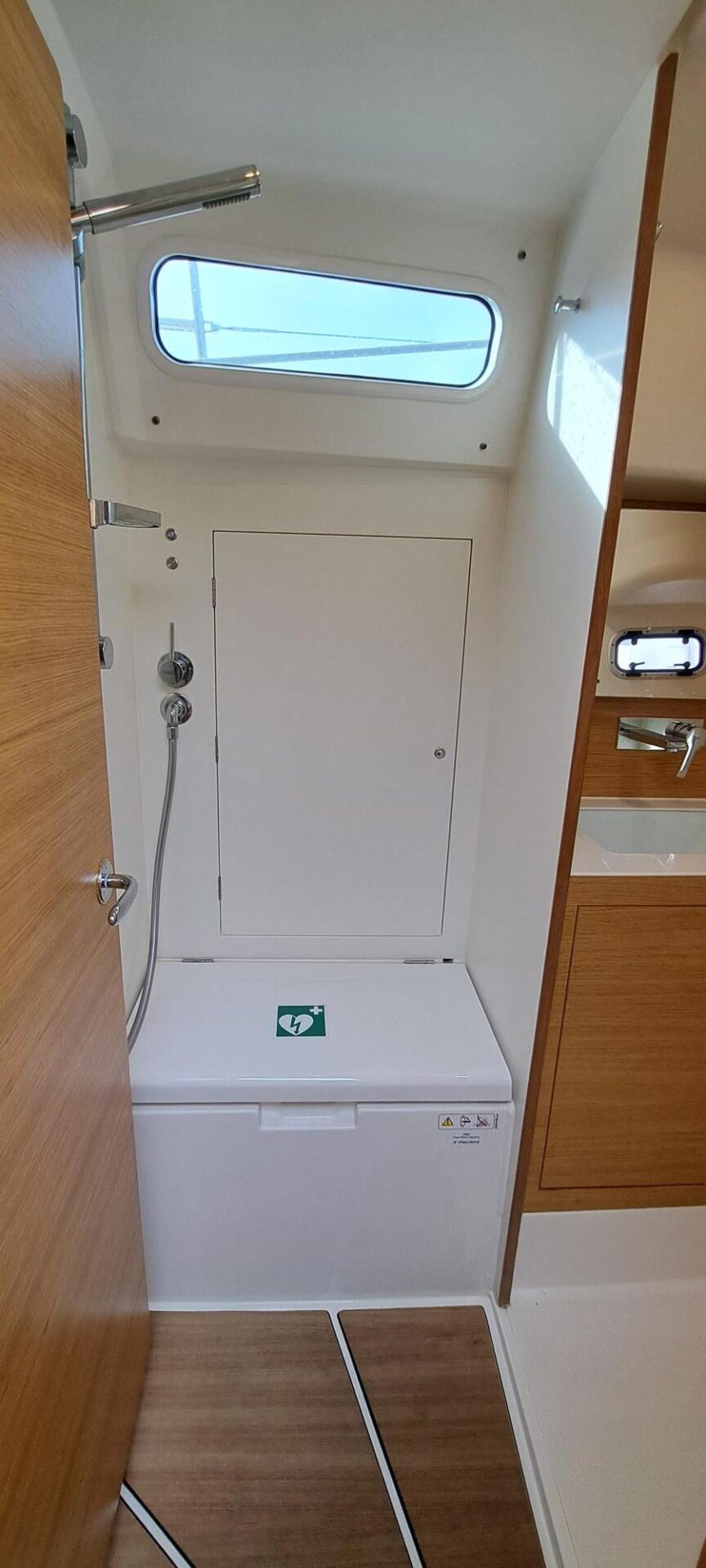

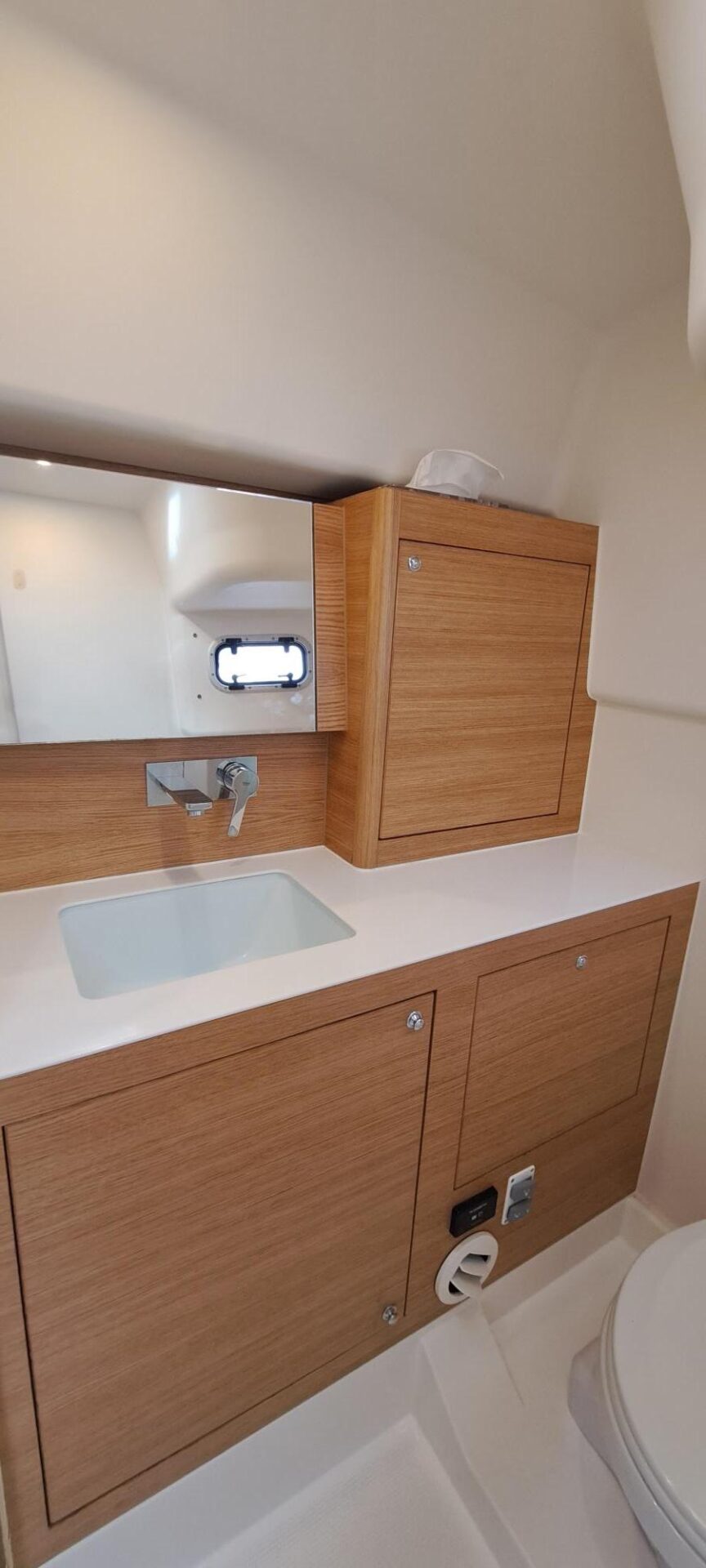

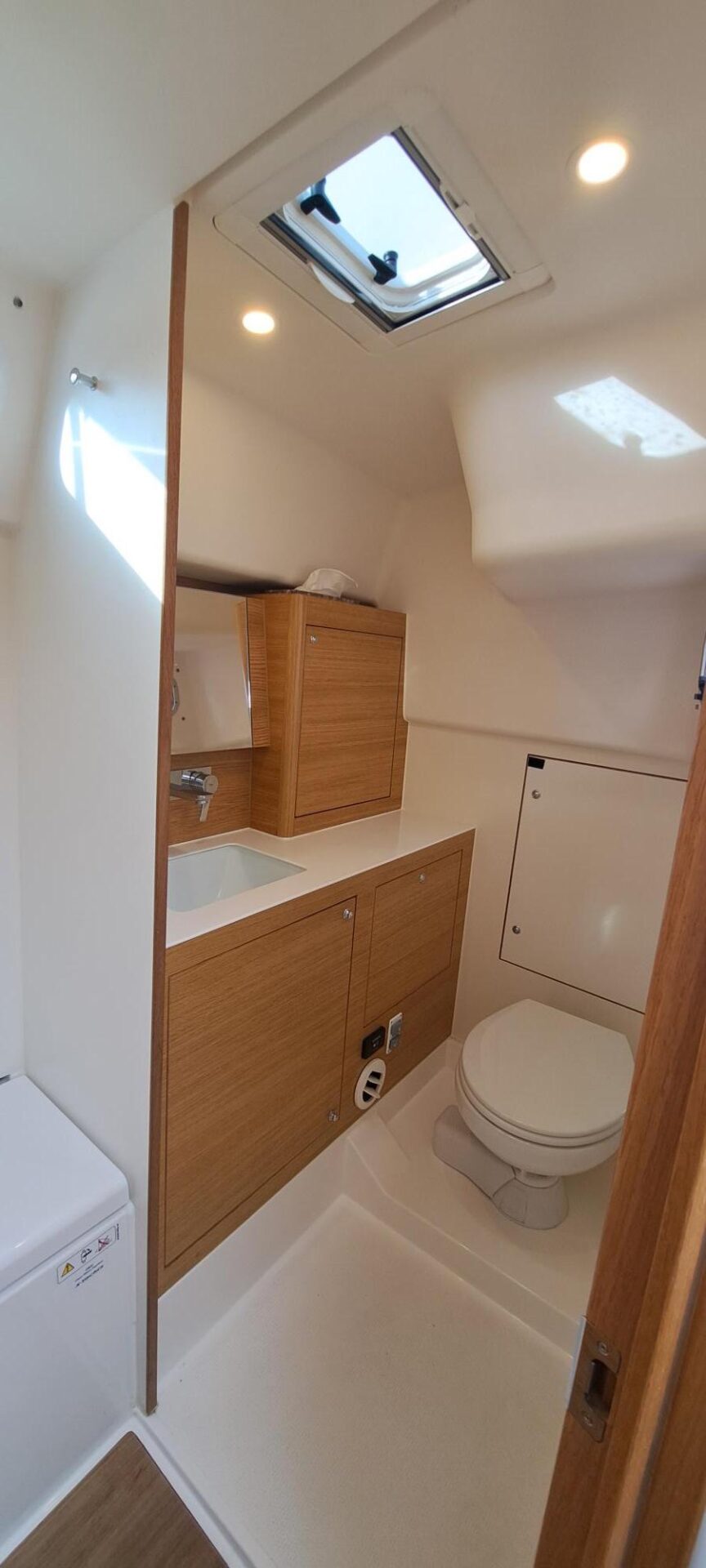

• Standard heads - with manual pump toilets
• Electric Toilet - 12V electric, quiet flush toilet (regular size) with Freshwater
• Teak Floor in Heads - 1 head version

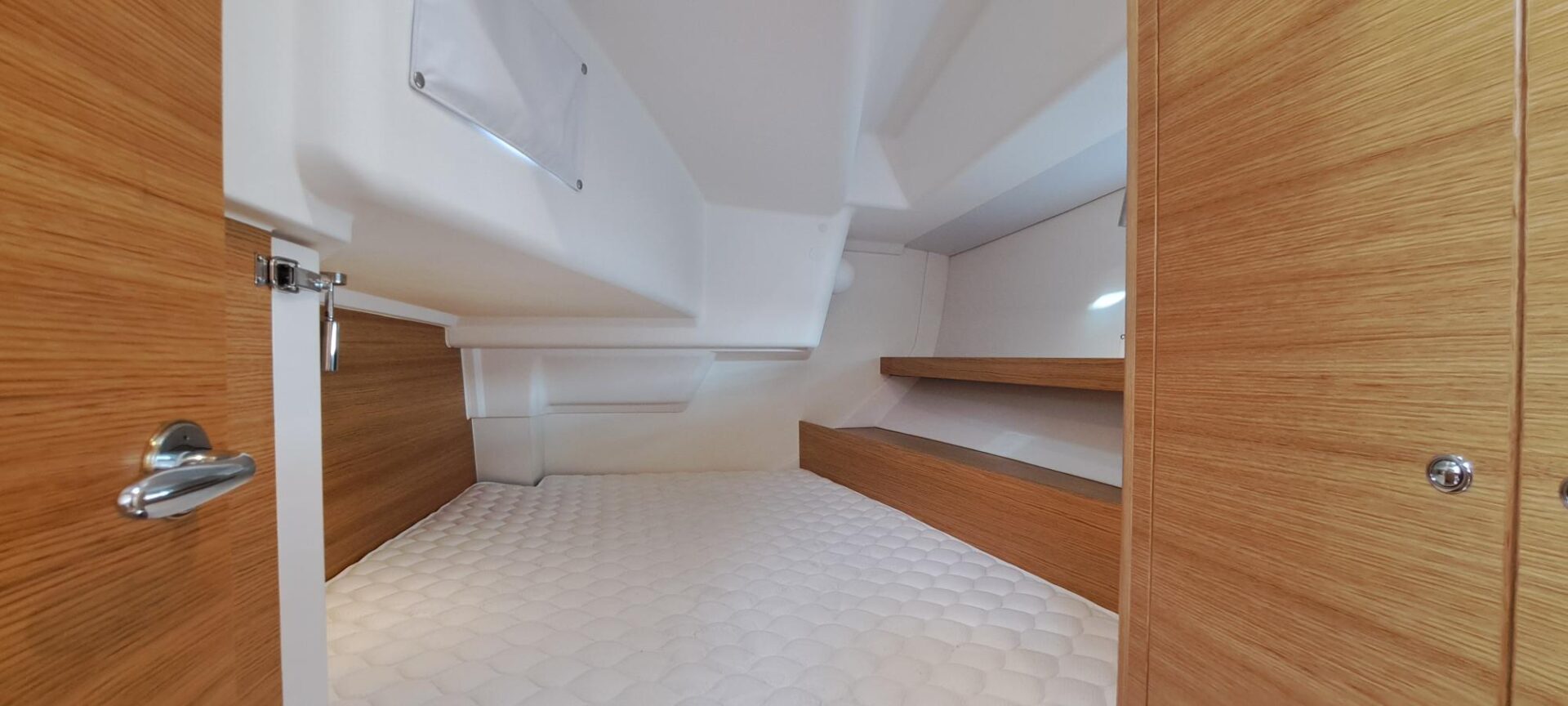

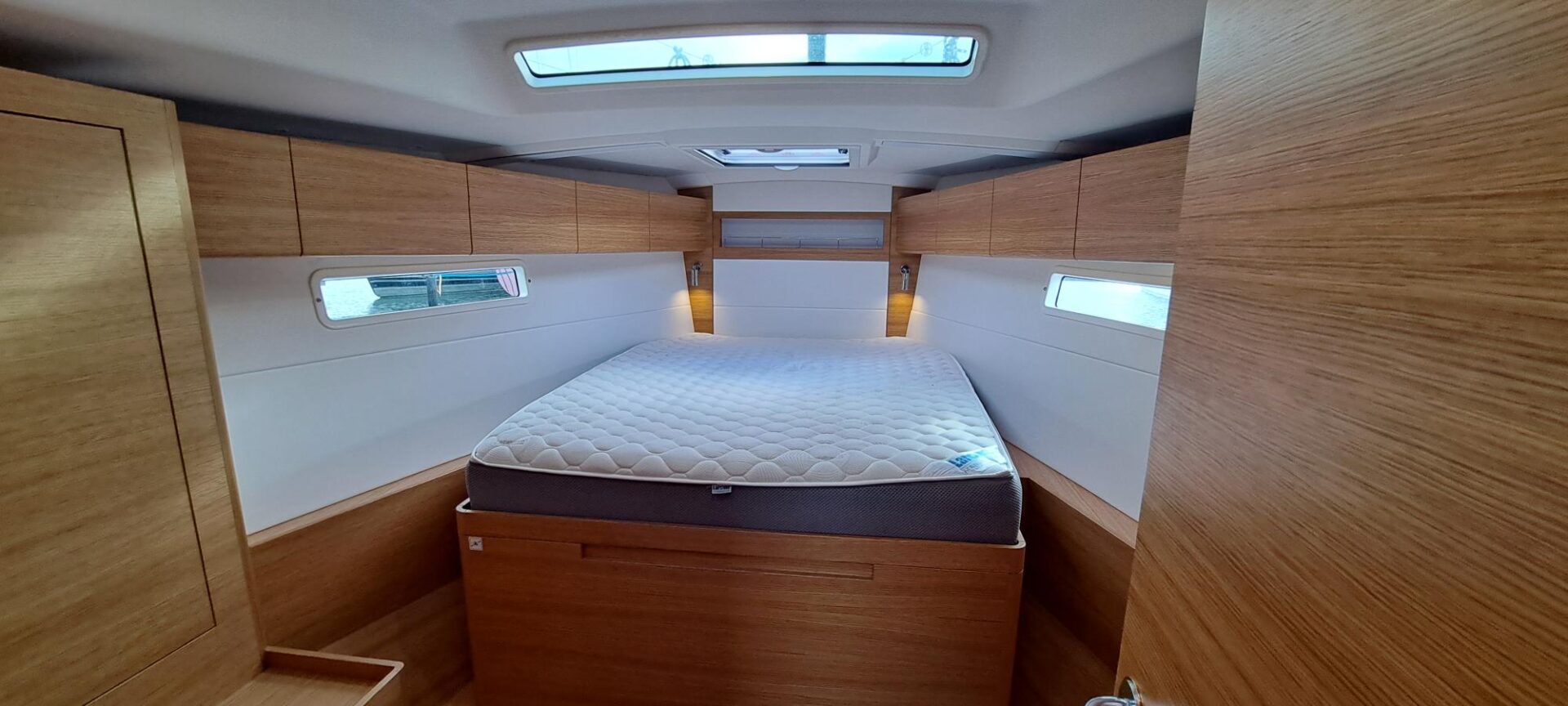

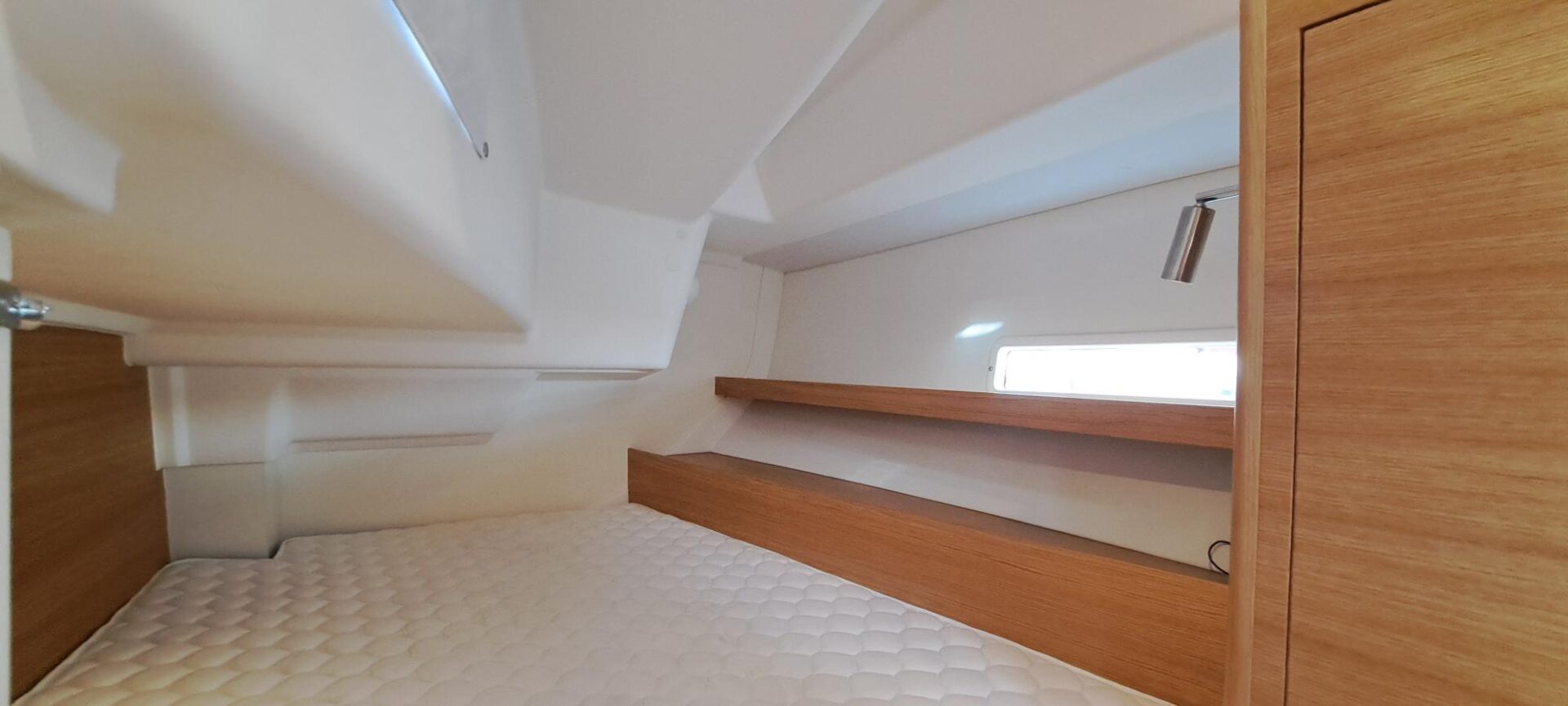

• Double berth - with a shelf on the freeboard above the berth per aft cabin
• Shelving - Freeboard hung upper shelves (PS aft cabins)
• Blinds for owners -

Systems

Engine

• Fuel tank - aluminium 200 litres, centrally located below starboard aft cabin berth

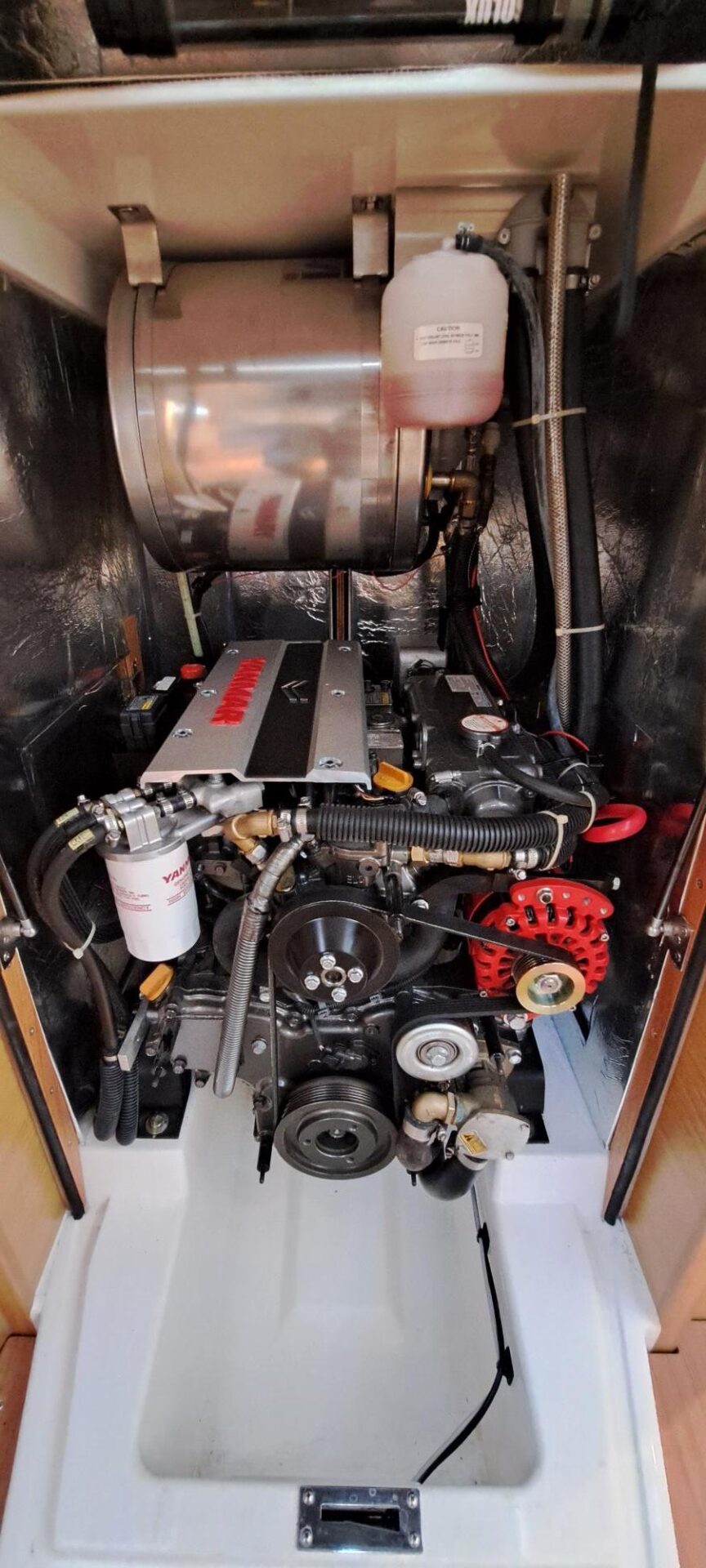

• Yanmar 57 HP Upgrade - Yanmar 4JH57 (42 kW) common rail diesel engine
• 3-Blade Folding Propeller - Flex-O-Fold 3-blade Ø 18" folding propeller for 57 HP engine

Plumbing

• Pressurised hot & cold water system - with freshwater tank, 340 litres located in port side sofa in main cabin, 24 litre hotwater tank located in engine compartment. Deck Shower located in aft cockpit
• Holding Tanks - 55 litre, Polyethylene holding tank per toilet (2 in total). Emptying by seacock or deck suction
• Manual Freshwater Pump - for freshwater in galley. In addition to the std. pressurized freshwater system
• Heating system - Eberspächer Airtronic 3 D6L with 4 outlets in saloon, owner's cabin, aft cabin and aft head

Electrical

• Shore Power Installation - 30A Battery charger & 255Ah 12V battery bank. Separate engine start battery
• LED Interior Lighting - LED lighting throughout the yacht

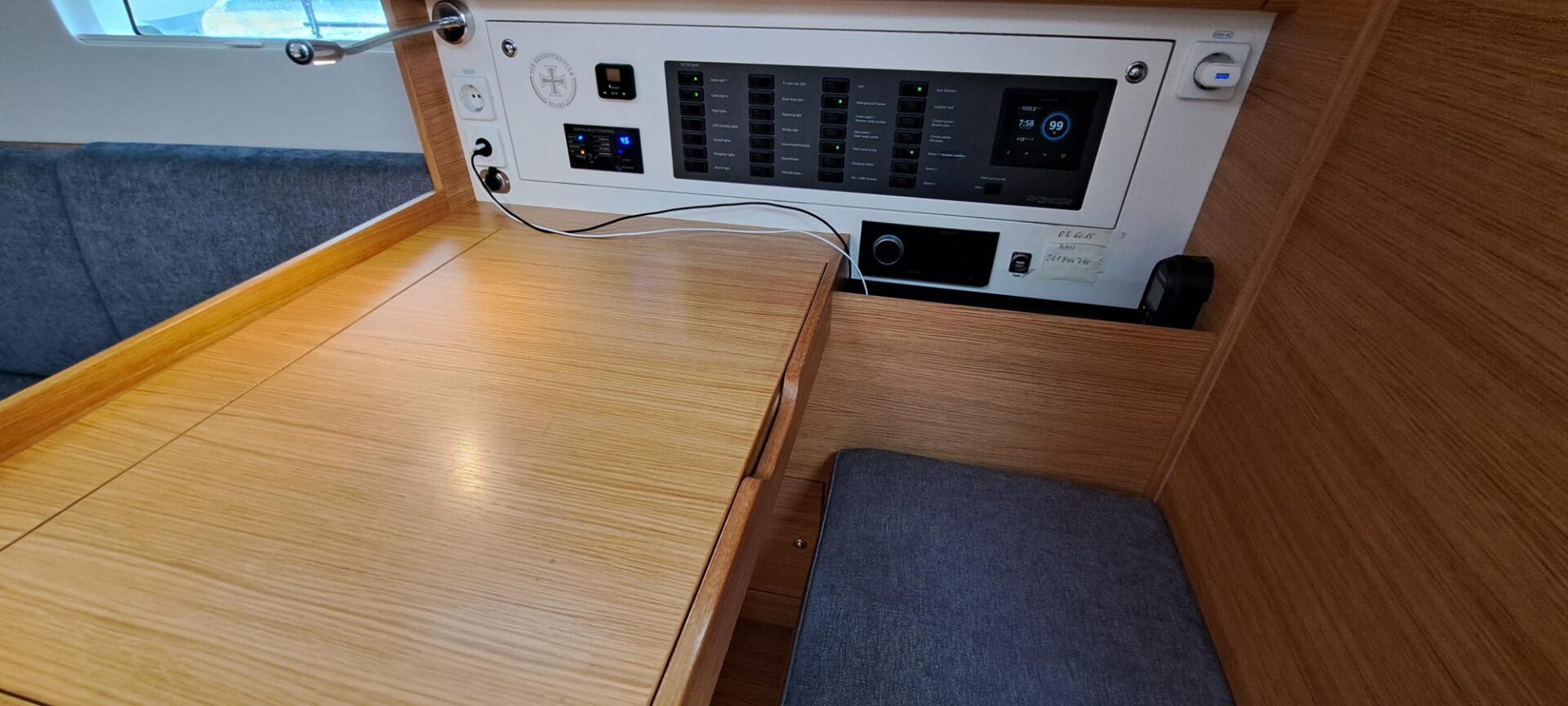

• Socket package, 230V AC & 12V USB & 12V outside socket: 230V- mounted one in galley, one in each cabin and one in each head & USB Double socket - mounted in each cabin and at nav station & 12V outside - in cockpit near helm station
• Lithium iron phosphate battery bank incl. Battery Manager 3x150 Ah instead of standard service GEL battery bank
• Combi Battery Charger & Inverter - 12V/2000W/70A including remote multi control panel and galvanic isolator replacing standard 30A charger. Note: Standard there are 220V at nav station (1) and galley (1). Additional 220V sockets
• Emergency Switch between main engine and service battery
• Balmer Alternator 80 Ampere
• Red LED Courtesy Lighting - 4 x LEDs in main cabin mounted at floor level

Electronics

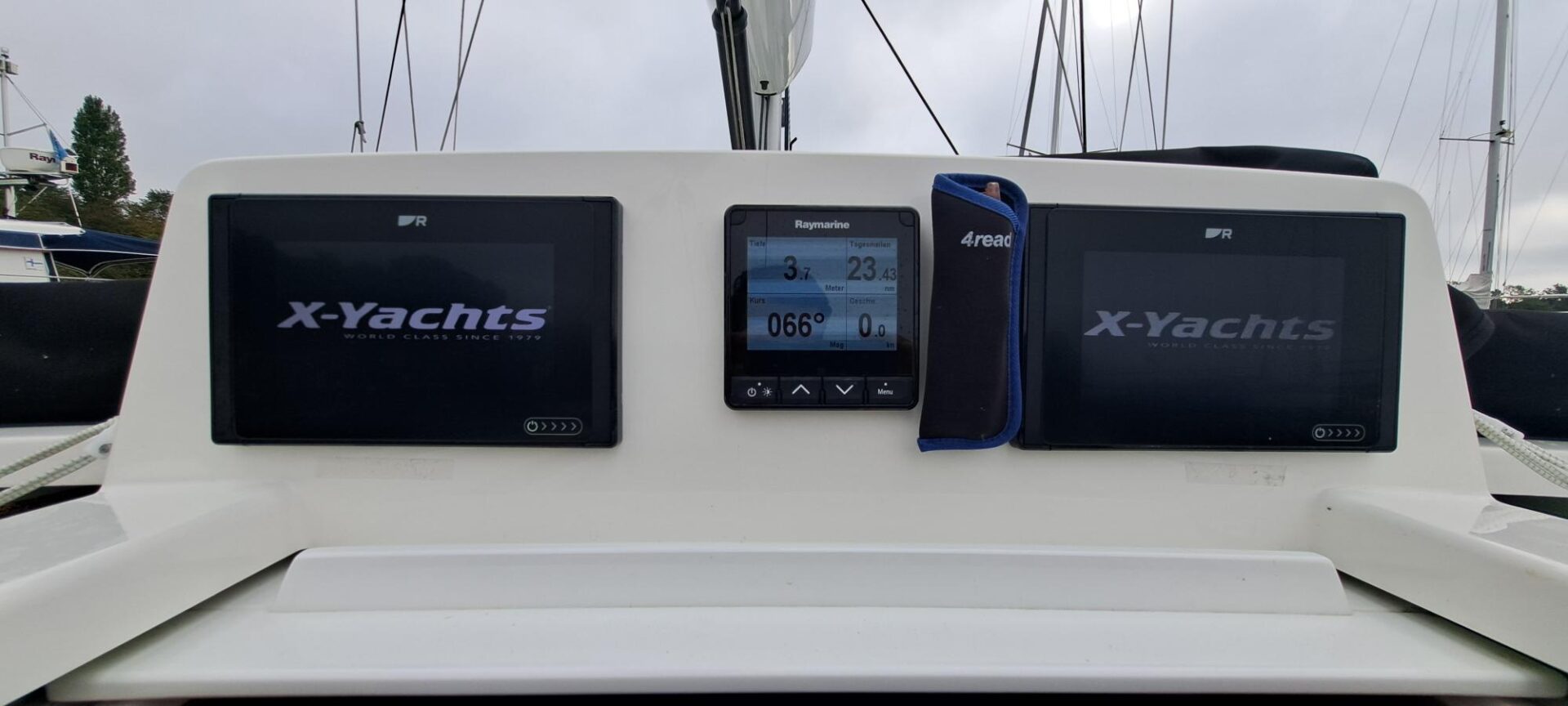

• Raymarine pack I (Axiom+ 7")
• 2 x Axiom+ 7" touchscreen with integrated GPS antenna.
• 1 x i70s instrument.
• 1 x Wind forward looking mast head transducer
• 1 x Depth, speed and temp transducer (combined)
• 1 x RayNet Network switch
• 1 x S100 wireless autopilot control unit
• 1 x Auto Pilot EV-400 course computer RAM drive 2 with P70s pilot display
• 1 x Axiom2 9" PRO-S Hybrid touch plotter,
• 1 x Axiom+ 9" Touch plotter - only, multifunction
• 1 x VHF Ray90 base station (internat.) w. loudspeaker, at nav station
• 1 x VHF Ray 90/91 second station w. loudspeaker, at cockpit
• 1 x AIS700 Transceiver for Axiom series plotter incl. filter
• 1 x Radar Quantum2 Q24D with doppler technology WI-FI – 18”, w. stainless steel mast bracket for aluminium mast connected to e- hybrid series plotter. Mast mounted stb side above 1st spreader
• 1 x Shakespear VHF antenna for VHF & FM, cable Aircell7, Pom mast isolation mounted in mast head. Note: Windex is mounted separately
• Magnetic Compass Ritschie HF743, incl sun cover
• Iridium Sateliten Phone
• Navtex Weather box ( Mörer WIB 4S)

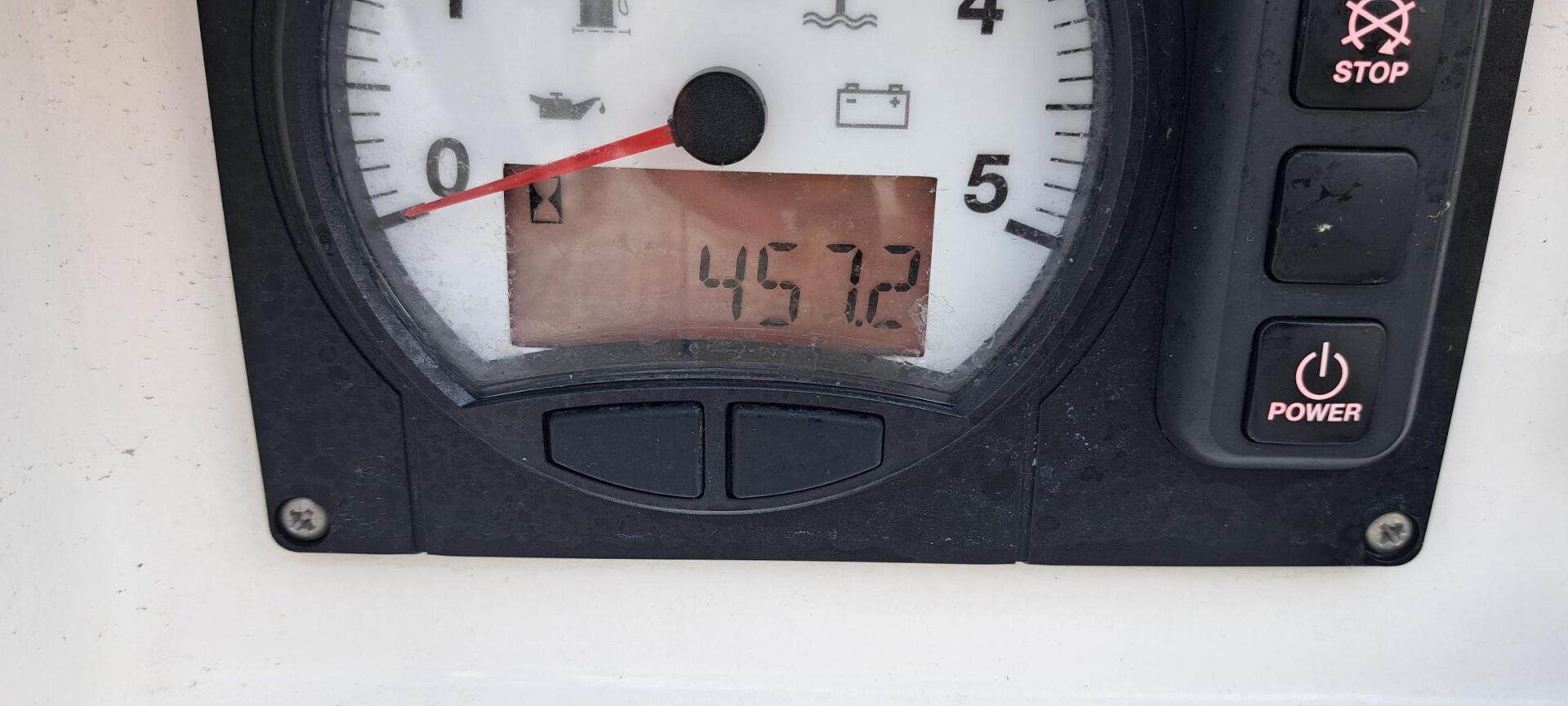

• NMEA engine interface: Oil temp & pressure, RPM, coolant temperatur and battery voltage displayed on plotter Fusion Multi Media Centre - Fusion Apollo MS-RA770 AM/FM/VHF/Apple AirPlay/Iphone/Ipod/USB/SiriusXM-Ready (USA only) fitted in main cabin near navigation station. One set of Fusion 4" 2 way 120 Watt black loudspeakers (4 pcs) and amplifire mounted in main cabin
• Cockpit Speakers - Fusion Cockpit loudspeakers fitted in cockpit connected to multimedia system (2 pcs)

Thrusters

• Retractable Bowthruster - Max Power Compact retractable CR70/12V bowthruster with controls at starboard recess near steering wheel or at wheel in optional instrument box incl dedicated 12 V battery bank inkl. additional Wireless Remote for Bowthruster

Additional Information

• Fire Extinguishers - 4 x 2 kg Powder fire extinguishers fitted throughout the yacht and with fire port into engine room
• Harken Winch Handles - 3 x Winch handles (10") with Lock
• Flag Pole - Teak with bronze bushing
• Fenders - 6 x White air-filled fender with lanyards and X-Yachts logo
• Mooring Lines - 2 x 20 m 14 mm polyester mooring lines
• Shore Power Cable - 1 x 20 m shore power cable
• Export custom clearance - EU1/EX1/CO1/EUR1/A.TR/T2L documentation from Denmark.
• Polyester strap and galvanized shackle for centre point hoist - Attachment eye in galvanized steel frame is standard
• Jon Buoy Rescue MOB system in container
• Viking Liferaft in Container for 4 Person
