X5⁶

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: X5⁶
  • Build Number: 11
  • Build Year: 2023

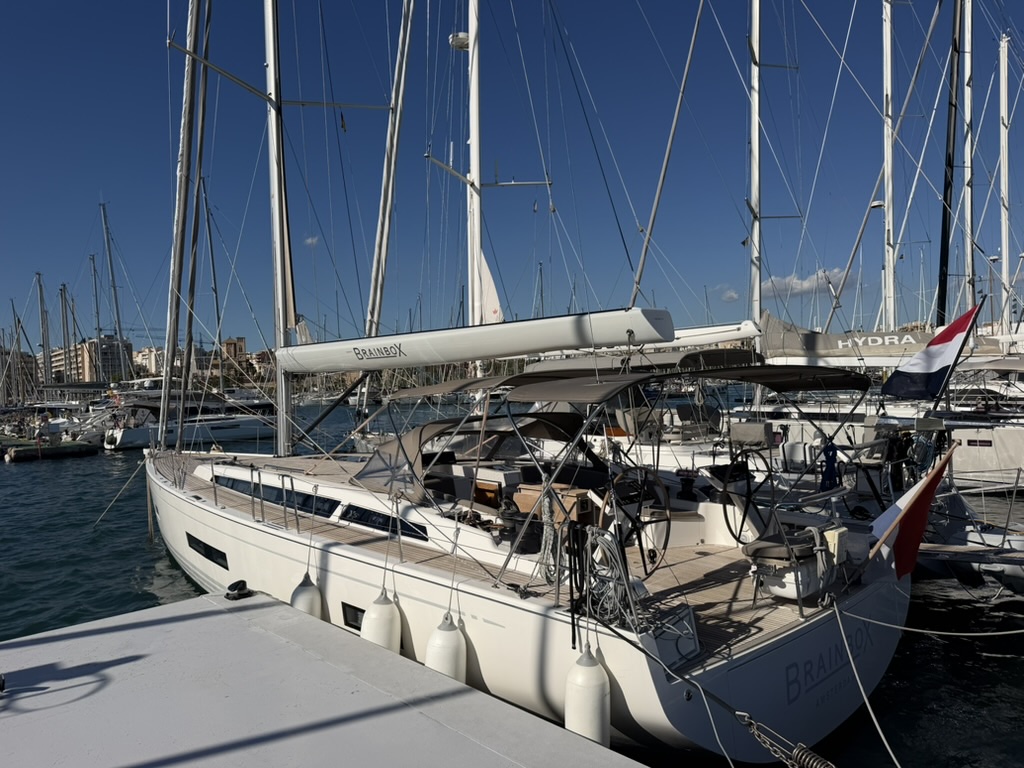

  • Lying: Palma de Mallorca, Spain
  • Price: €1,450,000 (VAT Paid)
  • Contact: Nanno Schuttrups
X5⁶

Contact

To discuss your requirements call on or complete the form below.

X5⁶ #11, delivered in 2023, is one of the most extensively specified X5⁶ yachts built. Her original options list ran to more than €800,000, turning this 56-footer into a true short-handed blue-water cruiser without compromising the sailing performance X-Yachts is known for.

Sail handling is fully powered: electric Furlerboom with in-boom furling North Sails 3Di Ocean 700 mainsail, electric furlers on forestay, cutter stay and code 0, upsized Harken 80.2 electric primaries and a Harken hydraulic package with electric pump, all controlled from buttons at the wheel consoles.

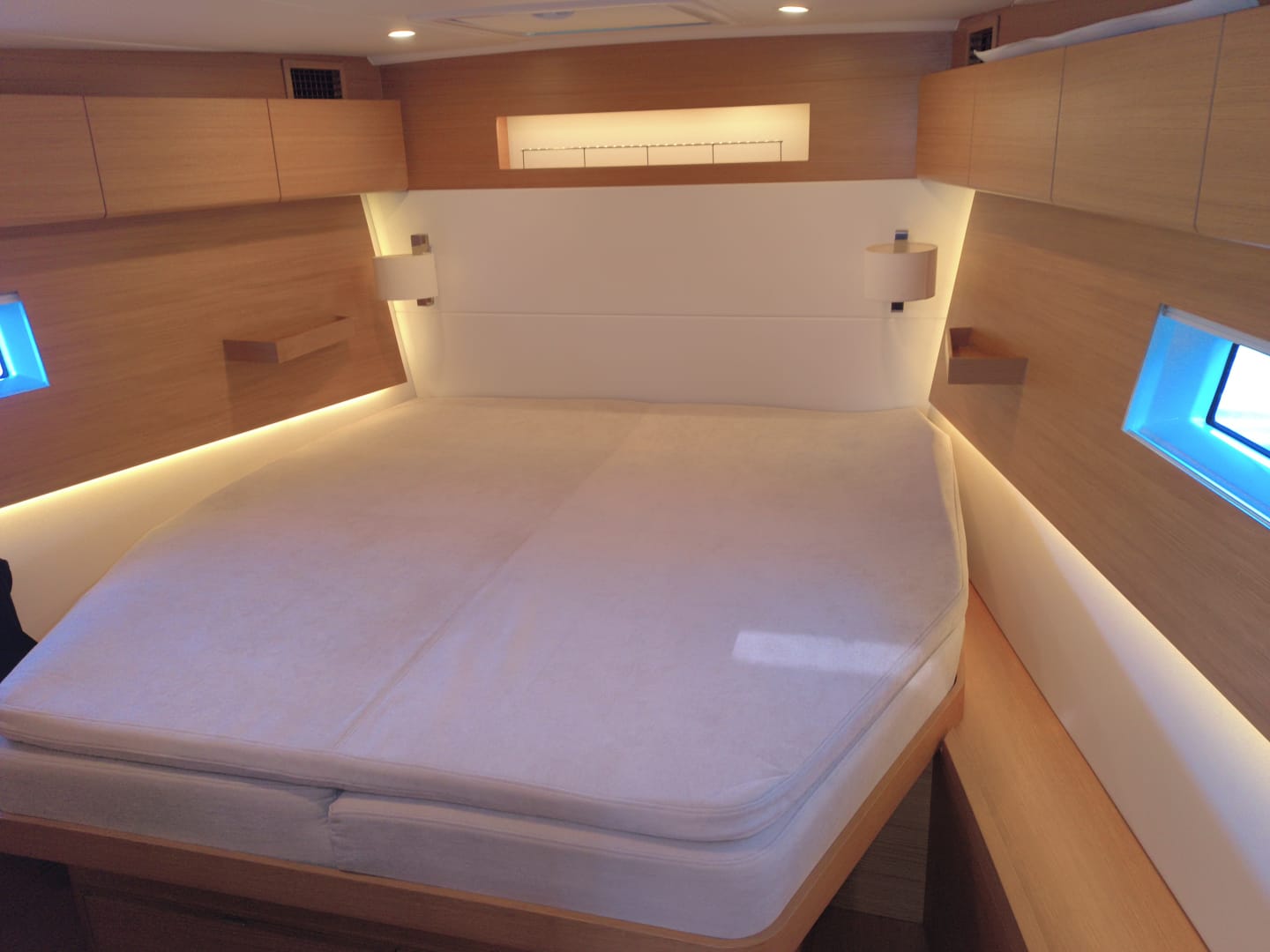

For comfort and independence on long passages she carries a Fischer Panda 15 kW generator, air conditioning throughout, Eberspächer heating, retractable bow and stern thrusters, a Miele dishwasher and a full Raymarine Axiom navigation package. The A1B1G2 layout offers a forward owner's suite with island bed, two spacious aft cabins, an extended galley and two heads, finished in Nordic Oak with the Baltic style package.

Owner's Comments

As her first owner, it is with a heavy heart that I say goodbye to my beloved X5⁶ BrainboX after just four sailing seasons. She offers a wealth of space and comfort, but above all superb sailing performance and, thanks in part to her twin rudders, helm response that is second to none.

Throughout her life, BrainboX has been maintained to the highest standard, down to the smallest detail, by David Greene, who is also the X-Yachts importer for Spain.

Since my wife passed away earlier this year, BrainboX has spent far too much time in port, and that is why I have decided to sell her.

She is a yacht built to cross oceans, yet our voyages took us no further than around Mallorca and down to Italy’s Amalfi Coast. I hope her next owner will give BrainboX the blue-water adventures she was made for.

Standard Specification

DesignerX-Yachts Design Team
Hull Length16.58 m54'5"
Waterline Length14.94 m49'0"
Beam (max)4.89 m16'1"
Draft2.90 m9'6"
Ballast - Std7,200 kg15,873 lbs
Displacement - Light18,800 kg41,447 lbs
Engine Power81 kW110 hp
Fuel Tank - Std550 ltr145 gal (US)
Water Tank - Std537 ltr142 gal (US)

Standard X5⁶ brochure

Details

Exterior Details

Hull

  • Sandwich construction with structural foam core, vacuum infused with epoxy resin
  • Hull in white gelcoat (RAL 9010) with 3 waterlines in light grey (RAL 7035)
  • Galvanised steel keel frame
  • Six large laminated hardglass hull windows
  • S-bow design with carbon fibre bowsprit painted in hull colour

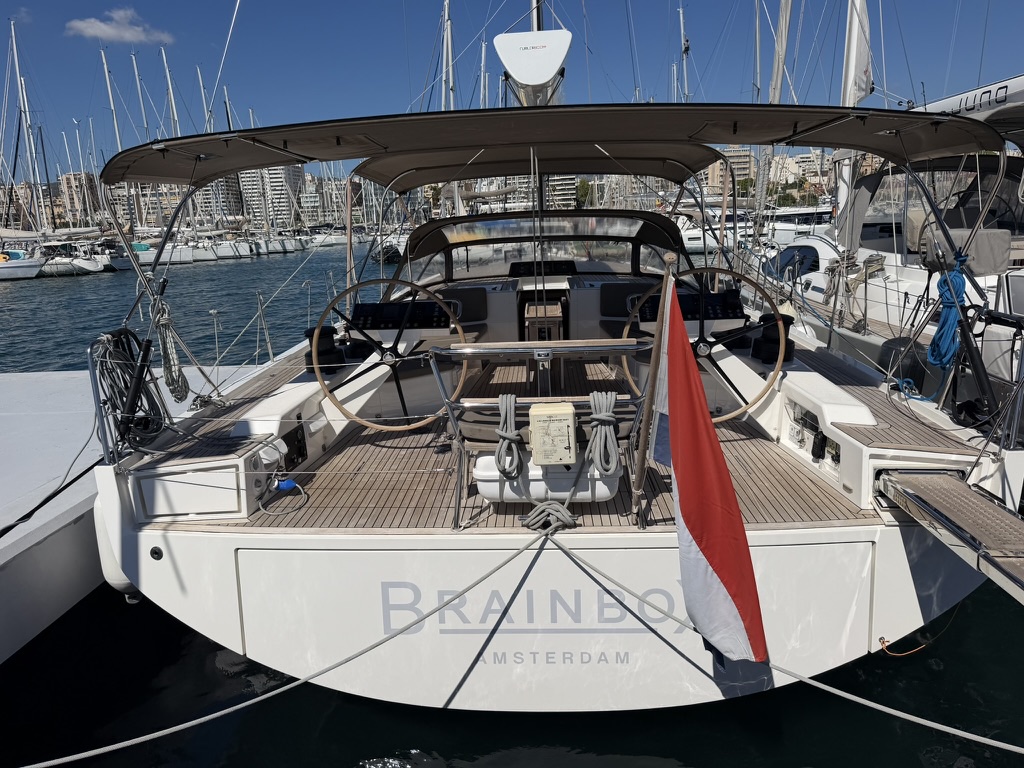

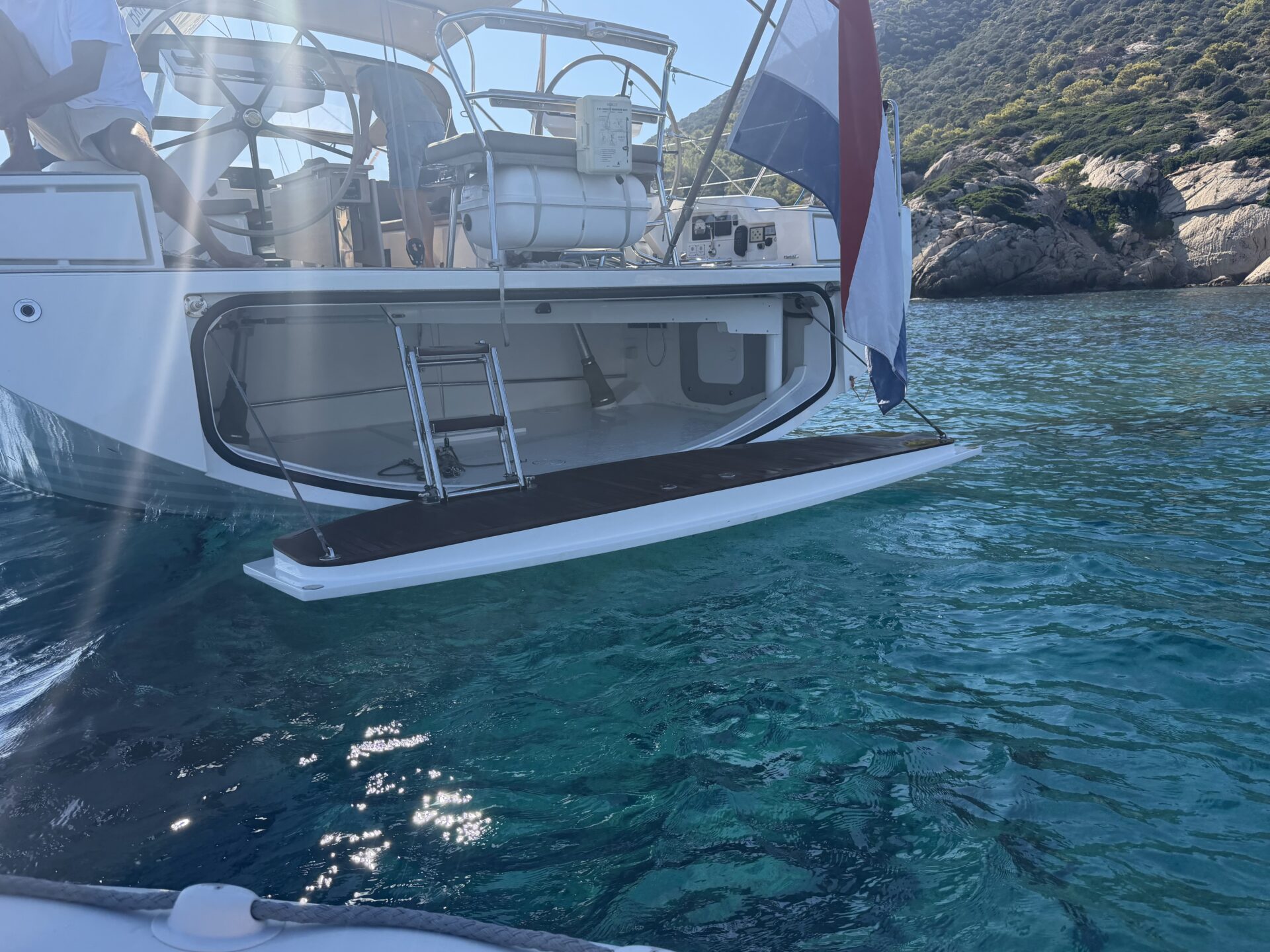

  • Electric transom door with fold-out steps and swim ladder
  • Dinghy garage with GRP floor (designed for Aermarine Alusmart 280 x 155)
  • Electric/mechanical lifting system in dinghy garage (130 kg dinghy with 10 hp outboard)
  • Remote control for transom door and dinghy lift
  • Stainless steel rubbing strake full length
  • Underwater treatment: 3x epoxy / 2x antifouling, black

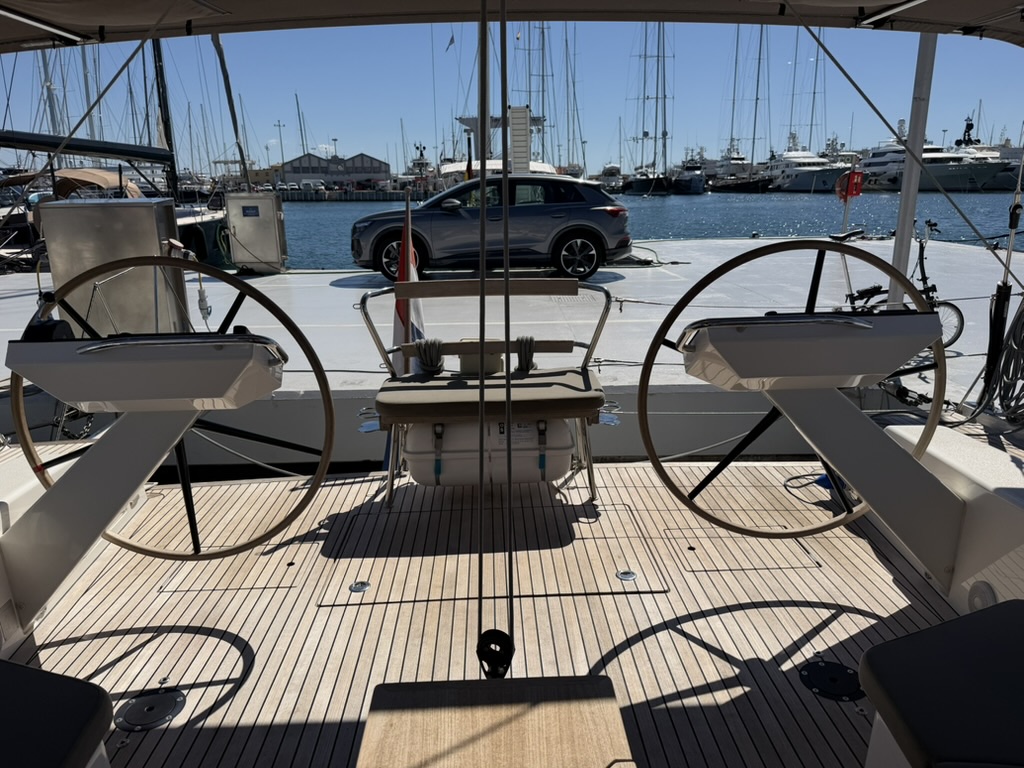

  • Composite steering wheels with black spokes and teak rim

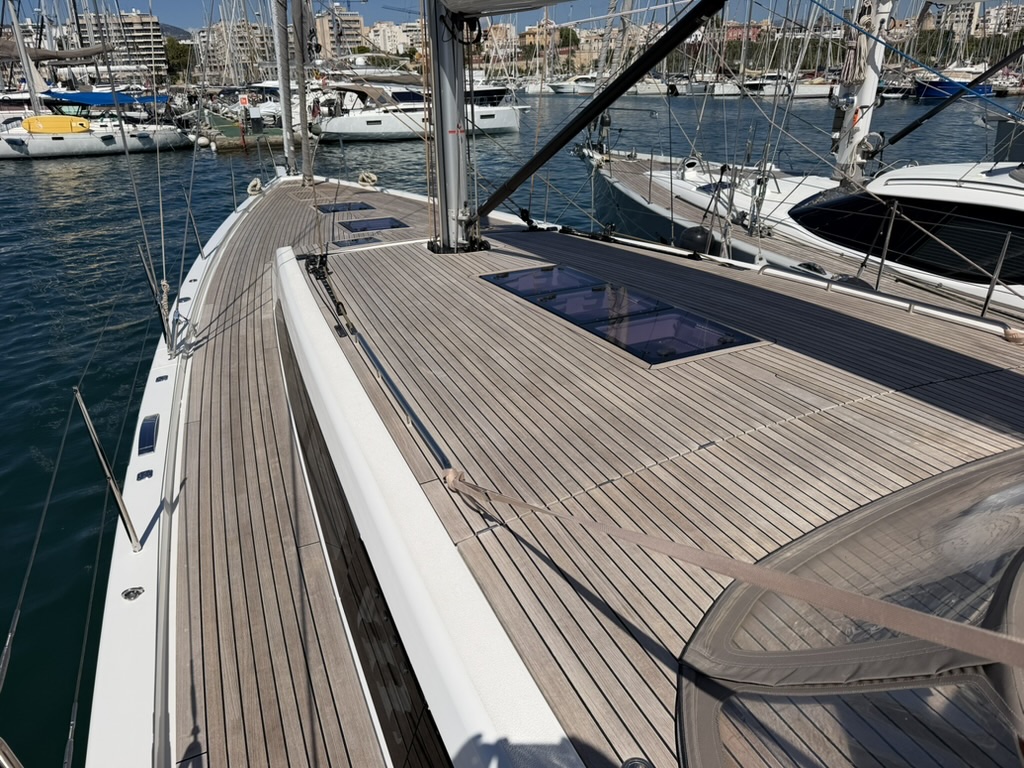

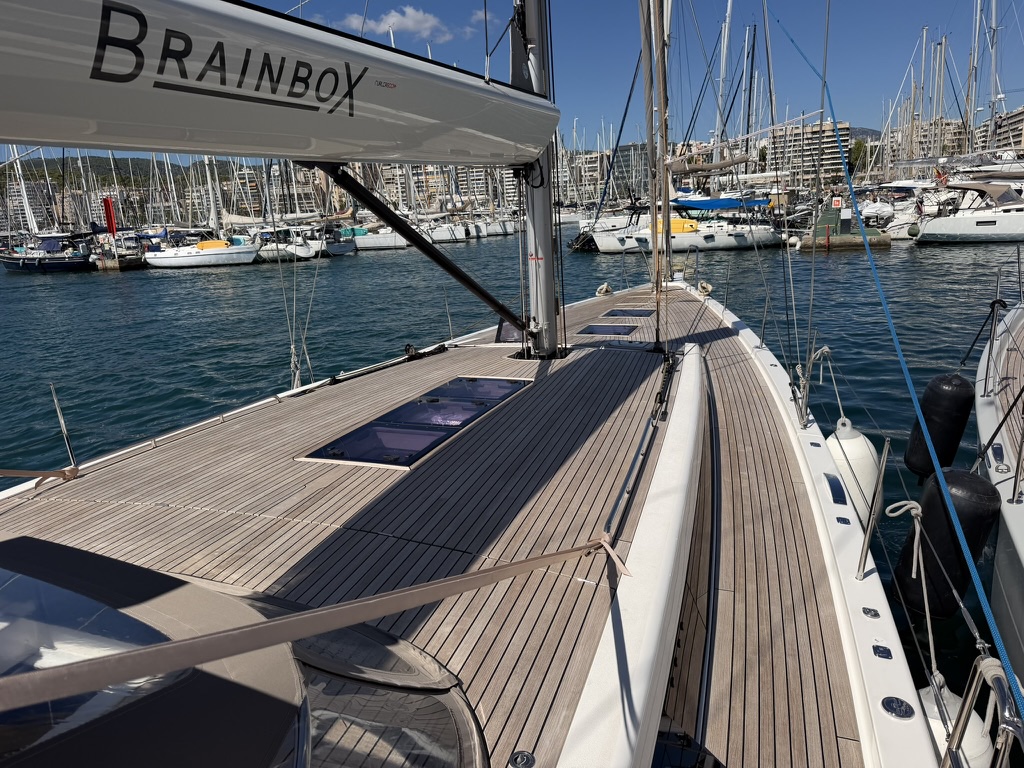

Deck

  • Sandwich construction with structural foam core, vacuum infused with epoxy resin
  • Teak on side decks, coachroof, cockpit and swim platform
  • Fixed cockpit table with 2 teak leaves and cooled bottle storage
  • Extra set of removable teak foot chocks at the wheels
  • Cockpit cushions (seat and back rests) in Taupe
  • Set of 4 LED cockpit lights
  • Centre pushpit converted to seat with teak backrest, incl. cushion
  • Convert kit: liferaft locker converted to standard cockpit locker
  • Sail locker in foredeck with watertight hatch
  • Gas locker for 2 large bottles
  • Opacmare telescopic stainless steel gangway, stowed under the side deck
  • Wheel/console covers in Taupe

Sail Handling

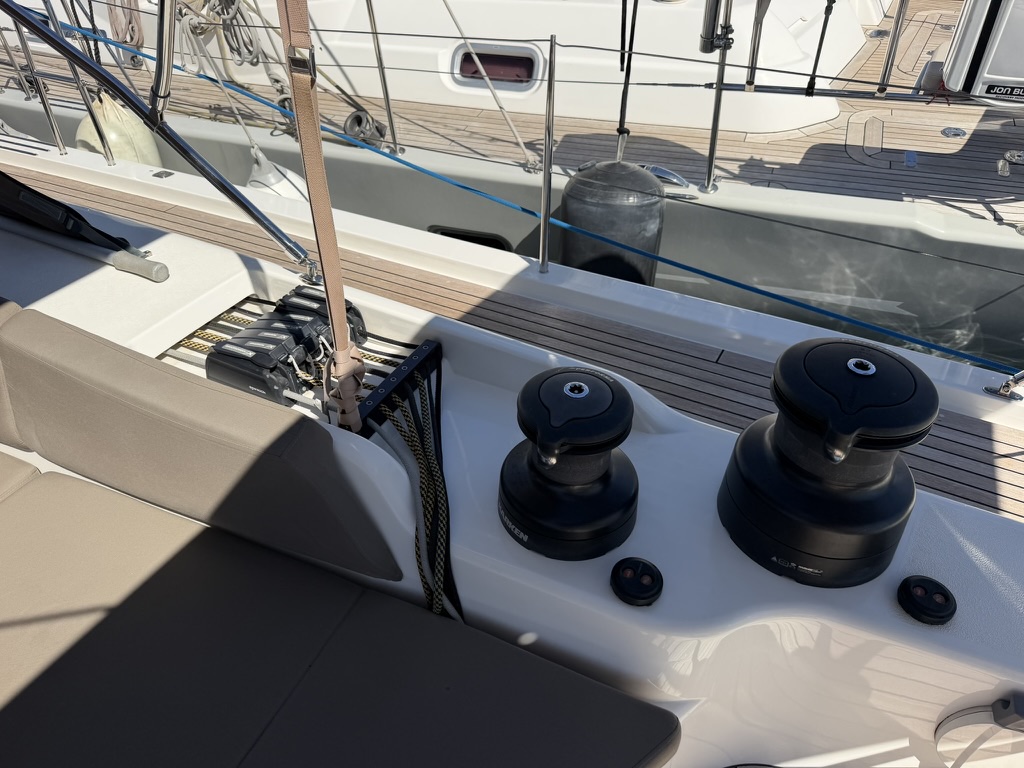

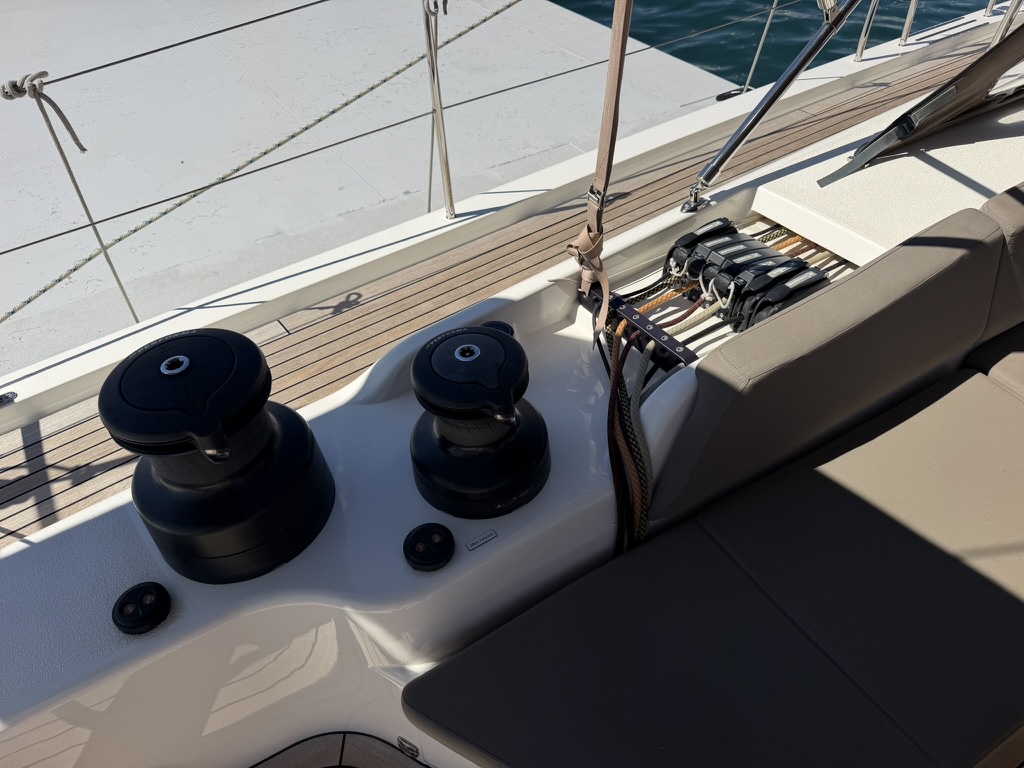

  • 2x electric primary winches Harken Performa 80.2 STEP
  • 2x electric secondary winches Harken Performa 70.2 STEP

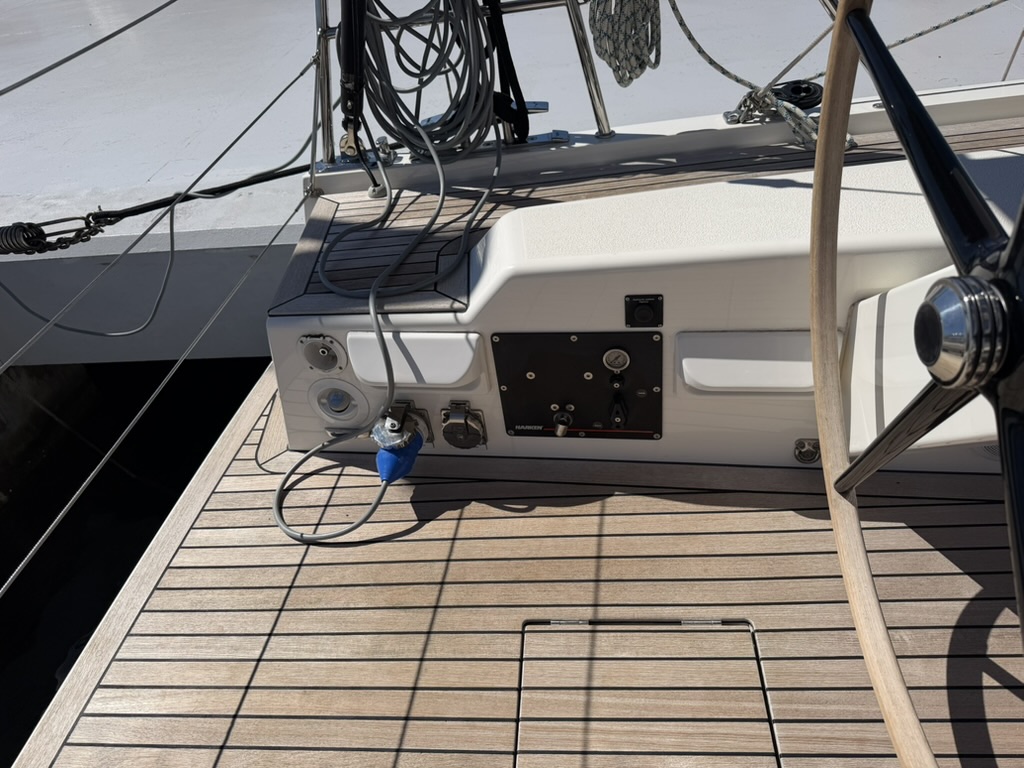

  • 8x electric winch control buttons on wheel consoles
  • Mainsheet led under coachroof to both primary winches
  • Self-tacking jib track recessed in coachroof
  • Genoa tracks on coachroof with adjustable cars (6:1), controlled from cockpit
  • Code 0 deck layout upgrade (sheets, blocks, tack line, extra 2:1 halyard)
  • Barber hauler system for gennaker sheets
  • Harken hydraulic package with electric pump: central control panel, hydraulic vang and backstay cylinders
  • Sail storage preparation in foredeck sail locker

Sails

  • North Sails 3Di Ocean 700 in-boom furling mainsail, fully battened, 2 reefs (grey)
  • North Sails 3Di Ocean 700 self-tacking staysail with UV strip (grey)
  • North Sails 3Di Ocean 700 furling genoa 106% with UV strip (grey)
  • North Sails Helix furling gennaker in Code-Tec polyester (white) with large double-sided orange X logo
  • Furling covers for genoa and staysail
  • Cover for steering wheels with consoles

Mast & Rigging

  • Fractional anodised aluminium mast with 3 spreaders

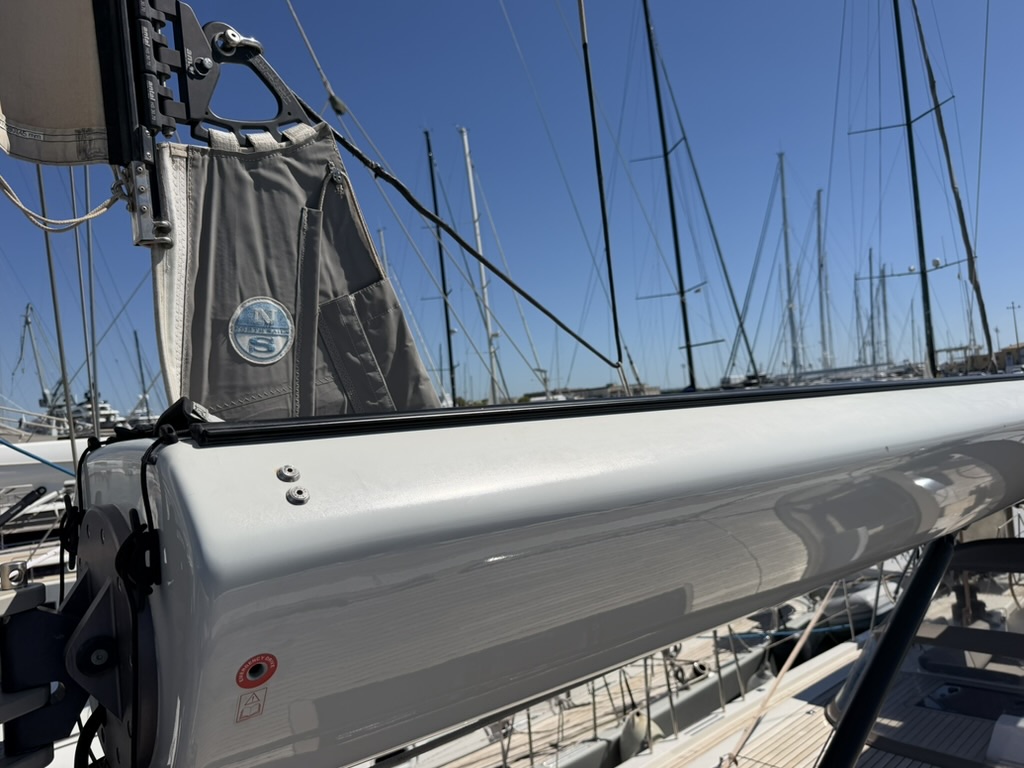

  • Furlerboom V-shape furling boom with electric drive, integrated black sail cover and dimmable LED cockpit light
  • Rod rigging
  • Split backstay with hydraulic tensioner
  • Electric Selden Furlex 405 TDE furler (24V) on forestay, drum below deck
  • Electric Selden Furlex TDE 404 furler on cutter stay
  • Reckmann electric code 0 furler (CZ8te) with TS8 2:1 top swivel and TST-8A tack swivel
  • Extra control buttons at port wheel for code 0, genoa and staysail
  • Lopolight combined tricolour/anchor light (LED)
  • Spreader deck lights, steaming light
  • Lopolight stern light combined with transom lighting
  • VHF antenna at masthead

Keel

  • Steel fin with lead bulb, draft 2.90 m
  • Encapsulated in glass fibre and epoxy for perfect shape

Hatches / Portlights / Ventilation / Sprayhood

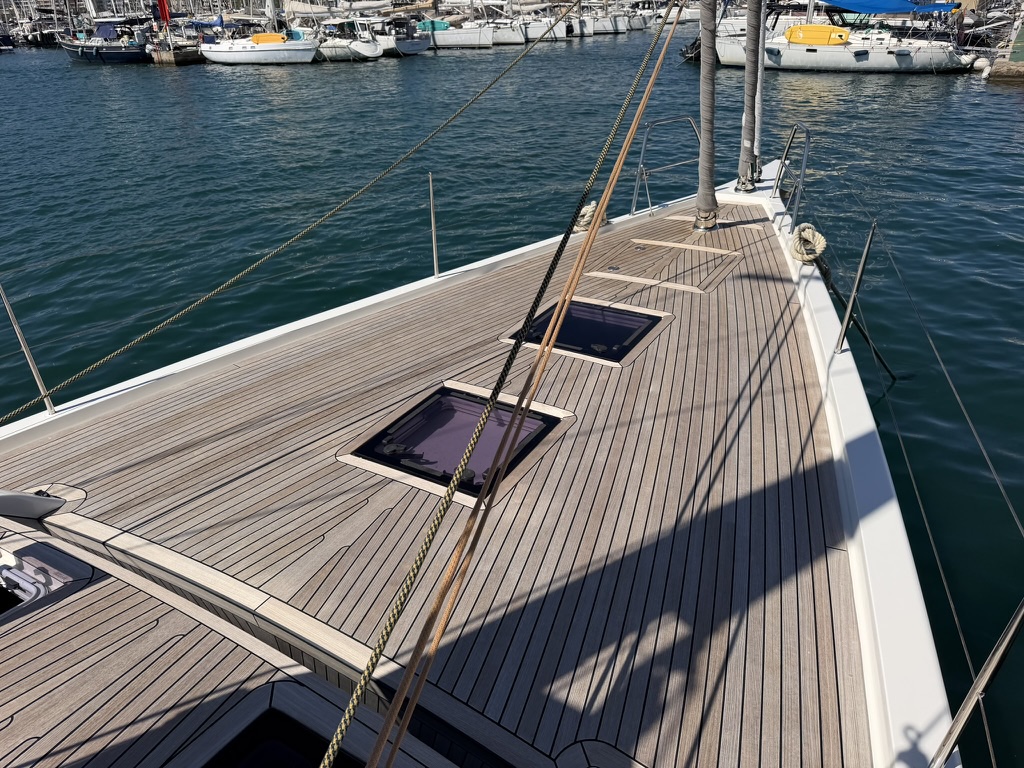

  • 9 flush-mounted opening deck hatches
  • Coachroof windows with 4 opening sections, plus extra forward window
  • 2 opening windows aft in coachroof and 2 in cockpit for aft cabin ventilation
  • Flush sprayhood garage
  • Sprayhood in Taupe on stainless steel frame

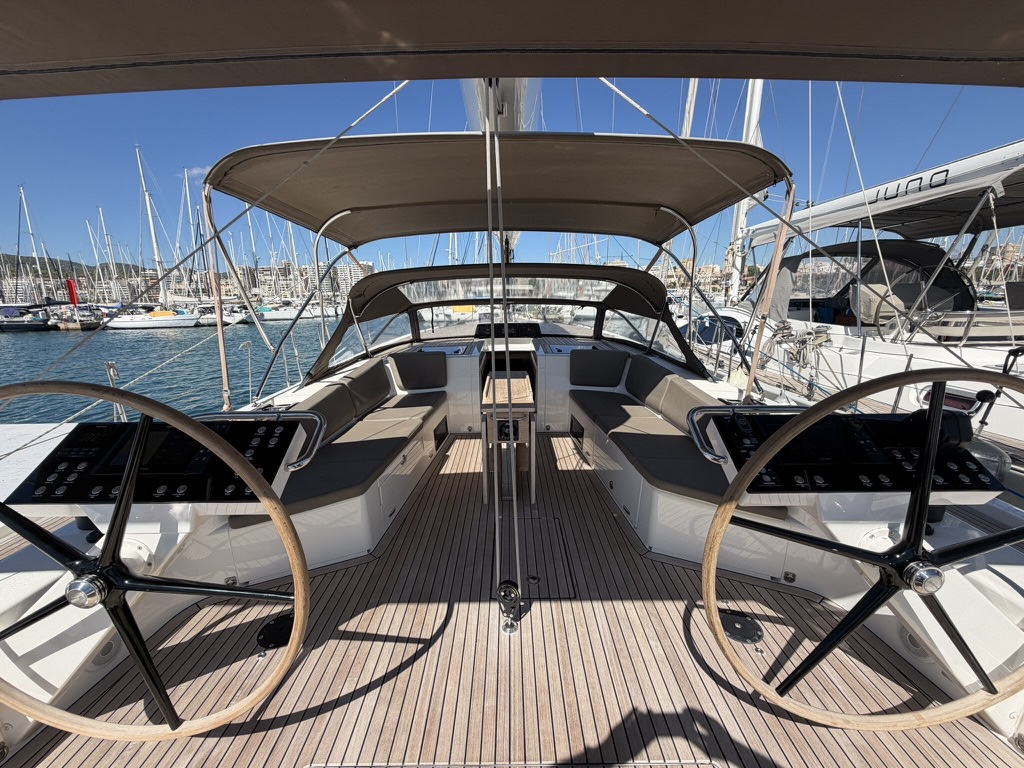

  • Full-width helmsman bimini in Taupe
  • Custom made forward cockpit bimini in Taupe (coaming wide instead of full-width)

Guard rail / Anchor / Stainless Steel Fittings

  • Stainless steel guardrails, pulpit and pushpits with LED navigation lights
  • Boarding gates in guardrails midships
  • 35 kg Ultra Marine stainless steel anchor with flip swivel
  • 60m 10mm stainless steel anchor chain
  • 2000W electric windlass, with remote and chain counter in cockpit
  • Package of 6 Seasmart B320X retractable cleats (incl. midship cleats)
  • 6x lifeline pad-eyes in cockpit

Accommodation

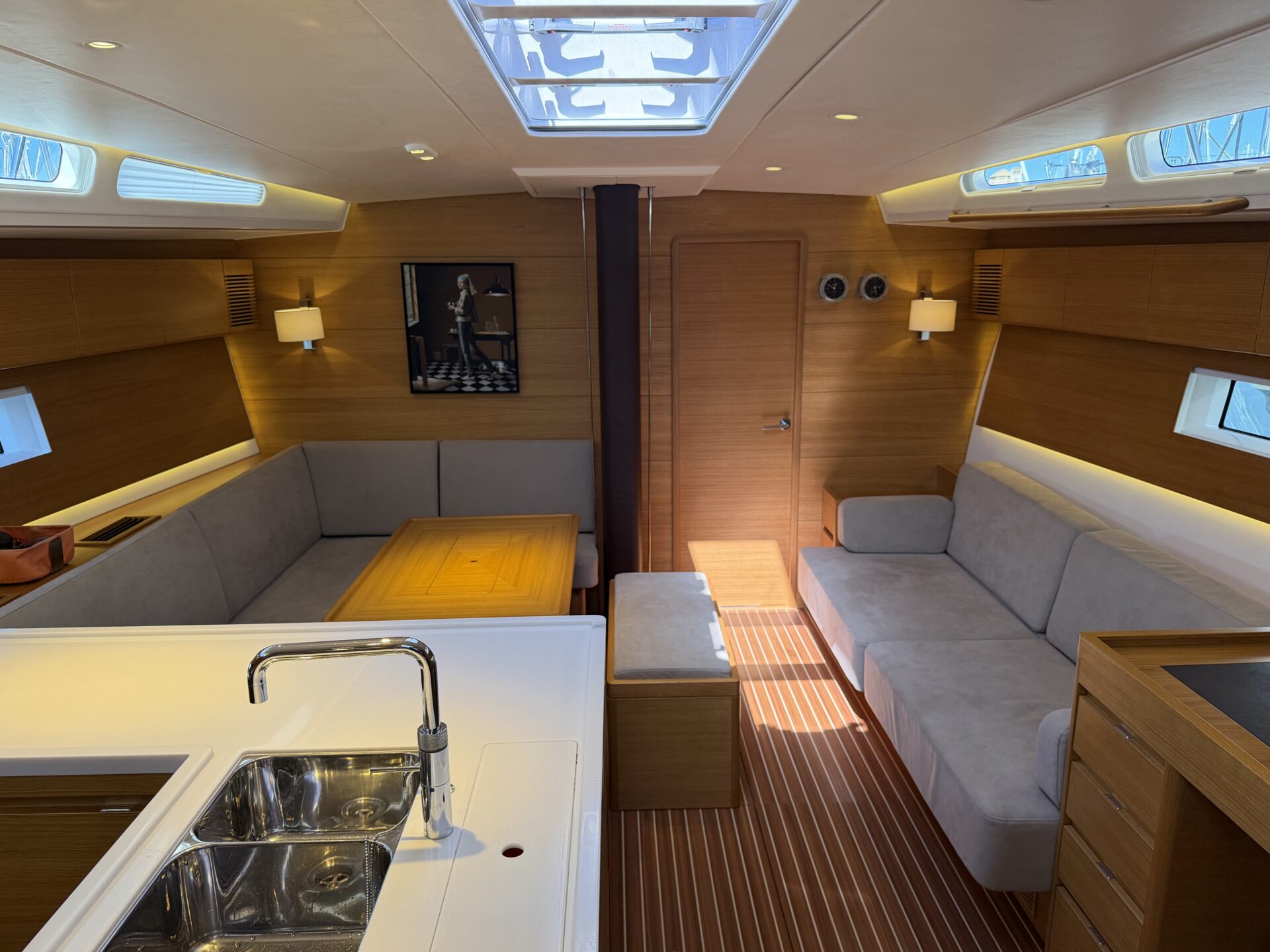

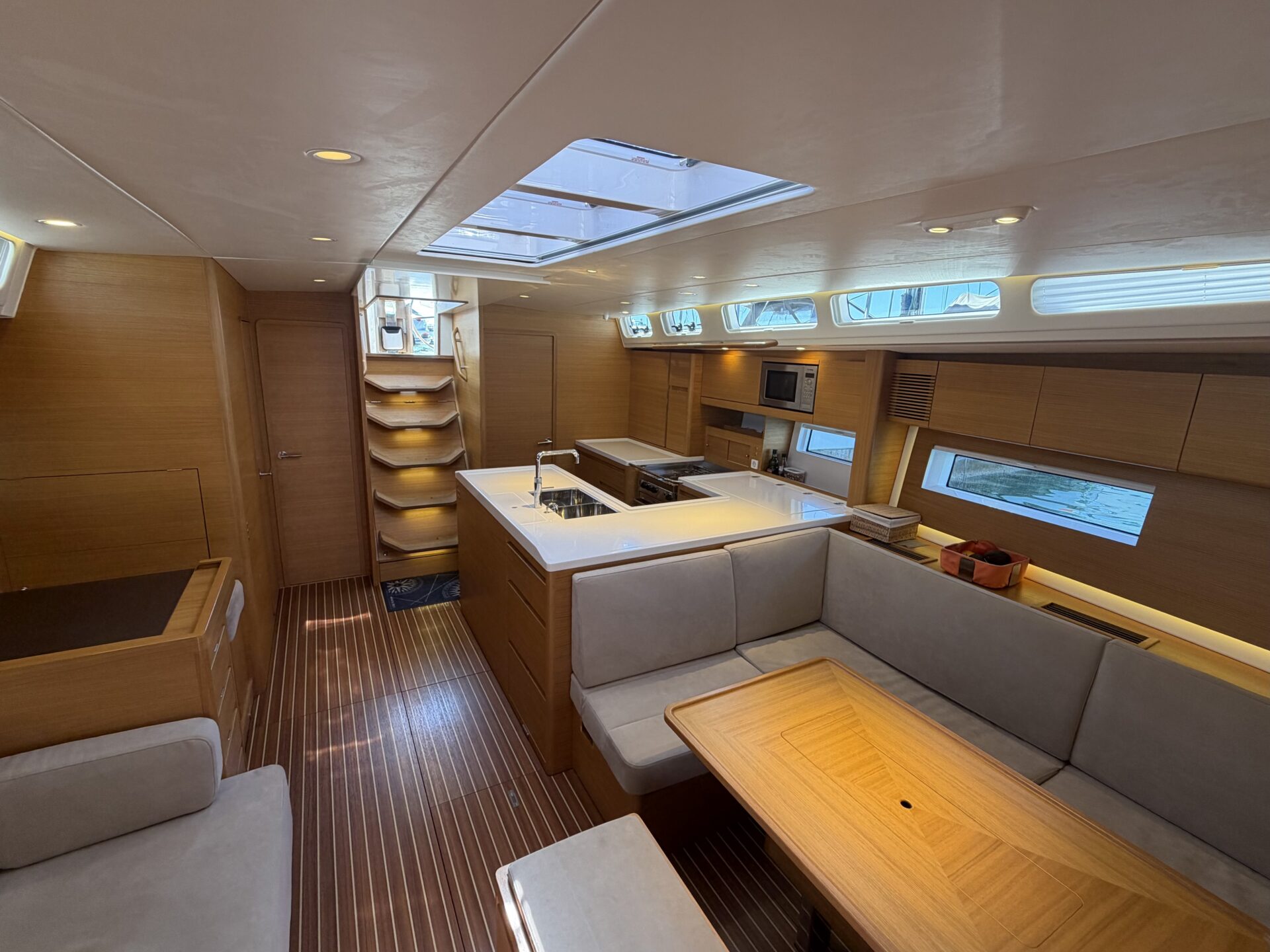

Saloon

  • Modern Nordic Oak interior, Baltic style package
  • Teak floors with light stripes
  • L-sofa around table to port and long sofa to starboard, upholstery in leather/alcantara (Dove Grey)
  • Table with "X" veneer pattern and wine storage under the tabletop
  • Double pouffe midships with storage
  • OceanAir finishing package: soft vinyl panels with hidden Skysol pleated blinds, combined screen/blind for double hatch
  • Indirect LED lighting with dimmer

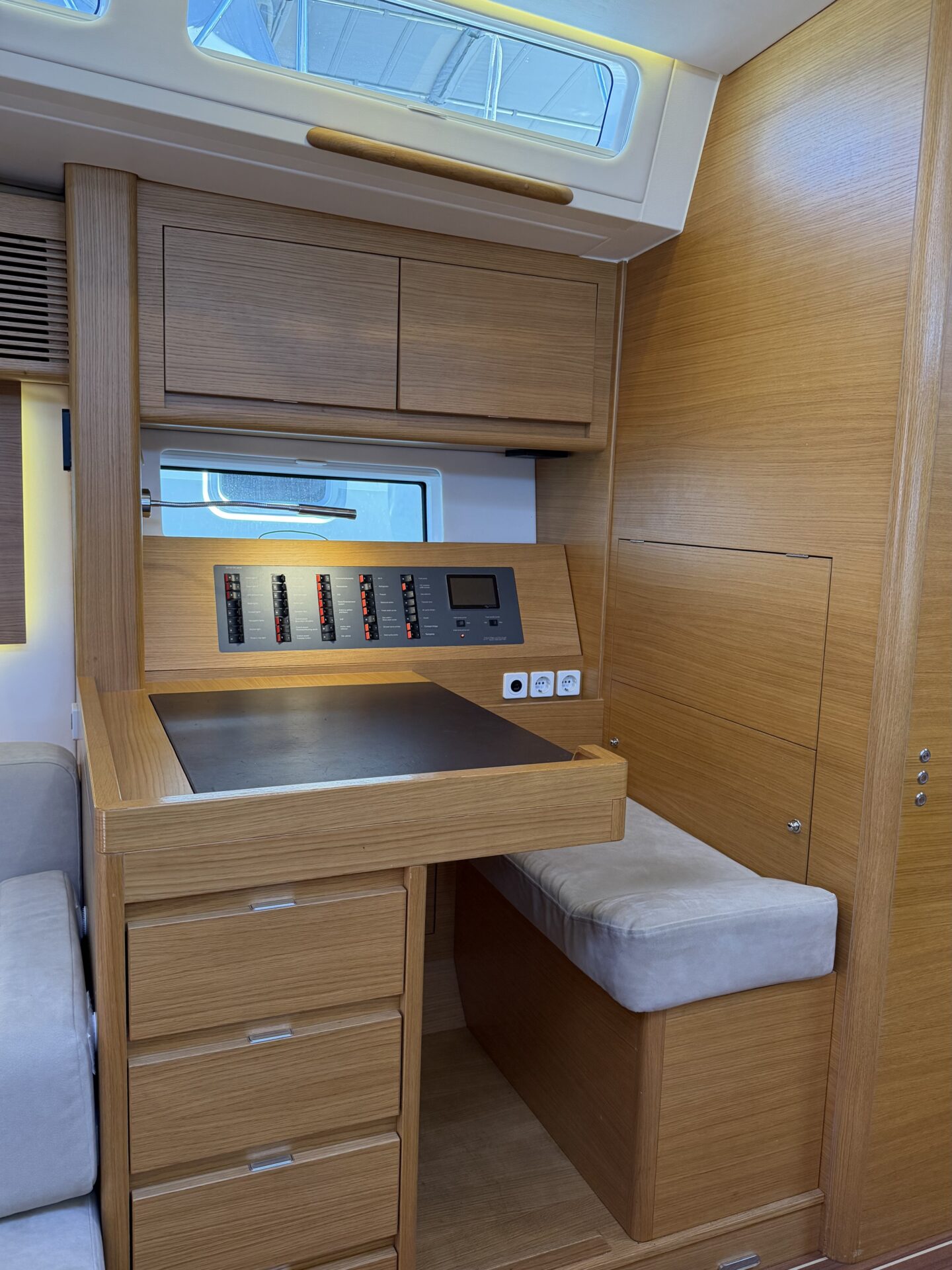

  • Fixed chart table to starboard with switch panel and touchscreen for tank levels
  • Day head to starboard

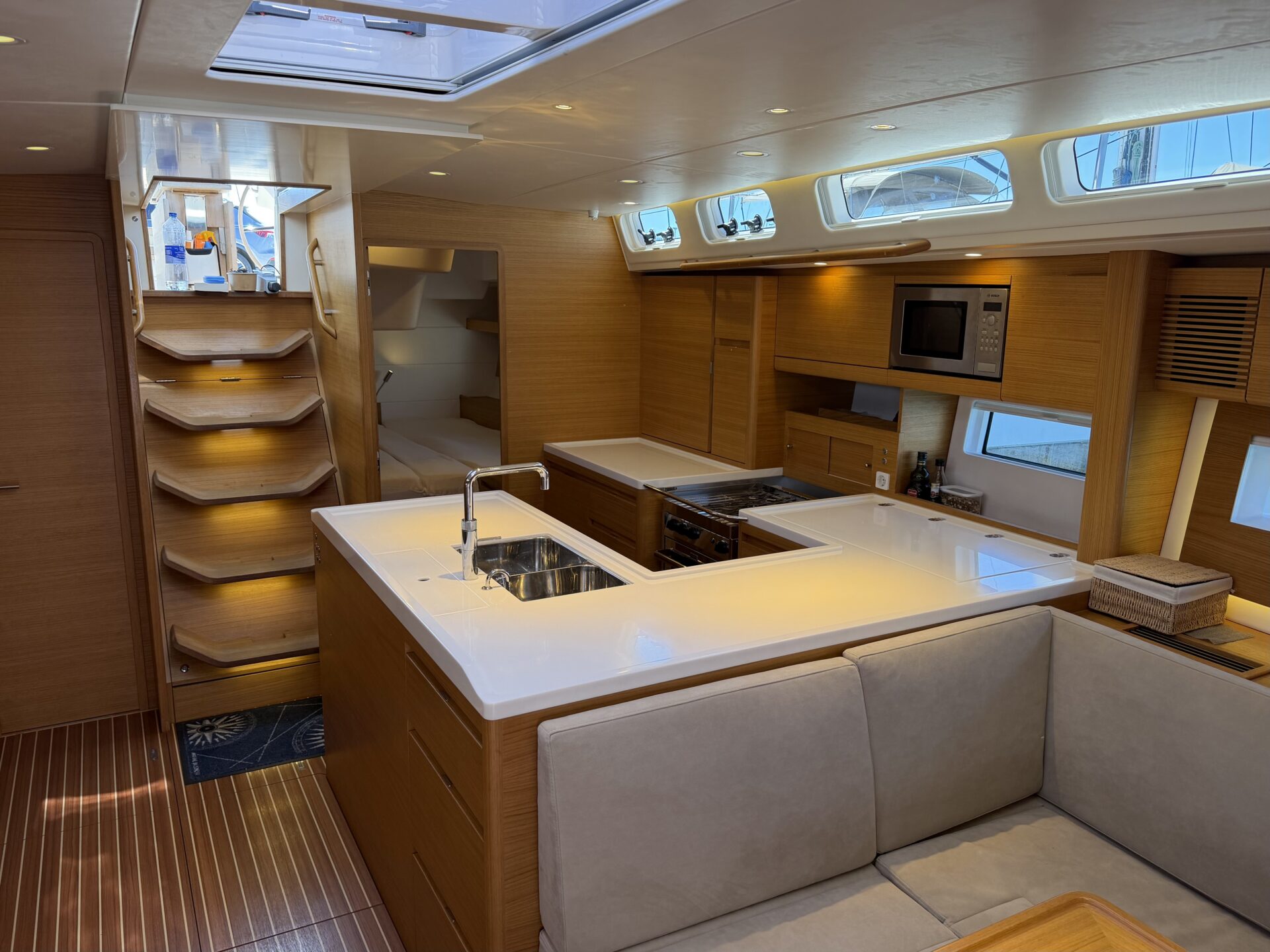

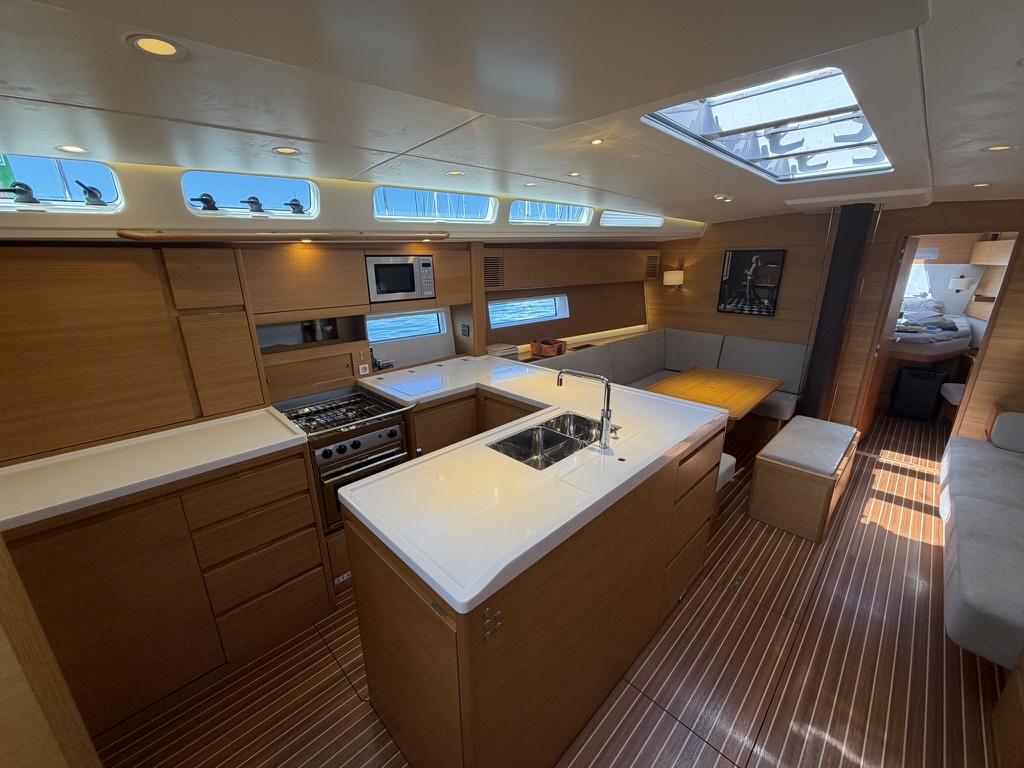

Galley

  • Extended galley to port with double sink and white Corian worktop
  • 160 l top-loading cool box with water-cooled compressor and custom perspex storage system
  • Frigoboat 130 l front-loading fridge
  • Force10 3-burner gas stove with oven, gimballed
  • Smeg circular extractor hood with carbon filter
  • Microwave with stainless steel front
  • Miele dishwasher
  • Quooker boiling water tap
  • Nespresso coffee machine on drawer
  • Gas detector with alarm

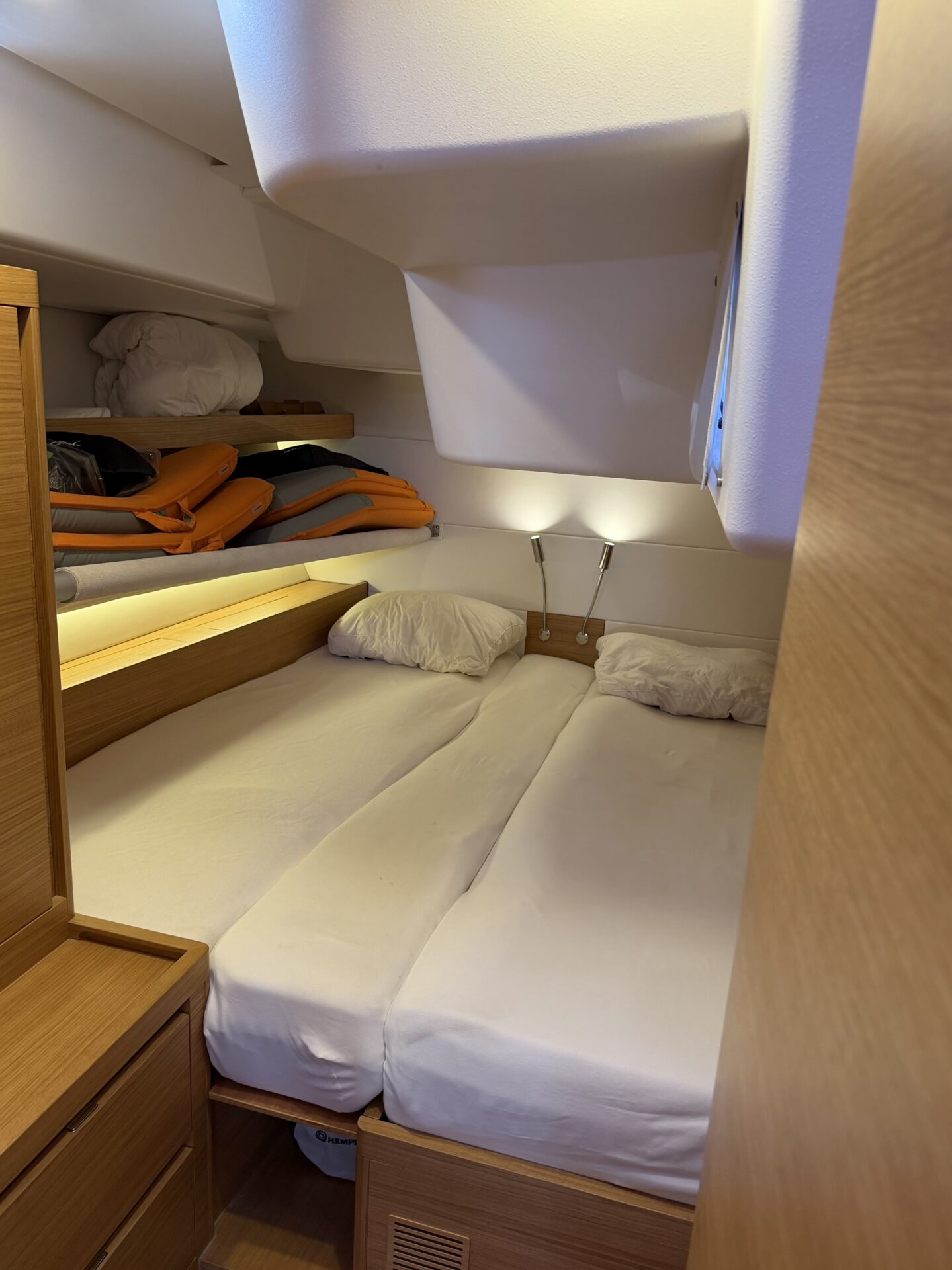

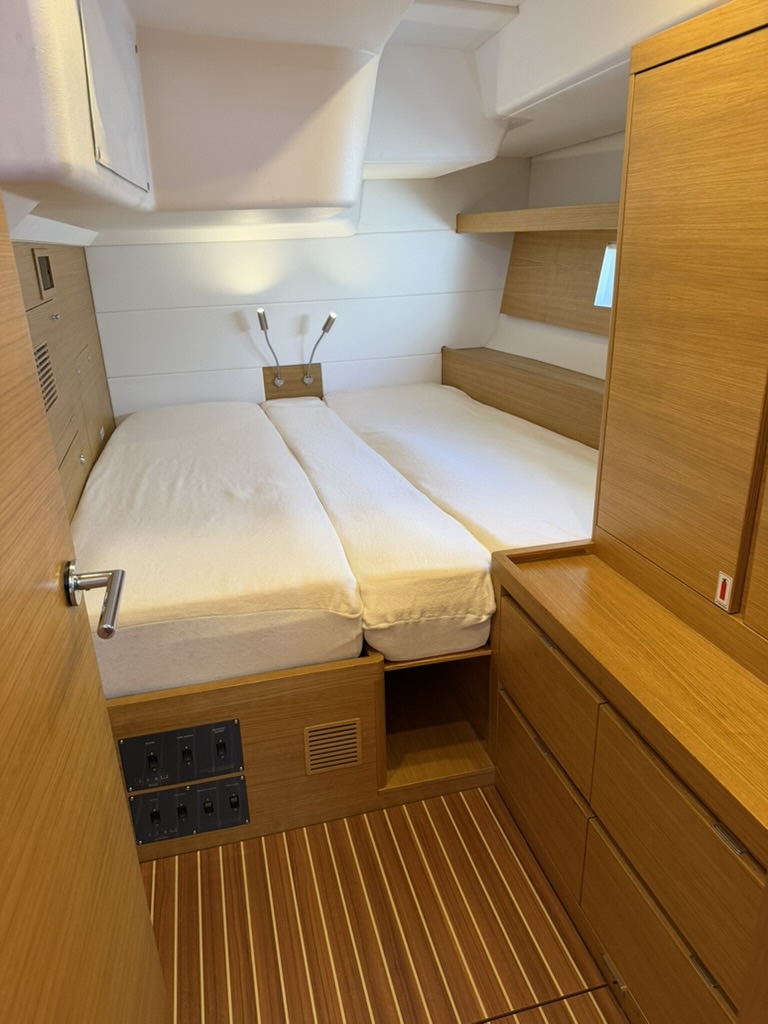

Aft cabins (2)

  • Two spacious cabins, each with two single berths convertible to a double
  • Innerspring mattresses
  • Double wardrobe in port cabin, single wardrobe in starboard cabin
  • Low shelf along the full hull length
  • Pilot berth along the hull in starboard aft cabin
  • OceanAir blinds and screens for hatches, blinds for hull, coachroof and cockpit windows

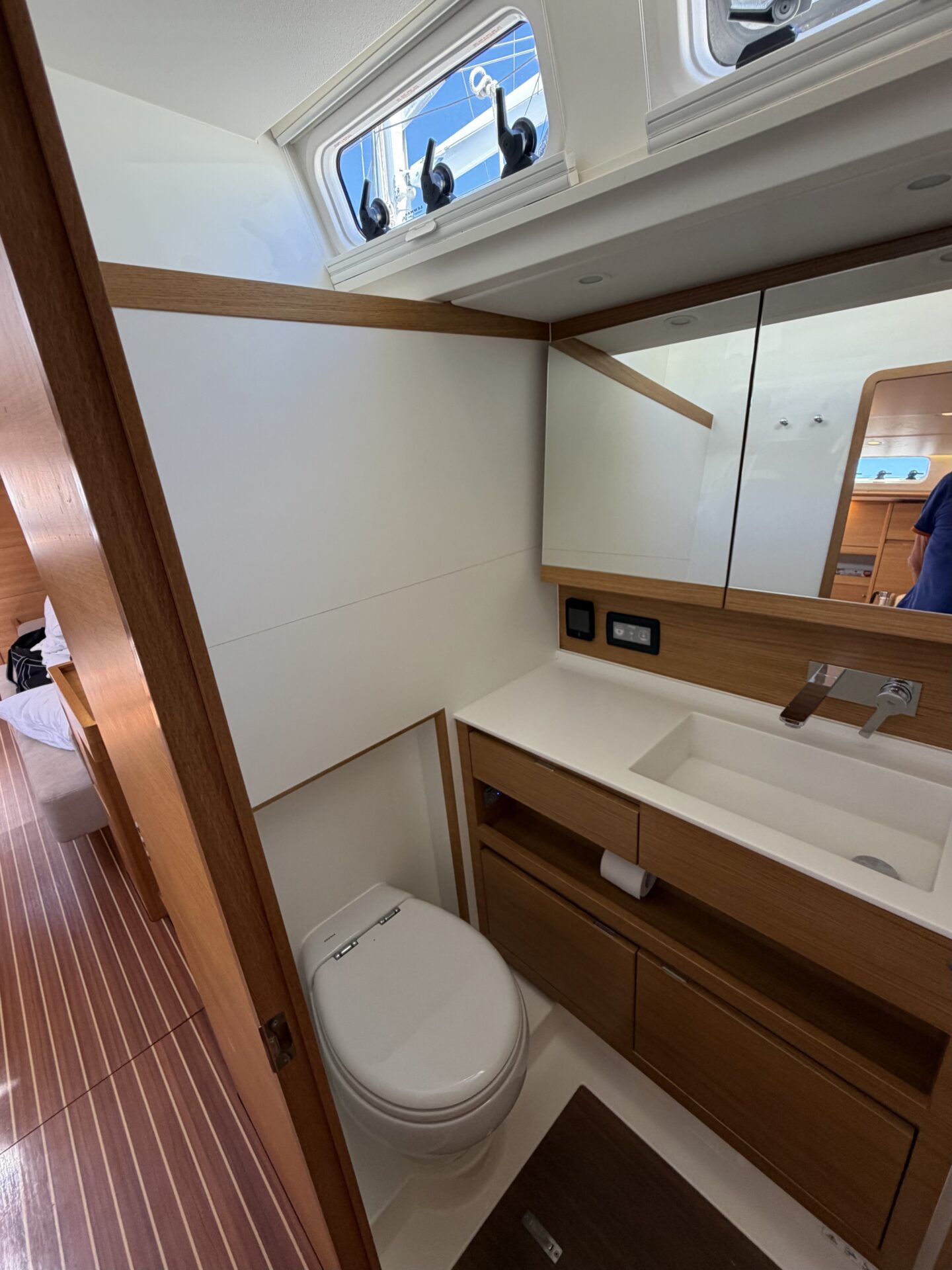

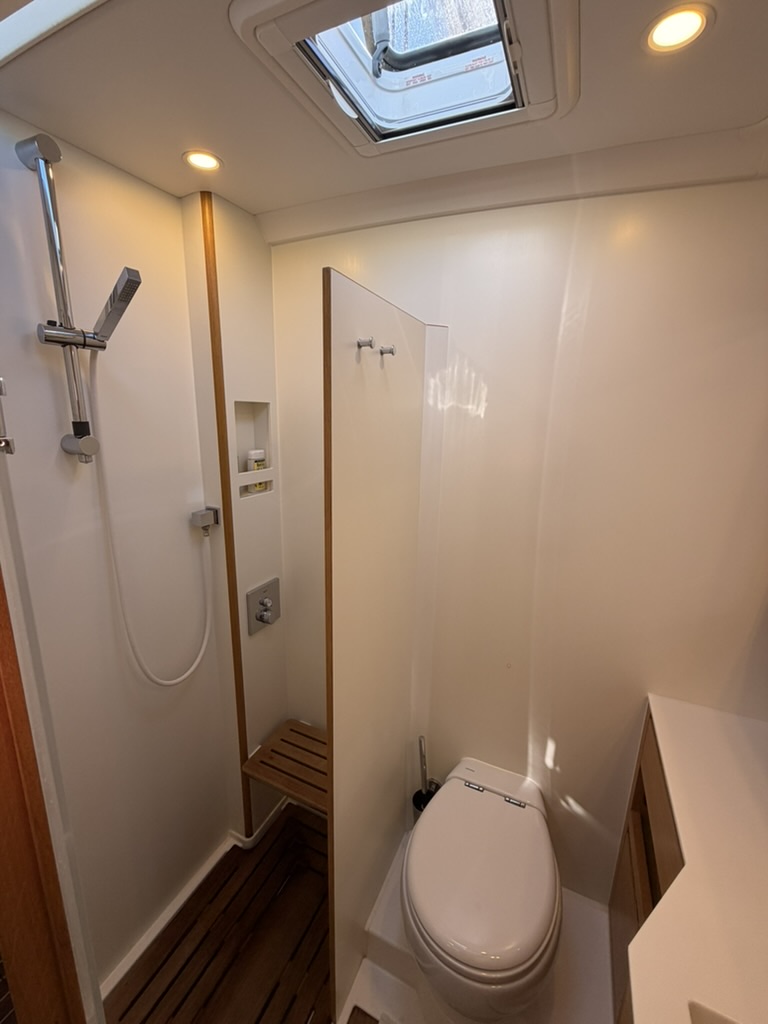

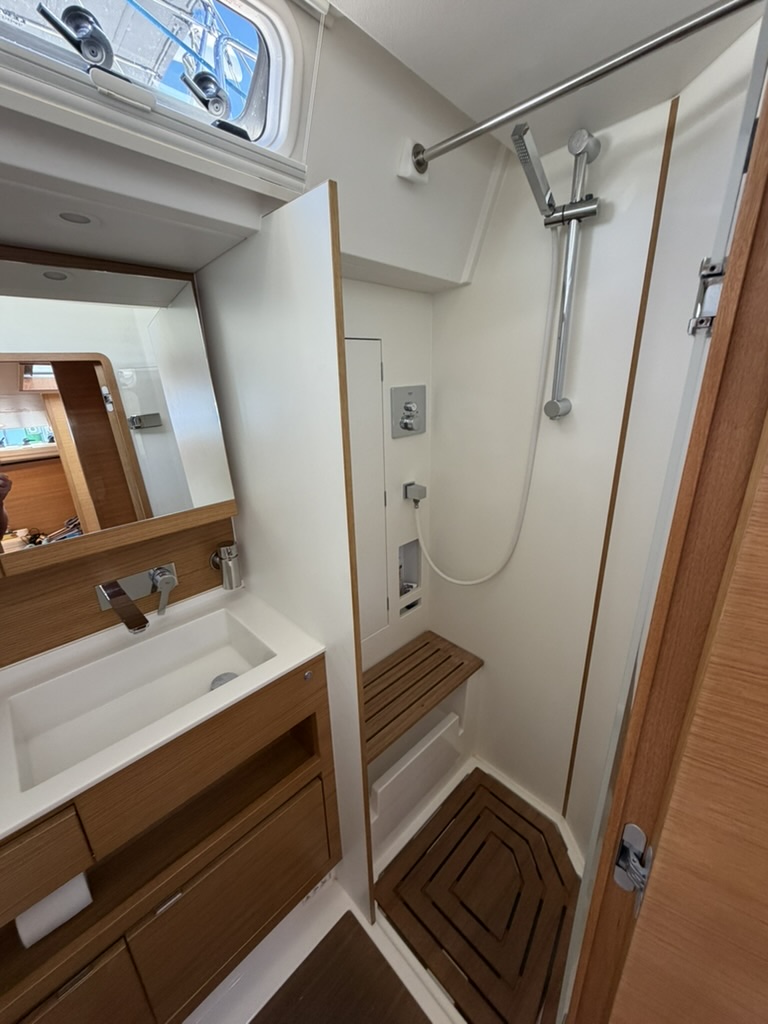

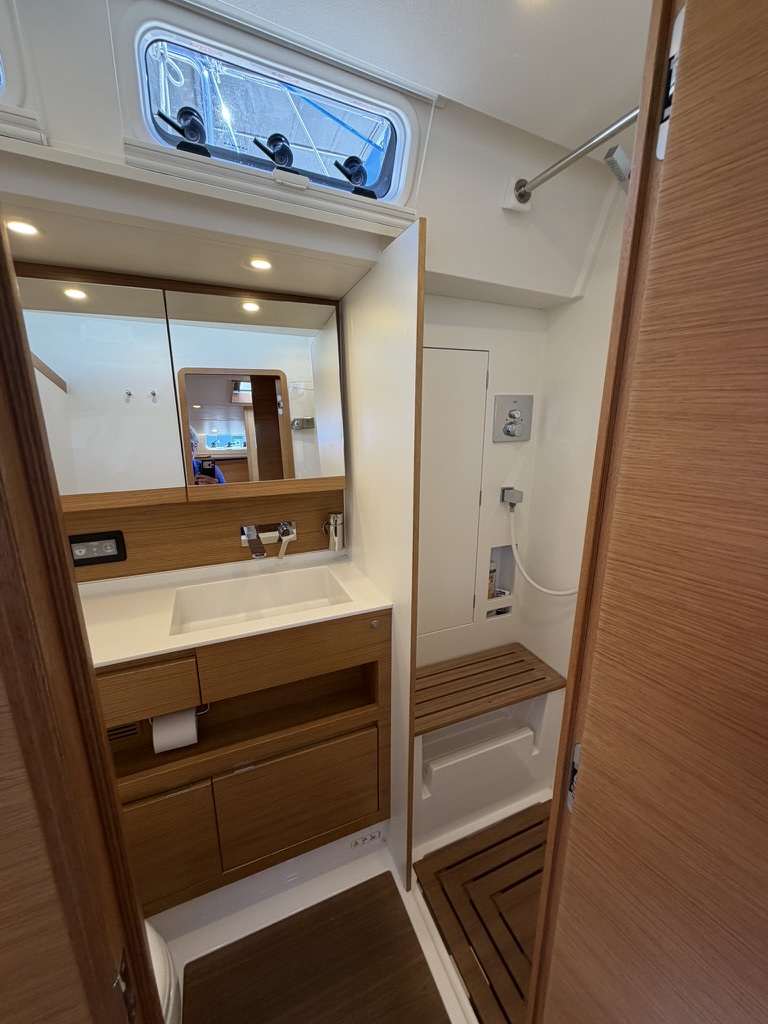

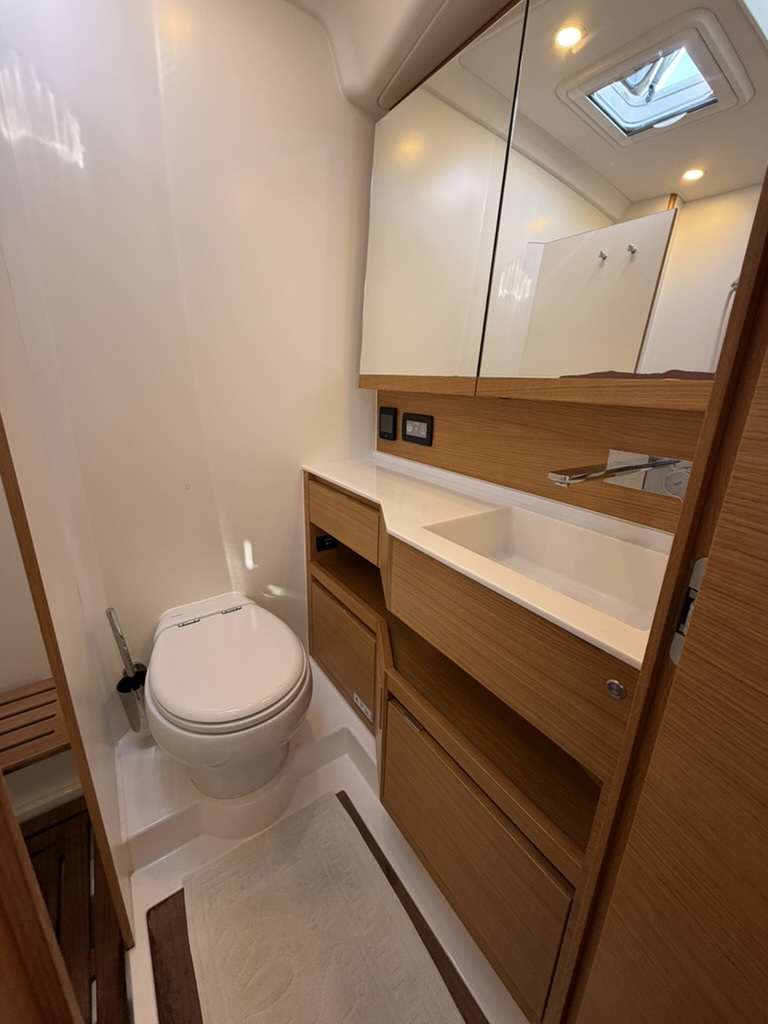

Heads (2)

  • White Corian worktops with integrated basin
  • Teak grating floors
  • Electric Tecma toilets, flushing with fresh or sea water
  • Separate shower drain pumps with automatic sensor
  • Extra rail in aft head for wet gear

Systems

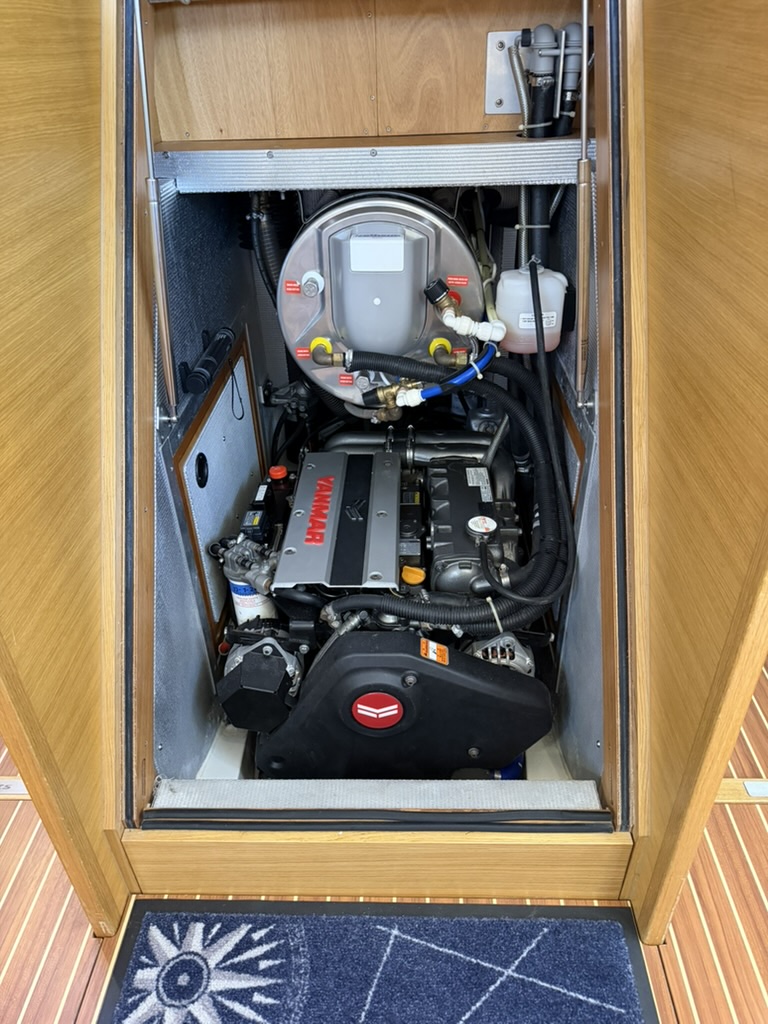

Engine

  • Yanmar 110 hp diesel with shaft drive
  • Manecraft Deep Sea seal on propeller shaft
  • Aquadrive between engine and shaft (reduced vibration)
  • 3-blade folding propeller
  • 60A alternator for service batteries and 125A alternator for start battery
  • Fully insulated engine room with lighting
  • Electronic throttle at starboard wheel, with mechanical back-up throttle
  • Engine management interface to NMEA
  • Aluminium diesel tanks 550 l + extra 90 l tank (640 l total)
  • Fischer Panda 15000i generator (12 kW) in dedicated compartment

Plumbing

  • Stainless steel water tanks 580 l + extra 130 l tank, with level gauge
  • 40 l water heater (engine and 230V)
  • Pressurised hot and cold water system
  • Shore water connection with two-way valve and filters
  • Sea water pump with outlet in anchor locker
  • Cockpit shower with thermostat
  • 2x electric Tecma toilets, flushing with fresh or sea water
  • Holding tanks with level alarm
  • Electric and manual bilge pumps
  • Miele dishwasher
  • Eberspächer D10 Hydronic heating with outlets in all cabins
  • Air conditioning: 9,000 BTU forward cabin, 16,000 BTU saloon, 9,000 BTU aft cabins

Electrical

  • 24V service system, 12V engine system
  • Gel service batteries 480 Ah @ 24V
  • Separate start battery 70 Ah @ 12V
  • Battery monitor with shunt
  • Combined charger/inverter 24V/2000W/70A with control panel
  • Shore power connection with RCD
  • 230V sockets in galley, chart table, all cabins and heads
  • Double USB-A/USB-C sockets in all cabins and at chart table
  • 12V outdoor socket in cockpit
  • IP44 socket in dinghy garage (for charging Torqeedo batteries)
  • Indirect dimmable LED lighting package, red night lights

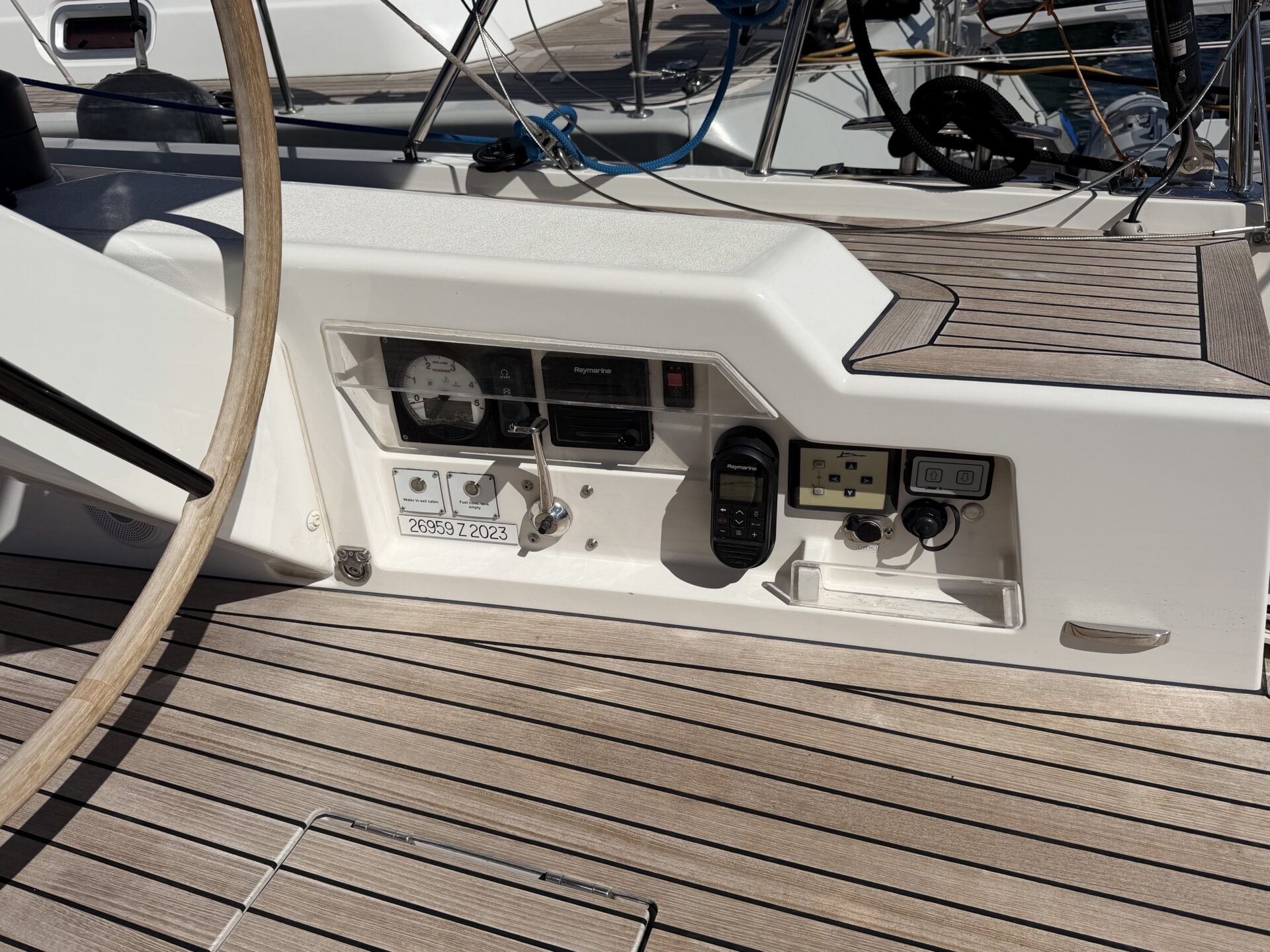

Electronics

  • Raymarine instrument package with speed, depth and wind
  • 3x Raymarine Axiom+ 7" displays above companionway
  • Raymarine i70s colour display

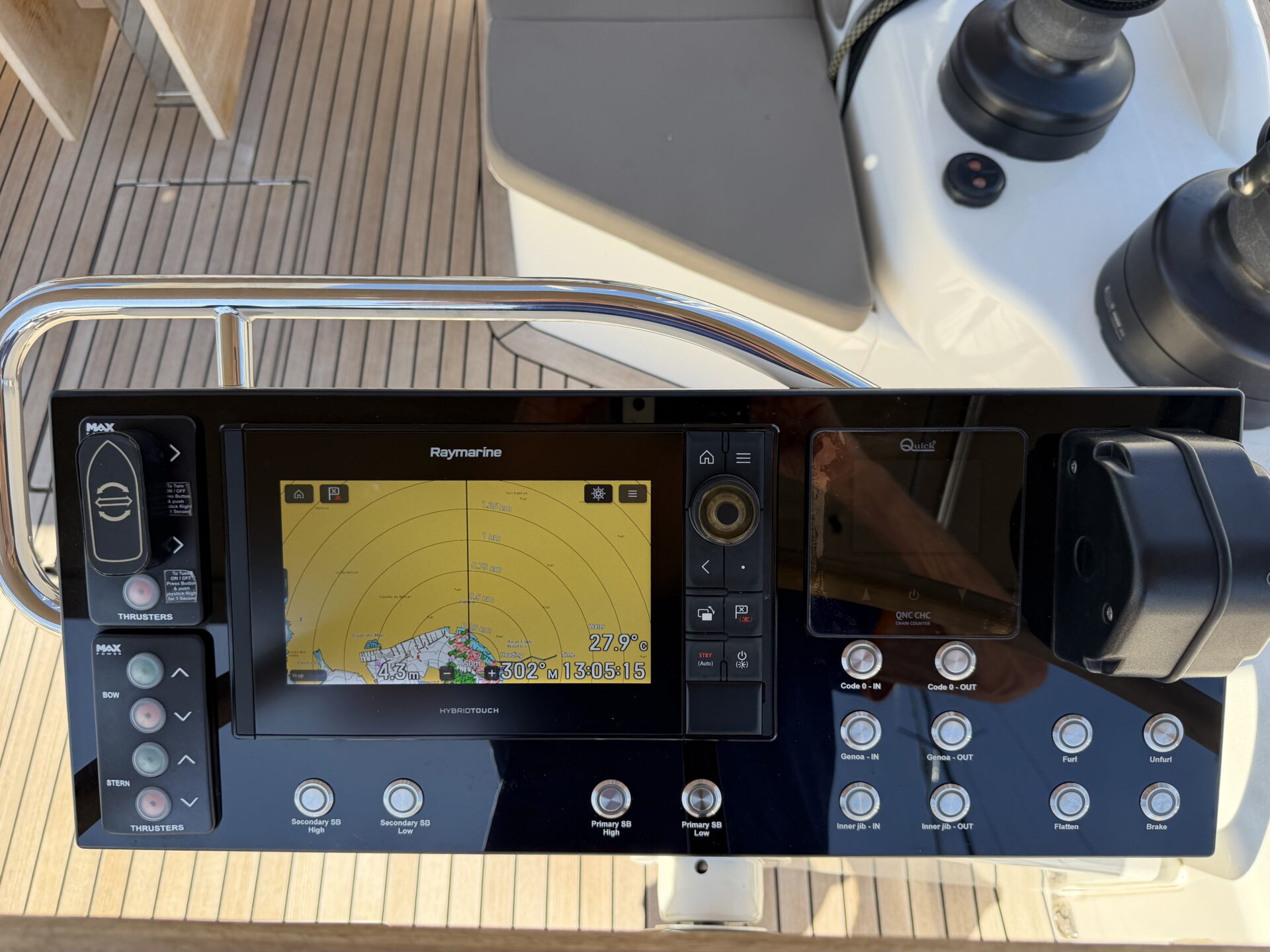

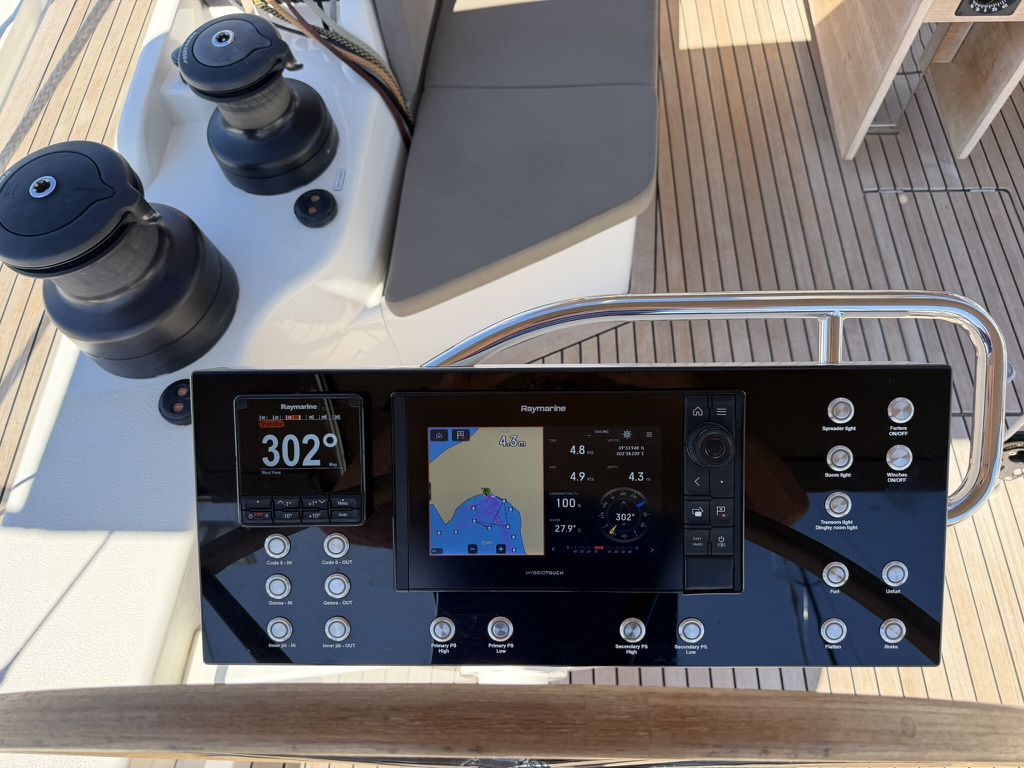

  • 2x Raymarine Axiom PRO-S 9" plotters at the helm consoles
  • Raymarine autopilot: EV-400 course computer, hydraulic linear drive (24V), p70s control unit
  • Raymarine Ray90 VHF with second handset
  • Raymarine AIS700 transceiver
  • 2x maxi helm consoles
  • Silva 100 BH compass under cockpit table
  • Fusion Apollo MS-RA770 stereo with speakers in saloon and cockpit

Thrusters

  • Retractable bow thruster MaxPower VIP 150 (own 24V battery bank)
  • Retractable stern thruster MaxPower VIP 150 (own 24V battery bank)

Additional Information

  • CE category A - Ocean
  • 4x fenders with X-Yachts logo, 2x mooring lines 20 m
  • 25 m shore power cable
  • 5x fire extinguishers, smoke alarm, fire blanket, gas detector
  • Set of mattress protectors and covers for the entire boat
