Details

Exterior Details

Hull

• Built in sandwich with polyester resin n construction with structural foam core, Bi-directional and uni directional E-glass
• White hull RAL 9010 with light grey stripes white RAL 7035
• Solid laminate in high stress areas in way of keel top, sail drive and rudder tube
• Steel frame – hot galvanized, high strength, laminated into hull absorb all loads from keel, mast and rigging

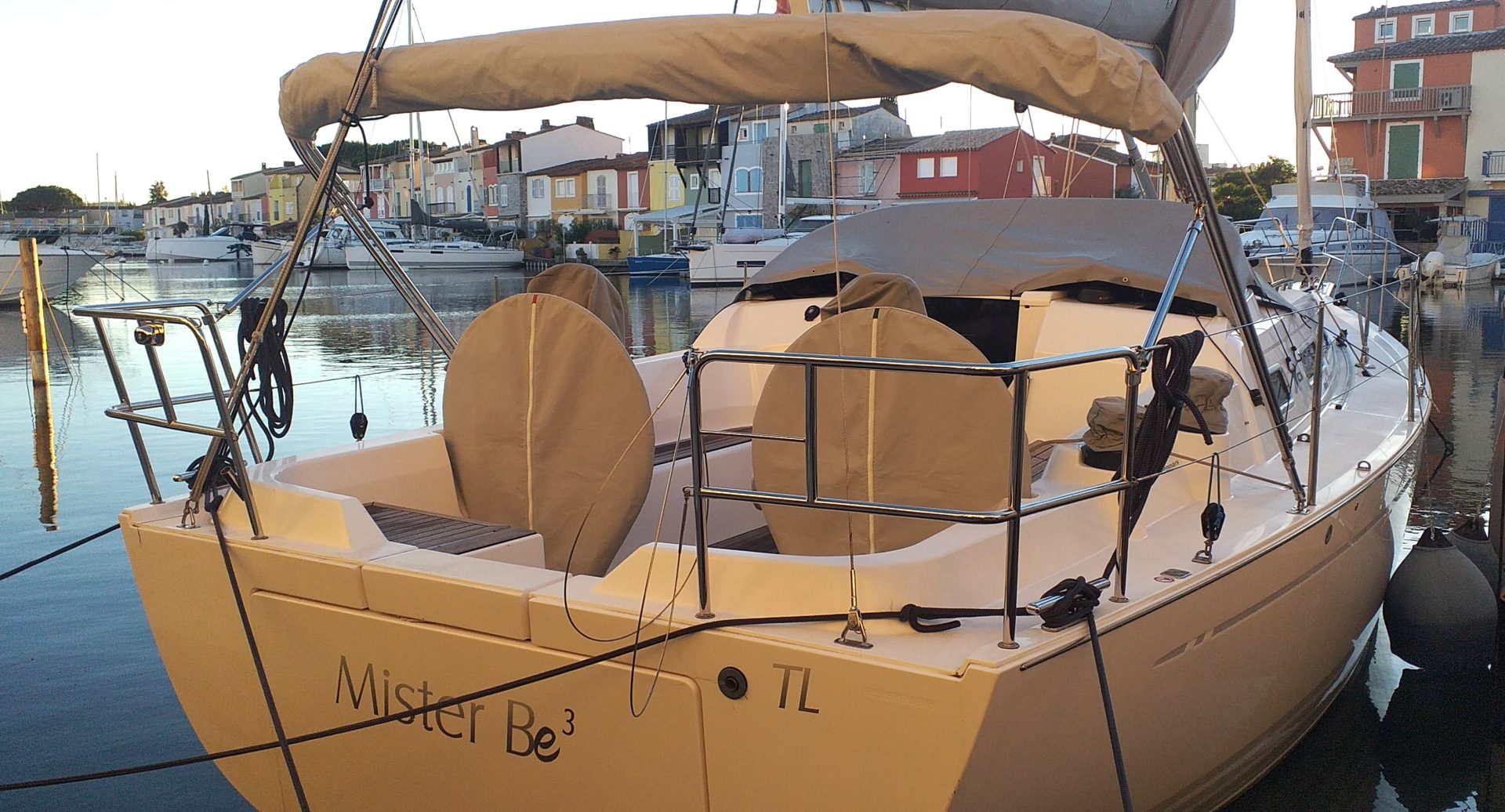

• Bathing platform incorporated in transom
• Bathing ladder in stainless steel mounted onto bathing platform
• X-Yachts style hull recessed portlights

Deck

• Teak, vacuum applied, 9 mm nominal thickness on cockpit sole, seats

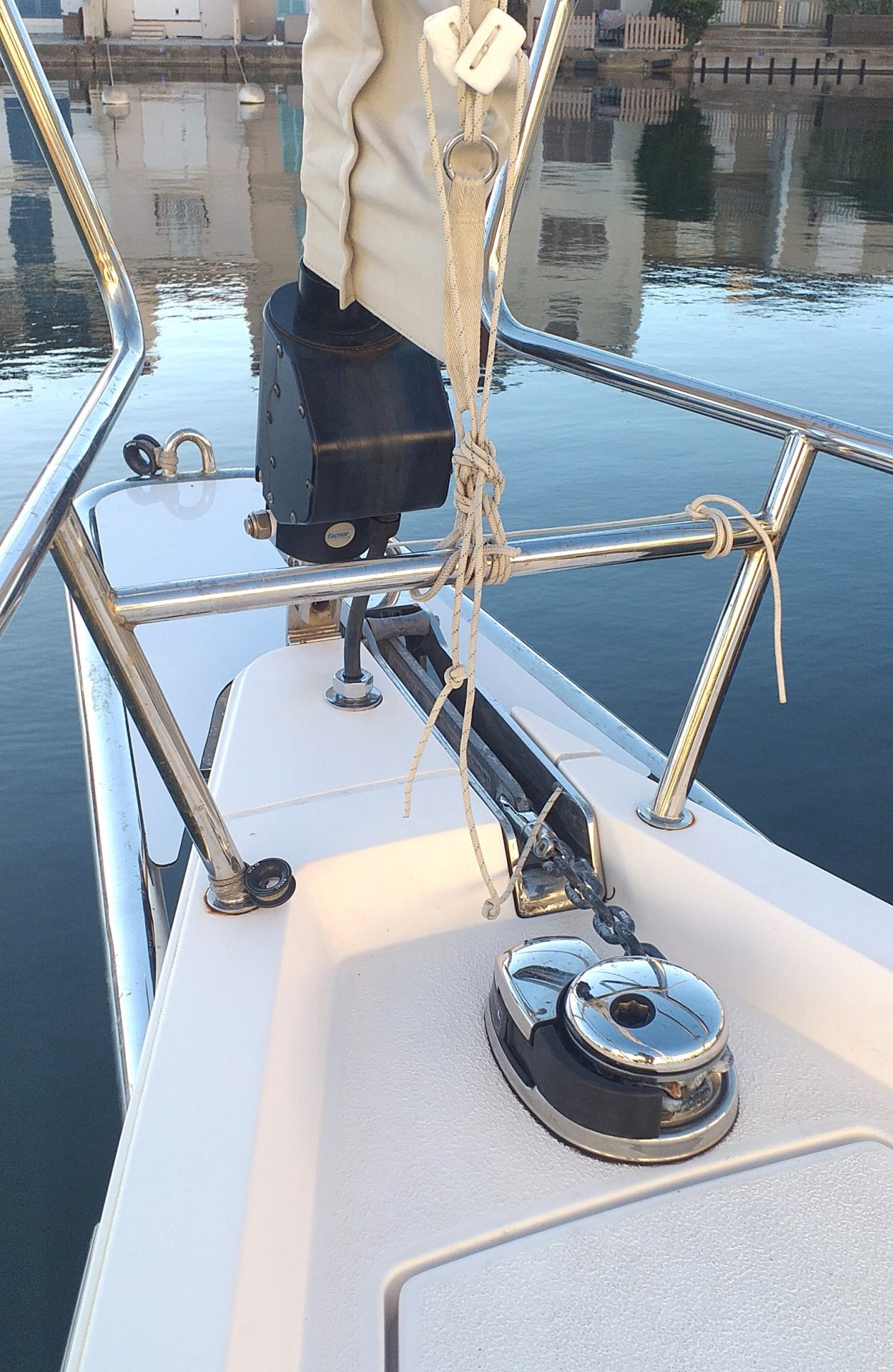

• Anchor locker - drained area with 1000 W Quick electric windlass
• Delta Anchor with chain and ropes
• Stainless steel bow sprit, for asymmetric spinnaker and Code 0's, anchor roller fitting,
• Gas spring fitted to forward and both aft cockpit lockers

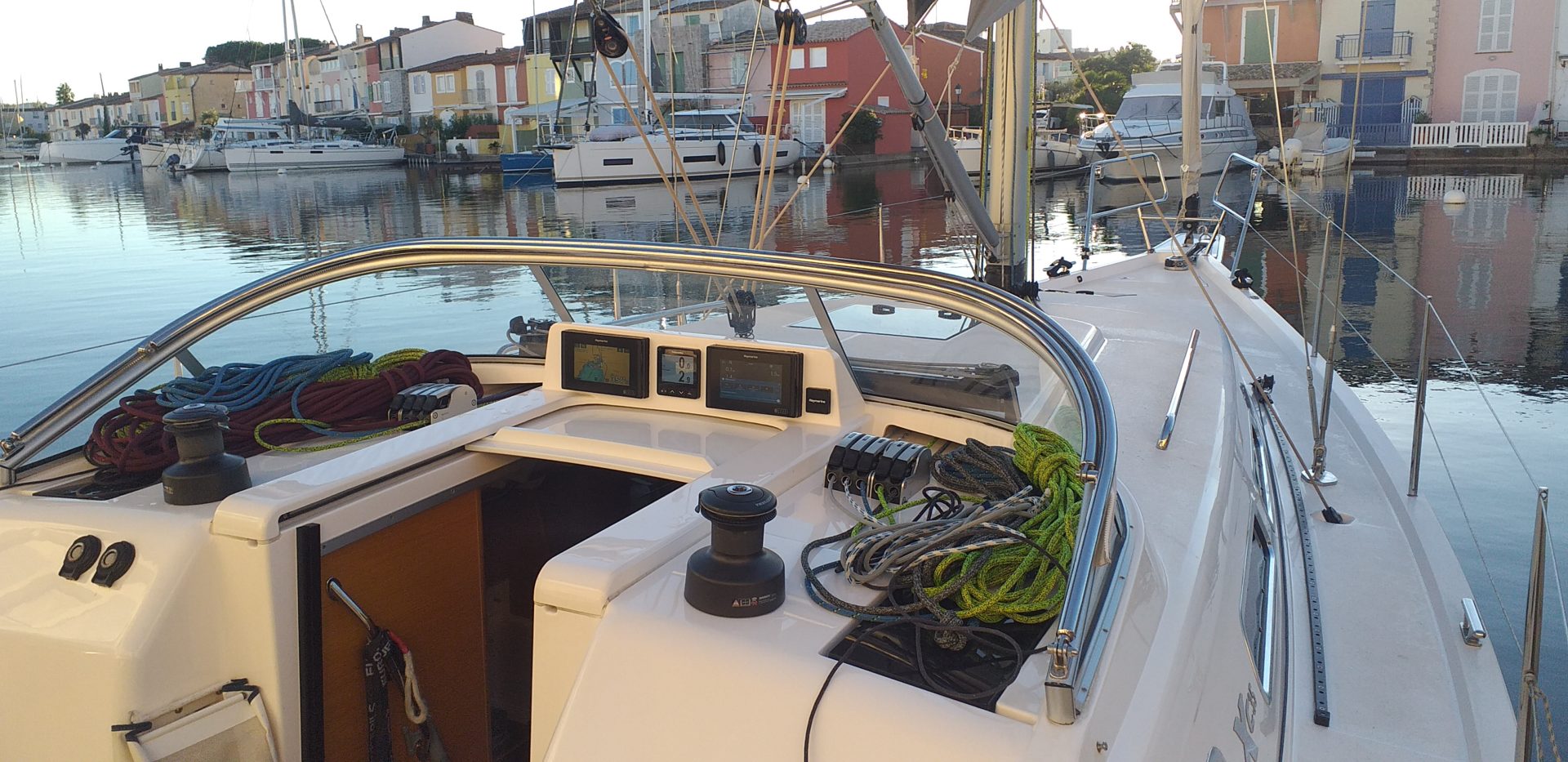

• Incurved windscreen with Sekurit glass, incorporated sprayhood + bimini

Sail Handling

• 2x HARKEN primary winches
• 2x HARKEN for Geman Mainsheet system
• 2x HARKEN for halyards, including one electric
• Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• Mainsail track in front of sprayhood
• Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware and rigging,stainless steel powsprit
• • Windscreen in Sekurit glass with sprayhood
• • Bimini

Sails

• Sails from EUROP SAILS
• Full batten Mainsail Membrane Dyneema Black Technora with RONSTAN Ball slide travellers- 2 reefs
• Lazy bag et lazy jack
• Genoa with vertical battens Membrane 110% Dyneema Black Technora + bag
• Gennaker Triradial Maxikote with FACNOR Furling FX2500

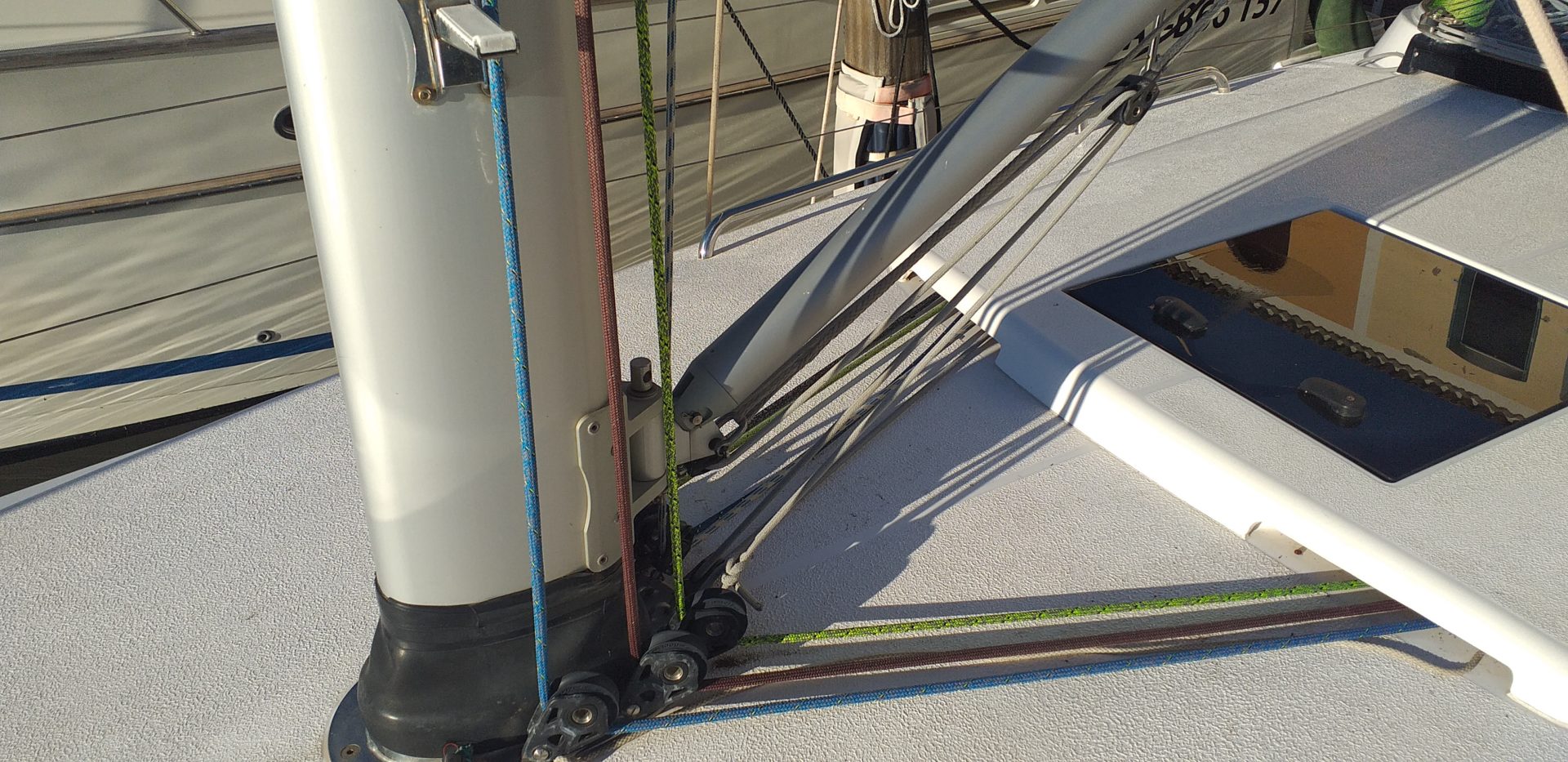

Mast & Rigging

• JOHN MAST Fractional double spreader, tapered silver anodized aluminium mast
• stepped on steel frame
• Silver anodized boom with single line reefing and internal boom outhaul with
• control on boom, rigid vang and outer purchase block system
• Split backstay with hydraulic cylinder
• Discontinuous rod rigging throughout with rod turnbuckles and Tipcup
• FACNOR electical headsail furler
• Running Rigging with Spectta halyard

Keel

• Standard keel

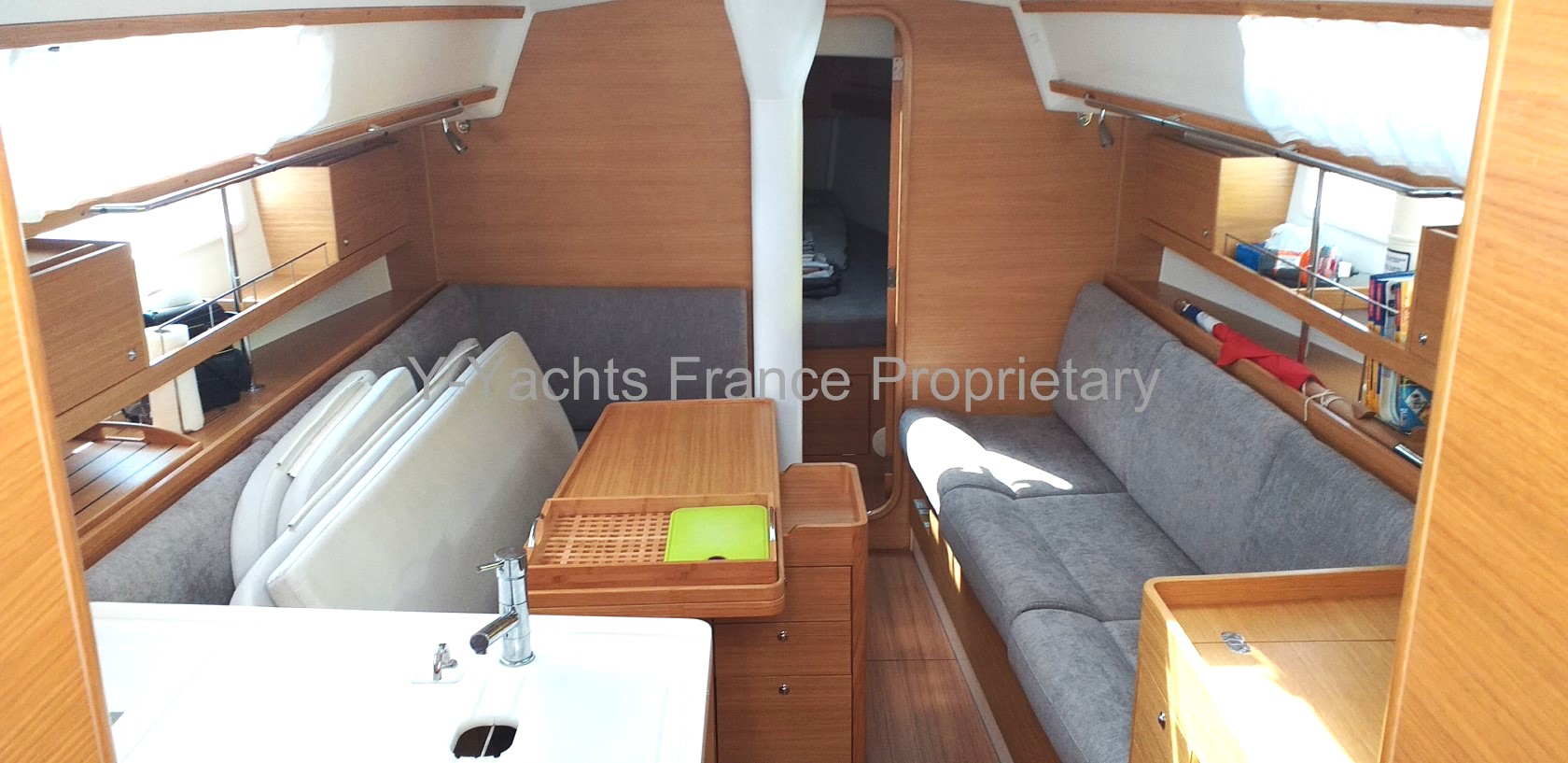

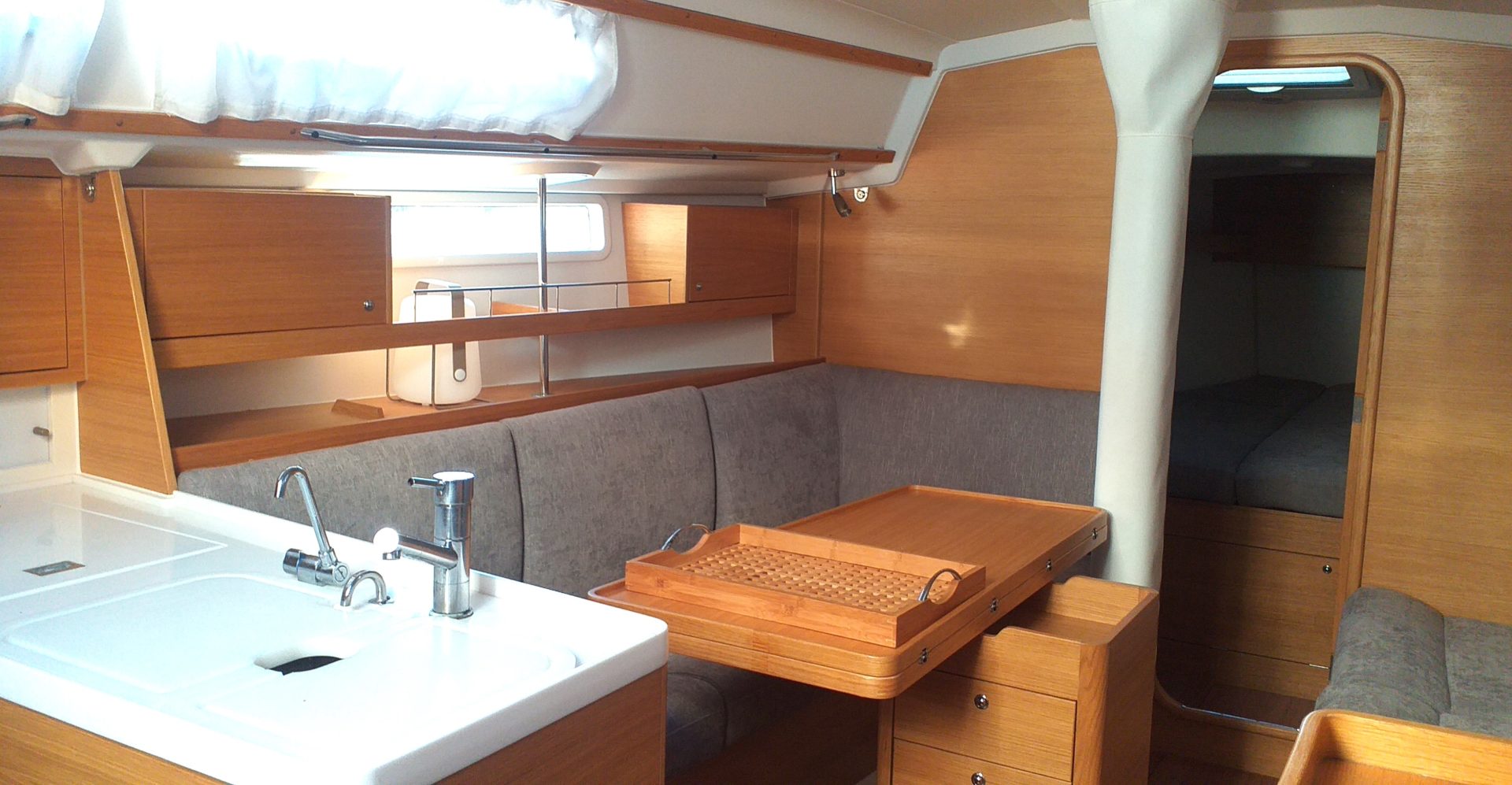

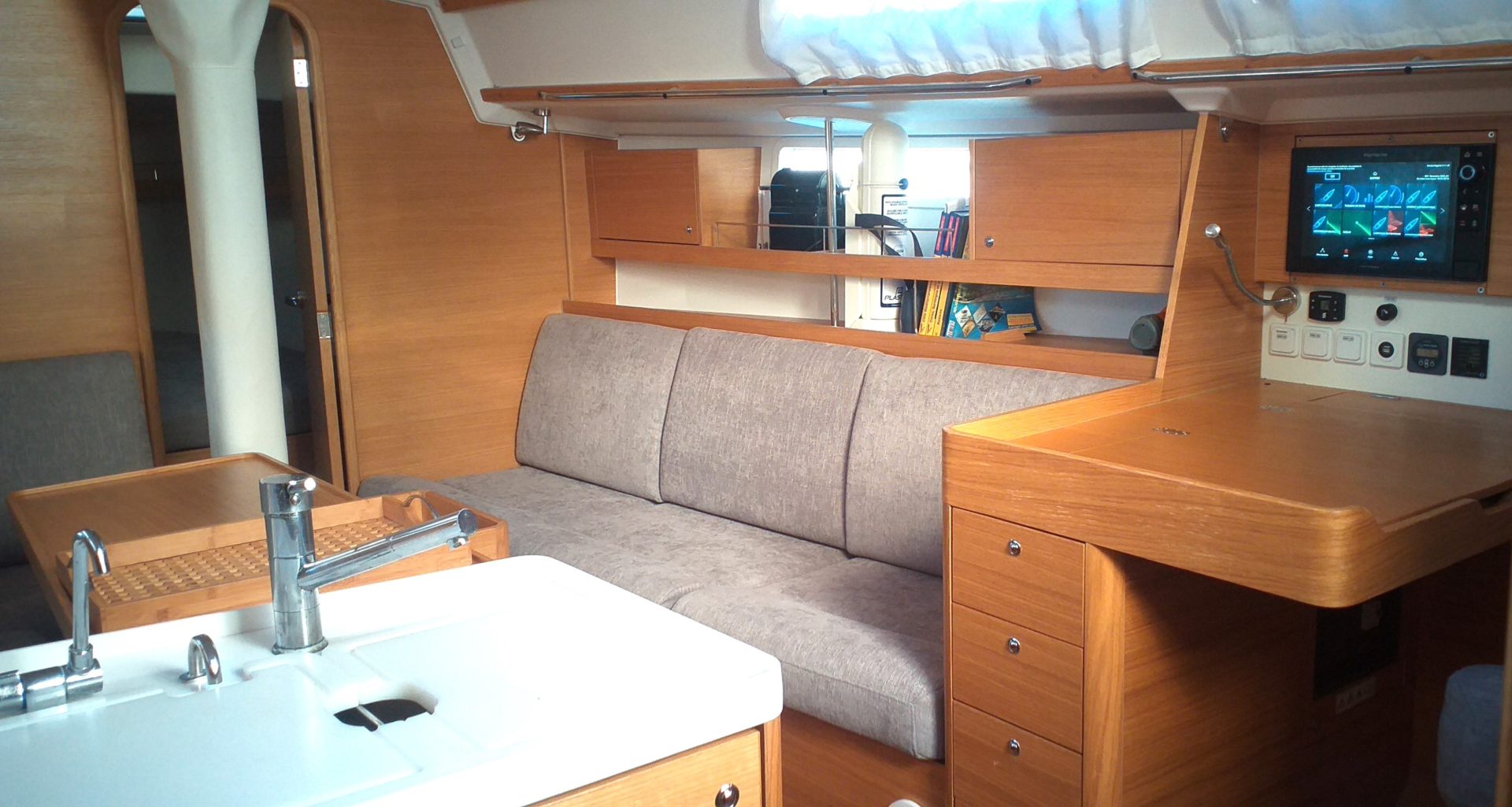

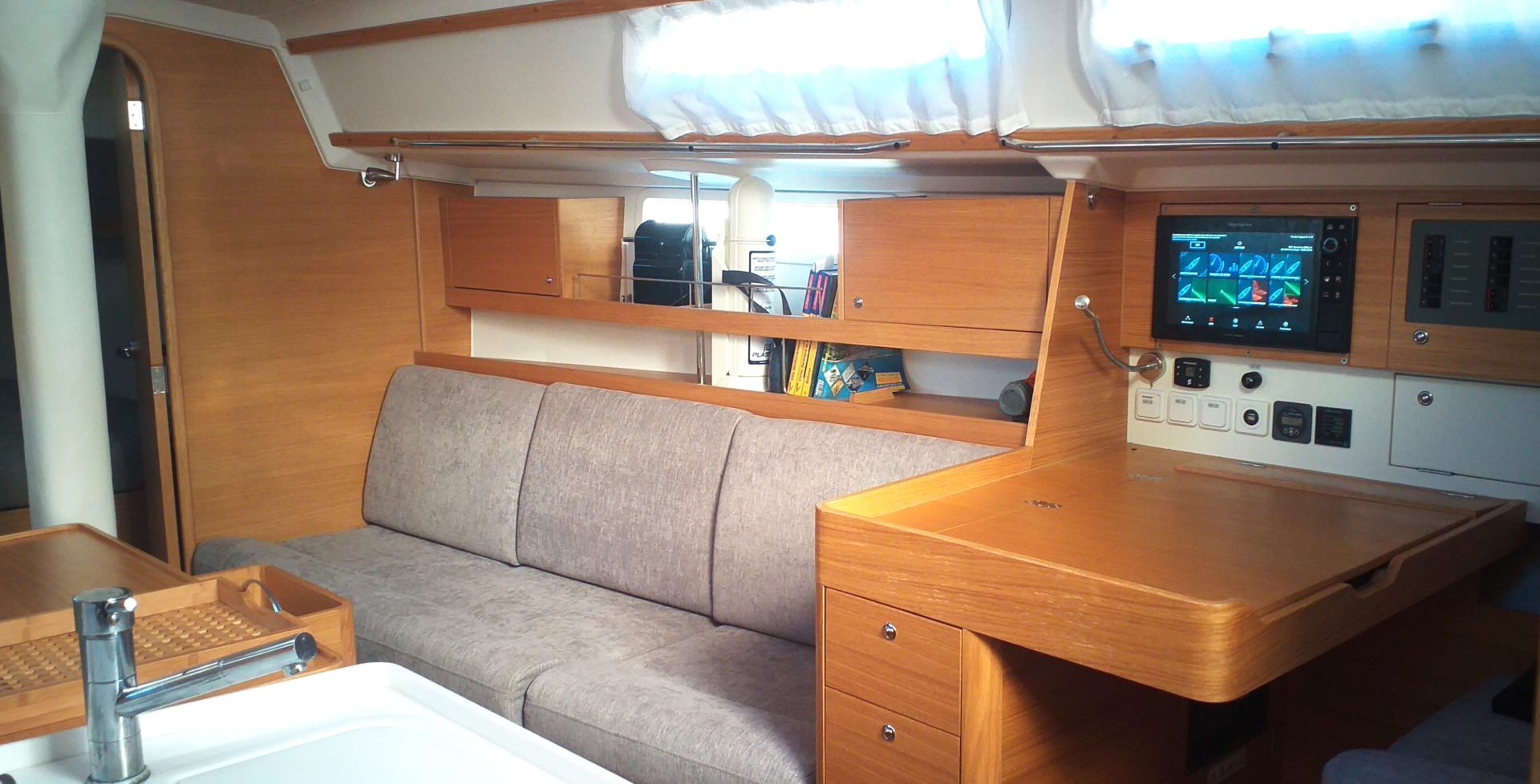

Accommodation

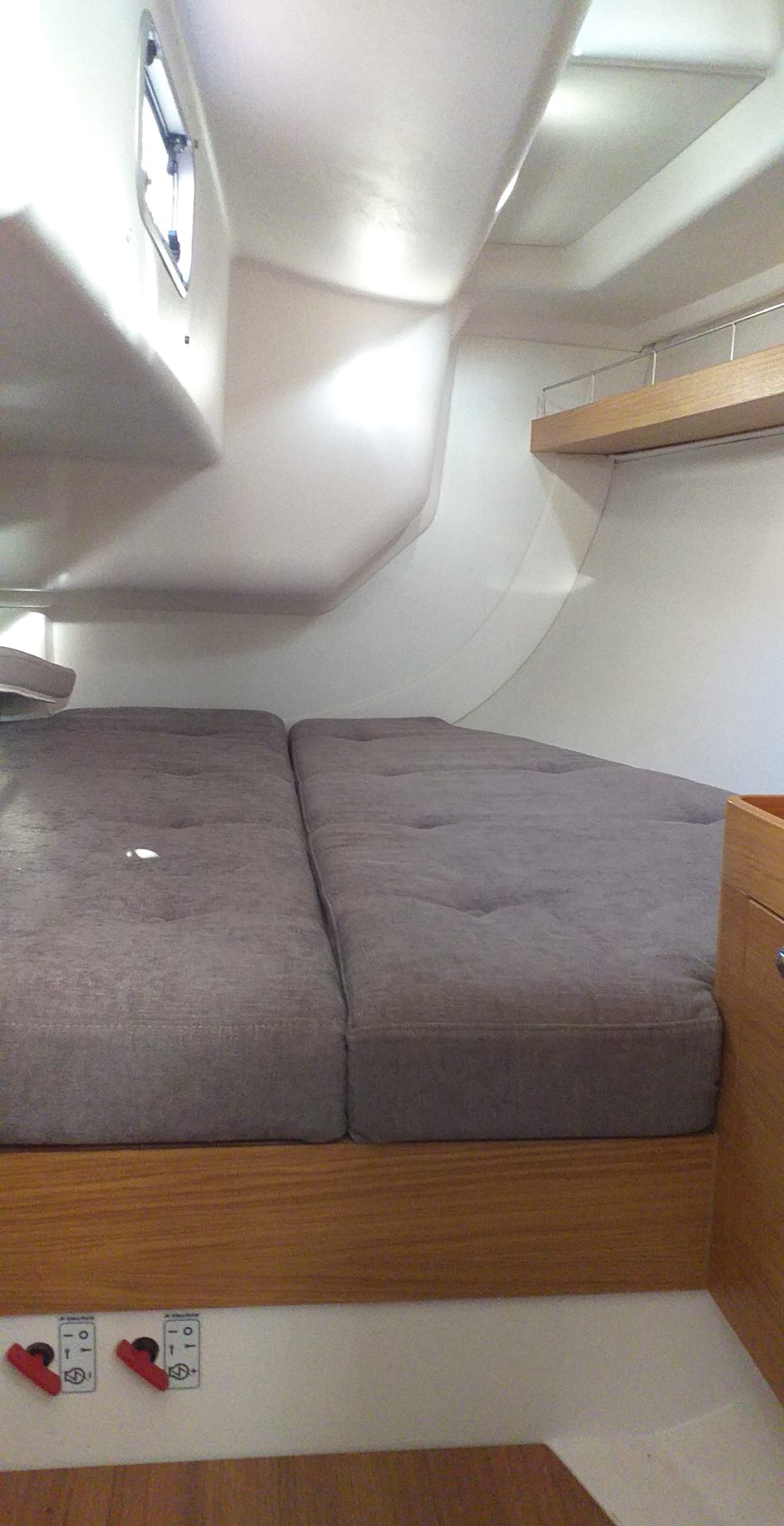

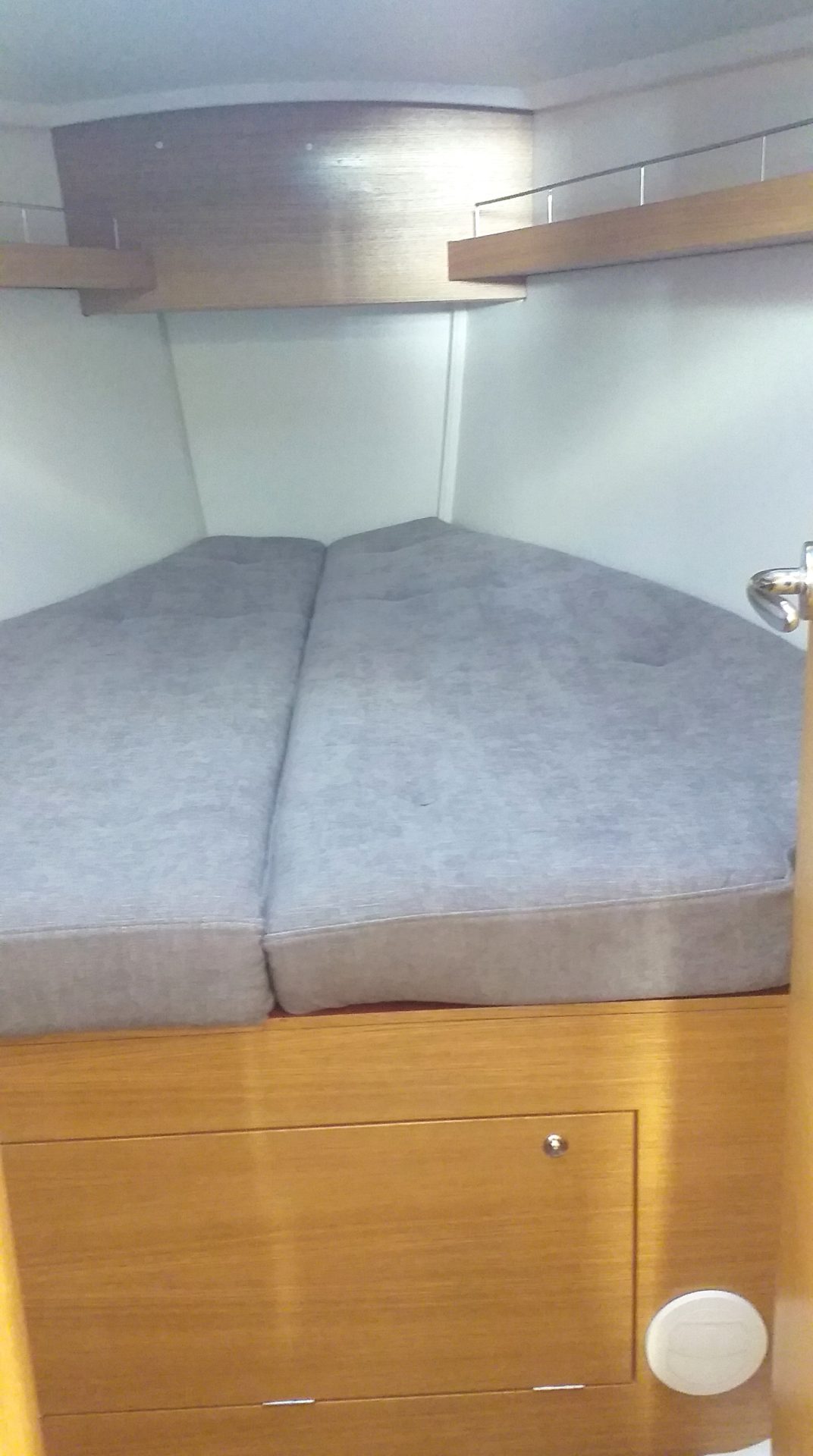

• 2 cabins layout 1 bathroom Nordic Oak
• Upholstery Olive Grey 750
• Oceanair curtains with mosquitos screen for cabins and saloon

Systems

Engine

• 3YM30 Yanmar engine 30 Hp – N° 314340 saildrive
• Retractable MAX POWER bowthruster
• GO tank 165 L

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water tank total 245 litres
• • Hot water tank 24 l. Tank can be heated either by main engine or immersion heater connected to shore power
• • Holding tank, 55 l,
• • Deck shower fitted at bathing platform with hot/cold freshwater
• • Electric fridge cooled Danfoss compressor

Electrical

• • AGM services batteries 130 Amp
• • Separate engine spiral-cell battery (55 Ah, 12V)
• Shore power installation with shore power inlet mounted in cockpit
• AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater and MASTERVOLT battery charger 12 V/50A + inverter 800 W
• Micro Wave
• 1 electrical toilett with large bowl
• EBERSPACHER heater D4
• Night and courtesy lights
• 220 V and 12 V aditionnal plugs

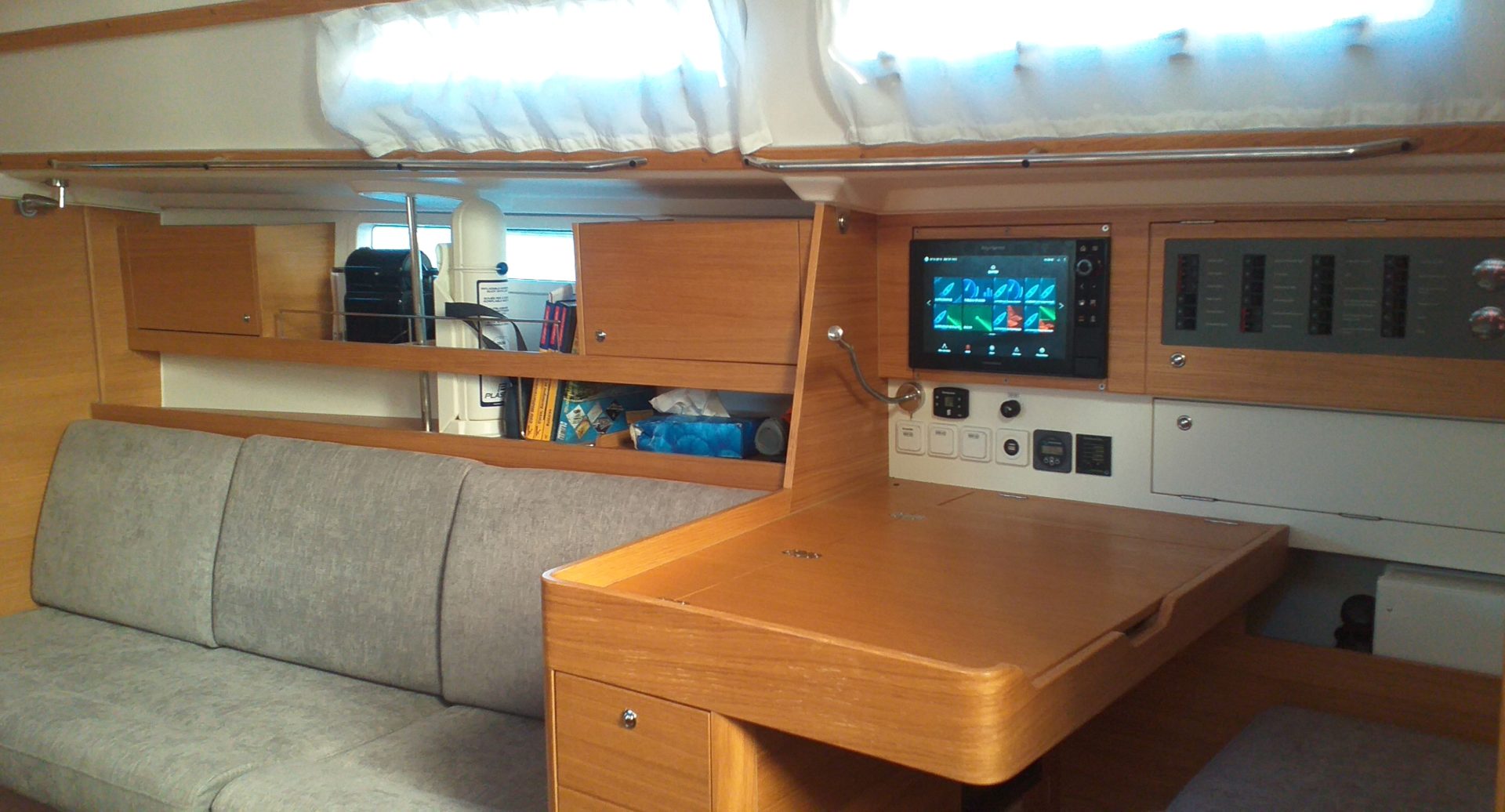

Electronics

• Raymarine electronics
• Autopilot EV200 with display at the helm
• 2 x AXIOM 7 display incl speed, depth,wind transducer and GPS antenna
• I 70 display

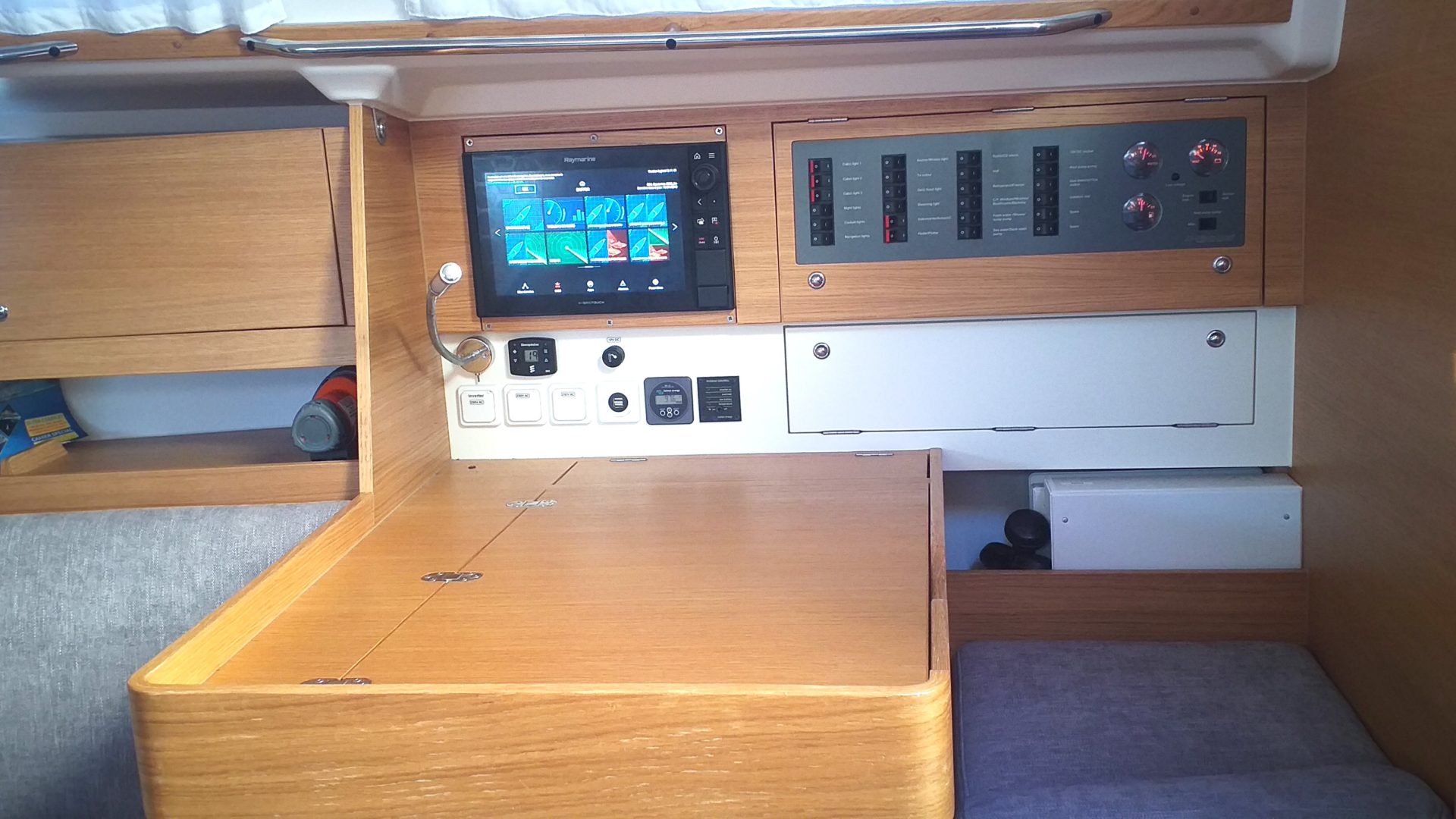

• Chart plotter AXIOM Pro 12 ” à the chart table
• VHF RAY 260 E with HP in the cockpit
• •
• • Stereo CD DVD 2HP inside + 2 HP outside

Thrusters

• Security equipment, febders, moorings lines
