Xc 42

Yacht Summary

  • Manufacturer: X-Yachts
  • Model: Xc 42
  • Build Number: 22
  • Build Year: 2010
  • Lying: Marina Muiderzand, Netherlands
  • Price: Sold
  • Dealer: X-Yachts Netherlands
  • Contact: Nanno Schuttrups
  • Phone: +31 (0)36 536 9057
  • Email:
Xc 42


Impressive example of the Xc 42, now standing on shore at our sales dock and ready to be viewed.

Some of the highlights of the specification include new rod Rigging and B&G plotter + radar from 2018, a new saildrive seal just mounted and new set of North Sails ordered for 2020. All in all this Xc 42 is ready to go.

Standard Specification

DesignerX-Yachts Design Team
Hull Length12.81 m42'0"
Waterline Length11.47 m37'8"
Beam (max)4.10 m13'5"
Draft2.10 m6'11"
Ballast - Std5,160 kg11,376 lbs
Displacement - Light11,400 kg25,133 lbs
Engine Power40 kW54 hp
Fuel Tank - Std250 ltr66 gal (US)
Water Tank - Std520 ltr137 gal (US)

Standard Xc 42 brochure


Exterior Details


  • Bottom treatment from yard
  • Bottom treatment fully re-newed July 2019


  • Teak on side decks
  • Teak on coachroof
  • Teak in cockpit
  • Teak on bulwarks
  • A-frame on bow (with attachment point for gennaker)
  • Mooring cleats midships
  • LED light below cockpit table
  • LED light in end of boom
  • Bose cockpit speakers
  • Additional stainless steel handholds besides cabin entrance
  • Remote control for electrical transom hatch

Sail Handling

  • Electrical halyard winch
  • Electrical genoa winches
  • Gennaker deck package (blocks and sheets)


  • 2020 North Sails in-boom furling mainsail in Tour Xi cloth (5x full-batten, 2 reefing points and with UV-cover)
  • 2020 North Sails 108% furling jib in Tour Xi cloth (4x vertical battens, furling reefing strenghtening and with UV-cover)
  • North Sails gennaker with snuffer
  • Cover for furling boom
  • Cover for furling jib
  • Cover for cockpit table
  • Cover for steering wheels

Mast & Rigging

  • Rod rigging replaced 2018
  • Furlerboom in-boom furling system
  • LED 3-colour/anchor light in top of mast
  • Combined deck/steaming light

Hatches / Portlights / Ventilation / Sprayhood

  • Sprayhood
  • Bimini

Guard rail / Anchor / Stainless Steel Fittings

  • Capstan for anchor winch
  • Remote control for anchor winch in cockpit



  • Bulkheads in hand-selected teak veneer
  • Eberspächer D5 heating system with exits in all cabins
  • Airconditioning system for main saloon and forward cabin
  • JVC radio with Bose Freespace speaker system
  • JVC TV against main bulkhead
  • Alcantara upholstery in saloon


  • Top-loading refrigerator
  • Second front-loading refrigerator
  • Microwave



  • Throttle control for engine mounted high on stainless steel handhold at SB steering wheel
  • Saildrive seal re-newed late 2019

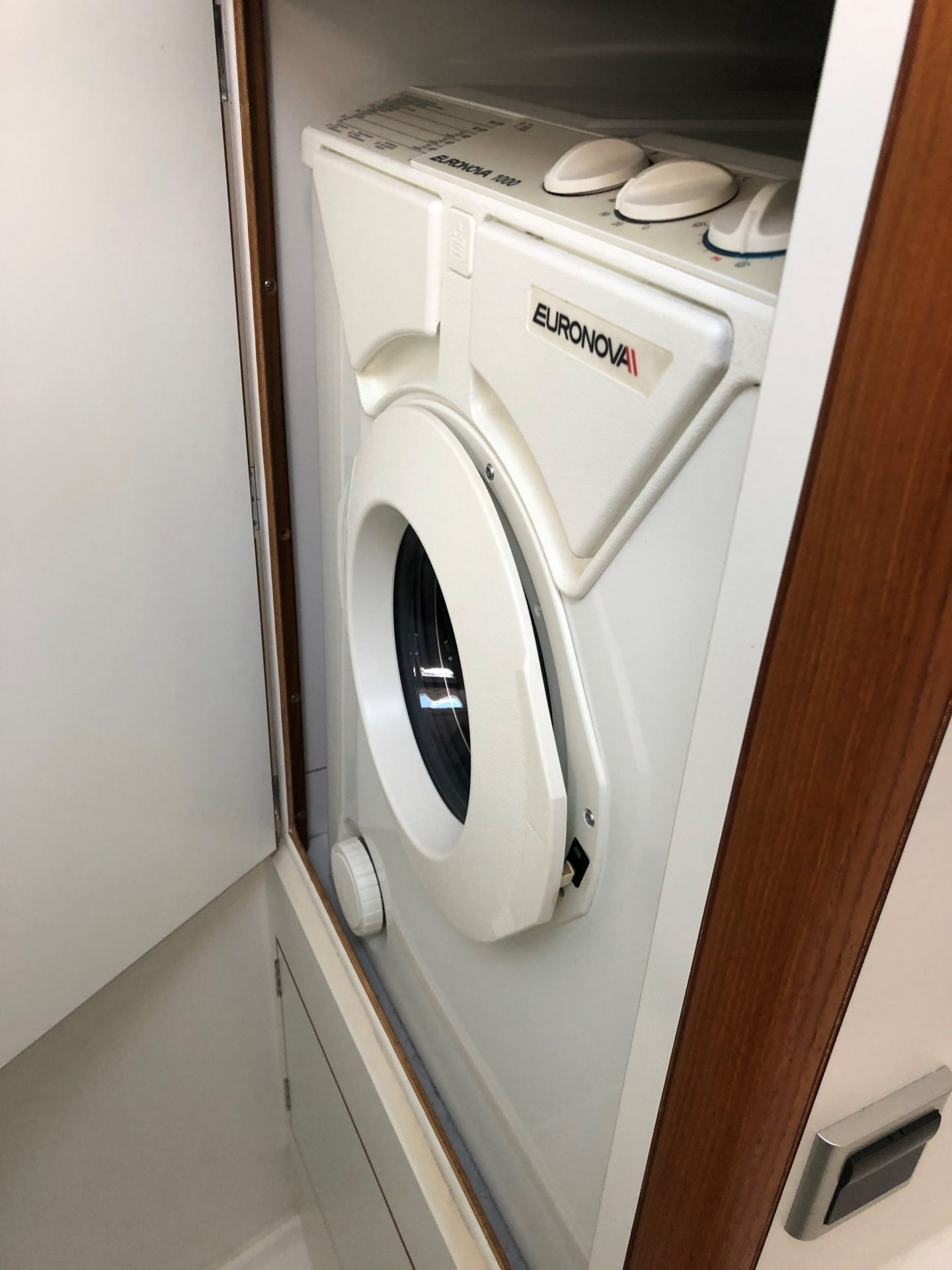

  • Washing machine
  • Sea water exit in anchor locker


  • Shore power connection with charger
  • Fischer Panda generator
  • 3x 110Ah main batteries (2017)
  • Separate starter battery for engine and generator (2019)


  • B&G Hydra instrument system
  • Above sliding hatch: H3000 GFD display | analog wind display | H3000 GFD display
  • B&G H3000 autopilot with hydraulic ram and H3000 GPD control display
  • B&G 12" Zeus3 plotter in cockpit table (2018)

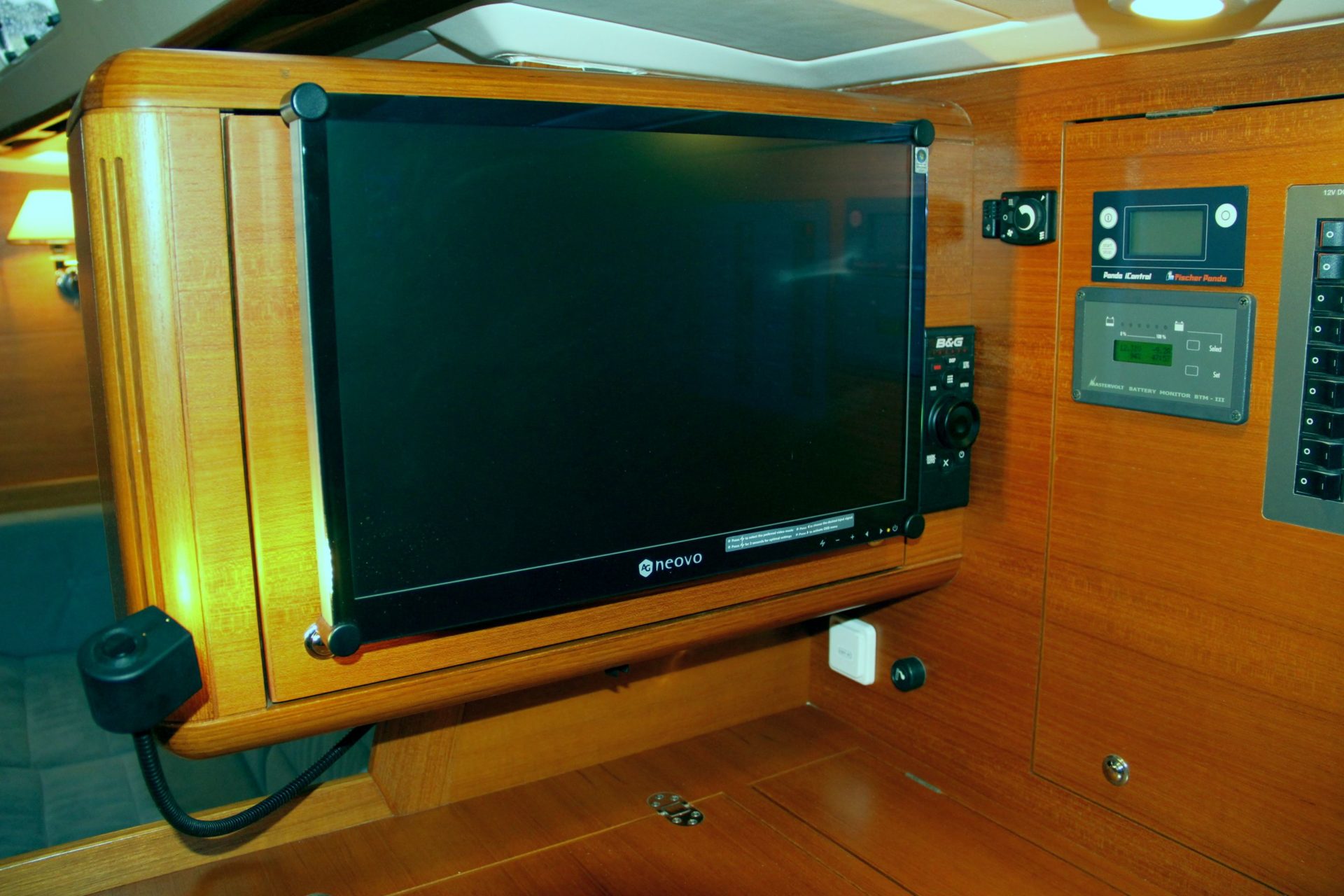

  • B&G ZC2 remote for controlling the plotter screen on the inside LCD screen
  • B&G 4G radardome mounted above first spreader (2018)
  • Raymarine S3G autopilot
  • Raymarine Ray240E VHF
  • AIS transponder


  • MaxPower retractable bowthruster
  • Joystick for bowthruster mounted on stainless steel handhold at SB steering wheel
