Details

Exterior Details

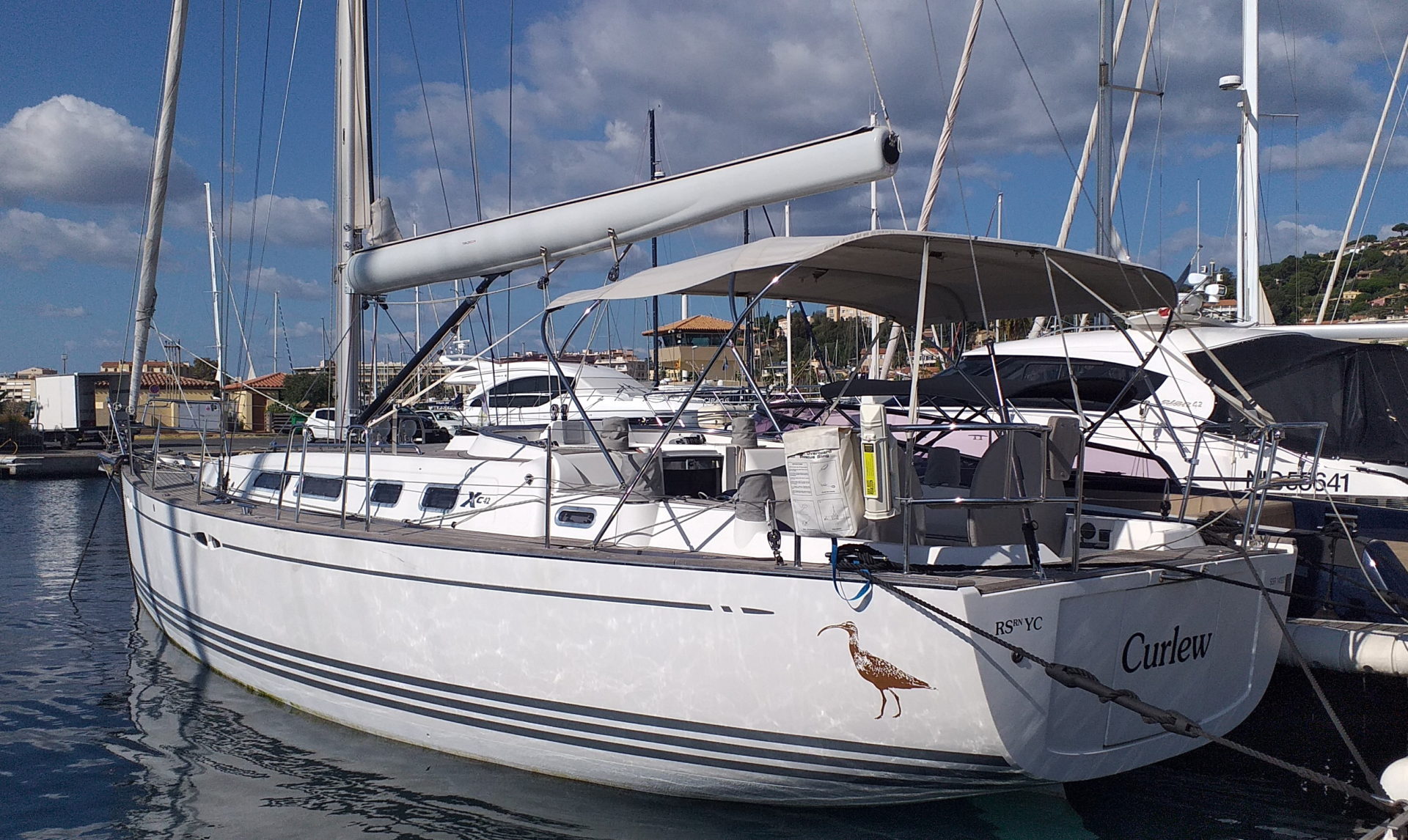

Hull

• - Built in sandwich construction with structural compressed foam
• - Bi-directional E-glass strategically positioned for strength and weight optimization
• - Solid laminate in high stress areas around keel, rudder and through hull fittings
• - Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
• - waterlines in NGA Gelcoat (RAL 7011 dark grey)
• - Hull moulded in female moulds for highest quality surface finish
• - Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• - Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• - from keel, mast and rigging Prepared for single point hoist for easy and safe lifting and launching of yacht
• - Bathing platform incorporated in transom port with electrical hoisting and lowering system with wireless remote control
• - Bathing ladder in stainless steel mounted onto bathing platform
• - Continuous stainless steel rail protection mounted on sheerline
• - X-Yachts style hull recessed portlights (6 pcs

Deck

• - Built in sandwich construction with structural compressed foam
• - Bi-directional E-glass strategically positioned for strength and weight optimization
• - Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white
• - Deck and locker lids moulded in female moulds for highest quality surface finish
• - Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• - sole, seats and bathing platform
• - Bulwark with teak capping incorporated in deck/hull design
• - Anchor locker - Electric windlass with SPADE anchor
• - Large sprayhood and bimini with stainless-steel frame
• - Space for a 6 man life raft in stb side transom locker
• - Gas springs fitted to sail cabin, port & stb cockpit lockers and port aft cockpit
• - Stainless steel davits for dinghy

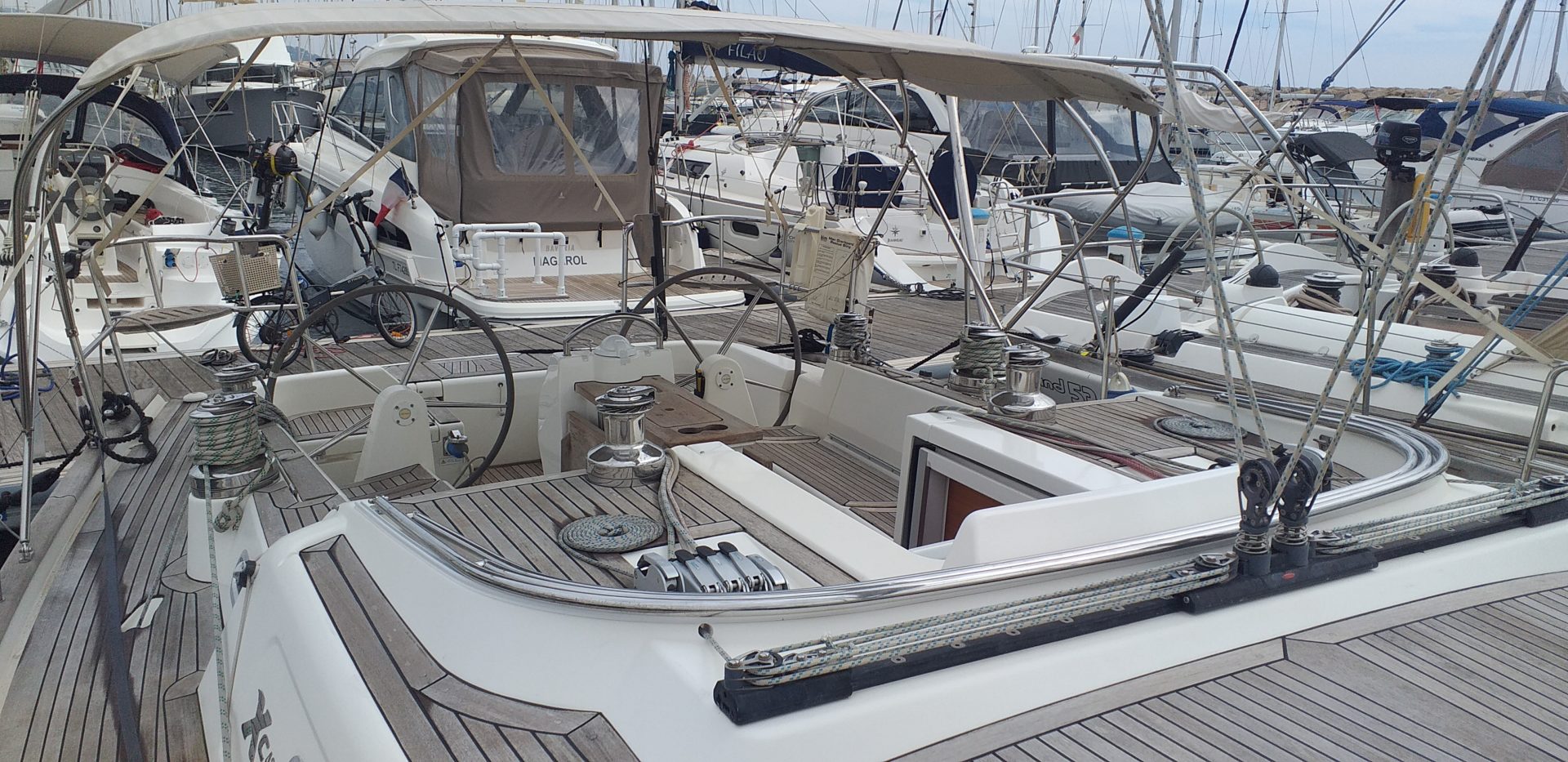

Sail Handling

• - Stainless Steel Andersen 58.2 primary winches
• - Stainless Steel Andersen 46.2 for Geman Mainsheet system incl 1 electric
• - Stainless Steel Andersen 46.2 for halyards, including 1 electric
• - Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• - Mainsail track in front of sprayhood
• - Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• - Asymetric spinnaker hardware and rigging,stainless steel powsprit

Sails

• - NORTH SAILS quiver including
• - Furling Full batten Spectra mainsail 2018
• - Furling genoa 140 % with PROFURL furler
• - Gennaker C2 with furler 2015
• - Assymletrical spinnaker with snufer

Mast & Rigging

• - JOHN MAST Fractional double spreader, tapered silver anodized aluminium mast
• - stepped on steel frame, specially designed for Xc 42
• - Combined deck and steaming light, Windex with light, tube for additional
• - electrical equipment and 2 mast steps fitted
• - Silver anodized boom with single line reefing and internal boom outhaul with
• - control on boom, telescopic vang and outer purchase block system
• - Split backstay fitted with single Navtec 10 integral backstay adjuster on starboard
• - side and turnbuckle on portTip cups in stainless steel fitted to stainless steel tie rods (2 pcs)
• - Discontinuous rod rigging throughout with rod turnbuckles inspected 2018
• - Chain plates in stainless steel for forestay and split backstay (3 pcs)
• - Folding inerstay PROFURL headsail furler
• - Running Rigging with Spectta halyard

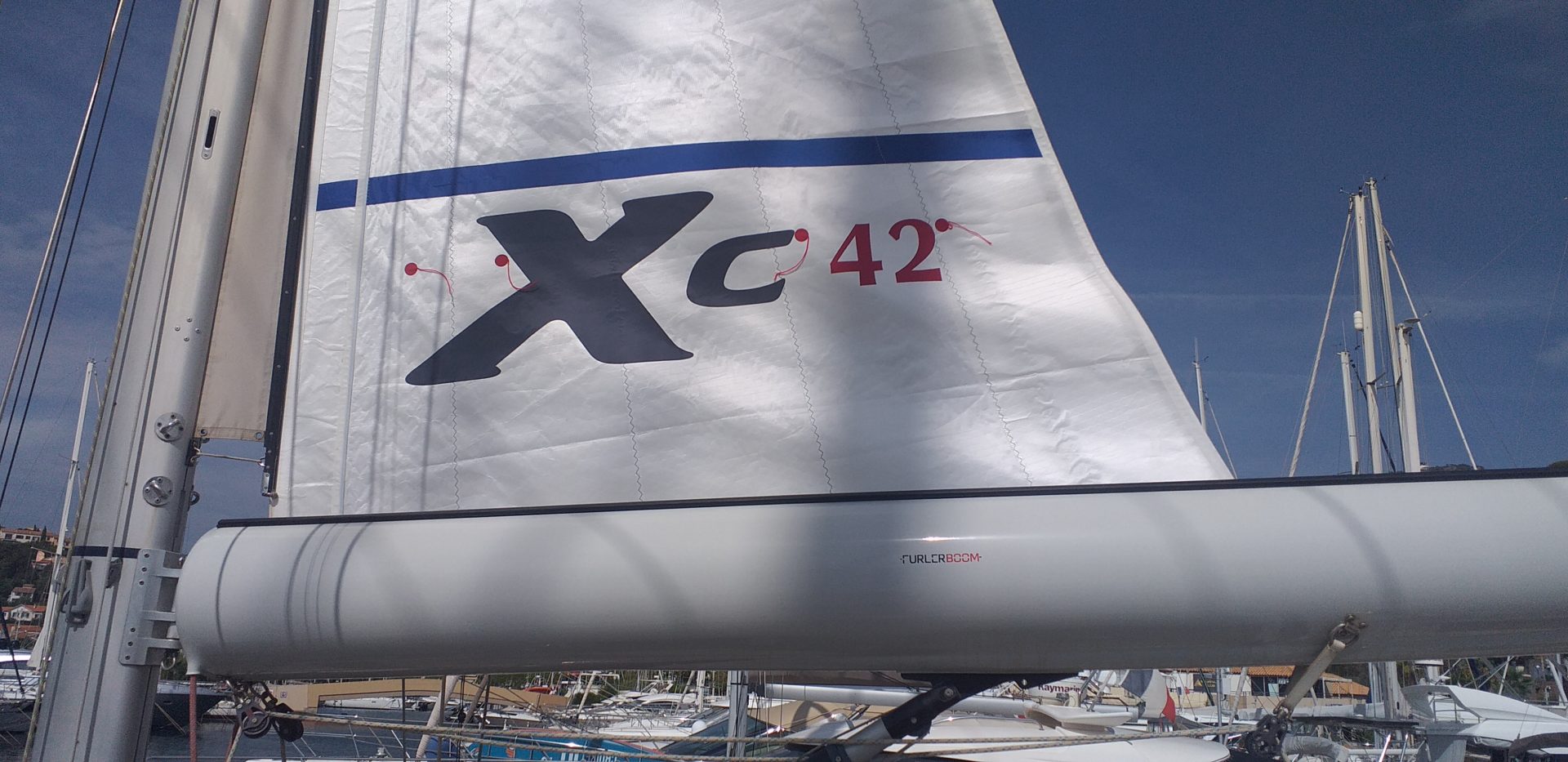

• - Furlerboom installed 2018

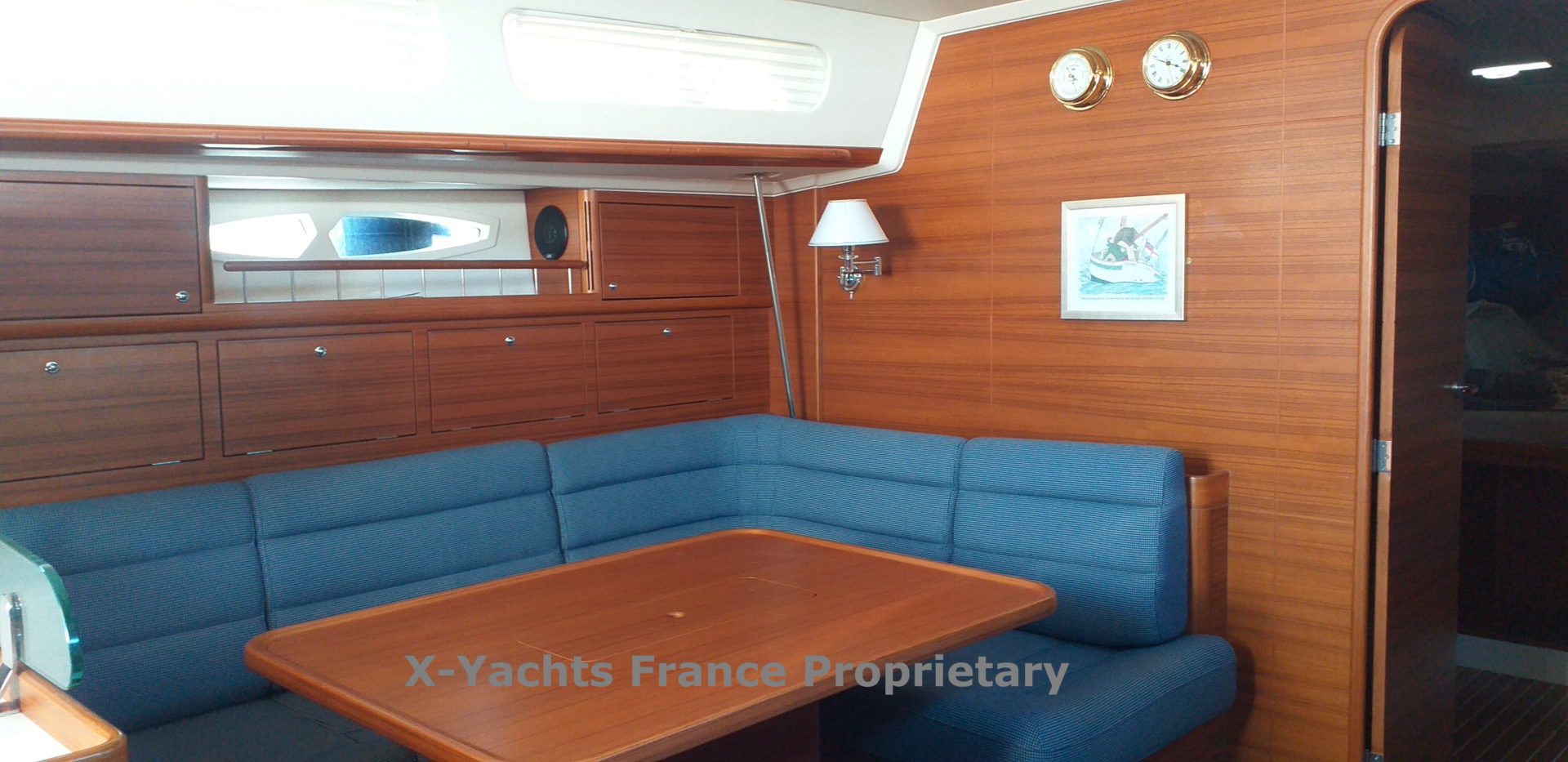

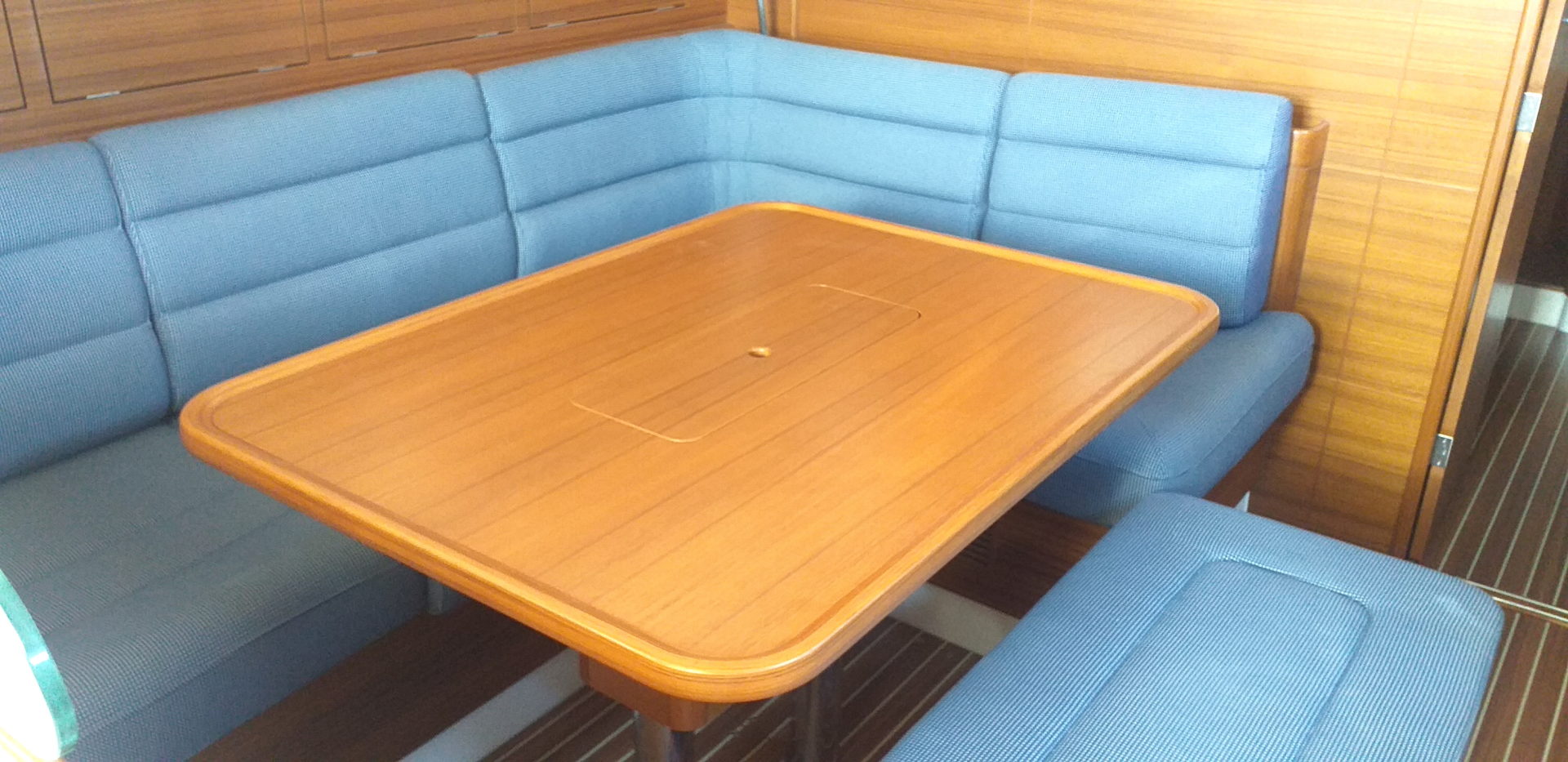

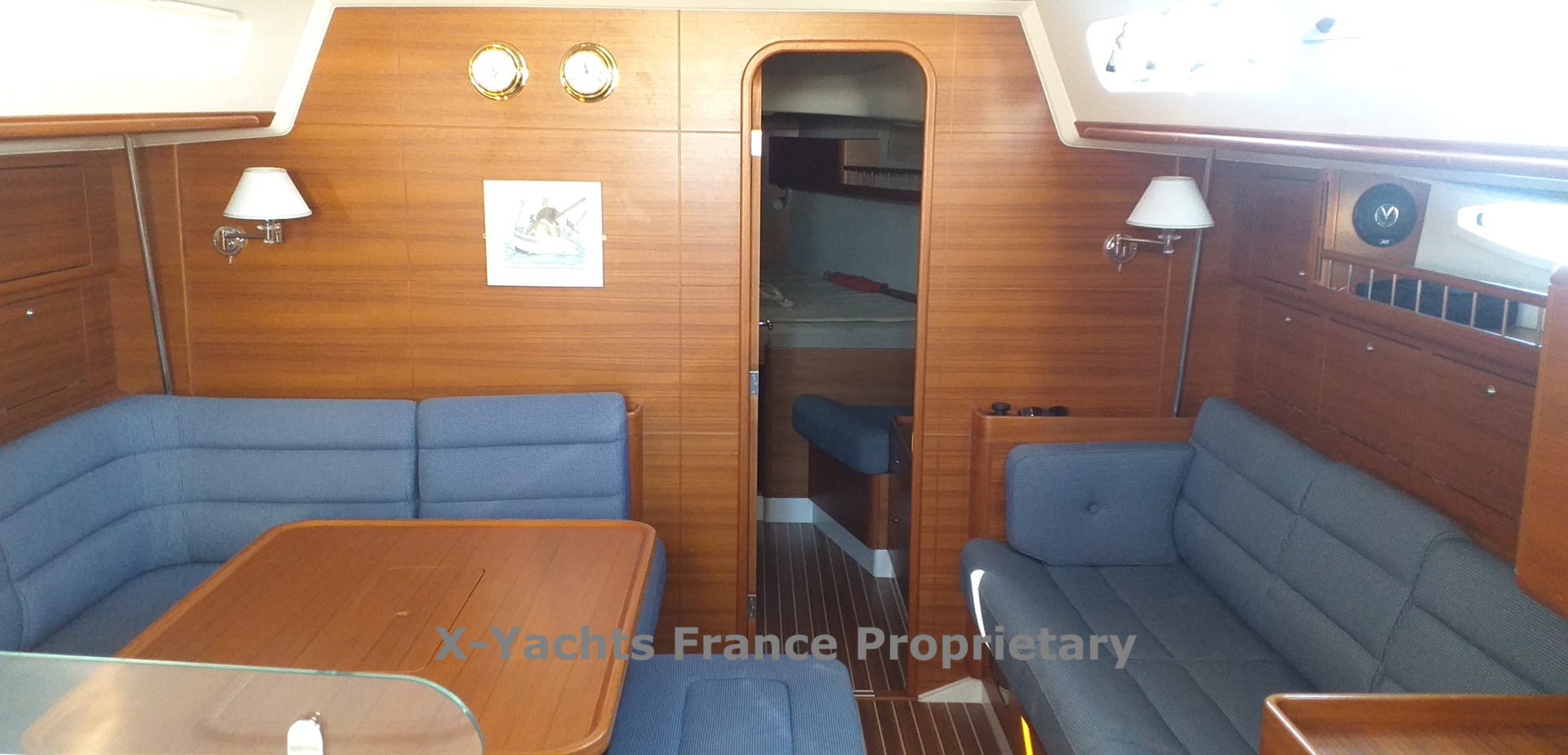

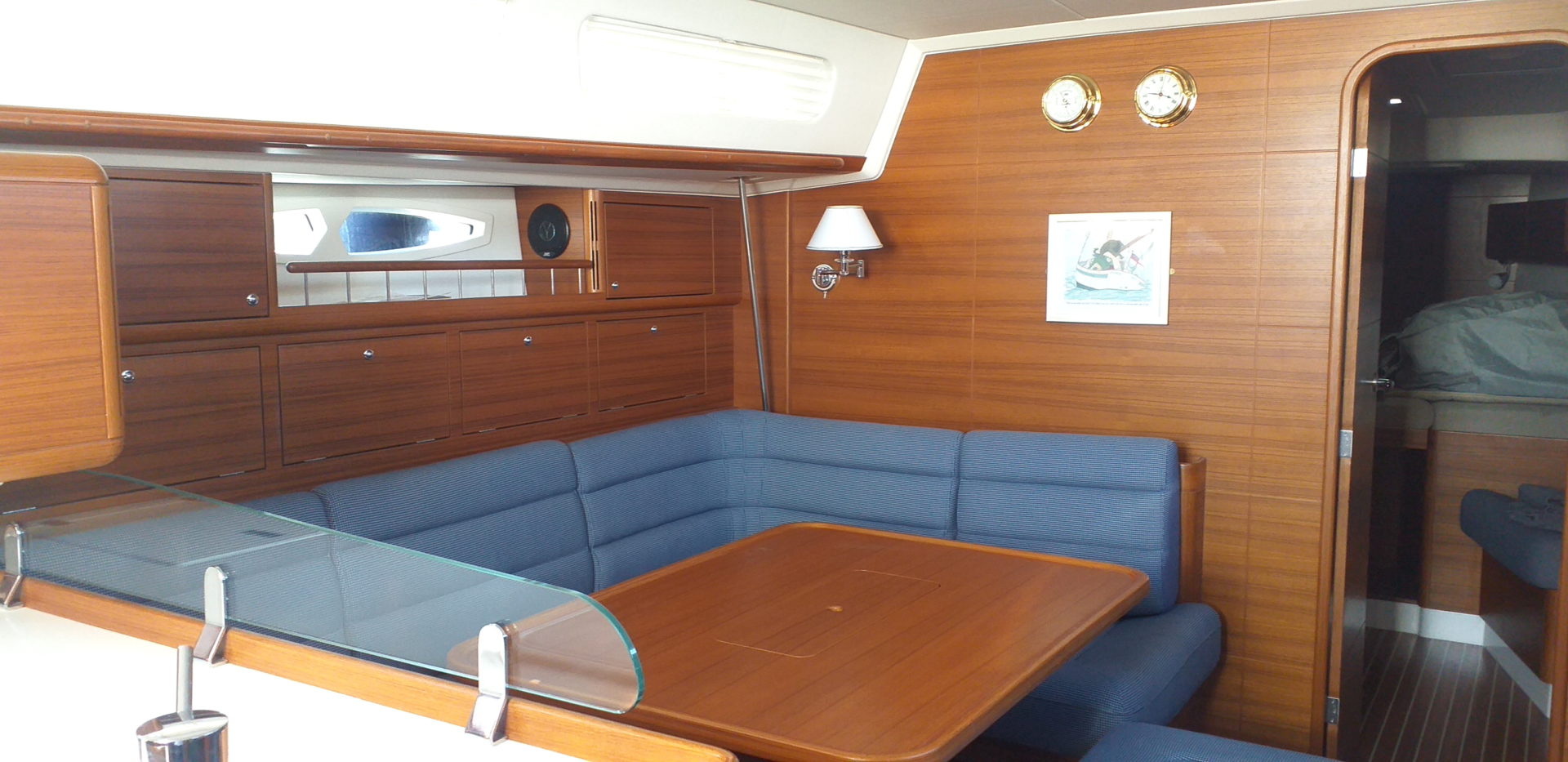

Accommodation

• - 3 cabins layout, 2 bathrooms
• - Top grade teak , varnished and hand polished satin finish, Flushdeck hatches
• - with Oceanair blinds incl flyscreen fitted to skylights, anti rollcanvas in all cabins.

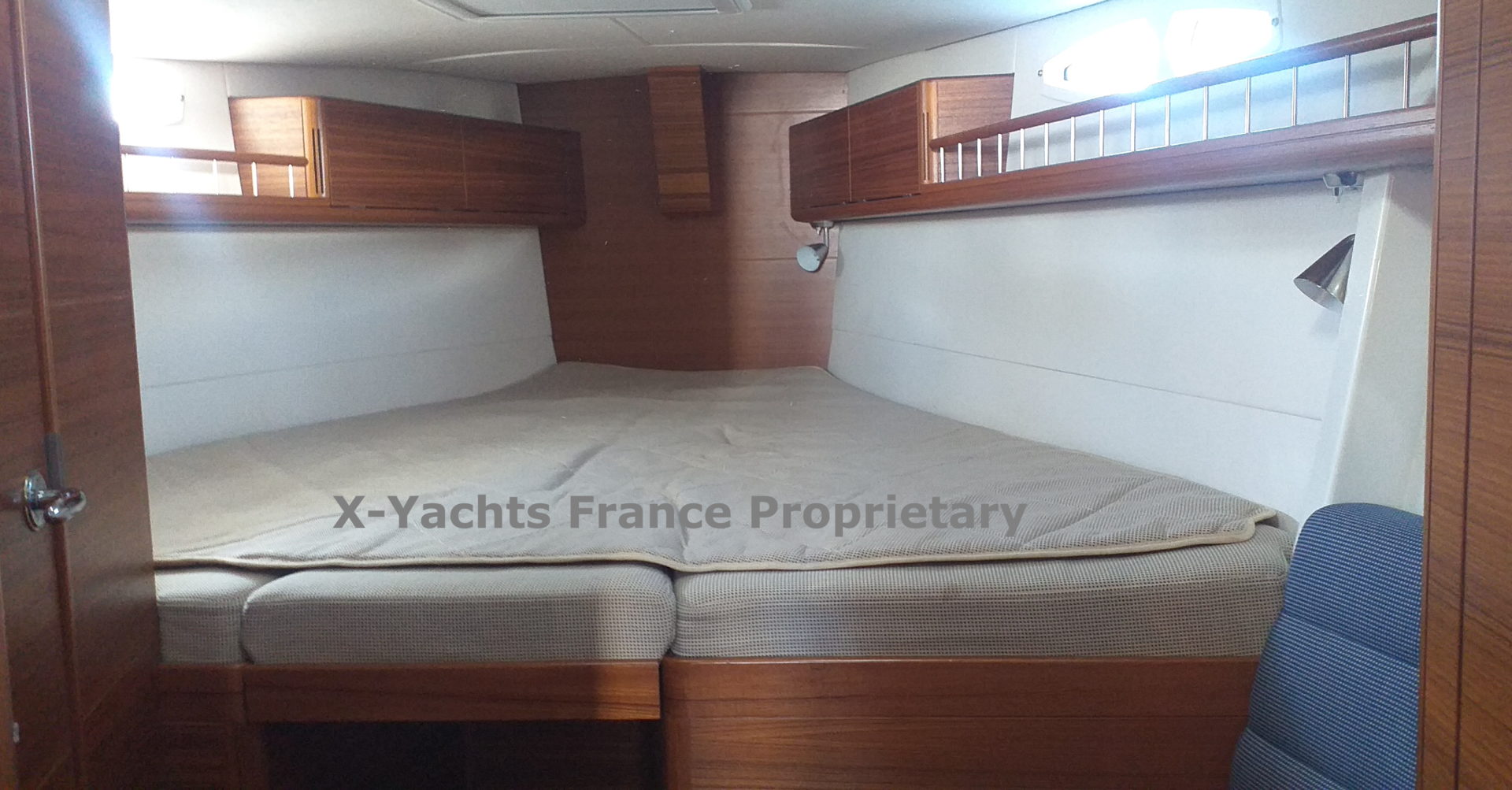

• - Owner's cabin with large double berth 210 x 140 on portside with curved
• - laminated battens, soffa on starboard
• - Owner’s bathroom with dedicated shower compartment with Plexi glass
• - door.Marine toilets with holding tank
• - Large double berths in aft cabins
• - Aft bathroom with shower, marine toilettes with holding tank Showers with
• - electric drainage pump

Systems

Engine

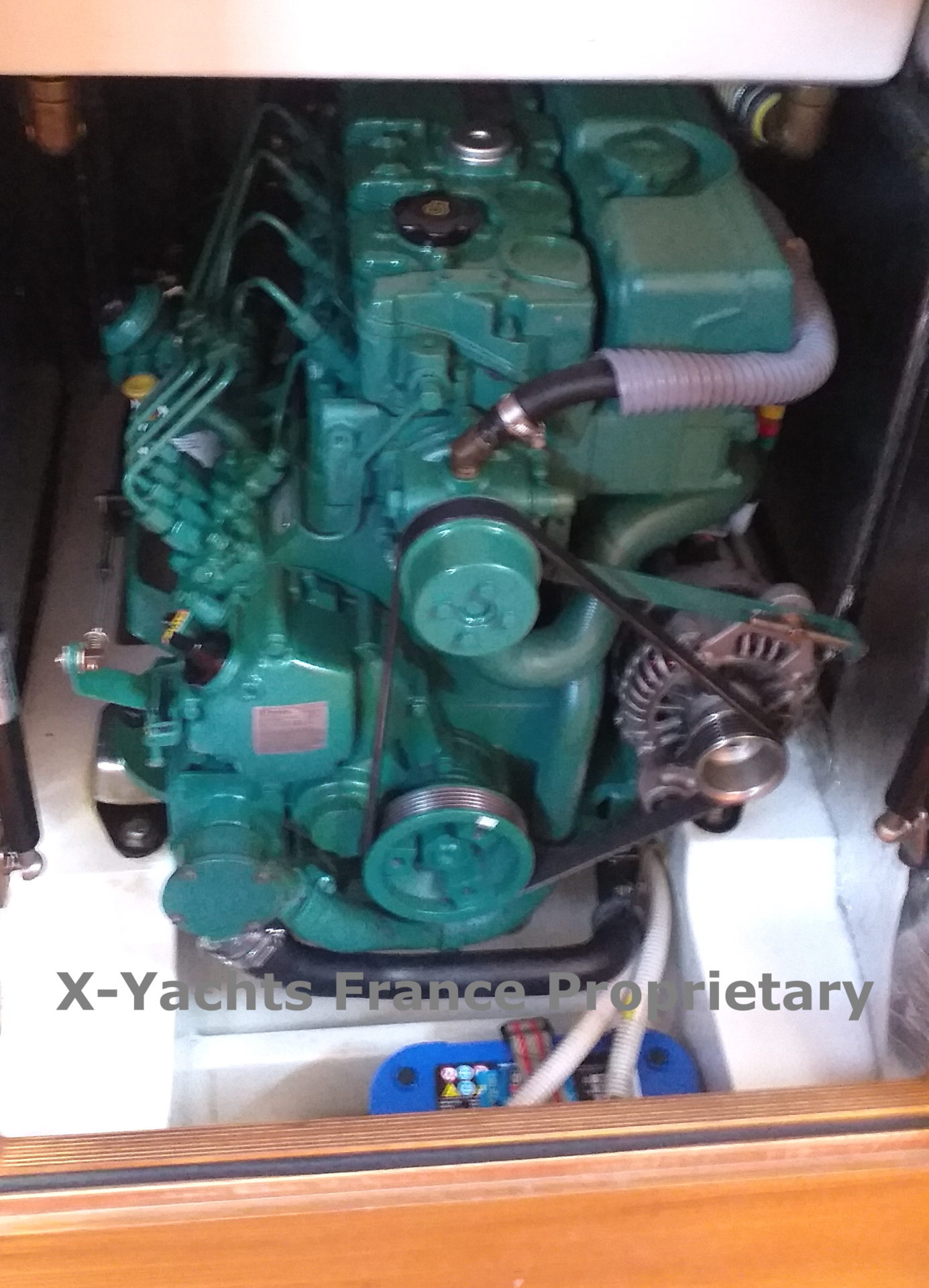

• - Main engine - VOLVO D2 55 HP. annual maintenance
• - 1x Alternator 12V 115 Amp
• - 1x saltwater filter
• - FLEXOFOLD 3 blad-es folding propeller
• - Fuel tank 250 L with oil filter
• - Retractable bowthruster MAXPOWER Compac Retract 12 V

Plumbing

• - Seacocks and through hull fittings are bronze ball and flush mounted
• - Fresh water stainless steel tank total 520 litres
• - Hot water tank Isotherm 30 l. Tank can be heated either by main engine or
• - Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• - Seawater pump at galley
• - Deck shower fitted at bathing platform with hot/cold freshwater

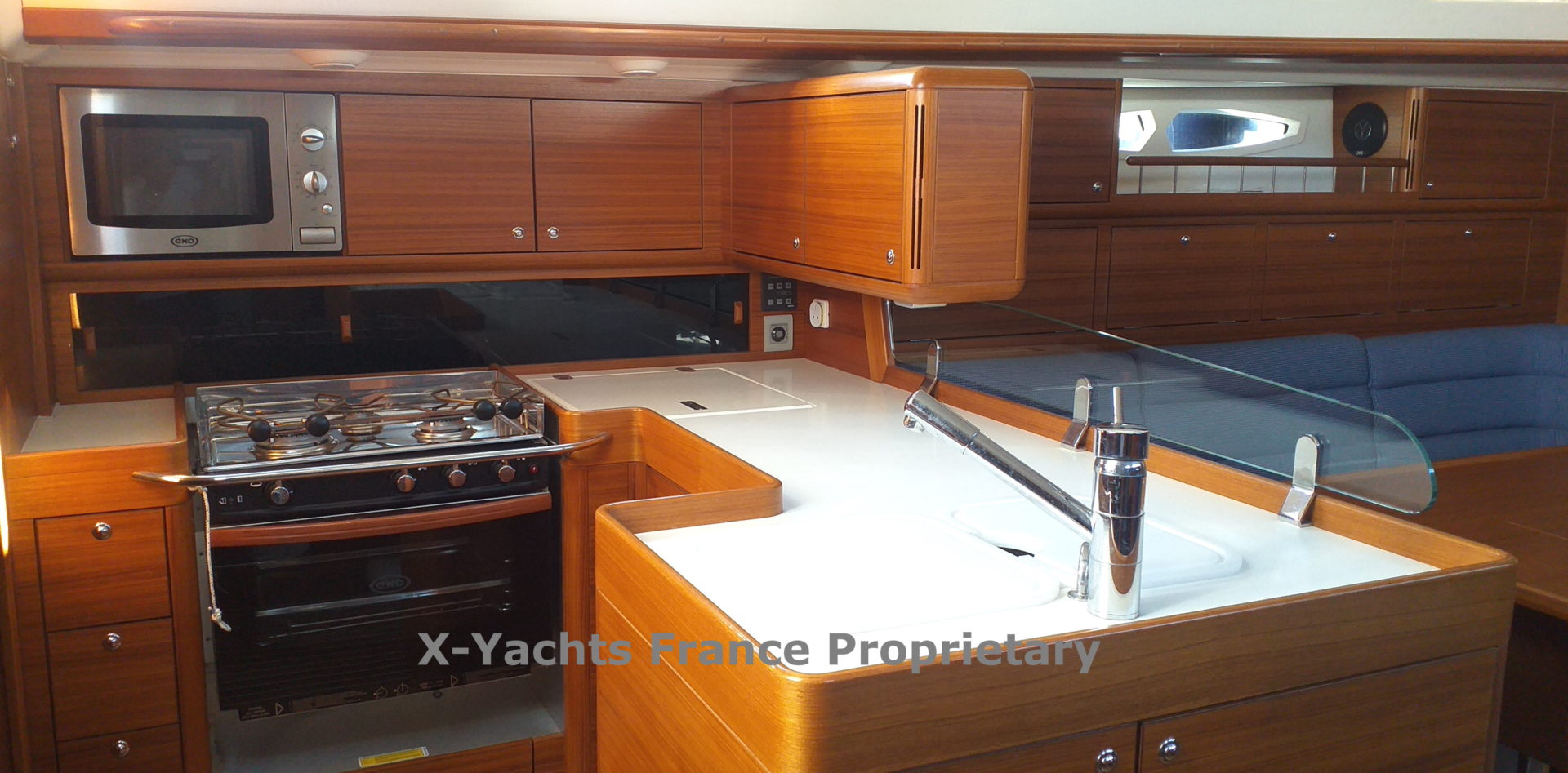

• - 2x Electric fridge cooled Danfoss compressor

Electrical

• - 12 V installation for service Main switch and analogue VDO meters for fuel, water and battery voltage
• - AGM services batteries 4 x 130 Amp 2015
• - Separate engine spiral-cell battery (70 Ah, 12V) 2015
• - Shore power installation with shore power inlet mounted in cockpit
• - AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches for hot water heater and VICTRON battery charger 12 V/50A + inverter
• - Micro Wave
• - Gaz detector
• - Additional fridge with front opening
• - 1 electrical toilett in the aft bathroom
• - WEBASTO heater

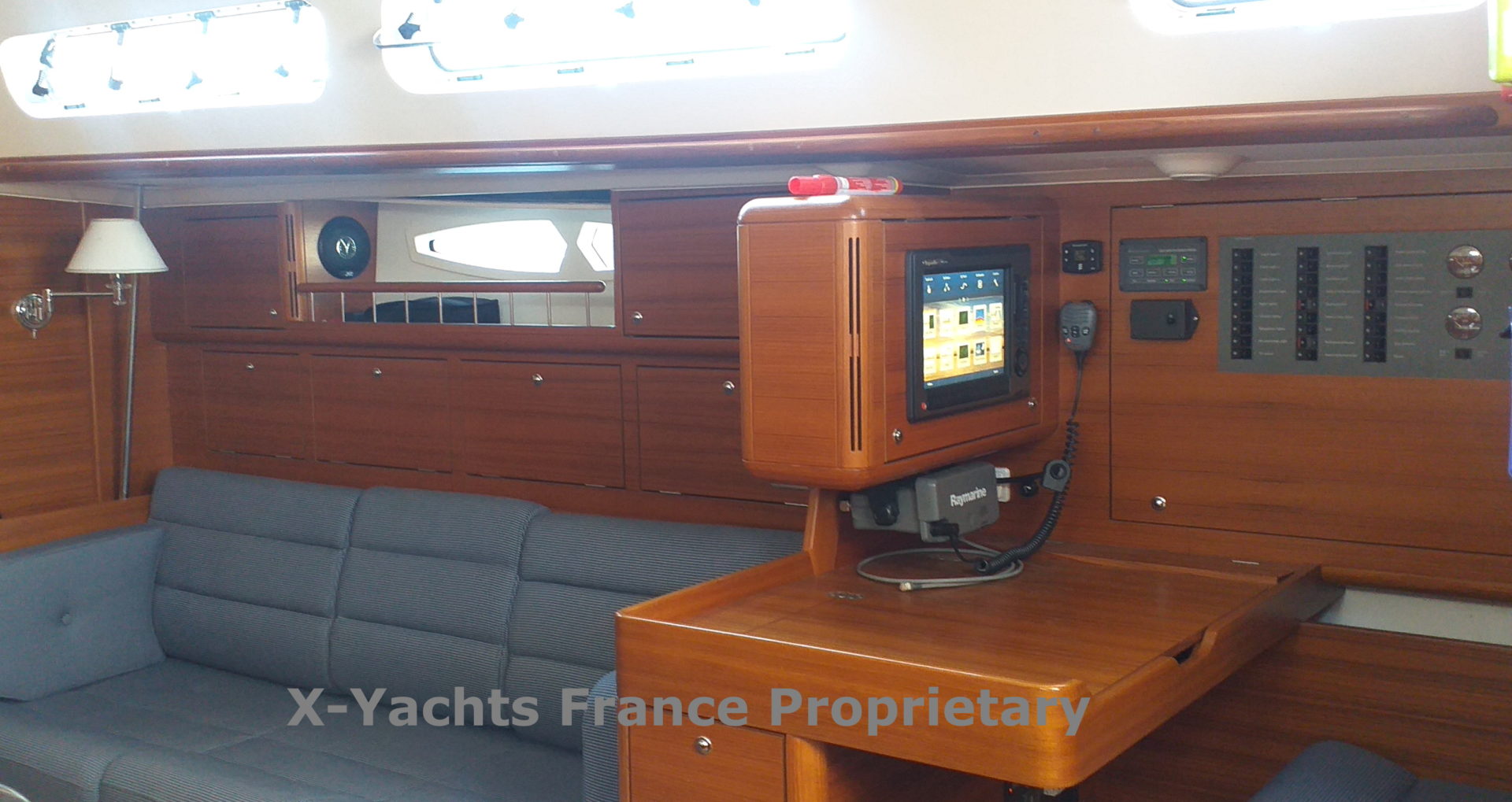

Electronics

• RAYMARINE electronic
• - 2 x displays C 70 Graphic in the cockpit updated 2015

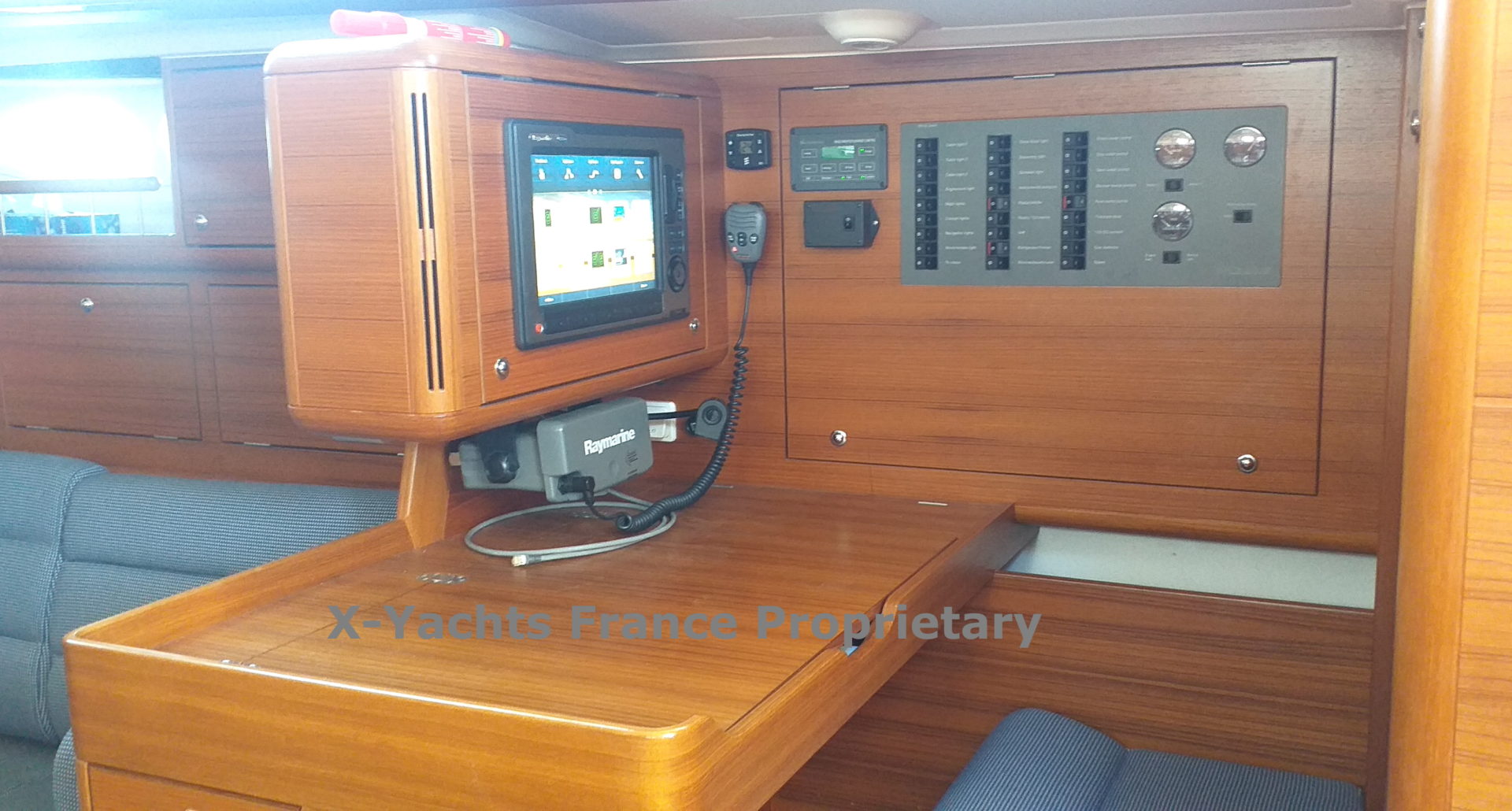

• - 1 x C90 chart plotter at the chart table updated 2015
• - 1 x C90 chart plotter in the cockpit updated 2015
• - Auto pilot
• - Radar transpondeur
• - VHF RAY E 290
