Details

Exterior Details

Hull

• White hull with dark grey waterlines
• Bottom treatment from yard (3x epoxy & 2x antifouling spray applied)
• Bottom treatment re-done (new epoxy and antifouling) in 2021
• Steel frame - hot-galvanised, high strength, laminated into hull to absorb all loads
• from keel mast and rigging
• Single point hoist for easy and safe lifting and launching of the yacht
• Bathing platform incorporated in transom port with electrical hoisting and
• lowering system
• Bathing ladder in stainless steel mounted onto bathing platform
• Continuous stainless steel rail protection mounted on sheerline
• Hull recessed portlights - X-Yachts style (4 pcs)

Deck

• Teak deck on side deck, coach roof, cockpit sole, cockpit seats and bathing
• platform
• Bulwark with teak capping incorporated in deck/hull design
• Gas springs fitted to all cockpit lockers (4 pcs)
• Cockpit table with compass
• Bose cockpit speakers connected to radio/CD/multimedia player
• Electrical halyard winch on port side
• Electrical genoa winches
• A-frame on bow with teak capping and attachment point for gennaker
• Electrical anchor winch with 50m chain and anchor

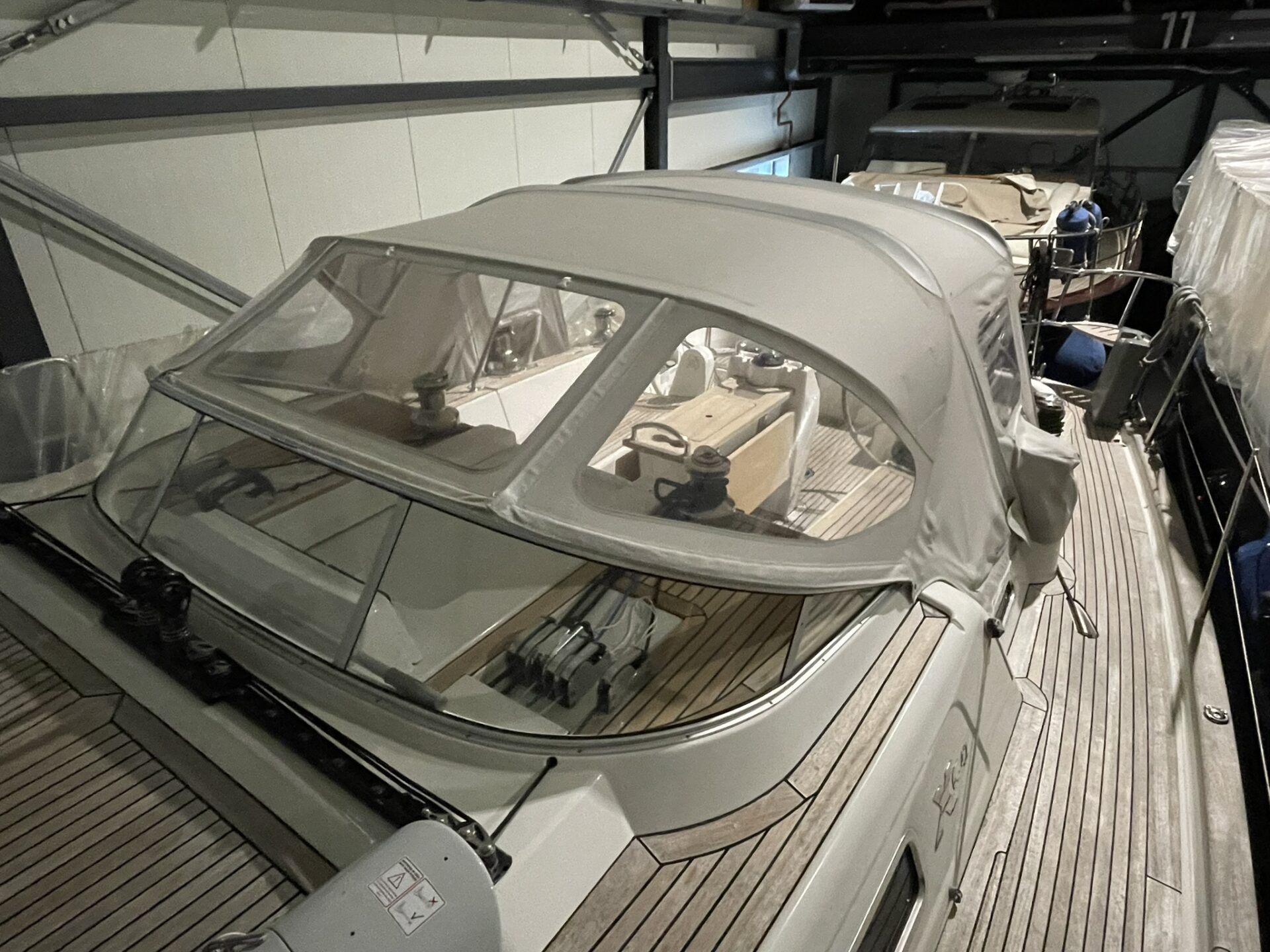

• Fixed windscreen in front of companionway, with sprayhood
• Sprayhood renewed spring 2023
• Additional part to elongate the sprayhood, for even more protection of the cockpit (spring 2023)
• Shower in cockpit (with hot/cold water)
• Set of cockpit cushions with backrest parts as well
• Gennaker sheeting package, with ball bearing blocks and tackline
• New leather on steering wheels (spring 2023)

Sails

• North Sails 3Di Endurance furling mainsail, fully battened (2020)
• North Sails 3Di Endurance furling jib, with vertical battens and UV-cover (2021)

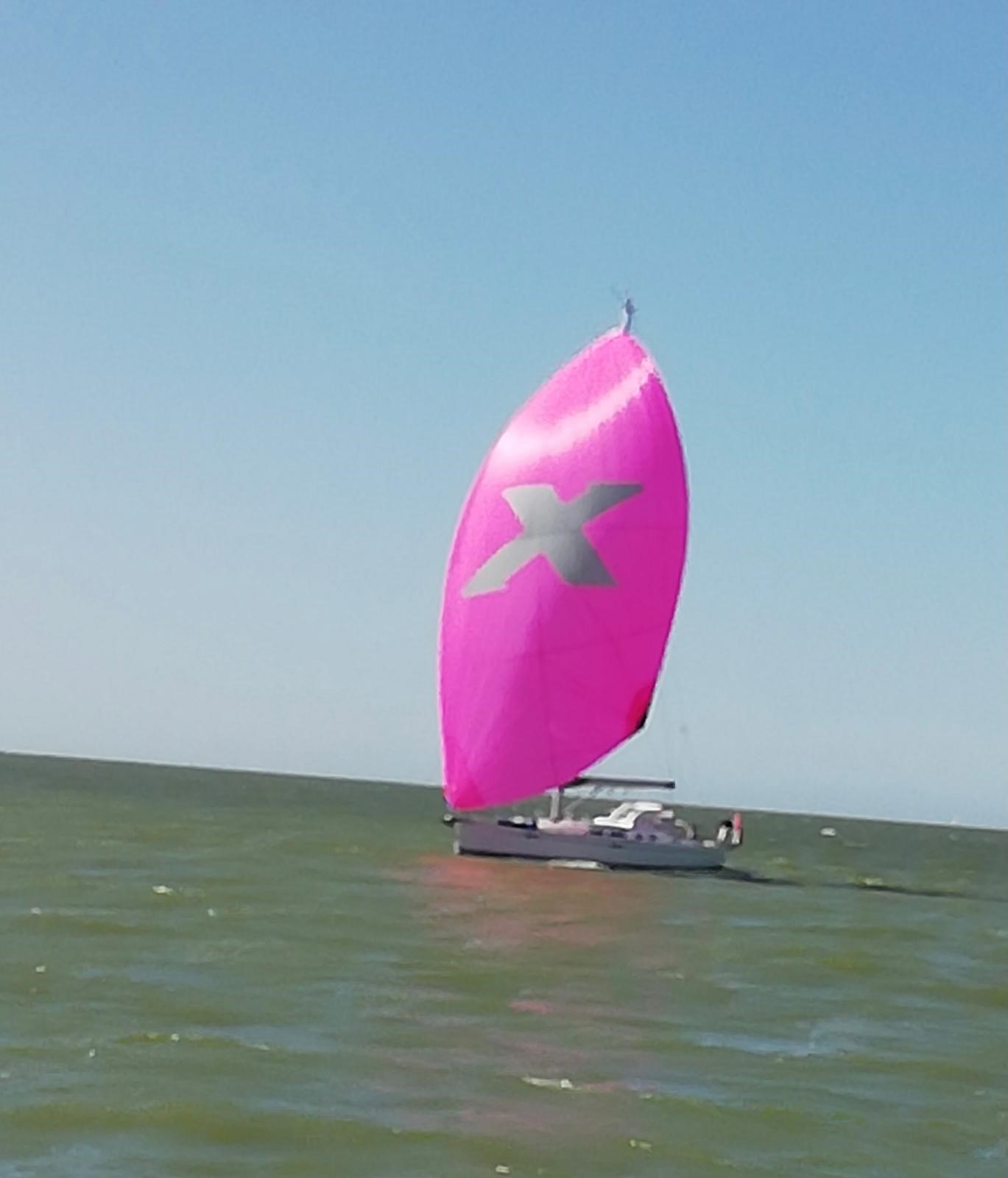

• North Sails gennaker (colour pink) on furler (2021)
• North Sails code 0 in laminate cloth, with furler (2022)
• Cover for furling genoa
• Cover for cockpit table
• Covers for steering wheels

Mast & Rigging

• New from 2023: fractional double spreader, tapered silver anodized aluminium mast stepped on steel frame and specially designed for Xc 42 by John Mast
• New from 2023: complete set of standing rigging for John Mast rig
• Combined 3-colour/anchor light in top of mast
• Windex in top
• VHF antenna in top of mast
• Two extra mast steps
• New from 2023: Furlerboom in-boom furling system in modern V-shape, with integrated mainsail cover
• Split backstay fitted with single Navtec 10 integral backstay adjuster
• Reckmann furling system for genoa (fully serviced in 2023, with most profiles renewed)
• Tri-Lenz radar reflector in mast at first spreader
• Bracket for radardome mounted at first spreader

Accommodation

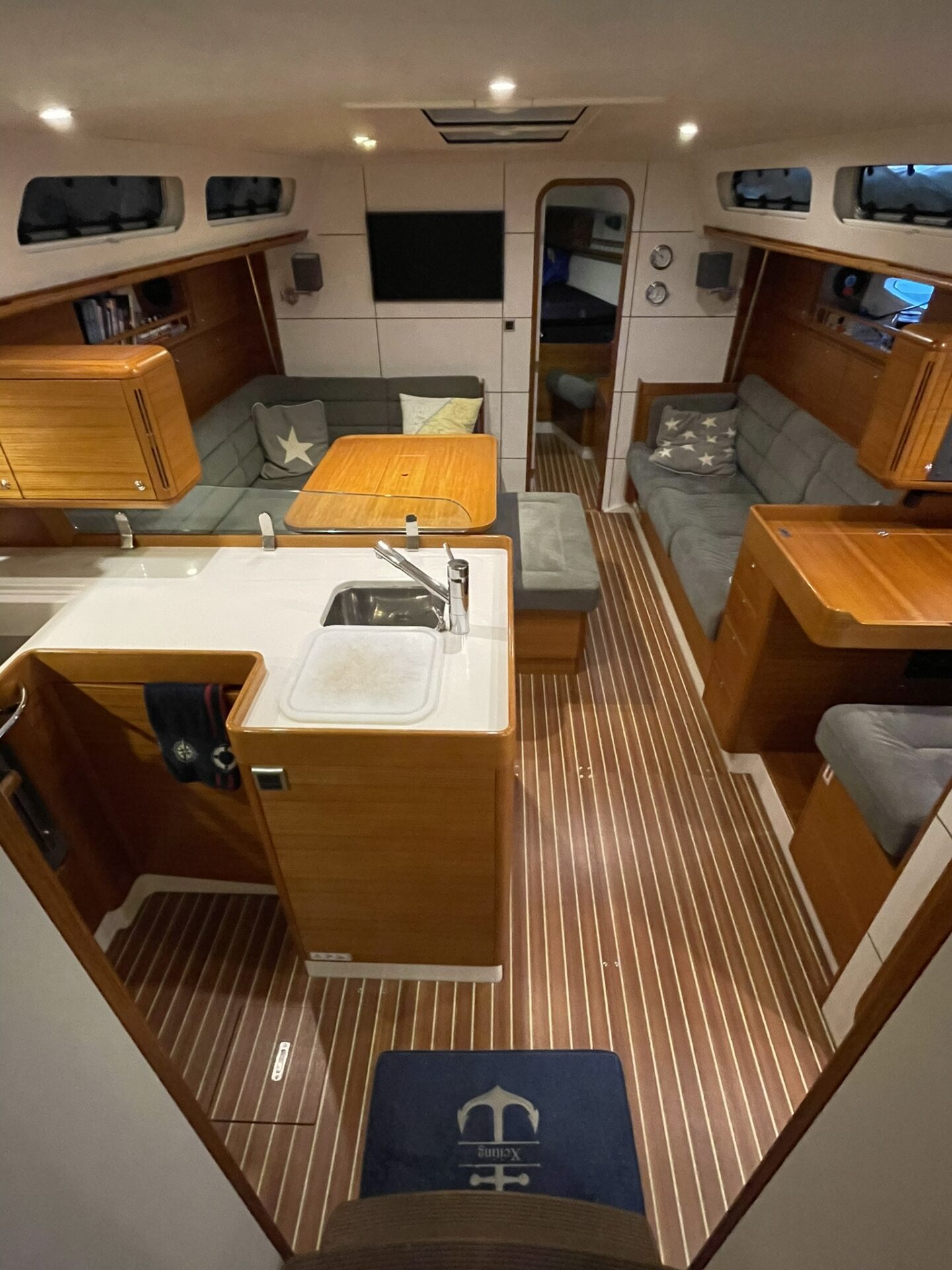

Interior

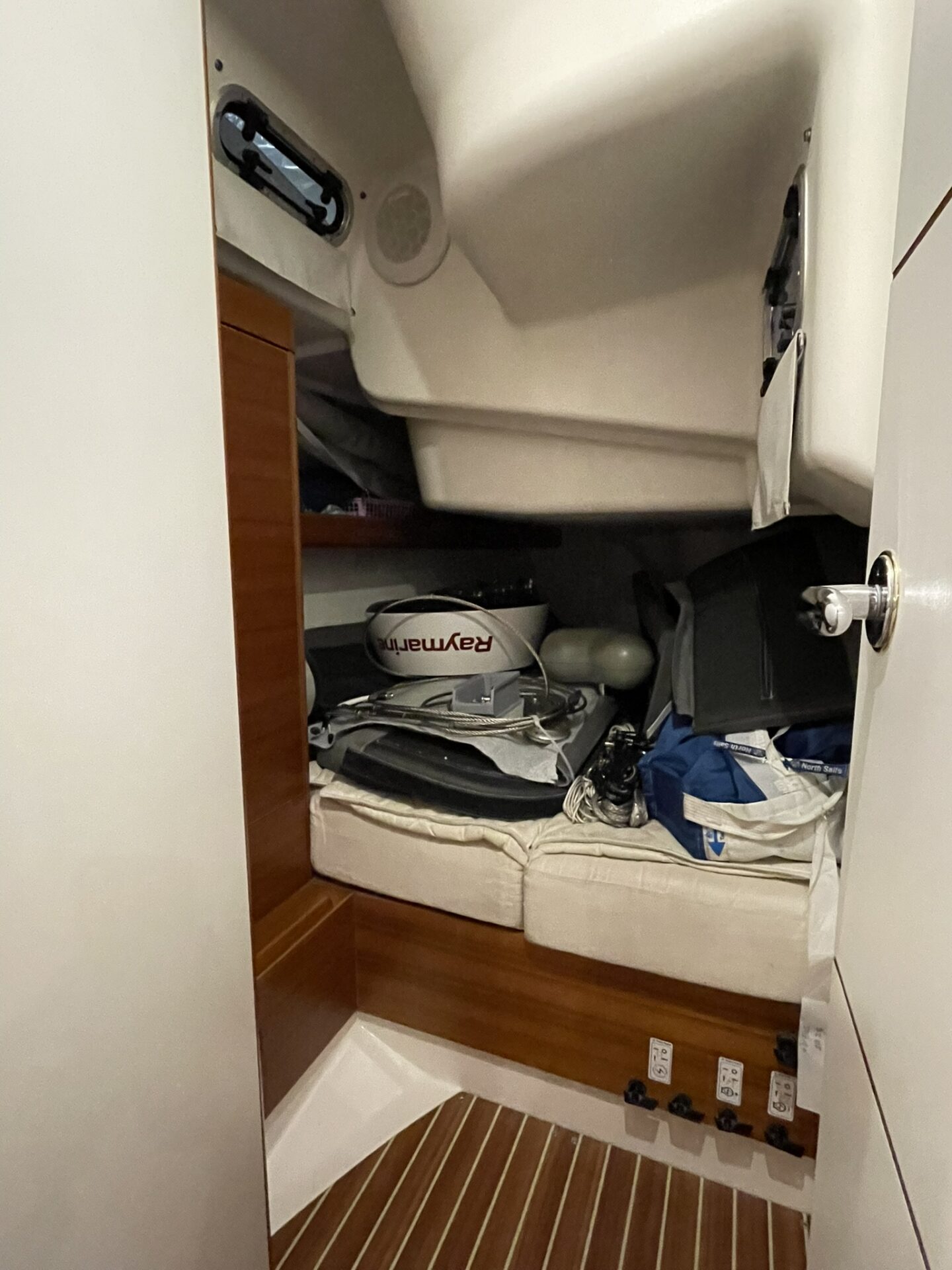

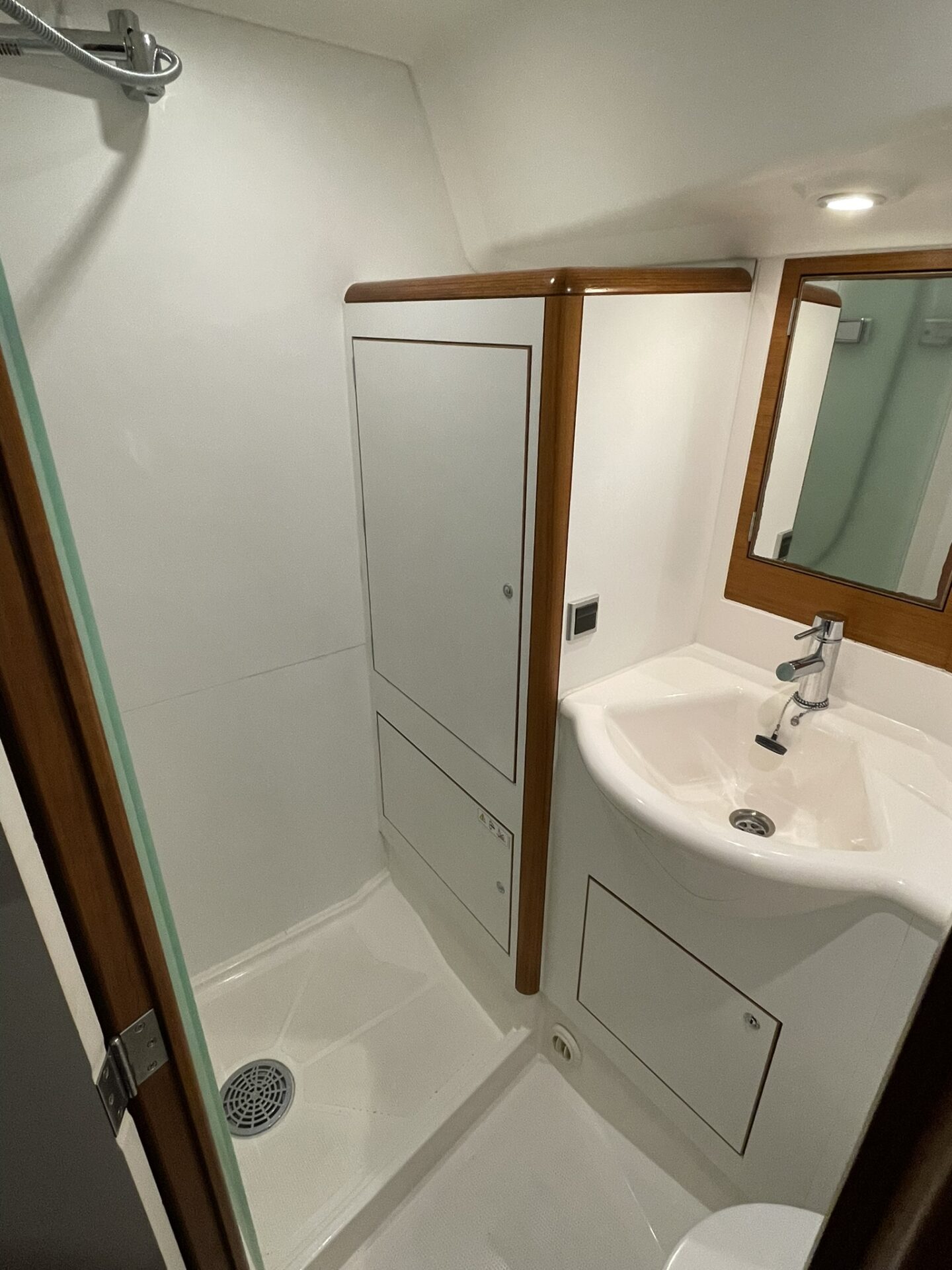

• 3-cabin version with 2 toilets
• Bulkheads in white finish

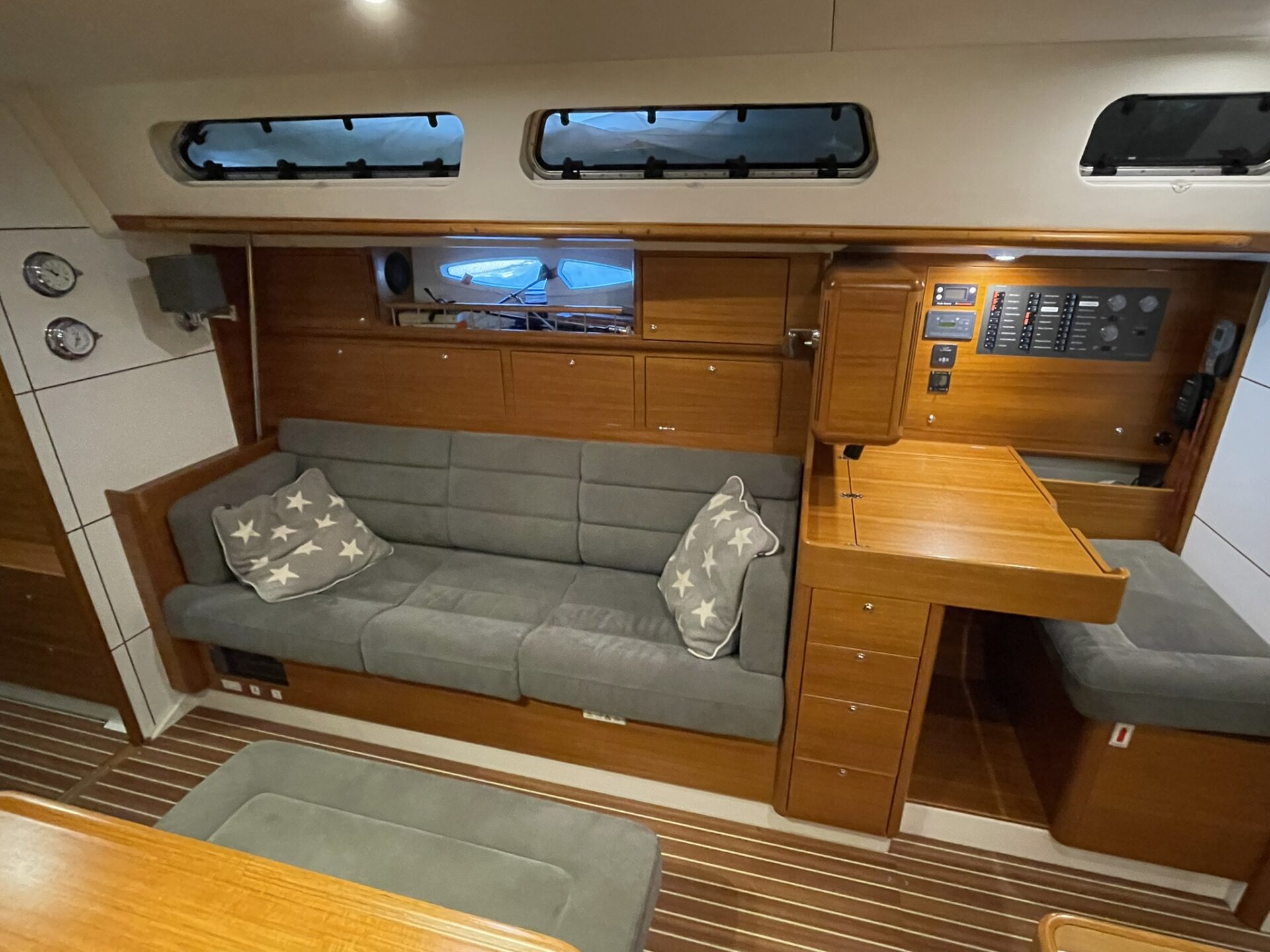

• Alcantara upholstery in saloon in grey
• TV at main bulkhead, with antenna in masttop
• Fusion multimedia player with speakers in saloon (2023)
• Cool box built in Isotherm Magnum accumulator plate (replaced 2023)
• Additional front-loading refrigerator with 85l capacity (replaced 2021)

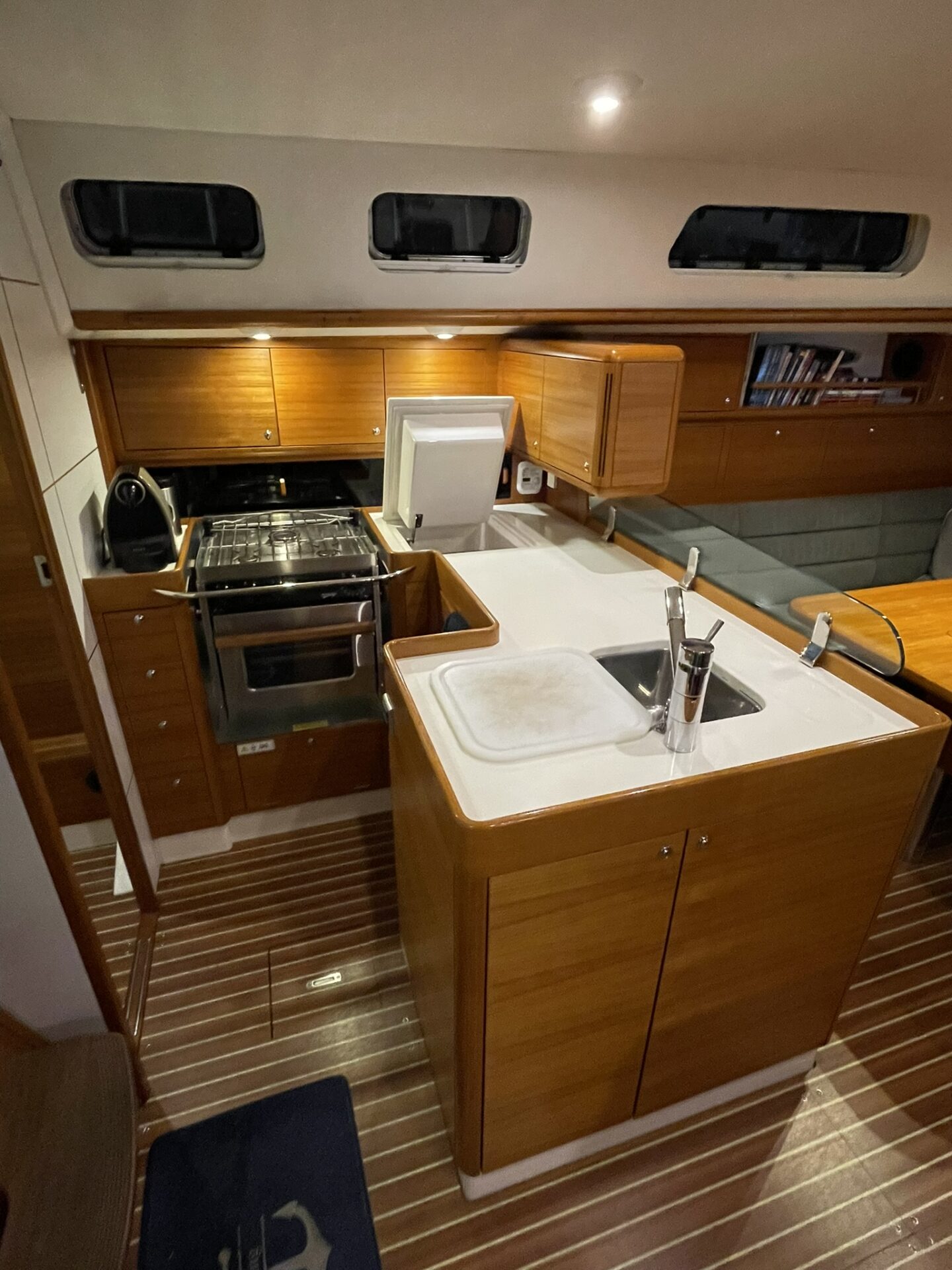

• Force 10 3-burner gas stove with oven
• Eberspächer heating system

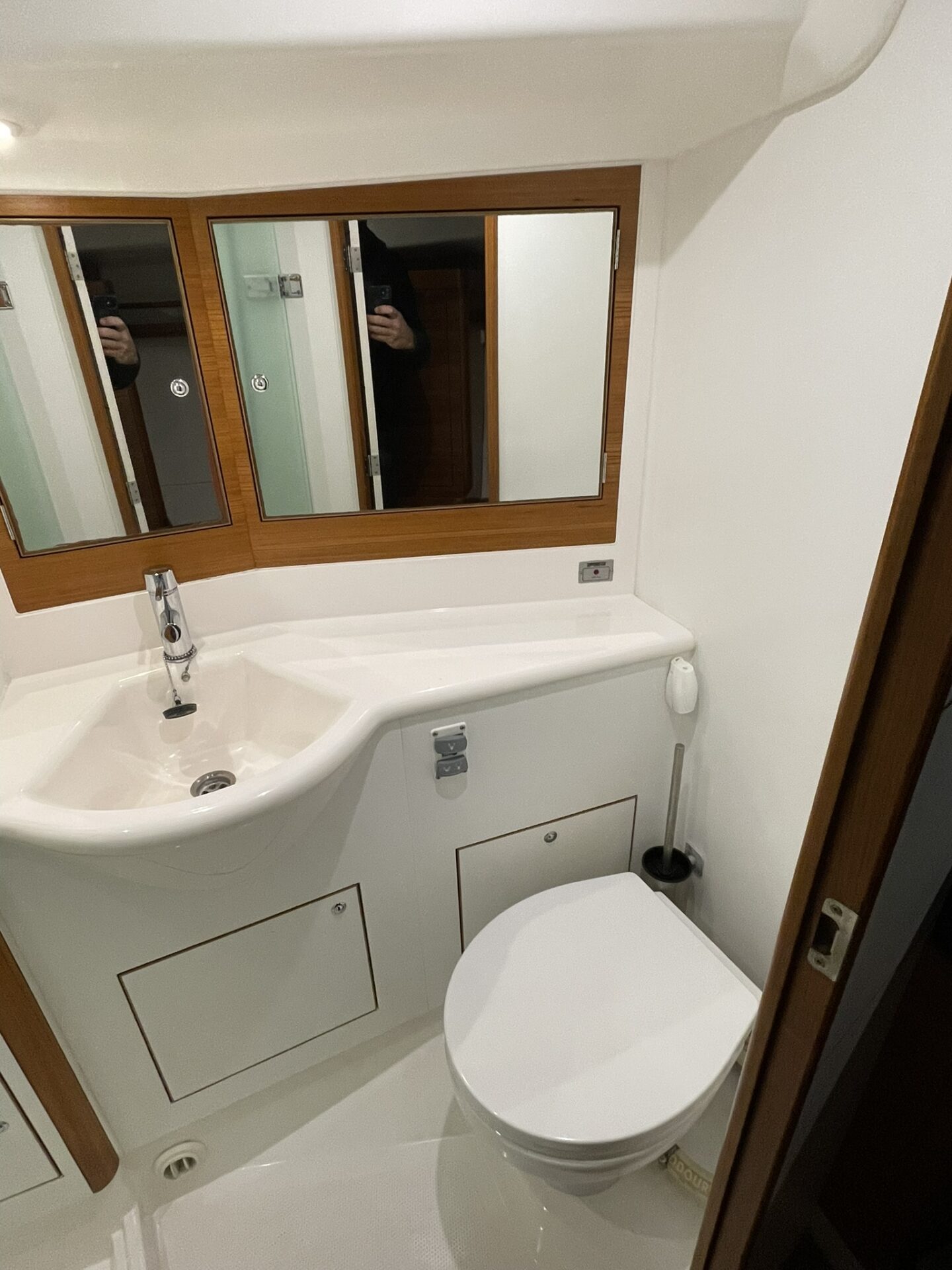

• Jabsco QuietFlush electrical toilet in forward heads

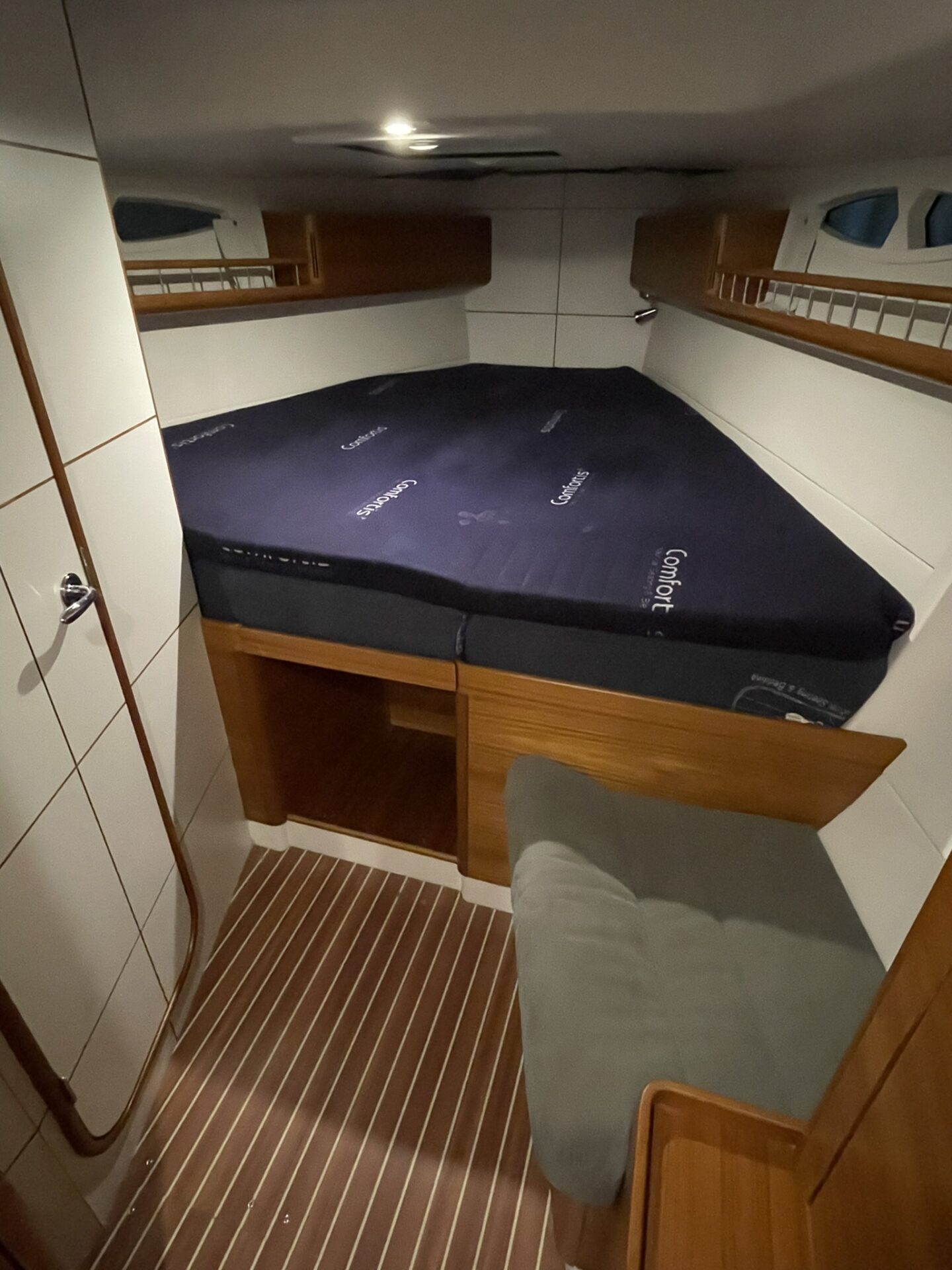

• Comfortis custom comfort matrasses in forward cabin
• Washing machine in forward heads (replaced for Euronova 1150 type in 2019)

Systems

Engine

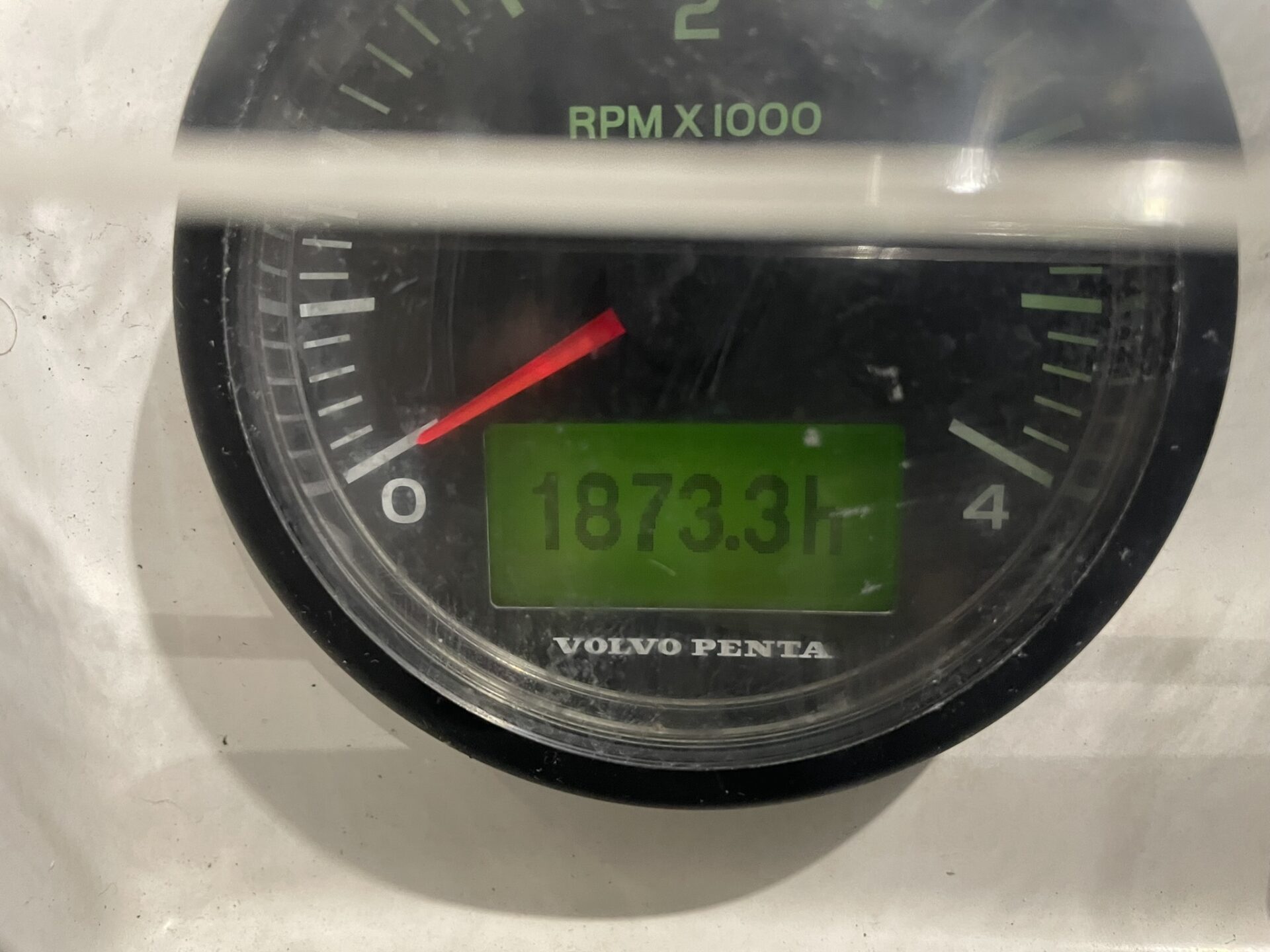

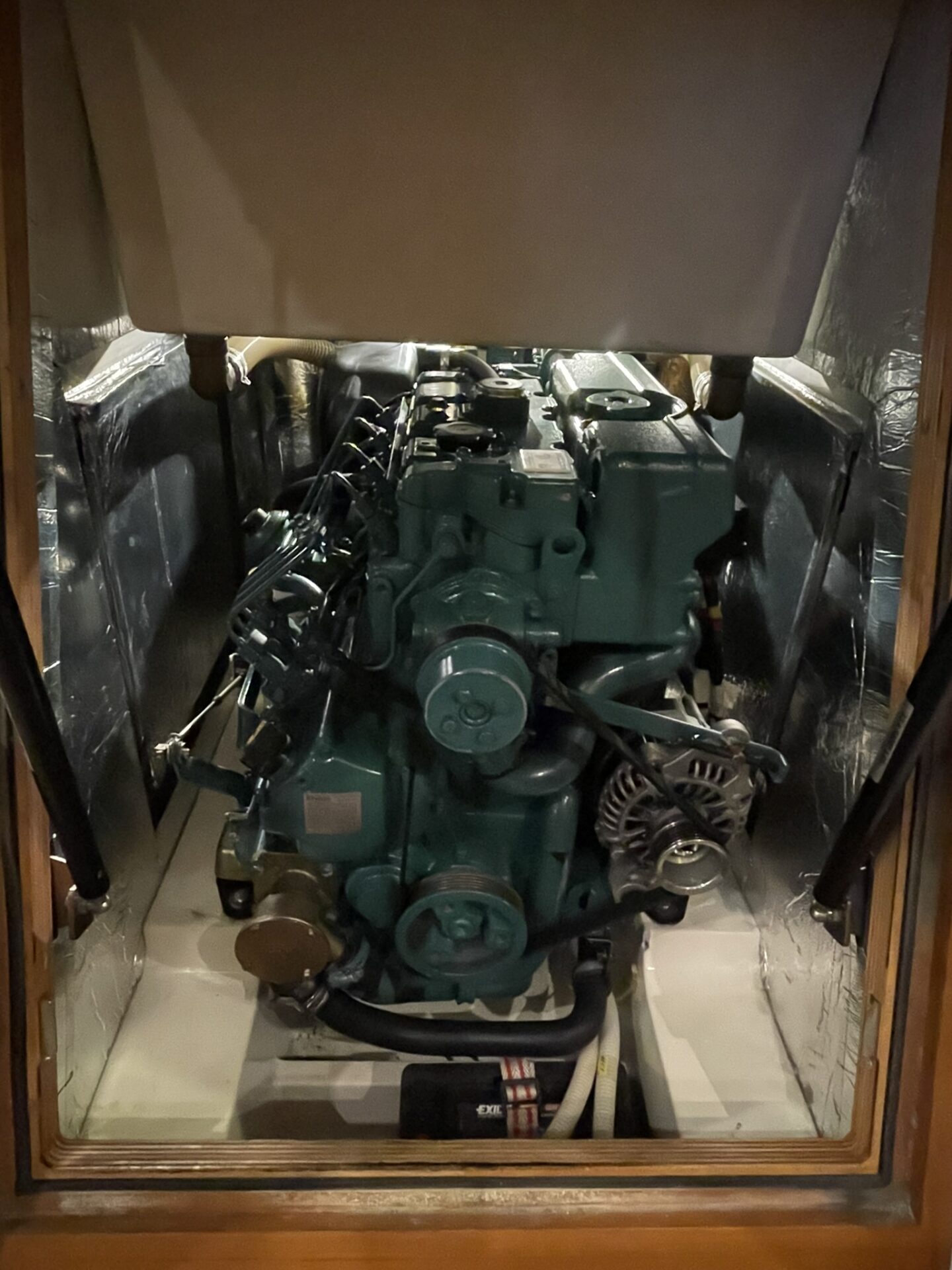

• Volvo Penta D2-75 main engine, serviced yearly
• 3-blade folding propellor (new 2024)
• Saildrive seal replaced 2017
• MaxPower retractable bowthruster

Electrical

• Lithium battery bank for service functions: 2x 200Ah (mounted 2022)
• Separate starter battery for engine
• Mastervolt charger for service batteries
• Victron inverter 1600W with remote control (connected to socket at galley and socket in port aft cabin)

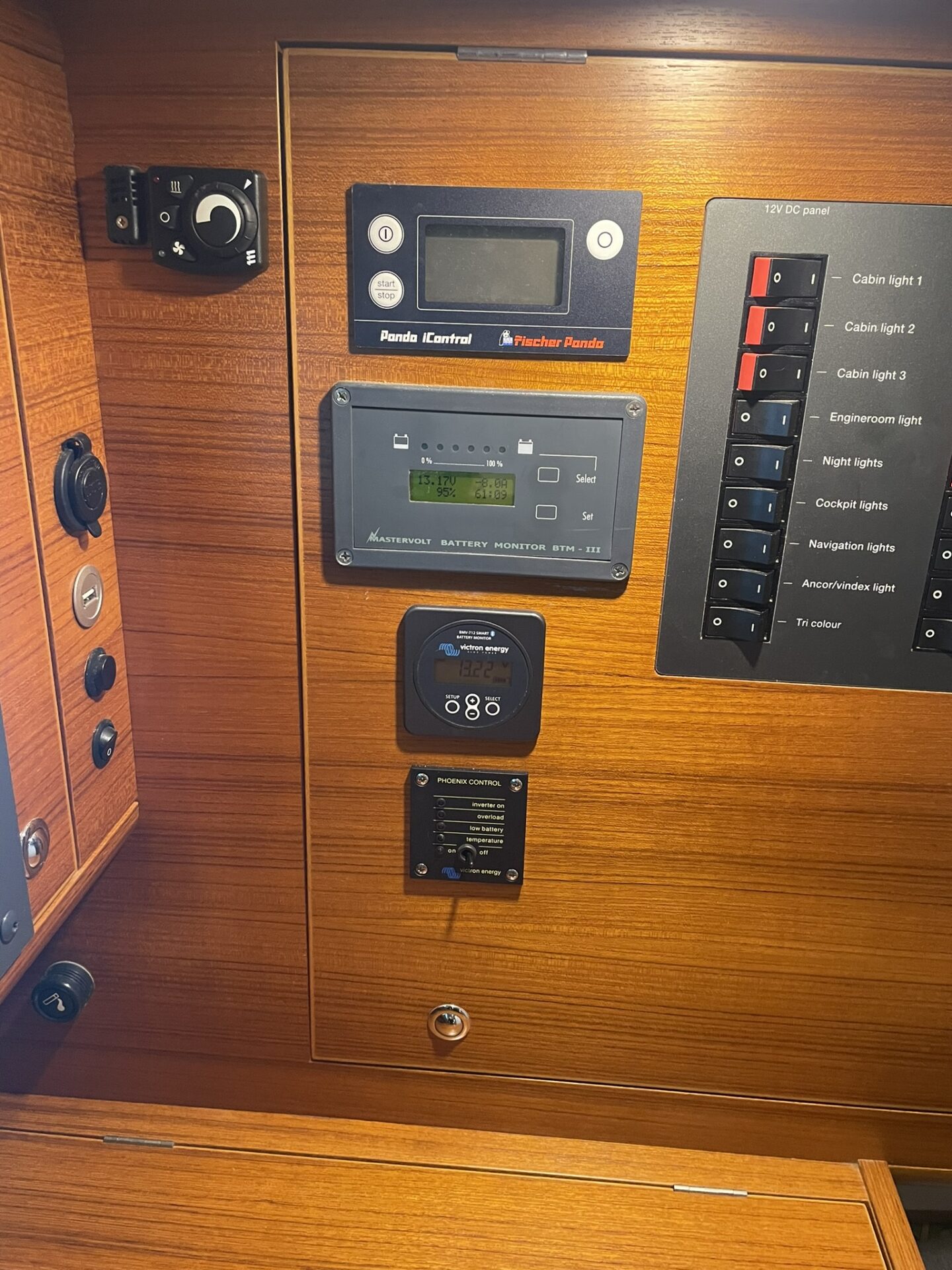

• Victron battery monitor at nav station
• Fischer Panda 4kW generator (166 hours)
• Additional 12V USB socket at nav station
• Multiple 220V sockets conveniently placed throughout interior

Electronics

• 3x Axiom 7" displays in console over sliding hatch

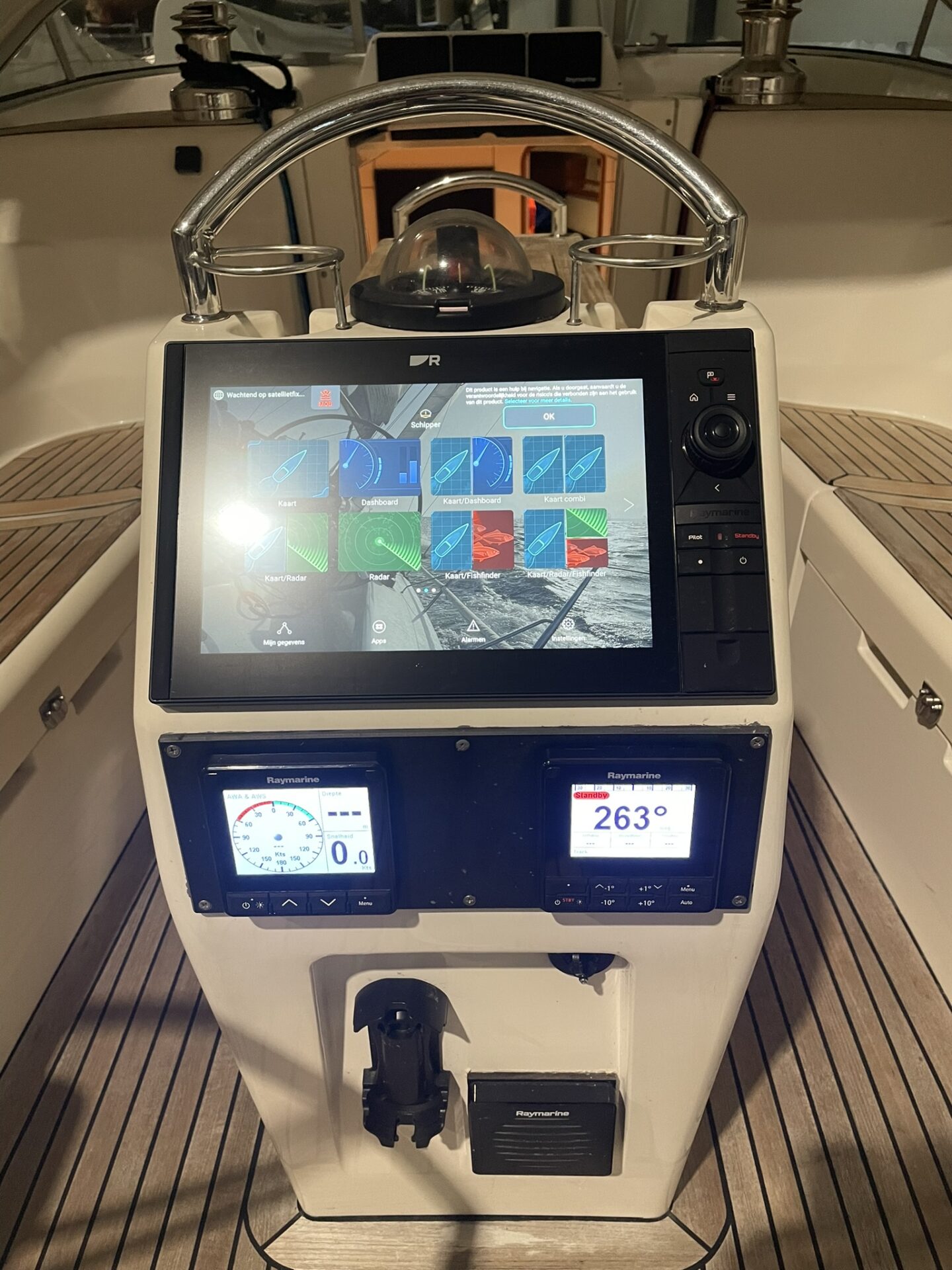

• 1x Axiom2 Pro-S 12" plotter in cockpit table (2023/2024)
• 1x Axiom Touch 9" plotter at nav station (2023/2024)
• Digital radardome mounted in mast (2023/2024)
• 1x i70 display in cockpit table (2023/2024)
• 1x p70s autopilot display in cockpit table (2023/2024)
• Evolution autopilot with electronic compass (2023/2024)
• Remote control for autopilot
• Ray 260E VHF at nav station
• Second VHF station with handset and speaker in cockpit table

Additional Information

• Standard with:
• Teak on deck, on coachroof and in cockpit
• 6x stainless steel Andersen winches
• Gas springs on cockpit lockers
• German mainsheet system below deck
• Furling system for genoa led to port side halyard winch
• Single line reefing for mainsail
• Electrical anchor winch 1500W
• Combined deck and steaming light
• Cockpit shower (hot/cold water)
• Lead bulb keel covered in GRP
• 3-blade folding propellor
• 12V electrical system with 2 batteries
• Separate starter battery for engine (12V)
• Shore power connection with 50A charger
• White Camona Corian kitchen counter
• Watercooled refrigerator with accumulator
• Boiler 40l (220V/engine)
• Holding tanks for both toilets
