Details

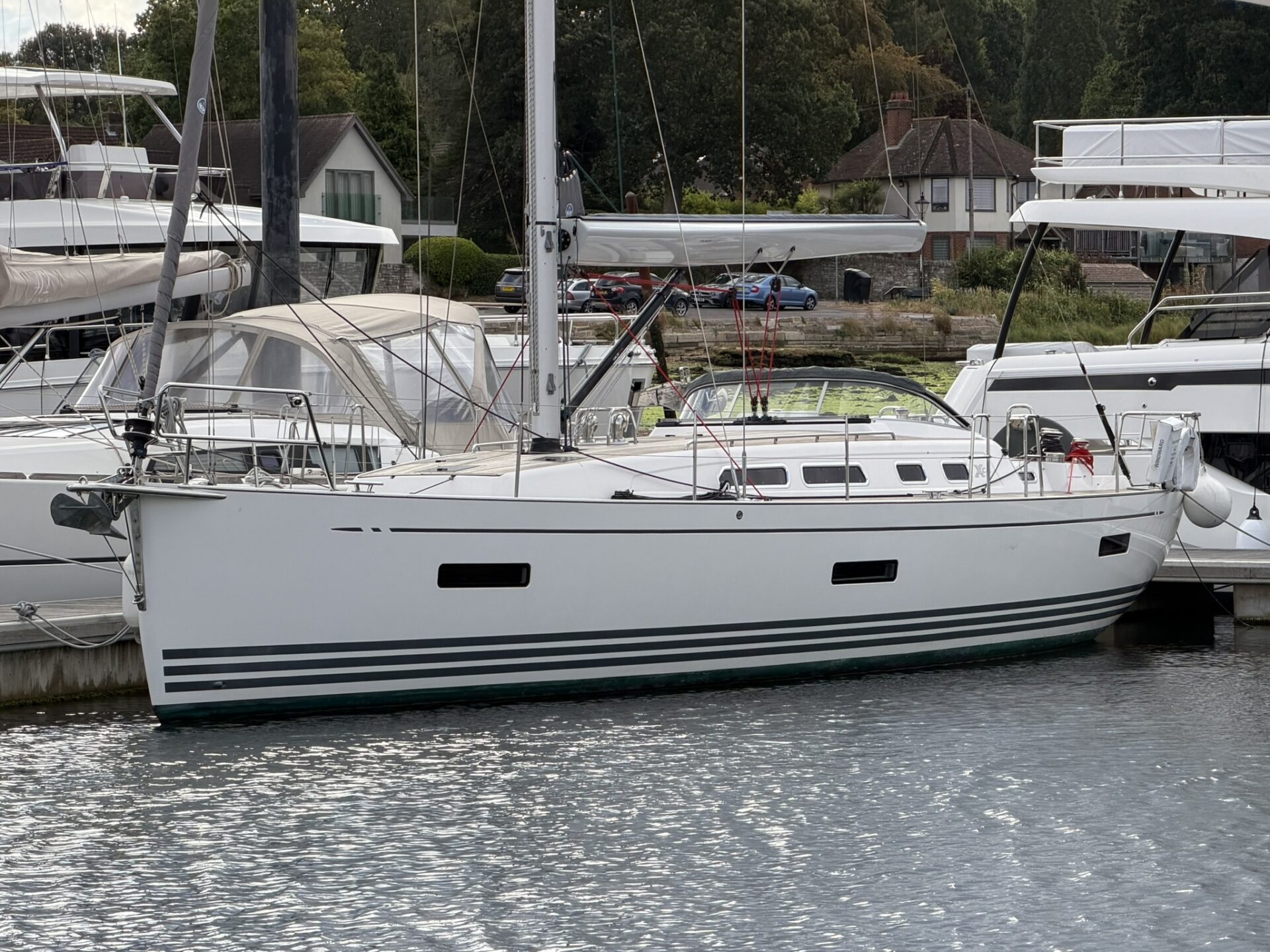

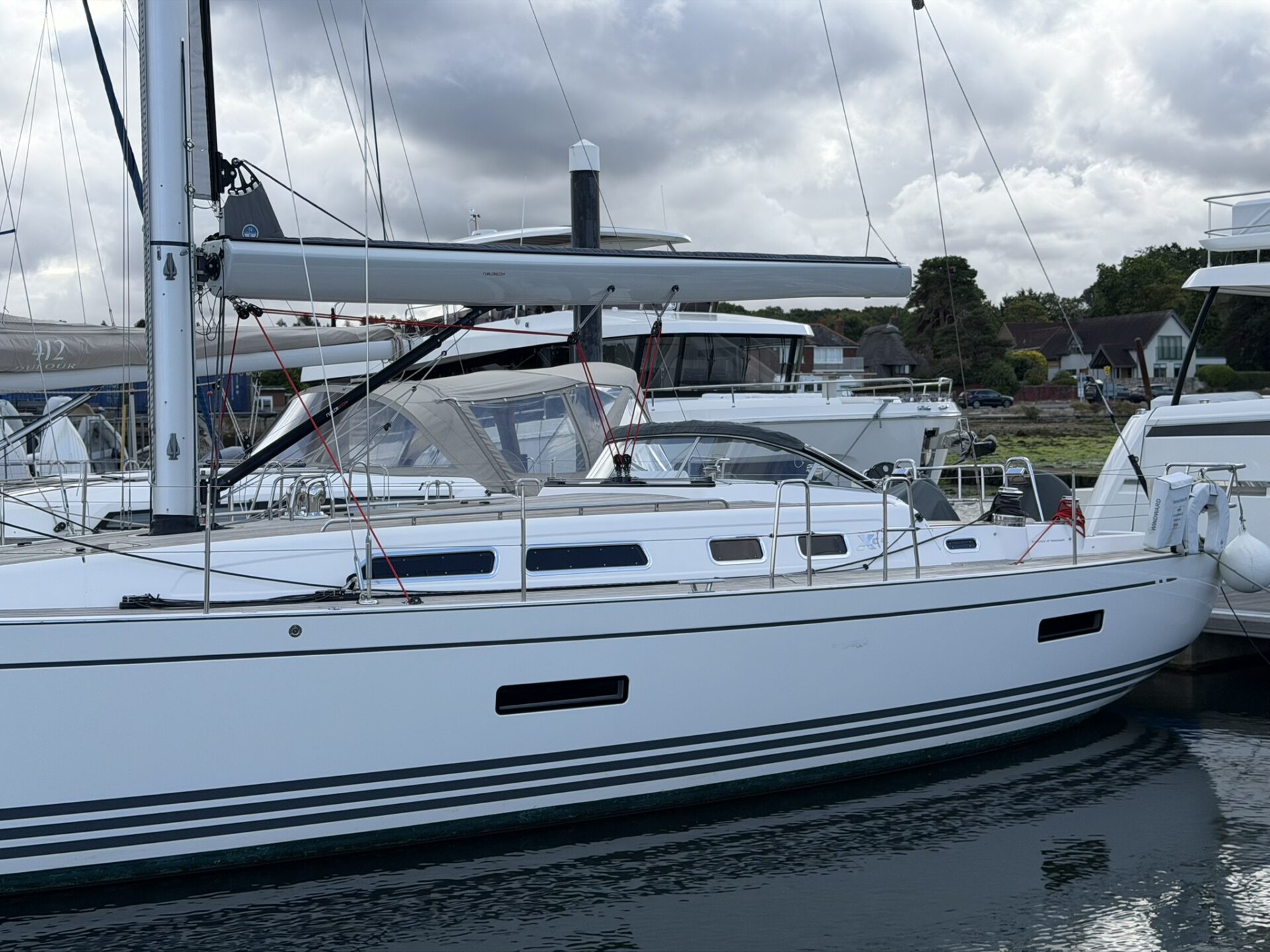

Exterior Details

Hull

• Xc 42 3-cabin version
• The Xc 42 is built to comply with the requirements specified by the European Union’s Recreational Craft Directive (RCD) to meet Design Category A – ‘Ocean’.
• The hull is a full polyester resin/sandwich construction using vinylester resin system in outer skin layer, foam core with biaxial E-glass skins and local uni-directional Solid, monolithic laminate is used in areas around the keel structure, rudder stock bearing, around each through hull fitting, sail drive, and thruster
• ***Coppercoat applied in 2024.

Deck

• The deck is a hand lay-up, full sandwich construction. The foam provides strength and insulation.

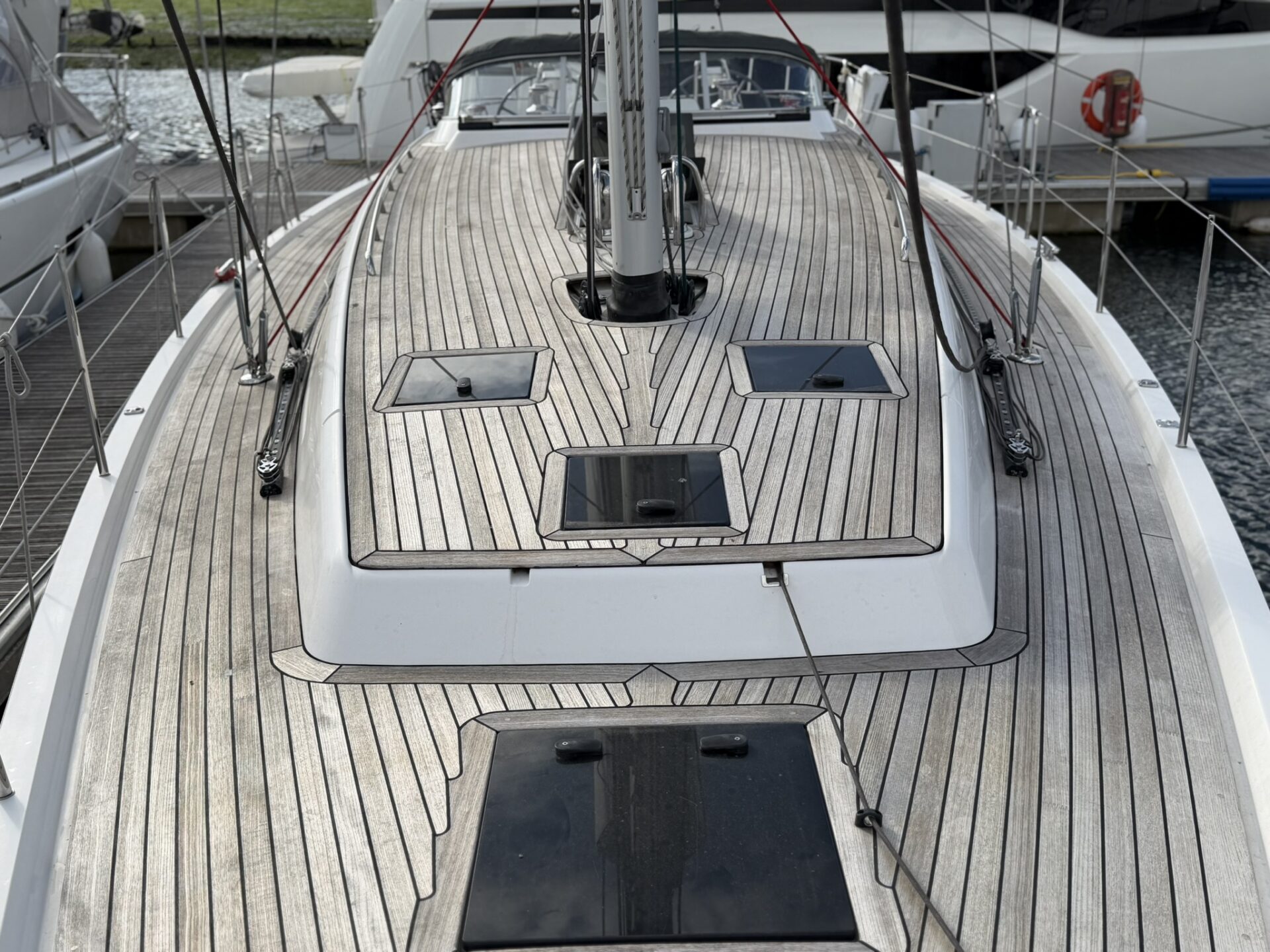

• Teak on cockpit and swim platform, side decks and coach roof top
• 2 x Fairleads mounted on aft decks

Sail Handling

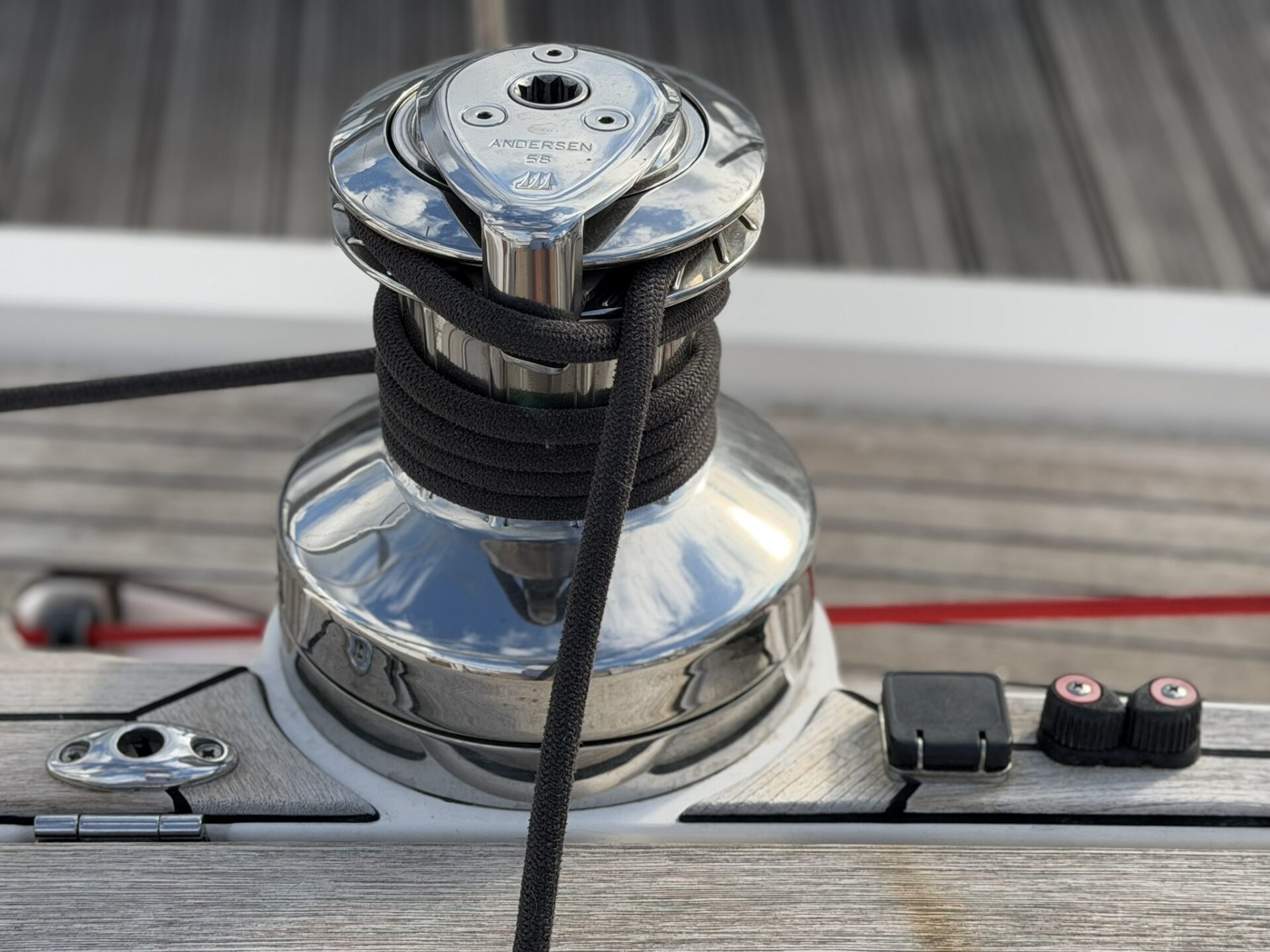

• 2 x ANDERSEN 58ST ELECTRIC full stainless steel, self-tailing primary winches

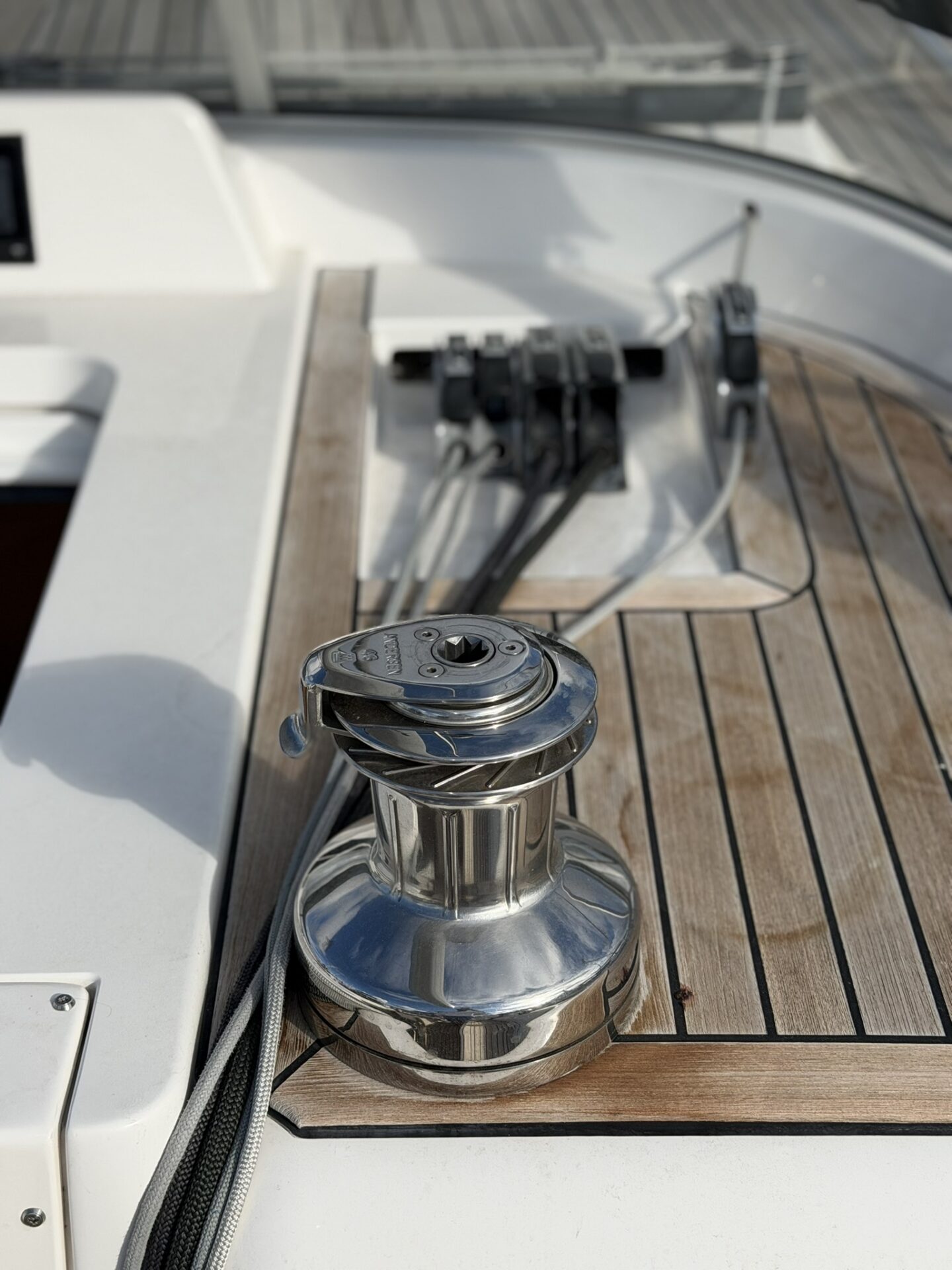

• 2 x ANDERSEN 46ST full stainless steel, self-tailing secondary winches
• 2 x ANDERSEN 46ST full stainless steel, self-tailing halyard winches (Port Electric)
• Sail handling Pack 1 consisting of: Gennaker equipment including 2 Spectra sheets, 2 Ronstan spinnaker blocks, 2 Ronstan cleats, 2 Wichard sheet shackles and Wichard pad eyes

Sails

• Full batten Mainsail by North Sails - 3DI Grey from 2024
• Furling Jib with battens by North Sails -3DI Grey from 2024
• Jib sock by Crusaider Sails
• Asymmetrical spinnaker North Sails G1 AP Gennaker with Profurl Top Down Furling - from 2018
• Code Zero by North Sails from 2024

Mast & Rigging

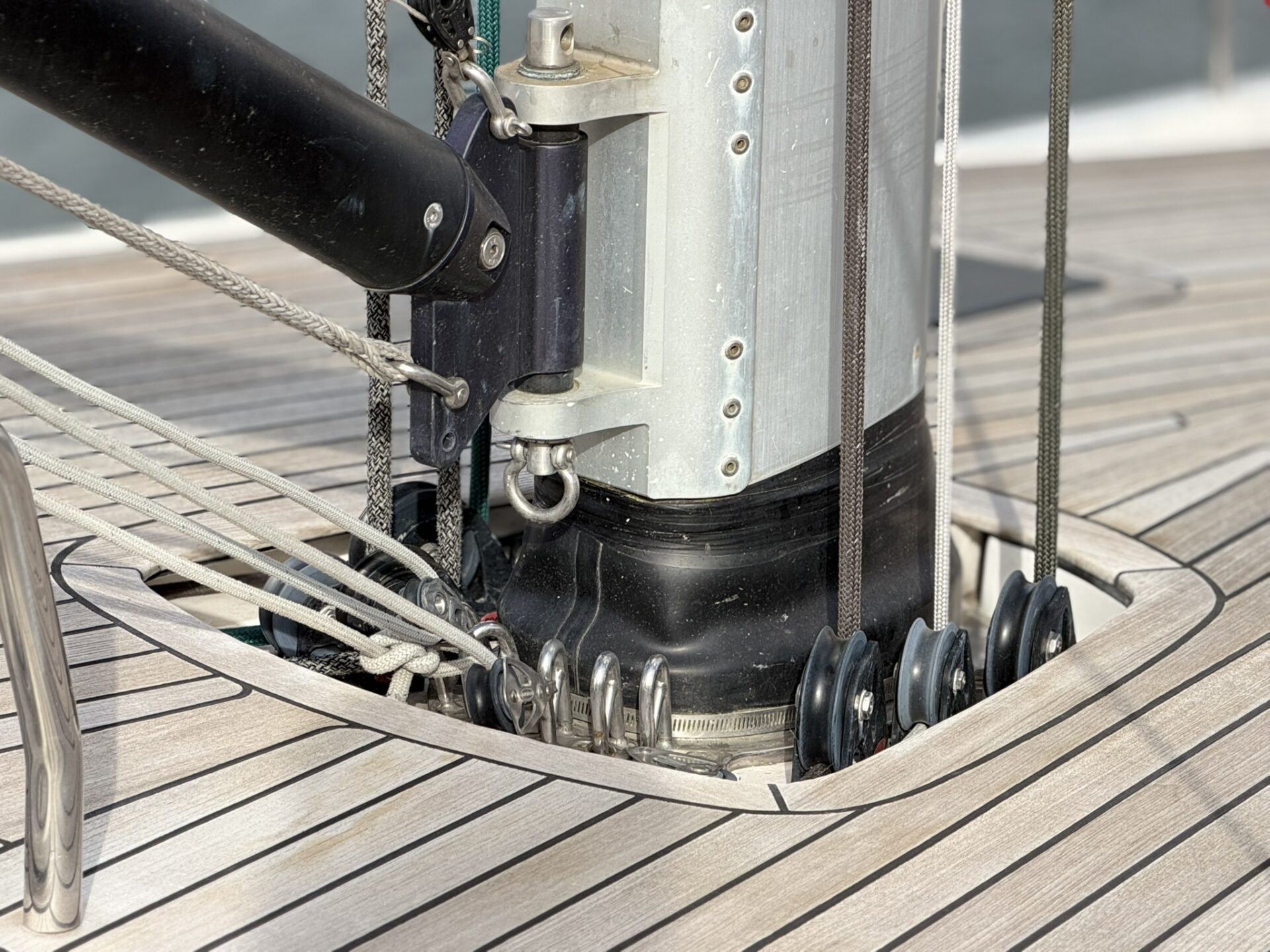

• Fractional double spreader, tapered silver anodized aluminium mast stepped on steel frame, designed and engineered for Xc 42.

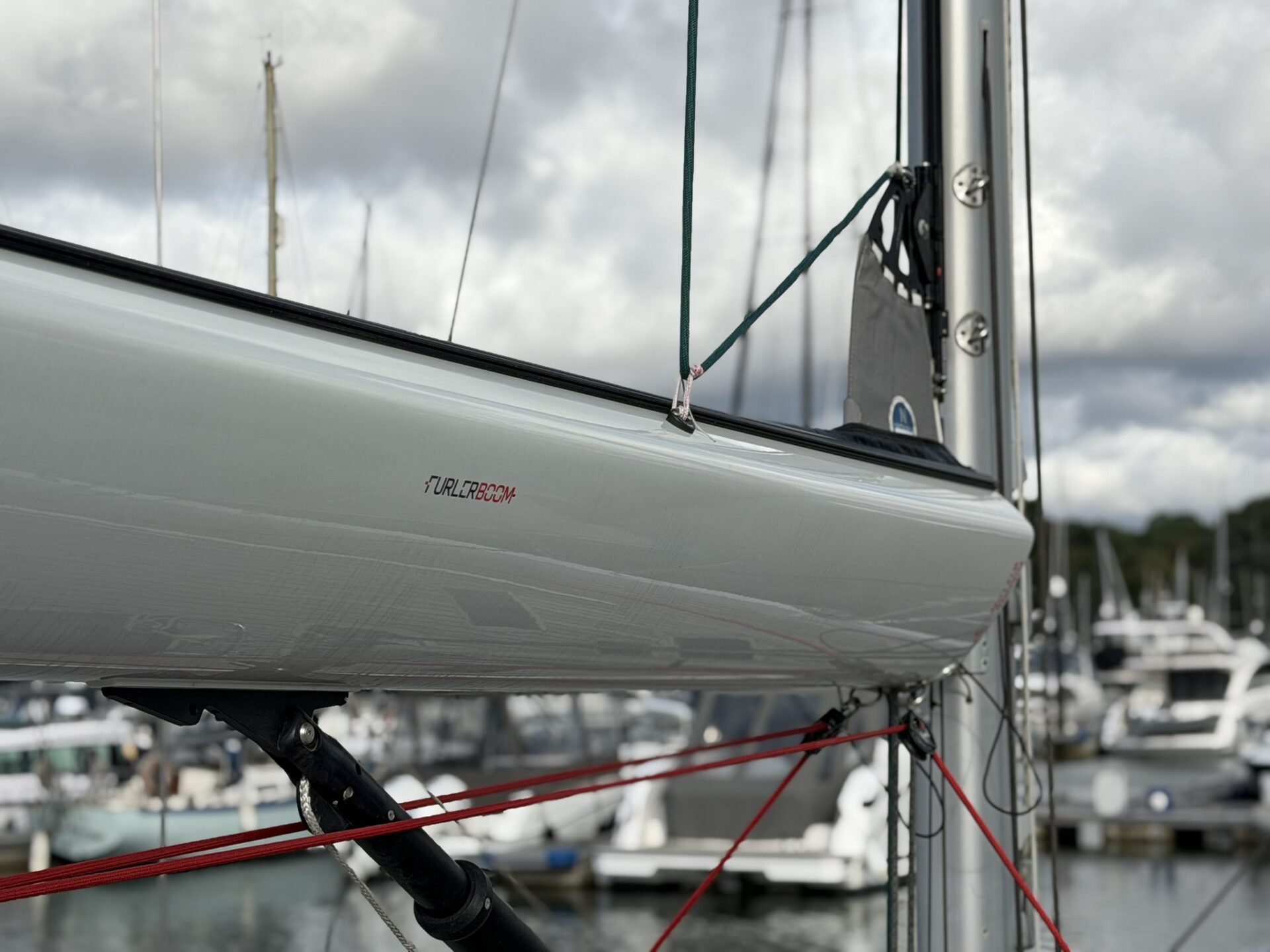

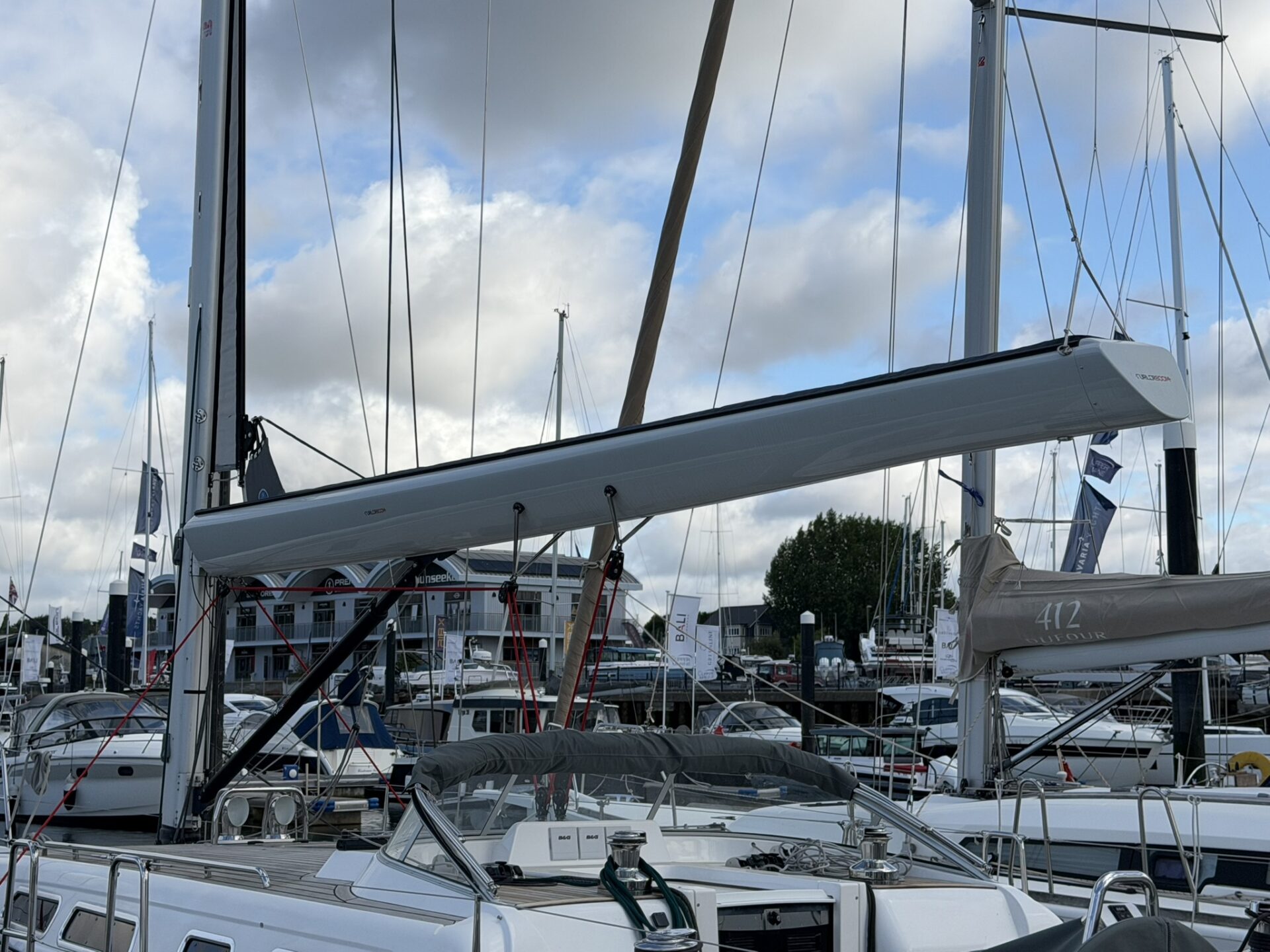

• *** Furlerboom system with integrated cover - fitted 2024
• *** Rod Rigging NDT tested in August 2024.
• Spreader down lights
• Tricolour mast head light including anchor light, LED.

Keel

• Shallow draft full lead keel of 1.70 m. Weight of keel increased to ensure that stability remains as high as with standard keel.

Guard rail / Anchor / Stainless Steel Fittings

• A frame in stainless steel with teak planking and tack attachment point
• Removable stainless steel Davits to mount dinghy on transom.
• Zodiac 230 Aero Deck dinghy
• 6 man life raft. Waypoint commercial ISO 6 from 2017, next service unknown.
• Wheel crash bars in tubular stainless steel with instrument box for bow thruster control, throttle control at starboard wheel
• Cockpit cushions on forward cockpit benches, 6 cm thick, in dark grey, securely mounted by an alloy track and bolt rope

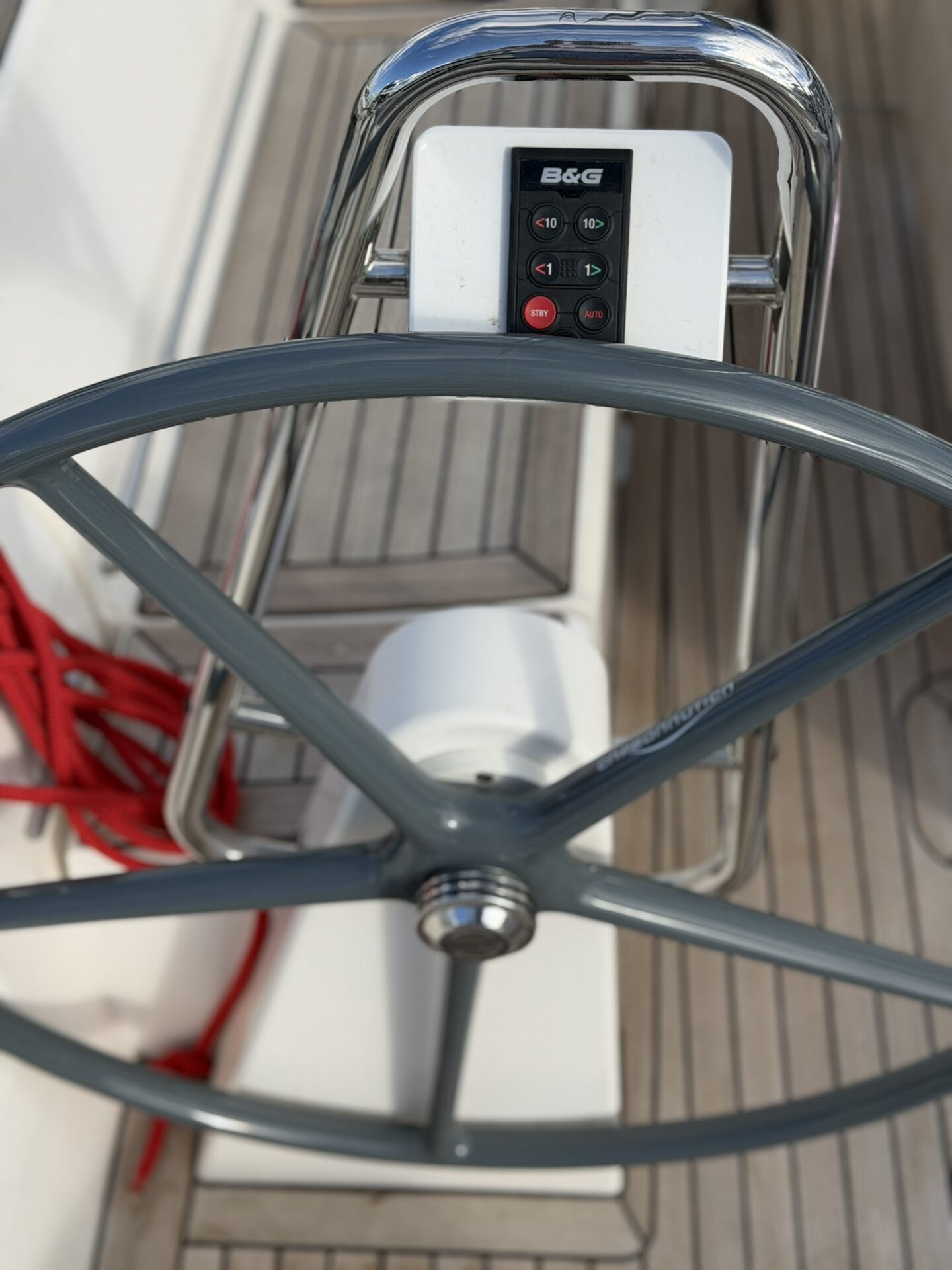

• GFC dark grey composite (glassfibre composite with aluminium hub) light weight steering wheels instead of standard stainless steel wheels

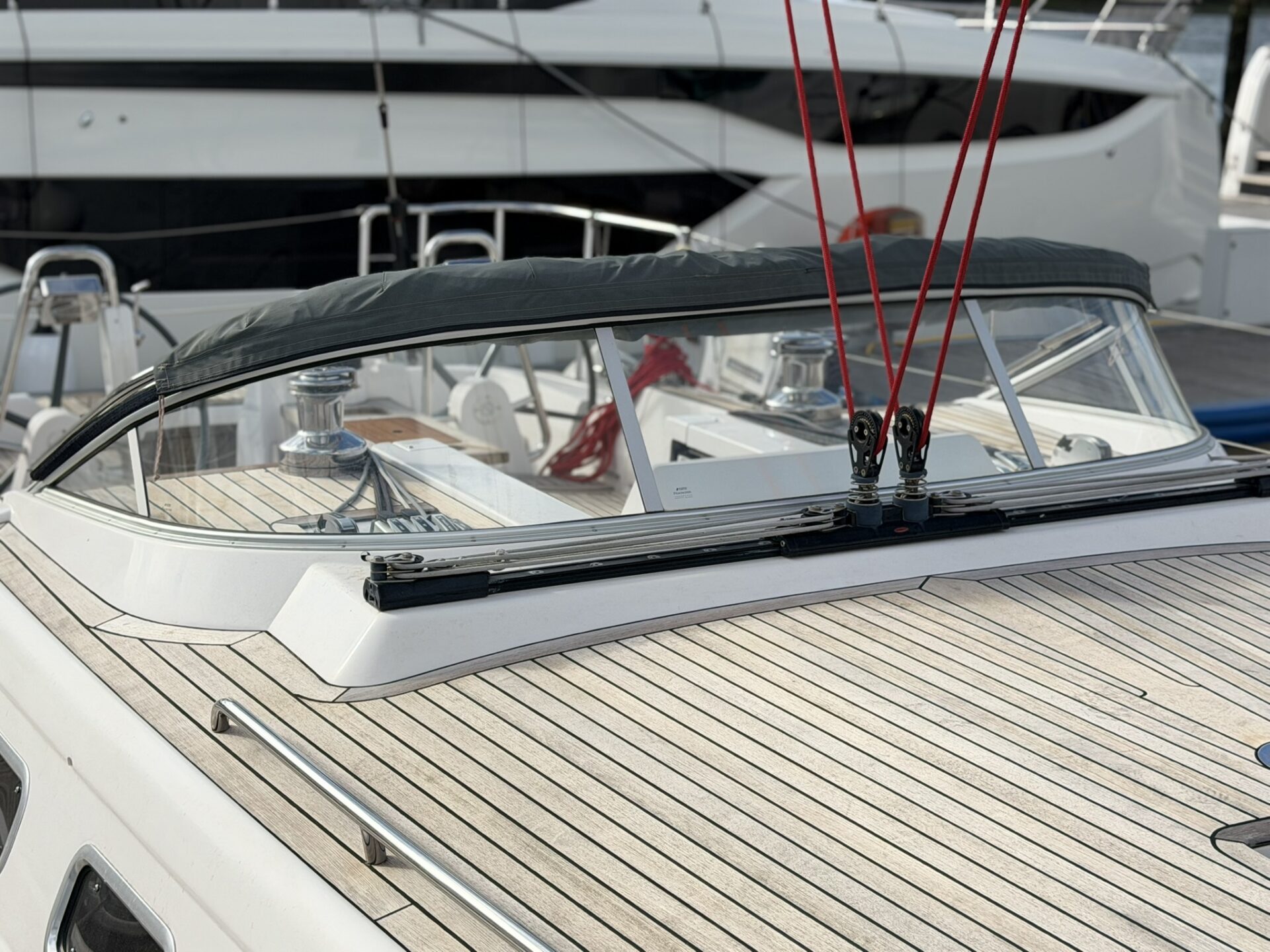

• Windscreen - curved aluminium frame with hardened glass. Sprayhood in dark grey canvas
• Cockpit tent in dark grey canvas added to dark grey sprayhood to enclose forward cockpit
• Instrument covers for pedestals in dark grey canvas (2 pcs)
• Cockpit table and instrument console cover in dark grey canvas

Accommodation

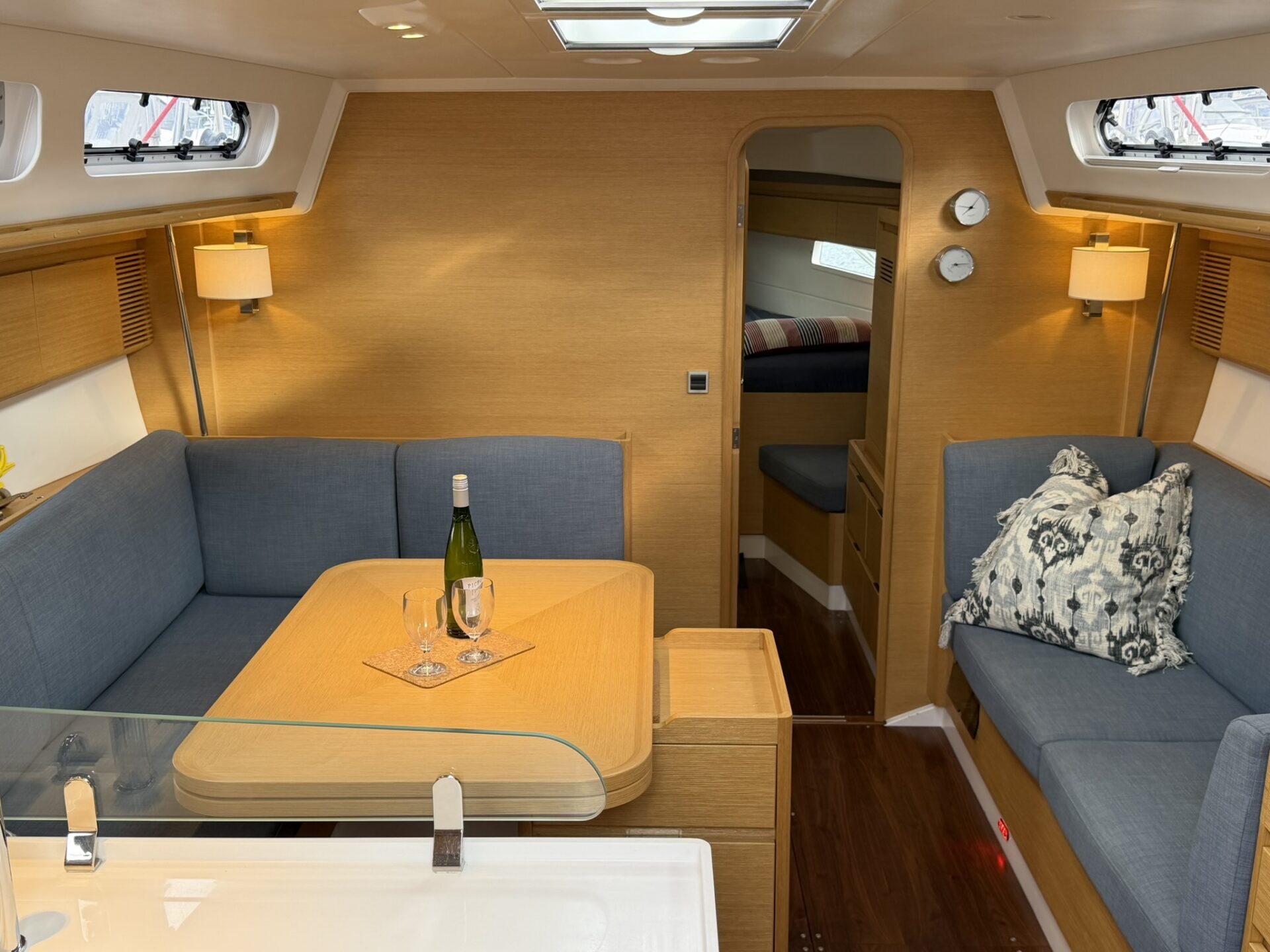

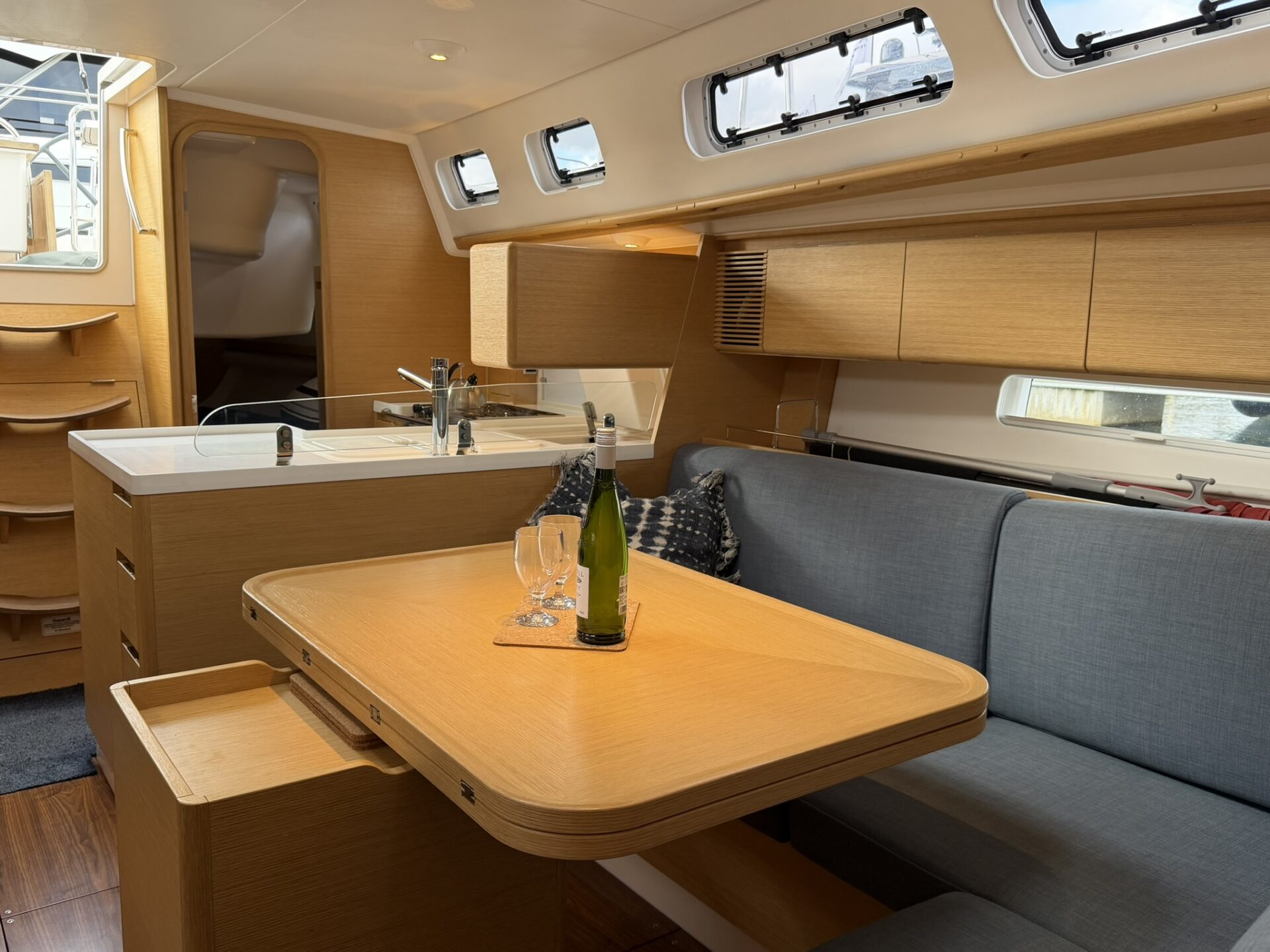

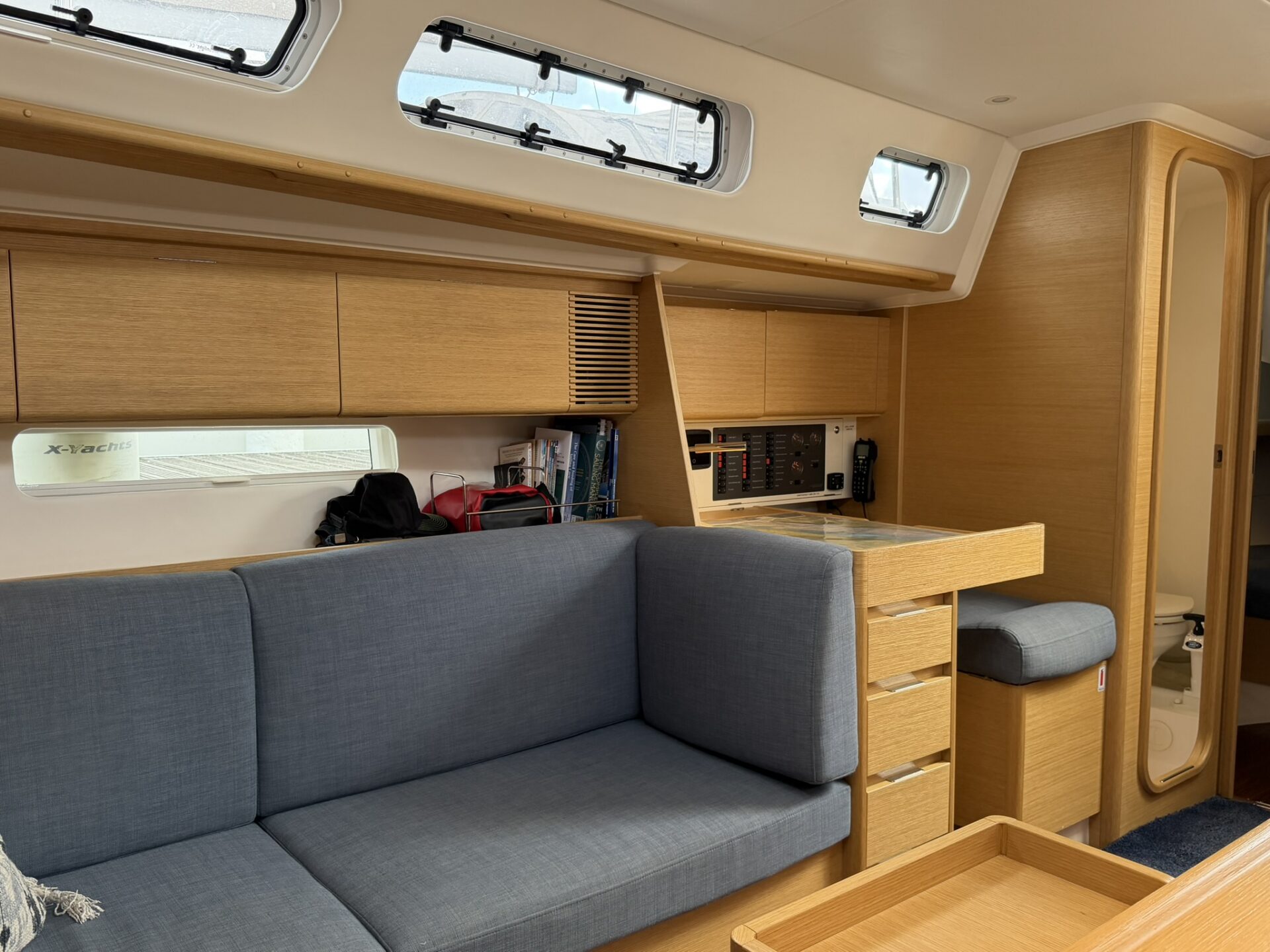

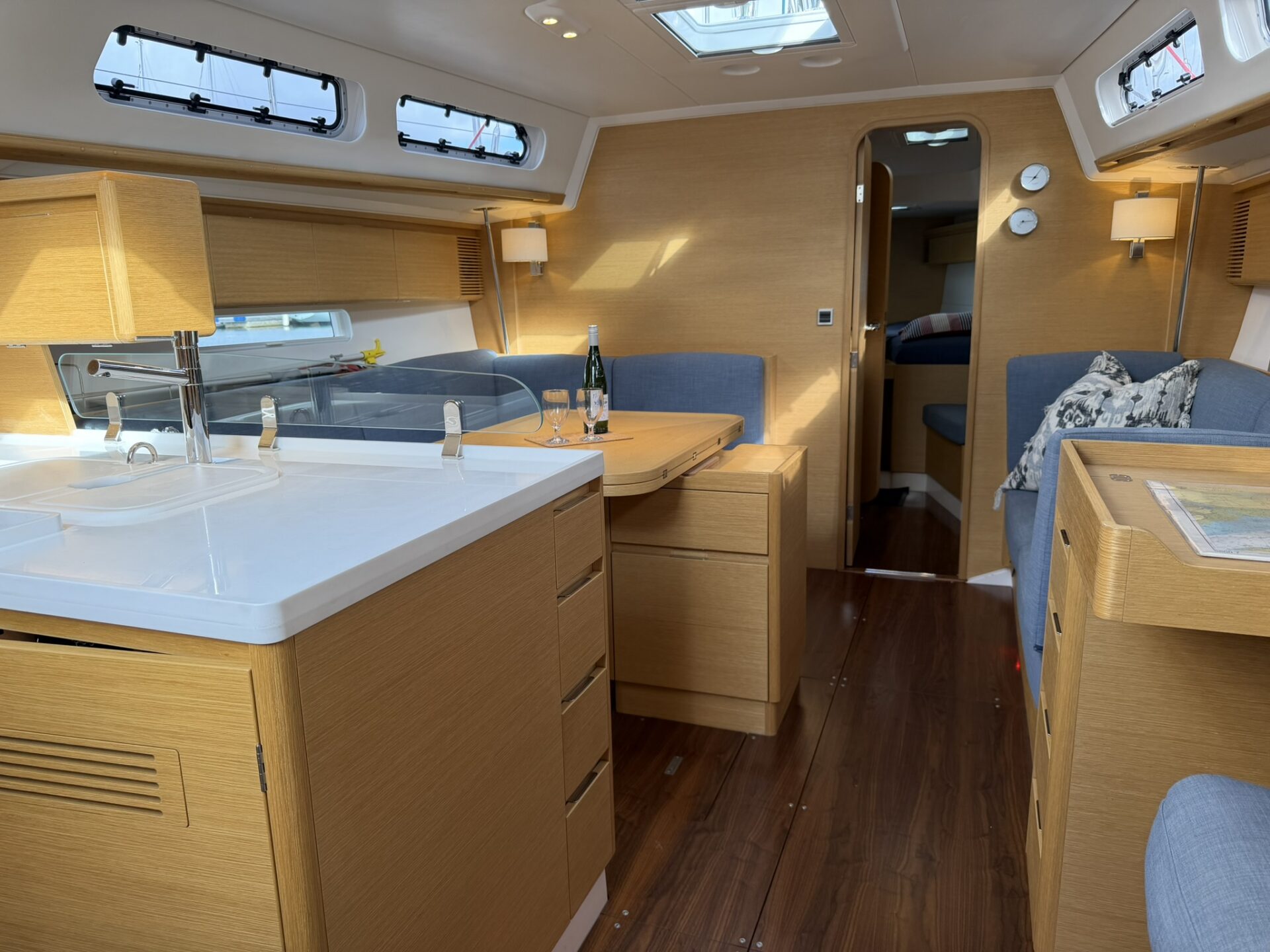

Interior

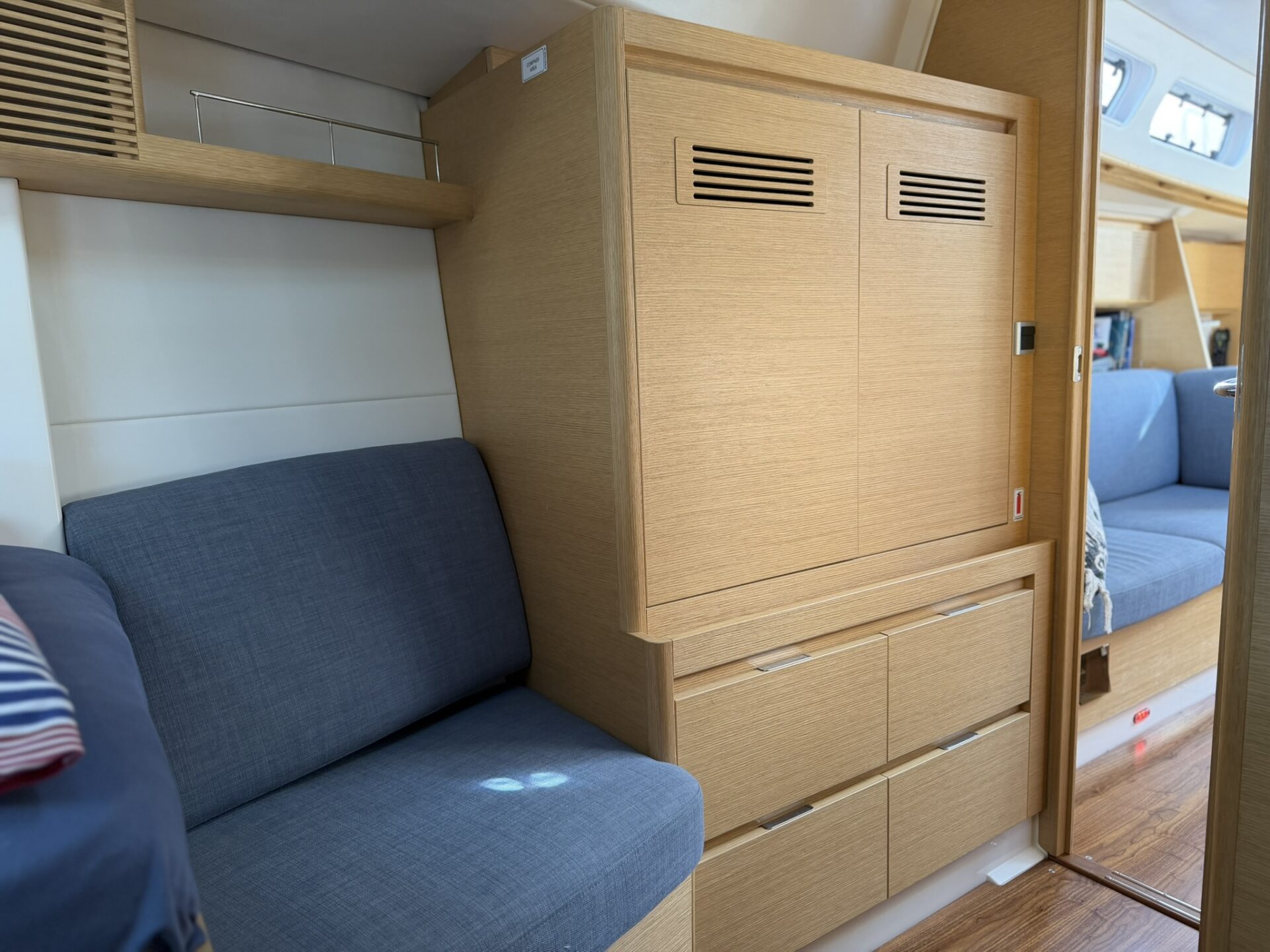

• All furniture is carefully selected, built with first class craftsmanship with minimum number of visible screws and hand-polished with a satin finish

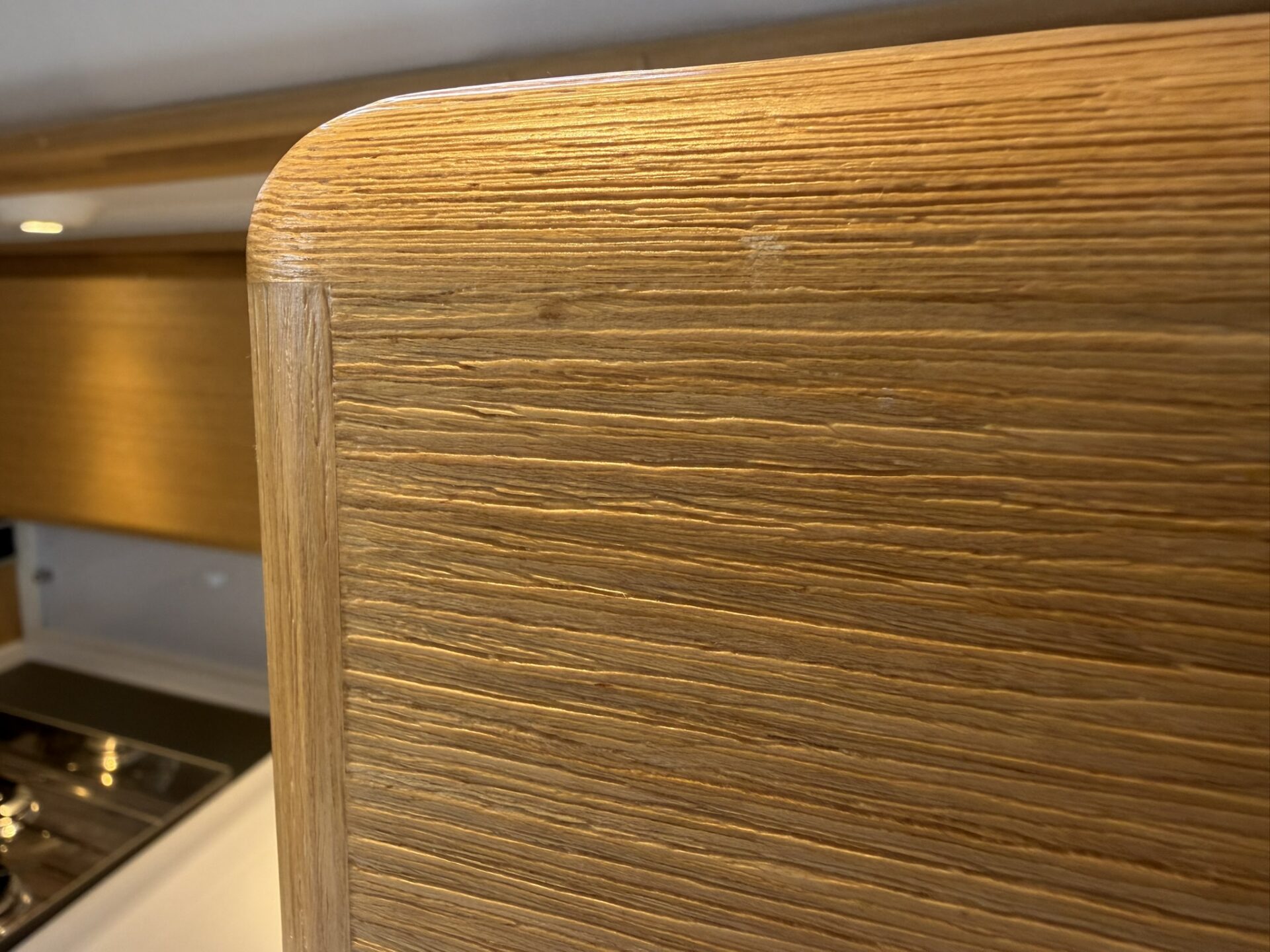

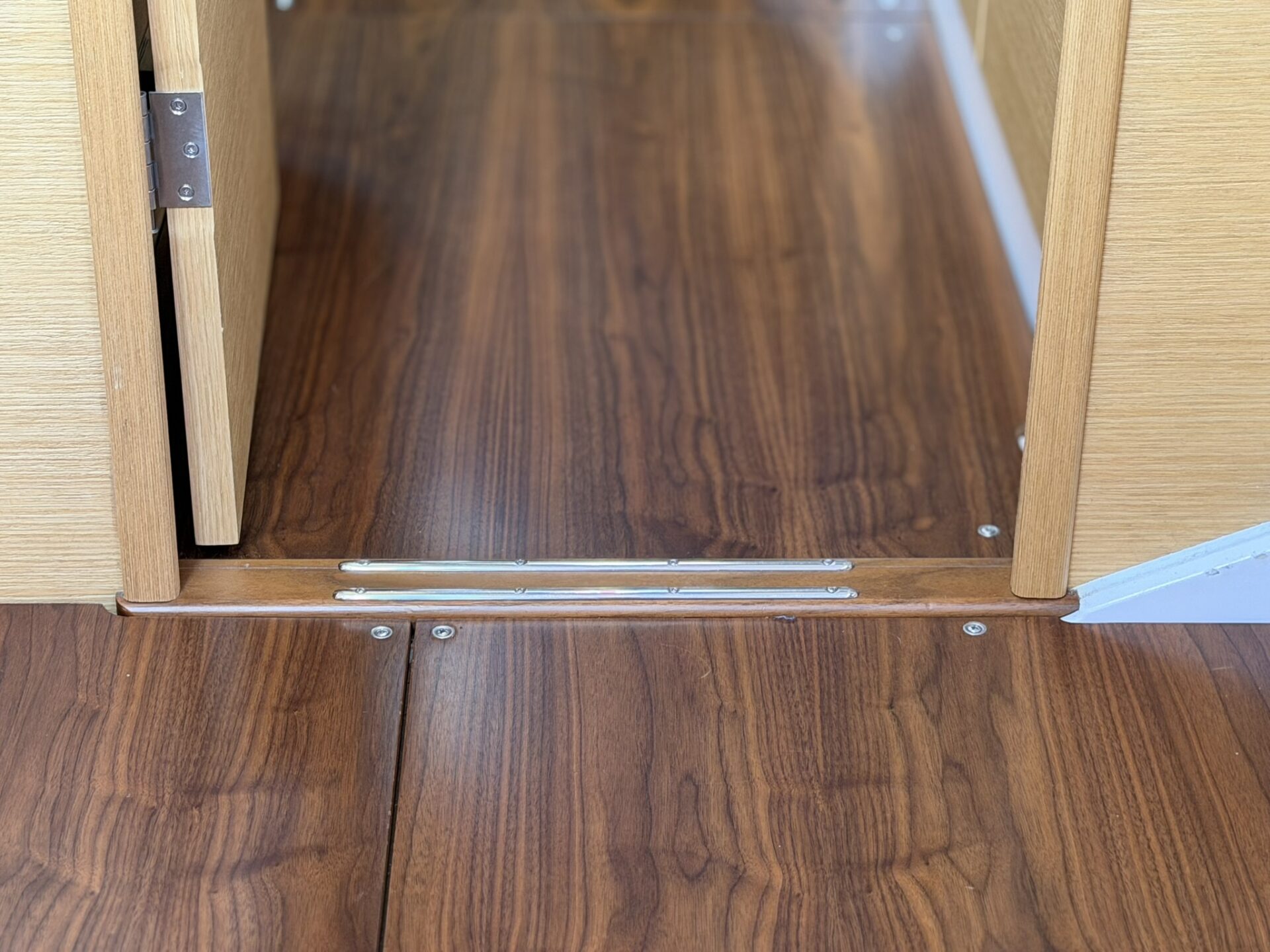

• **** Custom Interior Woodwork: "Brushed" Oak with walnut floorboards

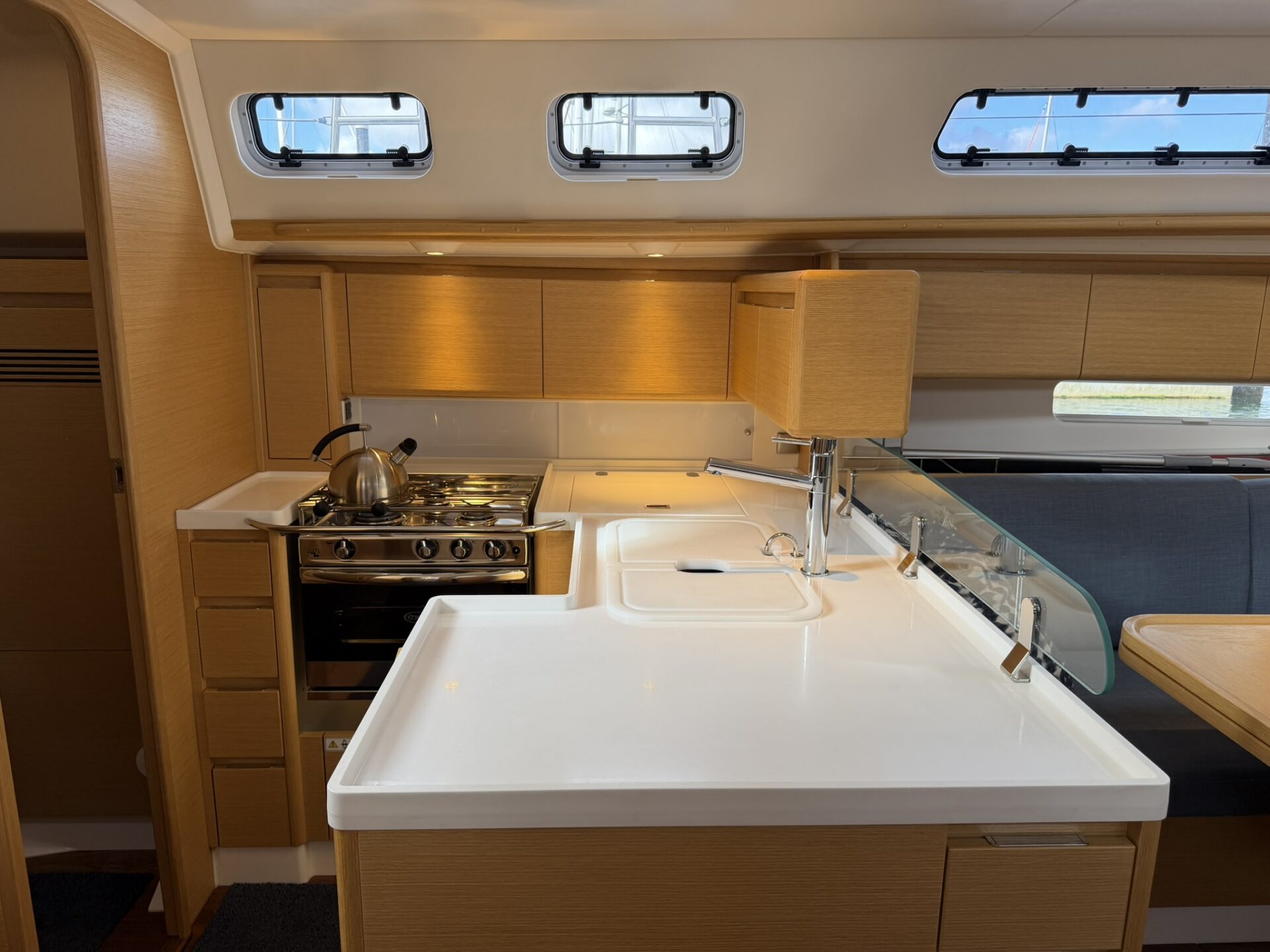

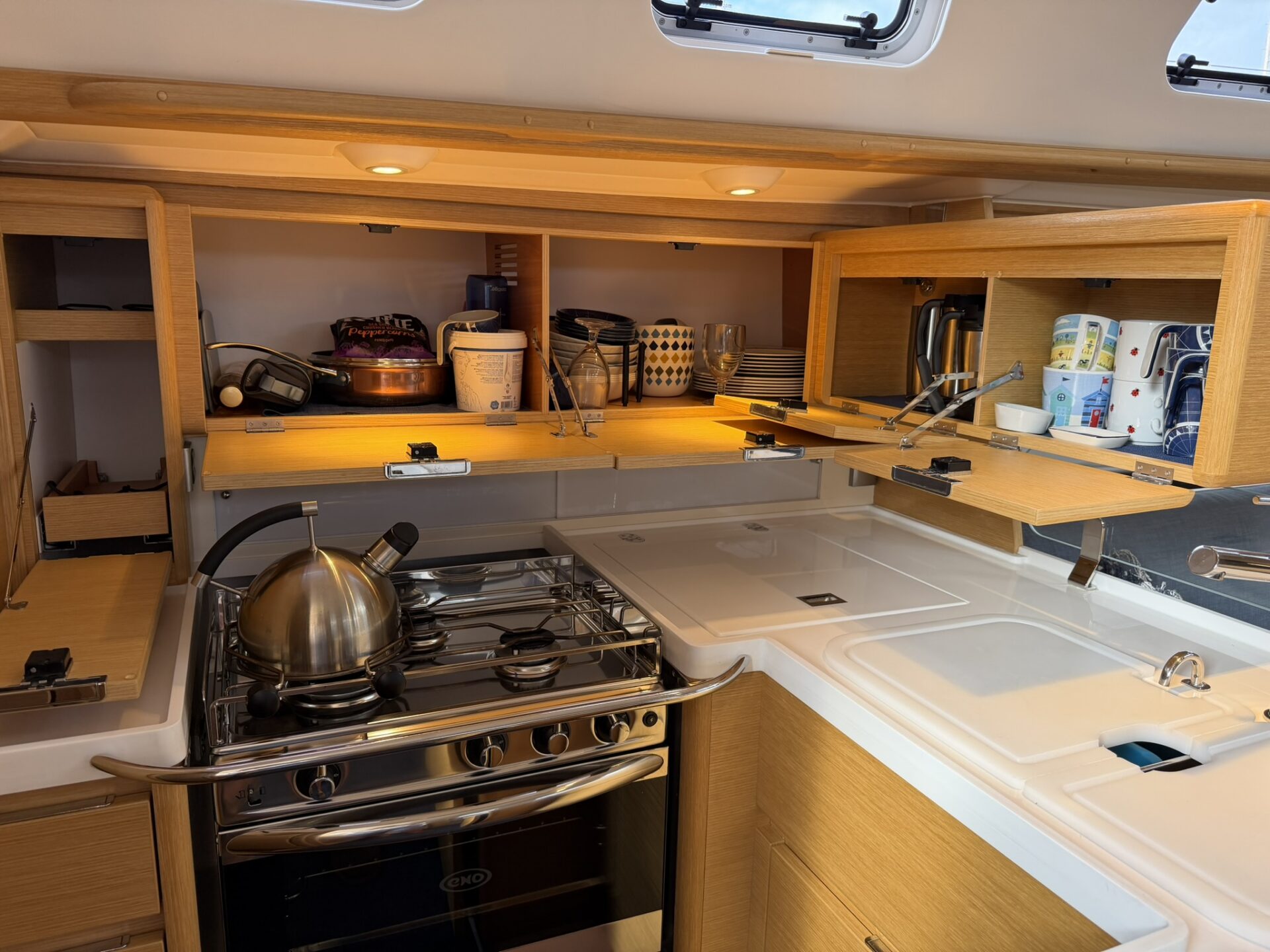

• Transverse galley top cupboard with additional storage
• Fridge, Isotherm 85 litres front opened with ASU start-up technology
• Gas detector alarm
• Electrical gas switch with solenoid valve

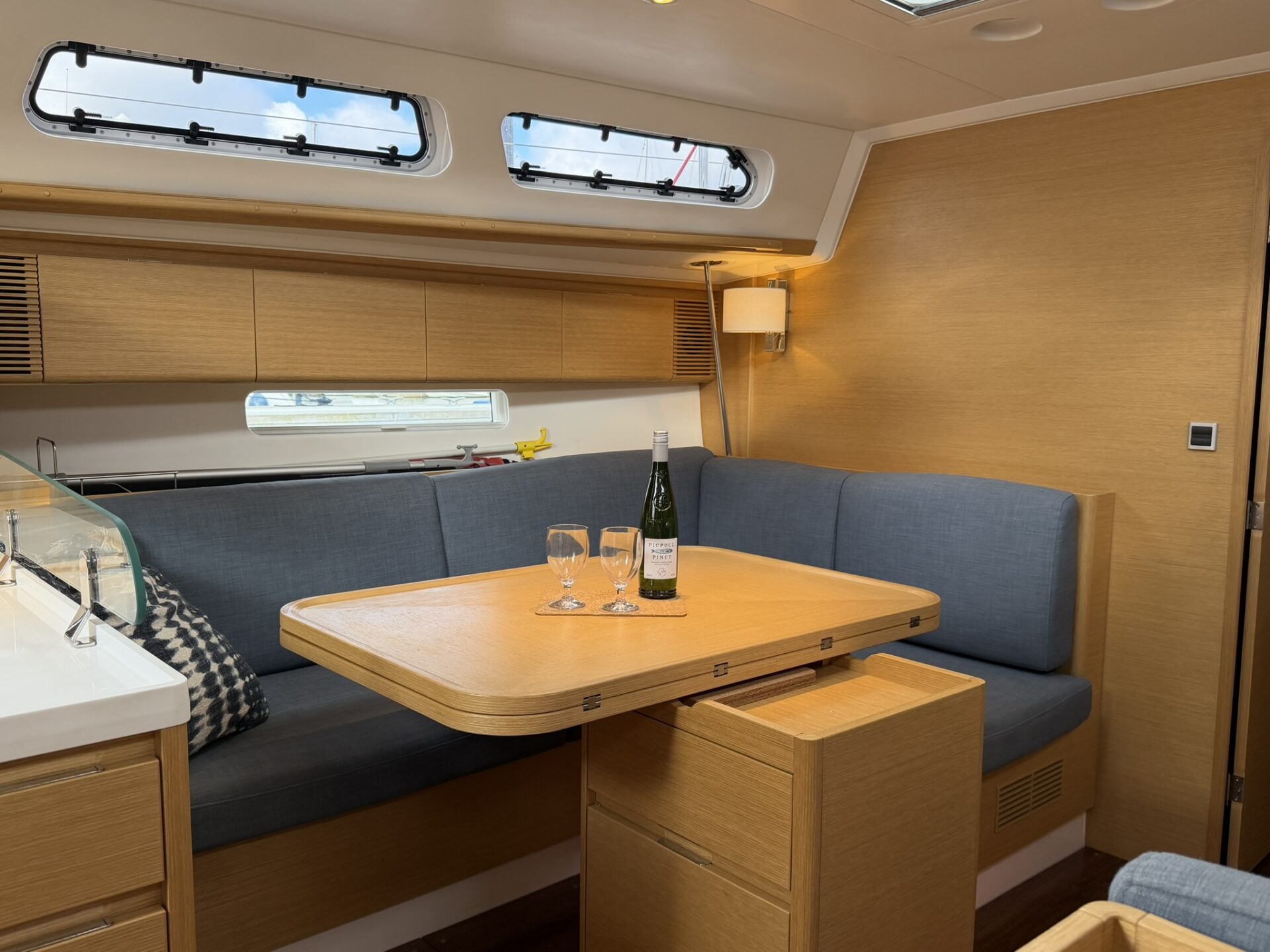

• Standard upholstery throughout - Brooks 09 Blue

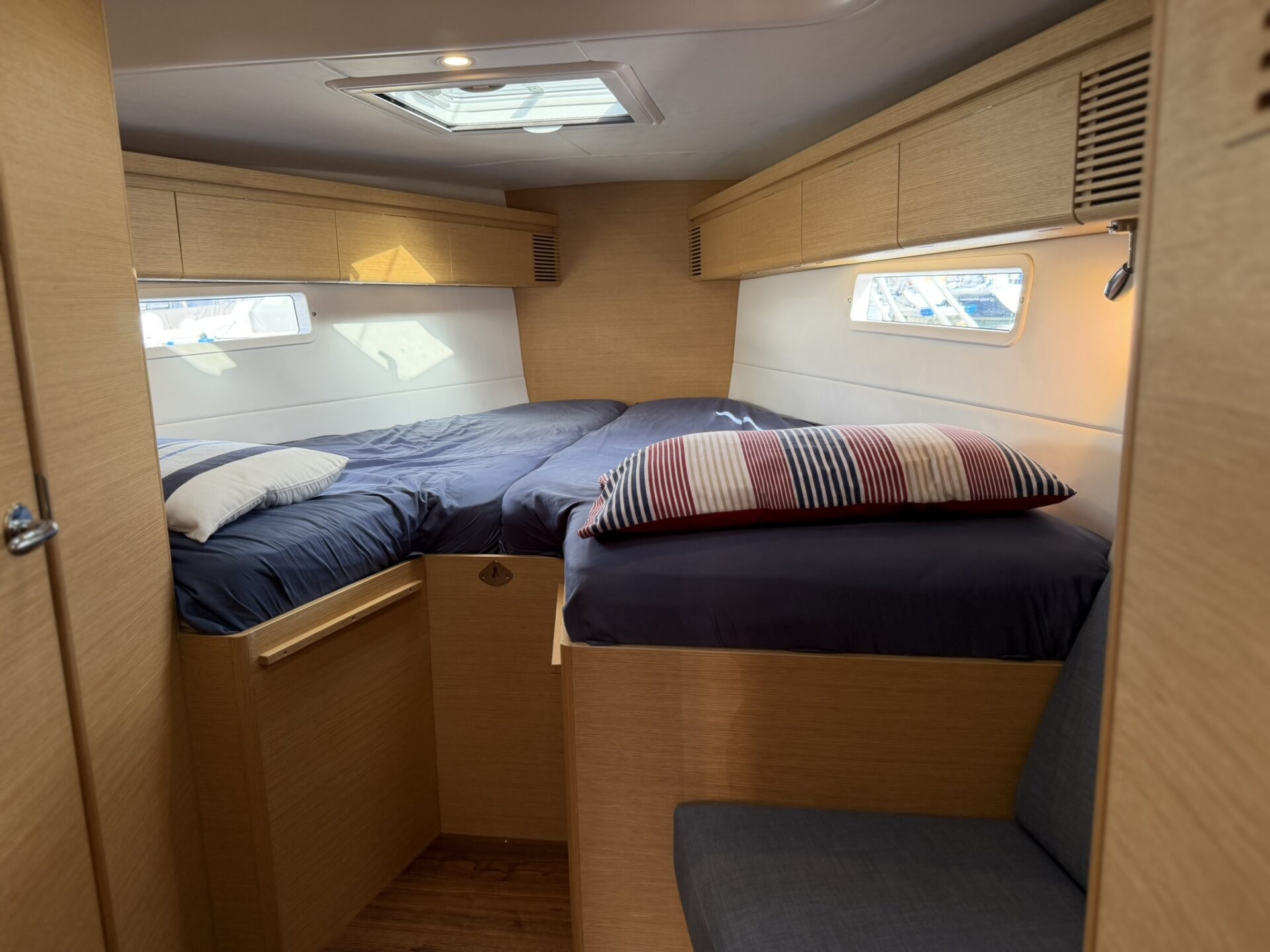

• Spring Mattress in owners cabin from 2020

Systems

Engine

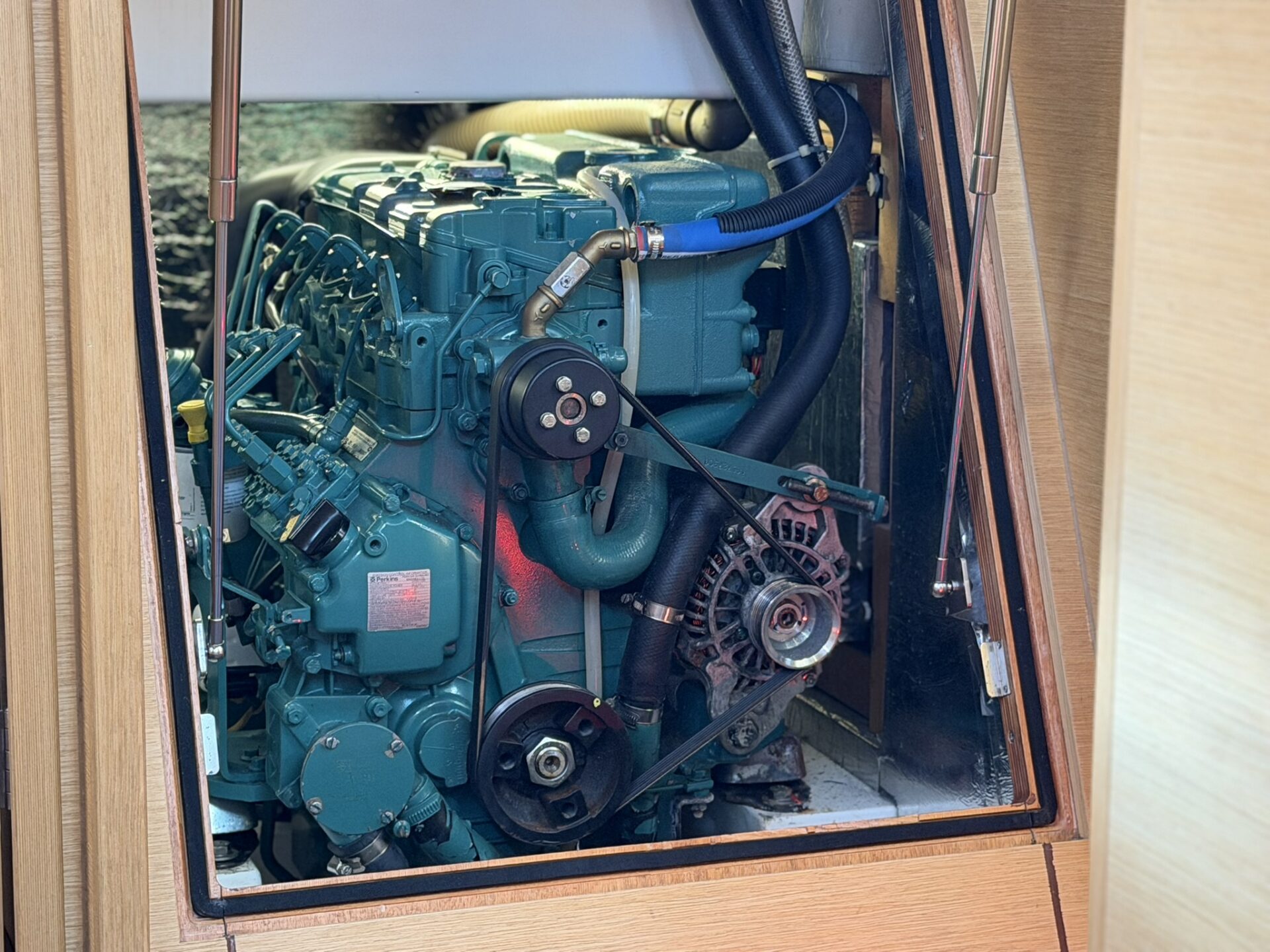

• Volvo Penta D2-55 4-cylinder, direct injection diesel engine. Maximum power output is 41 kW (55 hp) at 3000 rpm.
• *** Engine Saildrive diaphragm replaced in February 2026.
• The engine is fitted with a 12V / 115A alternator for charging the engine start and domestic batteries.
• A 3-blade Ø 18” Flex-o-fold folding propeller with sacrificial zinc anode
• Engine Hours: 112.7 Displayed Hours - correct August 2026. (Old original unit replaced at approx 700hrs)
• Fuel is stored in a custom-built aluminium tank, located below port aft cabin berth. The tank is fitted with an inspection hatch, baffles, deck filler, breather and gauge. Total fuel capacity is 250 litres

Plumbing

• Fresh water is stored in 5 custom-built stainless steel tanks, located below the main cabin floor boards. Each tank is fitted with inspection hatches, baffles, deck filler, breather and gauge. Total water capacity is 520 litres
• A pressurised hot and cold water system is used throughout the boat
• Seagull water filter
• A 30 litre calorifier is situated in the engine room. Water can be heated using the engine, or with the 240V immersion heater when connected to shore power
• Heating system - Eberspächer D5 with 6 outlets in saloon, cabins and aft & fwd head

Electrical

• 12V DC system for main engine installation
• 4 x 12V 130 Ah AGM batteries are mounted under main cabin sofa (new in 2022)
• 1 x 12V 70 Ah AGM battery for engine start is mounted in the engine room
• 12v / 115A alternator to charge battery bank when engine is running
• 12V/50A battery charger is fitted to charge the batteries
• LED lighting fitted
• Galvanic Isolator 30 Amp load capacity, mounted in series with earth wire of shore power socket (to prevent stray current corrosion)
• Cockpit floor lights white LED - 4 pcs
• 12V stainless steel socket mounted in cockpit table

Electronics

• B&G System
• 3 x Triton instrument mounted in garage, 1 x Combined speed/depth/temperature transducer, 1 x Wind forward looking transducer
• 1 x TRITON Autopilot AC42N pack incl. pilot controller - 12 V with Precision 9 compass

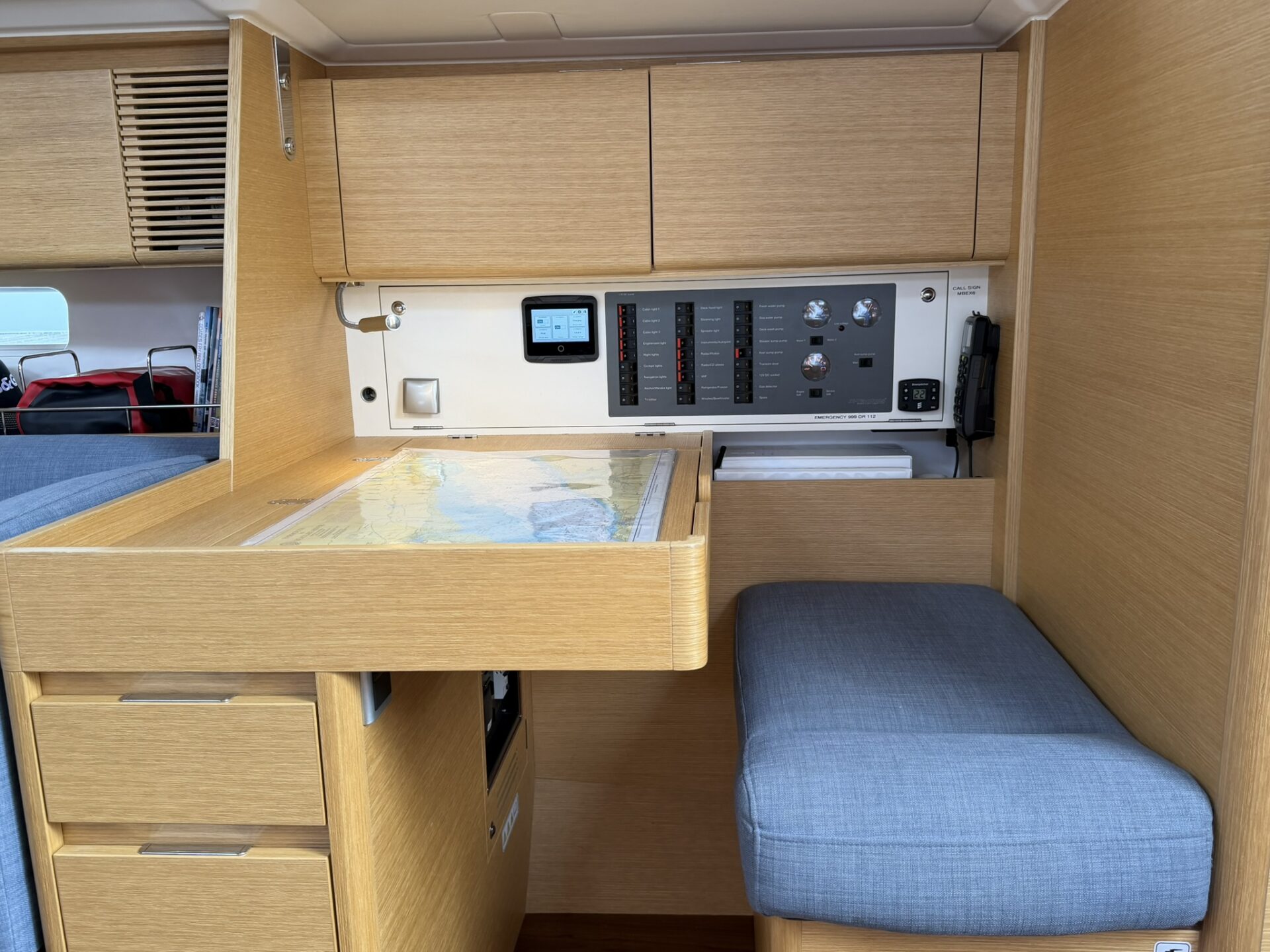

• 1 x B&G V90BB VHF AIS RX with handset, loudspeaker & VHF antenna, mounted at chart table
• 1 x B&G H90 VHF second handset with loudspeaker mounted in cockpit

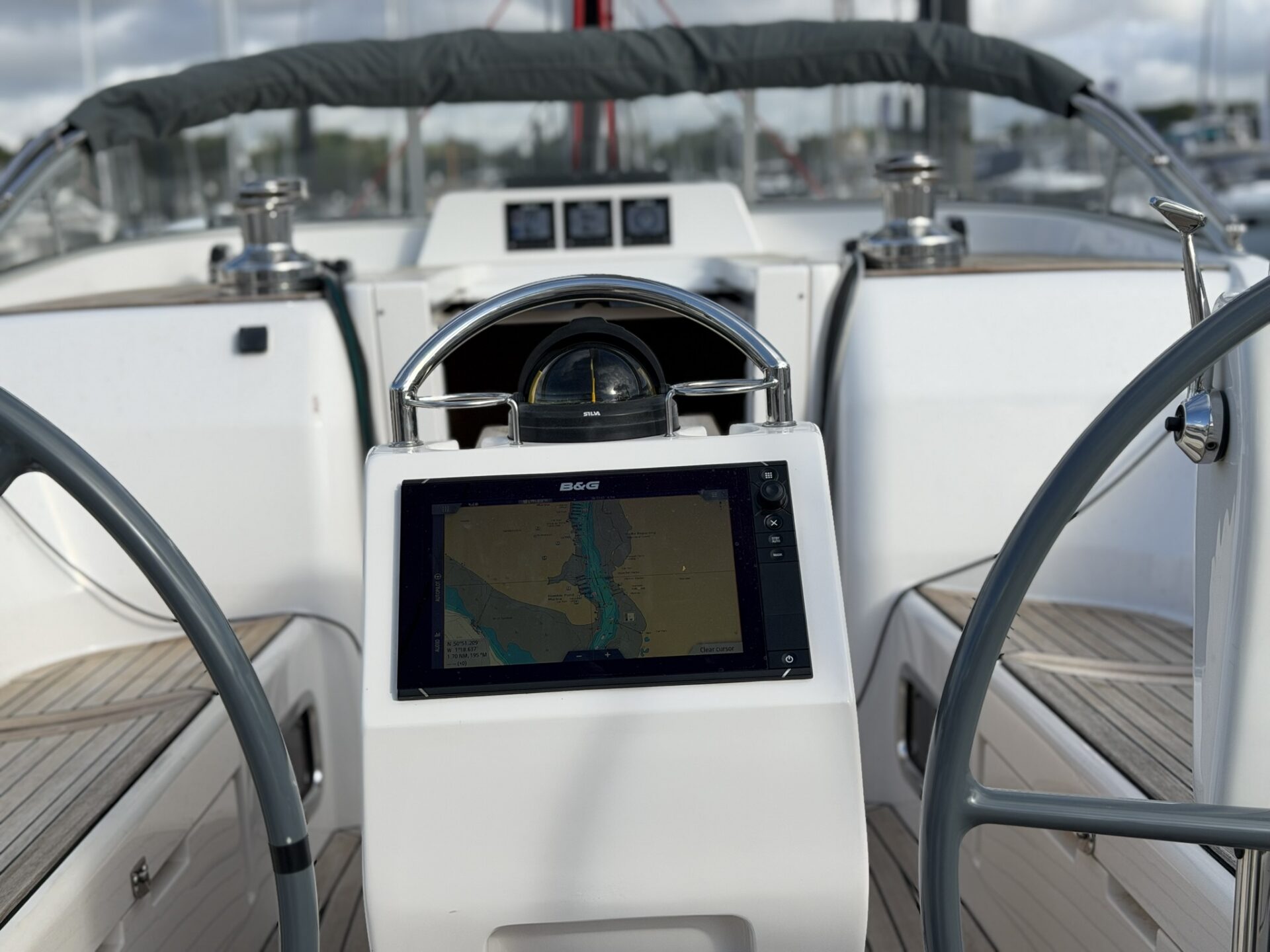

• 1 x 12" Zeus2 plotter mounted in cockpit
• 1 x NAIS 400B AIS system transceiver without display connected to VHF antenna, zeus plotter and additional heliflex antenna
• 1 x B&G Radar, 4G 18" w. mast bracket and cable connected to B&G Zeus plotter
• Multimedia Music centre, Fusion MS-AV750i with one set of Fusion 4" 2 way 120 Watt in saloon

Thrusters

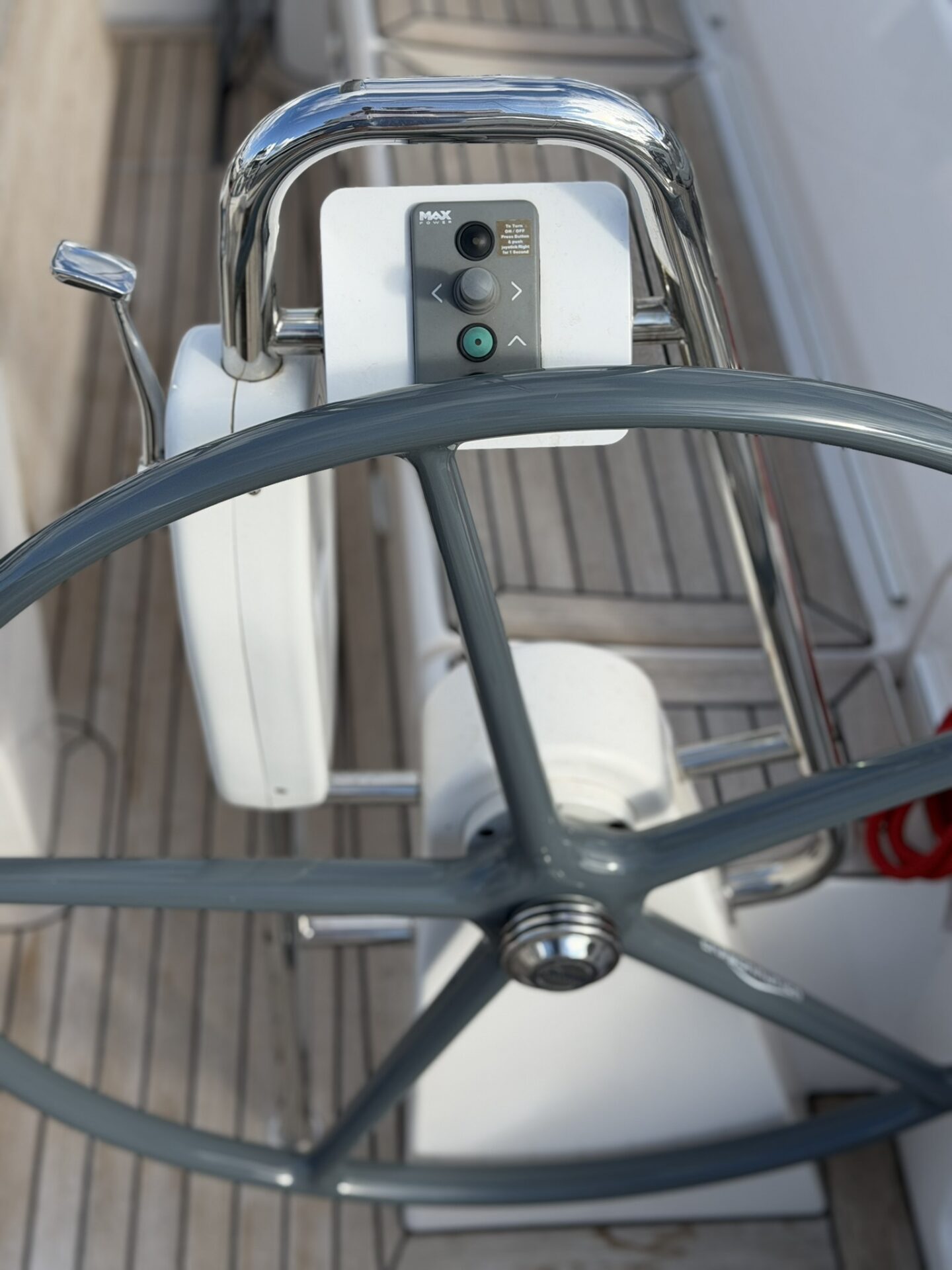

• Bow thruster - Max Power Compact Retractable 12V with control at starboard pedestal.

Additional Information

• X-Yachts (GB) Ltd. offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his surveyor to investigate such details. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
