Owner's Comments

2024 - All done at X-Yachts service center in Denmark
• New Max Power Stern thruster installed

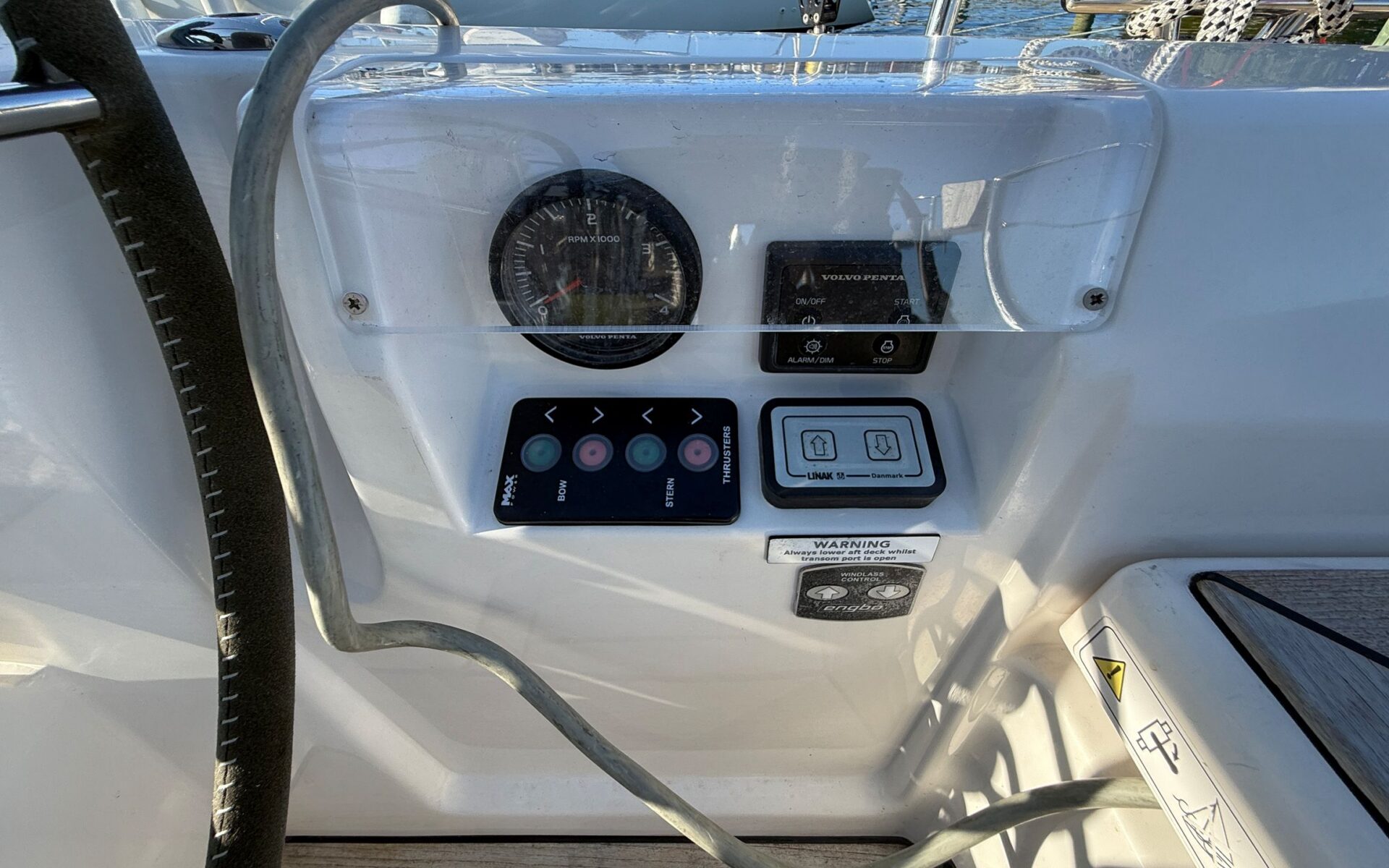

• New combined remote control for bow/stern thrusters
• New mainsail
• New headsail
• 2 x new dedicated bow thruster batteries
• New DC/DC charger 12V / 30A
• All toilet & holding tank hoses replaced
• Bottom sanded down to primer, followed by new epoxy primer and antifouling.
• All through-hull fittings replaced
• Saildrive membrane replaced
• Mast collar replaced
• Mirror in aft head replaced
• 2 x new holding tanks installed
• Rudder bearing seal replaced

Details

Exterior Details

Hull

• Built in sandwich construction with structural compressed foam
• Solid laminate in high stress areas around keel and through hull fittings
• Steel frame - hot-galvanised, high strength, laminated into hull to absorb all loads from keel and mast
• Single point hoist for easy and safe lifting and launching of the yacht
• Bathing platform incorporated in transom port with hoisting and lowering system
• Bathing ladder in stainless steel mounted onto bathing platform

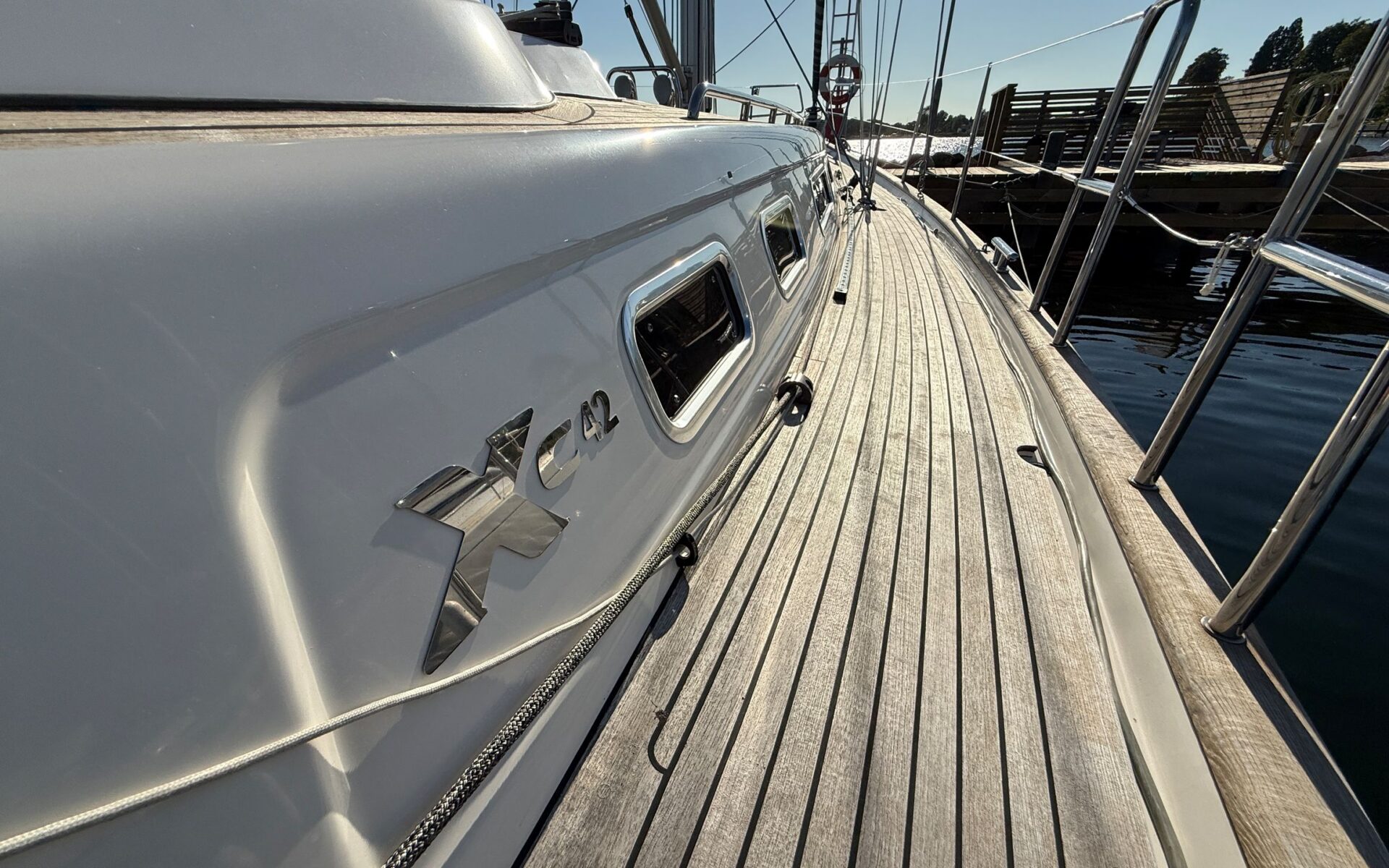

• Continuous stainless steel rail protection mounted on sheerline
• Hull recessed portlights, X-Yachts style

Deck

• Bow anchor: 25 kg Delta with 50 m x 10 mm galvanized chain
• Bow windlass: 1500 W / 12 V, deck mounted

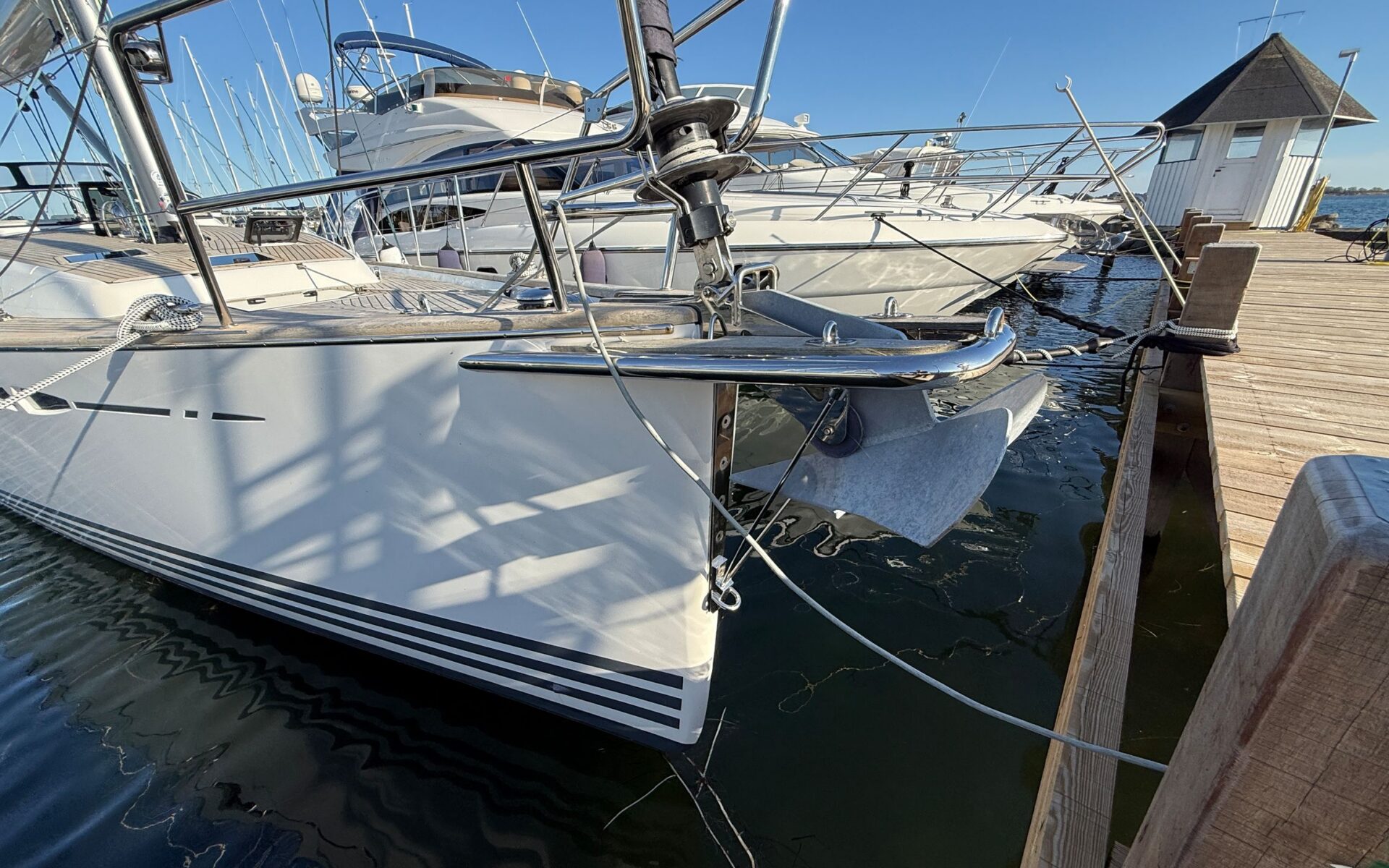

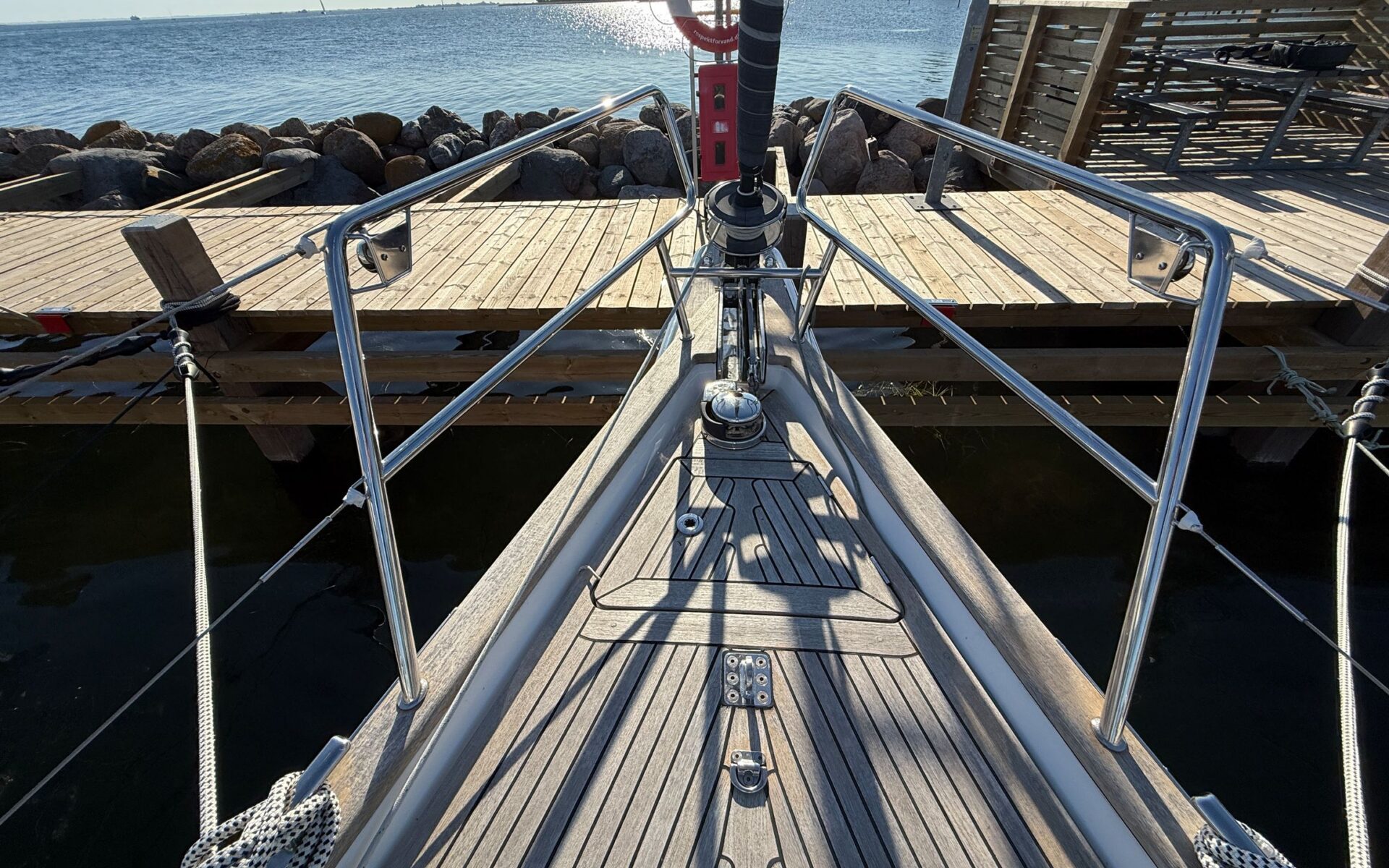

• A-frame / bowsprit in stainless steel with teak planking and tack attachment point for gennaker
• Bow boarding ladder in stainless steel
• Stainless steel protection rails
• Mid-ship mooring cleats
• Side gates

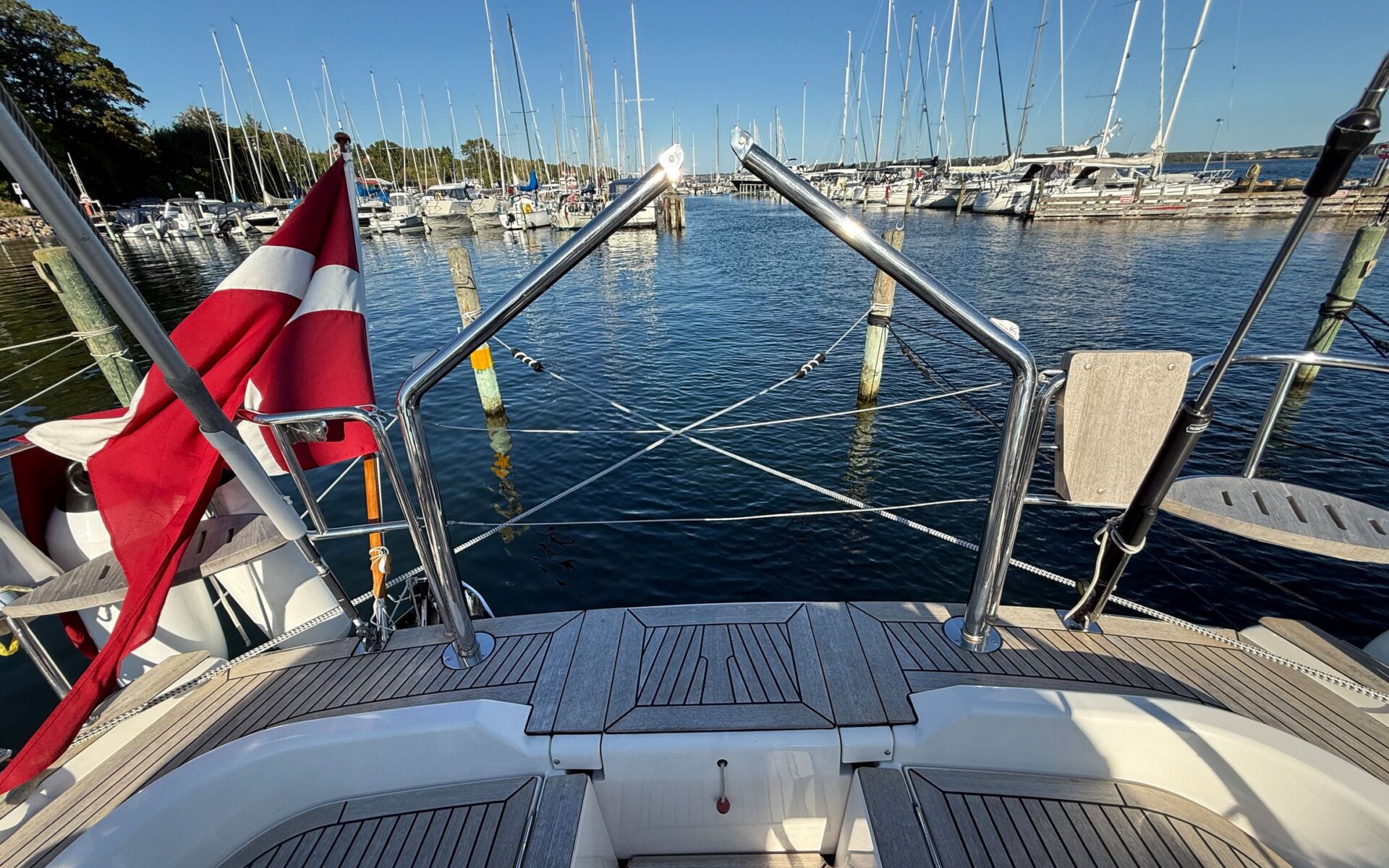

• Aft pushpits with teak battened seats
• Windscreen
• Sprayhood, light grey – 2023
• Cockpit tent, light grey
• Bimini in canvas with stainless steel tubes
• Stern anchor: 15 kg Bruce type with foldable anchor arm and 75 m lead anchor warp
• Stern windlass: 1000 W with remote control
• Additional remote control for aft anchor winch
• Teak outboard engine bracket mounted on aft pushpit
• Davits for dinghy on transom

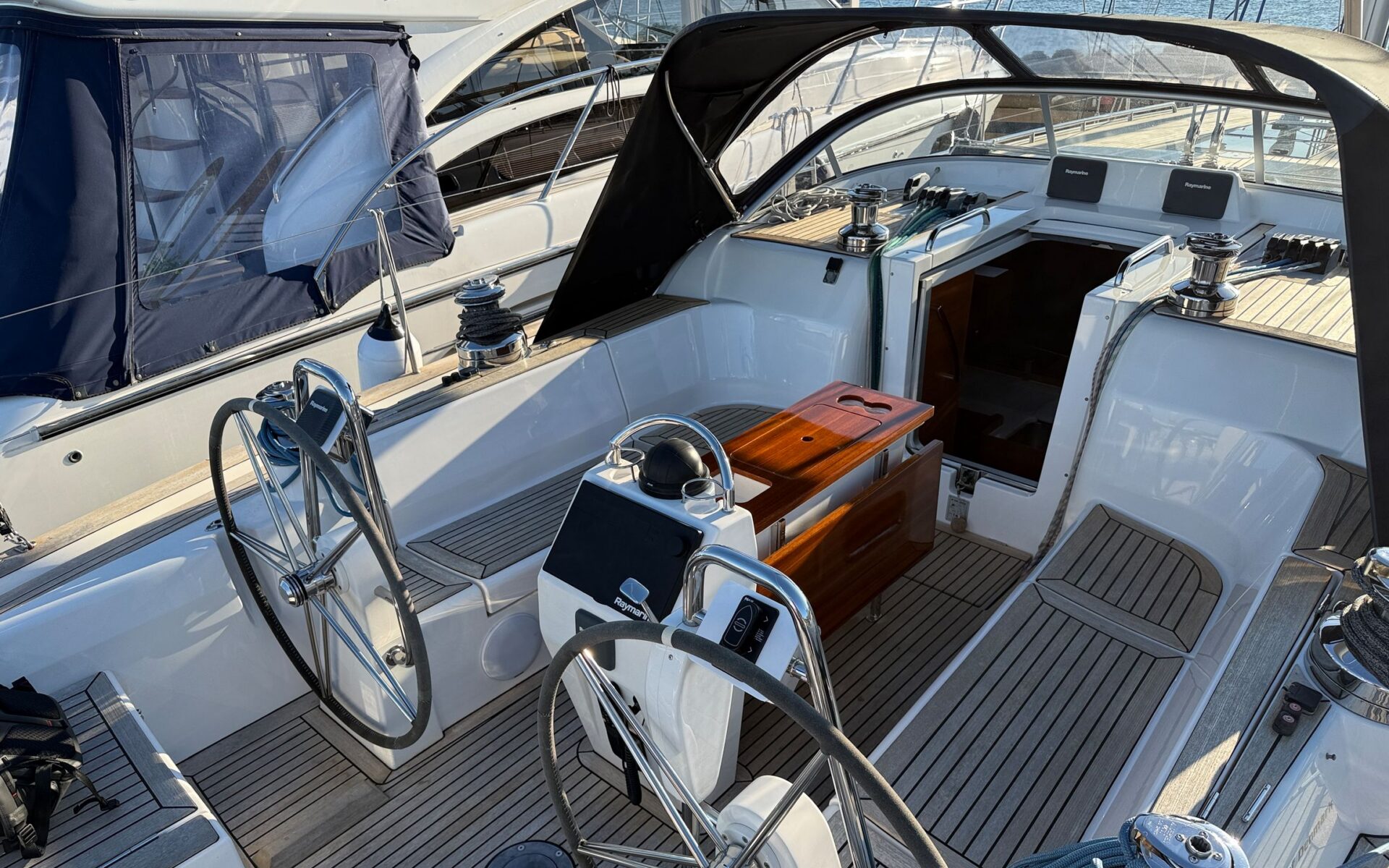

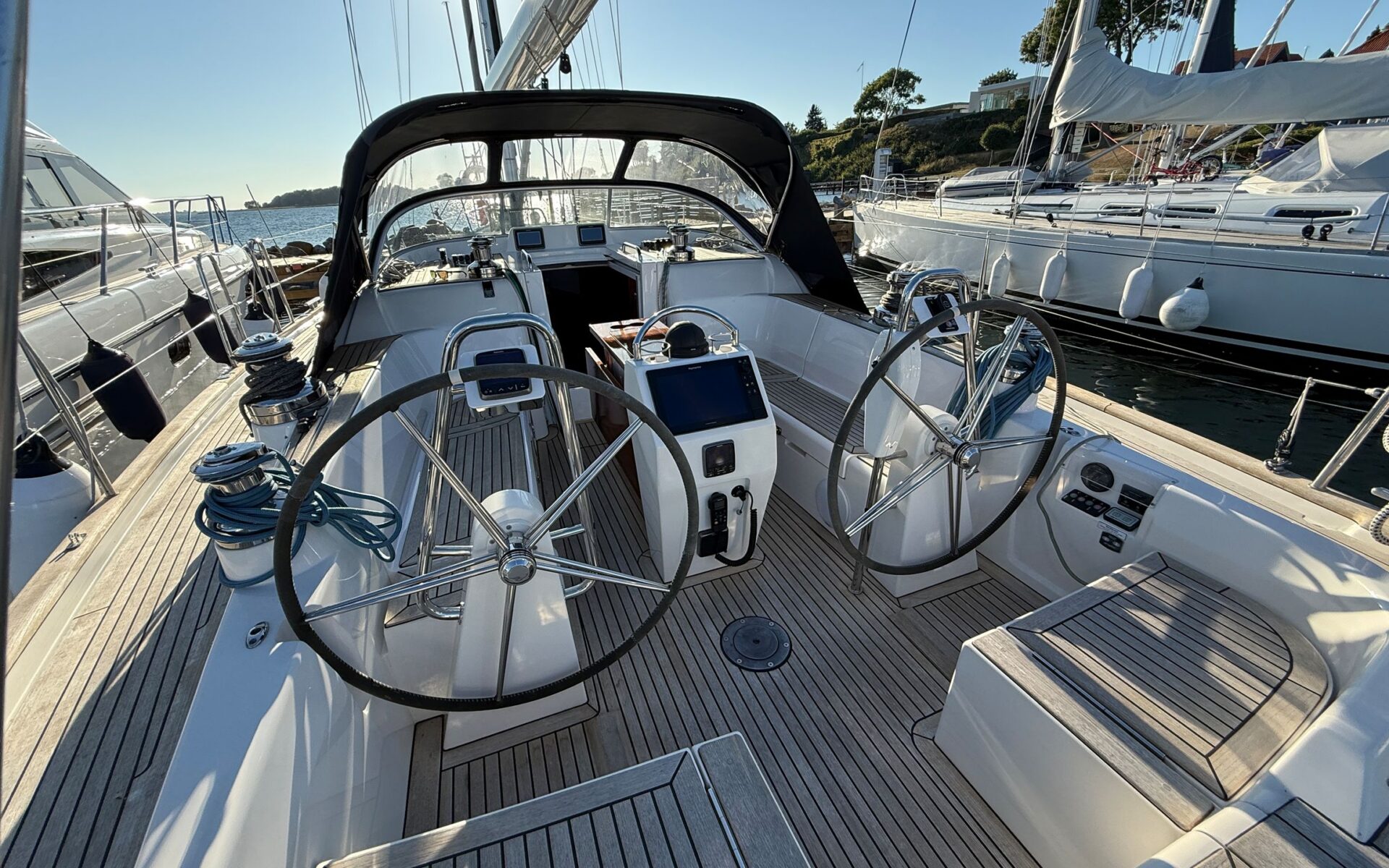

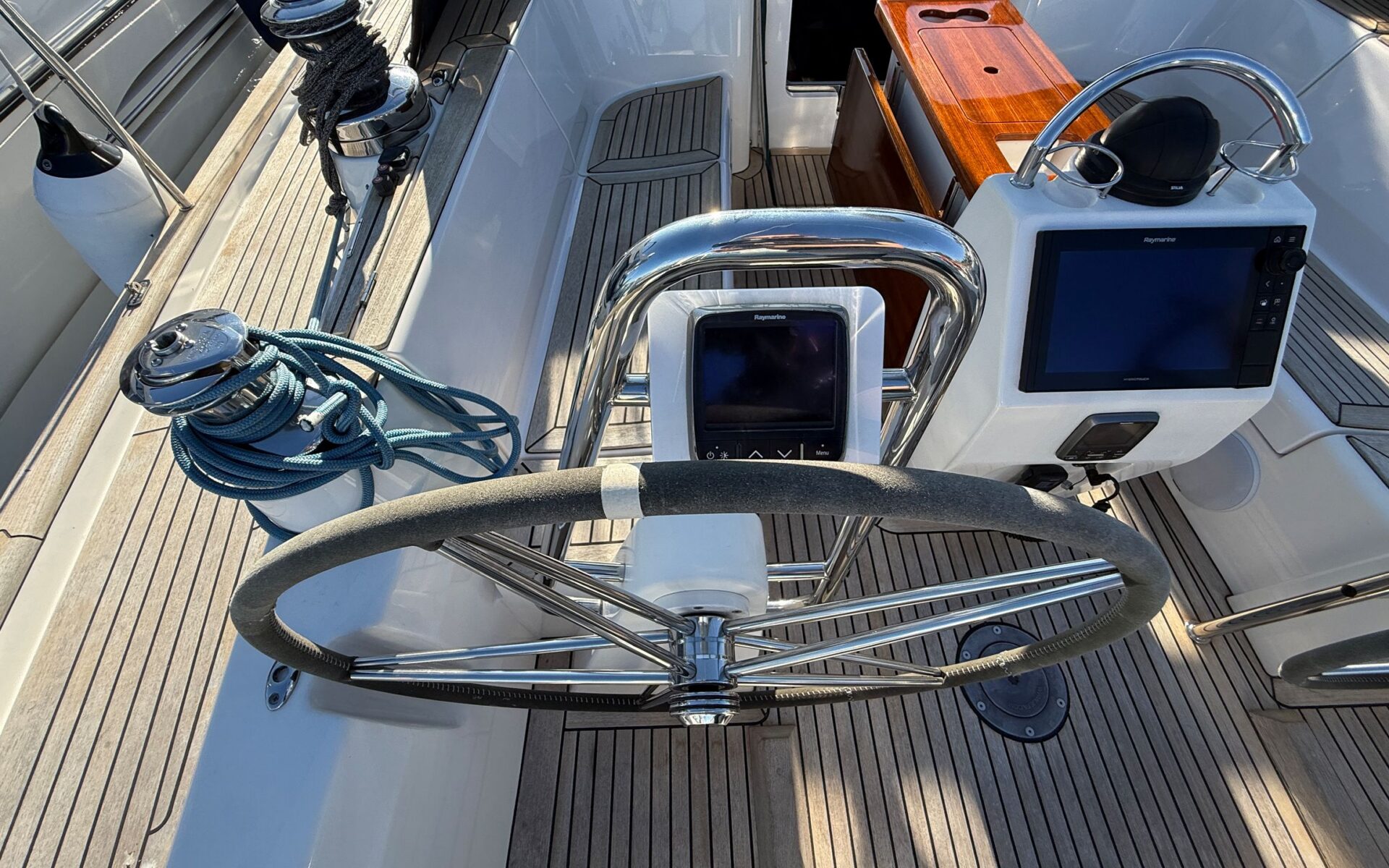

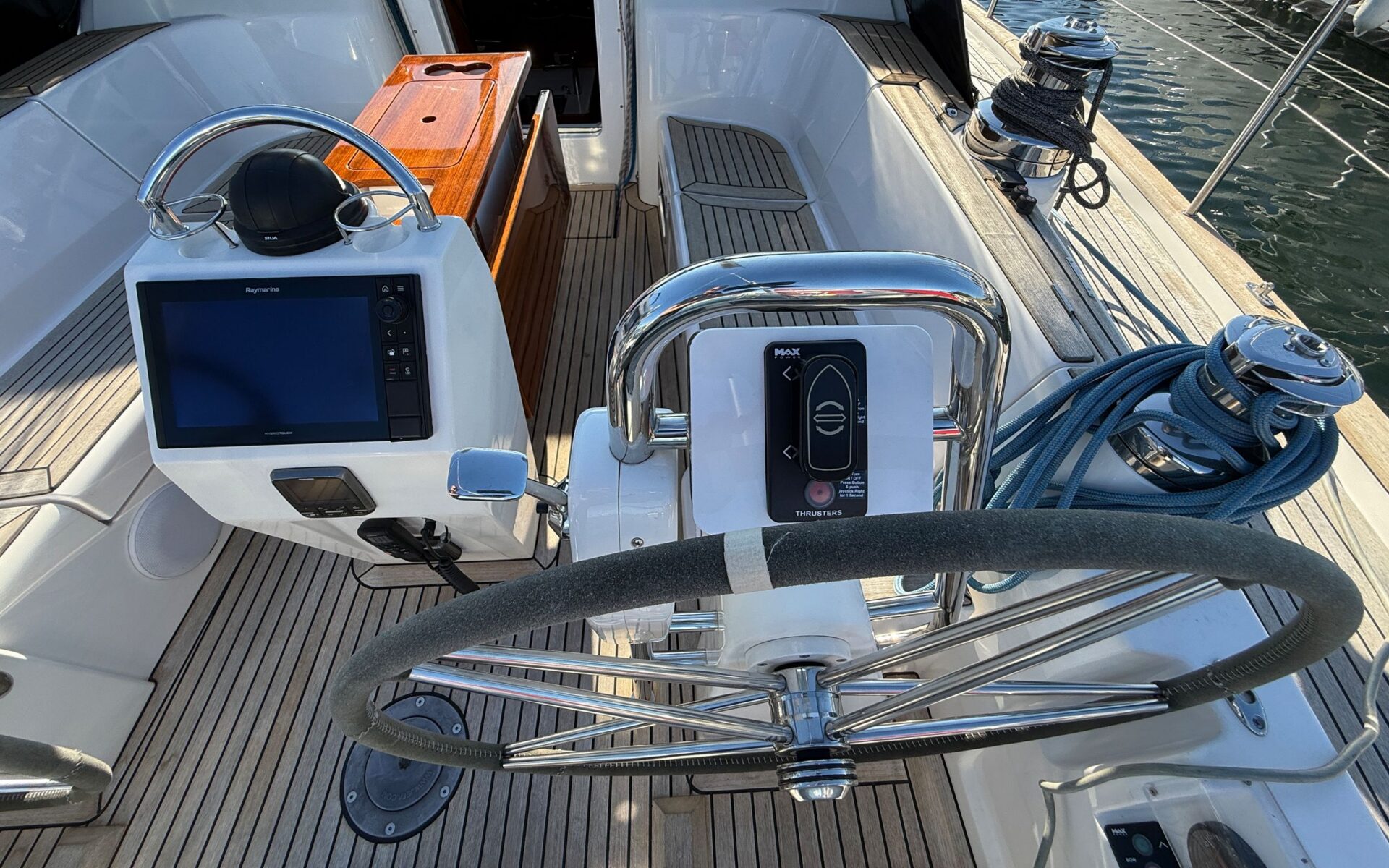

• Wheel crash bars with integrated plotter positions at both helm stations
• Forestay cover in grey canvas
• Cockpit table – 2020
• Engine control (speed/gear) mounted at port wheel
• Grab handles at entrance on each side of sliding hatch
• Recessed 3-step emergency ladder

Sail Handling

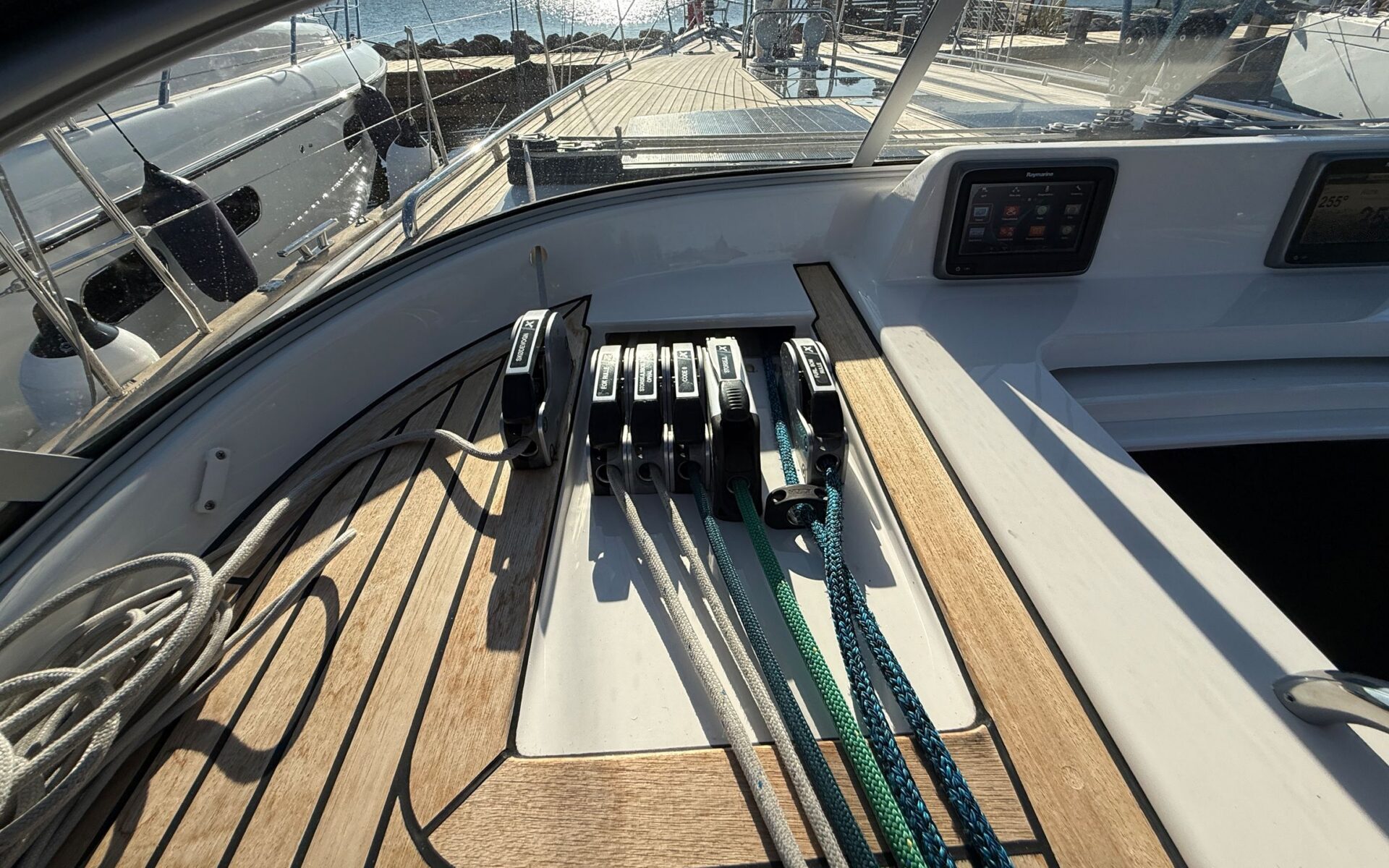

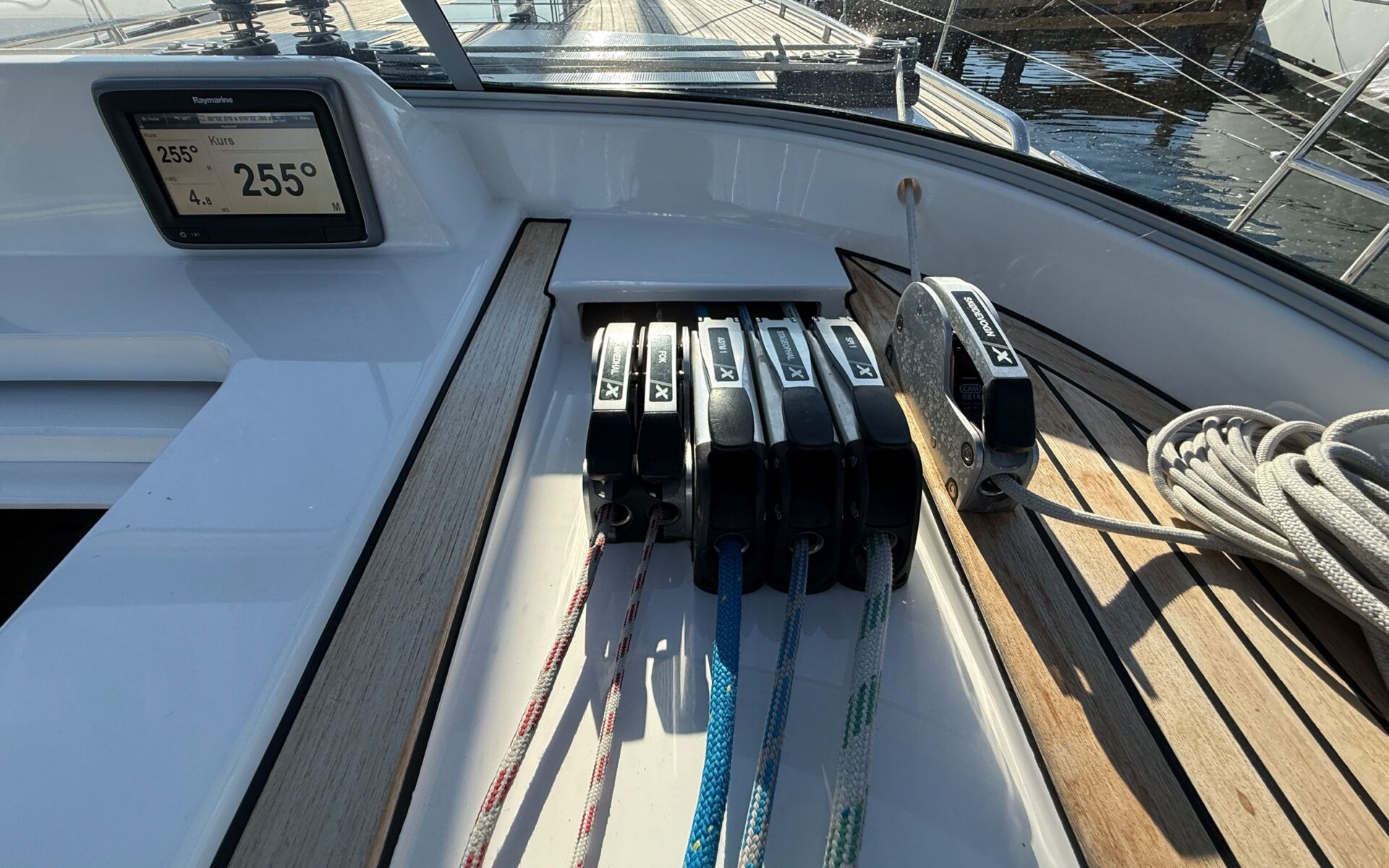

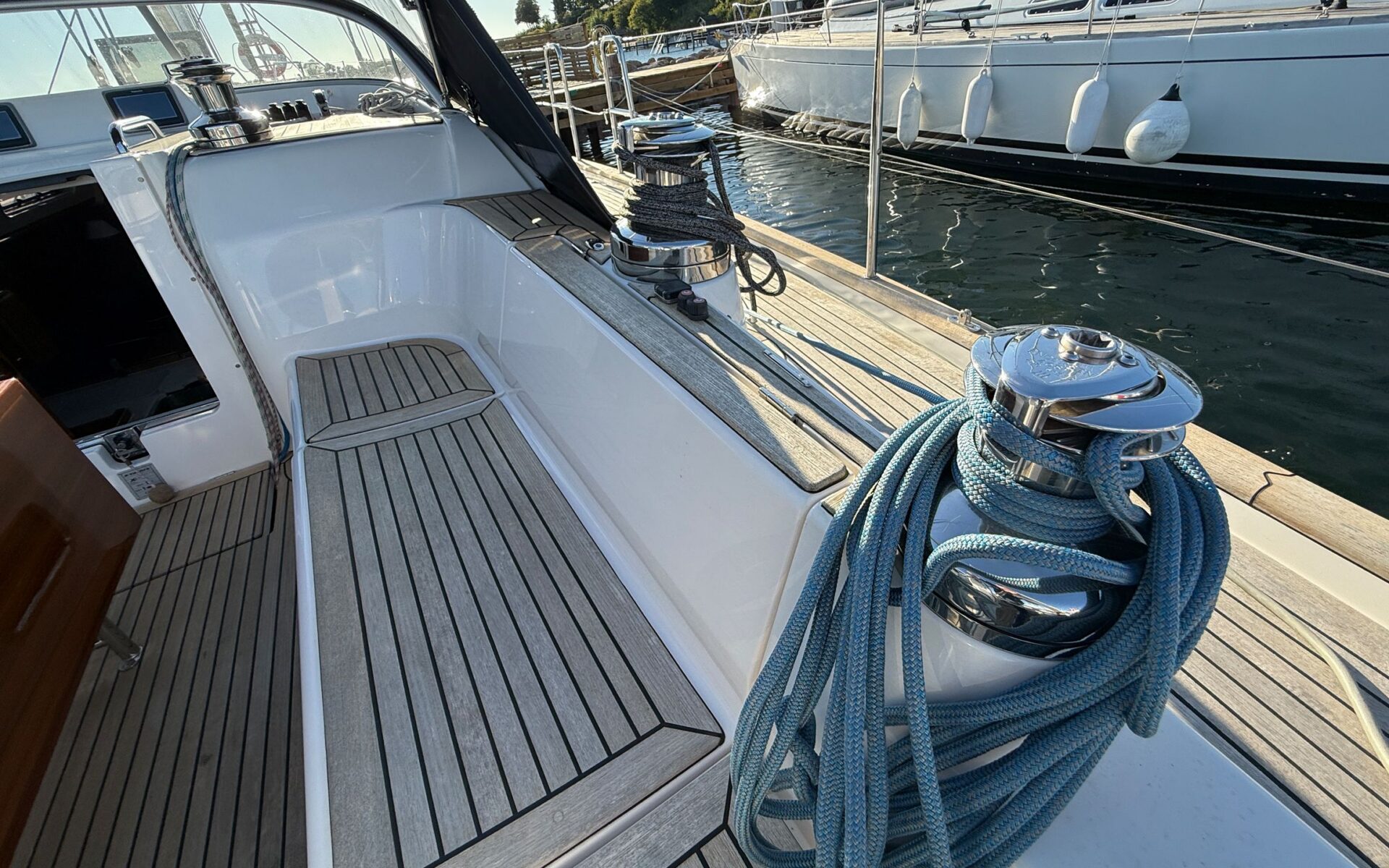

• 2 x electric primary winches – Andersen 58STE
• 2 x mainsail winches – Andersen 46ST
• 2 x pit winches – Andersen 46ST; port-side halyard winch electric for Furler Boom
• Gennaker equipment
• Aluminium spinnaker pole with mast track and adjustable car, stored on front of mast
• 4 x Wichard padeyes for genoa and gennaker barber haul
• Pole downhaul system with dedicated padeye, blocks, lines and Spinlock stopper

Sails

• New mainsail – radial cut performance sail in laminate WCXI-M 9.1 oz, approx. 49 m², with 4 mm Dyneema leech and foot lines, Cunningham, four battens, Selden batten boxes and Selden batten cars.
• Furling genoa – North Sails 125% Dyneema Gatorback with UV leech protection, 51 m²
• New headsail Furling jib – 100%
• Furling Code 0 with painted leech protection – 82 m²
• Furling heavy-weather jib – 16 m²

Mast & Rigging

• Fractional 19/20 sloop
• Standard Xc 42 mast

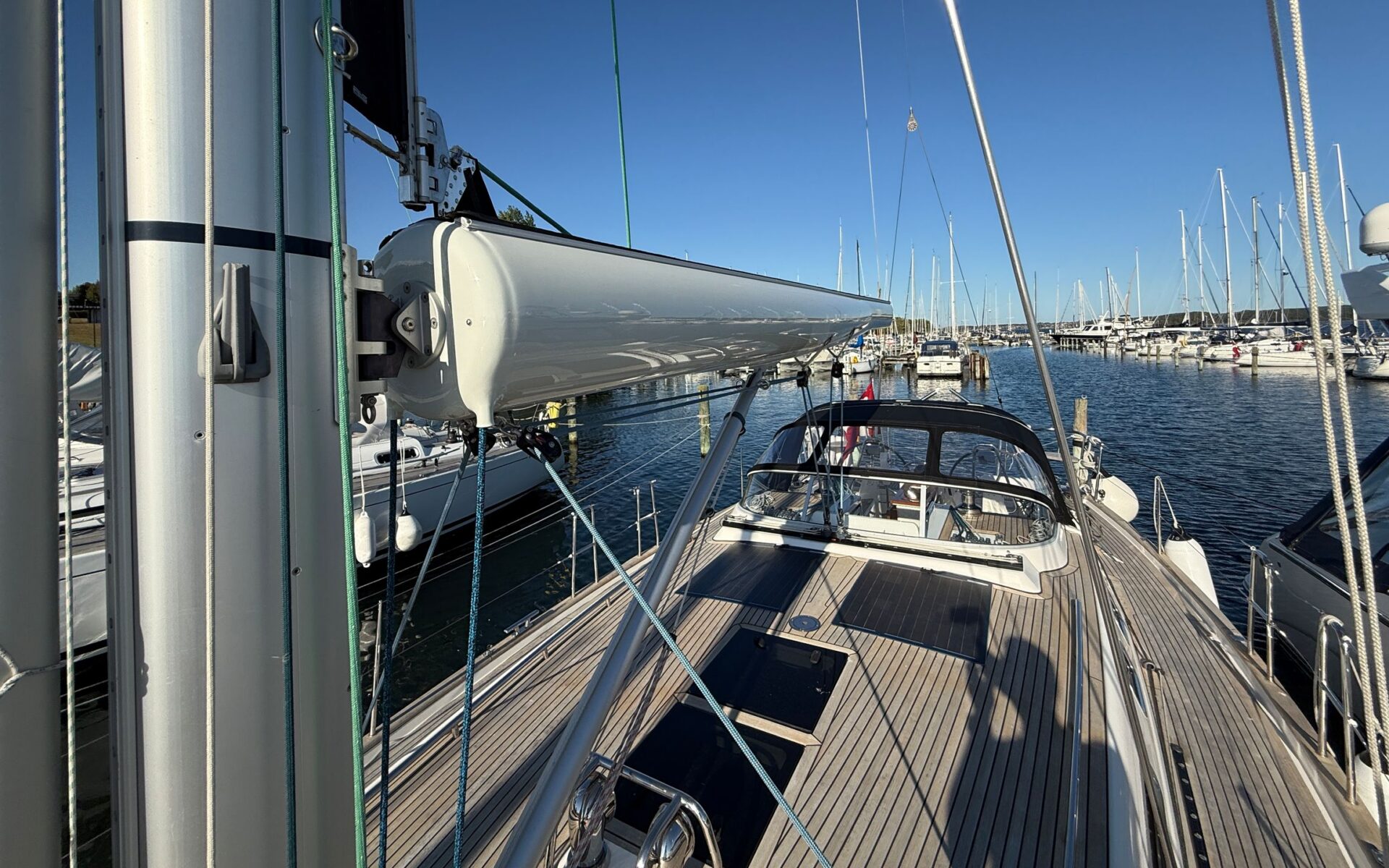

• Furler Boom including boom lift and telescopic vang, with lines led back to cockpit
• Mast steps
• Tricolour masthead light including anchor light, Windex light and steaming light
• Deck light
• Inner forestay deck fitting and under-deck reinforcement
• Inner forestay halyard with block and halyard stopper
• 2:1 masthead spinnaker halyards in Dyneema SK90 including block and stopper

Keel

• Standard lead L-keel
• Keel consists of antimony hardened lead bulb bolted and glued to cast iron fin for high strength, low centre of gravity and comfortable sailing performance.
• Keel securely bolted to steel frame
• Keel protected with epoxy and fiberglass

Hatches / Portlights / Ventilation / Sprayhood

• New Sprayhood, black – 2023
• New Cockpit tent, black - 2023

Guard rail / Anchor / Stainless Steel Fittings

• Bow anchor: 25 kg Delta with 50 m x 10 mm galvanized chain
• Bow windlass: 1500 W / 12 V, deck mounted
• A-frame / bowsprit in stainless steel with teak planking and tack attachment point for gennaker
• Bow boarding ladder in stainless steel
• Stainless steel protection rails
• Mid-ship mooring cleats
• Side gates
• Aft pushpits with teak battened seats
• Windscreen

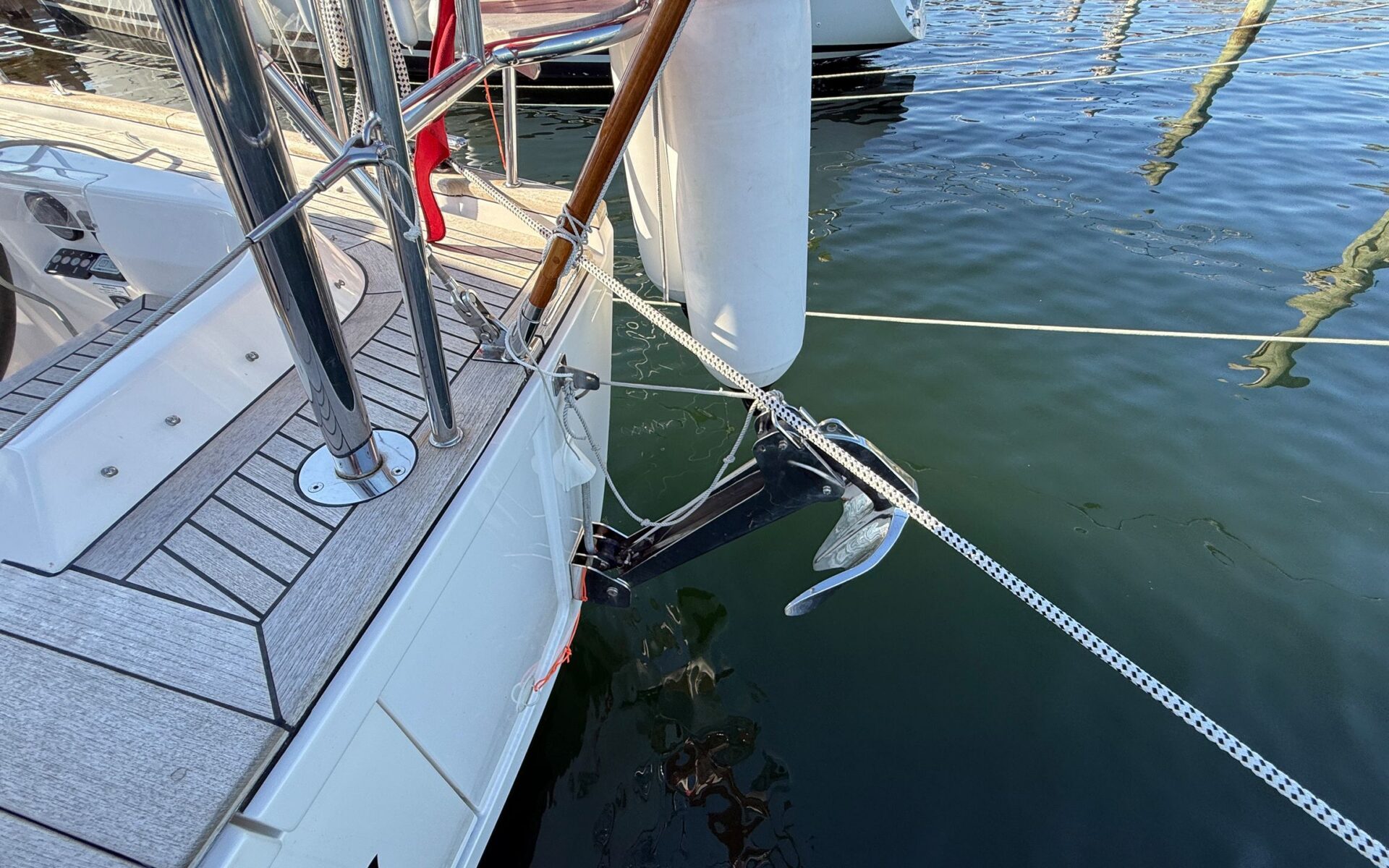

• Stern anchor: 15 kg Bruce type with foldable anchor arm and 75 m lead anchor warp
• Stern windlass: 1000 W with remote control
• Additional remote control for aft anchor winch
• Teak outboard engine bracket mounted on aft pushpit
• Davits for dinghy on transom
• Wheel crash bars with integrated plotter positions at both helm stations
• Cockpit table – 2020
• Engine control (speed/gear) mounted at port wheel
• Grab handles at entrance on each side of sliding hatch
• Recessed 3-step emergency ladder

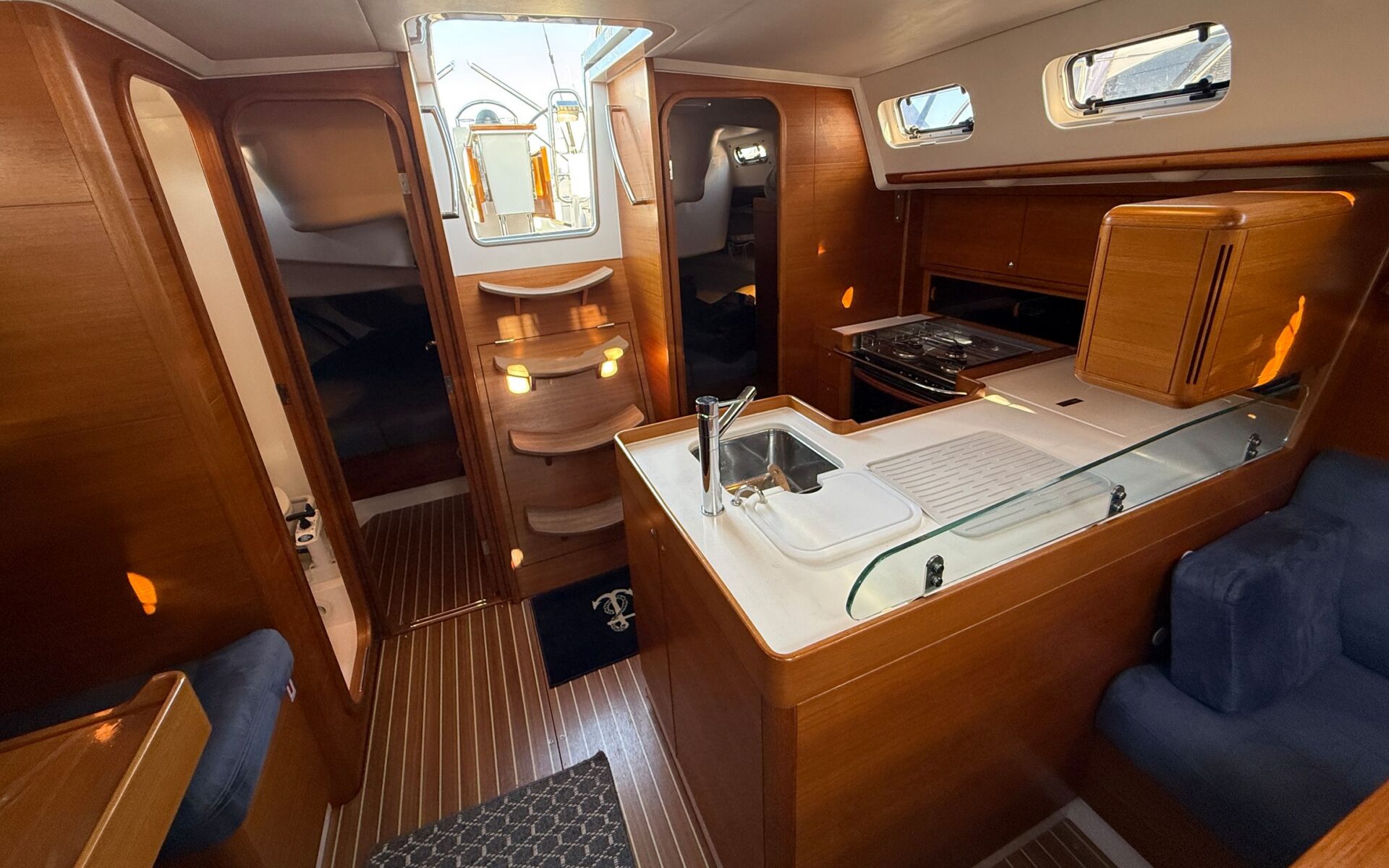

Accommodation

Interior

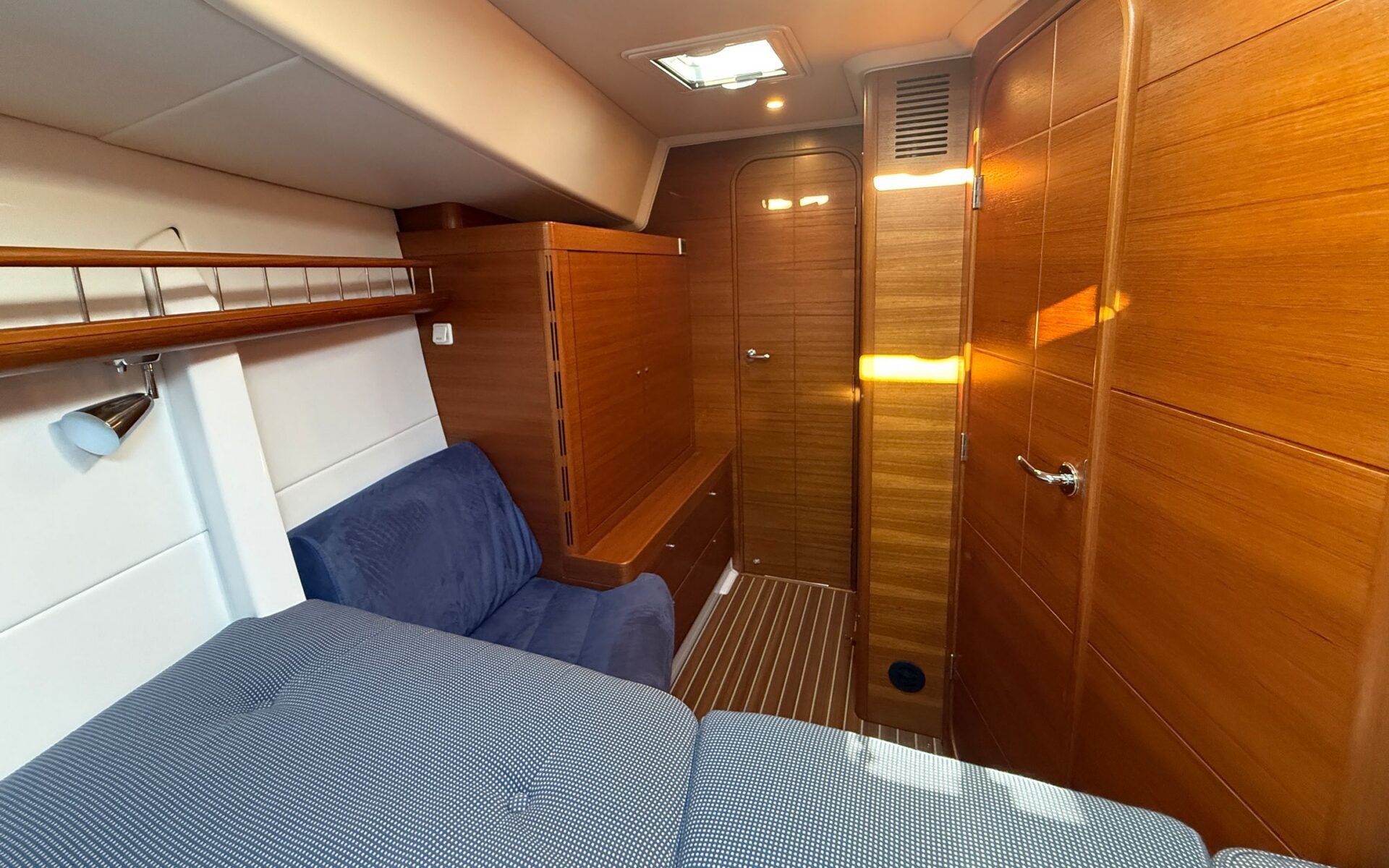

• Three-cabin layout

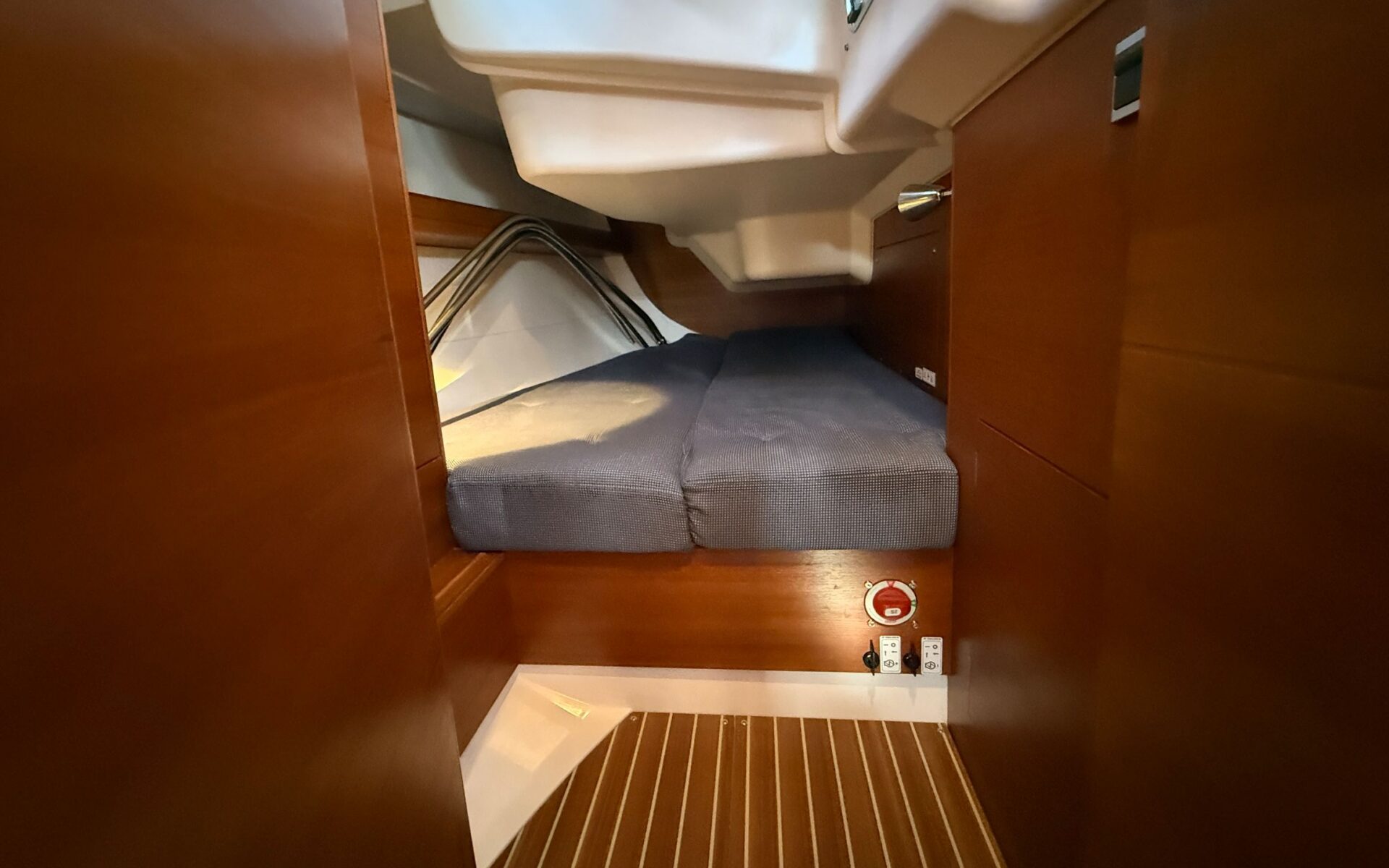

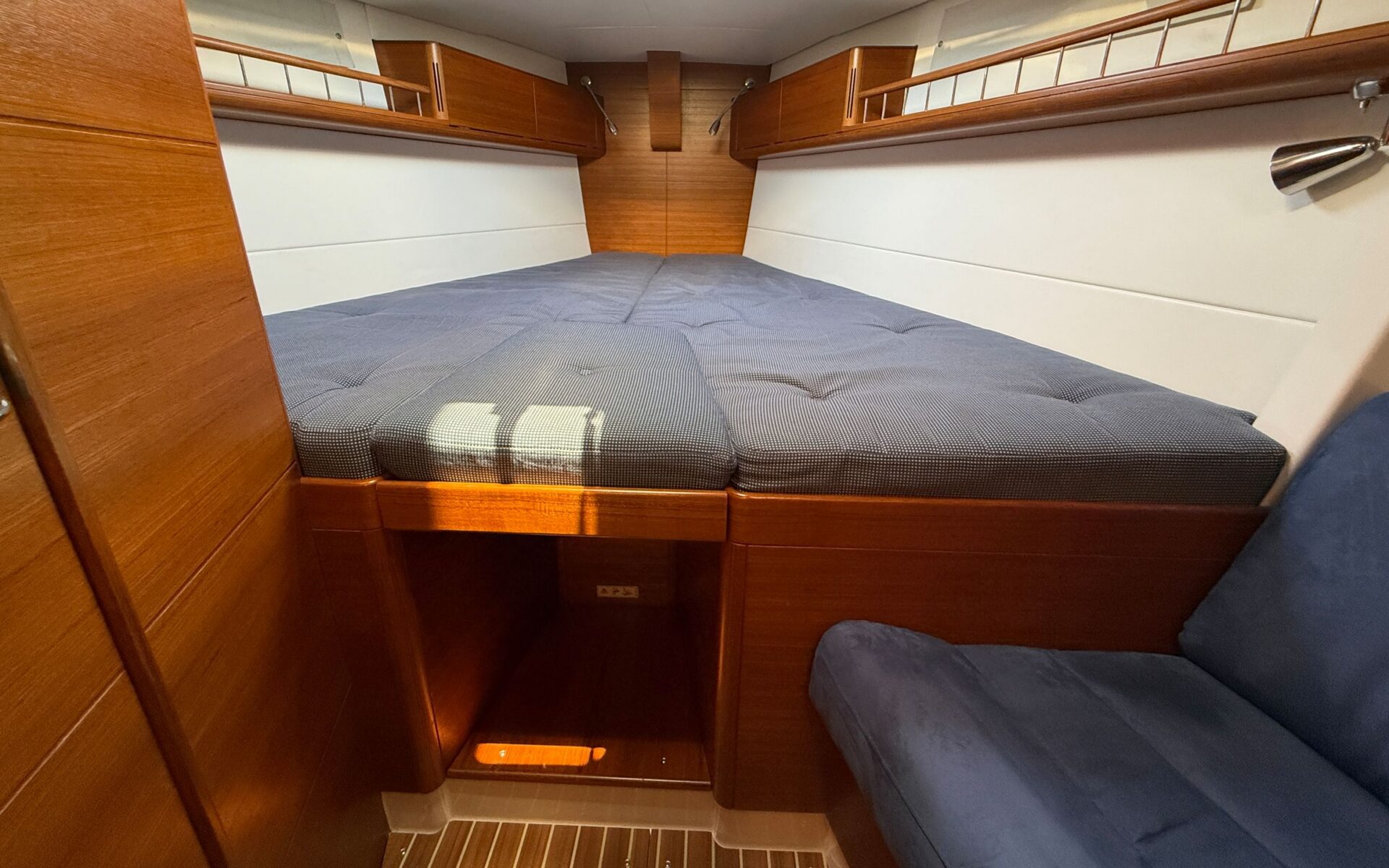

• Forward cabin with double berth

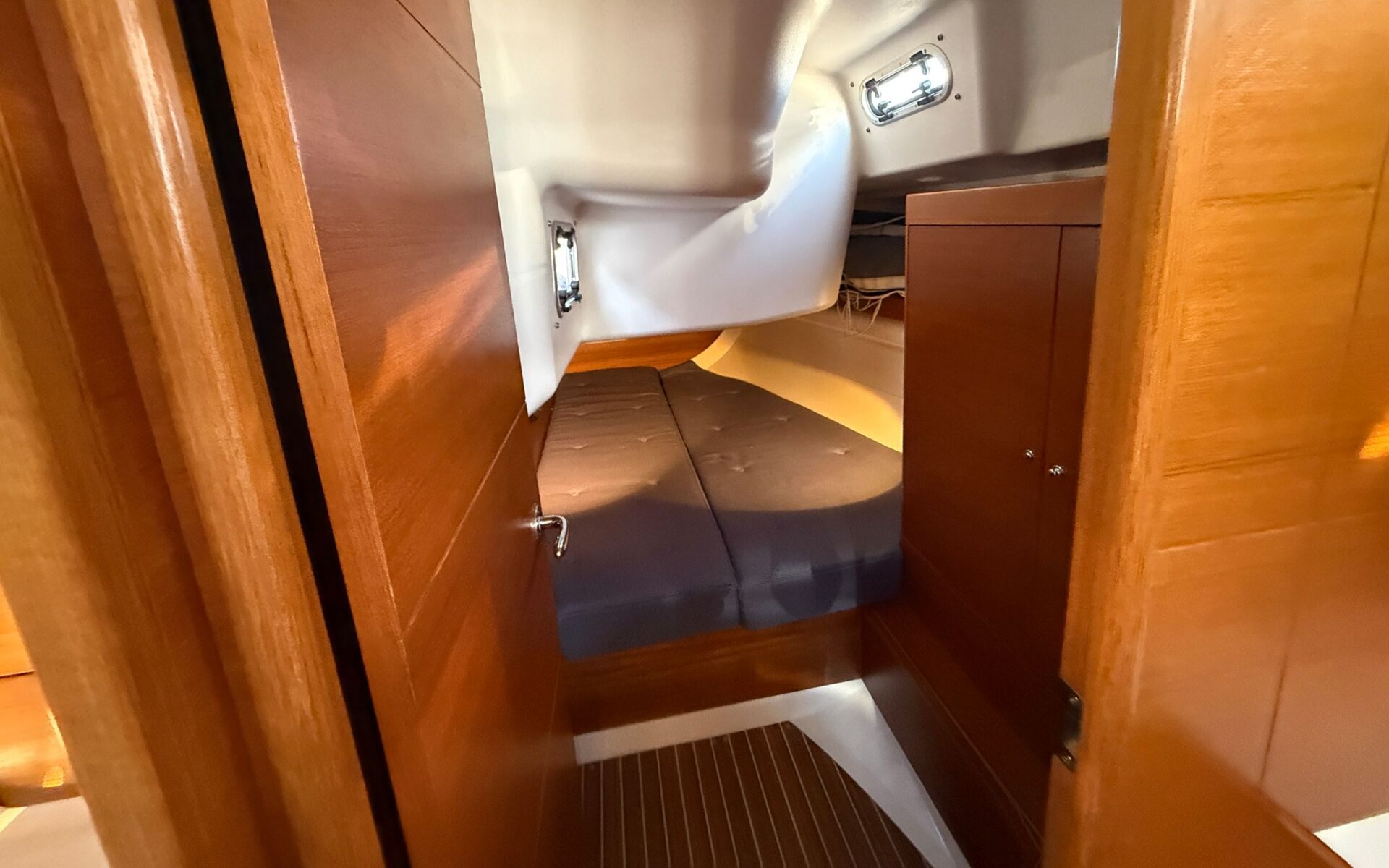

• Two aft cabins with double berths

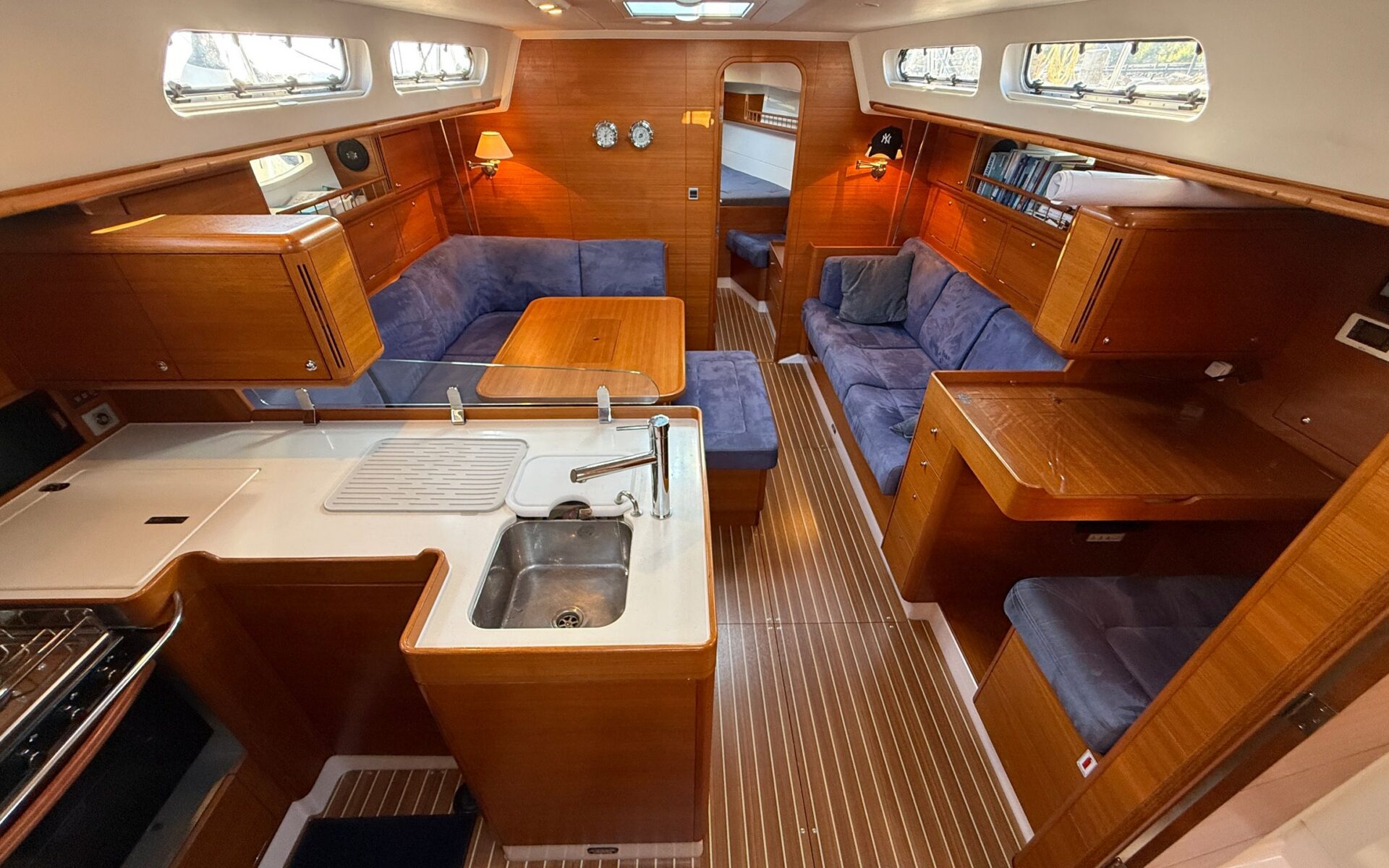

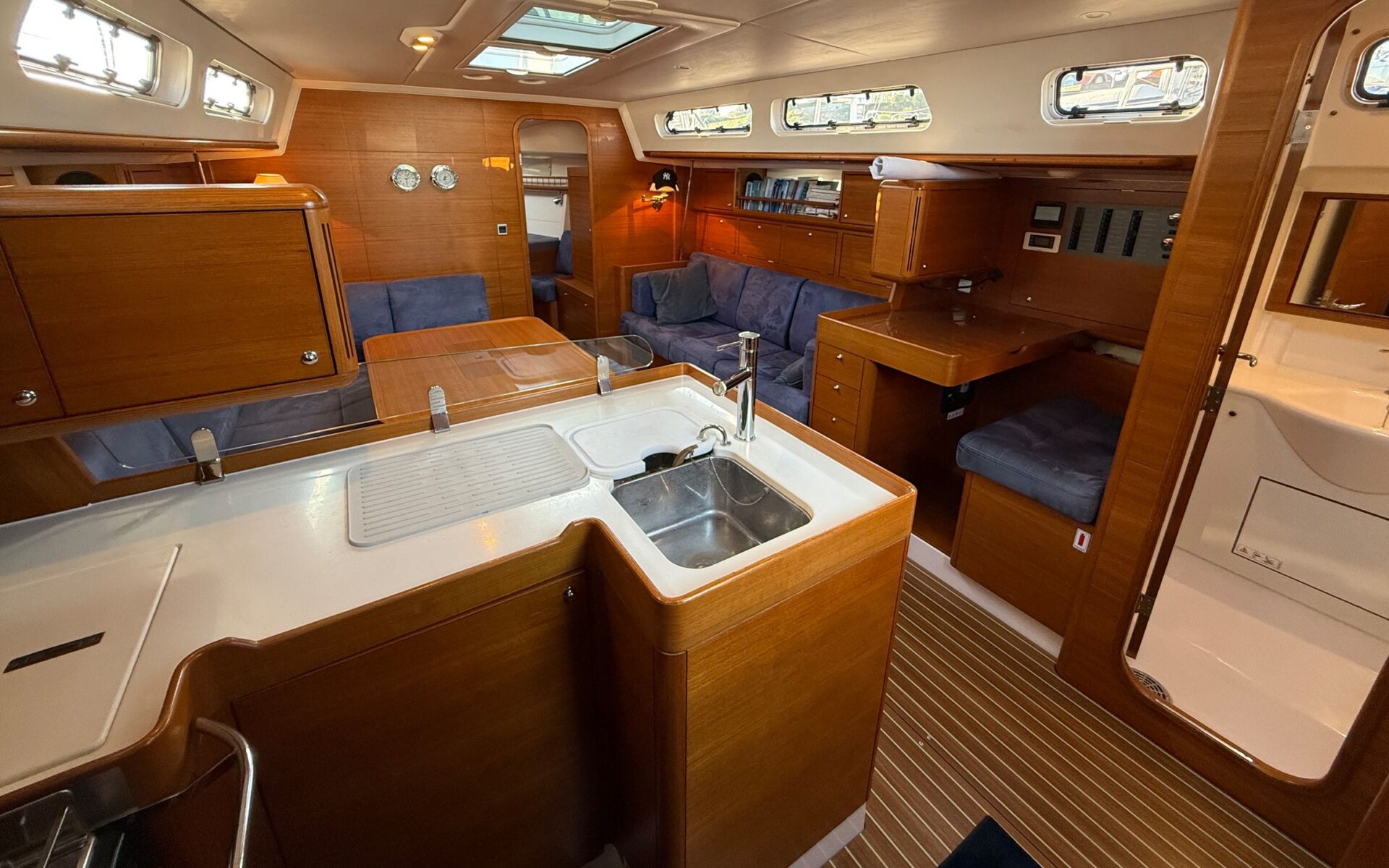

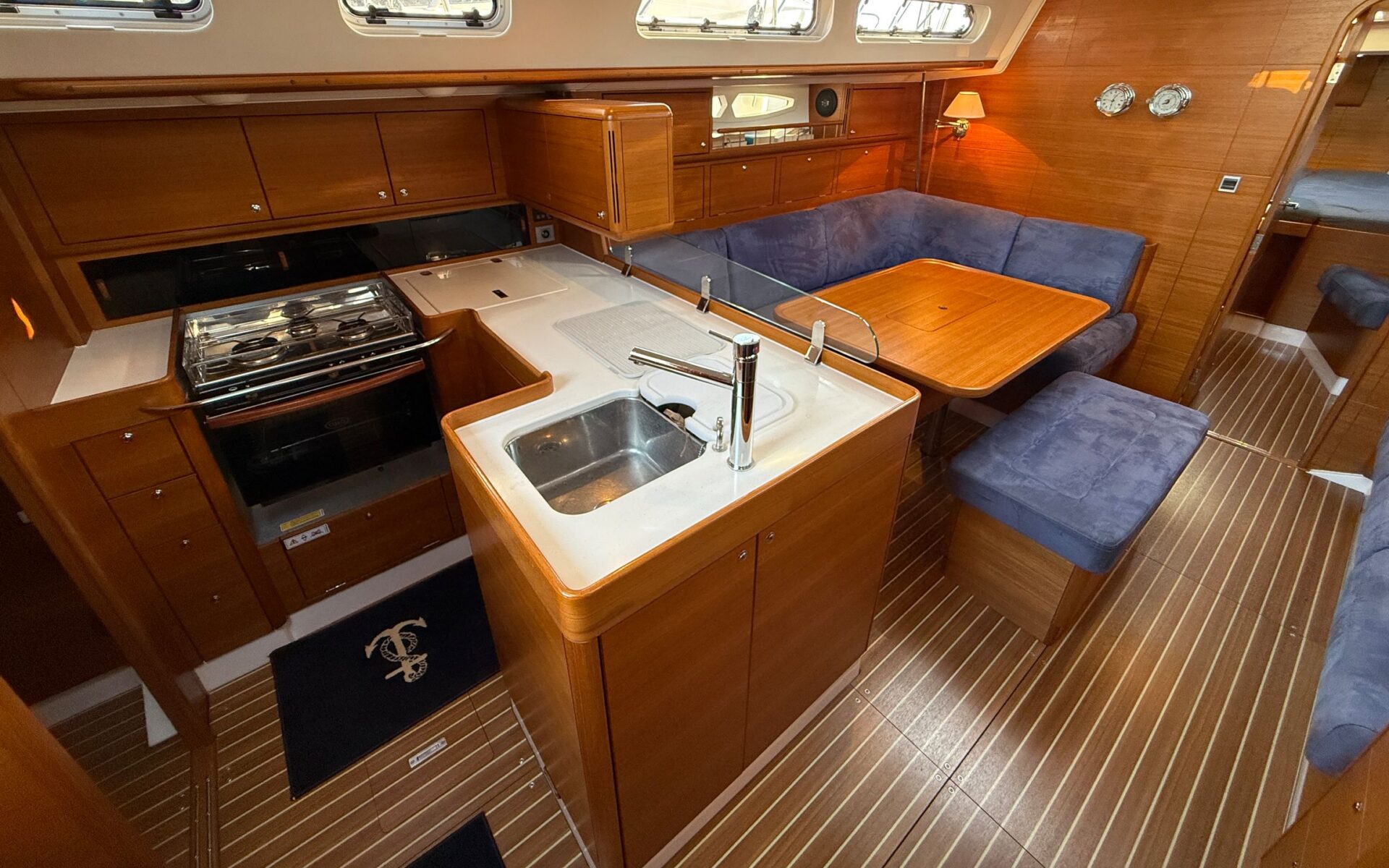

• Spacious saloon
• Main cabin upholstery: Alsace Blue
• Forward and aft cabin upholstery: Araghan Blue

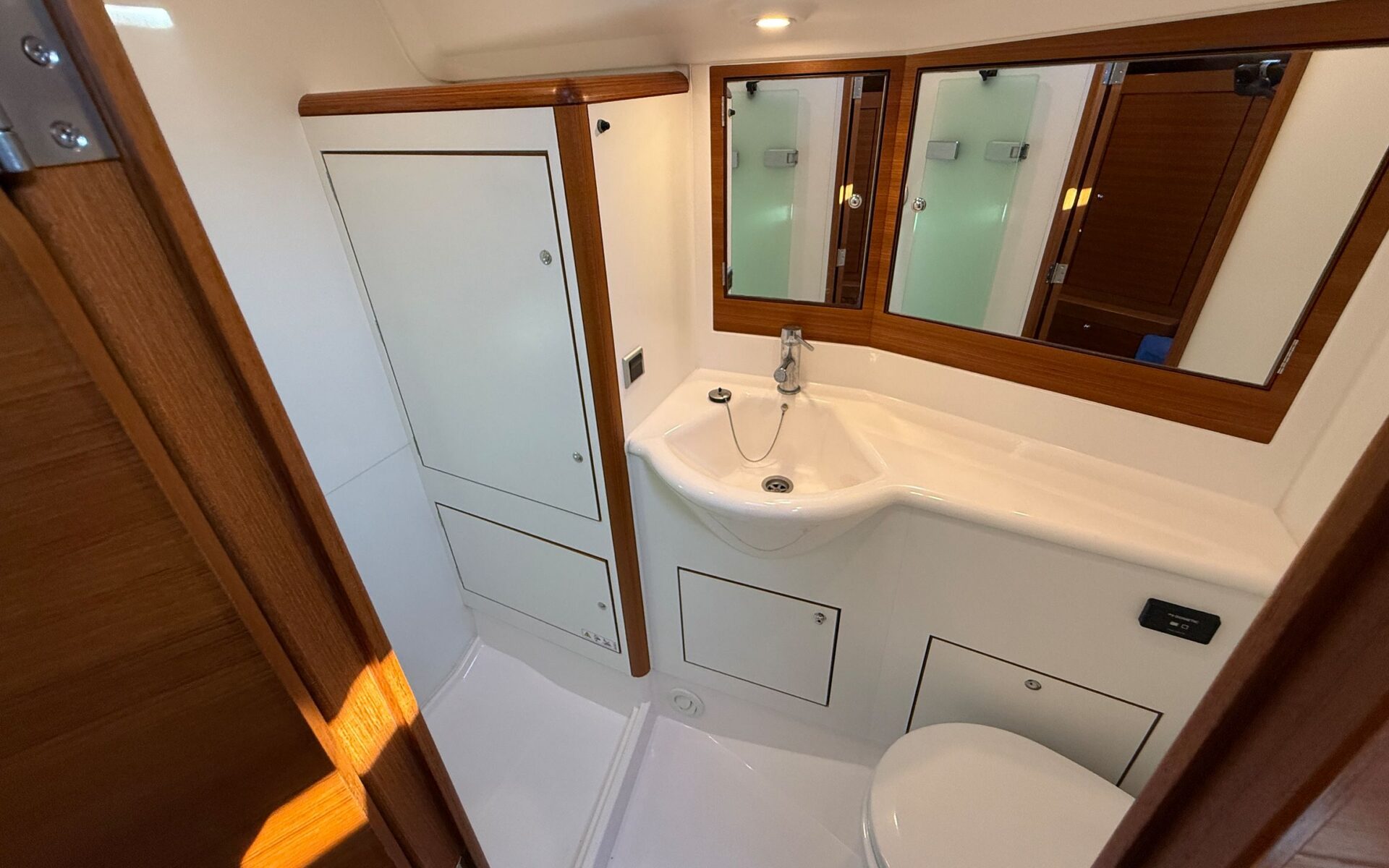

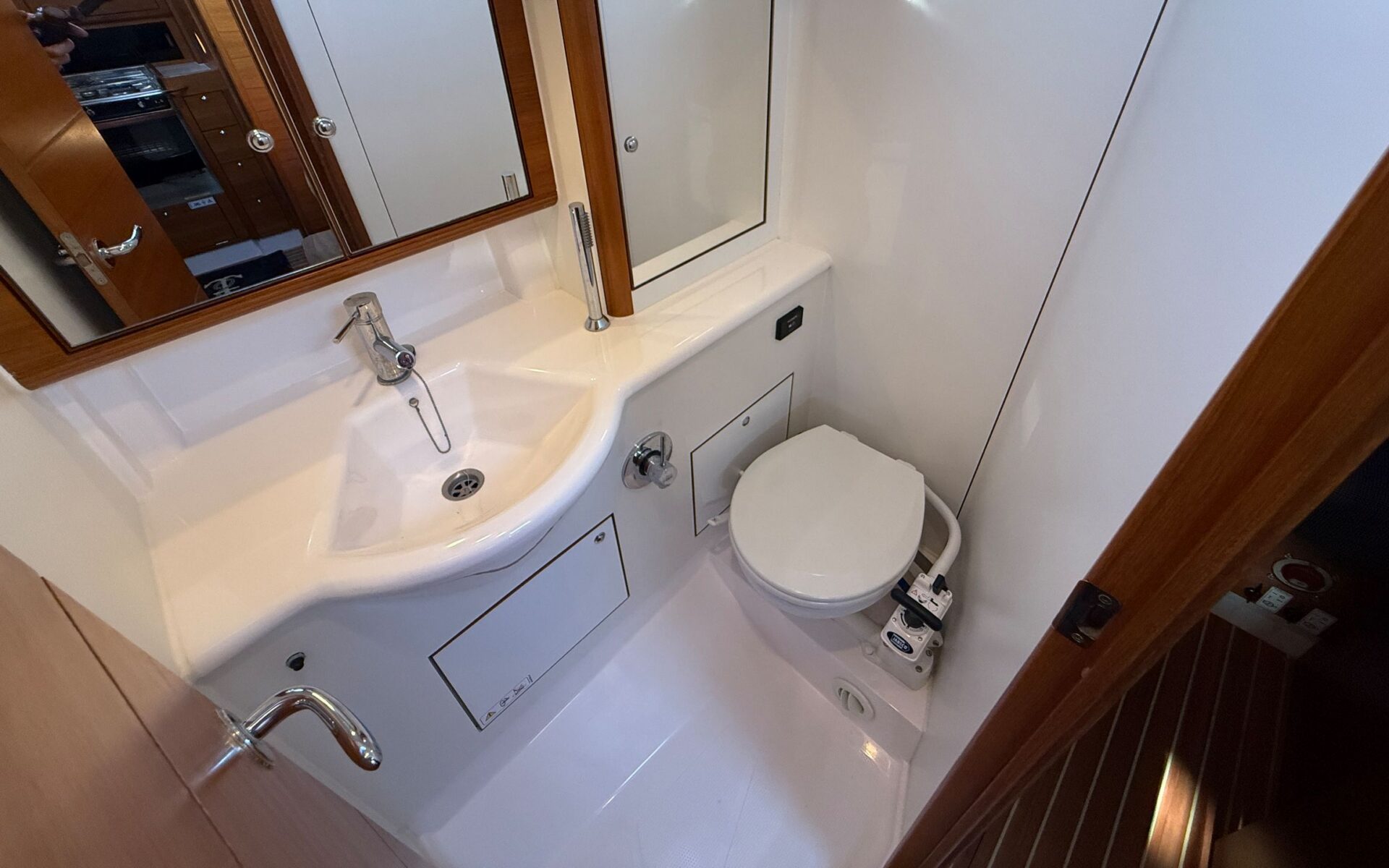

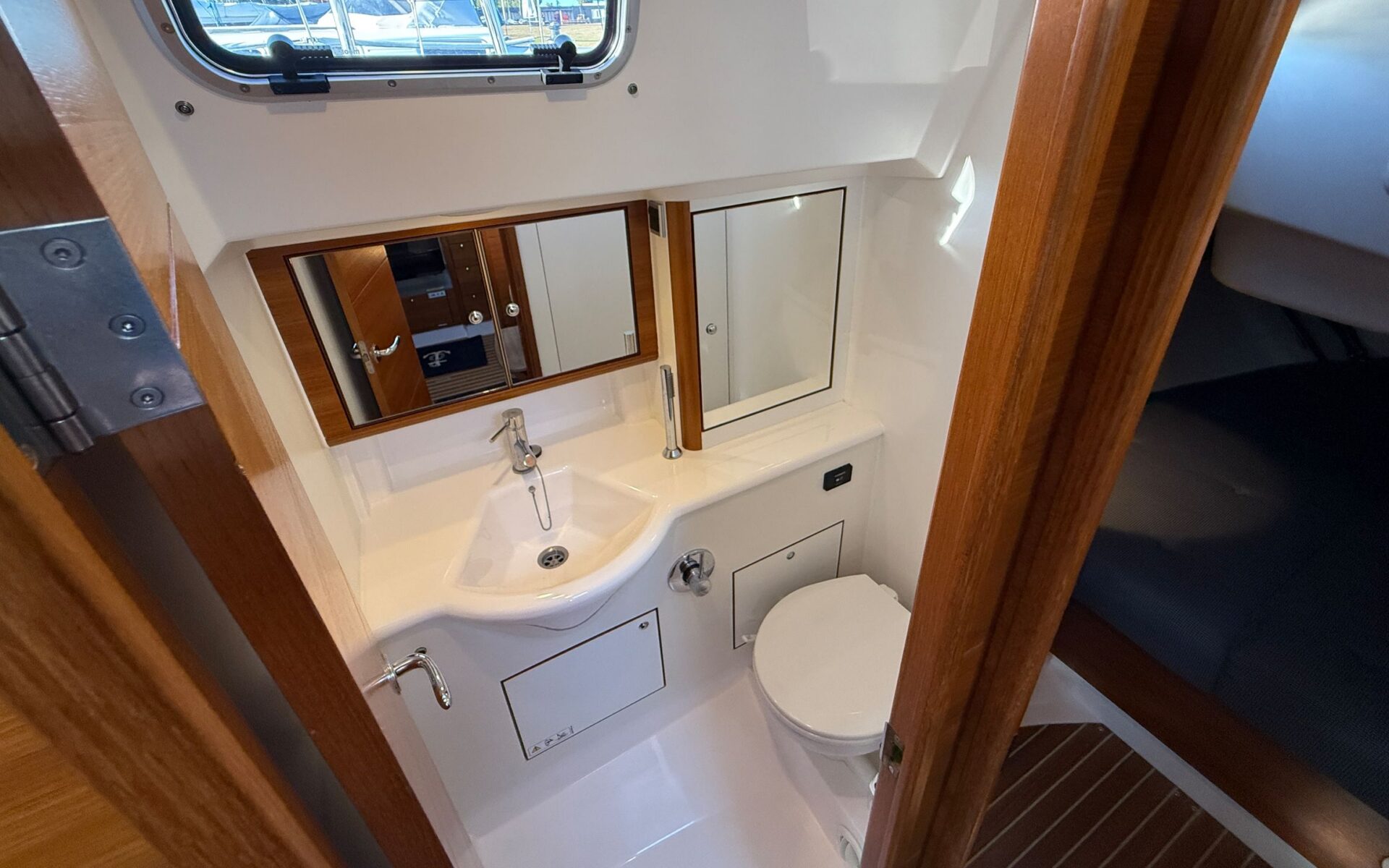

• Two heads with separate shower bilge pumps
• Eberspächer D5 diesel heater with 6 outlets in saloon, cabins, aft and forward heads
• Hot water container
• Freshwater backup foot pump

Systems

Engine

• Volvo Penta D2-55 diesel
• Engine hours: 1890 h
• 3-bladed folding propeller

Plumbing

• Isotherm 85 L front-opening refrigerator
• Fridge/freezer: approx. 140 L
• Isotherm Magnum refrigeration unit with cooling and freezing capability
• ENO gas stove with 3 burners and oven
• Gas detector alarm
• Electrical gas switch
• 3 kg gas bottle

Electrical

• 3 x AGM service batteries, 130 Ah each / 12 V
• Engine spiral-cell battery, 55 Ah / 12 V
• Shore power
• Mastervolt Mass Combi charger and inverter – 12 V / 230 V / 2000 W / 100 A
• MasterView Easy control / monitoring system
• Galvanic isolator
• 5 x 230 V outlets powered by shore power or inverter
• Gas detector with alarm
• Electrical gas switch with solenoid valve
• LED navigation lights
• 4 x red LED cockpit floor lights
• 2 x red night lights in saloon
• LED lighting in saloon and cabins
• 2 x C-LED flexible reading lights in owner's cabin

Electronics

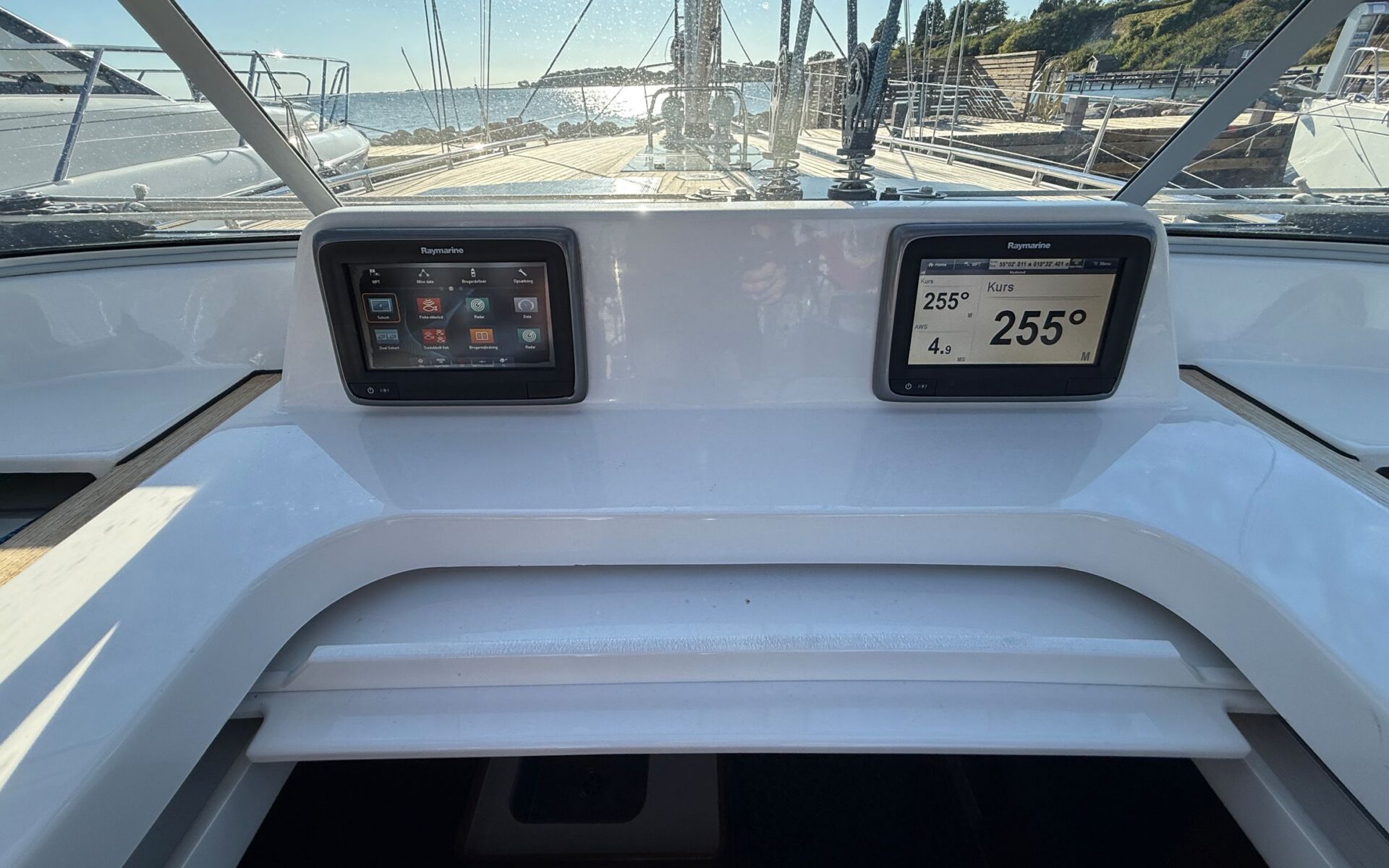

• Raymarine Axiom 12-inch chartplotter
• Raymarine Digital HD 4 kW radar
• 2 x Raymarine 260E VHF/DSC – cockpit and navigation station
• Raymarine AIS650 Class B transceiver
• Pacific 3G AIS all-in-one antenna system at mast top for AIS, VHF, UMTS, GSM, SSB receiver and AM/FM
• Raymarine EV-400 autopilot
• 2 x Raymarine i70 multifunctional displays with sonar, log and wind
• Compass
• Blaupunkt Montevideo multimedia centre – CD/DVD/MP3/USB
• 2 x JVC loudspeakers in saloon
• 2 x Bose 131 waterproof loudspeakers in cockpit

Thrusters

• Max Power Compact Retractable bow thruster – 12 V / 4.79 kW
• Max Power Retractable stern thruster – 12 V

Additional Information

• Fenders
• Mooring lines
• Safety equipment
• Liferaft SeaGo ISO 9650-1, 6 persons, Group A pack 2 in port cockpit locker
