Owner's Comments

Press Comments:
Both due to the rigging configuration, the quality of the construction, and of course the comfort, there is no limit to the voyages its owner wants to undertake aboard the new Xc 47.
NÁUTICA Y YATES M@GAZINE November 2023
The XC 47 is a true joy: a boat that, for many owners, offers almost everything needed for cruising. Not only space, safety, and comfort, but also the joy, enjoyment, and, yes, the pride of sailing an X Yachts.
MARES December 2023
Going back to the drawing board with this boat’s systems layouts to focus on efficiency and accessibility, emphasizing performance in every aspect, and melding style and comfort with functionality and build quality needed for safe, successful, fun bluewater passagemaking, X-Yachts has made the case that with the Xc 47, it has built the ultimate performance luxury cruiser.
SAIL April 2024

Details

Exterior Details

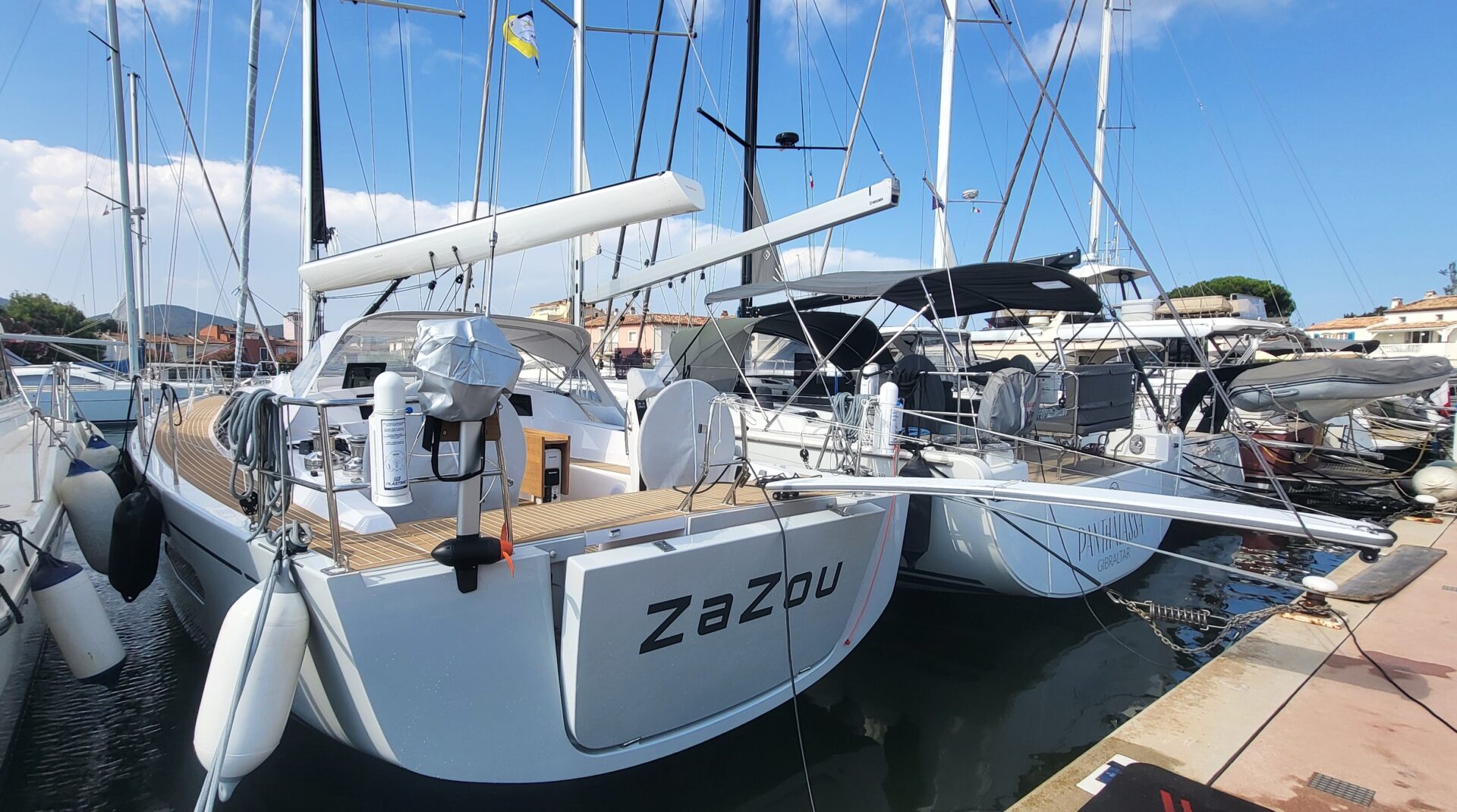

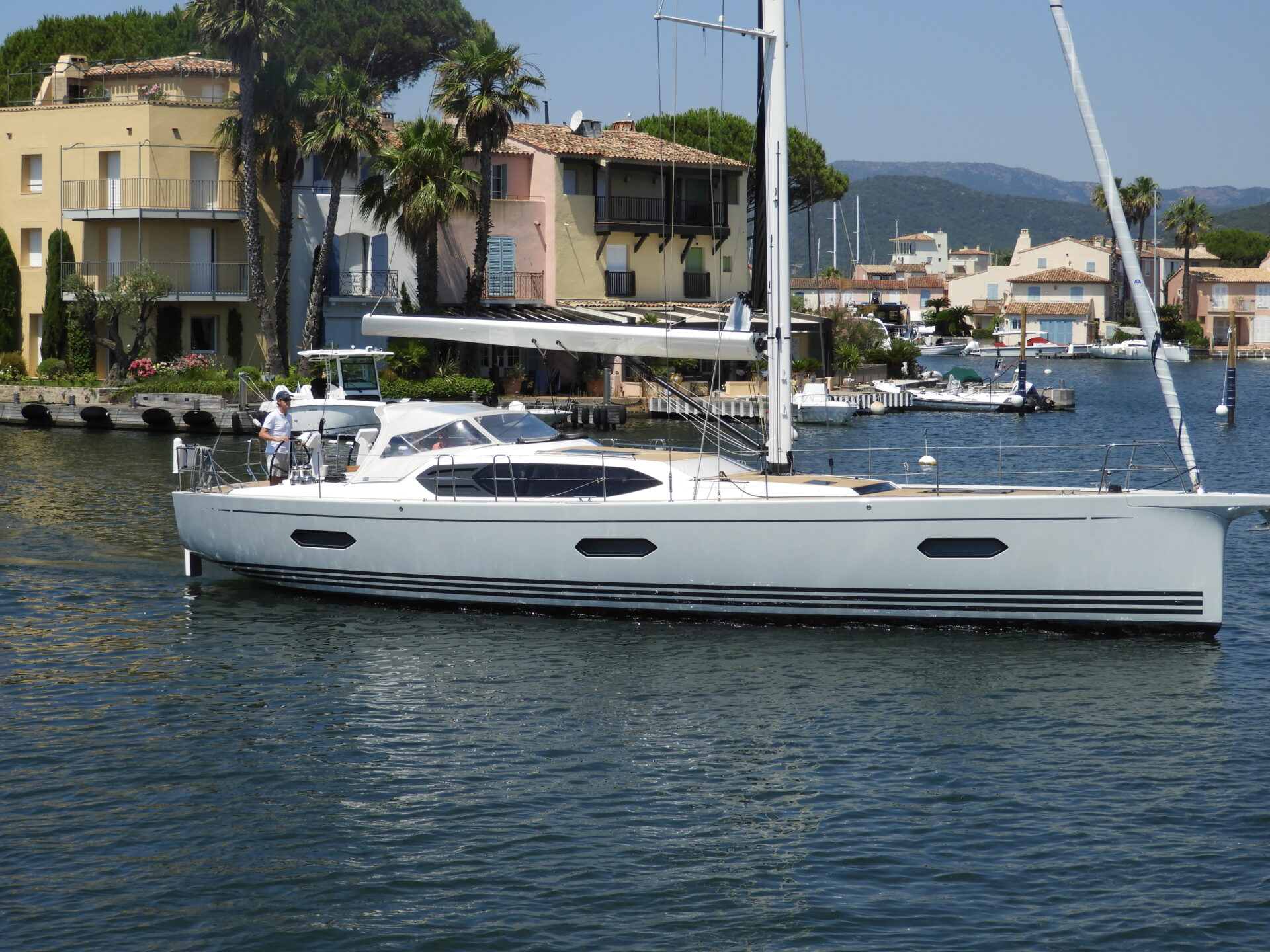

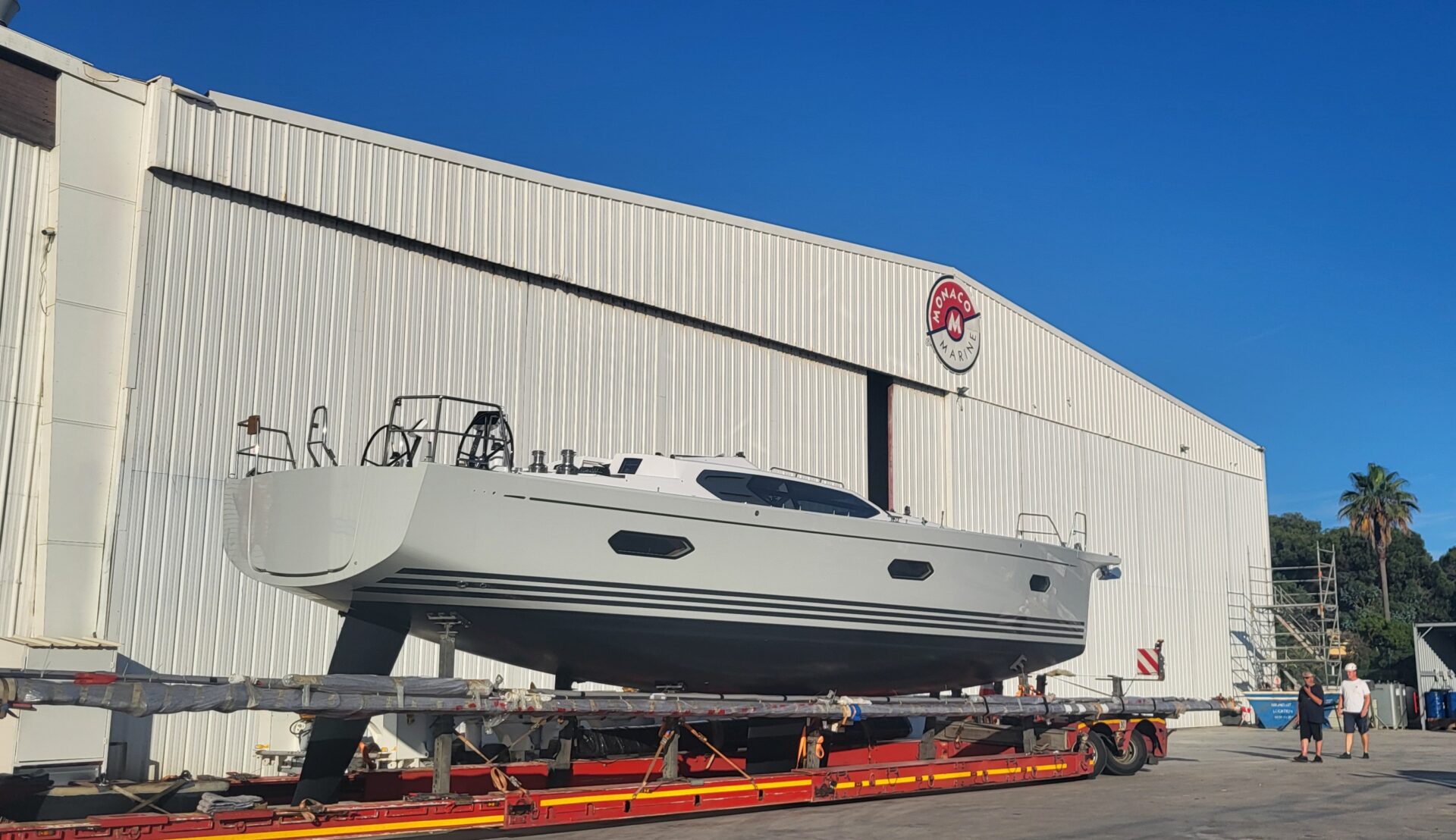

Hull

• The hull lines have maintained the deep V-shaped bow sections, generous rocker, and higher stern overhang from previous Xc models, providing the well-known comfortable seagoing characteristics. The aft of the Xc 47 has a modern, wider stern section, incorporating a subtle soft chine that provides extra form and stability, improved performance and more space in the aft cabins.
• The Xc 47 is built from a full vacuum infused epoxy/e-glass sandwich, together with the famous X-Yachts steel frame. Areas exposed to high loads are reinforced with carbon fiber, a part of making the yacht stronger without adding excess weight.
•  Epoxy built hull, vacuum infused with Corecell™ foam, postcured
•  Carbon fiber reinforcements
•  Light grey hull with dark grey stripes (gelcoat) *
•  6 grey tinted laminated toughened glass hull windows

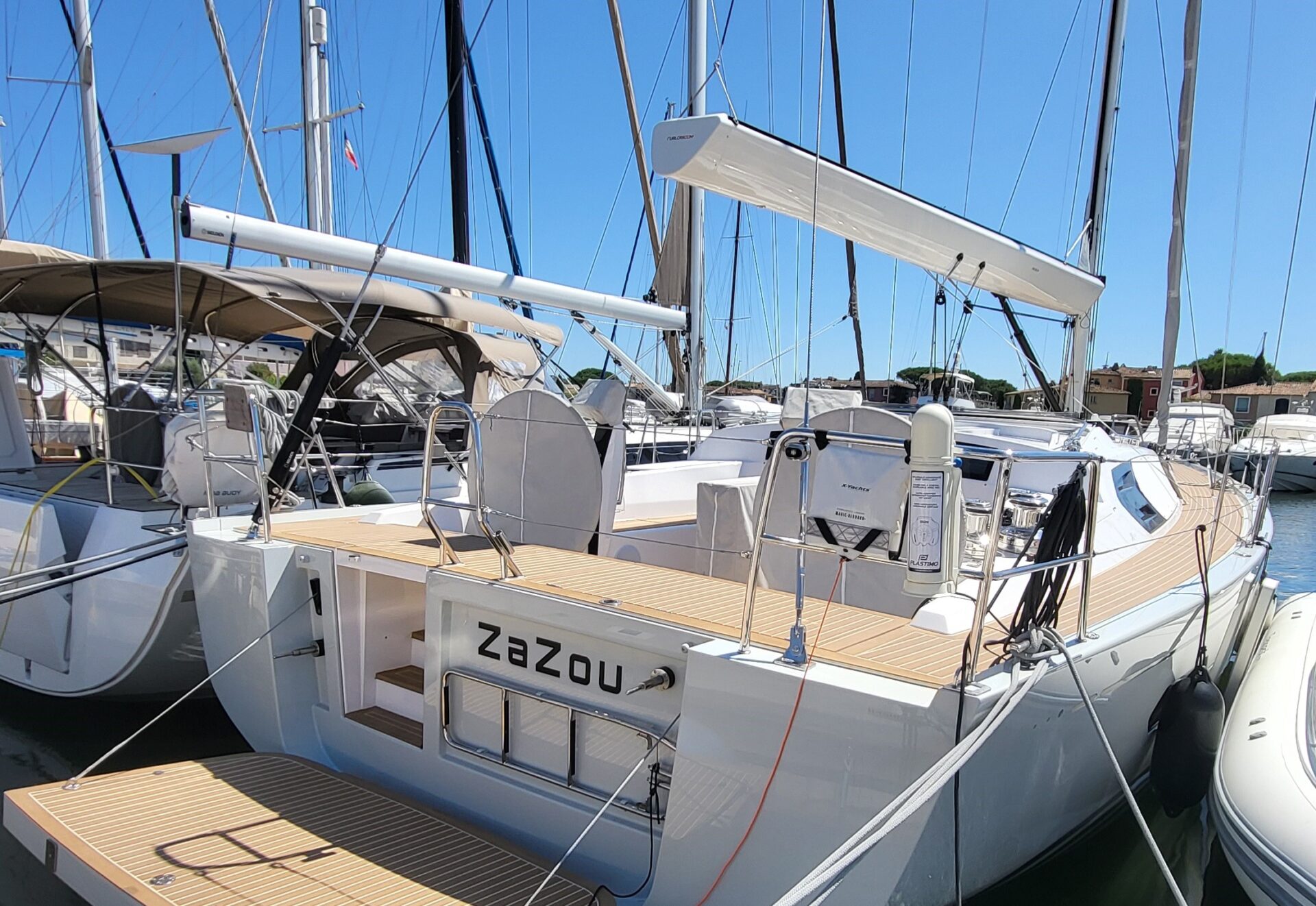

•  Opening transom platform with electric ram, remote controls
•  Semi-balanced, profiled rudder with self-aligning roller bearings
•  Iron foil encapsulated in CSM E-glass and faired to original keel section templates
•  Lead bulb keel, T-shaped
•  Draft: 2.30 m / 7´7˝
•  Stainless steel keel bolts
•  Black antifouling Hempel Mile NCT (Race type process: May 2025)

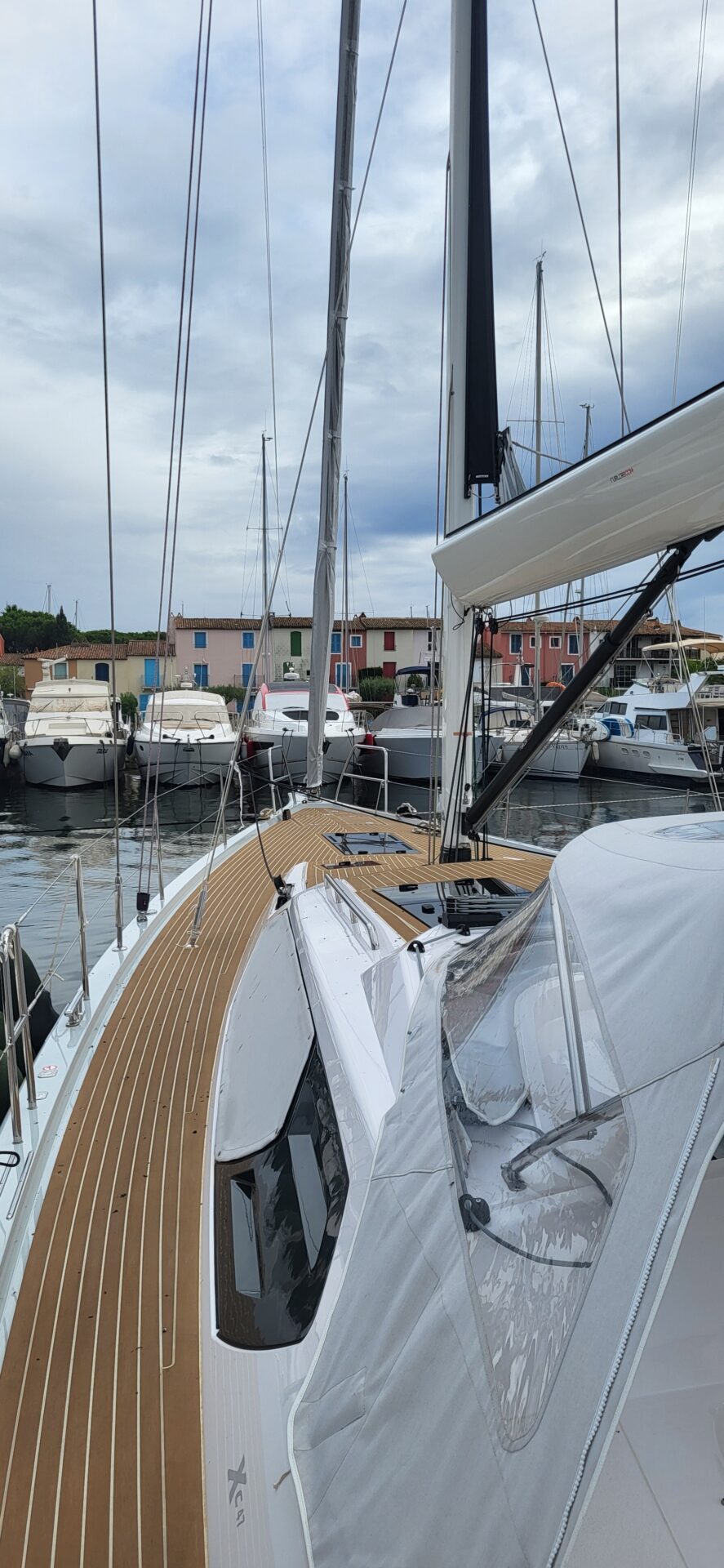

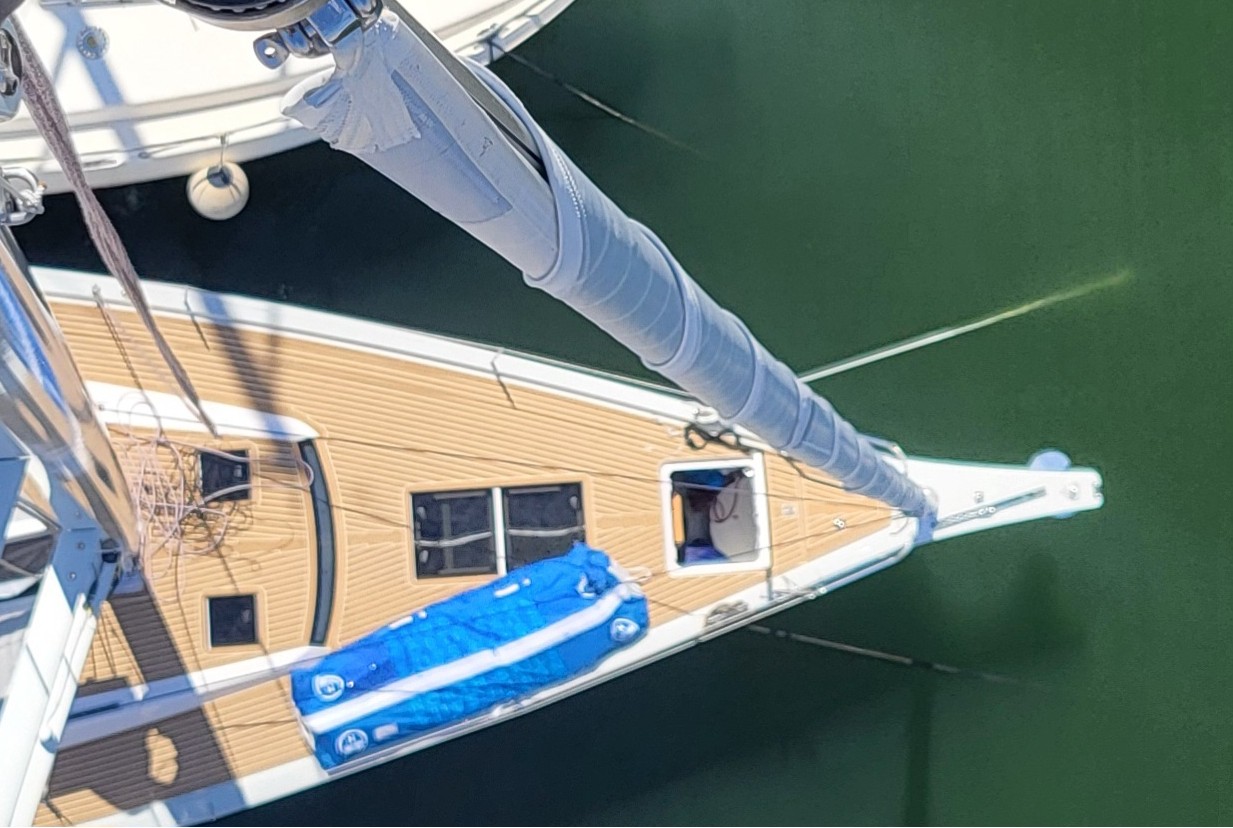

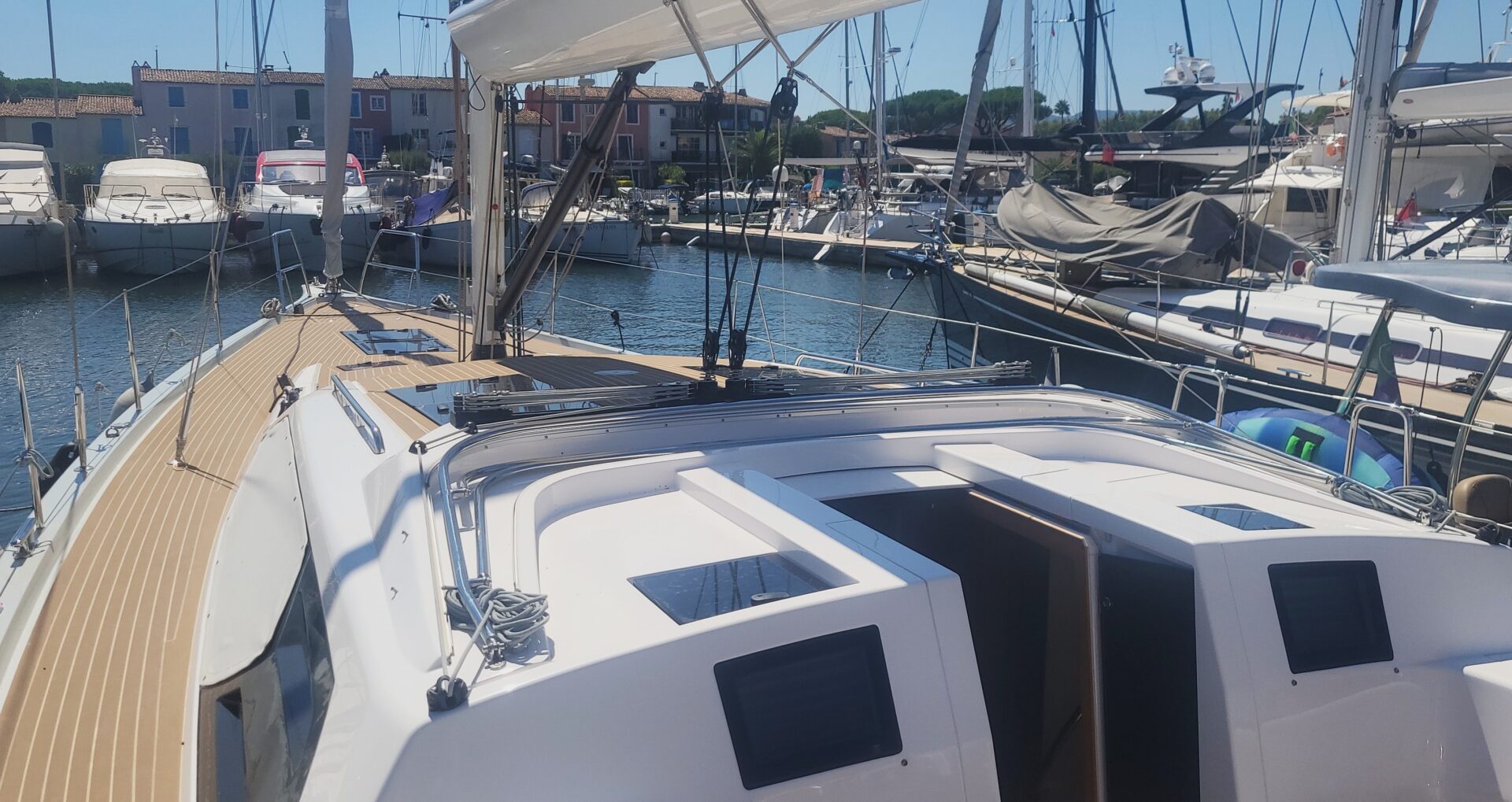

Deck

•  Deck built from fiberglass fabrics, with Corecell™ foam
•  Thermal and sound insulated
•  Carbon fiber reinforcements, Inserts for deck hardware
•  Flexiteek on seats and cockpit floor
•  Flexiteek on side decks and coach roof (Teak type with 40 mm planks and white caulking)

Sail Handling

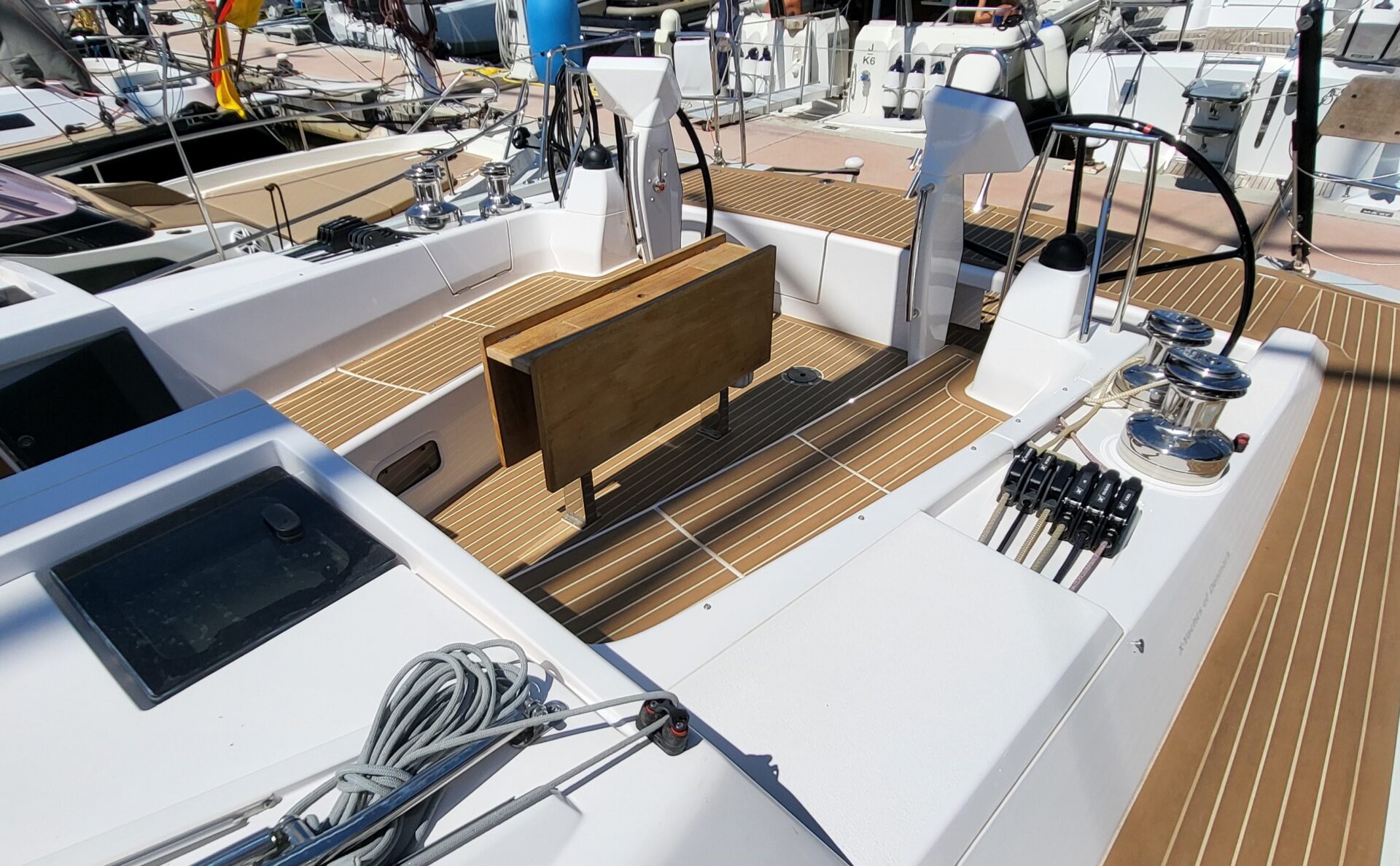

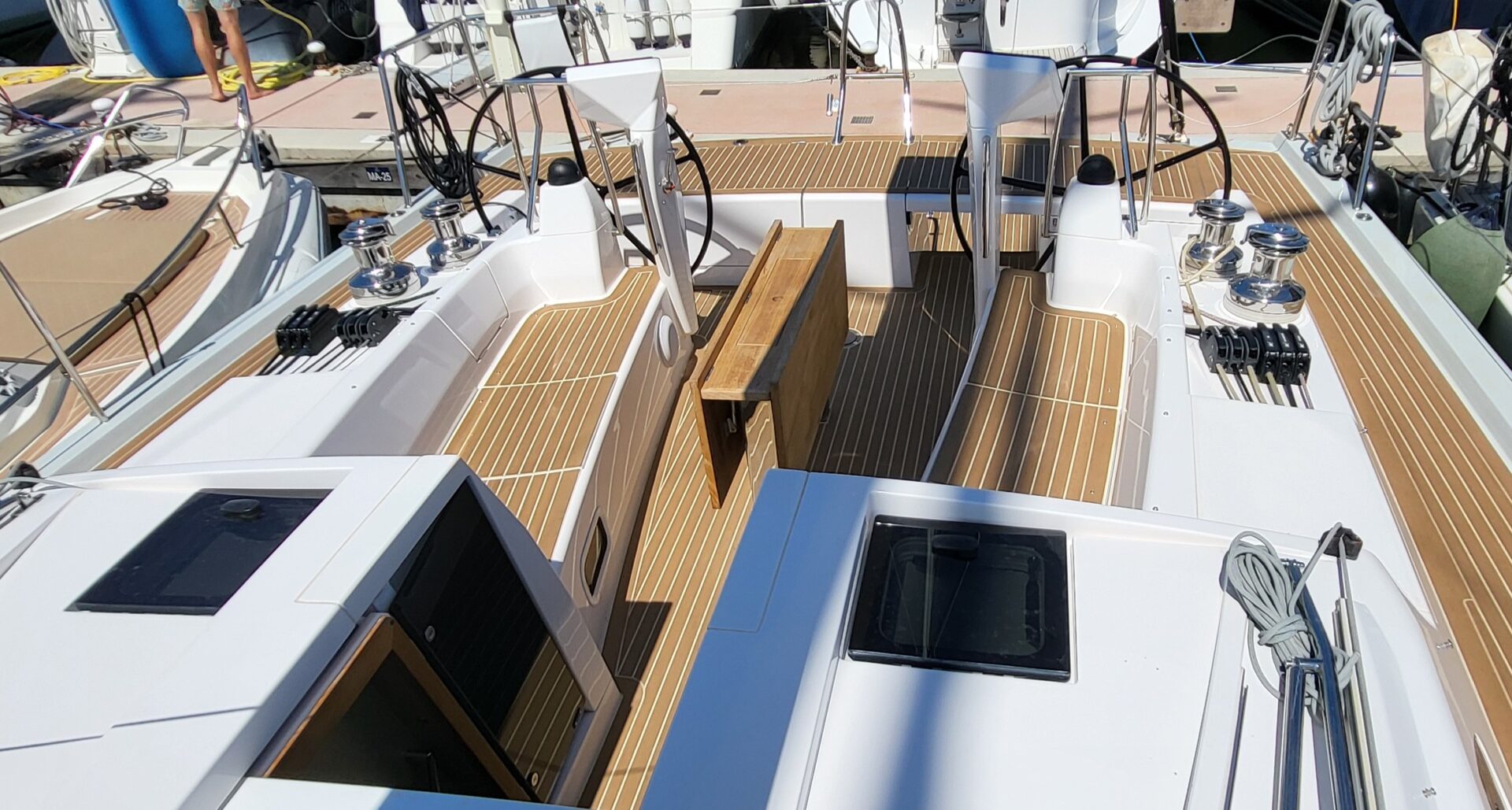

• The cockpit layout has been designed to give the helmsman the capability of handling all lines. Two electric winches on each side, are positioned in front of the wheels. All relevant trim lines are led under the deck from the mast to the steering position.
• The traveller has been positioned in front of the sprayhood. Apart from creating an efficient workspace, this cockpit arrangement leaves room for a comfortable living space, with the sail handling concentrated to the area at the helm station.
•  Genoa tracks with cars adjustment from the cockpit
•  2 x 6 sheaves deck organizers and 12 x Halyard jammers
•  2 electric winches Andersen 58 ST (24V)
•  2 electric winches Andersen 52 ST (24V)

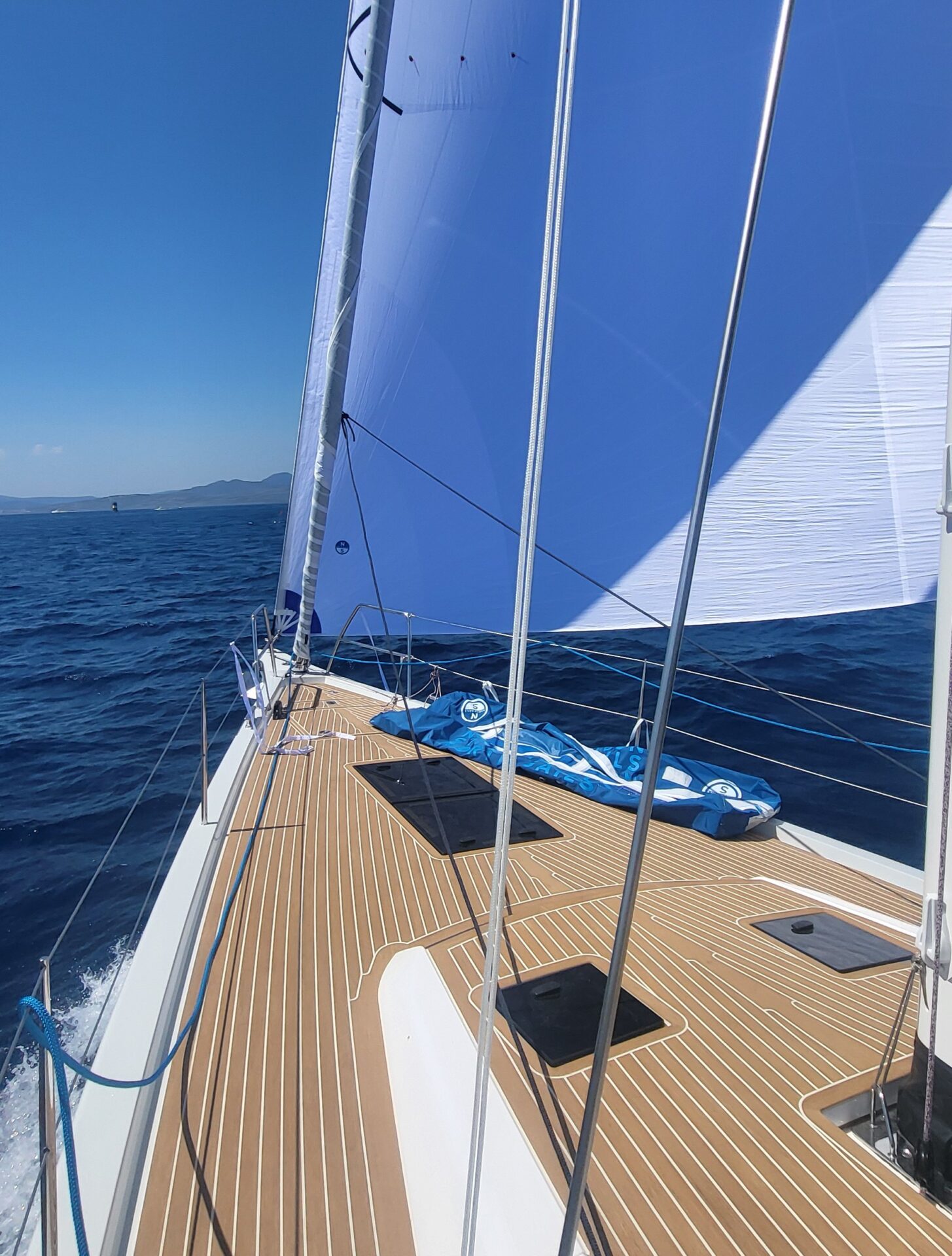

Sails

•  North Sail 3Di Ocean 700 19 600 Dpi Mainsail 70 m2 / 753 sq ft, 3 Reefs, 5 Battens
•  North Sail 3Di Ocean 22 400 Dpi Furling Genoa 56m2 / 603 sq ft, UV-protection, 3 vertical battens, Genoa cover
•  North Sails, Helix Furling Gennaker, Code-Tech Polyester 2oz, 160 m2 / 1 722 sq ft
•  Spinnaker and Genoa Halyard in SK99 instead of SK78

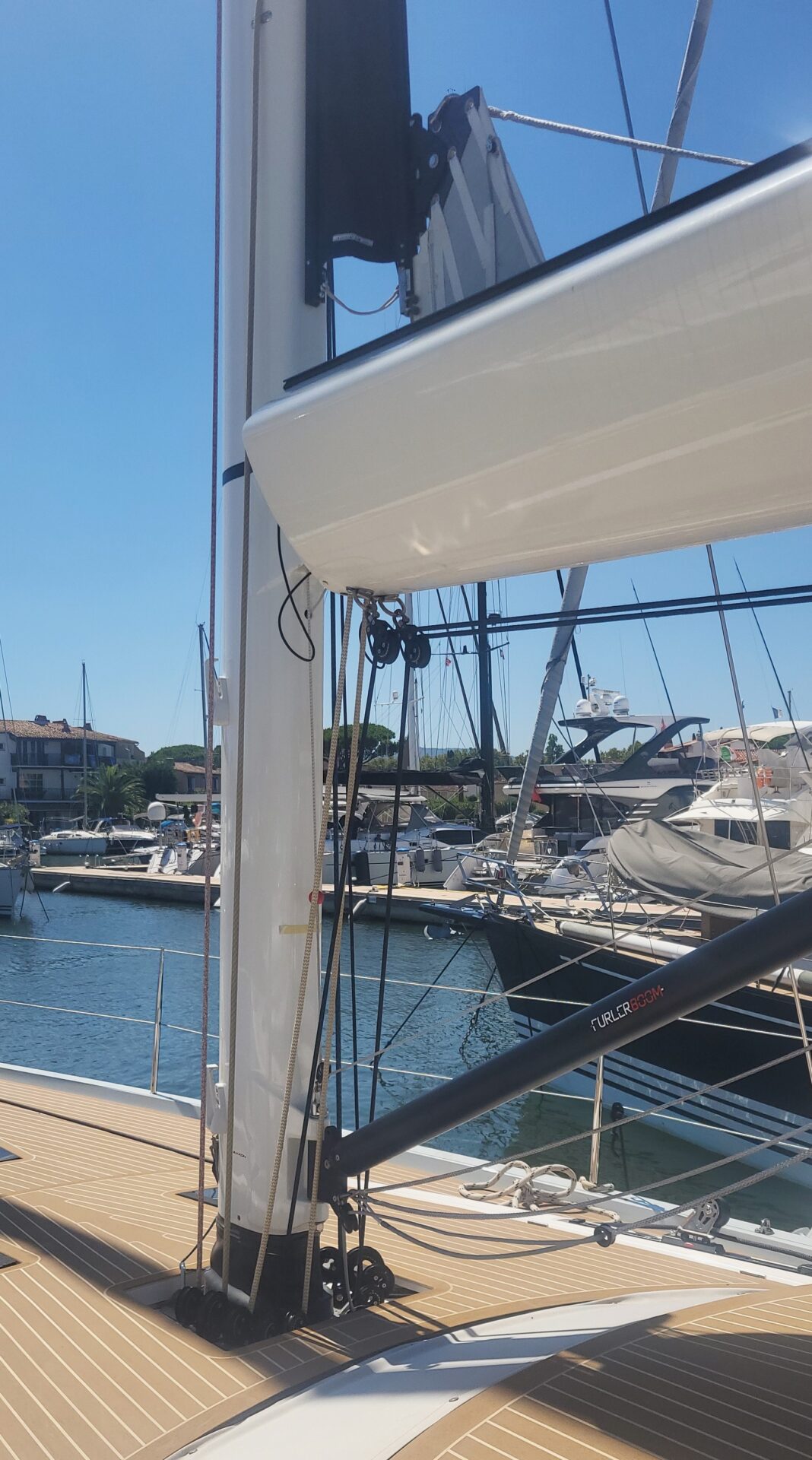

Mast & Rigging

•  3 spreaders carbon mast, tapered, white painted
•  Furling boom customized for 3 reefs with integrated cover
•  LED Cockpit light integrated in boom
•  Boom vang
•  Topping lift
•  Discontinuous Rod standing rigging
•  Split backstay with 2 hydraulic adjusters
•  Removable Inner forestay deck and mast fittings
•  Electric Furlex jib furler below deck
•  Gennaker electric furler on bowsprit

Guard rail / Anchor / Stainless Steel Fittings

•  Stainless steel split pulpit, stainless steel pushpit with support for flag pole
•  6 mooring cleats
•  Self-draining anchor locker with electrical windlass under deck
•  Remote windlass control unit with chain counter near steering wheels
•  Anchor Delta Stainless steel 32 Kg with swivel and 60 m galvanized chain 10mm
•  Stainless steel stanchions tapered, boarding gates on both sides
•  Large custom designed cockpit table (seat 6 pax)
•  Halyard storage in cockpit coamings
•  Stainless steel swim ladder
•  Hot & cold shower on aft deck
•  Electric operated swimming platform pre-equipped for davits with remote control

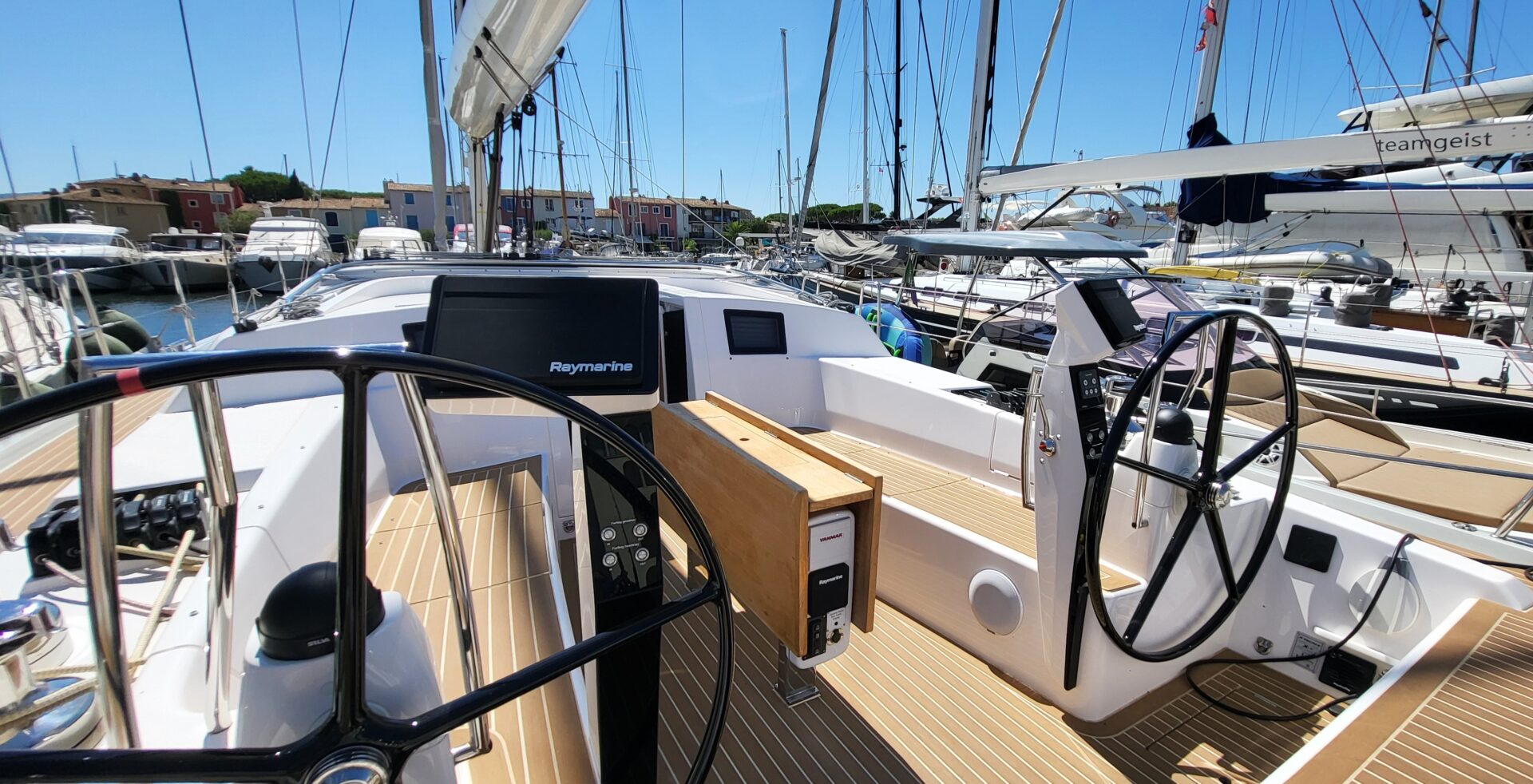

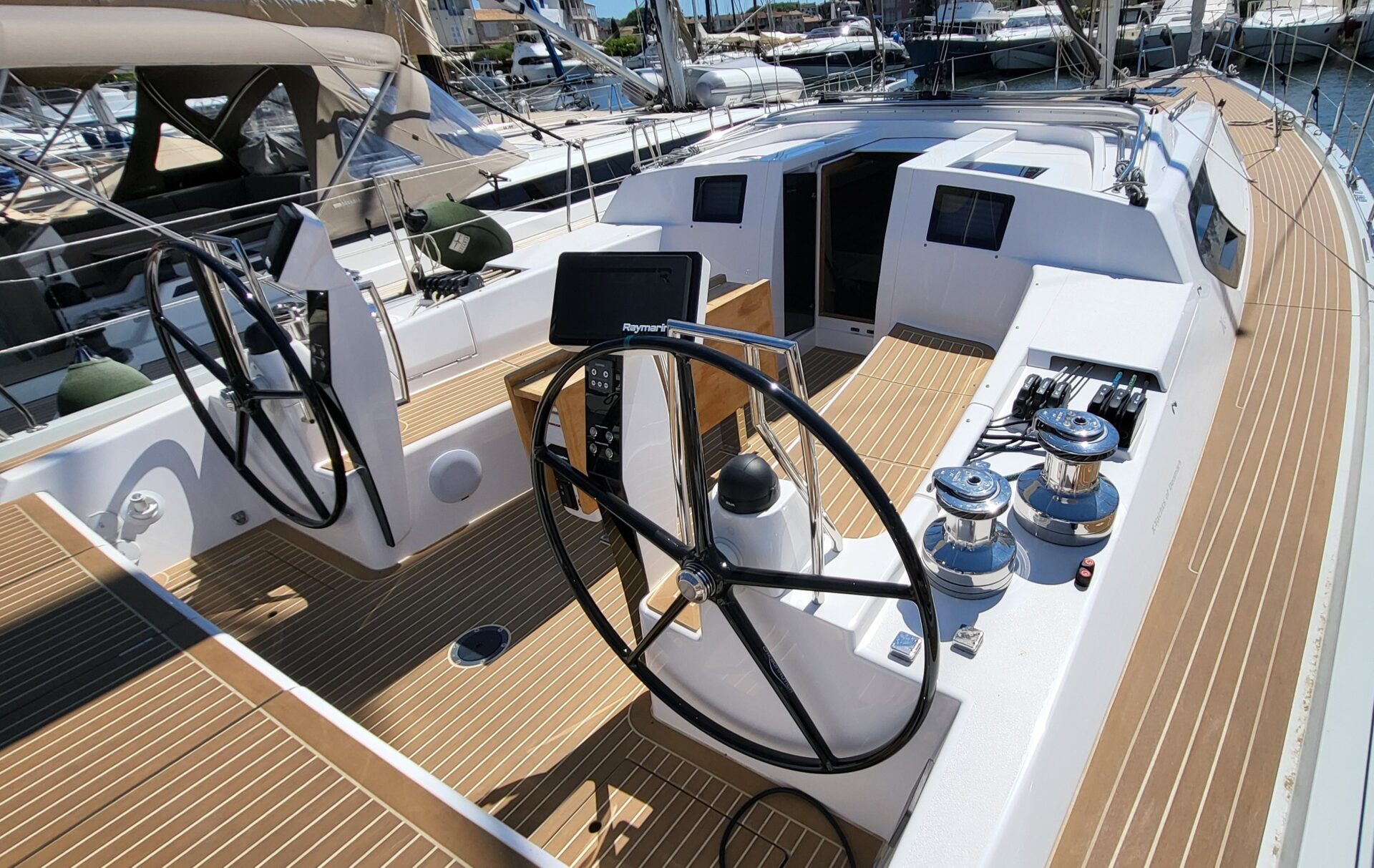

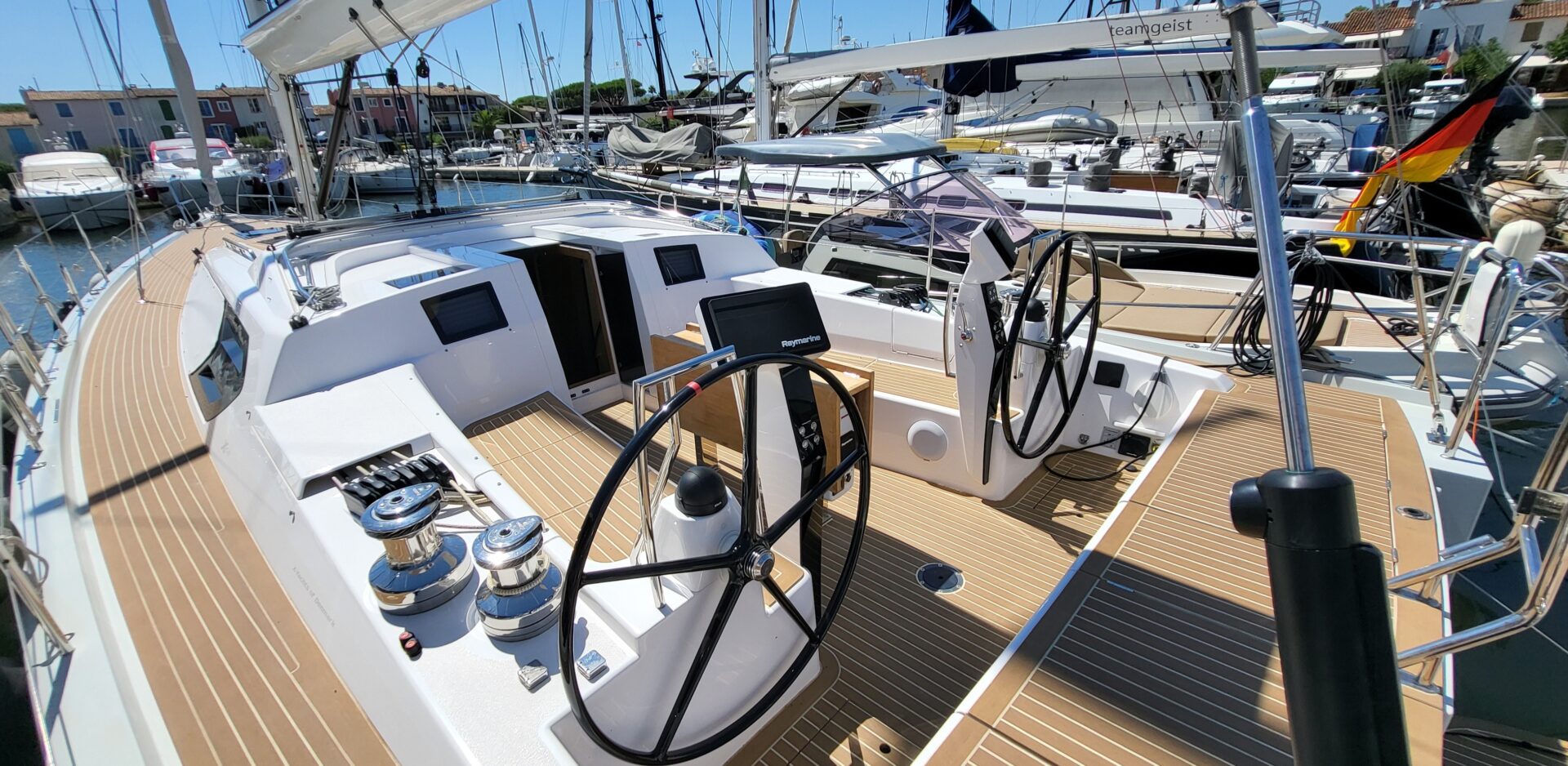

•  Twin wheel steering system with 2 composite steering wheels
•  Instruments console at each helm
•  Cockpit cushions with backrests
•  Sprayhood
•  Bimini covering the entire cockpit

Accommodation

• Interior layout: Owner's cabin forward, two guest cabins aft.
• Owner’s cabin features its private head and shower.
•  High quality marine plywood
•  Nordic Bleached Oak, satin varnish
•  Corian™ solid surface white with Corian™ basin in each head

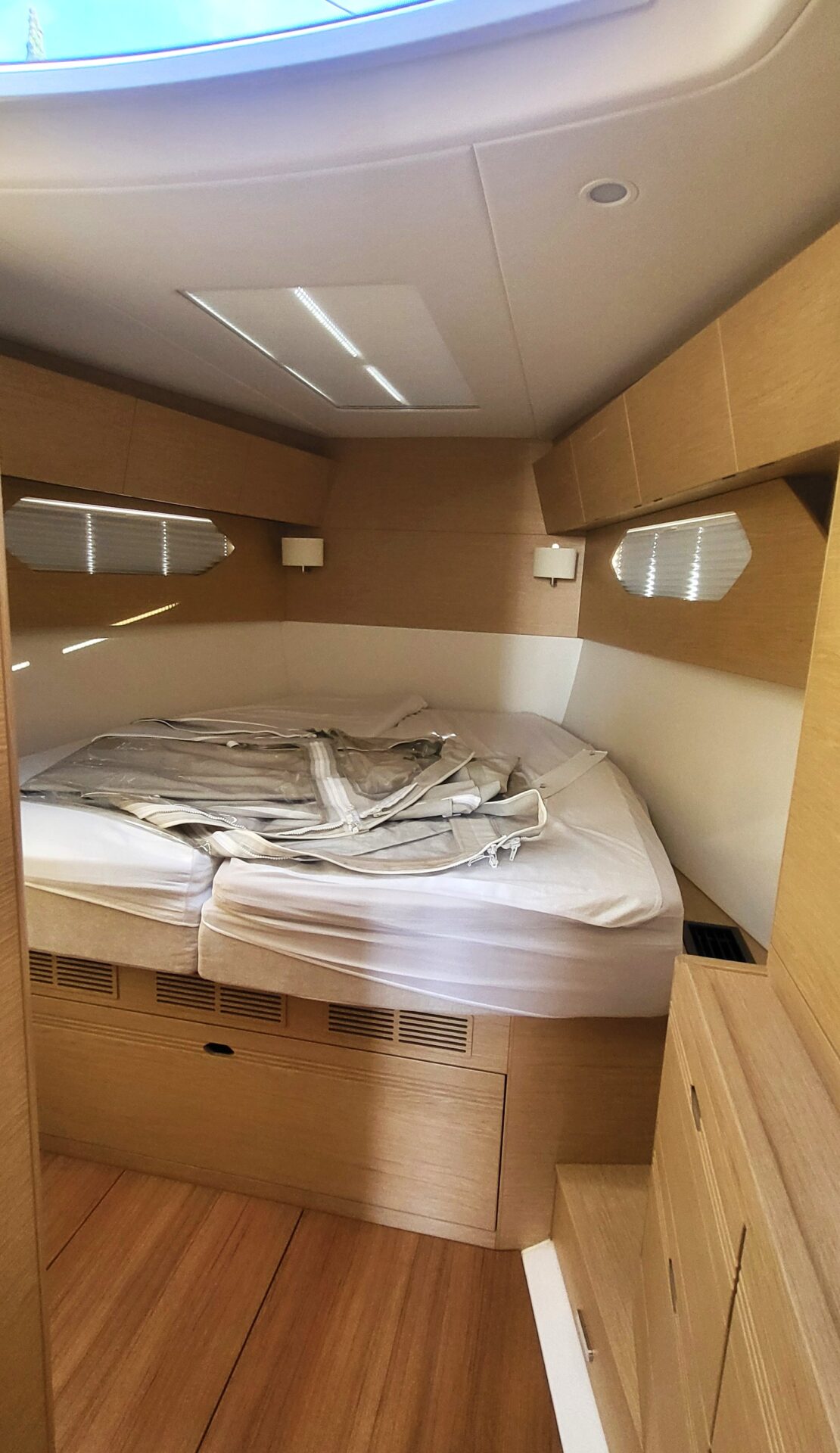

• Owner's cabin
•  Queen-size bed, spring mattress with topper
•  Upper cupboards on both sides
•  Under bed storage operated with gas springs and large drawer
•  Large wardrobe and shelves
•  Safe under owner’s bed, large enough to accommodate a portable computer
•  En-suite spacious head with separate shower stall
•  Tecma electric toilet

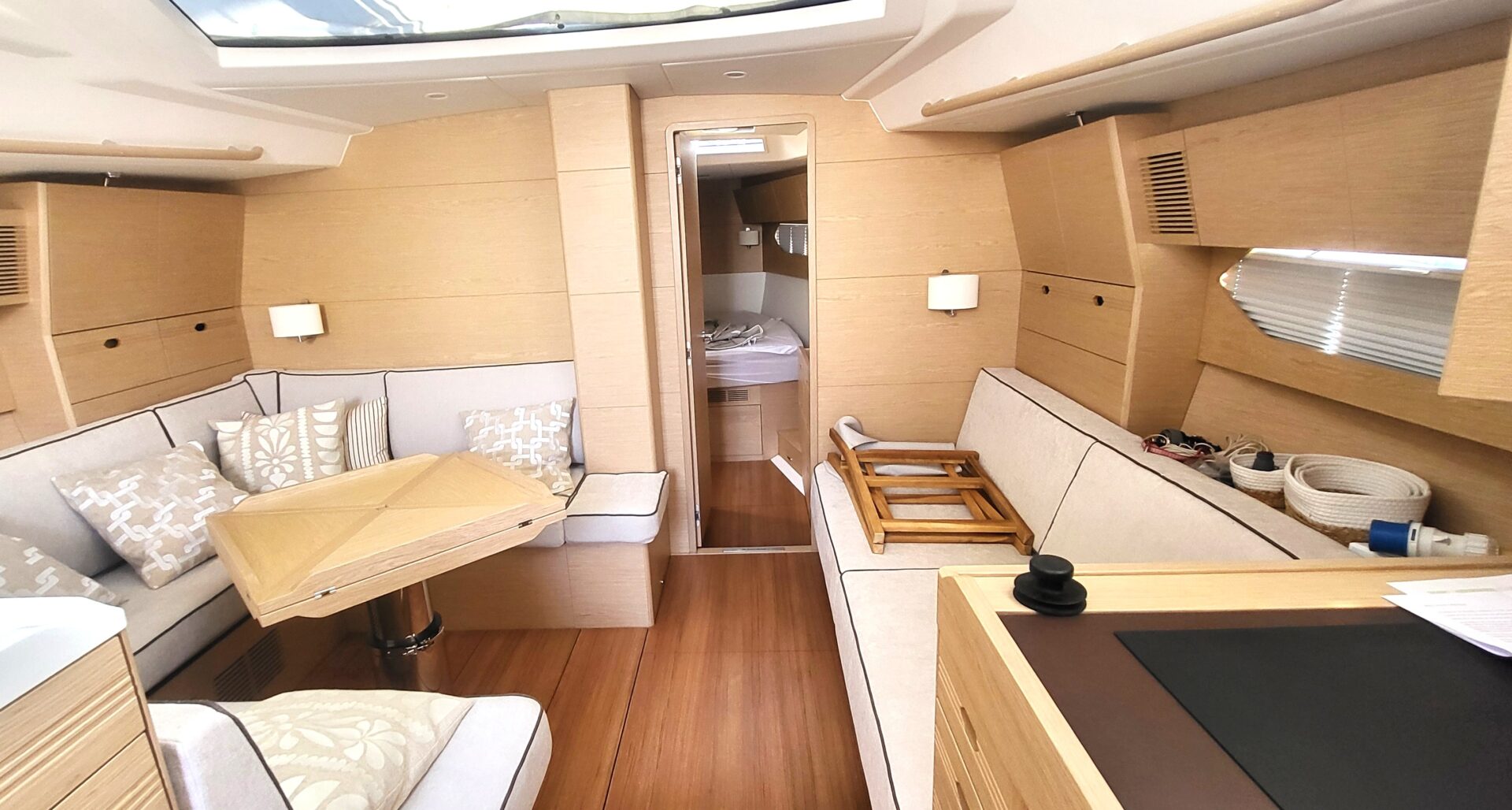

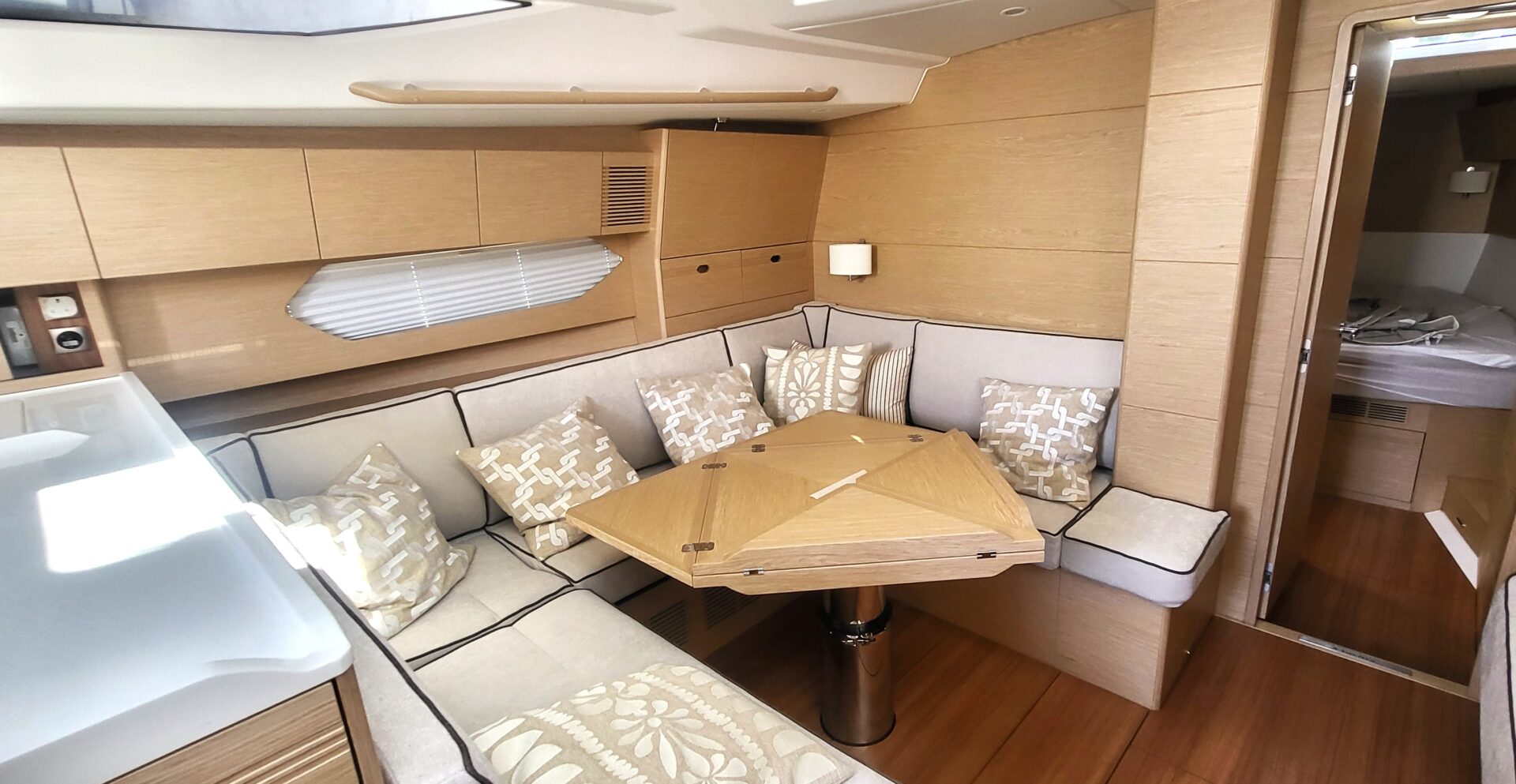

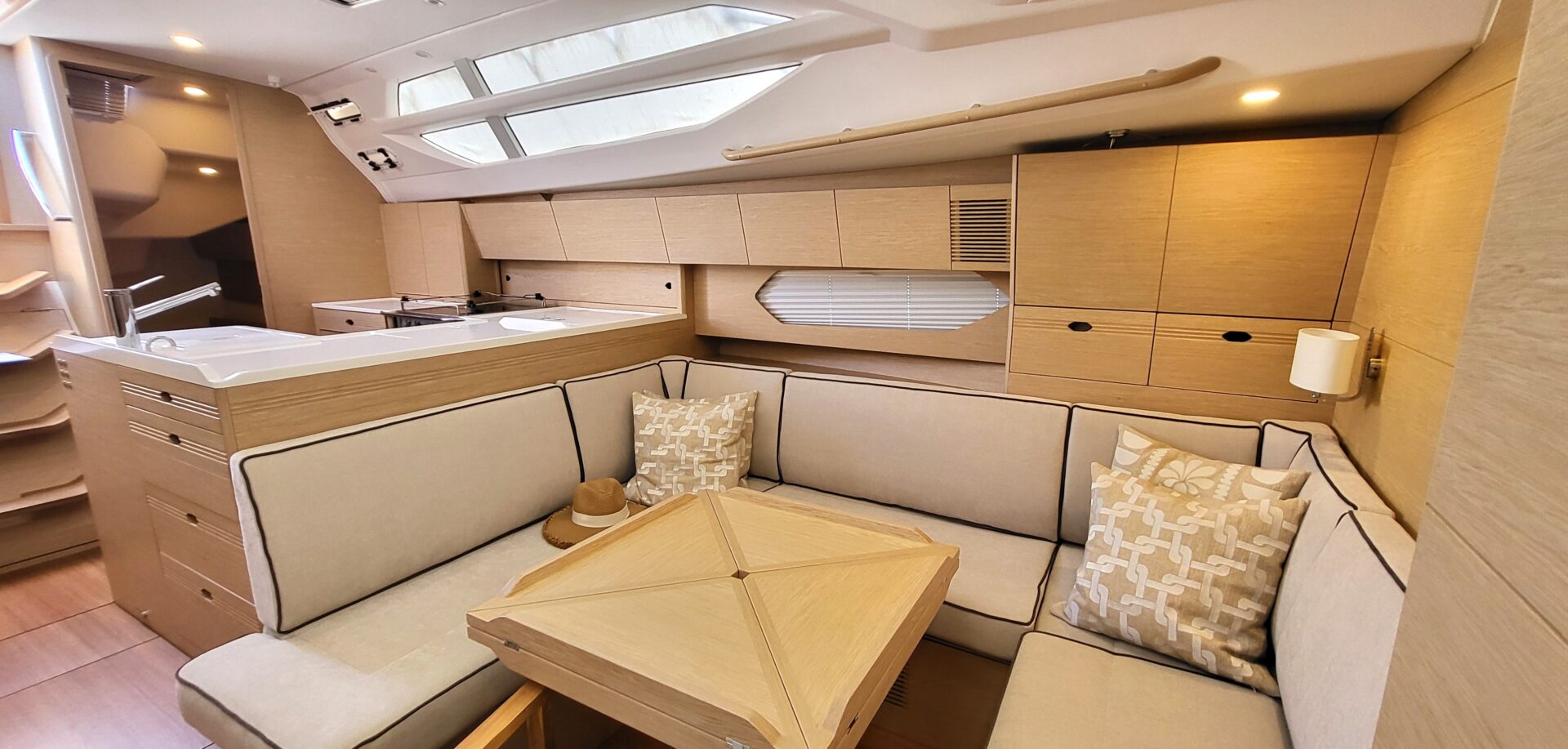

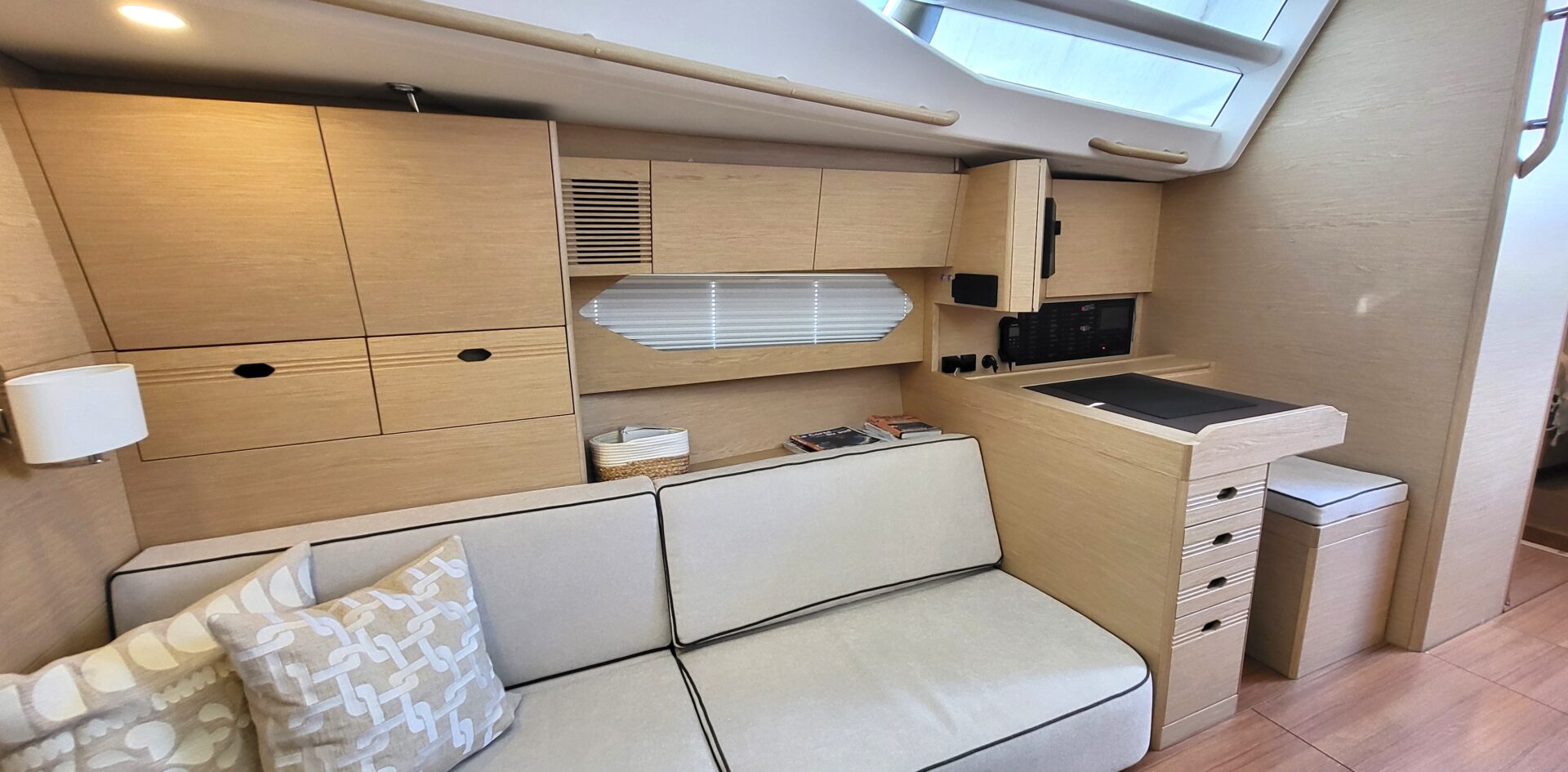

• Saloon
•  6 places U-shape sofa
•  Dining foldable and lowerable table convertible into a coffee table
•  Cosy lounge sofa on starboard side
•  Upper cupboards on both sides
•  Night courtesy lights

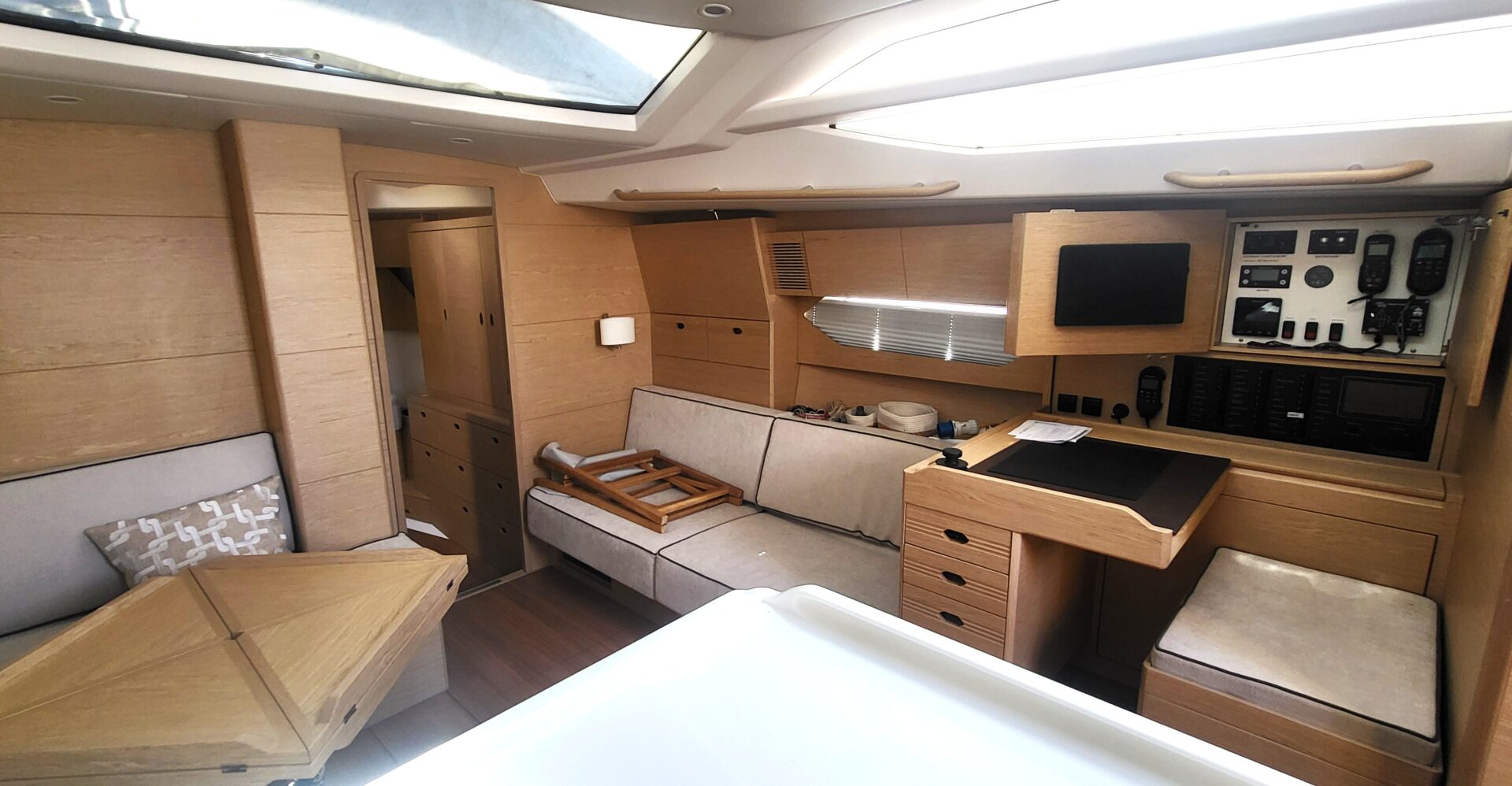

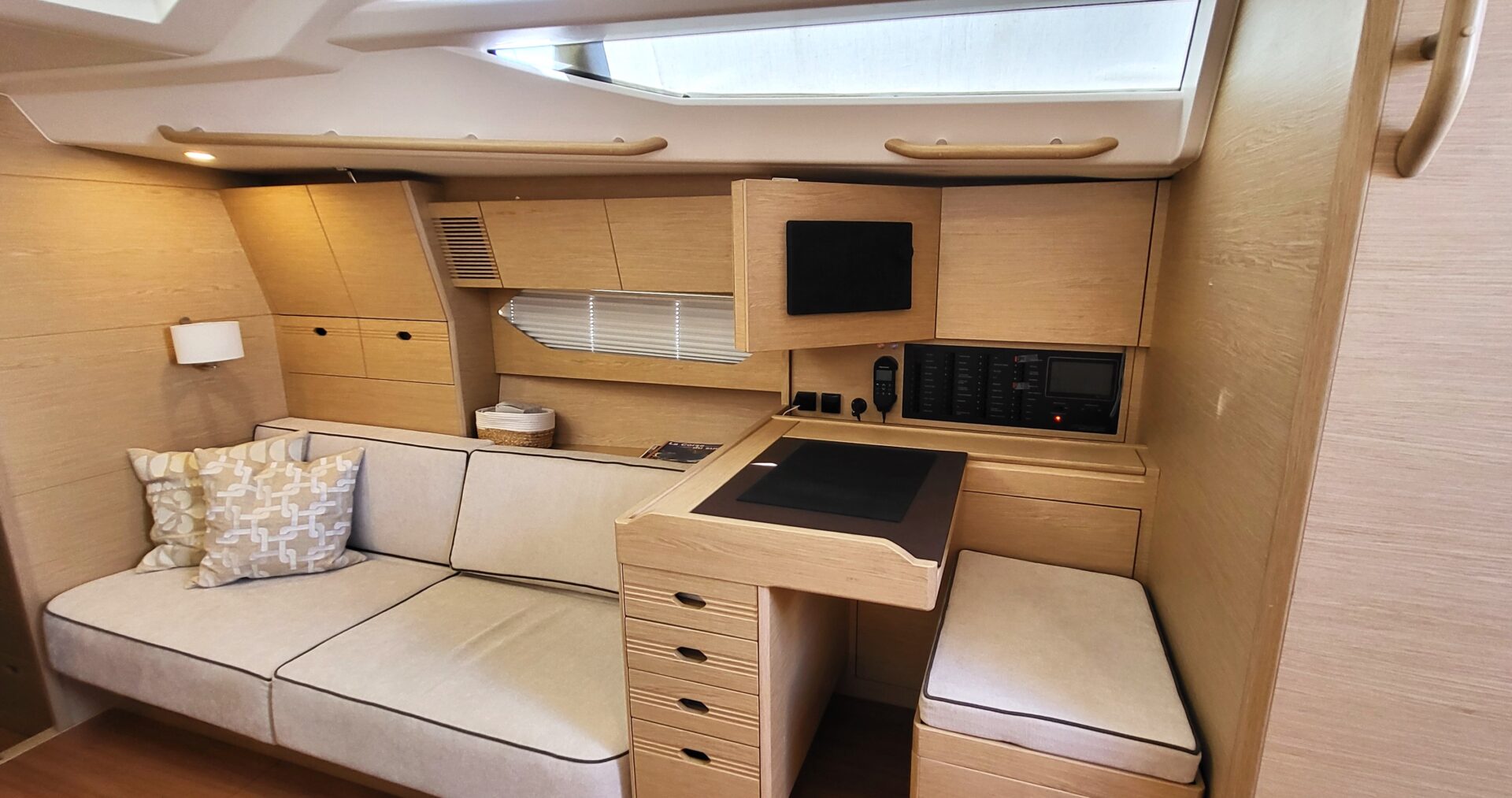

• Navigation Station
•  Fixed forward facing navigation table with space for charts with drawers underneath.

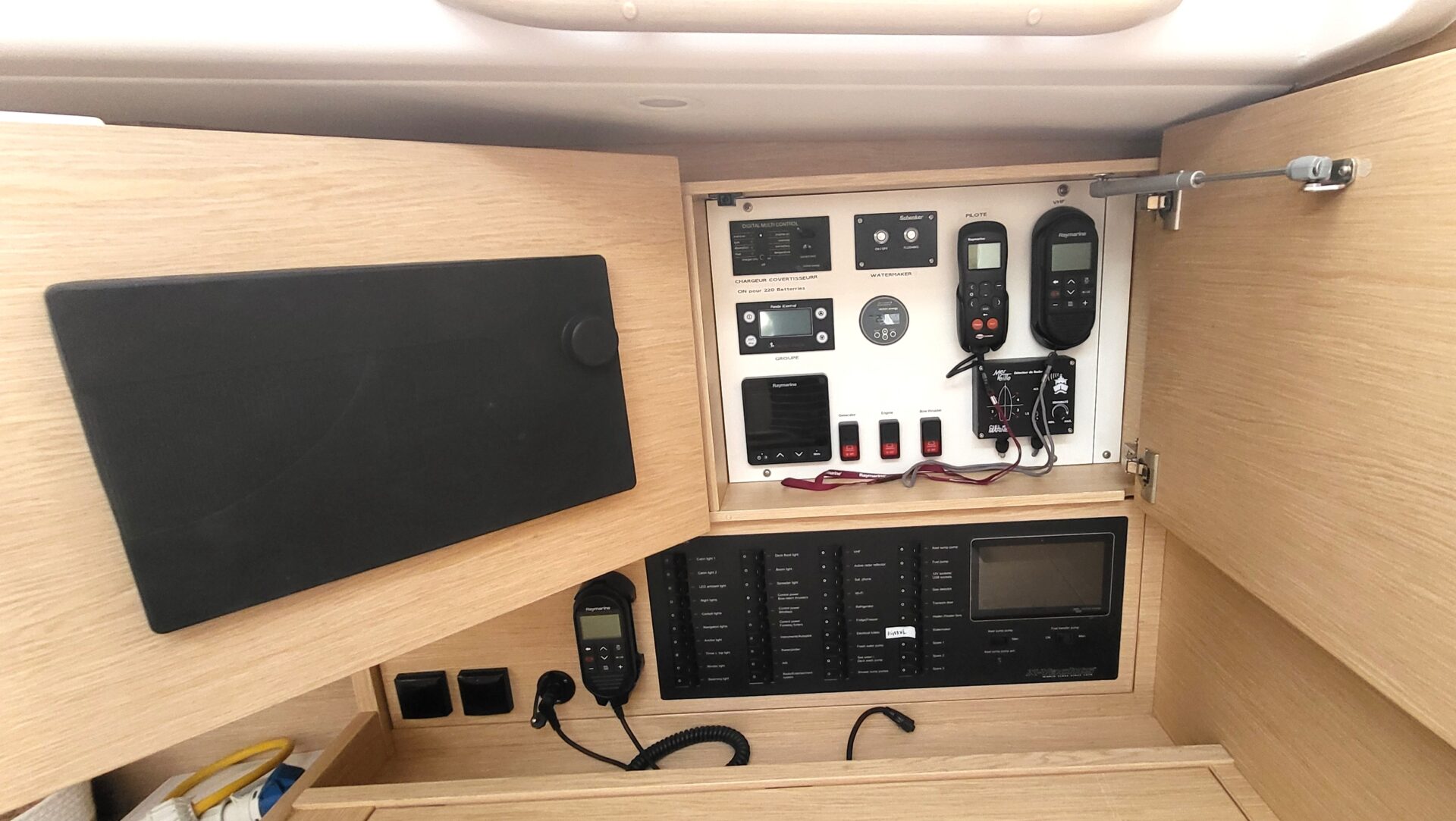

•  Upper locker hiding the instruments behind side hinged door
•  The angled upper cupboard integrated a 12" chart plotter
•  Seat includes a huge storage

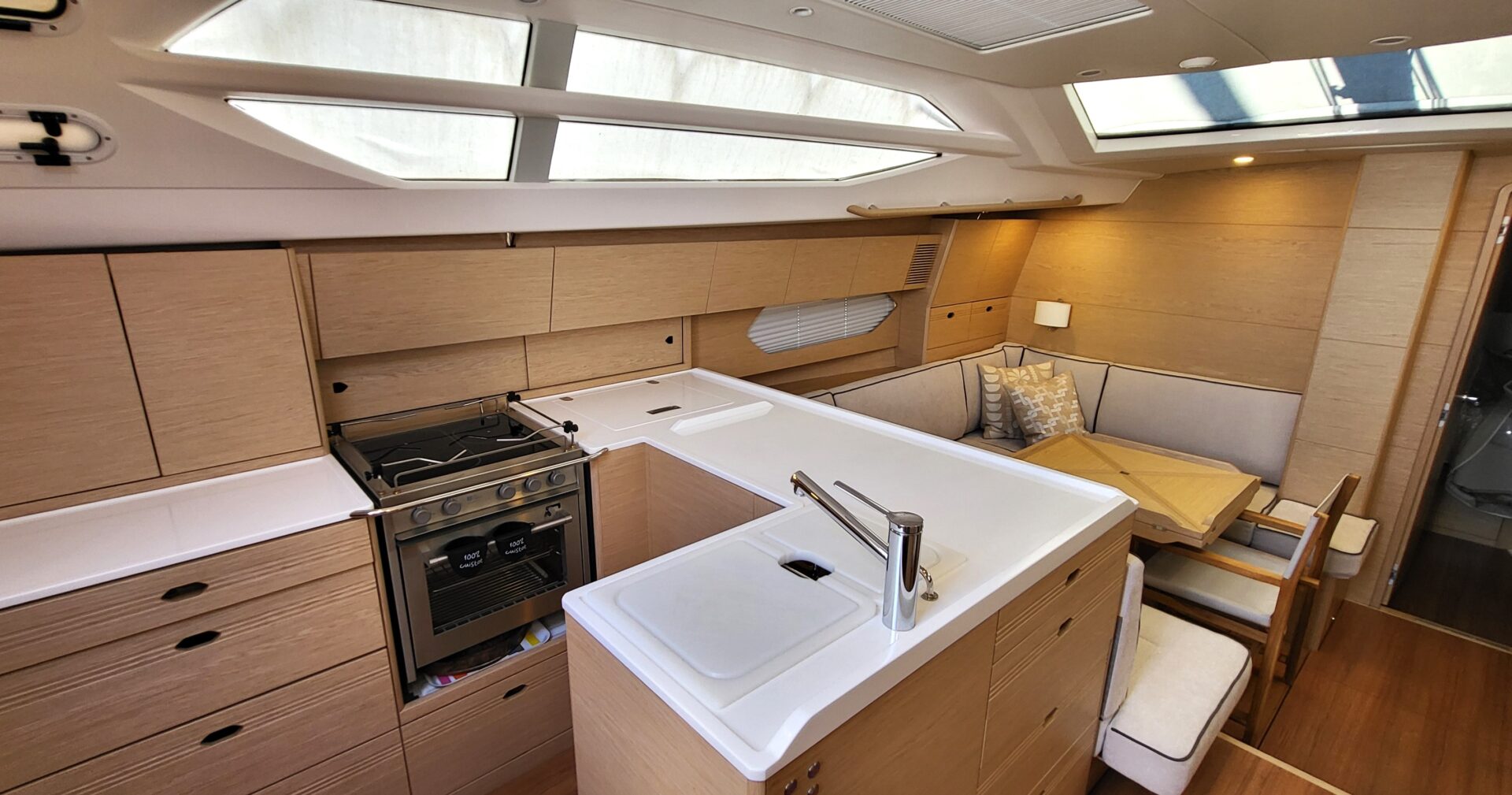

• Galley
•  U-Shape galley with white Corian™ countertop with custom raised fiddles
•  100 l cool box, magnum compressor allowing to be used as refrigerator or freezer
•  130 l front opening fridge
•  Ocean Chief electric cooker and oven
•  Microwave oven

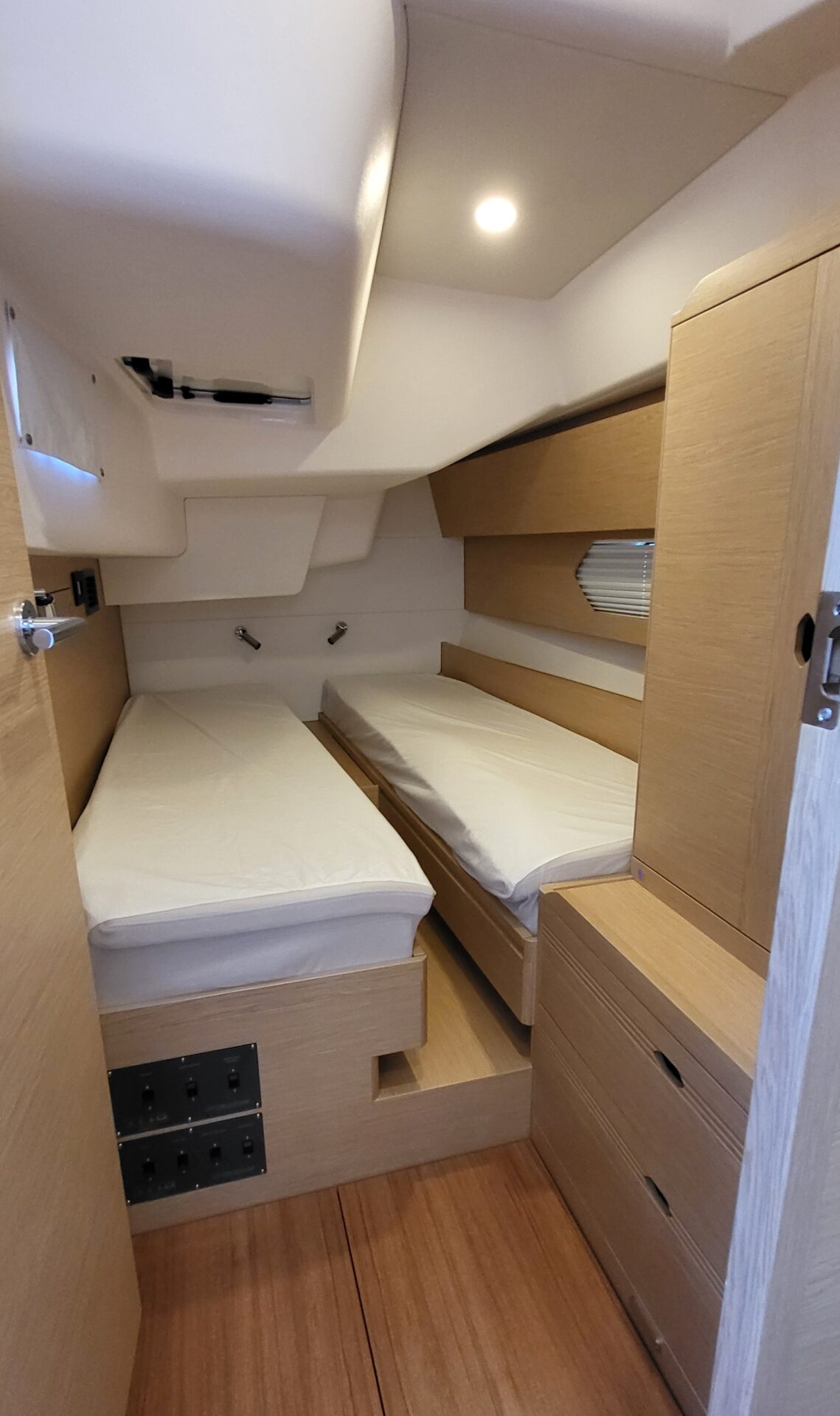

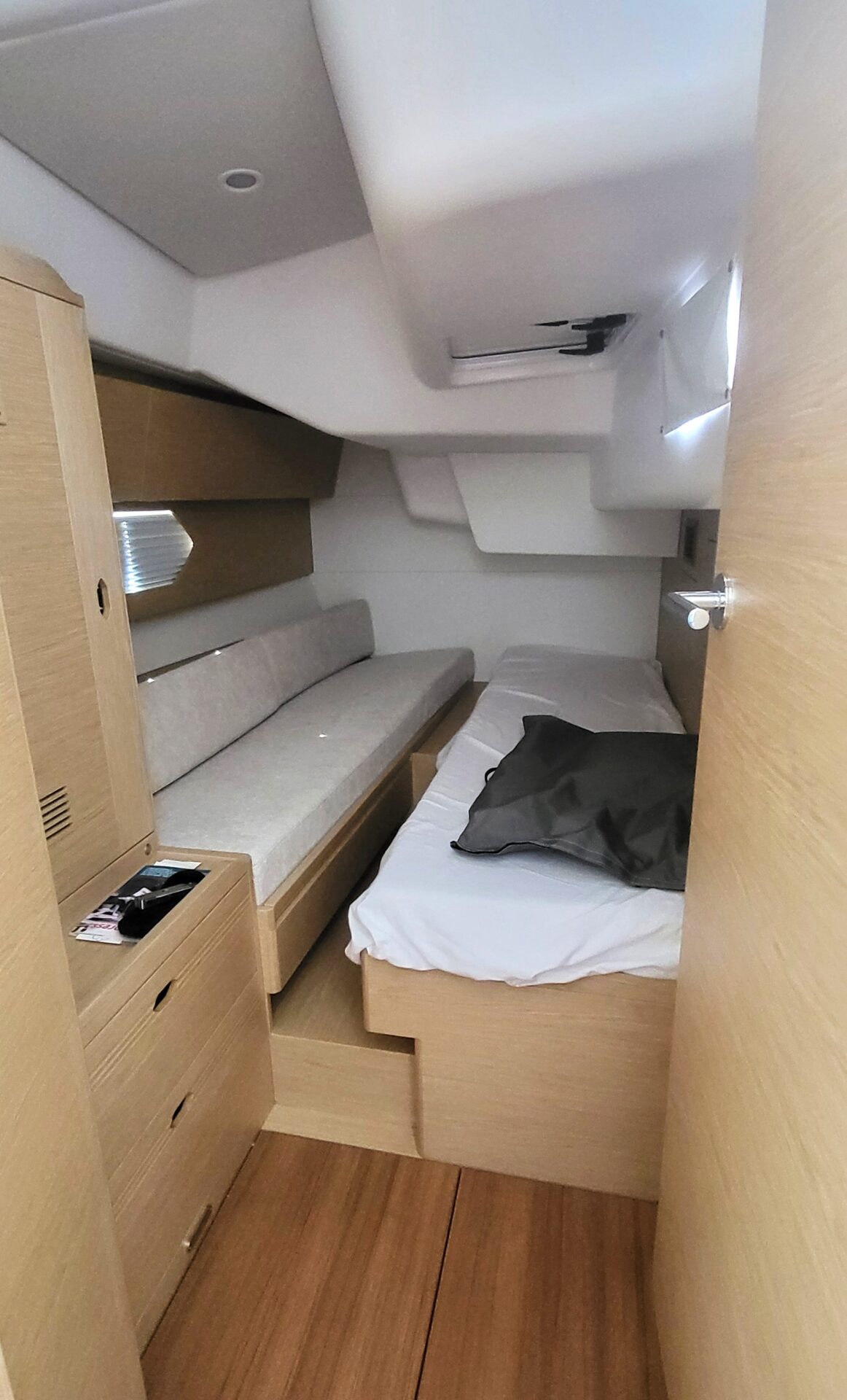

• Aft cabins
•  Symmetrical aft cabins with convertible twin beds
•  Cupboards above beds and wardrobe
•  En-suite head and separate shower stall with Tecma electric toilet

Systems

Engine

•  Yanmar 4JH80 (59 kW) Turbocharged common rail engine
•  3-bladed 19” folding propeller
•  Alternator 12 V / 125 A for engine start; alternator 24V:60A for service batteries
•  Fuel filter / Water separator
•  Engine room sound insulated with lighting
•  Retractable bow thruster

Plumbing

•  3 fresh Stainless Steel water tanks, capacity 640 l
•  Fresh water pump variable speed
•  40 l water heater, running from engine and / or 230 V immersion heater
•  Fresh water outlets with electric pump in anchor locker and cockpit for deck rinse
•  3 electric bilge pumps with automatic switches for different bilge compartments
•  Direct shore water inlet
•  Watermaker Schenker Zen 50l/h
•  Air Conditioning: 1 unit in master cabin and 1 unit for guests' cabins
•  LG combined Washing/Drying machine
•  2 x electric fresh water Tecma toilets
•  Holding tank for each WC with gauge

Electrical

• 24 V DC throughout the yacht and 230 V 50Hz AC.
• 12 V DC for engine start and marine electronics
• Additional 220V and 12V/USB sockets in each cabin
• Batteries
•  Main battery switches
•  Engine start battery AGM 12 V / 70 Ah
•  Bowthruster batteries 2 x 12 V / 70 Ah under front berth
•  Service battery bank: 8 x 12V/106 Ah = 24 V / 424 Ah
• Battery charger / Shore power
•  Combi Charger/Inverter Victron 24 V / 5 000 W / 120 A
•  Isolator switch
•  230 V shore supply protected with differential breaker and distribution system
• Power Generator
•  Fisher Panda 8000i 16 kW

Electronics

• Navigation RAYMARINE Axiom Pro
•  2 Axiom 9" Multifunction displays on steering consoles
•  1 Axiom Pro 12" Multifunction display at chart table
•  EV400 Autopilot with P70s (Sail) Autopilot control unit at chart table
•  i70s Multifunction color display at the end of cockpit table
•  Ray 90 VHF at chart table with second wireless handset and cockpit speaker
•  Transducer AIS 700
•  2 x Wireless remote-control Smart controller
•  Merveille radar detector
•  2 x CAM300 cameras on spreaders
• Entertainment
•  Fusion Apollo MS-RA770 Multimedia center with 120 w speakers in saloon
•  Fusion cockpit speakers

Additional Information

•  Cockpit cushions with backrests
•  Sun awning
•  Roof windows sun protections
•  Wheels, consoles and cockpit table covers
•  Electric air pump for tender installed in sail locker
•  Arimar life raft 8 persons in soft bag + grab bag
•  Complete safety equipment
•  Composite foldable gangway
•  Outboard engine backet
•  Fenders, mooring lines, shore power cable, flag pole
