Details

Exterior Details

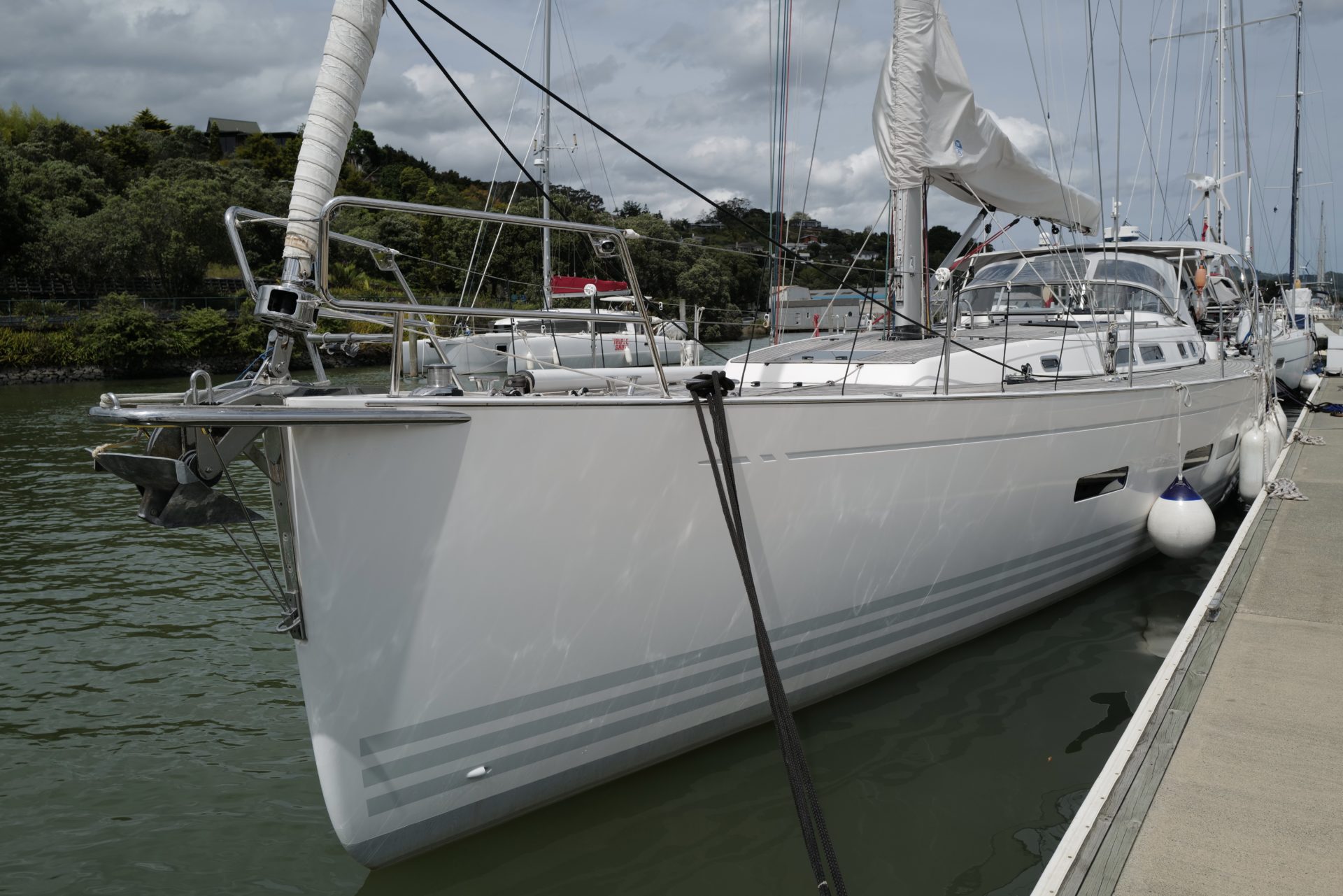

Hull

• • Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Solid laminate in high stress areas around keel, rudder and through hull fittings
• • Outer surface layer of hull in white sprayed Gelcoat (RAL 9010 white) with 3
• waterlines in NGA Gelcoat (RAL 7011 dark grey)
• • Hull moulded in female moulds for highest quality surface finish
• • Structural bulkhead in marine plywood varying in thickness from 16-30 mm
• • Steel frame - hot-galvanized, high strength, laminated into hull to absorb all loads
• from keel, mast and rigging
• • Prepared for single point hoist for easy and safe lifting and launching of yacht

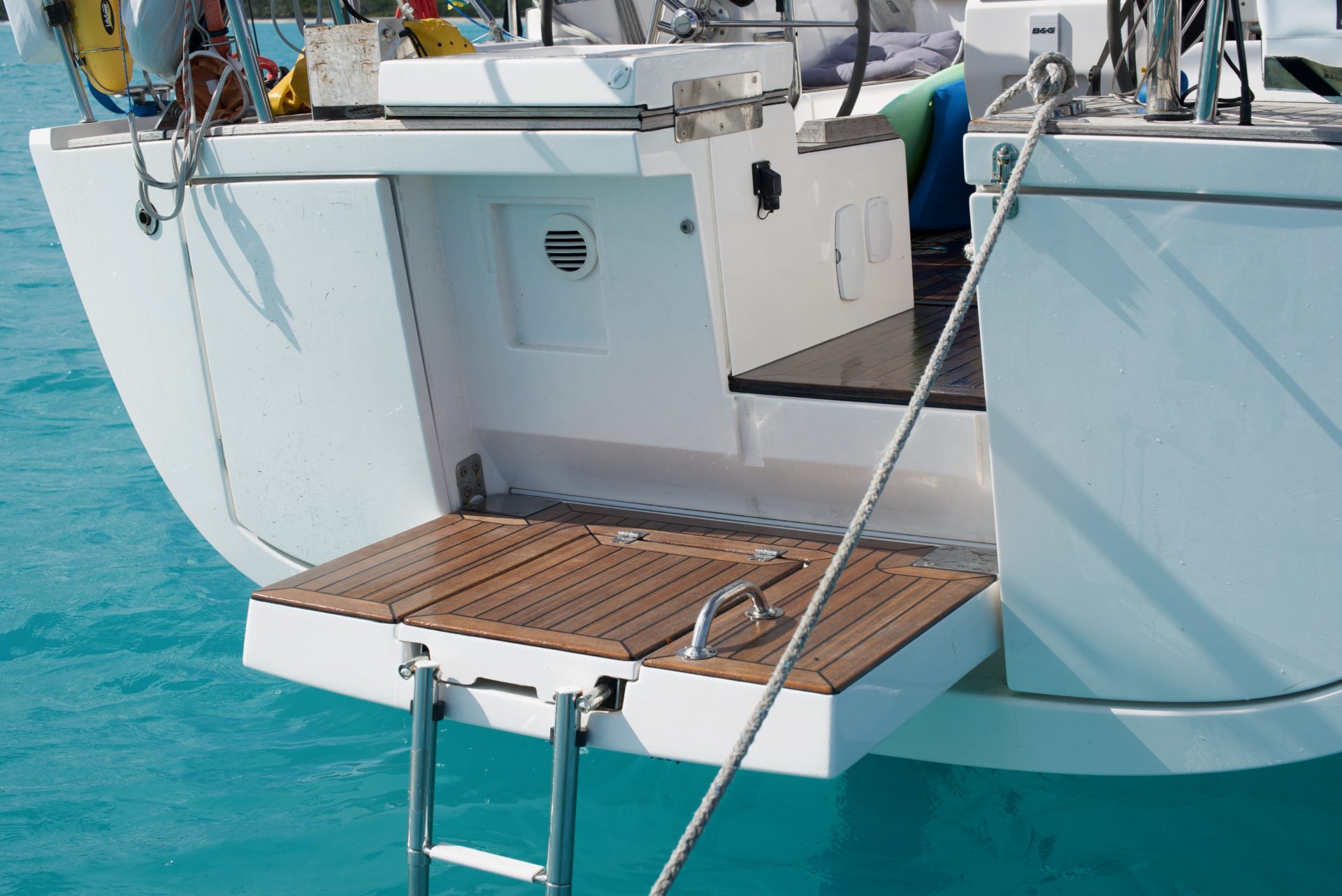

• • Bathing platform incorporated in transom port with electrical hoisting and
• lowering system
• • Bathing ladder in stainless steel mounted onto bathing platform

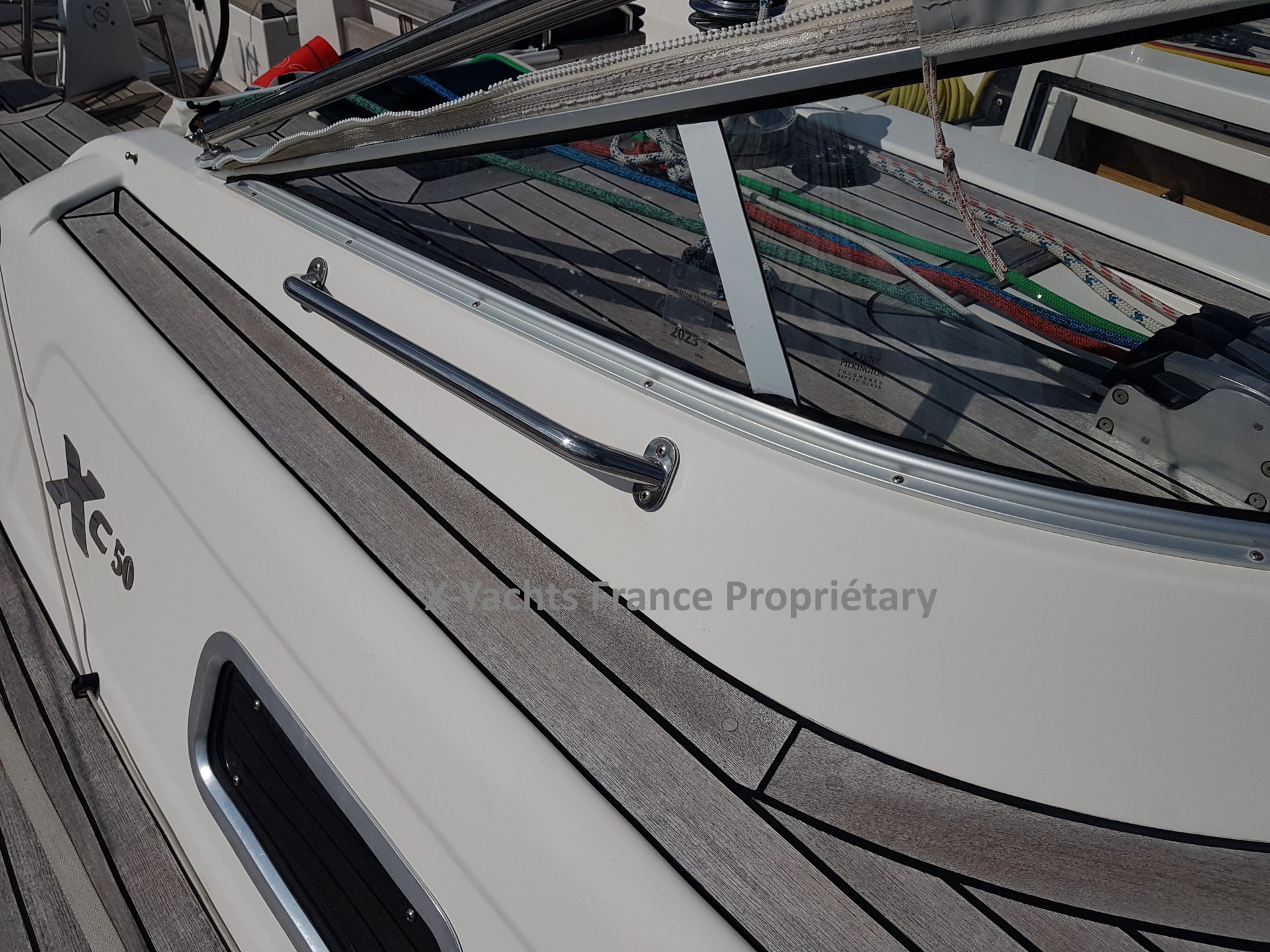

• • Continuous stainless steel rail protection mounted on sheerline
• • X-Yachts style hull recessed portlights (6 pcs

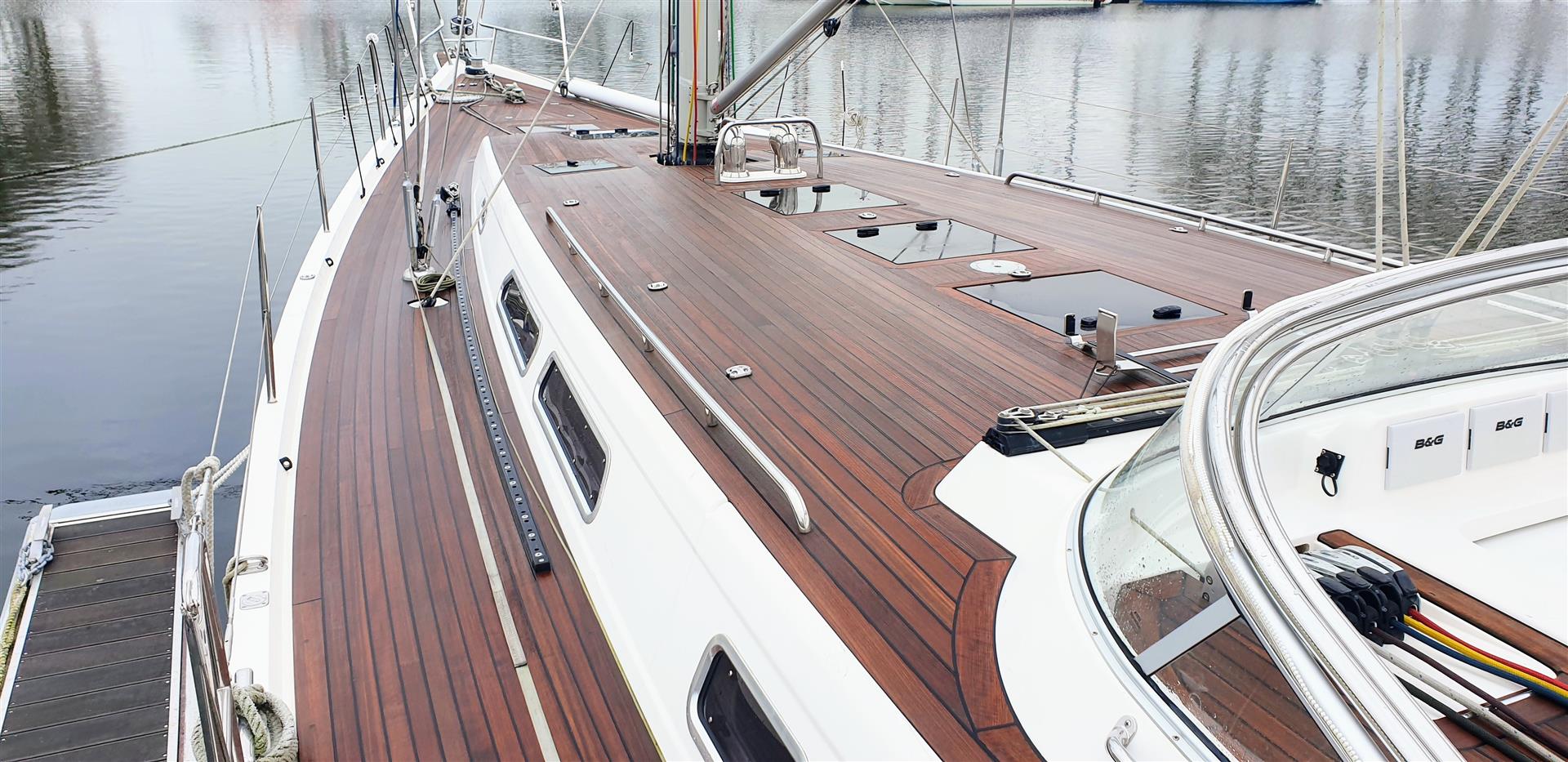

Deck

• Built in sandwich construction with structural compressed foam
• • Bi-directional E-glass strategically positioned for strength and weight optimization
• • Outer surface layer of deck in white sprayed Gelcoat (RAL 9010 white)
• • Large sail locker, accessible from deck hatch , and inside the yacht
• • Deck and locker lids moulded in female moulds for highest quality surface finish
• • Teak, vacuum applied, 9 mm nominal thickness on side deck, coach roof, cockpit
• sole, seats and bathing platform
• • Bulwark with teak capping incorporated in deck/hull design

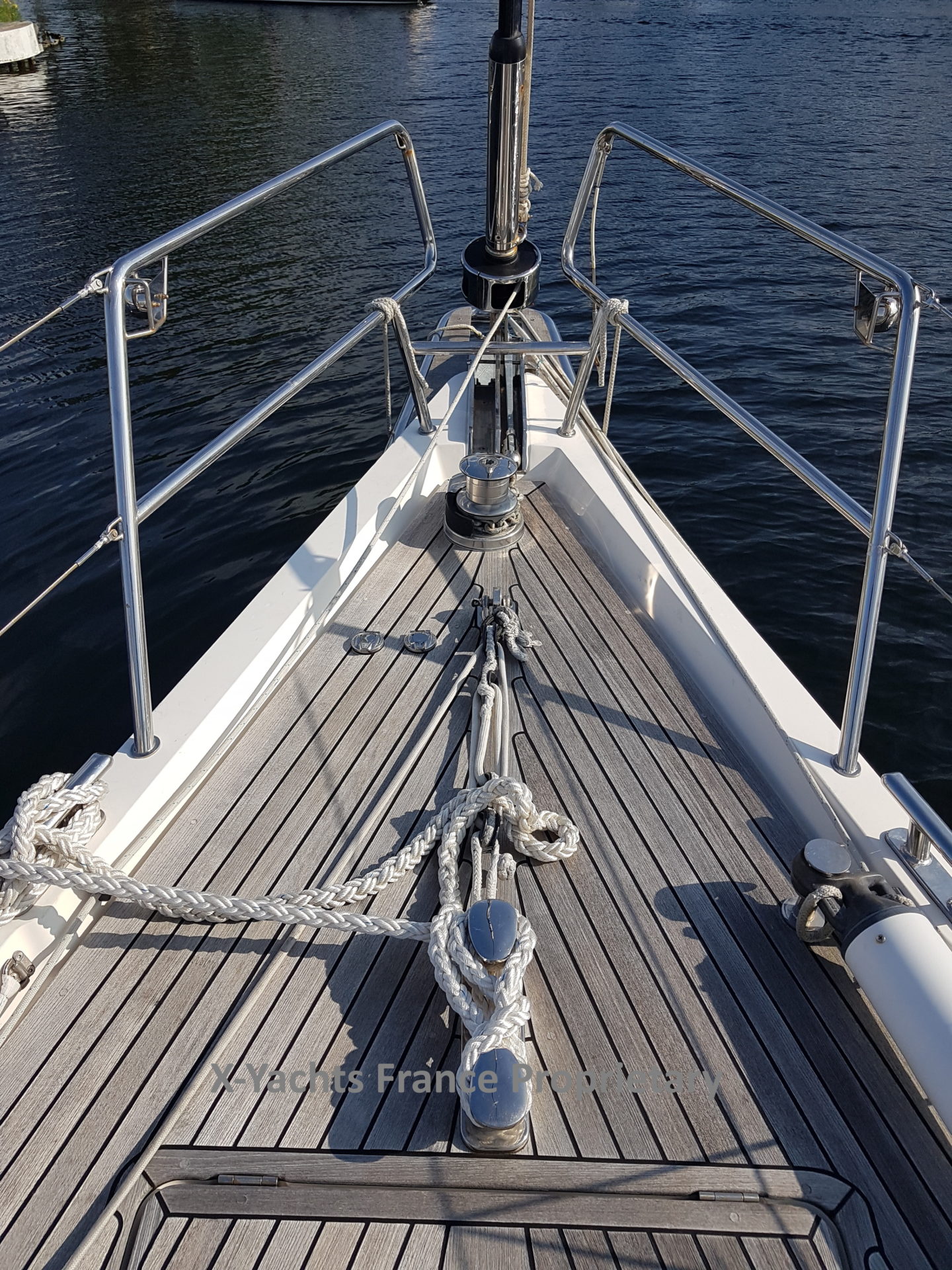

• • Anchor locker - drained with space for 50 m anchor chain
• • Electric windlass 1500 W 24 V with SPADE anchor and Force 7 chain
• • Stern moorings with anchor and electric windlass 24 V 1000 W
• • Gas locker storage of gas bottle located in port side, side deck (max 12 kg)
• • Space for a 6 man life raft in stb side transom locker
• • Gas springs fitted to sail cabin, port & stb cockpit lockers and port aft cockpit
• locker hatch (4 pcs)
• • Halyard locker recessed into cockpit

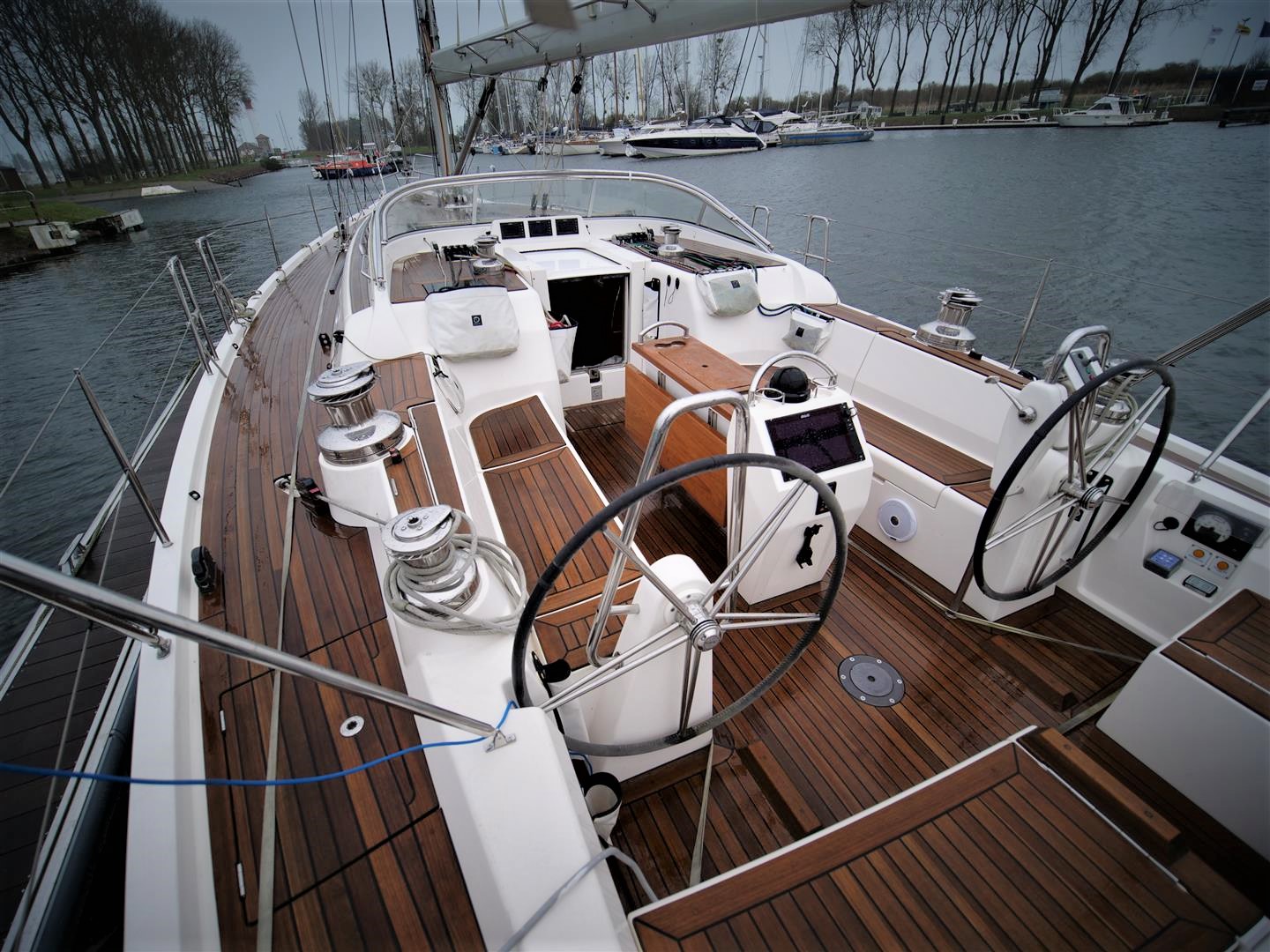

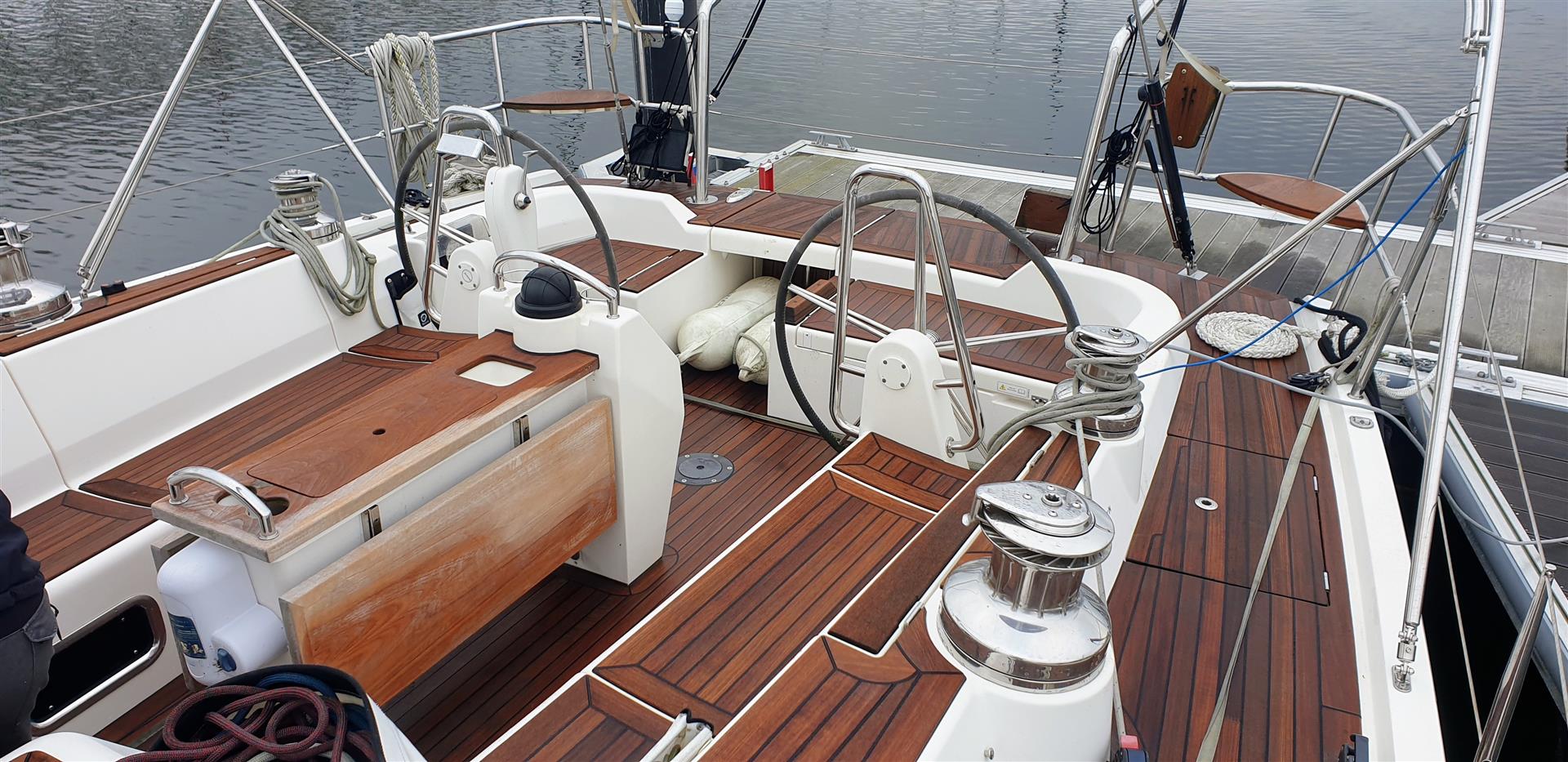

• • Cockpit table with space for navigational instruments (see extras) and compas

Sail Handling

• • Stainless Steel Andersen 68.2 primary winches
• • Stainless Steel Andersen 52.2 for Geman Mainsheet system
• • Stainless Steel Andersen 46.2 for halyards, including one electric
• • Spinlock Jammer/clutches for halyards/control lines/reef lines (x9)
• • Mainsail track in front of sprayhood
• • Genoa tracks mounted on deck with adjustable Genoa cars and control lines
• • Asymetric spinnaker hardware and rigging,stainless steel powsprit
• • Carbon spinnaker pool
• • Windscreen in Sekurit glass
• • Bimini

Sails

• NORTH SAILS quiver including
• Full batten Dyneema mainsail with ANTAL mastrack
• • Furling genoa with vertical battens Dyneema
• • Solent Dyneema + 1 storm jibe
• • Assymetric spinnaker with snuffler and carbon pool
• • Gennaker Norlam with 2.1 halyard, and FACNOR furler FX450

Mast & Rigging

• • JOHN MAST Fractional triple spreader, tapered silver anodized aluminium mast
• stepped on steel frame, specially designed for Xc 50
• • Combined deck and steaming light, Windex with light, tube for additional
• electrical equipment and 2 mast steps fitted
• • Silver anodized boom with single line reefing and internal boom outhaul with
• control on boom, telescopic vang and outer purchase block system
• • Split backstay fitted with single Navtec 10 integral backstay adjuster on starboard
• side and turnbuckle on port
• •Tip cups in stainless steel fitted to stainless steel tie rods (2 pcs)
• • Discontinuous rod rigging throughout with rod turnbuckles
• • Chain plates in stainless steel for forestay and split backstay (3 pcs)
• • Composit folding inerstay
• • Boom braker
• • RECKMANN RS2000 -30 headsail furler
• • Additional padeyes for storage on deck
• • Running Rigging with Spectta halyard

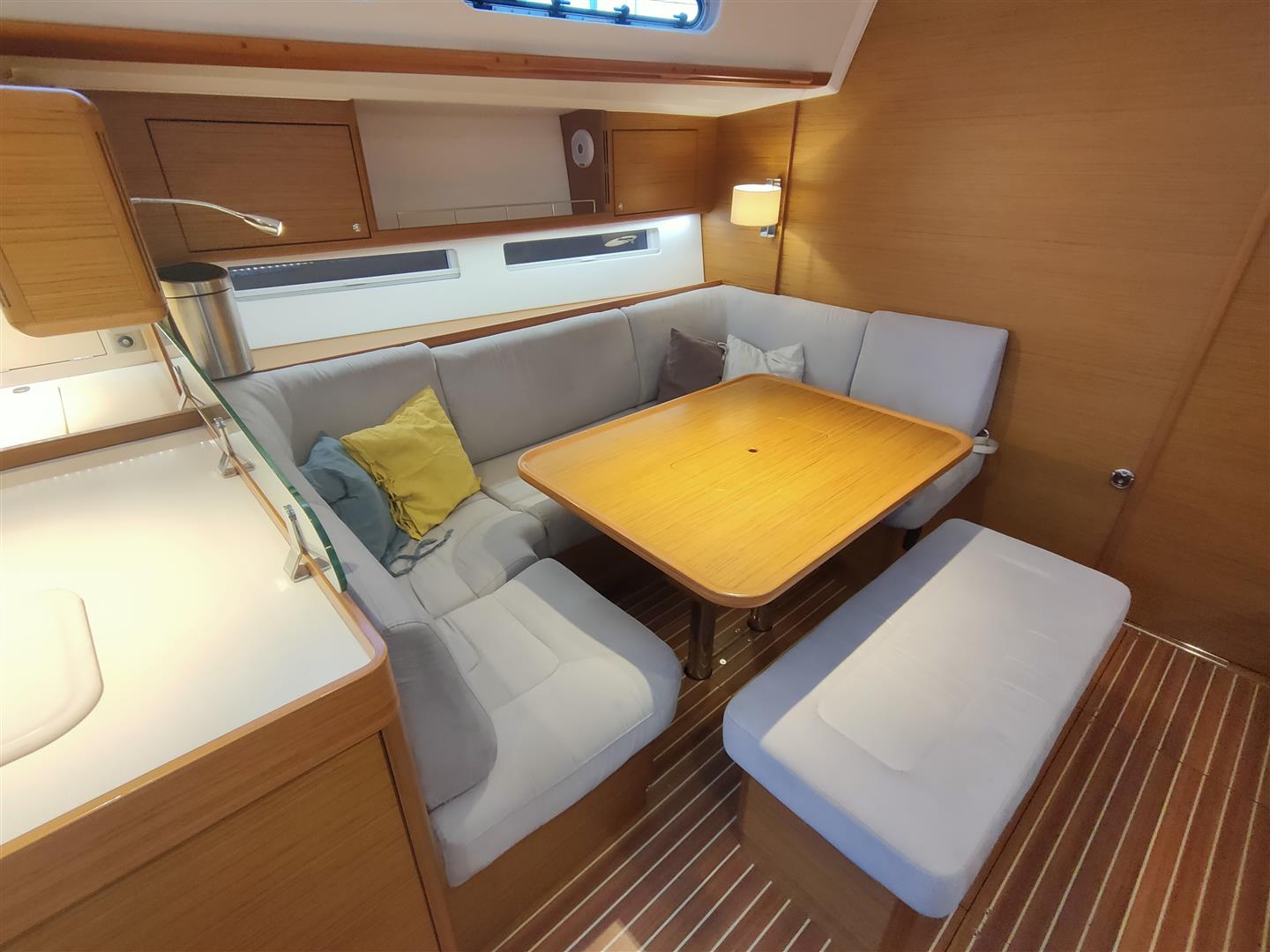

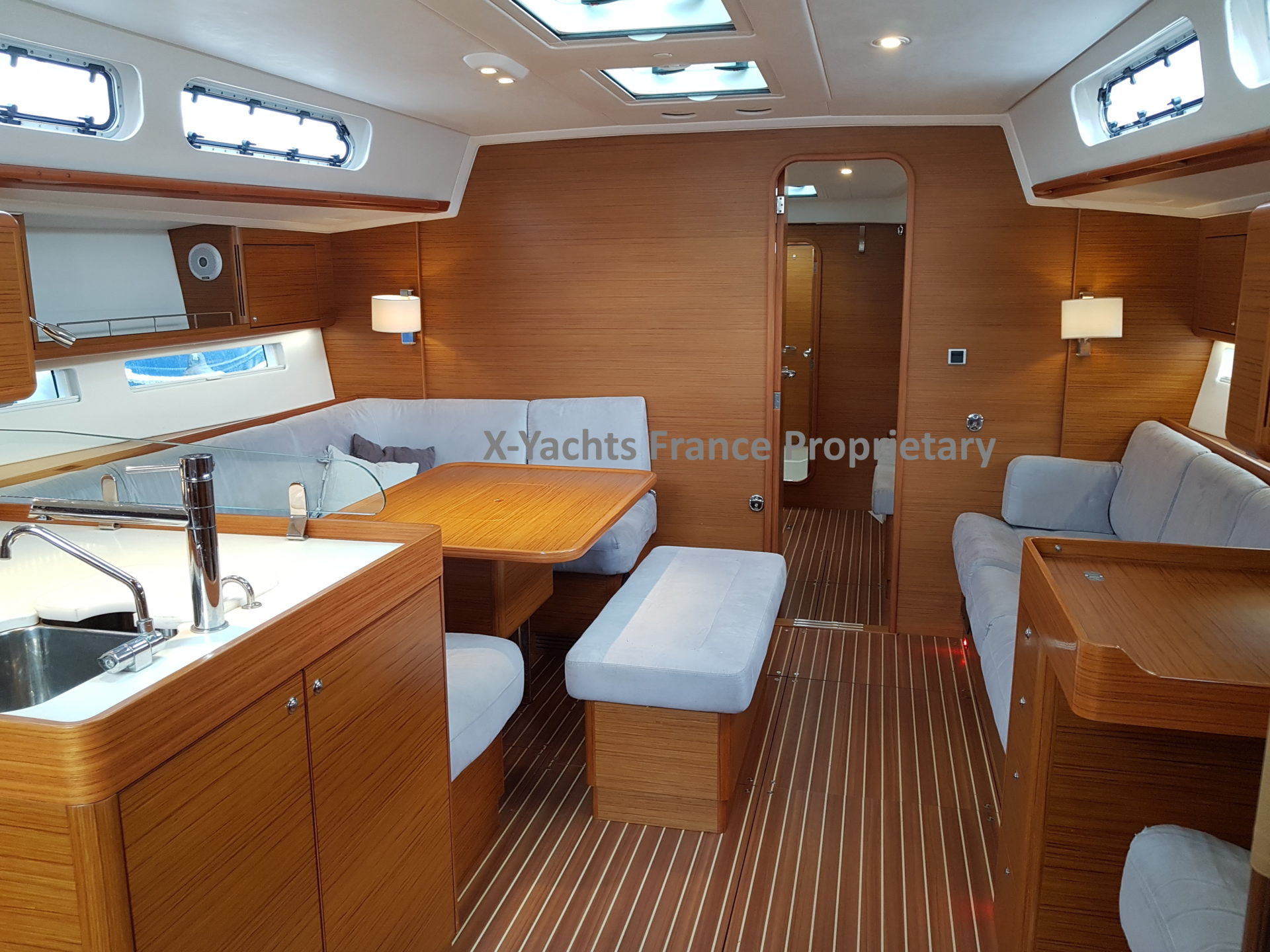

Accommodation

• • 3 cabins layout, 2 bathrooms
• • Top grade teak , varnished and hand polished satin finish, Flushdeck hatches
• with Oceanair blinds incl flyscreen fitted to skylights, anti rollcanvas in all cabins.
• • Owner's cabin with large double berth 210 x 140 on portside with curved
• laminated battens, soffa on starboard
• • Owner’s bathroom with dedicated shower compartment with Plexi glass
• door.Marine toilets with holding tank

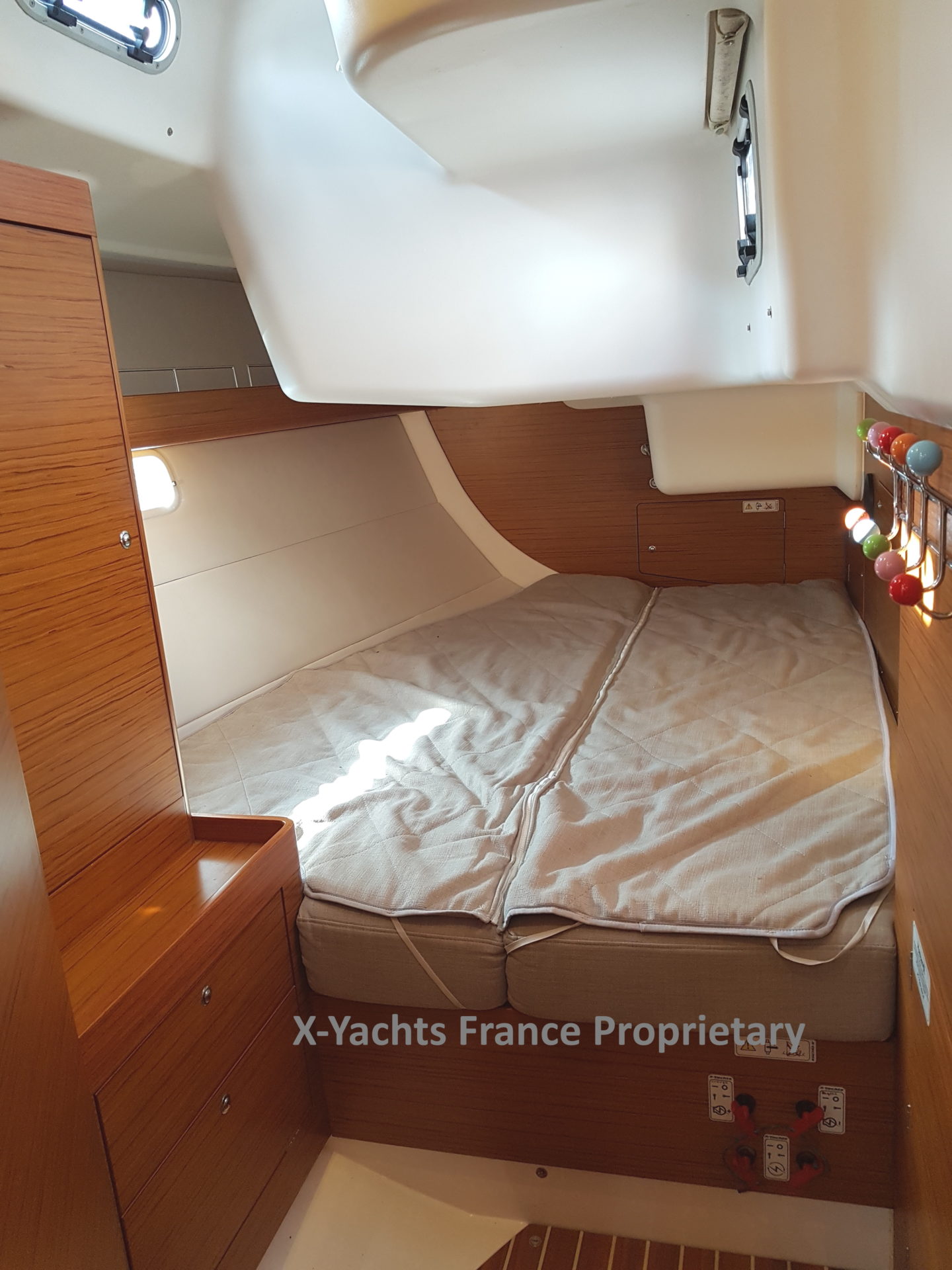

• • Large double berths in aft cabins
• • • Aft bathroom with shower, marine toilettes with holding tank Showers with
• electric drainage pump

Systems

Engine

• • Main engine - YANMAR (4JH4) 110 HP.
• • 1 x Alternator 24 V for charging service 24 V, 1x Alternator 12V for charging
• battery servive
• • 3-bladed GORI with Over drive Propeller connected to the engine via a shaft
• made of high tensile corrosion resistant stainless steel, through stainless steel Pbracket and stern tube fitted with maintenance free drip free seal
• • Engine control panel incorporates rpmmeter, hour counter, acoustic alarm for oil
• pressure and cooling water temperature, NMEA200 linked on B&G ZEUS plotter
• • 2 x Tanks in aluminium for fuel (Total 6 l) below saloon sole. VDO analogue level
• gauge, baffles, inspection hatches, separator incl. filter and shut-off valve and
• deck fill
• • Alarm and warning light activated in cockpit when consumption tank needs
• refilling
• • Retractable bowthruster MAXPOWER Compac Retract 24 V

Plumbing

• Seacocks and through hull fittings are bronze ball and flush mounted
• • Fresh water stainless steel tank total 808 litres
• • Hot water tank Isotherm 40 l. Tank can be heated either by main engine or
• immersion heater connected to shore power
• • Holding tank, 60 l, for both toiletts and deck outlet (2 pcs)
• • Pressurized freshwater system for hot and cold water throughout yacht
• • Seawater tap with electrical pump fitted at galley
• • Deck shower fitted at bathing platform with hot/cold freshwater
• • Fridge top opened 140 l built in Isotherm SP, accumulator plate sea water
• cooled Danfoss compressor
• • Fridge front opened ISOTHERM 85 L

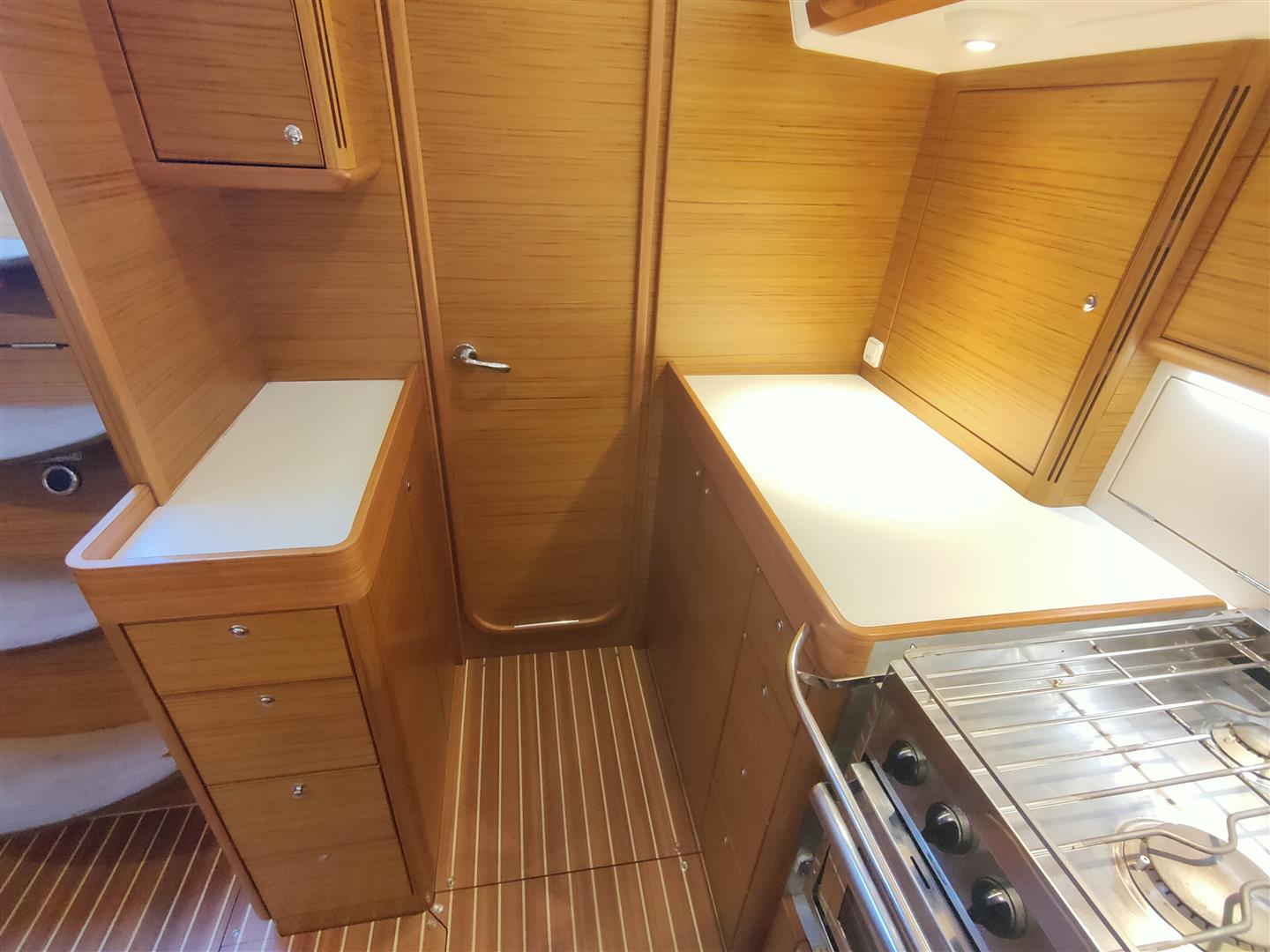

• • Gimballed FORCE 10 Gas cooker - 3 burner Eno cooker with oven
• • Eberspächer air pulsed heater
• • AQUABASE Watermaker 60 L/h

Electrical

• • • 24 V installation for service Main switch board with 27 automatic fuses and 3
• analogue VDO meters for fuel, water and battery voltage
• • 8 x 135 Ah AGM services batteries 2018 (total 520 Ah/ 24V)
• • Separate engine spiral-cell battery (70 Ah, 12V)
• • Shore power installation with shore power inlet mounted in cockpit
• • AC distribution box with circuit breaker/10A fuse, 230V AC socket and switches
• for hot water heater and VICTRON battery charger 24 V/50A
• • Halogen lights fitted for general purpose below deck throughout cabin
• • General lights and dome spotlights integrated in inner liner
• • Power Generator FISHER PANDA 4000i 4.0 KW (210h)
• • Hydrogenerator WATT &SEA 600 Cruising
• • Watermaker AQUABASE 60 L/h
• • Flex solar pannels 2 x 110 Ah

Electronics

• • B&G H5000® with "Hercule" processor + 3D motions
• • 3 x displays H5000 Graphic in the cockpit
• • 1 x H5000 Graphic at the chart table
• • Sensors Log Depth et Wind with carbon vertical mast head unit
• • GPS ZG100® Antenna
• • Module WIFI GoFree®
• • H5000 Autopilot Pack
• • 2 électrics ram Raymarine® (Système de secours)
• • Remote control for autopilot (Remplacement 06/2019)

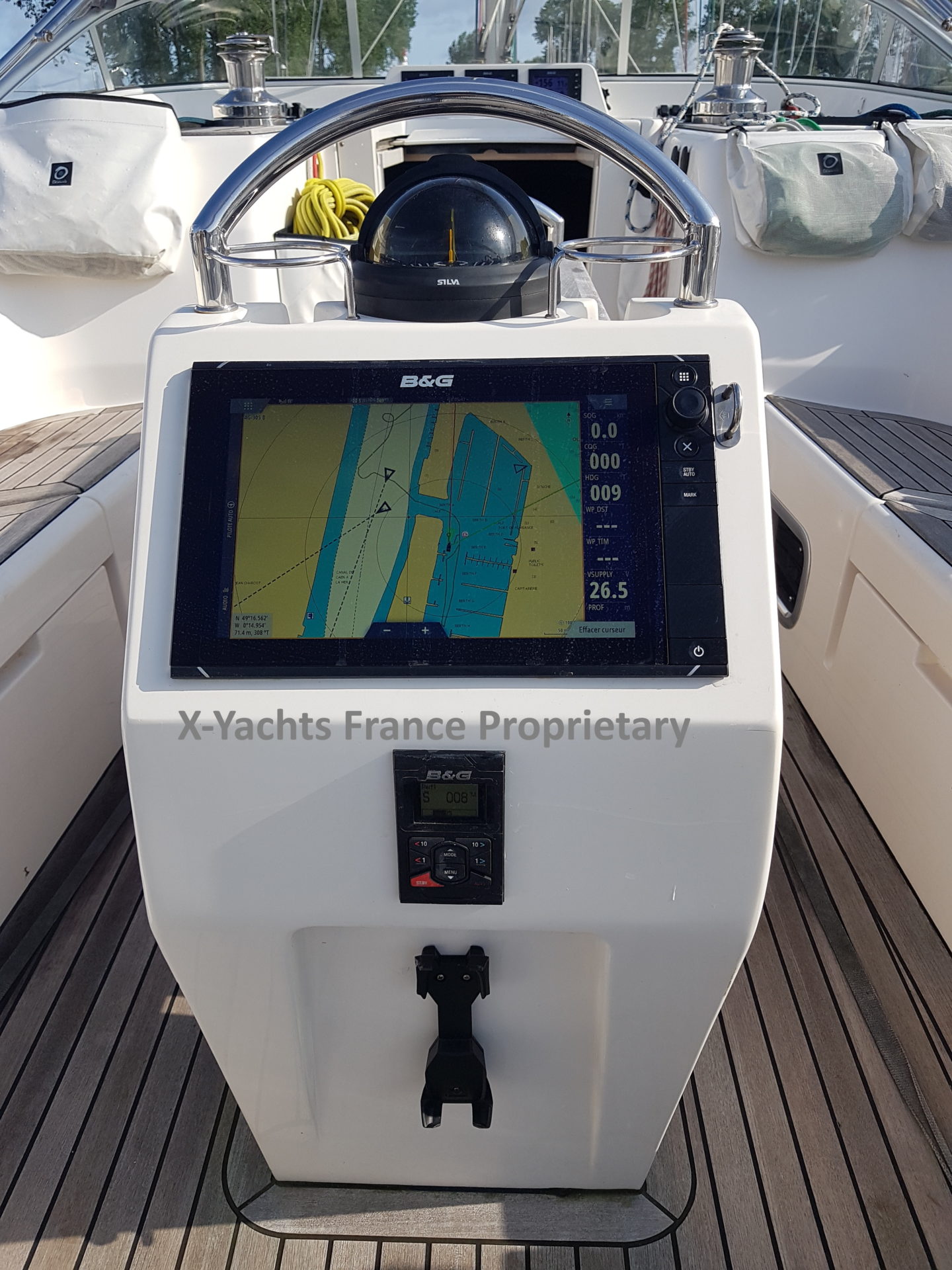

• • 2 x multifonctions B&G ZEUS 12" (cockpit) et ZEUS 9" (chart table)
• • B&G Radar 4G® antenna
• • Sonar B&G Forward Scan

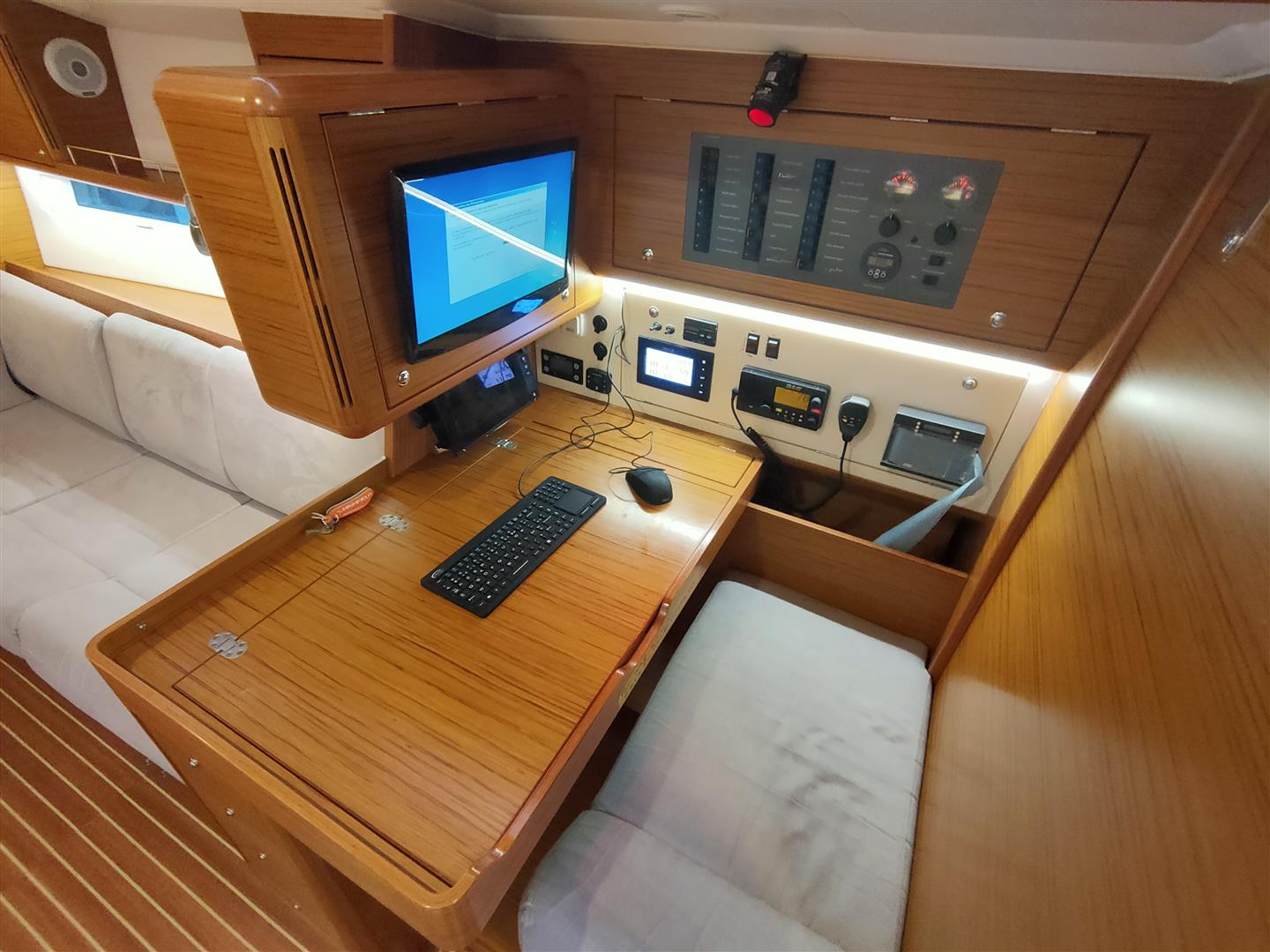

• • Computer Windows7® at the chart table for navigation software
• • Full connecting : H5000 - Fusion® - PC - VHF – Wifi wifi antenna HR
• • Automatic electronic foghorn
• • Transpondeur radar (EchoMax® X-band)
• • Electronic barometer
• • VHF DSC / AIS B&G V50 with cockpit handset H50
• • Transponder NAIS 400B VHF et AIS antenna
• • Multimedia FUSION with HP in the saloon and cockpit

Thrusters

• • VIKING RescYou Pro liferat with hydrostatic lancer
• • RLS OCEAN SIGNAL emergency beacon with hydrostatic lancer
• • 7 x CREWSAVER lifejackets, IOR
• • CO2 extinguisher for engine room, dry fire extinguishers in the cabins, C0
• detection alarms
• • Dinghy semi inftable HIGHFIELD UL 260 and Outboard SUZUKI 4 strokes 6 HP
